The Wifi MAC high model for a non-AP STA in a BSS. More...

#include "sta-wifi-mac.h"

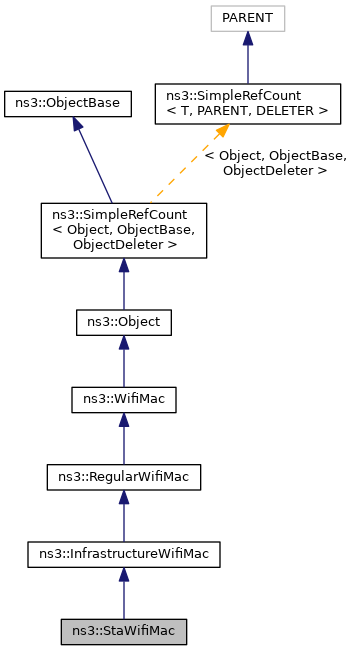

Inheritance diagram for ns3::StaWifiMac:

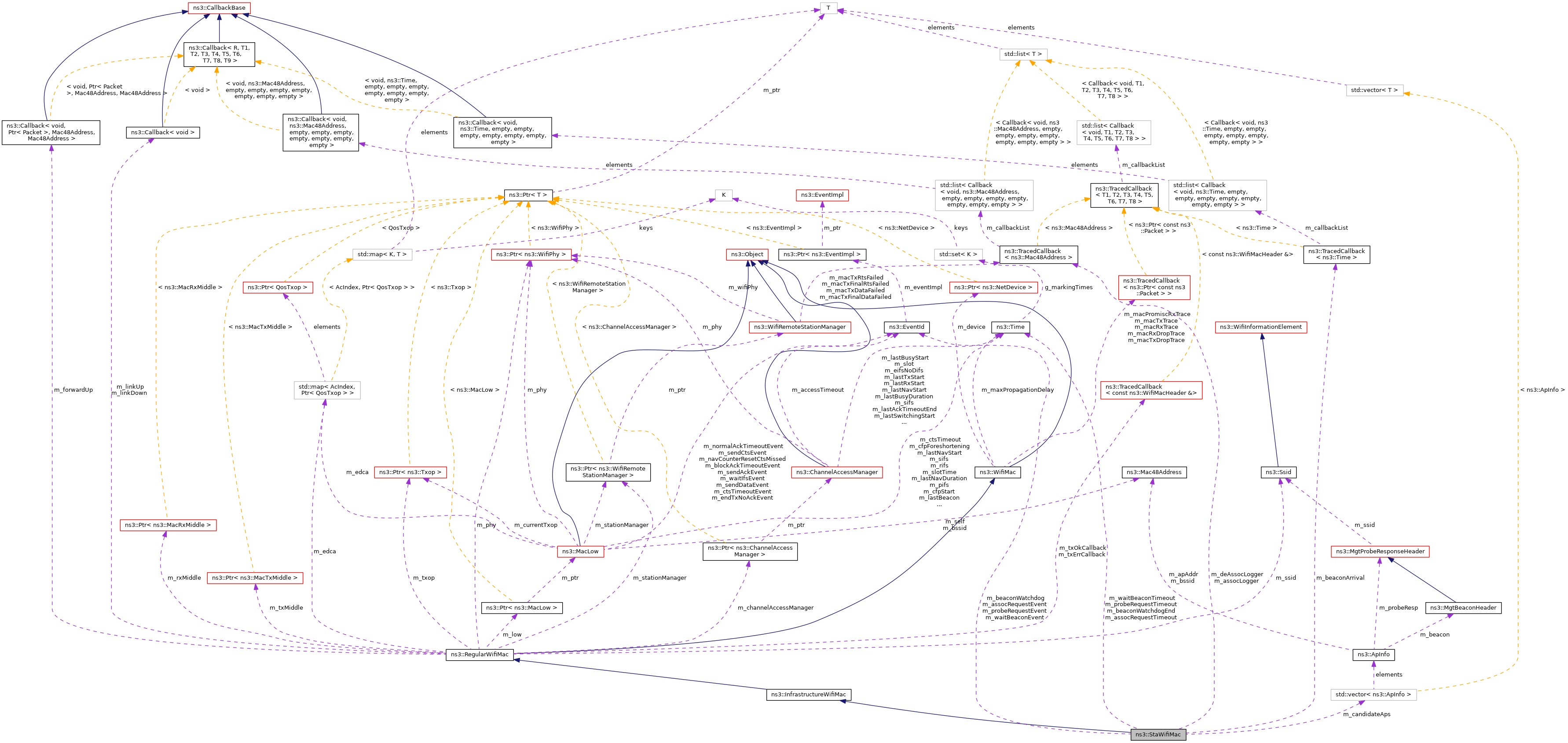

Collaboration diagram for ns3::StaWifiMac:

Public Member Functions
	StaWifiMac ()

virtual	~StaWifiMac ()

void	Enqueue (Ptr< const Packet > packet, Mac48Address to)

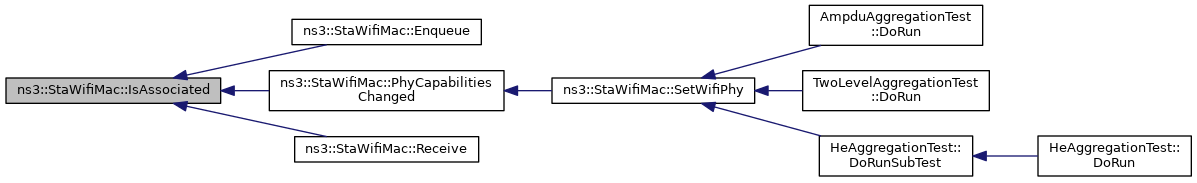

bool	IsAssociated (void) const
	Return whether we are associated with an AP. More...

void	SetWifiPhy (const Ptr< WifiPhy > phy)

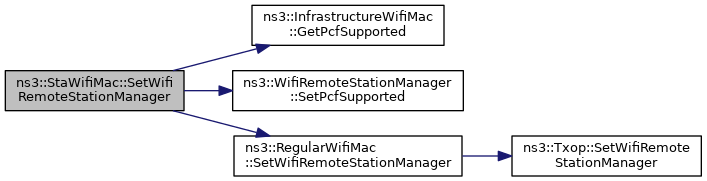

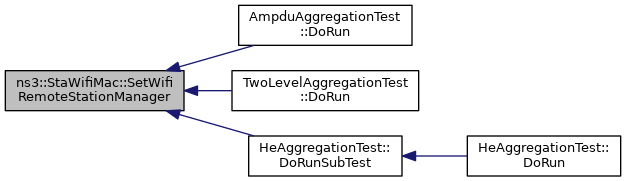

void	SetWifiRemoteStationManager (const Ptr< WifiRemoteStationManager > stationManager)
	Set up WifiRemoteStationManager associated with this StaWifiMac. More...

Public Member Functions inherited from ns3::InfrastructureWifiMac
	InfrastructureWifiMac ()

virtual	~InfrastructureWifiMac ()

bool	GetPcfSupported () const
	Return whether the device supports PCF. More...

void	SetPcfSupported (bool enable)
	Enable or disable PCF support for the device. More...

void	SetQosSupported (bool enable)
	Enable or disable QoS support for the device. More...

Public Member Functions inherited from ns3::RegularWifiMac
	RegularWifiMac ()

virtual	~RegularWifiMac ()

virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to, Mac48Address from)

Time	GetAckTimeout (void) const

Mac48Address	GetAddress (void) const

Time	GetBasicBlockAckTimeout (void) const

Mac48Address	GetBssid (void) const

Time	GetCompressedBlockAckTimeout (void) const

Time	GetCtsTimeout (void) const

Time	GetEifsNoDifs (void) const

ExtendedCapabilities	GetExtendedCapabilities (void) const
	Return the extended capabilities of the device. More...

HeCapabilities	GetHeCapabilities (void) const
	Return the HE capabilities of the device. More...

HtCapabilities	GetHtCapabilities (void) const
	Return the HT capabilities of the device. More...

Time	GetPifs (void) const

Time	GetRifs (void) const

bool	GetRifsSupported (void) const

bool	GetShortSlotTimeSupported (void) const

Time	GetSifs (void) const

Time	GetSlot (void) const

Ssid	GetSsid (void) const

VhtCapabilities	GetVhtCapabilities (void) const
	Return the VHT capabilities of the device. More...

Ptr< WifiPhy >	GetWifiPhy (void) const

Ptr< WifiRemoteStationManager >	GetWifiRemoteStationManager (void) const

void	ResetWifiPhy (void)
	removes attached WifiPhy device from this MAC. More...

void	SetAckTimeout (Time ackTimeout)

void	SetAddress (Mac48Address address)

void	SetBasicBlockAckTimeout (Time blockAckTimeout)

void	SetBssid (Mac48Address bssid)

void	SetCompressedBlockAckTimeout (Time blockAckTimeout)

void	SetCtsTimeout (Time ctsTimeout)

void	SetCtsToSelfSupported (bool enable)
	Enable or disable CTS-to-self feature. More...

void	SetEifsNoDifs (Time eifsNoDifs)

void	SetForwardUpCallback (ForwardUpCallback upCallback)

void	SetLinkDownCallback (Callback< void > linkDown)

void	SetLinkUpCallback (Callback< void > linkUp)

void	SetPifs (Time pifs)

void	SetPromisc (void)
	Sets the interface in promiscuous mode. More...

void	SetRifs (Time rifs)

void	SetRifsSupported (bool enable)
	Enable or disable RIFS feature. More...

void	SetShortSlotTimeSupported (bool enable)
	Enable or disable short slot time feature. More...

void	SetSifs (Time sifs)

void	SetSlot (Time slotTime)

void	SetSsid (Ssid ssid)

virtual bool	SupportsSendFrom (void) const

Public Member Functions inherited from ns3::WifiMac
void	ConfigureStandard (WifiPhyStandard standard)

Ptr< NetDevice >	GetDevice (void) const
	Return the device this PHY is associated with. More...

Ptr< HeConfiguration >	GetHeConfiguration (void) const

Ptr< HtConfiguration >	GetHtConfiguration (void) const

Ptr< VhtConfiguration >	GetVhtConfiguration (void) const

void	NotifyPromiscRx (Ptr< const Packet > packet)

void	NotifyRx (Ptr< const Packet > packet)

void	NotifyRxDrop (Ptr< const Packet > packet)

void	NotifyTx (Ptr< const Packet > packet)

void	NotifyTxDrop (Ptr< const Packet > packet)

void	SetDevice (const Ptr< NetDevice > device)
	Sets the device this PHY is associated with. More...

virtual void	SetForwardUpCallback (Callback< void, Ptr< Packet >, Mac48Address, Mac48Address > upCallback)=0

void	SetMaxPropagationDelay (Time delay)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::InfrastructureWifiMac
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::RegularWifiMac
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::WifiMac
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
enum	MacState { ASSOCIATED, WAIT_BEACON, WAIT_PROBE_RESP, WAIT_ASSOC_RESP, UNASSOCIATED, REFUSED }
	The current MAC state of the STA. More...

Private Member Functions

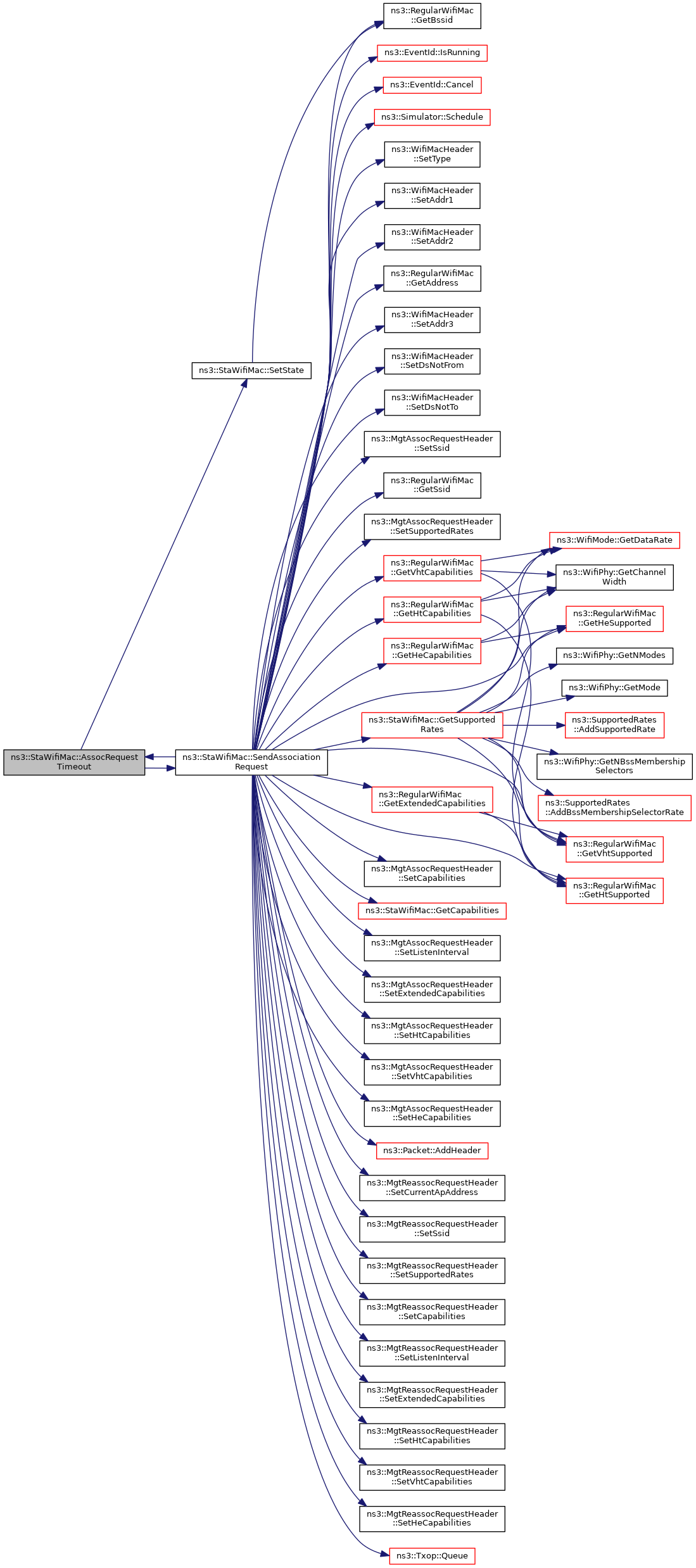

void	AssocRequestTimeout (void)
	This method is called after the association timeout occurred. More...

void	DoInitialize (void)
	Initialize() implementation. More...

bool	GetActiveProbing (void) const
	Return whether active probing is enabled. More...

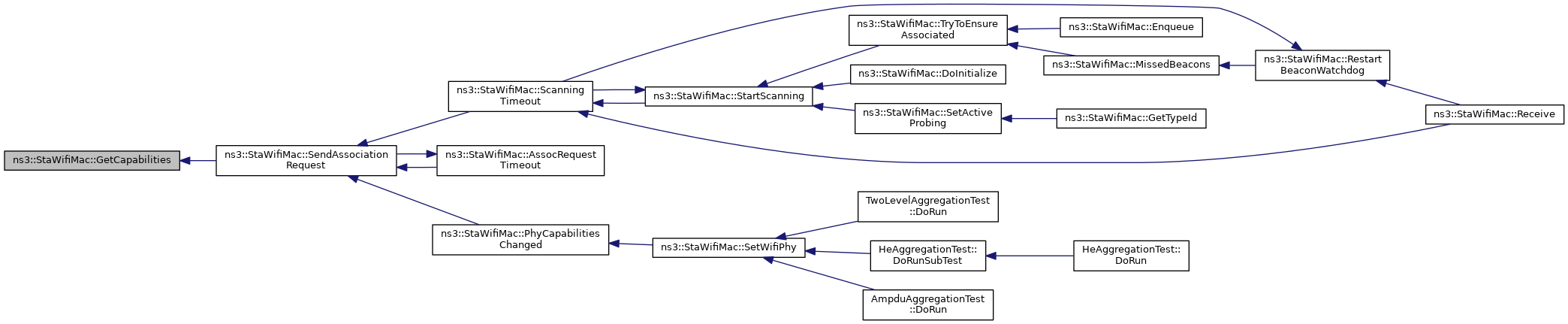

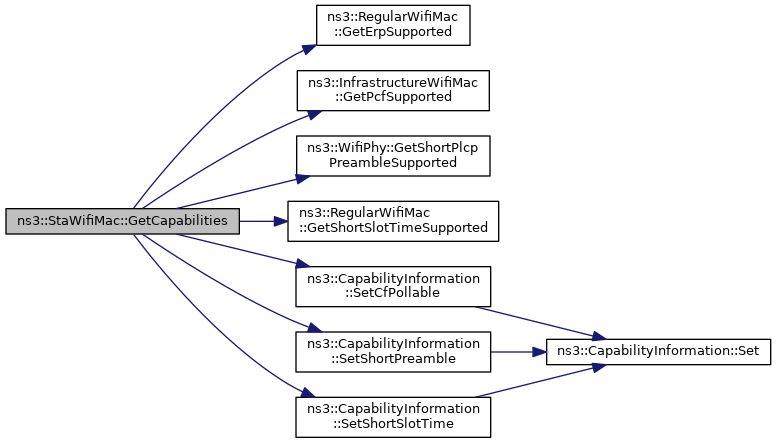

CapabilityInformation	GetCapabilities (void) const
	Return the Capability information of the current STA. More...

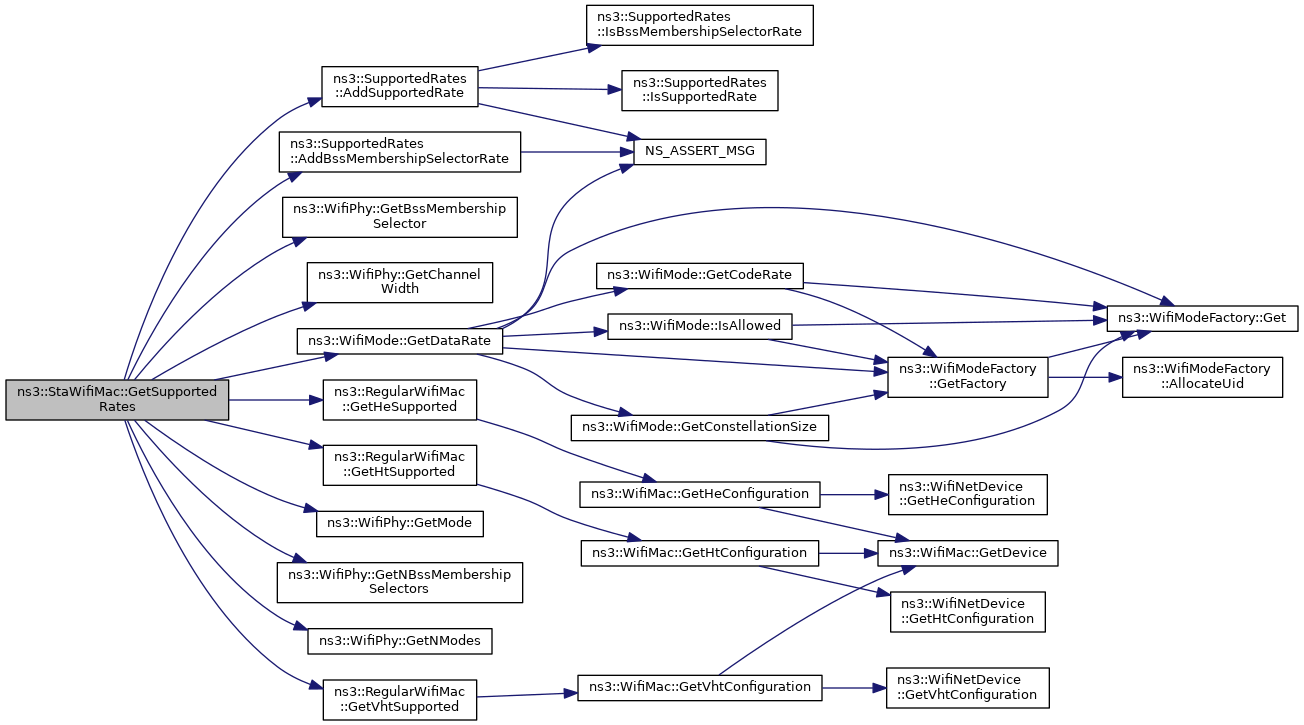

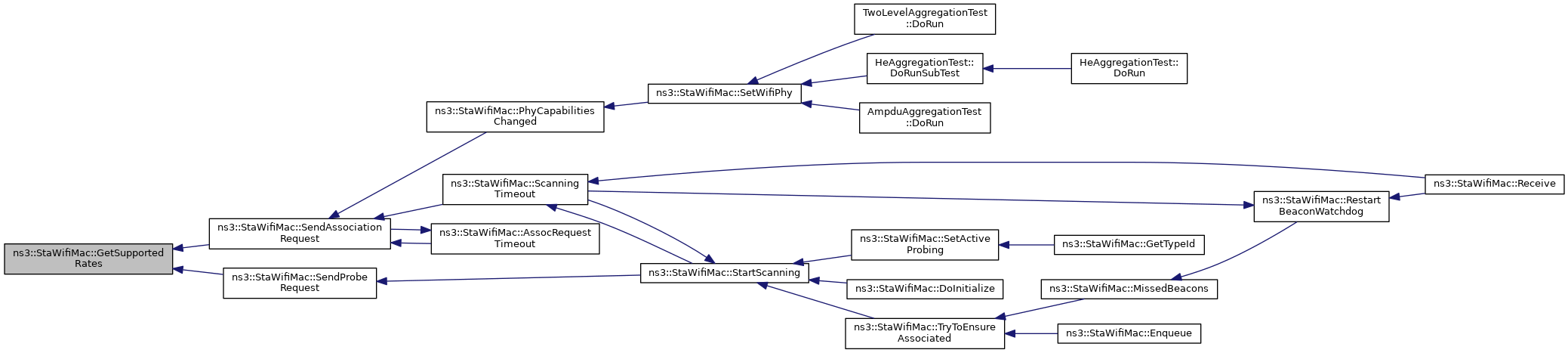

SupportedRates	GetSupportedRates (void) const
	Return an instance of SupportedRates that contains all rates that we support including HT rates. More...

bool	IsWaitAssocResp (void) const
	Return whether we are waiting for an association response from an AP. More...

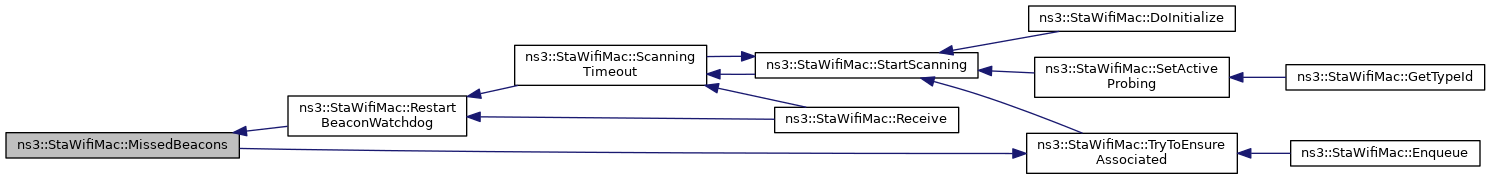

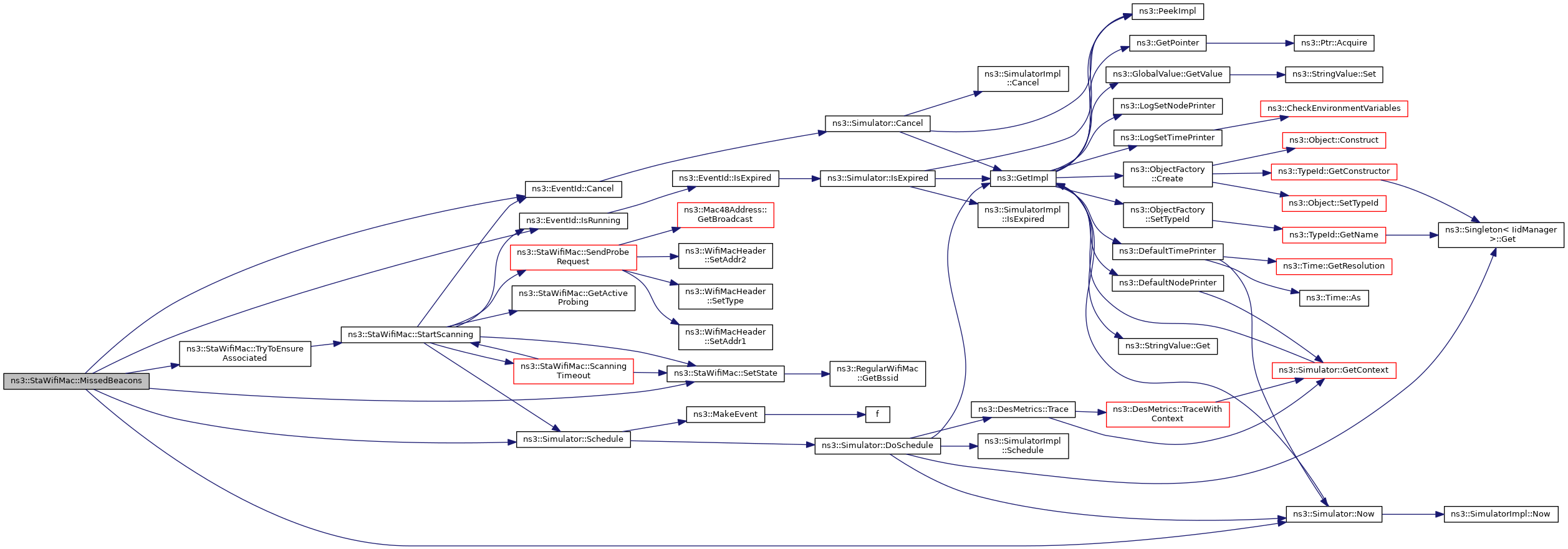

void	MissedBeacons (void)
	This method is called after we have not received a beacon from the AP. More...

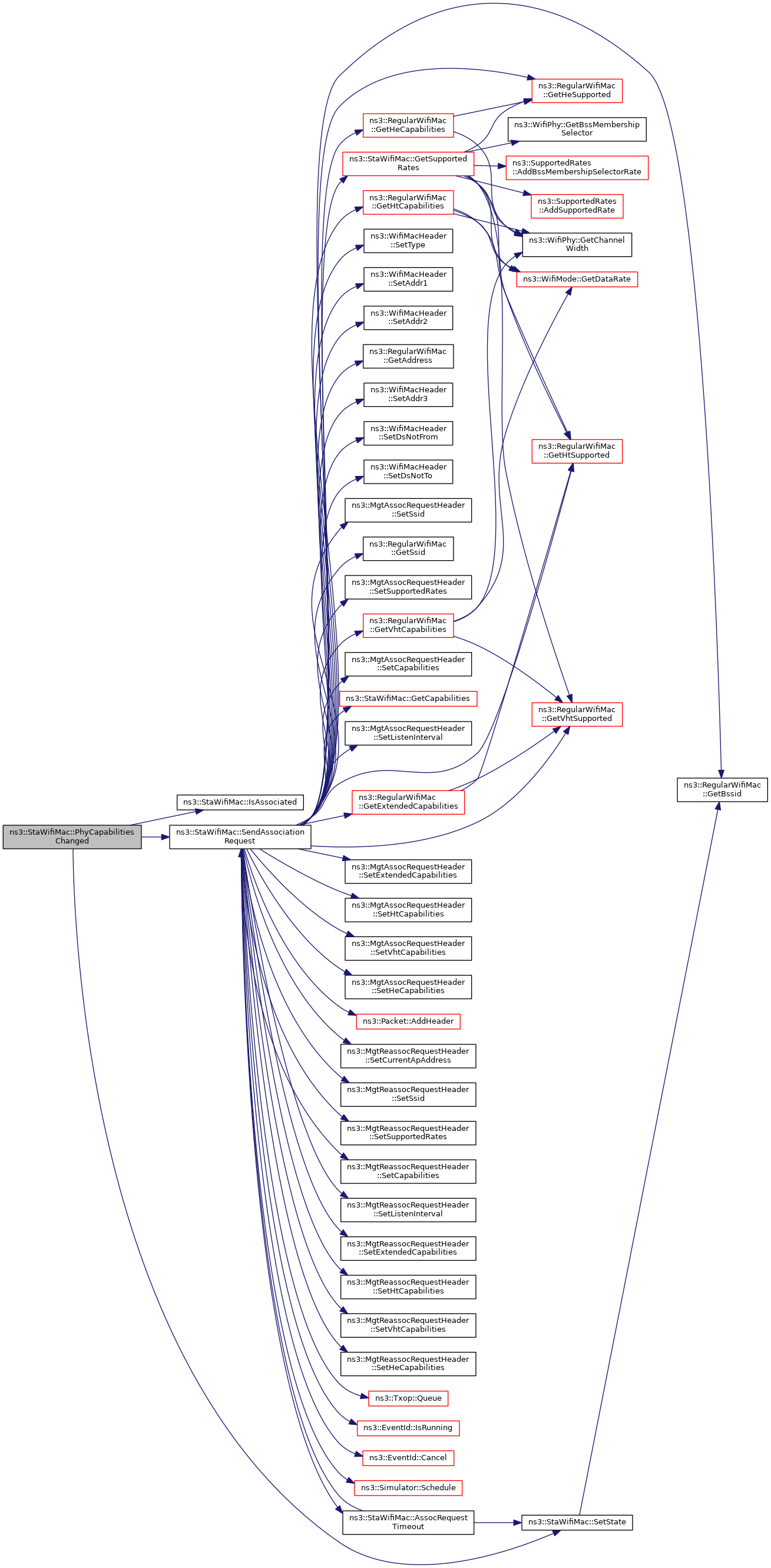

void	PhyCapabilitiesChanged (void)
	Indicate that PHY capabilities have changed. More...

void	Receive (Ptr< Packet > packet, const WifiMacHeader *hdr)
	Handle a received packet. More...

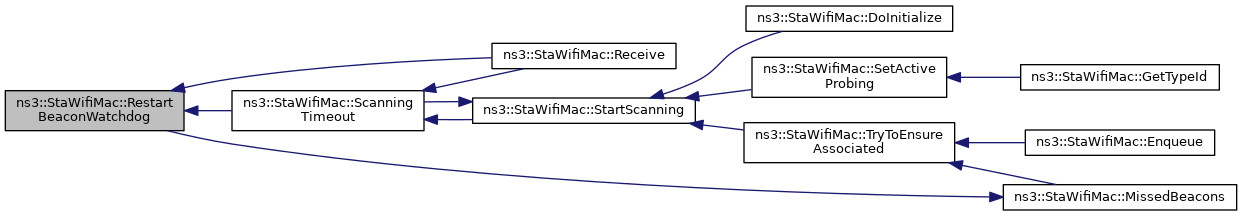

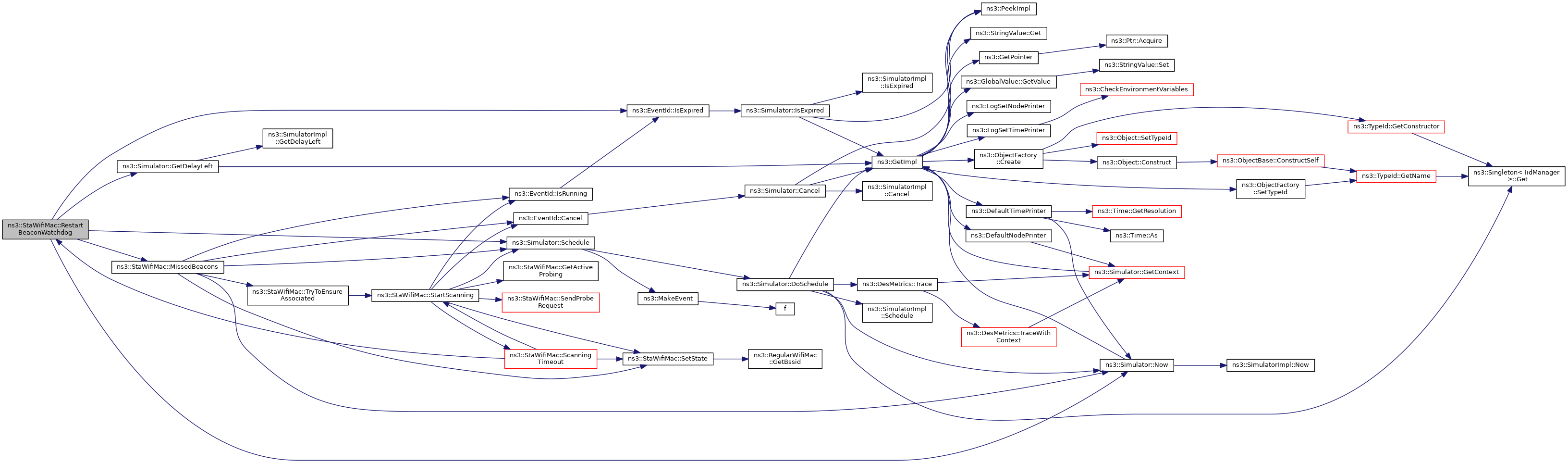

void	RestartBeaconWatchdog (Time delay)
	Restarts the beacon timer. More...

void	ScanningTimeout (void)
	This method is called after wait beacon timeout or wait probe request timeout has occurred. More...

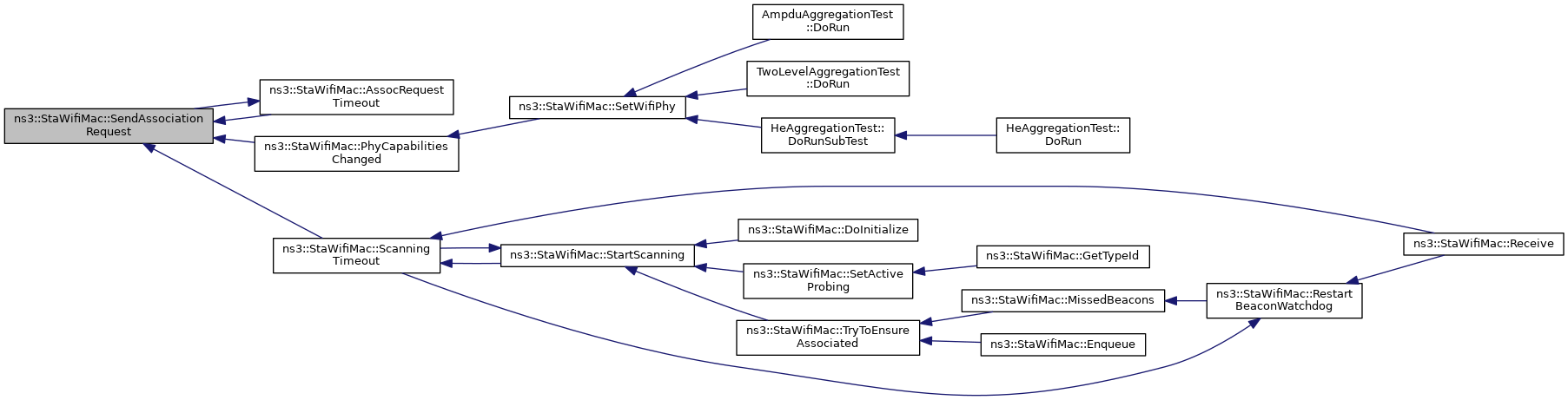

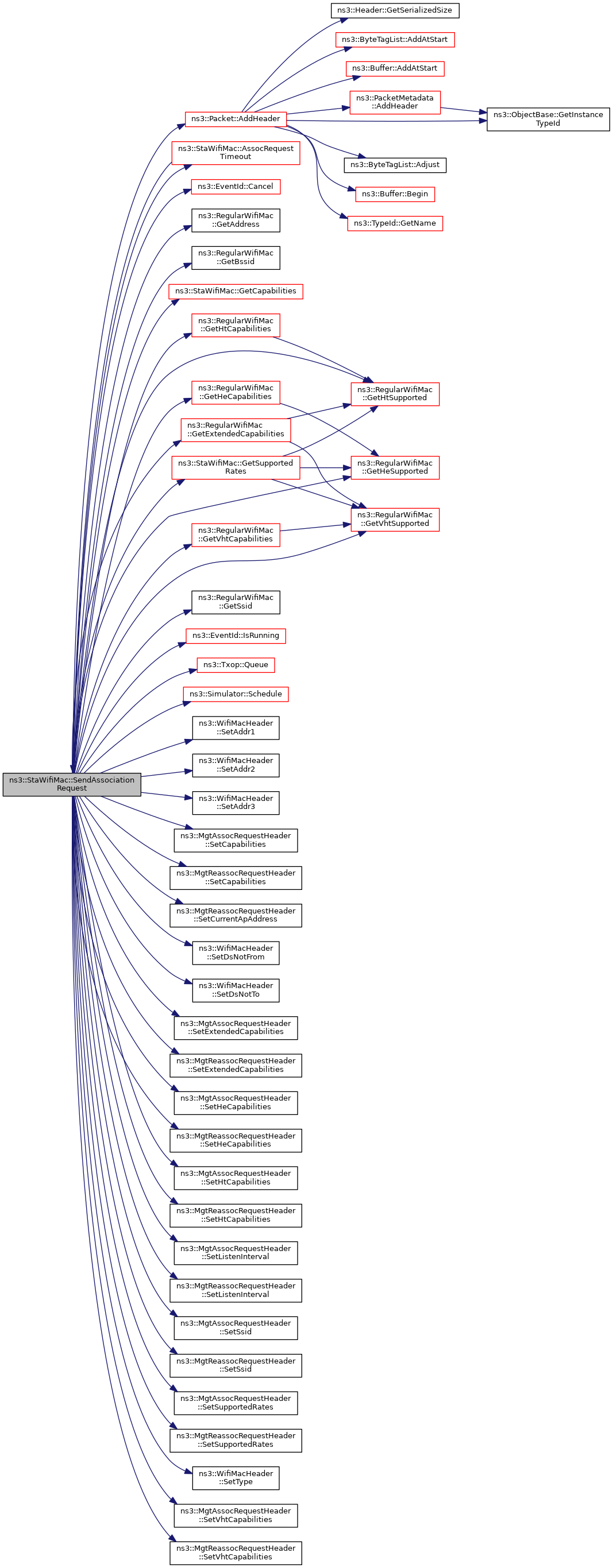

void	SendAssociationRequest (bool isReassoc)
	Forward an association or reassociation request packet to the DCF. More...

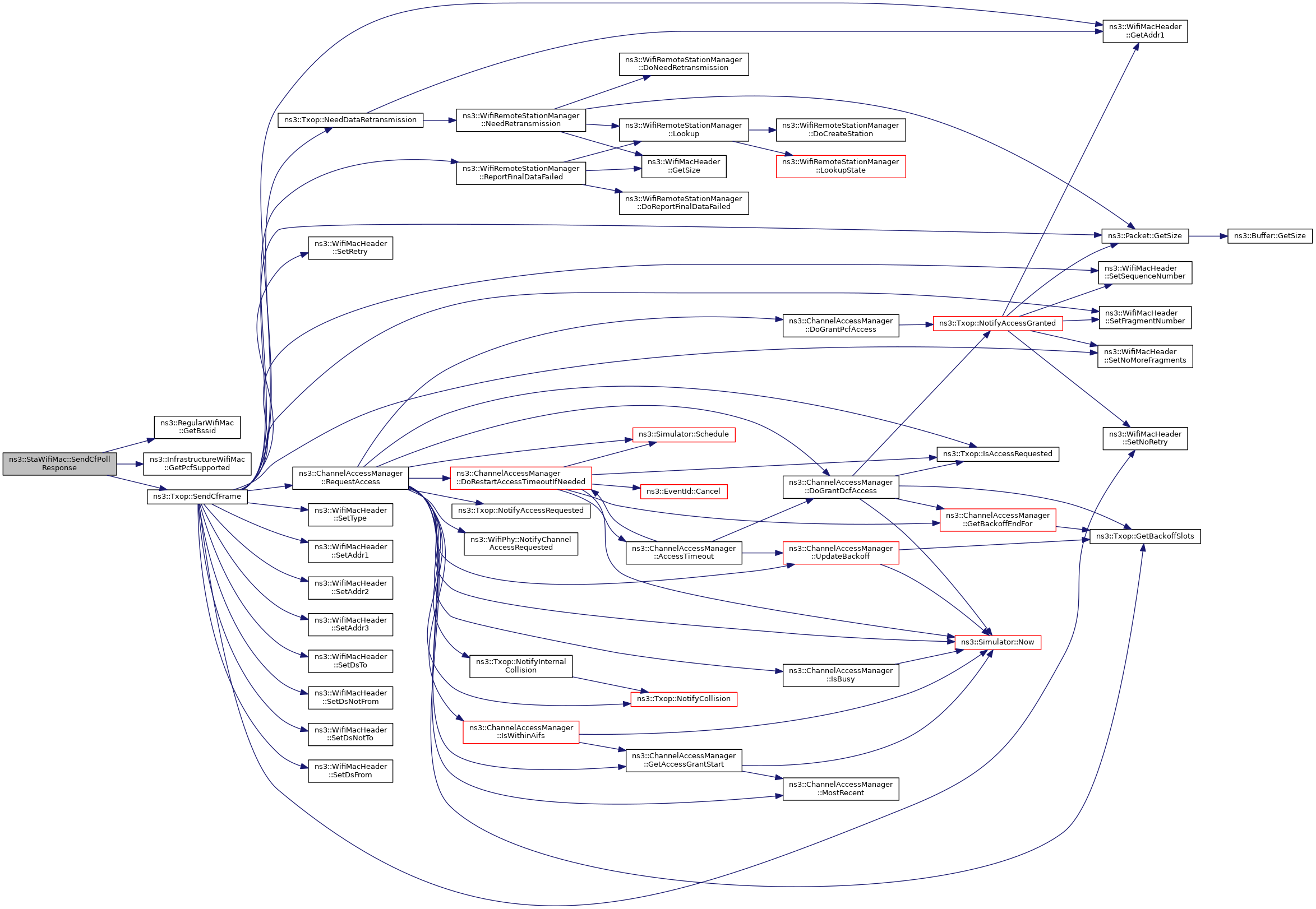

void	SendCfPollResponse (void)
	Forward a CF-Poll response packet to the CFP queue. More...

void	SendProbeRequest (void)

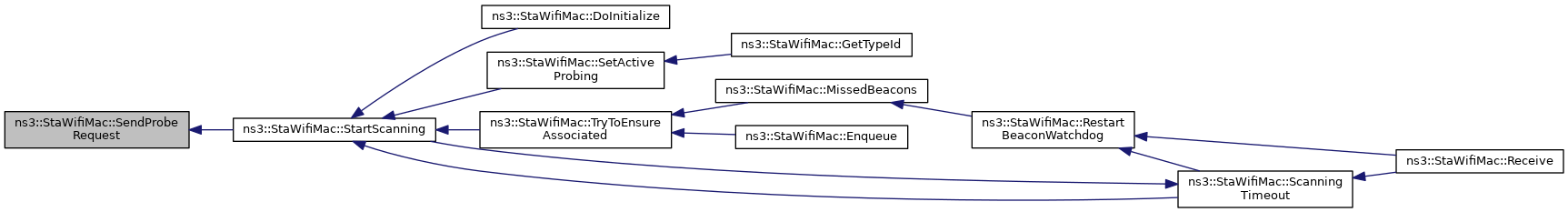

	Forward a probe request packet to the DCF. More...

void	SetActiveProbing (bool enable)
	Enable or disable active probing. More...

void	SetEdcaParameters (AcIndex ac, uint32_t cwMin, uint32_t cwMax, uint8_t aifsn, Time txopLimit)
	Set the EDCA parameters. More...

void	SetState (MacState value)
	Set the current MAC state. More...

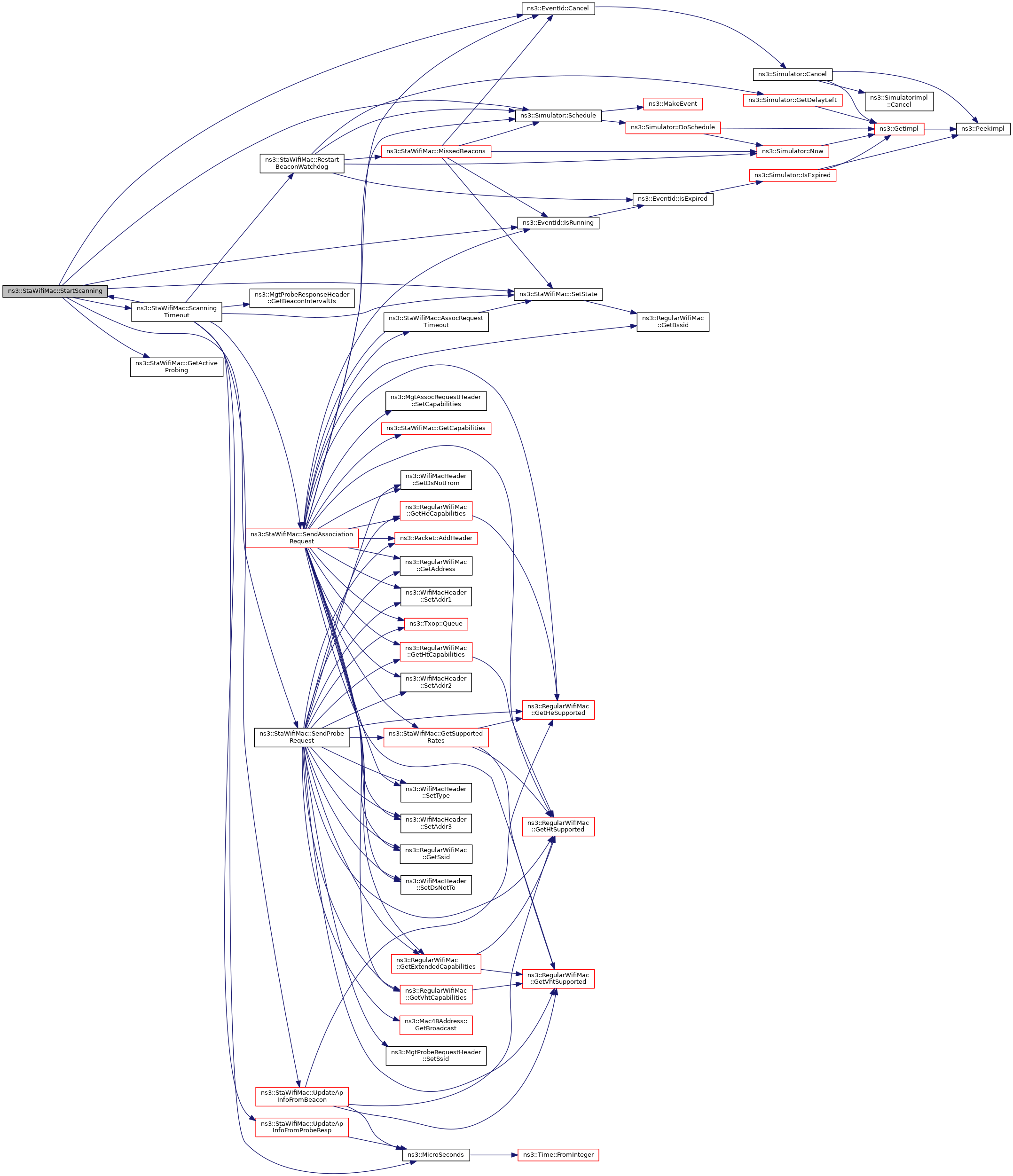

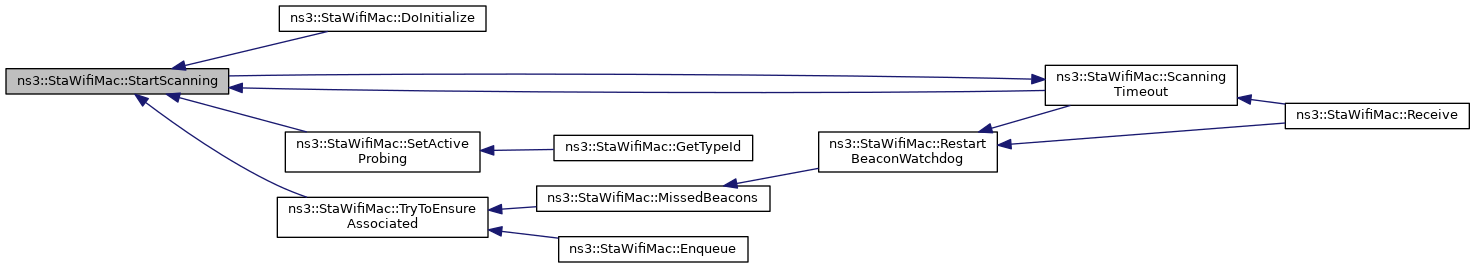

void	StartScanning (void)
	Start the scanning process which trigger active or passive scanning based on the active probing flag. More...

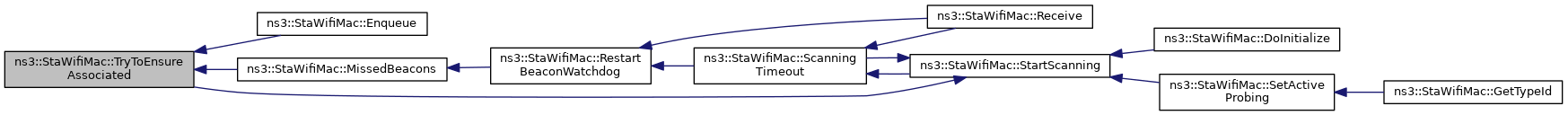

void	TryToEnsureAssociated (void)
	Try to ensure that we are associated with an AP by taking an appropriate action depending on the current association status. More...

void	UpdateApInfoFromAssocResp (MgtAssocResponseHeader assocResp, Mac48Address apAddr)
	Update AP's information from association response. More...

void	UpdateApInfoFromBeacon (MgtBeaconHeader beacon, Mac48Address apAddr, Mac48Address bssid)
	Update associated AP's information from beacon. More...

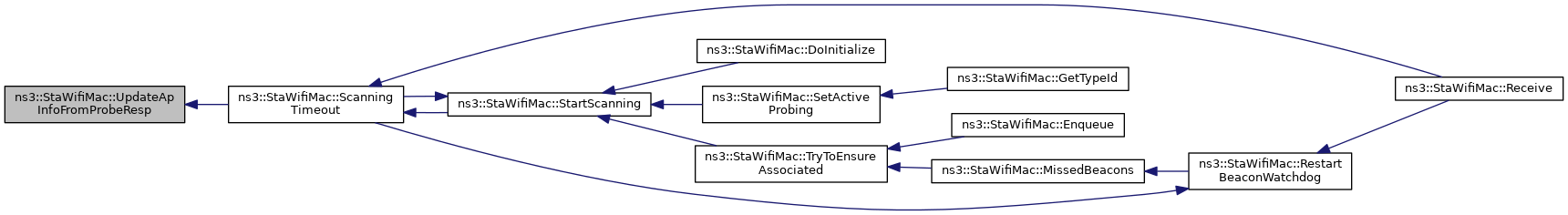

void	UpdateApInfoFromProbeResp (MgtProbeResponseHeader probeResp, Mac48Address apAddr, Mac48Address bssid)

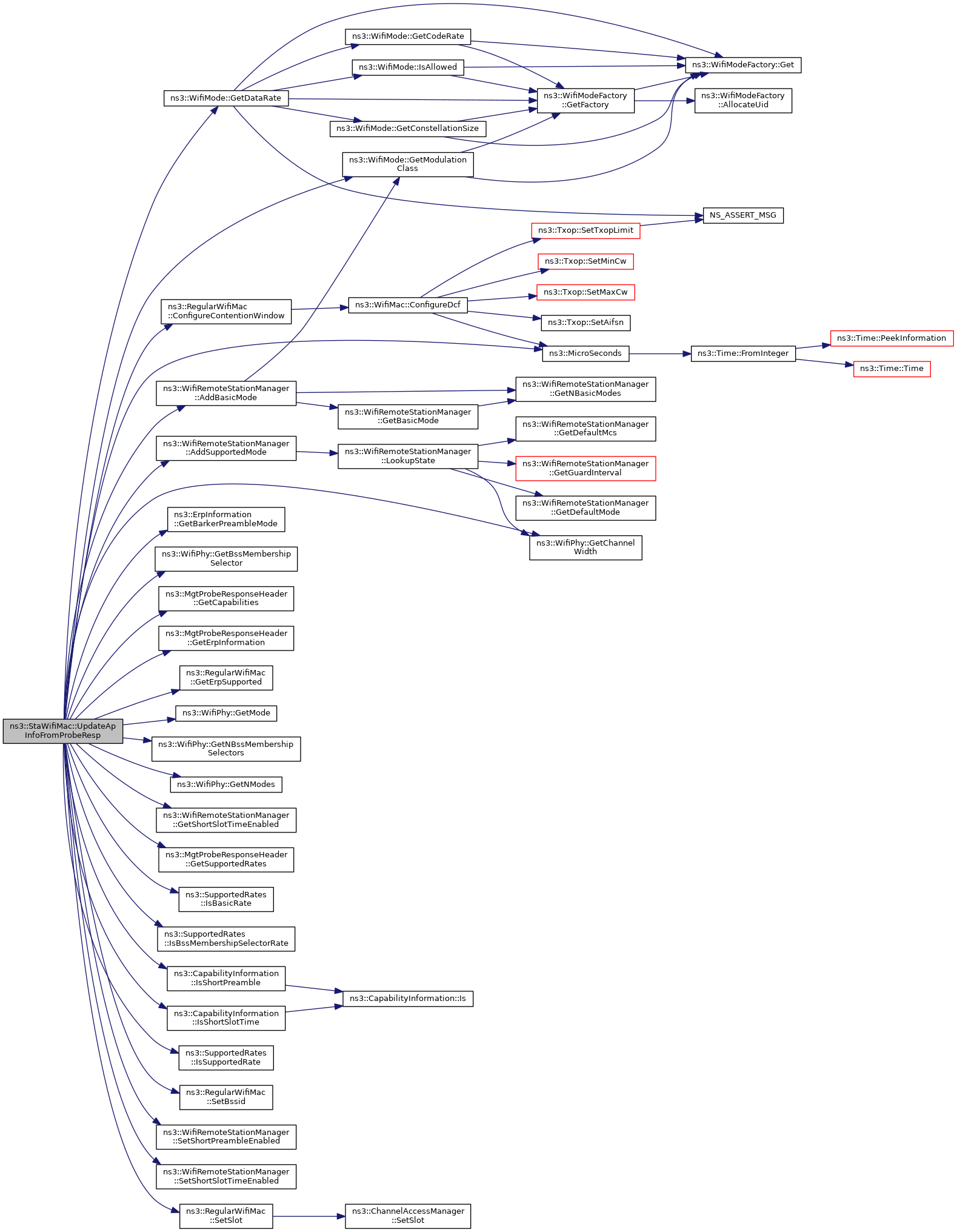

	Update AP's information from probe response. More...

void	UpdateCandidateApList (ApInfo newApInfo)
	Update list of candidate AP to associate. More...

Private Attributes
bool	m_activeProbing
	active probing More...

TracedCallback< Mac48Address >	m_assocLogger
	assoc logger More...

EventId	m_assocRequestEvent
	assoc request event More...

Time	m_assocRequestTimeout
	assoc request timeout More...

TracedCallback< Time >	m_beaconArrival
	beacon arrival logger More...

EventId	m_beaconWatchdog
	beacon watchdog More...

Time	m_beaconWatchdogEnd
	beacon watchdog end More...

std::vector< ApInfo >	m_candidateAps
	list of candidate APs to associate More...

TracedCallback< Mac48Address >	m_deAssocLogger
	deassoc logger More...

uint32_t	m_maxMissedBeacons
	maximum missed beacons More...

EventId	m_probeRequestEvent
	probe request event More...

Time	m_probeRequestTimeout
	probe request timeout More...

MacState	m_state
	MAC state. More...

EventId	m_waitBeaconEvent
	wait beacon event More...

Time	m_waitBeaconTimeout
	wait beacon timeout More...

Friends
class	::AmpduAggregationTest
	Allow test cases to access private members. More...

class	::HeAggregationTest
	Allow test cases to access private members. More...

class	::TwoLevelAggregationTest
	Allow test cases to access private members. More...

Additional Inherited Members
Public Types inherited from ns3::RegularWifiMac
typedef Callback< void, Ptr< Packet >, Mac48Address, Mac48Address >	ForwardUpCallback
	This type defines the callback of a higher layer that a WifiMac(-derived) object invokes to pass a packet up the stack. More...

Protected Types inherited from ns3::RegularWifiMac
typedef std::map< AcIndex, Ptr< QosTxop > >	EdcaQueues
	This type defines a mapping between an Access Category index, and a pointer to the corresponding channel access function. More...

Protected Member Functions inherited from ns3::RegularWifiMac
void	ConfigureContentionWindow (uint32_t cwMin, uint32_t cwMax)

virtual void	DeaggregateAmsduAndForward (Ptr< Packet > aggregatedPacket, const WifiMacHeader *hdr)
	This method can be called to de-aggregate an A-MSDU and forward the constituent packets up the stack. More...

virtual void	DoDispose ()
	Destructor implementation. More...

void	FinishConfigureStandard (WifiPhyStandard standard)

void	ForwardUp (Ptr< Packet > packet, Mac48Address from, Mac48Address to)
	Forward the packet up to the device. More...

Ptr< QosTxop >	GetBEQueue (void) const
	Accessor for the AC_BE channel access function. More...

Ptr< QosTxop >	GetBKQueue (void) const
	Accessor for the AC_BK channel access function. More...

bool	GetDsssSupported () const
	Return whether the device supports DSSS. More...

bool	GetErpSupported () const
	Return whether the device supports ERP. More...

bool	GetHeSupported () const
	Return whether the device supports HE. More...

bool	GetHtSupported () const
	Return whether the device supports HT. More...

bool	GetQosSupported () const
	Return whether the device supports QoS. More...

Ptr< Txop >	GetTxop (void) const
	Accessor for the DCF object. More...

bool	GetVhtSupported () const
	Return whether the device supports VHT. More...

Ptr< QosTxop >	GetVIQueue (void) const
	Accessor for the AC_VI channel access function. More...

Ptr< QosTxop >	GetVOQueue (void) const
	Accessor for the AC_VO channel access function. More...

void	SendAddBaResponse (const MgtAddBaRequestHeader *reqHdr, Mac48Address originator)
	This method can be called to accept a received ADDBA Request. More...

void	SetDsssSupported (bool enable)
	Enable or disable DSSS support for the device. More...

void	SetErpSupported (bool enable)
	Enable or disable ERP support for the device. More...

void	SetHeSupported (bool enable)
	Enable or disable HE support for the device. More...

void	SetHtSupported (bool enable)
	Enable or disable HT support for the device. More...

void	SetTypeOfStation (TypeOfStation type)
	This method is invoked by a subclass to specify what type of station it is implementing. More...

void	SetVhtSupported (bool enable)
	Enable or disable VHT support for the device. More...

virtual void	TxFailed (const WifiMacHeader &hdr)
	The packet we sent was successfully received by the receiver (i.e. More...

virtual void	TxOk (const WifiMacHeader &hdr)
	The packet we sent was successfully received by the receiver (i.e. More...

Protected Member Functions inherited from ns3::WifiMac
void	ConfigureDcf (Ptr< Txop > dcf, uint32_t cwmin, uint32_t cwmax, bool isDsss, AcIndex ac)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::RegularWifiMac
Ptr< ChannelAccessManager >	m_channelAccessManager
	channel access manager More...

EdcaQueues	m_edca
	This is a map from Access Category index to the corresponding channel access function. More...

ForwardUpCallback	m_forwardUp
	Callback to forward packet up the stack. More...

Callback< void >	m_linkDown
	Callback when a link is down. More...

Callback< void >	m_linkUp
	Callback when a link is up. More...

Ptr< MacLow >	m_low
	MacLow (RTS, CTS, DATA, ACK etc.) More...

Ptr< WifiPhy >	m_phy
	Wifi PHY. More...

Ptr< MacRxMiddle >	m_rxMiddle
	RX middle (de-fragmentation etc.) More...

Ssid	m_ssid
	Service Set ID (SSID) More...

Ptr< WifiRemoteStationManager >	m_stationManager
	Remote station manager (rate control, RTS/CTS/fragmentation thresholds etc.) More...

Ptr< MacTxMiddle >	m_txMiddle
	TX middle (aggregation etc.) More...

Ptr< Txop >	m_txop
	This holds a pointer to the TXOP instance for this WifiMac - used for transmission of frames to non-QoS peers. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

The Wifi MAC high model for a non-AP STA in a BSS.

The state machine is as follows:

---------       --------------                                         -----------
| Start |       | Associated | <-------------------------        ----> | Refused |
---------       --------------                           |      /      -----------
   |              |   /------------------------------\   |     /
   \              v   v                              |   v    /
    \    ----------------     ---------------     -----------------------------
     \-> | Unassociated | --> | Wait Beacon | --> | Wait Association Response |
         ----------------     ---------------     -----------------------------
               \                  ^     ^ |              ^    ^ |
                \                 |     | |              |    | |
                 \                v      -               /     -
                  \    -----------------------          /
                   \-> | Wait Probe Response | --------/
                       -----------------------
                               ^ |
                               | |
                                -

Notes:

The state 'Start' is not included in MacState and only used for illustration purpose.
The Unassociated state is a transient state before STA starts the scanning procedure which moves it into either Wait Beacon or Wait Probe Response, based on whether passive or active scanning is selected.
In Wait Beacon and Wait Probe Response, STA is gathering beacon or probe response packets from APs, resulted in a list of candidate AP. After the respective timeout, it then tries to associate to the best AP (i.e., best SNR). STA will switch between the two states and restart the scanning procedure if SetActiveProbing() called.
In the case when AP responded to STA's association request with a refusal, STA will try to associate to the next best AP until the list of candidate AP is exhausted which sends STA to Refused state.
- Note that this behavior is not currently tested since ns-3 does not implement association refusal at present.
The transition from Wait Association Response to Unassociated occurs if an association request fails without explicit refusal (i.e., the AP fails to respond).
The transition from Associated to Wait Association Response occurs when STA's PHY capabilities changed. In this state, STA tries to reassociate with the previously associated AP.
The transition from Associated to Unassociated occurs if the number of missed beacons exceeds the threshold.

Config Paths

ns3::StaWifiMac is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/$ns3::InfrastructureWifiMac/$ns3::StaWifiMac"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/$ns3::StaWifiMac"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::InfrastructureWifiMac/$ns3::StaWifiMac"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::StaWifiMac"

Attributes

ProbeRequestTimeout: The duration to actively probe the channel.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +50000000.0ns
- Flags: construct write read
WaitBeaconTimeout: The duration to dwell on a channel while passively scanning for beacon
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +120000000.0ns
- Flags: construct write read
AssocRequestTimeout: The interval between two consecutive association request attempts.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +500000000.0ns
- Flags: construct write read
MaxMissedBeacons: Number of beacons which much be consecutively missed before we attempt to restart association.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 10
- Flags: construct write read
ActiveProbing: If true, we send probe requests. If false, we don't.NOTE: if more than one STA in your simulation is using active probing, you should enable it at a different simulation time for each STA, otherwise all the STAs will start sending probes at the same time resulting in collisions. See bug 1060 for more info.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read

Attributes defined in parent class ns3::InfrastructureWifiMac

PcfSupported: This Boolean attribute is set to enable PCF support at this STA
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read

Attributes defined in parent class ns3::RegularWifiMac

QosSupported: This Boolean attribute is set to enable 802.11e/WMM-style QoS support at this STA.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
HtSupported: This Boolean attribute is set to enable 802.11n support at this STA.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
VhtSupported: This Boolean attribute is set to enable 802.11ac support at this STA.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
HeSupported: This Boolean attribute is set to enable 802.11ax support at this STA.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
CtsToSelfSupported: Use CTS to Self when using a rate that is not in the basic rate set.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write
VO_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VO access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: construct write read
VI_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VI access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: construct write read
BE_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BE access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: construct write read
BK_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BK access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: construct write read
VO_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VO access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 8388607 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 0
- Flags: construct write read
VI_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VI access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 8388607 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 65535
- Flags: construct write read
BE_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BE access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 8388607 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 65535
- Flags: construct write read
BK_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BK access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 8388607 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 0
- Flags: construct write read
VO_BlockAckThreshold: If number of packets in VO queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
VI_BlockAckThreshold: If number of packets in VI queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
BE_BlockAckThreshold: If number of packets in BE queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
BK_BlockAckThreshold: If number of packets in BK queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
VO_BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ackinactivity for AC_VO. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
VI_BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ackinactivity for AC_VI. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
BE_BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ackinactivity for AC_BE. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
BK_BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ackinactivity for AC_BK. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
ShortSlotTimeSupported: Whether or not short slot time is supported (only used by ERP APs or STAs).
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
RifsSupported: Whether or not RIFS is supported (only used by HT APs or STAs).
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
Txop: The Txop object.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::Txop>
- Flags: read
VO_Txop: Queue that manages packets belonging to AC_VO access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
VI_Txop: Queue that manages packets belonging to AC_VI access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
BE_Txop: Queue that manages packets belonging to AC_BE access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
BK_Txop: Queue that manages packets belonging to AC_BK access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read

Attributes defined in parent class ns3::WifiMac

CtsTimeout: When this timeout expires, the RTS/CTS handshake has failed.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +75000.0ns
- Flags: construct write read
AckTimeout: When this timeout expires, the DATA/ACK handshake has failed.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +75000.0ns
- Flags: construct write read
BasicBlockAckTimeout: When this timeout expires, the BASIC_BLOCK_ACK_REQ/BASIC_BLOCK_ACK handshake has failed.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +281000.0ns
- Flags: construct write read
CompressedBlockAckTimeout: When this timeout expires, the COMPRESSED_BLOCK_ACK_REQ/COMPRESSED_BLOCK_ACK handshake has failed.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +107000.0ns
- Flags: construct write read
Sifs: The value of the SIFS constant.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +16000.0ns
- Flags: construct write read
EifsNoDifs: The value of EIFS-DIFS.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +60000.0ns
- Flags: construct write read
Slot: The duration of a Slot.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +9000.0ns
- Flags: construct write read
Pifs: The value of the PIFS constant.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +25000.0ns
- Flags: construct write read
Rifs: The value of the RIFS constant.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +2000.0ns
- Flags: construct write read
MaxPropagationDelay: The maximum propagation delay. Unused for now.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +3333.0ns
- Flags: construct write
Ssid: The ssid we want to belong to.
- Set with class: SsidValue
- Underlying type: Ssid
- Initial value: default
- Flags: construct write read

TraceSources

Assoc: Associated with an access point.
Callback signature: ns3::Mac48Address::TracedCallback
DeAssoc: Association with an access point lost.
Callback signature: ns3::Mac48Address::TracedCallback
BeaconArrival: Time of beacons arrival from associated AP
Callback signature: ns3::Time::TracedCallback

TraceSources defined in parent class ns3::RegularWifiMac

TxOkHeader: The header of successfully transmitted packet.
Callback signature: ns3::WifiMacHeader::TracedCallback
TxErrHeader: The header of unsuccessfully transmitted packet.
Callback signature: ns3::WifiMacHeader::TracedCallback

TraceSources defined in parent class ns3::WifiMac

MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
Callback signature: ns3::Packet::TracedCallback
MacTxDrop: A packet has been dropped in the MAC layer before transmission.
Callback signature: ns3::Packet::TracedCallback
MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace.
Callback signature: ns3::Packet::TracedCallback
MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace.
Callback signature: ns3::Packet::TracedCallback
MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.
Callback signature: ns3::Packet::TracedCallback

Size of this type is 584 bytes (on a 64-bit architecture).

Definition at line 106 of file sta-wifi-mac.h.

Member Enumeration Documentation

◆ MacState

enum ns3::StaWifiMac::MacState

private

The current MAC state of the STA.

Enumerator
ASSOCIATED
WAIT_BEACON
WAIT_PROBE_RESP
WAIT_ASSOC_RESP
UNASSOCIATED
REFUSED

Definition at line 158 of file sta-wifi-mac.h.

Constructor & Destructor Documentation

◆ StaWifiMac()

ns3::StaWifiMac::StaWifiMac ( )

Definition at line 89 of file sta-wifi-mac.cc.

References NS_LOG_FUNCTION, ns3::RegularWifiMac::SetTypeOfStation(), and ns3::STA.

Here is the call graph for this function:

◆ ~StaWifiMac()

ns3::StaWifiMac::~StaWifiMac ( )

virtual

Definition at line 110 of file sta-wifi-mac.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AssocRequestTimeout()

void ns3::StaWifiMac::AssocRequestTimeout ( void )

private

This method is called after the association timeout occurred.

We switch the state to WAIT_ASSOC_RESP and re-send an association request.

Definition at line 375 of file sta-wifi-mac.cc.

References NS_LOG_FUNCTION, SendAssociationRequest(), SetState(), and WAIT_ASSOC_RESP.

Referenced by SendAssociationRequest().

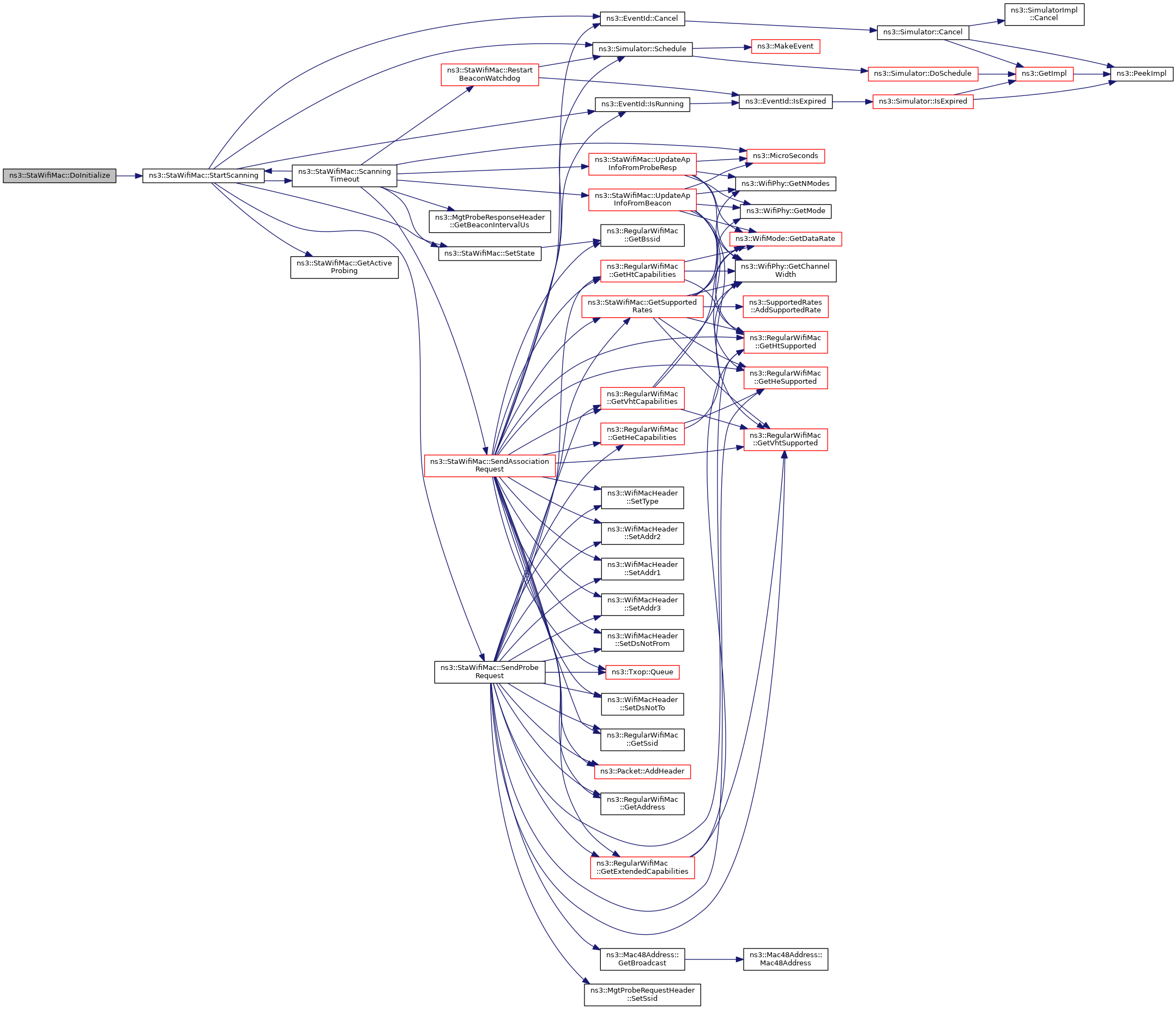

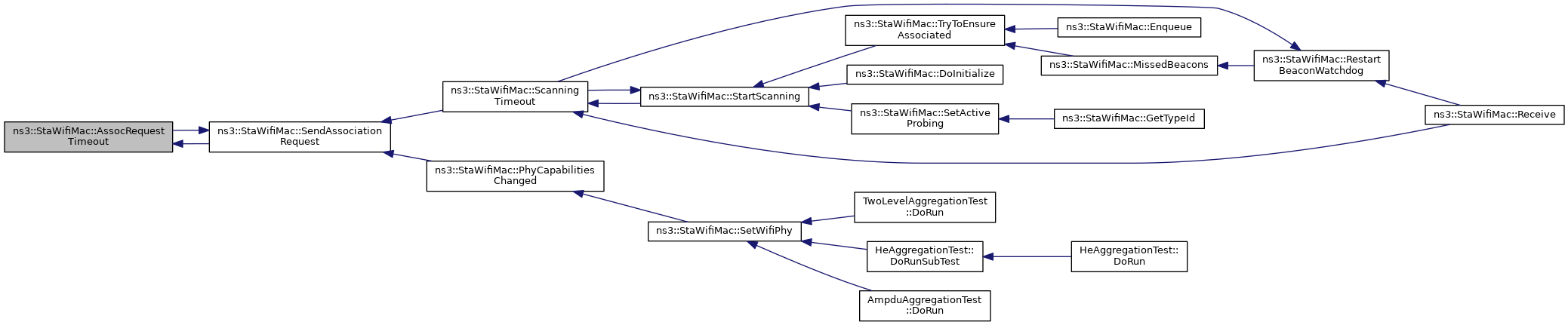

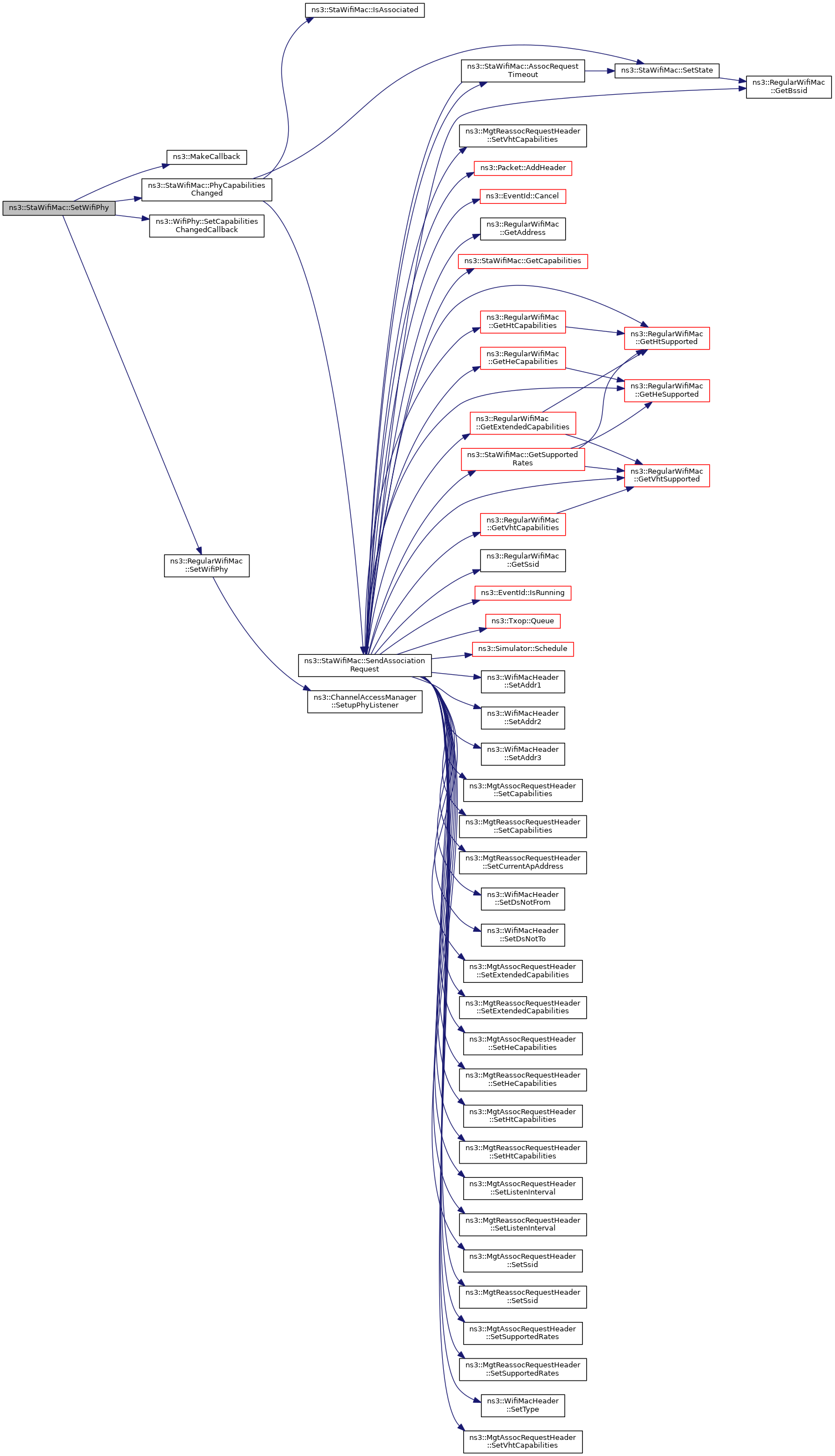

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoInitialize()

void ns3::StaWifiMac::DoInitialize ( void )

privatevirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::RegularWifiMac.

Definition at line 104 of file sta-wifi-mac.cc.

References NS_LOG_FUNCTION, and StartScanning().

Here is the call graph for this function:

◆ Enqueue()

void ns3::StaWifiMac::Enqueue	(	Ptr< const Packet >	packet,
		Mac48Address	to
	)

virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC.

Implements ns3::InfrastructureWifiMac.

Definition at line 427 of file sta-wifi-mac.cc.

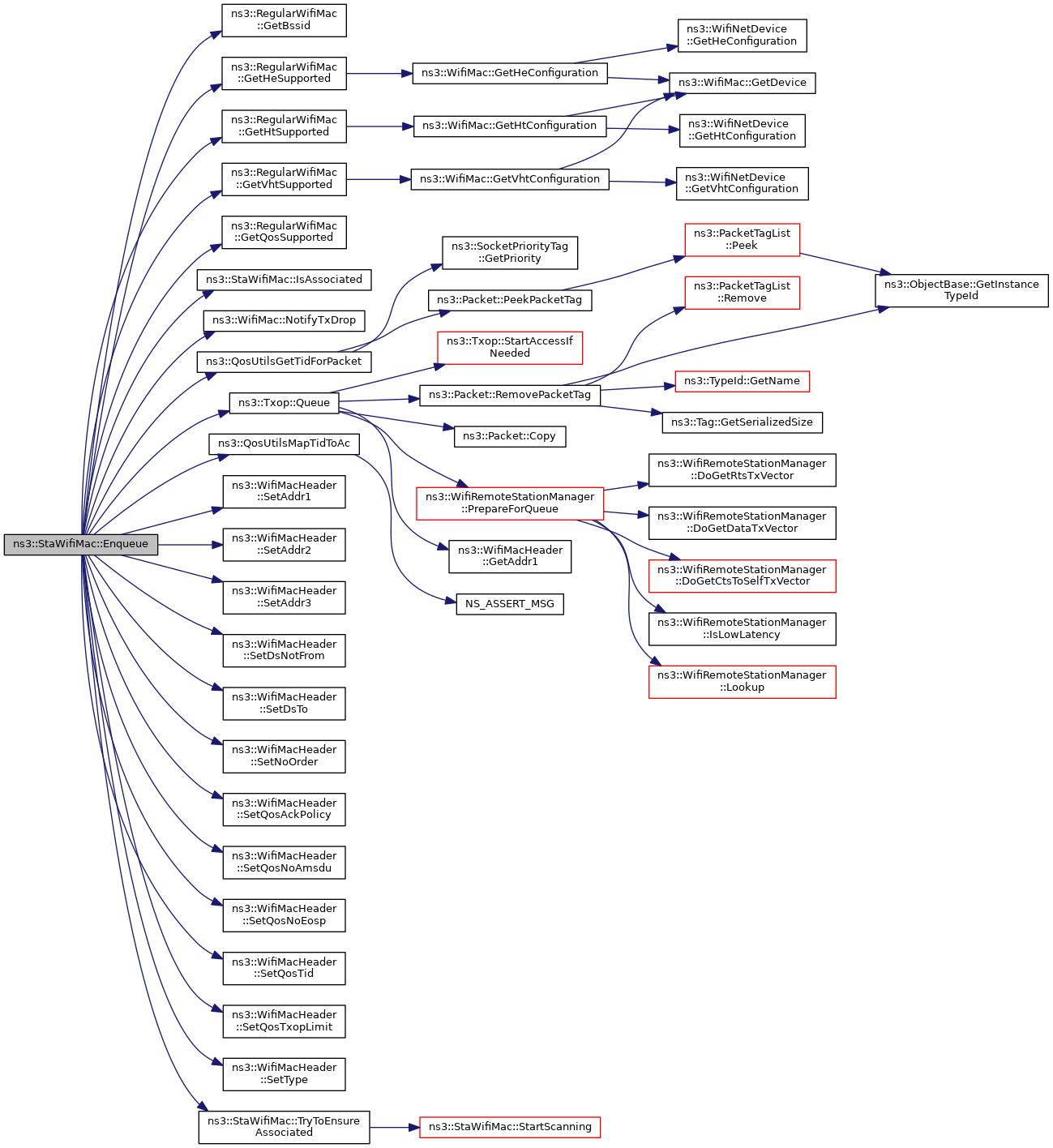

Here is the call graph for this function:

◆ GetActiveProbing()

bool ns3::StaWifiMac::GetActiveProbing ( void ) const

private

Return whether active probing is enabled.

Returns: true if active probing is enabled, false otherwise

Definition at line 128 of file sta-wifi-mac.cc.

References m_activeProbing.

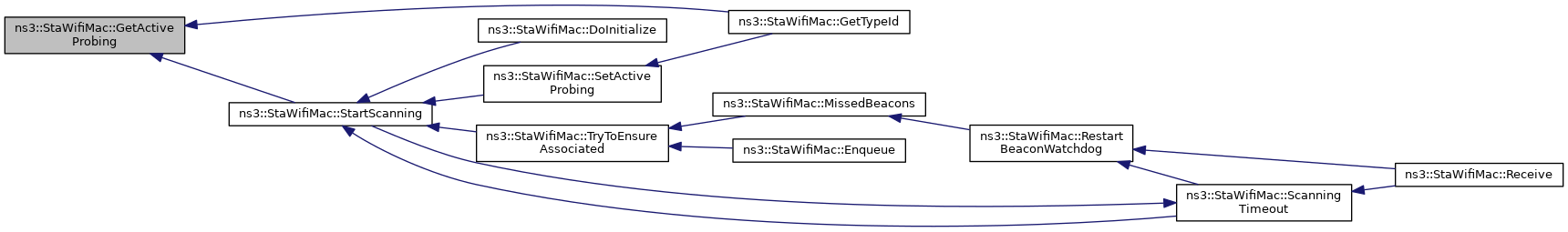

Referenced by GetTypeId(), and StartScanning().

Here is the caller graph for this function:

◆ GetCapabilities()

CapabilityInformation ns3::StaWifiMac::GetCapabilities ( void ) const

private

Return the Capability information of the current STA.

Returns: the Capability information that we support

Definition at line 1115 of file sta-wifi-mac.cc.

References ns3::RegularWifiMac::GetErpSupported(), ns3::InfrastructureWifiMac::GetPcfSupported(), ns3::WifiPhy::GetShortPlcpPreambleSupported(), ns3::RegularWifiMac::GetShortSlotTimeSupported(), ns3::RegularWifiMac::m_phy, ns3::CapabilityInformation::SetCfPollable(), ns3::CapabilityInformation::SetShortPreamble(), and ns3::CapabilityInformation::SetShortSlotTime().

Referenced by SendAssociationRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSupportedRates()

SupportedRates ns3::StaWifiMac::GetSupportedRates ( void ) const

private

Return an instance of SupportedRates that contains all rates that we support including HT rates.

Returns: SupportedRates all rates that we support

Definition at line 1094 of file sta-wifi-mac.cc.

References ns3::SupportedRates::AddBssMembershipSelectorRate(), ns3::SupportedRates::AddSupportedRate(), ns3::WifiPhy::GetBssMembershipSelector(), ns3::WifiPhy::GetChannelWidth(), ns3::WifiMode::GetDataRate(), ns3::RegularWifiMac::GetHeSupported(), ns3::RegularWifiMac::GetHtSupported(), ns3::WifiPhy::GetMode(), ns3::WifiPhy::GetNBssMembershipSelectors(), ns3::WifiPhy::GetNModes(), ns3::RegularWifiMac::GetVhtSupported(), ns3::RegularWifiMac::m_phy, and NS_LOG_DEBUG.

Referenced by SendAssociationRequest(), and SendProbeRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::StaWifiMac::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 42 of file sta-wifi-mac.cc.

References GetActiveProbing(), m_assocLogger, m_assocRequestTimeout, m_beaconArrival, m_deAssocLogger, m_maxMissedBeacons, m_probeRequestTimeout, m_waitBeaconTimeout, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), ns3::MilliSeconds(), ns3::Seconds(), SetActiveProbing(), and ns3::TypeId::SetParent().

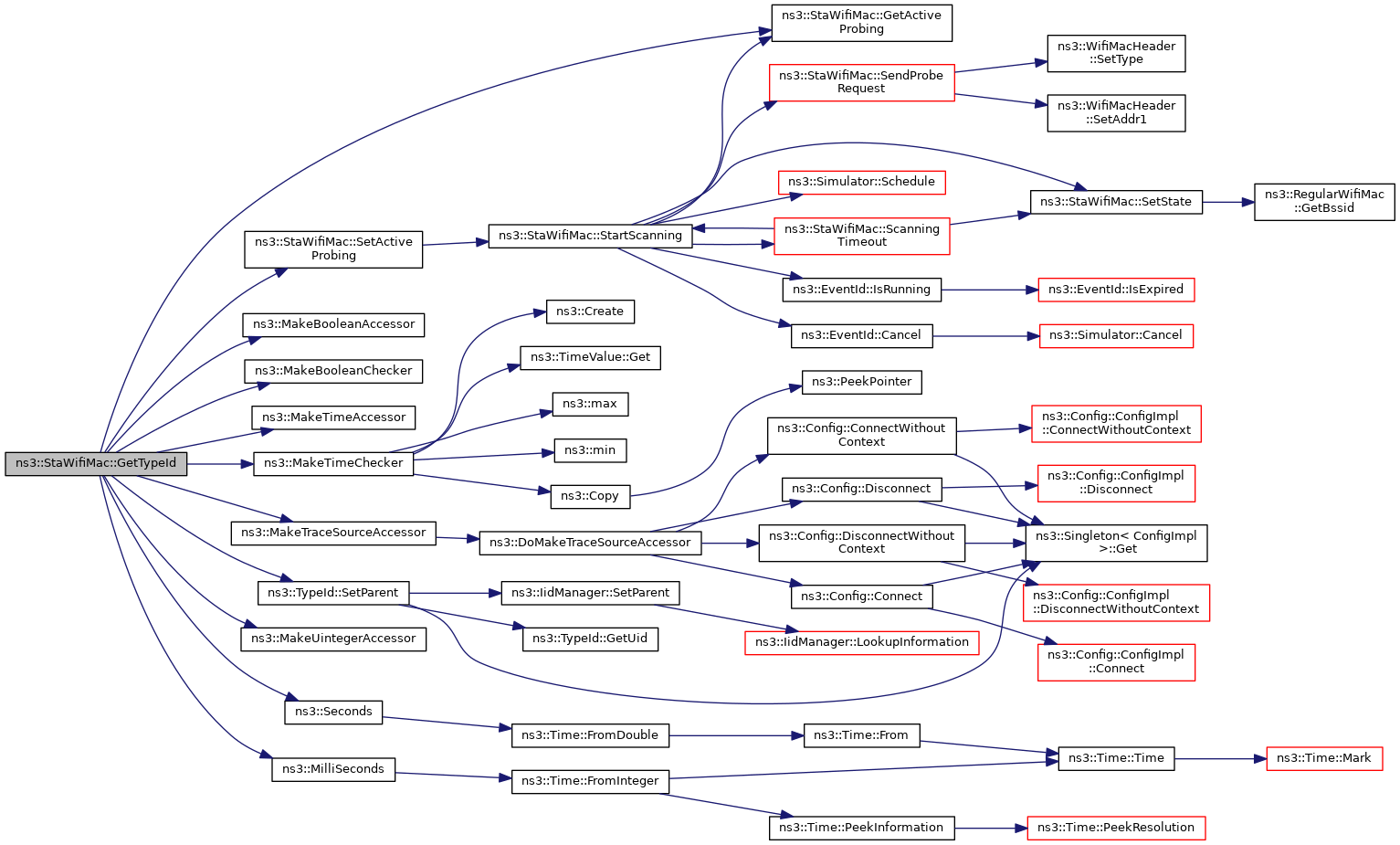

Here is the call graph for this function:

◆ IsAssociated()

bool ns3::StaWifiMac::IsAssociated ( void ) const

Return whether we are associated with an AP.

Returns: true if we are associated with an AP, false otherwise

Definition at line 415 of file sta-wifi-mac.cc.

References ASSOCIATED, and m_state.

Referenced by Enqueue(), PhyCapabilitiesChanged(), and Receive().

Here is the caller graph for this function:

◆ IsWaitAssocResp()

bool ns3::StaWifiMac::IsWaitAssocResp ( void ) const

private

Return whether we are waiting for an association response from an AP.

Returns: true if we are waiting for an association response from an AP, false otherwise

Definition at line 421 of file sta-wifi-mac.cc.

References m_state, and WAIT_ASSOC_RESP.

Referenced by Receive().

Here is the caller graph for this function:

◆ MissedBeacons()

void ns3::StaWifiMac::MissedBeacons ( void )

private

This method is called after we have not received a beacon from the AP.

Definition at line 383 of file sta-wifi-mac.cc.

References ns3::EventId::Cancel(), ns3::EventId::IsRunning(), m_beaconWatchdog, m_beaconWatchdogEnd, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), SetState(), TryToEnsureAssociated(), and UNASSOCIATED.

Referenced by RestartBeaconWatchdog().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PhyCapabilitiesChanged()

void ns3::StaWifiMac::PhyCapabilitiesChanged ( void )

private

Indicate that PHY capabilities have changed.

Definition at line 1154 of file sta-wifi-mac.cc.

References IsAssociated(), NS_LOG_DEBUG, NS_LOG_FUNCTION, SendAssociationRequest(), SetState(), and WAIT_ASSOC_RESP.

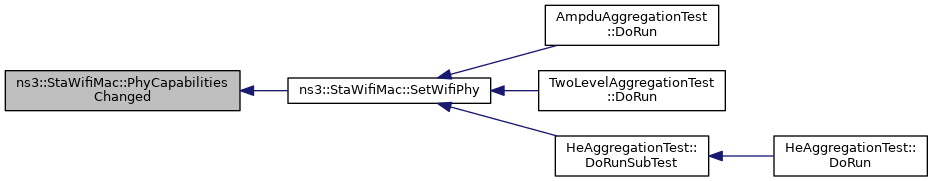

Referenced by SetWifiPhy().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Receive()

void ns3::StaWifiMac::Receive	(	Ptr< Packet >	packet,
		const WifiMacHeader *	hdr
	)

privatevirtual

Handle a received packet.

Parameters

packet	the received packet
hdr	the MAC header of the received packet

Reimplemented from ns3::RegularWifiMac.

Definition at line 497 of file sta-wifi-mac.cc.

◆ RestartBeaconWatchdog()

void ns3::StaWifiMac::RestartBeaconWatchdog ( Time delay )

private

Restarts the beacon timer.

Parameters

delay the delay before the watchdog fires

Definition at line 402 of file sta-wifi-mac.cc.

References ns3::Simulator::GetDelayLeft(), ns3::EventId::IsExpired(), m_beaconWatchdog, m_beaconWatchdogEnd, max, MissedBeacons(), ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::Simulator::Schedule().

Referenced by Receive(), and ScanningTimeout().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ScanningTimeout()

void ns3::StaWifiMac::ScanningTimeout ( void )

private

This method is called after wait beacon timeout or wait probe request timeout has occurred.

This will trigger association process from beacons or probe responses gathered while scanning.

Definition at line 342 of file sta-wifi-mac.cc.

References ns3::MgtProbeResponseHeader::GetBeaconIntervalUs(), ns3::ApInfo::m_activeProbing, ns3::ApInfo::m_apAddr, ns3::ApInfo::m_beacon, ns3::ApInfo::m_bssid, m_candidateAps, m_maxMissedBeacons, ns3::ApInfo::m_probeResp, ns3::MicroSeconds(), NS_LOG_DEBUG, NS_LOG_FUNCTION, RestartBeaconWatchdog(), SendAssociationRequest(), SetState(), StartScanning(), UpdateApInfoFromBeacon(), UpdateApInfoFromProbeResp(), and WAIT_ASSOC_RESP.

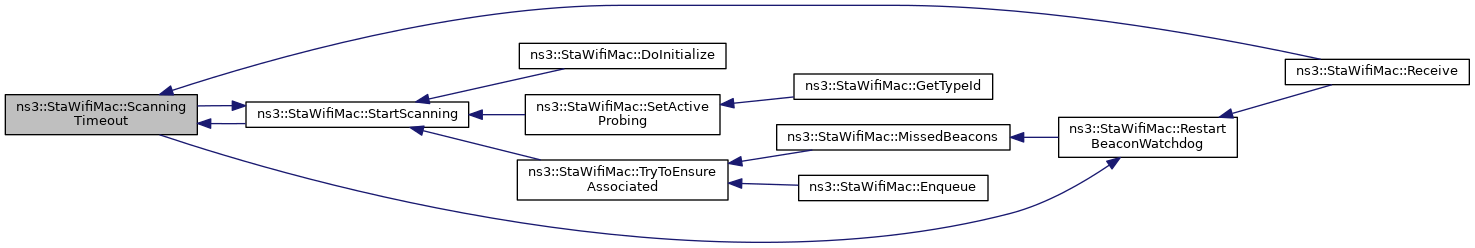

Referenced by Receive(), and StartScanning().

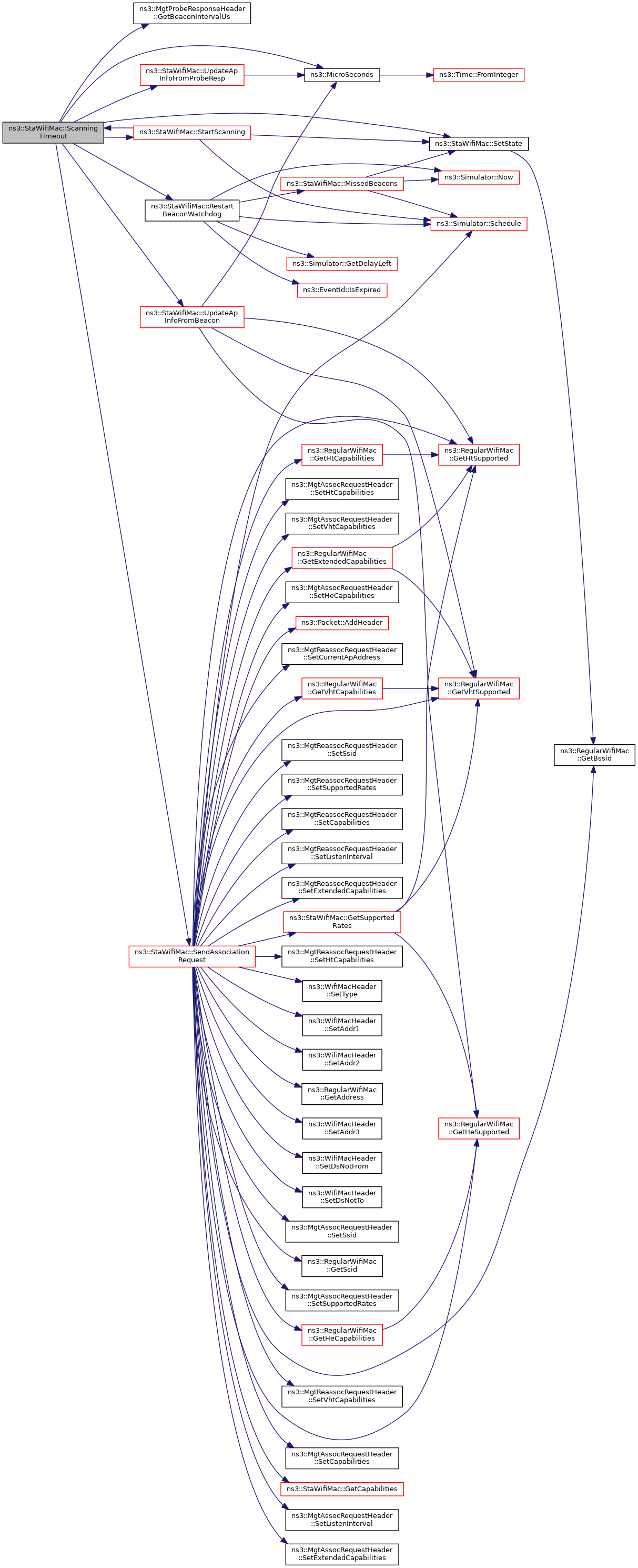

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendAssociationRequest()

void ns3::StaWifiMac::SendAssociationRequest ( bool isReassoc )

private

Forward an association or reassociation request packet to the DCF.

The standard is not clear on the correct queue for management frames if QoS is supported. We always use the DCF.

Parameters

isReassoc flag whether it is a reassociation request

Definition at line 187 of file sta-wifi-mac.cc.

Referenced by AssocRequestTimeout(), PhyCapabilitiesChanged(), and ScanningTimeout().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendCfPollResponse()

void ns3::StaWifiMac::SendCfPollResponse ( void )

private

Forward a CF-Poll response packet to the CFP queue.

Definition at line 259 of file sta-wifi-mac.cc.

References ns3::RegularWifiMac::GetBssid(), ns3::InfrastructureWifiMac::GetPcfSupported(), ns3::RegularWifiMac::m_txop, NS_ASSERT, NS_LOG_FUNCTION, ns3::Txop::SendCfFrame(), and ns3::WIFI_MAC_DATA_NULL.

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendProbeRequest()

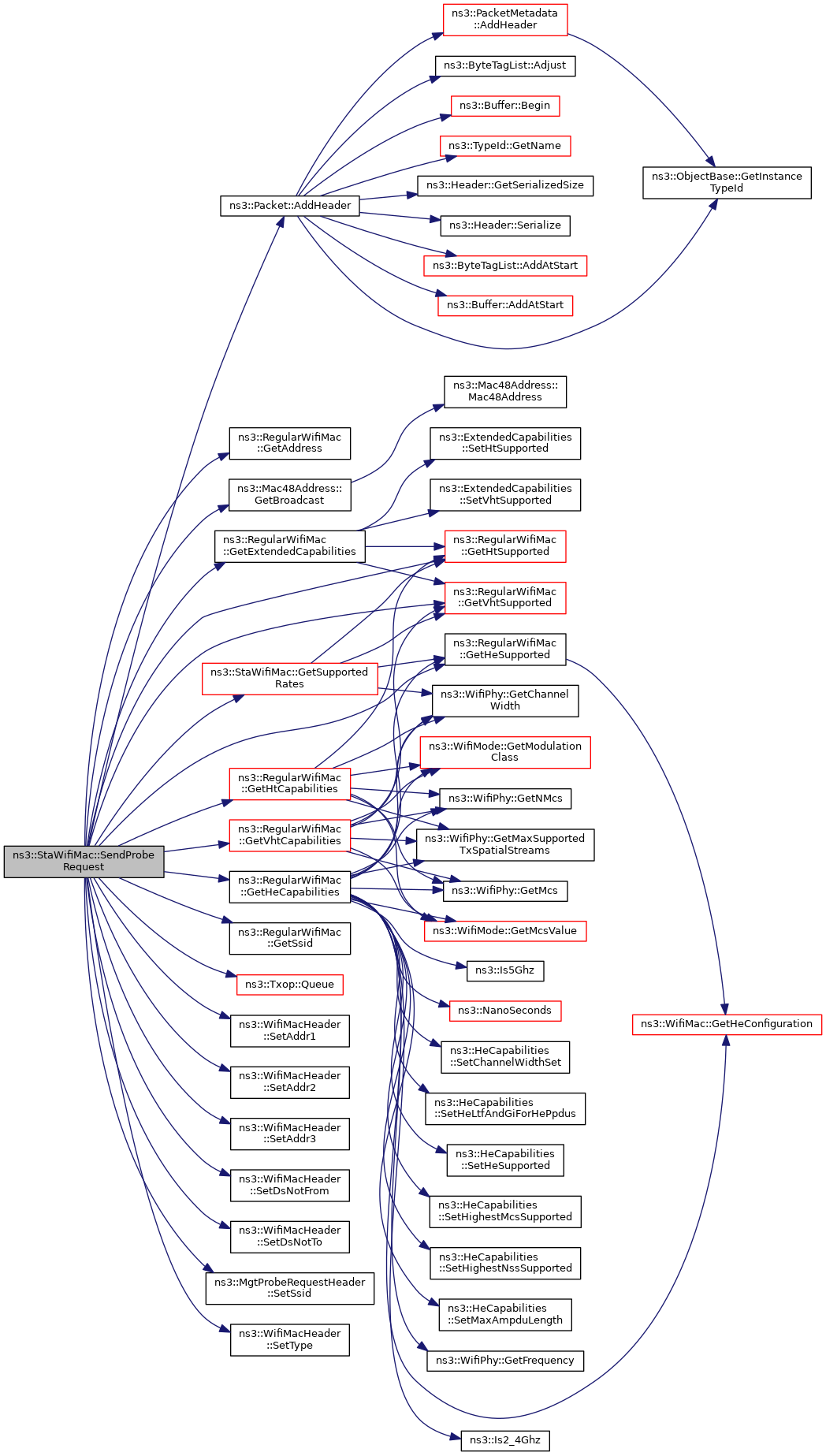

void ns3::StaWifiMac::SendProbeRequest ( void )

private

Forward a probe request packet to the DCF.

The standard is not clear on the correct queue for management frames if QoS is supported. We always use the DCF.

Definition at line 150 of file sta-wifi-mac.cc.

Referenced by StartScanning().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetActiveProbing()

void ns3::StaWifiMac::SetActiveProbing ( bool enable )

private

Enable or disable active probing.

Parameters

enable enable or disable active probing

Definition at line 116 of file sta-wifi-mac.cc.

References m_activeProbing, m_state, NS_LOG_DEBUG, NS_LOG_FUNCTION, StartScanning(), WAIT_BEACON, and WAIT_PROBE_RESP.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetEdcaParameters()

void ns3::StaWifiMac::SetEdcaParameters	(	AcIndex	ac,
		uint32_t	cwMin,
		uint32_t	cwMax,
		uint8_t	aifsn,
		Time	txopLimit
	)

private

Set the EDCA parameters.

Parameters

ac	the access class
cwMin	the minimum contention window size
cwMax	the maximum contention window size
aifsn	the number of slots that make up an AIFS
txopLimit	the TXOP limit

Definition at line 1144 of file sta-wifi-mac.cc.

References ns3::RegularWifiMac::m_edca, ns3::Txop::SetAifsn(), ns3::Txop::SetMaxCw(), ns3::Txop::SetMinCw(), and ns3::Txop::SetTxopLimit().

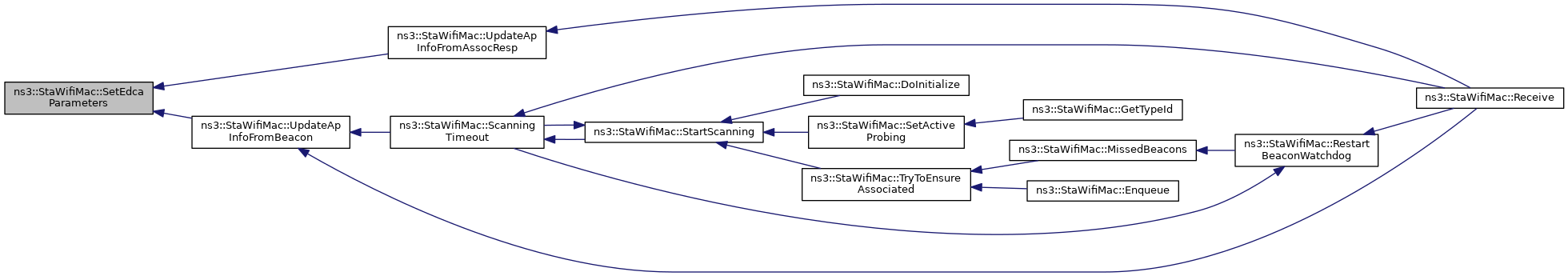

Referenced by UpdateApInfoFromAssocResp(), and UpdateApInfoFromBeacon().

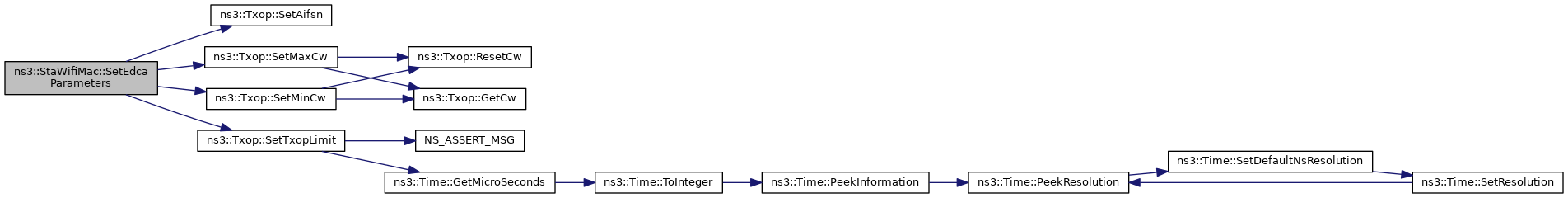

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetState()

void ns3::StaWifiMac::SetState ( MacState value )

private

Set the current MAC state.

Parameters

value the new state

Definition at line 1128 of file sta-wifi-mac.cc.

References ASSOCIATED, ns3::RegularWifiMac::GetBssid(), m_assocLogger, m_deAssocLogger, and m_state.

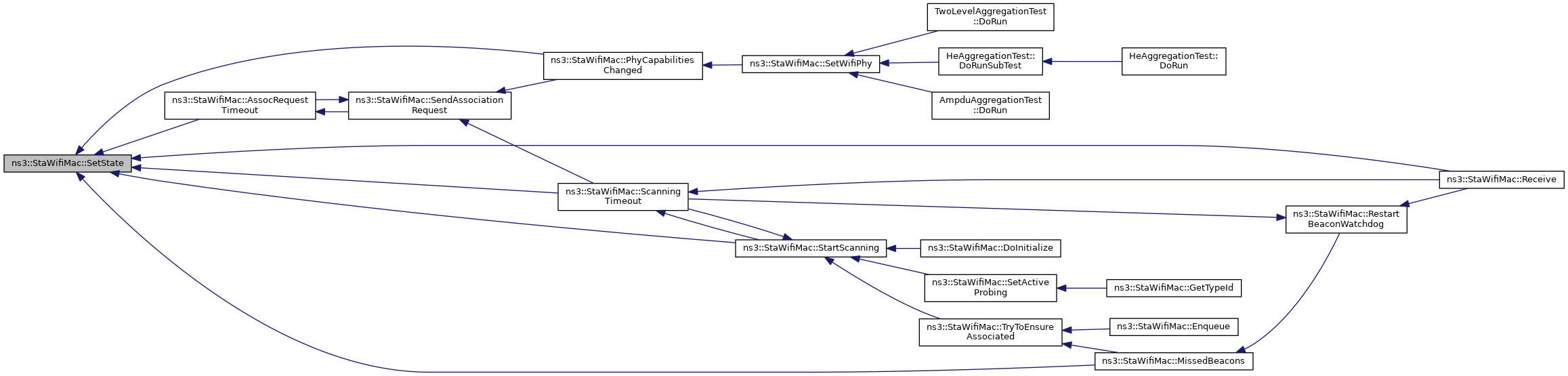

Referenced by AssocRequestTimeout(), MissedBeacons(), PhyCapabilitiesChanged(), Receive(), ScanningTimeout(), and StartScanning().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetWifiPhy()

void ns3::StaWifiMac::SetWifiPhy ( const Ptr< WifiPhy > phy )

virtual

Parameters

phy	the physical layer attached to this MAC.

Reimplemented from ns3::RegularWifiMac.

Definition at line 134 of file sta-wifi-mac.cc.

References ns3::RegularWifiMac::m_phy, ns3::MakeCallback(), NS_LOG_FUNCTION, third::phy, PhyCapabilitiesChanged(), ns3::WifiPhy::SetCapabilitiesChangedCallback(), and ns3::RegularWifiMac::SetWifiPhy().

Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), and HeAggregationTest::DoRunSubTest().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetWifiRemoteStationManager()

void ns3::StaWifiMac::SetWifiRemoteStationManager ( const Ptr< WifiRemoteStationManager > stationManager )

virtual

Set up WifiRemoteStationManager associated with this StaWifiMac.

Parameters

stationManager the station manager attached to this MAC.

Reimplemented from ns3::RegularWifiMac.

Definition at line 142 of file sta-wifi-mac.cc.

References ns3::InfrastructureWifiMac::GetPcfSupported(), ns3::RegularWifiMac::m_stationManager, NS_LOG_FUNCTION, ns3::WifiRemoteStationManager::SetPcfSupported(), and ns3::RegularWifiMac::SetWifiRemoteStationManager().

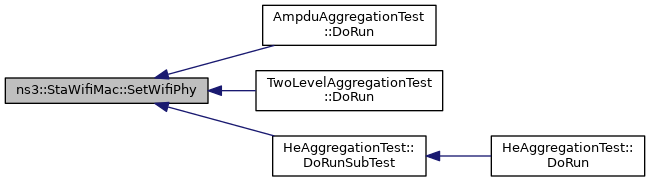

Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), and HeAggregationTest::DoRunSubTest().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StartScanning()

void ns3::StaWifiMac::StartScanning ( void )

private

Start the scanning process which trigger active or passive scanning based on the active probing flag.

Definition at line 312 of file sta-wifi-mac.cc.

References ns3::EventId::Cancel(), GetActiveProbing(), ns3::EventId::IsRunning(), m_candidateAps, m_probeRequestEvent, m_probeRequestTimeout, m_waitBeaconEvent, m_waitBeaconTimeout, NS_LOG_FUNCTION, ScanningTimeout(), ns3::Simulator::Schedule(), SendProbeRequest(), SetState(), WAIT_BEACON, and WAIT_PROBE_RESP.

Referenced by DoInitialize(), ScanningTimeout(), SetActiveProbing(), and TryToEnsureAssociated().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TryToEnsureAssociated()

void ns3::StaWifiMac::TryToEnsureAssociated ( void )

private

Try to ensure that we are associated with an AP by taking an appropriate action depending on the current association status.

Definition at line 267 of file sta-wifi-mac.cc.

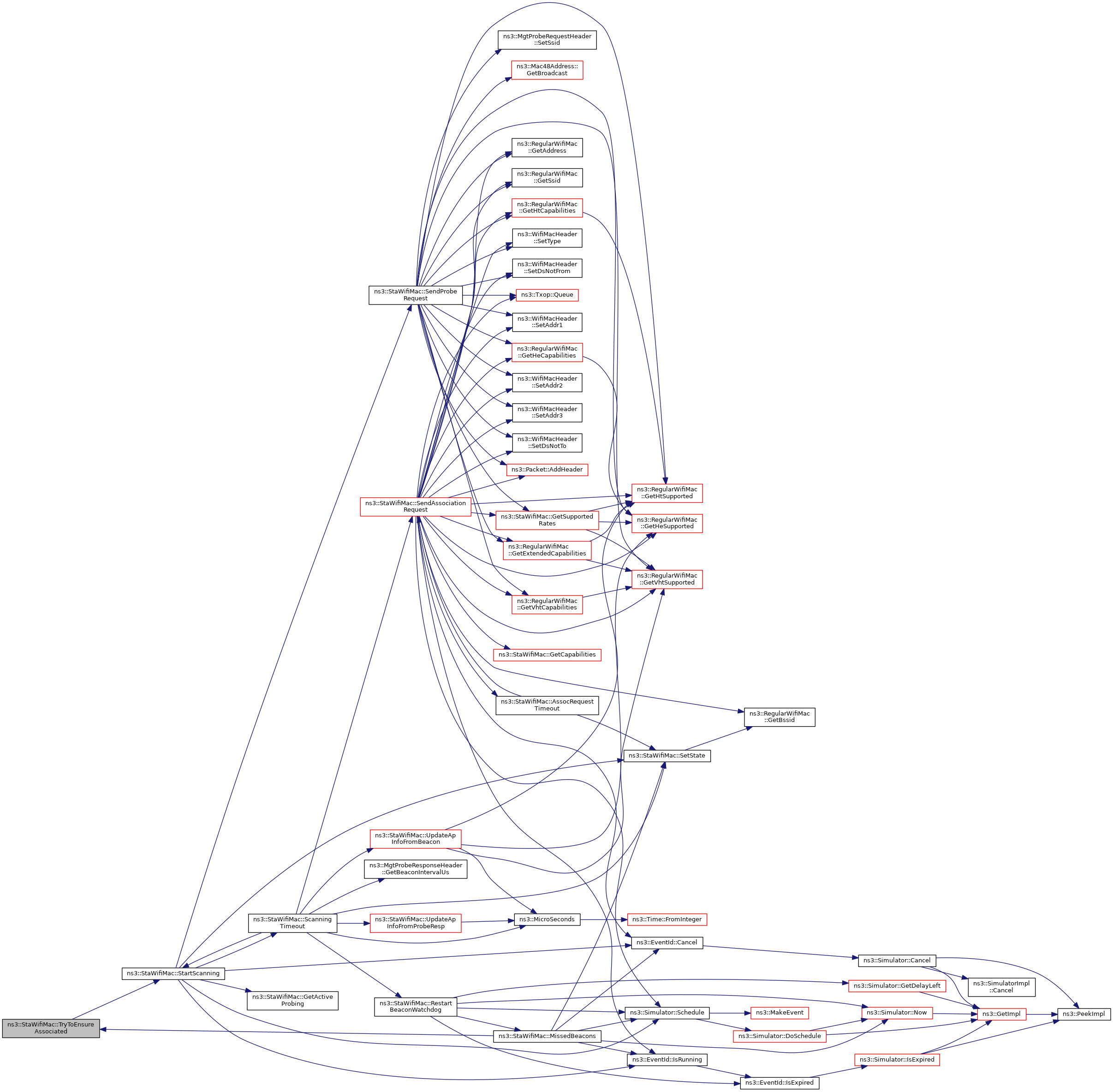

References ASSOCIATED, ns3::RegularWifiMac::m_linkDown, m_state, NS_LOG_FUNCTION, REFUSED, StartScanning(), UNASSOCIATED, WAIT_ASSOC_RESP, WAIT_BEACON, and WAIT_PROBE_RESP.

Referenced by Enqueue(), and MissedBeacons().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateApInfoFromAssocResp()

void ns3::StaWifiMac::UpdateApInfoFromAssocResp	(	MgtAssocResponseHeader	assocResp,
		Mac48Address	apAddr
	)

private

Update AP's information from association response.

Parameters

assocResp	the association response header
apAddr	MAC address of the AP

Definition at line 930 of file sta-wifi-mac.cc.

Referenced by Receive().

Here is the caller graph for this function:

◆ UpdateApInfoFromBeacon()

void ns3::StaWifiMac::UpdateApInfoFromBeacon	(	MgtBeaconHeader	beacon,
		Mac48Address	apAddr,
		Mac48Address	bssid
	)

private

Update associated AP's information from beacon.

If STA is not associated, this information will used for the association process.

Parameters

beacon	the beacon header
apAddr	MAC address of the AP
bssid	MAC address of BSSID

Definition at line 736 of file sta-wifi-mac.cc.

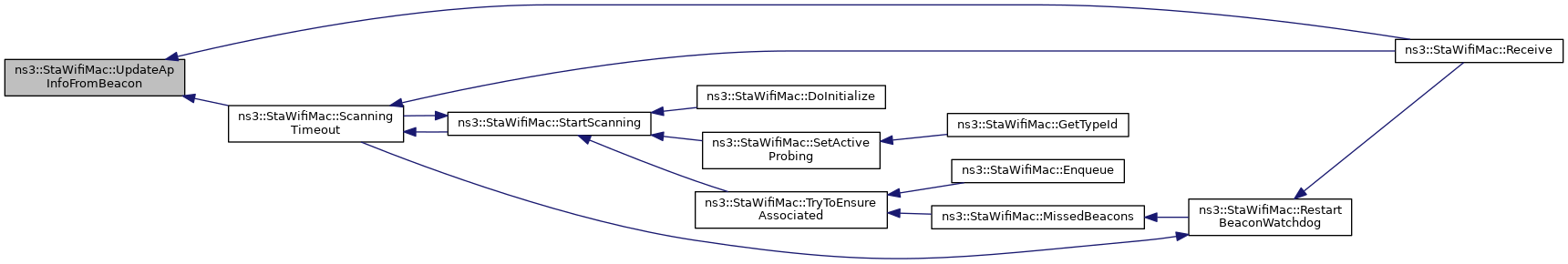

Referenced by Receive(), and ScanningTimeout().

Here is the caller graph for this function:

◆ UpdateApInfoFromProbeResp()

void ns3::StaWifiMac::UpdateApInfoFromProbeResp	(	MgtProbeResponseHeader	probeResp,
		Mac48Address	apAddr,
		Mac48Address	bssid
	)

private

Update AP's information from probe response.

This information is required for the association process.

Parameters

probeResp	the probe response header
apAddr	MAC address of the AP
bssid	MAC address of BSSID

Definition at line 861 of file sta-wifi-mac.cc.

References ns3::WifiRemoteStationManager::AddBasicMode(), ns3::WifiRemoteStationManager::AddSupportedMode(), ns3::RegularWifiMac::ConfigureContentionWindow(), ns3::ErpInformation::GetBarkerPreambleMode(), ns3::WifiPhy::GetBssMembershipSelector(), ns3::MgtProbeResponseHeader::GetCapabilities(), ns3::WifiPhy::GetChannelWidth(), ns3::WifiMode::GetDataRate(), ns3::MgtProbeResponseHeader::GetErpInformation(), ns3::RegularWifiMac::GetErpSupported(), ns3::WifiPhy::GetMode(), ns3::WifiMode::GetModulationClass(), ns3::WifiPhy::GetNBssMembershipSelectors(), ns3::WifiPhy::GetNModes(), ns3::WifiRemoteStationManager::GetShortSlotTimeEnabled(), ns3::MgtProbeResponseHeader::GetSupportedRates(), ns3::SupportedRates::IsBasicRate(), ns3::SupportedRates::IsBssMembershipSelectorRate(), ns3::CapabilityInformation::IsShortPreamble(), ns3::CapabilityInformation::IsShortSlotTime(), ns3::SupportedRates::IsSupportedRate(), ns3::RegularWifiMac::m_phy, ns3::RegularWifiMac::m_stationManager, ns3::MicroSeconds(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::RegularWifiMac::SetBssid(), ns3::WifiRemoteStationManager::SetShortPreambleEnabled(), ns3::WifiRemoteStationManager::SetShortSlotTimeEnabled(), ns3::RegularWifiMac::SetSlot(), and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ScanningTimeout().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateCandidateApList()

void ns3::StaWifiMac::UpdateCandidateApList ( ApInfo newApInfo )

private

Update list of candidate AP to associate.

The list should contain ApInfo sorted from best to worst SNR, with no duplicate.

Parameters

newApInfo the new ApInfo to be inserted

Definition at line 710 of file sta-wifi-mac.cc.

References ns3::ApInfo::m_activeProbing, ns3::ApInfo::m_apAddr, ns3::ApInfo::m_beacon, ns3::ApInfo::m_bssid, m_candidateAps, ns3::ApInfo::m_probeResp, ns3::ApInfo::m_snr, and NS_LOG_FUNCTION.

Referenced by Receive().

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ ::AmpduAggregationTest

friend class ::AmpduAggregationTest

friend

Allow test cases to access private members.

Definition at line 112 of file sta-wifi-mac.h.

◆ ::HeAggregationTest

friend class ::HeAggregationTest

friend

Allow test cases to access private members.

Definition at line 114 of file sta-wifi-mac.h.

◆ ::TwoLevelAggregationTest

friend class ::TwoLevelAggregationTest

friend

Allow test cases to access private members.

Definition at line 110 of file sta-wifi-mac.h.

Member Data Documentation

◆ m_activeProbing

bool ns3::StaWifiMac::m_activeProbing

private

active probing

Definition at line 323 of file sta-wifi-mac.h.

Referenced by GetActiveProbing(), and SetActiveProbing().

◆ m_assocLogger

TracedCallback<Mac48Address> ns3::StaWifiMac::m_assocLogger

private

assoc logger

Definition at line 330 of file sta-wifi-mac.h.

Referenced by GetTypeId(), and SetState().

◆ m_assocRequestEvent

EventId ns3::StaWifiMac::m_assocRequestEvent

private

assoc request event

Definition at line 319 of file sta-wifi-mac.h.

Referenced by Receive(), and SendAssociationRequest().

◆ m_assocRequestTimeout

Time ns3::StaWifiMac::m_assocRequestTimeout

private

assoc request timeout

Definition at line 316 of file sta-wifi-mac.h.

Referenced by GetTypeId(), and SendAssociationRequest().

◆ m_beaconArrival

TracedCallback<Time> ns3::StaWifiMac::m_beaconArrival

private

beacon arrival logger

Definition at line 332 of file sta-wifi-mac.h.

Referenced by GetTypeId(), and Receive().

◆ m_beaconWatchdog

EventId ns3::StaWifiMac::m_beaconWatchdog

private

beacon watchdog

Definition at line 320 of file sta-wifi-mac.h.

Referenced by MissedBeacons(), and RestartBeaconWatchdog().

◆ m_beaconWatchdogEnd

Time ns3::StaWifiMac::m_beaconWatchdogEnd

private

beacon watchdog end

Definition at line 321 of file sta-wifi-mac.h.

Referenced by MissedBeacons(), and RestartBeaconWatchdog().

◆ m_candidateAps

std::vector<ApInfo> ns3::StaWifiMac::m_candidateAps

private

list of candidate APs to associate

Definition at line 324 of file sta-wifi-mac.h.

Referenced by Receive(), ScanningTimeout(), StartScanning(), and UpdateCandidateApList().

◆ m_deAssocLogger

TracedCallback<Mac48Address> ns3::StaWifiMac::m_deAssocLogger

private

deassoc logger

Definition at line 331 of file sta-wifi-mac.h.

Referenced by GetTypeId(), and SetState().

◆ m_maxMissedBeacons

uint32_t ns3::StaWifiMac::m_maxMissedBeacons

private

maximum missed beacons

Definition at line 322 of file sta-wifi-mac.h.

Referenced by GetTypeId(), Receive(), and ScanningTimeout().

◆ m_probeRequestEvent

EventId ns3::StaWifiMac::m_probeRequestEvent

private

probe request event

Definition at line 318 of file sta-wifi-mac.h.

Referenced by StartScanning().

◆ m_probeRequestTimeout

Time ns3::StaWifiMac::m_probeRequestTimeout

private

probe request timeout

Definition at line 315 of file sta-wifi-mac.h.

Referenced by GetTypeId(), and StartScanning().

◆ m_state

MacState ns3::StaWifiMac::m_state

private

MAC state.

Definition at line 313 of file sta-wifi-mac.h.

Referenced by IsAssociated(), IsWaitAssocResp(), Receive(), SetActiveProbing(), SetState(), and TryToEnsureAssociated().

◆ m_waitBeaconEvent

EventId ns3::StaWifiMac::m_waitBeaconEvent

private

wait beacon event

Definition at line 317 of file sta-wifi-mac.h.

Referenced by StartScanning().

◆ m_waitBeaconTimeout

Time ns3::StaWifiMac::m_waitBeaconTimeout

private

wait beacon timeout

Definition at line 314 of file sta-wifi-mac.h.

Referenced by GetTypeId(), and StartScanning().

The documentation for this class was generated from the following files:

src/wifi/model/sta-wifi-mac.h
src/wifi/model/sta-wifi-mac.cc

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::InfrastructureWifiMac

Attributes defined in parent class ns3::RegularWifiMac

Attributes defined in parent class ns3::WifiMac

TraceSources

TraceSources defined in parent class ns3::RegularWifiMac

TraceSources defined in parent class ns3::WifiMac

Member Enumeration Documentation

◆ MacState

Constructor & Destructor Documentation

◆ StaWifiMac()

◆ ~StaWifiMac()

Member Function Documentation

◆ AssocRequestTimeout()

◆ DoInitialize()

◆ Enqueue()

◆ GetActiveProbing()

◆ GetCapabilities()

◆ GetSupportedRates()

◆ GetTypeId()

◆ IsAssociated()

◆ IsWaitAssocResp()

◆ MissedBeacons()

◆ PhyCapabilitiesChanged()

◆ Receive()

◆ RestartBeaconWatchdog()

◆ ScanningTimeout()

◆ SendAssociationRequest()

◆ SendCfPollResponse()

◆ SendProbeRequest()

◆ SetActiveProbing()

◆ SetEdcaParameters()

◆ SetState()

◆ SetWifiPhy()

◆ SetWifiRemoteStationManager()

◆ StartScanning()

◆ TryToEnsureAssociated()

◆ UpdateApInfoFromAssocResp()

◆ UpdateApInfoFromBeacon()

◆ UpdateApInfoFromProbeResp()

◆ UpdateCandidateApList()

Friends And Related Function Documentation

◆ ::AmpduAggregationTest

◆ ::HeAggregationTest

◆ ::TwoLevelAggregationTest

Member Data Documentation

◆ m_activeProbing

◆ m_assocLogger

◆ m_assocRequestEvent

◆ m_assocRequestTimeout

◆ m_beaconArrival

◆ m_beaconWatchdog

◆ m_beaconWatchdogEnd

◆ m_candidateAps

◆ m_deAssocLogger

◆ m_maxMissedBeacons

◆ m_probeRequestEvent

◆ m_probeRequestTimeout

◆ m_state

◆ m_waitBeaconEvent

◆ m_waitBeaconTimeout
