ns3::Txop Class Reference

Handle packet fragmentation and retransmissions for data and management frames. More...

#include "txop.h"

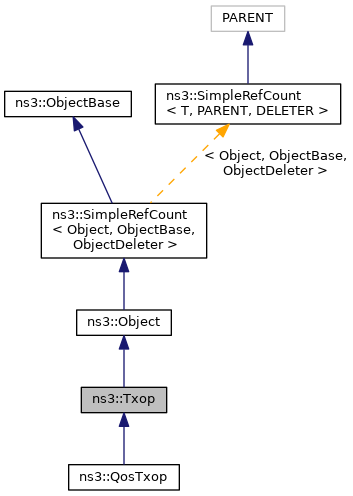

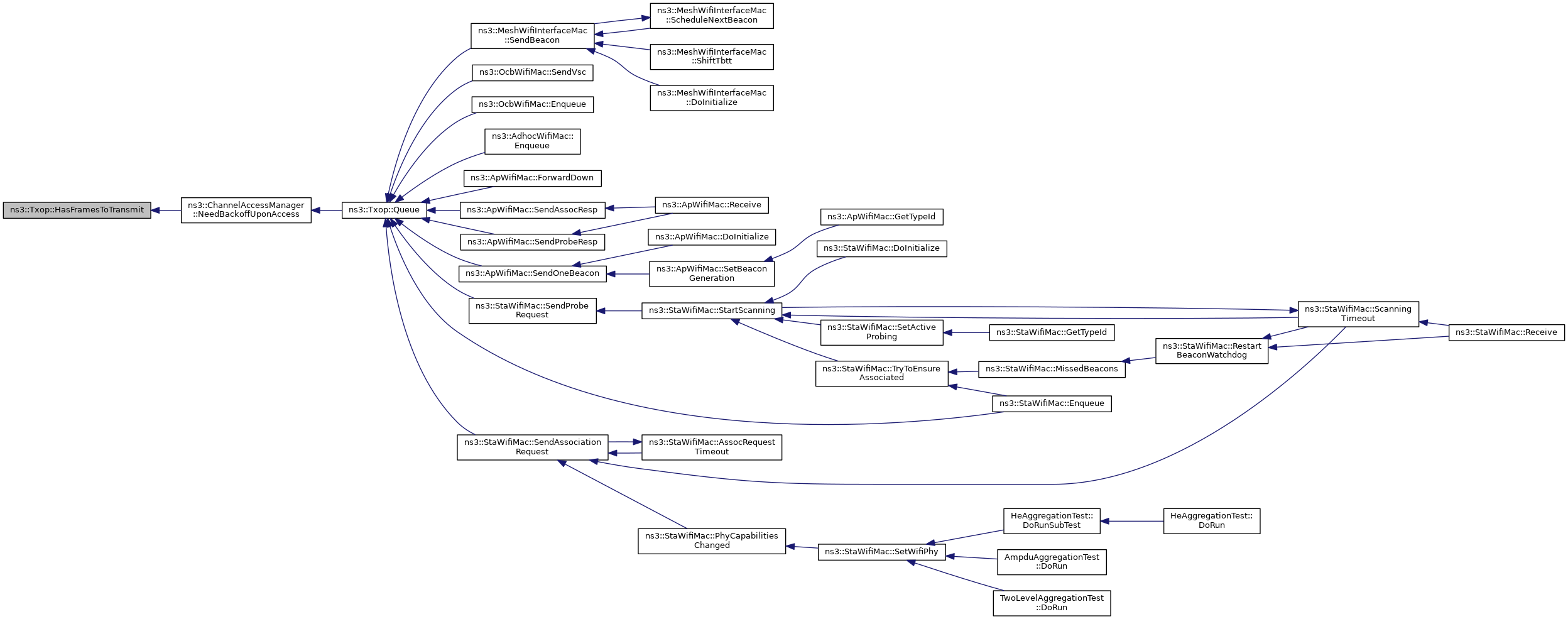

+ Inheritance diagram for ns3::Txop:

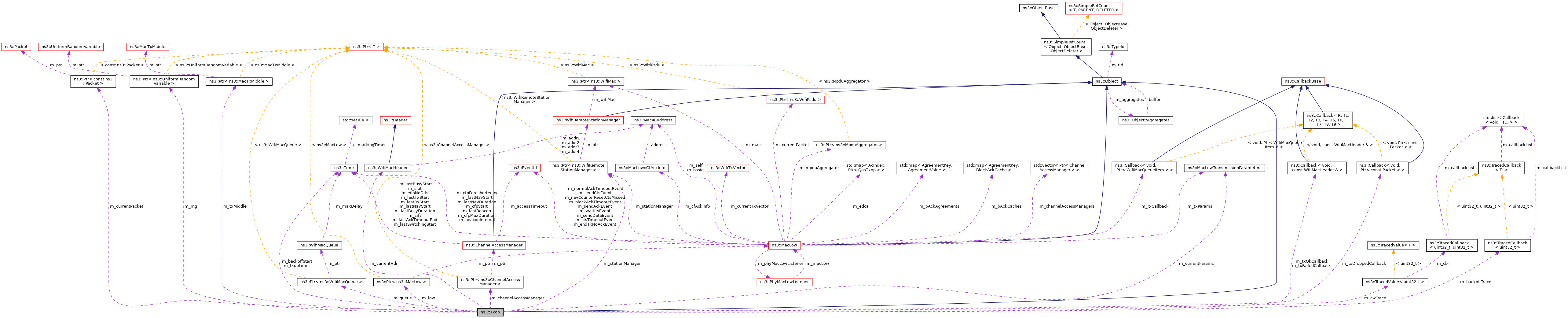

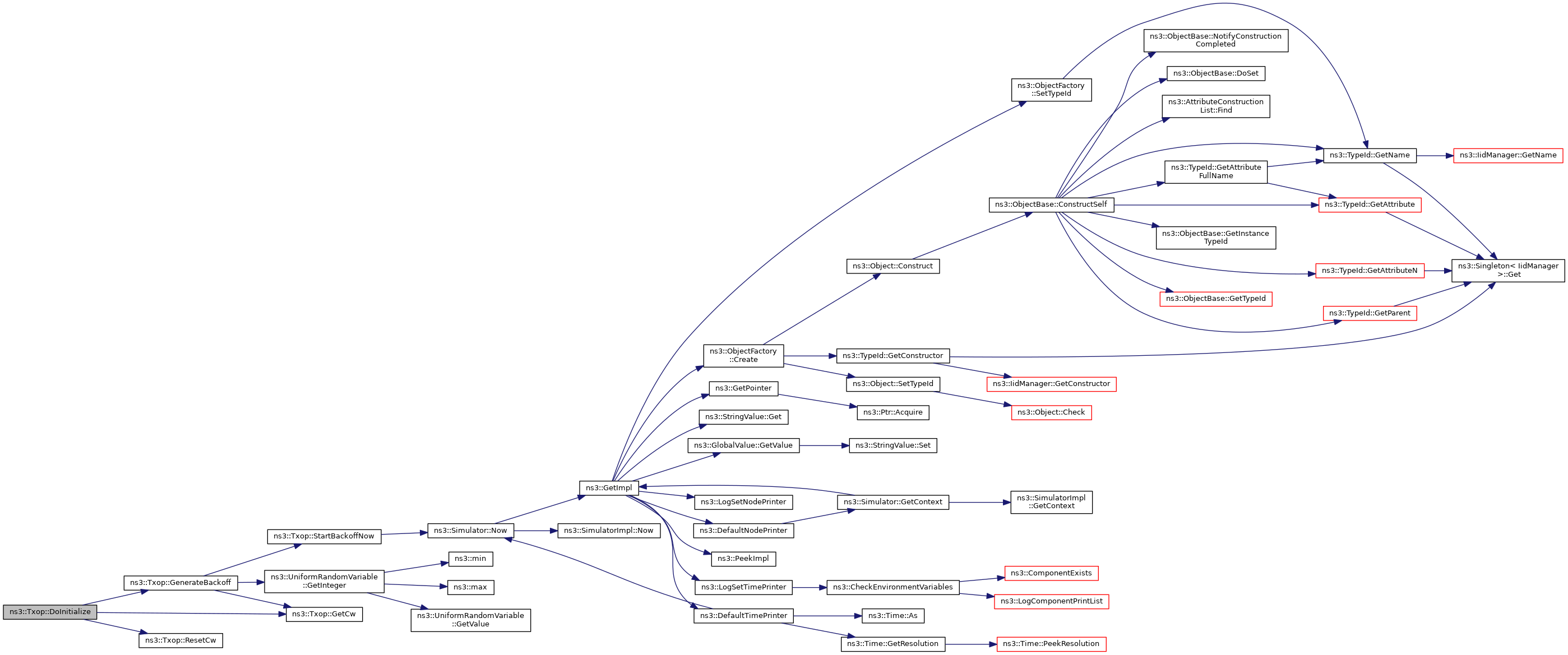

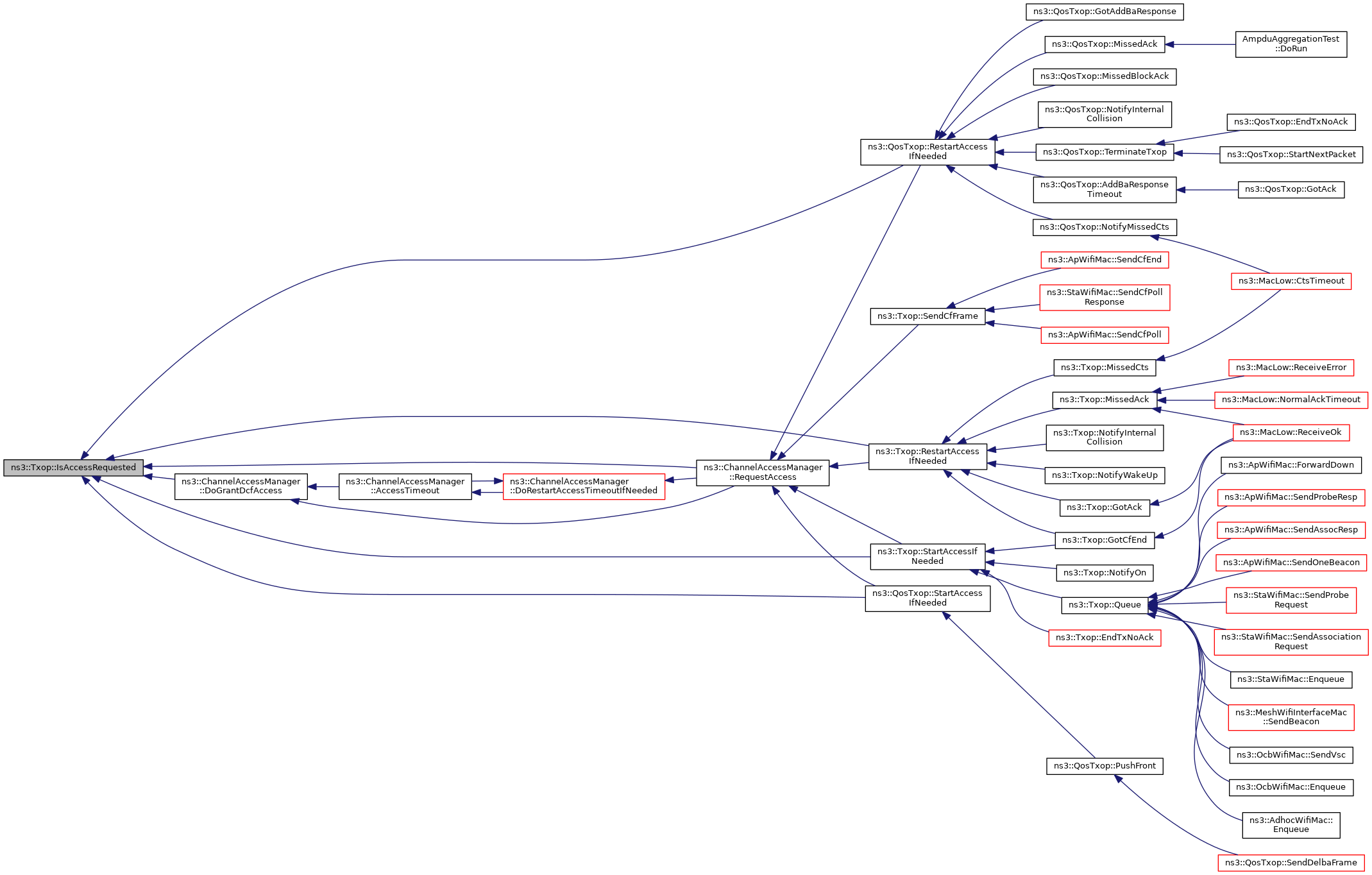

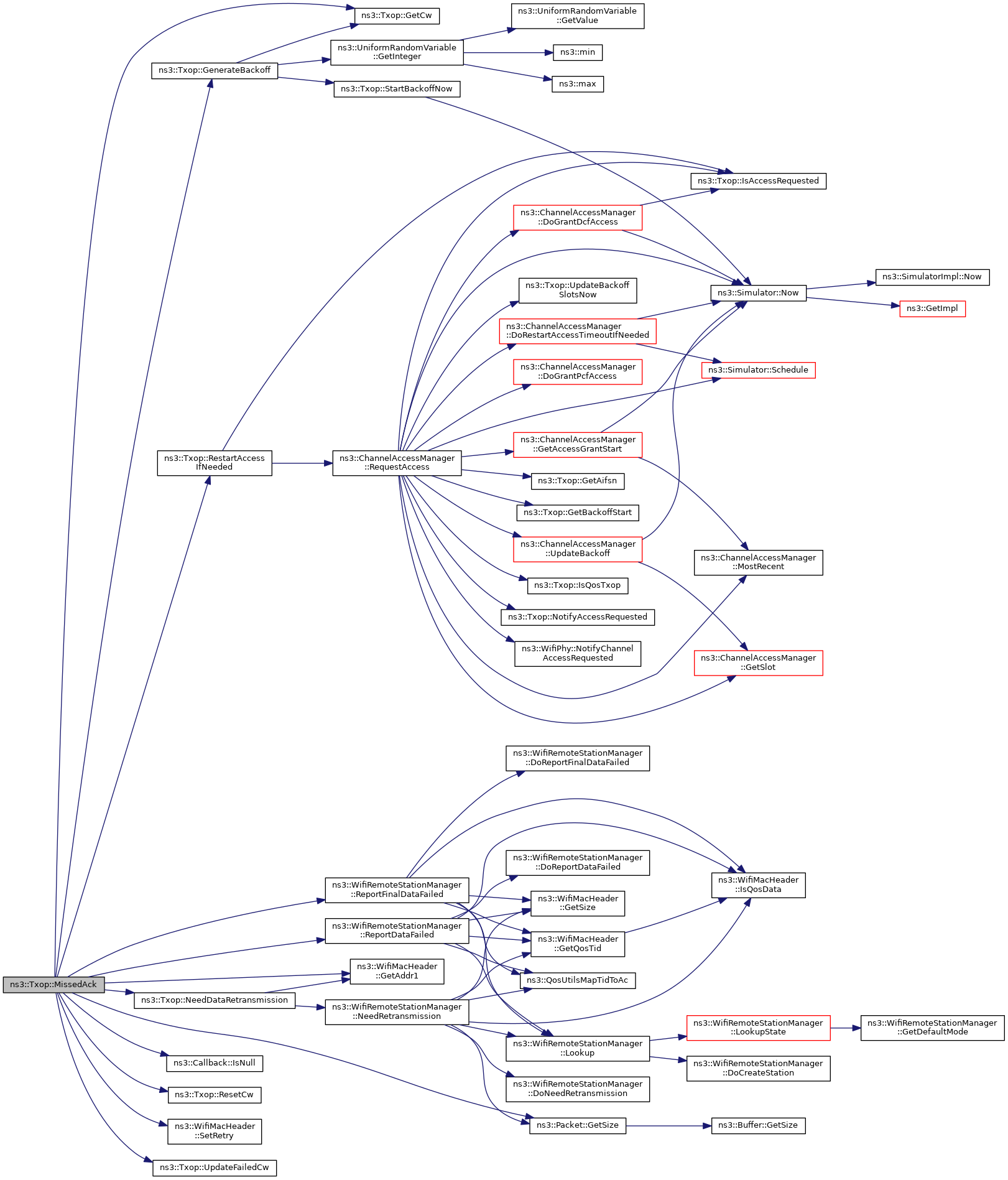

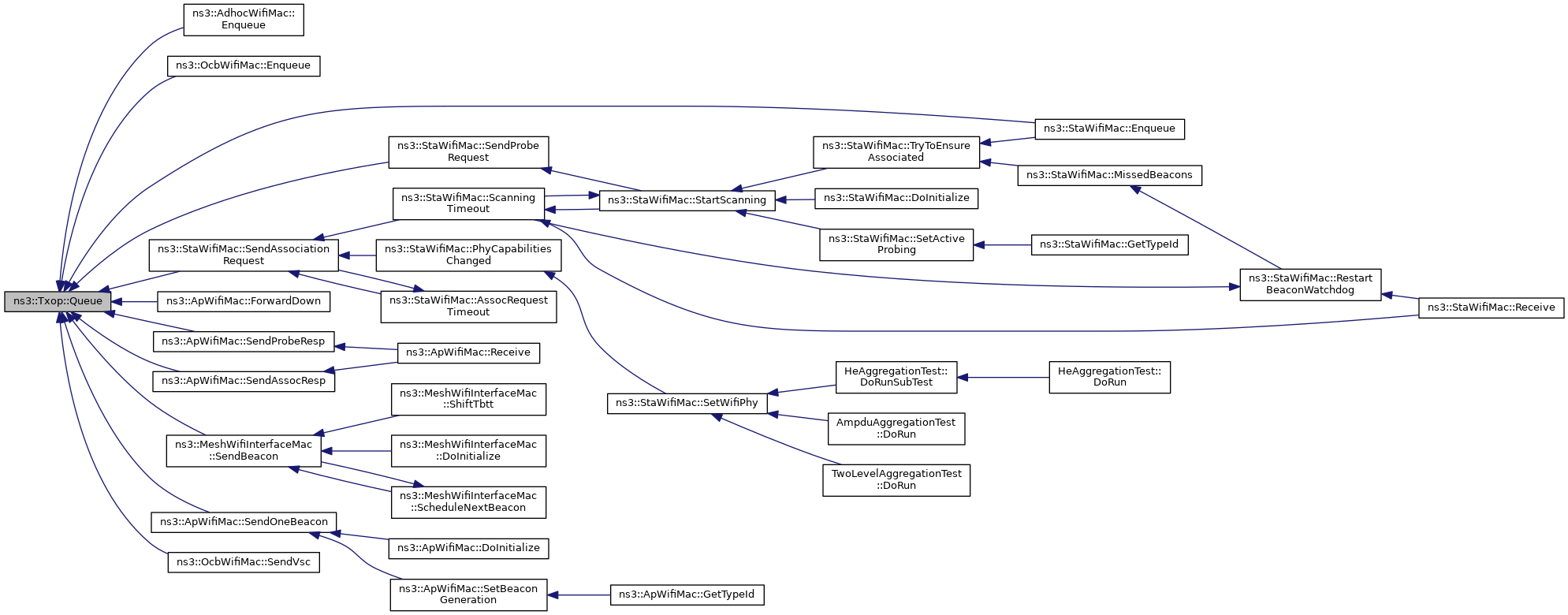

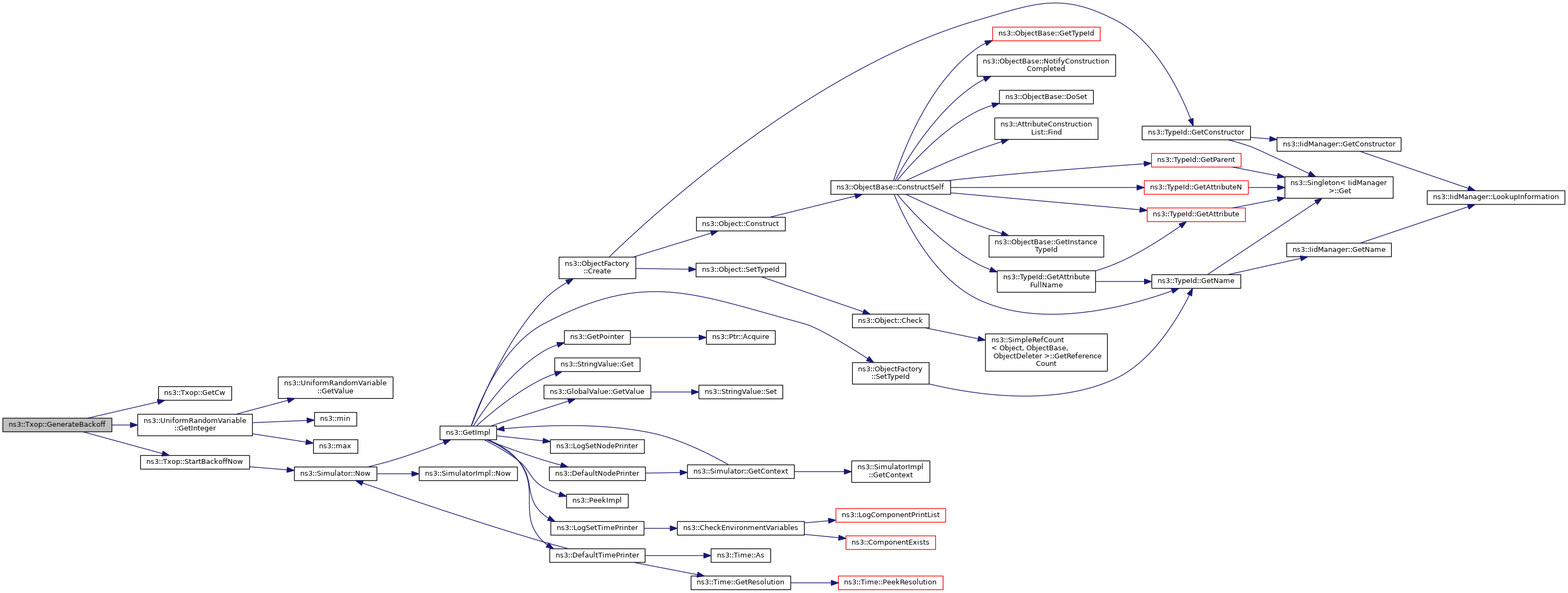

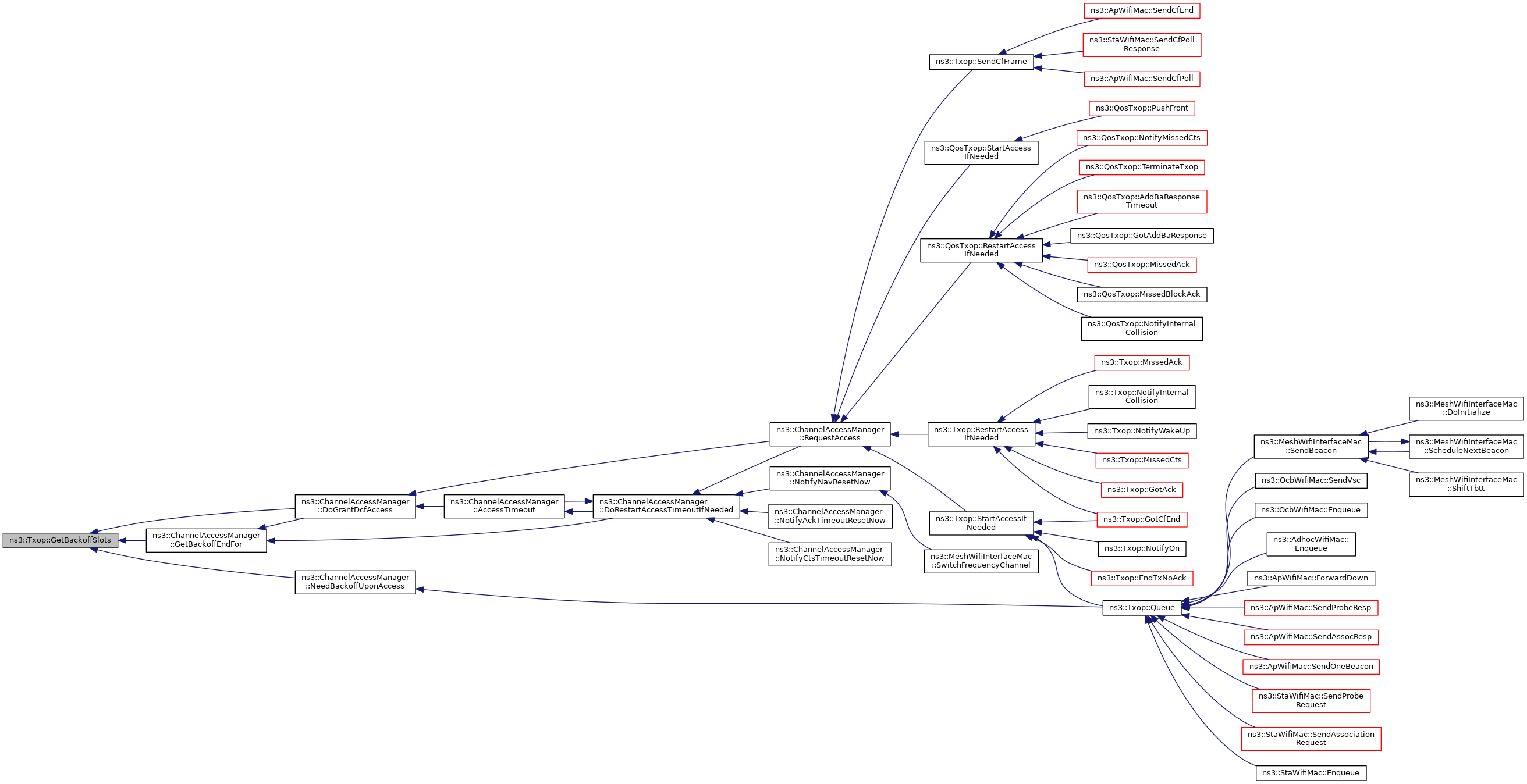

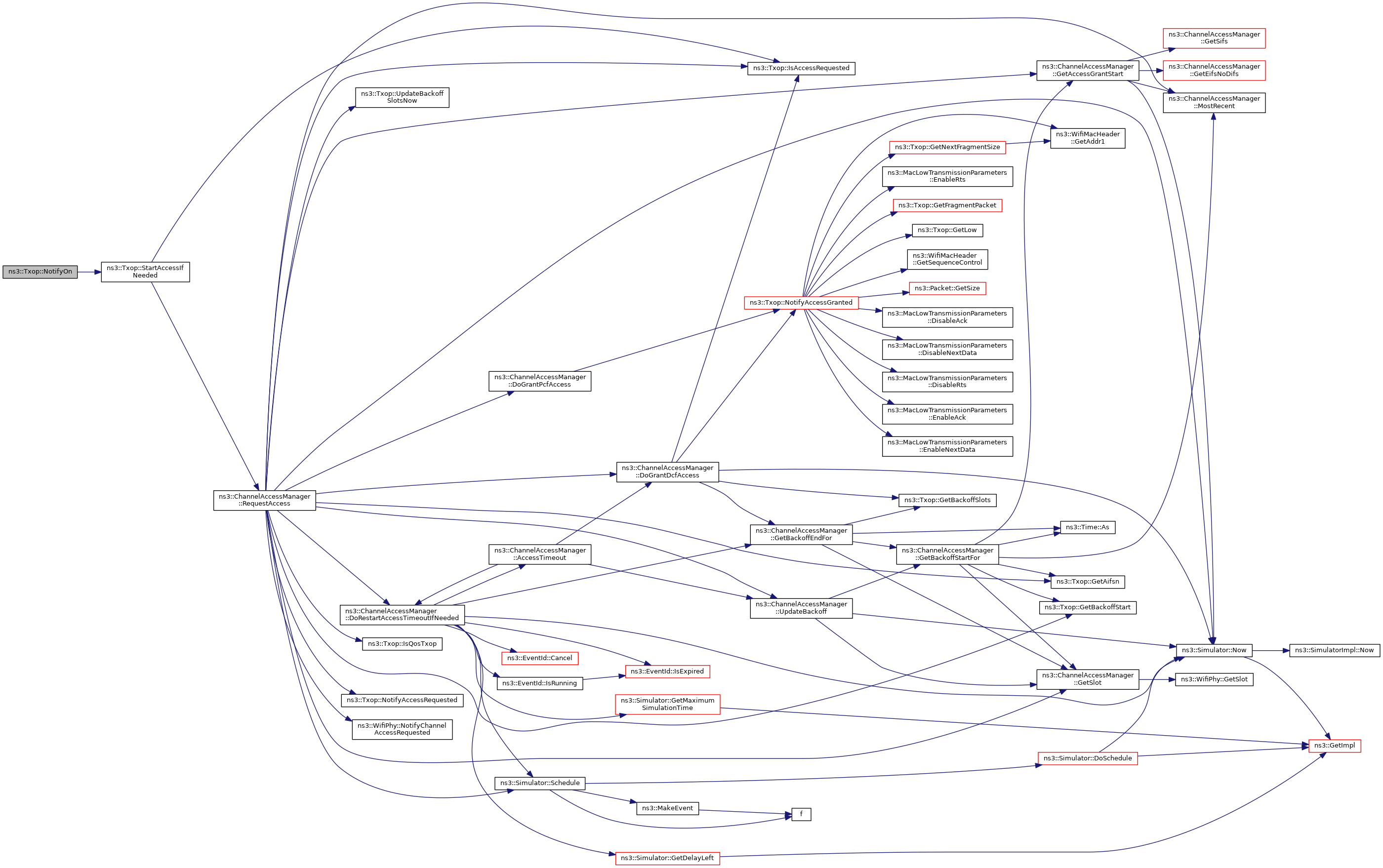

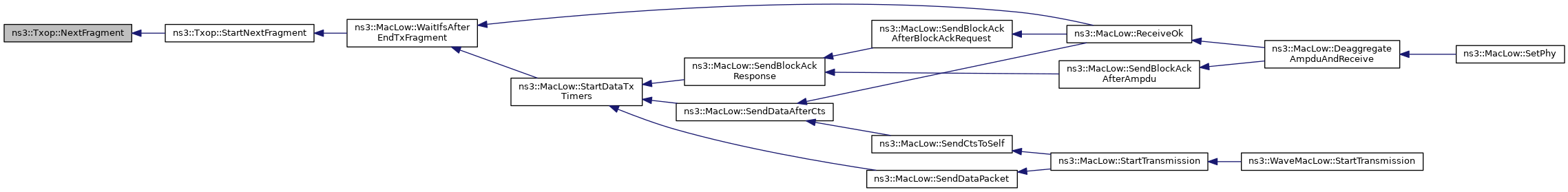

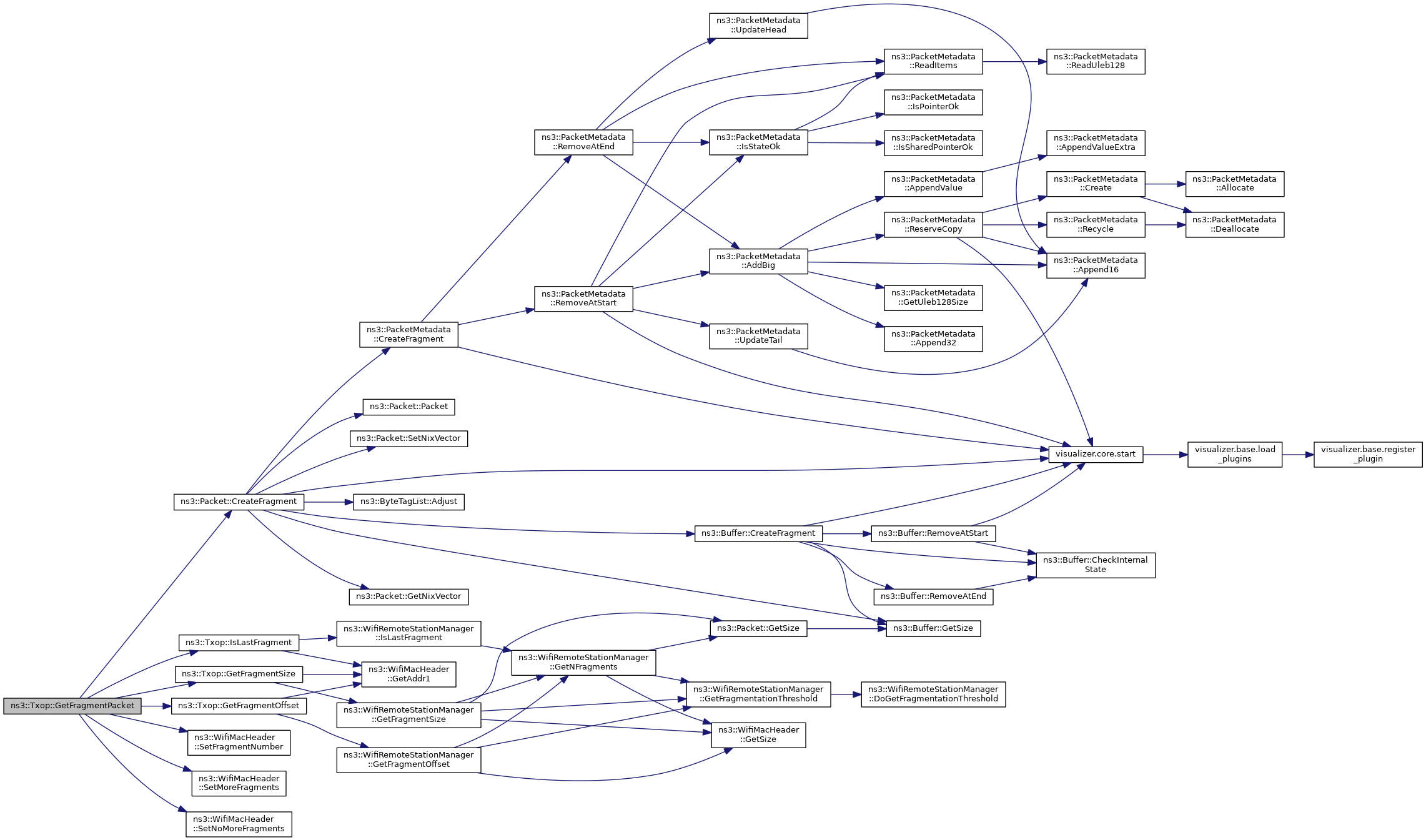

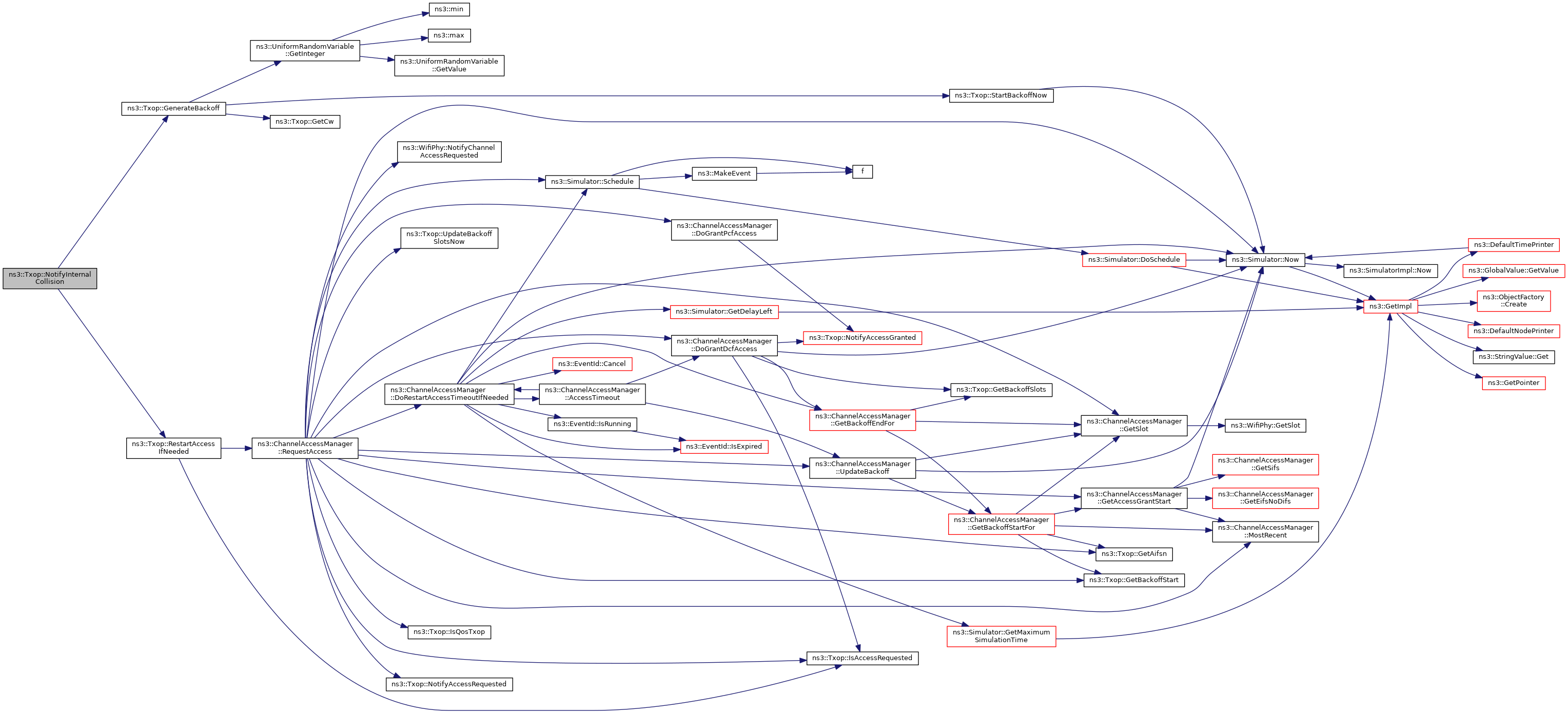

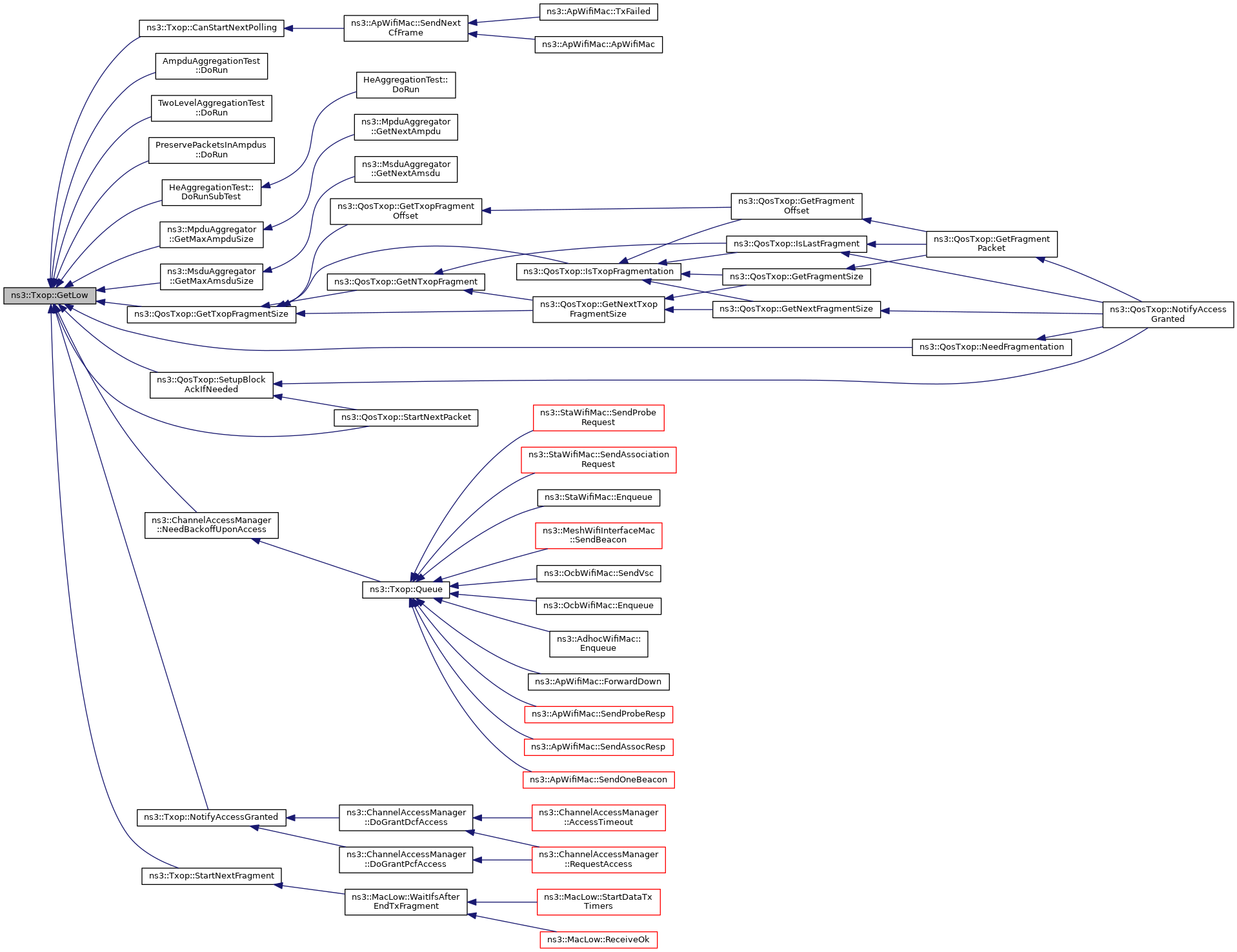

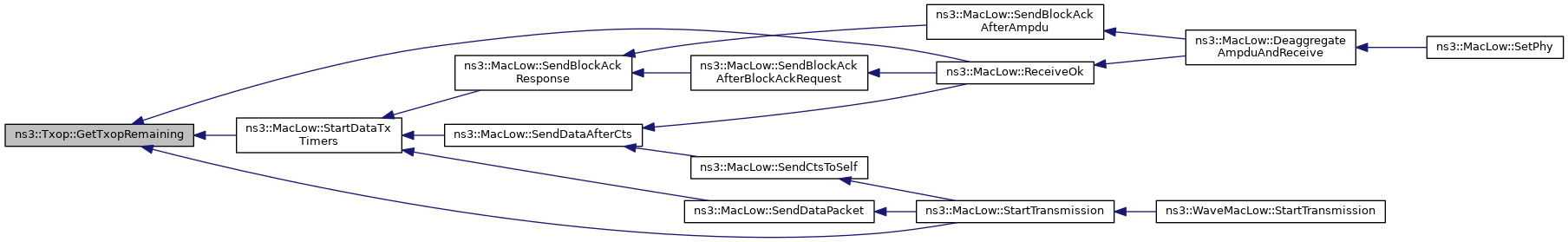

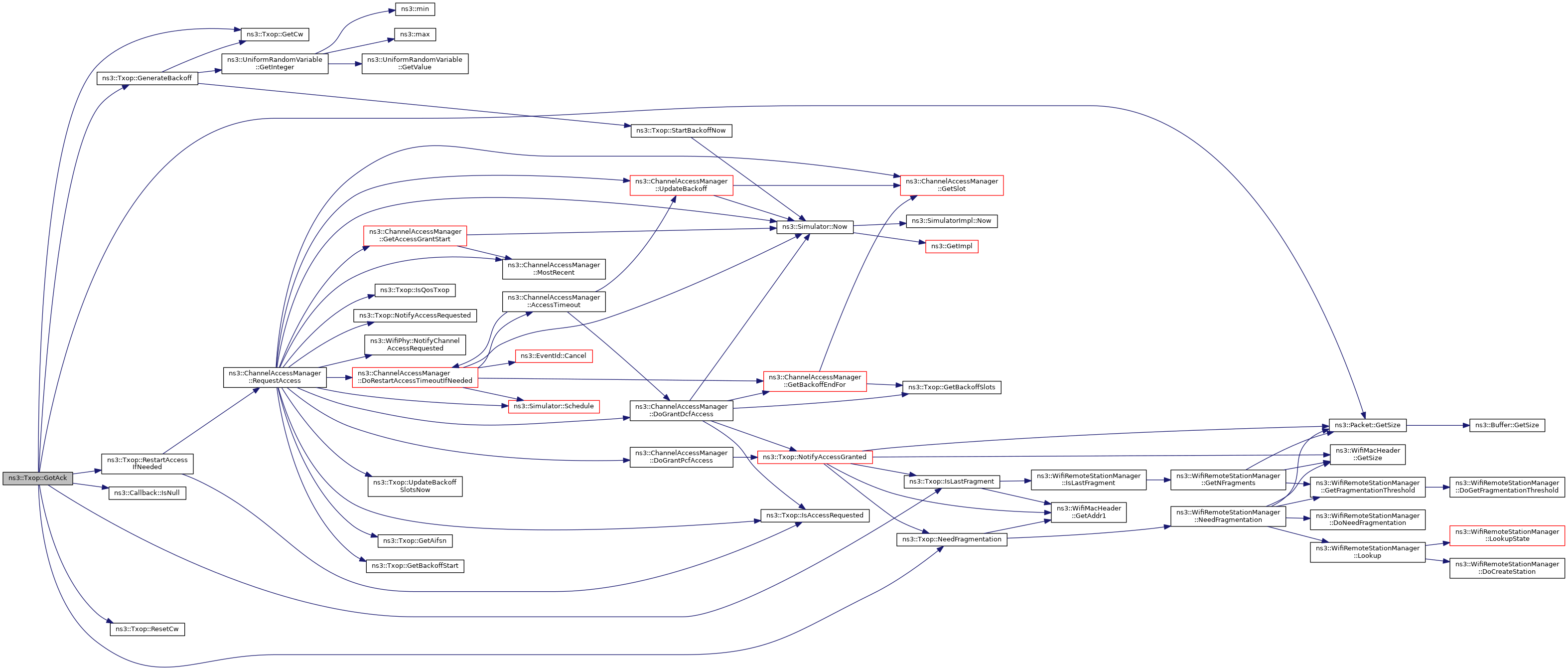

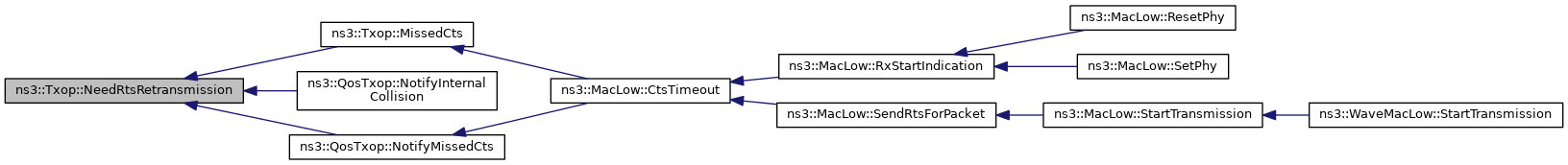

+ Collaboration diagram for ns3::Txop:

Public Types

typedef Callback< void, Ptr< const Packet > > TxDropped
 typedef for a callback to invoke when a packet is dropped. More...

typedef Callback< void, const WifiMacHeader & > TxFailed
 typedef for a callback to invoke when a packet transmission was failed. More...

typedef Callback< void, const WifiMacHeader & > TxOk
 typedef for a callback to invoke when a packet transmission was completed successfully. More...


Public Member Functions

 Txop ()

virtual ~Txop ()

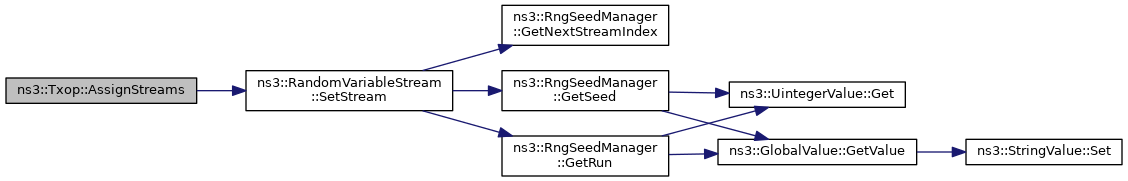

int64_t AssignStreams (int64_t stream)
 Assign a fixed random variable stream number to the random variables used by this model. More...

virtual void Cancel (void)
 Cancel the transmission. More...

bool CanStartNextPolling (void) const
 Check if the next PCF transmission can fit in the remaining CFP duration. More...

virtual void EndTxNoAck (void)
 Event handler when a transmission that does not require an Ack has completed. More...

uint8_t GetAifsn (void) const
 Return the number of slots that make up an AIFS. More...

Ptr< MacLowGetLow (void) const
 Return the MacLow associated with this Txop. More...

uint32_t GetMaxCw (void) const
 Return the maximum contention window size. More...

uint32_t GetMinCw (void) const
 Return the minimum contention window size. More...

Time GetTxopLimit (void) const
 Return the TXOP limit. More...

virtual Time GetTxopRemaining (void) const
 Return the remaining duration in the current TXOP. More...

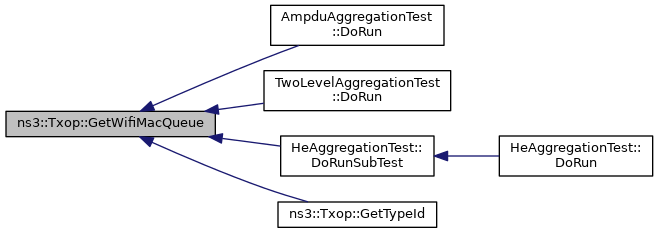

Ptr< WifiMacQueueGetWifiMacQueue () const
 Return the packet queue associated with this Txop. More...

virtual void GotAck (void)
 Event handler when an Ack is received. More...

virtual void GotBlockAck (const CtrlBAckResponseHeader *blockAck, Mac48Address recipient, double rxSnr, double dataSnr, WifiTxVector dataTxVector)
 Event handler when a BlockAck is received. More...

void GotCfEnd (void)
 Event handler when a CF-END frame is received. More...

virtual bool IsAccessRequested (void) const

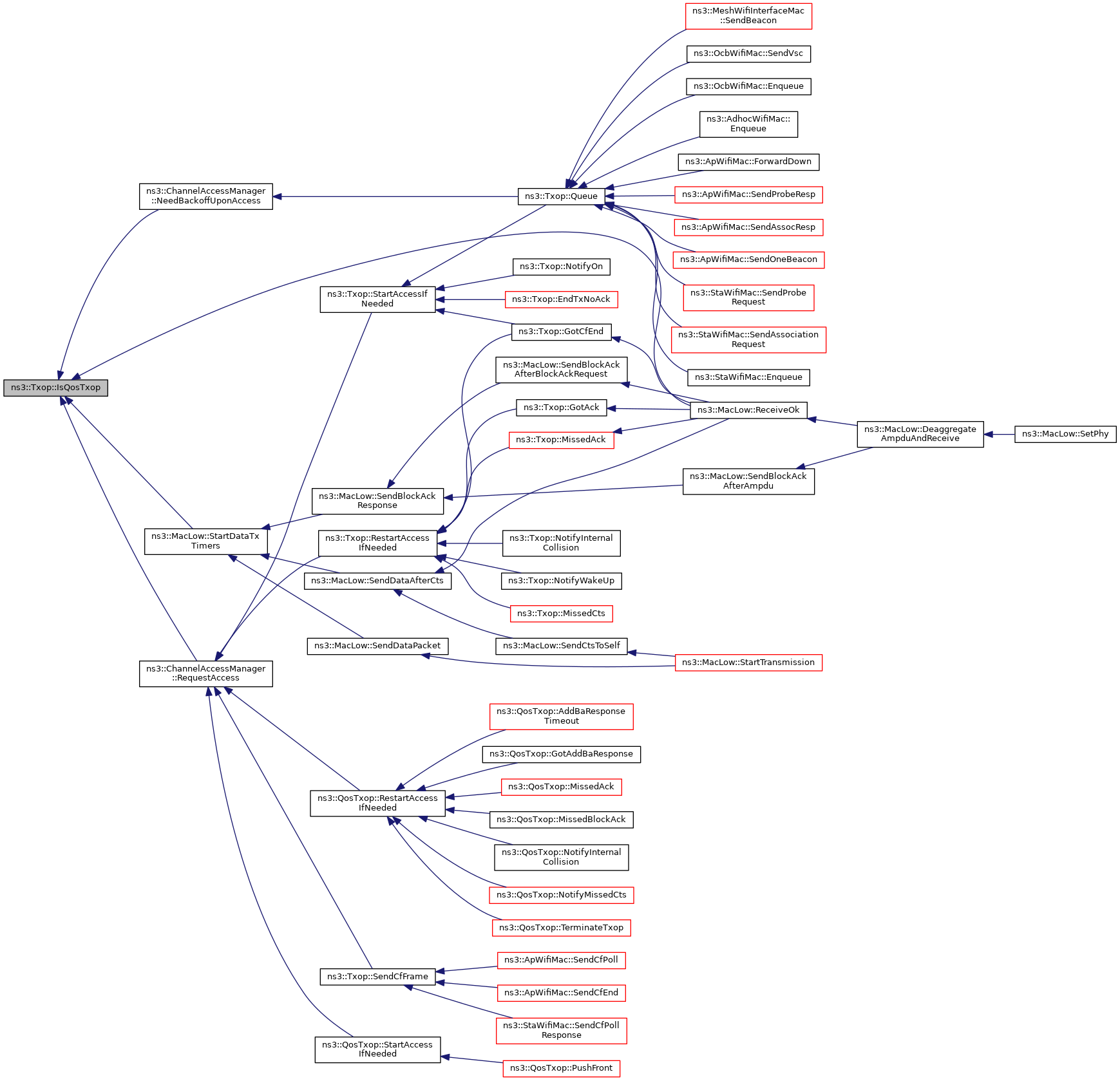

virtual bool IsQosTxop () const
 Check for QoS TXOP. More...

virtual void MissedAck (void)
 Event handler when an Ack is missed. More...

virtual void MissedBlockAck (uint8_t nMpdus)
 Event handler when a BlockAck timeout has occurred. More...

void MissedCfPollResponse (bool expectedCfAck)
 Event handler when a response to a CF-POLL frame is missed. More...

virtual void MissedCts (void)
 Event handler when a CTS timeout has occurred. More...

virtual void NotifyChannelSwitching (void)
 When a channel switching occurs, enqueued packets are removed. More...

virtual void NotifyOff (void)
 When off operation occurs, the queue gets cleaned up. More...

virtual void NotifyOn (void)
 When on operation occurs, channel access will be started. More...

virtual void NotifySleep (void)
 When sleep operation occurs, if there is a pending packet transmission, it will be reinserted to the front of the queue. More...

virtual void NotifyWakeUp (void)
 When wake up operation occurs, channel access will be restarted. More...

virtual void Queue (Ptr< Packet > packet, const WifiMacHeader &hdr)

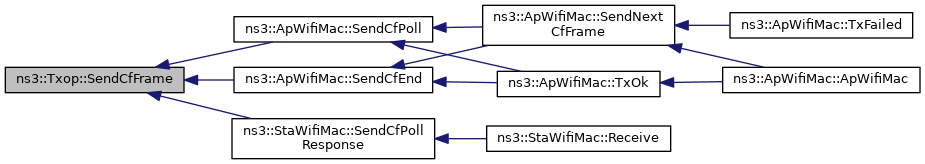

void SendCfFrame (WifiMacType frameType, Mac48Address addr)
 Sends CF frame to STA with address addr. More...

void SetAifsn (uint8_t aifsn)
 Set the number of slots that make up an AIFS. More...

void SetChannelAccessManager (const Ptr< ChannelAccessManager > manager)
 Set ChannelAccessManager this Txop is associated to. More...

void SetMacLow (const Ptr< MacLow > low)
 Set MacLow associated with this Txop. More...

void SetMaxCw (uint32_t maxCw)
 Set the maximum contention window size. More...

void SetMinCw (uint32_t minCw)
 Set the minimum contention window size. More...

void SetTxDroppedCallback (TxDropped callback)

void SetTxFailedCallback (TxFailed callback)

void SetTxMiddle (const Ptr< MacTxMiddle > txMiddle)
 Set MacTxMiddle this Txop is associated to. More...

void SetTxOkCallback (TxOk callback)

void SetTxopLimit (Time txopLimit)
 Set the TXOP limit. More...

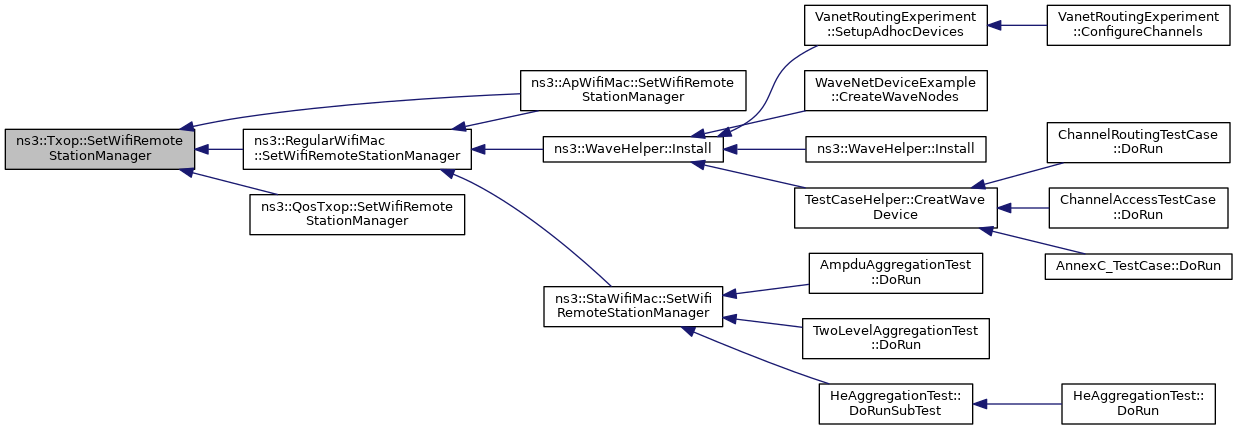

virtual void SetWifiRemoteStationManager (const Ptr< WifiRemoteStationManager > remoteManager)
 Set WifiRemoteStationsManager this Txop is associated to. More...

void StartBackoffNow (uint32_t nSlots)

virtual void StartNextFragment (void)
 Start transmission for the next fragment. More...

virtual void StartNextPacket (void)
 Start transmission for the next packet if allowed by the TxopLimit. More...

virtual void TerminateTxop (void)
 Update backoff and restart access if needed. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject () const

template<>
Ptr< ObjectGetObject (TypeId tid) const

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Member Functions

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

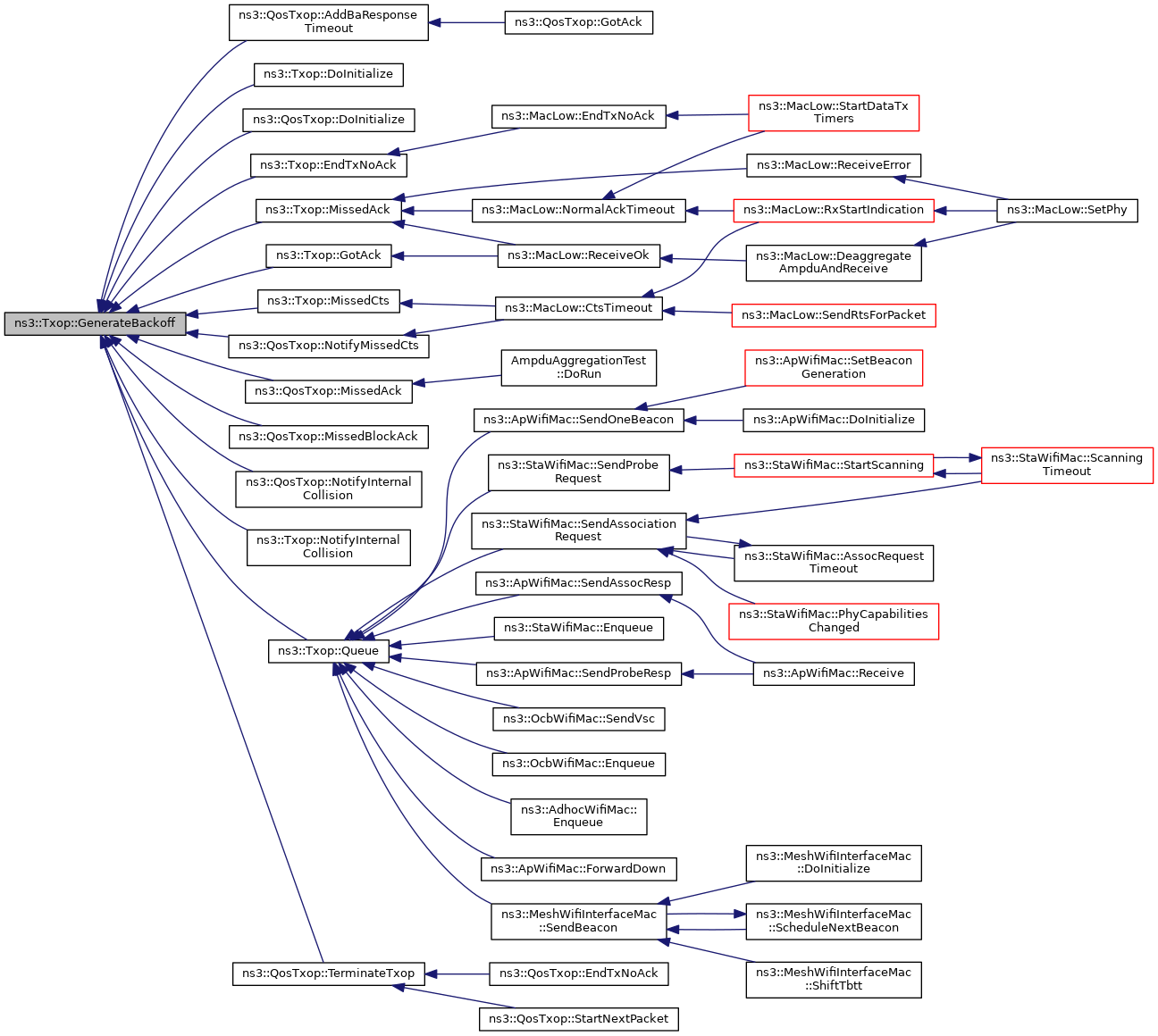

virtual void GenerateBackoff (void)
 Generate a new backoff now. More...

uint32_t GetBackoffSlots (void) const
 Return the current number of backoff slots. More...

Time GetBackoffStart (void) const
 Return the time when the backoff procedure started. More...

uint32_t GetCw (void) const

virtual uint32_t GetFragmentOffset (void) const
 Calculate the offset for the current fragment. More...

virtual Ptr< PacketGetFragmentPacket (WifiMacHeader *hdr)
 Get the next fragment from the packet with appropriate Wifi header for the fragment. More...

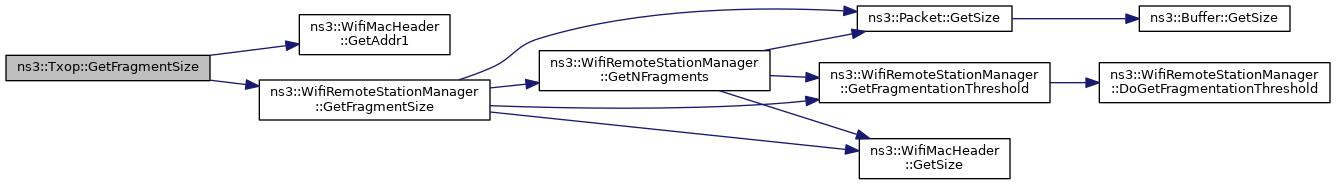

virtual uint32_t GetFragmentSize (void) const
 Calculate the size of the current fragment. More...

virtual uint32_t GetNextFragmentSize (void) const
 Calculate the size of the next fragment. More...

virtual bool HasFramesToTransmit (void)
 Check if the Txop has frames to transmit. More...

virtual bool IsLastFragment (void) const
 Check if the current fragment is the last fragment. More...

bool NeedDataRetransmission (Ptr< const Packet > packet, const WifiMacHeader &hdr)
 Check if Data should be re-transmitted if Ack was missed. More...

virtual bool NeedFragmentation (void) const
 Check if the current packet should be fragmented. More...

bool NeedRtsRetransmission (Ptr< const Packet > packet, const WifiMacHeader &hdr)
 Check if RTS should be re-transmitted if CTS was missed. More...

void NextFragment (void)
 Continue to the next fragment. More...

virtual void NotifyAccessGranted (void)
 Notify the Txop that access has been granted. More...

virtual void NotifyAccessRequested (void)
 Notify that access request has been received. More...

virtual void NotifyInternalCollision (void)
 Notify the Txop that internal collision has occurred. More...

void ResetCw (void)
 Update the value of the CW variable to take into account a transmission success or a transmission abort (stop transmission of a packet after the maximum number of retransmissions has been reached). More...

virtual void RestartAccessIfNeeded (void)
 Restart access request if needed. More...

virtual void StartAccessIfNeeded (void)
 Request access from Txop if needed. More...

void TxDroppedPacket (Ptr< const WifiMacQueueItem > item)
 Pass the packet included in the wifi MAC queue item to the packet dropped callback. More...

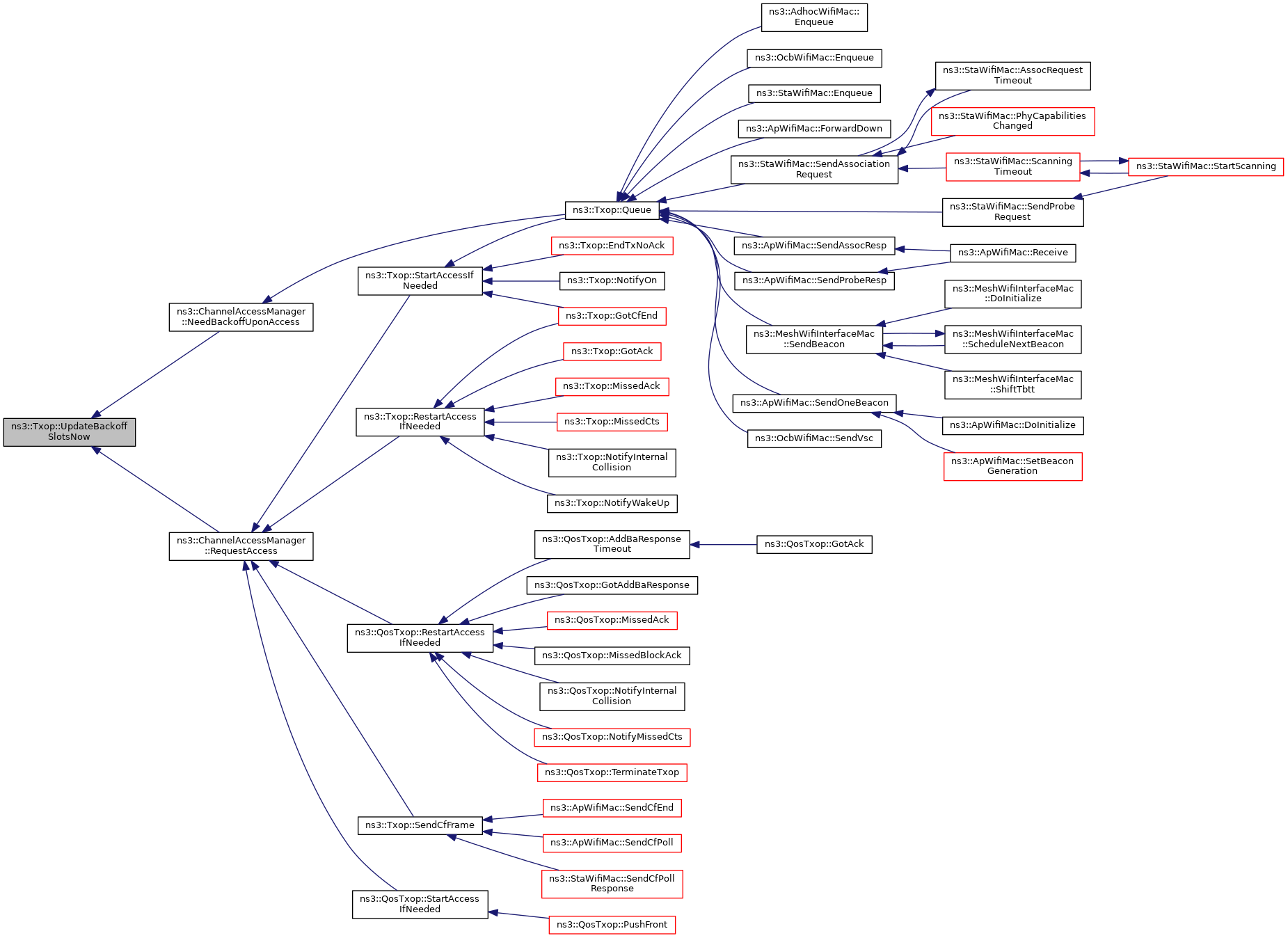

void UpdateBackoffSlotsNow (uint32_t nSlots, Time backoffUpdateBound)
 Update backoff slots that nSlots has passed. More...

void UpdateFailedCw (void)
 Update the value of the CW variable to take into account a transmission failure. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Protected Attributes

bool m_accessRequested
 flag whether channel access is already requested More...

uint8_t m_aifsn
 the AIFSN More...

uint32_t m_backoff
 the current backoff More...

uint32_t m_backoffSlots
 the number of backoff slots More...

Time m_backoffStart
 the backoffStart variable is used to keep track of the time at which a backoff was started or the time at which the backoff counter was last updated. More...

TracedCallback< uint32_t > m_backoffTrace
 backoff trace value More...

Ptr< ChannelAccessManagerm_channelAccessManager
 the channel access manager More...

WifiMacHeader m_currentHdr
 the current header More...

Ptr< const Packetm_currentPacket
 the current packet More...

MacLowTransmissionParameters m_currentParams
 current transmission parameters More...

uint32_t m_cw
 the current contention window More...

uint32_t m_cwMax
 the maximum contention window More...

uint32_t m_cwMin
 the minimum contention window More...

TracedValue< uint32_t > m_cwTrace
 CW trace value. More...

uint8_t m_fragmentNumber
 the fragment number More...

Ptr< MacLowm_low
 the MacLow More...

Ptr< WifiMacQueuem_queue
 the wifi MAC queue More...

Ptr< UniformRandomVariablem_rng
 the random stream More...

Ptr< WifiRemoteStationManagerm_stationManager
 the wifi remote station manager More...

TxDropped m_txDroppedCallback
 the packet dropped callback More...

TxFailed m_txFailedCallback
 the transmit failed callback More...

Ptr< MacTxMiddlem_txMiddle
 the MacTxMiddle More...

TxOk m_txOkCallback
 the transmit OK callback More...

Time m_txopLimit
 the TXOP limit time More...


Friends

class ChannelAccessManager
 < ChannelAccessManager associated class More...

class MacLowTransmissionListener
 allow MacLowTransmissionListener class access More...


Additional Inherited Members

Detailed Description

Handle packet fragmentation and retransmissions for data and management frames.


This class implements the packet fragmentation and retransmission policy for data and management frames. It uses the ns3::MacLow and ns3::ChannelAccessManager helper classes to respectively send packets and decide when to send them. Packets are stored in a ns3::WifiMacQueue until they can be sent.

The policy currently implemented uses a simple fragmentation threshold: any packet bigger than this threshold is fragmented in fragments whose size is smaller than the threshold.

The retransmission policy is also very simple: every packet is retransmitted until it is either successfully transmitted or it has been retransmitted up until the SSRC or SLRC thresholds.

The RTS/CTS policy is similar to the fragmentation policy: when a packet is bigger than a threshold, the RTS/CTS protocol is used.

Config Paths

ns3::Txop is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/Txop"

Attributes

  • MinCw: The minimum value of the contention window.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 15
    • Flags: construct write read
  • MaxCw: The maximum value of the contention window.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 1023
    • Flags: construct write read
  • Aifsn: The AIFSN: the default value conforms to non-QOS.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint8_t 0:255
    • Initial value: 2
    • Flags: construct write read
  • TxopLimit: The TXOP limit: the default value conforms to non-QoS.
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
    • Initial value: +0ns
    • Flags: construct write read
  • Queue: The WifiMacQueue object

TraceSources

Size of this type is 280 bytes (on a 64-bit architecture).

Definition at line 66 of file txop.h.

Member Typedef Documentation

◆ TxDropped

typedef Callback<void, Ptr<const Packet> > ns3::Txop::TxDropped

typedef for a callback to invoke when a packet is dropped.

Definition at line 95 of file txop.h.

◆ TxFailed

typedef for a callback to invoke when a packet transmission was failed.

Definition at line 90 of file txop.h.

◆ TxOk

typedef Callback<void, const WifiMacHeader&> ns3::Txop::TxOk

typedef for a callback to invoke when a packet transmission was completed successfully.

Definition at line 85 of file txop.h.

Constructor & Destructor Documentation

◆ Txop()

ns3::Txop::Txop ( )

Definition at line 86 of file txop.cc.

References m_queue, m_rng, and NS_LOG_FUNCTION.

◆ ~Txop()

ns3::Txop::~Txop ( )
virtual

Definition at line 102 of file txop.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::Txop::AssignStreams ( int64_t  stream)

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters
streamfirst stream index to use.
Returns
the number of stream indices assigned by this model.

Definition at line 332 of file txop.cc.

References m_rng, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Referenced by ns3::MeshHelper::AssignStreams(), ns3::WaveHelper::AssignStreams(), ns3::WifiHelper::AssignStreams(), and AssignWifiRandomStreams().

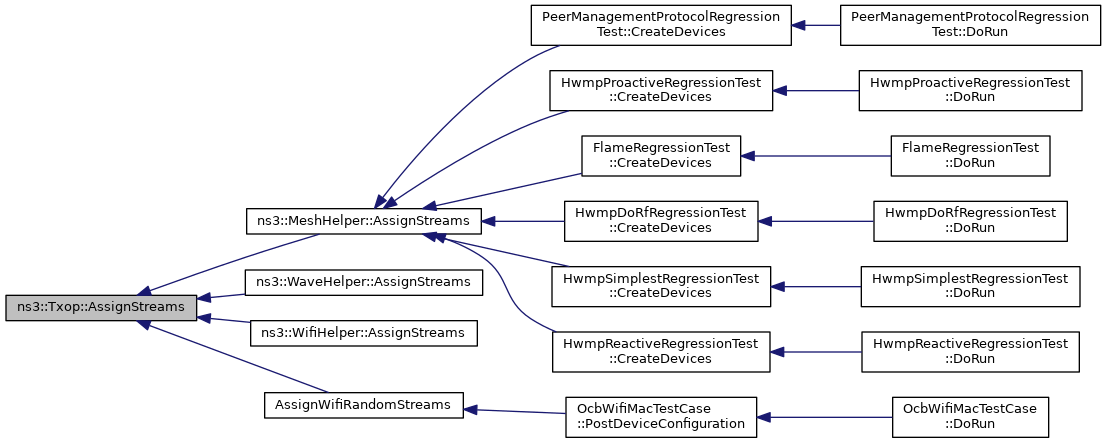

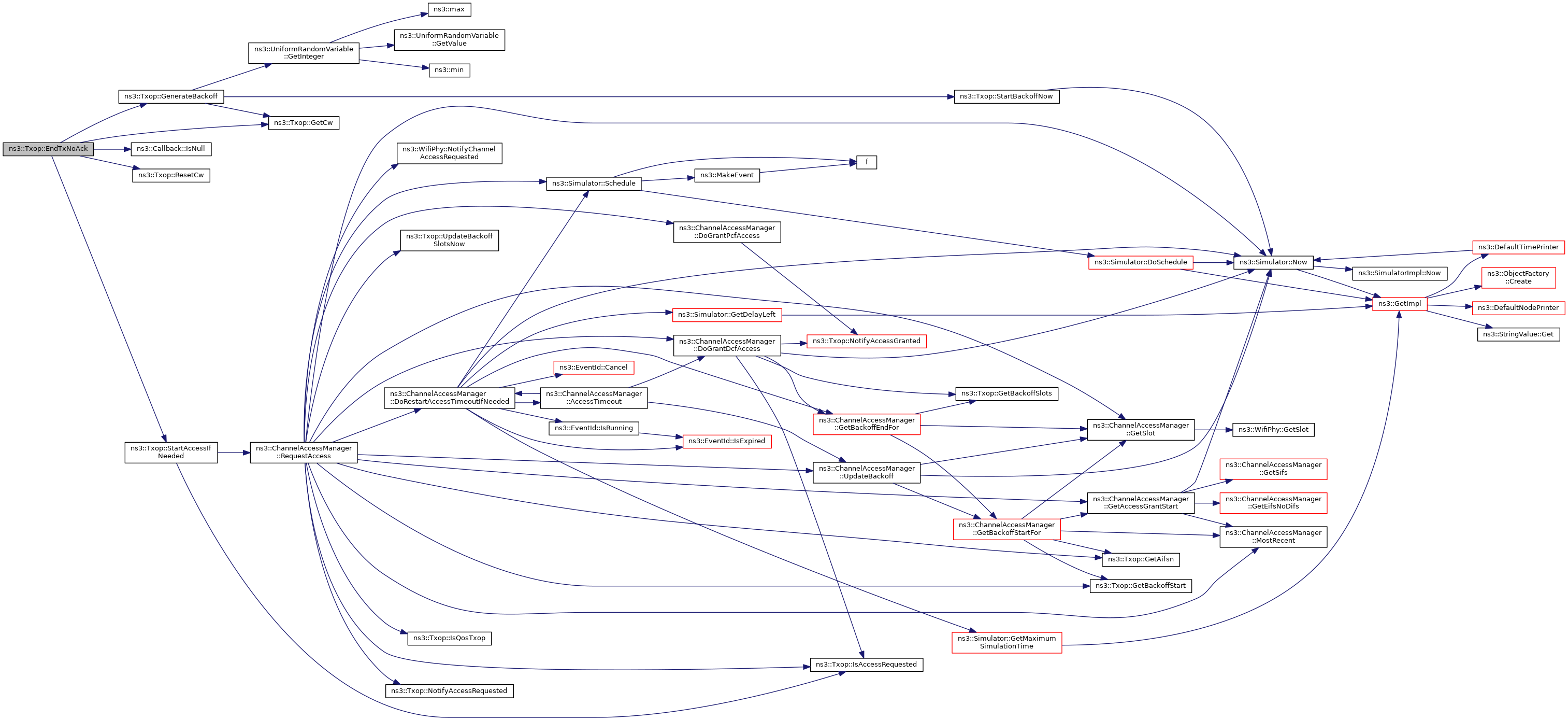

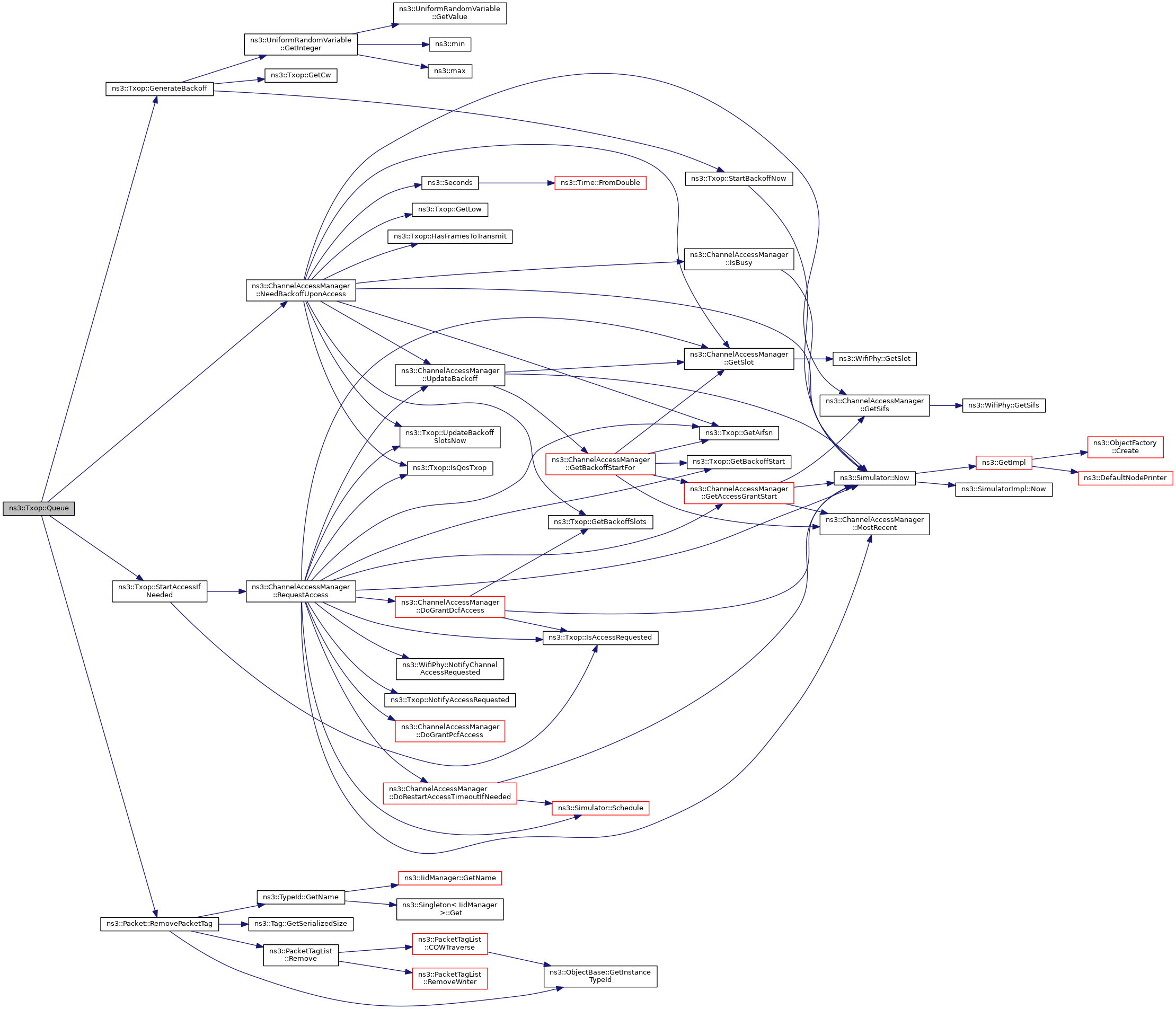

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Cancel()

void ns3::Txop::Cancel ( void  )
virtual

Cancel the transmission.

Definition at line 760 of file txop.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::MacLow::CancelAllEvents().

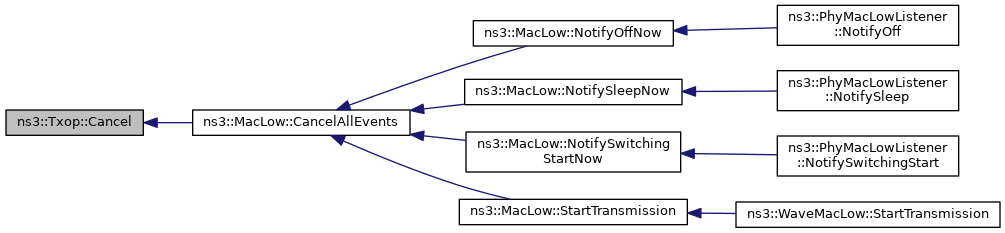

+ Here is the caller graph for this function:

◆ CanStartNextPolling()

bool ns3::Txop::CanStartNextPolling ( void  ) const

Check if the next PCF transmission can fit in the remaining CFP duration.

Returns
true if the next PCF transmission can fit in the remaining CFP duration, false otherwise

Definition at line 855 of file txop.cc.

References GetLow(), ns3::ChannelAccessManager::IsBusy(), and m_channelAccessManager.

Referenced by ns3::ApWifiMac::SendNextCfFrame().

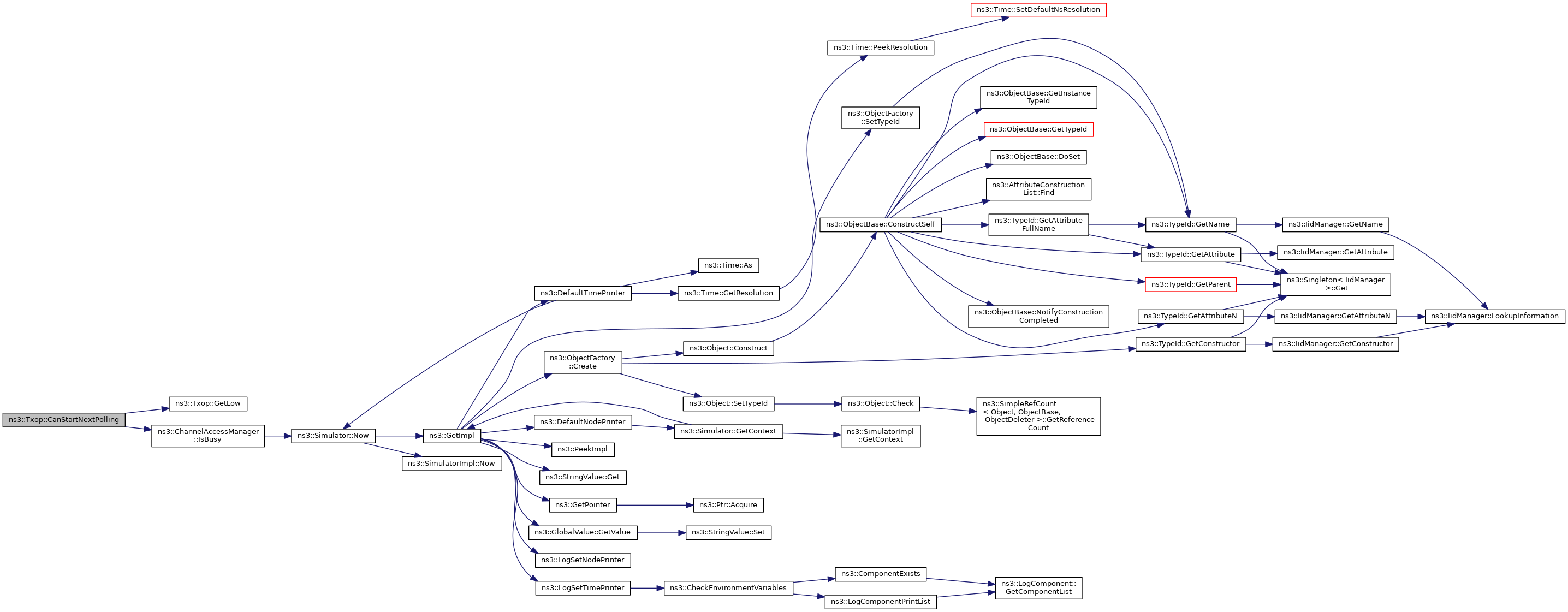

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ DoDispose()

void ns3::Txop::DoDispose ( void  )
protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::QosTxop.

Definition at line 108 of file txop.cc.

References m_channelAccessManager, m_low, m_queue, m_rng, m_stationManager, m_txMiddle, and NS_LOG_FUNCTION.

Referenced by ns3::QosTxop::DoDispose().

+ Here is the caller graph for this function:

◆ DoInitialize()

void ns3::Txop::DoInitialize ( void  )
protectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::QosTxop.

Definition at line 372 of file txop.cc.

References GenerateBackoff(), GetCw(), m_cwTrace, NS_LOG_FUNCTION, and ResetCw().

+ Here is the call graph for this function:

◆ EndTxNoAck()

void ns3::Txop::EndTxNoAck ( void  )
virtual

Event handler when a transmission that does not require an Ack has completed.

Reimplemented in ns3::QosTxop.

Definition at line 767 of file txop.cc.

References GenerateBackoff(), GetCw(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_currentHdr, m_currentPacket, m_cwTrace, m_txOkCallback, NS_LOG_DEBUG, NS_LOG_FUNCTION, ResetCw(), and StartAccessIfNeeded().

Referenced by ns3::MacLow::EndTxNoAck().

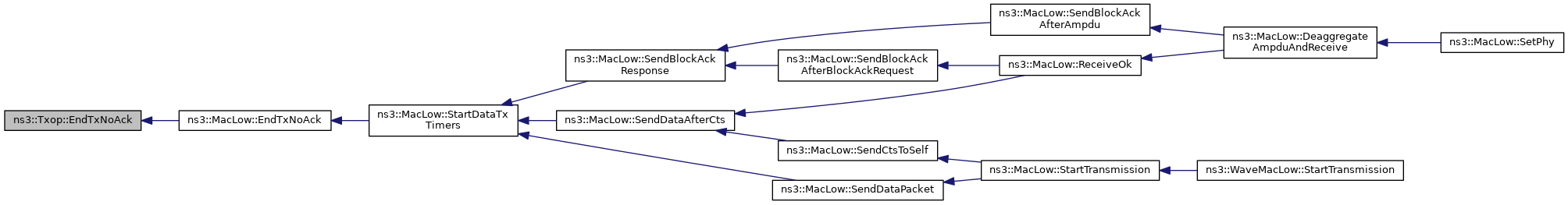

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GenerateBackoff()

◆ GetAifsn()

uint8_t ns3::Txop::GetAifsn ( void  ) const

Return the number of slots that make up an AIFS.

Returns
the number of slots that make up an AIFS.

Definition at line 297 of file txop.cc.

References m_aifsn.

Referenced by ns3::ChannelAccessManager::GetBackoffStartFor(), ns3::ApWifiMac::GetEdcaParameterSet(), GetTypeId(), ns3::ChannelAccessManager::NeedBackoffUponAccess(), and ns3::ChannelAccessManager::RequestAccess().

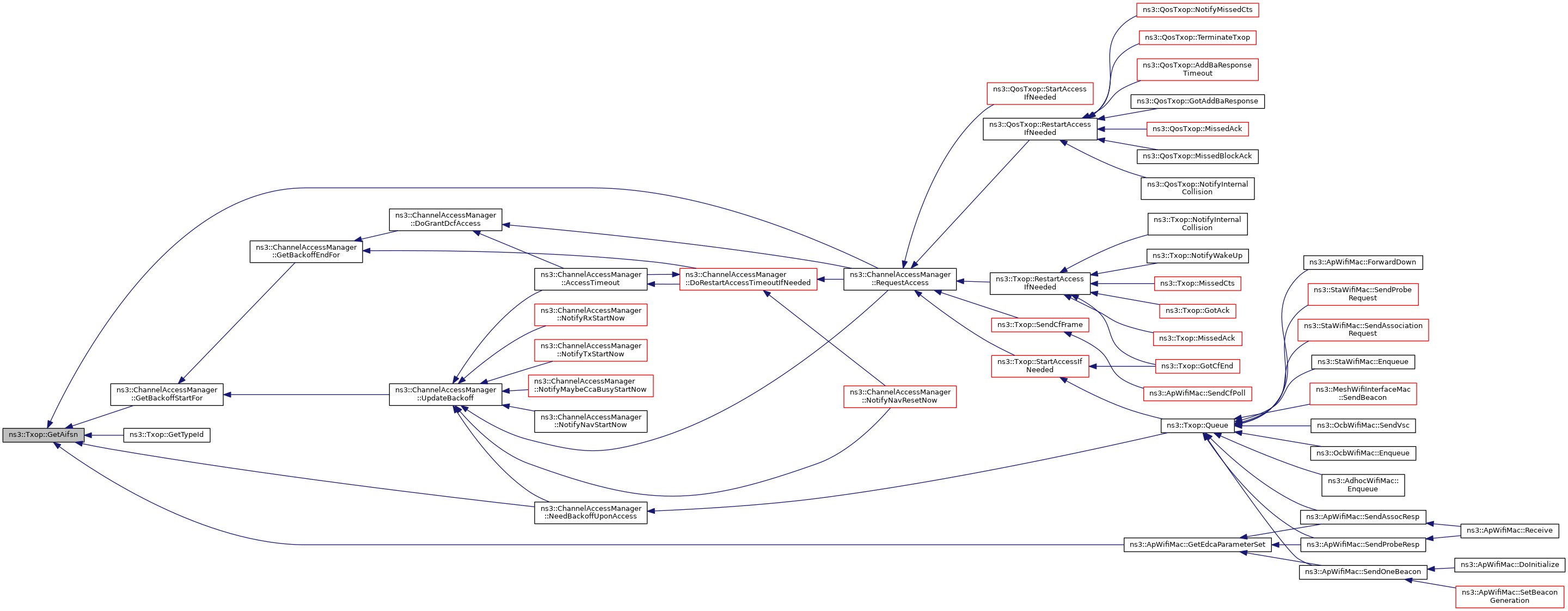

+ Here is the caller graph for this function:

◆ GetBackoffSlots()

uint32_t ns3::Txop::GetBackoffSlots ( void  ) const
protected

Return the current number of backoff slots.

Returns
the current number of backoff slots

Definition at line 233 of file txop.cc.

References m_backoffSlots.

Referenced by ns3::ChannelAccessManager::DoGrantDcfAccess(), ns3::ChannelAccessManager::GetBackoffEndFor(), and ns3::ChannelAccessManager::NeedBackoffUponAccess().

+ Here is the caller graph for this function:

◆ GetBackoffStart()

Time ns3::Txop::GetBackoffStart ( void  ) const
protected

Return the time when the backoff procedure started.

Returns
the time when the backoff procedure started

Definition at line 239 of file txop.cc.

References m_backoffStart.

Referenced by ns3::ChannelAccessManager::GetBackoffStartFor(), and ns3::ChannelAccessManager::RequestAccess().

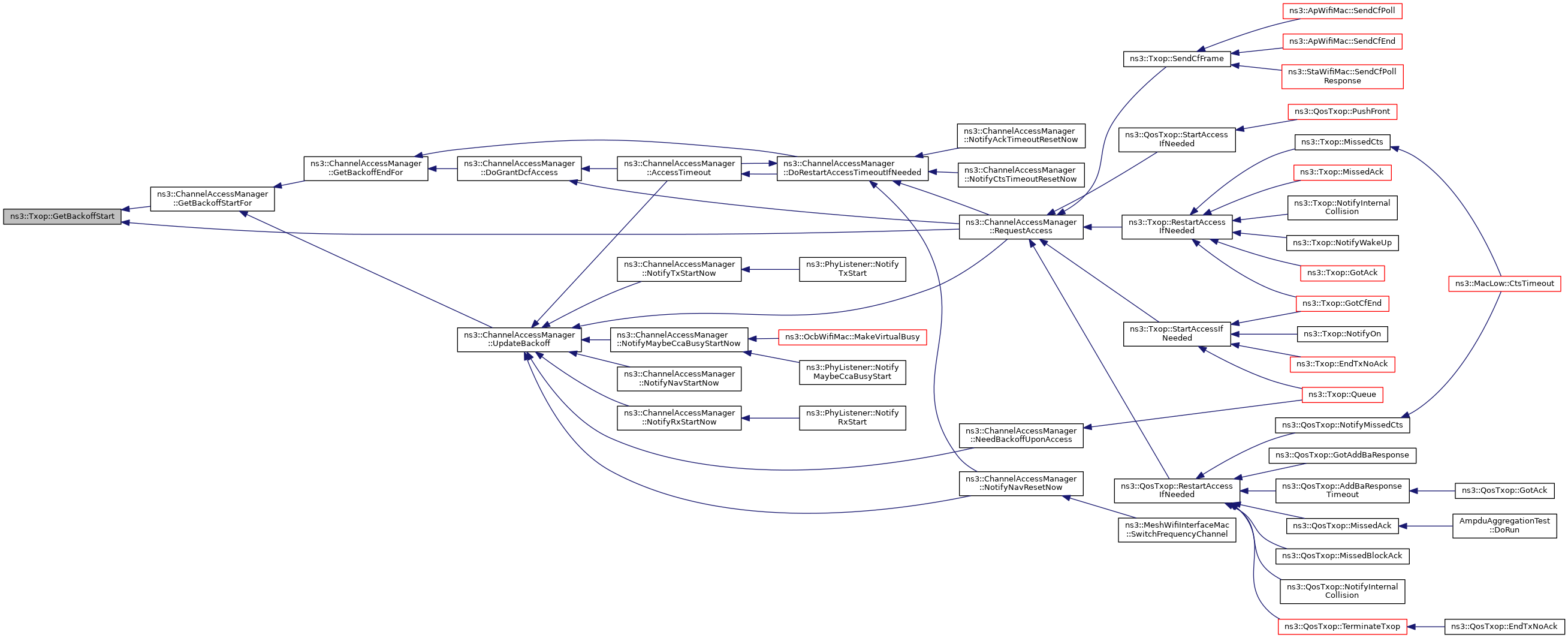

+ Here is the caller graph for this function:

◆ GetCw()

uint32_t ns3::Txop::GetCw ( void  ) const
protected
Returns
the current value of the CW variable. The initial value is minCW.

Definition at line 212 of file txop.cc.

References m_cw.

Referenced by DoInitialize(), ns3::QosTxop::DoInitialize(), EndTxNoAck(), GenerateBackoff(), GotAck(), ns3::QosTxop::MissedAck(), MissedAck(), ns3::QosTxop::MissedBlockAck(), MissedCts(), ns3::QosTxop::NotifyMissedCts(), SetMaxCw(), and SetMinCw().

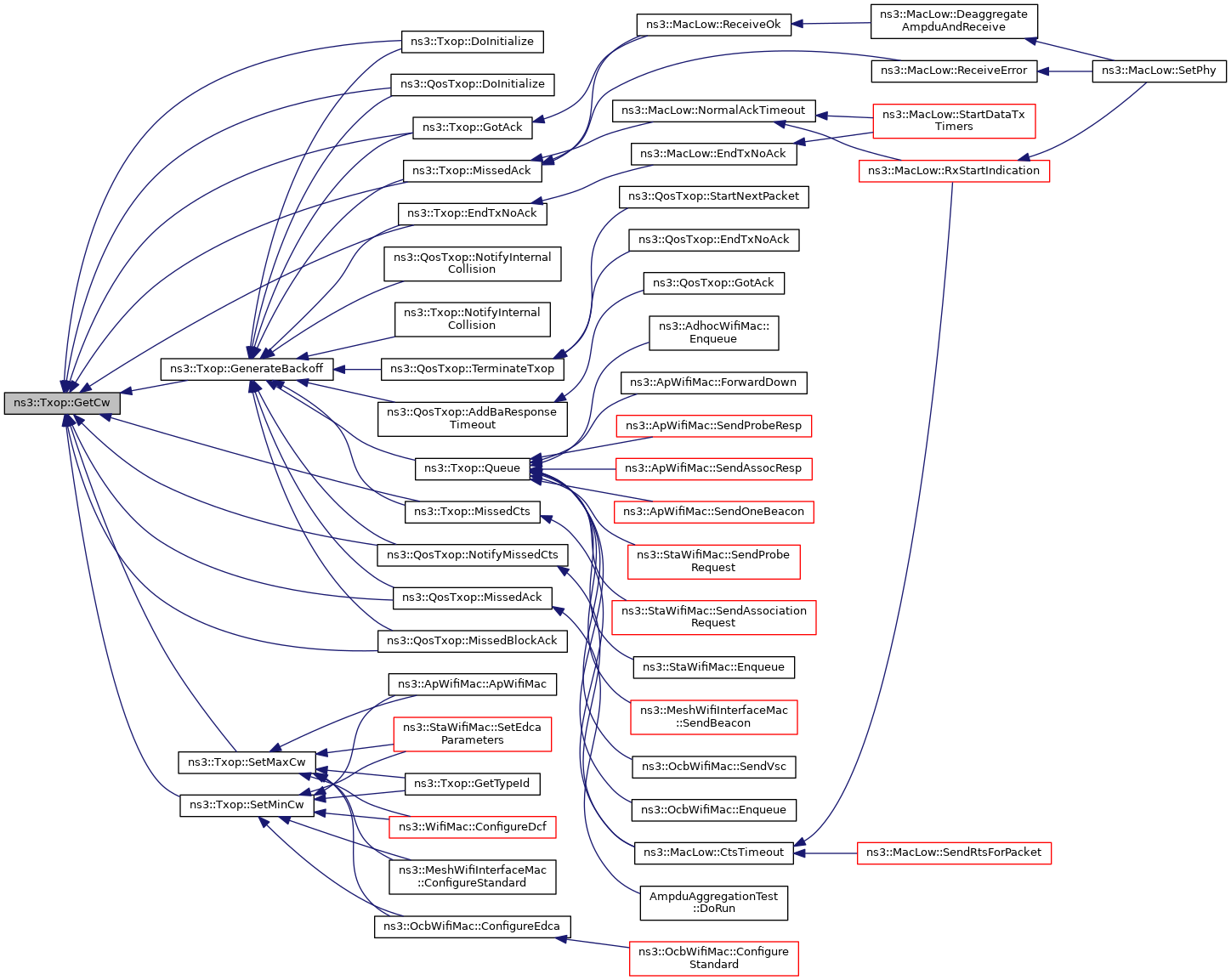

+ Here is the caller graph for this function:

◆ GetFragmentOffset()

uint32_t ns3::Txop::GetFragmentOffset ( void  ) const
protectedvirtual

Calculate the offset for the current fragment.

Returns
the offset for the current fragment in bytes.

Reimplemented in ns3::QosTxop.

Definition at line 434 of file txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::GetFragmentOffset(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GetFragmentPacket().

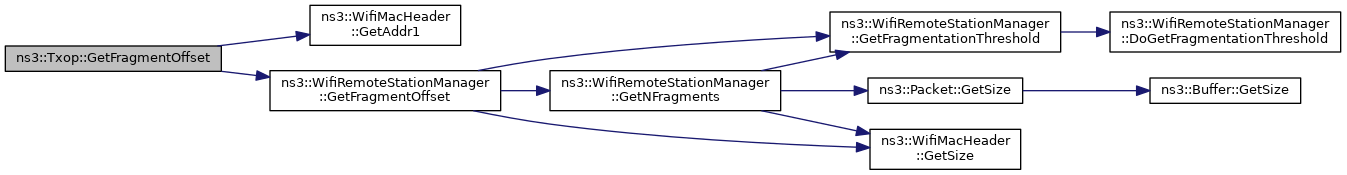

+ Here is the call graph for this function:

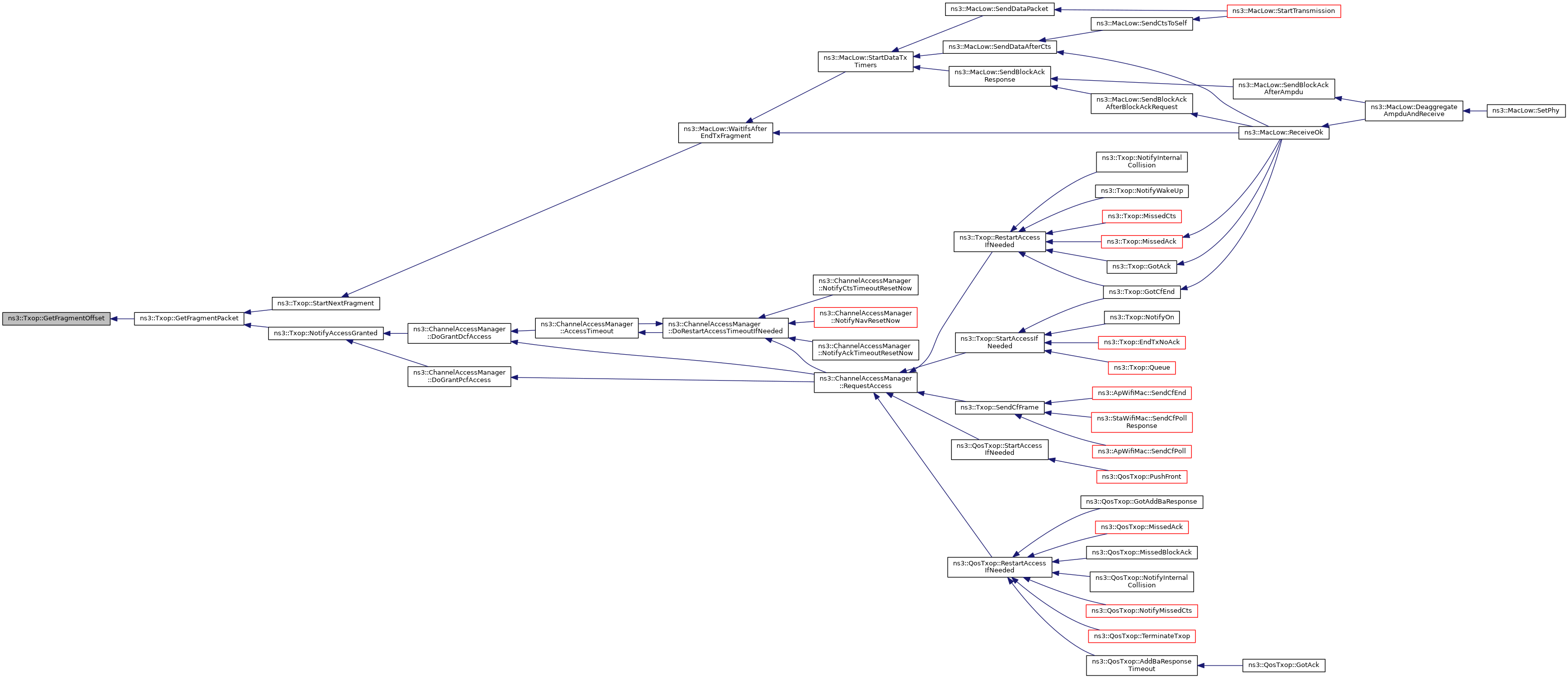

+ Here is the caller graph for this function:

◆ GetFragmentPacket()

Ptr< Packet > ns3::Txop::GetFragmentPacket ( WifiMacHeader hdr)
protectedvirtual

Get the next fragment from the packet with appropriate Wifi header for the fragment.

Parameters
hdrWi-Fi header.
Returns
the fragment with the current fragment number.

Reimplemented in ns3::QosTxop.

Definition at line 442 of file txop.cc.

References ns3::Packet::CreateFragment(), GetFragmentOffset(), GetFragmentSize(), IsLastFragment(), m_currentHdr, m_currentPacket, m_fragmentNumber, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetFragmentNumber(), ns3::WifiMacHeader::SetMoreFragments(), and ns3::WifiMacHeader::SetNoMoreFragments().

Referenced by NotifyAccessGranted(), and StartNextFragment().

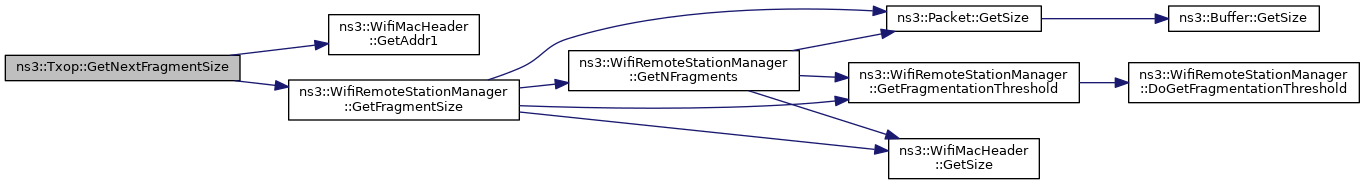

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetFragmentSize()

uint32_t ns3::Txop::GetFragmentSize ( void  ) const
protectedvirtual

Calculate the size of the current fragment.

Returns
the size of the current fragment in bytes.

Reimplemented in ns3::QosTxop.

Definition at line 410 of file txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::GetFragmentSize(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GetFragmentPacket().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetLow()

◆ GetMaxCw()

uint32_t ns3::Txop::GetMaxCw ( void  ) const

Return the maximum contention window size.

Returns
the maximum contention window size.

Definition at line 291 of file txop.cc.

References m_cwMax.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet(), and GetTypeId().

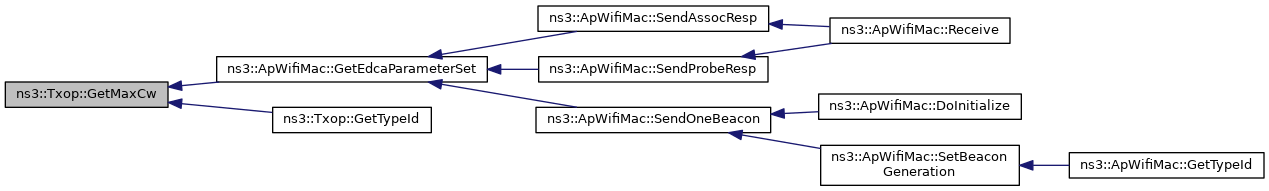

+ Here is the caller graph for this function:

◆ GetMinCw()

uint32_t ns3::Txop::GetMinCw ( void  ) const

Return the minimum contention window size.

Returns
the minimum contention window size.

Definition at line 285 of file txop.cc.

References m_cwMin.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet(), and GetTypeId().

+ Here is the caller graph for this function:

◆ GetNextFragmentSize()

uint32_t ns3::Txop::GetNextFragmentSize ( void  ) const
protectedvirtual

Calculate the size of the next fragment.

Returns
the size of the next fragment in bytes.

Reimplemented in ns3::QosTxop.

Definition at line 426 of file txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::GetFragmentSize(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by NotifyAccessGranted(), and StartNextFragment().

+ Here is the call graph for this function:

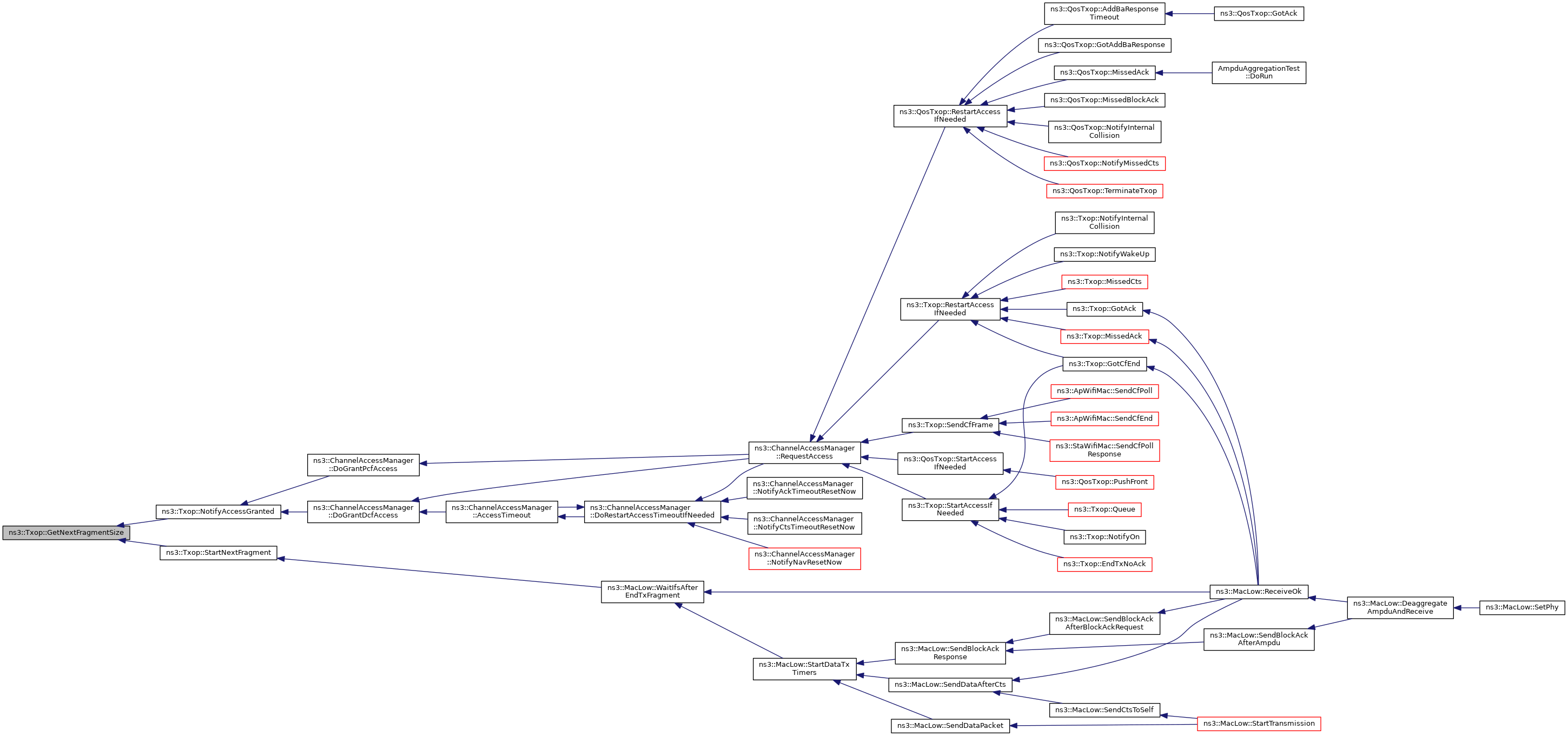

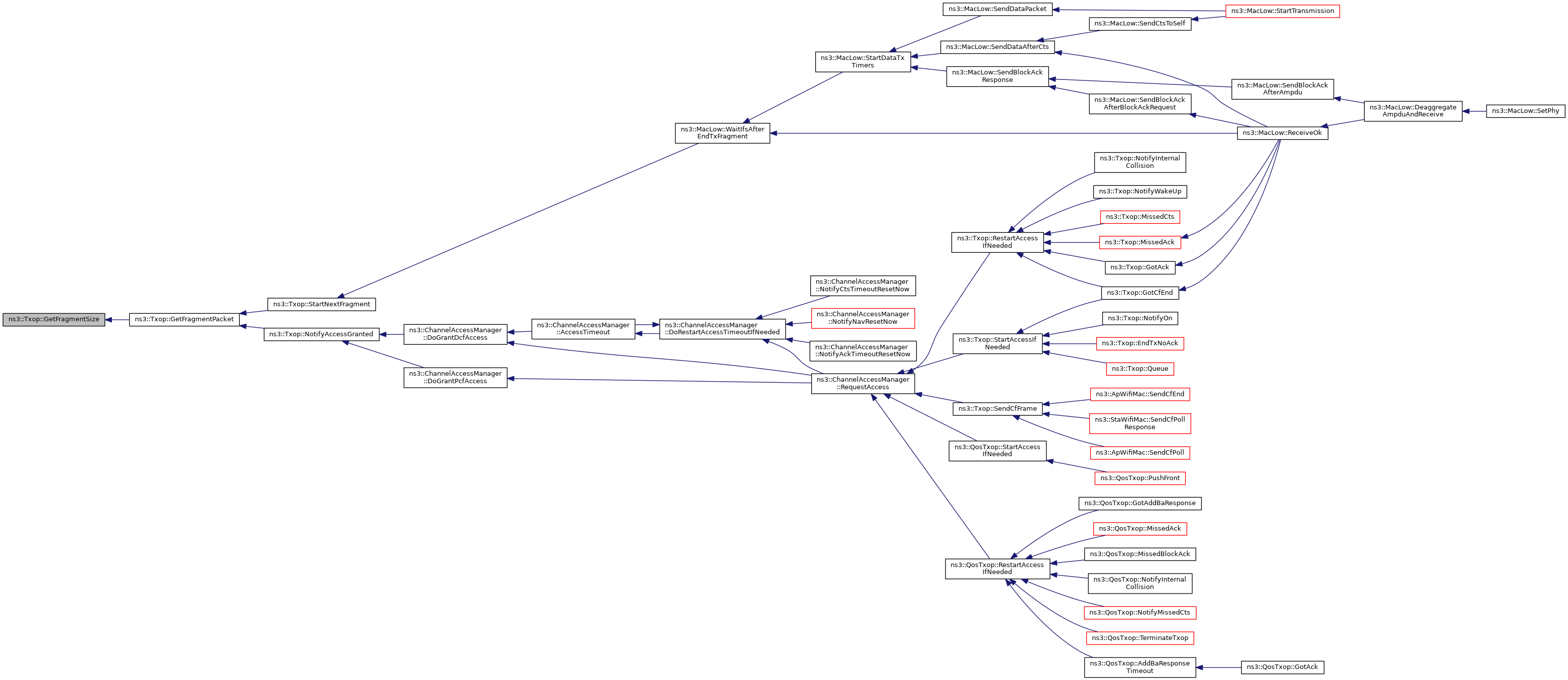

+ Here is the caller graph for this function:

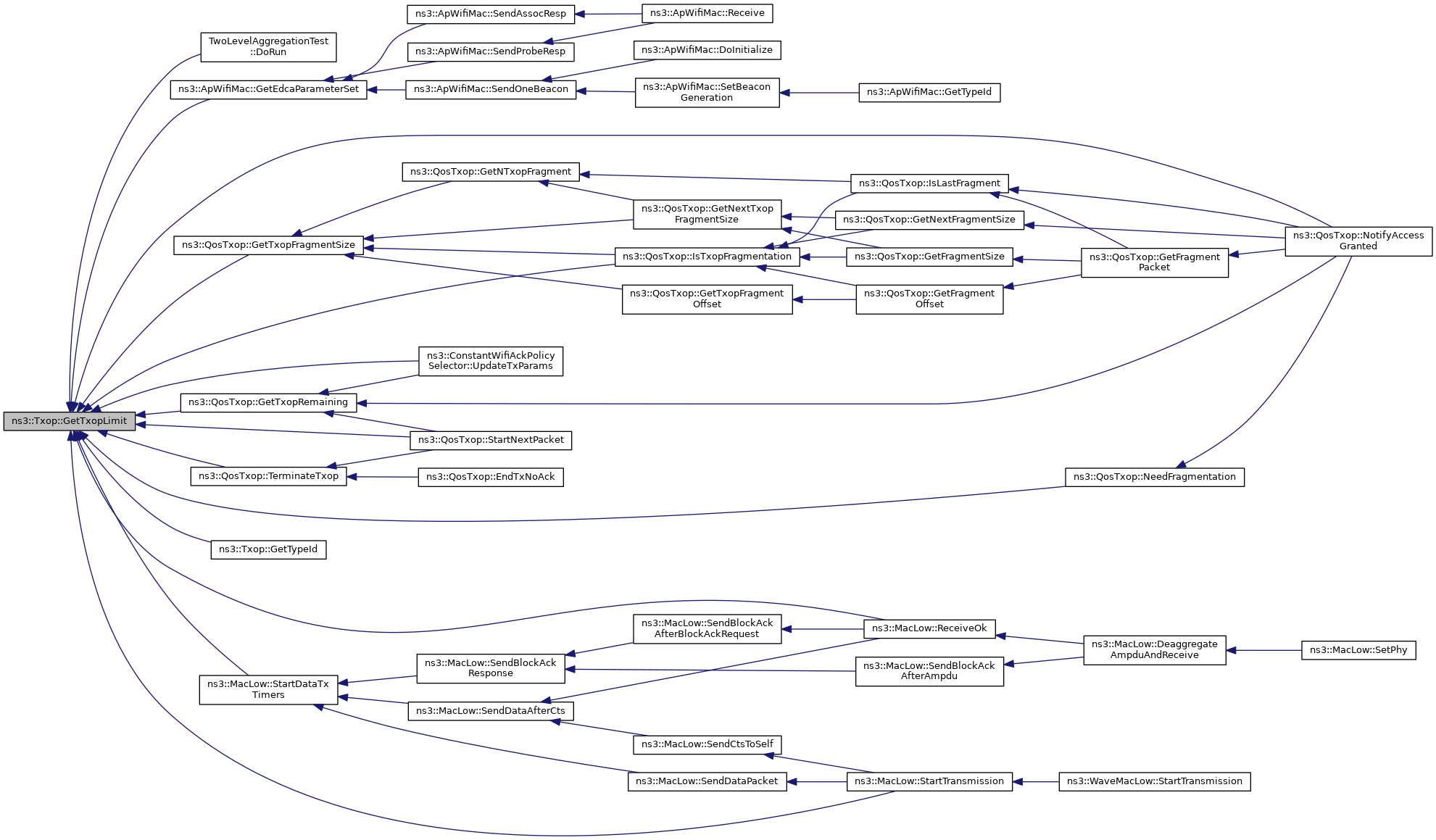

◆ GetTxopLimit()

◆ GetTxopRemaining()

Time ns3::Txop::GetTxopRemaining ( void  ) const
virtual

Return the remaining duration in the current TXOP.

Returns
the remaining duration in the current TXOP.

Reimplemented in ns3::QosTxop.

Definition at line 885 of file txop.cc.

References NS_LOG_WARN, and ns3::Seconds().

Referenced by ns3::MacLow::ReceiveOk(), ns3::MacLow::StartDataTxTimers(), and ns3::MacLow::StartTransmission().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

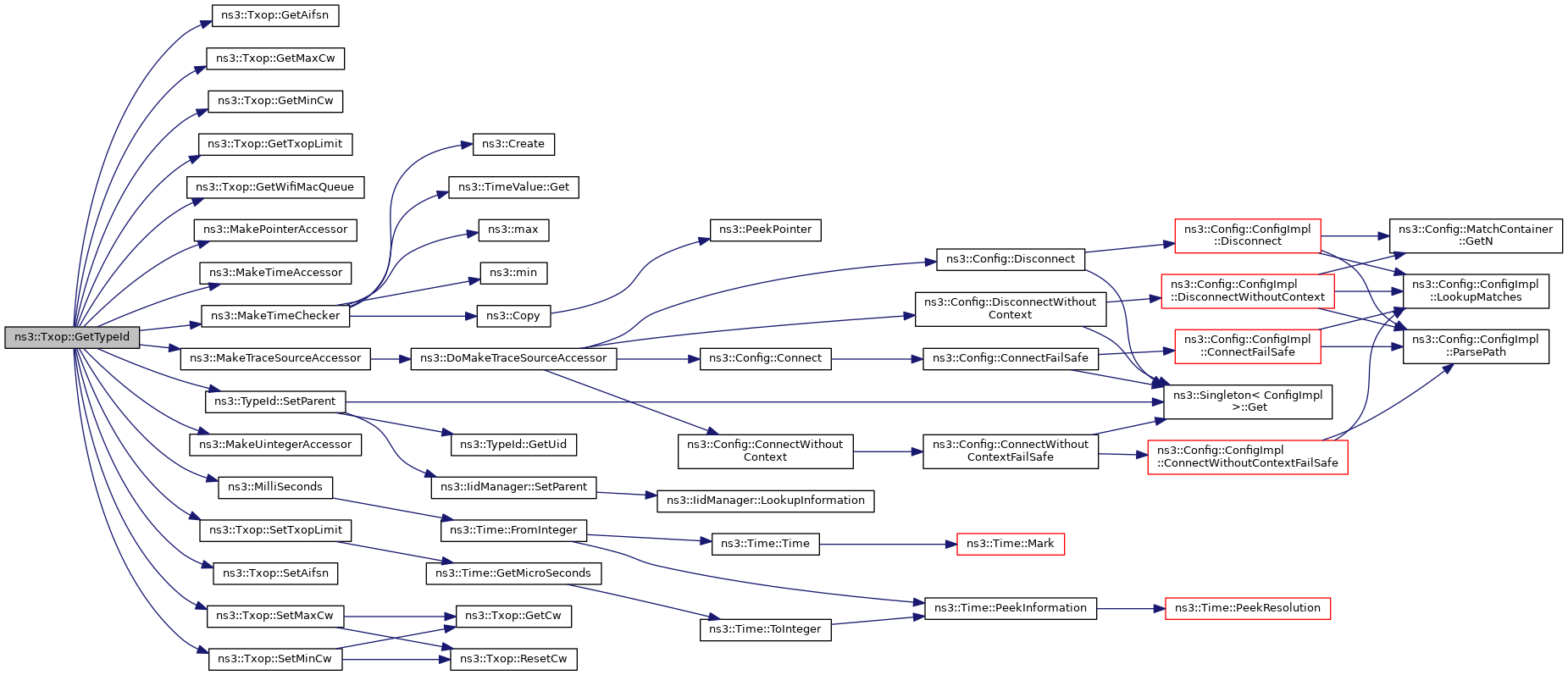

◆ GetTypeId()

◆ GetWifiMacQueue()

Ptr< WifiMacQueue > ns3::Txop::GetWifiMacQueue ( ) const

Return the packet queue associated with this Txop.

Returns
the associated WifiMacQueue

Definition at line 179 of file txop.cc.

References m_queue, and NS_LOG_FUNCTION.

Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), and GetTypeId().

+ Here is the caller graph for this function:

◆ GotAck()

void ns3::Txop::GotAck ( void  )
virtual

Event handler when an Ack is received.

Reimplemented in ns3::QosTxop.

Definition at line 638 of file txop.cc.

References GenerateBackoff(), GetCw(), ns3::Packet::GetSize(), IsLastFragment(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_currentHdr, m_currentPacket, m_cwTrace, m_txOkCallback, NeedFragmentation(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ResetCw(), and RestartAccessIfNeeded().

Referenced by ns3::MacLow::ReceiveOk().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GotBlockAck()

void ns3::Txop::GotBlockAck ( const CtrlBAckResponseHeader blockAck,
Mac48Address  recipient,
double  rxSnr,
double  dataSnr,
WifiTxVector  dataTxVector
)
virtual

Event handler when a BlockAck is received.

Parameters
blockAckBlockAck header.
recipientaddress of the recipient.
rxSnrSNR of the BlockAck itself in linear scale.
dataSnrreported data SNR from the peer in linear scale.
dataTxVectorTXVECTOR used to send the Data.

Reimplemented in ns3::QosTxop.

Definition at line 873 of file txop.cc.

References NS_LOG_WARN.

Referenced by ns3::MacLow::ReceiveOk().

+ Here is the caller graph for this function:

◆ GotCfEnd()

void ns3::Txop::GotCfEnd ( void  )

Event handler when a CF-END frame is received.

Definition at line 698 of file txop.cc.

References m_currentPacket, NS_LOG_FUNCTION, RestartAccessIfNeeded(), and StartAccessIfNeeded().

Referenced by ns3::MacLow::ReceiveOk().

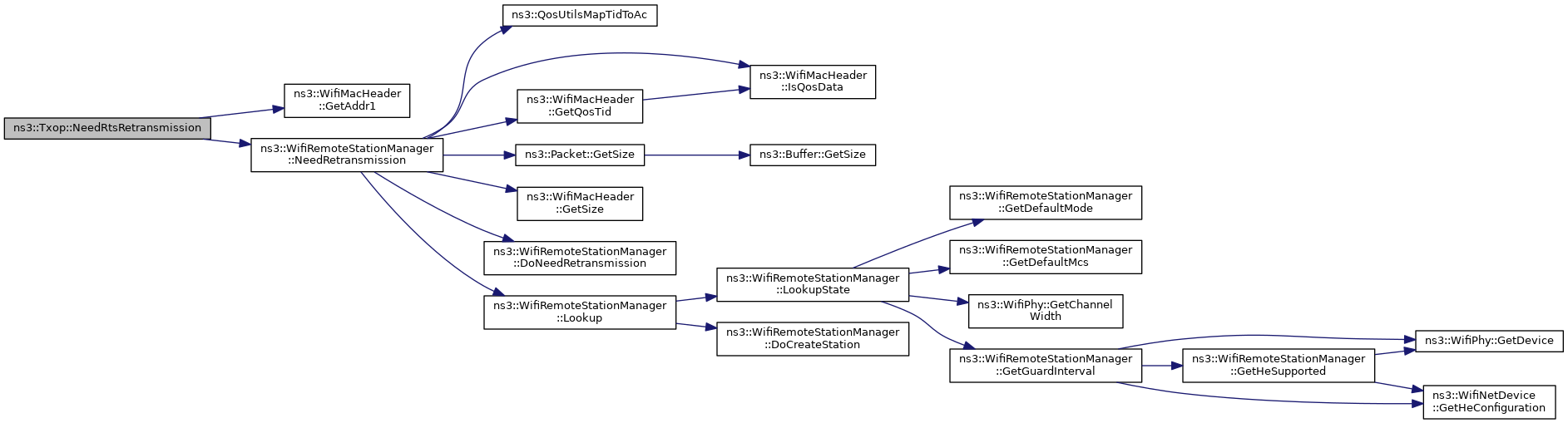

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ HasFramesToTransmit()

bool ns3::Txop::HasFramesToTransmit ( void  )
protectedvirtual

Check if the Txop has frames to transmit.

Returns
true if the Txop has frames to transmit.

Reimplemented in ns3::QosTxop.

Definition at line 309 of file txop.cc.

References m_currentPacket, m_queue, and NS_LOG_FUNCTION.

Referenced by ns3::ChannelAccessManager::NeedBackoffUponAccess().

+ Here is the caller graph for this function:

◆ IsAccessRequested()

bool ns3::Txop::IsAccessRequested ( void  ) const
virtual
Returns
true if access has been requested for this function and has not been granted already, false otherwise.

Definition at line 463 of file txop.cc.

References m_accessRequested.

Referenced by ns3::ChannelAccessManager::DoGrantDcfAccess(), ns3::ChannelAccessManager::RequestAccess(), ns3::QosTxop::RestartAccessIfNeeded(), RestartAccessIfNeeded(), ns3::QosTxop::StartAccessIfNeeded(), and StartAccessIfNeeded().

+ Here is the caller graph for this function:

◆ IsLastFragment()

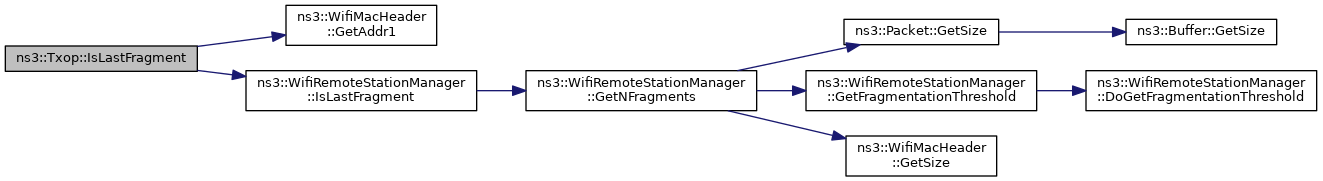

bool ns3::Txop::IsLastFragment ( void  ) const
protectedvirtual

Check if the current fragment is the last fragment.

Returns
true if the current fragment is the last fragment, false otherwise.

Reimplemented in ns3::QosTxop.

Definition at line 418 of file txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::IsLastFragment(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GetFragmentPacket(), GotAck(), NotifyAccessGranted(), and StartNextFragment().

+ Here is the call graph for this function:

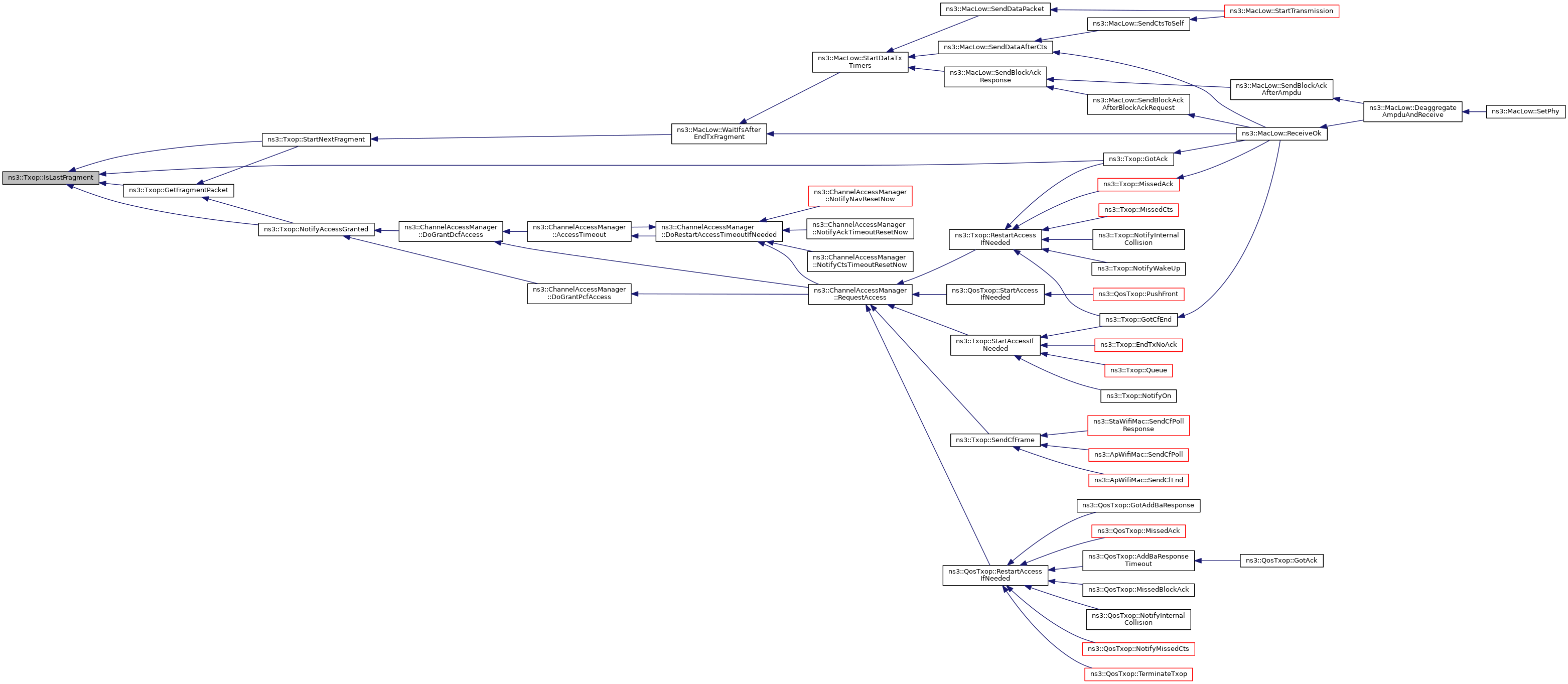

+ Here is the caller graph for this function:

◆ IsQosTxop()

bool ns3::Txop::IsQosTxop ( void  ) const
virtual

Check for QoS TXOP.

Returns
true if QoS TXOP.

Reimplemented in ns3::QosTxop.

Definition at line 861 of file txop.cc.

Referenced by ns3::ChannelAccessManager::NeedBackoffUponAccess(), ns3::MacLow::ReceiveOk(), ns3::ChannelAccessManager::RequestAccess(), and ns3::MacLow::StartDataTxTimers().

+ Here is the caller graph for this function:

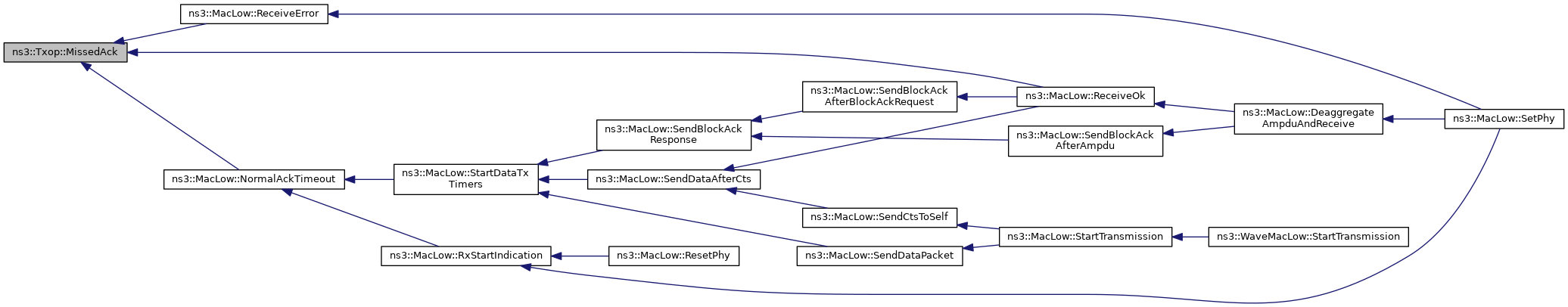

◆ MissedAck()

◆ MissedBlockAck()

void ns3::Txop::MissedBlockAck ( uint8_t  nMpdus)
virtual

Event handler when a BlockAck timeout has occurred.

Parameters
nMpdusthe number of MPDUs sent in the A-MPDU transmission that results in a BlockAck timeout.

Reimplemented in ns3::QosTxop.

Definition at line 879 of file txop.cc.

References NS_LOG_WARN.

Referenced by ns3::MacLow::BlockAckTimeout().

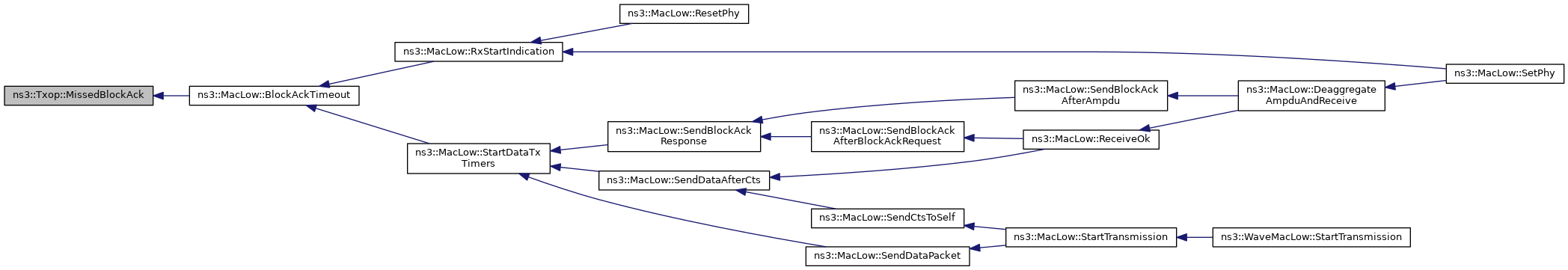

+ Here is the caller graph for this function:

◆ MissedCfPollResponse()

void ns3::Txop::MissedCfPollResponse ( bool  expectedCfAck)

Event handler when a response to a CF-POLL frame is missed.

Parameters
expectedCfAckflag to indicate whether a CF-Ack was expected in the response.

Definition at line 712 of file txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::Packet::GetSize(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_currentHdr, m_currentPacket, m_stationManager, m_txFailedCallback, NeedDataRetransmission(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiRemoteStationManager::ReportFinalDataFailed(), and ns3::WifiMacHeader::SetRetry().

Referenced by ns3::MacLow::CfPollTimeout(), and ns3::MacLow::ReceiveError().

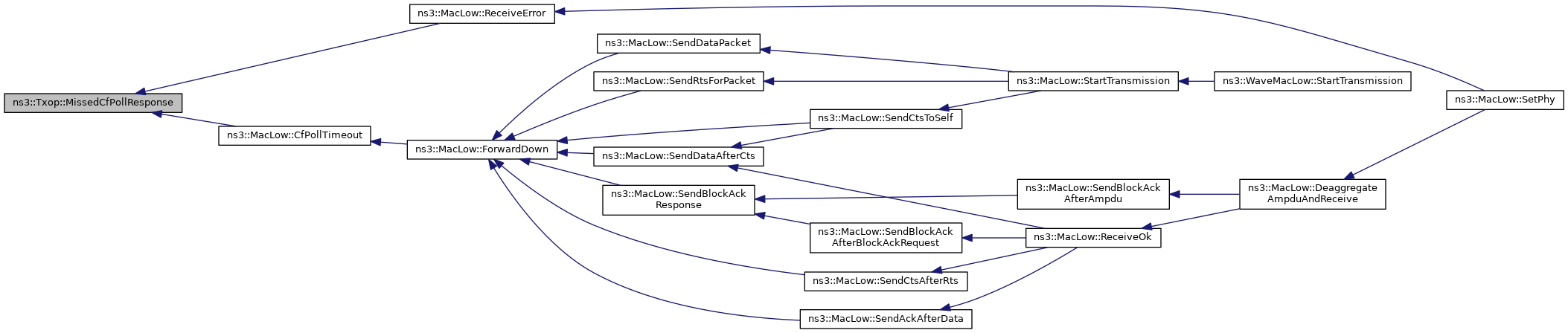

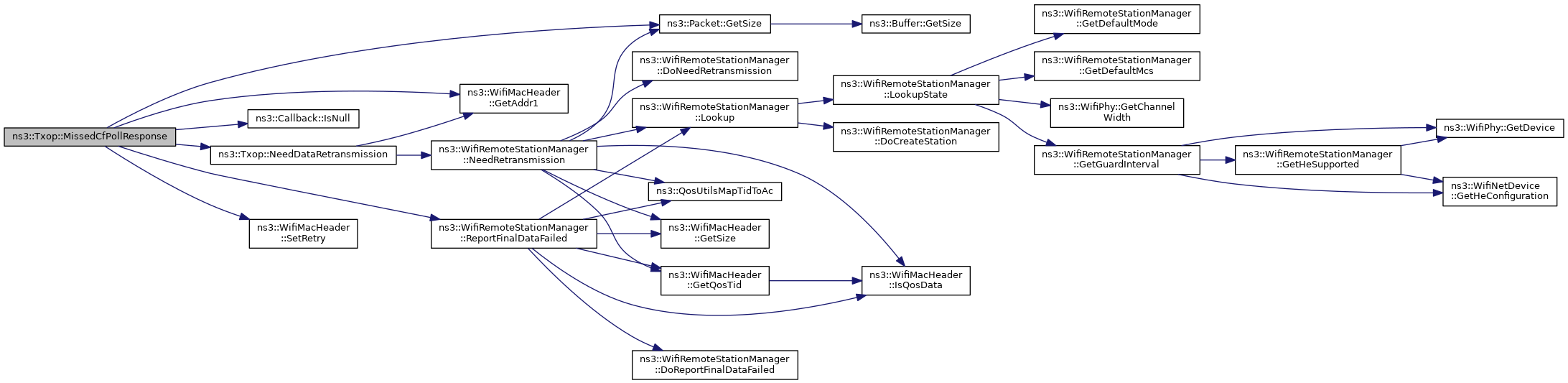

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

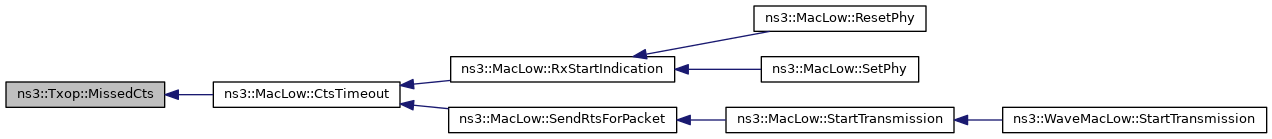

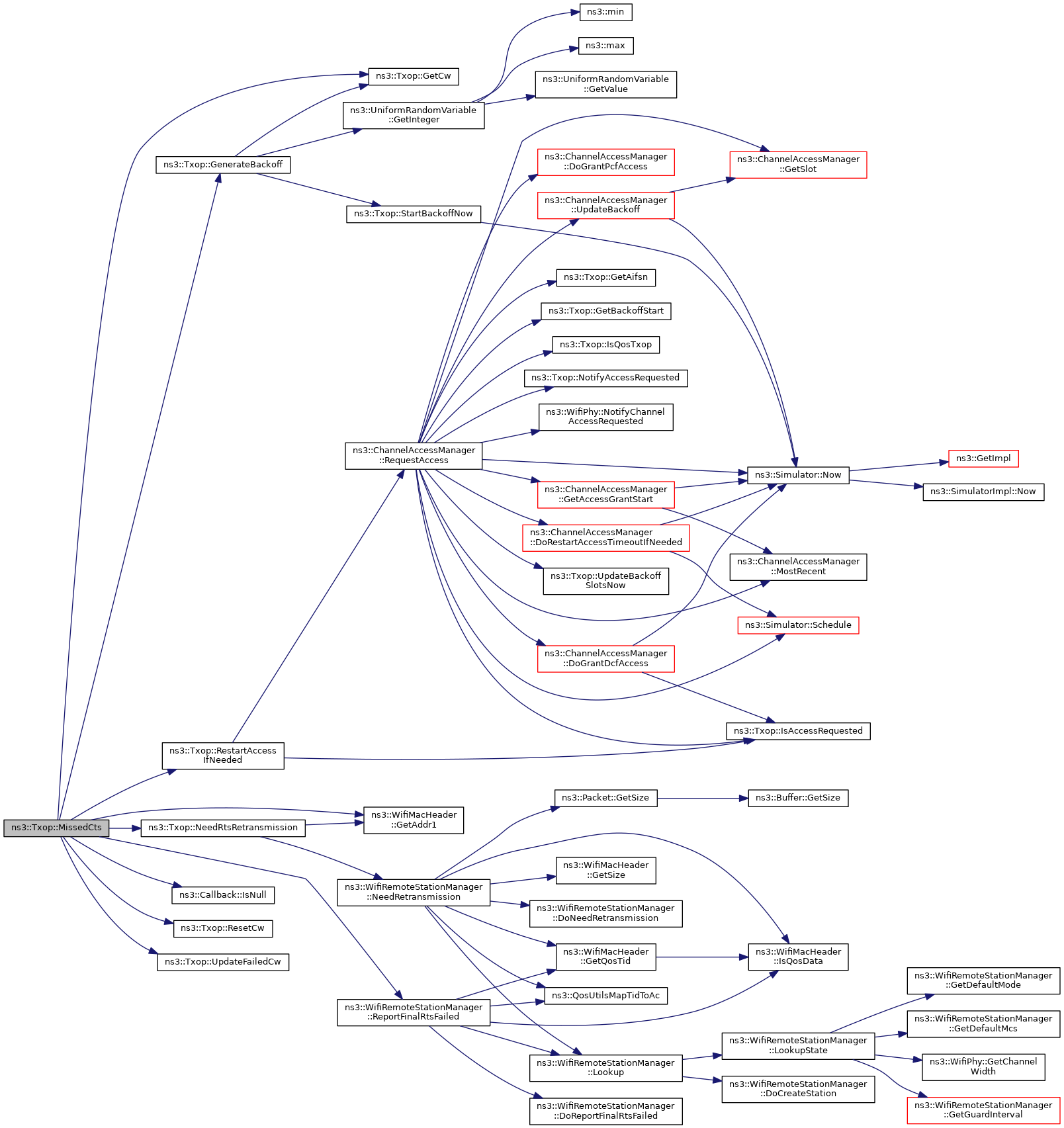

◆ MissedCts()

void ns3::Txop::MissedCts ( void  )
virtual

◆ NeedDataRetransmission()

bool ns3::Txop::NeedDataRetransmission ( Ptr< const Packet packet,
const WifiMacHeader hdr
)
protected

Check if Data should be re-transmitted if Ack was missed.

Parameters
packetcurrent packet being transmitted.
hdrcurrent header being transmitted.
Returns
true if Data should be re-transmitted, false otherwise.

Definition at line 388 of file txop.cc.

References ns3::WifiMacHeader::GetAddr1(), m_stationManager, ns3::WifiRemoteStationManager::NeedRetransmission(), and NS_LOG_FUNCTION.

Referenced by ns3::QosTxop::MissedAck(), MissedAck(), ns3::QosTxop::MissedBlockAck(), MissedCfPollResponse(), ns3::QosTxop::NotifyInternalCollision(), and SendCfFrame().

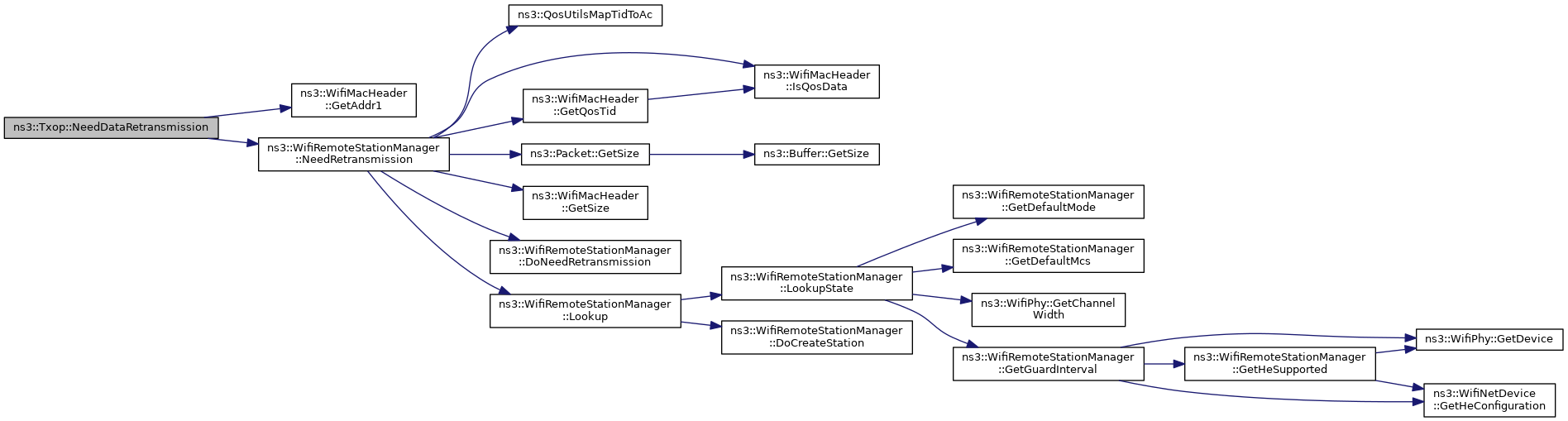

+ Here is the call graph for this function:

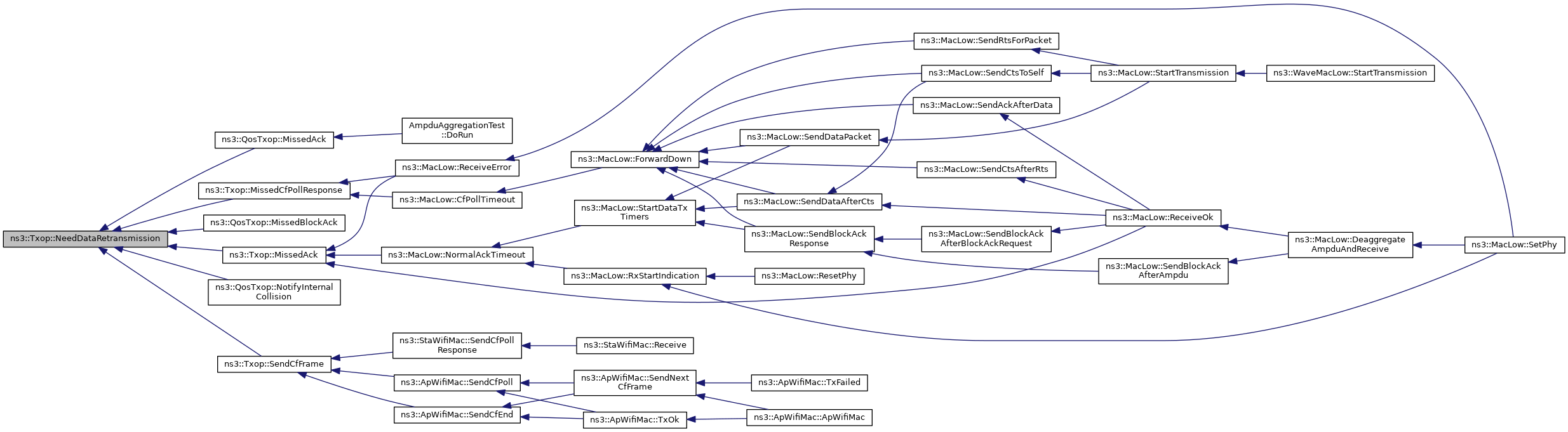

+ Here is the caller graph for this function:

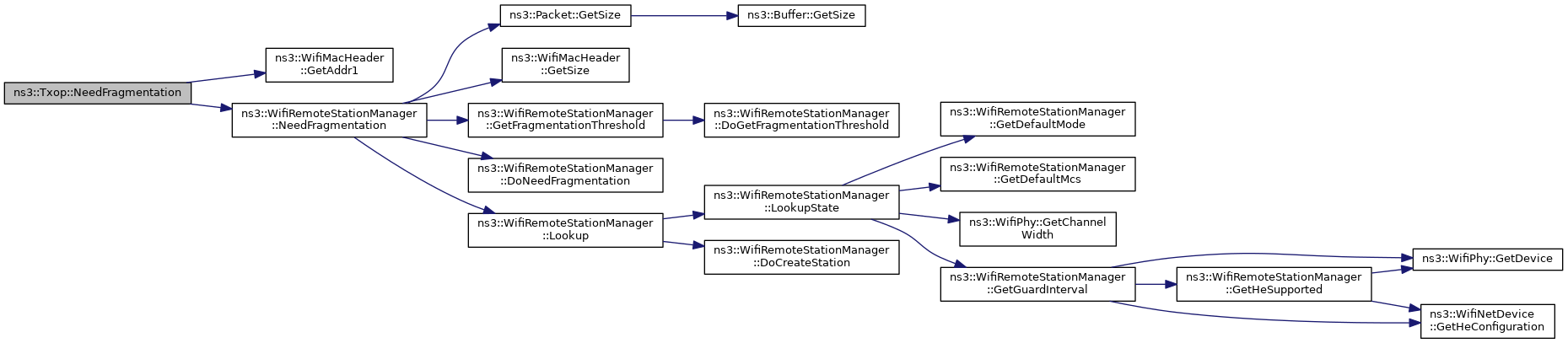

◆ NeedFragmentation()

bool ns3::Txop::NeedFragmentation ( void  ) const
protectedvirtual

Check if the current packet should be fragmented.

Returns
true if the current packet should be fragmented, false otherwise

Reimplemented in ns3::QosTxop.

Definition at line 395 of file txop.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, ns3::WifiRemoteStationManager::NeedFragmentation(), and NS_LOG_FUNCTION.

Referenced by GotAck(), and NotifyAccessGranted().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ NeedRtsRetransmission()

bool ns3::Txop::NeedRtsRetransmission ( Ptr< const Packet packet,
const WifiMacHeader hdr
)
protected

Check if RTS should be re-transmitted if CTS was missed.

Parameters
packetcurrent packet being transmitted.
hdrcurrent header being transmitted.
Returns
true if RTS should be re-transmitted, false otherwise.

Definition at line 381 of file txop.cc.

References ns3::WifiMacHeader::GetAddr1(), m_stationManager, ns3::WifiRemoteStationManager::NeedRetransmission(), and NS_LOG_FUNCTION.

Referenced by MissedCts(), ns3::QosTxop::NotifyInternalCollision(), and ns3::QosTxop::NotifyMissedCts().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ NextFragment()

void ns3::Txop::NextFragment ( void  )
protected

Continue to the next fragment.

This method simply increments the internal variable that keep track of the current fragment number.

Definition at line 403 of file txop.cc.

References m_fragmentNumber, and NS_LOG_FUNCTION.

Referenced by StartNextFragment().

+ Here is the caller graph for this function:

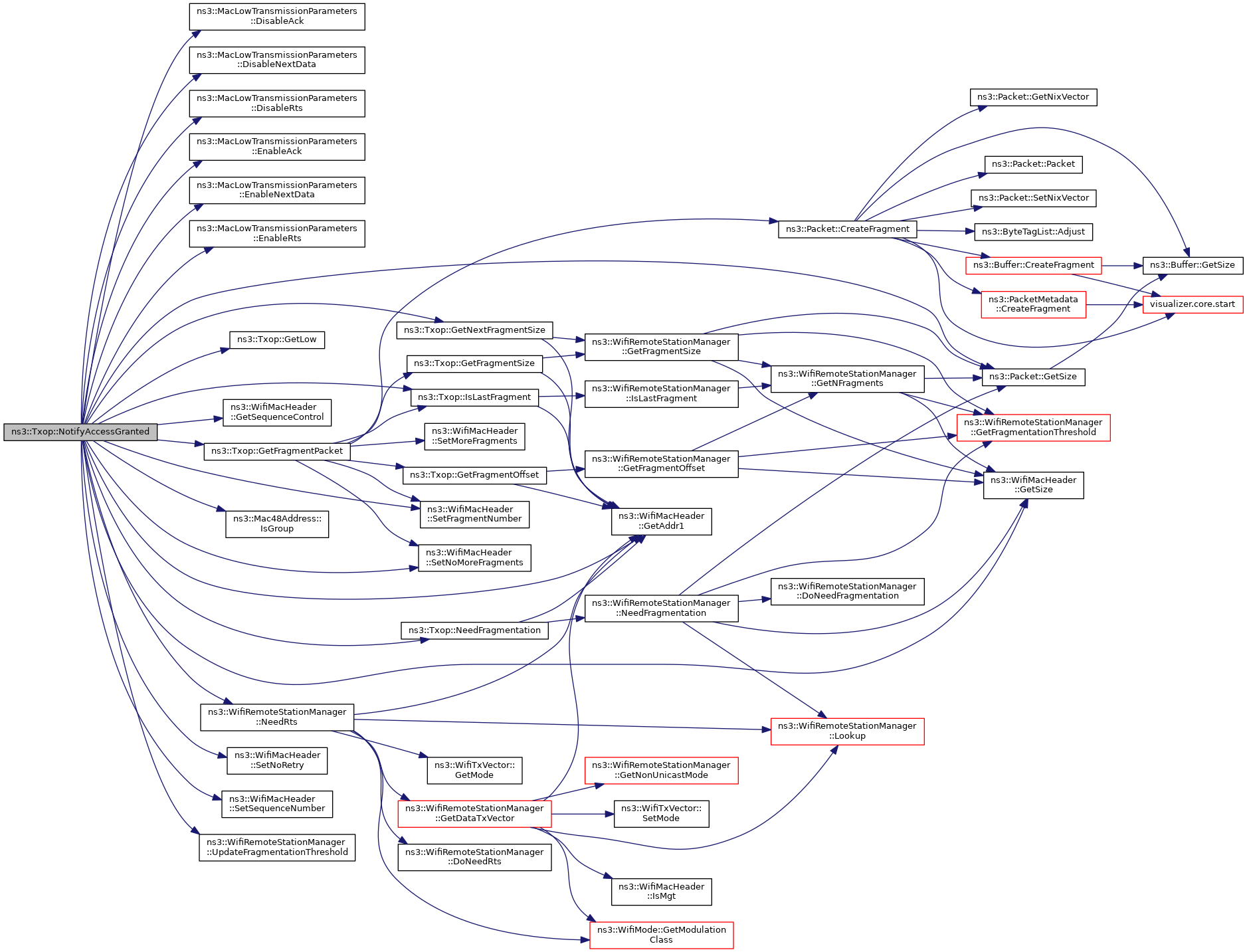

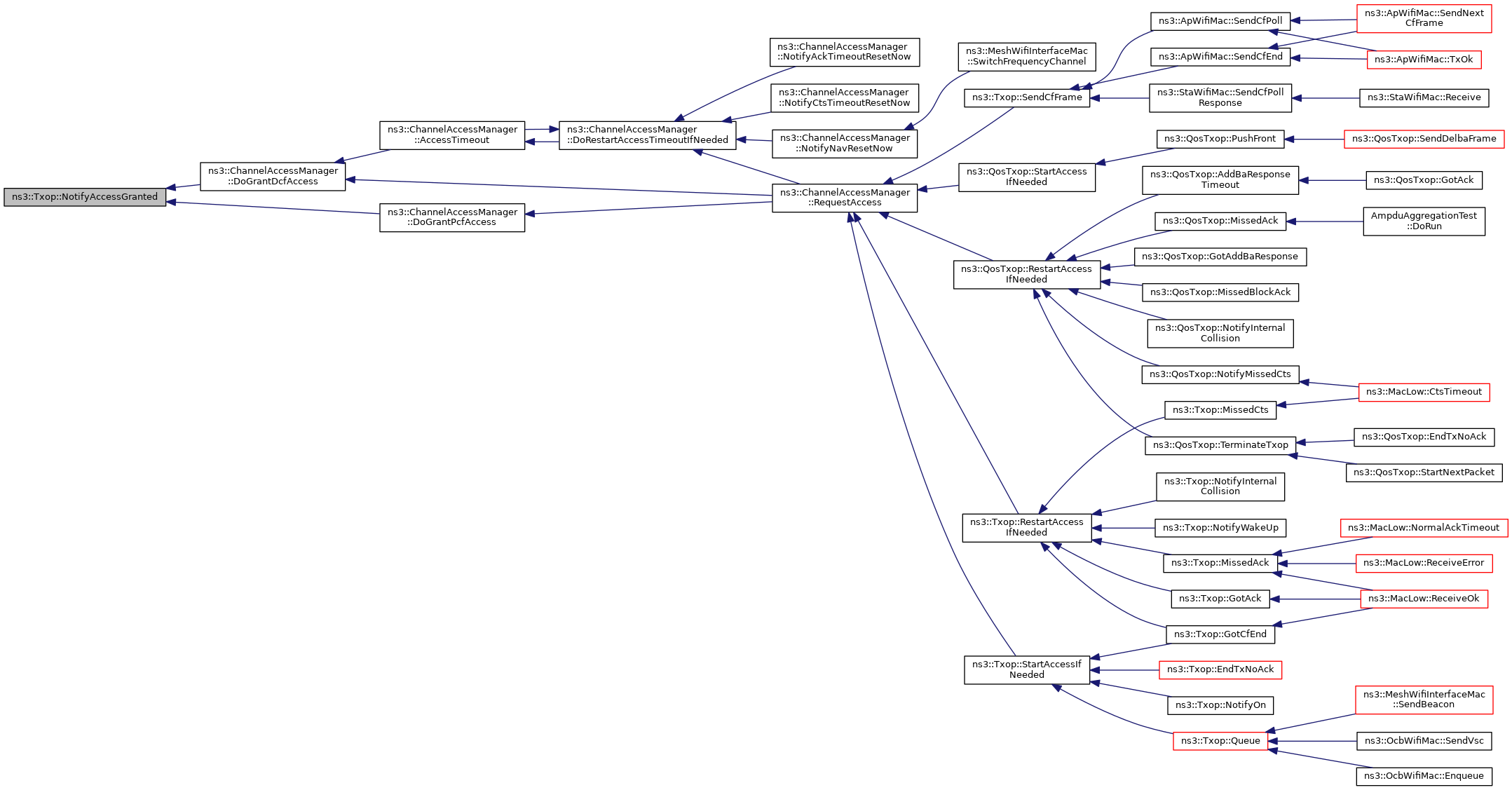

◆ NotifyAccessGranted()

◆ NotifyAccessRequested()

void ns3::Txop::NotifyAccessRequested ( void  )
protectedvirtual

Notify that access request has been received.

Definition at line 469 of file txop.cc.

References m_accessRequested, and NS_LOG_FUNCTION.

Referenced by ns3::ChannelAccessManager::RequestAccess().

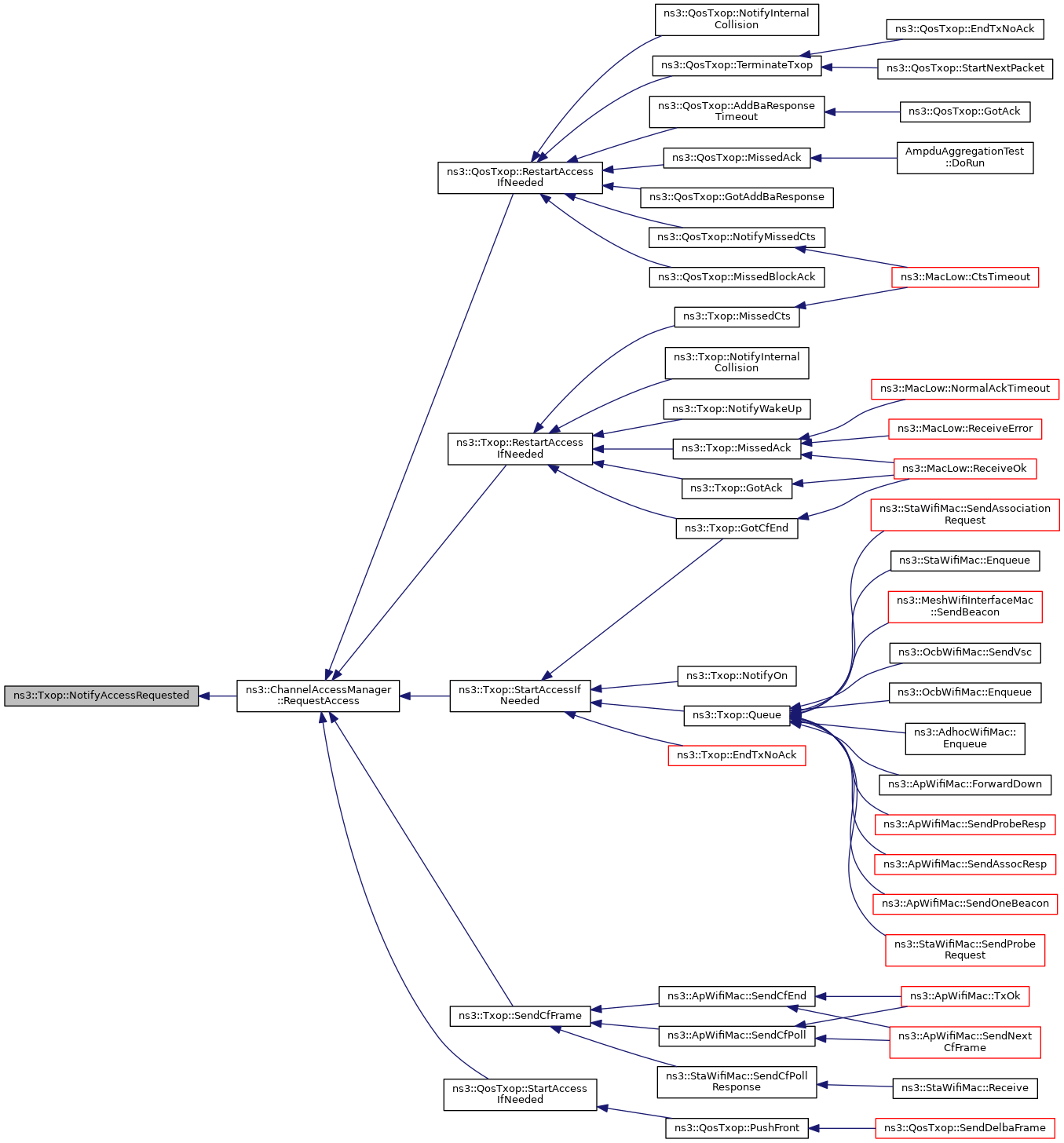

+ Here is the caller graph for this function:

◆ NotifyChannelSwitching()

void ns3::Txop::NotifyChannelSwitching ( void  )
virtual

When a channel switching occurs, enqueued packets are removed.

Definition at line 570 of file txop.cc.

References m_currentPacket, m_queue, and NS_LOG_FUNCTION.

Referenced by ns3::OcbWifiMac::CancleTx().

+ Here is the caller graph for this function:

◆ NotifyInternalCollision()

void ns3::Txop::NotifyInternalCollision ( void  )
protectedvirtual

Notify the Txop that internal collision has occurred.

Reimplemented in ns3::QosTxop.

Definition at line 562 of file txop.cc.

References GenerateBackoff(), NS_LOG_FUNCTION, and RestartAccessIfNeeded().

+ Here is the call graph for this function:

◆ NotifyOff()

void ns3::Txop::NotifyOff ( void  )
virtual

When off operation occurs, the queue gets cleaned up.

Definition at line 589 of file txop.cc.

References m_currentPacket, m_queue, and NS_LOG_FUNCTION.

◆ NotifyOn()

void ns3::Txop::NotifyOn ( void  )
virtual

When on operation occurs, channel access will be started.

Definition at line 604 of file txop.cc.

References NS_LOG_FUNCTION, and StartAccessIfNeeded().

+ Here is the call graph for this function:

◆ NotifySleep()

void ns3::Txop::NotifySleep ( void  )
virtual

When sleep operation occurs, if there is a pending packet transmission, it will be reinserted to the front of the queue.

Definition at line 578 of file txop.cc.

References m_currentHdr, m_currentPacket, m_queue, and NS_LOG_FUNCTION.

◆ NotifyWakeUp()

void ns3::Txop::NotifyWakeUp ( void  )
virtual

When wake up operation occurs, channel access will be restarted.

Definition at line 597 of file txop.cc.

References NS_LOG_FUNCTION, and RestartAccessIfNeeded().

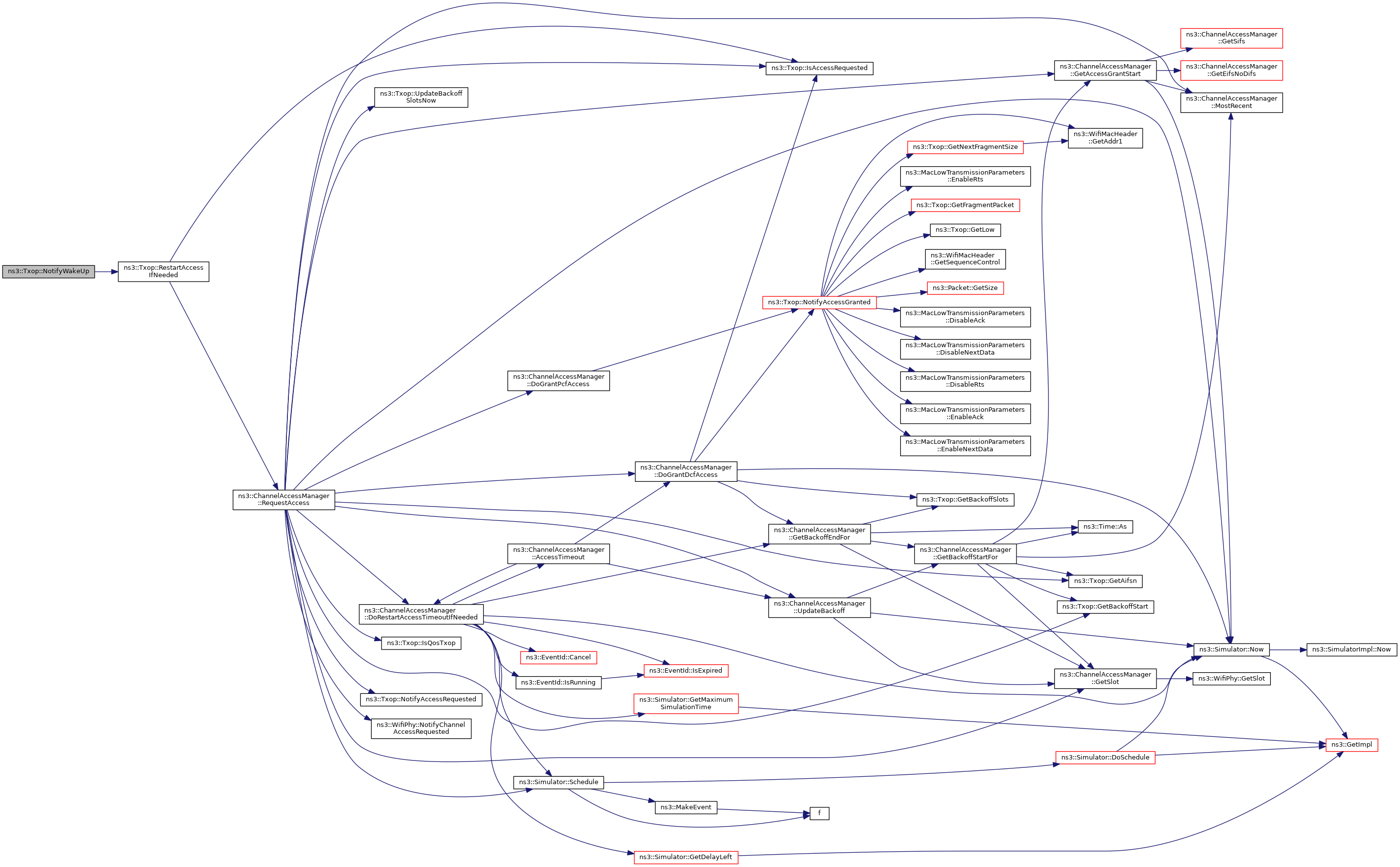

+ Here is the call graph for this function:

◆ Queue()

void ns3::Txop::Queue ( Ptr< Packet packet,
const WifiMacHeader hdr
)
virtual

◆ ResetCw()

void ns3::Txop::ResetCw ( void  )
protected

Update the value of the CW variable to take into account a transmission success or a transmission abort (stop transmission of a packet after the maximum number of retransmissions has been reached).

By default, this resets the CW variable to minCW.

Definition at line 218 of file txop.cc.

References m_cw, m_cwMin, and NS_LOG_FUNCTION.

Referenced by DoInitialize(), ns3::QosTxop::DoInitialize(), ns3::QosTxop::EndTxNoAck(), EndTxNoAck(), ns3::QosTxop::GotAck(), GotAck(), ns3::QosTxop::GotBlockAck(), ns3::QosTxop::MissedAck(), MissedAck(), ns3::QosTxop::MissedBlockAck(), MissedCts(), ns3::QosTxop::NotifyInternalCollision(), ns3::QosTxop::NotifyMissedCts(), SetMaxCw(), and SetMinCw().

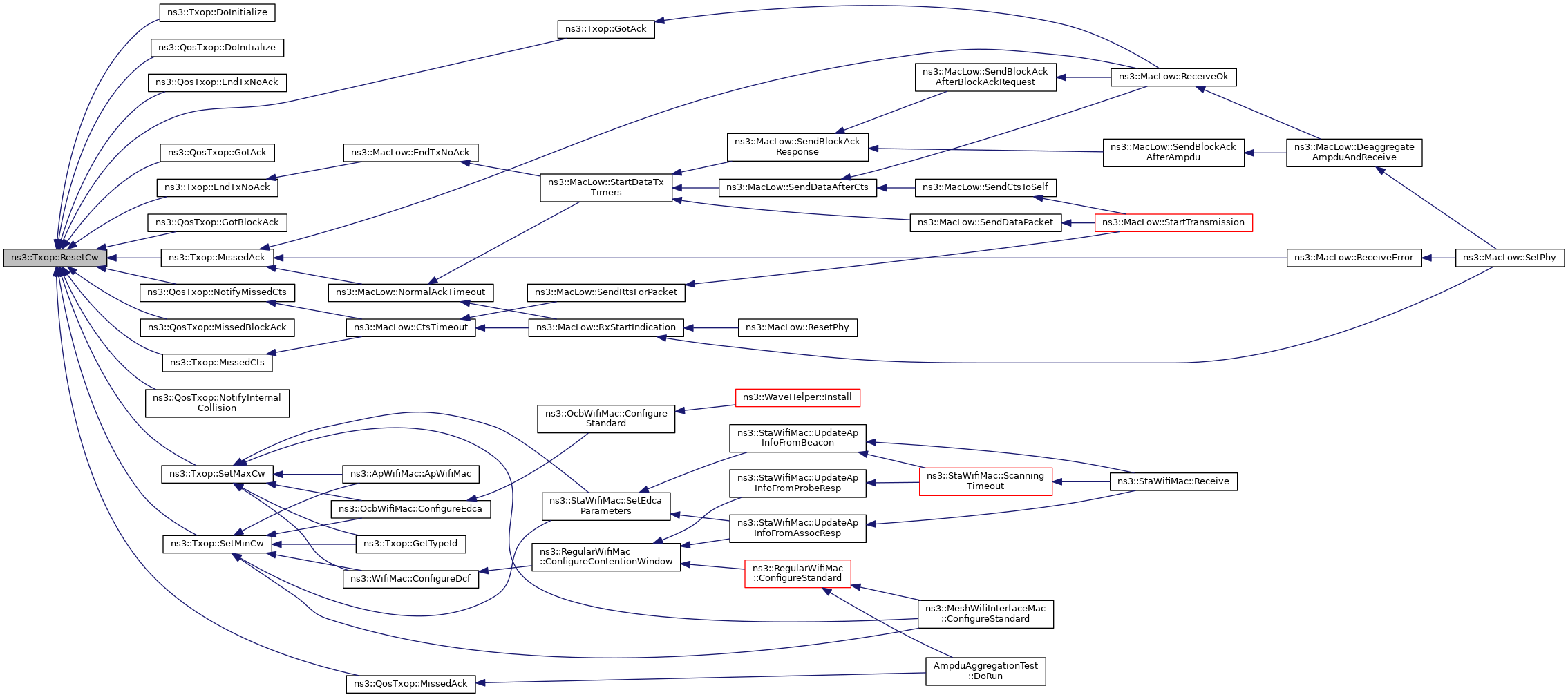

+ Here is the caller graph for this function:

◆ RestartAccessIfNeeded()

void ns3::Txop::RestartAccessIfNeeded ( void  )
protectedvirtual

Restart access request if needed.

Reimplemented in ns3::QosTxop.

Definition at line 340 of file txop.cc.

References IsAccessRequested(), m_channelAccessManager, m_currentPacket, m_low, m_queue, NS_LOG_FUNCTION, and ns3::ChannelAccessManager::RequestAccess().

Referenced by GotAck(), GotCfEnd(), MissedAck(), MissedCts(), NotifyInternalCollision(), and NotifyWakeUp().

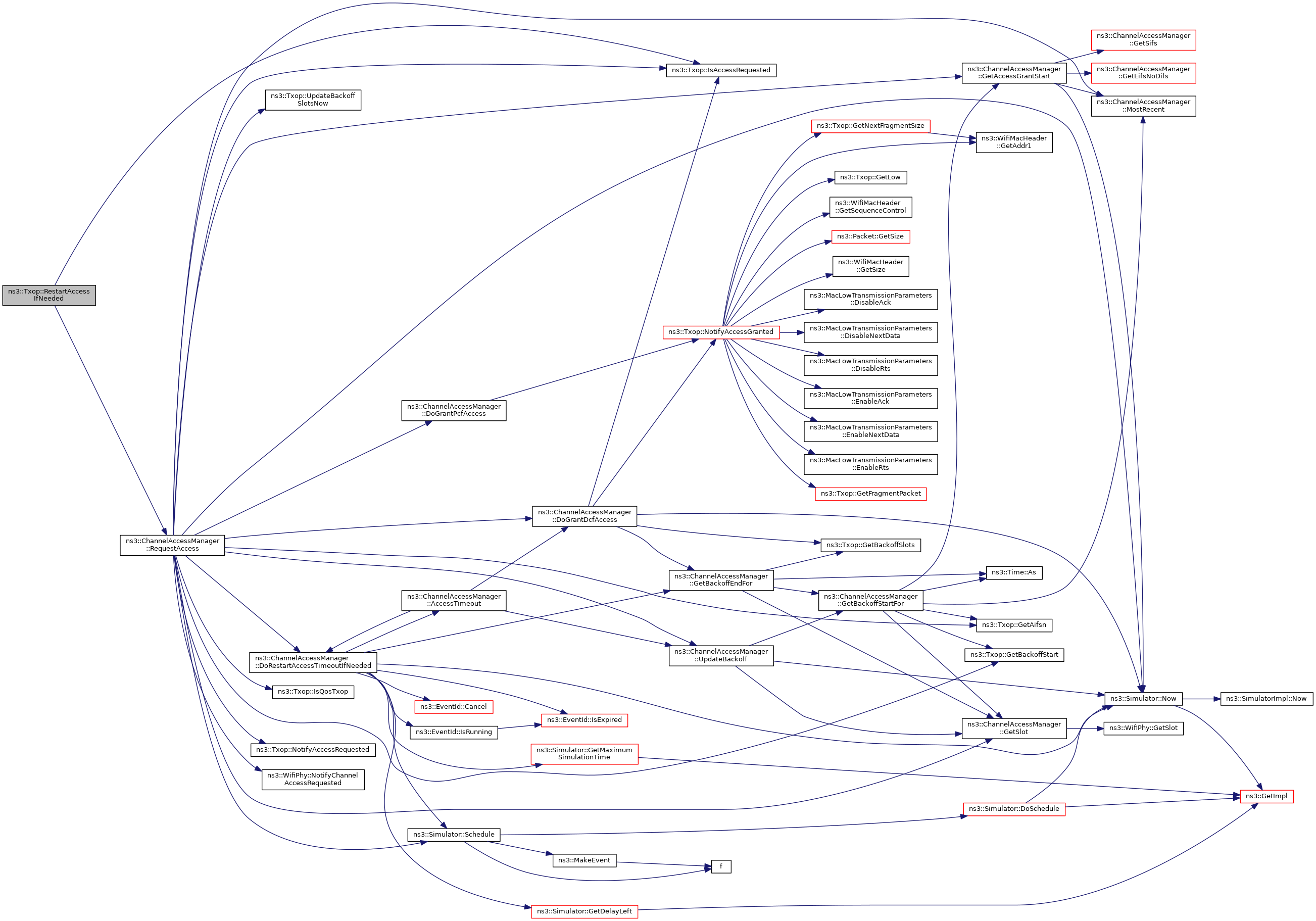

+ Here is the call graph for this function:

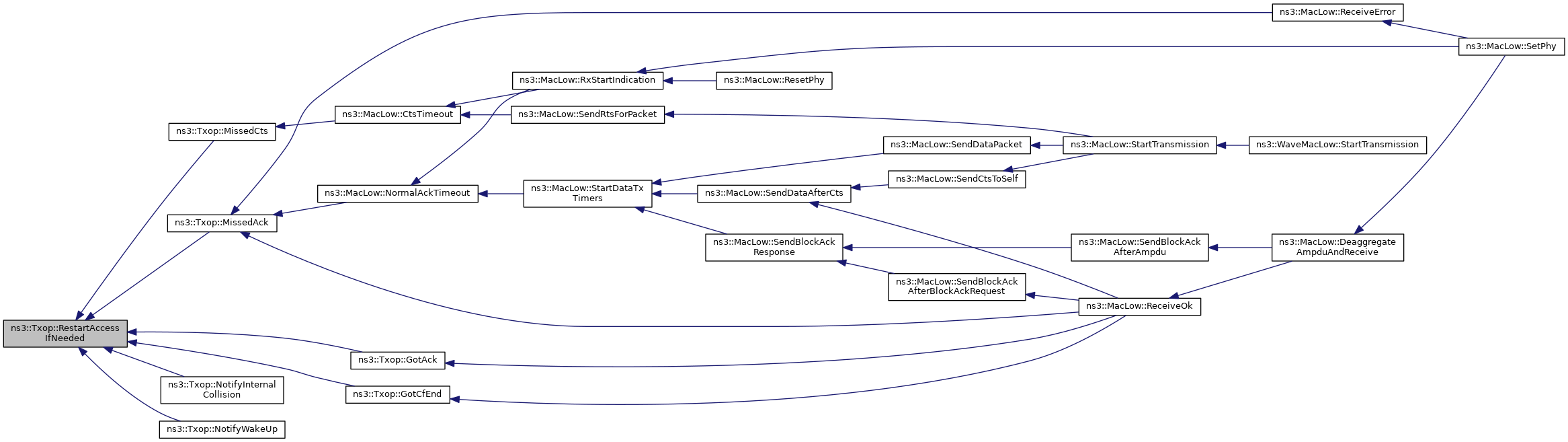

+ Here is the caller graph for this function:

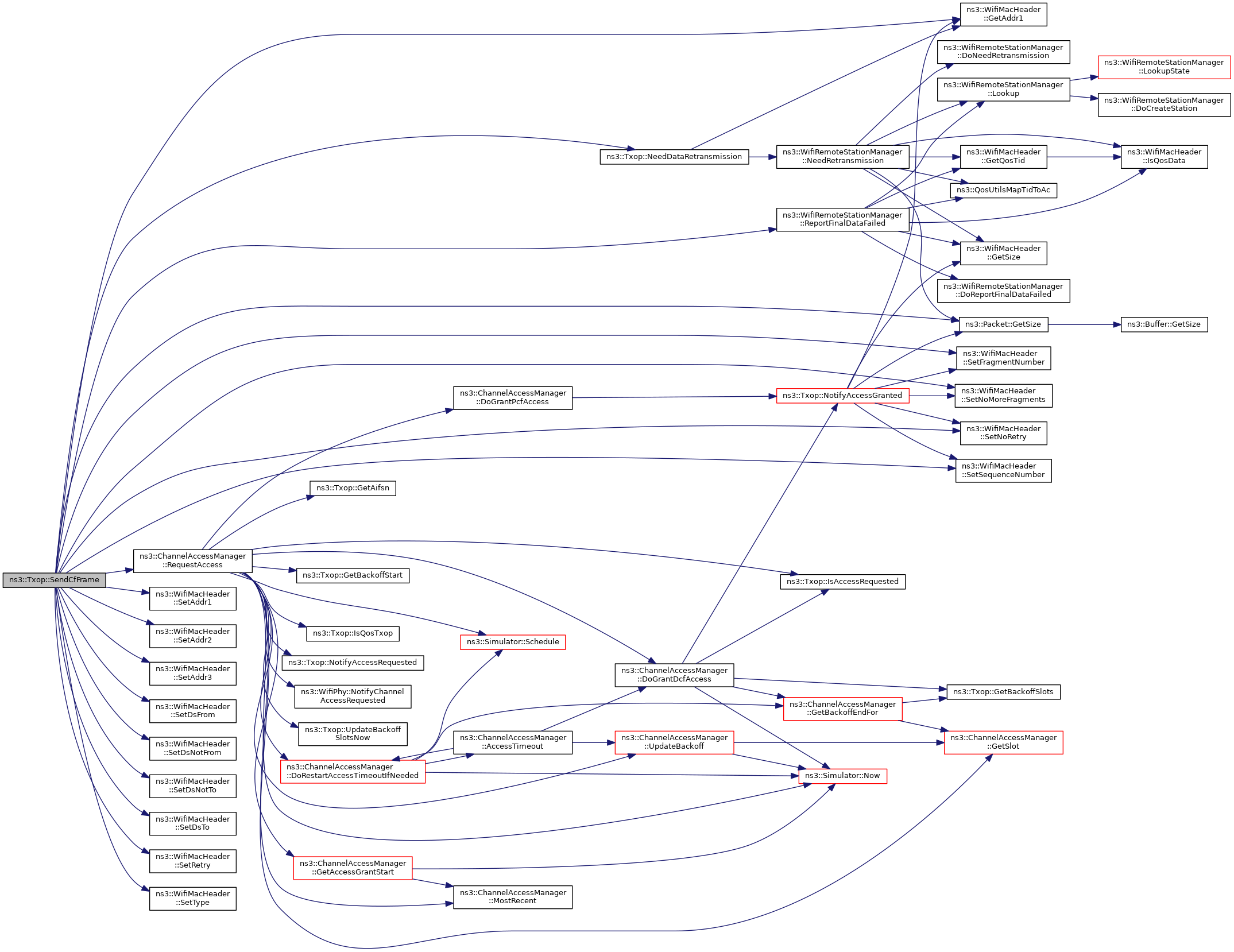

◆ SendCfFrame()

◆ SetAifsn()

void ns3::Txop::SetAifsn ( uint8_t  aifsn)

Set the number of slots that make up an AIFS.

Parameters
aifsnthe number of slots that make up an AIFS.

Definition at line 270 of file txop.cc.

References m_aifsn, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::ApWifiMac(), ns3::WifiMac::ConfigureDcf(), ns3::OcbWifiMac::ConfigureEdca(), ns3::MeshWifiInterfaceMac::ConfigureStandard(), GetTypeId(), and ns3::StaWifiMac::SetEdcaParameters().

+ Here is the caller graph for this function:

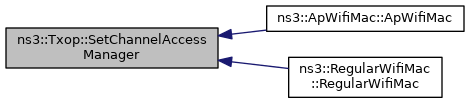

◆ SetChannelAccessManager()

void ns3::Txop::SetChannelAccessManager ( const Ptr< ChannelAccessManager manager)

Set ChannelAccessManager this Txop is associated to.

Parameters
managerChannelAccessManager to associate.

Definition at line 120 of file txop.cc.

References ns3::ChannelAccessManager::Add(), m_channelAccessManager, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::ApWifiMac(), and ns3::RegularWifiMac::RegularWifiMac().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SetMacLow()

void ns3::Txop::SetMacLow ( const Ptr< MacLow low)

Set MacLow associated with this Txop.

Parameters
lowMacLow to associate.

Definition at line 134 of file txop.cc.

References m_low, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::ApWifiMac(), ns3::OcbWifiMac::EnableForWave(), ns3::RegularWifiMac::RegularWifiMac(), and ns3::RegularWifiMac::SetupEdcaQueue().

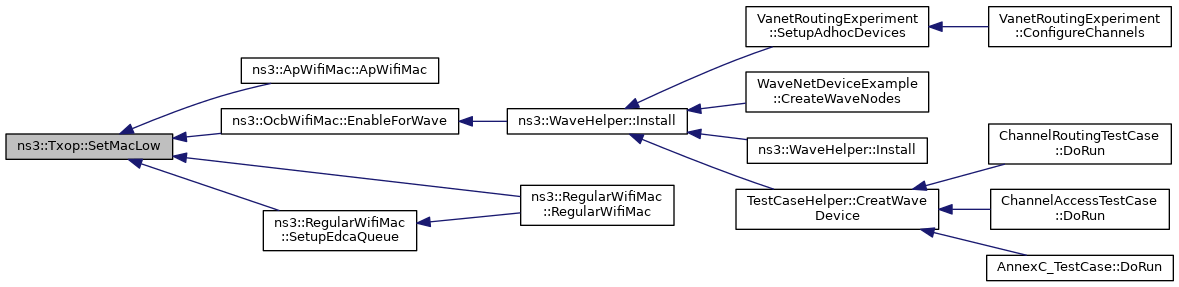

+ Here is the caller graph for this function:

◆ SetMaxCw()

void ns3::Txop::SetMaxCw ( uint32_t  maxCw)

Set the maximum contention window size.

Parameters
maxCwthe maximum contention window size.

Definition at line 199 of file txop.cc.

References GetCw(), m_cwMax, m_cwTrace, NS_LOG_FUNCTION, and ResetCw().

Referenced by ns3::ApWifiMac::ApWifiMac(), ns3::WifiMac::ConfigureDcf(), ns3::OcbWifiMac::ConfigureEdca(), ns3::MeshWifiInterfaceMac::ConfigureStandard(), GetTypeId(), and ns3::StaWifiMac::SetEdcaParameters().

+ Here is the call graph for this function:

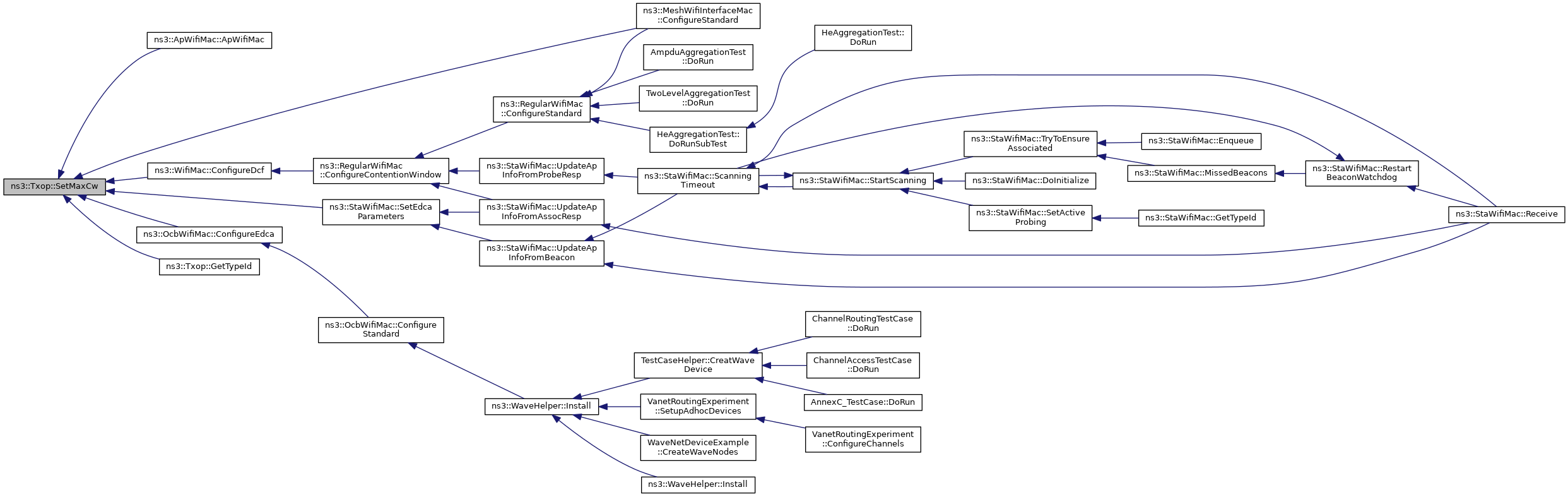

+ Here is the caller graph for this function:

◆ SetMinCw()

void ns3::Txop::SetMinCw ( uint32_t  minCw)

Set the minimum contention window size.

Parameters
minCwthe minimum contention window size.

Definition at line 186 of file txop.cc.

References GetCw(), m_cwMin, m_cwTrace, NS_LOG_FUNCTION, and ResetCw().

Referenced by ns3::ApWifiMac::ApWifiMac(), ns3::WifiMac::ConfigureDcf(), ns3::OcbWifiMac::ConfigureEdca(), ns3::MeshWifiInterfaceMac::ConfigureStandard(), GetTypeId(), and ns3::StaWifiMac::SetEdcaParameters().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SetTxDroppedCallback()

void ns3::Txop::SetTxDroppedCallback ( TxDropped  callback)
Parameters
callbackthe callback to invoke when a packet is dropped.

Definition at line 162 of file txop.cc.

References m_queue, m_txDroppedCallback, ns3::MakeCallback(), NS_LOG_FUNCTION, and TxDroppedPacket().

Referenced by ns3::RegularWifiMac::RegularWifiMac().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SetTxFailedCallback()

void ns3::Txop::SetTxFailedCallback ( TxFailed  callback)
Parameters
callbackthe callback to invoke when a packet transmission was completed unsuccessfully.

Definition at line 155 of file txop.cc.

References m_txFailedCallback, and NS_LOG_FUNCTION.

Referenced by ns3::RegularWifiMac::RegularWifiMac().

+ Here is the caller graph for this function:

◆ SetTxMiddle()

void ns3::Txop::SetTxMiddle ( const Ptr< MacTxMiddle txMiddle)

Set MacTxMiddle this Txop is associated to.

Parameters
txMiddleMacTxMiddle to associate.

Definition at line 127 of file txop.cc.

References m_txMiddle, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::ApWifiMac(), and ns3::RegularWifiMac::RegularWifiMac().

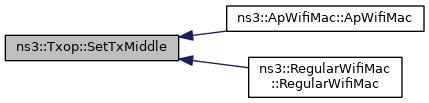

+ Here is the caller graph for this function:

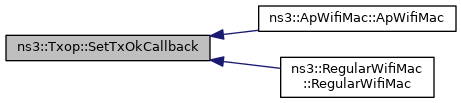

◆ SetTxOkCallback()

void ns3::Txop::SetTxOkCallback ( TxOk  callback)
Parameters
callbackthe callback to invoke when a packet transmission was completed successfully.

Definition at line 148 of file txop.cc.

References m_txOkCallback, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::ApWifiMac(), and ns3::RegularWifiMac::RegularWifiMac().

+ Here is the caller graph for this function:

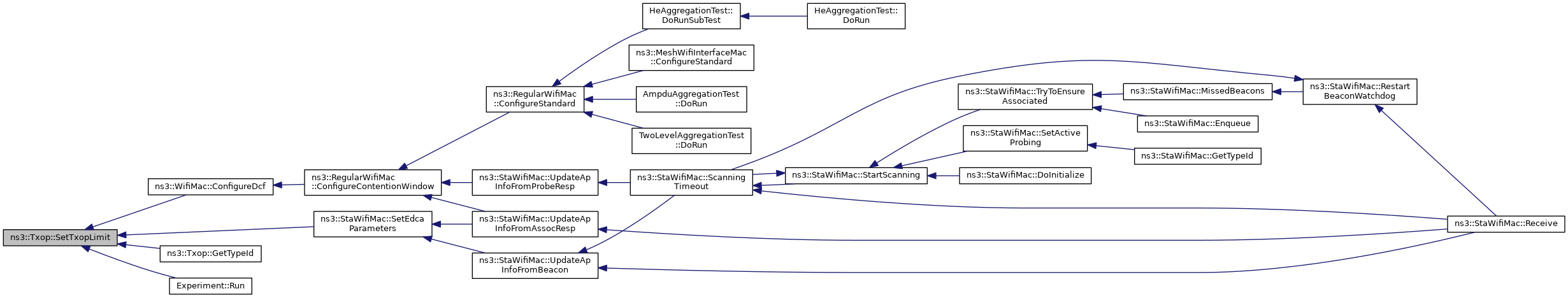

◆ SetTxopLimit()

void ns3::Txop::SetTxopLimit ( Time  txopLimit)

Set the TXOP limit.

Parameters
txopLimitthe TXOP limit. Value zero corresponds to default Txop.

Definition at line 277 of file txop.cc.

References ns3::Time::GetMicroSeconds(), m_txopLimit, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ns3::WifiMac::ConfigureDcf(), GetTypeId(), Experiment::Run(), and ns3::StaWifiMac::SetEdcaParameters().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SetWifiRemoteStationManager()

void ns3::Txop::SetWifiRemoteStationManager ( const Ptr< WifiRemoteStationManager remoteManager)
virtual

Set WifiRemoteStationsManager this Txop is associated to.

Parameters
remoteManagerWifiRemoteStationManager to associate.

Reimplemented in ns3::QosTxop.

Definition at line 141 of file txop.cc.

References m_stationManager, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::SetWifiRemoteStationManager(), ns3::RegularWifiMac::SetWifiRemoteStationManager(), and ns3::QosTxop::SetWifiRemoteStationManager().

+ Here is the caller graph for this function:

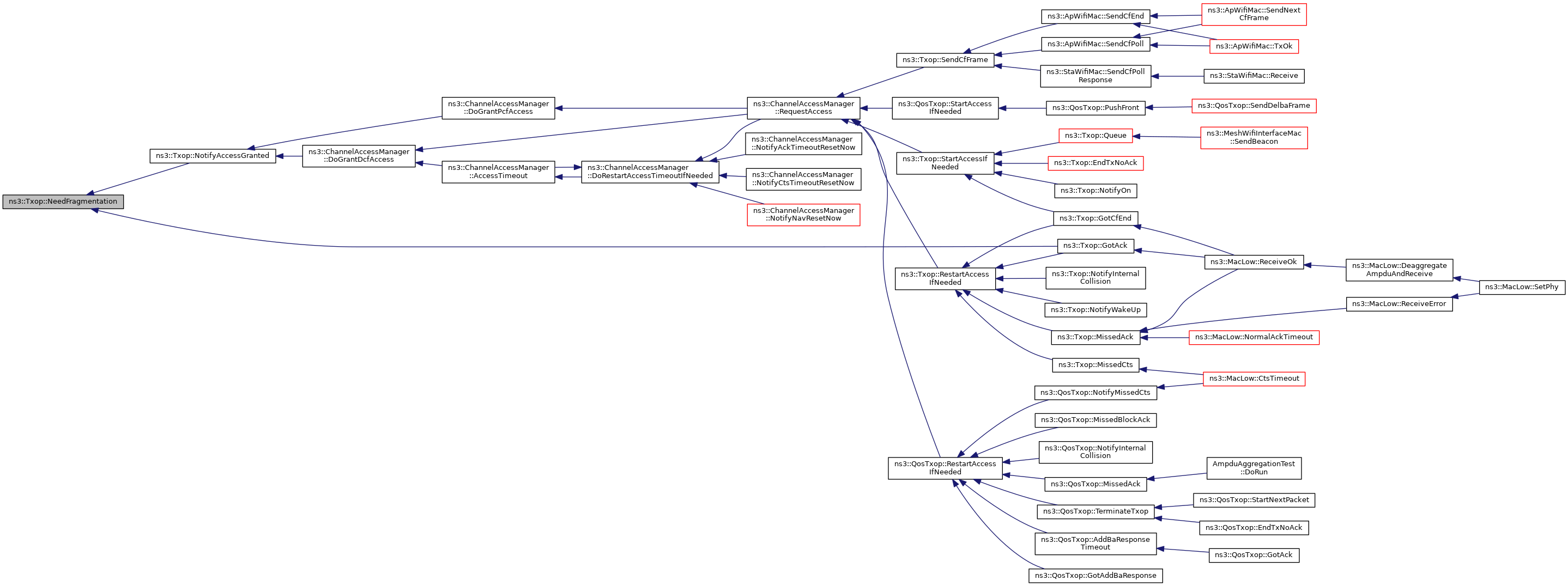

◆ StartAccessIfNeeded()

void ns3::Txop::StartAccessIfNeeded ( void  )
protectedvirtual

Request access from Txop if needed.

Reimplemented in ns3::QosTxop.

Definition at line 353 of file txop.cc.

References IsAccessRequested(), m_channelAccessManager, m_currentPacket, m_low, m_queue, NS_LOG_FUNCTION, and ns3::ChannelAccessManager::RequestAccess().

Referenced by EndTxNoAck(), GotCfEnd(), NotifyOn(), and Queue().

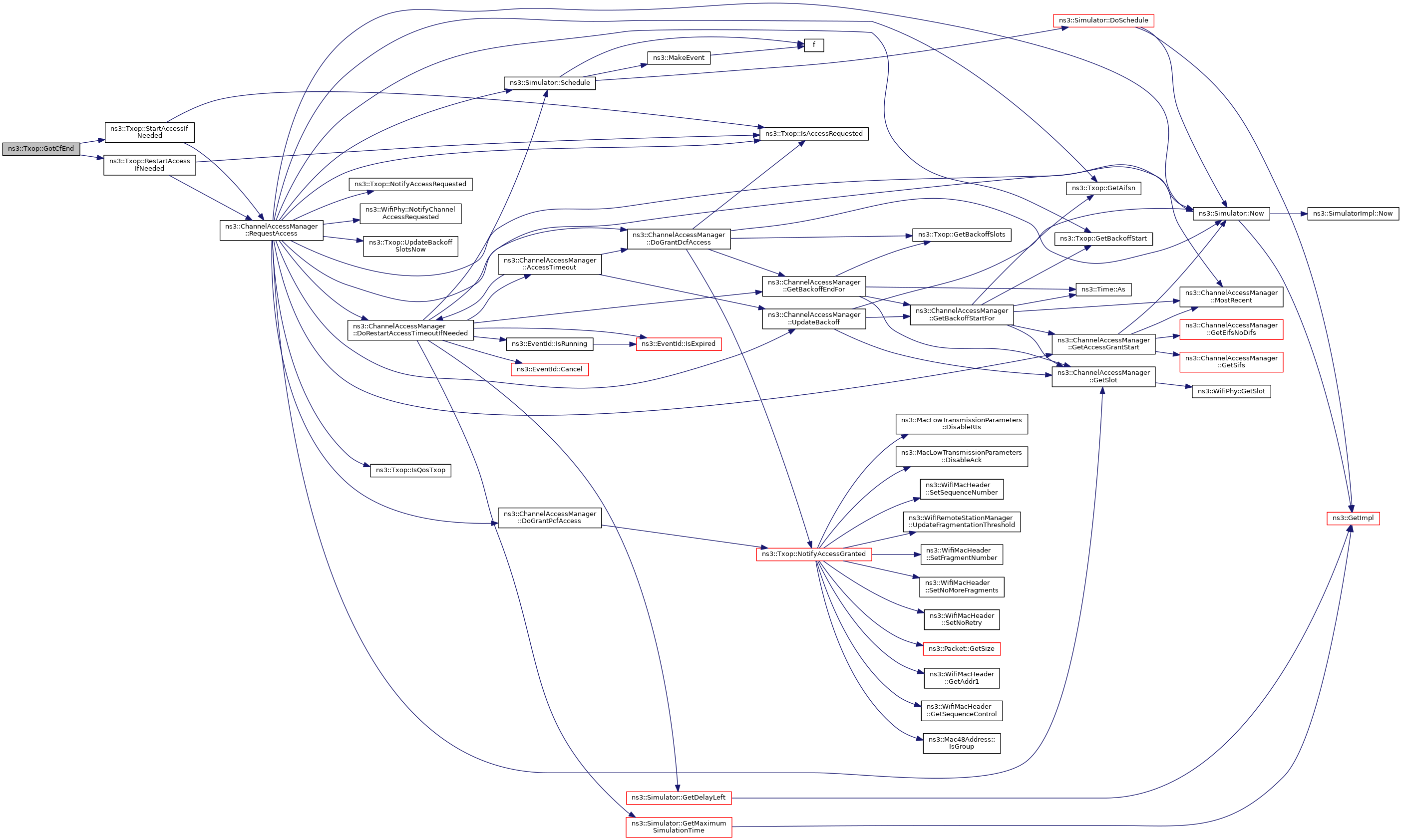

+ Here is the call graph for this function:

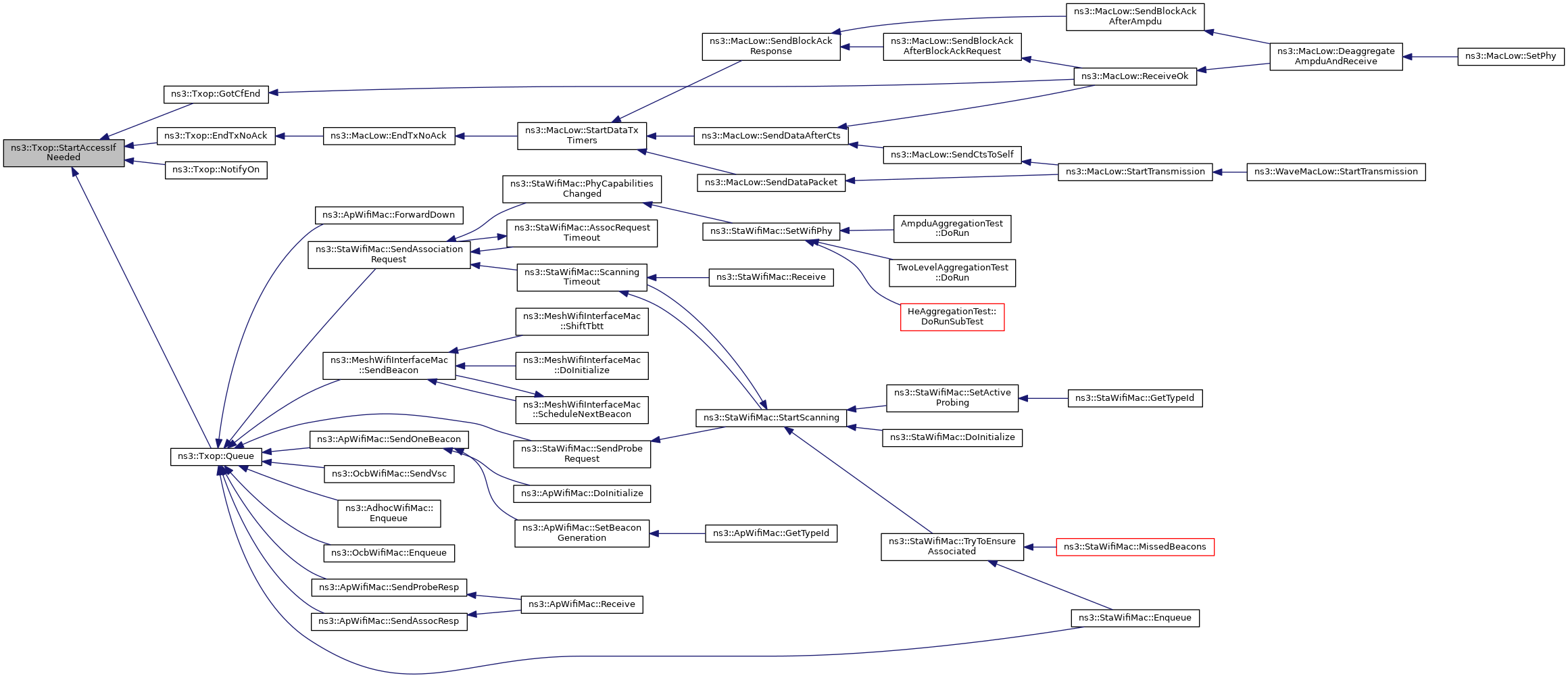

+ Here is the caller graph for this function:

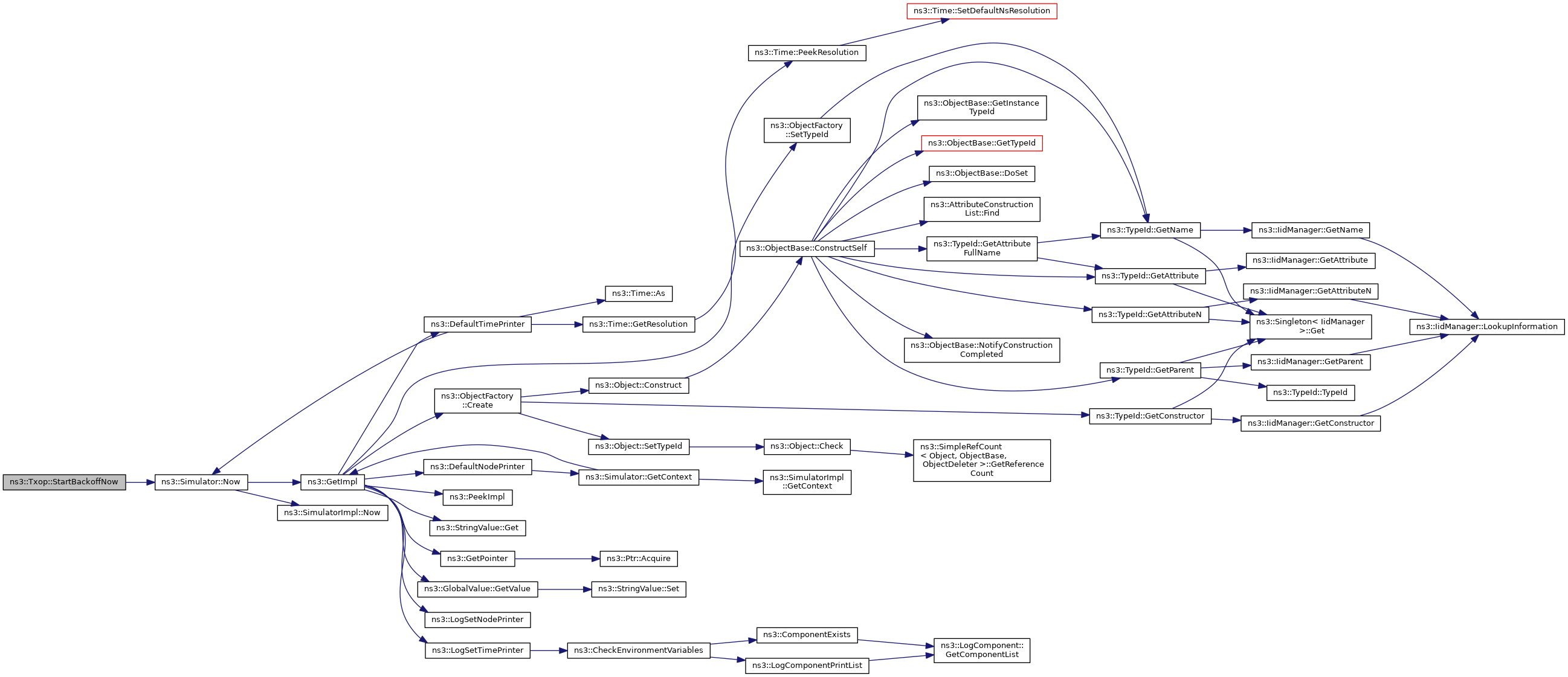

◆ StartBackoffNow()

void ns3::Txop::StartBackoffNow ( uint32_t  nSlots)
Parameters
nSlotsthe number of slots of the backoff.

Start a backoff by initializing the backoff counter to the number of slots specified.

Definition at line 254 of file txop.cc.

References m_backoffSlots, m_backoffStart, ns3::Simulator::Now(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by GenerateBackoff().

+ Here is the call graph for this function:

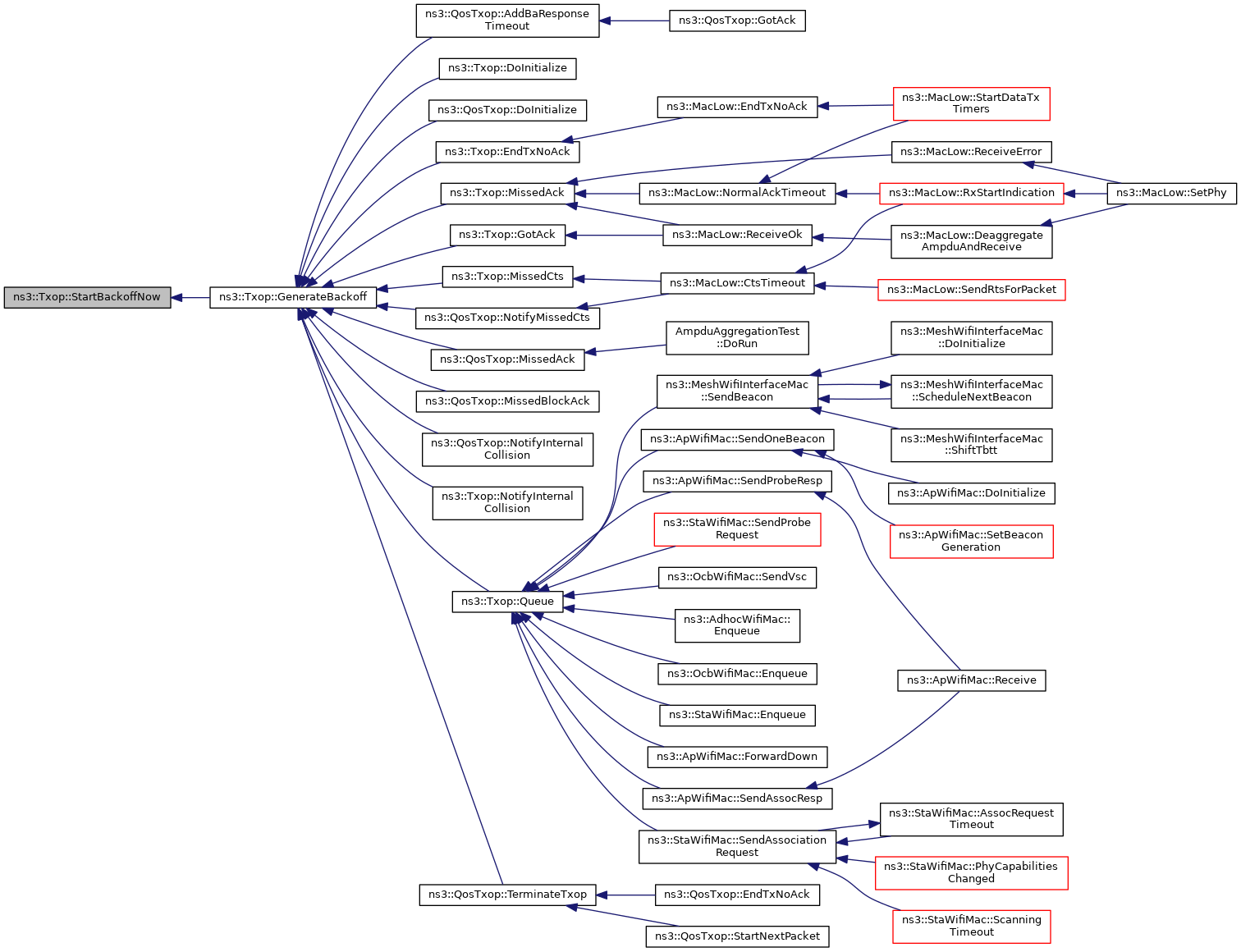

+ Here is the caller graph for this function:

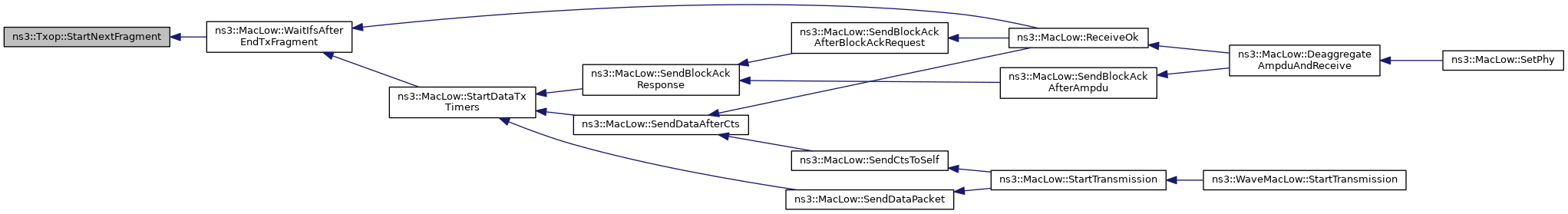

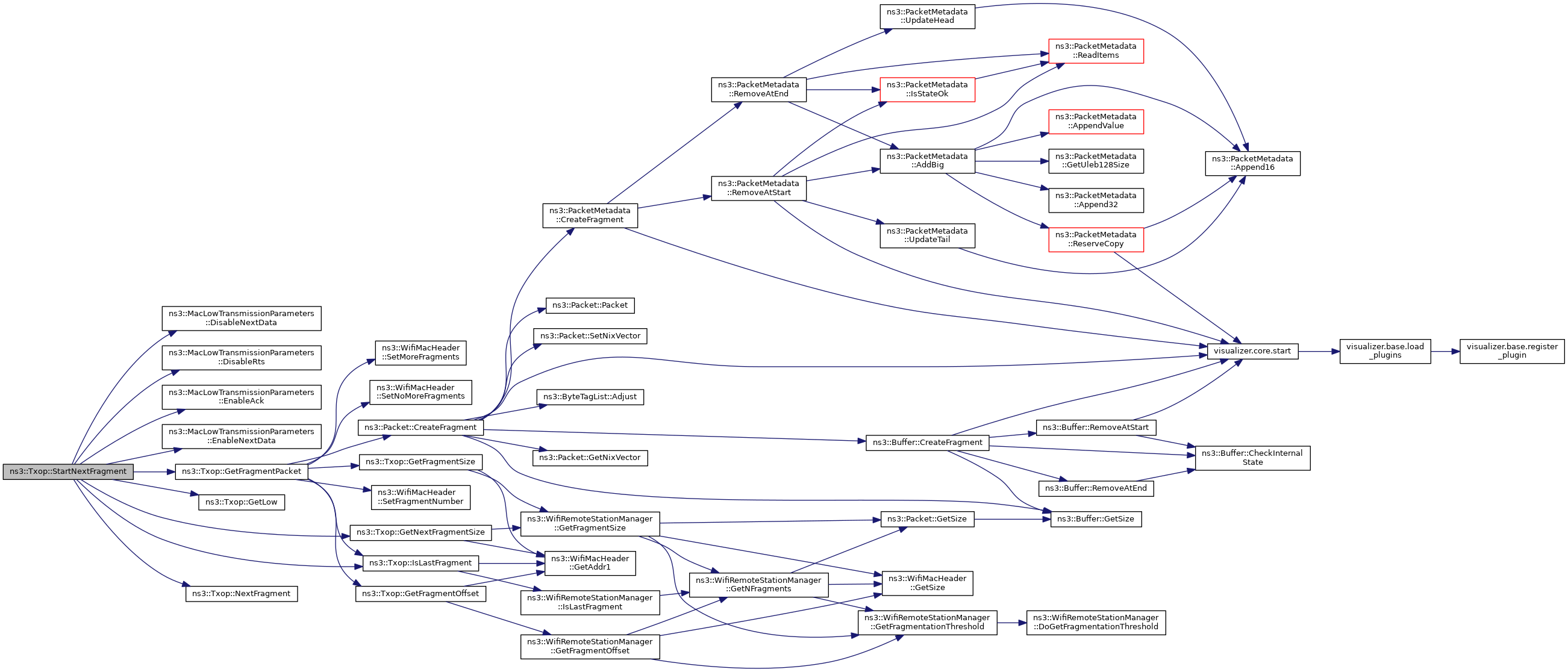

◆ StartNextFragment()

void ns3::Txop::StartNextFragment ( void  )
virtual

Start transmission for the next fragment.

This is called for fragment only.

Definition at line 738 of file txop.cc.

References ns3::MacLowTransmissionParameters::DisableNextData(), ns3::MacLowTransmissionParameters::DisableRts(), ns3::MacLowTransmissionParameters::EnableAck(), ns3::MacLowTransmissionParameters::EnableNextData(), GetFragmentPacket(), GetLow(), GetNextFragmentSize(), IsLastFragment(), m_currentParams, NextFragment(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::MacLow::WaitIfsAfterEndTxFragment().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ StartNextPacket()

void ns3::Txop::StartNextPacket ( void  )
virtual

Start transmission for the next packet if allowed by the TxopLimit.

Reimplemented in ns3::QosTxop.

Definition at line 867 of file txop.cc.

References NS_LOG_WARN.

Referenced by ns3::MacLow::WaitIfsAfterEndTxPacket().

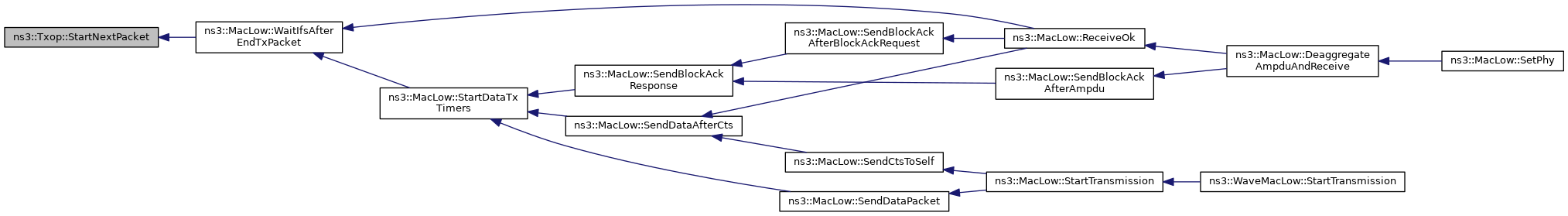

+ Here is the caller graph for this function:

◆ TerminateTxop()

void ns3::Txop::TerminateTxop ( void  )
virtual

Update backoff and restart access if needed.

Reimplemented in ns3::QosTxop.

Definition at line 892 of file txop.cc.

References NS_LOG_WARN.

Referenced by ns3::MacLow::ReceiveOk().

+ Here is the caller graph for this function:

◆ TxDroppedPacket()

void ns3::Txop::TxDroppedPacket ( Ptr< const WifiMacQueueItem item)
protected

Pass the packet included in the wifi MAC queue item to the packet dropped callback.

Parameters
itemthe wifi MAC queue item.

Definition at line 170 of file txop.cc.

References ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), and m_txDroppedCallback.

Referenced by SetTxDroppedCallback().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ UpdateBackoffSlotsNow()

void ns3::Txop::UpdateBackoffSlotsNow ( uint32_t  nSlots,
Time  backoffUpdateBound
)
protected

Update backoff slots that nSlots has passed.

Parameters
nSlotsthe number of slots to decrement
backoffUpdateBoundthe time at which backoff should start

Definition at line 245 of file txop.cc.

References m_backoffSlots, m_backoffStart, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::ChannelAccessManager::NeedBackoffUponAccess(), and ns3::ChannelAccessManager::RequestAccess().

+ Here is the caller graph for this function:

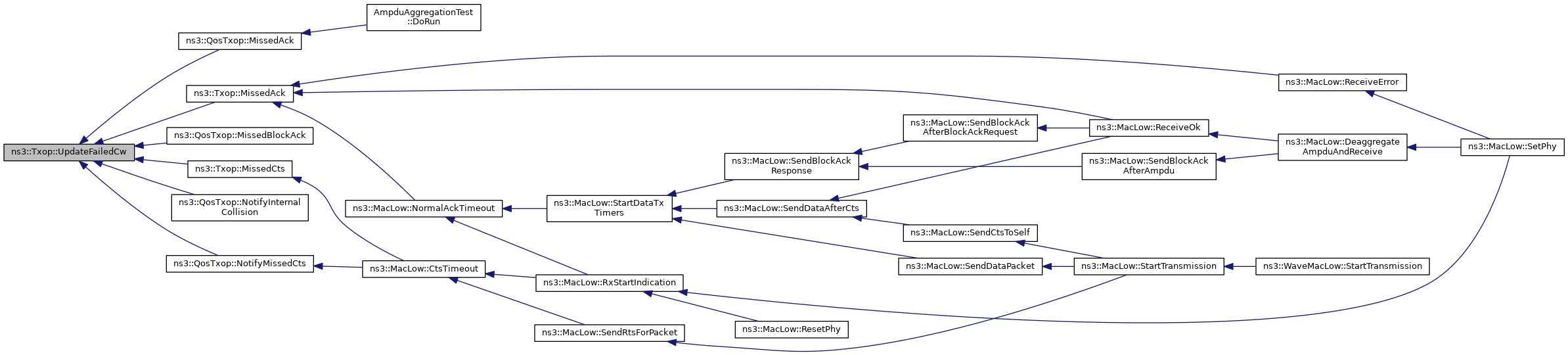

◆ UpdateFailedCw()

void ns3::Txop::UpdateFailedCw ( void  )
protected

Update the value of the CW variable to take into account a transmission failure.

By default, this triggers a doubling of CW (capped by maxCW).

Definition at line 225 of file txop.cc.

References m_cw, m_cwMax, min, and NS_LOG_FUNCTION.

Referenced by ns3::QosTxop::MissedAck(), MissedAck(), ns3::QosTxop::MissedBlockAck(), MissedCts(), ns3::QosTxop::NotifyInternalCollision(), and ns3::QosTxop::NotifyMissedCts().

+ Here is the caller graph for this function:

Friends And Related Function Documentation

◆ ChannelAccessManager

friend class ChannelAccessManager
friend

< ChannelAccessManager associated class

Definition at line 355 of file txop.h.

◆ MacLowTransmissionListener

friend class MacLowTransmissionListener
friend

allow MacLowTransmissionListener class access

Definition at line 70 of file txop.h.

Member Data Documentation

◆ m_accessRequested

bool ns3::Txop::m_accessRequested
protected

flag whether channel access is already requested

Definition at line 519 of file txop.h.

Referenced by IsAccessRequested(), ns3::QosTxop::NotifyAccessGranted(), NotifyAccessGranted(), and NotifyAccessRequested().

◆ m_aifsn

uint8_t ns3::Txop::m_aifsn
protected

the AIFSN

Definition at line 528 of file txop.h.

Referenced by GetAifsn(), and SetAifsn().

◆ m_backoff

uint32_t ns3::Txop::m_backoff
protected

the current backoff

Definition at line 518 of file txop.h.

Referenced by GenerateBackoff().

◆ m_backoffSlots

uint32_t ns3::Txop::m_backoffSlots
protected

the number of backoff slots

Definition at line 520 of file txop.h.

Referenced by GetBackoffSlots(), StartBackoffNow(), and UpdateBackoffSlotsNow().

◆ m_backoffStart

Time ns3::Txop::m_backoffStart
protected

the backoffStart variable is used to keep track of the time at which a backoff was started or the time at which the backoff counter was last updated.

Definition at line 526 of file txop.h.

Referenced by GetBackoffStart(), StartBackoffNow(), and UpdateBackoffSlotsNow().

◆ m_backoffTrace

TracedCallback<uint32_t> ns3::Txop::m_backoffTrace
protected

backoff trace value

Definition at line 535 of file txop.h.

Referenced by GenerateBackoff(), and GetTypeId().

◆ m_channelAccessManager

◆ m_currentHdr

◆ m_currentPacket

◆ m_currentParams

◆ m_cw

uint32_t ns3::Txop::m_cw
protected

the current contention window

Definition at line 517 of file txop.h.

Referenced by GetCw(), ResetCw(), and UpdateFailedCw().

◆ m_cwMax

uint32_t ns3::Txop::m_cwMax
protected

the maximum contention window

Definition at line 516 of file txop.h.

Referenced by GetMaxCw(), SetMaxCw(), and UpdateFailedCw().

◆ m_cwMin

uint32_t ns3::Txop::m_cwMin
protected

the minimum contention window

Definition at line 515 of file txop.h.

Referenced by GetMinCw(), ResetCw(), and SetMinCw().

◆ m_cwTrace

◆ m_fragmentNumber

◆ m_low

◆ m_queue

◆ m_rng

Ptr<UniformRandomVariable> ns3::Txop::m_rng
protected

the random stream

Definition at line 513 of file txop.h.

Referenced by AssignStreams(), DoDispose(), GenerateBackoff(), and Txop().

◆ m_stationManager

◆ m_txDroppedCallback

TxDropped ns3::Txop::m_txDroppedCallback
protected

the packet dropped callback

Definition at line 508 of file txop.h.

Referenced by SetTxDroppedCallback(), and TxDroppedPacket().

◆ m_txFailedCallback

◆ m_txMiddle

◆ m_txOkCallback

TxOk ns3::Txop::m_txOkCallback
protected

the transmit OK callback

Definition at line 506 of file txop.h.

Referenced by ns3::QosTxop::BaTxOk(), EndTxNoAck(), ns3::QosTxop::GotAck(), GotAck(), ns3::QosTxop::GotBlockAck(), and SetTxOkCallback().

◆ m_txopLimit

Time ns3::Txop::m_txopLimit
protected

the TXOP limit time

Definition at line 529 of file txop.h.

Referenced by GetTxopLimit(), and SetTxopLimit().


The documentation for this class was generated from the following files:
