base class for all MAC-level wifi objects. More...

#include "wifi-mac.h"

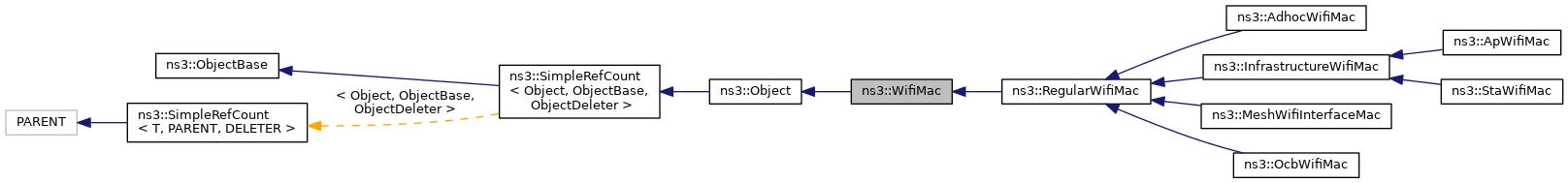

Inheritance diagram for ns3::WifiMac:

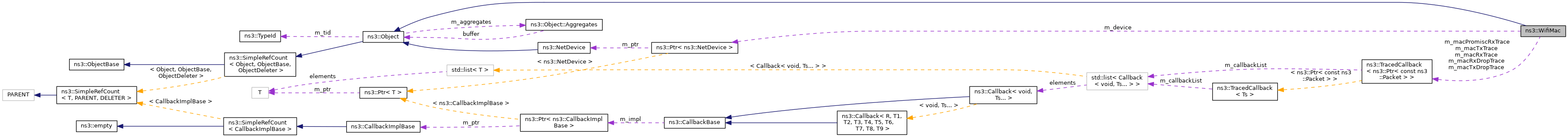

Collaboration diagram for ns3::WifiMac:

Public Member Functions
virtual void	ConfigureStandard (WifiStandard standard)=0

virtual void	DoDispose ()
	Destructor implementation. More...

virtual void	Enqueue (Ptr< Packet > packet, Mac48Address to, Mac48Address from)=0

virtual void	Enqueue (Ptr< Packet > packet, Mac48Address to)=0

virtual Mac48Address	GetAddress (void) const =0

virtual Mac48Address	GetBssid (void) const =0

Ptr< NetDevice >	GetDevice (void) const
	Return the device this PHY is associated with. More...

Ptr< HeConfiguration >	GetHeConfiguration (void) const

Ptr< HtConfiguration >	GetHtConfiguration (void) const

virtual bool	GetShortSlotTimeSupported (void) const =0

virtual Ssid	GetSsid (void) const =0

Ptr< VhtConfiguration >	GetVhtConfiguration (void) const

virtual Ptr< WifiPhy >	GetWifiPhy (void) const =0

virtual Ptr< WifiRemoteStationManager >	GetWifiRemoteStationManager (void) const =0

void	NotifyPromiscRx (Ptr< const Packet > packet)

void	NotifyRx (Ptr< const Packet > packet)

void	NotifyRxDrop (Ptr< const Packet > packet)

void	NotifyTx (Ptr< const Packet > packet)

void	NotifyTxDrop (Ptr< const Packet > packet)

virtual void	ResetWifiPhy (void)=0
	Remove currently attached WifiPhy device from this MAC. More...

virtual void	SetAddress (Mac48Address address)=0

void	SetDevice (const Ptr< NetDevice > device)
	Sets the device this PHY is associated with. More...

virtual void	SetForwardUpCallback (Callback< void, Ptr< const Packet >, Mac48Address, Mac48Address > upCallback)=0

virtual void	SetLinkDownCallback (Callback< void > linkDown)=0

virtual void	SetLinkUpCallback (Callback< void > linkUp)=0

virtual void	SetPromisc (void)=0
	Sets the interface in promiscuous mode. More...

virtual void	SetShortSlotTimeSupported (bool enable)=0
	Enable or disable short slot time feature. More...

virtual void	SetSsid (Ssid ssid)=0

virtual void	SetWifiPhy (Ptr< WifiPhy > phy)=0

virtual void	SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > stationManager)=0

virtual bool	SupportsSendFrom (void) const =0

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const

template<>
Ptr< Object >	GetObject (TypeId tid) const

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
void	ConfigureDcf (Ptr< Txop > dcf, uint32_t cwmin, uint32_t cwmax, bool isDsss, AcIndex ac)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Attributes
Ptr< NetDevice >	m_device
	Pointer to the device. More...

TracedCallback< Ptr< const Packet > >	m_macPromiscRxTrace
	The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). More...

TracedCallback< Ptr< const Packet > >	m_macRxDropTrace
	The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during reception. More...

TracedCallback< Ptr< const Packet > >	m_macRxTrace
	The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). More...

TracedCallback< Ptr< const Packet > >	m_macTxDropTrace
	The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during transmission. More...

TracedCallback< Ptr< const Packet > >	m_macTxTrace
	The trace source fired when packets come into the "top" of the device at the L3/L2 transition, before being queued for transmission. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

base class for all MAC-level wifi objects.

This class encapsulates all the low-level MAC functionality DCA, EDCA, etc) and all the high-level MAC functionality (association/disassociation state machines).

Config Paths

ns3::WifiMac is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac"

Attributes

Ssid: The ssid we want to belong to.
- Set with class: SsidValue
- Underlying type: Ssid
- Initial value: default
- Flags: construct write read

TraceSources

MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
Callback signature: ns3::Packet::TracedCallback
MacTxDrop: A packet has been dropped in the MAC layer before transmission.
Callback signature: ns3::Packet::TracedCallback
MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace.
Callback signature: ns3::Packet::TracedCallback
MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace.
Callback signature: ns3::Packet::TracedCallback
MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.
Callback signature: ns3::Packet::TracedCallback

Size of this type is 120 bytes (on a 64-bit architecture).

Definition at line 46 of file wifi-mac.h.

Member Function Documentation

◆ ConfigureDcf()

void ns3::WifiMac::ConfigureDcf	(	Ptr< Txop >	dcf,
		uint32_t	cwmin,
		uint32_t	cwmax,
		bool	isDsss,
		AcIndex	ac
	)

protected

Parameters

dcf	the DCF to be configured
cwmin	the minimum contention window for the DCF
cwmax	the maximum contention window for the DCF
isDsss	flag to indicate whether PHY is DSSS or HR/DSSS
ac	the access category for the DCF

Configure the DCF with appropriate values depending on the given access category.

Definition at line 124 of file wifi-mac.cc.

References ns3::AC_BE, ns3::AC_BE_NQOS, ns3::AC_BK, ns3::AC_UNDEF, ns3::AC_VI, ns3::AC_VO, ns3::MicroSeconds(), NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::Txop::SetAifsn(), ns3::Txop::SetMaxCw(), ns3::Txop::SetMinCw(), and ns3::Txop::SetTxopLimit().

Referenced by ns3::RegularWifiMac::ConfigureContentionWindow().

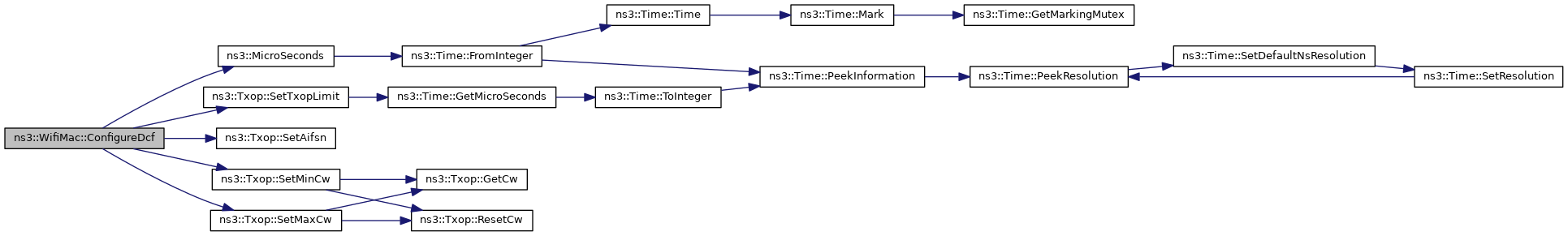

Here is the call graph for this function:

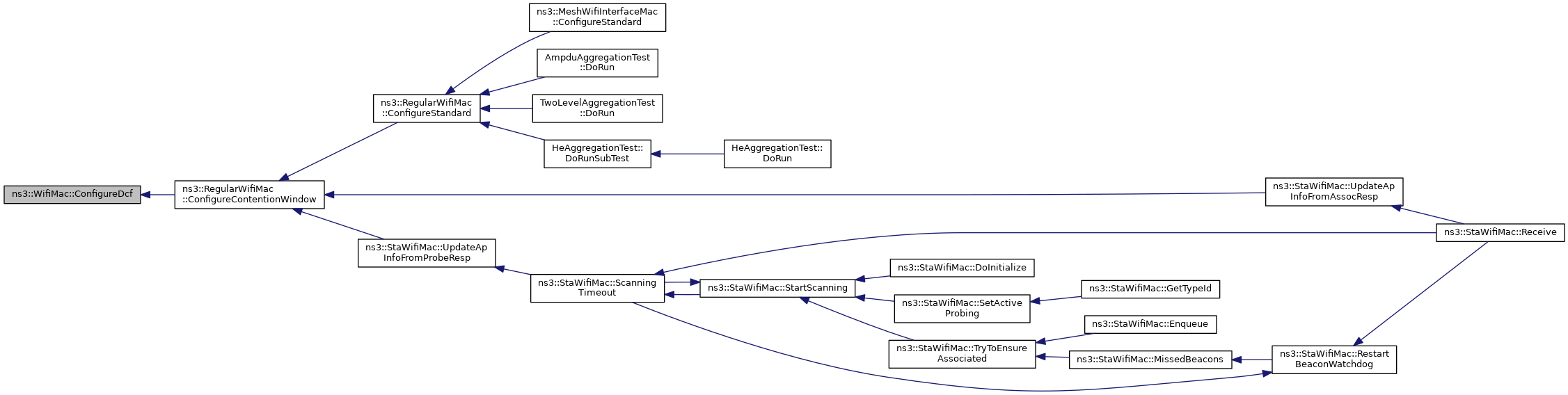

Here is the caller graph for this function:

◆ ConfigureStandard()

virtual void ns3::WifiMac::ConfigureStandard ( WifiStandard standard )

pure virtual

Parameters

standard the wifi standard to be configured

This method completes the configuration process for a requested PHY standard. Subclasses should implement this method to configure their DCF queues according to the requested standard.

Implemented in ns3::OcbWifiMac, ns3::MeshWifiInterfaceMac, and ns3::RegularWifiMac.

Referenced by Bug2831TestCase::DoRun().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::WifiMac::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::ApWifiMac, ns3::MeshWifiInterfaceMac, and ns3::RegularWifiMac.

Definition at line 76 of file wifi-mac.cc.

References m_device.

Referenced by ns3::RegularWifiMac::DoDispose().

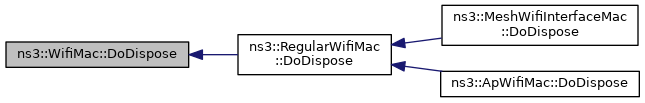

Here is the caller graph for this function:

◆ Enqueue() [1/2]

virtual void ns3::WifiMac::Enqueue	(	Ptr< Packet >	packet,
		Mac48Address	to,
		Mac48Address	from
	)

pure virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.
from	the address from which the packet should be sent.

The packet should be enqueued in a TX queue, and should be dequeued as soon as the DCF function determines that access it granted to this MAC. The extra parameter "from" allows this device to operate in a bridged mode, forwarding received frames without altering the source address.

Implemented in ns3::RegularWifiMac, ns3::MeshWifiInterfaceMac, and ns3::ApWifiMac.

◆ Enqueue() [2/2]

virtual void ns3::WifiMac::Enqueue	(	Ptr< Packet >	packet,
		Mac48Address	to
	)

pure virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.

The packet should be enqueued in a TX queue, and should be dequeued as soon as the DCF function determines that access it granted to this MAC.

Implemented in ns3::StaWifiMac, ns3::OcbWifiMac, ns3::RegularWifiMac, ns3::MeshWifiInterfaceMac, ns3::ApWifiMac, ns3::InfrastructureWifiMac, and ns3::AdhocWifiMac.

◆ GetAddress()

virtual Mac48Address ns3::WifiMac::GetAddress ( void ) const

pure virtual

Returns: the MAC address associated to this MAC layer.

Implemented in ns3::RegularWifiMac.

◆ GetBssid()

virtual Mac48Address ns3::WifiMac::GetBssid ( void ) const

pure virtual

Returns: the BSSID of the network this device belongs to.

Implemented in ns3::OcbWifiMac, and ns3::RegularWifiMac.

◆ GetDevice()

Ptr< NetDevice > ns3::WifiMac::GetDevice ( void ) const

Return the device this PHY is associated with.

Returns: the device this PHY is associated with

Definition at line 88 of file wifi-mac.cc.

References m_device.

Referenced by GetHeConfiguration(), GetHtConfiguration(), and GetVhtConfiguration().

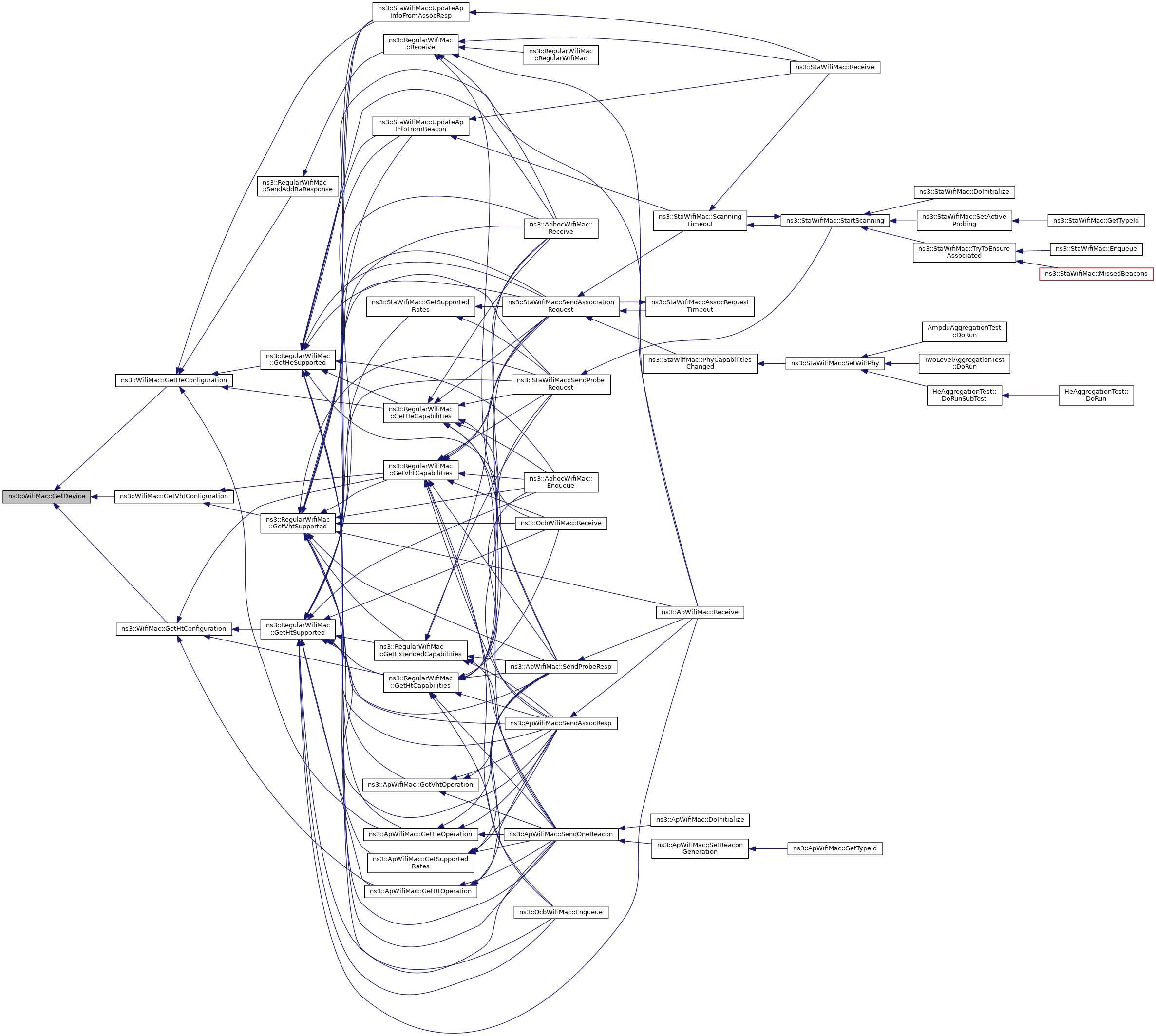

Here is the caller graph for this function:

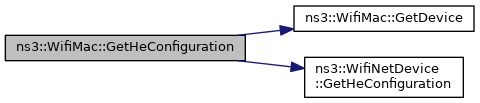

◆ GetHeConfiguration()

Ptr< HeConfiguration > ns3::WifiMac::GetHeConfiguration ( void ) const

Returns: pointer to HeConfiguration if it exists

Definition at line 195 of file wifi-mac.cc.

References GetDevice(), and ns3::WifiNetDevice::GetHeConfiguration().

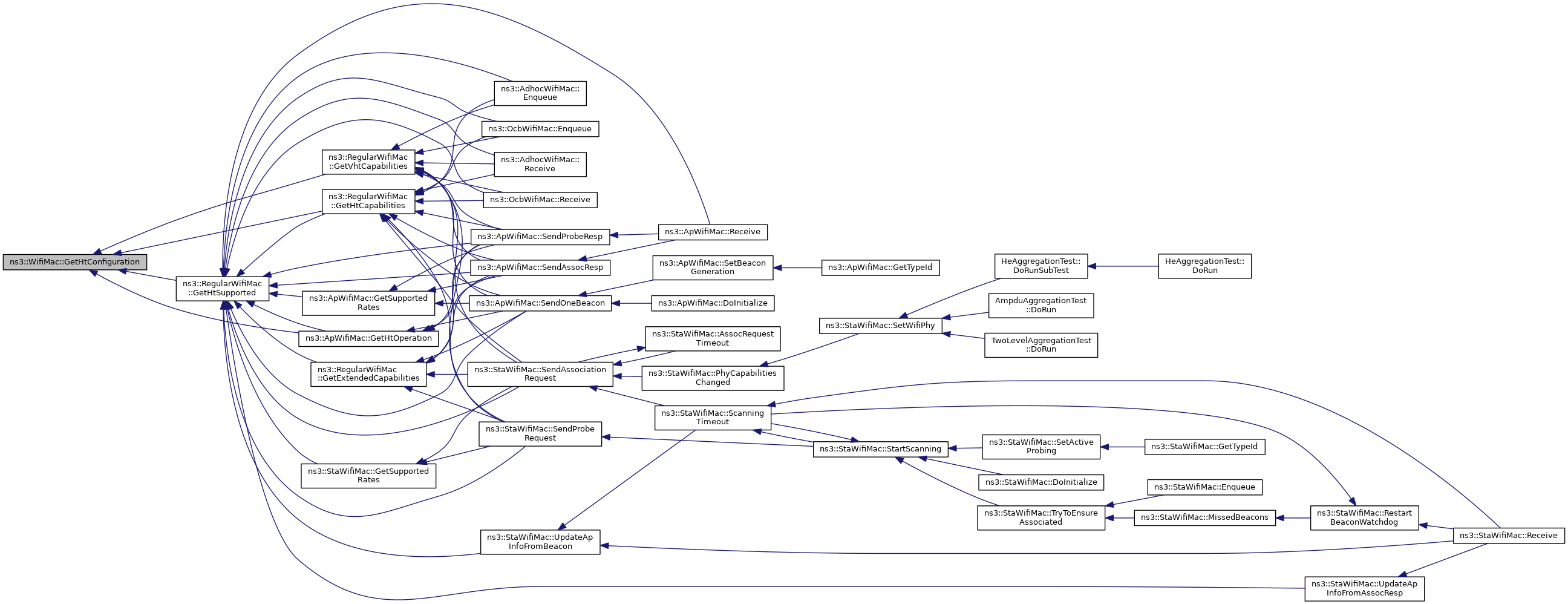

Referenced by ns3::RegularWifiMac::GetHeCapabilities(), ns3::ApWifiMac::GetHeOperation(), ns3::RegularWifiMac::GetHeSupported(), ns3::RegularWifiMac::SendAddBaResponse(), and ns3::StaWifiMac::UpdateApInfoFromAssocResp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetHtConfiguration()

Ptr< HtConfiguration > ns3::WifiMac::GetHtConfiguration ( void ) const

Returns: pointer to HtConfiguration if it exists

Definition at line 181 of file wifi-mac.cc.

References GetDevice(), and ns3::WifiNetDevice::GetHtConfiguration().

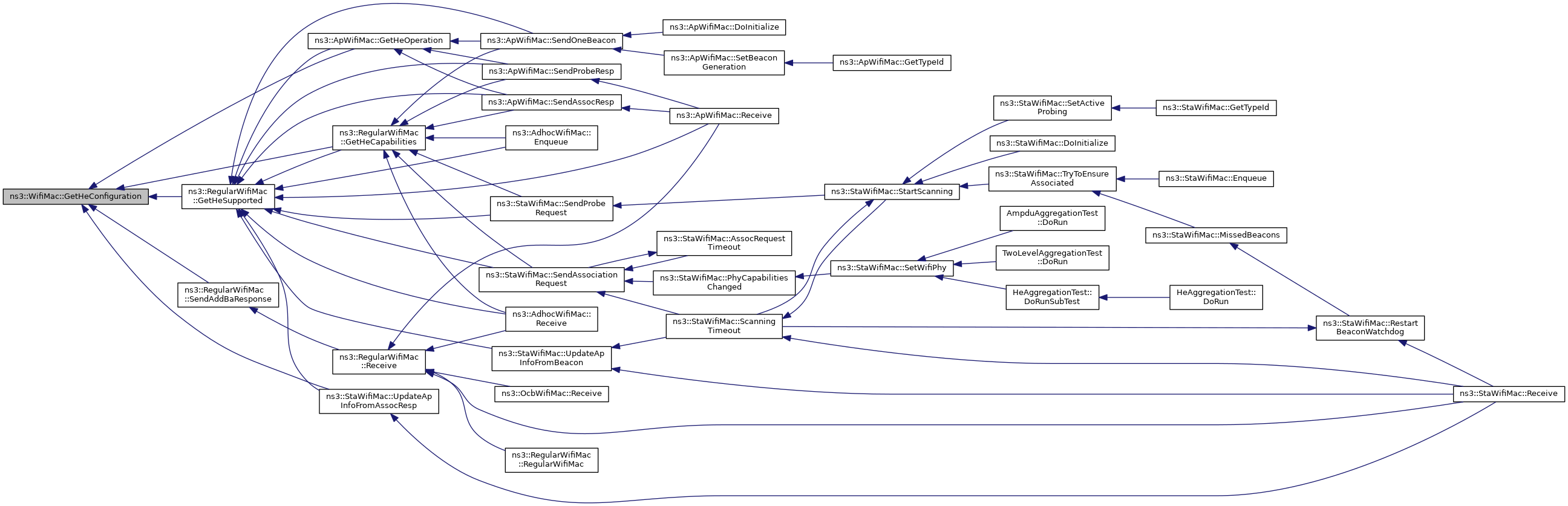

Referenced by ns3::RegularWifiMac::GetHtCapabilities(), ns3::ApWifiMac::GetHtOperation(), ns3::RegularWifiMac::GetHtSupported(), and ns3::RegularWifiMac::GetVhtCapabilities().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetShortSlotTimeSupported()

virtual bool ns3::WifiMac::GetShortSlotTimeSupported ( void ) const

pure virtual

Returns: whether the device supports short slot time capability.

Implemented in ns3::RegularWifiMac.

◆ GetSsid()

virtual Ssid ns3::WifiMac::GetSsid ( void ) const

pure virtual

Returns: the SSID which this MAC layer is going to try to stay in.

Implemented in ns3::OcbWifiMac, and ns3::RegularWifiMac.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::WifiMac::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 38 of file wifi-mac.cc.

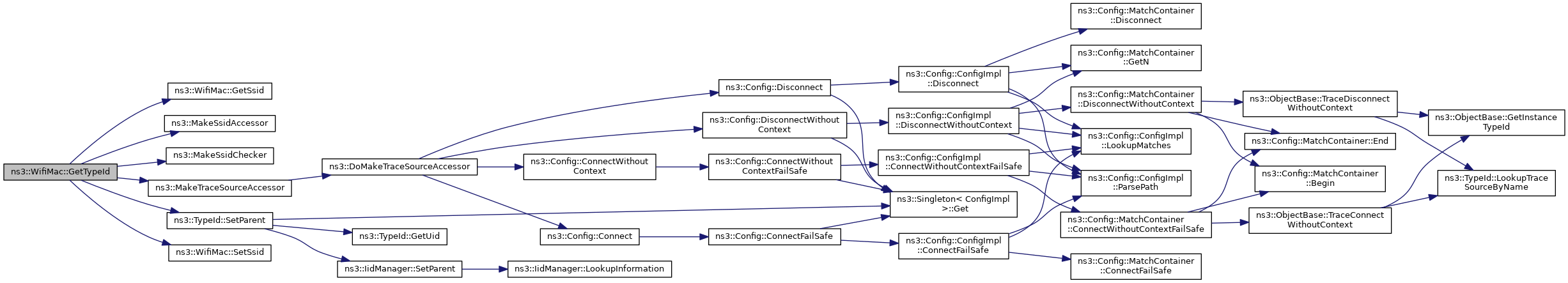

References GetSsid(), m_macPromiscRxTrace, m_macRxDropTrace, m_macRxTrace, m_macTxDropTrace, m_macTxTrace, ns3::MakeSsidAccessor(), ns3::MakeSsidChecker(), ns3::MakeTraceSourceAccessor(), ns3::TypeId::SetParent(), and SetSsid().

Here is the call graph for this function:

◆ GetVhtConfiguration()

Ptr< VhtConfiguration > ns3::WifiMac::GetVhtConfiguration ( void ) const

Returns: pointer to VhtConfiguration if it exists

Definition at line 188 of file wifi-mac.cc.

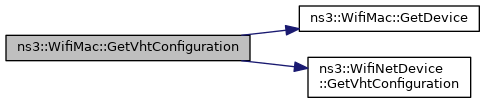

References GetDevice(), and ns3::WifiNetDevice::GetVhtConfiguration().

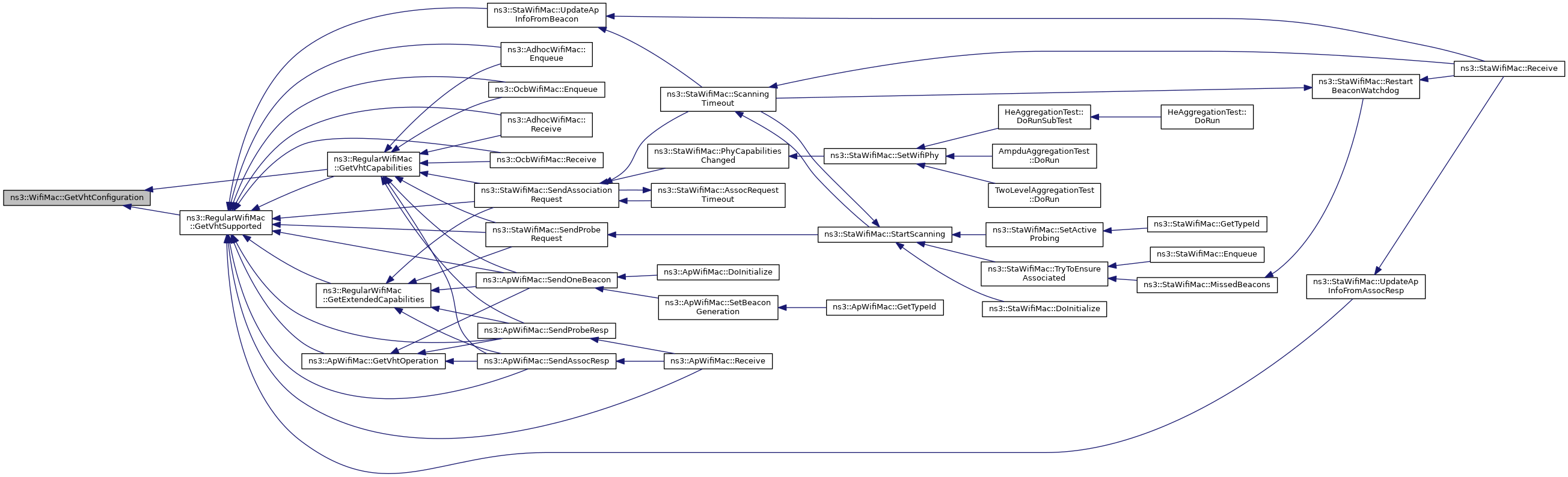

Referenced by ns3::RegularWifiMac::GetVhtCapabilities(), and ns3::RegularWifiMac::GetVhtSupported().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetWifiPhy()

virtual Ptr<WifiPhy> ns3::WifiMac::GetWifiPhy ( void ) const

pure virtual

Returns: the physical layer attached to this MAC

Implemented in ns3::RegularWifiMac.

◆ GetWifiRemoteStationManager()

virtual Ptr<WifiRemoteStationManager> ns3::WifiMac::GetWifiRemoteStationManager ( void ) const

pure virtual

Returns: the station manager attached to this MAC.

Implemented in ns3::RegularWifiMac.

◆ NotifyPromiscRx()

void ns3::WifiMac::NotifyPromiscRx ( Ptr< const Packet > packet )

Parameters

packet the packet we received promiscuously

Public method used to fire a MacPromiscRx trace. Implemented for encapsulation purposes.

Definition at line 112 of file wifi-mac.cc.

References m_macPromiscRxTrace.

◆ NotifyRx()

void ns3::WifiMac::NotifyRx ( Ptr< const Packet > packet )

Parameters

packet the packet we received

Public method used to fire a MacRx trace. Implemented for encapsulation purposes.

Definition at line 106 of file wifi-mac.cc.

References m_macRxTrace.

◆ NotifyRxDrop()

void ns3::WifiMac::NotifyRxDrop ( Ptr< const Packet > packet )

Parameters

packet the packet we received but is not destined for us

Public method used to fire a MacRxDrop trace. Implemented for encapsulation purposes.

Definition at line 118 of file wifi-mac.cc.

References m_macRxDropTrace.

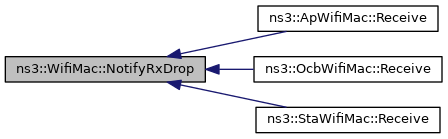

Referenced by ns3::ApWifiMac::Receive(), ns3::OcbWifiMac::Receive(), and ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

◆ NotifyTx()

void ns3::WifiMac::NotifyTx ( Ptr< const Packet > packet )

Parameters

packet the packet being enqueued

Public method used to fire a MacTx trace. Implemented for encapsulation purposes. Note this trace indicates that the packet was accepted by the device only. The packet may be dropped later (e.g. if the queue is full).

Definition at line 94 of file wifi-mac.cc.

References m_macTxTrace.

◆ NotifyTxDrop()

void ns3::WifiMac::NotifyTxDrop ( Ptr< const Packet > packet )

Parameters

packet the packet being dropped

Public method used to fire a MacTxDrop trace. Implemented for encapsulation purposes. This trace indicates that the packet was dropped before it was transmitted (e.g. when a STA is not associated with an AP).

Definition at line 100 of file wifi-mac.cc.

References m_macTxDropTrace.

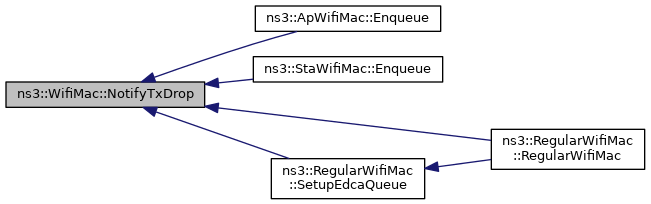

Referenced by ns3::ApWifiMac::Enqueue(), ns3::StaWifiMac::Enqueue(), ns3::RegularWifiMac::RegularWifiMac(), and ns3::RegularWifiMac::SetupEdcaQueue().

Here is the caller graph for this function:

◆ ResetWifiPhy()

virtual void ns3::WifiMac::ResetWifiPhy ( void )

pure virtual

Remove currently attached WifiPhy device from this MAC.

Implemented in ns3::RegularWifiMac.

◆ SetAddress()

virtual void ns3::WifiMac::SetAddress ( Mac48Address address )

pure virtual

Parameters

address the current address of this MAC layer.

Implemented in ns3::ApWifiMac, ns3::RegularWifiMac, and ns3::AdhocWifiMac.

Referenced by Bug2831TestCase::DoRun().

Here is the caller graph for this function:

◆ SetDevice()

void ns3::WifiMac::SetDevice ( const Ptr< NetDevice > device )

Sets the device this PHY is associated with.

Parameters

device the device this PHY is associated with

Definition at line 82 of file wifi-mac.cc.

References m_device.

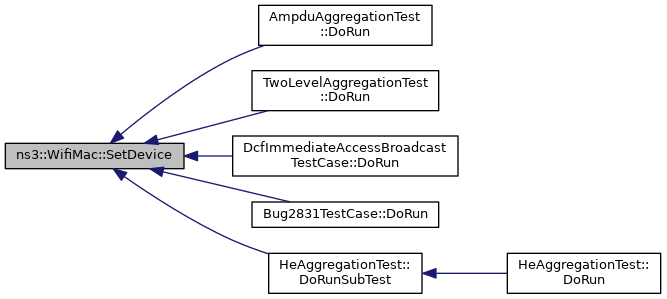

Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), DcfImmediateAccessBroadcastTestCase::DoRun(), Bug2831TestCase::DoRun(), and HeAggregationTest::DoRunSubTest().

Here is the caller graph for this function:

◆ SetForwardUpCallback()

virtual void ns3::WifiMac::SetForwardUpCallback ( Callback< void, Ptr< const Packet >, Mac48Address, Mac48Address > upCallback )

pure virtual

Parameters

upCallback the callback to invoke when a packet must be forwarded up the stack.

◆ SetLinkDownCallback()

virtual void ns3::WifiMac::SetLinkDownCallback ( Callback< void > linkDown )

pure virtual

Parameters

linkDown the callback to invoke when the link becomes down.

Implemented in ns3::OcbWifiMac, and ns3::RegularWifiMac.

◆ SetLinkUpCallback()

virtual void ns3::WifiMac::SetLinkUpCallback ( Callback< void > linkUp )

pure virtual

Parameters

linkUp the callback to invoke when the link becomes up.

Implemented in ns3::OcbWifiMac, ns3::RegularWifiMac, ns3::MeshWifiInterfaceMac, ns3::ApWifiMac, and ns3::AdhocWifiMac.

◆ SetPromisc()

virtual void ns3::WifiMac::SetPromisc ( void )

pure virtual

Sets the interface in promiscuous mode.

Enables promiscuous mode on the interface. Note that any further filtering on the incoming frame path may affect the overall behavior.

Implemented in ns3::RegularWifiMac.

◆ SetShortSlotTimeSupported()

virtual void ns3::WifiMac::SetShortSlotTimeSupported ( bool enable )

pure virtual

Enable or disable short slot time feature.

Parameters

enable true if short slot time is to be supported, false otherwise

Implemented in ns3::RegularWifiMac.

◆ SetSsid()

virtual void ns3::WifiMac::SetSsid ( Ssid ssid )

pure virtual

Parameters

ssid	the current SSID of this MAC layer.

Implemented in ns3::OcbWifiMac, and ns3::RegularWifiMac.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetWifiPhy()

virtual void ns3::WifiMac::SetWifiPhy ( Ptr< WifiPhy > phy )

pure virtual

Parameters

phy	the physical layer attached to this MAC.

Implemented in ns3::StaWifiMac, and ns3::RegularWifiMac.

◆ SetWifiRemoteStationManager()

virtual void ns3::WifiMac::SetWifiRemoteStationManager ( Ptr< WifiRemoteStationManager > stationManager )

pure virtual

Parameters

stationManager the station manager attached to this MAC.

Implemented in ns3::StaWifiMac, ns3::RegularWifiMac, and ns3::ApWifiMac.

◆ SupportsSendFrom()

virtual bool ns3::WifiMac::SupportsSendFrom ( void ) const

pure virtual

Returns: if this MAC supports sending from arbitrary address.

The interface may or may not support sending from arbitrary address. This function returns true if sending from arbitrary address is supported, false otherwise.

Implemented in ns3::MeshWifiInterfaceMac, ns3::RegularWifiMac, and ns3::ApWifiMac.

Member Data Documentation

◆ m_device

Ptr<NetDevice> ns3::WifiMac::m_device

private

Pointer to the device.

Definition at line 250 of file wifi-mac.h.

Referenced by DoDispose(), GetDevice(), and SetDevice().

◆ m_macPromiscRxTrace

TracedCallback<Ptr<const Packet> > ns3::WifiMac::m_macPromiscRxTrace

private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition).

This is a promiscuous trace.

See also: class CallBackTraceSource

Definition at line 273 of file wifi-mac.h.

Referenced by GetTypeId(), and NotifyPromiscRx().

◆ m_macRxDropTrace

TracedCallback<Ptr<const Packet> > ns3::WifiMac::m_macRxDropTrace

private

The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during reception.

See also: class CallBackTraceSource

Definition at line 288 of file wifi-mac.h.

Referenced by GetTypeId(), and NotifyRxDrop().

◆ m_macRxTrace

TracedCallback<Ptr<const Packet> > ns3::WifiMac::m_macRxTrace

private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition).

This is a non- promiscuous trace.

See also: class CallBackTraceSource

Definition at line 281 of file wifi-mac.h.

Referenced by GetTypeId(), and NotifyRx().

◆ m_macTxDropTrace

TracedCallback<Ptr<const Packet> > ns3::WifiMac::m_macTxDropTrace

private

The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during transmission.

See also: class CallBackTraceSource

Definition at line 265 of file wifi-mac.h.

Referenced by GetTypeId(), and NotifyTxDrop().

◆ m_macTxTrace

TracedCallback<Ptr<const Packet> > ns3::WifiMac::m_macTxTrace

private

The trace source fired when packets come into the "top" of the device at the L3/L2 transition, before being queued for transmission.

See also: class CallBackTraceSource

Definition at line 258 of file wifi-mac.h.

Referenced by GetTypeId(), and NotifyTx().

The documentation for this class was generated from the following files:

src/wifi/model/wifi-mac.h
src/wifi/model/wifi-mac.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

TraceSources

Member Function Documentation

◆ ConfigureDcf()

◆ ConfigureStandard()

◆ DoDispose()

◆ Enqueue() [1/2]

◆ Enqueue() [2/2]

◆ GetAddress()

◆ GetBssid()

◆ GetDevice()

◆ GetHeConfiguration()

◆ GetHtConfiguration()

◆ GetShortSlotTimeSupported()

◆ GetSsid()

◆ GetTypeId()

◆ GetVhtConfiguration()

◆ GetWifiPhy()

◆ GetWifiRemoteStationManager()

◆ NotifyPromiscRx()

◆ NotifyRx()

◆ NotifyRxDrop()

◆ NotifyTx()

◆ NotifyTxDrop()

◆ ResetWifiPhy()

◆ SetAddress()

◆ SetDevice()

◆ SetForwardUpCallback()

◆ SetLinkDownCallback()

◆ SetLinkUpCallback()

◆ SetPromisc()

◆ SetShortSlotTimeSupported()

◆ SetSsid()

◆ SetWifiPhy()

◆ SetWifiRemoteStationManager()

◆ SupportsSendFrom()

Member Data Documentation

◆ m_device

◆ m_macPromiscRxTrace

◆ m_macRxDropTrace

◆ m_macRxTrace

◆ m_macTxDropTrace

◆ m_macTxTrace
