base class for all MAC-level wifi objects. More...

#include "regular-wifi-mac.h"

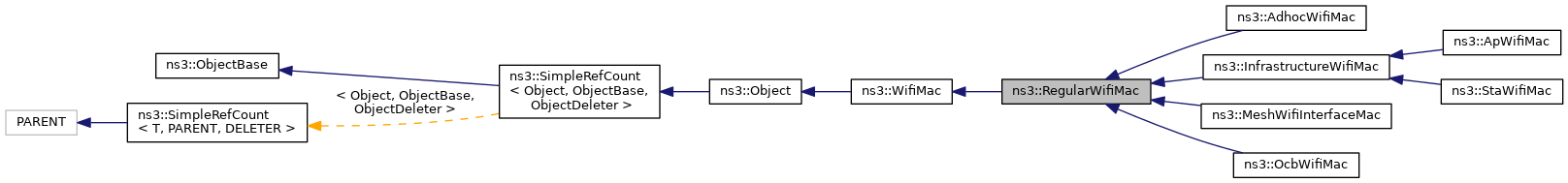

Inheritance diagram for ns3::RegularWifiMac:

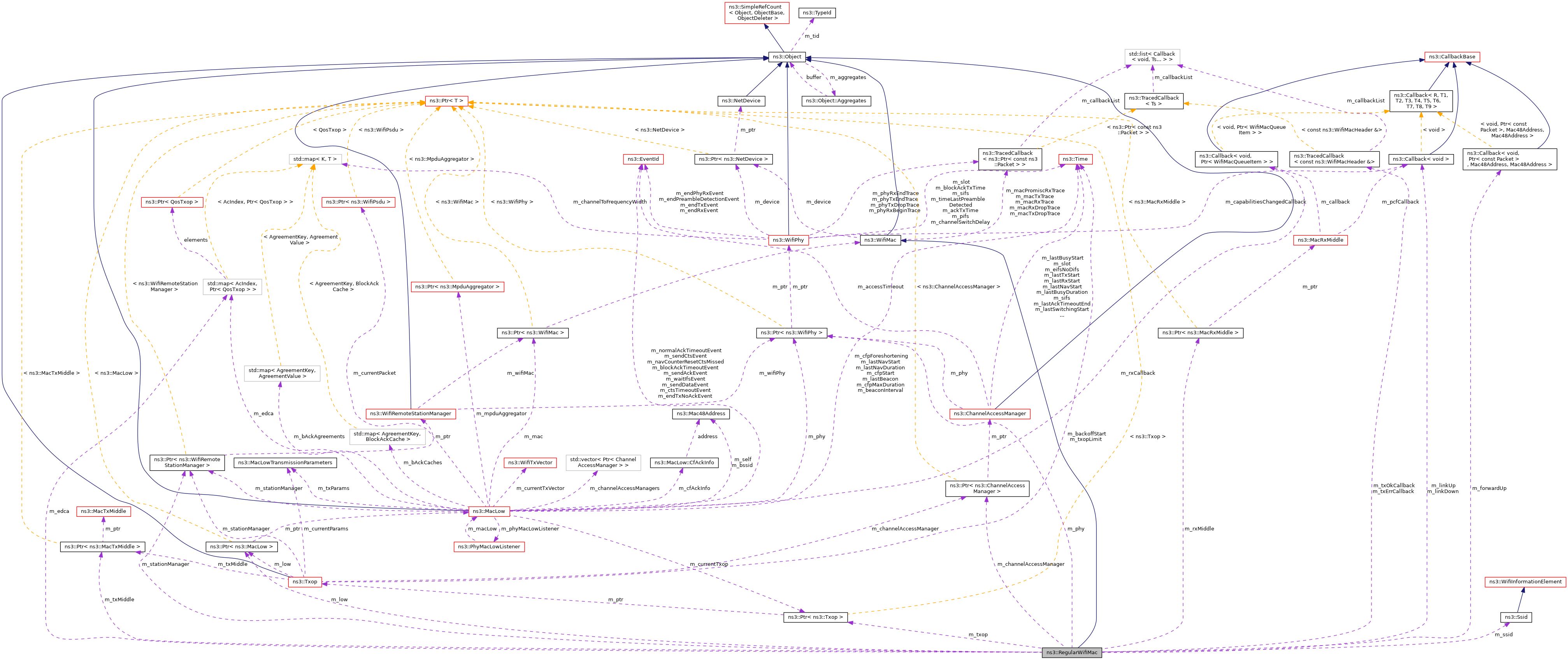

Collaboration diagram for ns3::RegularWifiMac:

Public Types
typedef Callback< void, Ptr< const Packet >, Mac48Address, Mac48Address >	ForwardUpCallback
	This type defines the callback of a higher layer that a WifiMac(-derived) object invokes to pass a packet up the stack. More...

Public Member Functions
	RegularWifiMac ()

virtual	~RegularWifiMac ()

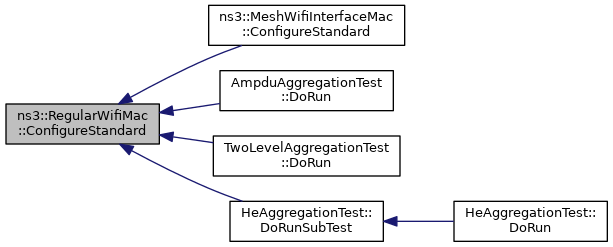

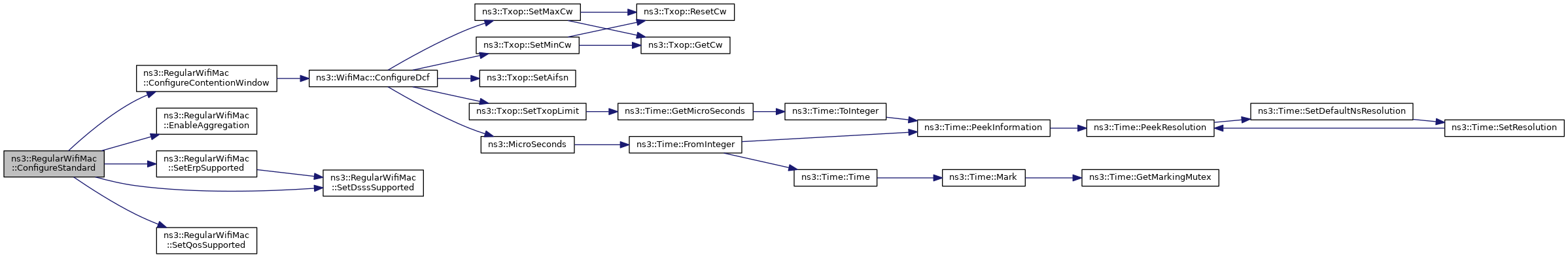

void	ConfigureStandard (WifiStandard standard)

virtual void	Enqueue (Ptr< Packet > packet, Mac48Address to, Mac48Address from)

virtual void	Enqueue (Ptr< Packet > packet, Mac48Address to)=0

Mac48Address	GetAddress (void) const

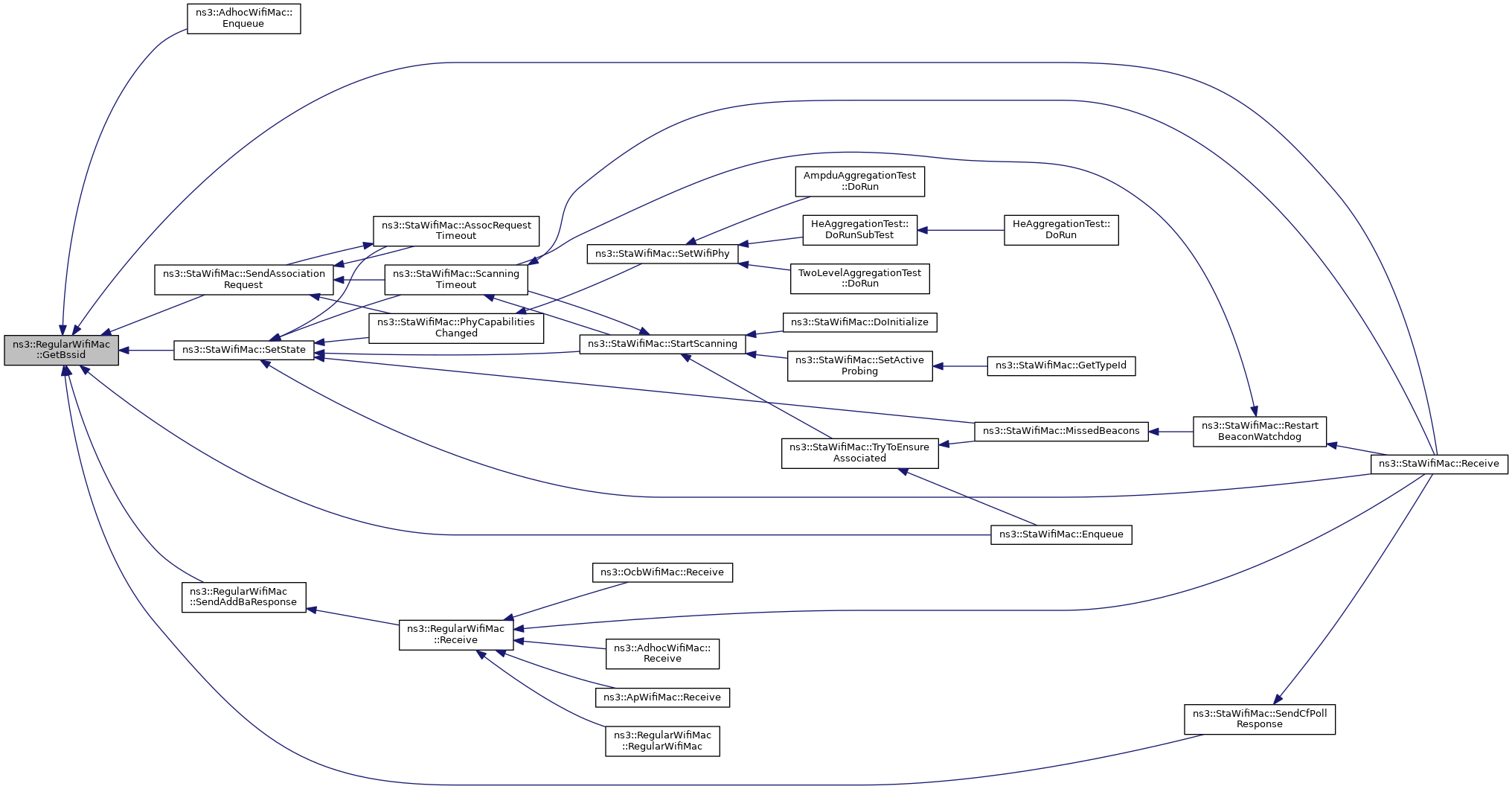

Mac48Address	GetBssid (void) const

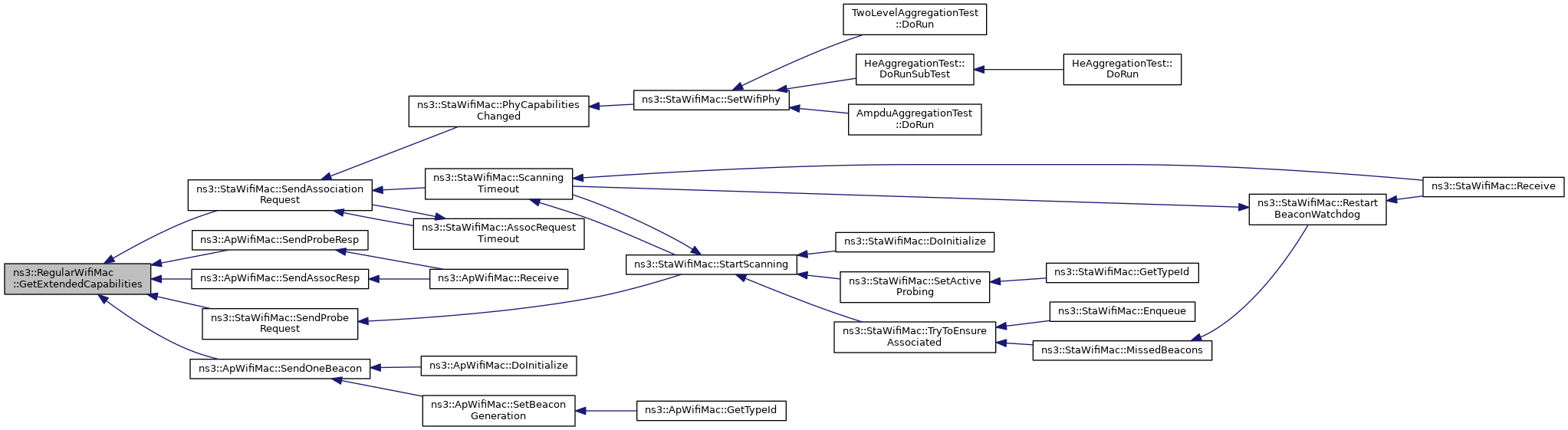

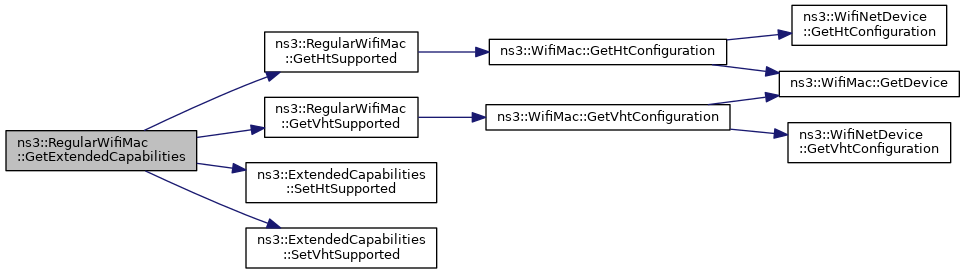

ExtendedCapabilities	GetExtendedCapabilities (void) const
	Return the extended capabilities of the device. More...

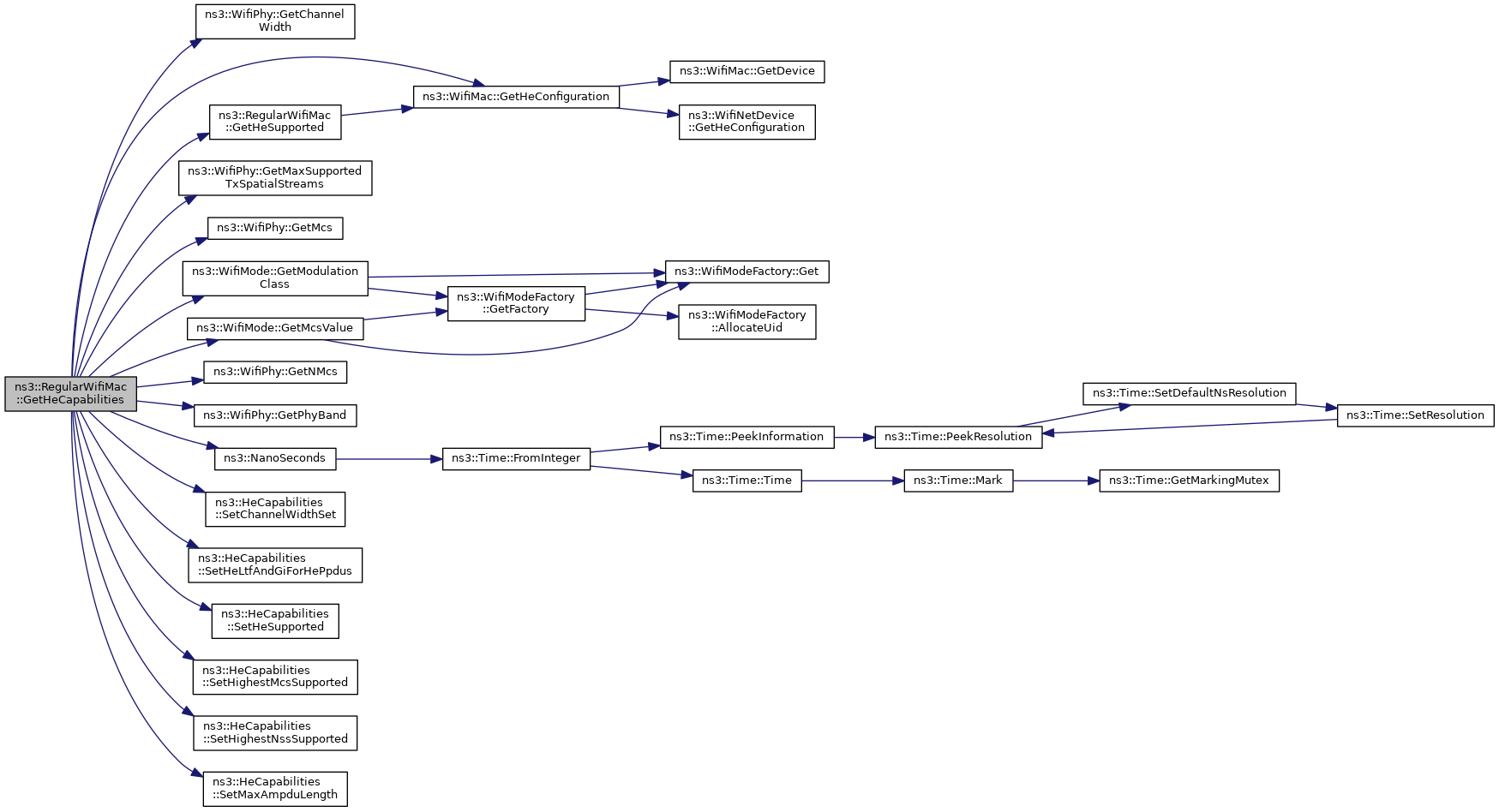

HeCapabilities	GetHeCapabilities (void) const
	Return the HE capabilities of the device. More...

HtCapabilities	GetHtCapabilities (void) const
	Return the HT capabilities of the device. More...

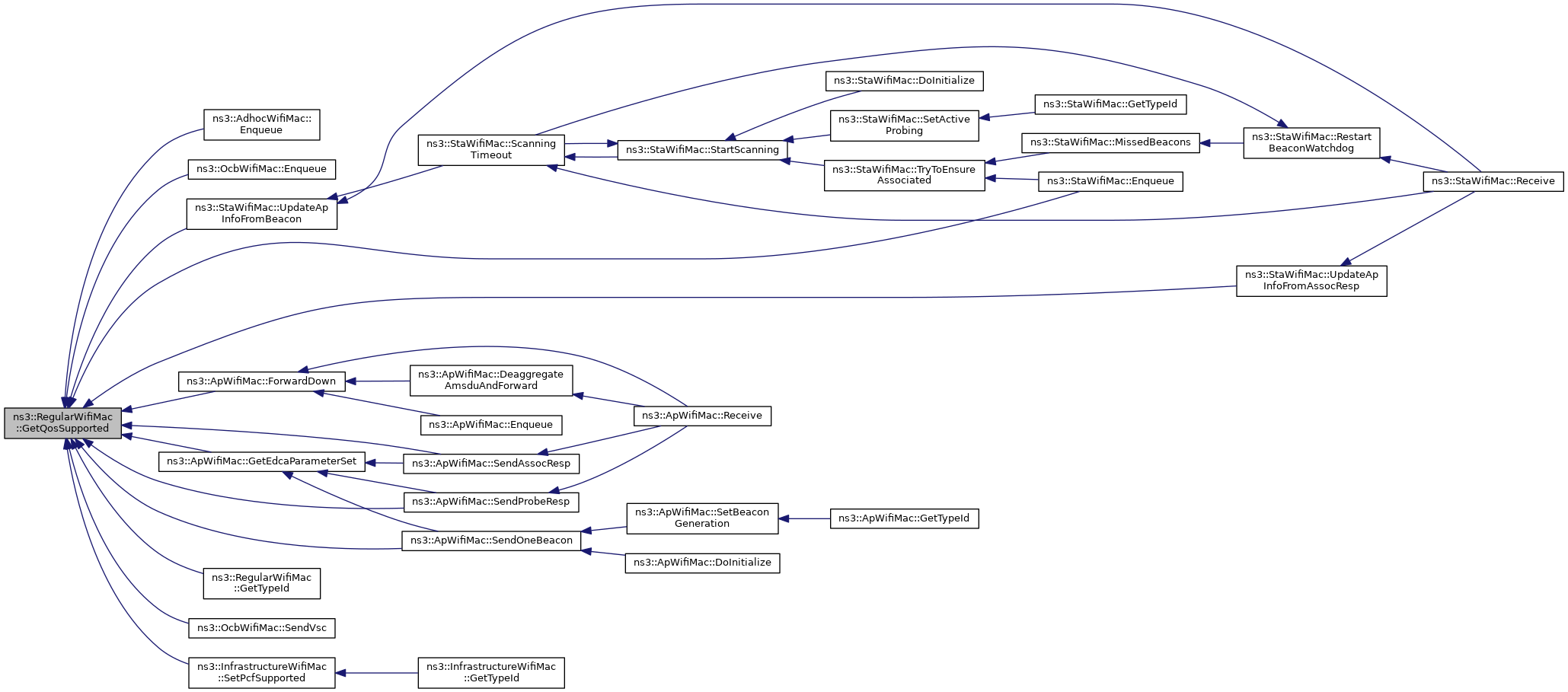

bool	GetShortSlotTimeSupported (void) const

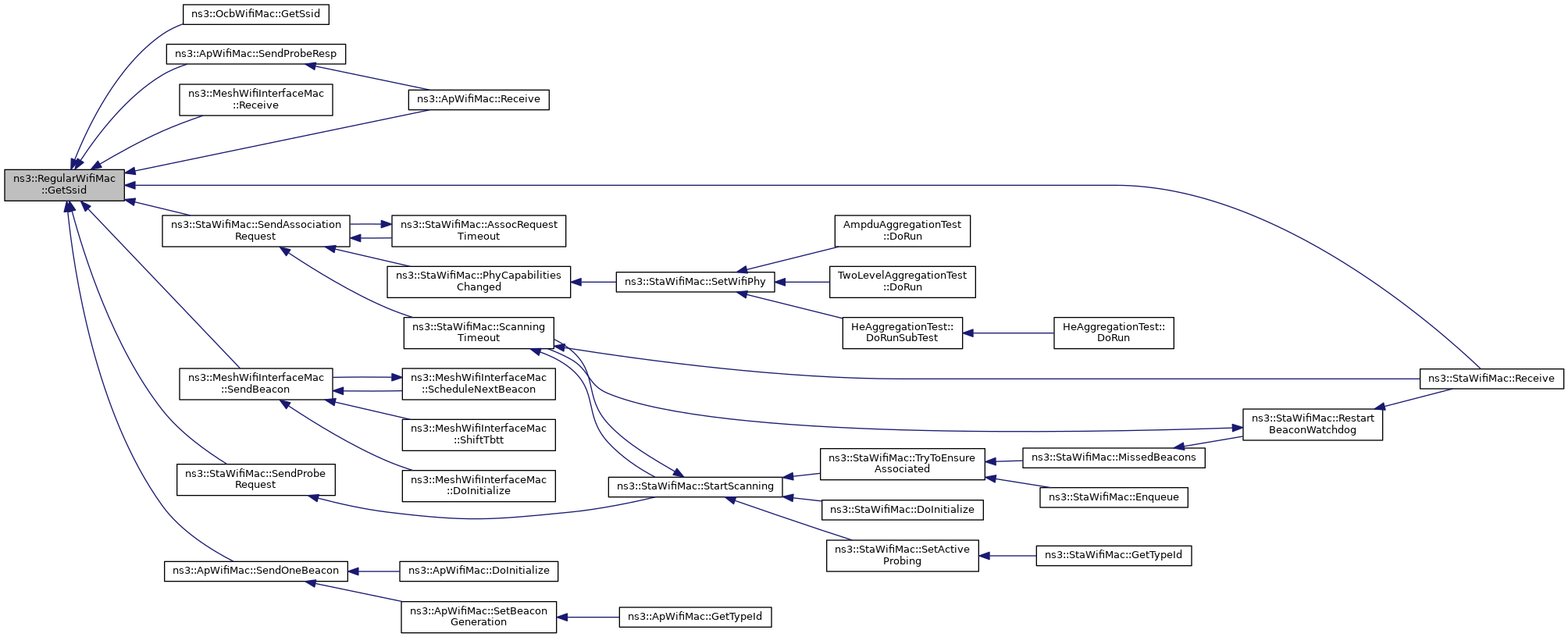

Ssid	GetSsid (void) const

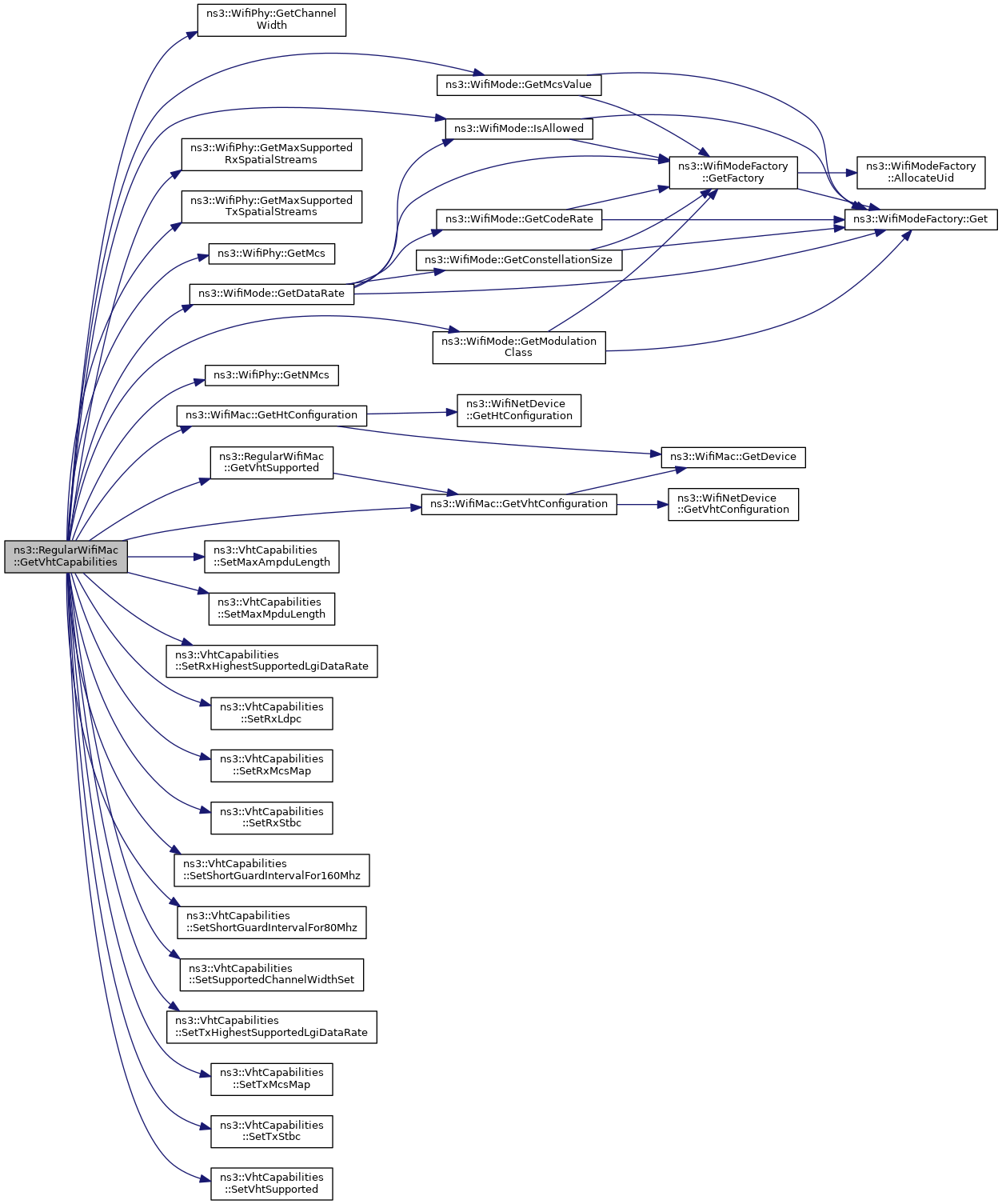

VhtCapabilities	GetVhtCapabilities (void) const
	Return the VHT capabilities of the device. More...

Ptr< WifiPhy >	GetWifiPhy (void) const

Ptr< WifiRemoteStationManager >	GetWifiRemoteStationManager (void) const

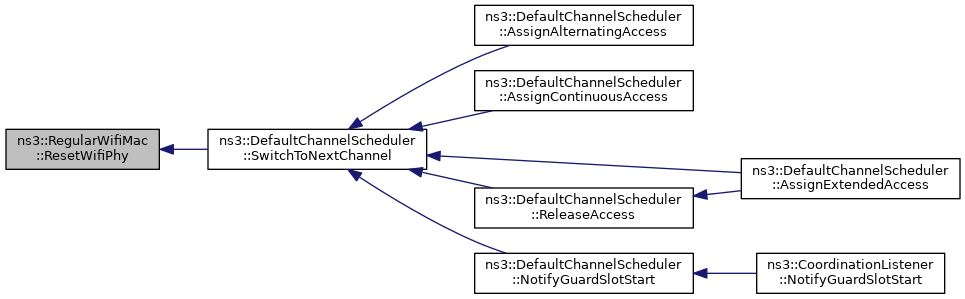

void	ResetWifiPhy (void)
	Remove currently attached WifiPhy device from this MAC. More...

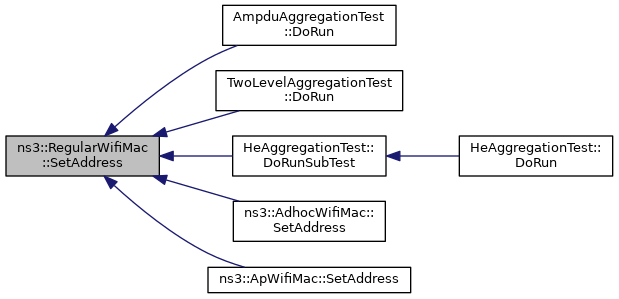

void	SetAddress (Mac48Address address)

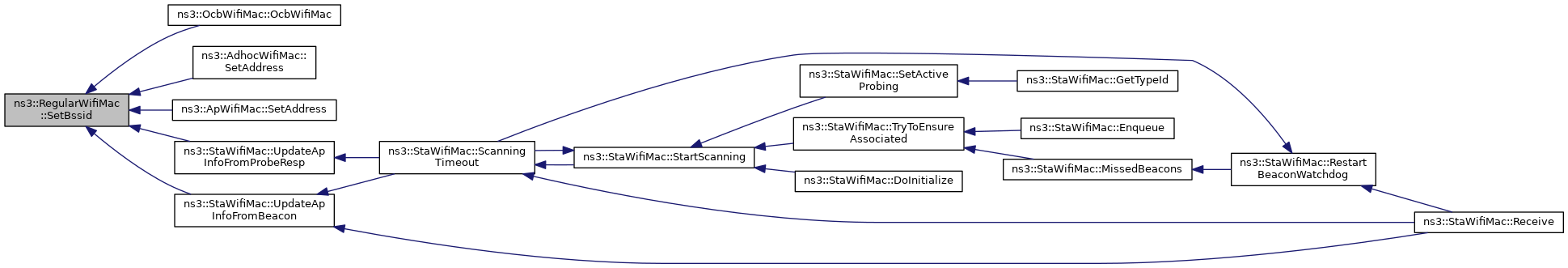

void	SetBssid (Mac48Address bssid)

void	SetCtsToSelfSupported (bool enable)
	Enable or disable CTS-to-self feature. More...

void	SetForwardUpCallback (ForwardUpCallback upCallback)

void	SetLinkDownCallback (Callback< void > linkDown)

void	SetLinkUpCallback (Callback< void > linkUp)

void	SetPromisc (void)
	Sets the interface in promiscuous mode. More...

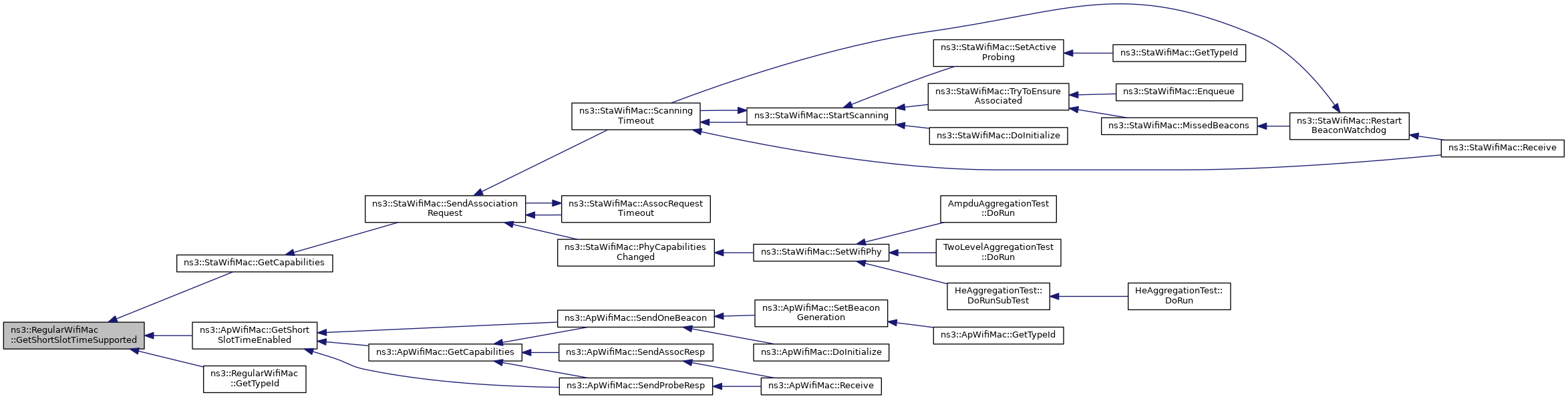

void	SetShortSlotTimeSupported (bool enable)
	Enable or disable short slot time feature. More...

void	SetSsid (Ssid ssid)

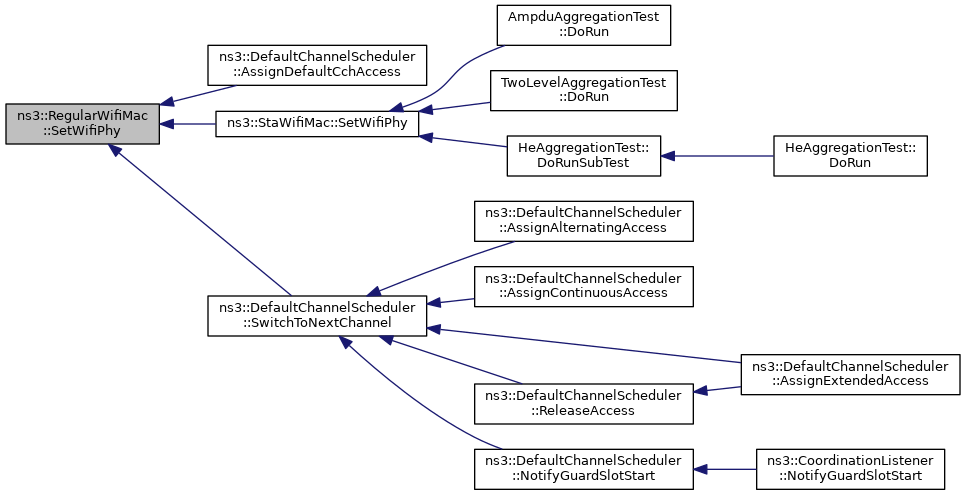

virtual void	SetWifiPhy (const Ptr< WifiPhy > phy)

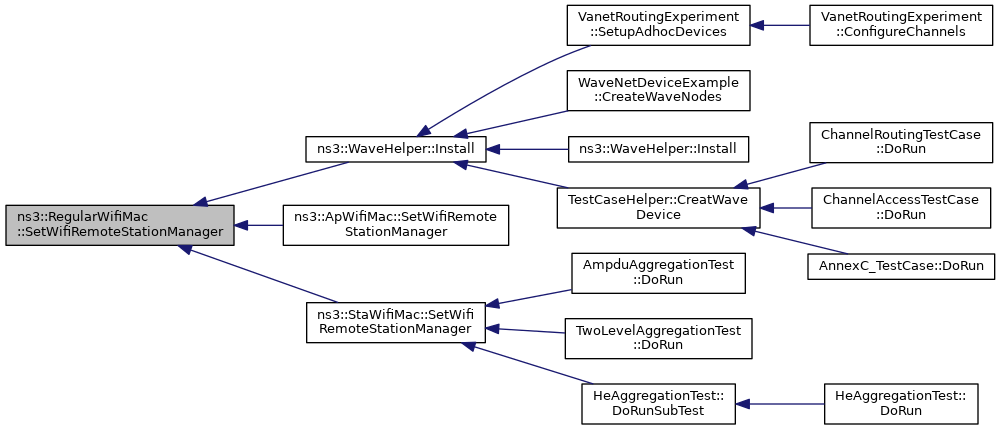

virtual void	SetWifiRemoteStationManager (const Ptr< WifiRemoteStationManager > stationManager)

virtual bool	SupportsSendFrom (void) const

Public Member Functions inherited from ns3::WifiMac
Ptr< NetDevice >	GetDevice (void) const
	Return the device this PHY is associated with. More...

Ptr< HeConfiguration >	GetHeConfiguration (void) const

Ptr< HtConfiguration >	GetHtConfiguration (void) const

Ptr< VhtConfiguration >	GetVhtConfiguration (void) const

void	NotifyPromiscRx (Ptr< const Packet > packet)

void	NotifyRx (Ptr< const Packet > packet)

void	NotifyRxDrop (Ptr< const Packet > packet)

void	NotifyTx (Ptr< const Packet > packet)

void	NotifyTxDrop (Ptr< const Packet > packet)

void	SetDevice (const Ptr< NetDevice > device)
	Sets the device this PHY is associated with. More...

virtual void	SetForwardUpCallback (Callback< void, Ptr< const Packet >, Mac48Address, Mac48Address > upCallback)=0

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const

template<>
Ptr< Object >	GetObject (TypeId tid) const

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

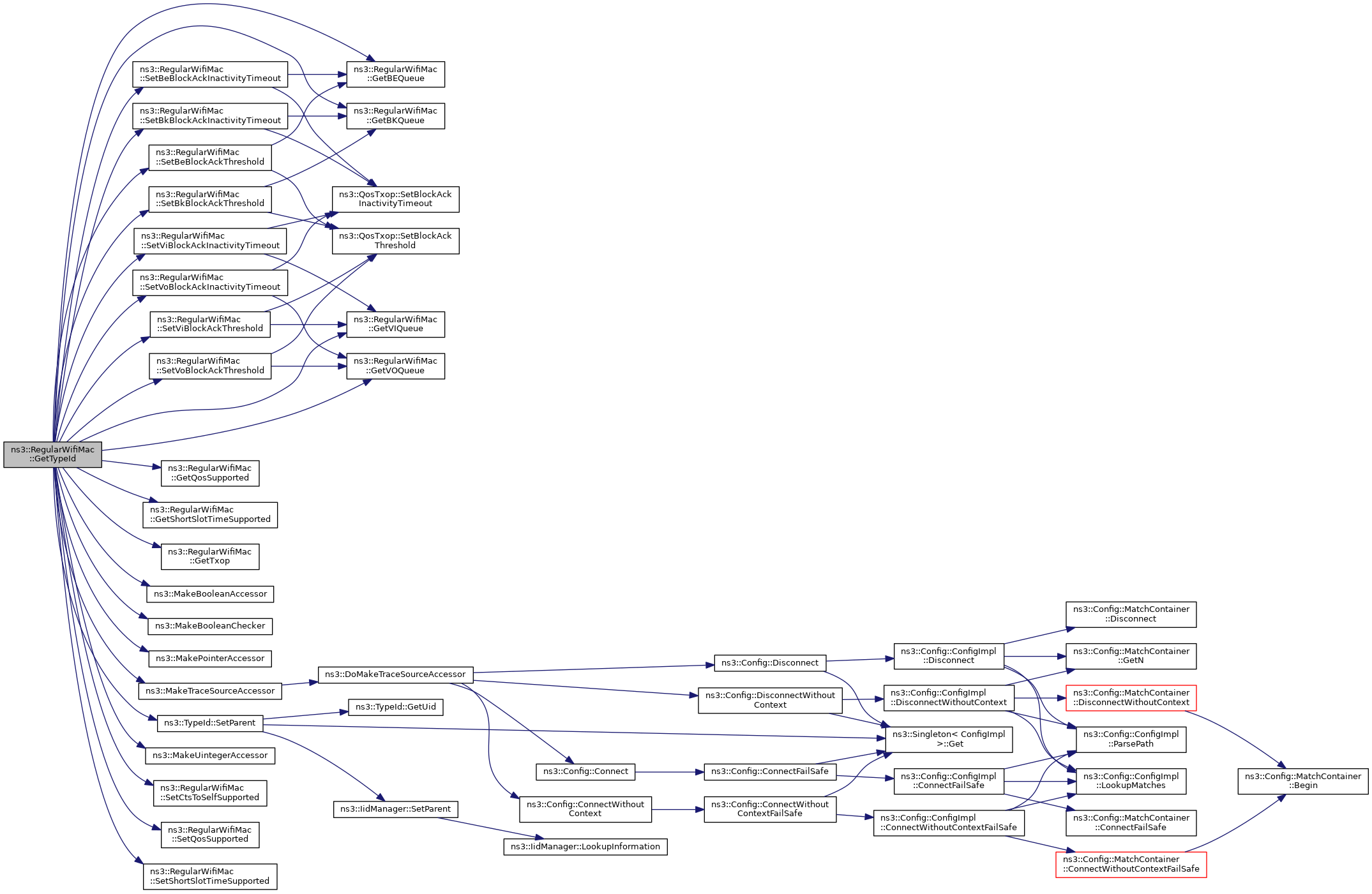

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::WifiMac
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Types
typedef std::map< AcIndex, Ptr< QosTxop > >	EdcaQueues
	This type defines a mapping between an Access Category index, and a pointer to the corresponding channel access function. More...

Protected Member Functions

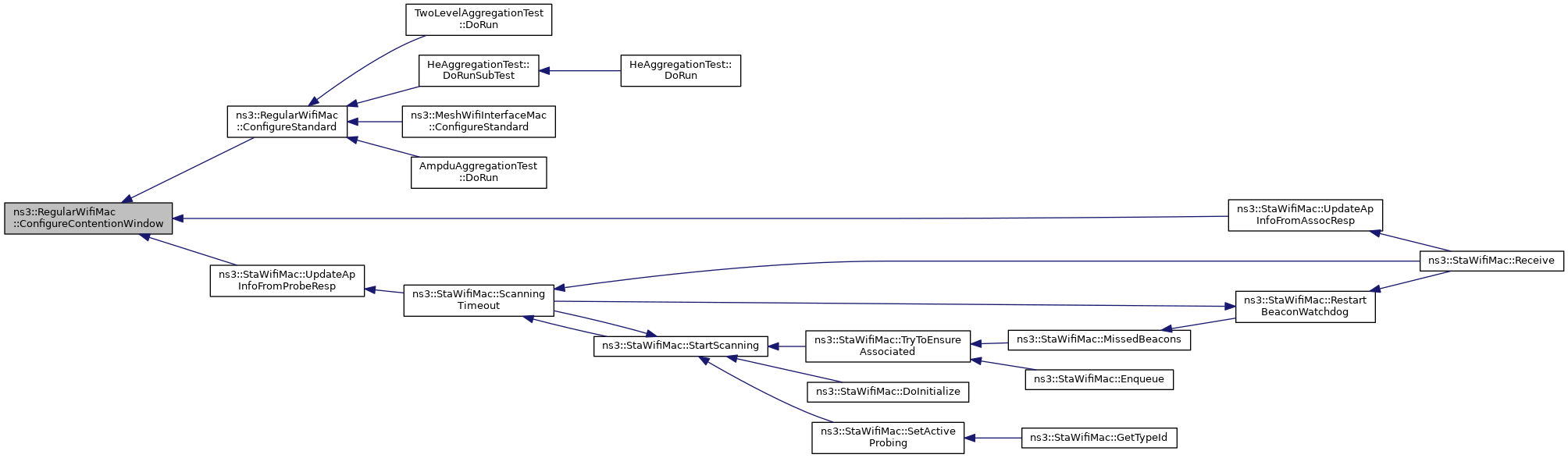

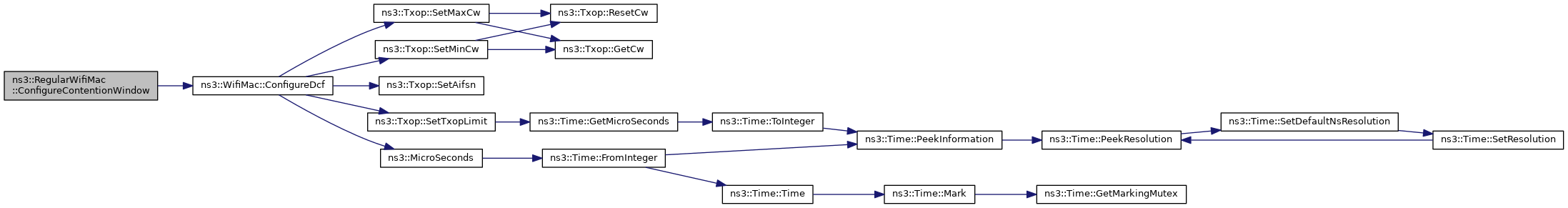

void	ConfigureContentionWindow (uint32_t cwMin, uint32_t cwMax)

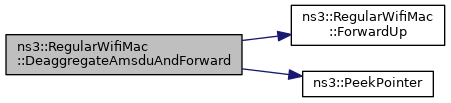

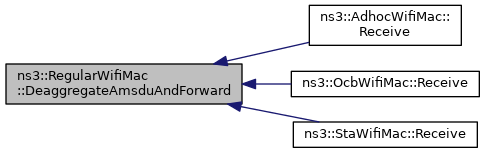

virtual void	DeaggregateAmsduAndForward (Ptr< WifiMacQueueItem > mpdu)
	This method can be called to de-aggregate an A-MSDU and forward the constituent packets up the stack. More...

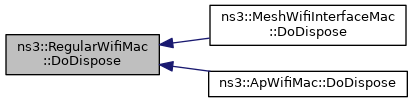

virtual void	DoDispose ()
	Destructor implementation. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

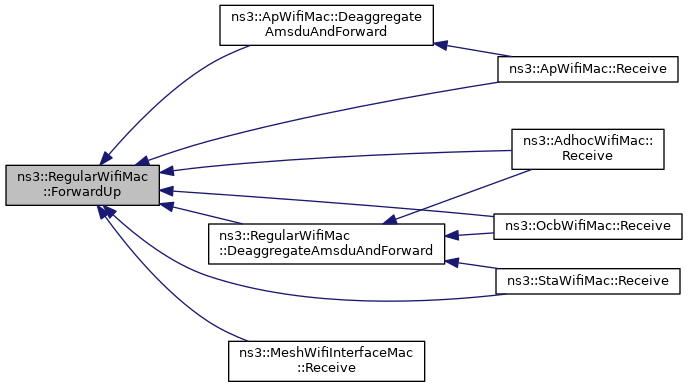

void	ForwardUp (Ptr< const Packet > packet, Mac48Address from, Mac48Address to)
	Forward the packet up to the device. More...

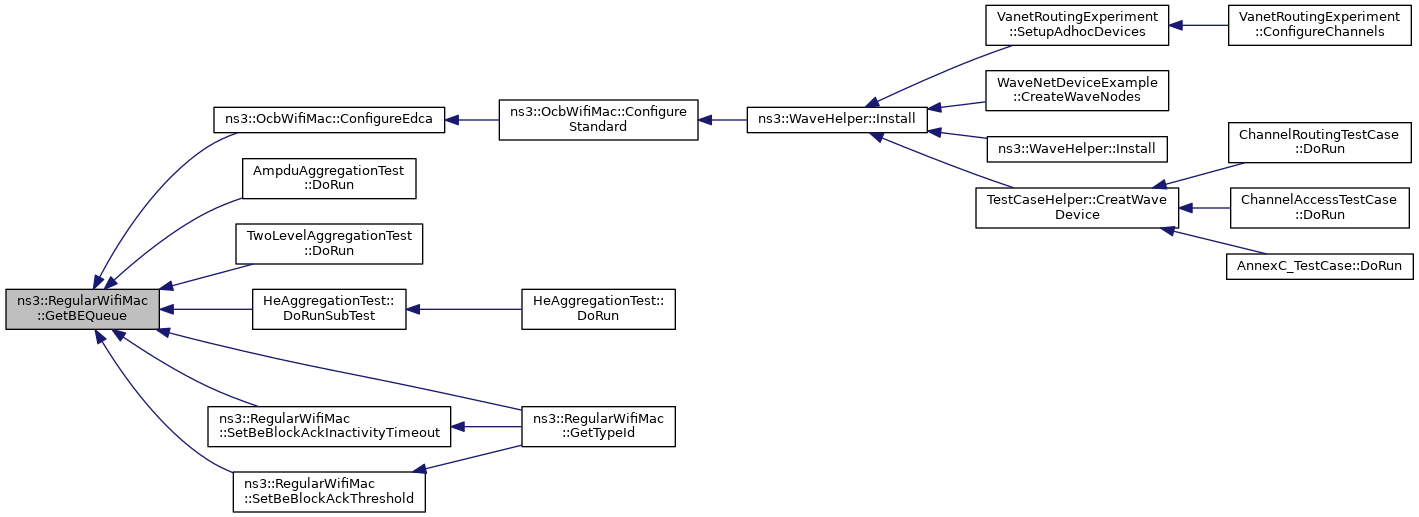

Ptr< QosTxop >	GetBEQueue (void) const
	Accessor for the AC_BE channel access function. More...

Ptr< QosTxop >	GetBKQueue (void) const
	Accessor for the AC_BK channel access function. More...

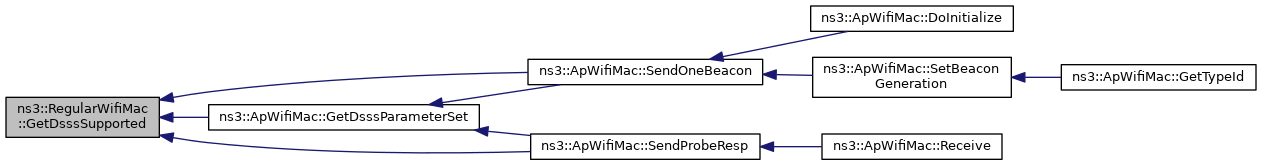

bool	GetDsssSupported () const
	Return whether the device supports DSSS. More...

bool	GetErpSupported () const
	Return whether the device supports ERP. More...

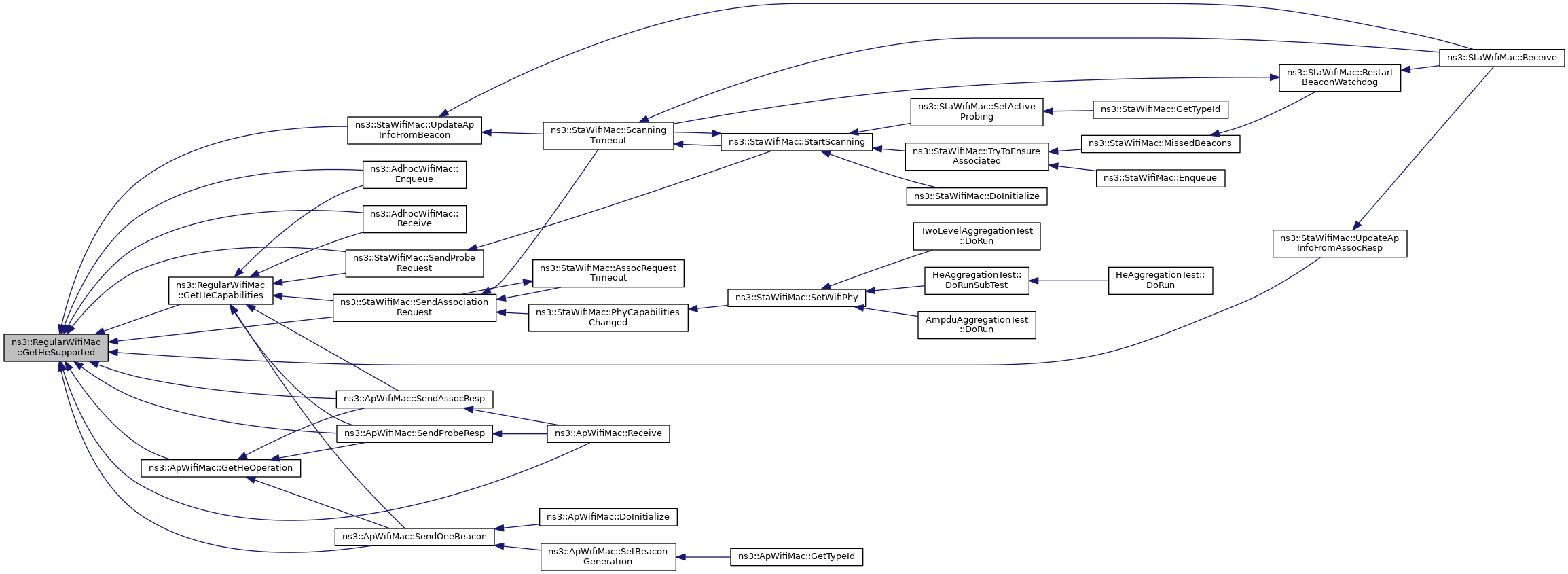

bool	GetHeSupported () const
	Return whether the device supports HE. More...

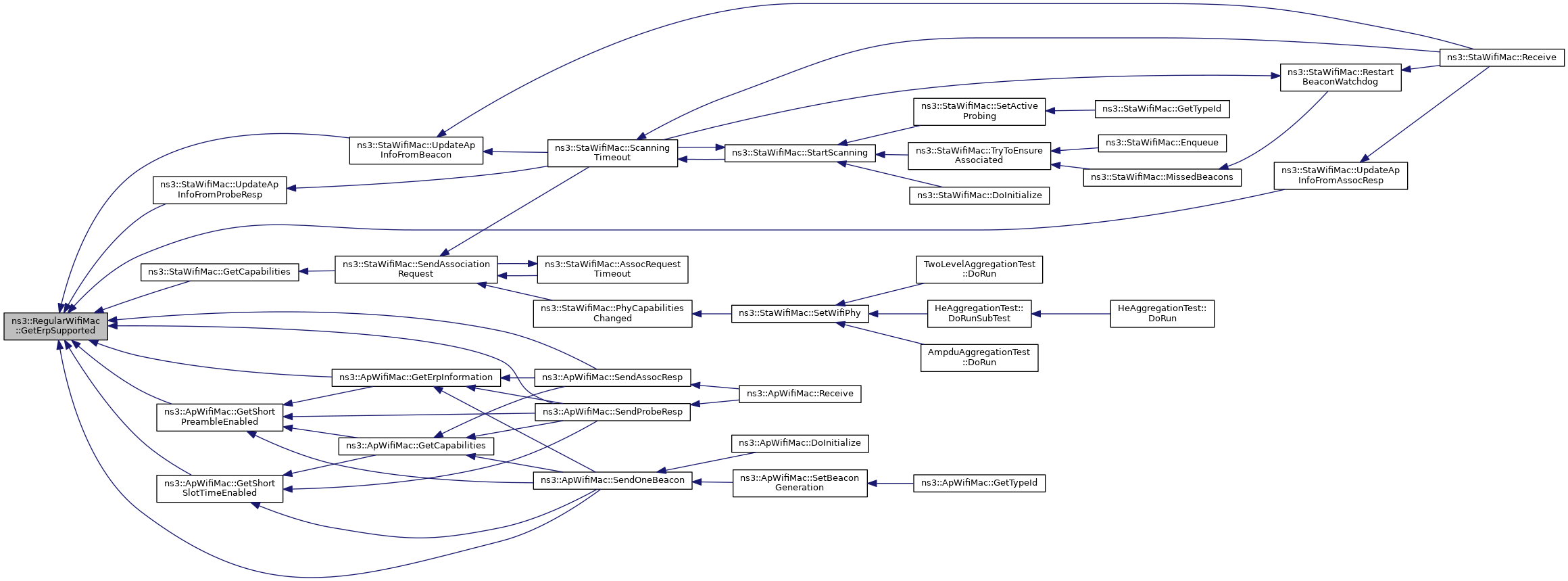

bool	GetHtSupported () const
	Return whether the device supports HT. More...

bool	GetQosSupported () const
	Return whether the device supports QoS. More...

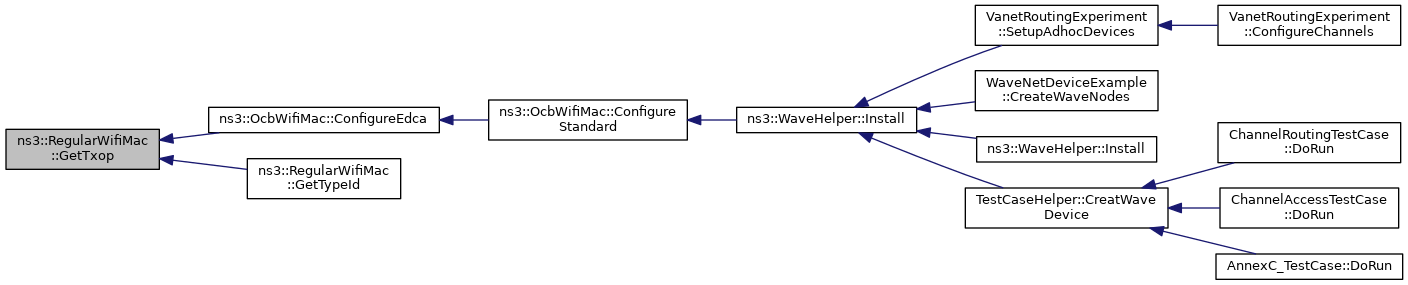

Ptr< Txop >	GetTxop (void) const
	Accessor for the DCF object. More...

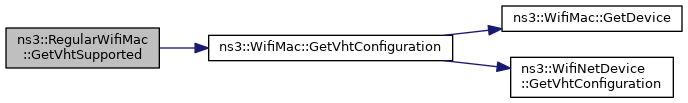

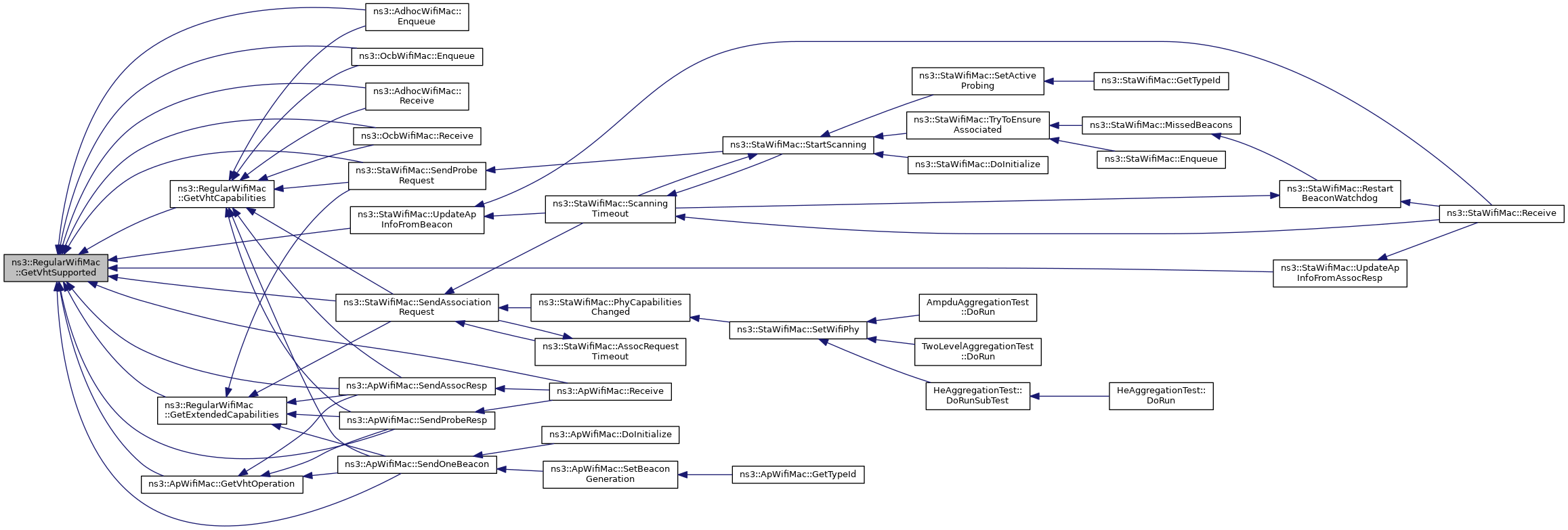

bool	GetVhtSupported () const
	Return whether the device supports VHT. More...

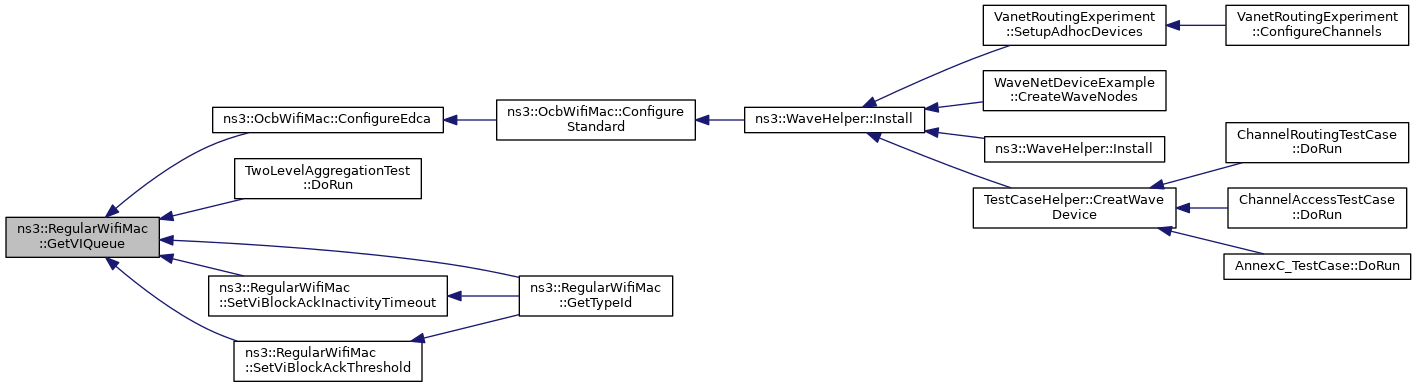

Ptr< QosTxop >	GetVIQueue (void) const
	Accessor for the AC_VI channel access function. More...

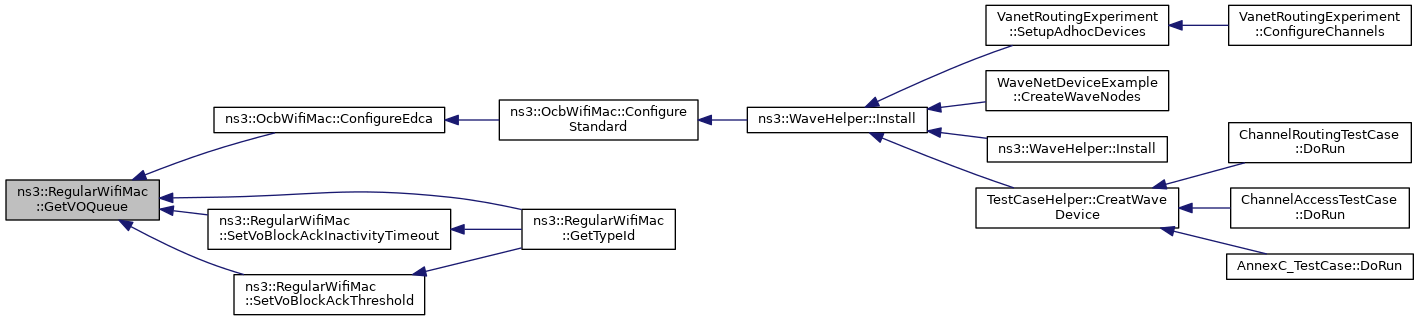

Ptr< QosTxop >	GetVOQueue (void) const
	Accessor for the AC_VO channel access function. More...

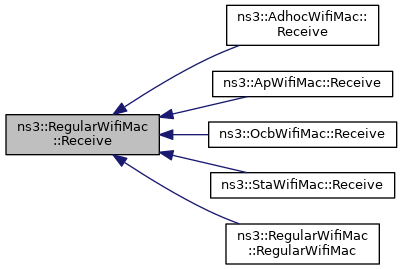

virtual void	Receive (Ptr< WifiMacQueueItem > mpdu)
	This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received. More...

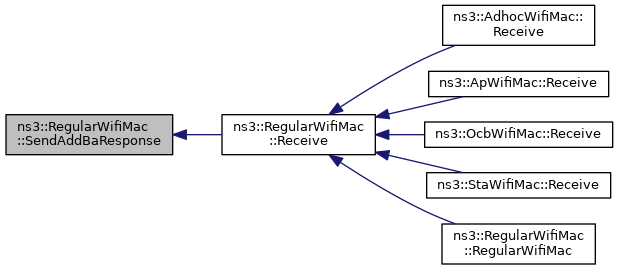

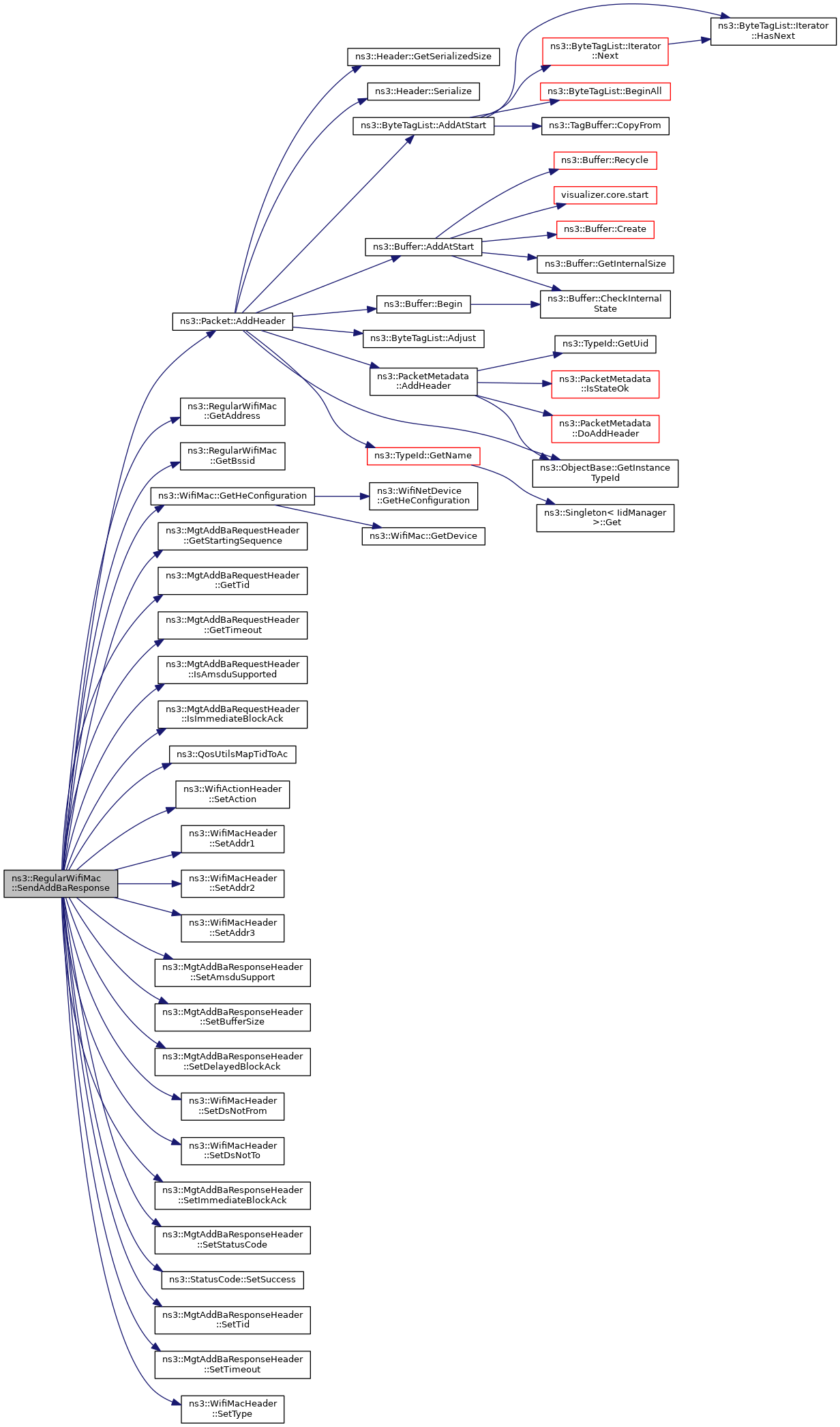

void	SendAddBaResponse (const MgtAddBaRequestHeader *reqHdr, Mac48Address originator)
	This method can be called to accept a received ADDBA Request. More...

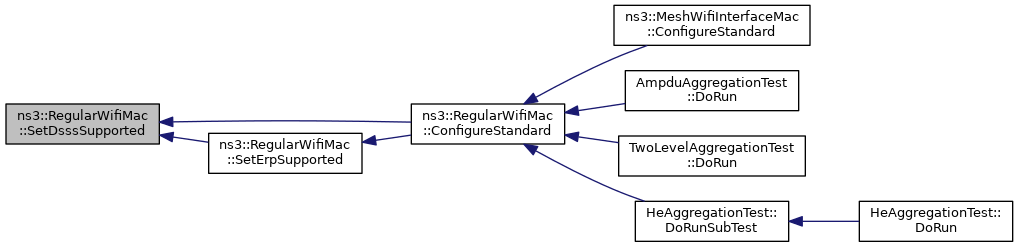

void	SetDsssSupported (bool enable)
	Enable or disable DSSS support for the device. More...

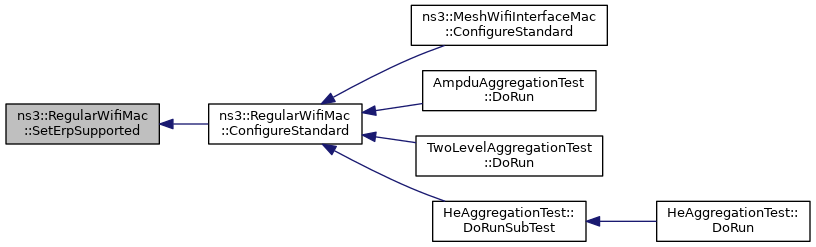

void	SetErpSupported (bool enable)
	Enable or disable ERP support for the device. More...

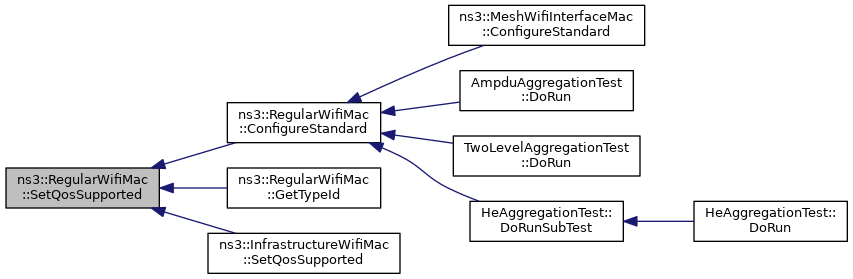

virtual void	SetQosSupported (bool enable)
	Enable or disable QoS support for the device. More...

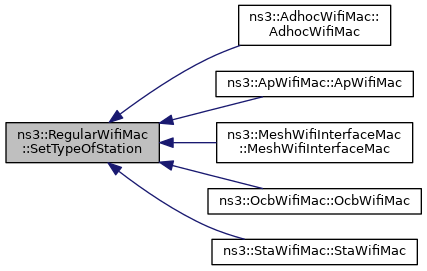

void	SetTypeOfStation (TypeOfStation type)
	This method is invoked by a subclass to specify what type of station it is implementing. More...

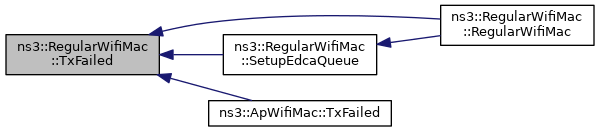

virtual void	TxFailed (const WifiMacHeader &hdr)
	The packet we sent was successfully received by the receiver (i.e. More...

virtual void	TxOk (const WifiMacHeader &hdr)
	The packet we sent was successfully received by the receiver (i.e. More...

Protected Member Functions inherited from ns3::WifiMac
void	ConfigureDcf (Ptr< Txop > dcf, uint32_t cwmin, uint32_t cwmax, bool isDsss, AcIndex ac)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes
Ptr< ChannelAccessManager >	m_channelAccessManager
	channel access manager More...

EdcaQueues	m_edca
	This is a map from Access Category index to the corresponding channel access function. More...

ForwardUpCallback	m_forwardUp
	Callback to forward packet up the stack. More...

Callback< void >	m_linkDown
	Callback when a link is down. More...

Callback< void >	m_linkUp
	Callback when a link is up. More...

Ptr< MacLow >	m_low
	MacLow (RTS, CTS, Data, Ack etc.) More...

Ptr< WifiPhy >	m_phy
	Wifi PHY. More...

Ptr< MacRxMiddle >	m_rxMiddle
	RX middle (defragmentation etc.) More...

Ssid	m_ssid
	Service Set ID (SSID) More...

Ptr< WifiRemoteStationManager >	m_stationManager
	Remote station manager (rate control, RTS/CTS/fragmentation thresholds etc.) More...

Ptr< MacTxMiddle >	m_txMiddle
	TX middle (aggregation etc.) More...

Ptr< Txop >	m_txop
	This holds a pointer to the TXOP instance for this WifiMac - used for transmission of frames to non-QoS peers. More...

Private Member Functions
	RegularWifiMac (const RegularWifiMac &)
	type conversion operator More...

void	DisableAggregation (void)
	Disable aggregation function. More...

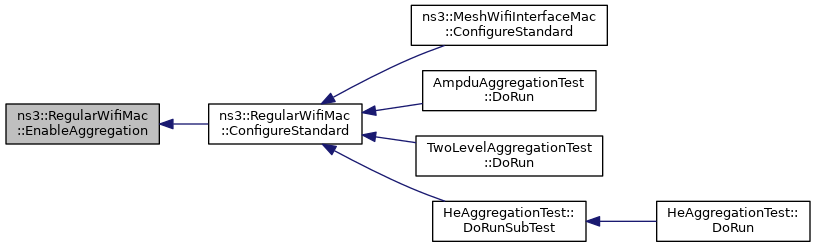

void	EnableAggregation (void)
	Enable aggregation function. More...

RegularWifiMac &	operator= (const RegularWifiMac &mac)
	assignment operator More...

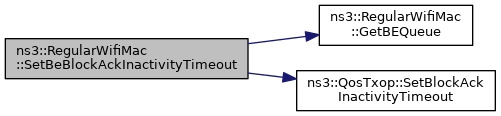

void	SetBeBlockAckInactivityTimeout (uint16_t timeout)
	Set BE block ack inactivity timeout. More...

void	SetBeBlockAckThreshold (uint8_t threshold)
	Set the block ack threshold for AC_BE. More...

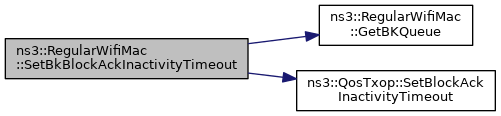

void	SetBkBlockAckInactivityTimeout (uint16_t timeout)
	Set BK block ack inactivity timeout. More...

void	SetBkBlockAckThreshold (uint8_t threshold)
	Set the block ack threshold for AC_BK. More...

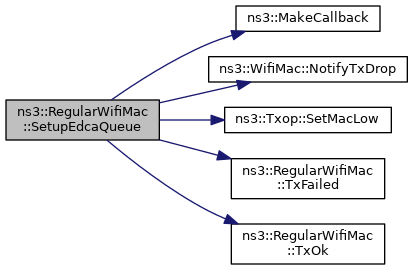

void	SetupEdcaQueue (AcIndex ac)
	This method is a private utility invoked to configure the channel access function for the specified Access Category. More...

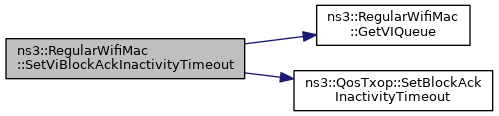

void	SetViBlockAckInactivityTimeout (uint16_t timeout)
	Set VI block ack inactivity timeout. More...

void	SetViBlockAckThreshold (uint8_t threshold)
	Set the block ack threshold for AC_VI. More...

void	SetVoBlockAckInactivityTimeout (uint16_t timeout)
	Set VO block ack inactivity timeout. More...

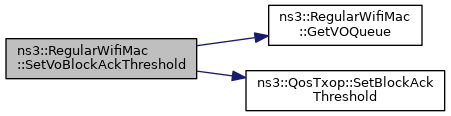

void	SetVoBlockAckThreshold (uint8_t threshold)
	Set the block ack threshold for AC_VO. More...

Private Attributes
uint32_t	m_beMaxAmpduSize
	maximum A-MPDU size for AC_BE (in bytes) More...

uint16_t	m_beMaxAmsduSize
	maximum A-MSDU size for AC_BE (in bytes) More...

uint32_t	m_bkMaxAmpduSize
	maximum A-MPDU size for AC_BK (in bytes) More...

uint16_t	m_bkMaxAmsduSize
	maximum A-MSDU size for AC_BK (in bytes) More...

bool	m_dsssSupported
	This Boolean is set `true` iff this WifiMac is to model 802.11b. More...

bool	m_erpSupported
	This Boolean is set `true` iff this WifiMac is to model 802.11g. More...

bool	m_qosSupported
	This Boolean is set `true` iff this WifiMac is to model 802.11e/WMM style Quality of Service. More...

bool	m_shortSlotTimeSupported
	flag whether short slot time is supported More...

TracedCallback< const WifiMacHeader & >	m_txErrCallback
	transmit error callback More...

TracedCallback< const WifiMacHeader & >	m_txOkCallback
	transmit OK callback More...

uint32_t	m_viMaxAmpduSize
	maximum A-MPDU size for AC_VI (in bytes) More...

uint16_t	m_viMaxAmsduSize
	maximum A-MSDU size for AC_VI (in bytes) More...

uint32_t	m_voMaxAmpduSize
	maximum A-MPDU size for AC_VO (in bytes) More...

uint16_t	m_voMaxAmsduSize
	maximum A-MSDU size for AC_VO (in bytes) More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

base class for all MAC-level wifi objects.

This class encapsulates all the low-level MAC functionality and all the high-level MAC functionality (association/disassociation state machines).

Config Paths

ns3::RegularWifiMac is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac"

Attributes

QosSupported: This Boolean attribute is set to enable 802.11e/WMM-style QoS support at this STA.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
CtsToSelfSupported: Use CTS to Self when using a rate that is not in the basic rate set.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write
VO_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VO access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: construct write read
VI_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VI access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: construct write read
BE_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BE access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: construct write read
BK_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BK access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: construct write read
VO_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VO access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 8388607 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 0
- Flags: construct write read
VI_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VI access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 8388607 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 65535
- Flags: construct write read
BE_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BE access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 8388607 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 65535
- Flags: construct write read
BK_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BK access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 8388607 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 0
- Flags: construct write read
VO_BlockAckThreshold: If number of packets in VO queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
VI_BlockAckThreshold: If number of packets in VI queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
BE_BlockAckThreshold: If number of packets in BE queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
BK_BlockAckThreshold: If number of packets in BK queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
VO_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_VO. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
VI_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_VI. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
BE_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_BE. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
BK_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_BK. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
ShortSlotTimeSupported: Whether or not short slot time is supported (only used by ERP APs or STAs).
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
Txop: The Txop object.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::Txop>
- Flags: read
VO_Txop: Queue that manages packets belonging to AC_VO access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
VI_Txop: Queue that manages packets belonging to AC_VI access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
BE_Txop: Queue that manages packets belonging to AC_BE access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
BK_Txop: Queue that manages packets belonging to AC_BK access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read

Attributes defined in parent class ns3::WifiMac

Ssid: The ssid we want to belong to.
- Set with class: SsidValue
- Underlying type: Ssid
- Initial value: default
- Flags: construct write read

TraceSources

TxOkHeader: The header of successfully transmitted packet.
Callback signature: ns3::WifiMacHeader::TracedCallback
TxErrHeader: The header of unsuccessfully transmitted packet.
Callback signature: ns3::WifiMacHeader::TracedCallback

TraceSources defined in parent class ns3::WifiMac

MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
Callback signature: ns3::Packet::TracedCallback
MacTxDrop: A packet has been dropped in the MAC layer before transmission.
Callback signature: ns3::Packet::TracedCallback
MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace.
Callback signature: ns3::Packet::TracedCallback
MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace.
Callback signature: ns3::Packet::TracedCallback
MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.
Callback signature: ns3::Packet::TracedCallback

Size of this type is 368 bytes (on a 64-bit architecture).

Definition at line 44 of file regular-wifi-mac.h.

Member Typedef Documentation

◆ EdcaQueues

typedef std::map<AcIndex, Ptr<QosTxop> > ns3::RegularWifiMac::EdcaQueues

protected

This type defines a mapping between an Access Category index, and a pointer to the corresponding channel access function.

Definition at line 155 of file regular-wifi-mac.h.

◆ ForwardUpCallback

typedef Callback<void, Ptr<const Packet>, Mac48Address, Mac48Address> ns3::RegularWifiMac::ForwardUpCallback

This type defines the callback of a higher layer that a WifiMac(-derived) object invokes to pass a packet up the stack.

Parameters

packet	the packet that has been received.
from	the MAC address of the device that sent the packet.
to	the MAC address of the device that the packet is destined for.

Definition at line 81 of file regular-wifi-mac.h.

Constructor & Destructor Documentation

◆ RegularWifiMac() [1/2]

ns3::RegularWifiMac::RegularWifiMac ( )

Definition at line 46 of file regular-wifi-mac.cc.

References ns3::AC_BE, ns3::AC_BK, ns3::AC_VI, ns3::AC_VO, m_channelAccessManager, m_low, m_rxMiddle, m_txMiddle, m_txop, ns3::MakeCallback(), ns3::WifiMac::NotifyTxDrop(), NS_LOG_FUNCTION, ns3::MacRxMiddle::Receive(), Receive(), ns3::Txop::SetChannelAccessManager(), ns3::Txop::SetMacLow(), ns3::Txop::SetTxDroppedCallback(), ns3::Txop::SetTxFailedCallback(), ns3::Txop::SetTxMiddle(), ns3::Txop::SetTxOkCallback(), SetupEdcaQueue(), ns3::ChannelAccessManager::SetupLow(), TxFailed(), and TxOk().

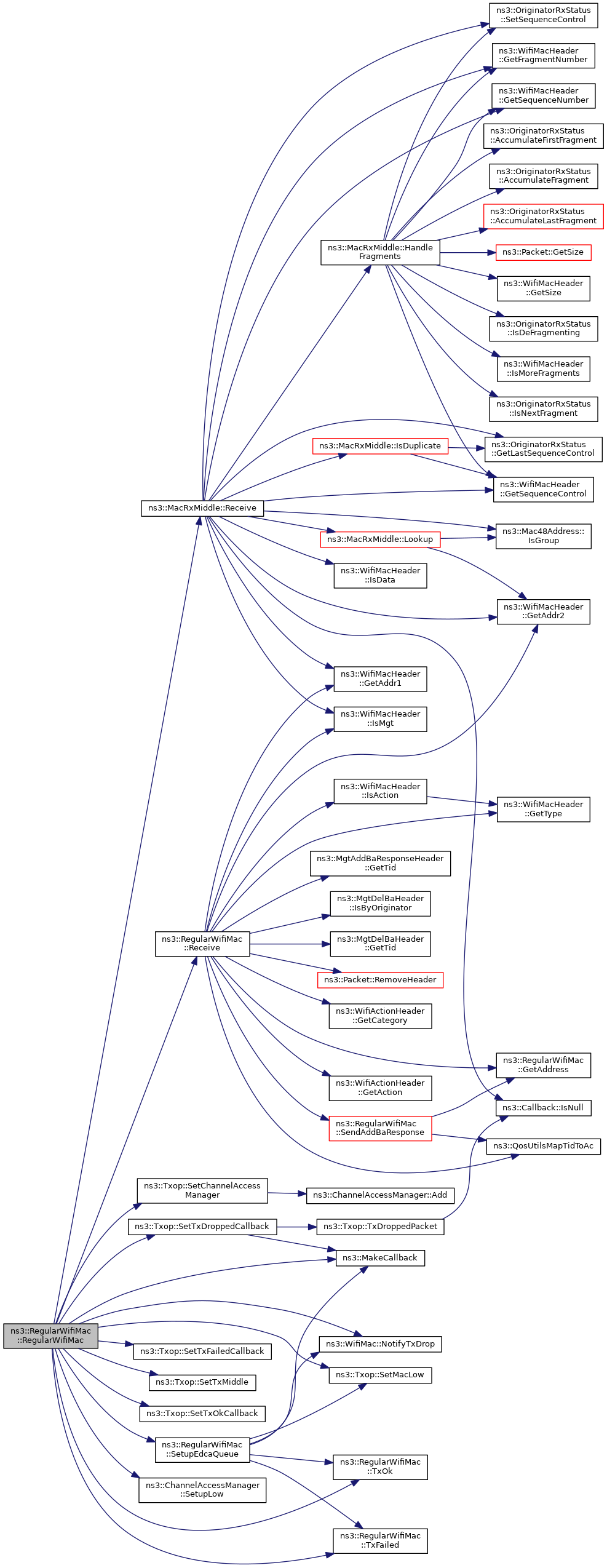

Here is the call graph for this function:

◆ ~RegularWifiMac()

ns3::RegularWifiMac::~RegularWifiMac ( )

virtual

Definition at line 81 of file regular-wifi-mac.cc.

References NS_LOG_FUNCTION.

◆ RegularWifiMac() [2/2]

ns3::RegularWifiMac::RegularWifiMac ( const RegularWifiMac & )

private

type conversion operator

Member Function Documentation

◆ ConfigureContentionWindow()

void ns3::RegularWifiMac::ConfigureContentionWindow	(	uint32_t	cwMin,
		uint32_t	cwMax
	)

protected

Parameters

cwMin	the minimum contention window size
cwMax	the maximum contention window size

This method is called to set the minimum and the maximum contention window size.

Definition at line 1084 of file regular-wifi-mac.cc.

References ns3::AC_BE_NQOS, ns3::WifiMac::ConfigureDcf(), m_dsssSupported, m_edca, m_erpSupported, and m_txop.

Referenced by ConfigureStandard(), ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromProbeResp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConfigureStandard()

void ns3::RegularWifiMac::ConfigureStandard ( WifiStandard standard )

virtual

Parameters

standard the wifi standard to be configured

This method completes the configuration process for a requested PHY standard. Subclasses should implement this method to configure their DCF queues according to the requested standard.

Implements ns3::WifiMac.

Definition at line 1039 of file regular-wifi-mac.cc.

References ConfigureContentionWindow(), EnableAggregation(), NS_FATAL_ERROR, NS_LOG_FUNCTION, SetDsssSupported(), SetErpSupported(), SetQosSupported(), ns3::WIFI_STANDARD_80211a, ns3::WIFI_STANDARD_80211ac, ns3::WIFI_STANDARD_80211ax_2_4GHZ, ns3::WIFI_STANDARD_80211ax_5GHZ, ns3::WIFI_STANDARD_80211ax_6GHZ, ns3::WIFI_STANDARD_80211b, ns3::WIFI_STANDARD_80211g, ns3::WIFI_STANDARD_80211n_2_4GHZ, ns3::WIFI_STANDARD_80211n_5GHZ, ns3::WIFI_STANDARD_80211p, and ns3::WIFI_STANDARD_holland.

Referenced by ns3::MeshWifiInterfaceMac::ConfigureStandard(), AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), and HeAggregationTest::DoRunSubTest().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DeaggregateAmsduAndForward()

void ns3::RegularWifiMac::DeaggregateAmsduAndForward ( Ptr< WifiMacQueueItem > mpdu )

protectedvirtual

This method can be called to de-aggregate an A-MSDU and forward the constituent packets up the stack.

Parameters

mpdu	the MPDU containing the A-MSDU.

Reimplemented in ns3::ApWifiMac.

Definition at line 791 of file regular-wifi-mac.cc.

References ForwardUp(), NS_LOG_FUNCTION, and ns3::PeekPointer().

Referenced by ns3::AdhocWifiMac::Receive(), ns3::OcbWifiMac::Receive(), and ns3::StaWifiMac::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DisableAggregation()

void ns3::RegularWifiMac::DisableAggregation ( void )

private

Disable aggregation function.

Definition at line 1131 of file regular-wifi-mac.cc.

References m_low, and NS_LOG_FUNCTION.

◆ DoDispose()

void ns3::RegularWifiMac::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::WifiMac.

Reimplemented in ns3::ApWifiMac, and ns3::MeshWifiInterfaceMac.

Definition at line 99 of file regular-wifi-mac.cc.

References ns3::Object::Dispose(), ns3::WifiMac::DoDispose(), m_channelAccessManager, m_edca, m_low, m_phy, m_rxMiddle, m_stationManager, m_txMiddle, m_txop, and NS_LOG_FUNCTION.

Referenced by ns3::MeshWifiInterfaceMac::DoDispose(), and ns3::ApWifiMac::DoDispose().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoInitialize()

void ns3::RegularWifiMac::DoInitialize ( void )

protectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::StaWifiMac, ns3::ApWifiMac, and ns3::MeshWifiInterfaceMac.

Definition at line 87 of file regular-wifi-mac.cc.

References ns3::Object::Initialize(), m_edca, m_txop, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::DoInitialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EnableAggregation()

void ns3::RegularWifiMac::EnableAggregation ( void )

private

Enable aggregation function.

Definition at line 1113 of file regular-wifi-mac.cc.

References m_edca, m_low, and NS_LOG_FUNCTION.

Referenced by ConfigureStandard().

Here is the caller graph for this function:

◆ Enqueue() [1/2]

void ns3::RegularWifiMac::Enqueue	(	Ptr< Packet >	packet,
		Mac48Address	to,
		Mac48Address	from
	)

virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.
from	the address from which the packet should be sent.

The packet should be enqueued in a TX queue, and should be dequeued as soon as the DCF function determines that access it granted to this MAC. The extra parameter "from" allows this device to operate in a bridged mode, forwarding received frames without altering the source address.

Implements ns3::WifiMac.

Reimplemented in ns3::MeshWifiInterfaceMac, and ns3::ApWifiMac.

Definition at line 666 of file regular-wifi-mac.cc.

References GetAddress(), and NS_FATAL_ERROR.

Here is the call graph for this function:

◆ Enqueue() [2/2]

virtual void ns3::RegularWifiMac::Enqueue	(	Ptr< Packet >	packet,
		Mac48Address	to
	)

pure virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.

The packet should be enqueued in a TX queue, and should be dequeued as soon as the DCF function determines that access it granted to this MAC.

Implements ns3::WifiMac.

Implemented in ns3::StaWifiMac, ns3::OcbWifiMac, ns3::MeshWifiInterfaceMac, ns3::ApWifiMac, ns3::InfrastructureWifiMac, and ns3::AdhocWifiMac.

◆ ForwardUp()

void ns3::RegularWifiMac::ForwardUp	(	Ptr< const Packet >	packet,
		Mac48Address	from,
		Mac48Address	to
	)

protected

Forward the packet up to the device.

Parameters

packet	the packet that we are forwarding up to the device
from	the address of the source
to	the address of the destination

Definition at line 684 of file regular-wifi-mac.cc.

References m_forwardUp, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::DeaggregateAmsduAndForward(), DeaggregateAmsduAndForward(), ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::OcbWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), and ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

◆ GetAddress()

Mac48Address ns3::RegularWifiMac::GetAddress ( void ) const

virtual

Returns: the MAC address associated to this MAC layer.

Implements ns3::WifiMac.

Definition at line 615 of file regular-wifi-mac.cc.

References m_low.

Referenced by ns3::ApWifiMac::DeaggregateAmsduAndForward(), ns3::ApWifiMac::DoInitialize(), Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::ApWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::OcbWifiMac::Receive(), ns3::StaWifiMac::Receive(), Receive(), ns3::MeshWifiInterfaceMac::Report(), SendAddBaResponse(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::MeshWifiInterfaceMac::SendBeacon(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), and ns3::OcbWifiMac::SendVsc().

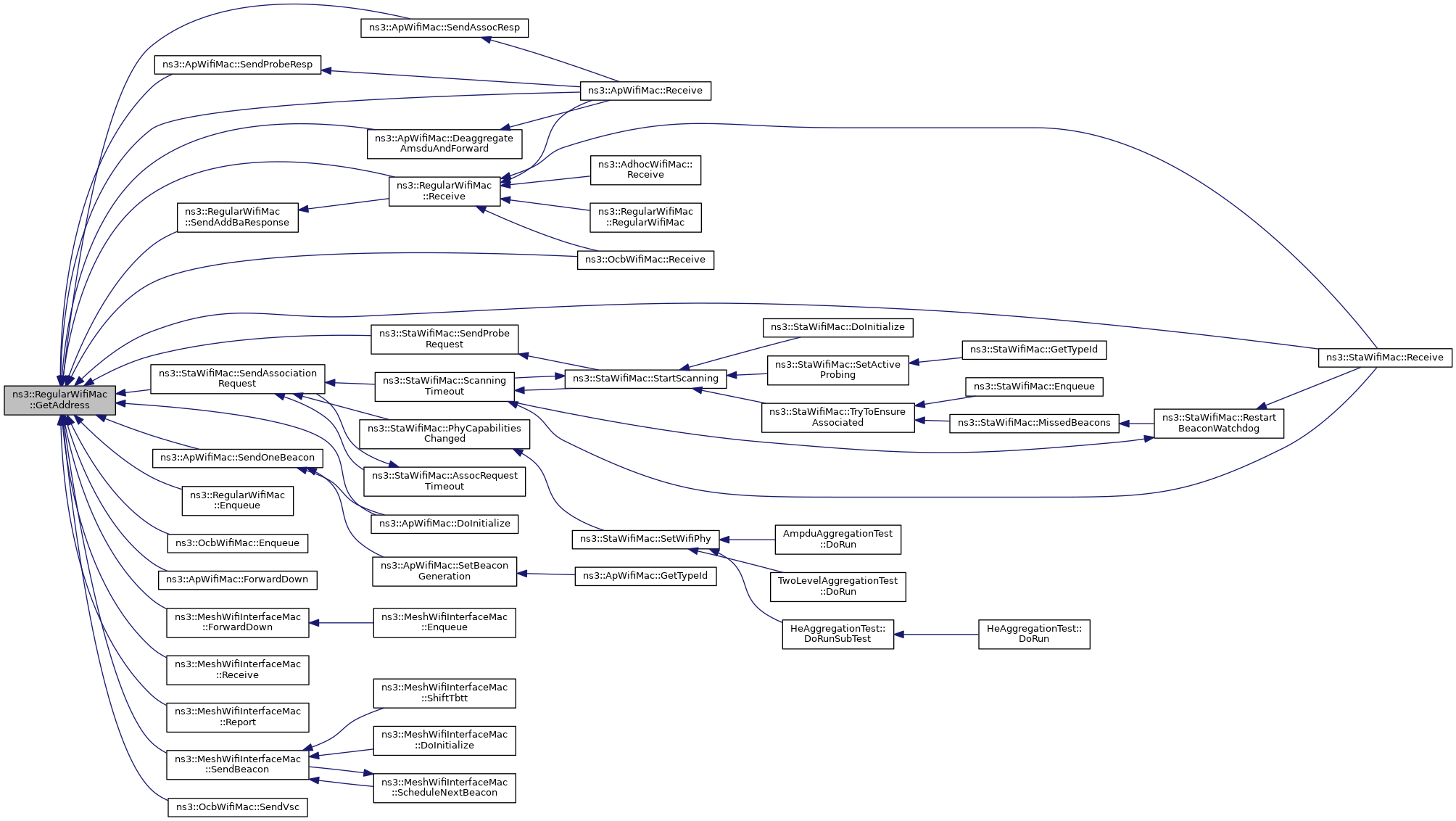

Here is the caller graph for this function:

◆ GetBEQueue()

Ptr< QosTxop > ns3::RegularWifiMac::GetBEQueue ( void ) const

protected

Accessor for the AC_BE channel access function.

Returns: a smart pointer to QosTxop

Definition at line 470 of file regular-wifi-mac.cc.

References ns3::AC_BE, and m_edca.

Referenced by ns3::OcbWifiMac::ConfigureEdca(), AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), GetTypeId(), SetBeBlockAckInactivityTimeout(), and SetBeBlockAckThreshold().

Here is the caller graph for this function:

◆ GetBKQueue()

Ptr< QosTxop > ns3::RegularWifiMac::GetBKQueue ( void ) const

protected

Accessor for the AC_BK channel access function.

Returns: a smart pointer to QosTxop

Definition at line 476 of file regular-wifi-mac.cc.

References ns3::AC_BK, and m_edca.

Referenced by ns3::OcbWifiMac::ConfigureEdca(), GetTypeId(), SetBkBlockAckInactivityTimeout(), and SetBkBlockAckThreshold().

Here is the caller graph for this function:

◆ GetBssid()

Mac48Address ns3::RegularWifiMac::GetBssid ( void ) const

virtual

Returns: the BSSID of the network this device belongs to.

Implements ns3::WifiMac.

Definition at line 641 of file regular-wifi-mac.cc.

References m_low.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::StaWifiMac::Enqueue(), ns3::StaWifiMac::Receive(), SendAddBaResponse(), ns3::StaWifiMac::SendAssociationRequest(), ns3::StaWifiMac::SendCfPollResponse(), and ns3::StaWifiMac::SetState().

Here is the caller graph for this function:

◆ GetDsssSupported()

bool ns3::RegularWifiMac::GetDsssSupported ( ) const

protected

Return whether the device supports DSSS.

Returns: true if DSSS is supported, false otherwise

Definition at line 595 of file regular-wifi-mac.cc.

References m_dsssSupported.

Referenced by ns3::ApWifiMac::GetDsssParameterSet(), ns3::ApWifiMac::SendOneBeacon(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

◆ GetErpSupported()

bool ns3::RegularWifiMac::GetErpSupported ( ) const

protected

Return whether the device supports ERP.

Returns: true if ERP is supported, false otherwise

Definition at line 571 of file regular-wifi-mac.cc.

References m_erpSupported.

Referenced by ns3::StaWifiMac::GetCapabilities(), ns3::ApWifiMac::GetErpInformation(), ns3::ApWifiMac::GetShortPreambleEnabled(), ns3::ApWifiMac::GetShortSlotTimeEnabled(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::ApWifiMac::SendProbeResp(), ns3::StaWifiMac::UpdateApInfoFromAssocResp(), ns3::StaWifiMac::UpdateApInfoFromBeacon(), and ns3::StaWifiMac::UpdateApInfoFromProbeResp().

Here is the caller graph for this function:

◆ GetExtendedCapabilities()

ExtendedCapabilities ns3::RegularWifiMac::GetExtendedCapabilities ( void ) const

Return the extended capabilities of the device.

Returns: the extended capabilities that we support

Definition at line 147 of file regular-wifi-mac.cc.

References GetHtSupported(), GetVhtSupported(), NS_LOG_FUNCTION, ns3::ExtendedCapabilities::SetHtSupported(), and ns3::ExtendedCapabilities::SetVhtSupported().

Referenced by ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), and ns3::ApWifiMac::SendProbeResp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetHeCapabilities()

HeCapabilities ns3::RegularWifiMac::GetHeCapabilities ( void ) const

Return the HE capabilities of the device.

Returns: the HE capabilities that we support

Definition at line 307 of file regular-wifi-mac.cc.

References ns3::WifiPhy::GetChannelWidth(), ns3::WifiMac::GetHeConfiguration(), GetHeSupported(), ns3::WifiPhy::GetMaxSupportedTxSpatialStreams(), ns3::WifiPhy::GetMcs(), ns3::WifiMode::GetMcsValue(), ns3::WifiMode::GetModulationClass(), ns3::WifiPhy::GetNMcs(), ns3::WifiPhy::GetPhyBand(), m_beMaxAmpduSize, m_bkMaxAmpduSize, m_phy, m_viMaxAmpduSize, m_voMaxAmpduSize, max, min, ns3::NanoSeconds(), NS_LOG_FUNCTION, ns3::HeCapabilities::SetChannelWidthSet(), ns3::HeCapabilities::SetHeLtfAndGiForHePpdus(), ns3::HeCapabilities::SetHeSupported(), ns3::HeCapabilities::SetHighestMcsSupported(), ns3::HeCapabilities::SetHighestNssSupported(), ns3::HeCapabilities::SetMaxAmpduLength(), ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_PHY_BAND_2_4GHZ, ns3::WIFI_PHY_BAND_5GHZ, and ns3::WIFI_PHY_BAND_6GHZ.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::AdhocWifiMac::Receive(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), and ns3::ApWifiMac::SendProbeResp().

Here is the call graph for this function:

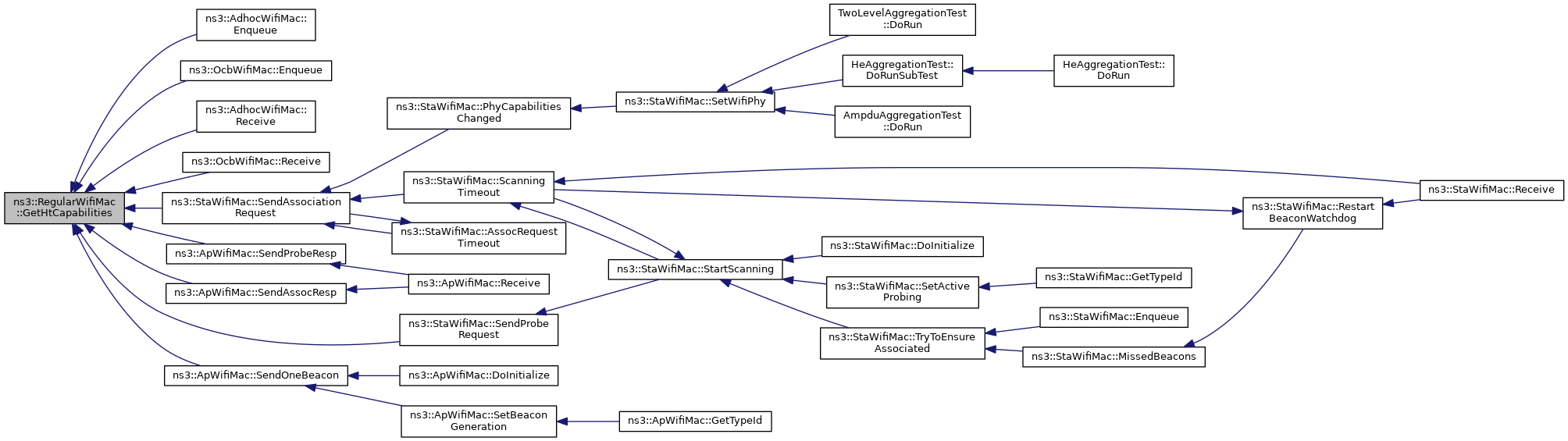

Here is the caller graph for this function:

◆ GetHeSupported()

bool ns3::RegularWifiMac::GetHeSupported ( ) const

protected

Return whether the device supports HE.

Returns: true if HE is supported, false otherwise

Definition at line 561 of file regular-wifi-mac.cc.

References ns3::WifiMac::GetHeConfiguration().

Referenced by ns3::AdhocWifiMac::Enqueue(), GetHeCapabilities(), ns3::ApWifiMac::GetHeOperation(), ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetHtCapabilities()

HtCapabilities ns3::RegularWifiMac::GetHtCapabilities ( void ) const

Return the HT capabilities of the device.

Returns: the HT capabilities that we support

Definition at line 158 of file regular-wifi-mac.cc.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::AdhocWifiMac::Receive(), ns3::OcbWifiMac::Receive(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), and ns3::ApWifiMac::SendProbeResp().

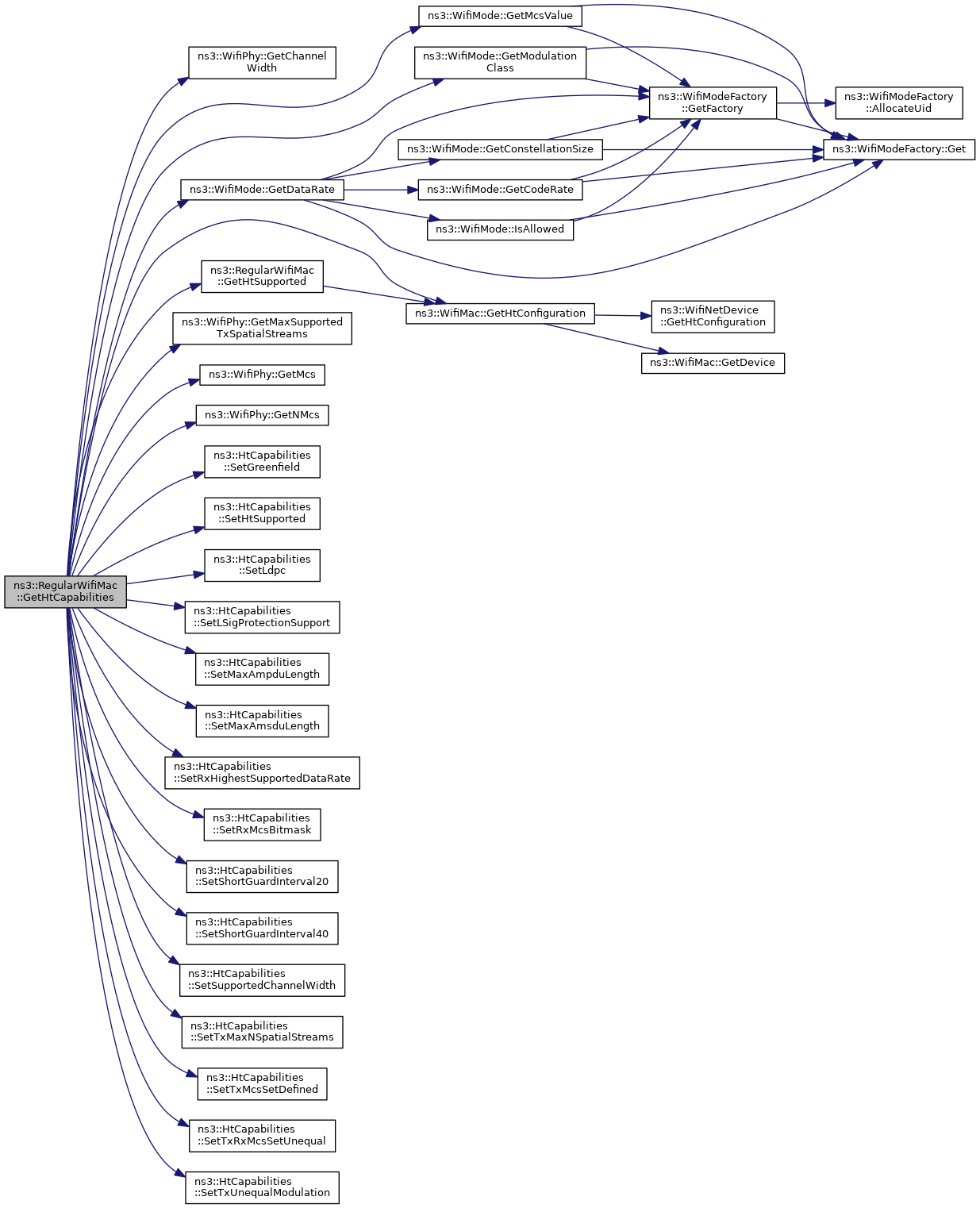

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetHtSupported()

bool ns3::RegularWifiMac::GetHtSupported ( ) const

protected

Return whether the device supports HT.

Returns: true if HT is supported, false otherwise

Definition at line 541 of file regular-wifi-mac.cc.

References ns3::WifiMac::GetHtConfiguration().

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), GetExtendedCapabilities(), GetHtCapabilities(), ns3::ApWifiMac::GetHtOperation(), ns3::ApWifiMac::GetSupportedRates(), ns3::StaWifiMac::GetSupportedRates(), ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::OcbWifiMac::Receive(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the call graph for this function:

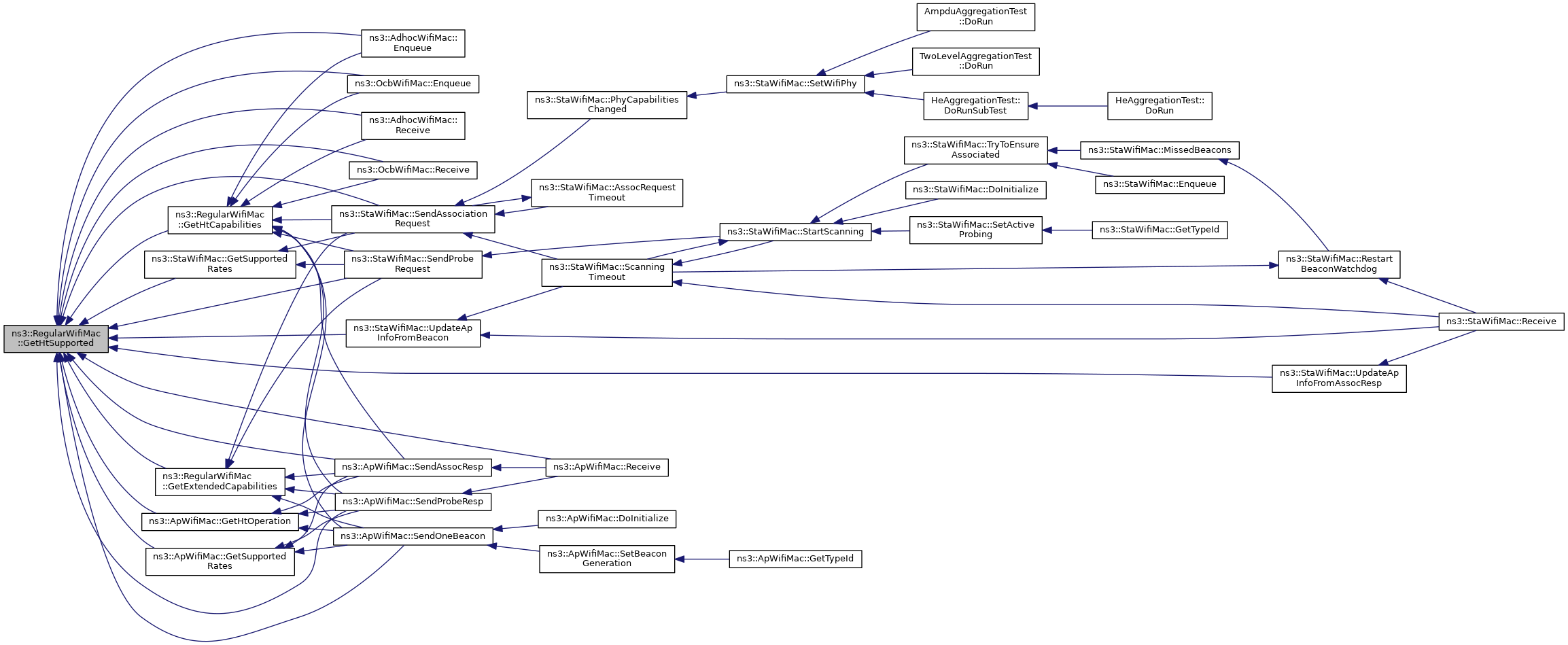

Here is the caller graph for this function:

◆ GetQosSupported()

bool ns3::RegularWifiMac::GetQosSupported ( ) const

protected

Return whether the device supports QoS.

Returns: true if QoS is supported, false otherwise

Definition at line 535 of file regular-wifi-mac.cc.

References m_qosSupported.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::StaWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), ns3::ApWifiMac::GetEdcaParameterSet(), GetTypeId(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::ApWifiMac::SendProbeResp(), ns3::OcbWifiMac::SendVsc(), ns3::InfrastructureWifiMac::SetPcfSupported(), ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the caller graph for this function:

◆ GetShortSlotTimeSupported()

bool ns3::RegularWifiMac::GetShortSlotTimeSupported ( void ) const

virtual

Returns: whether the device supports short slot time capability.

Implements ns3::WifiMac.

Definition at line 660 of file regular-wifi-mac.cc.

References m_shortSlotTimeSupported.

Referenced by ns3::StaWifiMac::GetCapabilities(), ns3::ApWifiMac::GetShortSlotTimeEnabled(), and GetTypeId().

Here is the caller graph for this function:

◆ GetSsid()

Ssid ns3::RegularWifiMac::GetSsid ( void ) const

virtual

Returns: the SSID which this MAC layer is going to try to stay in.

Implements ns3::WifiMac.

Definition at line 628 of file regular-wifi-mac.cc.

References m_ssid.

Referenced by ns3::OcbWifiMac::GetSsid(), ns3::ApWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::StaWifiMac::Receive(), ns3::StaWifiMac::SendAssociationRequest(), ns3::MeshWifiInterfaceMac::SendBeacon(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

◆ GetTxop()

Ptr< Txop > ns3::RegularWifiMac::GetTxop ( void ) const

protected

Accessor for the DCF object.

Returns: a smart pointer to Txop

Definition at line 452 of file regular-wifi-mac.cc.

References m_txop.

Referenced by ns3::OcbWifiMac::ConfigureEdca(), and GetTypeId().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::RegularWifiMac::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 863 of file regular-wifi-mac.cc.

References GetBEQueue(), GetBKQueue(), GetQosSupported(), GetShortSlotTimeSupported(), GetTxop(), GetVIQueue(), GetVOQueue(), m_beMaxAmpduSize, m_beMaxAmsduSize, m_bkMaxAmpduSize, m_bkMaxAmsduSize, m_txErrCallback, m_txOkCallback, m_viMaxAmpduSize, m_viMaxAmsduSize, m_voMaxAmpduSize, m_voMaxAmsduSize, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakePointerAccessor(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), SetBeBlockAckInactivityTimeout(), SetBeBlockAckThreshold(), SetBkBlockAckInactivityTimeout(), SetBkBlockAckThreshold(), SetCtsToSelfSupported(), ns3::TypeId::SetParent(), SetQosSupported(), SetShortSlotTimeSupported(), SetViBlockAckInactivityTimeout(), SetViBlockAckThreshold(), SetVoBlockAckInactivityTimeout(), and SetVoBlockAckThreshold().

Here is the call graph for this function:

◆ GetVhtCapabilities()

VhtCapabilities ns3::RegularWifiMac::GetVhtCapabilities ( void ) const

Return the VHT capabilities of the device.

Returns: the VHT capabilities that we support

Definition at line 221 of file regular-wifi-mac.cc.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::AdhocWifiMac::Receive(), ns3::OcbWifiMac::Receive(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), and ns3::ApWifiMac::SendProbeResp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetVhtSupported()

bool ns3::RegularWifiMac::GetVhtSupported ( ) const

protected

Return whether the device supports VHT.

Returns: true if VHT is supported, false otherwise

Definition at line 551 of file regular-wifi-mac.cc.

References ns3::WifiMac::GetVhtConfiguration().

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), GetExtendedCapabilities(), GetVhtCapabilities(), ns3::ApWifiMac::GetVhtOperation(), ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::OcbWifiMac::Receive(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetVIQueue()

Ptr< QosTxop > ns3::RegularWifiMac::GetVIQueue ( void ) const

protected

Accessor for the AC_VI channel access function.

Returns: a smart pointer to QosTxop

Definition at line 464 of file regular-wifi-mac.cc.

References ns3::AC_VI, and m_edca.

Referenced by ns3::OcbWifiMac::ConfigureEdca(), TwoLevelAggregationTest::DoRun(), GetTypeId(), SetViBlockAckInactivityTimeout(), and SetViBlockAckThreshold().

Here is the caller graph for this function:

◆ GetVOQueue()

Ptr< QosTxop > ns3::RegularWifiMac::GetVOQueue ( void ) const

protected

Accessor for the AC_VO channel access function.

Returns: a smart pointer to QosTxop

Definition at line 458 of file regular-wifi-mac.cc.

References ns3::AC_VO, and m_edca.

Referenced by ns3::OcbWifiMac::ConfigureEdca(), GetTypeId(), SetVoBlockAckInactivityTimeout(), and SetVoBlockAckThreshold().

Here is the caller graph for this function:

◆ GetWifiPhy()

Ptr< WifiPhy > ns3::RegularWifiMac::GetWifiPhy ( void ) const

virtual

Returns: the physical layer attached to this MAC

Implements ns3::WifiMac.

Definition at line 491 of file regular-wifi-mac.cc.

References m_phy, and NS_LOG_FUNCTION.

◆ GetWifiRemoteStationManager()

Ptr< WifiRemoteStationManager > ns3::RegularWifiMac::GetWifiRemoteStationManager ( void ) const

virtual

Returns: the station manager attached to this MAC.

Implements ns3::WifiMac.

Definition at line 141 of file regular-wifi-mac.cc.

References m_stationManager.

◆ operator=()

RegularWifiMac& ns3::RegularWifiMac::operator= ( const RegularWifiMac & mac )

private

assignment operator

Parameters

mac	the RegularWifiMac to assign

Returns: the assigned value

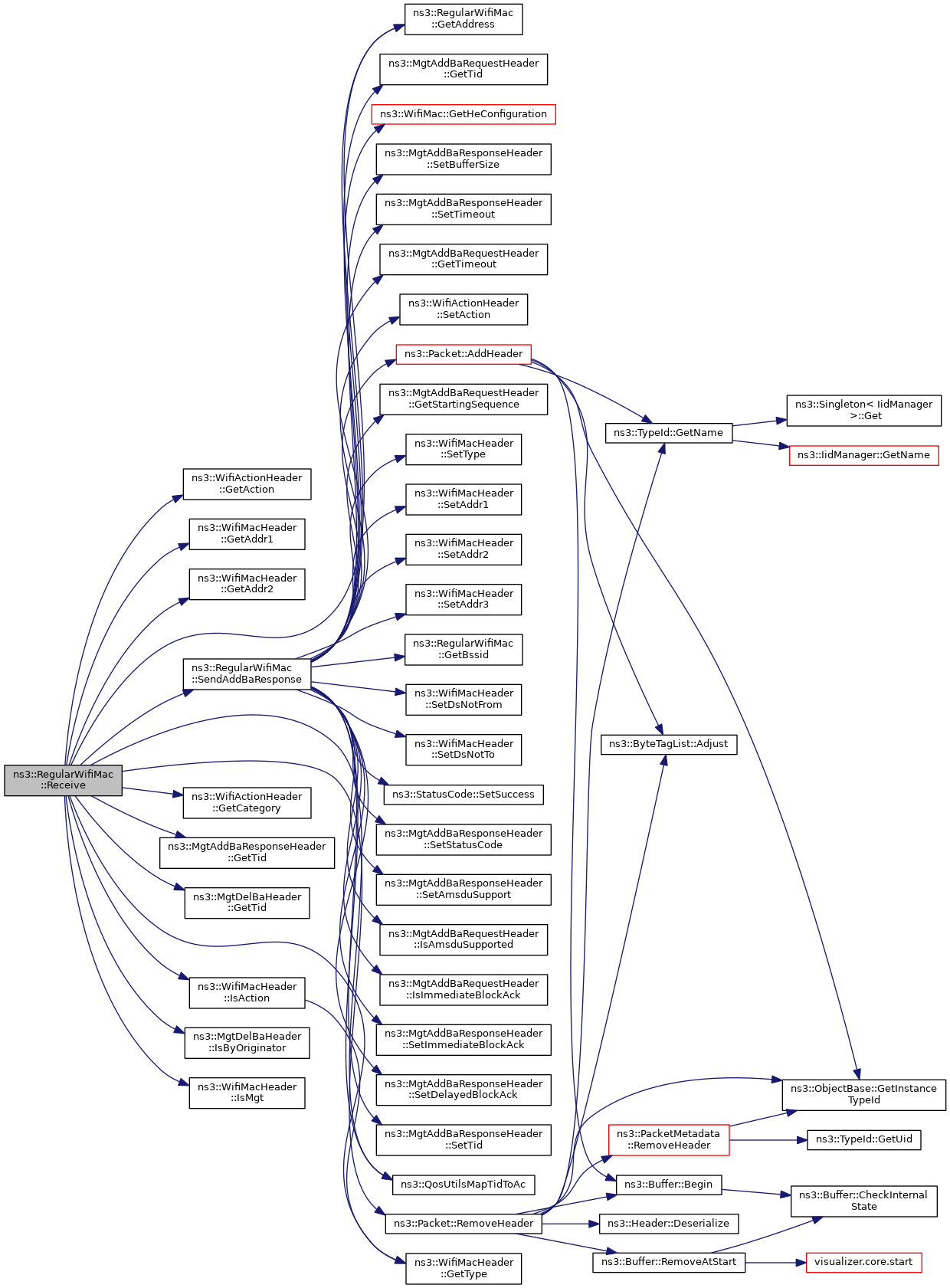

◆ Receive()

void ns3::RegularWifiMac::Receive ( Ptr< WifiMacQueueItem > mpdu )

protectedvirtual

This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received.

The implementation is intended to capture logic that is going to be common to all (or most) derived classes. Specifically, handling of Block Ack management frames is dealt with here.

This method will need, however, to be overridden by derived classes so that they can perform their data handling before invoking the base version.

Parameters

mpdu	the MPDU that has been received.

Reimplemented in ns3::StaWifiMac, ns3::MeshWifiInterfaceMac, ns3::OcbWifiMac, ns3::ApWifiMac, and ns3::AdhocWifiMac.

Definition at line 691 of file regular-wifi-mac.cc.

References ns3::WifiActionHeader::BLOCK_ACK, ns3::WifiActionHeader::BLOCK_ACK_ADDBA_REQUEST, ns3::WifiActionHeader::BLOCK_ACK_ADDBA_RESPONSE, ns3::WifiActionHeader::BLOCK_ACK_DELBA, ns3::WifiActionHeader::ActionValue::blockAck, ns3::WifiActionHeader::GetAction(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr2(), GetAddress(), ns3::WifiActionHeader::GetCategory(), ns3::MgtAddBaResponseHeader::GetTid(), ns3::MgtDelBaHeader::GetTid(), ns3::WifiMacHeader::GetType(), ns3::WifiMacHeader::IsAction(), ns3::MgtDelBaHeader::IsByOriginator(), ns3::WifiMacHeader::IsMgt(), m_edca, m_low, m_qosSupported, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::QosUtilsMapTidToAc(), ns3::Packet::RemoveHeader(), and SendAddBaResponse().

Referenced by ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::OcbWifiMac::Receive(), ns3::StaWifiMac::Receive(), and RegularWifiMac().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ResetWifiPhy()

void ns3::RegularWifiMac::ResetWifiPhy ( void )

virtual

Remove currently attached WifiPhy device from this MAC.

Implements ns3::WifiMac.

Definition at line 498 of file regular-wifi-mac.cc.

References m_channelAccessManager, m_low, m_phy, NS_LOG_FUNCTION, and ns3::ChannelAccessManager::RemovePhyListener().

Referenced by ns3::DefaultChannelScheduler::SwitchToNextChannel().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendAddBaResponse()

void ns3::RegularWifiMac::SendAddBaResponse	(	const MgtAddBaRequestHeader *	reqHdr,
		Mac48Address	originator
	)

protected

This method can be called to accept a received ADDBA Request.

An ADDBA Response will be constructed and queued for transmission.

Parameters

reqHdr	a pointer to the received ADDBA Request header.
originator	the MAC address of the originator.

Definition at line 802 of file regular-wifi-mac.cc.

References ns3::Packet::AddHeader(), ns3::WifiActionHeader::BLOCK_ACK, ns3::WifiActionHeader::BLOCK_ACK_ADDBA_RESPONSE, ns3::WifiActionHeader::ActionValue::blockAck, GetAddress(), GetBssid(), ns3::WifiMac::GetHeConfiguration(), ns3::MgtAddBaRequestHeader::GetStartingSequence(), ns3::MgtAddBaRequestHeader::GetTid(), ns3::MgtAddBaRequestHeader::GetTimeout(), ns3::MgtAddBaRequestHeader::IsAmsduSupported(), ns3::MgtAddBaRequestHeader::IsImmediateBlockAck(), m_edca, m_low, NS_LOG_FUNCTION, ns3::QosUtilsMapTidToAc(), ns3::WifiActionHeader::SetAction(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::MgtAddBaResponseHeader::SetAmsduSupport(), ns3::MgtAddBaResponseHeader::SetBufferSize(), ns3::MgtAddBaResponseHeader::SetDelayedBlockAck(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::MgtAddBaResponseHeader::SetImmediateBlockAck(), ns3::MgtAddBaResponseHeader::SetStatusCode(), ns3::StatusCode::SetSuccess(), ns3::MgtAddBaResponseHeader::SetTid(), ns3::MgtAddBaResponseHeader::SetTimeout(), ns3::WifiMacHeader::SetType(), and ns3::WIFI_MAC_MGT_ACTION.

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetAddress()

void ns3::RegularWifiMac::SetAddress ( Mac48Address address )

virtual

Parameters

address the current address of this MAC layer.

Implements ns3::WifiMac.

Definition at line 608 of file regular-wifi-mac.cc.

References first::address, m_low, and NS_LOG_FUNCTION.

Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), ns3::AdhocWifiMac::SetAddress(), and ns3::ApWifiMac::SetAddress().

Here is the caller graph for this function:

◆ SetBeBlockAckInactivityTimeout()

void ns3::RegularWifiMac::SetBeBlockAckInactivityTimeout ( uint16_t timeout )

private

Set BE block ack inactivity timeout.

Parameters

timeout the BE block ack inactivity timeout.

Definition at line 406 of file regular-wifi-mac.cc.

References GetBEQueue(), NS_LOG_FUNCTION, ns3::QosTxop::SetBlockAckInactivityTimeout(), and timeout.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetBeBlockAckThreshold()

void ns3::RegularWifiMac::SetBeBlockAckThreshold ( uint8_t threshold )

private

Set the block ack threshold for AC_BE.

Parameters

threshold the block ack threshold for AC_BE.

Definition at line 378 of file regular-wifi-mac.cc.

References GetBEQueue(), NS_LOG_FUNCTION, and ns3::QosTxop::SetBlockAckThreshold().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetBkBlockAckInactivityTimeout()

void ns3::RegularWifiMac::SetBkBlockAckInactivityTimeout ( uint16_t timeout )

private

Set BK block ack inactivity timeout.

Parameters

timeout the BK block ack inactivity timeout.

Definition at line 413 of file regular-wifi-mac.cc.

References GetBKQueue(), NS_LOG_FUNCTION, ns3::QosTxop::SetBlockAckInactivityTimeout(), and timeout.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetBkBlockAckThreshold()

void ns3::RegularWifiMac::SetBkBlockAckThreshold ( uint8_t threshold )

private

Set the block ack threshold for AC_BK.

Parameters

threshold the block ack threshold for AC_BK.

Definition at line 385 of file regular-wifi-mac.cc.

References GetBKQueue(), NS_LOG_FUNCTION, and ns3::QosTxop::SetBlockAckThreshold().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetBssid()

void ns3::RegularWifiMac::SetBssid ( Mac48Address bssid )

Parameters

bssid the BSSID of the network that this device belongs to.

Definition at line 634 of file regular-wifi-mac.cc.

References m_low, and NS_LOG_FUNCTION.

Referenced by ns3::OcbWifiMac::OcbWifiMac(), ns3::AdhocWifiMac::SetAddress(), ns3::ApWifiMac::SetAddress(), ns3::StaWifiMac::UpdateApInfoFromBeacon(), and ns3::StaWifiMac::UpdateApInfoFromProbeResp().

Here is the caller graph for this function:

◆ SetCtsToSelfSupported()

void ns3::RegularWifiMac::SetCtsToSelfSupported ( bool enable )

Enable or disable CTS-to-self feature.

Parameters

enable true if CTS-to-self is to be supported, false otherwise

Definition at line 601 of file regular-wifi-mac.cc.

References m_low, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetDsssSupported()

void ns3::RegularWifiMac::SetDsssSupported ( bool enable )

protected

Enable or disable DSSS support for the device.

Parameters

enable whether DSSS is supported

Definition at line 588 of file regular-wifi-mac.cc.

References m_dsssSupported, and NS_LOG_FUNCTION.

Referenced by ConfigureStandard(), and SetErpSupported().

Here is the caller graph for this function:

◆ SetErpSupported()

void ns3::RegularWifiMac::SetErpSupported ( bool enable )

protected

Enable or disable ERP support for the device.

Parameters

enable whether ERP is supported

Definition at line 577 of file regular-wifi-mac.cc.

References m_erpSupported, NS_LOG_FUNCTION, and SetDsssSupported().

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetForwardUpCallback()

void ns3::RegularWifiMac::SetForwardUpCallback ( ForwardUpCallback upCallback )

Definition at line 507 of file regular-wifi-mac.cc.

References m_forwardUp, and NS_LOG_FUNCTION.

◆ SetLinkDownCallback()

void ns3::RegularWifiMac::SetLinkDownCallback ( Callback< void > linkDown )

virtual

Parameters

linkDown the callback to invoke when the link becomes down.

Implements ns3::WifiMac.

Definition at line 521 of file regular-wifi-mac.cc.

References m_linkDown, and NS_LOG_FUNCTION.

Referenced by ns3::OcbWifiMac::SetLinkDownCallback().

Here is the caller graph for this function:

◆ SetLinkUpCallback()

void ns3::RegularWifiMac::SetLinkUpCallback ( Callback< void > linkUp )

virtual

Parameters

linkUp the callback to invoke when the link becomes up.

Implements ns3::WifiMac.

Definition at line 514 of file regular-wifi-mac.cc.

References m_linkUp, and NS_LOG_FUNCTION.

Referenced by ns3::AdhocWifiMac::SetLinkUpCallback(), ns3::ApWifiMac::SetLinkUpCallback(), ns3::MeshWifiInterfaceMac::SetLinkUpCallback(), and ns3::OcbWifiMac::SetLinkUpCallback().

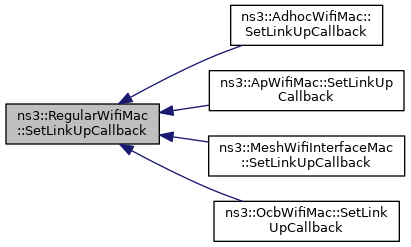

Here is the caller graph for this function:

◆ SetPromisc()

void ns3::RegularWifiMac::SetPromisc ( void )

virtual

Sets the interface in promiscuous mode.

Enables promiscuous mode on the interface. Note that any further filtering on the incoming frame path may affect the overall behavior.

Implements ns3::WifiMac.

Definition at line 647 of file regular-wifi-mac.cc.

References m_low.

◆ SetQosSupported()

void ns3::RegularWifiMac::SetQosSupported ( bool enable )

protectedvirtual

Enable or disable QoS support for the device.

Parameters

enable whether QoS is supported

Reimplemented in ns3::InfrastructureWifiMac.

Definition at line 528 of file regular-wifi-mac.cc.

References m_qosSupported, and NS_LOG_FUNCTION.

Referenced by ConfigureStandard(), GetTypeId(), and ns3::InfrastructureWifiMac::SetQosSupported().

Here is the caller graph for this function:

◆ SetShortSlotTimeSupported()

void ns3::RegularWifiMac::SetShortSlotTimeSupported ( bool enable )

virtual

Enable or disable short slot time feature.

Parameters

enable true if short slot time is to be supported, false otherwise

Implements ns3::WifiMac.

Definition at line 653 of file regular-wifi-mac.cc.

References m_shortSlotTimeSupported, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetSsid()

void ns3::RegularWifiMac::SetSsid ( Ssid ssid )

virtual

Parameters

ssid	the current SSID of this MAC layer.

Implements ns3::WifiMac.

Definition at line 621 of file regular-wifi-mac.cc.

References m_ssid, NS_LOG_FUNCTION, and third::ssid.

◆ SetTypeOfStation()

void ns3::RegularWifiMac::SetTypeOfStation ( TypeOfStation type )

protected

This method is invoked by a subclass to specify what type of station it is implementing.

This is something that the channel access functions (instantiated within this class as QosTxop's) need to know.

Parameters

type	the type of station.

Definition at line 442 of file regular-wifi-mac.cc.

References m_edca, and NS_LOG_FUNCTION.

Referenced by ns3::AdhocWifiMac::AdhocWifiMac(), ns3::ApWifiMac::ApWifiMac(), ns3::MeshWifiInterfaceMac::MeshWifiInterfaceMac(), ns3::OcbWifiMac::OcbWifiMac(), and ns3::StaWifiMac::StaWifiMac().

Here is the caller graph for this function:

◆ SetupEdcaQueue()

void ns3::RegularWifiMac::SetupEdcaQueue ( AcIndex ac )

private

This method is a private utility invoked to configure the channel access function for the specified Access Category.

Parameters

ac	the Access Category of the queue to initialise.

Definition at line 420 of file regular-wifi-mac.cc.

References m_channelAccessManager, m_edca, m_low, m_txMiddle, ns3::MakeCallback(), ns3::WifiMac::NotifyTxDrop(), NS_ASSERT, NS_LOG_FUNCTION, ns3::Txop::SetMacLow(), TxFailed(), and TxOk().

Referenced by RegularWifiMac().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetViBlockAckInactivityTimeout()

void ns3::RegularWifiMac::SetViBlockAckInactivityTimeout ( uint16_t timeout )

private

Set VI block ack inactivity timeout.

Parameters

timeout the VI block ack inactivity timeout.

Definition at line 399 of file regular-wifi-mac.cc.

References GetVIQueue(), NS_LOG_FUNCTION, ns3::QosTxop::SetBlockAckInactivityTimeout(), and timeout.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetViBlockAckThreshold()

void ns3::RegularWifiMac::SetViBlockAckThreshold ( uint8_t threshold )

private

Set the block ack threshold for AC_VI.

Parameters

threshold the block ack threshold for AC_VI.

Definition at line 371 of file regular-wifi-mac.cc.

References GetVIQueue(), NS_LOG_FUNCTION, and ns3::QosTxop::SetBlockAckThreshold().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetVoBlockAckInactivityTimeout()

void ns3::RegularWifiMac::SetVoBlockAckInactivityTimeout ( uint16_t timeout )

private

Set VO block ack inactivity timeout.

Parameters

timeout the VO block ack inactivity timeout.

Definition at line 392 of file regular-wifi-mac.cc.

References GetVOQueue(), NS_LOG_FUNCTION, ns3::QosTxop::SetBlockAckInactivityTimeout(), and timeout.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetVoBlockAckThreshold()

void ns3::RegularWifiMac::SetVoBlockAckThreshold ( uint8_t threshold )

private

Set the block ack threshold for AC_VO.

Parameters

threshold the block ack threshold for AC_VO.

Definition at line 364 of file regular-wifi-mac.cc.

References GetVOQueue(), NS_LOG_FUNCTION, and ns3::QosTxop::SetBlockAckThreshold().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetWifiPhy()

void ns3::RegularWifiMac::SetWifiPhy ( const Ptr< WifiPhy > phy )

virtual

Parameters

phy	the physical layer attached to this MAC.

Implements ns3::WifiMac.

Reimplemented in ns3::StaWifiMac.

Definition at line 482 of file regular-wifi-mac.cc.

References m_channelAccessManager, m_low, m_phy, NS_LOG_FUNCTION, third::phy, and ns3::ChannelAccessManager::SetupPhyListener().

Referenced by ns3::DefaultChannelScheduler::AssignDefaultCchAccess(), ns3::StaWifiMac::SetWifiPhy(), and ns3::DefaultChannelScheduler::SwitchToNextChannel().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetWifiRemoteStationManager()

void ns3::RegularWifiMac::SetWifiRemoteStationManager ( const Ptr< WifiRemoteStationManager > stationManager )

virtual

Parameters

stationManager the station manager attached to this MAC.

Implements ns3::WifiMac.

Reimplemented in ns3::StaWifiMac, and ns3::ApWifiMac.

Definition at line 128 of file regular-wifi-mac.cc.

References m_edca, m_low, m_stationManager, m_txop, NS_LOG_FUNCTION, and ns3::Txop::SetWifiRemoteStationManager().

Referenced by ns3::WaveHelper::Install(), ns3::ApWifiMac::SetWifiRemoteStationManager(), and ns3::StaWifiMac::SetWifiRemoteStationManager().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SupportsSendFrom()

bool ns3::RegularWifiMac::SupportsSendFrom ( void ) const

virtual

Returns: if this MAC supports sending from arbitrary address.

The interface may or may not support sending from arbitrary address. This function returns true if sending from arbitrary address is supported, false otherwise.

Implements ns3::WifiMac.

Reimplemented in ns3::MeshWifiInterfaceMac, and ns3::ApWifiMac.

Definition at line 678 of file regular-wifi-mac.cc.

◆ TxFailed()

void ns3::RegularWifiMac::TxFailed ( const WifiMacHeader & hdr )

protectedvirtual

The packet we sent was successfully received by the receiver (i.e.

we did not receive an Ack from the receiver).

Parameters

hdr	the header of the packet that we failed to sent

Reimplemented in ns3::ApWifiMac.

Definition at line 1106 of file regular-wifi-mac.cc.

References m_txErrCallback, and NS_LOG_FUNCTION.

Referenced by RegularWifiMac(), SetupEdcaQueue(), and ns3::ApWifiMac::TxFailed().

Here is the caller graph for this function:

◆ TxOk()

void ns3::RegularWifiMac::TxOk ( const WifiMacHeader & hdr )

protectedvirtual

The packet we sent was successfully received by the receiver (i.e.

we received an Ack from the receiver).

Parameters

hdr	the header of the packet that we successfully sent

Reimplemented in ns3::ApWifiMac.

Definition at line 1099 of file regular-wifi-mac.cc.

References m_txOkCallback, and NS_LOG_FUNCTION.

Referenced by RegularWifiMac(), SetupEdcaQueue(), and ns3::ApWifiMac::TxOk().

Here is the caller graph for this function:

Member Data Documentation

◆ m_beMaxAmpduSize

uint32_t ns3::RegularWifiMac::m_beMaxAmpduSize

private

maximum A-MPDU size for AC_BE (in bytes)

Definition at line 434 of file regular-wifi-mac.h.

Referenced by GetHeCapabilities(), GetHtCapabilities(), GetTypeId(), and GetVhtCapabilities().

◆ m_beMaxAmsduSize

uint16_t ns3::RegularWifiMac::m_beMaxAmsduSize

private

maximum A-MSDU size for AC_BE (in bytes)

Definition at line 429 of file regular-wifi-mac.h.

Referenced by GetHtCapabilities(), GetTypeId(), and GetVhtCapabilities().

◆ m_bkMaxAmpduSize

uint32_t ns3::RegularWifiMac::m_bkMaxAmpduSize

private

maximum A-MPDU size for AC_BK (in bytes)

Definition at line 435 of file regular-wifi-mac.h.

Referenced by GetHeCapabilities(), GetHtCapabilities(), GetTypeId(), and GetVhtCapabilities().

◆ m_bkMaxAmsduSize

uint16_t ns3::RegularWifiMac::m_bkMaxAmsduSize

private

maximum A-MSDU size for AC_BK (in bytes)

Definition at line 430 of file regular-wifi-mac.h.

Referenced by GetHtCapabilities(), GetTypeId(), and GetVhtCapabilities().

◆ m_channelAccessManager

Ptr<ChannelAccessManager> ns3::RegularWifiMac::m_channelAccessManager

protected

channel access manager

Definition at line 138 of file regular-wifi-mac.h.

Referenced by ns3::ApWifiMac::ApWifiMac(), DoDispose(), ns3::OcbWifiMac::EnableForWave(), ns3::OcbWifiMac::MakeVirtualBusy(), RegularWifiMac(), ns3::OcbWifiMac::Reset(), ResetWifiPhy(), ns3::OcbWifiMac::Resume(), SetupEdcaQueue(), SetWifiPhy(), ns3::OcbWifiMac::Suspend(), and ns3::MeshWifiInterfaceMac::SwitchFrequencyChannel().

◆ m_dsssSupported

bool ns3::RegularWifiMac::m_dsssSupported

private

This Boolean is set true iff this WifiMac is to model 802.11b.

It is exposed through the attribute system.

Definition at line 420 of file regular-wifi-mac.h.

Referenced by ConfigureContentionWindow(), GetDsssSupported(), and SetDsssSupported().

◆ m_edca

EdcaQueues ns3::RegularWifiMac::m_edca

protected

This is a map from Access Category index to the corresponding channel access function.

Definition at line 159 of file regular-wifi-mac.h.

Referenced by ns3::OcbWifiMac::CancleTx(), ConfigureContentionWindow(), DoDispose(), DoInitialize(), EnableAggregation(), ns3::OcbWifiMac::EnableForWave(), ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::StaWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), ns3::MeshWifiInterfaceMac::ForwardDown(), GetBEQueue(), GetBKQueue(), ns3::ApWifiMac::GetEdcaParameterSet(), GetVIQueue(), GetVOQueue(), Receive(), SendAddBaResponse(), ns3::MeshWifiInterfaceMac::SendManagementFrame(), ns3::OcbWifiMac::SendVsc(), ns3::StaWifiMac::SetEdcaParameters(), SetTypeOfStation(), SetupEdcaQueue(), and SetWifiRemoteStationManager().

◆ m_erpSupported

bool ns3::RegularWifiMac::m_erpSupported

private

This Boolean is set true iff this WifiMac is to model 802.11g.

It is exposed through the attribute system.

Definition at line 415 of file regular-wifi-mac.h.

Referenced by ConfigureContentionWindow(), GetErpSupported(), and SetErpSupported().

◆ m_forwardUp

ForwardUpCallback ns3::RegularWifiMac::m_forwardUp

protected

Callback to forward packet up the stack.

Definition at line 143 of file regular-wifi-mac.h.

Referenced by ForwardUp(), and SetForwardUpCallback().

◆ m_linkDown

Callback<void> ns3::RegularWifiMac::m_linkDown

protected

Callback when a link is down.

Definition at line 145 of file regular-wifi-mac.h.

Referenced by SetLinkDownCallback(), and ns3::StaWifiMac::TryToEnsureAssociated().

◆ m_linkUp

Callback<void> ns3::RegularWifiMac::m_linkUp

protected

Callback when a link is up.

Definition at line 144 of file regular-wifi-mac.h.

Referenced by ns3::StaWifiMac::Receive(), and SetLinkUpCallback().

◆ m_low

Ptr<MacLow> ns3::RegularWifiMac::m_low

protected

◆ m_phy

Ptr<WifiPhy> ns3::RegularWifiMac::m_phy

protected

Wifi PHY.

Definition at line 139 of file regular-wifi-mac.h.

Referenced by ns3::MeshWifiInterfaceMac::CheckSupportedRates(), DoDispose(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::StaWifiMac::GetCapabilities(), ns3::ApWifiMac::GetDsssParameterSet(), ns3::MeshWifiInterfaceMac::GetFrequencyChannel(), GetHeCapabilities(), ns3::ApWifiMac::GetHeOperation(), GetHtCapabilities(), ns3::ApWifiMac::GetHtOperation(), ns3::ApWifiMac::GetShortPreambleEnabled(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), ns3::StaWifiMac::GetSupportedRates(), GetVhtCapabilities(), ns3::ApWifiMac::GetVhtOperation(), ns3::ApWifiMac::GetVhtOperationalChannelWidth(), GetWifiPhy(), ns3::ApWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::StaWifiMac::Receive(), ResetWifiPhy(), ns3::ApWifiMac::SendOneBeacon(), SetWifiPhy(), ns3::StaWifiMac::SetWifiPhy(), ns3::MeshWifiInterfaceMac::SwitchFrequencyChannel(), ns3::StaWifiMac::UpdateApInfoFromAssocResp(), ns3::StaWifiMac::UpdateApInfoFromBeacon(), and ns3::StaWifiMac::UpdateApInfoFromProbeResp().

◆ m_qosSupported

bool ns3::RegularWifiMac::m_qosSupported

private

This Boolean is set true iff this WifiMac is to model 802.11e/WMM style Quality of Service.

It is exposed through the attribute system.

At the moment, this flag is the sole selection between QoS and non-QoS operation for the STA (whether IBSS, AP, or non-AP). Ultimately, we will want a QoS-enabled STA to be able to fall back to non-QoS operation with a non-QoS peer. This'll require further intelligence - i.e., per-association QoS state. Having a big switch seems like a good intermediate stage, however.

Definition at line 410 of file regular-wifi-mac.h.

Referenced by GetQosSupported(), Receive(), and SetQosSupported().

◆ m_rxMiddle

Ptr<MacRxMiddle> ns3::RegularWifiMac::m_rxMiddle

protected

RX middle (defragmentation etc.)

Definition at line 135 of file regular-wifi-mac.h.

Referenced by ns3::ApWifiMac::ApWifiMac(), DoDispose(), ns3::OcbWifiMac::EnableForWave(), and RegularWifiMac().

◆ m_shortSlotTimeSupported

bool ns3::RegularWifiMac::m_shortSlotTimeSupported

private

flag whether short slot time is supported

Definition at line 440 of file regular-wifi-mac.h.

Referenced by GetShortSlotTimeSupported(), and SetShortSlotTimeSupported().

◆ m_ssid

Ssid ns3::RegularWifiMac::m_ssid

protected

Service Set ID (SSID)

Definition at line 147 of file regular-wifi-mac.h.

Referenced by GetSsid(), and SetSsid().

◆ m_stationManager

Ptr<WifiRemoteStationManager> ns3::RegularWifiMac::m_stationManager

protected

Remote station manager (rate control, RTS/CTS/fragmentation thresholds etc.)

Definition at line 141 of file regular-wifi-mac.h.

Referenced by ns3::MeshWifiInterfaceMac::CheckSupportedRates(), DoDispose(), ns3::AdhocWifiMac::Enqueue(), ns3::ApWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::ApWifiMac::GetHeOperation(), ns3::ApWifiMac::GetHtOperation(), ns3::ApWifiMac::GetShortPreambleEnabled(), ns3::ApWifiMac::GetShortSlotTimeEnabled(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), ns3::ApWifiMac::GetUseNonErpProtection(), ns3::ApWifiMac::GetVhtOperation(), ns3::ApWifiMac::GetVhtOperationalChannelWidth(), GetWifiRemoteStationManager(), ns3::ApWifiMac::IsNonGfHtStasPresent(), ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::OcbWifiMac::Receive(), ns3::ApWifiMac::SendOneBeacon(), ns3::ApWifiMac::SendProbeResp(), ns3::InfrastructureWifiMac::SetPcfSupported(), ns3::ApWifiMac::SetWifiRemoteStationManager(), SetWifiRemoteStationManager(), ns3::StaWifiMac::SetWifiRemoteStationManager(), ns3::ApWifiMac::TxFailed(), ns3::ApWifiMac::TxOk(), ns3::StaWifiMac::UpdateApInfoFromAssocResp(), ns3::StaWifiMac::UpdateApInfoFromBeacon(), and ns3::StaWifiMac::UpdateApInfoFromProbeResp().

◆ m_txErrCallback

TracedCallback<const WifiMacHeader &> ns3::RegularWifiMac::m_txErrCallback

private

transmit error callback

Definition at line 438 of file regular-wifi-mac.h.

Referenced by GetTypeId(), and TxFailed().

◆ m_txMiddle

Ptr<MacTxMiddle> ns3::RegularWifiMac::m_txMiddle

protected

TX middle (aggregation etc.)

Definition at line 136 of file regular-wifi-mac.h.

Referenced by ns3::ApWifiMac::ApWifiMac(), DoDispose(), AmpduAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), RegularWifiMac(), and SetupEdcaQueue().

◆ m_txOkCallback

TracedCallback<const WifiMacHeader &> ns3::RegularWifiMac::m_txOkCallback

private

transmit OK callback

Definition at line 437 of file regular-wifi-mac.h.

Referenced by GetTypeId(), and TxOk().

◆ m_txop

Ptr<Txop> ns3::RegularWifiMac::m_txop

protected

This holds a pointer to the TXOP instance for this WifiMac - used for transmission of frames to non-QoS peers.

Definition at line 151 of file regular-wifi-mac.h.

Referenced by ConfigureContentionWindow(), ns3::MeshWifiInterfaceMac::ConfigureStandard(), DoDispose(), DoInitialize(), ns3::OcbWifiMac::EnableForWave(), ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::StaWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), GetTxop(), RegularWifiMac(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::MeshWifiInterfaceMac::SendBeacon(), ns3::ApWifiMac::SendCfEnd(), ns3::ApWifiMac::SendCfPoll(), ns3::StaWifiMac::SendCfPollResponse(), ns3::ApWifiMac::SendNextCfFrame(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), ns3::OcbWifiMac::SendVsc(), and SetWifiRemoteStationManager().

◆ m_viMaxAmpduSize

uint32_t ns3::RegularWifiMac::m_viMaxAmpduSize

private

maximum A-MPDU size for AC_VI (in bytes)

Definition at line 433 of file regular-wifi-mac.h.

Referenced by GetHeCapabilities(), GetHtCapabilities(), GetTypeId(), and GetVhtCapabilities().

◆ m_viMaxAmsduSize

uint16_t ns3::RegularWifiMac::m_viMaxAmsduSize

private

maximum A-MSDU size for AC_VI (in bytes)

Definition at line 428 of file regular-wifi-mac.h.

Referenced by GetHtCapabilities(), GetTypeId(), and GetVhtCapabilities().

◆ m_voMaxAmpduSize

uint32_t ns3::RegularWifiMac::m_voMaxAmpduSize

private

maximum A-MPDU size for AC_VO (in bytes)

Definition at line 432 of file regular-wifi-mac.h.

Referenced by GetHeCapabilities(), GetHtCapabilities(), GetTypeId(), and GetVhtCapabilities().

◆ m_voMaxAmsduSize

uint16_t ns3::RegularWifiMac::m_voMaxAmsduSize

private

maximum A-MSDU size for AC_VO (in bytes)

Definition at line 427 of file regular-wifi-mac.h.

Referenced by GetHtCapabilities(), GetTypeId(), and GetVhtCapabilities().

The documentation for this class was generated from the following files:

src/wifi/model/regular-wifi-mac.h
src/wifi/model/regular-wifi-mac.cc

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::WifiMac

TraceSources

TraceSources defined in parent class ns3::WifiMac

Member Typedef Documentation

◆ EdcaQueues

◆ ForwardUpCallback

Constructor & Destructor Documentation

◆ RegularWifiMac() [1/2]

◆ ~RegularWifiMac()

◆ RegularWifiMac() [2/2]

Member Function Documentation

◆ ConfigureContentionWindow()

◆ ConfigureStandard()

◆ DeaggregateAmsduAndForward()

◆ DisableAggregation()

◆ DoDispose()

◆ DoInitialize()

◆ EnableAggregation()

◆ Enqueue() [1/2]

◆ Enqueue() [2/2]

◆ ForwardUp()

◆ GetAddress()

◆ GetBEQueue()

◆ GetBKQueue()

◆ GetBssid()

◆ GetDsssSupported()

◆ GetErpSupported()

◆ GetExtendedCapabilities()

◆ GetHeCapabilities()

◆ GetHeSupported()

◆ GetHtCapabilities()

◆ GetHtSupported()

◆ GetQosSupported()

◆ GetShortSlotTimeSupported()

◆ GetSsid()

◆ GetTxop()

◆ GetTypeId()

◆ GetVhtCapabilities()

◆ GetVhtSupported()

◆ GetVIQueue()

◆ GetVOQueue()

◆ GetWifiPhy()

◆ GetWifiRemoteStationManager()

◆ operator=()

◆ Receive()

◆ ResetWifiPhy()

◆ SendAddBaResponse()

◆ SetAddress()

◆ SetBeBlockAckInactivityTimeout()

◆ SetBeBlockAckThreshold()

◆ SetBkBlockAckInactivityTimeout()

◆ SetBkBlockAckThreshold()

◆ SetBssid()

◆ SetCtsToSelfSupported()

◆ SetDsssSupported()

◆ SetErpSupported()

◆ SetForwardUpCallback()

◆ SetLinkDownCallback()

◆ SetLinkUpCallback()

◆ SetPromisc()

◆ SetQosSupported()

◆ SetShortSlotTimeSupported()

◆ SetSsid()

◆ SetTypeOfStation()

◆ SetupEdcaQueue()

◆ SetViBlockAckInactivityTimeout()

◆ SetViBlockAckThreshold()

◆ SetVoBlockAckInactivityTimeout()
