Wi-Fi AP state machineHandle association, dis-association and authentication, of STAs within an infrastructure BSS. More...

#include "ap-wifi-mac.h"

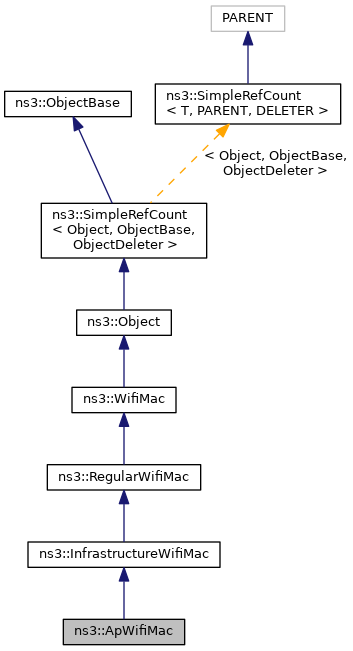

Inheritance diagram for ns3::ApWifiMac:

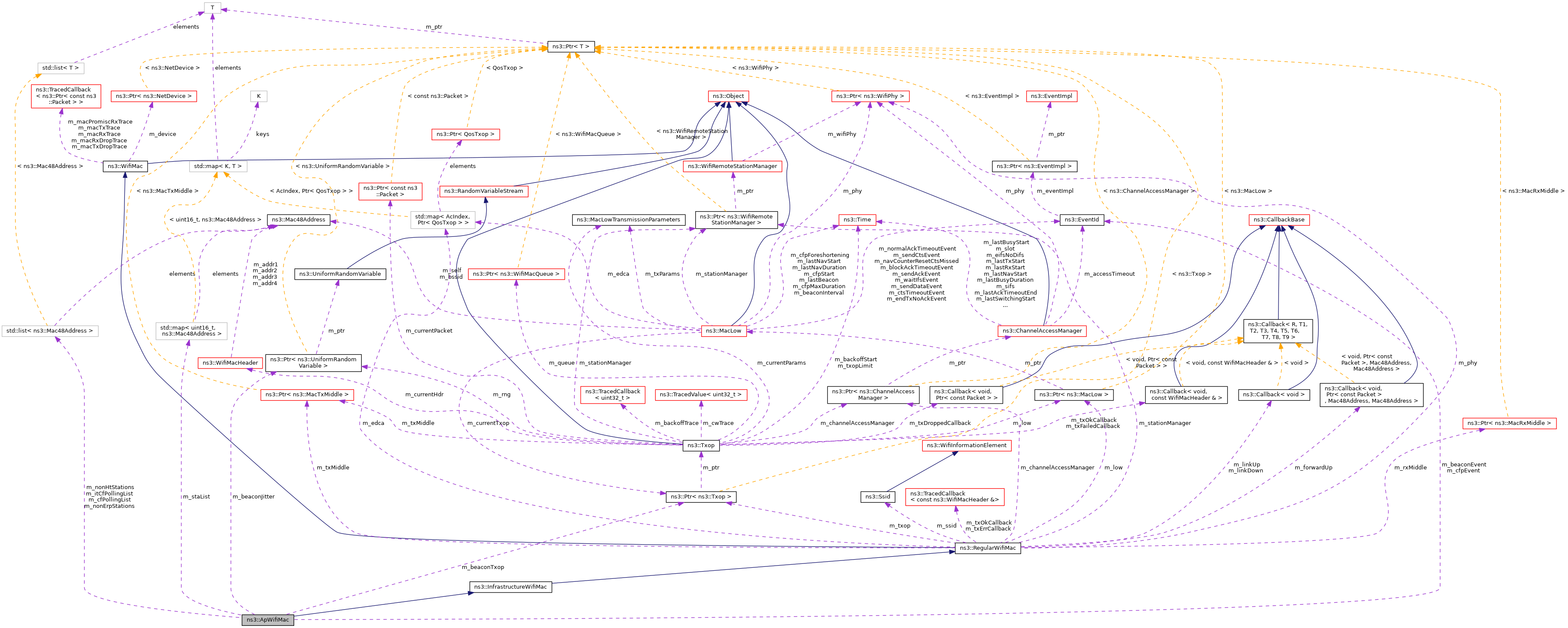

Collaboration diagram for ns3::ApWifiMac:

Public Member Functions

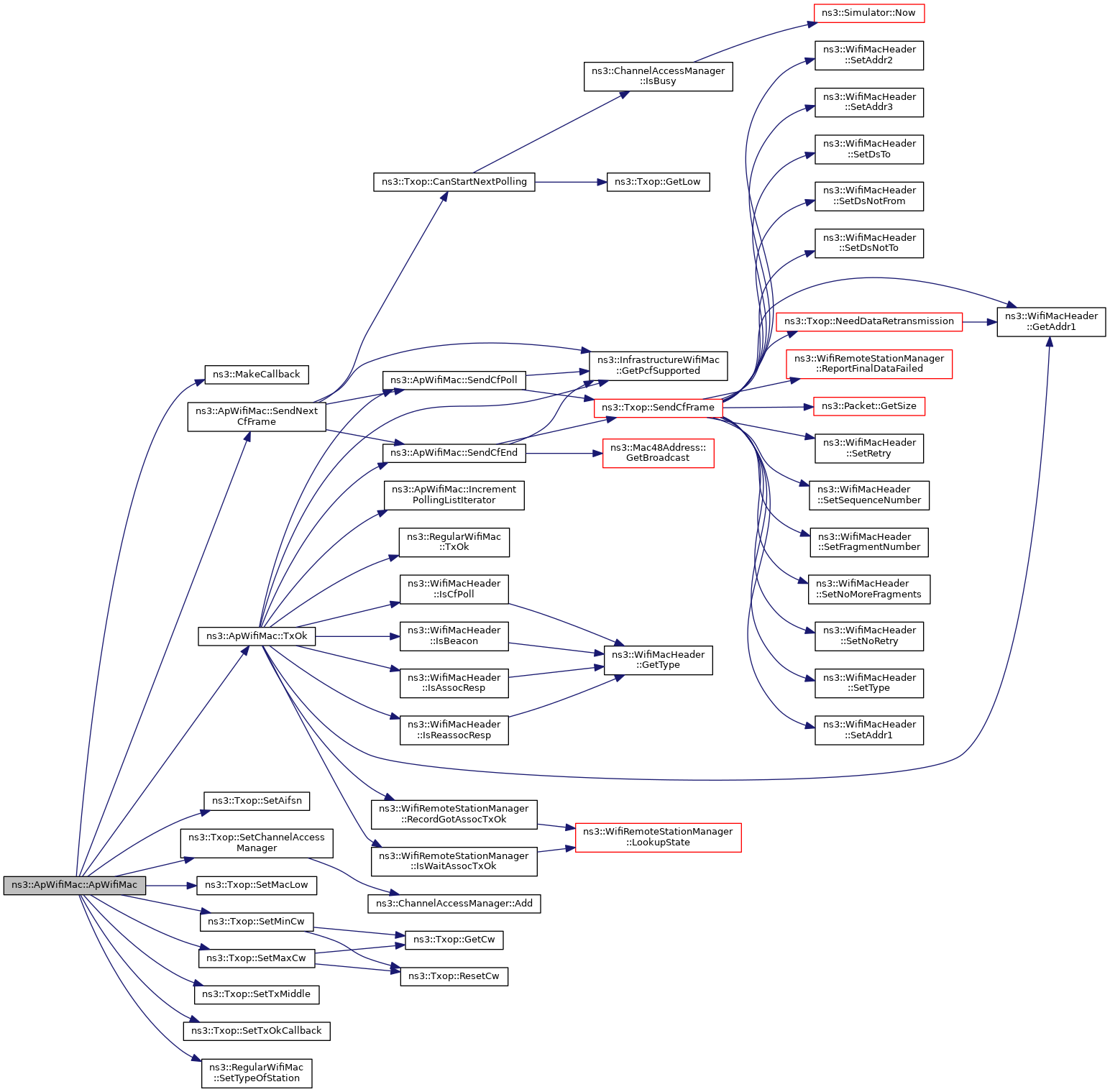

	ApWifiMac ()

virtual	~ApWifiMac ()

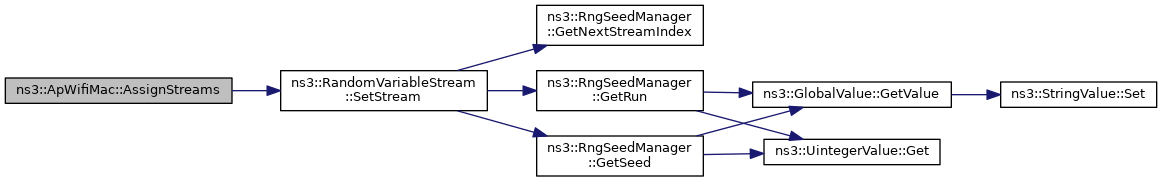

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

void	Enqueue (Ptr< Packet > packet, Mac48Address to)

void	Enqueue (Ptr< Packet > packet, Mac48Address to, Mac48Address from)

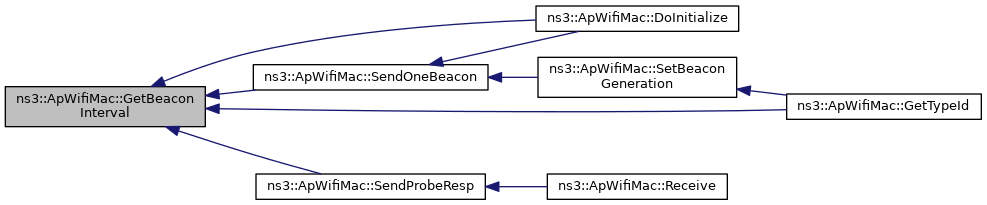

Time	GetBeaconInterval (void) const

Time	GetCfpMaxDuration (void) const

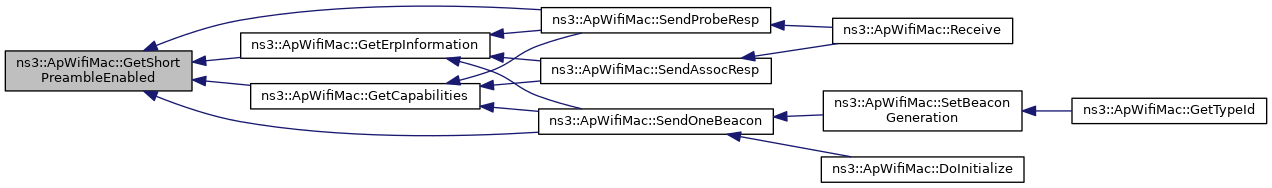

bool	GetShortPreambleEnabled (void) const
	Determine whether short preamble should be enabled or not in the BSS. More...

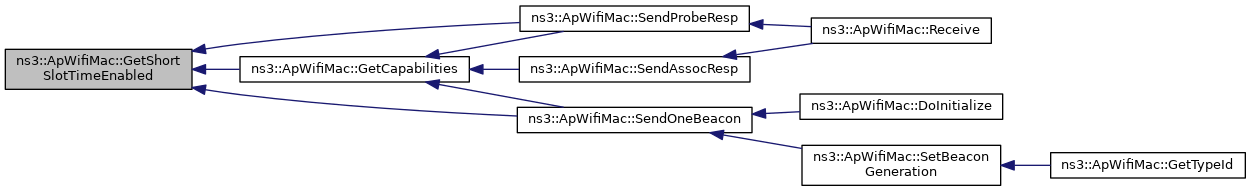

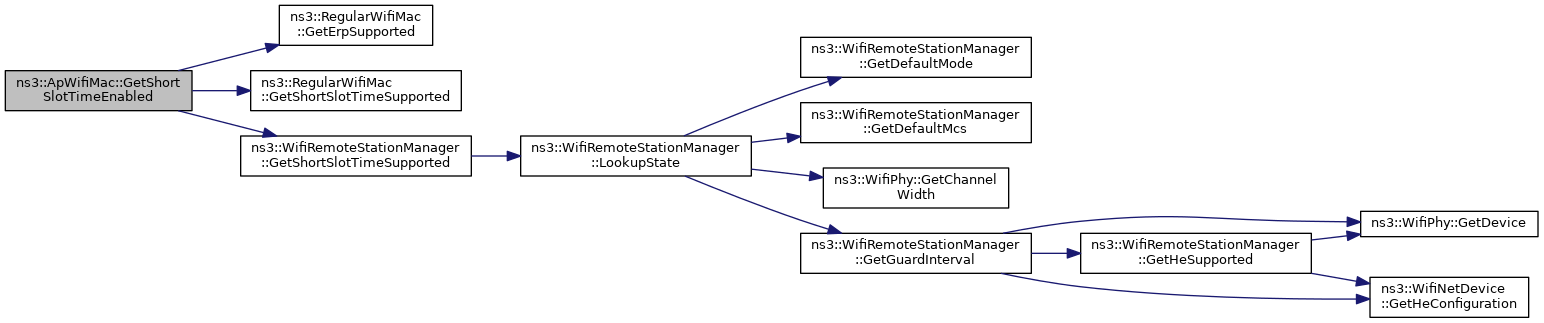

bool	GetShortSlotTimeEnabled (void) const
	Determine whether short slot time should be enabled or not in the BSS. More...

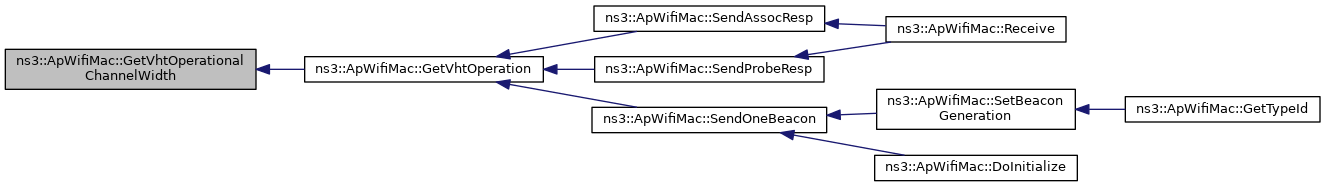

uint16_t	GetVhtOperationalChannelWidth (void) const
	Determine the VHT operational channel width (in MHz). More...

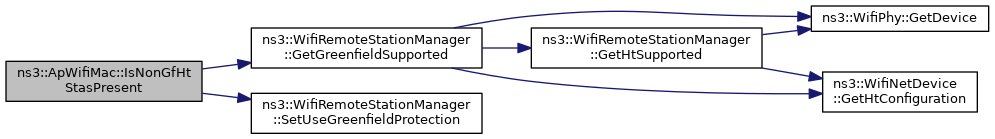

bool	IsNonGfHtStasPresent (void) const
	Determine whether non-Greenfield HT stations are present or not. More...

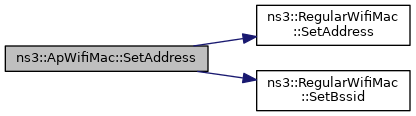

void	SetAddress (Mac48Address address)

void	SetBeaconInterval (Time interval)

void	SetCfpMaxDuration (Time duration)

void	SetLinkUpCallback (Callback< void > linkUp)

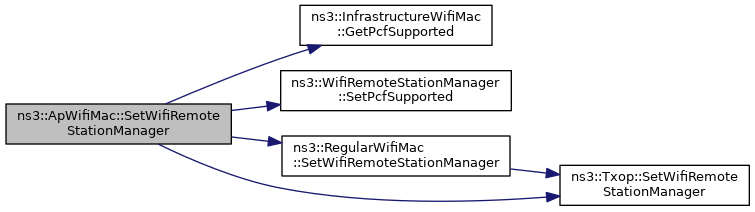

void	SetWifiRemoteStationManager (const Ptr< WifiRemoteStationManager > stationManager)

bool	SupportsSendFrom (void) const

Public Member Functions inherited from ns3::InfrastructureWifiMac
	InfrastructureWifiMac ()

virtual	~InfrastructureWifiMac ()

bool	GetPcfSupported () const
	Return whether the device supports PCF. More...

void	SetPcfSupported (bool enable)
	Enable or disable PCF support for the device. More...

void	SetQosSupported (bool enable)
	Enable or disable QoS support for the device. More...

Public Member Functions inherited from ns3::RegularWifiMac
	RegularWifiMac ()

virtual	~RegularWifiMac ()

void	ConfigureStandard (WifiStandard standard)

Mac48Address	GetAddress (void) const

Mac48Address	GetBssid (void) const

ExtendedCapabilities	GetExtendedCapabilities (void) const
	Return the extended capabilities of the device. More...

HeCapabilities	GetHeCapabilities (void) const
	Return the HE capabilities of the device. More...

HtCapabilities	GetHtCapabilities (void) const
	Return the HT capabilities of the device. More...

bool	GetShortSlotTimeSupported (void) const

Ssid	GetSsid (void) const

VhtCapabilities	GetVhtCapabilities (void) const
	Return the VHT capabilities of the device. More...

Ptr< WifiPhy >	GetWifiPhy (void) const

Ptr< WifiRemoteStationManager >	GetWifiRemoteStationManager (void) const

void	ResetWifiPhy (void)
	Remove currently attached WifiPhy device from this MAC. More...

void	SetAddress (Mac48Address address)

void	SetBssid (Mac48Address bssid)

void	SetCtsToSelfSupported (bool enable)
	Enable or disable CTS-to-self feature. More...

void	SetForwardUpCallback (ForwardUpCallback upCallback)

void	SetLinkDownCallback (Callback< void > linkDown)

void	SetLinkUpCallback (Callback< void > linkUp)

void	SetPromisc (void)
	Sets the interface in promiscuous mode. More...

void	SetShortSlotTimeSupported (bool enable)
	Enable or disable short slot time feature. More...

void	SetSsid (Ssid ssid)

virtual void	SetWifiPhy (const Ptr< WifiPhy > phy)

Public Member Functions inherited from ns3::WifiMac
Ptr< NetDevice >	GetDevice (void) const
	Return the device this PHY is associated with. More...

Ptr< HeConfiguration >	GetHeConfiguration (void) const

Ptr< HtConfiguration >	GetHtConfiguration (void) const

Ptr< VhtConfiguration >	GetVhtConfiguration (void) const

void	NotifyPromiscRx (Ptr< const Packet > packet)

void	NotifyRx (Ptr< const Packet > packet)

void	NotifyRxDrop (Ptr< const Packet > packet)

void	NotifyTx (Ptr< const Packet > packet)

void	NotifyTxDrop (Ptr< const Packet > packet)

void	SetDevice (const Ptr< NetDevice > device)
	Sets the device this PHY is associated with. More...

virtual void	SetForwardUpCallback (Callback< void, Ptr< const Packet >, Mac48Address, Mac48Address > upCallback)=0

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const

template<>
Ptr< Object >	GetObject (TypeId tid) const

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

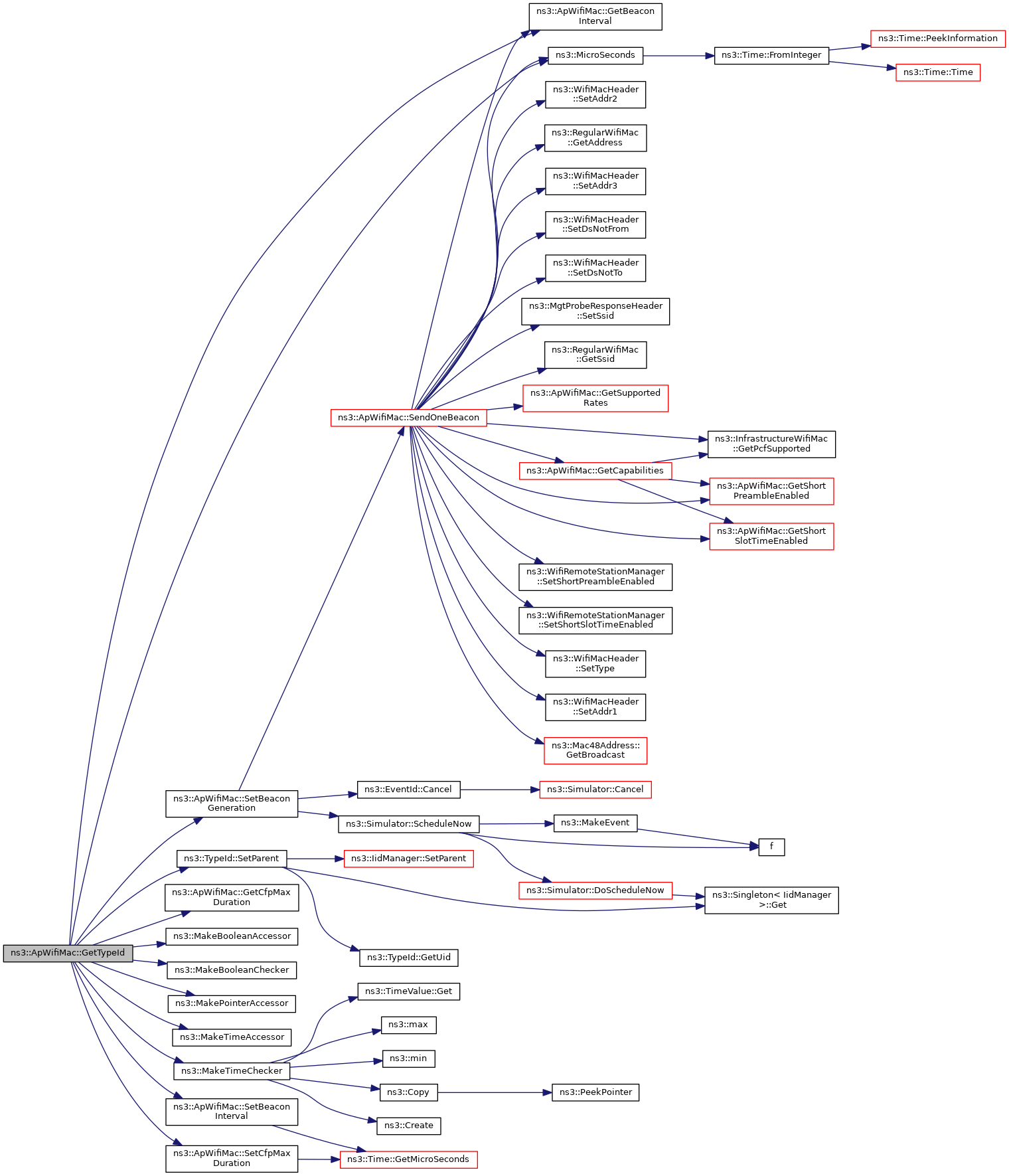

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::InfrastructureWifiMac
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::RegularWifiMac
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::WifiMac
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	DeaggregateAmsduAndForward (Ptr< WifiMacQueueItem > mpdu)
	This method is called to de-aggregate an A-MSDU and forward the constituent packets up the stack. More...

void	DoDispose (void)
	Destructor implementation. More...

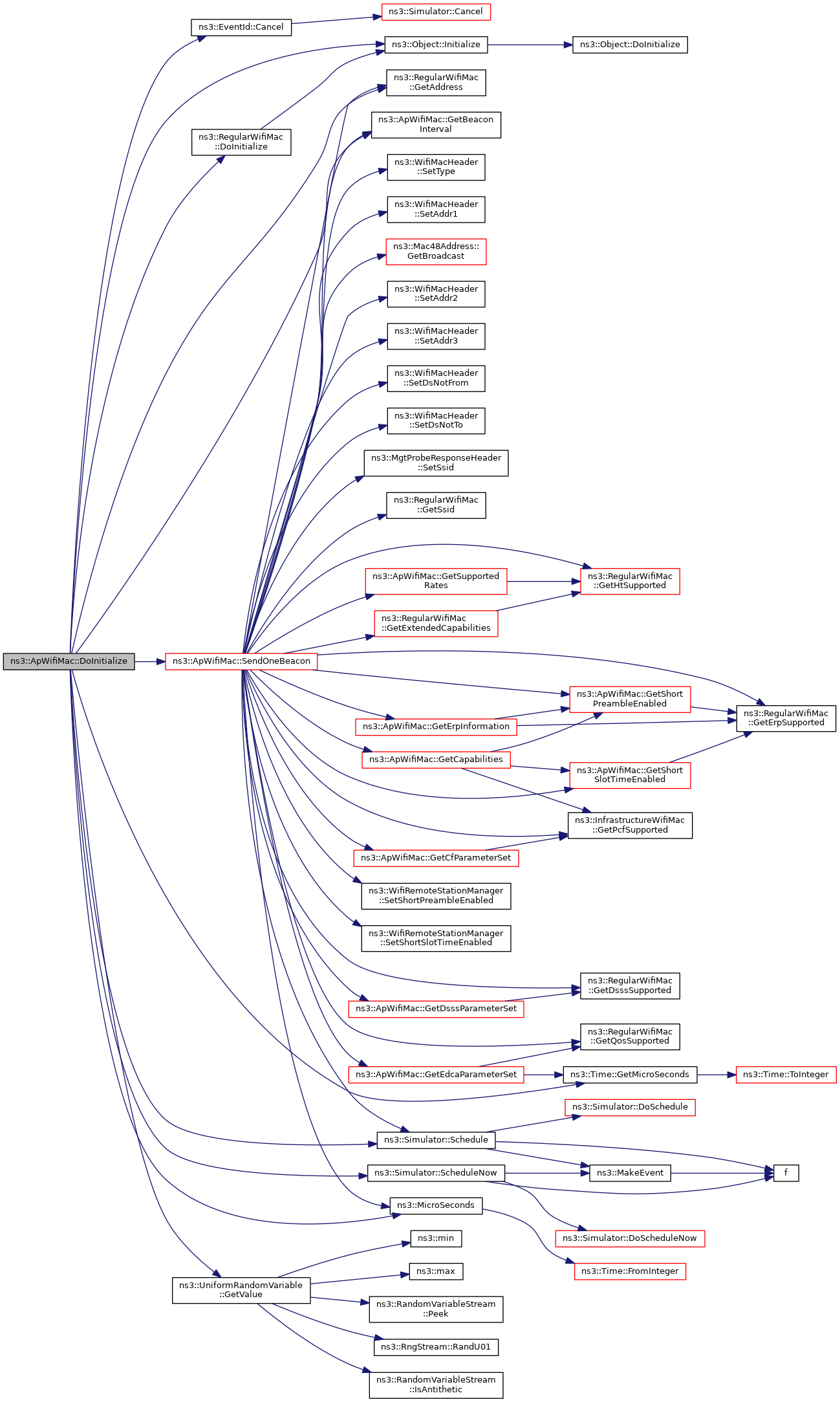

void	DoInitialize (void)
	Initialize() implementation. More...

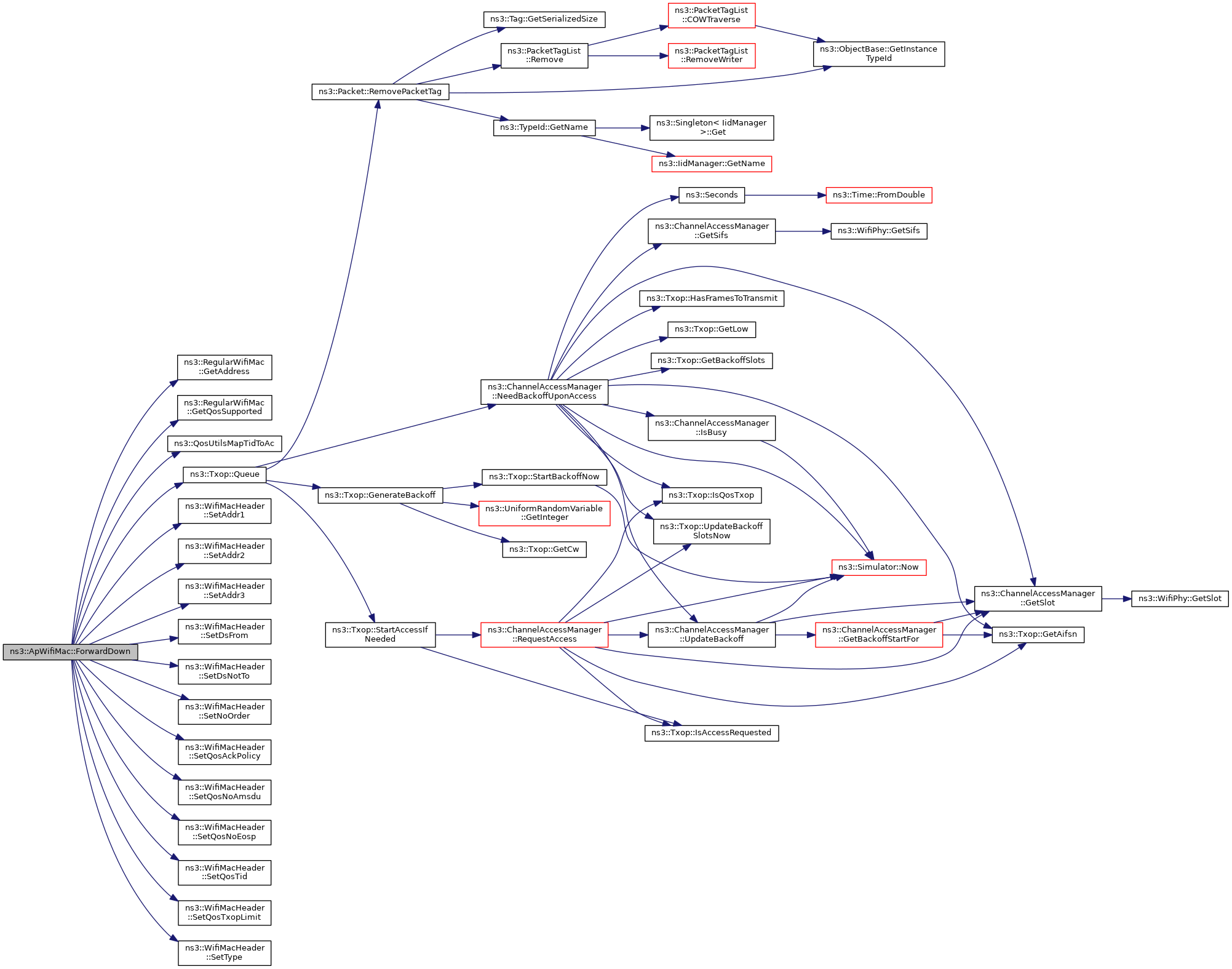

void	ForwardDown (Ptr< Packet > packet, Mac48Address from, Mac48Address to)
	Forward the packet down to DCF/EDCAF (enqueue the packet). More...

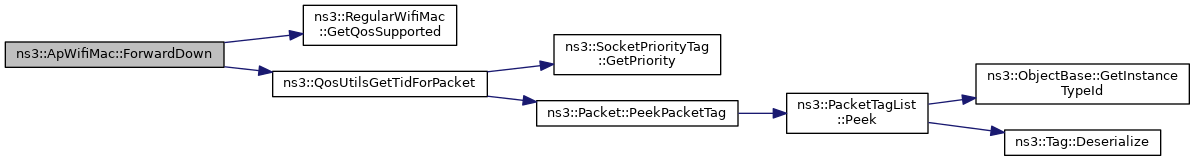

void	ForwardDown (Ptr< Packet > packet, Mac48Address from, Mac48Address to, uint8_t tid)
	Forward the packet down to DCF/EDCAF (enqueue the packet). More...

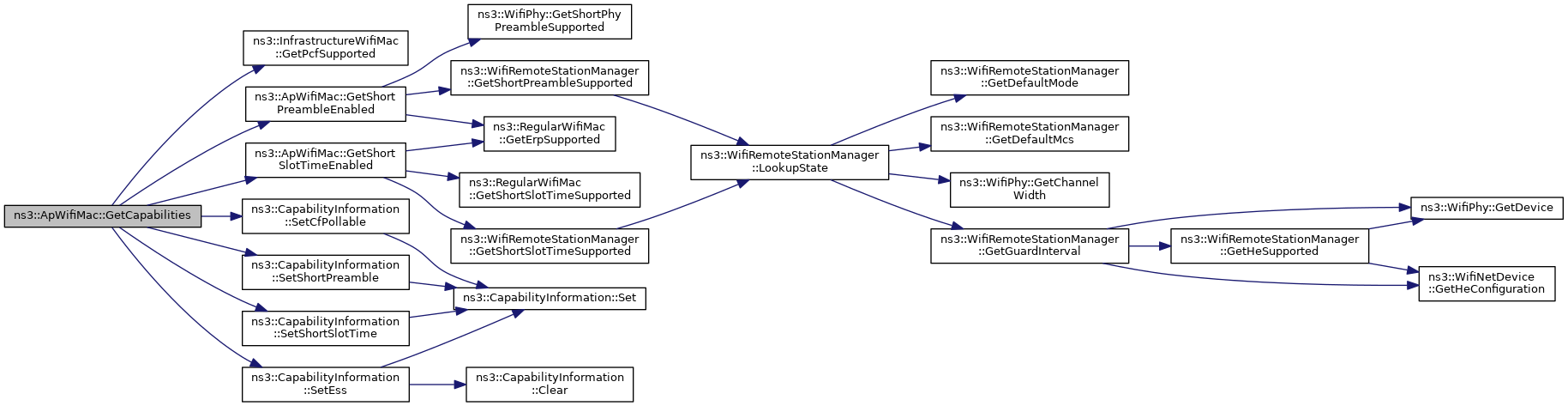

CapabilityInformation	GetCapabilities (void) const
	Return the Capability information of the current AP. More...

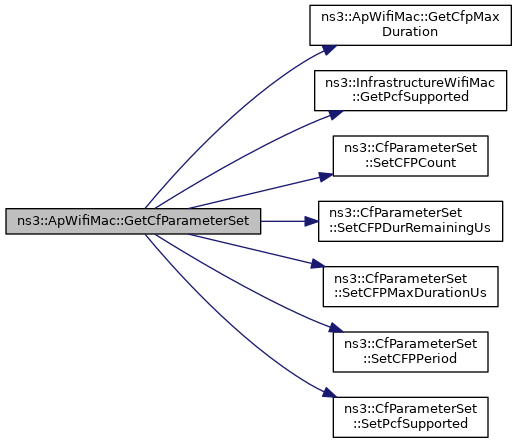

CfParameterSet	GetCfParameterSet (void) const
	Return the CF parameter set of the current AP. More...

DsssParameterSet	GetDsssParameterSet (void) const
	Return the DSSS Parameter Set that we support. More...

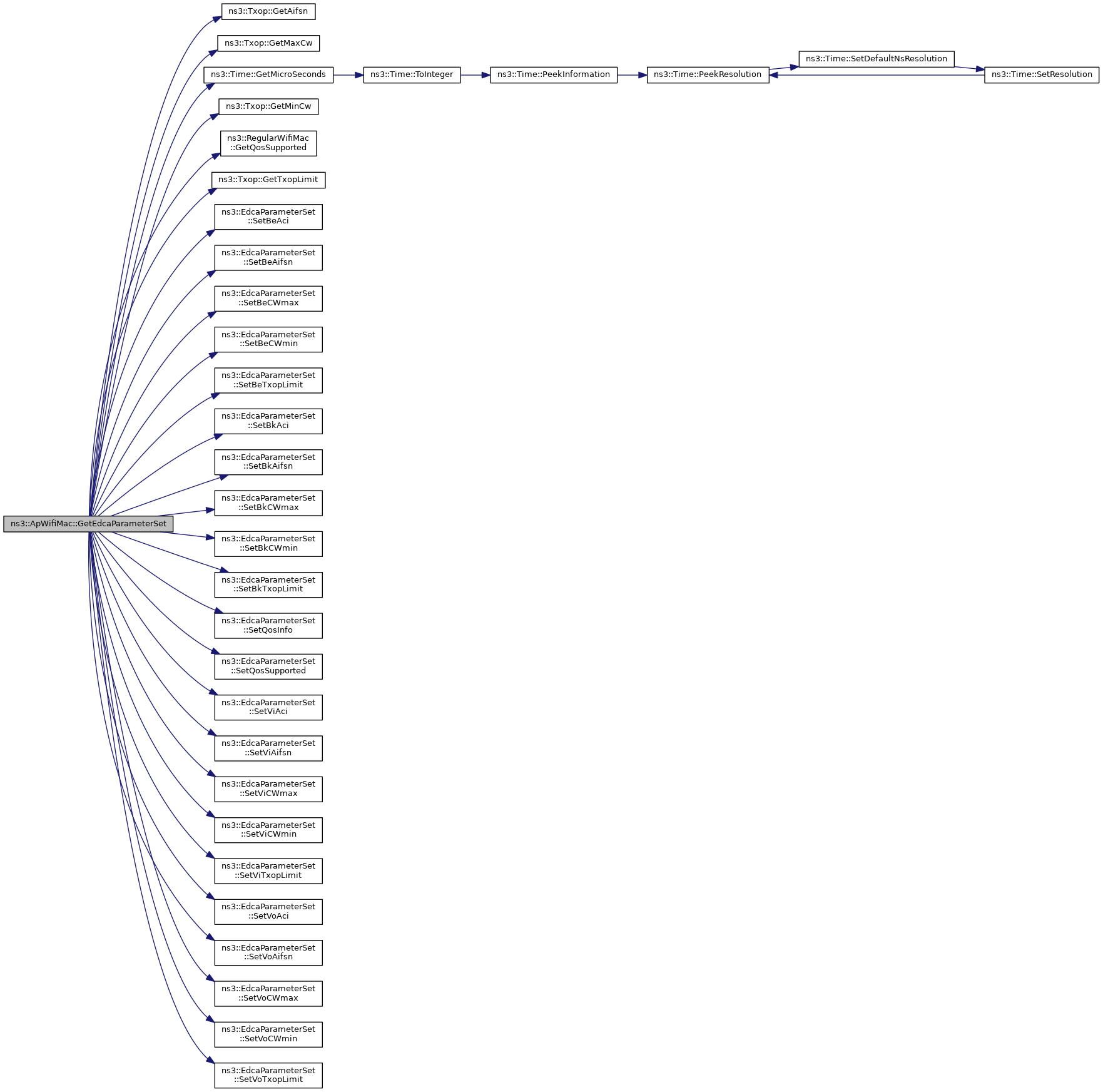

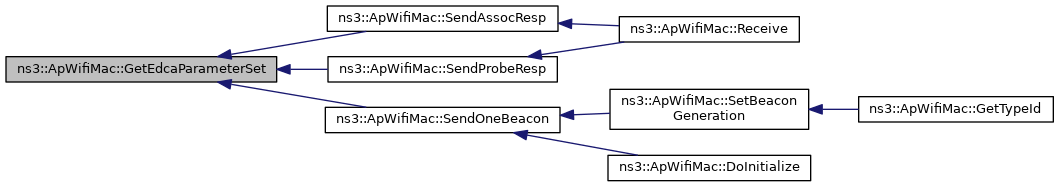

EdcaParameterSet	GetEdcaParameterSet (void) const
	Return the EDCA Parameter Set of the current AP. More...

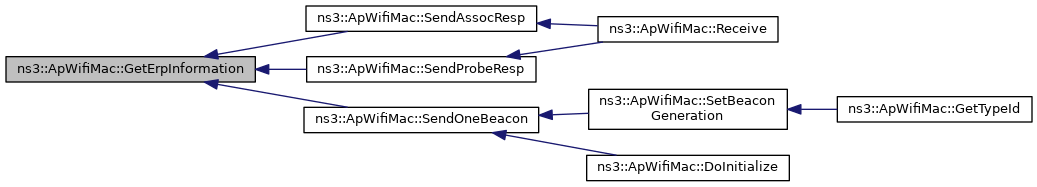

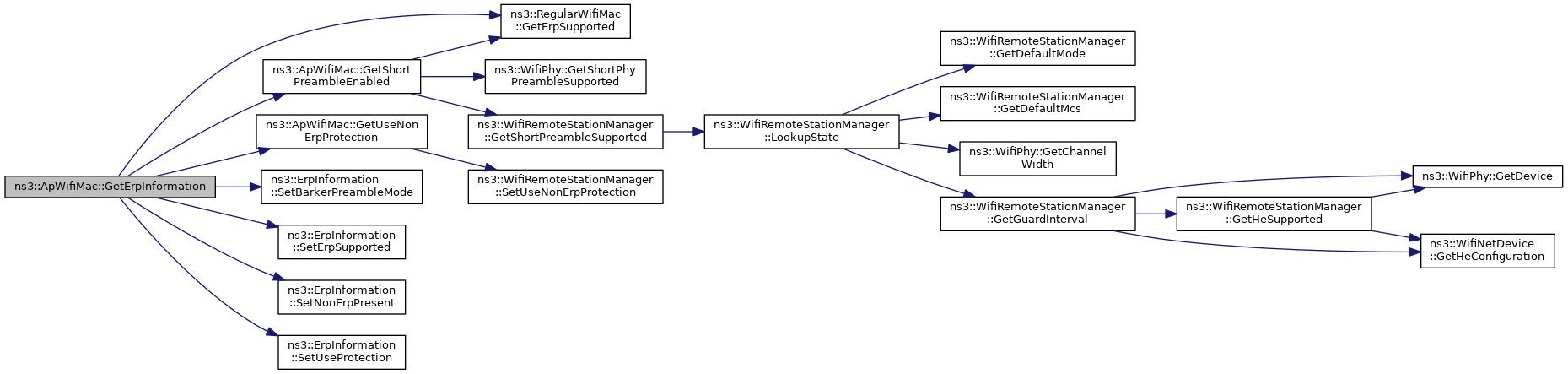

ErpInformation	GetErpInformation (void) const
	Return the ERP information of the current AP. More...

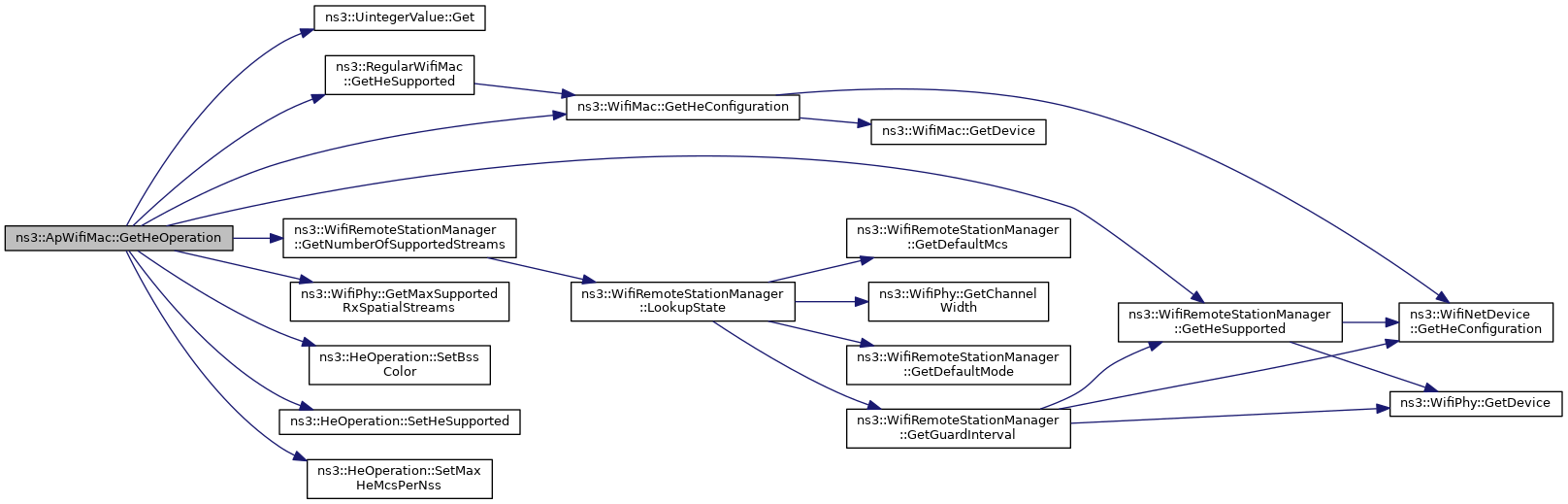

HeOperation	GetHeOperation (void) const
	Return the HE operation of the current AP. More...

HtOperation	GetHtOperation (void) const
	Return the HT operation of the current AP. More...

uint16_t	GetNextAssociationId (void)

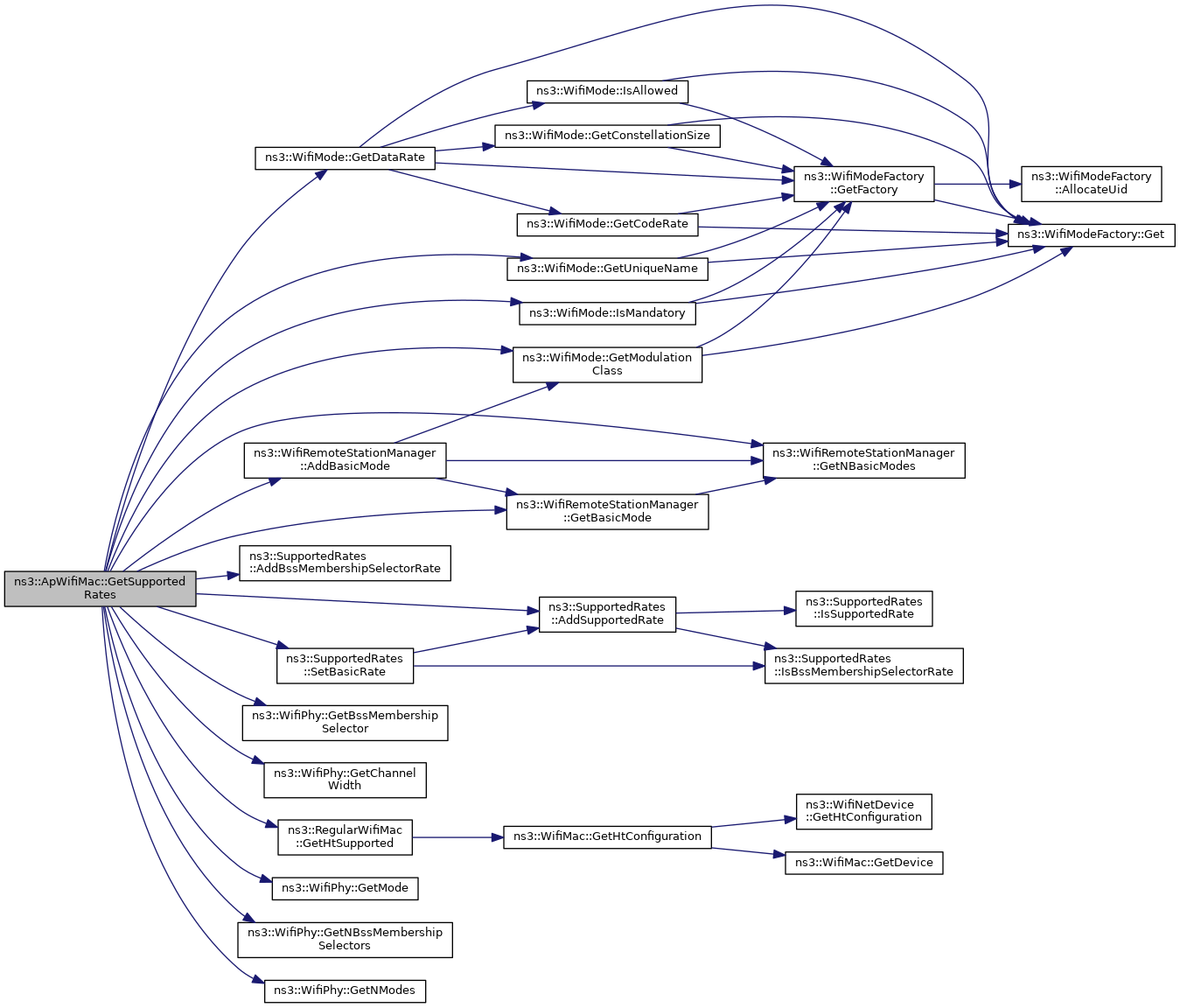

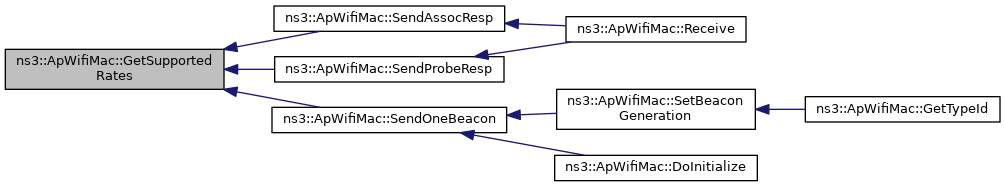

SupportedRates	GetSupportedRates (void) const
	Return an instance of SupportedRates that contains all rates that we support including HT rates. More...

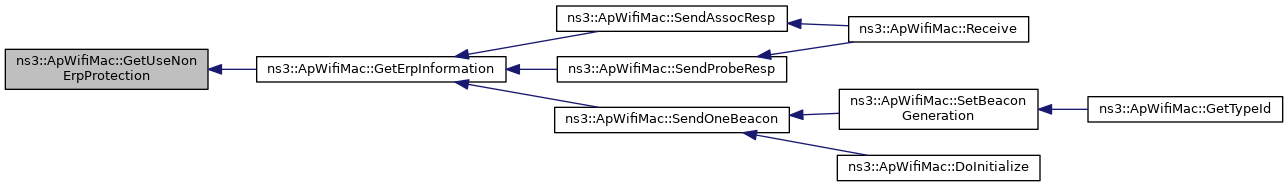

bool	GetUseNonErpProtection (void) const
	Return whether protection for non-ERP stations is used in the BSS. More...

VhtOperation	GetVhtOperation (void) const
	Return the VHT operation of the current AP. More...

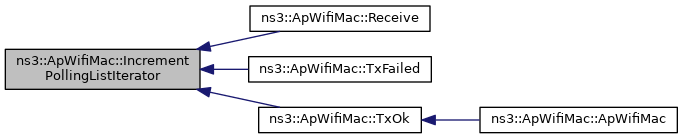

void	IncrementPollingListIterator (void)
	Increment the PCF polling list iterator to indicate that the next polling station can be polled. More...

void	Receive (Ptr< WifiMacQueueItem > mpdu)
	This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received. More...

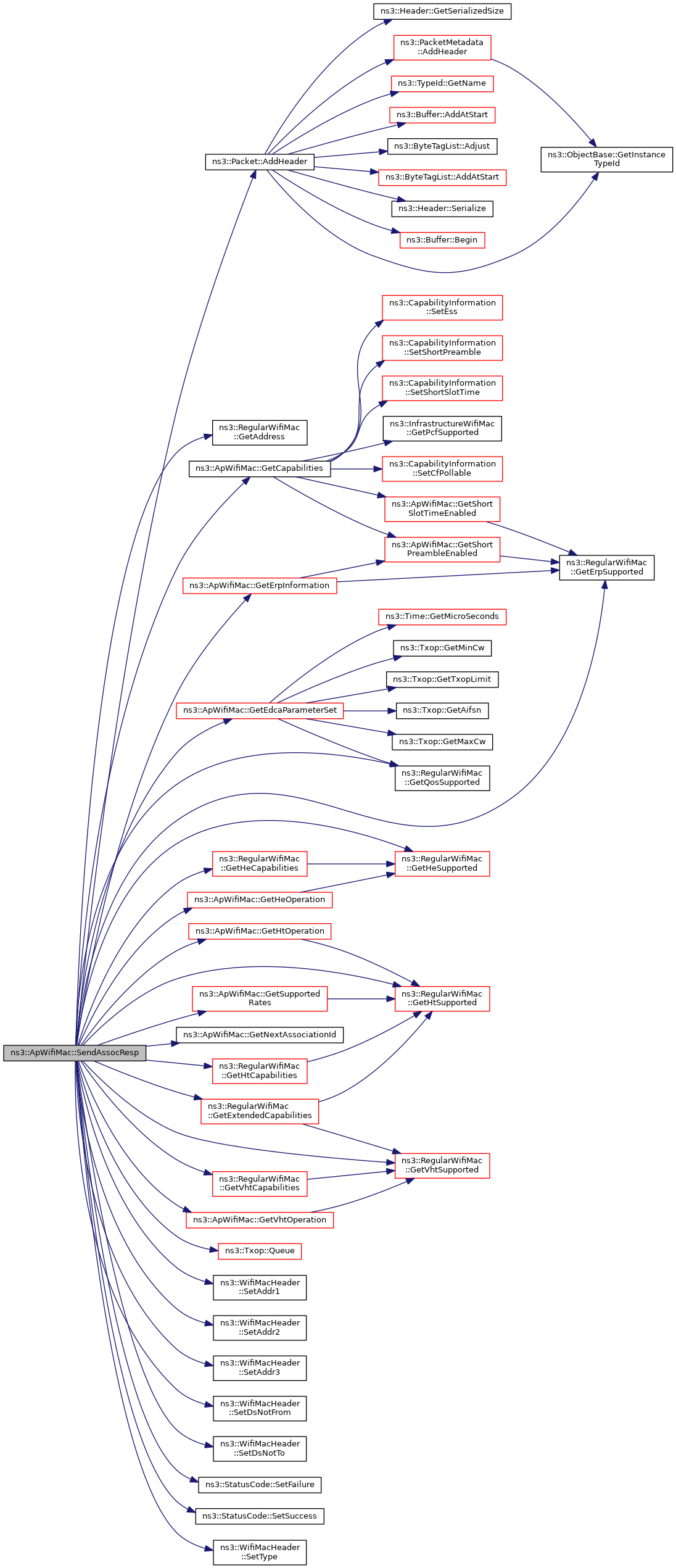

void	SendAssocResp (Mac48Address to, bool success, bool isReassoc)
	Forward an association or a reassociation response packet to the DCF. More...

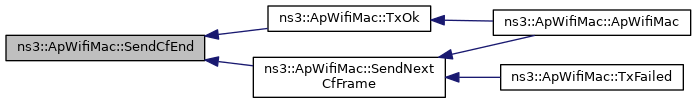

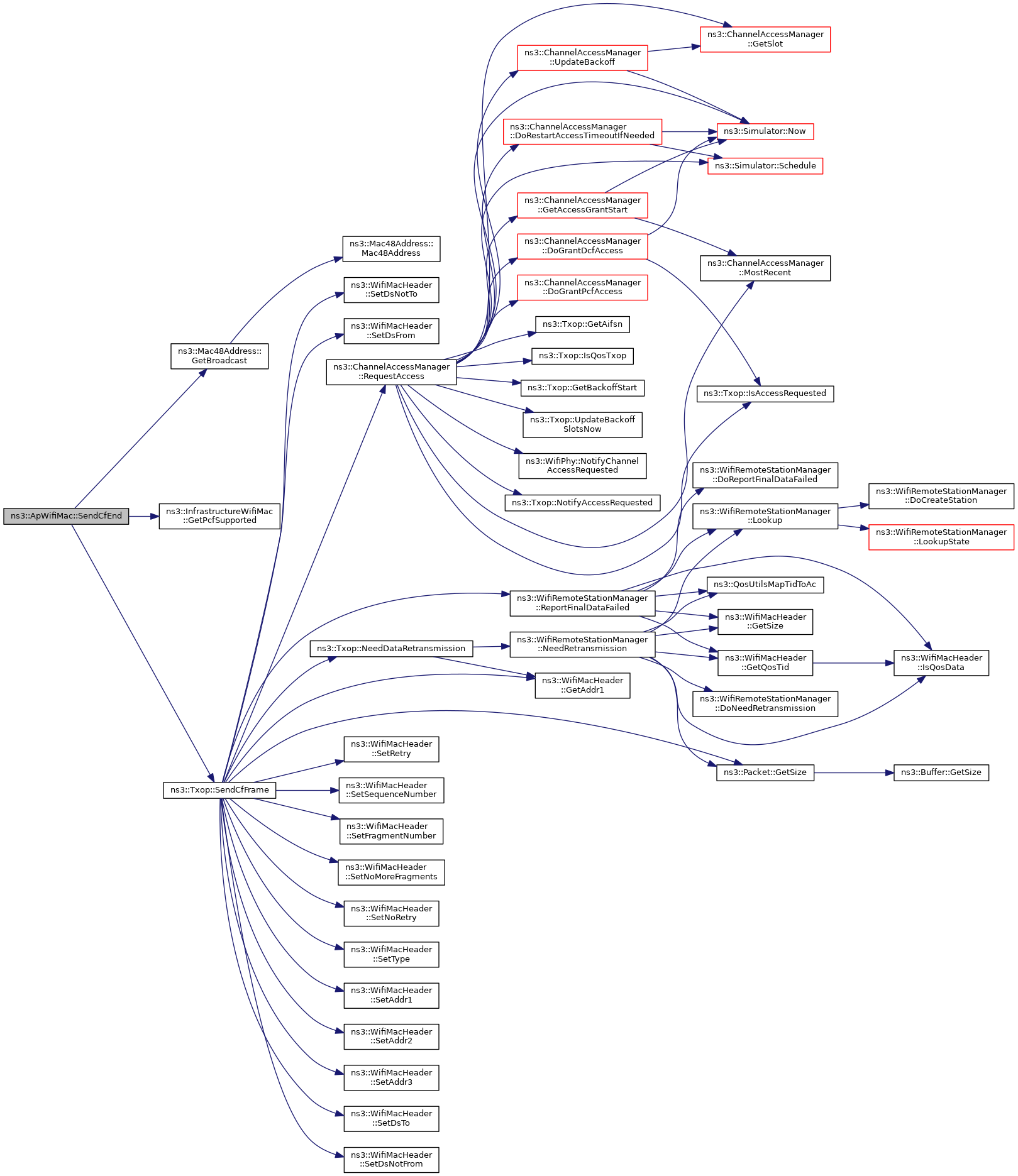

void	SendCfEnd (void)
	Send a CF-End packet. More...

void	SendCfPoll (void)
	Send a CF-Poll packet to the next polling STA. More...

void	SendNextCfFrame (void)
	Determine what is the next PCF frame and trigger its transmission. More...

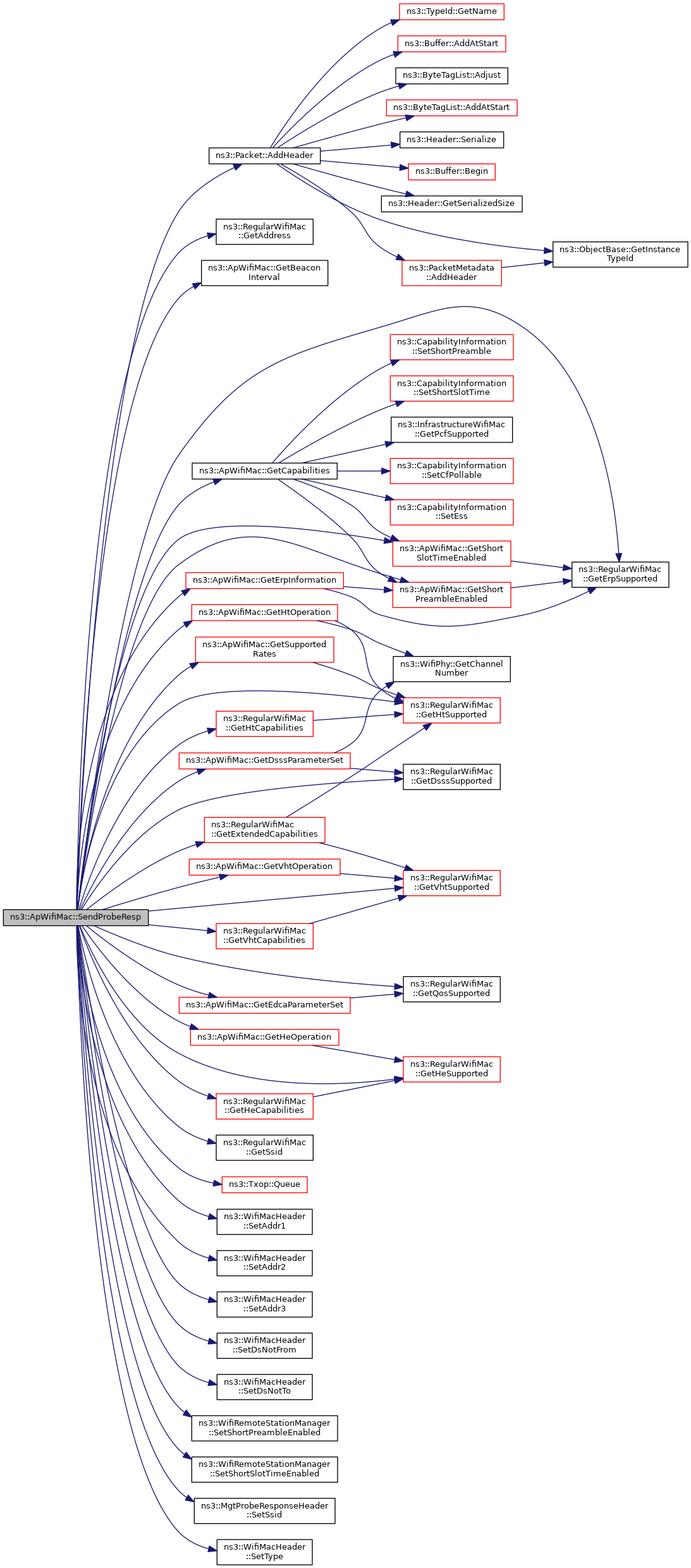

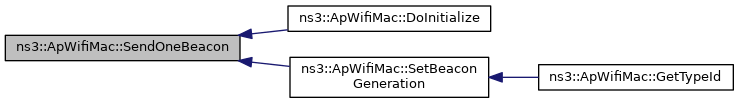

void	SendOneBeacon (void)
	Forward a beacon packet to the beacon special DCF. More...

void	SendProbeResp (Mac48Address to)
	Forward a probe response packet to the DCF. More...

void	SetBeaconGeneration (bool enable)
	Enable or disable beacon generation of the AP. More...

void	TxFailed (const WifiMacHeader &hdr)
	The packet we sent was successfully received by the receiver (i.e. More...

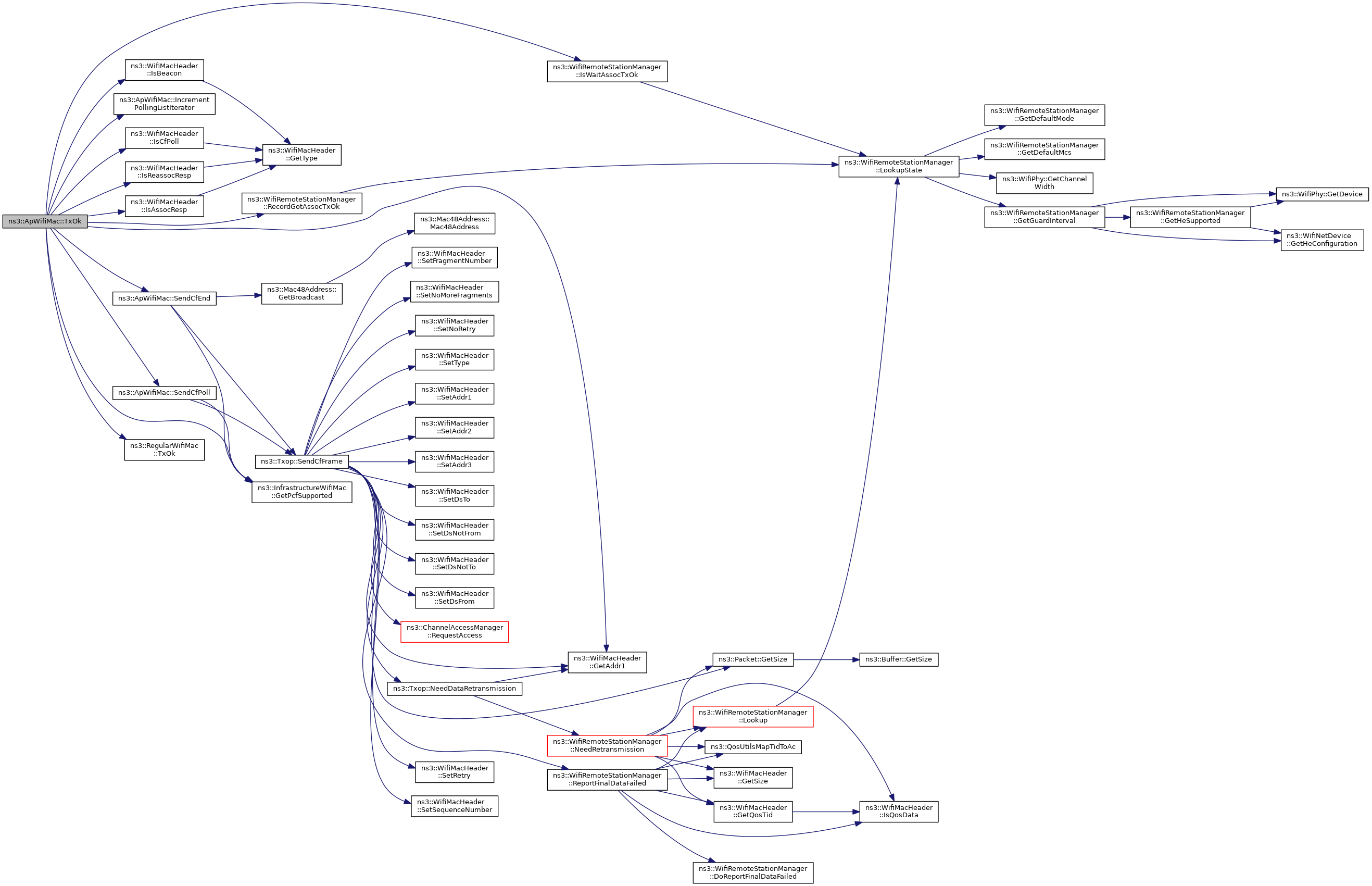

void	TxOk (const WifiMacHeader &hdr)
	The packet we sent was successfully received by the receiver (i.e. More...

Private Attributes
EventId	m_beaconEvent
	Event to generate one beacon. More...

Ptr< UniformRandomVariable >	m_beaconJitter
	UniformRandomVariable used to randomize the time of the first beacon. More...

Ptr< Txop >	m_beaconTxop
	Dedicated Txop for beacons. More...

EventId	m_cfpEvent
	Event to generate one PCF frame. More...

std::list< Mac48Address >	m_cfPollingList
	List of all PCF stations currently associated to the AP. More...

bool	m_enableBeaconGeneration
	Flag whether beacons are being generated. More...

bool	m_enableBeaconJitter
	Flag whether the first beacon should be generated at random time. More...

bool	m_enableNonErpProtection
	Flag whether protection mechanism is used or not when non-ERP STAs are present within the BSS. More...

std::list< Mac48Address >::iterator	m_itCfPollingList
	Iterator to the list of all PCF stations currently associated to the AP. More...

std::list< Mac48Address >	m_nonErpStations
	List of all non-ERP stations currently associated to the AP. More...

std::list< Mac48Address >	m_nonHtStations
	List of all non-HT stations currently associated to the AP. More...

std::map< uint16_t, Mac48Address >	m_staList
	Map of all stations currently associated to the AP with their association ID. More...

Additional Inherited Members
Public Types inherited from ns3::RegularWifiMac
typedef Callback< void, Ptr< const Packet >, Mac48Address, Mac48Address >	ForwardUpCallback
	This type defines the callback of a higher layer that a WifiMac(-derived) object invokes to pass a packet up the stack. More...

Protected Types inherited from ns3::RegularWifiMac
typedef std::map< AcIndex, Ptr< QosTxop > >	EdcaQueues
	This type defines a mapping between an Access Category index, and a pointer to the corresponding channel access function. More...

Protected Member Functions inherited from ns3::RegularWifiMac
void	ConfigureContentionWindow (uint32_t cwMin, uint32_t cwMax)

void	ForwardUp (Ptr< const Packet > packet, Mac48Address from, Mac48Address to)
	Forward the packet up to the device. More...

Ptr< QosTxop >	GetBEQueue (void) const
	Accessor for the AC_BE channel access function. More...

Ptr< QosTxop >	GetBKQueue (void) const
	Accessor for the AC_BK channel access function. More...

bool	GetDsssSupported () const
	Return whether the device supports DSSS. More...

bool	GetErpSupported () const
	Return whether the device supports ERP. More...

bool	GetHeSupported () const
	Return whether the device supports HE. More...

bool	GetHtSupported () const
	Return whether the device supports HT. More...

bool	GetQosSupported () const
	Return whether the device supports QoS. More...

Ptr< Txop >	GetTxop (void) const
	Accessor for the DCF object. More...

bool	GetVhtSupported () const
	Return whether the device supports VHT. More...

Ptr< QosTxop >	GetVIQueue (void) const
	Accessor for the AC_VI channel access function. More...

Ptr< QosTxop >	GetVOQueue (void) const
	Accessor for the AC_VO channel access function. More...

void	SendAddBaResponse (const MgtAddBaRequestHeader *reqHdr, Mac48Address originator)
	This method can be called to accept a received ADDBA Request. More...

void	SetDsssSupported (bool enable)
	Enable or disable DSSS support for the device. More...

void	SetErpSupported (bool enable)
	Enable or disable ERP support for the device. More...

void	SetTypeOfStation (TypeOfStation type)
	This method is invoked by a subclass to specify what type of station it is implementing. More...

Protected Member Functions inherited from ns3::WifiMac
void	ConfigureDcf (Ptr< Txop > dcf, uint32_t cwmin, uint32_t cwmax, bool isDsss, AcIndex ac)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::RegularWifiMac
Ptr< ChannelAccessManager >	m_channelAccessManager
	channel access manager More...

EdcaQueues	m_edca
	This is a map from Access Category index to the corresponding channel access function. More...

ForwardUpCallback	m_forwardUp
	Callback to forward packet up the stack. More...

Callback< void >	m_linkDown
	Callback when a link is down. More...

Callback< void >	m_linkUp
	Callback when a link is up. More...

Ptr< MacLow >	m_low
	MacLow (RTS, CTS, Data, Ack etc.) More...

Ptr< WifiPhy >	m_phy
	Wifi PHY. More...

Ptr< MacRxMiddle >	m_rxMiddle
	RX middle (defragmentation etc.) More...

Ssid	m_ssid
	Service Set ID (SSID) More...

Ptr< WifiRemoteStationManager >	m_stationManager
	Remote station manager (rate control, RTS/CTS/fragmentation thresholds etc.) More...

Ptr< MacTxMiddle >	m_txMiddle
	TX middle (aggregation etc.) More...

Ptr< Txop >	m_txop
	This holds a pointer to the TXOP instance for this WifiMac - used for transmission of frames to non-QoS peers. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Wi-Fi AP state machine

Handle association, dis-association and authentication, of STAs within an infrastructure BSS.

Config Paths

ns3::ApWifiMac is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/$ns3::InfrastructureWifiMac/$ns3::ApWifiMac"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/$ns3::ApWifiMac"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::InfrastructureWifiMac/$ns3::ApWifiMac"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::ApWifiMac"

Attributes

BeaconInterval: Delay between two beacons
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +1.024e+08ns
- Flags: construct write read
CfpMaxDuration: The maximum size of the CFP (used when AP supports PCF)
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +5.12e+07ns
- Flags: construct write read
BeaconJitter: A uniform random variable to cause the initial beacon starting time (after simulation time 0) to be distributed between 0 and the BeaconInterval.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::UniformRandomVariable>
- Initial value: ns3::UniformRandomVariable
- Flags: construct write read
EnableBeaconJitter: If beacons are enabled, whether to jitter the initial send event.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
BeaconGeneration: Whether or not beacons are generated.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write
EnableNonErpProtection: Whether or not protection mechanism should be used when non-ERP STAs are present within the BSS.This parameter is only used when ERP is supported by the AP.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read

Attributes defined in parent class ns3::InfrastructureWifiMac

PcfSupported: This Boolean attribute is set to enable PCF support at this STA
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read

Attributes defined in parent class ns3::RegularWifiMac

QosSupported: This Boolean attribute is set to enable 802.11e/WMM-style QoS support at this STA.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
CtsToSelfSupported: Use CTS to Self when using a rate that is not in the basic rate set.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write
VO_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VO access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: construct write read
VI_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VI access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: construct write read
BE_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BE access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: construct write read
BK_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BK access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: construct write read
VO_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VO access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 8388607 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 0
- Flags: construct write read
VI_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VI access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 8388607 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 65535
- Flags: construct write read
BE_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BE access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 8388607 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 65535
- Flags: construct write read
BK_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BK access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 8388607 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 0
- Flags: construct write read
VO_BlockAckThreshold: If number of packets in VO queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
VI_BlockAckThreshold: If number of packets in VI queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
BE_BlockAckThreshold: If number of packets in BE queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
BK_BlockAckThreshold: If number of packets in BK queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
VO_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_VO. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
VI_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_VI. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
BE_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_BE. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
BK_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_BK. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
ShortSlotTimeSupported: Whether or not short slot time is supported (only used by ERP APs or STAs).
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
Txop: The Txop object.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::Txop>
- Flags: read
VO_Txop: Queue that manages packets belonging to AC_VO access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
VI_Txop: Queue that manages packets belonging to AC_VI access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
BE_Txop: Queue that manages packets belonging to AC_BE access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
BK_Txop: Queue that manages packets belonging to AC_BK access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read

Attributes defined in parent class ns3::WifiMac

Ssid: The ssid we want to belong to.
- Set with class: SsidValue
- Underlying type: Ssid
- Initial value: default
- Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::RegularWifiMac

TxOkHeader: The header of successfully transmitted packet.
Callback signature: ns3::WifiMacHeader::TracedCallback
TxErrHeader: The header of unsuccessfully transmitted packet.
Callback signature: ns3::WifiMacHeader::TracedCallback

TraceSources defined in parent class ns3::WifiMac

MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
Callback signature: ns3::Packet::TracedCallback
MacTxDrop: A packet has been dropped in the MAC layer before transmission.
Callback signature: ns3::Packet::TracedCallback
MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace.
Callback signature: ns3::Packet::TracedCallback
MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace.
Callback signature: ns3::Packet::TracedCallback
MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.
Callback signature: ns3::Packet::TracedCallback

Size of this type is 560 bytes (on a 64-bit architecture).

Definition at line 47 of file ap-wifi-mac.h.

Constructor & Destructor Documentation

◆ ApWifiMac()

ns3::ApWifiMac::ApWifiMac ( )

Definition at line 90 of file ap-wifi-mac.cc.

References ns3::AP, m_beaconTxop, m_cfPollingList, ns3::RegularWifiMac::m_channelAccessManager, m_itCfPollingList, ns3::RegularWifiMac::m_low, ns3::RegularWifiMac::m_rxMiddle, ns3::RegularWifiMac::m_txMiddle, ns3::MakeCallback(), NS_LOG_FUNCTION, SendNextCfFrame(), ns3::Txop::SetAifsn(), ns3::Txop::SetChannelAccessManager(), ns3::Txop::SetMacLow(), ns3::Txop::SetMaxCw(), ns3::Txop::SetMinCw(), ns3::Txop::SetTxMiddle(), ns3::Txop::SetTxOkCallback(), ns3::RegularWifiMac::SetTypeOfStation(), and TxOk().

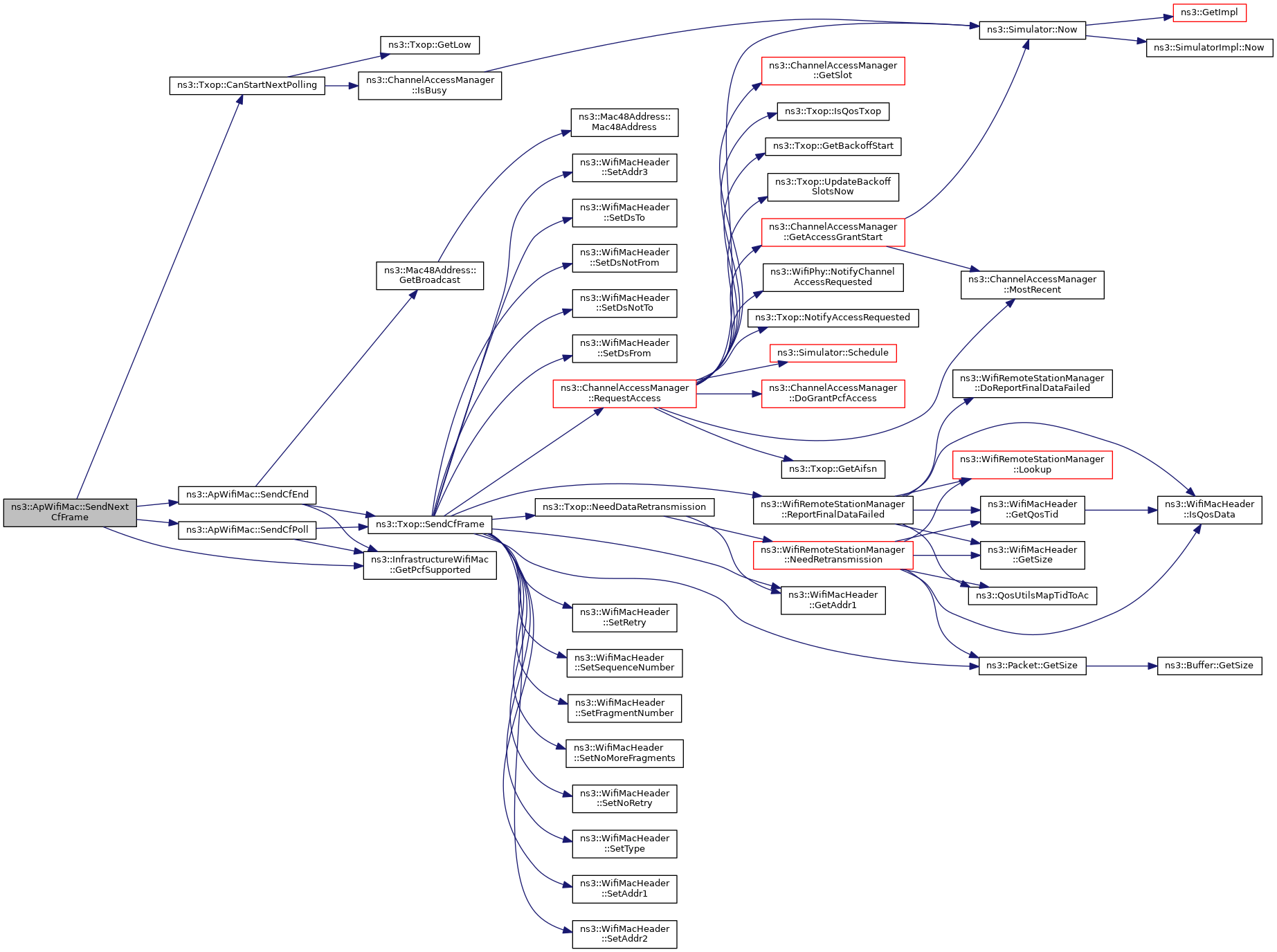

Here is the call graph for this function:

◆ ~ApWifiMac()

ns3::ApWifiMac::~ApWifiMac ( )

virtual

Definition at line 110 of file ap-wifi-mac.cc.

References m_cfPollingList, m_nonErpStations, m_nonHtStations, m_staList, and NS_LOG_FUNCTION.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::ApWifiMac::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 218 of file ap-wifi-mac.cc.

References m_beaconJitter, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

◆ DeaggregateAmsduAndForward()

void ns3::ApWifiMac::DeaggregateAmsduAndForward ( Ptr< WifiMacQueueItem > mpdu )

privatevirtual

This method is called to de-aggregate an A-MSDU and forward the constituent packets up the stack.

We override the WifiMac version here because, as an AP, we also need to think about redistributing to other associated STAs.

Parameters

mpdu	the MPDU containing the A-MSDU.

Reimplemented from ns3::RegularWifiMac.

Definition at line 1540 of file ap-wifi-mac.cc.

References ForwardDown(), ns3::RegularWifiMac::ForwardUp(), ns3::RegularWifiMac::GetAddress(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::PeekPointer().

Referenced by Receive().

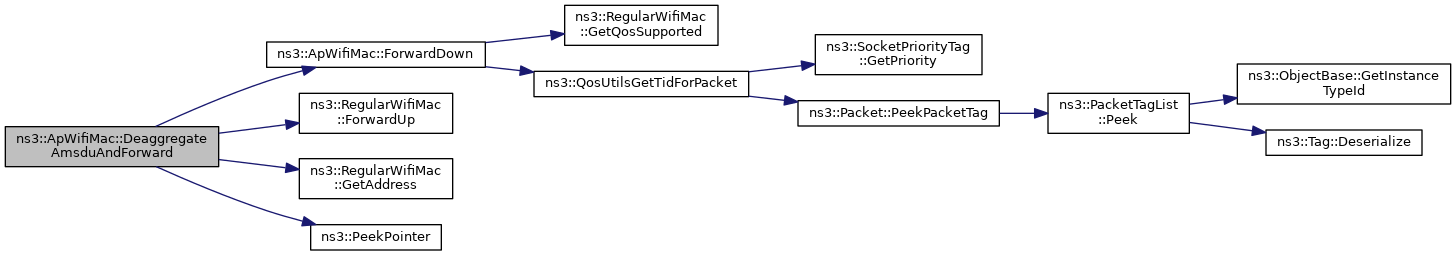

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::ApWifiMac::DoDispose ( void )

privatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::RegularWifiMac.

Definition at line 120 of file ap-wifi-mac.cc.

References ns3::EventId::Cancel(), ns3::Object::Dispose(), ns3::RegularWifiMac::DoDispose(), m_beaconEvent, m_beaconTxop, m_cfpEvent, m_enableBeaconGeneration, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ DoInitialize()

void ns3::ApWifiMac::DoInitialize ( void )

privatevirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::RegularWifiMac.

Definition at line 1561 of file ap-wifi-mac.cc.

References ns3::EventId::Cancel(), ns3::RegularWifiMac::DoInitialize(), ns3::RegularWifiMac::GetAddress(), GetBeaconInterval(), ns3::Time::GetMicroSeconds(), ns3::UniformRandomVariable::GetValue(), ns3::Object::Initialize(), m_beaconEvent, m_beaconJitter, m_beaconTxop, m_enableBeaconGeneration, m_enableBeaconJitter, ns3::MicroSeconds(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), ns3::Simulator::ScheduleNow(), and SendOneBeacon().

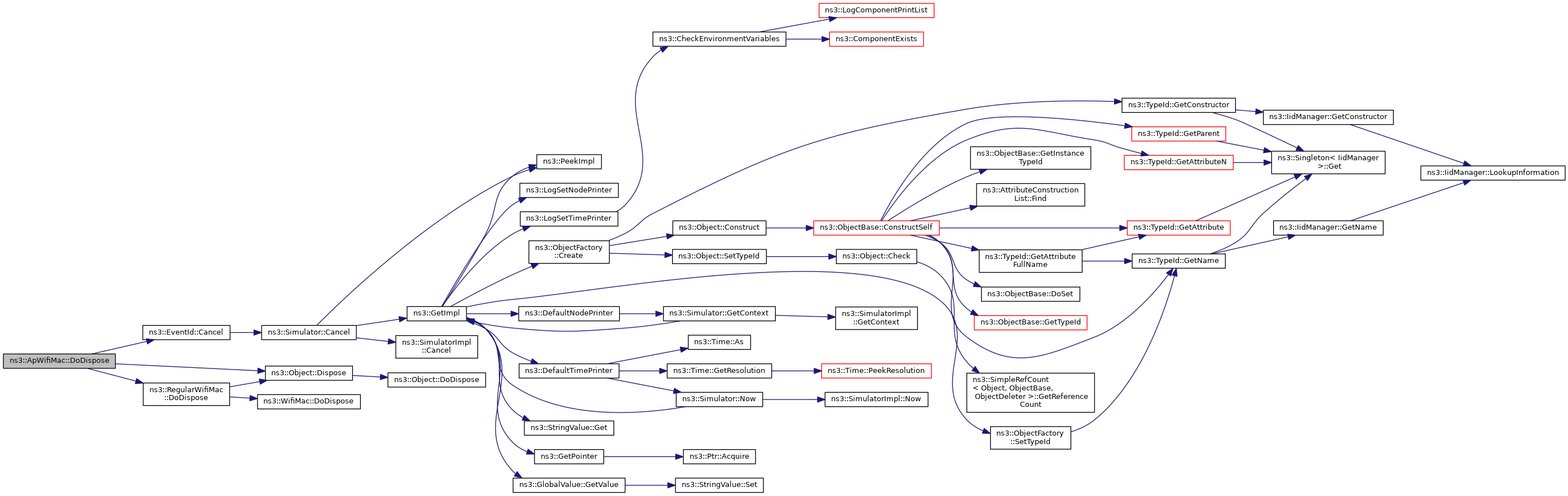

Here is the call graph for this function:

◆ Enqueue() [1/2]

void ns3::ApWifiMac::Enqueue	(	Ptr< Packet >	packet,
		Mac48Address	to
	)

virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.

The packet should be enqueued in a TX queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC.

Implements ns3::InfrastructureWifiMac.

Definition at line 387 of file ap-wifi-mac.cc.

References ns3::RegularWifiMac::m_low, and NS_LOG_FUNCTION.

◆ Enqueue() [2/2]

void ns3::ApWifiMac::Enqueue	(	Ptr< Packet >	packet,
		Mac48Address	to,
		Mac48Address	from
	)

virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.
from	the address from which the packet should be sent.

The packet should be enqueued in a TX queue, and should be dequeued as soon as the DCF function determines that access it granted to this MAC. The extra parameter "from" allows this device to operate in a bridged mode, forwarding received frames without altering the source address.

Reimplemented from ns3::RegularWifiMac.

Definition at line 373 of file ap-wifi-mac.cc.

References ForwardDown(), ns3::WifiRemoteStationManager::IsAssociated(), ns3::Mac48Address::IsGroup(), ns3::RegularWifiMac::m_stationManager, ns3::WifiMac::NotifyTxDrop(), and NS_LOG_FUNCTION.

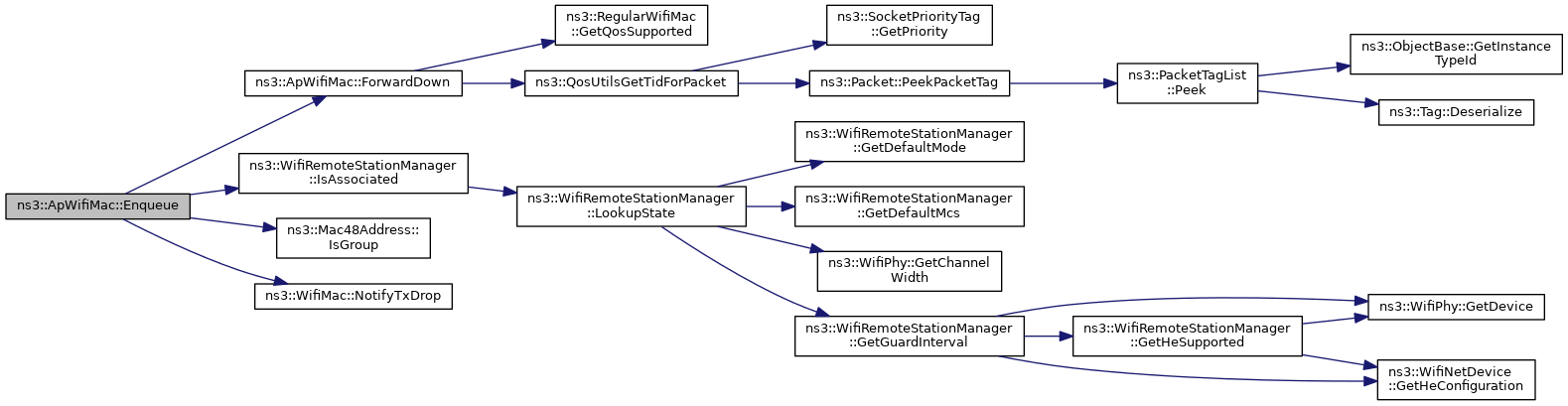

Here is the call graph for this function:

◆ ForwardDown() [1/2]

void ns3::ApWifiMac::ForwardDown	(	Ptr< Packet >	packet,
		Mac48Address	from,
		Mac48Address	to
	)

private

Forward the packet down to DCF/EDCAF (enqueue the packet).

This method is a wrapper for ForwardDown with traffic id.

Parameters

packet	the packet we are forwarding to DCF/EDCAF
from	the address to be used for Address 3 field in the header
to	the address to be used for Address 1 field in the header

Definition at line 297 of file ap-wifi-mac.cc.

References ns3::RegularWifiMac::GetQosSupported(), NS_LOG_FUNCTION, and ns3::QosUtilsGetTidForPacket().

Referenced by DeaggregateAmsduAndForward(), Enqueue(), and Receive().

Here is the call graph for this function:

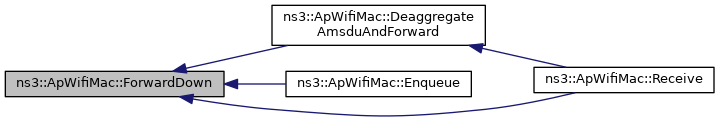

Here is the caller graph for this function:

◆ ForwardDown() [2/2]

void ns3::ApWifiMac::ForwardDown	(	Ptr< Packet >	packet,
		Mac48Address	from,
		Mac48Address	to,
		uint8_t	tid
	)

private

Forward the packet down to DCF/EDCAF (enqueue the packet).

Parameters

packet	the packet we are forwarding to DCF/EDCAF
from	the address to be used for Address 3 field in the header
to	the address to be used for Address 1 field in the header
tid	the traffic id for the packet

Definition at line 323 of file ap-wifi-mac.cc.

References ns3::RegularWifiMac::GetAddress(), ns3::RegularWifiMac::GetQosSupported(), ns3::RegularWifiMac::m_edca, ns3::RegularWifiMac::m_txop, ns3::WifiMacHeader::NORMAL_ACK, NS_ASSERT, NS_LOG_FUNCTION, ns3::QosUtilsMapTidToAc(), ns3::Txop::Queue(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetDsFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiMacHeader::SetNoOrder(), ns3::WifiMacHeader::SetQosAckPolicy(), ns3::WifiMacHeader::SetQosNoAmsdu(), ns3::WifiMacHeader::SetQosNoEosp(), ns3::WifiMacHeader::SetQosTid(), ns3::WifiMacHeader::SetQosTxopLimit(), ns3::WifiMacHeader::SetType(), ns3::WIFI_MAC_DATA, and ns3::WIFI_MAC_QOSDATA.

Here is the call graph for this function:

◆ GetBeaconInterval()

Time ns3::ApWifiMac::GetBeaconInterval ( void ) const

Returns: the interval between two beacon transmissions.

Definition at line 157 of file ap-wifi-mac.cc.

References ns3::RegularWifiMac::m_low, and NS_LOG_FUNCTION.

Referenced by DoInitialize(), GetTypeId(), SendOneBeacon(), and SendProbeResp().

Here is the caller graph for this function:

◆ GetCapabilities()

CapabilityInformation ns3::ApWifiMac::GetCapabilities ( void ) const

private

Return the Capability information of the current AP.

Returns: the Capability information that we support

Definition at line 461 of file ap-wifi-mac.cc.

References ns3::InfrastructureWifiMac::GetPcfSupported(), GetShortPreambleEnabled(), GetShortSlotTimeEnabled(), NS_LOG_FUNCTION, ns3::CapabilityInformation::SetCfPollable(), ns3::CapabilityInformation::SetEss(), ns3::CapabilityInformation::SetShortPreamble(), and ns3::CapabilityInformation::SetShortSlotTime().

Referenced by SendAssocResp(), SendOneBeacon(), and SendProbeResp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCfParameterSet()

CfParameterSet ns3::ApWifiMac::GetCfParameterSet ( void ) const

private

Return the CF parameter set of the current AP.

Returns: the CF parameter set that we support

Definition at line 546 of file ap-wifi-mac.cc.

References GetCfpMaxDuration(), ns3::InfrastructureWifiMac::GetPcfSupported(), m_cfPollingList, ns3::CfParameterSet::SetCFPCount(), ns3::CfParameterSet::SetCFPDurRemainingUs(), ns3::CfParameterSet::SetCFPMaxDurationUs(), ns3::CfParameterSet::SetCFPPeriod(), and ns3::CfParameterSet::SetPcfSupported().

Referenced by SendOneBeacon().

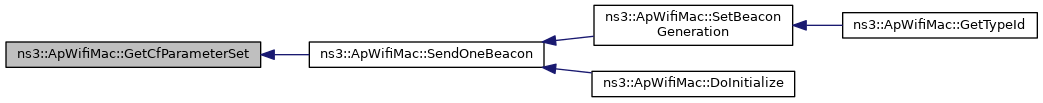

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCfpMaxDuration()

Time ns3::ApWifiMac::GetCfpMaxDuration ( void ) const

Returns: the maximum duration for the CF period.

Definition at line 164 of file ap-wifi-mac.cc.

References ns3::RegularWifiMac::m_low, and NS_LOG_FUNCTION.

Referenced by GetCfParameterSet(), and GetTypeId().

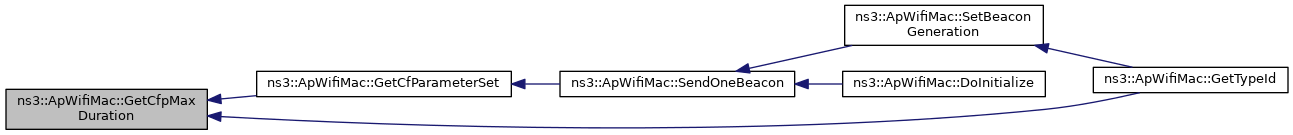

Here is the caller graph for this function:

◆ GetDsssParameterSet()

DsssParameterSet ns3::ApWifiMac::GetDsssParameterSet ( void ) const

private

Return the DSSS Parameter Set that we support.

Returns: the DSSS Parameter Set that we support

Definition at line 448 of file ap-wifi-mac.cc.

References ns3::WifiPhy::GetChannelNumber(), ns3::RegularWifiMac::GetDsssSupported(), ns3::RegularWifiMac::m_phy, NS_LOG_FUNCTION, ns3::DsssParameterSet::SetCurrentChannel(), and ns3::DsssParameterSet::SetDsssSupported().

Referenced by SendOneBeacon(), and SendProbeResp().

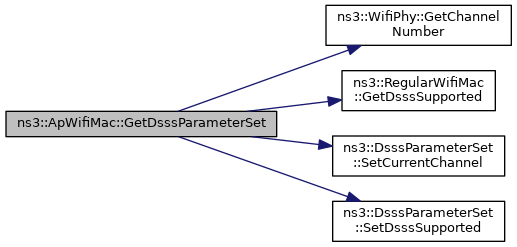

Here is the call graph for this function:

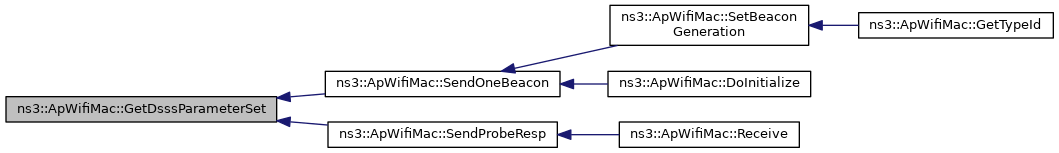

Here is the caller graph for this function:

◆ GetEdcaParameterSet()

EdcaParameterSet ns3::ApWifiMac::GetEdcaParameterSet ( void ) const

private

Return the EDCA Parameter Set of the current AP.

Returns: the EDCA Parameter Set that we support

Definition at line 498 of file ap-wifi-mac.cc.

Referenced by SendAssocResp(), SendOneBeacon(), and SendProbeResp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetErpInformation()

ErpInformation ns3::ApWifiMac::GetErpInformation ( void ) const

private

Return the ERP information of the current AP.

Returns: the ERP information that we support

Definition at line 476 of file ap-wifi-mac.cc.

References ns3::RegularWifiMac::GetErpSupported(), GetShortPreambleEnabled(), GetUseNonErpProtection(), m_nonErpStations, NS_LOG_FUNCTION, ns3::ErpInformation::SetBarkerPreambleMode(), ns3::ErpInformation::SetErpSupported(), ns3::ErpInformation::SetNonErpPresent(), and ns3::ErpInformation::SetUseProtection().

Referenced by SendAssocResp(), SendOneBeacon(), and SendProbeResp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetHeOperation()

HeOperation ns3::ApWifiMac::GetHeOperation ( void ) const

private

Return the HE operation of the current AP.

Returns: the HE operation that we support

Definition at line 697 of file ap-wifi-mac.cc.

References ns3::UintegerValue::Get(), ns3::WifiMac::GetHeConfiguration(), ns3::WifiRemoteStationManager::GetHeSupported(), ns3::RegularWifiMac::GetHeSupported(), ns3::WifiPhy::GetMaxSupportedRxSpatialStreams(), ns3::WifiRemoteStationManager::GetNumberOfSupportedStreams(), ns3::RegularWifiMac::m_phy, m_staList, ns3::RegularWifiMac::m_stationManager, NS_LOG_FUNCTION, ns3::HeOperation::SetBssColor(), ns3::HeOperation::SetHeSupported(), and ns3::HeOperation::SetMaxHeMcsPerNss().

Referenced by SendAssocResp(), SendOneBeacon(), and SendProbeResp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetHtOperation()

HtOperation ns3::ApWifiMac::GetHtOperation ( void ) const

private

Return the HT operation of the current AP.

Returns: the HT operation that we support

Definition at line 561 of file ap-wifi-mac.cc.

Referenced by SendAssocResp(), SendOneBeacon(), and SendProbeResp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetNextAssociationId()

uint16_t ns3::ApWifiMac::GetNextAssociationId ( void )

private

Returns: the next Association ID to be allocated by the AP

Definition at line 1592 of file ap-wifi-mac.cc.

References m_staList, and NS_FATAL_ERROR.

Referenced by SendAssocResp().

Here is the caller graph for this function:

◆ GetShortPreambleEnabled()

bool ns3::ApWifiMac::GetShortPreambleEnabled ( void ) const

Determine whether short preamble should be enabled or not in the BSS.

Typically, true is returned only when the AP and all associated stations support short PHY preamble.

Returns: whether short preamble should be enabled or not in the BSS.

Definition at line 247 of file ap-wifi-mac.cc.

References ns3::RegularWifiMac::GetErpSupported(), ns3::WifiPhy::GetShortPhyPreambleSupported(), ns3::WifiRemoteStationManager::GetShortPreambleSupported(), m_nonErpStations, ns3::RegularWifiMac::m_phy, and ns3::RegularWifiMac::m_stationManager.

Referenced by GetCapabilities(), GetErpInformation(), SendOneBeacon(), and SendProbeResp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetShortSlotTimeEnabled()

bool ns3::ApWifiMac::GetShortSlotTimeEnabled ( void ) const

Determine whether short slot time should be enabled or not in the BSS.

Typically, true is returned only when there is no non-ERP stations associated to the AP, and that short slot time is supported by the AP and by all other ERP stations that are associated to the AP. Otherwise, false is returned.

Returns: whether short slot time should be enabled or not in the BSS.

Definition at line 226 of file ap-wifi-mac.cc.

References ns3::RegularWifiMac::GetErpSupported(), ns3::RegularWifiMac::GetShortSlotTimeSupported(), ns3::WifiRemoteStationManager::GetShortSlotTimeSupported(), m_nonErpStations, m_staList, and ns3::RegularWifiMac::m_stationManager.

Referenced by GetCapabilities(), SendOneBeacon(), and SendProbeResp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSupportedRates()

SupportedRates ns3::ApWifiMac::GetSupportedRates ( void ) const

private

Return an instance of SupportedRates that contains all rates that we support including HT rates.

Returns: SupportedRates all rates that we support

Definition at line 404 of file ap-wifi-mac.cc.

References ns3::WifiRemoteStationManager::AddBasicMode(), ns3::SupportedRates::AddBssMembershipSelectorRate(), ns3::SupportedRates::AddSupportedRate(), ns3::WifiRemoteStationManager::GetBasicMode(), ns3::WifiPhy::GetBssMembershipSelector(), ns3::WifiPhy::GetChannelWidth(), ns3::WifiMode::GetDataRate(), ns3::RegularWifiMac::GetHtSupported(), ns3::WifiPhy::GetMode(), ns3::WifiMode::GetModulationClass(), ns3::WifiRemoteStationManager::GetNBasicModes(), ns3::WifiPhy::GetNBssMembershipSelectors(), ns3::WifiPhy::GetNModes(), ns3::WifiMode::GetUniqueName(), ns3::WifiMode::IsMandatory(), ns3::RegularWifiMac::m_phy, ns3::RegularWifiMac::m_stationManager, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::SupportedRates::SetBasicRate(), and ns3::WIFI_MOD_CLASS_HR_DSSS.

Referenced by SendAssocResp(), SendOneBeacon(), and SendProbeResp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::ApWifiMac::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 48 of file ap-wifi-mac.cc.

References GetBeaconInterval(), GetCfpMaxDuration(), m_beaconJitter, m_enableBeaconJitter, m_enableNonErpProtection, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakePointerAccessor(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MicroSeconds(), SetBeaconGeneration(), SetBeaconInterval(), SetCfpMaxDuration(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ GetUseNonErpProtection()

bool ns3::ApWifiMac::GetUseNonErpProtection ( void ) const

private

Return whether protection for non-ERP stations is used in the BSS.

Returns: true if protection for non-ERP stations is used in the BSS, false otherwise

Definition at line 1584 of file ap-wifi-mac.cc.

References m_enableNonErpProtection, m_nonErpStations, ns3::RegularWifiMac::m_stationManager, and ns3::WifiRemoteStationManager::SetUseNonErpProtection().

Referenced by GetErpInformation().

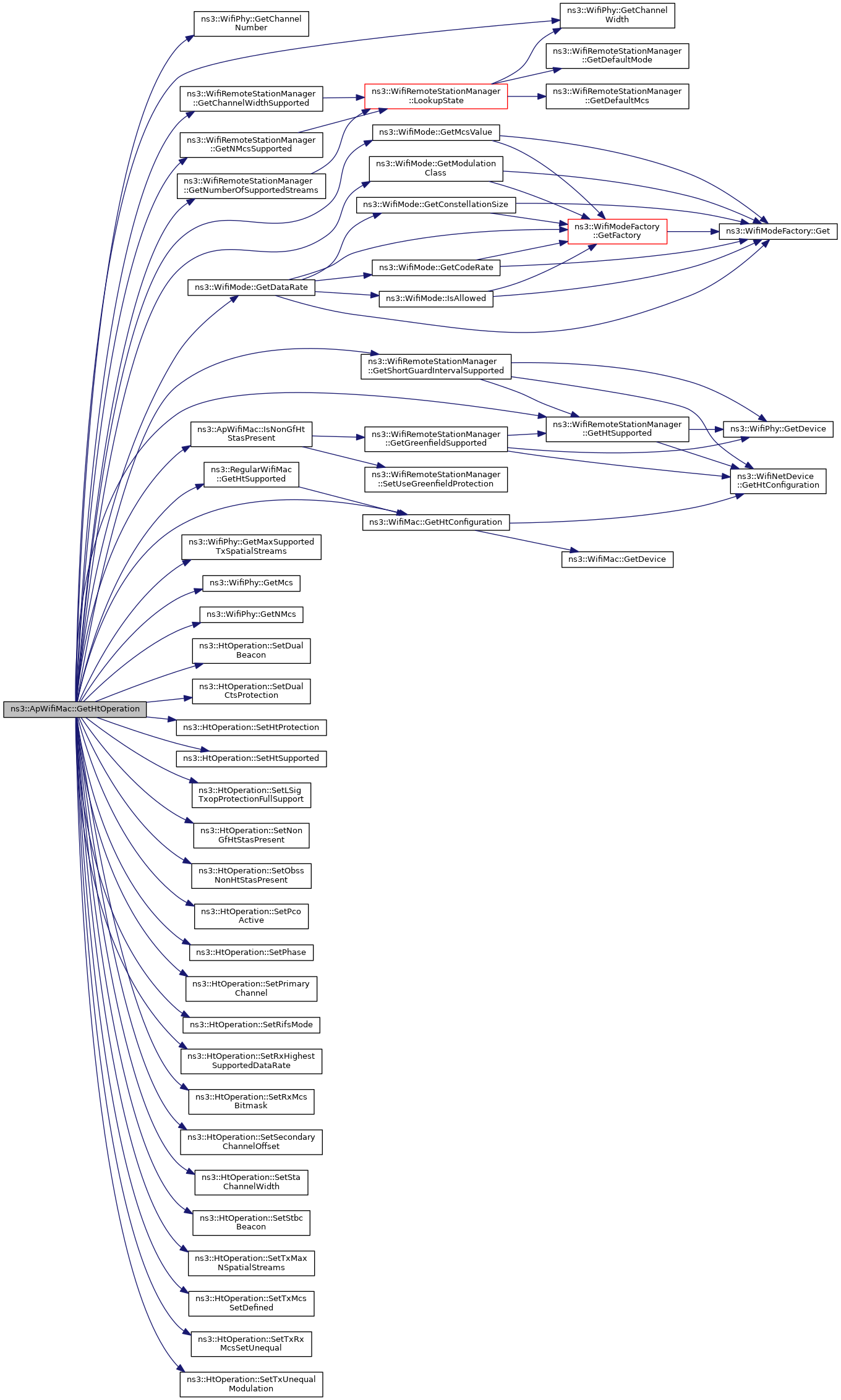

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetVhtOperation()

VhtOperation ns3::ApWifiMac::GetVhtOperation ( void ) const

private

Return the VHT operation of the current AP.

Returns: the VHT operation that we support

Definition at line 656 of file ap-wifi-mac.cc.

References ns3::WifiPhy::GetMaxSupportedRxSpatialStreams(), ns3::WifiRemoteStationManager::GetNumberOfSupportedStreams(), GetVhtOperationalChannelWidth(), ns3::WifiRemoteStationManager::GetVhtSupported(), ns3::RegularWifiMac::GetVhtSupported(), ns3::RegularWifiMac::m_phy, m_staList, ns3::RegularWifiMac::m_stationManager, NS_LOG_FUNCTION, ns3::VhtOperation::SetChannelWidth(), ns3::VhtOperation::SetMaxVhtMcsPerNss(), and ns3::VhtOperation::SetVhtSupported().

Referenced by SendAssocResp(), SendOneBeacon(), and SendProbeResp().

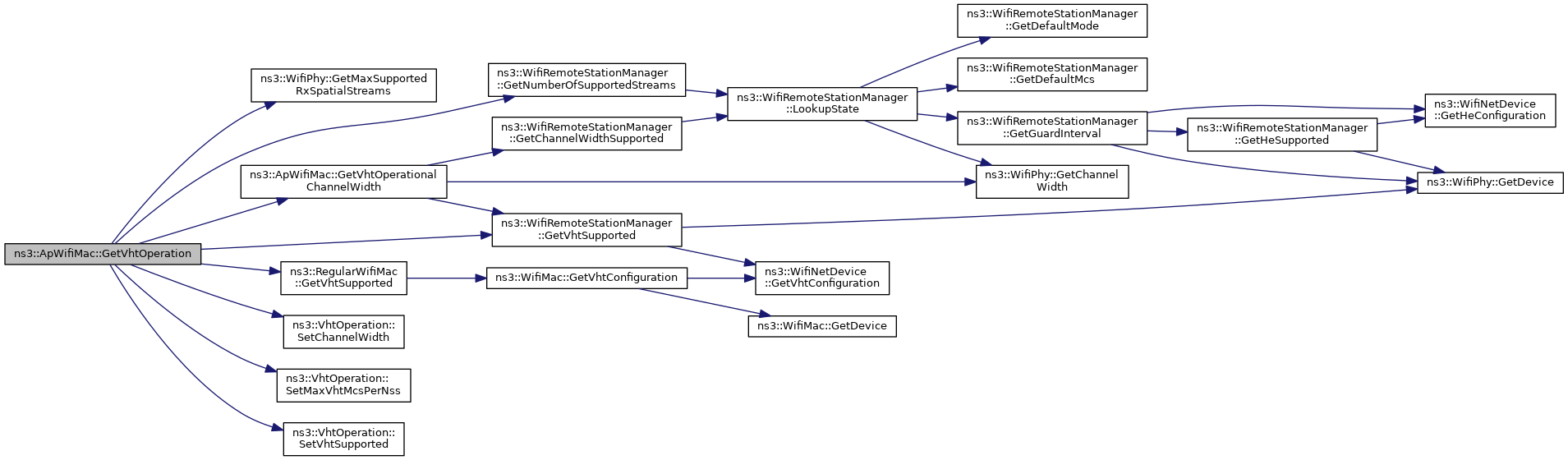

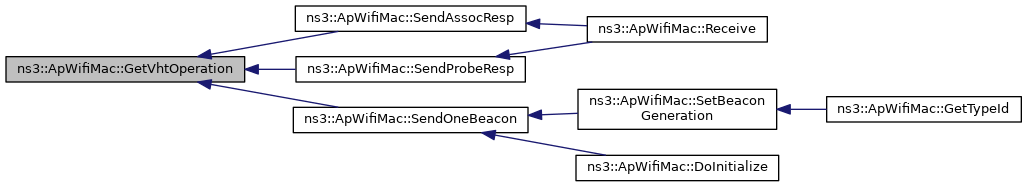

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetVhtOperationalChannelWidth()

uint16_t ns3::ApWifiMac::GetVhtOperationalChannelWidth ( void ) const

Determine the VHT operational channel width (in MHz).

Returns: the VHT operational channel width (in MHz).

Definition at line 280 of file ap-wifi-mac.cc.

References ns3::WifiPhy::GetChannelWidth(), ns3::WifiRemoteStationManager::GetChannelWidthSupported(), ns3::WifiRemoteStationManager::GetVhtSupported(), ns3::RegularWifiMac::m_phy, m_staList, and ns3::RegularWifiMac::m_stationManager.

Referenced by GetVhtOperation().

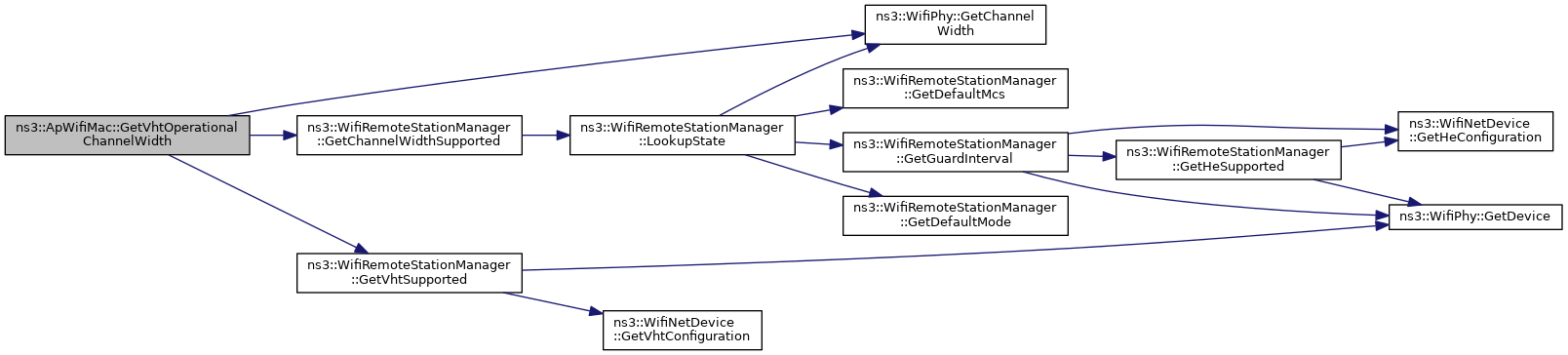

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IncrementPollingListIterator()

void ns3::ApWifiMac::IncrementPollingListIterator ( void )

private

Increment the PCF polling list iterator to indicate that the next polling station can be polled.

Definition at line 1607 of file ap-wifi-mac.cc.

References m_cfPollingList, m_itCfPollingList, and NS_LOG_FUNCTION.

Referenced by Receive(), TxFailed(), and TxOk().

Here is the caller graph for this function:

◆ IsNonGfHtStasPresent()

bool ns3::ApWifiMac::IsNonGfHtStasPresent ( void ) const

Determine whether non-Greenfield HT stations are present or not.

Returns: whether non-Greenfield HT stations are present or not.

Definition at line 264 of file ap-wifi-mac.cc.

References ns3::WifiRemoteStationManager::GetGreenfieldSupported(), m_staList, ns3::RegularWifiMac::m_stationManager, and ns3::WifiRemoteStationManager::SetUseGreenfieldProtection().

Referenced by GetHtOperation().

Here is the call graph for this function:

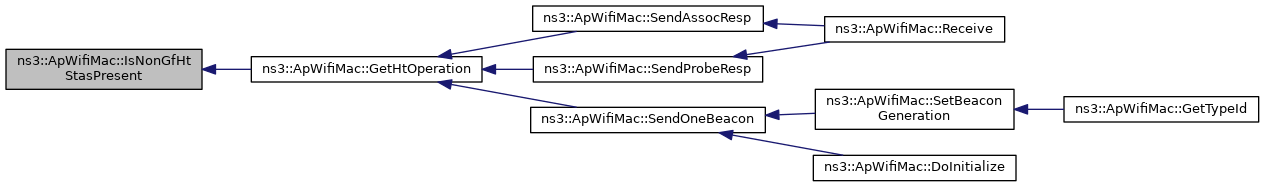

Here is the caller graph for this function:

◆ Receive()

void ns3::ApWifiMac::Receive ( Ptr< WifiMacQueueItem > mpdu )

privatevirtual

This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received.

The implementation is intended to capture logic that is going to be common to all (or most) derived classes. Specifically, handling of Block Ack management frames is dealt with here.

This method will need, however, to be overridden by derived classes so that they can perform their data handling before invoking the base version.

Parameters

mpdu	the MPDU that has been received.

Reimplemented from ns3::RegularWifiMac.

Definition at line 1016 of file ap-wifi-mac.cc.

◆ SendAssocResp()

void ns3::ApWifiMac::SendAssocResp	(	Mac48Address	to,
		bool	success,
		bool	isReassoc
	)

private

Forward an association or a reassociation response packet to the DCF.

The standard is not clear on the correct queue for management frames if QoS is supported. We always use the DCF.

Parameters

to	the address of the STA we are sending an association response to
success	indicates whether the association was successful or not
isReassoc	indicates whether it is a reassociation response

Definition at line 783 of file ap-wifi-mac.cc.

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendCfEnd()

void ns3::ApWifiMac::SendCfEnd ( void )

private

Send a CF-End packet.

Definition at line 961 of file ap-wifi-mac.cc.

References ns3::Mac48Address::GetBroadcast(), ns3::InfrastructureWifiMac::GetPcfSupported(), ns3::RegularWifiMac::m_txop, NS_ASSERT, NS_LOG_FUNCTION, ns3::Txop::SendCfFrame(), and ns3::WIFI_MAC_CTL_END.

Referenced by SendNextCfFrame(), and TxOk().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendCfPoll()

void ns3::ApWifiMac::SendCfPoll ( void )

private

Send a CF-Poll packet to the next polling STA.

Definition at line 953 of file ap-wifi-mac.cc.

References ns3::InfrastructureWifiMac::GetPcfSupported(), m_itCfPollingList, ns3::RegularWifiMac::m_txop, NS_ASSERT, NS_LOG_FUNCTION, ns3::Txop::SendCfFrame(), and ns3::WIFI_MAC_DATA_NULL_CFPOLL.

Referenced by SendNextCfFrame(), and TxOk().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendNextCfFrame()

void ns3::ApWifiMac::SendNextCfFrame ( void )

private

Determine what is the next PCF frame and trigger its transmission.

Definition at line 936 of file ap-wifi-mac.cc.

References ns3::Txop::CanStartNextPolling(), ns3::InfrastructureWifiMac::GetPcfSupported(), ns3::RegularWifiMac::m_low, ns3::RegularWifiMac::m_txop, SendCfEnd(), and SendCfPoll().

Referenced by ApWifiMac(), and TxFailed().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendOneBeacon()

void ns3::ApWifiMac::SendOneBeacon ( void )

private

Forward a beacon packet to the beacon special DCF.

Definition at line 861 of file ap-wifi-mac.cc.

Referenced by DoInitialize(), and SetBeaconGeneration().

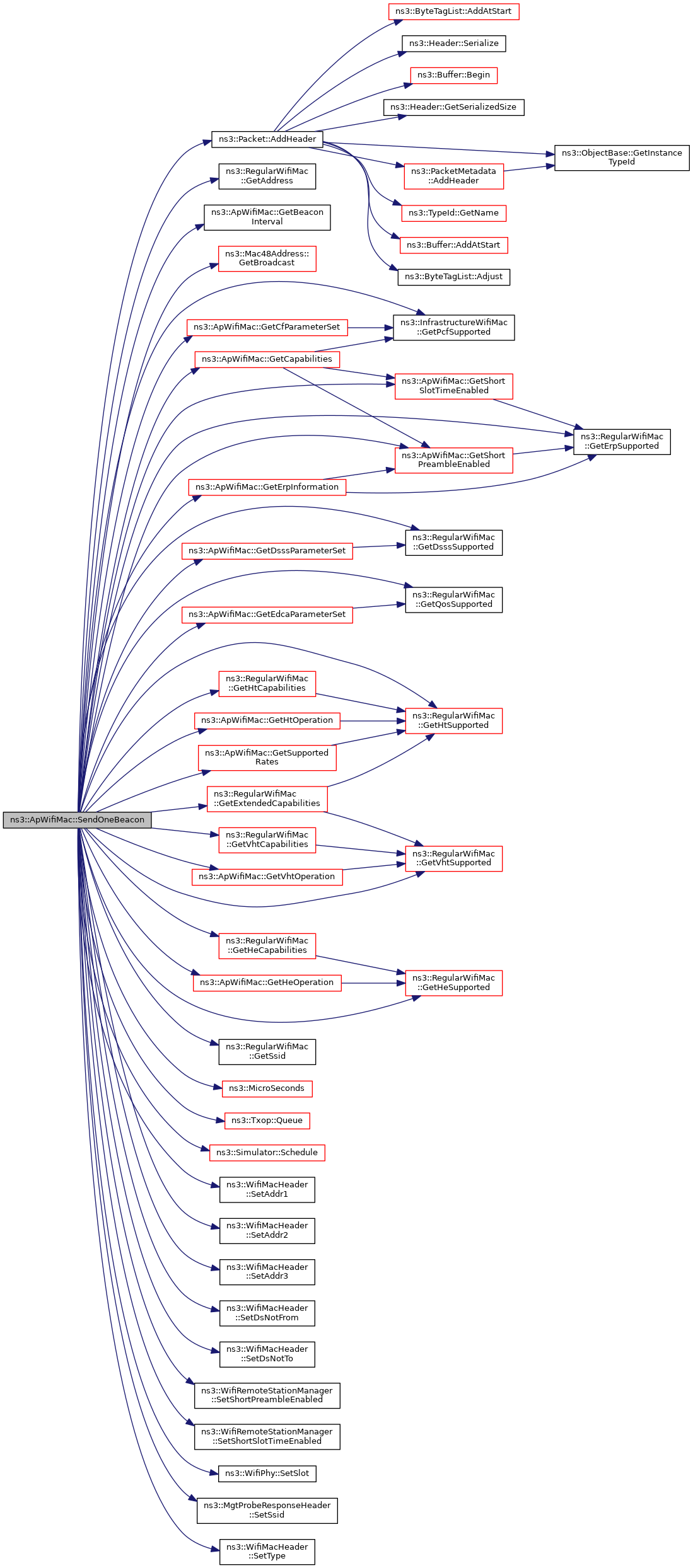

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendProbeResp()

void ns3::ApWifiMac::SendProbeResp ( Mac48Address to )

private

Forward a probe response packet to the DCF.

The standard is not clear on the correct queue for management frames if QoS is supported. We always use the DCF.

Parameters

to	the address of the STA we are sending a probe response to

Definition at line 727 of file ap-wifi-mac.cc.

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetAddress()

void ns3::ApWifiMac::SetAddress ( Mac48Address address )

virtual

Parameters

address the current address of this MAC layer.

Implements ns3::WifiMac.

Definition at line 132 of file ap-wifi-mac.cc.

References first::address, NS_LOG_FUNCTION, ns3::RegularWifiMac::SetAddress(), and ns3::RegularWifiMac::SetBssid().

Here is the call graph for this function:

◆ SetBeaconGeneration()

void ns3::ApWifiMac::SetBeaconGeneration ( bool enable )

private

Enable or disable beacon generation of the AP.

Parameters

enable enable or disable beacon generation

Definition at line 142 of file ap-wifi-mac.cc.

References ns3::EventId::Cancel(), m_beaconEvent, m_enableBeaconGeneration, NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), and SendOneBeacon().

Referenced by GetTypeId().

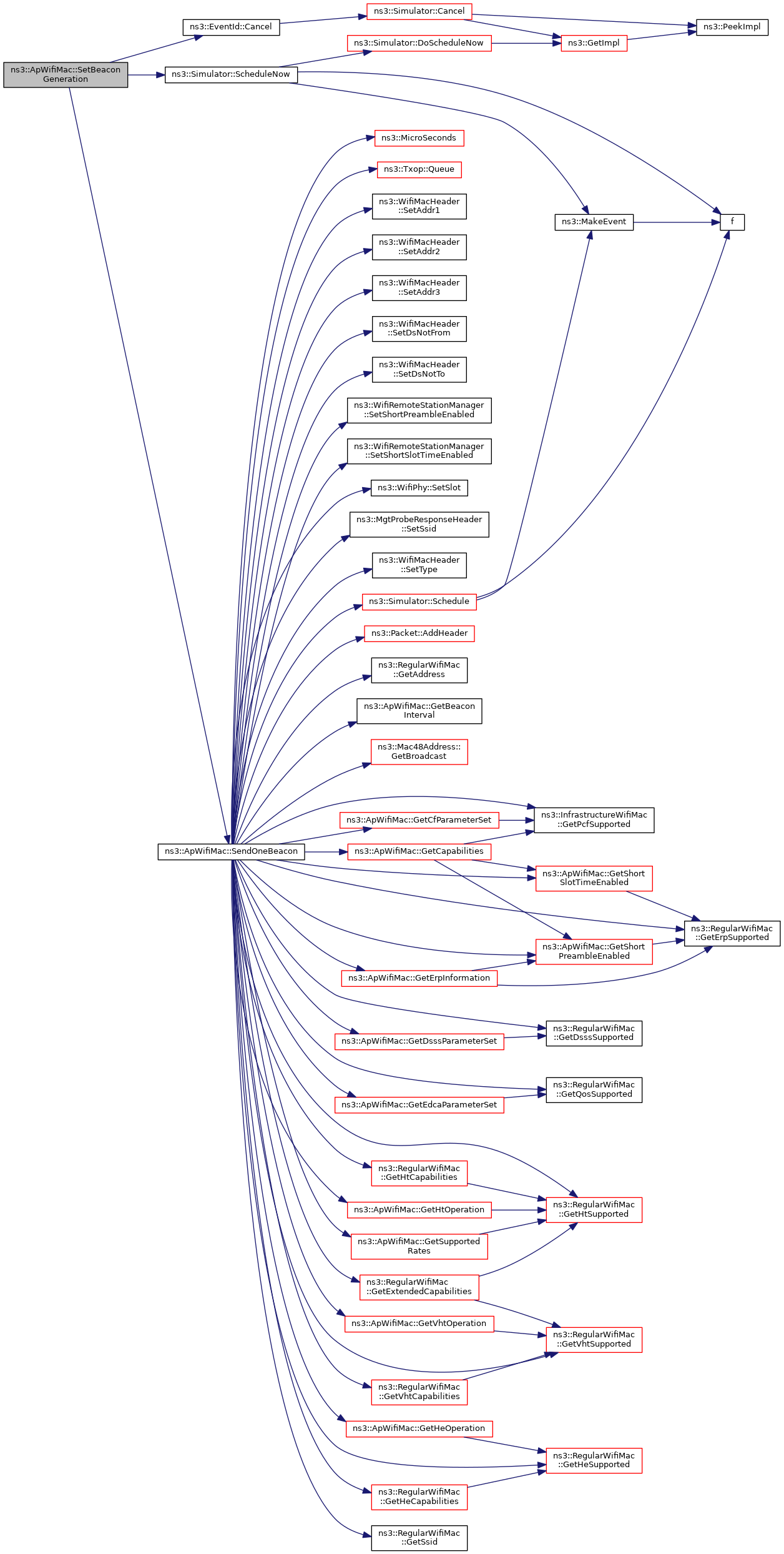

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetBeaconInterval()

void ns3::ApWifiMac::SetBeaconInterval ( Time interval )

Parameters

interval the interval between two beacon transmissions.

Definition at line 192 of file ap-wifi-mac.cc.

References ns3::Time::GetMicroSeconds(), ns3::RegularWifiMac::m_low, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetCfpMaxDuration()

void ns3::ApWifiMac::SetCfpMaxDuration ( Time duration )

Parameters

duration the maximum duration for the CF period.

Definition at line 207 of file ap-wifi-mac.cc.

References ns3::Time::GetMicroSeconds(), ns3::RegularWifiMac::m_low, NS_LOG_FUNCTION, and NS_LOG_WARN.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetLinkUpCallback()

void ns3::ApWifiMac::SetLinkUpCallback ( Callback< void > linkUp )

virtual

Parameters

linkUp the callback to invoke when the link becomes up.

Implements ns3::WifiMac.

Definition at line 180 of file ap-wifi-mac.cc.

References NS_LOG_FUNCTION, and ns3::RegularWifiMac::SetLinkUpCallback().

Here is the call graph for this function:

◆ SetWifiRemoteStationManager()

void ns3::ApWifiMac::SetWifiRemoteStationManager ( const Ptr< WifiRemoteStationManager > stationManager )

virtual

Parameters

stationManager the station manager attached to this MAC.

Reimplemented from ns3::RegularWifiMac.

Definition at line 171 of file ap-wifi-mac.cc.

References ns3::InfrastructureWifiMac::GetPcfSupported(), m_beaconTxop, ns3::RegularWifiMac::m_stationManager, NS_LOG_FUNCTION, ns3::WifiRemoteStationManager::SetPcfSupported(), ns3::RegularWifiMac::SetWifiRemoteStationManager(), and ns3::Txop::SetWifiRemoteStationManager().

Here is the call graph for this function:

◆ SupportsSendFrom()

bool ns3::ApWifiMac::SupportsSendFrom ( void ) const

virtual

Returns: if this MAC supports sending from arbitrary address.

The interface may or may not support sending from arbitrary address. This function returns true if sending from arbitrary address is supported, false otherwise.

Reimplemented from ns3::RegularWifiMac.

Definition at line 397 of file ap-wifi-mac.cc.

References NS_LOG_FUNCTION.

◆ TxFailed()

void ns3::ApWifiMac::TxFailed ( const WifiMacHeader & hdr )

privatevirtual

The packet we sent was successfully received by the receiver (i.e.

we did not receive an Ack from the receiver). If the packet was an association response to the receiver, we record that the receiver is not associated with us yet.

Parameters

hdr	the header of the packet that we failed to sent

Reimplemented from ns3::RegularWifiMac.

Definition at line 997 of file ap-wifi-mac.cc.

References ns3::WifiMacHeader::GetAddr1(), IncrementPollingListIterator(), ns3::WifiMacHeader::IsAssocResp(), ns3::WifiMacHeader::IsCfPoll(), ns3::WifiMacHeader::IsReassocResp(), ns3::WifiRemoteStationManager::IsWaitAssocTxOk(), ns3::RegularWifiMac::m_stationManager, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiRemoteStationManager::RecordGotAssocTxFailed(), SendNextCfFrame(), and ns3::RegularWifiMac::TxFailed().

Here is the call graph for this function:

◆ TxOk()

void ns3::ApWifiMac::TxOk ( const WifiMacHeader & hdr )

privatevirtual

The packet we sent was successfully received by the receiver (i.e.

we received an Ack from the receiver). If the packet was an association response to the receiver, we record that the receiver is now associated with us.

Parameters

hdr	the header of the packet that we successfully sent

Reimplemented from ns3::RegularWifiMac.

Definition at line 969 of file ap-wifi-mac.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::InfrastructureWifiMac::GetPcfSupported(), IncrementPollingListIterator(), ns3::WifiMacHeader::IsAssocResp(), ns3::WifiMacHeader::IsBeacon(), ns3::WifiMacHeader::IsCfPoll(), ns3::WifiMacHeader::IsReassocResp(), ns3::WifiRemoteStationManager::IsWaitAssocTxOk(), m_cfPollingList, ns3::RegularWifiMac::m_stationManager, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiRemoteStationManager::RecordGotAssocTxOk(), SendCfEnd(), SendCfPoll(), and ns3::RegularWifiMac::TxOk().

Referenced by ApWifiMac().

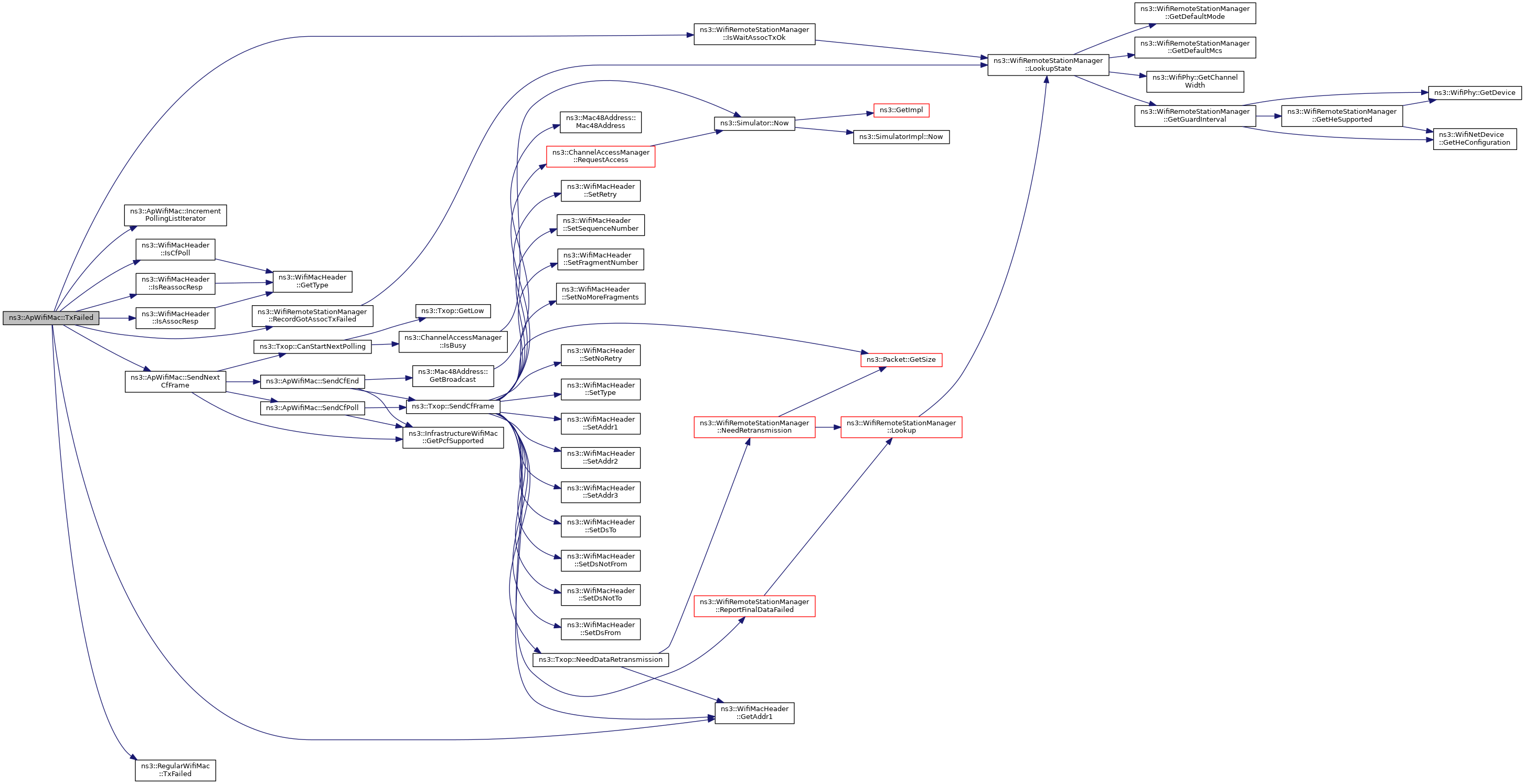

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_beaconEvent

EventId ns3::ApWifiMac::m_beaconEvent

private

Event to generate one beacon.

Definition at line 291 of file ap-wifi-mac.h.

Referenced by DoDispose(), DoInitialize(), SendOneBeacon(), and SetBeaconGeneration().

◆ m_beaconJitter

Ptr<UniformRandomVariable> ns3::ApWifiMac::m_beaconJitter

private

UniformRandomVariable used to randomize the time of the first beacon.

Definition at line 293 of file ap-wifi-mac.h.

Referenced by AssignStreams(), DoInitialize(), and GetTypeId().

◆ m_beaconTxop

Ptr<Txop> ns3::ApWifiMac::m_beaconTxop

private

Dedicated Txop for beacons.

Definition at line 289 of file ap-wifi-mac.h.

Referenced by ApWifiMac(), DoDispose(), DoInitialize(), SendOneBeacon(), and SetWifiRemoteStationManager().

◆ m_cfpEvent

EventId ns3::ApWifiMac::m_cfpEvent

private

Event to generate one PCF frame.

Definition at line 292 of file ap-wifi-mac.h.

Referenced by DoDispose().

◆ m_cfPollingList

std::list<Mac48Address> ns3::ApWifiMac::m_cfPollingList

private

List of all PCF stations currently associated to the AP.

Definition at line 298 of file ap-wifi-mac.h.

Referenced by ApWifiMac(), GetCfParameterSet(), IncrementPollingListIterator(), Receive(), TxOk(), and ~ApWifiMac().

◆ m_enableBeaconGeneration

bool ns3::ApWifiMac::m_enableBeaconGeneration

private

Flag whether beacons are being generated.

Definition at line 290 of file ap-wifi-mac.h.

Referenced by DoDispose(), DoInitialize(), and SetBeaconGeneration().

◆ m_enableBeaconJitter

bool ns3::ApWifiMac::m_enableBeaconJitter

private

Flag whether the first beacon should be generated at random time.

Definition at line 294 of file ap-wifi-mac.h.

Referenced by DoInitialize(), and GetTypeId().

◆ m_enableNonErpProtection

bool ns3::ApWifiMac::m_enableNonErpProtection

private

Flag whether protection mechanism is used or not when non-ERP STAs are present within the BSS.

Definition at line 300 of file ap-wifi-mac.h.

Referenced by GetTypeId(), and GetUseNonErpProtection().

◆ m_itCfPollingList

std::list<Mac48Address>::iterator ns3::ApWifiMac::m_itCfPollingList

private

Iterator to the list of all PCF stations currently associated to the AP.

Definition at line 299 of file ap-wifi-mac.h.

Referenced by ApWifiMac(), IncrementPollingListIterator(), Receive(), and SendCfPoll().

◆ m_nonErpStations

std::list<Mac48Address> ns3::ApWifiMac::m_nonErpStations

private

List of all non-ERP stations currently associated to the AP.

Definition at line 296 of file ap-wifi-mac.h.

Referenced by GetErpInformation(), GetShortPreambleEnabled(), GetShortSlotTimeEnabled(), GetUseNonErpProtection(), Receive(), and ~ApWifiMac().

◆ m_nonHtStations

std::list<Mac48Address> ns3::ApWifiMac::m_nonHtStations

private

List of all non-HT stations currently associated to the AP.

Definition at line 297 of file ap-wifi-mac.h.

Referenced by GetHtOperation(), Receive(), and ~ApWifiMac().

◆ m_staList

std::map<uint16_t, Mac48Address> ns3::ApWifiMac::m_staList

private

Map of all stations currently associated to the AP with their association ID.

Definition at line 295 of file ap-wifi-mac.h.

Referenced by GetHeOperation(), GetHtOperation(), GetNextAssociationId(), GetShortSlotTimeEnabled(), GetVhtOperation(), GetVhtOperationalChannelWidth(), IsNonGfHtStasPresent(), Receive(), SendAssocResp(), and ~ApWifiMac().

The documentation for this class was generated from the following files:

src/wifi/model/ap-wifi-mac.h
src/wifi/model/ap-wifi-mac.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::InfrastructureWifiMac

Attributes defined in parent class ns3::RegularWifiMac

Attributes defined in parent class ns3::WifiMac

TraceSources defined in parent class ns3::RegularWifiMac

TraceSources defined in parent class ns3::WifiMac

Constructor & Destructor Documentation

◆ ApWifiMac()

◆ ~ApWifiMac()

Member Function Documentation

◆ AssignStreams()

◆ DeaggregateAmsduAndForward()

◆ DoDispose()

◆ DoInitialize()

◆ Enqueue() [1/2]

◆ Enqueue() [2/2]

◆ ForwardDown() [1/2]

◆ ForwardDown() [2/2]

◆ GetBeaconInterval()

◆ GetCapabilities()

◆ GetCfParameterSet()

◆ GetCfpMaxDuration()

◆ GetDsssParameterSet()

◆ GetEdcaParameterSet()

◆ GetErpInformation()

◆ GetHeOperation()

◆ GetHtOperation()

◆ GetNextAssociationId()

◆ GetShortPreambleEnabled()

◆ GetShortSlotTimeEnabled()

◆ GetSupportedRates()

◆ GetTypeId()

◆ GetUseNonErpProtection()

◆ GetVhtOperation()

◆ GetVhtOperationalChannelWidth()

◆ IncrementPollingListIterator()

◆ IsNonGfHtStasPresent()

◆ Receive()

◆ SendAssocResp()

◆ SendCfEnd()

◆ SendCfPoll()

◆ SendNextCfFrame()

◆ SendOneBeacon()

◆ SendProbeResp()

◆ SetAddress()

◆ SetBeaconGeneration()

◆ SetBeaconInterval()

◆ SetCfpMaxDuration()

◆ SetLinkUpCallback()

◆ SetWifiRemoteStationManager()

◆ SupportsSendFrom()

◆ TxFailed()

◆ TxOk()

Member Data Documentation

◆ m_beaconEvent

◆ m_beaconJitter

◆ m_beaconTxop

◆ m_cfpEvent

◆ m_cfPollingList

◆ m_enableBeaconGeneration

◆ m_enableBeaconJitter

◆ m_enableNonErpProtection

◆ m_itCfPollingList

◆ m_nonErpStations

◆ m_nonHtStations

◆ m_staList
