MultiUserScheduler is an abstract base class defining the API that APs supporting at least VHT can use to determine the format of their next transmission. More...

#include "multi-user-scheduler.h"

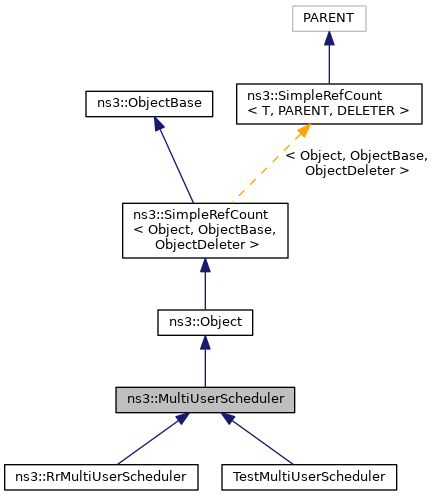

Inheritance diagram for ns3::MultiUserScheduler:

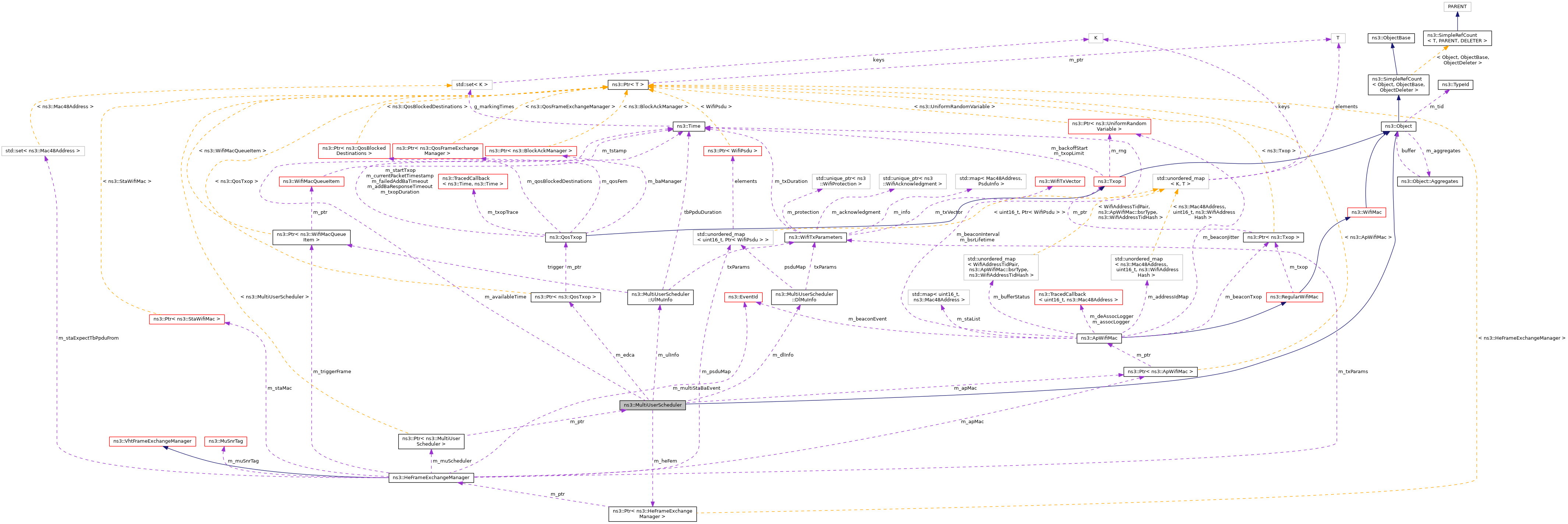

Collaboration diagram for ns3::MultiUserScheduler:

Classes
struct	DlMuInfo
	Information to be provided in case of DL MU transmission. More...

struct	UlMuInfo
	Information to be provided in case of UL MU transmission. More...

Public Types
enum	TxFormat { NO_TX = 0, SU_TX, DL_MU_TX, UL_MU_TX }
	Enumeration of the possible transmission formats. More...

Public Member Functions
	MultiUserScheduler ()

virtual	~MultiUserScheduler ()

DlMuInfo &	GetDlMuInfo (void)
	Get the information required to perform a DL MU transmission. More...

UlMuInfo &	GetUlMuInfo (void)
	Get the information required to solicit an UL MU transmission. More...

TxFormat	NotifyAccessGranted (Ptr< QosTxop > edca, Time availableTime, bool initialFrame)
	Notify the Multi-user Scheduler that the given AC of the AP gained channel access. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
void	DoDispose (void) override
	Destructor implementation. More...

void	DoInitialize (void) override
	Initialize() implementation. More...

TxFormat	GetLastTxFormat (void) const
	Get the format of the last transmission, as determined by the last call to NotifyAccessGranted that did not return NO_TX. More...

Ptr< WifiRemoteStationManager >	GetWifiRemoteStationManager (void) const
	Get the station manager attached to the AP. More...

void	NotifyNewAggregate (void) override
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes
Ptr< ApWifiMac >	m_apMac
	the AP wifi MAC More...

Time	m_availableTime
	the time available for frame exchange More...

Ptr< QosTxop >	m_edca
	the AC that gained channel access More...

Ptr< HeFrameExchangeManager >	m_heFem
	HE Frame Exchange Manager. More...

bool	m_initialFrame
	true if a TXOP is being started More...

uint32_t	m_sizeOf8QosNull
	size in bytes of 8 QoS Null frames More...

Private Member Functions
virtual DlMuInfo	ComputeDlMuInfo (void)=0
	Compute the information required to perform a DL MU transmission. More...

virtual UlMuInfo	ComputeUlMuInfo (void)=0
	Prepare the information required to solicit an UL MU transmission. More...

virtual TxFormat	SelectTxFormat (void)=0
	Select the format of the next transmission. More...

void	SetWifiMac (Ptr< ApWifiMac > mac)
	Set the wifi MAC. More...

Private Attributes
DlMuInfo	m_dlInfo
	information required to perform a DL MU transmission More...

TxFormat	m_lastTxFormat {NO_TX}
	the format of last transmission More...

UlMuInfo	m_ulInfo
	information required to solicit an UL MU transmission More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

MultiUserScheduler is an abstract base class defining the API that APs supporting at least VHT can use to determine the format of their next transmission.

Introspection did not find any typical Config paths.

VHT APs can only transmit DL MU PPDUs by using MU-MIMO, while HE APs can transmit both DL MU PPDUs and UL MU PPDUs by using OFDMA in addition to MU-MIMO.

However, given that DL MU-MIMO is not yet supported, a MultiUserScheduler can only be aggregated to HE APs.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 456 bytes (on a 64-bit architecture).

Definition at line 50 of file multi-user-scheduler.h.

Member Enumeration Documentation

◆ TxFormat

enum ns3::MultiUserScheduler::TxFormat

Enumeration of the possible transmission formats.

Enumerator
NO_TX
SU_TX
DL_MU_TX
UL_MU_TX

Definition at line 62 of file multi-user-scheduler.h.

Constructor & Destructor Documentation

◆ MultiUserScheduler()

ns3::MultiUserScheduler::MultiUserScheduler ( )

Definition at line 47 of file multi-user-scheduler.cc.

◆ ~MultiUserScheduler()

ns3::MultiUserScheduler::~MultiUserScheduler ( )

virtual

Definition at line 51 of file multi-user-scheduler.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

◆ ComputeDlMuInfo()

virtual DlMuInfo ns3::MultiUserScheduler::ComputeDlMuInfo ( void )

privatepure virtual

Compute the information required to perform a DL MU transmission.

Returns: the information required to perform a DL MU transmission

Implemented in TestMultiUserScheduler, and ns3::RrMultiUserScheduler.

Referenced by NotifyAccessGranted().

Here is the caller graph for this function:

◆ ComputeUlMuInfo()

virtual UlMuInfo ns3::MultiUserScheduler::ComputeUlMuInfo ( void )

privatepure virtual

Prepare the information required to solicit an UL MU transmission.

Returns: the information required to solicit an UL MU transmission

Implemented in TestMultiUserScheduler, and ns3::RrMultiUserScheduler.

Referenced by NotifyAccessGranted().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::MultiUserScheduler::DoDispose ( void )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::RrMultiUserScheduler.

Definition at line 57 of file multi-user-scheduler.cc.

References ns3::WifiTxParameters::Clear(), ns3::Object::DoDispose(), m_apMac, m_dlInfo, m_edca, m_heFem, m_ulInfo, NS_LOG_FUNCTION, ns3::MultiUserScheduler::DlMuInfo::psduMap, ns3::MultiUserScheduler::UlMuInfo::trigger, ns3::MultiUserScheduler::DlMuInfo::txParams, and ns3::MultiUserScheduler::UlMuInfo::txParams.

Referenced by ns3::RrMultiUserScheduler::DoDispose().

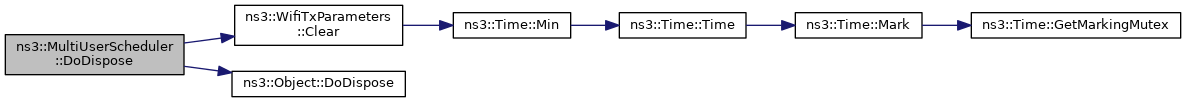

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoInitialize()

void ns3::MultiUserScheduler::DoInitialize ( void )

overrideprotectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::RrMultiUserScheduler.

Definition at line 88 of file multi-user-scheduler.cc.

References ns3::WifiMacHeader::GetSerializedSize(), ns3::MpduAggregator::GetSizeIfAggregated(), m_sizeOf8QosNull, ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsTo(), ns3::WifiMacHeader::SetType(), ns3::WIFI_MAC_FCS_LENGTH, and ns3::WIFI_MAC_QOSDATA_NULL.

Referenced by ns3::RrMultiUserScheduler::DoInitialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDlMuInfo()

MultiUserScheduler::DlMuInfo & ns3::MultiUserScheduler::GetDlMuInfo ( void )

Get the information required to perform a DL MU transmission.

Note that this method can only be called if GetTxFormat returns DL_MU_TX.

Returns: the information required to perform a DL MU transmission

Definition at line 161 of file multi-user-scheduler.cc.

References DL_MU_TX, GetWifiRemoteStationManager(), m_dlInfo, m_lastTxFormat, NS_ABORT_MSG_IF, and ns3::MultiUserScheduler::DlMuInfo::psduMap.

Referenced by ns3::RrMultiUserScheduler::TrySendingBasicTf(), and ns3::RrMultiUserScheduler::TrySendingBsrpTf().

Here is the call graph for this function:

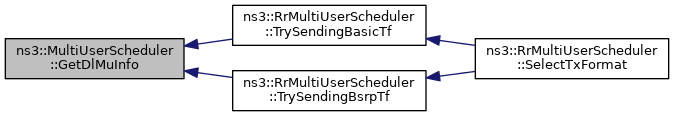

Here is the caller graph for this function:

◆ GetLastTxFormat()

MultiUserScheduler::TxFormat ns3::MultiUserScheduler::GetLastTxFormat ( void ) const

protected

Get the format of the last transmission, as determined by the last call to NotifyAccessGranted that did not return NO_TX.

Returns: the format of the last transmission

Definition at line 155 of file multi-user-scheduler.cc.

References m_lastTxFormat.

Referenced by ns3::RrMultiUserScheduler::SelectTxFormat(), and ns3::RrMultiUserScheduler::TrySendingBasicTf().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::MultiUserScheduler::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 38 of file multi-user-scheduler.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ GetUlMuInfo()

MultiUserScheduler::UlMuInfo & ns3::MultiUserScheduler::GetUlMuInfo ( void )

Get the information required to solicit an UL MU transmission.

Note that this method can only be called if GetTxFormat returns UL_MU_TX.

Returns: the information required to solicit an UL MU transmission

Definition at line 178 of file multi-user-scheduler.cc.

References m_lastTxFormat, m_ulInfo, NS_ABORT_MSG_IF, and UL_MU_TX.

Referenced by ns3::RrMultiUserScheduler::TrySendingBasicTf().

Here is the caller graph for this function:

◆ GetWifiRemoteStationManager()

Ptr< WifiRemoteStationManager > ns3::MultiUserScheduler::GetWifiRemoteStationManager ( void ) const

protected

Get the station manager attached to the AP.

Returns: the station manager attached to the AP

Definition at line 121 of file multi-user-scheduler.cc.

References m_apMac.

Referenced by TestMultiUserScheduler::ComputeWifiTxVector(), GetDlMuInfo(), ns3::RrMultiUserScheduler::NotifyStationAssociated(), ns3::RrMultiUserScheduler::NotifyStationDeassociated(), and ns3::RrMultiUserScheduler::TrySendingDlMuPpdu().

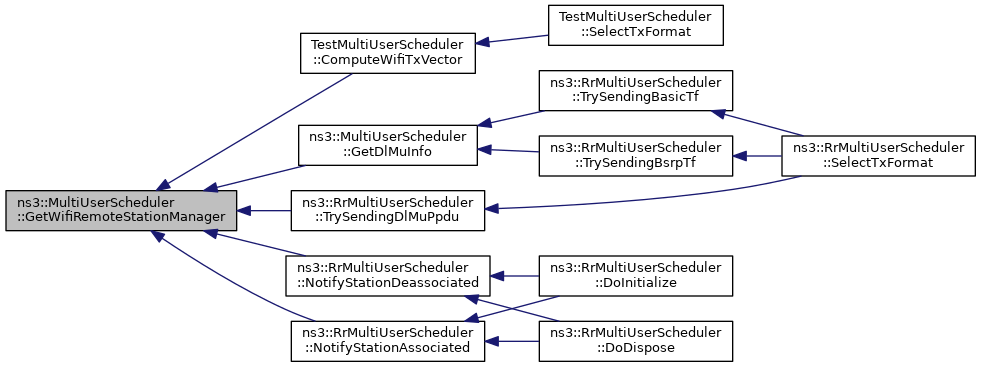

Here is the caller graph for this function:

◆ NotifyAccessGranted()

MultiUserScheduler::TxFormat ns3::MultiUserScheduler::NotifyAccessGranted	(	Ptr< QosTxop >	edca,
		Time	availableTime,
		bool	initialFrame
	)

Notify the Multi-user Scheduler that the given AC of the AP gained channel access.

The Multi-user Scheduler determines the format of the next transmission.

Parameters

edca	the EDCAF which has been granted the opportunity to transmit
availableTime	the amount of time allowed for the frame exchange. Pass Time::Min() in case the TXOP limit is null
initialFrame	true if the frame being transmitted is the initial frame of the TXOP. This is used to determine whether the TXOP limit can be exceeded

Returns: the format of the next transmission

Definition at line 127 of file multi-user-scheduler.cc.

References ComputeDlMuInfo(), ComputeUlMuInfo(), DL_MU_TX, m_availableTime, m_dlInfo, m_edca, m_heFem, m_initialFrame, m_lastTxFormat, m_ulInfo, NO_TX, NS_ABORT_MSG_IF, NS_LOG_FUNCTION, SelectTxFormat(), and UL_MU_TX.

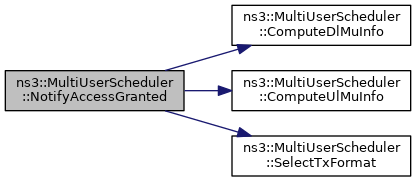

Here is the call graph for this function:

◆ NotifyNewAggregate()

void ns3::MultiUserScheduler::NotifyNewAggregate ( void )

overrideprotectedvirtual

Notify all Objects aggregated to this one of a new Object being aggregated.

This function must be implemented in the stack that needs to notify other stacks connected to the node of their presence in the node.

This method is invoked whenever two sets of Objects are aggregated together. It is invoked exactly once for each Object in both sets. This method can be overridden by subclasses who wish to be notified of aggregation events. These subclasses must chain up to their base class NotifyNewAggregate() method.

It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 71 of file multi-user-scheduler.cc.

References m_apMac, ns3::Object::NotifyNewAggregate(), NS_LOG_FUNCTION, and SetWifiMac().

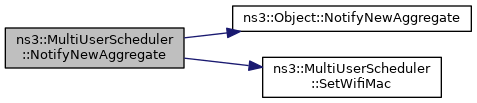

Here is the call graph for this function:

◆ SelectTxFormat()

virtual TxFormat ns3::MultiUserScheduler::SelectTxFormat ( void )

privatepure virtual

Select the format of the next transmission.

Returns: the format of the next transmission

Implemented in TestMultiUserScheduler, and ns3::RrMultiUserScheduler.

Referenced by NotifyAccessGranted().

Here is the caller graph for this function:

◆ SetWifiMac()

void ns3::MultiUserScheduler::SetWifiMac ( Ptr< ApWifiMac > mac )

private

Set the wifi MAC.

Note that it must be the MAC of an HE AP.

Parameters

mac	the AP wifi MAC

Definition at line 106 of file multi-user-scheduler.cc.

References m_apMac, m_heFem, third::mac, NS_ABORT_MSG_IF, and NS_LOG_FUNCTION.

Referenced by NotifyNewAggregate().

Here is the caller graph for this function:

Member Data Documentation

◆ m_apMac

Ptr<ApWifiMac> ns3::MultiUserScheduler::m_apMac

protected

the AP wifi MAC

Definition at line 135 of file multi-user-scheduler.h.

Referenced by TestMultiUserScheduler::ComputeWifiTxVector(), ns3::RrMultiUserScheduler::DoDispose(), DoDispose(), ns3::RrMultiUserScheduler::DoInitialize(), GetWifiRemoteStationManager(), NotifyNewAggregate(), TestMultiUserScheduler::SelectTxFormat(), SetWifiMac(), ns3::RrMultiUserScheduler::TrySendingBasicTf(), ns3::RrMultiUserScheduler::TrySendingBsrpTf(), and ns3::RrMultiUserScheduler::TrySendingDlMuPpdu().

◆ m_availableTime

Time ns3::MultiUserScheduler::m_availableTime

protected

the time available for frame exchange

Definition at line 138 of file multi-user-scheduler.h.

Referenced by NotifyAccessGranted(), TestMultiUserScheduler::SelectTxFormat(), ns3::RrMultiUserScheduler::TrySendingBasicTf(), ns3::RrMultiUserScheduler::TrySendingBsrpTf(), and ns3::RrMultiUserScheduler::TrySendingDlMuPpdu().

◆ m_dlInfo

DlMuInfo ns3::MultiUserScheduler::m_dlInfo

private

information required to perform a DL MU transmission

Definition at line 172 of file multi-user-scheduler.h.

Referenced by DoDispose(), GetDlMuInfo(), and NotifyAccessGranted().

◆ m_edca

Ptr<QosTxop> ns3::MultiUserScheduler::m_edca

protected

the AC that gained channel access

Definition at line 137 of file multi-user-scheduler.h.

Referenced by DoDispose(), NotifyAccessGranted(), ns3::RrMultiUserScheduler::TrySendingBasicTf(), and ns3::RrMultiUserScheduler::TrySendingDlMuPpdu().

◆ m_heFem

Ptr<HeFrameExchangeManager> ns3::MultiUserScheduler::m_heFem

protected

HE Frame Exchange Manager.

Definition at line 136 of file multi-user-scheduler.h.

Referenced by DoDispose(), NotifyAccessGranted(), TestMultiUserScheduler::SelectTxFormat(), SetWifiMac(), ns3::RrMultiUserScheduler::TrySendingBasicTf(), ns3::RrMultiUserScheduler::TrySendingBsrpTf(), and ns3::RrMultiUserScheduler::TrySendingDlMuPpdu().

◆ m_initialFrame

bool ns3::MultiUserScheduler::m_initialFrame

protected

true if a TXOP is being started

Definition at line 139 of file multi-user-scheduler.h.

Referenced by NotifyAccessGranted(), TestMultiUserScheduler::SelectTxFormat(), and ns3::RrMultiUserScheduler::TrySendingDlMuPpdu().

◆ m_lastTxFormat

TxFormat ns3::MultiUserScheduler::m_lastTxFormat {NO_TX}

private

the format of last transmission

Definition at line 171 of file multi-user-scheduler.h.

Referenced by GetDlMuInfo(), GetLastTxFormat(), GetUlMuInfo(), and NotifyAccessGranted().

◆ m_sizeOf8QosNull

uint32_t ns3::MultiUserScheduler::m_sizeOf8QosNull

protected

size in bytes of 8 QoS Null frames

Definition at line 140 of file multi-user-scheduler.h.

Referenced by DoInitialize(), TestMultiUserScheduler::SelectTxFormat(), and ns3::RrMultiUserScheduler::TrySendingBsrpTf().

◆ m_ulInfo

UlMuInfo ns3::MultiUserScheduler::m_ulInfo

private

information required to solicit an UL MU transmission

Definition at line 173 of file multi-user-scheduler.h.

Referenced by DoDispose(), GetUlMuInfo(), and NotifyAccessGranted().

The documentation for this class was generated from the following files:

src/wifi/model/he/multi-user-scheduler.h
src/wifi/model/he/multi-user-scheduler.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ TxFormat

Constructor & Destructor Documentation

◆ MultiUserScheduler()

◆ ~MultiUserScheduler()

Member Function Documentation

◆ ComputeDlMuInfo()

◆ ComputeUlMuInfo()

◆ DoDispose()

◆ DoInitialize()

◆ GetDlMuInfo()

◆ GetLastTxFormat()

◆ GetTypeId()

◆ GetUlMuInfo()

◆ GetWifiRemoteStationManager()

◆ NotifyAccessGranted()

◆ NotifyNewAggregate()

◆ SelectTxFormat()

◆ SetWifiMac()

Member Data Documentation

◆ m_apMac

◆ m_availableTime

◆ m_dlInfo

◆ m_edca

◆ m_heFem

◆ m_initialFrame

◆ m_lastTxFormat

◆ m_sizeOf8QosNull

◆ m_ulInfo
