HeFrameExchangeManager handles the frame exchange sequences for HE stations. More...

#include "he-frame-exchange-manager.h"

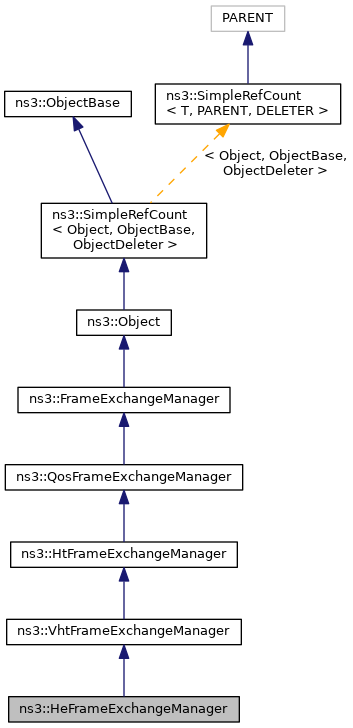

Inheritance diagram for ns3::HeFrameExchangeManager:

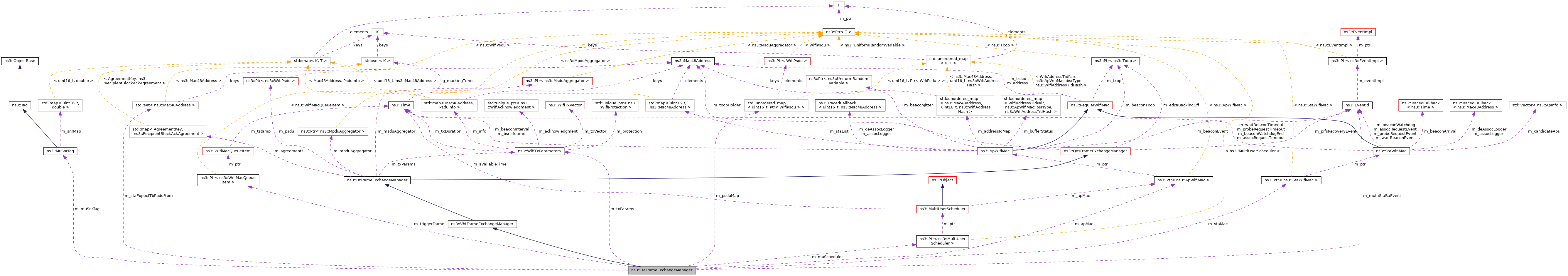

Collaboration diagram for ns3::HeFrameExchangeManager:

Public Member Functions
	HeFrameExchangeManager ()

virtual	~HeFrameExchangeManager ()

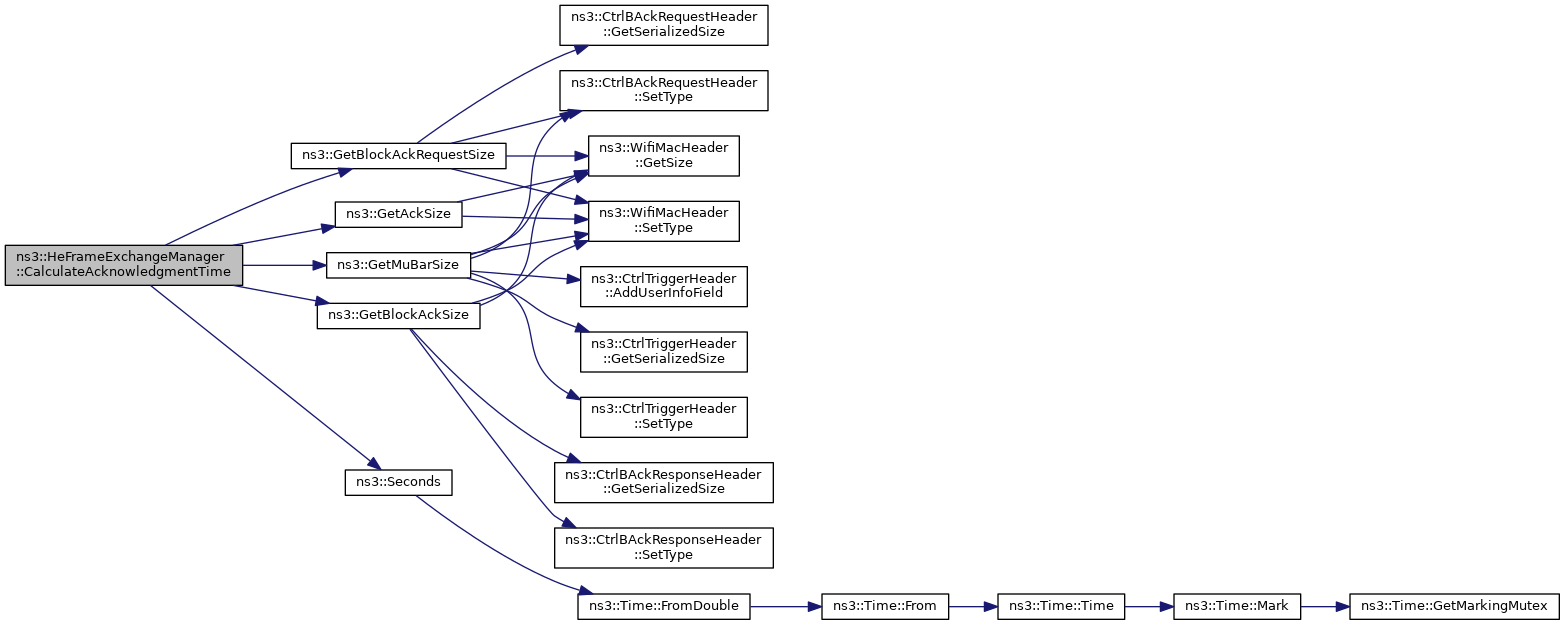

void	CalculateAcknowledgmentTime (WifiAcknowledgment *acknowledgment) const override
	Calculate the time required to acknowledge a frame according to the given acknowledgment method. More...

uint16_t	GetSupportedBaBufferSize (void) const override
	Get the maximum supported buffer size for a Block Ack agreement. More...

void	SetMultiUserScheduler (const Ptr< MultiUserScheduler > muScheduler)
	Set the Multi-user Scheduler associated with this Frame Exchange Manager. More...

virtual void	SetTargetRssi (CtrlTriggerHeader &trigger) const
	Set the UL Target RSSI subfield of every User Info fields of the given Trigger Frame to the most recent RSSI observed from the corresponding station. More...

void	SetWifiMac (const Ptr< RegularWifiMac > mac) override
	Set the MAC layer to use. More...

bool	StartFrameExchange (Ptr< QosTxop > edca, Time availableTime, bool initialFrame) override
	Start a frame exchange (including protection frames and acknowledgment frames as needed) that fits within the given availableTime (if different than Time::Min()). More...

Public Member Functions inherited from ns3::VhtFrameExchangeManager
	VhtFrameExchangeManager ()

virtual	~VhtFrameExchangeManager ()

Public Member Functions inherited from ns3::HtFrameExchangeManager
	HtFrameExchangeManager ()

virtual	~HtFrameExchangeManager ()

void	CalculateAcknowledgmentTime (WifiAcknowledgment *acknowledgment) const override
	Calculate the time required to acknowledge a frame according to the given acknowledgment method. More...

void	CreateBlockAckAgreement (const MgtAddBaResponseHeader *respHdr, Mac48Address originator, uint16_t startingSeq)

void	DestroyBlockAckAgreement (Mac48Address originator, uint8_t tid)
	Destroy a Block Ack agreement. More...

bool	GetBaAgreementEstablished (Mac48Address originator, uint8_t tid) const
	Return true if a Block Ack agreement has been established with the given originator for the given TID. More...

BlockAckType	GetBlockAckType (Mac48Address originator, uint8_t tid) const
	Get the type of BlockAck frames sent to the given originator. More...

Ptr< MpduAggregator >	GetMpduAggregator (void) const
	Returns the aggregator used to construct A-MPDU subframes. More...

Ptr< MsduAggregator >	GetMsduAggregator (void) const
	Returns the aggregator used to construct A-MSDU subframes. More...

virtual bool	IsWithinAmpduSizeLimit (uint32_t ampduSize, Mac48Address receiver, uint8_t tid, WifiModulationClass modulation) const
	Check whether an A-MPDU of the given size meets the constraint on the maximum size for A-MPDUs sent to the given receiver, belonging to the given TID and transmitted using the given modulation class. More...

bool	IsWithinLimitsIfAddMpdu (Ptr< const WifiMacQueueItem > mpdu, const WifiTxParameters &txParams, Time ppduDurationLimit) const override
	Check if the PSDU obtained by aggregating the given MPDU to the PSDU specified by the given TX parameters meets the constraints on the maximum A-MPDU size and its transmission time does not exceed the given PPDU duration limit (if different than Time::Min()). More...

virtual bool	IsWithinLimitsIfAggregateMsdu (Ptr< const WifiMacQueueItem > msdu, const WifiTxParameters &txParams, Time ppduDurationLimit) const
	Check if the PSDU obtained by aggregating the given MSDU to the PSDU specified by the given TX parameters meets the constraints on the maximum A-MSDU size and its transmission time does not exceed the given PPDU duration limit (if different than Time::Min()). More...

void	SendAddBaResponse (const MgtAddBaRequestHeader *reqHdr, Mac48Address originator)
	This method can be called to accept a received ADDBA Request. More...

void	SetWifiMac (const Ptr< RegularWifiMac > mac) override
	Set the MAC layer to use. More...

bool	StartFrameExchange (Ptr< QosTxop > edca, Time availableTime, bool initialFrame) override
	Start a frame exchange (including protection frames and acknowledgment frames as needed) that fits within the given availableTime (if different than Time::Min()). More...

virtual bool	TryAggregateMsdu (Ptr< const WifiMacQueueItem > msdu, WifiTxParameters &txParams, Time availableTime) const
	Check if aggregating an MSDU to the current MPDU (as specified by the given TX parameters) does not violate the size and time constraints, while taking into account the possibly updated protection and acknowledgment methods. More...

Public Member Functions inherited from ns3::QosFrameExchangeManager
	QosFrameExchangeManager ()

virtual	~QosFrameExchangeManager ()

virtual bool	IsWithinSizeAndTimeLimits (uint32_t ppduPayloadSize, Mac48Address receiver, const WifiTxParameters &txParams, Time ppduDurationLimit) const
	Check whether the transmission time of the frame being built (as described by the given TX parameters) does not exceed the given PPDU duration limit if the size of the PSDU addressed to the given receiver becomes ppduPayloadSize. More...

bool	StartTransmission (Ptr< Txop > edca) override
	Request the FrameExchangeManager to start a frame exchange sequence. More...

bool	TryAddMpdu (Ptr< const WifiMacQueueItem > mpdu, WifiTxParameters &txParams, Time availableTime) const
	Recompute the protection and acknowledgment methods to use if the given MPDU is added to the frame being built (as described by the given TX parameters) and check whether the duration of the frame exchange sequence (including protection and acknowledgment) does not exceed the given available time. More...

Public Member Functions inherited from ns3::FrameExchangeManager
	FrameExchangeManager ()

virtual	~FrameExchangeManager ()

virtual void	CalculateProtectionTime (WifiProtection *protection) const
	Calculate the time required to protect a frame according to the given protection method. More...

Ptr< WifiAckManager >	GetAckManager (void) const
	Get the Acknowledgment Manager used by this node. More...

Ptr< WifiProtectionManager >	GetProtectionManager (void) const
	Get the Protection Manager used by this node. More...

const WifiTxTimer &	GetWifiTxTimer (void) const
	Get a const reference to the WifiTxTimer object. More...

bool	IsPromisc (void) const
	Check if the device is operating in promiscuous mode. More...

void	NotifyOffNow (void)
	This method is typically invoked by the PhyMacLowListener to notify the MAC layer that the device has been put into off mode. More...

void	NotifySleepNow (void)
	This method is typically invoked by the PhyMacLowListener to notify the MAC layer that the device has been put into sleep mode. More...

void	NotifySwitchingStartNow (Time duration)

void	Receive (Ptr< WifiPsdu > psdu, RxSignalInfo rxSignalInfo, WifiTxVector txVector, std::vector< bool > perMpduStatus)
	This method is intended to be called by the PHY layer every time an MPDU is received and also when the reception of an A-MPDU is completed. More...

virtual void	ResetPhy (void)
	Remove WifiPhy associated with this MacLow. More...

void	SetAckedMpduCallback (AckedMpdu callback)
	Set the callback to invoke when an MPDU is successfully acked. More...

virtual void	SetAckManager (Ptr< WifiAckManager > ackManager)
	Set the Acknowledgment Manager to use. More...

virtual void	SetAddress (Mac48Address address)
	Set the MAC address. More...

virtual void	SetBssid (Mac48Address bssid)
	Set the Basic Service Set Identification. More...

virtual void	SetChannelAccessManager (const Ptr< ChannelAccessManager > channelAccessManager)
	Set the channel access manager to use. More...

virtual void	SetDroppedMpduCallback (DroppedMpdu callback)
	Set the callback to invoke when an MPDU is dropped. More...

virtual void	SetMacRxMiddle (const Ptr< MacRxMiddle > rxMiddle)
	Set the MAC RX Middle to use. More...

virtual void	SetMacTxMiddle (const Ptr< MacTxMiddle > txMiddle)
	Set the MAC TX Middle to use. More...

void	SetPromisc (void)
	Enable promiscuous mode. More...

virtual void	SetProtectionManager (Ptr< WifiProtectionManager > protectionManager)
	Set the Protection Manager to use. More...

virtual void	SetWifiPhy (const Ptr< WifiPhy > phy)
	Set the PHY layer to use. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

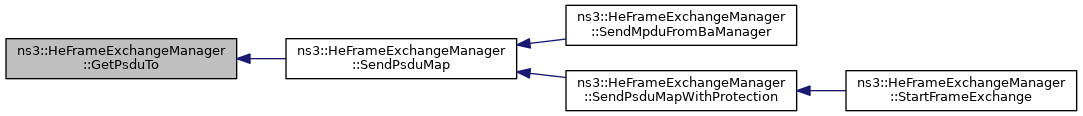

static Ptr< WifiPsdu >	GetPsduTo (Mac48Address to, const WifiPsduMap &psduMap)
	Get the PSDU in the given PSDU map that is addressed to the given MAC address, if any, or a null pointer, otherwise. More...

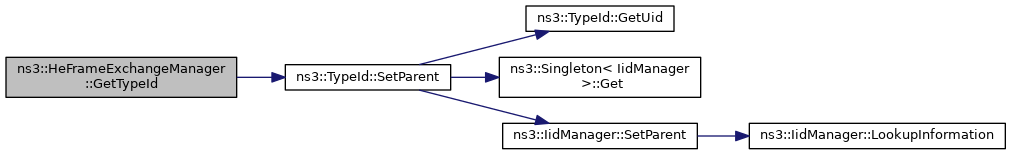

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::VhtFrameExchangeManager
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::HtFrameExchangeManager
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::QosFrameExchangeManager
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::FrameExchangeManager
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	BlockAckAfterTbPpduTimeout (Ptr< WifiPsdu > psdu, const WifiTxVector &txVector)
	Take the necessary actions after that a Block Ack is missing after a TB PPDU solicited through a Trigger Frame. More...

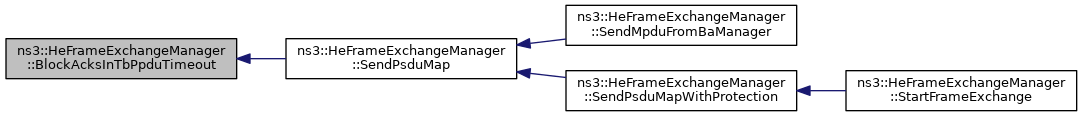

virtual void	BlockAcksInTbPpduTimeout (WifiPsduMap psduMap, const std::set< Mac48Address > staMissedBlockAckFrom, std::size_t nSolicitedStations)
	Take the necessary actions after that some BlockAck frames are missing in response to a DL MU PPDU. More...

void	DoDispose () override
	Destructor implementation. More...

void	EndReceiveAmpdu (Ptr< const WifiPsdu > psdu, const RxSignalInfo &rxSignalInfo, const WifiTxVector &txVector, const std::vector< bool > &perMpduStatus) override
	This method is called when the reception of an A-MPDU including multiple MPDUs is completed. More...

void	ForwardPsduMapDown (WifiConstPsduMap psduMap, WifiTxVector &txVector)
	Forward a map of PSDUs down to the PHY layer. More...

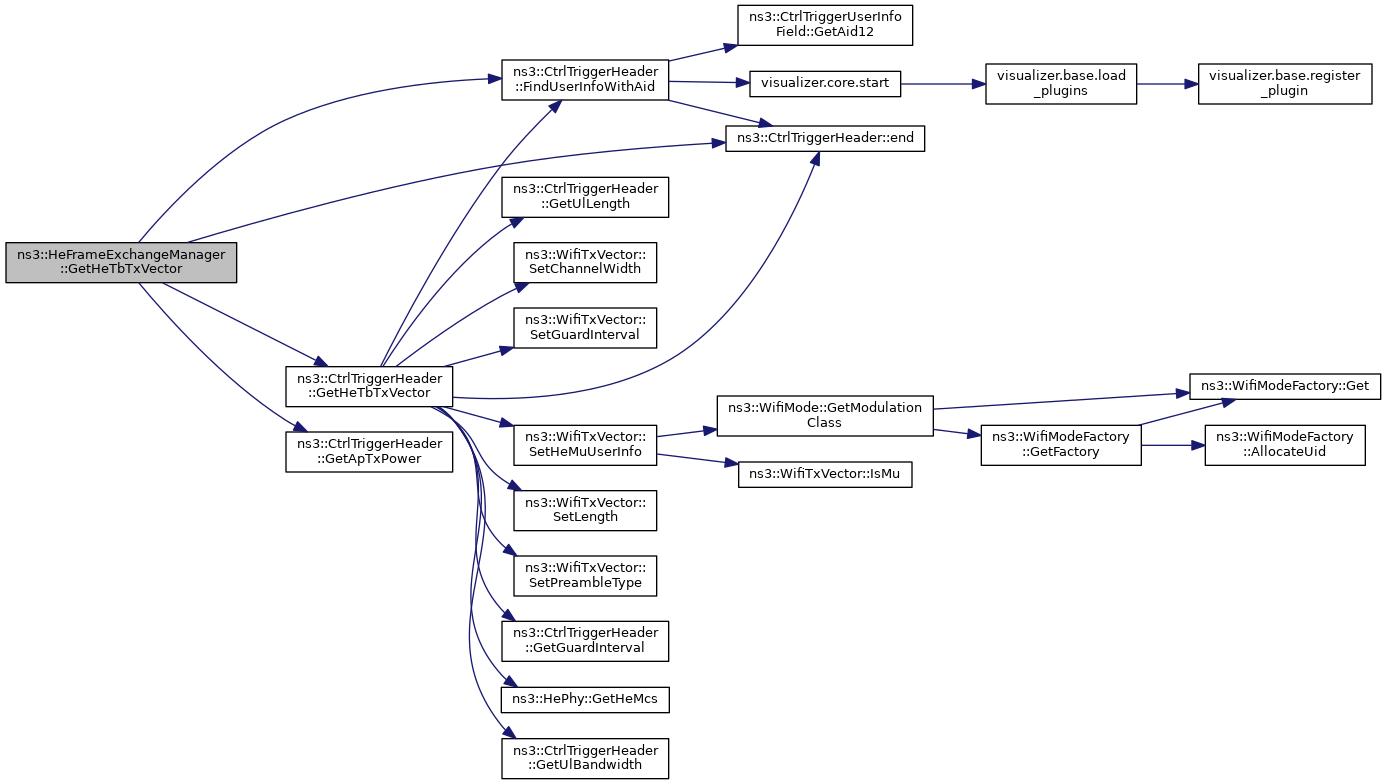

WifiTxVector	GetHeTbTxVector (CtrlTriggerHeader trigger, Mac48Address triggerSender) const
	Return a TXVECTOR for the UL frame that the station will send in response to the given Trigger frame, configured with the BSS color and transmit power level to use for the consequent HE TB PPDU. More...

Time	GetTxDuration (uint32_t ppduPayloadSize, Mac48Address receiver, const WifiTxParameters &txParams) const override
	Get the updated TX duration of the frame associated with the given TX parameters if the size of the PSDU addressed to the given receiver becomes ppduPayloadSize. More...

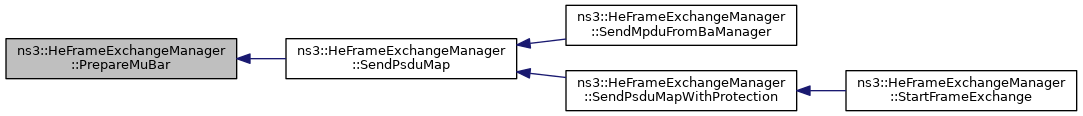

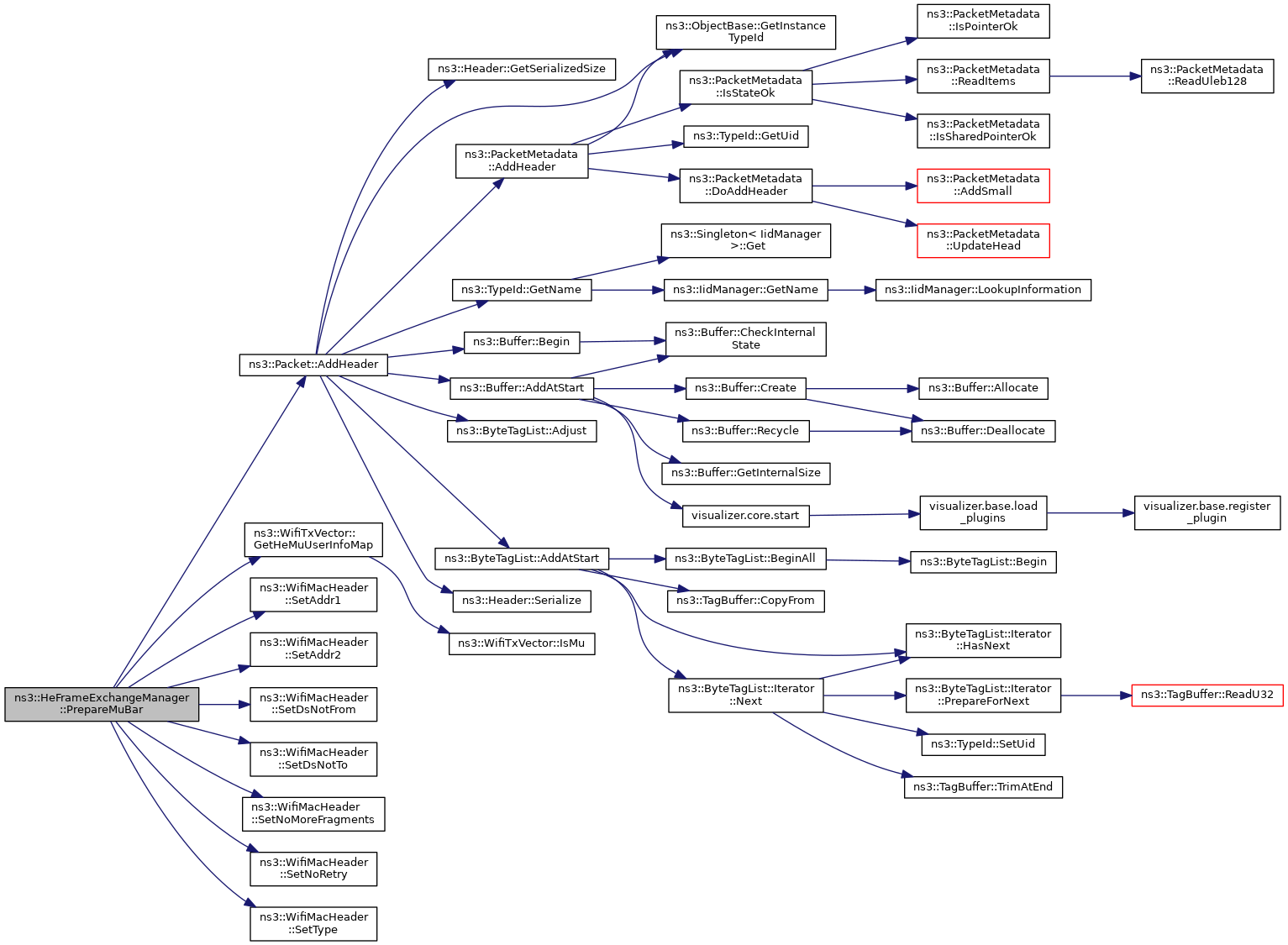

Ptr< WifiMacQueueItem >	PrepareMuBar (const WifiTxVector &responseTxVector, std::map< uint16_t, CtrlBAckRequestHeader > recipients) const
	Build a MU-BAR Trigger Frame starting from the TXVECTOR used to respond to the MU-BAR (in case of multiple responders, their TXVECTORs need to be "merged" into a single TXVECTOR) and from the BlockAckReq headers for every recipient. More...

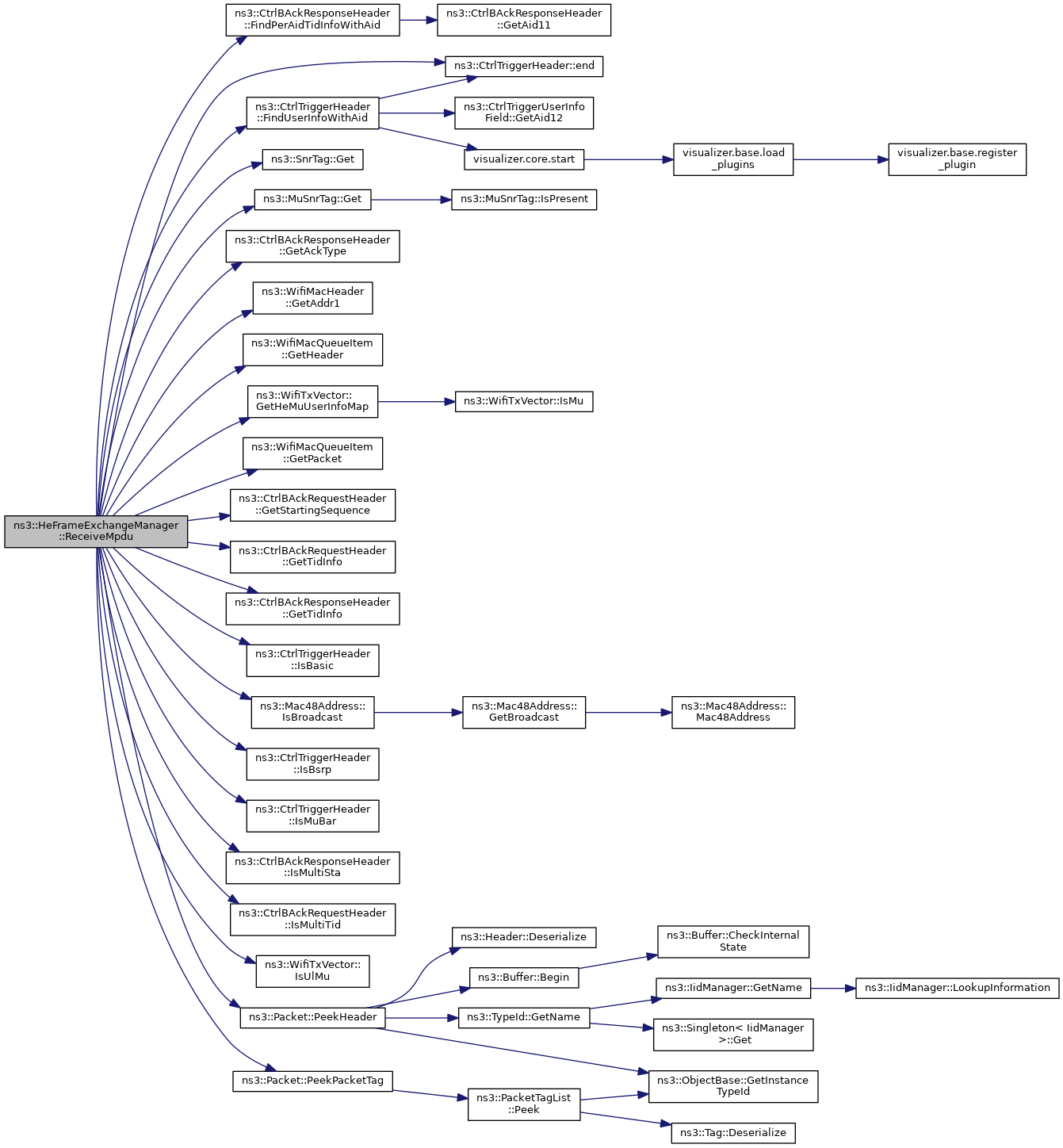

void	ReceiveMpdu (Ptr< WifiMacQueueItem > mpdu, RxSignalInfo rxSignalInfo, const WifiTxVector &txVector, bool inAmpdu) override
	This method handles the reception of an MPDU (possibly included in an A-MPDU) More...

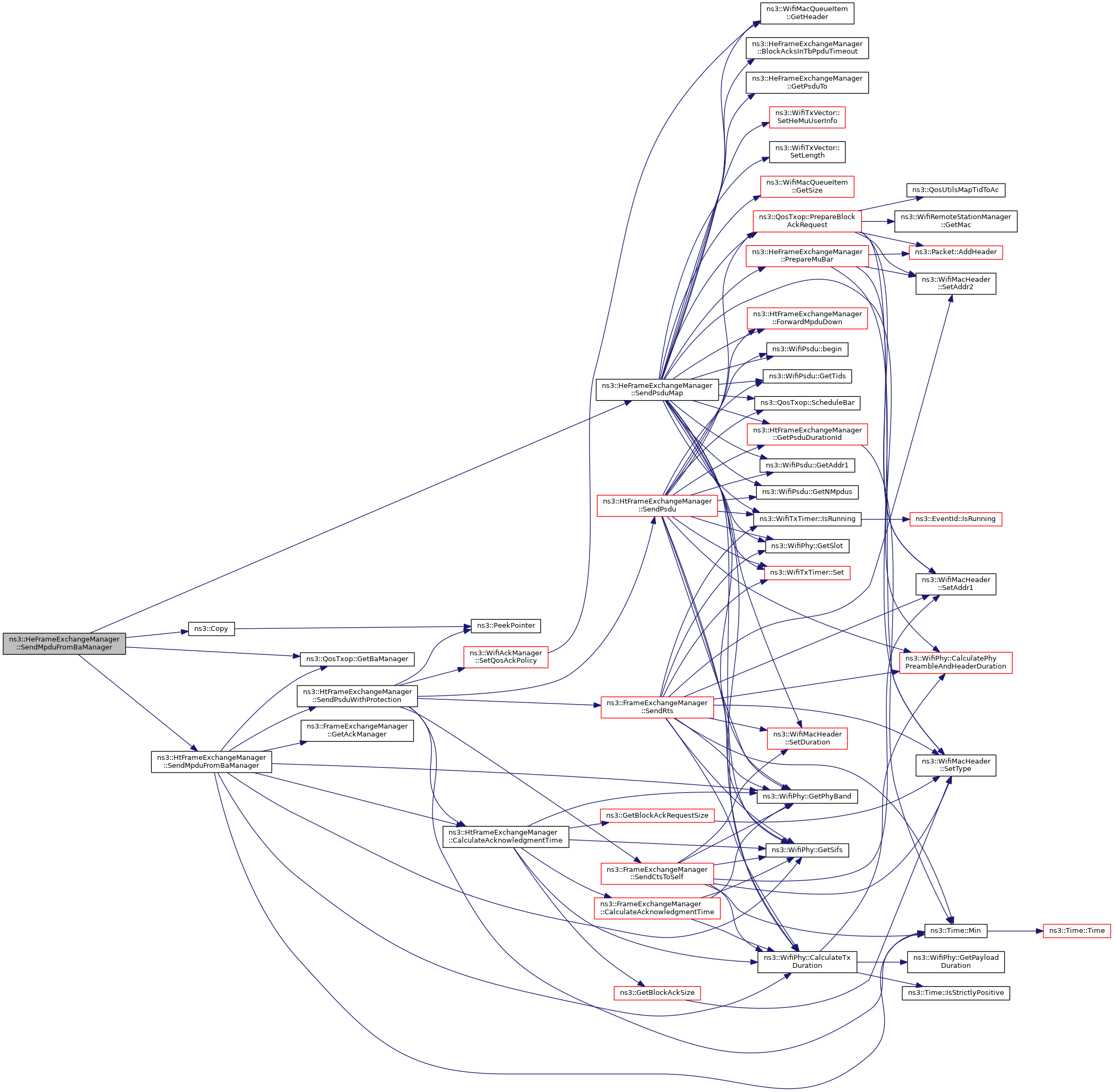

bool	SendMpduFromBaManager (Ptr< QosTxop > edca, Time availableTime, bool initialFrame) override
	If the Block Ack Manager associated with the given EDCA has a BlockAckReq frame to transmit (the duration of which plus the response fits within the given available time, if the latter is not Time::Min() and this is not the initial frame of a TXOP), transmit the frame and return true. More...

void	SendMultiStaBlockAck (const WifiTxParameters &txParams)
	Send a Multi-STA Block Ack frame after the reception of some TB PPDUs. More...

void	SendPsduMapWithProtection (WifiPsduMap psduMap, WifiTxParameters &txParams)
	Send a map of PSDUs as a DL MU PPDU. More...

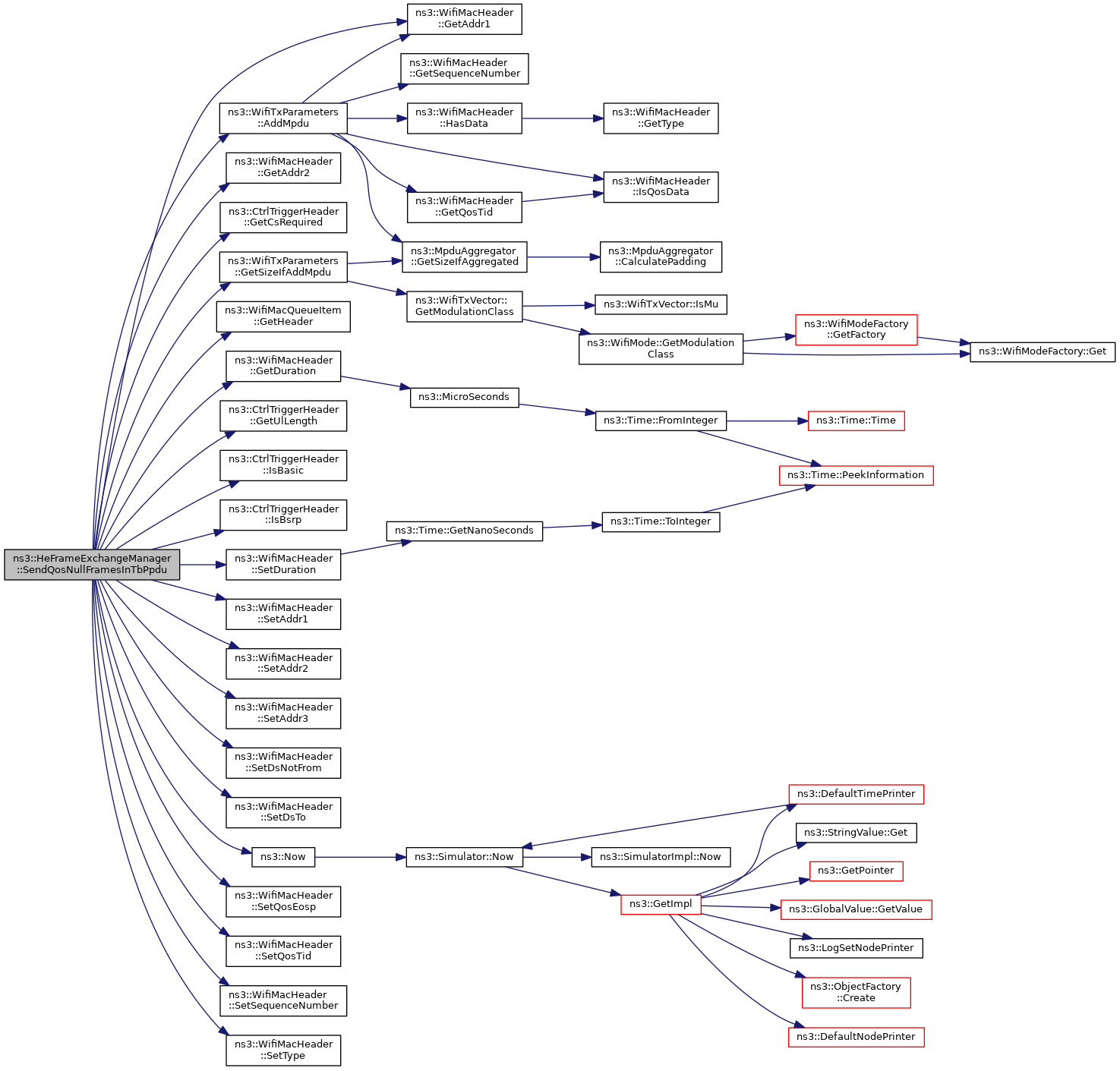

void	SendQosNullFramesInTbPpdu (const CtrlTriggerHeader &trigger, const WifiMacHeader &hdr)
	Send QoS Null frames in response to a Basic or BSRP Trigger Frame. More...

virtual void	TbPpduTimeout (WifiPsduMap psduMap, const std::set< Mac48Address > staMissedTbPpduFrom, std::size_t nSolicitedStations)
	Take the necessary actions after that some TB PPDUs are missing in response to Trigger Frame. More...

Protected Member Functions inherited from ns3::VhtFrameExchangeManager
Ptr< WifiPsdu >	GetWifiPsdu (Ptr< WifiMacQueueItem > mpdu, const WifiTxVector &txVector) const override
	Get a PSDU containing the given MPDU. More...

Protected Member Functions inherited from ns3::HtFrameExchangeManager
virtual void	BlockAckTimeout (Ptr< WifiPsdu > psdu, const WifiTxVector &txVector)
	Called when the BlockAck timeout expires. More...

void	CtsTimeout (Ptr< WifiMacQueueItem > rts, const WifiTxVector &txVector) override
	Called when the CTS timeout expires. More...

void	DequeueMpdu (Ptr< WifiMacQueueItem > mpdu) override
	Dequeue the given MPDU from the queue in which it is stored. More...

void	DequeuePsdu (Ptr< const WifiPsdu > psdu)
	Dequeue the MPDUs of the given PSDU from the queue in which they are stored. More...

void	DoDispose () override
	Destructor implementation. More...

void	EndReceiveAmpdu (Ptr< const WifiPsdu > psdu, const RxSignalInfo &rxSignalInfo, const WifiTxVector &txVector, const std::vector< bool > &perMpduStatus) override
	This method is called when the reception of an A-MPDU including multiple MPDUs is completed. More...

void	ForwardMpduDown (Ptr< WifiMacQueueItem > mpdu, WifiTxVector &txVector) override
	Forward an MPDU down to the PHY layer. More...

virtual void	ForwardPsduDown (Ptr< const WifiPsdu > psdu, WifiTxVector &txVector)
	Forward a PSDU down to the PHY layer. More...

Ptr< BlockAckManager >	GetBaManager (uint8_t tid) const
	Get the Block Ack Manager handling the given TID. More...

virtual Time	GetPsduDurationId (Time txDuration, const WifiTxParameters &txParams) const
	Compute how to set the Duration/ID field of PSDUs that do not include fragments. More...

virtual void	MissedBlockAck (Ptr< WifiPsdu > psdu, const WifiTxVector &txVector, bool &resetCw)
	Take necessary actions when a BlockAck is missed, such as scheduling a BlockAckReq frame or the retransmission of the unacknowledged frames. More...

virtual bool	NeedSetupBlockAck (Mac48Address recipient, uint8_t tid)
	A Block Ack agreement needs to be established with the given recipient for the given TID if it does not already exist (or exists and is in state RESET) and: More...

void	NotifyPacketDiscarded (Ptr< const WifiMacQueueItem > mpdu) override
	Pass the given MPDU, discarded because of the max retry limit was reached, to the MPDU dropped callback. More...

void	NotifyReceivedNormalAck (Ptr< WifiMacQueueItem > mpdu) override
	Notify other components that an MPDU was acknowledged. More...

virtual void	NotifyTxToEdca (Ptr< const WifiPsdu > psdu) const
	Notify the transmission of the given PSDU to the EDCAF associated with the AC the PSDU belongs to. More...

void	ReceiveMpdu (Ptr< WifiMacQueueItem > mpdu, RxSignalInfo rxSignalInfo, const WifiTxVector &txVector, bool inAmpdu) override
	This method handles the reception of an MPDU (possibly included in an A-MPDU) More...

void	RetransmitMpduAfterMissedAck (Ptr< WifiMacQueueItem > mpdu) const override
	Retransmit an MPDU that was not acknowledged. More...

void	RetransmitMpduAfterMissedCts (Ptr< WifiMacQueueItem > mpdu) const override
	Retransmit an MPDU that was not sent because a CTS was not received. More...

void	SendAddBaRequest (Mac48Address recipient, uint8_t tid, uint16_t startingSeq, uint16_t timeout, bool immediateBAck)
	Sends an ADDBA Request to establish a block ack agreement with STA addressed by recipient for TID tid. More...

void	SendBlockAck (const RecipientBlockAckAgreement &agreement, Time durationId, WifiTxVector &blockAckTxVector, double rxSnr)
	Create a BlockAck frame with header equal to blockAck and start its transmission. More...

virtual bool	SendDataFrame (Ptr< const WifiMacQueueItem > peekedItem, Time availableTime, bool initialFrame)
	Given a non-broadcast QoS data frame, prepare the PSDU to transmit by attempting A-MSDU and A-MPDU aggregation (if enabled), while making sure that the frame exchange (possibly including protection and acknowledgment) is completed within the given available time. More...

void	SendDelbaFrame (Mac48Address addr, uint8_t tid, bool byOriginator)
	Sends DELBA frame to cancel a block ack agreement with STA addressed by addr for TID tid. More...

void	SendPsduWithProtection (Ptr< WifiPsdu > psdu, WifiTxParameters &txParams)
	Send a PSDU (A-MPDU or BlockAckReq frame) requesting a BlockAck frame or a BlockAckReq frame followed by a BlockAck frame for the acknowledgment. More...

void	TransmissionSucceeded (void) override
	Take necessary actions upon a transmission success. More...

Protected Member Functions inherited from ns3::QosFrameExchangeManager
void	DoDispose () override
	Destructor implementation. More...

Time	GetCtsToSelfDurationId (const WifiTxVector &ctsTxVector, Time txDuration, Time response) const override
	Compute how to set the Duration/ID field of a CTS-to-self frame to send to protect a frame transmitted with the given TX vector. More...

Time	GetFrameDurationId (const WifiMacHeader &header, uint32_t size, const WifiTxParameters &txParams, Ptr< Packet > fragmentedPacket) const override
	Compute how to set the Duration/ID field of a frame being transmitted with the given TX parameters. More...

Time	GetRtsDurationId (const WifiTxVector &rtsTxVector, Time txDuration, Time response) const override
	Compute how to set the Duration/ID field of an RTS frame to send to protect a frame transmitted with the given TX vector. More...

void	PifsRecovery (void)
	Perform a PIFS recovery as a response to transmission failure within a TXOP. More...

void	PreProcessFrame (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector) override
	Perform actions that are possibly needed when receiving any frame, independently of whether the frame is addressed to this station (e.g., setting the NAV or the TXOP holder). More...

void	ReceiveMpdu (Ptr< WifiMacQueueItem > mpdu, RxSignalInfo rxSignalInfo, const WifiTxVector &txVector, bool inAmpdu) override
	This method handles the reception of an MPDU (possibly included in an A-MPDU) More...

virtual bool	SendCfEndIfNeeded (void)
	Send a CF-End frame to indicate the completion of the TXOP, provided that the remaining duration is long enough to transmit this frame. More...

virtual void	SetTxopHolder (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector)
	Set the TXOP holder, if needed, based on the received frame. More...

virtual bool	StartTransmission (Ptr< QosTxop > edca, Time txopDuration)
	Request the FrameExchangeManager to start a frame exchange sequence. More...

void	TransmissionFailed (void) override
	Take necessary actions upon a transmission failure. More...

void	TransmissionSucceeded (void) override
	Take necessary actions upon a transmission success. More...

Protected Member Functions inherited from ns3::FrameExchangeManager
void	DoSendCtsAfterRts (const WifiMacHeader &rtsHdr, WifiTxVector &ctsTxVector, double rtsSnr)
	Send CTS after receiving RTS. More...

Ptr< WifiMacQueueItem >	GetFirstFragmentIfNeeded (Ptr< WifiMacQueueItem > mpdu)
	Fragment the given MPDU if needed. More...

Ptr< WifiMacQueueItem >	GetNextFragment (void)
	Get the next fragment of the current MSDU. More...

virtual void	NavResetTimeout (void)
	Reset the NAV upon expiration of the NAV reset timer. More...

void	NormalAckTimeout (Ptr< WifiMacQueueItem > mpdu, const WifiTxVector &txVector)
	Called when the Ack timeout expires. More...

virtual void	ReceivedNormalAck (Ptr< WifiMacQueueItem > mpdu, const WifiTxVector &txVector, const WifiTxVector &ackTxVector, const RxSignalInfo &rxInfo, double snr)
	Perform the actions needed when a Normal Ack is received. More...

void	SendCtsAfterRts (const WifiMacHeader &rtsHdr, WifiMode rtsTxMode, double rtsSnr)
	Send CTS after receiving RTS. More...

void	SendCtsToSelf (const WifiTxParameters &txParams)
	Send CTS for a CTS-to-self mechanism. More...

void	SendMpduWithProtection (Ptr< WifiMacQueueItem > mpdu, WifiTxParameters &txParams)
	Send an MPDU with the given TX parameters (with the specified protection). More...

void	SendNormalAck (const WifiMacHeader &hdr, const WifiTxVector &dataTxVector, double dataSnr)
	Send Normal Ack. More...

void	SendRts (const WifiTxParameters &txParams)
	Send RTS to begin RTS-CTS-Data-Ack transaction. More...

virtual void	UpdateNav (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector)
	Update the NAV, if needed, based on the Duration/ID of the given psdu. More...

void	UpdateTxDuration (Mac48Address receiver, WifiTxParameters &txParams) const
	Update the TX duration field of the given TX parameters after that the PSDU addressed to the given receiver has changed. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes
Ptr< ApWifiMac >	m_apMac
	MAC pointer (null if not an AP) More...

Ptr< StaWifiMac >	m_staMac
	MAC pointer (null if not a STA) More...

Protected Attributes inherited from ns3::HtFrameExchangeManager
std::map< AgreementKey, RecipientBlockAckAgreement >	m_agreements
	agreements More...

Ptr< MpduAggregator >	m_mpduAggregator
	A-MPDU aggregator. More...

Ptr< MsduAggregator >	m_msduAggregator
	A-MSDU aggregator. More...

Protected Attributes inherited from ns3::QosFrameExchangeManager
Ptr< QosTxop >	m_edca
	the EDCAF that gained channel access More...

Mac48Address	m_txopHolder
	MAC address of the TXOP holder. More...

Protected Attributes inherited from ns3::FrameExchangeManager
AckedMpdu	m_ackedMpduCallback
	the acknowledged MPDU callback More...

Mac48Address	m_bssid
	BSSID address (Mac48Address) More...

Ptr< ChannelAccessManager >	m_channelAccessManager
	the channel access manager More...

Ptr< Txop >	m_dcf
	the DCF/EDCAF that gained channel access More...

DroppedMpdu	m_droppedMpduCallback
	the dropped MPDU callback More...

Ptr< RegularWifiMac >	m_mac
	the MAC layer on this station More...

Time	m_navEnd
	NAV expiration time. More...

EventId	m_navResetEvent
	the event to reset the NAV after an RTS More...

Ptr< WifiPhy >	m_phy
	the PHY layer on this station More...

bool	m_promisc
	Flag if the device is operating in promiscuous mode. More...

Ptr< MacRxMiddle >	m_rxMiddle
	the MAC RX Middle on this station More...

Mac48Address	m_self
	the MAC address of this device More...

Ptr< MacTxMiddle >	m_txMiddle
	the MAC TX Middle on this station More...

WifiTxTimer	m_txTimer
	the timer set upon frame transmission More...

Private Member Functions
void	ReceiveBasicTrigger (const CtrlTriggerHeader &trigger, const WifiMacHeader &hdr)
	Take the necessary actions when receiveing a Basic Trigger Frame. More...

void	SendPsduMap (void)
	Send the current PSDU map as a DL MU PPDU. More...

Private Attributes
EventId	m_multiStaBaEvent
	Sending a Multi-STA BlockAck event. More...

Ptr< MultiUserScheduler >	m_muScheduler
	Multi-user Scheduler (HE APs only) More...

MuSnrTag	m_muSnrTag
	Tag to attach to Multi-STA BlockAck frames. More...

WifiPsduMap	m_psduMap
	the A-MPDU being transmitted More...

std::set< Mac48Address >	m_staExpectTbPpduFrom
	set of stations expected to send a TB PPDU More...

Ptr< WifiMacQueueItem >	m_triggerFrame
	Trigger Frame being sent. More...

bool	m_triggerFrameInAmpdu
	True if the received A-MPDU contains an MU-BAR. More...

WifiTxParameters	m_txParams
	the TX parameters for the current PPDU More...

Additional Inherited Members
Public Types inherited from ns3::FrameExchangeManager
typedef Callback< void, Ptr< const WifiMacQueueItem > >	AckedMpdu
	typedef for a callback to invoke when an MPDU is successfully acknowledged. More...

typedef Callback< void, WifiMacDropReason, Ptr< const WifiMacQueueItem > >	DroppedMpdu
	typedef for a callback to invoke when an MPDU is dropped. More...

Protected Types inherited from ns3::HtFrameExchangeManager
typedef std::pair< Mac48Address, uint8_t >	AgreementKey
	agreement key typedef (MAC address and TID) More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

HeFrameExchangeManager handles the frame exchange sequences for HE stations.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.

Attributes defined in parent class ns3::QosFrameExchangeManager

PifsRecovery: Perform a PIFS recovery as a response to transmission failure within a TXOP
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 1072 bytes (on a 64-bit architecture).

Definition at line 51 of file he-frame-exchange-manager.h.

Constructor & Destructor Documentation

◆ HeFrameExchangeManager()

ns3::HeFrameExchangeManager::HeFrameExchangeManager ( )

Definition at line 54 of file he-frame-exchange-manager.cc.

References NS_LOG_FUNCTION.

◆ ~HeFrameExchangeManager()

ns3::HeFrameExchangeManager::~HeFrameExchangeManager ( )

virtual

Definition at line 60 of file he-frame-exchange-manager.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

◆ BlockAckAfterTbPpduTimeout()

void ns3::HeFrameExchangeManager::BlockAckAfterTbPpduTimeout	(	Ptr< WifiPsdu >	psdu,
		const WifiTxVector &	txVector
	)

protectedvirtual

Take the necessary actions after that a Block Ack is missing after a TB PPDU solicited through a Trigger Frame.

Parameters

psdu	the PSDU in the TB PPDU
txVector	the TXVECTOR used to transmit the TB PPDU

Definition at line 940 of file he-frame-exchange-manager.cc.

References ns3::WifiPsdu::begin(), and NS_LOG_FUNCTION.

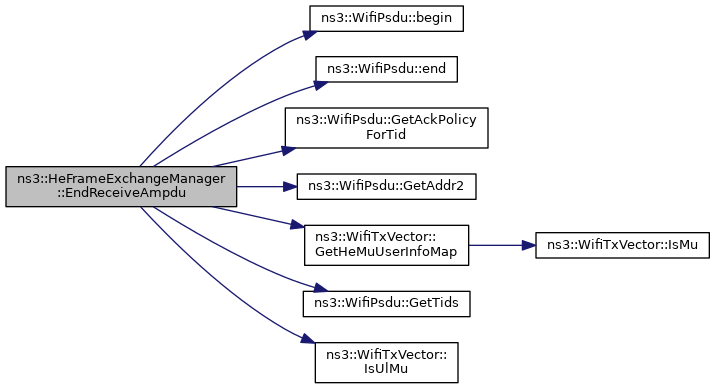

Here is the call graph for this function:

◆ BlockAcksInTbPpduTimeout()

void ns3::HeFrameExchangeManager::BlockAcksInTbPpduTimeout	(	WifiPsduMap *	psduMap,
		const std::set< Mac48Address > *	staMissedBlockAckFrom,
		std::size_t	nSolicitedStations
	)

protectedvirtual

Take the necessary actions after that some BlockAck frames are missing in response to a DL MU PPDU.

This method must not be called if all the expected BlockAck frames were received.

Parameters

psduMap	a pointer to PSDU map transmitted in a DL MU PPDU
staMissedBlockAckFrom	set of stations we missed a BlockAck frame from
nSolicitedStations	the number of stations solicited to send a TB PPDU

Definition at line 872 of file he-frame-exchange-manager.cc.

References NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by SendPsduMap().

Here is the caller graph for this function:

◆ CalculateAcknowledgmentTime()

void ns3::HeFrameExchangeManager::CalculateAcknowledgmentTime ( WifiAcknowledgment * acknowledgment ) const

overridevirtual

Calculate the time required to acknowledge a frame according to the given acknowledgment method.

The acknowledgment time is stored in the acknowledgment object itself.

Parameters

acknowledgment the acknowledgment method

Reimplemented from ns3::FrameExchangeManager.

Definition at line 659 of file he-frame-exchange-manager.cc.

References ns3::WifiAcknowledgment::acknowledgmentTime, ns3::WifiDlMuTfMuBar::barTypes, ns3::WifiUlMuMultiStaBa::baType, ns3::GetAckSize(), ns3::GetBlockAckRequestSize(), ns3::GetBlockAckSize(), ns3::GetMuBarSize(), ns3::WifiAcknowledgment::method, ns3::WifiDlMuTfMuBar::muBarTxVector, ns3::WifiUlMuMultiStaBa::multiStaBaTxVector, NS_ABORT_IF, NS_ASSERT, NS_LOG_FUNCTION, ns3::Seconds(), ns3::WifiDlMuBarBaSequence::stationsReplyingWithBlockAck, ns3::WifiDlMuTfMuBar::stationsReplyingWithBlockAck, ns3::WifiDlMuAggregateTf::stationsReplyingWithBlockAck, ns3::WifiDlMuBarBaSequence::stationsReplyingWithNormalAck, ns3::WifiDlMuBarBaSequence::stationsSendBlockAckReqTo, ns3::WifiDlMuTfMuBar::ulLength, and ns3::WifiDlMuAggregateTf::ulLength.

Referenced by SendPsduMapWithProtection().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::HeFrameExchangeManager::DoDispose ( void )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::FrameExchangeManager.

Definition at line 85 of file he-frame-exchange-manager.cc.

References ns3::EventId::Cancel(), ns3::WifiTxParameters::Clear(), ns3::HtFrameExchangeManager::DoDispose(), m_apMac, m_multiStaBaEvent, m_muScheduler, m_psduMap, m_staMac, m_txParams, and NS_LOG_FUNCTION.

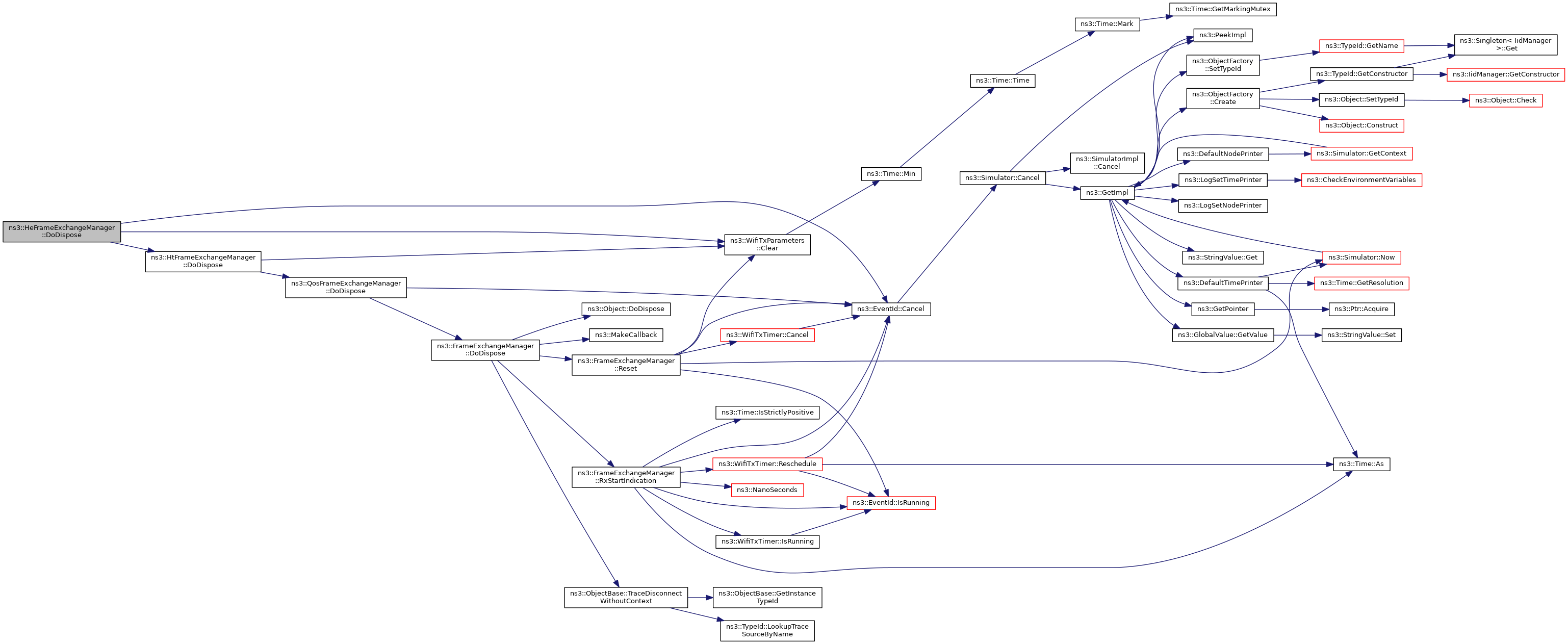

Here is the call graph for this function:

◆ EndReceiveAmpdu()

void ns3::HeFrameExchangeManager::EndReceiveAmpdu	(	Ptr< const WifiPsdu >	psdu,
		const RxSignalInfo &	rxSignalInfo,
		const WifiTxVector &	txVector,
		const std::vector< bool > &	perMpduStatus
	)

overrideprotectedvirtual

This method is called when the reception of an A-MPDU including multiple MPDUs is completed.

Parameters

psdu	the received PSDU
rxSignalInfo	the info on the received signal (

See also: RxSignalInfo)

Parameters

txVector	TxVector of the received PSDU
perMpduStatus	per MPDU reception status

Reimplemented from ns3::FrameExchangeManager.

Definition at line 1594 of file he-frame-exchange-manager.cc.

References ns3::WifiUlMuMultiStaBa::baType, ns3::WifiPsdu::begin(), ns3::WifiPsdu::end(), ns3::WifiPsdu::GetAckPolicyForTid(), ns3::WifiPsdu::GetAddr2(), ns3::WifiTxVector::GetHeMuUserInfoMap(), ns3::WifiPsdu::GetTids(), ns3::WifiTxVector::IsUlMu(), ns3::BlockAckType::m_bitmapLen, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_WARN, ns3::RxSignalInfo::snr, and ns3::WifiUlMuMultiStaBa::stationsReceivingMultiStaBa.

Here is the call graph for this function:

◆ ForwardPsduMapDown()

void ns3::HeFrameExchangeManager::ForwardPsduMapDown	(	WifiConstPsduMap	psduMap,
		WifiTxVector &	txVector
	)

protected

Forward a map of PSDUs down to the PHY layer.

Parameters

psduMap	the map of PSDUs to transmit
txVector	the TXVECTOR used to transmit the MU PPDU

Definition at line 584 of file he-frame-exchange-manager.cc.

References NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::WifiTxVector::SetAggregation().

Here is the call graph for this function:

◆ GetHeTbTxVector()

WifiTxVector ns3::HeFrameExchangeManager::GetHeTbTxVector	(	CtrlTriggerHeader	trigger,
		Mac48Address	triggerSender
	)		const

protected

Return a TXVECTOR for the UL frame that the station will send in response to the given Trigger frame, configured with the BSS color and transmit power level to use for the consequent HE TB PPDU.

Note that this method should only be called by non-AP stations only.

Parameters

trigger	the received Trigger frame
triggerSender	the MAC address of the AP sending the Trigger frame

Returns: TXVECTOR for the HE TB PPDU frame

Get the transmit power to use for an HE TB PPDU considering:

the transmit power used by the AP to send the Trigger Frame (TF), obtained from the AP TX Power subfield of the Common Info field of the TF.
the target uplink RSSI expected by the AP for the triggered HE TB PPDU, obtained from the UL Target RSSI subfield of the User Info field of the TF.
the RSSI of the PPDU containing the TF, typically logged by the WifiRemoteStationManager upon reception of the TF from the AP.

It is assumed that path loss is symmetric (i.e. uplink path loss is equivalent to the measured downlink path loss);

Refer to section 27.3.14.2 (Power pre-correction) of 802.11ax Draft 4.0 for more details.

Definition at line 960 of file he-frame-exchange-manager.cc.

References ns3::CtrlTriggerHeader::end(), ns3::CtrlTriggerHeader::FindUserInfoWithAid(), ns3::CtrlTriggerHeader::GetApTxPower(), ns3::CtrlTriggerHeader::GetHeTbTxVector(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_LOGIC, and NS_LOG_WARN.

Here is the call graph for this function:

◆ GetPsduTo()

Ptr< WifiPsdu > ns3::HeFrameExchangeManager::GetPsduTo	(	Mac48Address	to,
		const WifiPsduMap &	psduMap
	)

static

Get the PSDU in the given PSDU map that is addressed to the given MAC address, if any, or a null pointer, otherwise.

Parameters

to	the MAC address
psduMap	the PSDU map

Returns: the PSDU, if any, or a null pointer, otherwise

Definition at line 245 of file he-frame-exchange-manager.cc.

Referenced by SendPsduMap().

Here is the caller graph for this function:

◆ GetSupportedBaBufferSize()

uint16_t ns3::HeFrameExchangeManager::GetSupportedBaBufferSize ( void ) const

overridevirtual

Get the maximum supported buffer size for a Block Ack agreement.

This value is typically included in ADDBA Response frames.

Returns: the maximum supported buffer size for a Block Ack agreement

Reimplemented from ns3::HtFrameExchangeManager.

Definition at line 66 of file he-frame-exchange-manager.cc.

References ns3::FrameExchangeManager::m_mac, and NS_ASSERT.

◆ GetTxDuration()

Time ns3::HeFrameExchangeManager::GetTxDuration	(	uint32_t	ppduPayloadSize,
		Mac48Address	receiver,
		const WifiTxParameters &	txParams
	)		const

overrideprotectedvirtual

Get the updated TX duration of the frame associated with the given TX parameters if the size of the PSDU addressed to the given receiver becomes ppduPayloadSize.

Parameters

ppduPayloadSize	the new PSDU size
receiver	the MAC address of the receiver of the PSDU
txParams	the TX parameters

Returns: the updated TX duration

Reimplemented from ns3::FrameExchangeManager.

Definition at line 809 of file he-frame-exchange-manager.cc.

References ns3::WifiTxVector::IsDlMu(), ns3::WifiTxVector::IsMu(), ns3::WifiTxVector::IsUlMu(), ns3::WifiTxParameters::m_acknowledgment, ns3::WifiTxParameters::m_txDuration, ns3::WifiTxParameters::m_txVector, max, NS_ASSERT, NS_ASSERT_MSG, and ns3::WifiDlMuAggregateTf::stationsReplyingWithBlockAck.

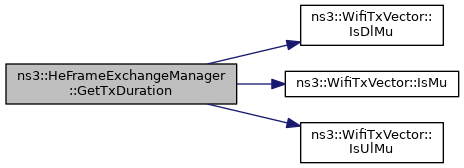

Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::HeFrameExchangeManager::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 44 of file he-frame-exchange-manager.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ PrepareMuBar()

Ptr< WifiMacQueueItem > ns3::HeFrameExchangeManager::PrepareMuBar	(	const WifiTxVector &	responseTxVector,
		std::map< uint16_t, CtrlBAckRequestHeader >	recipients
	)		const

protected

Build a MU-BAR Trigger Frame starting from the TXVECTOR used to respond to the MU-BAR (in case of multiple responders, their TXVECTORs need to be "merged" into a single TXVECTOR) and from the BlockAckReq headers for every recipient.

Note that the number of recipients must match the number of users addressed by the given TXVECTOR.

Parameters

responseTxVector	the given TXVECTOR
recipients	the list of BlockAckReq headers indexed by the station's AID

Returns: the MPDU containing the built MU-BAR

Definition at line 609 of file he-frame-exchange-manager.cc.

References ns3::Packet::AddHeader(), ns3::WifiTxVector::GetHeMuUserInfoMap(), ns3::MU_BAR_TRIGGER, NS_ASSERT, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiMacHeader::SetNoMoreFragments(), ns3::WifiMacHeader::SetNoRetry(), ns3::WifiMacHeader::SetType(), and ns3::WIFI_MAC_CTL_TRIGGER.

Referenced by SendPsduMap().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReceiveBasicTrigger()

void ns3::HeFrameExchangeManager::ReceiveBasicTrigger	(	const CtrlTriggerHeader &	trigger,
		const WifiMacHeader &	hdr
	)

private

Take the necessary actions when receiveing a Basic Trigger Frame.

Parameters

trigger	the Basic Trigger Frame content
hdr	the MAC header of the Basic Trigger Frame

Definition at line 1127 of file he-frame-exchange-manager.cc.

References ns3::WifiTxParameters::Clear(), ns3::CtrlTriggerHeader::FindUserInfoWithAid(), ns3::WifiMacHeader::GetAddr2(), ns3::QosTxop::GetBaAgreementEstablished(), ns3::QosTxop::GetBaManager(), ns3::CtrlTriggerHeader::GetCsRequired(), ns3::WifiMacHeader::GetDuration(), ns3::QosTxop::GetNextMpdu(), ns3::CtrlTriggerHeader::GetUlLength(), ns3::CtrlTriggerHeader::IsBasic(), ns3::WifiTxParameters::m_txVector, ns3::Now(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::QosTxop::PeekNextMpdu(), ns3::WifiPsdu::SetDuration(), and ns3::wifiAcList.

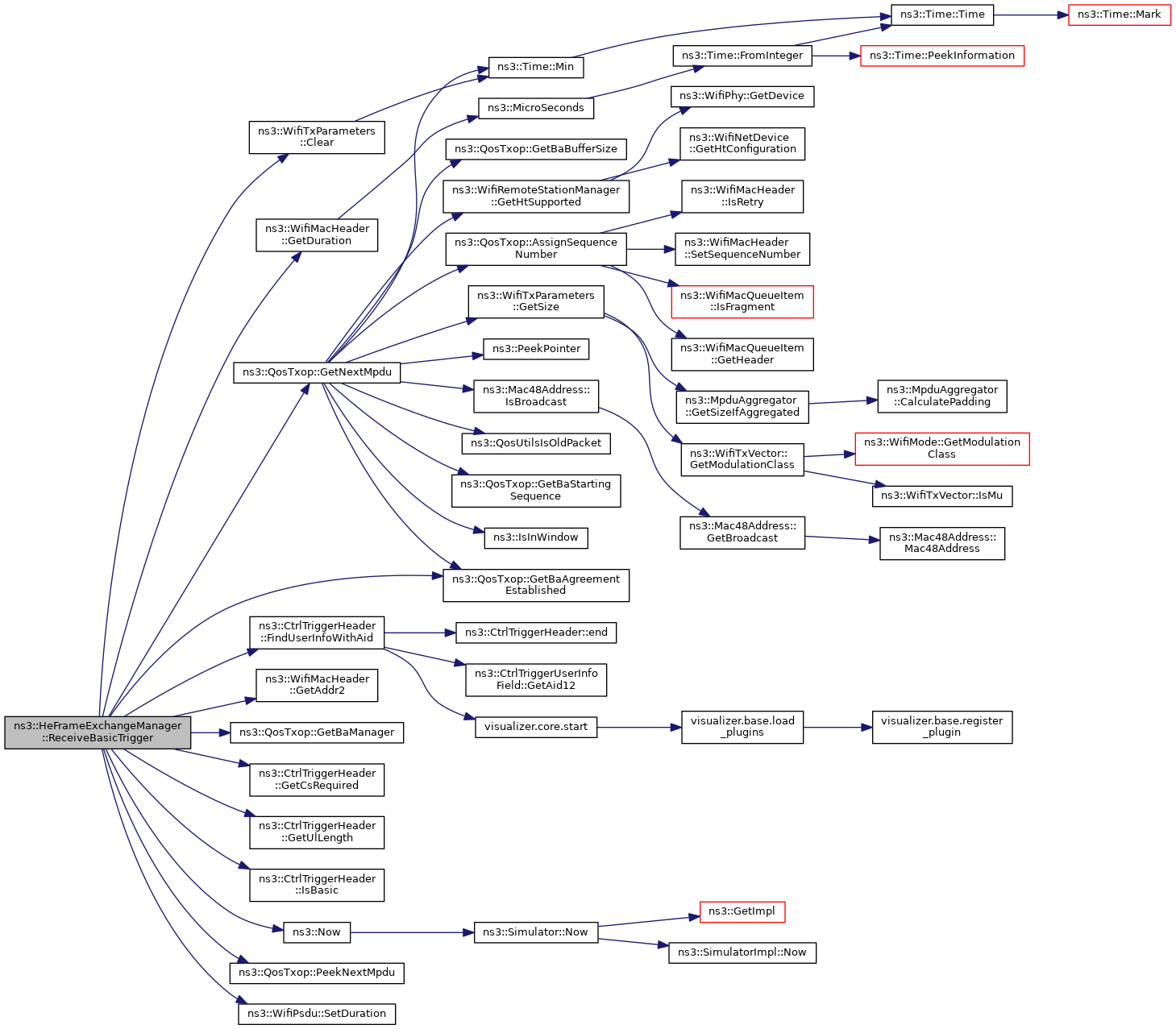

Here is the call graph for this function:

◆ ReceiveMpdu()

void ns3::HeFrameExchangeManager::ReceiveMpdu	(	Ptr< WifiMacQueueItem >	mpdu,
		RxSignalInfo	rxSignalInfo,
		const WifiTxVector &	txVector,
		bool	inAmpdu
	)

overrideprotectedvirtual

This method handles the reception of an MPDU (possibly included in an A-MPDU)

Parameters

mpdu	the received MPDU
rxSignalInfo	the info on the received signal (

See also: RxSignalInfo)

Parameters

txVector	TxVector of the received PSDU
inAmpdu	true if the MPDU is part of an A-MPDU

Reimplemented from ns3::FrameExchangeManager.

Definition at line 1299 of file he-frame-exchange-manager.cc.

References ns3::WifiUlMuMultiStaBa::baType, ns3::CtrlTriggerHeader::end(), ns3::CtrlBAckResponseHeader::FindPerAidTidInfoWithAid(), ns3::CtrlTriggerHeader::FindUserInfoWithAid(), ns3::SnrTag::Get(), ns3::MuSnrTag::Get(), ns3::CtrlBAckResponseHeader::GetAckType(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacQueueItem::GetHeader(), ns3::WifiTxVector::GetHeMuUserInfoMap(), ns3::WifiMacQueueItem::GetPacket(), ns3::CtrlBAckRequestHeader::GetStartingSequence(), ns3::CtrlBAckRequestHeader::GetTidInfo(), ns3::CtrlBAckResponseHeader::GetTidInfo(), ns3::CtrlTriggerHeader::IsBasic(), ns3::Mac48Address::IsBroadcast(), ns3::CtrlTriggerHeader::IsBsrp(), ns3::CtrlTriggerHeader::IsMuBar(), ns3::CtrlBAckResponseHeader::IsMultiSta(), ns3::CtrlBAckRequestHeader::IsMultiTid(), ns3::WifiTxVector::IsUlMu(), ns3::BlockAckType::m_bitmapLen, NS_ABORT_IF, NS_ABORT_MSG_IF, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_WARN, ns3::Packet::PeekHeader(), ns3::Packet::PeekPacketTag(), ns3::RxSignalInfo::snr, ns3::WifiUlMuMultiStaBa::stationsReceivingMultiStaBa, and ns3::WifiDlMuBarBaSequence::stationsReplyingWithNormalAck.

Here is the call graph for this function:

◆ SendMpduFromBaManager()

bool ns3::HeFrameExchangeManager::SendMpduFromBaManager	(	Ptr< QosTxop >	edca,
		Time	availableTime,
		bool	initialFrame
	)

overrideprotectedvirtual

If the Block Ack Manager associated with the given EDCA has a BlockAckReq frame to transmit (the duration of which plus the response fits within the given available time, if the latter is not Time::Min() and this is not the initial frame of a TXOP), transmit the frame and return true.

Otherwise, return false.

Parameters

edca	the EDCAF which has been granted the opportunity to transmit
availableTime	the amount of time allowed for the frame exchange. Equals Time::Min() in case the TXOP limit is null
initialFrame	true if the frame being transmitted is the initial frame of the TXOP. This is used to determine whether the TXOP limit can be exceeded

Returns: true if frame is transmitted, false otherwise

Reimplemented from ns3::HtFrameExchangeManager.

Definition at line 170 of file he-frame-exchange-manager.cc.

References ns3::Copy(), ns3::QosTxop::GetBaManager(), m_triggerFrame, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::HtFrameExchangeManager::SendMpduFromBaManager(), and SendPsduMap().

Here is the call graph for this function:

◆ SendMultiStaBlockAck()

void ns3::HeFrameExchangeManager::SendMultiStaBlockAck ( const WifiTxParameters & txParams )

protected

Send a Multi-STA Block Ack frame after the reception of some TB PPDUs.

Parameters

txParams the TX parameters for the Trigger Frame that solicited the TB PPDUs

Definition at line 1038 of file he-frame-exchange-manager.cc.

References ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), ns3::WifiUlMuMultiStaBa::baType, ns3::GetBlockAckSize(), ns3::WifiPsdu::GetPayload(), ns3::WifiTxParameters::m_acknowledgment, ns3::BlockAckType::m_bitmapLen, ns3::WifiUlMuMultiStaBa::multiStaBaTxVector, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiPsdu::SetDuration(), ns3::WifiMacHeader::SetType(), ns3::CtrlBAckResponseHeader::SetType(), ns3::WifiUlMuMultiStaBa::stationsReceivingMultiStaBa, and ns3::WIFI_MAC_CTL_BACKRESP.

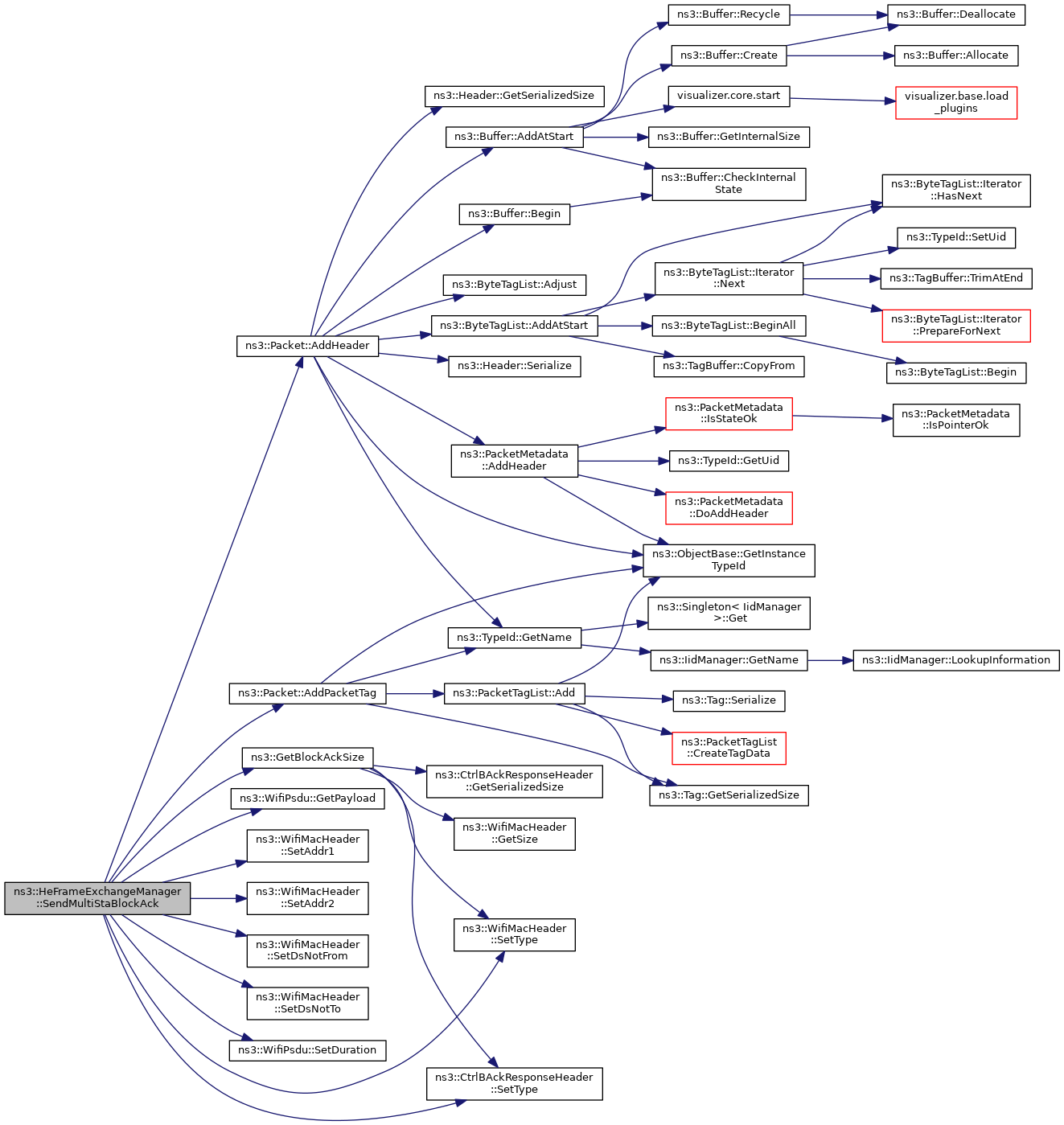

Here is the call graph for this function:

◆ SendPsduMap()

void ns3::HeFrameExchangeManager::SendPsduMap ( void )

private

Send the current PSDU map as a DL MU PPDU.

Definition at line 258 of file he-frame-exchange-manager.cc.

References ns3::WifiAcknowledgment::acknowledgmentTime, ns3::WifiPsdu::begin(), BlockAcksInTbPpduTimeout(), ns3::WifiPhy::CalculatePhyPreambleAndHeaderDuration(), ns3::WifiPhy::CalculateTxDuration(), ns3::WifiAcknowledgment::DL_MU_AGGREGATE_TF, ns3::WifiAcknowledgment::DL_MU_BAR_BA_SEQUENCE, ns3::WifiAcknowledgment::DL_MU_TF_MU_BAR, ns3::HtFrameExchangeManager::ForwardMpduDown(), ns3::WifiPsdu::GetAddr1(), ns3::WifiMacQueueItem::GetHeader(), ns3::WifiPsdu::GetNMpdus(), ns3::WifiPhy::GetPhyBand(), ns3::HtFrameExchangeManager::GetPsduDurationId(), GetPsduTo(), ns3::WifiPhy::GetSifs(), ns3::WifiMacQueueItem::GetSize(), ns3::WifiPhy::GetSlot(), ns3::WifiPsdu::GetTids(), ns3::WifiTxTimer::IsRunning(), ns3::WifiTxParameters::m_acknowledgment, m_apMac, ns3::FrameExchangeManager::m_channelAccessManager, ns3::QosFrameExchangeManager::m_edca, ns3::FrameExchangeManager::m_phy, m_psduMap, m_staExpectTbPpduFrom, m_triggerFrame, m_txParams, ns3::FrameExchangeManager::m_txTimer, ns3::WifiDlMuTfMuBar::muBarTxVector, ns3::WifiTxTimer::NOT_RUNNING, NS_ABORT_MSG_IF, NS_ASSERT, NS_LOG_FUNCTION, ns3::QosTxop::PrepareBlockAckRequest(), PrepareMuBar(), ns3::QosTxop::ScheduleBar(), ns3::WifiTxTimer::Set(), ns3::WifiMacHeader::SetDuration(), ns3::WifiTxVector::SetHeMuUserInfo(), ns3::WifiTxVector::SetLength(), ns3::WifiDlMuBarBaSequence::stationsReplyingWithBlockAck, ns3::WifiDlMuTfMuBar::stationsReplyingWithBlockAck, ns3::WifiDlMuAggregateTf::stationsReplyingWithBlockAck, ns3::WifiDlMuBarBaSequence::stationsReplyingWithNormalAck, ns3::WifiDlMuBarBaSequence::stationsSendBlockAckReqTo, timeout, ns3::WifiDlMuTfMuBar::ulLength, ns3::WifiDlMuAggregateTf::ulLength, ns3::WifiTxTimer::WAIT_BLOCK_ACK, ns3::WifiTxTimer::WAIT_BLOCK_ACKS_IN_TB_PPDU, and ns3::WifiTxTimer::WAIT_NORMAL_ACK_AFTER_DL_MU_PPDU.

Referenced by SendMpduFromBaManager(), and SendPsduMapWithProtection().

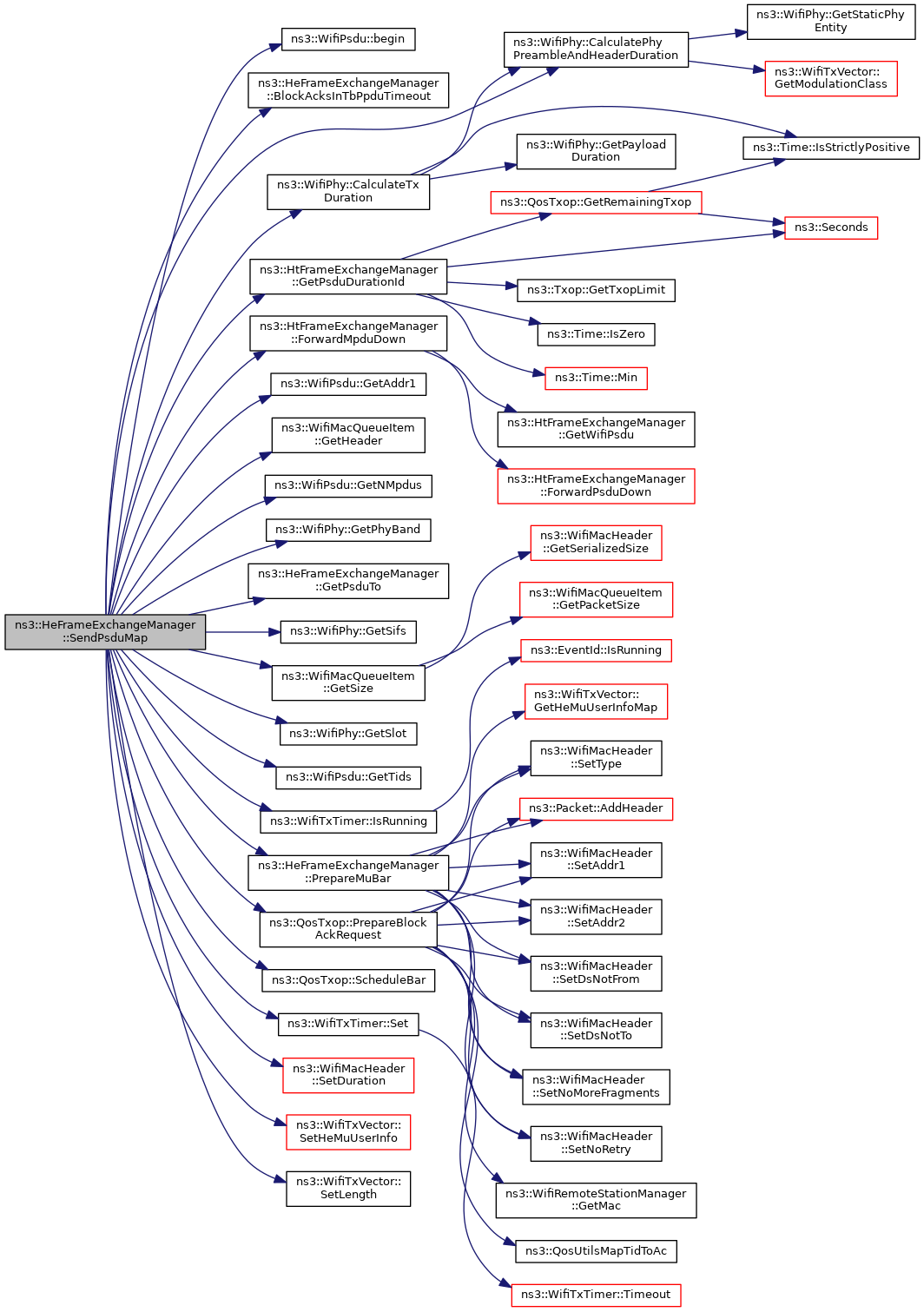

Here is the call graph for this function:

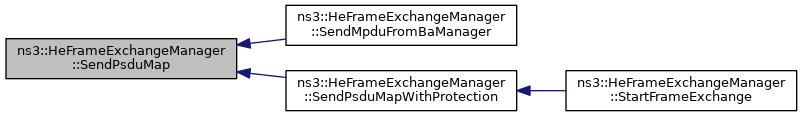

Here is the caller graph for this function:

◆ SendPsduMapWithProtection()

void ns3::HeFrameExchangeManager::SendPsduMapWithProtection	(	WifiPsduMap	psduMap,
		WifiTxParameters &	txParams
	)

protected

Send a map of PSDUs as a DL MU PPDU.

Note that both psduMap and txParams are moved to m_psduMap and m_txParams, respectively, and hence are left in an undefined state.

Parameters

psduMap	the map of PSDUs to send
txParams	the TX parameters to use to transmit the PSDUs

Definition at line 197 of file he-frame-exchange-manager.cc.

References CalculateAcknowledgmentTime(), ns3::WifiTxParameters::m_acknowledgment, ns3::WifiTxParameters::m_protection, m_psduMap, m_txParams, ns3::Time::Min(), ns3::WifiProtection::NONE, NS_ABORT_MSG, NS_ASSERT, NS_LOG_FUNCTION, ns3::PeekPointer(), SendPsduMap(), and ns3::WifiAckManager::SetQosAckPolicy().

Referenced by StartFrameExchange().

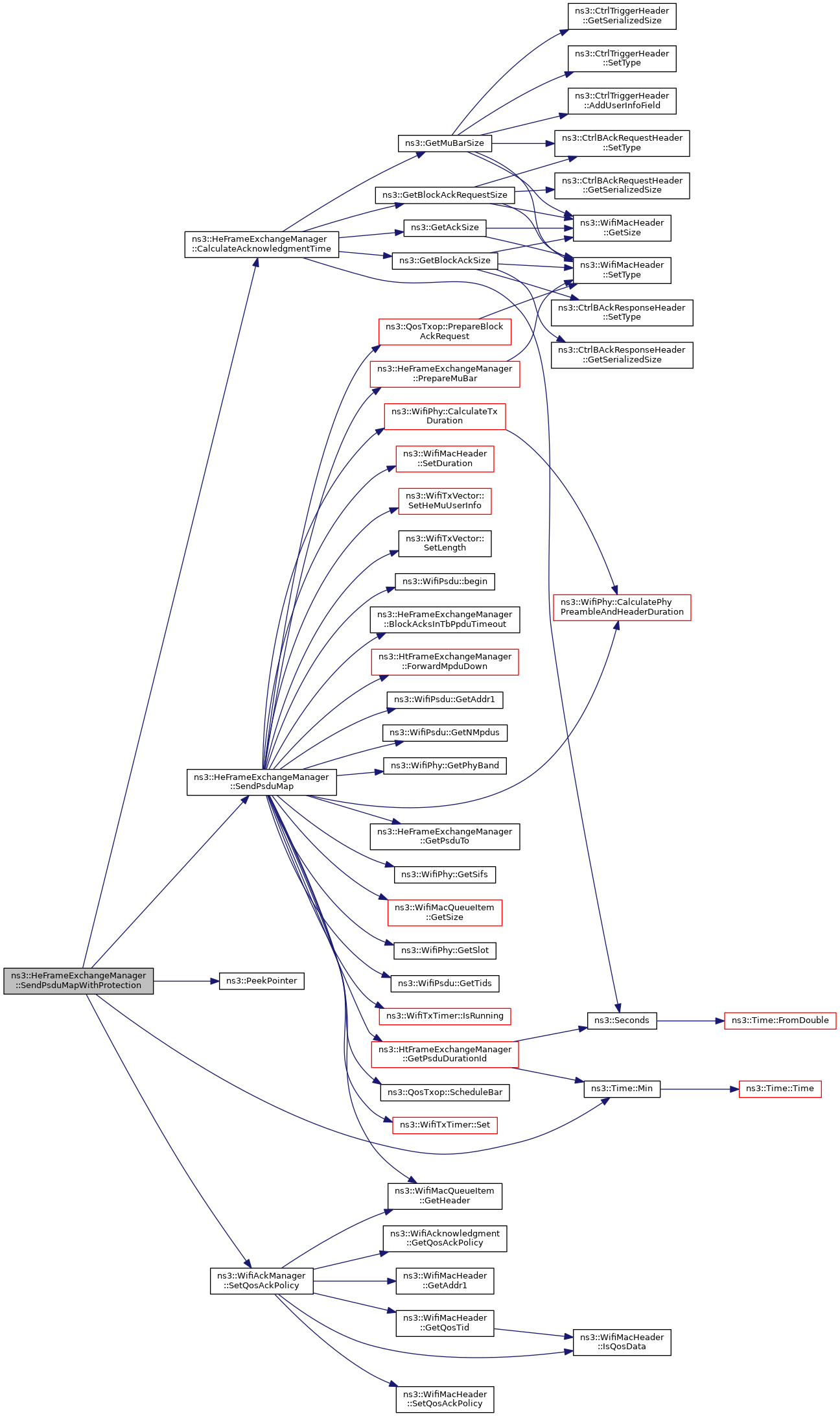

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendQosNullFramesInTbPpdu()

void ns3::HeFrameExchangeManager::SendQosNullFramesInTbPpdu	(	const CtrlTriggerHeader &	trigger,
		const WifiMacHeader &	hdr
	)

protected

Send QoS Null frames in response to a Basic or BSRP Trigger Frame.

The number of QoS Null frames that are actually aggregated depends on the available time as indicated by the Trigger Frame and is at most 8 (one QoS Null frame per TID).

Parameters

trigger	the Basic or BSRP Trigger Frame content
hdr	the MAC header of the Basic or BSRP Trigger Frame

Definition at line 1226 of file he-frame-exchange-manager.cc.

Here is the call graph for this function:

◆ SetMultiUserScheduler()

void ns3::HeFrameExchangeManager::SetMultiUserScheduler ( const Ptr< MultiUserScheduler > muScheduler )

Set the Multi-user Scheduler associated with this Frame Exchange Manager.

Parameters

muScheduler the Multi-user Scheduler associated with this Frame Exchange Manager

Definition at line 98 of file he-frame-exchange-manager.cc.

References m_apMac, ns3::FrameExchangeManager::m_mac, m_muScheduler, NS_ABORT_MSG_IF, and NS_ASSERT.

◆ SetTargetRssi()

void ns3::HeFrameExchangeManager::SetTargetRssi ( CtrlTriggerHeader & trigger ) const

virtual

Set the UL Target RSSI subfield of every User Info fields of the given Trigger Frame to the most recent RSSI observed from the corresponding station.

Parameters

trigger the given Trigger Frame

Definition at line 1020 of file he-frame-exchange-manager.cc.

References NS_ASSERT, NS_LOG_FUNCTION, and ns3::CtrlTriggerHeader::SetApTxPower().

Here is the call graph for this function:

◆ SetWifiMac()

void ns3::HeFrameExchangeManager::SetWifiMac ( const Ptr< RegularWifiMac > mac )

overridevirtual

Set the MAC layer to use.

Parameters

mac	the MAC layer to use

Reimplemented from ns3::FrameExchangeManager.

Definition at line 77 of file he-frame-exchange-manager.cc.

References m_apMac, m_staMac, third::mac, and ns3::HtFrameExchangeManager::SetWifiMac().

Here is the call graph for this function:

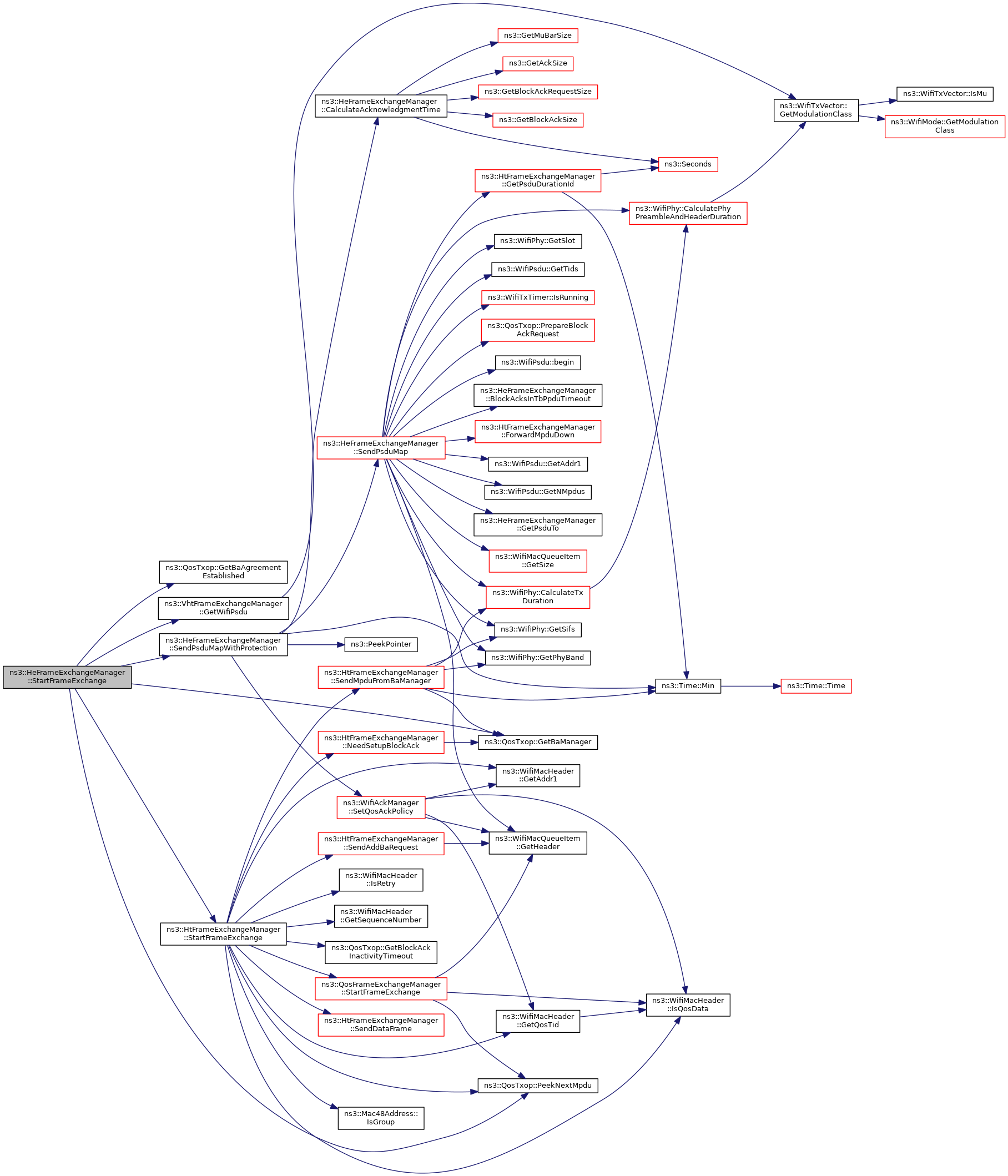

◆ StartFrameExchange()

bool ns3::HeFrameExchangeManager::StartFrameExchange	(	Ptr< QosTxop >	edca,
		Time	availableTime,
		bool	initialFrame
	)

overridevirtual

Start a frame exchange (including protection frames and acknowledgment frames as needed) that fits within the given availableTime (if different than Time::Min()).

Parameters

edca	the EDCAF which has been granted the opportunity to transmit
availableTime	the amount of time allowed for the frame exchange. Pass Time::Min() in case the TXOP limit is null
initialFrame	true if the frame being transmitted is the initial frame of the TXOP. This is used to determine whether the TXOP limit can be exceeded

Returns: true if a frame exchange is started, false otherwise

Reimplemented from ns3::QosFrameExchangeManager.

Definition at line 109 of file he-frame-exchange-manager.cc.

References ns3::MultiUserScheduler::DL_MU_TX, ns3::QosTxop::GetBaAgreementEstablished(), ns3::QosTxop::GetBaManager(), ns3::VhtFrameExchangeManager::GetWifiPsdu(), m_muScheduler, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::QosTxop::PeekNextMpdu(), SendPsduMapWithProtection(), ns3::HtFrameExchangeManager::StartFrameExchange(), SU_STA_ID, ns3::MultiUserScheduler::SU_TX, and ns3::MultiUserScheduler::UL_MU_TX.

Here is the call graph for this function:

◆ TbPpduTimeout()

void ns3::HeFrameExchangeManager::TbPpduTimeout	(	WifiPsduMap *	psduMap,
		const std::set< Mac48Address > *	staMissedTbPpduFrom,
		std::size_t	nSolicitedStations
	)

protectedvirtual

Take the necessary actions after that some TB PPDUs are missing in response to Trigger Frame.

This method must not be called if all the expected TB PPDUs were received.

Parameters

psduMap	a pointer to PSDU map transmitted in a DL MU PPDU
staMissedTbPpduFrom	set of stations we missed a TB PPDU from
nSolicitedStations	the number of stations solicited to send a TB PPDU

Definition at line 841 of file he-frame-exchange-manager.cc.

References NS_ASSERT, NS_LOG_FUNCTION, and SU_STA_ID.
