The Wifi MAC high model for a non-AP STA in a BSS. More...

#include "sta-wifi-mac.h"

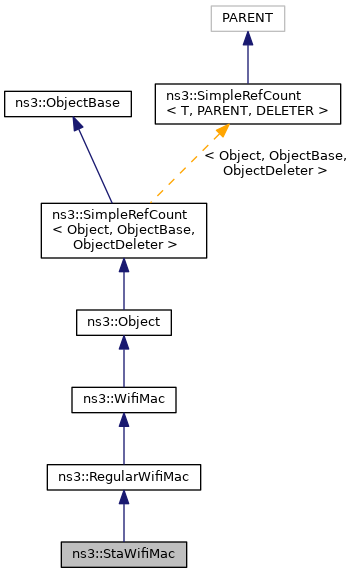

Inheritance diagram for ns3::StaWifiMac:

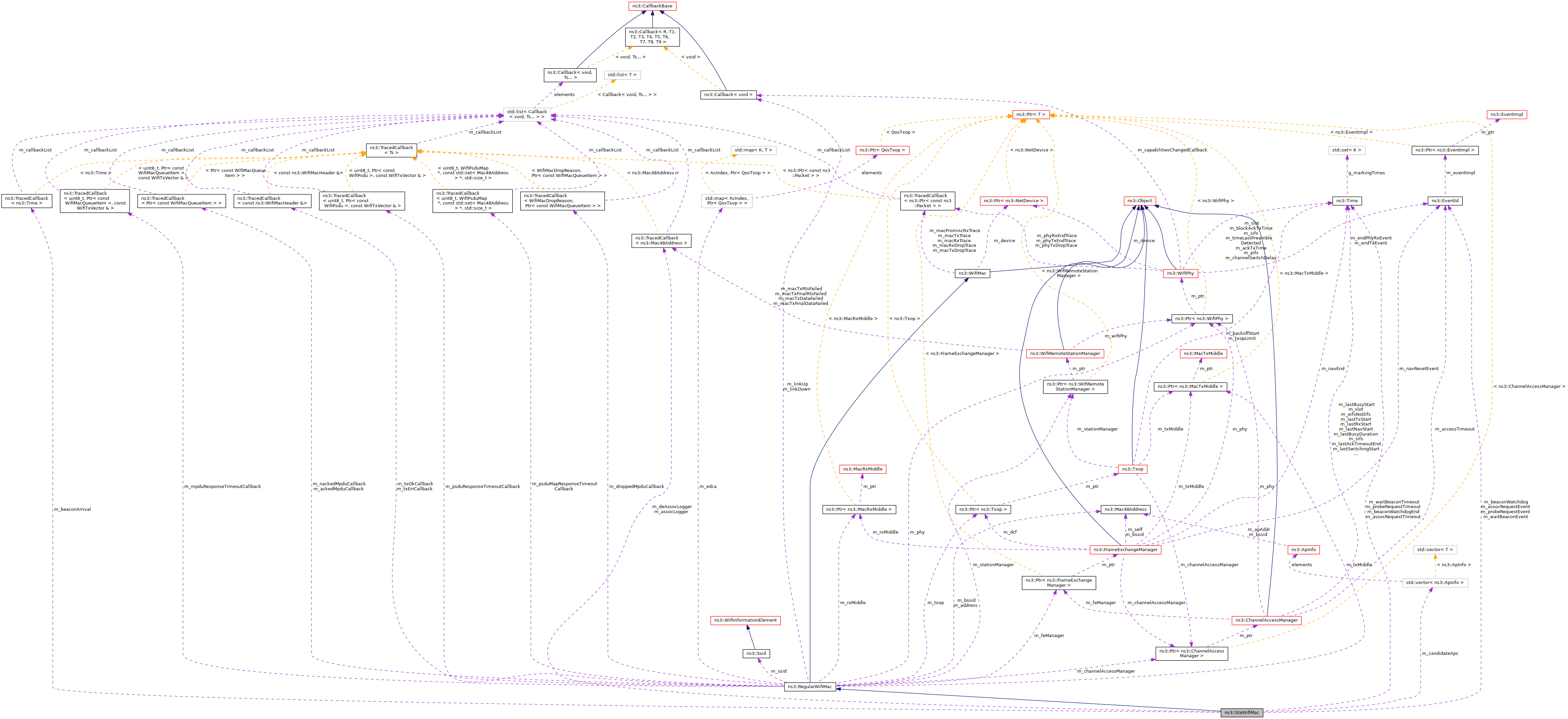

Collaboration diagram for ns3::StaWifiMac:

Public Member Functions
	StaWifiMac ()

virtual	~StaWifiMac ()

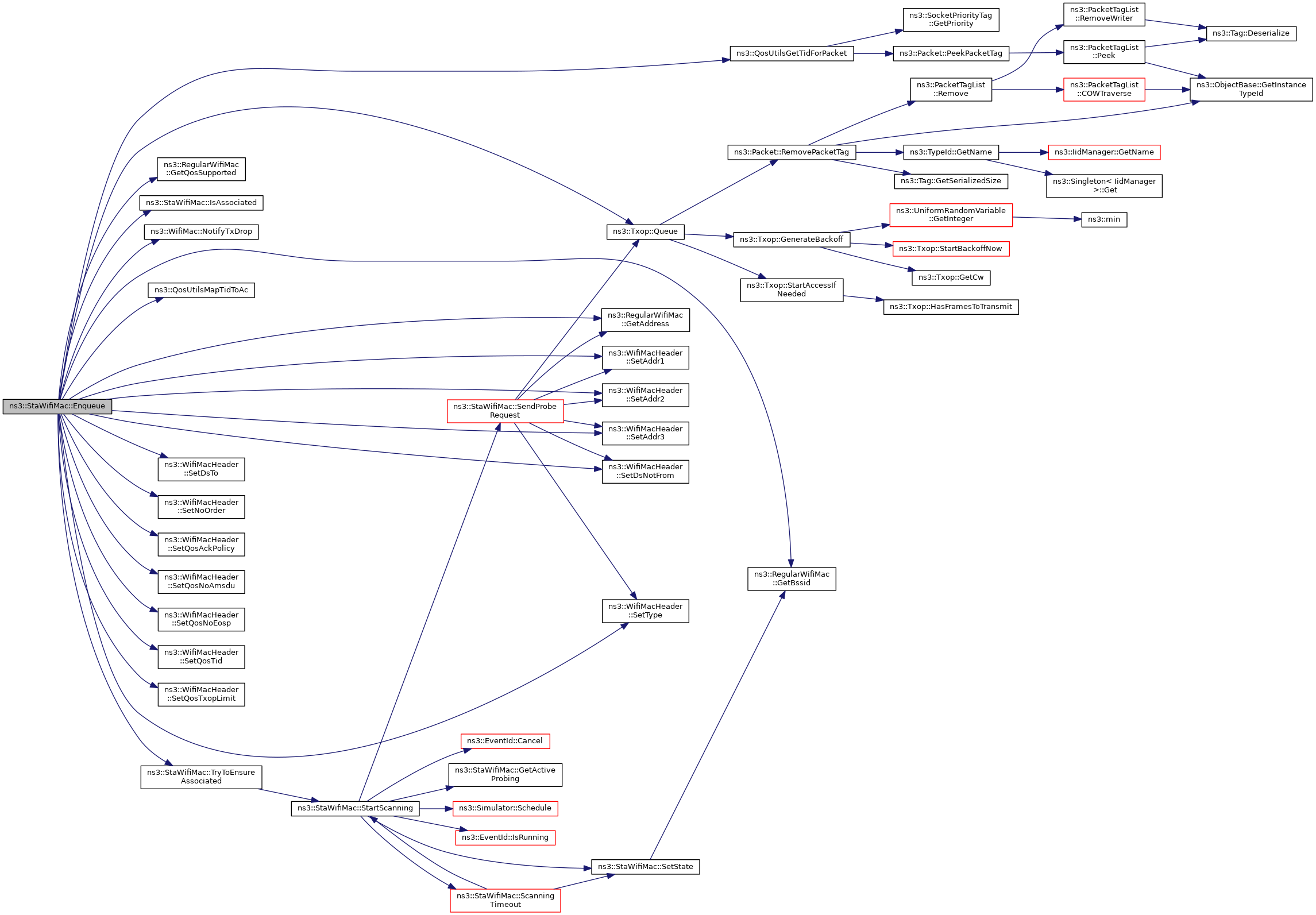

void	Enqueue (Ptr< Packet > packet, Mac48Address to) override

uint16_t	GetAssociationId (void) const

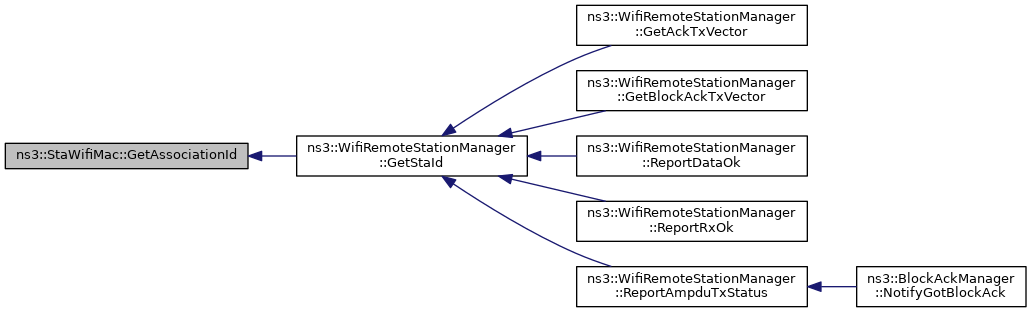

	Return the association ID. More...

bool	IsAssociated (void) const

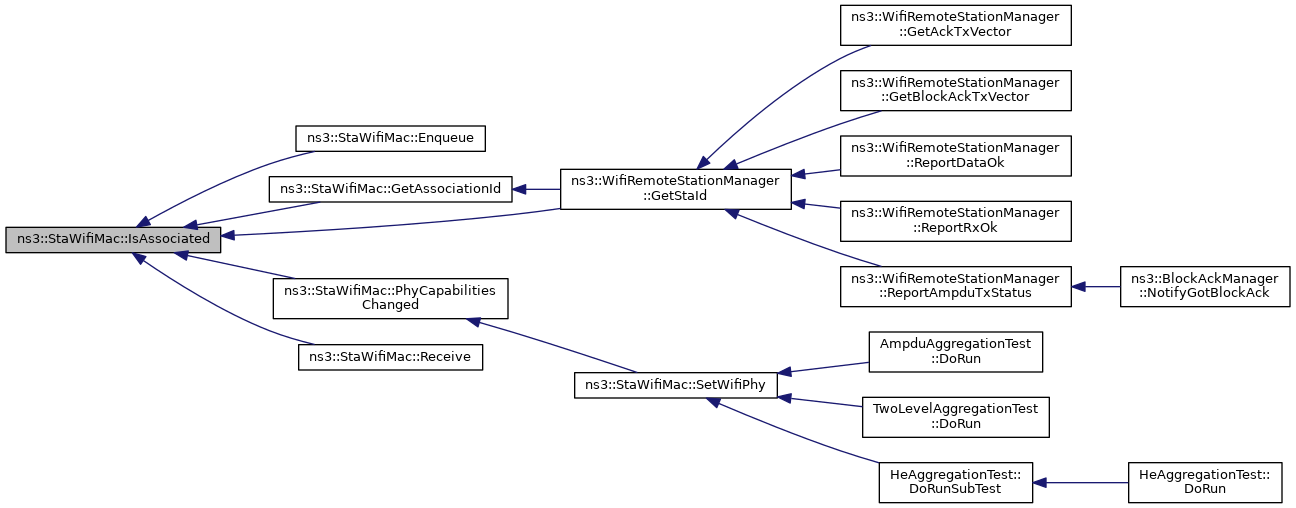

	Return whether we are associated with an AP. More...

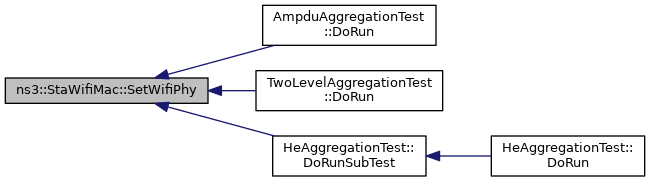

void	SetWifiPhy (const Ptr< WifiPhy > phy) override

Public Member Functions inherited from ns3::RegularWifiMac
	RegularWifiMac ()

virtual	~RegularWifiMac ()

void	ConfigureStandard (WifiStandard standard) override

void	Enqueue (Ptr< Packet > packet, Mac48Address to, Mac48Address from) override

Mac48Address	GetAddress (void) const override

Mac48Address	GetBssid (void) const override

ExtendedCapabilities	GetExtendedCapabilities (void) const
	Return the extended capabilities of the device. More...

Ptr< FrameExchangeManager >	GetFrameExchangeManager (void) const
	Get the Frame Exchange Manager. More...

HeCapabilities	GetHeCapabilities (void) const
	Return the HE capabilities of the device. More...

HtCapabilities	GetHtCapabilities (void) const
	Return the HT capabilities of the device. More...

Ptr< QosTxop >	GetQosTxop (AcIndex ac) const
	Accessor for a specified EDCA object. More...

Ptr< QosTxop >	GetQosTxop (uint8_t tid) const
	Accessor for a specified EDCA object. More...

bool	GetShortSlotTimeSupported (void) const override

Ssid	GetSsid (void) const override

Ptr< Txop >	GetTxop (void) const
	Accessor for the DCF object. More...

TypeOfStation	GetTypeOfStation (void) const override
	Return the type of station. More...

VhtCapabilities	GetVhtCapabilities (void) const
	Return the VHT capabilities of the device. More...

Ptr< WifiPhy >	GetWifiPhy (void) const override

Ptr< WifiRemoteStationManager >	GetWifiRemoteStationManager (void) const override

void	ResetWifiPhy (void) override
	Remove currently attached WifiPhy device from this MAC. More...

void	SetAddress (Mac48Address address) override

void	SetBssid (Mac48Address bssid)

void	SetCtsToSelfSupported (bool enable)
	Enable or disable CTS-to-self feature. More...

void	SetForwardUpCallback (ForwardUpCallback upCallback) override

void	SetLinkDownCallback (Callback< void > linkDown) override

void	SetLinkUpCallback (Callback< void > linkUp) override

void	SetPromisc (void) override
	Sets the interface in promiscuous mode. More...

void	SetShortSlotTimeSupported (bool enable) override
	Enable or disable short slot time feature. More...

void	SetSsid (Ssid ssid) override

void	SetWifiRemoteStationManager (const Ptr< WifiRemoteStationManager > stationManager) override

bool	SupportsSendFrom (void) const override

Public Member Functions inherited from ns3::WifiMac
Ptr< NetDevice >	GetDevice (void) const
	Return the device this PHY is associated with. More...

Ptr< HeConfiguration >	GetHeConfiguration (void) const

Ptr< HtConfiguration >	GetHtConfiguration (void) const

Ptr< VhtConfiguration >	GetVhtConfiguration (void) const

void	NotifyPromiscRx (Ptr< const Packet > packet)

void	NotifyRx (Ptr< const Packet > packet)

void	NotifyRxDrop (Ptr< const Packet > packet)

void	NotifyTx (Ptr< const Packet > packet)

void	NotifyTxDrop (Ptr< const Packet > packet)

void	SetDevice (const Ptr< NetDevice > device)
	Sets the device this PHY is associated with. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::RegularWifiMac
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::WifiMac
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
enum	MacState { ASSOCIATED, WAIT_BEACON, WAIT_PROBE_RESP, WAIT_ASSOC_RESP, UNASSOCIATED, REFUSED }
	The current MAC state of the STA. More...

Private Member Functions

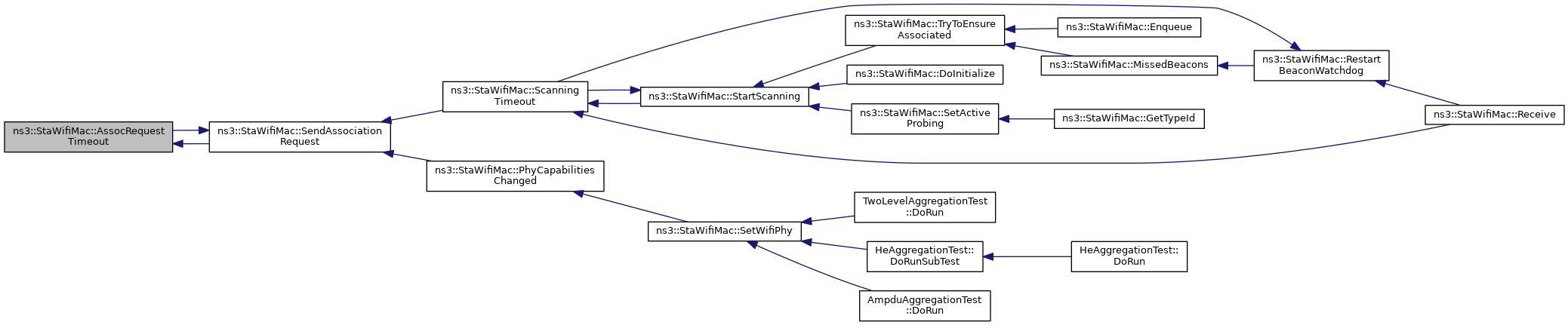

void	AssocRequestTimeout (void)
	This method is called after the association timeout occurred. More...

void	DoInitialize (void) override
	Initialize() implementation. More...

bool	GetActiveProbing (void) const
	Return whether active probing is enabled. More...

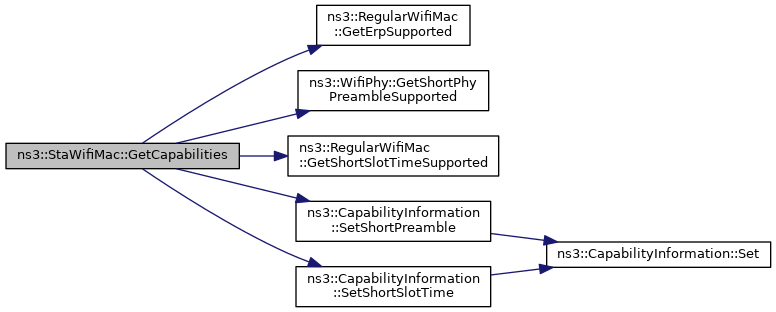

CapabilityInformation	GetCapabilities (void) const
	Return the Capability information of the current STA. More...

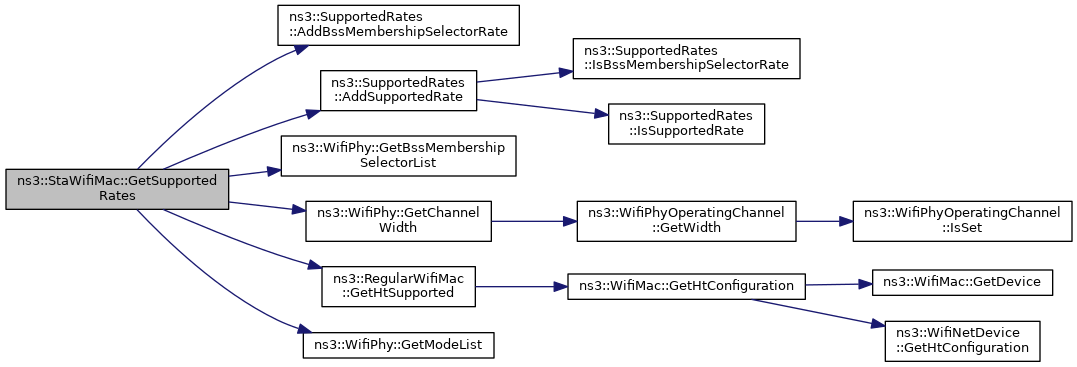

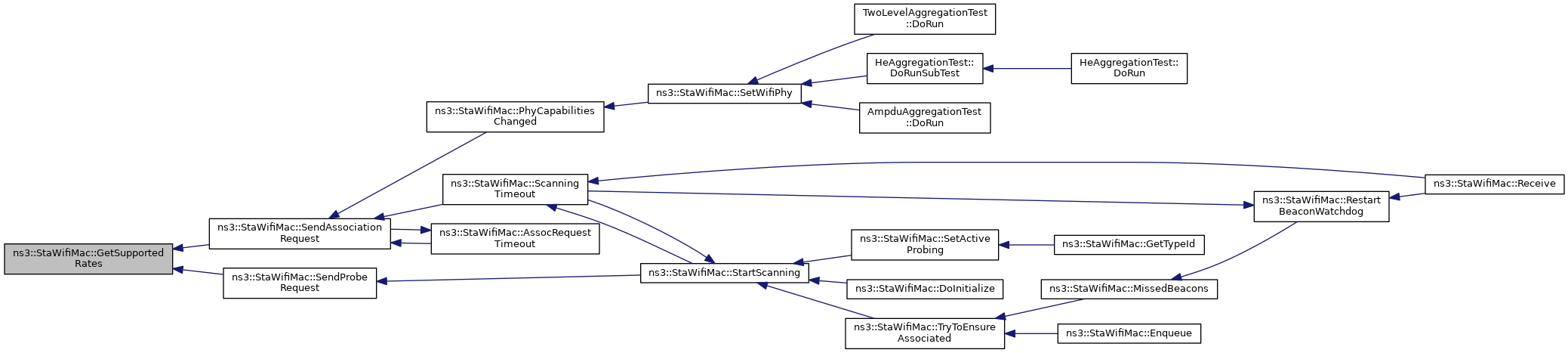

SupportedRates	GetSupportedRates (void) const
	Return an instance of SupportedRates that contains all rates that we support including HT rates. More...

bool	IsWaitAssocResp (void) const
	Return whether we are waiting for an association response from an AP. More...

void	MissedBeacons (void)
	This method is called after we have not received a beacon from the AP. More...

void	PhyCapabilitiesChanged (void)
	Indicate that PHY capabilities have changed. More...

void	Receive (Ptr< WifiMacQueueItem > mpdu) override
	Handle a received packet. More...

void	RestartBeaconWatchdog (Time delay)
	Restarts the beacon timer. More...

void	ScanningTimeout (void)
	This method is called after wait beacon timeout or wait probe request timeout has occurred. More...

void	SendAssociationRequest (bool isReassoc)
	Forward an association or reassociation request packet to the DCF. More...

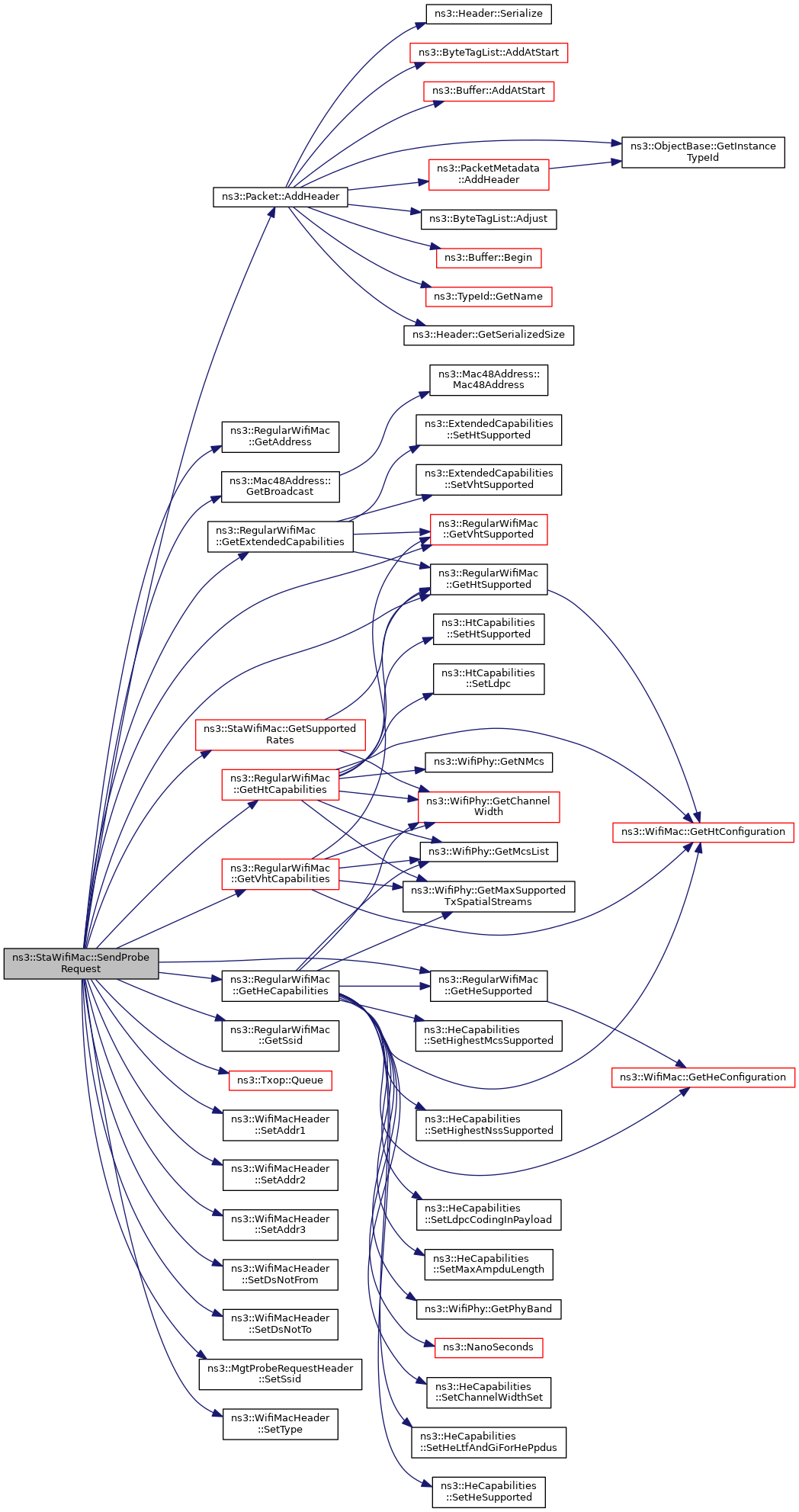

void	SendProbeRequest (void)
	Forward a probe request packet to the DCF. More...

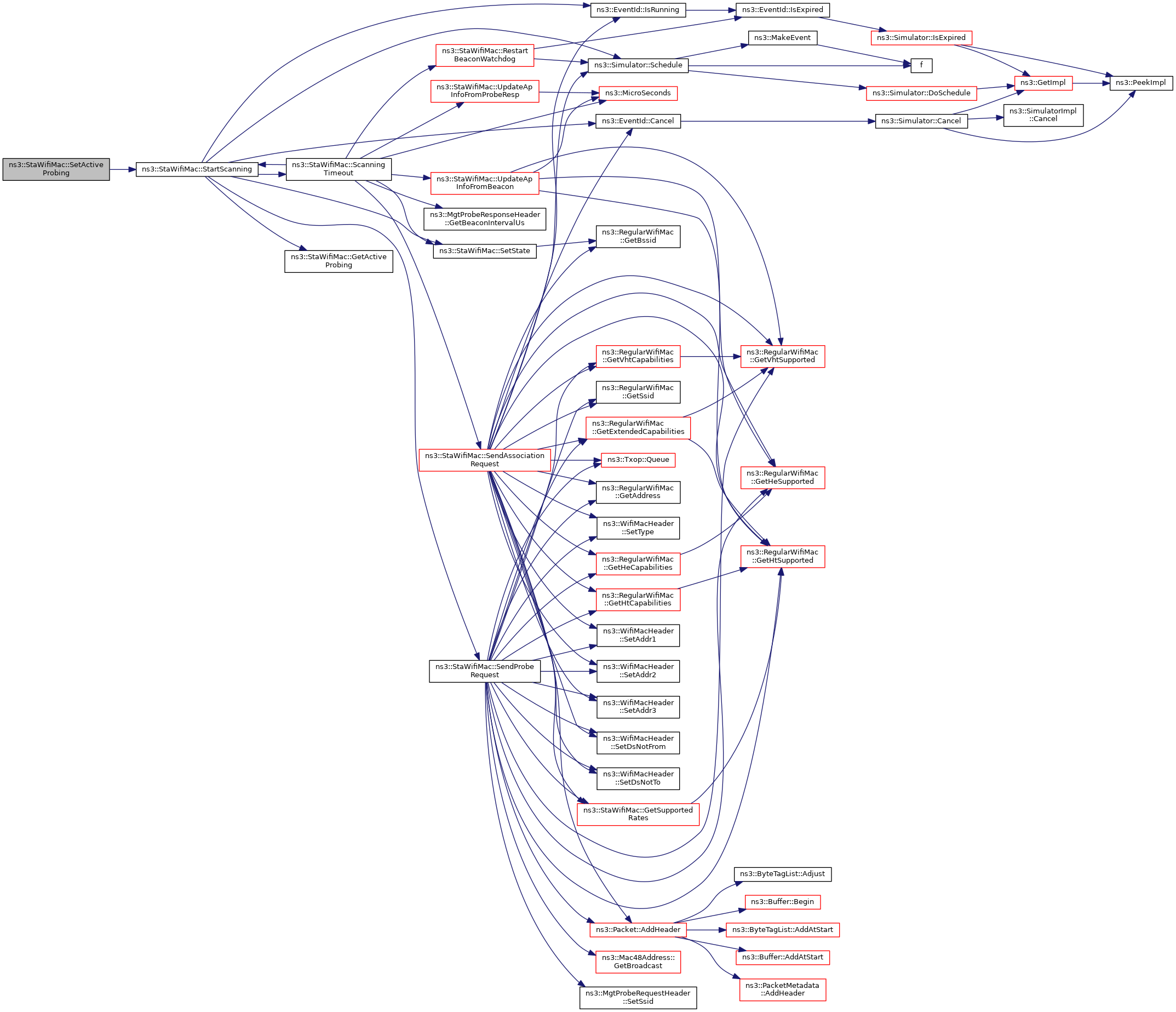

void	SetActiveProbing (bool enable)
	Enable or disable active probing. More...

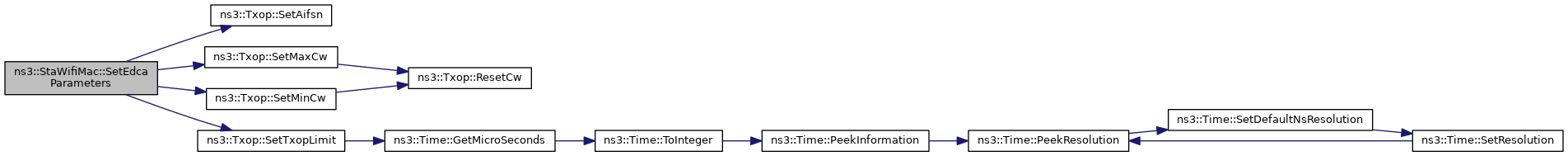

void	SetEdcaParameters (AcIndex ac, uint32_t cwMin, uint32_t cwMax, uint8_t aifsn, Time txopLimit)
	Set the EDCA parameters. More...

void	SetState (MacState value)
	Set the current MAC state. More...

void	StartScanning (void)
	Start the scanning process which trigger active or passive scanning based on the active probing flag. More...

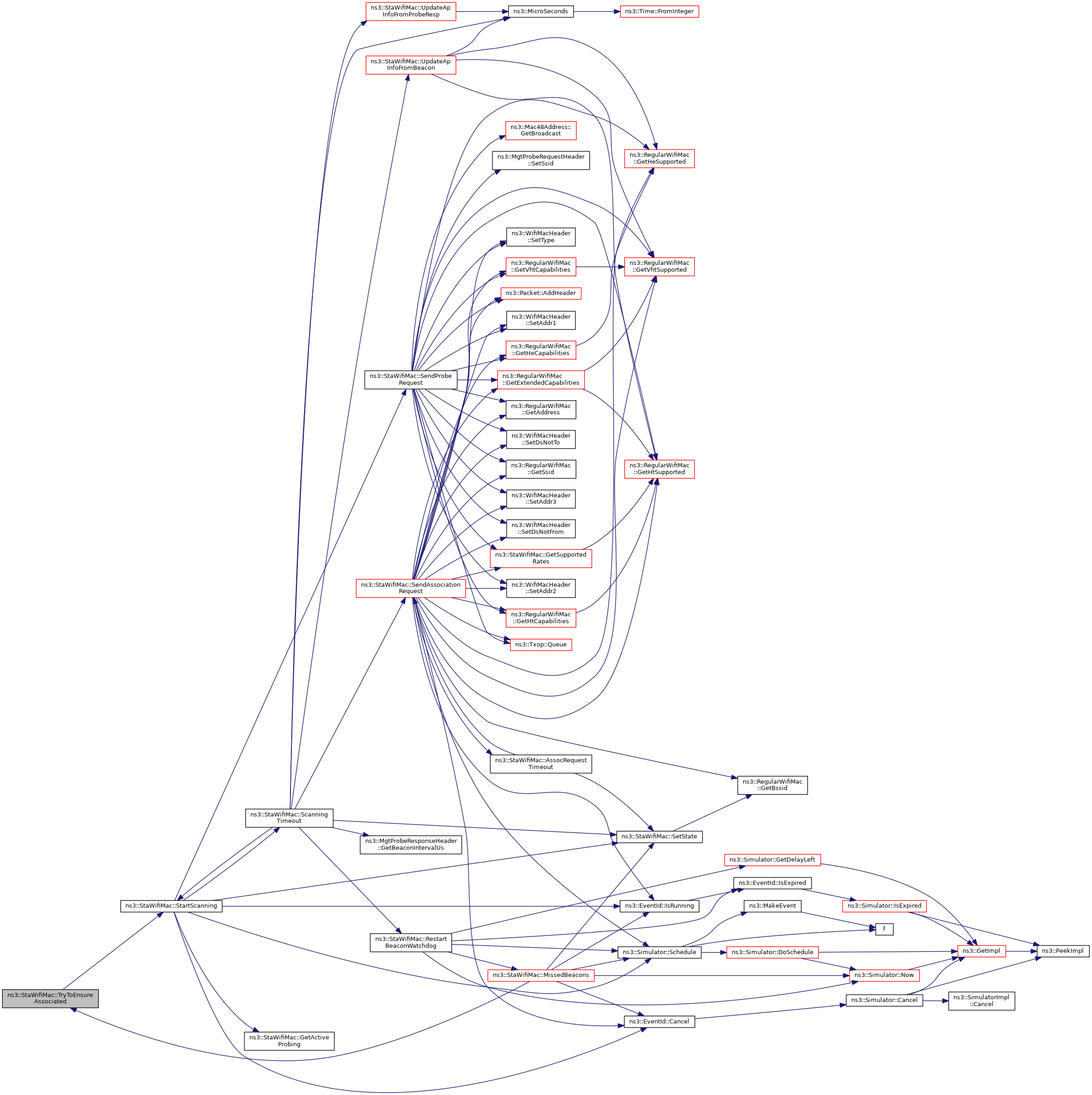

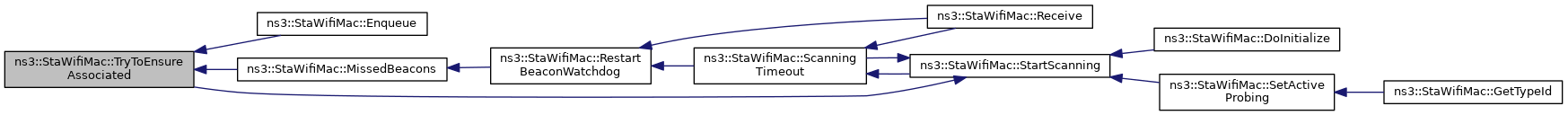

void	TryToEnsureAssociated (void)
	Try to ensure that we are associated with an AP by taking an appropriate action depending on the current association status. More...

void	UpdateApInfoFromAssocResp (MgtAssocResponseHeader assocResp, Mac48Address apAddr)
	Update AP's information from association response. More...

void	UpdateApInfoFromBeacon (MgtBeaconHeader beacon, Mac48Address apAddr, Mac48Address bssid)
	Update associated AP's information from beacon. More...

void	UpdateApInfoFromProbeResp (MgtProbeResponseHeader probeResp, Mac48Address apAddr, Mac48Address bssid)
	Update AP's information from probe response. More...

void	UpdateCandidateApList (ApInfo newApInfo)
	Update list of candidate AP to associate. More...

Private Attributes
bool	m_activeProbing
	active probing More...

uint16_t	m_aid
	Association AID. More...

TracedCallback< Mac48Address >	m_assocLogger
	association logger More...

EventId	m_assocRequestEvent
	association request event More...

Time	m_assocRequestTimeout
	association request timeout More...

TracedCallback< Time >	m_beaconArrival
	beacon arrival logger More...

EventId	m_beaconWatchdog
	beacon watchdog More...

Time	m_beaconWatchdogEnd
	beacon watchdog end More...

std::vector< ApInfo >	m_candidateAps
	list of candidate APs to associate to More...

TracedCallback< Mac48Address >	m_deAssocLogger
	disassociation logger More...

uint32_t	m_maxMissedBeacons
	maximum missed beacons More...

EventId	m_probeRequestEvent
	probe request event More...

Time	m_probeRequestTimeout
	probe request timeout More...

MacState	m_state
	MAC state. More...

EventId	m_waitBeaconEvent
	wait beacon event More...

Time	m_waitBeaconTimeout
	wait beacon timeout More...

Friends
class	::AmpduAggregationTest
	Allow test cases to access private members. More...

class	::HeAggregationTest
	Allow test cases to access private members. More...

class	::TwoLevelAggregationTest
	Allow test cases to access private members. More...

Additional Inherited Members
Public Types inherited from ns3::WifiMac
typedef Callback< void, Ptr< const Packet >, Mac48Address, Mac48Address >	ForwardUpCallback
	This type defines the callback of a higher layer that a WifiMac(-derived) object invokes to pass a packet up the stack. More...

Protected Types inherited from ns3::RegularWifiMac
typedef std::map< AcIndex, Ptr< QosTxop > >	EdcaQueues
	This type defines a mapping between an Access Category index, and a pointer to the corresponding channel access function. More...

Protected Member Functions inherited from ns3::RegularWifiMac
void	ConfigureContentionWindow (uint32_t cwMin, uint32_t cwMax)

virtual void	DeaggregateAmsduAndForward (Ptr< WifiMacQueueItem > mpdu)
	This method can be called to de-aggregate an A-MSDU and forward the constituent packets up the stack. More...

void	DoDispose () override
	Destructor implementation. More...

void	ForwardUp (Ptr< const Packet > packet, Mac48Address from, Mac48Address to)
	Forward the packet up to the device. More...

Ptr< QosTxop >	GetBEQueue (void) const
	Accessor for the AC_BE channel access function. More...

Ptr< QosTxop >	GetBKQueue (void) const
	Accessor for the AC_BK channel access function. More...

bool	GetDsssSupported () const
	Return whether the device supports DSSS. More...

bool	GetErpSupported () const
	Return whether the device supports ERP. More...

bool	GetHeSupported () const
	Return whether the device supports HE. More...

bool	GetHtSupported () const
	Return whether the device supports HT. More...

bool	GetQosSupported () const
	Return whether the device supports QoS. More...

bool	GetVhtSupported () const
	Return whether the device supports VHT. More...

Ptr< QosTxop >	GetVIQueue (void) const
	Accessor for the AC_VI channel access function. More...

Ptr< QosTxop >	GetVOQueue (void) const
	Accessor for the AC_VO channel access function. More...

void	SetDsssSupported (bool enable)
	Enable or disable DSSS support for the device. More...

void	SetErpSupported (bool enable)
	Enable or disable ERP support for the device. More...

virtual void	SetQosSupported (bool enable)
	Enable or disable QoS support for the device. More...

void	SetTypeOfStation (TypeOfStation type) override
	This method is invoked by a subclass to specify what type of station it is implementing. More...

void	SetupFrameExchangeManager (void)
	Create a Frame Exchange Manager depending on the supported version of the standard. More...

Protected Member Functions inherited from ns3::WifiMac
void	ConfigureDcf (Ptr< Txop > dcf, uint32_t cwmin, uint32_t cwmax, bool isDsss, AcIndex ac)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::RegularWifiMac
Ptr< ChannelAccessManager >	m_channelAccessManager
	channel access manager More...

EdcaQueues	m_edca
	This is a map from Access Category index to the corresponding channel access function. More...

Ptr< FrameExchangeManager >	m_feManager
	Frame Exchange Manager. More...

ForwardUpCallback	m_forwardUp
	Callback to forward packet up the stack. More...

Callback< void >	m_linkDown
	Callback when a link is down. More...

Callback< void >	m_linkUp
	Callback when a link is up. More...

Ptr< WifiPhy >	m_phy
	Wifi PHY. More...

Ptr< MacRxMiddle >	m_rxMiddle
	RX middle (defragmentation etc.) More...

Ssid	m_ssid
	Service Set ID (SSID) More...

Ptr< WifiRemoteStationManager >	m_stationManager
	Remote station manager (rate control, RTS/CTS/fragmentation thresholds etc.) More...

Ptr< MacTxMiddle >	m_txMiddle
	TX middle (aggregation etc.) More...

Ptr< Txop >	m_txop
	This holds a pointer to the TXOP instance for this WifiMac - used for transmission of frames to non-QoS peers. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

The Wifi MAC high model for a non-AP STA in a BSS.

The state machine is as follows:

---------       --------------                                         -----------
| Start |       | Associated | <-------------------------        ----> | Refused |
---------       --------------                           |      /      -----------
   |              |   /------------------------------\   |     /
   \              v   v                              |   v    /
    \    ----------------     ---------------     -----------------------------
     \-> | Unassociated | --> | Wait Beacon | --> | Wait Association Response |
         ----------------     ---------------     -----------------------------
               \                  ^     ^ |              ^    ^ |
                \                 |     | |              |    | |
                 \                v      -               /     -
                  \    -----------------------          /
                   \-> | Wait Probe Response | --------/
                       -----------------------
                               ^ |
                               | |
                                -

Notes:

The state 'Start' is not included in MacState and only used for illustration purpose.
The Unassociated state is a transient state before STA starts the scanning procedure which moves it into either Wait Beacon or Wait Probe Response, based on whether passive or active scanning is selected.
In Wait Beacon and Wait Probe Response, STA is gathering beacon or probe response packets from APs, resulted in a list of candidate AP. After the respective timeout, it then tries to associate to the best AP (i.e., best SNR). STA will switch between the two states and restart the scanning procedure if SetActiveProbing() called.
In the case when AP responded to STA's association request with a refusal, STA will try to associate to the next best AP until the list of candidate AP is exhausted which sends STA to Refused state.
- Note that this behavior is not currently tested since ns-3 does not implement association refusal at present.
The transition from Wait Association Response to Unassociated occurs if an association request fails without explicit refusal (i.e., the AP fails to respond).
The transition from Associated to Wait Association Response occurs when STA's PHY capabilities changed. In this state, STA tries to reassociate with the previously associated AP.
The transition from Associated to Unassociated occurs if the number of missed beacons exceeds the threshold.

Config Paths

ns3::StaWifiMac is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/$ns3::StaWifiMac"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::StaWifiMac"

Attributes

ProbeRequestTimeout: The duration to actively probe the channel.
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +5e+07ns
- Flags: construct write read
WaitBeaconTimeout: The duration to dwell on a channel while passively scanning for beacon
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +1.2e+08ns
- Flags: construct write read
AssocRequestTimeout: The interval between two consecutive association request attempts.
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +5e+08ns
- Flags: construct write read
MaxMissedBeacons: Number of beacons which much be consecutively missed before we attempt to restart association.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 10
- Flags: construct write read
ActiveProbing: If true, we send probe requests. If false, we don't.NOTE: if more than one STA in your simulation is using active probing, you should enable it at a different simulation time for each STA, otherwise all the STAs will start sending probes at the same time resulting in collisions. See bug 1060 for more info.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read

Attributes defined in parent class ns3::RegularWifiMac

QosSupported: This Boolean attribute is set to enable 802.11e/WMM-style QoS support at this STA.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
CtsToSelfSupported: Use CTS to Self when using a rate that is not in the basic rate set.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write
VO_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VO access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: construct write read
VI_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VI access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: construct write read
BE_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BE access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: construct write read
BK_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BK access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: construct write read
VO_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VO access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 6500631 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:6500631
- Initial value: 0
- Flags: construct write read
VI_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VI access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 6500631 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:6500631
- Initial value: 65535
- Flags: construct write read
BE_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BE access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 6500631 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:6500631
- Initial value: 65535
- Flags: construct write read
BK_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BK access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 6500631 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:6500631
- Initial value: 0
- Flags: construct write read
VO_BlockAckThreshold: If number of packets in VO queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
VI_BlockAckThreshold: If number of packets in VI queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
BE_BlockAckThreshold: If number of packets in BE queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
BK_BlockAckThreshold: If number of packets in BK queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
VO_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_VO. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
VI_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_VI. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
BE_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_BE. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
BK_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_BK. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
ShortSlotTimeSupported: Whether or not short slot time is supported (only used by ERP APs or STAs).
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
Txop: The Txop object.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::Txop>
- Flags: read
VO_Txop: Queue that manages packets belonging to AC_VO access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
VI_Txop: Queue that manages packets belonging to AC_VI access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
BE_Txop: Queue that manages packets belonging to AC_BE access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
BK_Txop: Queue that manages packets belonging to AC_BK access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read

Attributes defined in parent class ns3::WifiMac

Ssid: The ssid we want to belong to.
- Set with class: SsidValue
- Underlying type: Ssid
- Initial value: default
- Flags: construct write read

TraceSources

Assoc: Associated with an access point.
Callback signature: ns3::Mac48Address::TracedCallback
DeAssoc: Association with an access point lost.
Callback signature: ns3::Mac48Address::TracedCallback
BeaconArrival: Time of beacons arrival from associated AP
Callback signature: ns3::Time::TracedCallback

TraceSources defined in parent class ns3::RegularWifiMac

TxOkHeader: The header of successfully transmitted packet.
Callback signature: ns3::WifiMacHeader::TracedCallback
TxErrHeader: The header of unsuccessfully transmitted packet.
Callback signature: ns3::WifiMacHeader::TracedCallback
AckedMpdu: An MPDU that was successfully acknowledged, via either a Normal Ack or a Block Ack.
Callback signature: ns3::WifiMacQueueItem::TracedCallback
NAckedMpdu: An MPDU that was negatively acknowledged via a Block Ack.
Callback signature: ns3::WifiMacQueueItem::TracedCallback
DroppedMpdu: An MPDU that was dropped for the given reason (see WifiMacDropReason).
Callback signature: ns3::RegularWifiMac::DroppedMpduCallback
MpduResponseTimeout: An MPDU whose response was not received before the timeout, along with an identifier of the type of timeout (see WifiTxTimer::Reason) and the TXVECTOR used to transmit the MPDU. This trace source is fired when a CTS is missing after an RTS or a Normal Ack is missing after an MPDU or after a DL MU PPDU acknowledged in SU format.
Callback signature: ns3::RegularWifiMac::MpduResponseTimeoutCallback
PsduResponseTimeout: A PSDU whose response was not received before the timeout, along with an identifier of the type of timeout (see WifiTxTimer::Reason) and the TXVECTOR used to transmit the PSDU. This trace source is fired when a BlockAck is missing after an A-MPDU, a BlockAckReq (possibly in the context of the acknowledgment of a DL MU PPDU in SU format) or a TB PPDU (in the latter case the missing BlockAck is a Multi-STA BlockAck).
Callback signature: ns3::RegularWifiMac::PsduResponseTimeoutCallback
PsduMapResponseTimeout: A PSDU map for which not all the responses were received before the timeout, along with an identifier of the type of timeout (see WifiTxTimer::Reason), the set of MAC addresses of the stations that did not respond and the total number of stations that had to respond. This trace source is fired when not all the addressed stations responded to an MU-BAR Trigger frame (either sent as a SU frame or aggregated to PSDUs in the DL MU PPDU), a Basic Trigger Frame or a BSRP Trigger Frame.
Callback signature: ns3::RegularWifiMac::PsduMapResponseTimeoutCallback

TraceSources defined in parent class ns3::WifiMac

MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
Callback signature: ns3::Packet::TracedCallback
MacTxDrop: A packet has been dropped in the MAC layer before being queued for transmission. This trace source is fired, e.g., when an AP's MAC receives from the upper layer a packet destined to a station that is not associated with the AP or a STA's MAC receives a packet from the upper layer while it is not associated with any AP.
Callback signature: ns3::Packet::TracedCallback
MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace.
Callback signature: ns3::Packet::TracedCallback
MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace.
Callback signature: ns3::Packet::TracedCallback
MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.
Callback signature: ns3::Packet::TracedCallback

Size of this type is 696 bytes (on a 64-bit architecture).

Definition at line 106 of file sta-wifi-mac.h.

Member Enumeration Documentation

◆ MacState

enum ns3::StaWifiMac::MacState

private

The current MAC state of the STA.

Enumerator
ASSOCIATED
WAIT_BEACON
WAIT_PROBE_RESP
WAIT_ASSOC_RESP
UNASSOCIATED
REFUSED

Definition at line 157 of file sta-wifi-mac.h.

Constructor & Destructor Documentation

◆ StaWifiMac()

ns3::StaWifiMac::StaWifiMac ( )

Definition at line 88 of file sta-wifi-mac.cc.

References NS_LOG_FUNCTION, ns3::RegularWifiMac::SetTypeOfStation(), and ns3::STA.

Here is the call graph for this function:

◆ ~StaWifiMac()

ns3::StaWifiMac::~StaWifiMac ( )

virtual

Definition at line 110 of file sta-wifi-mac.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AssocRequestTimeout()

void ns3::StaWifiMac::AssocRequestTimeout ( void )

private

This method is called after the association timeout occurred.

We switch the state to WAIT_ASSOC_RESP and re-send an association request.

Definition at line 366 of file sta-wifi-mac.cc.

References NS_LOG_FUNCTION, SendAssociationRequest(), SetState(), and WAIT_ASSOC_RESP.

Referenced by SendAssociationRequest().

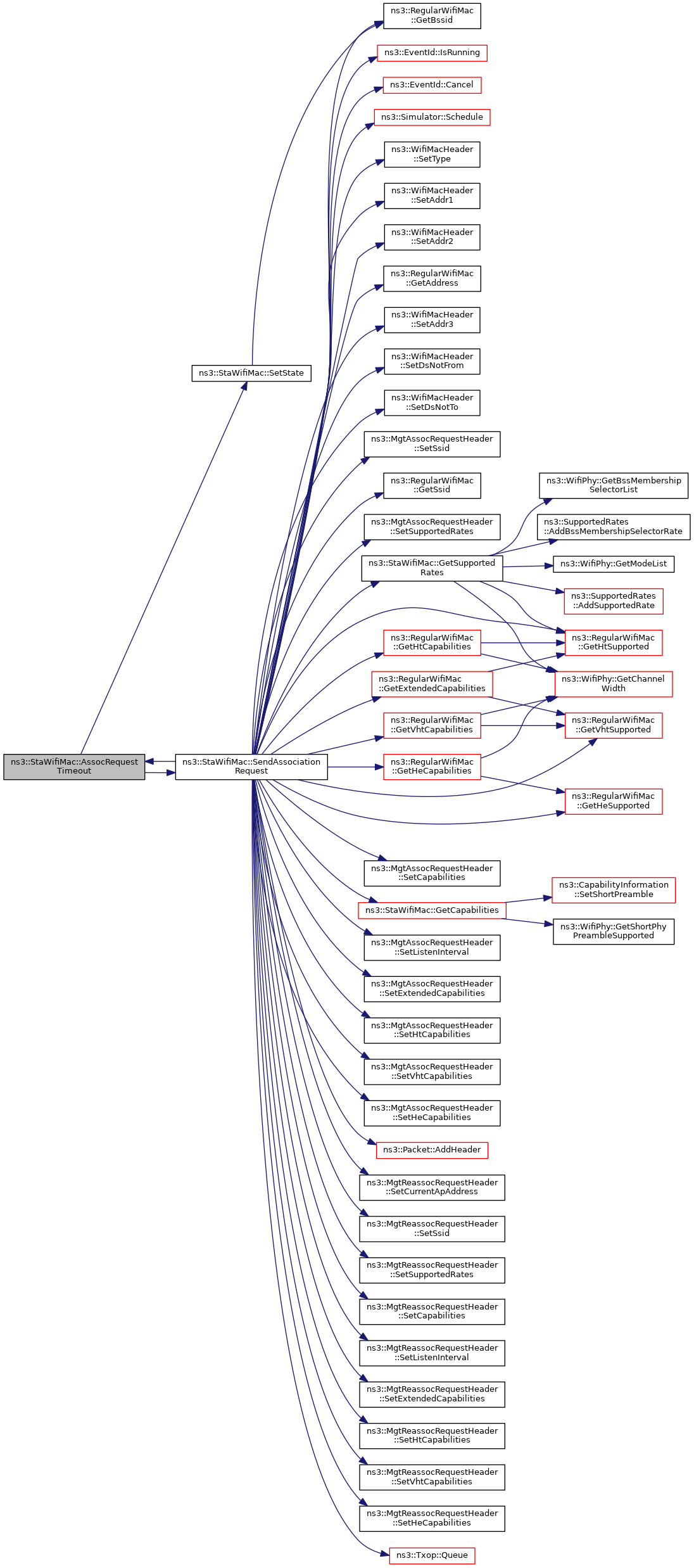

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoInitialize()

void ns3::StaWifiMac::DoInitialize ( void )

overrideprivatevirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::RegularWifiMac.

Definition at line 104 of file sta-wifi-mac.cc.

References NS_LOG_FUNCTION, and StartScanning().

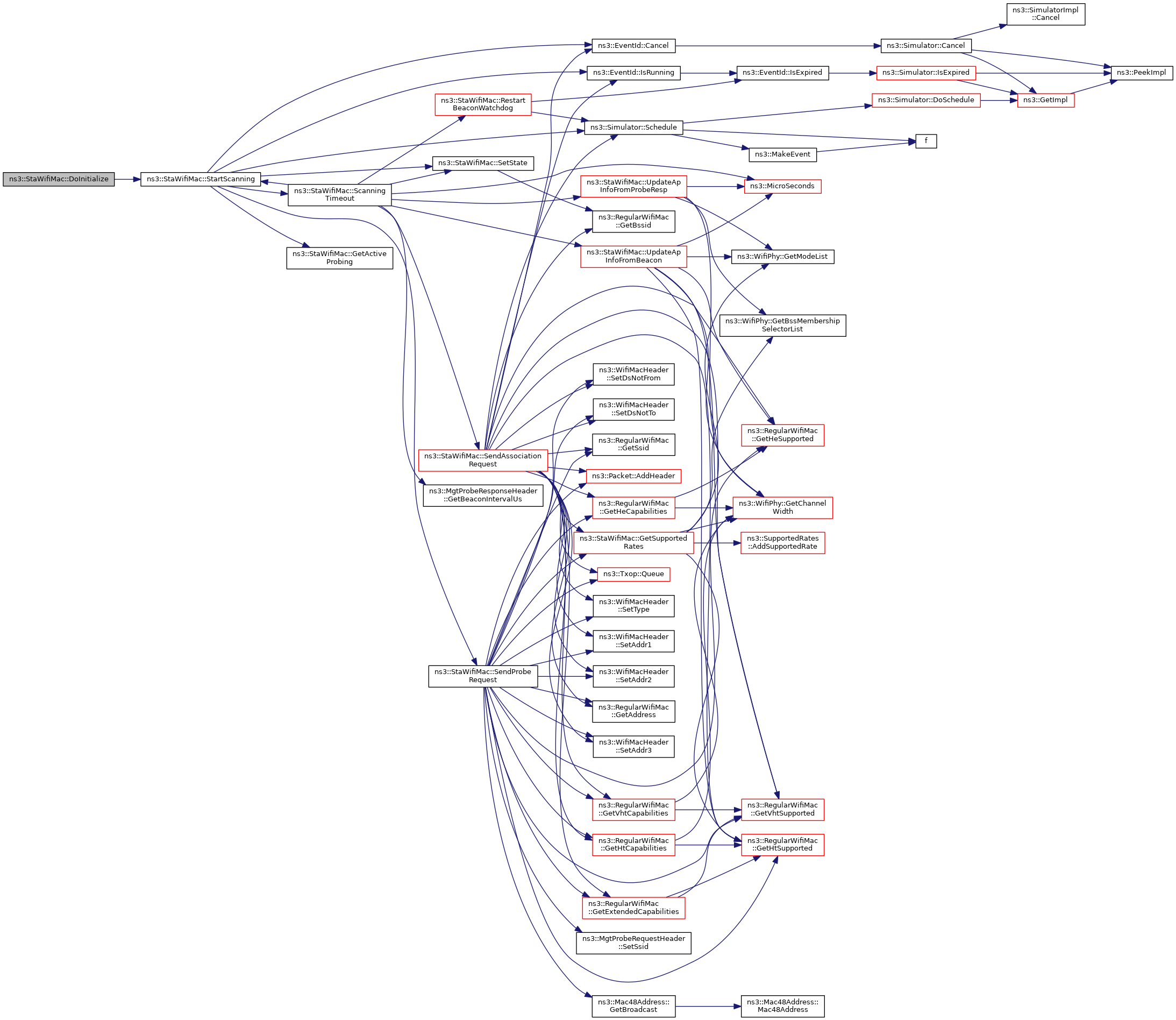

Here is the call graph for this function:

◆ Enqueue()

void ns3::StaWifiMac::Enqueue	(	Ptr< Packet >	packet,
		Mac48Address	to
	)

overridevirtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.

The packet should be enqueued in a TX queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC.

Implements ns3::RegularWifiMac.

Definition at line 426 of file sta-wifi-mac.cc.

Here is the call graph for this function:

◆ GetActiveProbing()

bool ns3::StaWifiMac::GetActiveProbing ( void ) const

private

Return whether active probing is enabled.

Returns: true if active probing is enabled, false otherwise

Definition at line 135 of file sta-wifi-mac.cc.

References m_activeProbing.

Referenced by GetTypeId(), and StartScanning().

Here is the caller graph for this function:

◆ GetAssociationId()

uint16_t ns3::StaWifiMac::GetAssociationId ( void ) const

Return the association ID.

Returns: the association ID

Definition at line 116 of file sta-wifi-mac.cc.

References IsAssociated(), m_aid, and NS_ASSERT_MSG.

Referenced by ns3::WifiRemoteStationManager::GetStaId().

Here is the call graph for this function:

Here is the caller graph for this function:

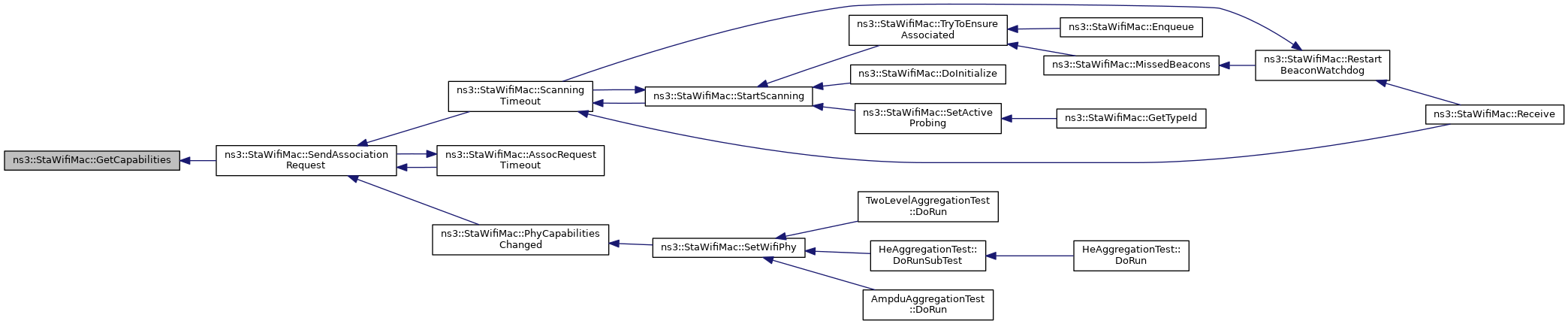

◆ GetCapabilities()

CapabilityInformation ns3::StaWifiMac::GetCapabilities ( void ) const

private

Return the Capability information of the current STA.

Returns: the Capability information that we support

Definition at line 1060 of file sta-wifi-mac.cc.

References ns3::RegularWifiMac::GetErpSupported(), ns3::WifiPhy::GetShortPhyPreambleSupported(), ns3::RegularWifiMac::GetShortSlotTimeSupported(), ns3::RegularWifiMac::m_phy, ns3::CapabilityInformation::SetShortPreamble(), and ns3::CapabilityInformation::SetShortSlotTime().

Referenced by SendAssociationRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSupportedRates()

SupportedRates ns3::StaWifiMac::GetSupportedRates ( void ) const

private

Return an instance of SupportedRates that contains all rates that we support including HT rates.

Returns: SupportedRates all rates that we support

Definition at line 1040 of file sta-wifi-mac.cc.

References ns3::SupportedRates::AddBssMembershipSelectorRate(), ns3::SupportedRates::AddSupportedRate(), ns3::WifiPhy::GetBssMembershipSelectorList(), ns3::WifiPhy::GetChannelWidth(), ns3::RegularWifiMac::GetHtSupported(), ns3::WifiPhy::GetModeList(), ns3::RegularWifiMac::m_phy, and NS_LOG_DEBUG.

Referenced by SendAssociationRequest(), and SendProbeRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::StaWifiMac::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 41 of file sta-wifi-mac.cc.

References GetActiveProbing(), m_assocLogger, m_assocRequestTimeout, m_beaconArrival, m_deAssocLogger, m_maxMissedBeacons, m_probeRequestTimeout, m_waitBeaconTimeout, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), ns3::MilliSeconds(), ns3::Seconds(), SetActiveProbing(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ IsAssociated()

bool ns3::StaWifiMac::IsAssociated ( void ) const

Return whether we are associated with an AP.

Returns: true if we are associated with an AP, false otherwise

Definition at line 414 of file sta-wifi-mac.cc.

References ASSOCIATED, and m_state.

Referenced by Enqueue(), GetAssociationId(), ns3::WifiRemoteStationManager::GetStaId(), PhyCapabilitiesChanged(), and Receive().

Here is the caller graph for this function:

◆ IsWaitAssocResp()

bool ns3::StaWifiMac::IsWaitAssocResp ( void ) const

private

Return whether we are waiting for an association response from an AP.

Returns: true if we are waiting for an association response from an AP, false otherwise

Definition at line 420 of file sta-wifi-mac.cc.

References m_state, and WAIT_ASSOC_RESP.

Referenced by Receive().

Here is the caller graph for this function:

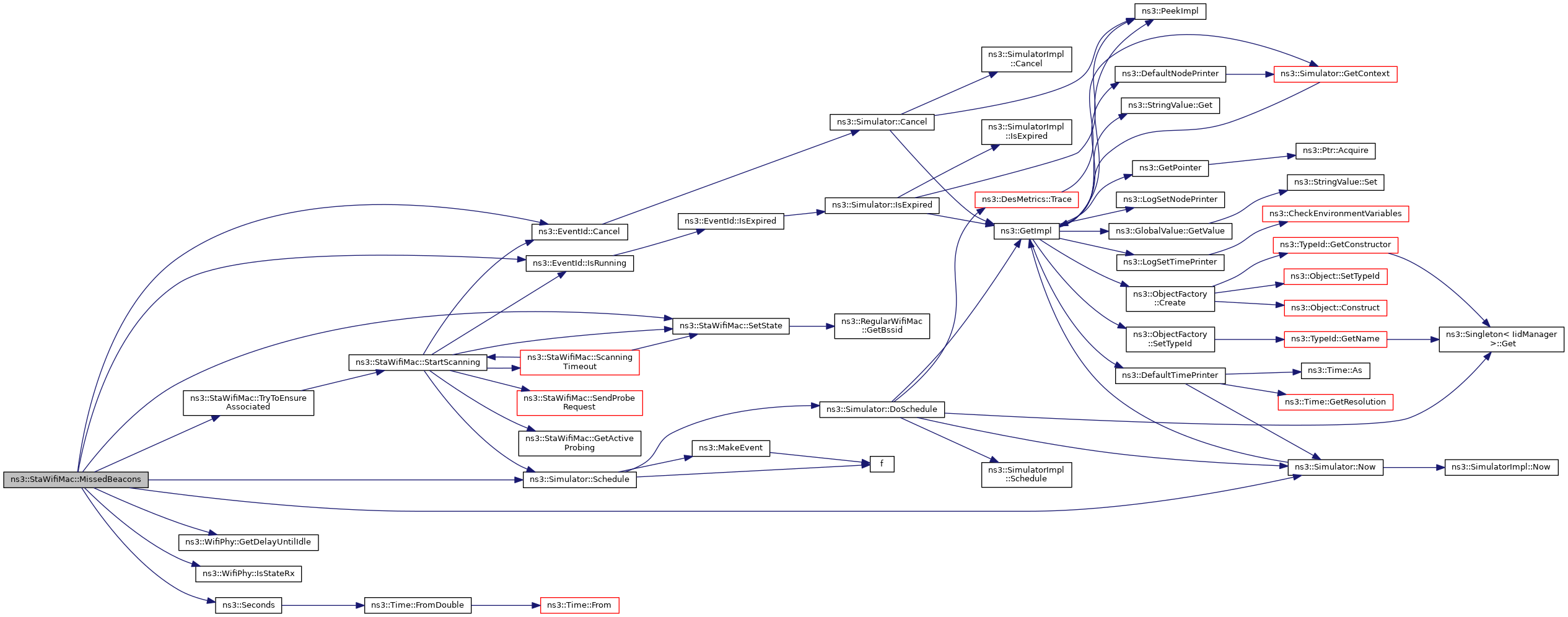

◆ MissedBeacons()

void ns3::StaWifiMac::MissedBeacons ( void )

private

This method is called after we have not received a beacon from the AP.

Definition at line 374 of file sta-wifi-mac.cc.

References ns3::EventId::Cancel(), ns3::WifiPhy::GetDelayUntilIdle(), ns3::EventId::IsRunning(), ns3::WifiPhy::IsStateRx(), m_beaconWatchdog, m_beaconWatchdogEnd, ns3::RegularWifiMac::m_phy, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), ns3::Seconds(), SetState(), TryToEnsureAssociated(), and UNASSOCIATED.

Referenced by RestartBeaconWatchdog().

Here is the call graph for this function:

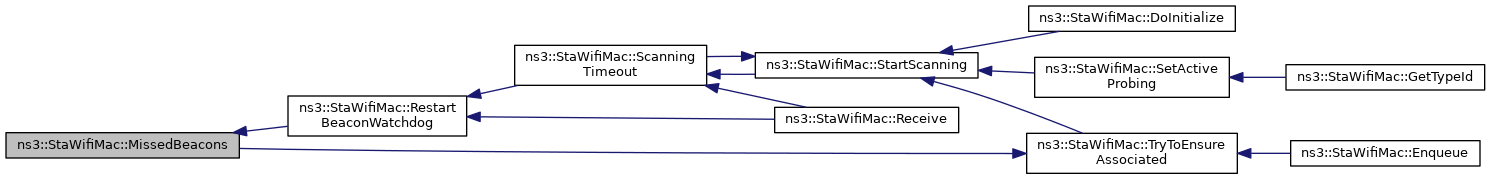

Here is the caller graph for this function:

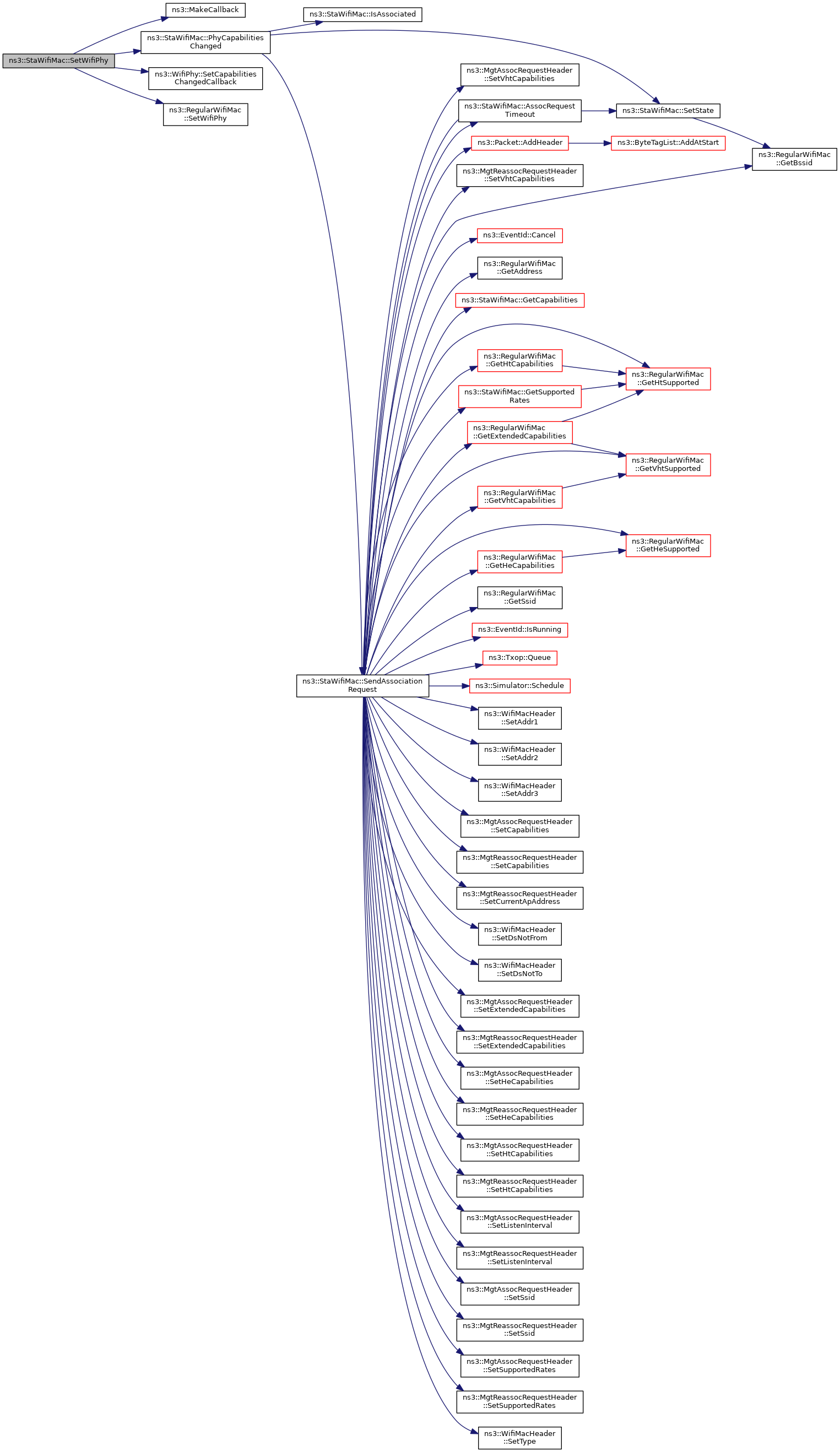

◆ PhyCapabilitiesChanged()

void ns3::StaWifiMac::PhyCapabilitiesChanged ( void )

private

Indicate that PHY capabilities have changed.

Definition at line 1095 of file sta-wifi-mac.cc.

References IsAssociated(), NS_LOG_DEBUG, NS_LOG_FUNCTION, SendAssociationRequest(), SetState(), and WAIT_ASSOC_RESP.

Referenced by SetWifiPhy().

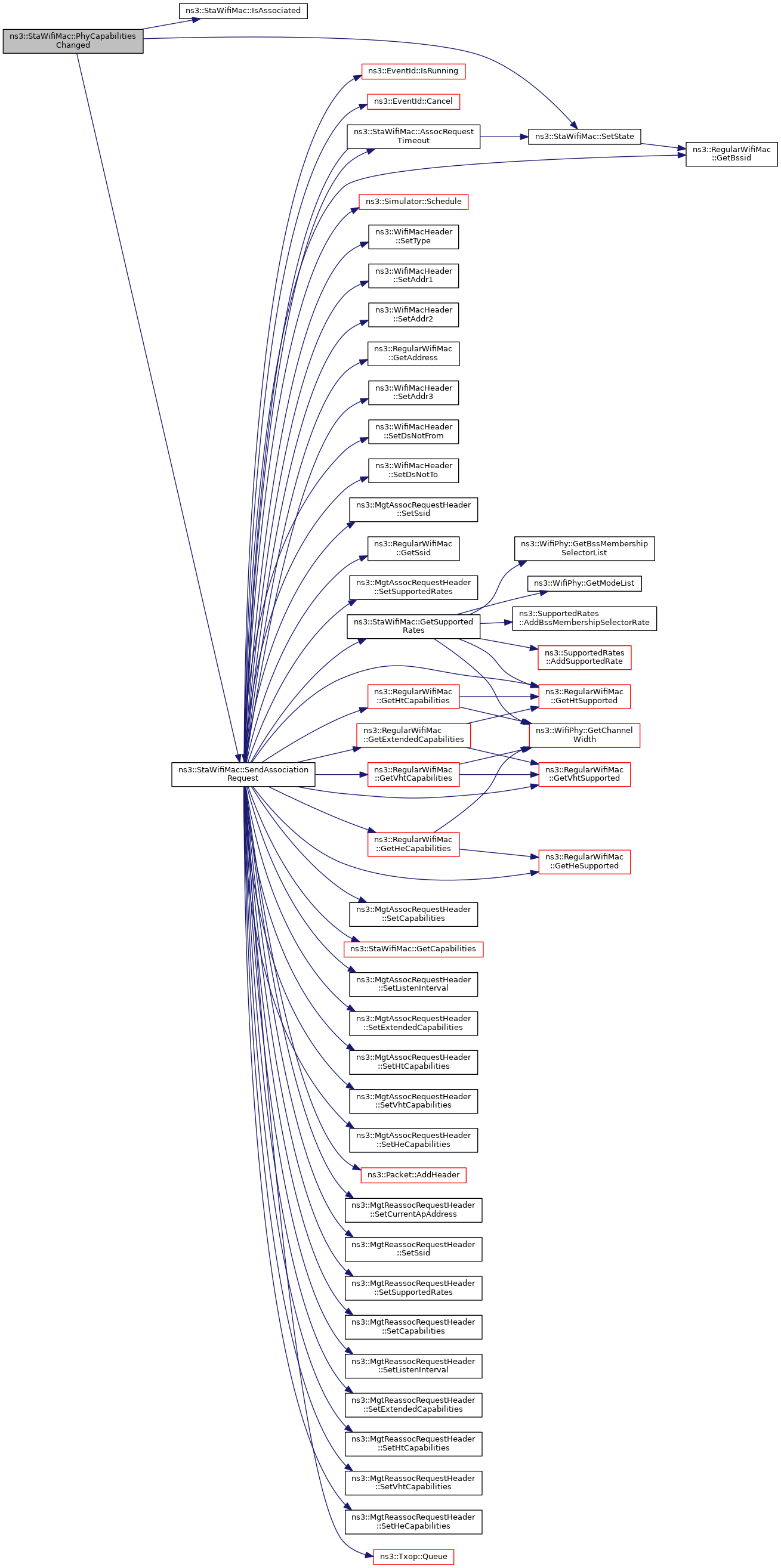

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Receive()

void ns3::StaWifiMac::Receive ( Ptr< WifiMacQueueItem > mpdu )

overrideprivatevirtual

Handle a received packet.

Parameters

mpdu	the received MPDU

Reimplemented from ns3::RegularWifiMac.

Definition at line 496 of file sta-wifi-mac.cc.

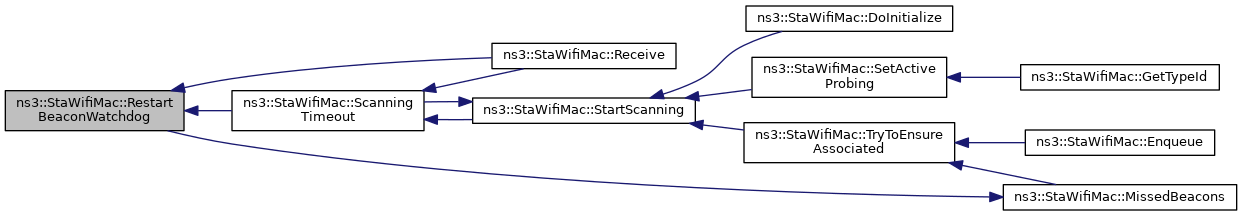

◆ RestartBeaconWatchdog()

void ns3::StaWifiMac::RestartBeaconWatchdog ( Time delay )

private

Restarts the beacon timer.

Parameters

delay the delay before the watchdog fires

Definition at line 401 of file sta-wifi-mac.cc.

References ns3::Simulator::GetDelayLeft(), ns3::EventId::IsExpired(), m_beaconWatchdog, m_beaconWatchdogEnd, max, MissedBeacons(), ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::Simulator::Schedule().

Referenced by Receive(), and ScanningTimeout().

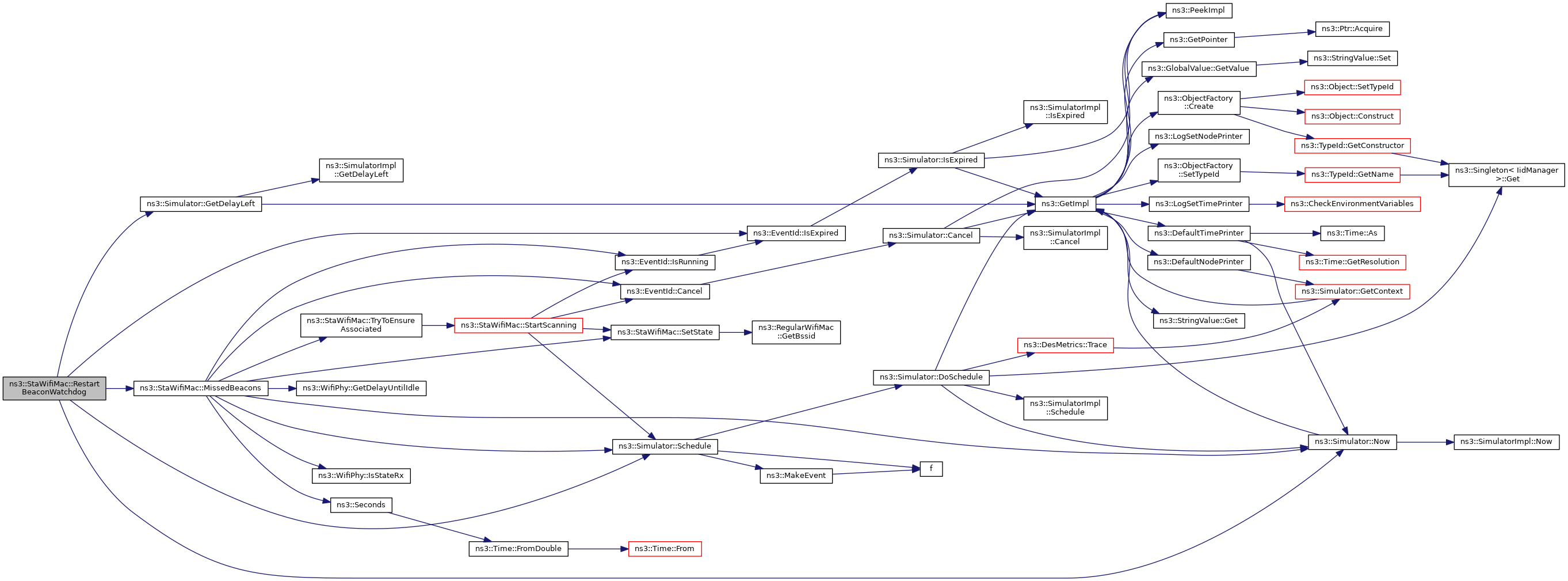

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ScanningTimeout()

void ns3::StaWifiMac::ScanningTimeout ( void )

private

This method is called after wait beacon timeout or wait probe request timeout has occurred.

This will trigger association process from beacons or probe responses gathered while scanning.

Definition at line 333 of file sta-wifi-mac.cc.

References ns3::MgtProbeResponseHeader::GetBeaconIntervalUs(), ns3::ApInfo::m_activeProbing, ns3::ApInfo::m_apAddr, ns3::ApInfo::m_beacon, ns3::ApInfo::m_bssid, m_candidateAps, m_maxMissedBeacons, ns3::ApInfo::m_probeResp, ns3::MicroSeconds(), NS_LOG_DEBUG, NS_LOG_FUNCTION, RestartBeaconWatchdog(), SendAssociationRequest(), SetState(), StartScanning(), UpdateApInfoFromBeacon(), UpdateApInfoFromProbeResp(), and WAIT_ASSOC_RESP.

Referenced by Receive(), and StartScanning().

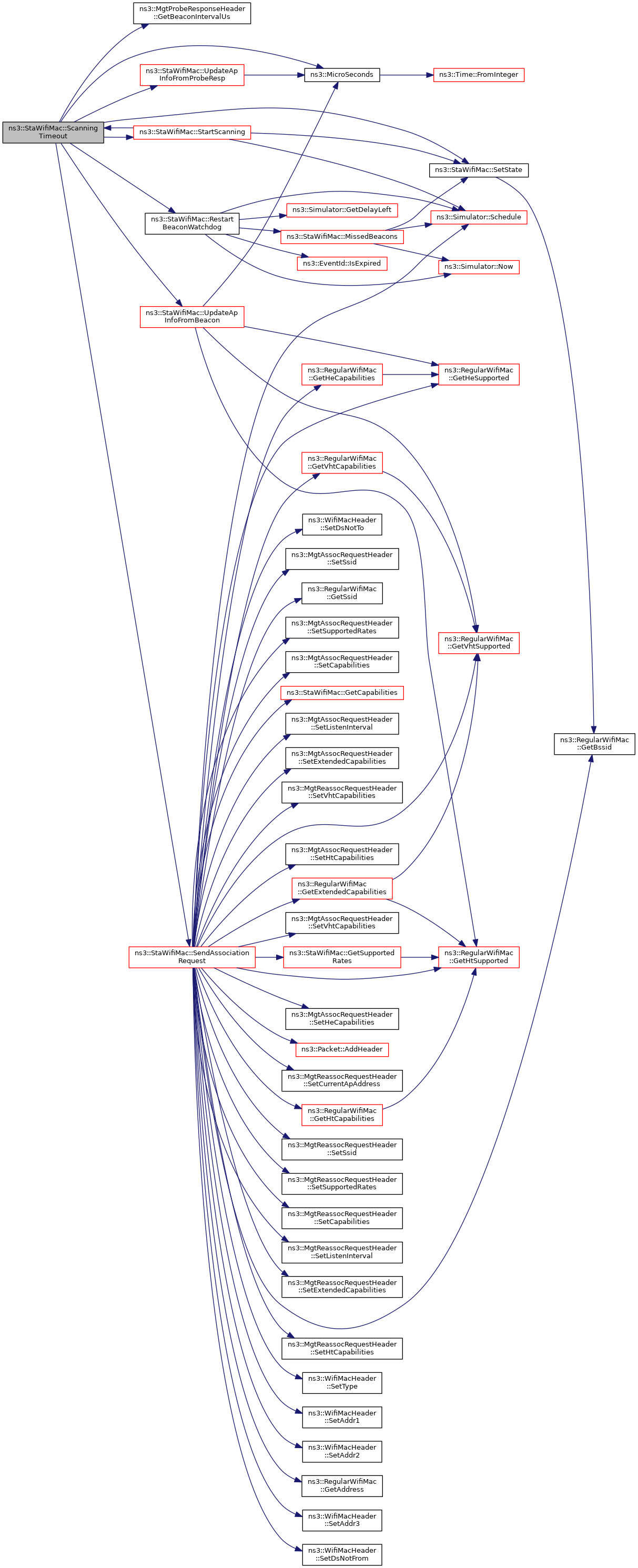

Here is the call graph for this function:

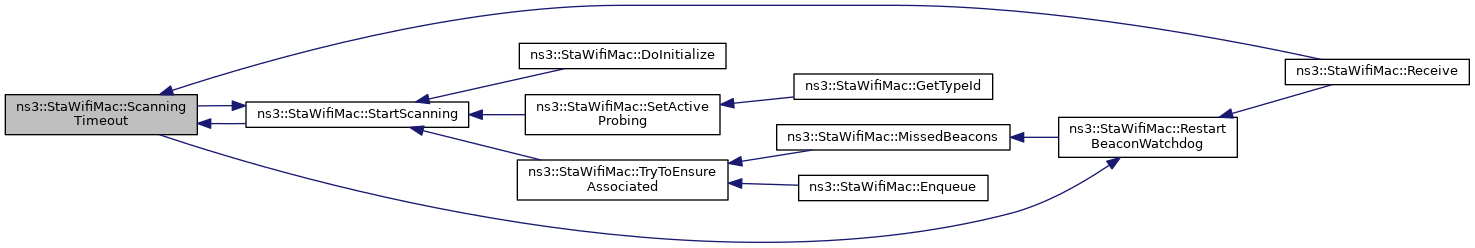

Here is the caller graph for this function:

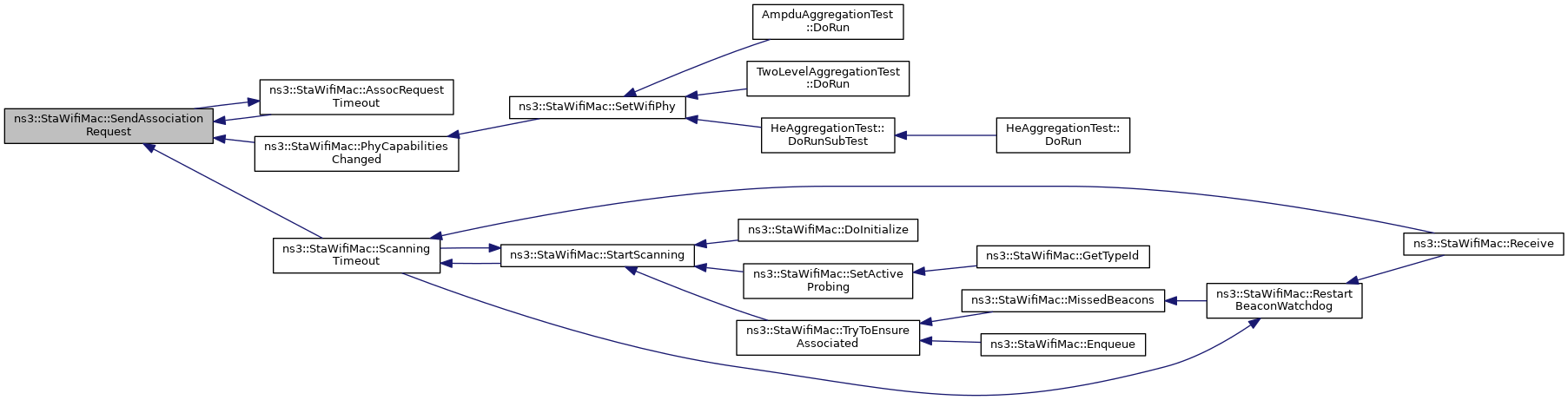

◆ SendAssociationRequest()

void ns3::StaWifiMac::SendAssociationRequest ( bool isReassoc )

private

Forward an association or reassociation request packet to the DCF.

The standard is not clear on the correct queue for management frames if QoS is supported. We always use the DCF.

Parameters

isReassoc flag whether it is a reassociation request

Definition at line 186 of file sta-wifi-mac.cc.

Referenced by AssocRequestTimeout(), PhyCapabilitiesChanged(), and ScanningTimeout().

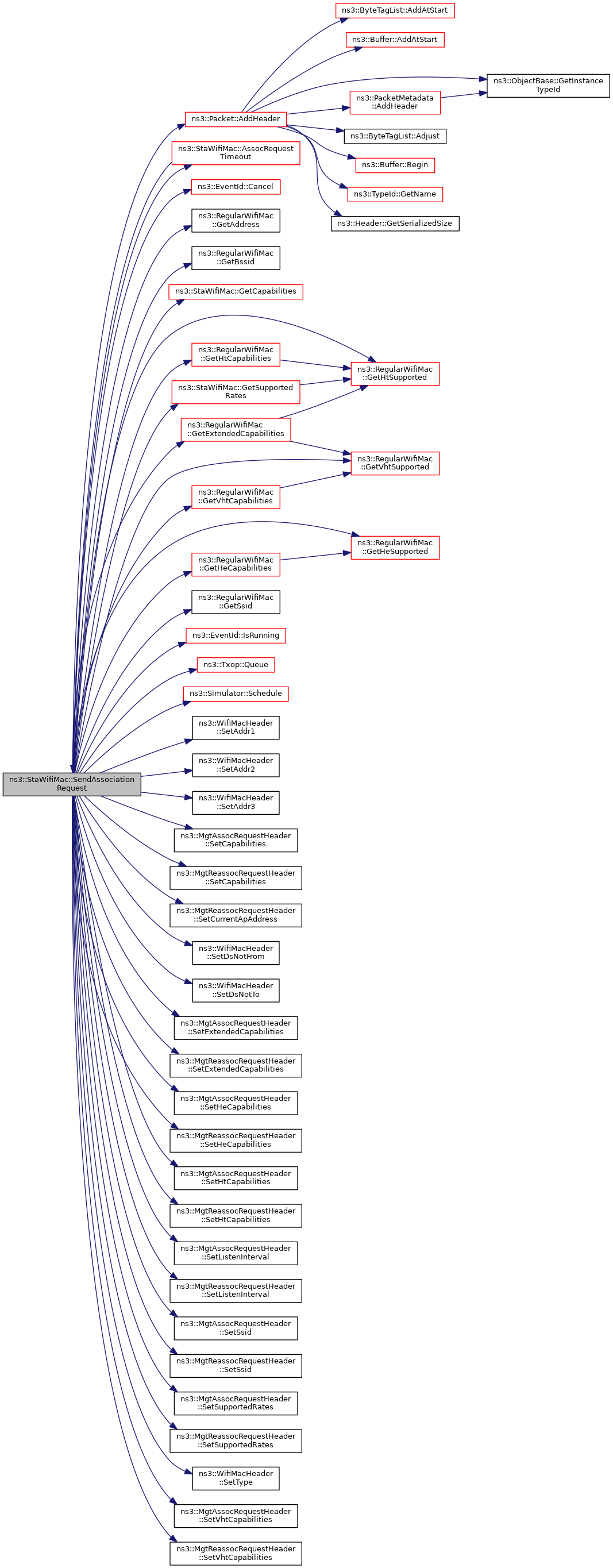

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendProbeRequest()

void ns3::StaWifiMac::SendProbeRequest ( void )

private

Forward a probe request packet to the DCF.

The standard is not clear on the correct queue for management frames if QoS is supported. We always use the DCF.

Definition at line 149 of file sta-wifi-mac.cc.

Referenced by StartScanning().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetActiveProbing()

void ns3::StaWifiMac::SetActiveProbing ( bool enable )

private

Enable or disable active probing.

Parameters

enable enable or disable active probing

Definition at line 123 of file sta-wifi-mac.cc.

References m_activeProbing, m_state, NS_LOG_DEBUG, NS_LOG_FUNCTION, StartScanning(), WAIT_BEACON, and WAIT_PROBE_RESP.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

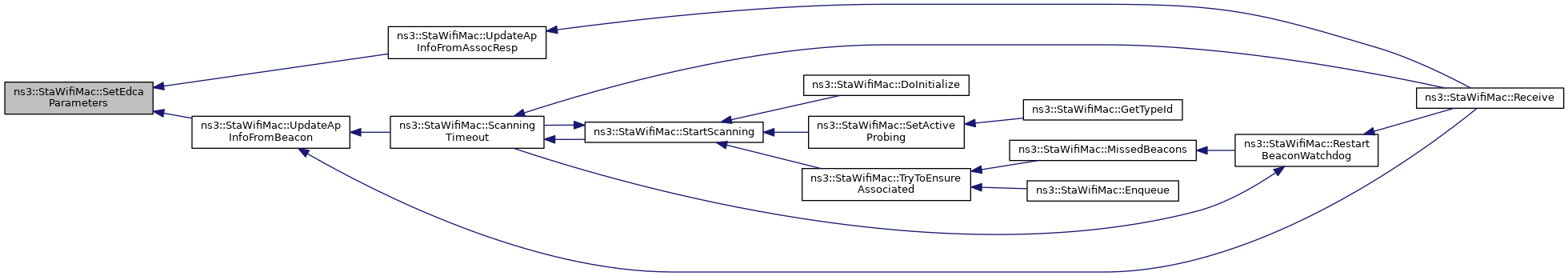

◆ SetEdcaParameters()

void ns3::StaWifiMac::SetEdcaParameters	(	AcIndex	ac,
		uint32_t	cwMin,
		uint32_t	cwMax,
		uint8_t	aifsn,
		Time	txopLimit
	)

private

Set the EDCA parameters.

Parameters

ac	the access class
cwMin	the minimum contention window size
cwMax	the maximum contention window size
aifsn	the number of slots that make up an AIFS
txopLimit	the TXOP limit

Definition at line 1085 of file sta-wifi-mac.cc.

References ns3::RegularWifiMac::m_edca, ns3::Txop::SetAifsn(), ns3::Txop::SetMaxCw(), ns3::Txop::SetMinCw(), and ns3::Txop::SetTxopLimit().

Referenced by UpdateApInfoFromAssocResp(), and UpdateApInfoFromBeacon().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetState()

void ns3::StaWifiMac::SetState ( MacState value )

private

Set the current MAC state.

Parameters

value the new state

Definition at line 1069 of file sta-wifi-mac.cc.

References ASSOCIATED, ns3::RegularWifiMac::GetBssid(), m_assocLogger, m_deAssocLogger, and m_state.

Referenced by AssocRequestTimeout(), MissedBeacons(), PhyCapabilitiesChanged(), Receive(), ScanningTimeout(), and StartScanning().

Here is the call graph for this function:

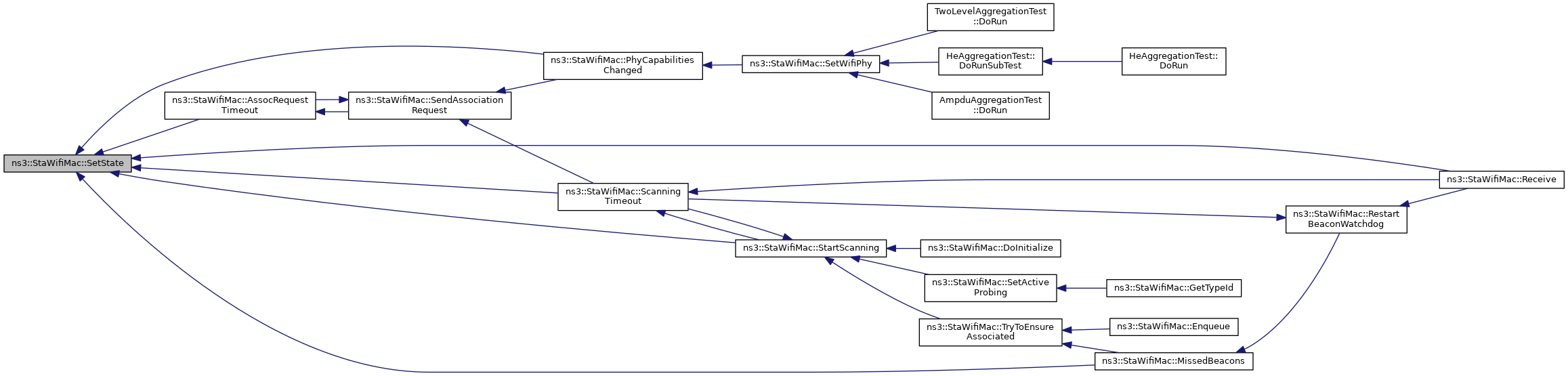

Here is the caller graph for this function:

◆ SetWifiPhy()

void ns3::StaWifiMac::SetWifiPhy ( const Ptr< WifiPhy > phy )

overridevirtual

Parameters

phy	the physical layer attached to this MAC.

Reimplemented from ns3::RegularWifiMac.

Definition at line 141 of file sta-wifi-mac.cc.

References ns3::RegularWifiMac::m_phy, ns3::MakeCallback(), NS_LOG_FUNCTION, third::phy, PhyCapabilitiesChanged(), ns3::WifiPhy::SetCapabilitiesChangedCallback(), and ns3::RegularWifiMac::SetWifiPhy().

Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), and HeAggregationTest::DoRunSubTest().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StartScanning()

void ns3::StaWifiMac::StartScanning ( void )

private

Start the scanning process which trigger active or passive scanning based on the active probing flag.

Definition at line 303 of file sta-wifi-mac.cc.

References ns3::EventId::Cancel(), GetActiveProbing(), ns3::EventId::IsRunning(), m_candidateAps, m_probeRequestEvent, m_probeRequestTimeout, m_waitBeaconEvent, m_waitBeaconTimeout, NS_LOG_FUNCTION, ScanningTimeout(), ns3::Simulator::Schedule(), SendProbeRequest(), SetState(), WAIT_BEACON, and WAIT_PROBE_RESP.

Referenced by DoInitialize(), ScanningTimeout(), SetActiveProbing(), and TryToEnsureAssociated().

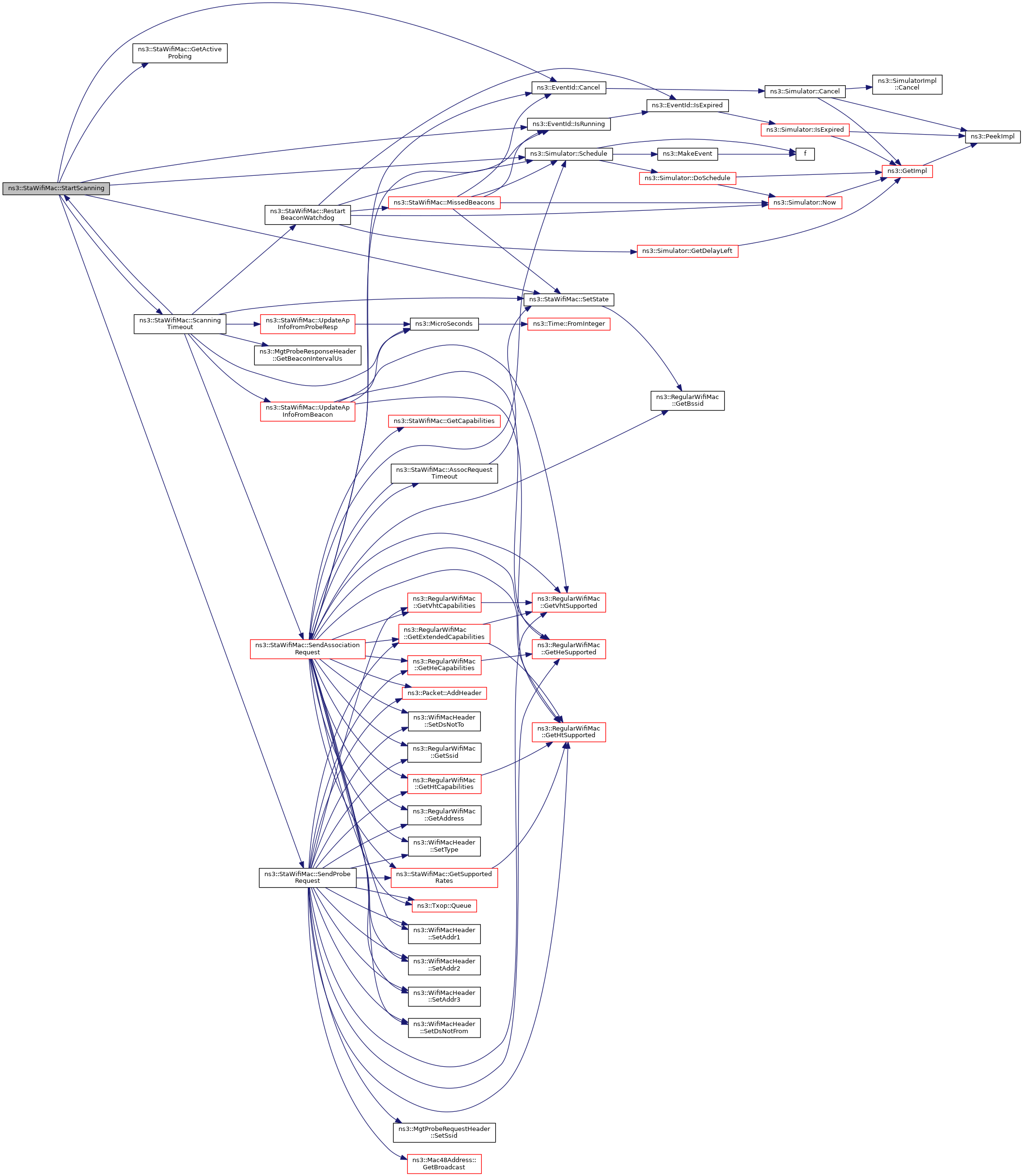

Here is the call graph for this function:

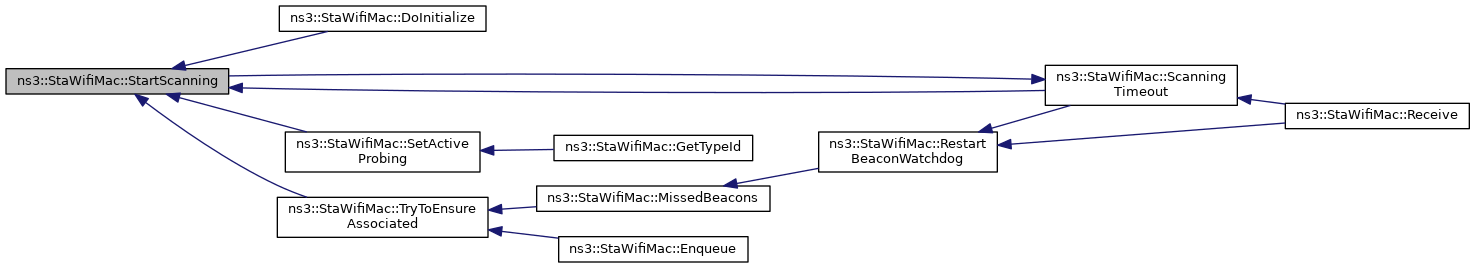

Here is the caller graph for this function:

◆ TryToEnsureAssociated()

void ns3::StaWifiMac::TryToEnsureAssociated ( void )

private

Try to ensure that we are associated with an AP by taking an appropriate action depending on the current association status.

Definition at line 258 of file sta-wifi-mac.cc.

References ASSOCIATED, ns3::RegularWifiMac::m_linkDown, m_state, NS_LOG_FUNCTION, REFUSED, StartScanning(), UNASSOCIATED, WAIT_ASSOC_RESP, WAIT_BEACON, and WAIT_PROBE_RESP.

Referenced by Enqueue(), and MissedBeacons().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateApInfoFromAssocResp()

void ns3::StaWifiMac::UpdateApInfoFromAssocResp	(	MgtAssocResponseHeader	assocResp,
		Mac48Address	apAddr
	)

private

Update AP's information from association response.

Parameters

assocResp	the association response header
apAddr	MAC address of the AP

Definition at line 896 of file sta-wifi-mac.cc.

Referenced by Receive().

Here is the caller graph for this function:

◆ UpdateApInfoFromBeacon()

void ns3::StaWifiMac::UpdateApInfoFromBeacon	(	MgtBeaconHeader	beacon,
		Mac48Address	apAddr,
		Mac48Address	bssid
	)

private

Update associated AP's information from beacon.

If STA is not associated, this information will used for the association process.

Parameters

beacon	the beacon header
apAddr	MAC address of the AP
bssid	MAC address of BSSID

Definition at line 723 of file sta-wifi-mac.cc.

Referenced by Receive(), and ScanningTimeout().

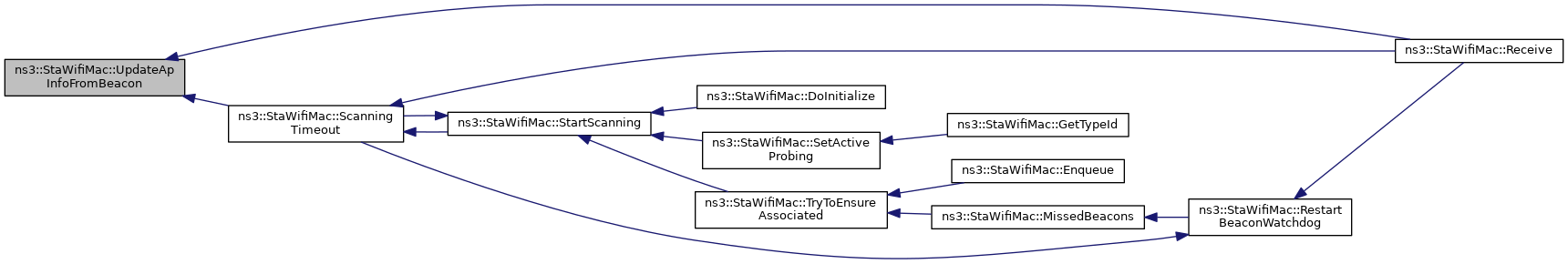

Here is the caller graph for this function:

◆ UpdateApInfoFromProbeResp()

void ns3::StaWifiMac::UpdateApInfoFromProbeResp	(	MgtProbeResponseHeader	probeResp,
		Mac48Address	apAddr,
		Mac48Address	bssid
	)

private

Update AP's information from probe response.

This information is required for the association process.

Parameters

probeResp	the probe response header
apAddr	MAC address of the AP
bssid	MAC address of BSSID

Definition at line 830 of file sta-wifi-mac.cc.

References ns3::WifiRemoteStationManager::AddBasicMode(), ns3::WifiRemoteStationManager::AddSupportedMode(), ns3::RegularWifiMac::ConfigureContentionWindow(), ns3::ErpInformation::GetBarkerPreambleMode(), ns3::WifiPhy::GetBssMembershipSelectorList(), ns3::MgtProbeResponseHeader::GetCapabilities(), ns3::WifiPhy::GetChannelWidth(), ns3::MgtProbeResponseHeader::GetErpInformation(), ns3::RegularWifiMac::GetErpSupported(), ns3::WifiPhy::GetModeList(), ns3::WifiRemoteStationManager::GetShortSlotTimeEnabled(), ns3::MgtProbeResponseHeader::GetSupportedRates(), ns3::SupportedRates::IsBasicRate(), ns3::SupportedRates::IsBssMembershipSelectorRate(), ns3::CapabilityInformation::IsShortPreamble(), ns3::CapabilityInformation::IsShortSlotTime(), ns3::SupportedRates::IsSupportedRate(), ns3::RegularWifiMac::m_phy, ns3::RegularWifiMac::m_stationManager, ns3::MicroSeconds(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::RegularWifiMac::SetBssid(), ns3::WifiRemoteStationManager::SetShortPreambleEnabled(), ns3::WifiRemoteStationManager::SetShortSlotTimeEnabled(), ns3::WifiPhy::SetSlot(), and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ScanningTimeout().

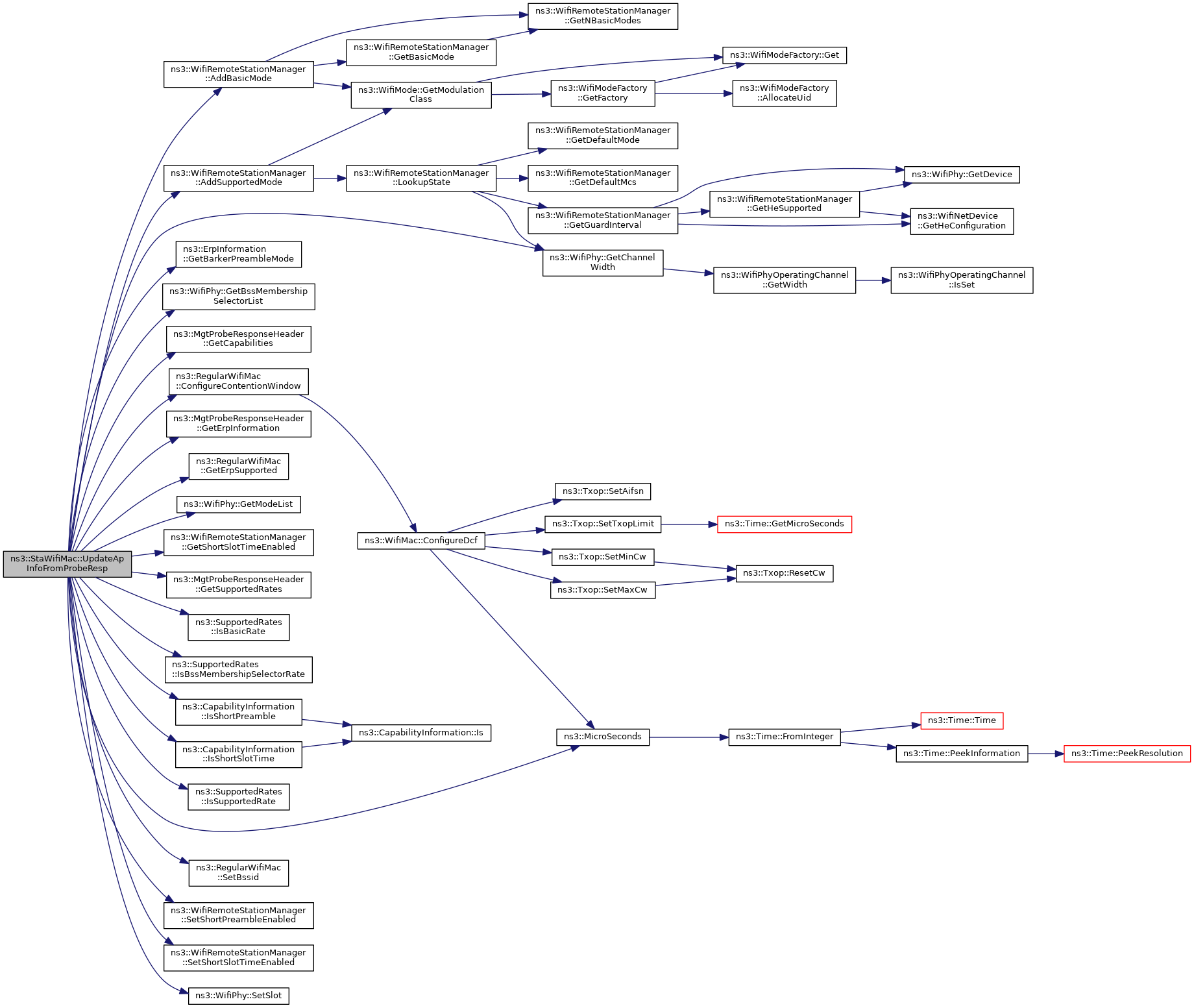

Here is the call graph for this function:

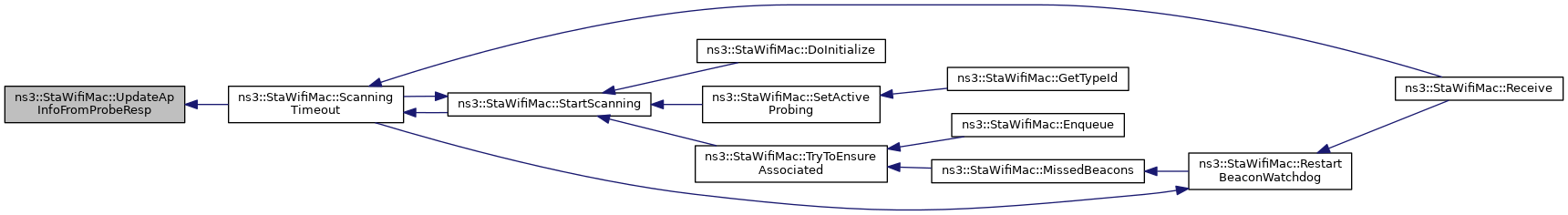

Here is the caller graph for this function:

◆ UpdateCandidateApList()

void ns3::StaWifiMac::UpdateCandidateApList ( ApInfo newApInfo )

private

Update list of candidate AP to associate.

The list should contain ApInfo sorted from best to worst SNR, with no duplicate.

Parameters

newApInfo the new ApInfo to be inserted

Definition at line 697 of file sta-wifi-mac.cc.

References ns3::ApInfo::m_activeProbing, ns3::ApInfo::m_apAddr, ns3::ApInfo::m_beacon, ns3::ApInfo::m_bssid, m_candidateAps, ns3::ApInfo::m_probeResp, ns3::ApInfo::m_snr, and NS_LOG_FUNCTION.

Referenced by Receive().

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ ::AmpduAggregationTest

friend class ::AmpduAggregationTest

friend

Allow test cases to access private members.

Definition at line 112 of file sta-wifi-mac.h.

◆ ::HeAggregationTest

friend class ::HeAggregationTest

friend

Allow test cases to access private members.

Definition at line 114 of file sta-wifi-mac.h.

◆ ::TwoLevelAggregationTest

friend class ::TwoLevelAggregationTest

friend

Allow test cases to access private members.

Definition at line 110 of file sta-wifi-mac.h.

Member Data Documentation

◆ m_activeProbing

bool ns3::StaWifiMac::m_activeProbing

private

active probing

Definition at line 318 of file sta-wifi-mac.h.

Referenced by GetActiveProbing(), and SetActiveProbing().

◆ m_aid

uint16_t ns3::StaWifiMac::m_aid

private

Association AID.

Definition at line 308 of file sta-wifi-mac.h.

Referenced by GetAssociationId(), and Receive().

◆ m_assocLogger

TracedCallback<Mac48Address> ns3::StaWifiMac::m_assocLogger

private

association logger

Definition at line 325 of file sta-wifi-mac.h.

Referenced by GetTypeId(), and SetState().

◆ m_assocRequestEvent

EventId ns3::StaWifiMac::m_assocRequestEvent

private

association request event

Definition at line 314 of file sta-wifi-mac.h.

Referenced by Receive(), and SendAssociationRequest().

◆ m_assocRequestTimeout

Time ns3::StaWifiMac::m_assocRequestTimeout

private

association request timeout

Definition at line 311 of file sta-wifi-mac.h.

Referenced by GetTypeId(), and SendAssociationRequest().

◆ m_beaconArrival

TracedCallback<Time> ns3::StaWifiMac::m_beaconArrival

private

beacon arrival logger

Definition at line 327 of file sta-wifi-mac.h.

Referenced by GetTypeId(), and Receive().

◆ m_beaconWatchdog

EventId ns3::StaWifiMac::m_beaconWatchdog

private

beacon watchdog

Definition at line 315 of file sta-wifi-mac.h.

Referenced by MissedBeacons(), and RestartBeaconWatchdog().

◆ m_beaconWatchdogEnd

Time ns3::StaWifiMac::m_beaconWatchdogEnd

private

beacon watchdog end

Definition at line 316 of file sta-wifi-mac.h.

Referenced by MissedBeacons(), and RestartBeaconWatchdog().

◆ m_candidateAps

std::vector<ApInfo> ns3::StaWifiMac::m_candidateAps

private

list of candidate APs to associate to

Definition at line 319 of file sta-wifi-mac.h.

Referenced by Receive(), ScanningTimeout(), StartScanning(), and UpdateCandidateApList().

◆ m_deAssocLogger

TracedCallback<Mac48Address> ns3::StaWifiMac::m_deAssocLogger

private

disassociation logger

Definition at line 326 of file sta-wifi-mac.h.

Referenced by GetTypeId(), and SetState().

◆ m_maxMissedBeacons

uint32_t ns3::StaWifiMac::m_maxMissedBeacons

private

maximum missed beacons

Definition at line 317 of file sta-wifi-mac.h.

Referenced by GetTypeId(), Receive(), and ScanningTimeout().

◆ m_probeRequestEvent

EventId ns3::StaWifiMac::m_probeRequestEvent

private

probe request event

Definition at line 313 of file sta-wifi-mac.h.

Referenced by StartScanning().

◆ m_probeRequestTimeout

Time ns3::StaWifiMac::m_probeRequestTimeout

private

probe request timeout

Definition at line 310 of file sta-wifi-mac.h.

Referenced by GetTypeId(), and StartScanning().

◆ m_state

MacState ns3::StaWifiMac::m_state

private

MAC state.

Definition at line 307 of file sta-wifi-mac.h.

Referenced by IsAssociated(), IsWaitAssocResp(), Receive(), SetActiveProbing(), SetState(), and TryToEnsureAssociated().

◆ m_waitBeaconEvent

EventId ns3::StaWifiMac::m_waitBeaconEvent

private

wait beacon event

Definition at line 312 of file sta-wifi-mac.h.

Referenced by StartScanning().

◆ m_waitBeaconTimeout

Time ns3::StaWifiMac::m_waitBeaconTimeout

private

wait beacon timeout

Definition at line 309 of file sta-wifi-mac.h.

Referenced by GetTypeId(), and StartScanning().

The documentation for this class was generated from the following files:

src/wifi/model/sta-wifi-mac.h
src/wifi/model/sta-wifi-mac.cc
