ns3::RandomDirection2dMobilityModel Class Reference

Random direction mobility model. More...

#include "random-direction-2d-mobility-model.h"

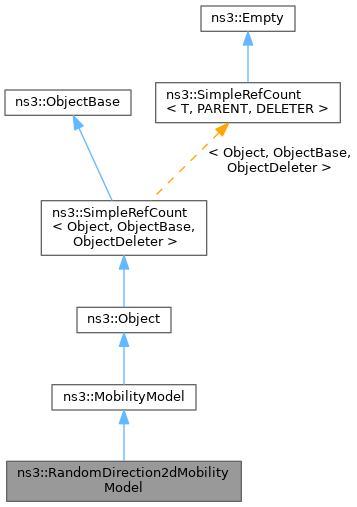

+ Inheritance diagram for ns3::RandomDirection2dMobilityModel:
+ Collaboration diagram for ns3::RandomDirection2dMobilityModel:

Public Member Functions

 RandomDirection2dMobilityModel ()

- Public Member Functions inherited from ns3::MobilityModel
 MobilityModel ()

 ~MobilityModel () override=0

int64_t AssignStreams (int64_t stream)
 Assign a fixed random variable stream number to the random variables used by this model.

double GetDistanceFrom (Ptr< const MobilityModel > position) const

Vector GetPosition () const

Vector GetPositionWithReference (const Vector &referencePosition) const
 This method may be used if the position returned may depend on some reference position provided.

double GetRelativeSpeed (Ptr< const MobilityModel > other) const

Vector GetVelocity () const

void SetPosition (const Vector &position)

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor.

 ~Object () override
 Destructor.

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together.

void Dispose ()
 Dispose of this Object.

AggregateIterator GetAggregateIterator () const
 Get an iterator to the Objects aggregated to this one.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

template<typename T >
Ptr< T > GetObject () const
 Get a pointer to the requested aggregated Object.

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object.

void Initialize ()
 Invoke DoInitialize on all Objects aggregated to this one.

bool IsInitialized () const
 Check if the object has been initialized.

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor.

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor.

uint32_t GetReferenceCount () const
 Get the reference count of the object.

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator.

void Ref () const
 Increment the reference count.

void Unref () const
 Decrement the reference count.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

static TypeId GetTypeId ()
 Register this type with the TypeId system.

- Static Public Member Functions inherited from ns3::MobilityModel
static TypeId GetTypeId ()
 Register this type with the TypeId system.

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId ()
 Register this type.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Private Member Functions

void BeginPause ()
 Pause, cancel currently scheduled event, schedule end of pause event.

int64_t DoAssignStreams (int64_t) override
 The default implementation does nothing but return the passed-in parameter.

void DoDispose () override
 Destructor implementation.

Vector DoGetPosition () const override

Vector DoGetVelocity () const override

void DoInitialize () override
 Initialize() implementation.

void DoInitializePrivate ()
 Sets a new random direction and calls SetDirectionAndSpeed.

void DoSetPosition (const Vector &position) override

void ResetDirectionAndSpeed ()
 Set a new direction and speed.

void SetDirectionAndSpeed (double direction)
 Set new velocity and direction, and schedule next pause event.


Private Attributes

Rectangle m_bounds
 the 2D bounding area

Ptr< UniformRandomVariablem_direction
 rv to control direction

EventId m_event
 event ID of next scheduled event

ConstantVelocityHelper m_helper
 helper for velocity computations

Ptr< RandomVariableStreamm_pause
 a random variable to control pause

Ptr< RandomVariableStreamm_speed
 a random variable to control speed


Additional Inherited Members

- Public Types inherited from ns3::MobilityModel
typedef void(* TracedCallback) (Ptr< const MobilityModel > model)
 TracedCallback signature.

- Protected Member Functions inherited from ns3::MobilityModel
void NotifyCourseChange () const
 Must be invoked by subclasses when the course of the position changes to notify course change listeners.

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object.

virtual void DoDispose ()
 Destructor implementation.

virtual void DoInitialize ()
 Initialize() implementation.

virtual void NotifyNewAggregate ()
 Notify all Objects aggregated to this one of a new Object being aggregated.

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.


Detailed Description

Random direction mobility model.

The movement of objects is based on random directions: each object pauses for a specific delay, chooses a random direction and speed and then travels in the specific direction until it reaches one of the boundaries of the model. When it reaches the boundary, it pauses, selects a new direction and speed, aso.

Config Paths

ns3::RandomDirection2dMobilityModel is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel"

Attributes

Attributes defined in parent class ns3::MobilityModel

  • Position: The current position of the mobility model.
  • Velocity: The current velocity of the mobility model.

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::MobilityModel

Size of this type is 192 bytes (on a 64-bit architecture).

Definition at line 45 of file random-direction-2d-mobility-model.h.

Constructor & Destructor Documentation

◆ RandomDirection2dMobilityModel()

ns3::RandomDirection2dMobilityModel::RandomDirection2dMobilityModel ( )

Definition at line 62 of file random-direction-2d-mobility-model.cc.

References m_direction.

Member Function Documentation

◆ BeginPause()

void ns3::RandomDirection2dMobilityModel::BeginPause ( )
private

Pause, cancel currently scheduled event, schedule end of pause event.

Definition at line 89 of file random-direction-2d-mobility-model.cc.

References ns3::EventId::Cancel(), ns3::RandomVariableStream::GetValue(), m_event, m_helper, m_pause, ns3::MobilityModel::NotifyCourseChange(), ns3::ConstantVelocityHelper::Pause(), ResetDirectionAndSpeed(), ns3::Simulator::Schedule(), ns3::Seconds(), and ns3::ConstantVelocityHelper::Update().

Referenced by SetDirectionAndSpeed().

+ Here is the call graph for this function:

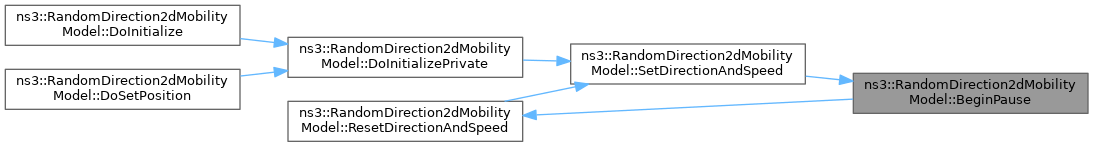

+ Here is the caller graph for this function:

◆ DoAssignStreams()

int64_t ns3::RandomDirection2dMobilityModel::DoAssignStreams ( int64_t  start)
overrideprivatevirtual

The default implementation does nothing but return the passed-in parameter.

Subclasses using random variables are expected to override this.

Parameters
startstarting stream index
Returns
the number of streams used

Reimplemented from ns3::MobilityModel.

Definition at line 164 of file random-direction-2d-mobility-model.cc.

References m_direction, m_pause, m_speed, and ns3::RandomVariableStream::SetStream().

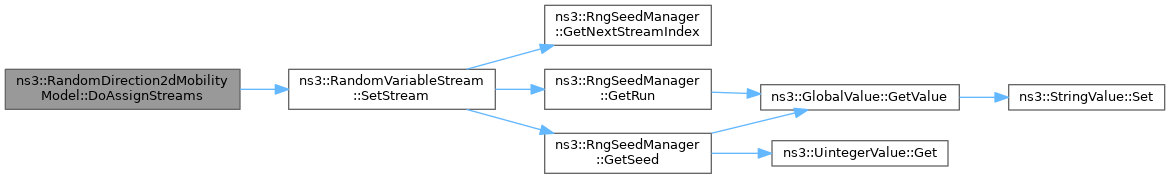

+ Here is the call graph for this function:

◆ DoDispose()

void ns3::RandomDirection2dMobilityModel::DoDispose ( )
overrideprivatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 68 of file random-direction-2d-mobility-model.cc.

References ns3::Object::DoDispose().

+ Here is the call graph for this function:

◆ DoGetPosition()

Vector ns3::RandomDirection2dMobilityModel::DoGetPosition ( ) const
overrideprivatevirtual
Returns
the current position.

Concrete subclasses of this base class must implement this method.

Implements ns3::MobilityModel.

Definition at line 143 of file random-direction-2d-mobility-model.cc.

References ns3::ConstantVelocityHelper::GetCurrentPosition(), m_bounds, m_helper, and ns3::ConstantVelocityHelper::UpdateWithBounds().

+ Here is the call graph for this function:

◆ DoGetVelocity()

Vector ns3::RandomDirection2dMobilityModel::DoGetVelocity ( ) const
overrideprivatevirtual
Returns
the current velocity.

Concrete subclasses of this base class must implement this method.

Implements ns3::MobilityModel.

Definition at line 158 of file random-direction-2d-mobility-model.cc.

References ns3::ConstantVelocityHelper::GetVelocity(), and m_helper.

+ Here is the call graph for this function:

◆ DoInitialize()

void ns3::RandomDirection2dMobilityModel::DoInitialize ( )
overrideprivatevirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 75 of file random-direction-2d-mobility-model.cc.

References ns3::Object::DoInitialize(), and DoInitializePrivate().

+ Here is the call graph for this function:

◆ DoInitializePrivate()

void ns3::RandomDirection2dMobilityModel::DoInitializePrivate ( )
private

Sets a new random direction and calls SetDirectionAndSpeed.

Definition at line 82 of file random-direction-2d-mobility-model.cc.

References ns3::UniformRandomVariable::GetValue(), m_direction, and SetDirectionAndSpeed().

Referenced by DoInitialize(), and DoSetPosition().

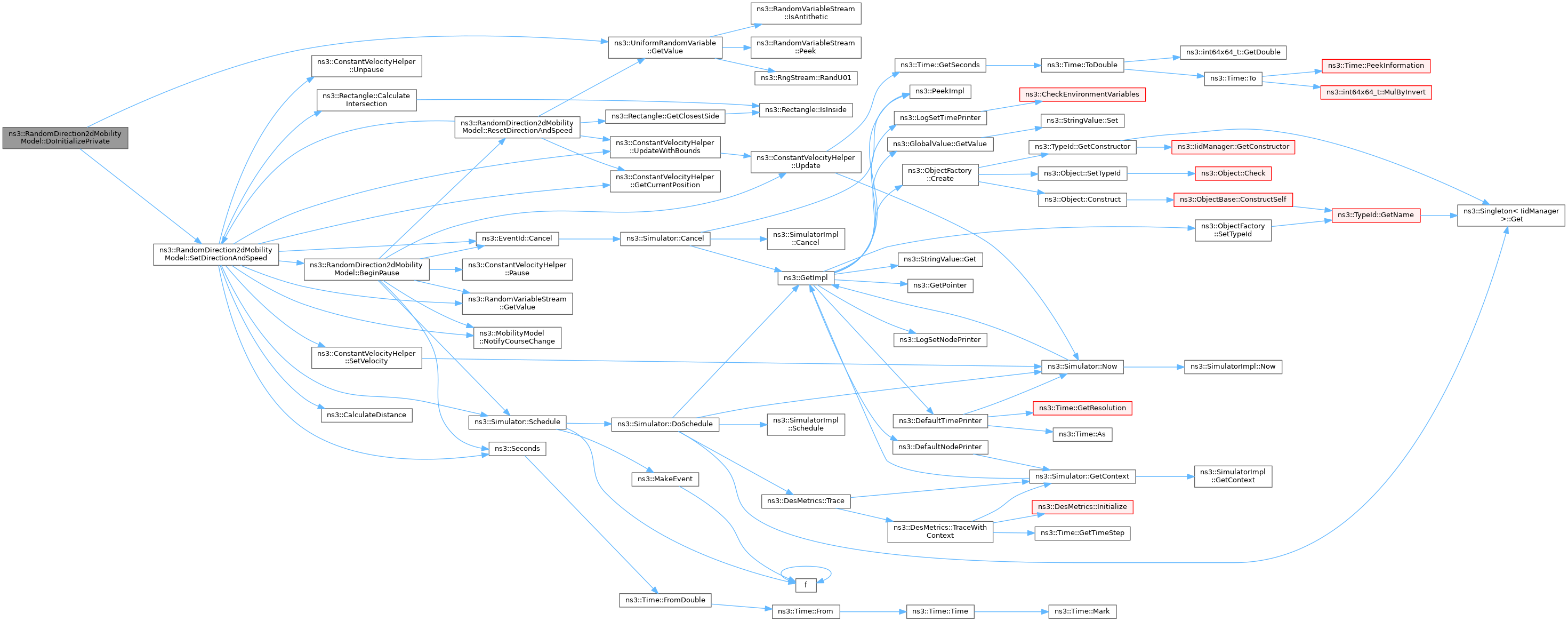

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ DoSetPosition()

void ns3::RandomDirection2dMobilityModel::DoSetPosition ( const Vector &  position)
overrideprivatevirtual
Parameters
positionthe position to set.

Concrete subclasses of this base class must implement this method.

Implements ns3::MobilityModel.

Definition at line 150 of file random-direction-2d-mobility-model.cc.

References ns3::EventId::Cancel(), DoInitializePrivate(), m_event, m_helper, ns3::Simulator::ScheduleNow(), and ns3::ConstantVelocityHelper::SetPosition().

+ Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::RandomDirection2dMobilityModel::GetTypeId ( )
static

Register this type with the TypeId system.

Returns
the object TypeId

Definition at line 37 of file random-direction-2d-mobility-model.cc.

References m_bounds, m_pause, m_speed, ns3::MakePointerAccessor(), and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

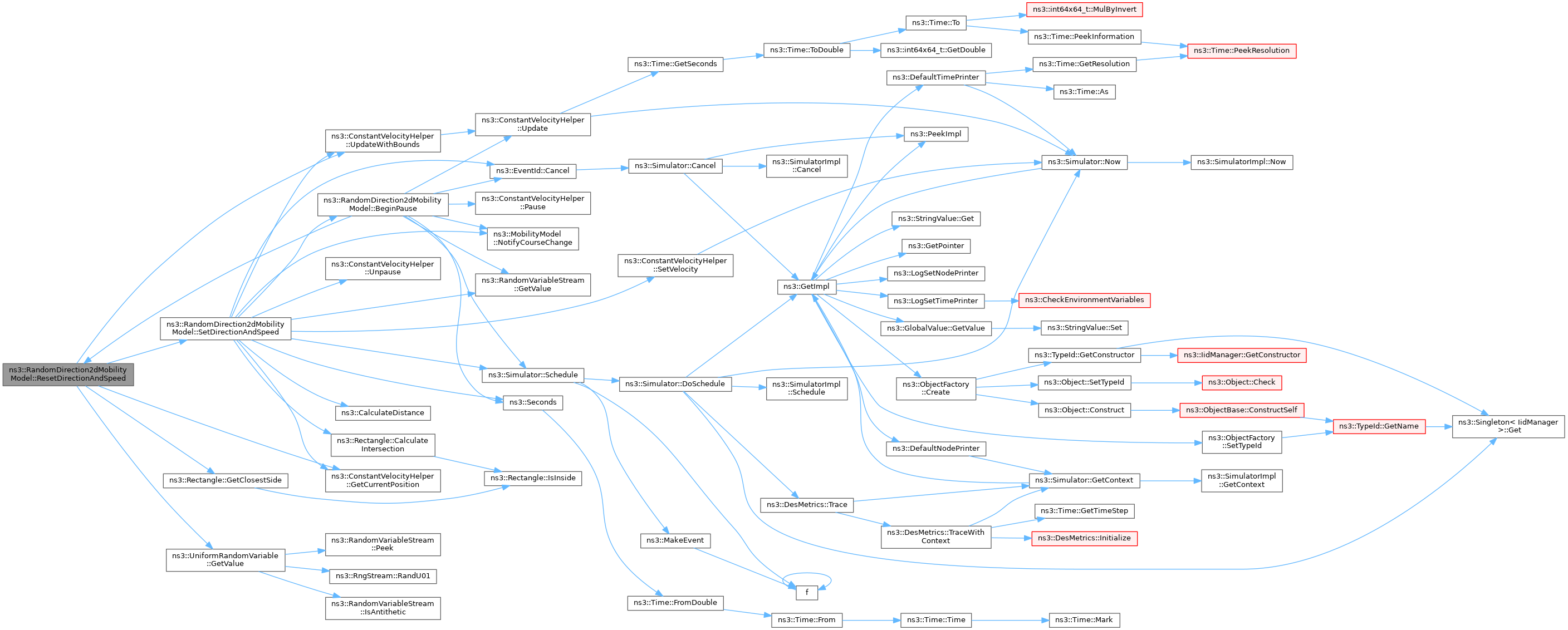

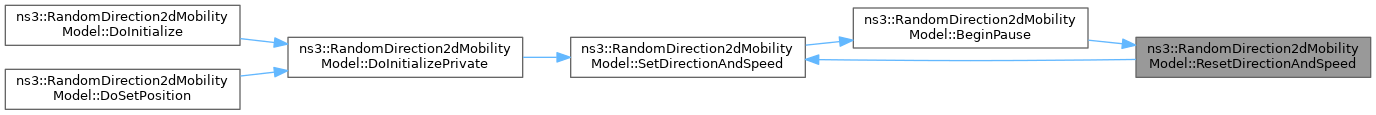

◆ ResetDirectionAndSpeed()

void ns3::RandomDirection2dMobilityModel::ResetDirectionAndSpeed ( )
private

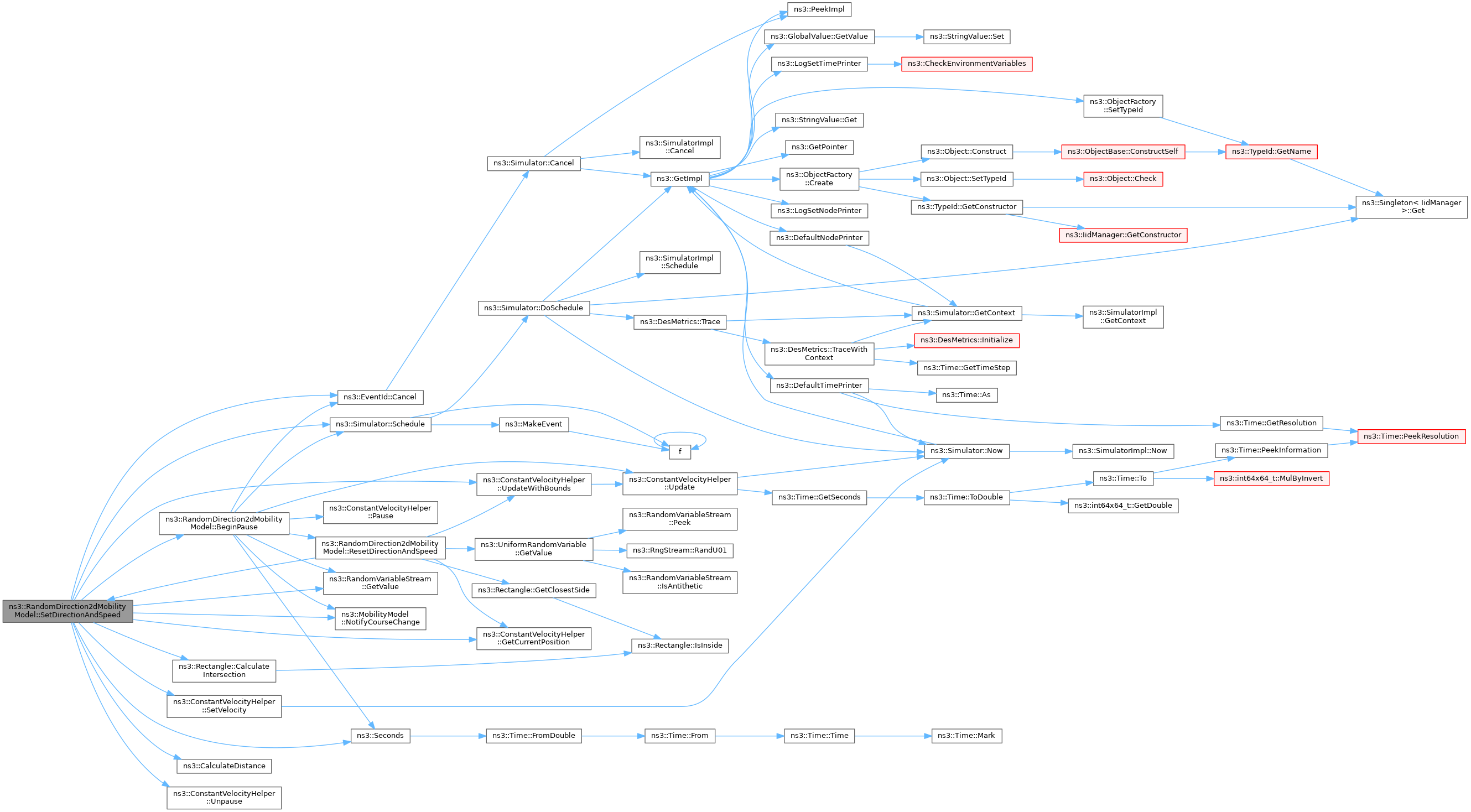

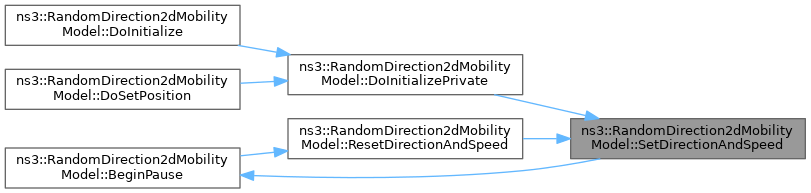

◆ SetDirectionAndSpeed()

void ns3::RandomDirection2dMobilityModel::SetDirectionAndSpeed ( double  direction)
private

Member Data Documentation

◆ m_bounds

Rectangle ns3::RandomDirection2dMobilityModel::m_bounds
private

the 2D bounding area

Definition at line 81 of file random-direction-2d-mobility-model.h.

Referenced by DoGetPosition(), GetTypeId(), ResetDirectionAndSpeed(), and SetDirectionAndSpeed().

◆ m_direction

Ptr<UniformRandomVariable> ns3::RandomDirection2dMobilityModel::m_direction
private

◆ m_event

EventId ns3::RandomDirection2dMobilityModel::m_event
private

event ID of next scheduled event

Definition at line 84 of file random-direction-2d-mobility-model.h.

Referenced by BeginPause(), DoSetPosition(), and SetDirectionAndSpeed().

◆ m_helper

ConstantVelocityHelper ns3::RandomDirection2dMobilityModel::m_helper
private

helper for velocity computations

Definition at line 85 of file random-direction-2d-mobility-model.h.

Referenced by BeginPause(), DoGetPosition(), DoGetVelocity(), DoSetPosition(), ResetDirectionAndSpeed(), and SetDirectionAndSpeed().

◆ m_pause

Ptr<RandomVariableStream> ns3::RandomDirection2dMobilityModel::m_pause
private

a random variable to control pause

Definition at line 83 of file random-direction-2d-mobility-model.h.

Referenced by BeginPause(), DoAssignStreams(), and GetTypeId().

◆ m_speed

Ptr<RandomVariableStream> ns3::RandomDirection2dMobilityModel::m_speed
private

a random variable to control speed

Definition at line 82 of file random-direction-2d-mobility-model.h.

Referenced by DoAssignStreams(), GetTypeId(), and SetDirectionAndSpeed().


The documentation for this class was generated from the following files:
