A base class for implementation of a stream socket using TCP. More...
#include "tcp-socket-base.h"

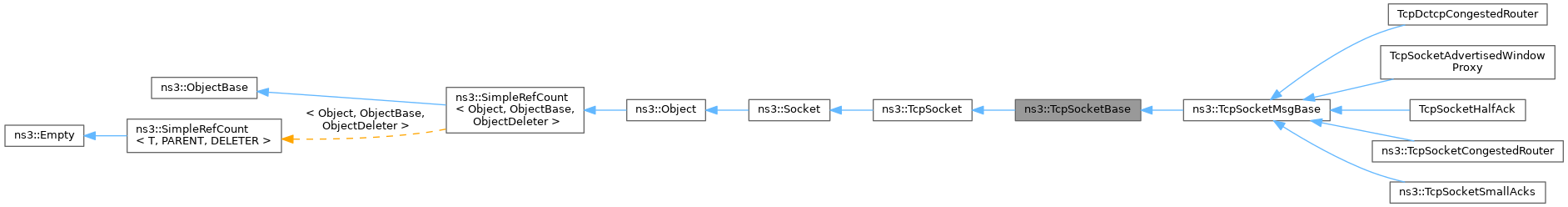

Inheritance diagram for ns3::TcpSocketBase: Collaboration diagram for ns3::TcpSocketBase:Public Member Functions | |
| TcpSocketBase () | |
| Create an unbound TCP socket. | |
| TcpSocketBase (const TcpSocketBase &sock) | |
| Clone a TCP socket, for use upon receiving a connection request in LISTEN state. | |
| ~TcpSocketBase () override | |
| int | Bind () override |
| Allocate a local IPv4 endpoint for this socket. | |
| int | Bind (const Address &address) override |
| Allocate a local endpoint for this socket. | |
| int | Bind6 () override |
| Allocate a local IPv6 endpoint for this socket. | |

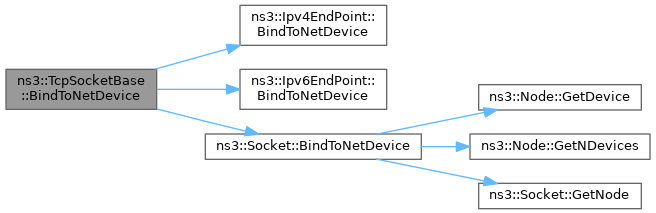

| void | BindToNetDevice (Ptr< NetDevice > netdevice) override |
| Bind a socket to specific device. | |
| bool | CheckEcnCe (uint8_t tos) const |
| Checks for CE codepoint. | |
| bool | CheckEcnEct0 (uint8_t tos) const |
| Checks for ECT(0) codepoint. | |
| bool | CheckEcnEct1 (uint8_t tos) const |
| Checks for ECT(1) codepoint. | |
| bool | CheckNoEcn (uint8_t tos) const |
| Checks if TOS has no ECN codepoints. | |
| uint8_t | ClearEcnBits (uint8_t tos) const |
| Clears ECN bits from TOS. | |

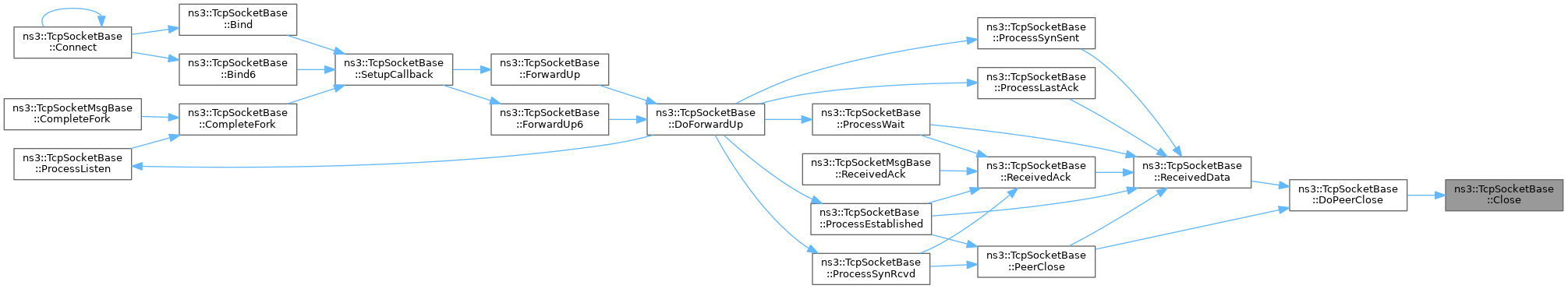

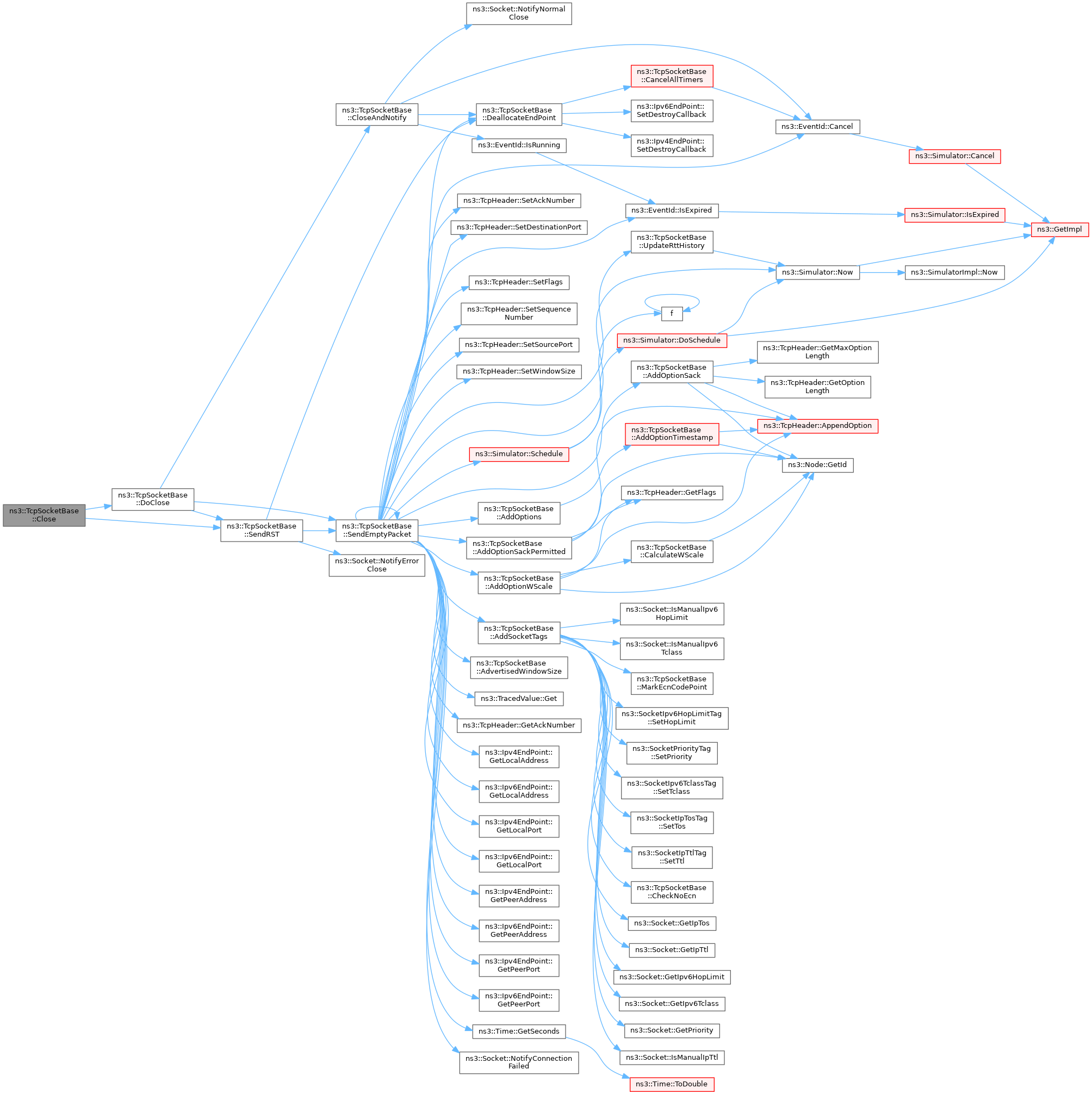

| int | Close () override |
| Close a socket. | |

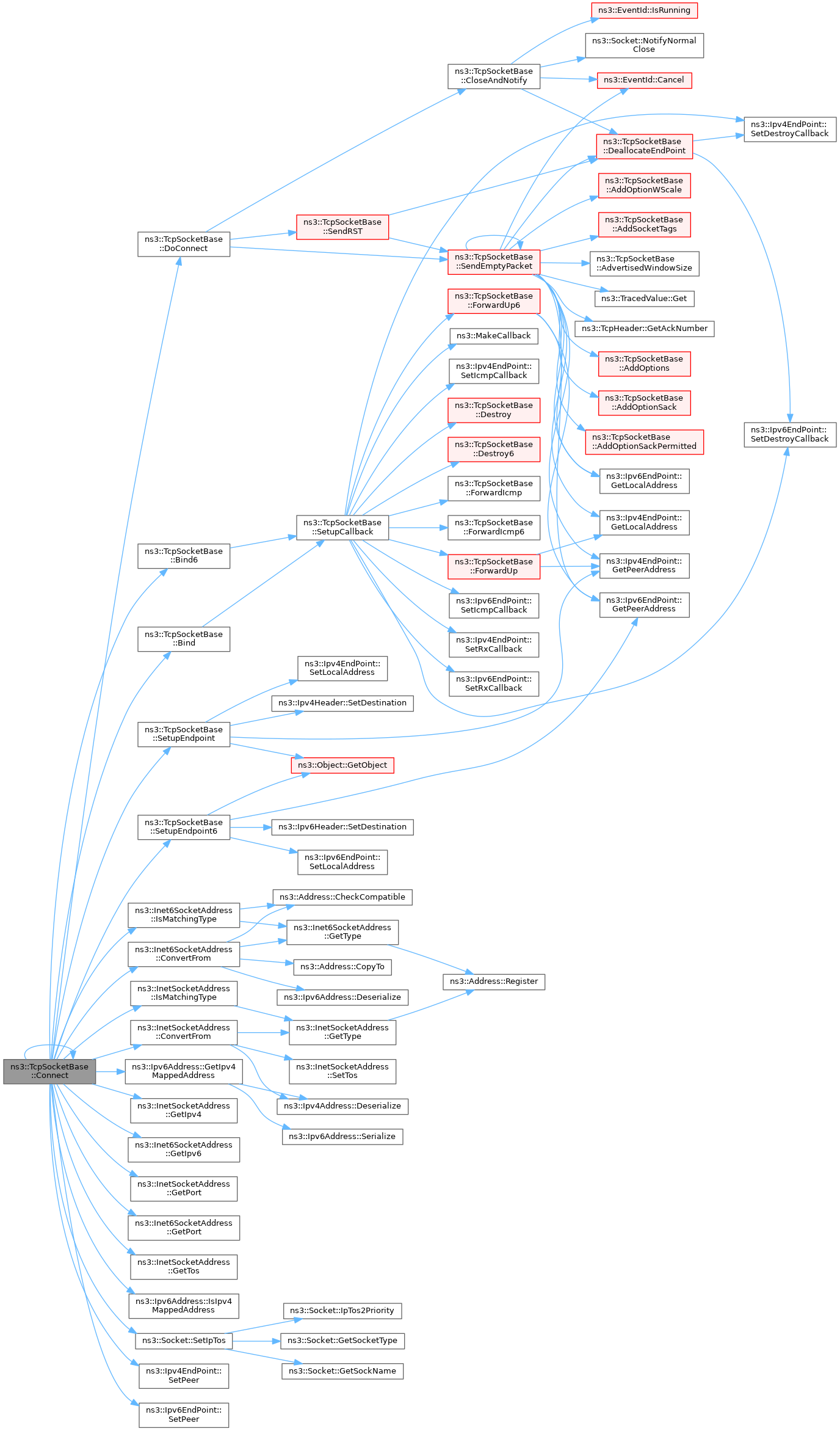

| int | Connect (const Address &address) override |
| Initiate a connection to a remote host. | |
| Time | GetClockGranularity () const |
| Get the Clock Granularity (used in RTO calcs). | |
| SocketErrno | GetErrno () const override |
| Get last error number. | |

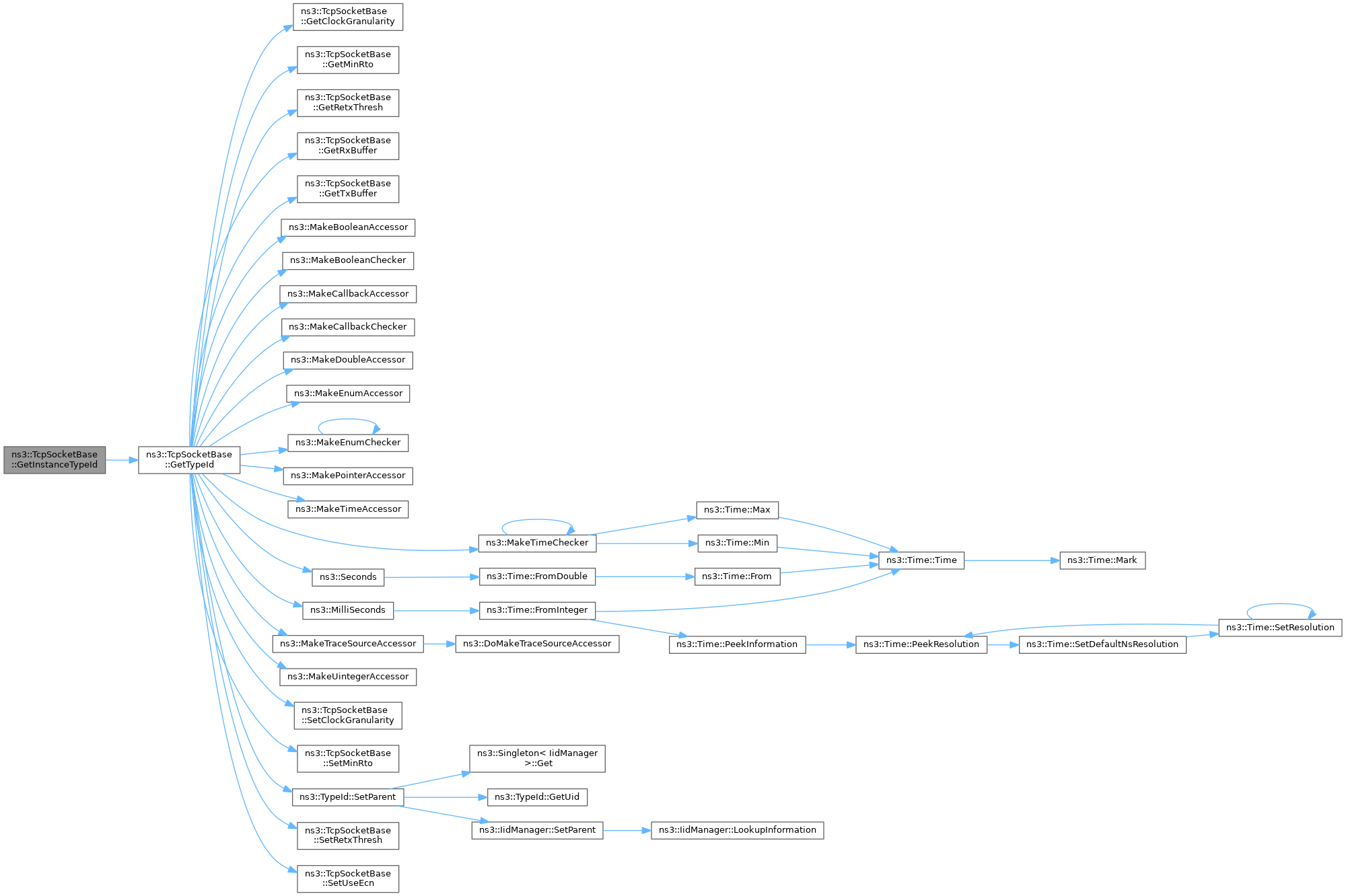

| TypeId | GetInstanceTypeId () const override |
| Get the instance TypeId. | |
| Time | GetMinRto () const |
| Get the Minimum RTO. | |
| Ptr< Node > | GetNode () const override |
| Return the node this socket is associated with. | |

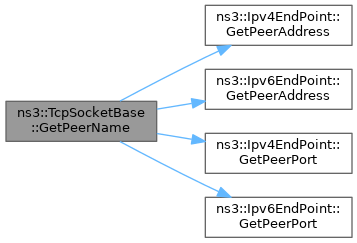

| int | GetPeerName (Address &address) const override |
| Get the peer address of a connected socket. | |
| uint32_t | GetRetxThresh () const |
| Get the retransmission threshold (dup ack threshold for a fast retransmit) | |
| uint32_t | GetRxAvailable () const override |
| Return number of bytes which can be returned from one or multiple calls to Recv. | |
| Ptr< TcpRxBuffer > | GetRxBuffer () const |
| Get a pointer to the Rx buffer. | |
| SocketType | GetSocketType () const override |

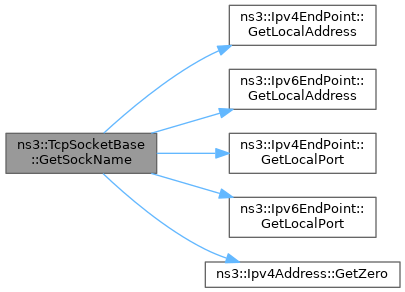

| int | GetSockName (Address &address) const override |
| Get socket address. | |
| uint32_t | GetTxAvailable () const override |
| Returns the number of bytes which can be sent in a single call to Send. | |
| Ptr< TcpTxBuffer > | GetTxBuffer () const |
| Get a pointer to the Tx buffer. | |
| int | Listen () override |
| Listen for incoming connections. | |
| uint8_t | MarkEcnCe (uint8_t tos) const |
| Mark CE codepoint. | |
| uint8_t | MarkEcnCodePoint (const uint8_t tos, const TcpSocketState::EcnCodePoint_t codePoint) const |
| mark ECN code point | |
| uint8_t | MarkEcnEct0 (uint8_t tos) const |
| Mark ECT(0) codepoint. | |
| uint8_t | MarkEcnEct1 (uint8_t tos) const |
| Mark ECT(1) codepoint. | |
| Ptr< Packet > | Recv (uint32_t maxSize, uint32_t flags) override |
| Read data from the socket. | |

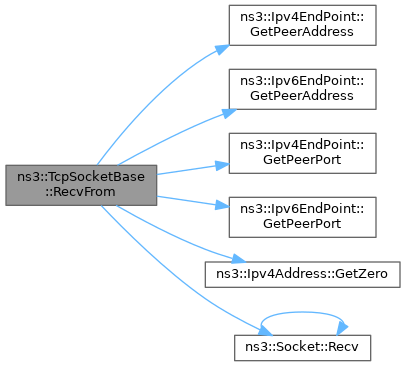

| Ptr< Packet > | RecvFrom (uint32_t maxSize, uint32_t flags, Address &fromAddress) override |
| Read a single packet from the socket and retrieve the sender address. | |
| int | Send (Ptr< Packet > p, uint32_t flags) override |
| Send data (or dummy data) to the remote host. | |
| int | SendTo (Ptr< Packet > p, uint32_t flags, const Address &toAddress) override |
| Send data to a specified peer. | |
| void | SetClockGranularity (Time clockGranularity) |
| Sets the Clock Granularity (used in RTO calcs). | |
| void | SetCongestionControlAlgorithm (Ptr< TcpCongestionOps > algo) |
| Install a congestion control algorithm on this socket. | |
| void | SetMinRto (Time minRto) |
| Sets the Minimum RTO. | |
| virtual void | SetNode (Ptr< Node > node) |
| Set the associated node. | |
| void | SetPaceInitialWindow (bool paceWindow) |
| Enable or disable pacing of the initial window. | |
| void | SetPacingStatus (bool pacing) |
| Enable or disable pacing. | |
| void | SetRecoveryAlgorithm (Ptr< TcpRecoveryOps > recovery) |
| Install a recovery algorithm on this socket. | |
| void | SetRetxThresh (uint32_t retxThresh) |
| Set the retransmission threshold (dup ack threshold for a fast retransmit) | |
| virtual void | SetRtt (Ptr< RttEstimator > rtt) |
| Set the associated RTT estimator. | |
| virtual void | SetTcp (Ptr< TcpL4Protocol > tcp) |
| Set the associated TCP L4 protocol. | |
| void | SetUseEcn (TcpSocketState::UseEcn_t useEcn) |
| Set ECN mode of use on the socket. | |
| int | ShutdownRecv () override |

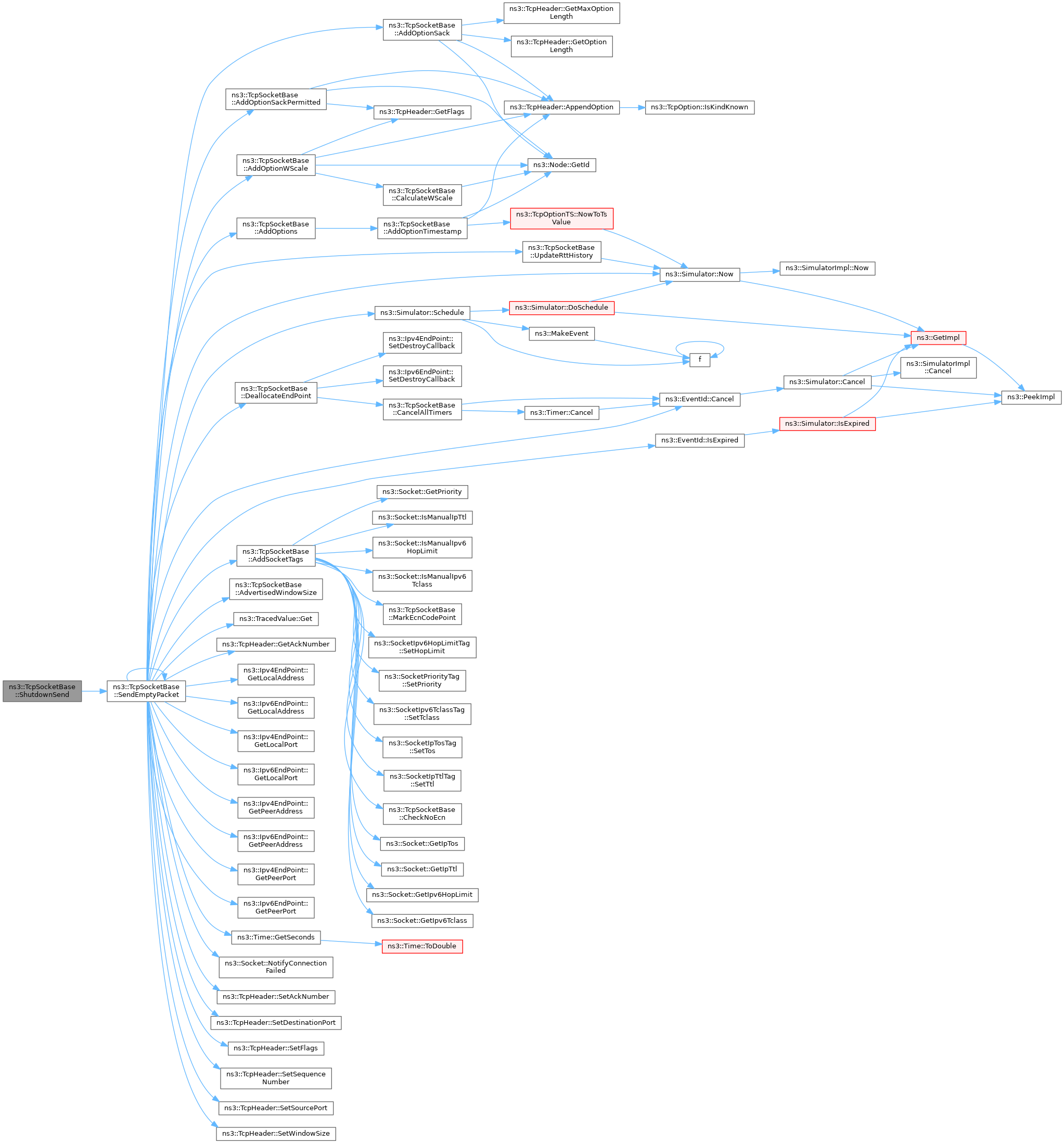

| int | ShutdownSend () override |
| void | UpdateBytesInFlight (uint32_t oldValue, uint32_t newValue) const |
| Callback function to hook to TcpSocketState bytes inflight. | |
| void | UpdateCongState (TcpSocketState::TcpCongState_t oldValue, TcpSocketState::TcpCongState_t newValue) const |
| Callback function to hook to TcpSocketState congestion state. | |
| void | UpdateCwnd (uint32_t oldValue, uint32_t newValue) const |
| Callback function to hook to TcpSocketState congestion window. | |
| void | UpdateCwndInfl (uint32_t oldValue, uint32_t newValue) const |
| Callback function to hook to TcpSocketState inflated congestion window. | |
| void | UpdateEcnState (TcpSocketState::EcnState_t oldValue, TcpSocketState::EcnState_t newValue) const |
| Callback function to hook to EcnState state. | |
| void | UpdateHighTxMark (SequenceNumber32 oldValue, SequenceNumber32 newValue) const |
| Callback function to hook to TcpSocketState high tx mark. | |
| void | UpdateNextTxSequence (SequenceNumber32 oldValue, SequenceNumber32 newValue) const |
| Callback function to hook to TcpSocketState next tx sequence. | |
| void | UpdatePacingRateTrace (DataRate oldValue, DataRate newValue) const |
| Callback function to hook to TcpSocketState pacing rate. | |
| void | UpdateRtt (Time oldValue, Time newValue) const |
| Callback function to hook to TcpSocketState rtt. | |
| void | UpdateSsThresh (uint32_t oldValue, uint32_t newValue) const |
| Callback function to hook to TcpSocketState slow start threshold. | |
| Public Member Functions inherited from ns3::TcpSocket | |
| TcpSocket () | |
| ~TcpSocket () override | |
| Public Member Functions inherited from ns3::Socket | |
| Socket () | |
| ~Socket () override | |
| virtual int | Bind ()=0 |
| Allocate a local IPv4 endpoint for this socket. | |
| virtual int | Bind (const Address &address)=0 |
| Allocate a local endpoint for this socket. | |
| virtual int | Bind6 ()=0 |
| Allocate a local IPv6 endpoint for this socket. | |
| virtual void | BindToNetDevice (Ptr< NetDevice > netdevice) |
| Bind a socket to specific device. | |
| virtual int | Close ()=0 |
| Close a socket. | |
| virtual int | Connect (const Address &address)=0 |
| Initiate a connection to a remote host. | |
| virtual bool | GetAllowBroadcast () const =0 |
| Query whether broadcast datagram transmissions are allowed. | |
| Ptr< NetDevice > | GetBoundNetDevice () |
| Returns socket's bound NetDevice, if any. | |
| virtual Socket::SocketErrno | GetErrno () const =0 |
| Get last error number. | |
| uint8_t | GetIpTos () const |
| Query the value of IP Type of Service of this socket. | |
| virtual uint8_t | GetIpTtl () const |
| Query the value of IP Time to Live field of this socket. | |
| virtual uint8_t | GetIpv6HopLimit () const |
| Query the value of IP Hop Limit field of this socket. | |
| uint8_t | GetIpv6Tclass () const |
| Query the value of IPv6 Traffic Class field of this socket. | |
| virtual Ptr< Node > | GetNode () const =0 |
| Return the node this socket is associated with. | |
| virtual int | GetPeerName (Address &address) const =0 |
| Get the peer address of a connected socket. | |
| uint8_t | GetPriority () const |
| Query the priority value of this socket. | |
| virtual uint32_t | GetRxAvailable () const =0 |
| Return number of bytes which can be returned from one or multiple calls to Recv. | |
| virtual Socket::SocketType | GetSocketType () const =0 |
| virtual int | GetSockName (Address &address) const =0 |
| Get socket address. | |
| virtual uint32_t | GetTxAvailable () const =0 |
| Returns the number of bytes which can be sent in a single call to Send. | |
| virtual void | Ipv6JoinGroup (Ipv6Address address) |
| Joins a IPv6 multicast group without filters. | |
| virtual void | Ipv6JoinGroup (Ipv6Address address, Ipv6MulticastFilterMode filterMode, std::vector< Ipv6Address > sourceAddresses) |
| Joins a IPv6 multicast group. | |
| virtual void | Ipv6LeaveGroup () |
| Leaves IPv6 multicast group this socket is joined to. | |
| bool | IsIpRecvTos () const |
| Ask if the socket is currently passing information about IP Type of Service up the stack. | |
| bool | IsIpRecvTtl () const |
| Ask if the socket is currently passing information about IP_TTL up the stack. | |
| bool | IsIpv6RecvHopLimit () const |
| Ask if the socket is currently passing information about IPv6 Hop Limit up the stack. | |
| bool | IsIpv6RecvTclass () const |
| Ask if the socket is currently passing information about IPv6 Traffic Class up the stack. | |
| bool | IsRecvPktInfo () const |
| Get status indicating whether enable/disable packet information to socket. | |
| virtual int | Listen ()=0 |
| Listen for incoming connections. | |
| Ptr< Packet > | Recv () |
| Read a single packet from the socket. | |
| virtual Ptr< Packet > | Recv (uint32_t maxSize, uint32_t flags)=0 |
| Read data from the socket. | |
| int | Recv (uint8_t *buf, uint32_t size, uint32_t flags) |
| Recv data (or dummy data) from the remote host. | |
| Ptr< Packet > | RecvFrom (Address &fromAddress) |
| Read a single packet from the socket and retrieve the sender address. | |
| virtual Ptr< Packet > | RecvFrom (uint32_t maxSize, uint32_t flags, Address &fromAddress)=0 |
| Read a single packet from the socket and retrieve the sender address. | |
| int | RecvFrom (uint8_t *buf, uint32_t size, uint32_t flags, Address &fromAddress) |
| Read a single packet from the socket and retrieve the sender address. | |
| int | Send (const uint8_t *buf, uint32_t size, uint32_t flags) |
| Send data (or dummy data) to the remote host. | |
| int | Send (Ptr< Packet > p) |
| Send data (or dummy data) to the remote host. | |
| virtual int | Send (Ptr< Packet > p, uint32_t flags)=0 |
| Send data (or dummy data) to the remote host. | |
| int | SendTo (const uint8_t *buf, uint32_t size, uint32_t flags, const Address &address) |
| Send data to a specified peer. | |
| virtual int | SendTo (Ptr< Packet > p, uint32_t flags, const Address &toAddress)=0 |
| Send data to a specified peer. | |
| void | SetAcceptCallback (Callback< bool, Ptr< Socket >, const Address & > connectionRequest, Callback< void, Ptr< Socket >, const Address & > newConnectionCreated) |
| Accept connection requests from remote hosts. | |
| virtual bool | SetAllowBroadcast (bool allowBroadcast)=0 |
| Configure whether broadcast datagram transmissions are allowed. | |
| void | SetCloseCallbacks (Callback< void, Ptr< Socket > > normalClose, Callback< void, Ptr< Socket > > errorClose) |
| Detect socket recv() events such as graceful shutdown or error. | |
| void | SetConnectCallback (Callback< void, Ptr< Socket > > connectionSucceeded, Callback< void, Ptr< Socket > > connectionFailed) |
| Specify callbacks to allow the caller to determine if the connection succeeds of fails. | |
| void | SetDataSentCallback (Callback< void, Ptr< Socket >, uint32_t > dataSent) |
| Notify application when a packet has been sent from transport protocol (non-standard socket call) | |
| void | SetIpRecvTos (bool ipv4RecvTos) |
| Tells a socket to pass information about IP Type of Service up the stack. | |
| void | SetIpRecvTtl (bool ipv4RecvTtl) |
| Tells a socket to pass information about IP_TTL up the stack. | |
| void | SetIpTos (uint8_t ipTos) |
| Manually set IP Type of Service field. | |
| virtual void | SetIpTtl (uint8_t ipTtl) |
| Manually set IP Time to Live field. | |
| virtual void | SetIpv6HopLimit (uint8_t ipHopLimit) |
| Manually set IPv6 Hop Limit. | |
| void | SetIpv6RecvHopLimit (bool ipv6RecvHopLimit) |
| Tells a socket to pass information about IPv6 Hop Limit up the stack. | |
| void | SetIpv6RecvTclass (bool ipv6RecvTclass) |
| Tells a socket to pass information about IPv6 Traffic Class up the stack. | |
| void | SetIpv6Tclass (int ipTclass) |
| Manually set IPv6 Traffic Class field. | |
| void | SetPriority (uint8_t priority) |
| Manually set the socket priority. | |
| void | SetRecvCallback (Callback< void, Ptr< Socket > > receivedData) |
| Notify application when new data is available to be read. | |
| void | SetRecvPktInfo (bool flag) |
| Enable/Disable receive packet information to socket. | |
| void | SetSendCallback (Callback< void, Ptr< Socket >, uint32_t > sendCb) |
| Notify application when space in transmit buffer is added. | |
| virtual int | ShutdownRecv ()=0 |
| virtual int | ShutdownSend ()=0 |
| Public Member Functions inherited from ns3::Object | |
| Object () | |
| Constructor. | |
| ~Object () override | |
| Destructor. | |
| void | AggregateObject (Ptr< Object > other) |
| Aggregate two Objects together. | |
| void | Dispose () |
| Dispose of this Object. | |
| AggregateIterator | GetAggregateIterator () const |
| Get an iterator to the Objects aggregated to this one. | |
| TypeId | GetInstanceTypeId () const override |
| Get the most derived TypeId for this Object. | |
| template<typename T > | |
| Ptr< T > | GetObject () const |
| Get a pointer to the requested aggregated Object. | |
| template<> | |
| Ptr< Object > | GetObject () const |
| Specialization of () for objects of type ns3::Object. | |
| template<typename T > | |
| Ptr< T > | GetObject (TypeId tid) const |
| Get a pointer to the requested aggregated Object by TypeId. | |
| template<> | |
| Ptr< Object > | GetObject (TypeId tid) const |
| Specialization of (TypeId tid) for objects of type ns3::Object. | |
| void | Initialize () |
| Invoke DoInitialize on all Objects aggregated to this one. | |
| bool | IsInitialized () const |
| Check if the object has been initialized. | |
| Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| SimpleRefCount () | |
| Default constructor. | |
| SimpleRefCount (const SimpleRefCount &o) | |
| Copy constructor. | |
| uint32_t | GetReferenceCount () const |
| Get the reference count of the object. | |
| SimpleRefCount & | operator= (const SimpleRefCount &o) |
| Assignment operator. | |
| void | Ref () const |
| Increment the reference count. | |
| void | Unref () const |
| Decrement the reference count. | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| Get the value of an attribute, raising fatal errors if unsuccessful. | |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
| Get the value of an attribute without raising errors. | |
| virtual TypeId | GetInstanceTypeId () const =0 |
| Get the most derived TypeId for this Object. | |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| Set a single attribute, raising fatal errors if unsuccessful. | |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| Set a single attribute without raising errors. | |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| Connect a TraceSource to a Callback with a context. | |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| Connect a TraceSource to a Callback without a context. | |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected with a context. | |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected without a context. | |
Static Public Member Functions | |
| static TypeId | GetTypeId () |
| Get the type ID. | |
| Static Public Member Functions inherited from ns3::TcpSocket | |
| static TypeId | GetTypeId () |
| Get the type ID. | |
| Static Public Member Functions inherited from ns3::Socket | |
| static Ptr< Socket > | CreateSocket (Ptr< Node > node, TypeId tid) |
| This method wraps the creation of sockets that is performed on a given node by a SocketFactory specified by TypeId. | |
| static TypeId | GetTypeId () |
| Get the type ID. | |
| static uint8_t | IpTos2Priority (uint8_t ipTos) |
| Return the priority corresponding to a given TOS value. | |
| Static Public Member Functions inherited from ns3::Object | |
| static TypeId | GetTypeId () |
| Register this type. | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId () |
| Get the type ID. | |
Protected Member Functions | |
| void | AddOptions (TcpHeader &tcpHeader) |
| Add options to TcpHeader. | |

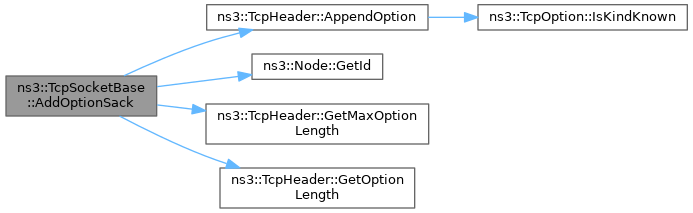

| void | AddOptionSack (TcpHeader &header) |
| Add the SACK option to the header. | |

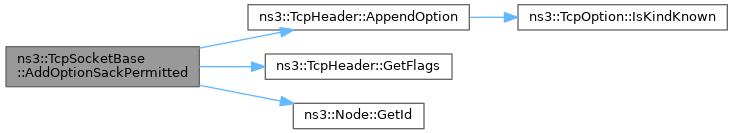

| void | AddOptionSackPermitted (TcpHeader &header) |
| Add the SACK PERMITTED option to the header. | |
| void | AddOptionTimestamp (TcpHeader &header) |
| Add the timestamp option to the header. | |

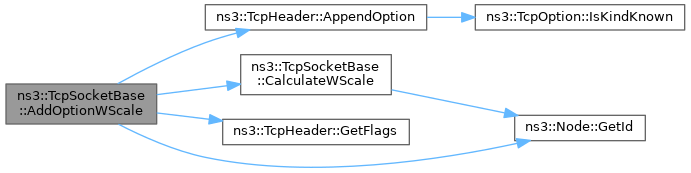

| void | AddOptionWScale (TcpHeader &header) |
| Add the window scale option to the header. | |

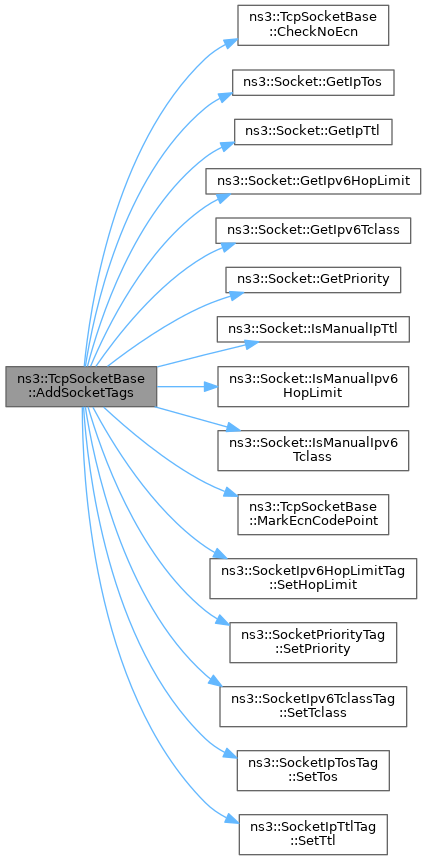

| void | AddSocketTags (const Ptr< Packet > &p) const |
| Add Tags for the Socket. | |
| virtual uint16_t | AdvertisedWindowSize (bool scale=true) const |
| The amount of Rx window announced to the peer. | |

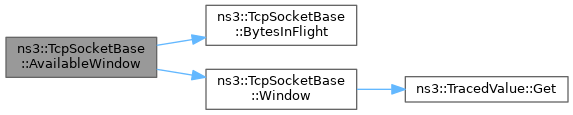

| virtual uint32_t | AvailableWindow () const |
| Return unfilled portion of window. | |
| virtual uint32_t | BytesInFlight () const |
| Return total bytes in flight. | |
| uint8_t | CalculateWScale () const |
| Calculate window scale value based on receive buffer space. | |
| void | CancelAllTimers () |
| Cancel all timer when endpoint is deleted. | |

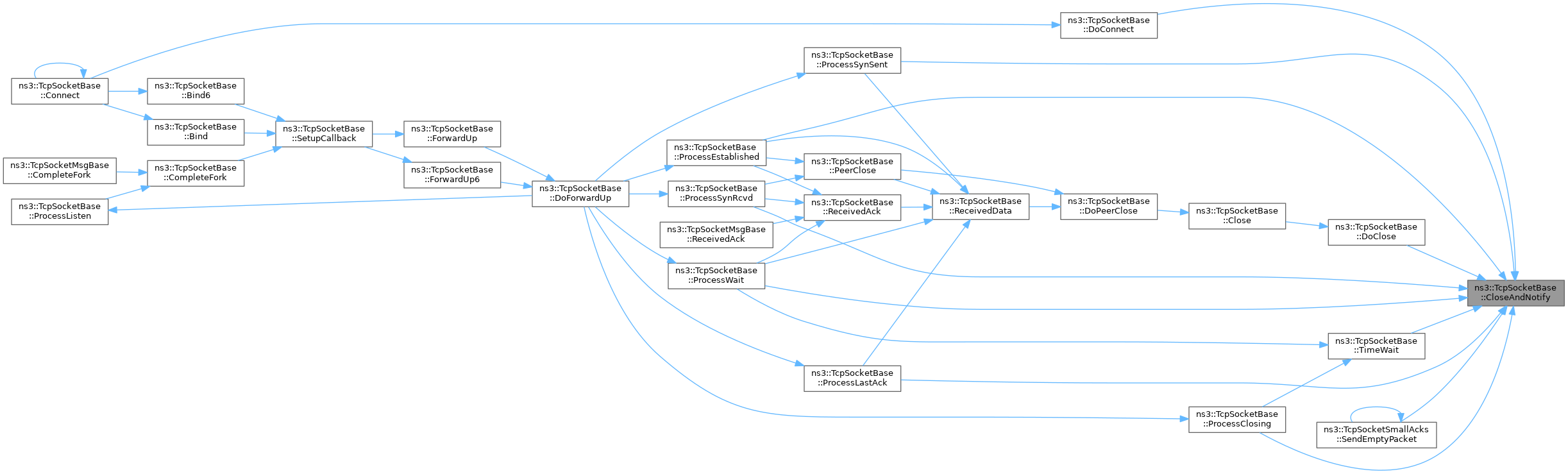

| void | CloseAndNotify () |
| Peacefully close the socket by notifying the upper layer and deallocate end point. | |

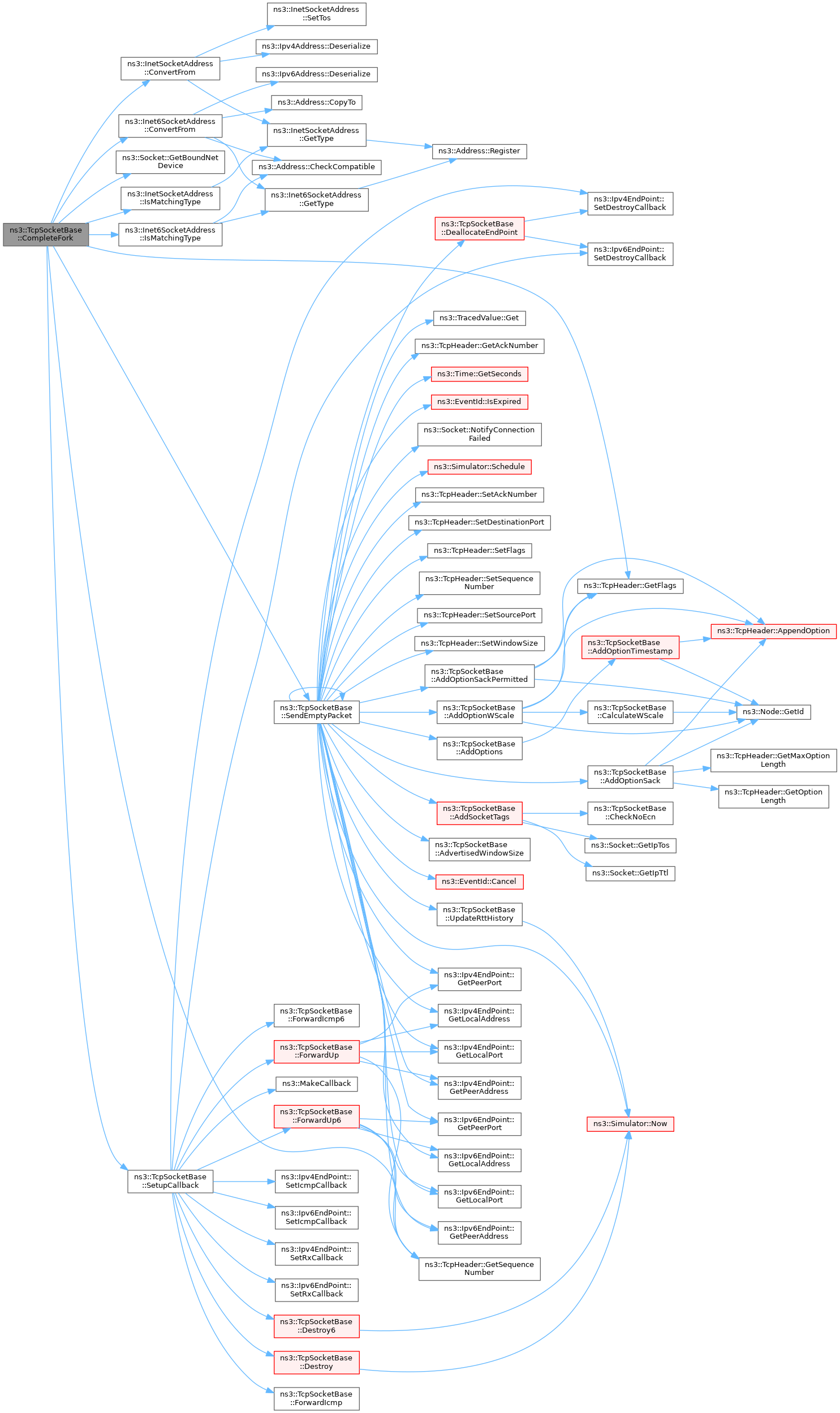

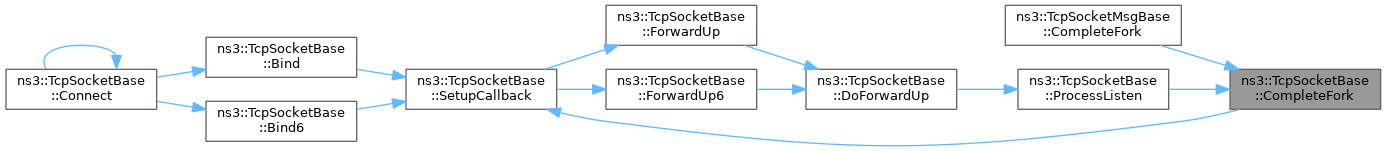

| virtual void | CompleteFork (Ptr< Packet > p, const TcpHeader &tcpHeader, const Address &fromAddress, const Address &toAddress) |
| Complete a connection by forking the socket. | |

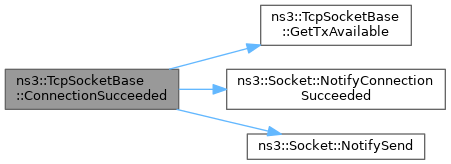

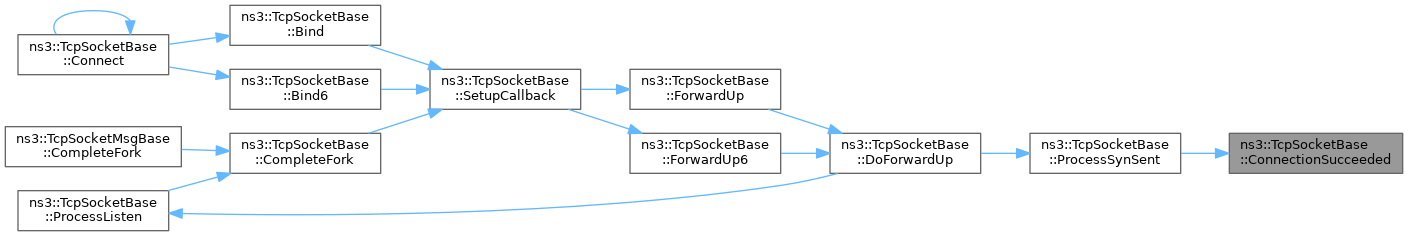

| void | ConnectionSucceeded () |
| Schedule-friendly wrapper for Socket::NotifyConnectionSucceeded() | |
| void | DeallocateEndPoint () |
| Deallocate m_endPoint and m_endPoint6. | |

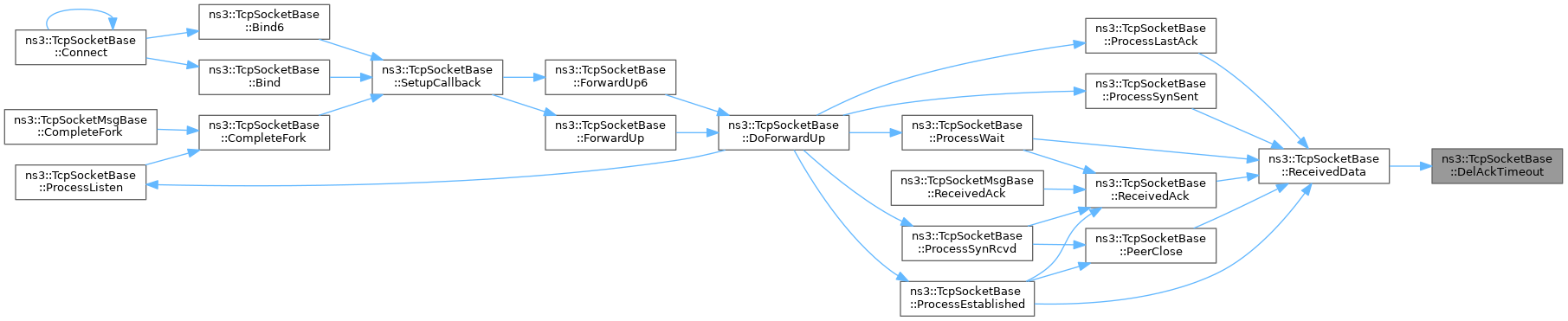

| virtual void | DelAckTimeout () |
| Action upon delay ACK timeout, i.e. | |

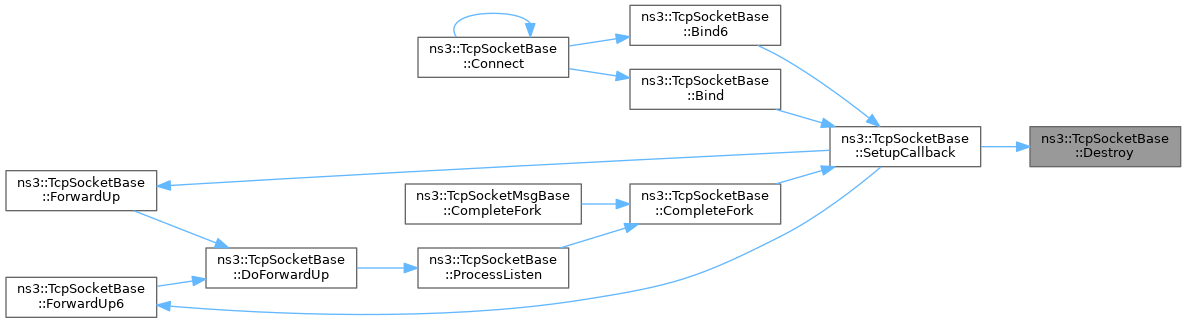

| void | Destroy () |
| Kill this socket by zeroing its attributes (IPv4) | |
| void | Destroy6 () |
| Kill this socket by zeroing its attributes (IPv6) | |
| int | DoClose () |
| Close a socket by sending RST, FIN, or FIN+ACK, depend on the current state. | |
| int | DoConnect () |
| Perform the real connection tasks: Send SYN if allowed, RST if invalid. | |

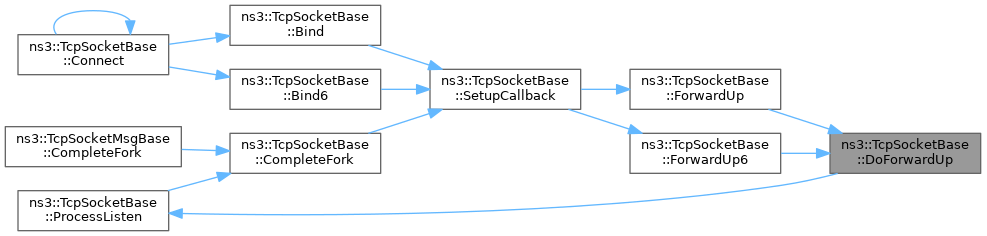

| virtual void | DoForwardUp (Ptr< Packet > packet, const Address &fromAddress, const Address &toAddress) |
| Called by TcpSocketBase::ForwardUp{,6}(). | |

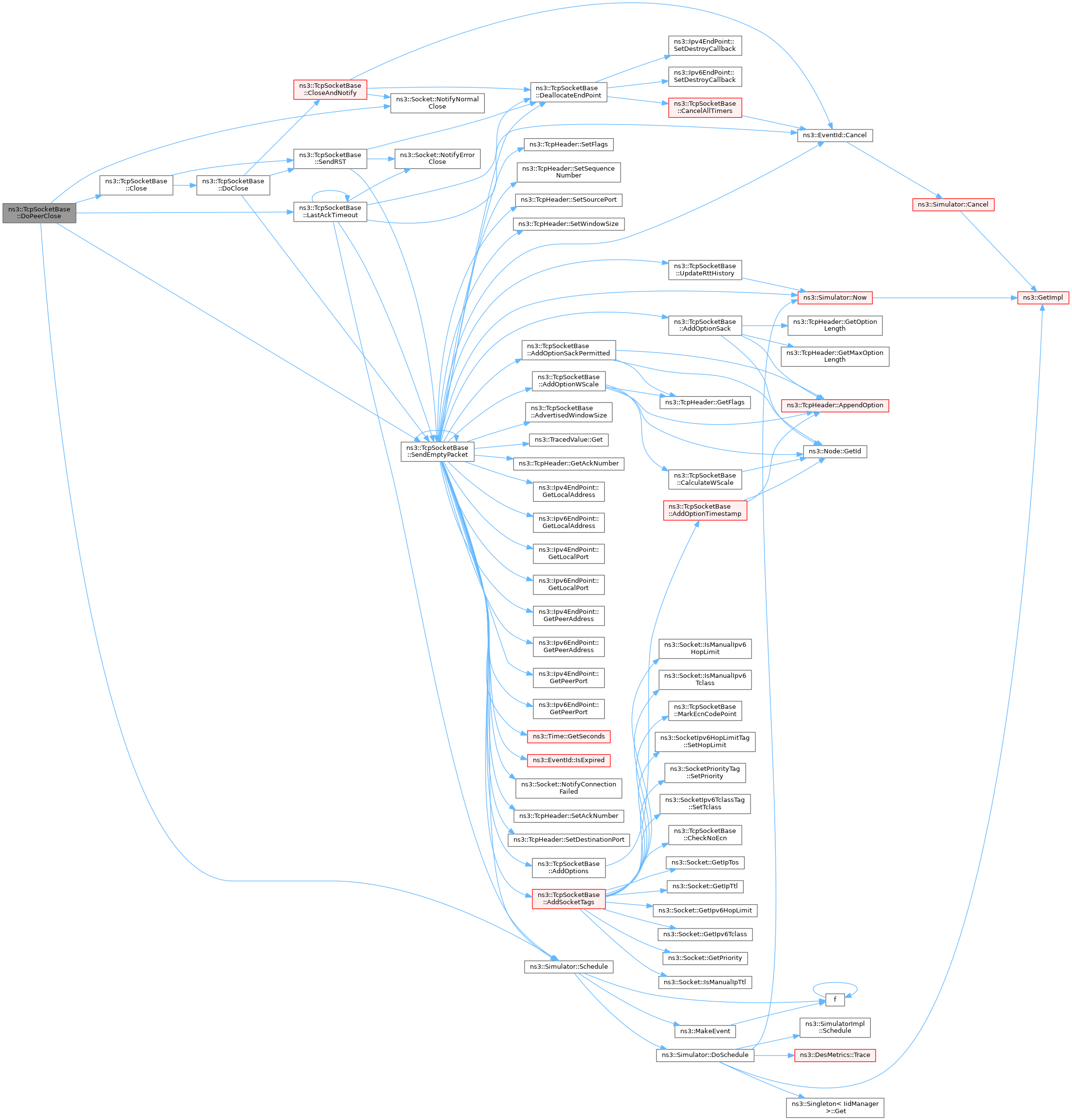

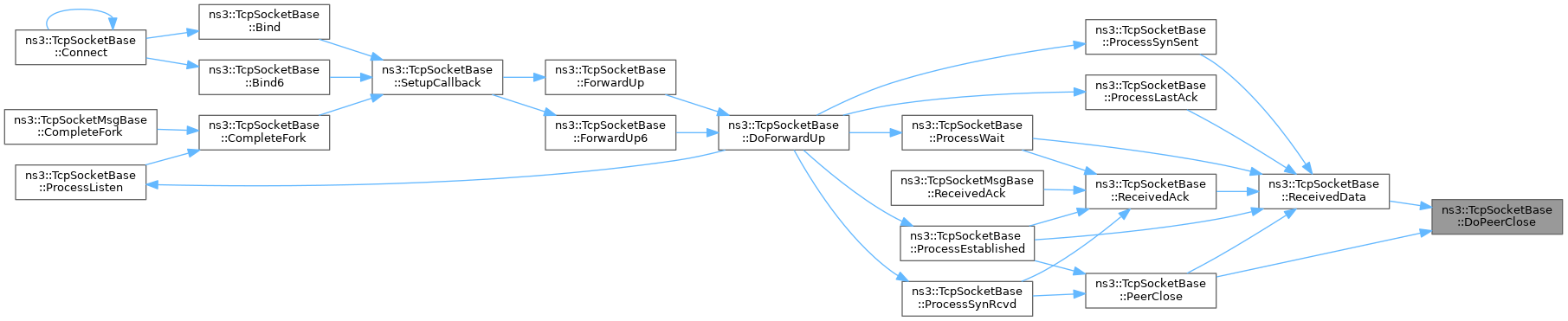

| void | DoPeerClose () |
| FIN is in sequence, notify app and respond with a FIN. | |
| void | DoRetransmit () |
| Retransmit the first segment marked as lost, without considering available window nor pacing. | |

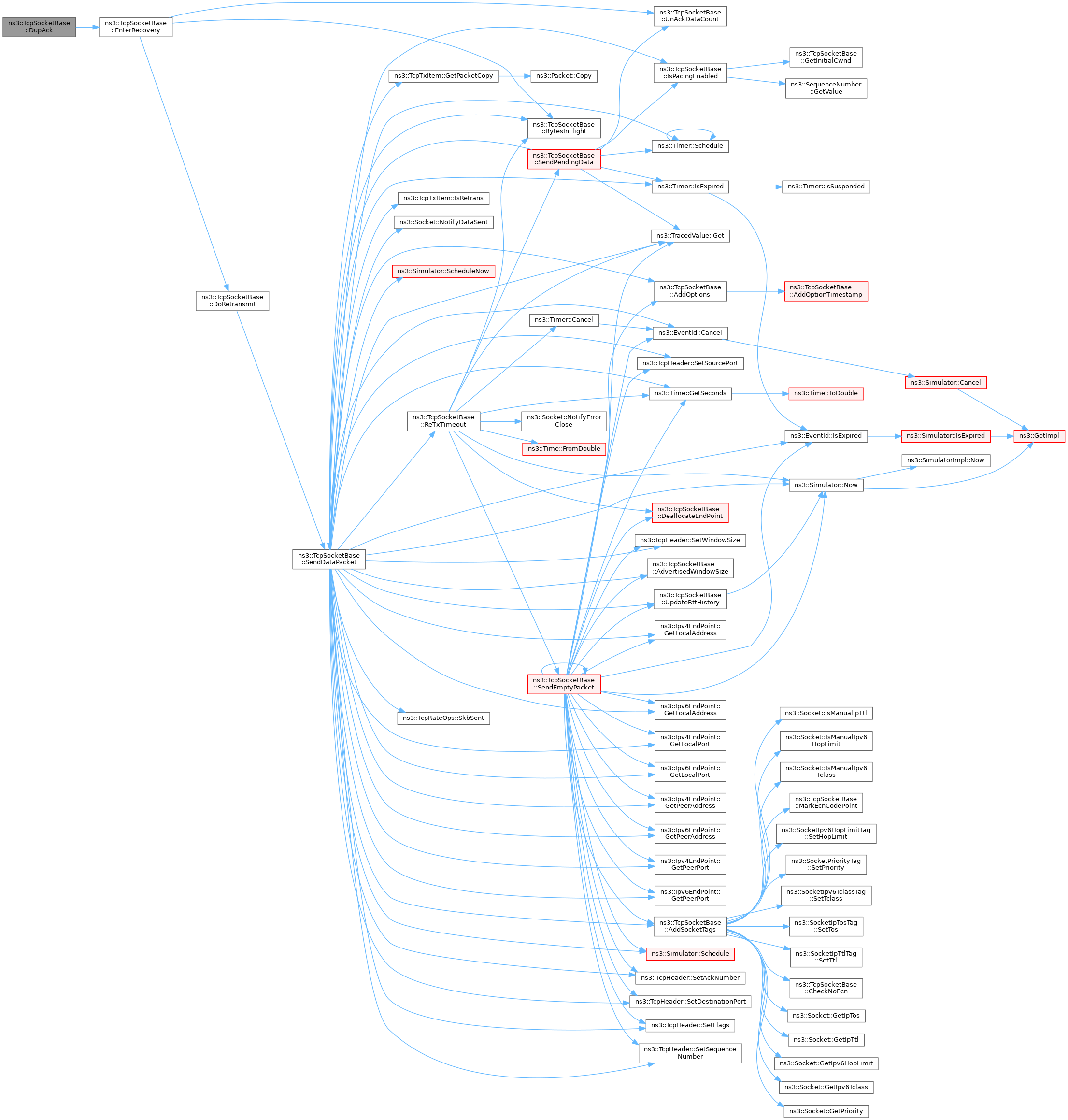

| void | DupAck (uint32_t currentDelivered) |
| Dupack management. | |

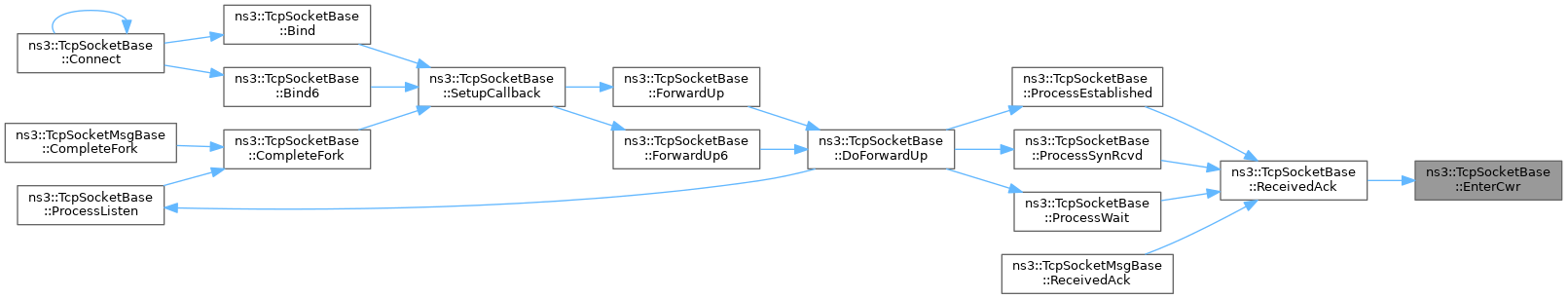

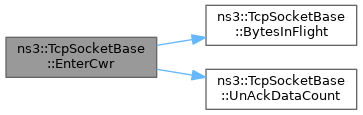

| void | EnterCwr (uint32_t currentDelivered) |
| Enter CA_CWR state upon receipt of an ECN Echo. | |

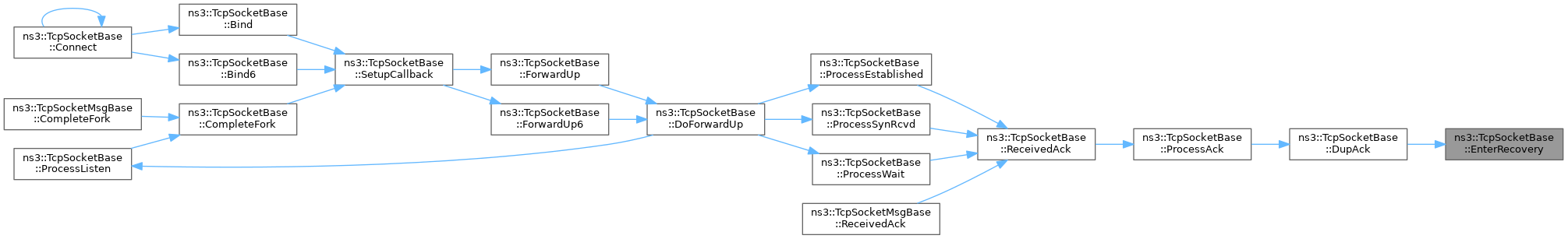

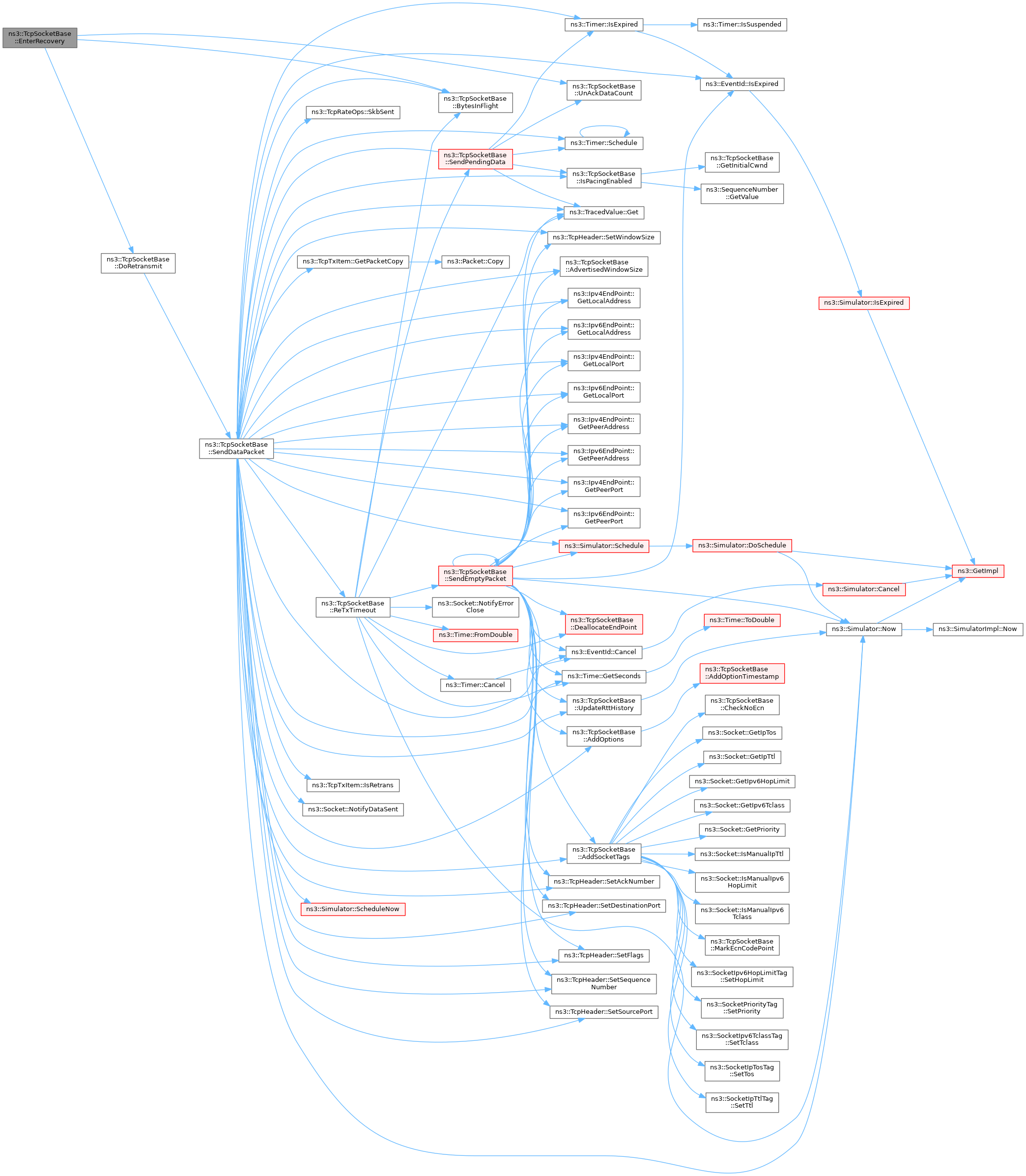

| void | EnterRecovery (uint32_t currentDelivered) |
| Enter the CA_RECOVERY, and retransmit the head. | |
| virtual void | EstimateRtt (const TcpHeader &tcpHeader) |
| Take into account the packet for RTT estimation. | |

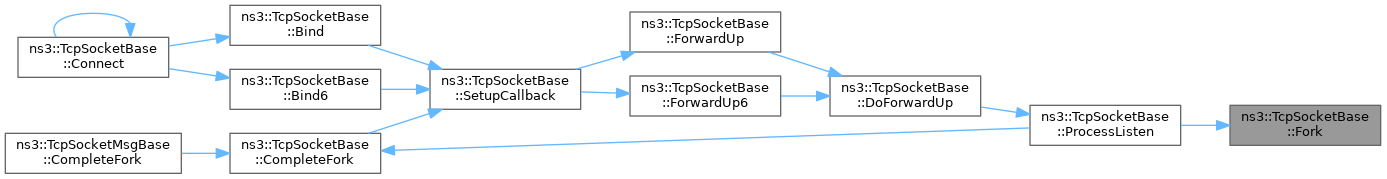

| virtual Ptr< TcpSocketBase > | Fork () |
| Call CopyObject<> to clone me. | |
| void | ForwardIcmp (Ipv4Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo) |
| Called by the L3 protocol when it received an ICMP packet to pass on to TCP. | |
| void | ForwardIcmp6 (Ipv6Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo) |
| Called by the L3 protocol when it received an ICMPv6 packet to pass on to TCP. | |

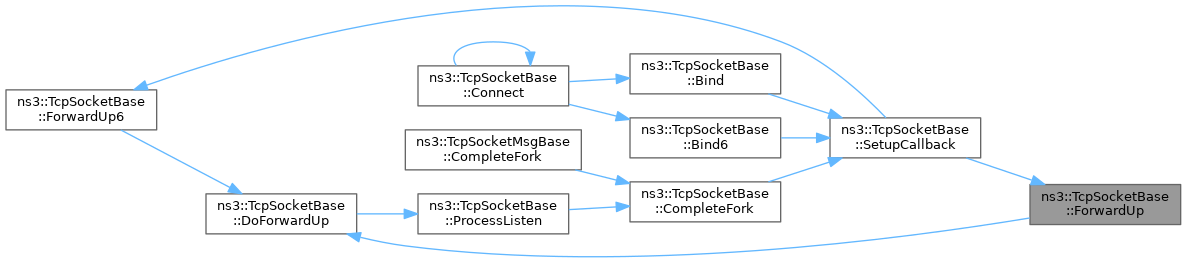

| void | ForwardUp (Ptr< Packet > packet, Ipv4Header header, uint16_t port, Ptr< Ipv4Interface > incomingInterface) |
| Called by the L3 protocol when it received a packet to pass on to TCP. | |
| void | ForwardUp6 (Ptr< Packet > packet, Ipv6Header header, uint16_t port, Ptr< Ipv6Interface > incomingInterface) |
| Called by the L3 protocol when it received a packet to pass on to TCP. | |
| bool | GetAllowBroadcast () const override |
| Query whether broadcast datagram transmissions are allowed. | |
| Time | GetConnTimeout () const override |
| Get the connection timeout. | |
| uint32_t | GetDataRetries () const override |
| Get the number of data transmission retries before giving up. | |
| uint32_t | GetDelAckMaxCount () const override |
| Get the number of packet to fire an ACK before delay timeout. | |
| Time | GetDelAckTimeout () const override |
| Get the time to delay an ACK. | |
| SequenceNumber32 | GetHighRxAck () const |
| Get the current value of the receiver's highest (in-sequence) sequence number acked. | |
| uint32_t | GetInitialCwnd () const override |
| Get the initial Congestion Window. | |
| uint32_t | GetInitialSSThresh () const override |
| Get the initial Slow Start Threshold. | |
| Time | GetPersistTimeout () const override |
| Get the timeout for persistent connection. | |
| uint32_t | GetRcvBufSize () const override |
| Get the receive buffer size. | |
| uint32_t | GetRWnd () const |
| Get the current value of the receiver's offered window (RCV.WND) | |
| uint32_t | GetSegSize () const override |
| Get the segment size. | |
| uint32_t | GetSndBufSize () const override |
| Get the send buffer size. | |
| uint32_t | GetSynRetries () const override |
| Get the number of connection retries before giving up. | |
| bool | GetTcpNoDelay () const override |
| Check if Nagle's algorithm is enabled or not. | |

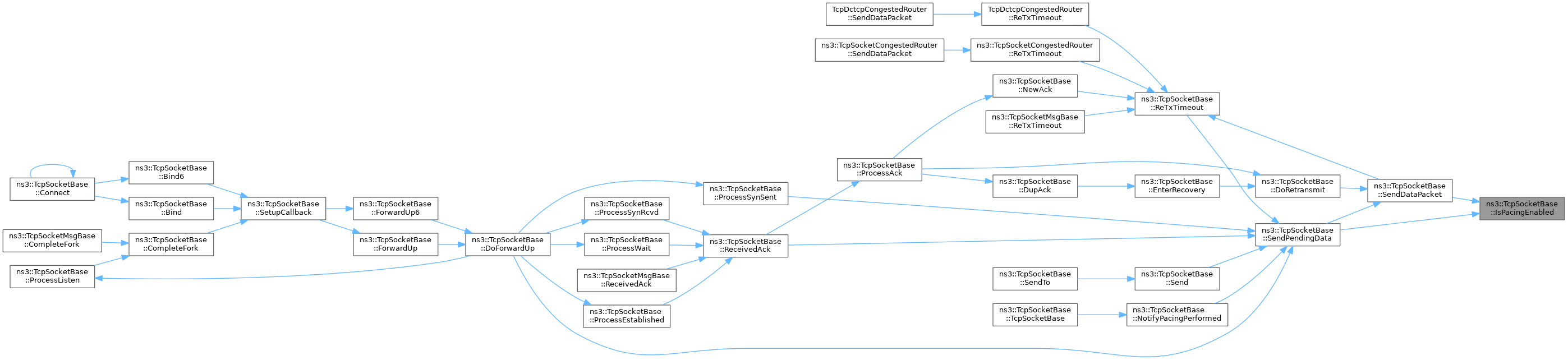

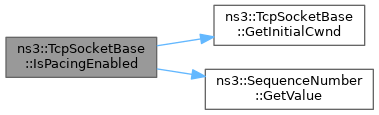

| bool | IsPacingEnabled () const |
| Return true if packets in the current window should be paced. | |
| bool | IsTcpOptionEnabled (uint8_t kind) const |
| Return true if the specified option is enabled. | |

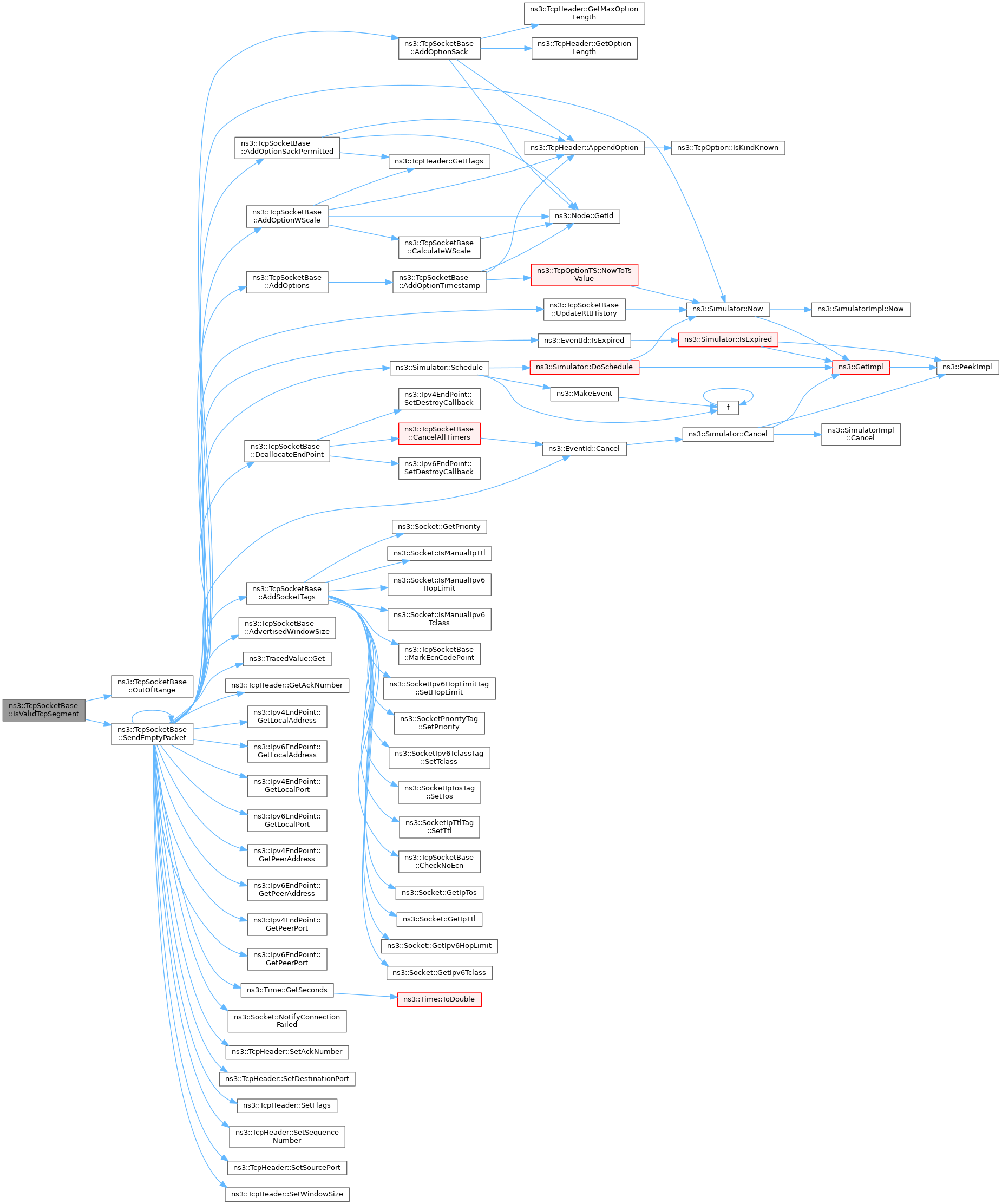

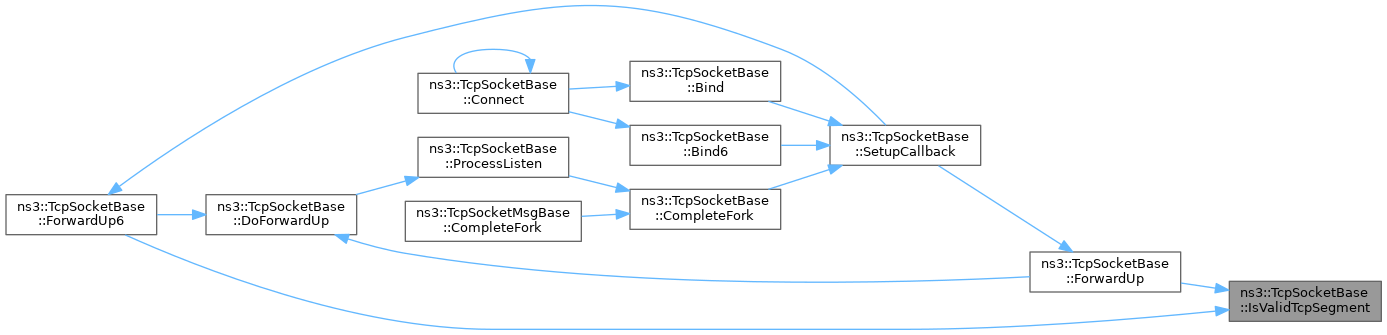

| bool | IsValidTcpSegment (const SequenceNumber32 seq, const uint32_t tcpHeaderSize, const uint32_t tcpPayloadSize) |
| Checks whether the given TCP segment is valid or not. | |

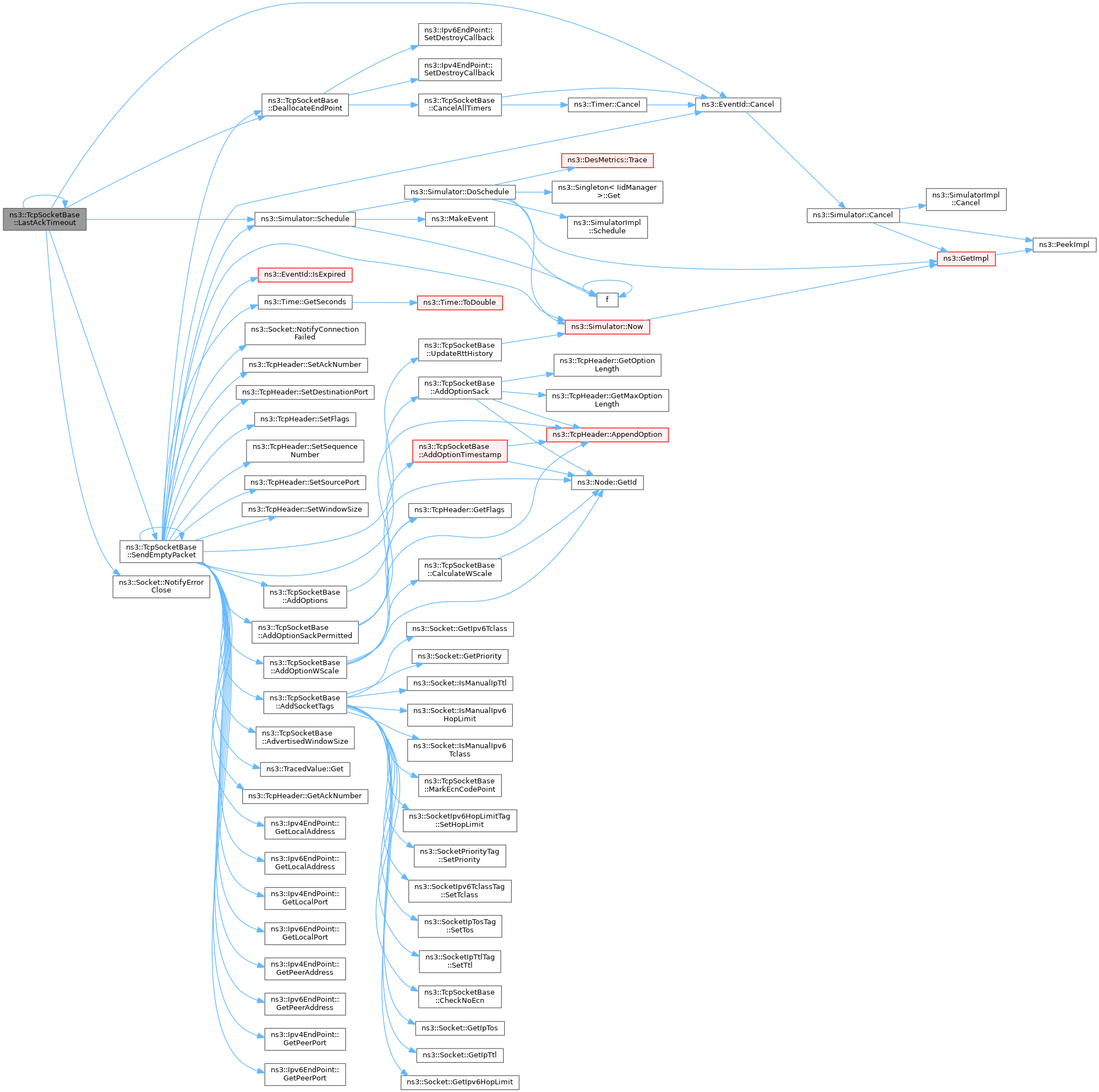

| virtual void | LastAckTimeout () |
| Timeout at LAST_ACK, close the connection. | |
| virtual void | NewAck (const SequenceNumber32 &seq, bool resetRTO) |
| Update buffers w.r.t. | |

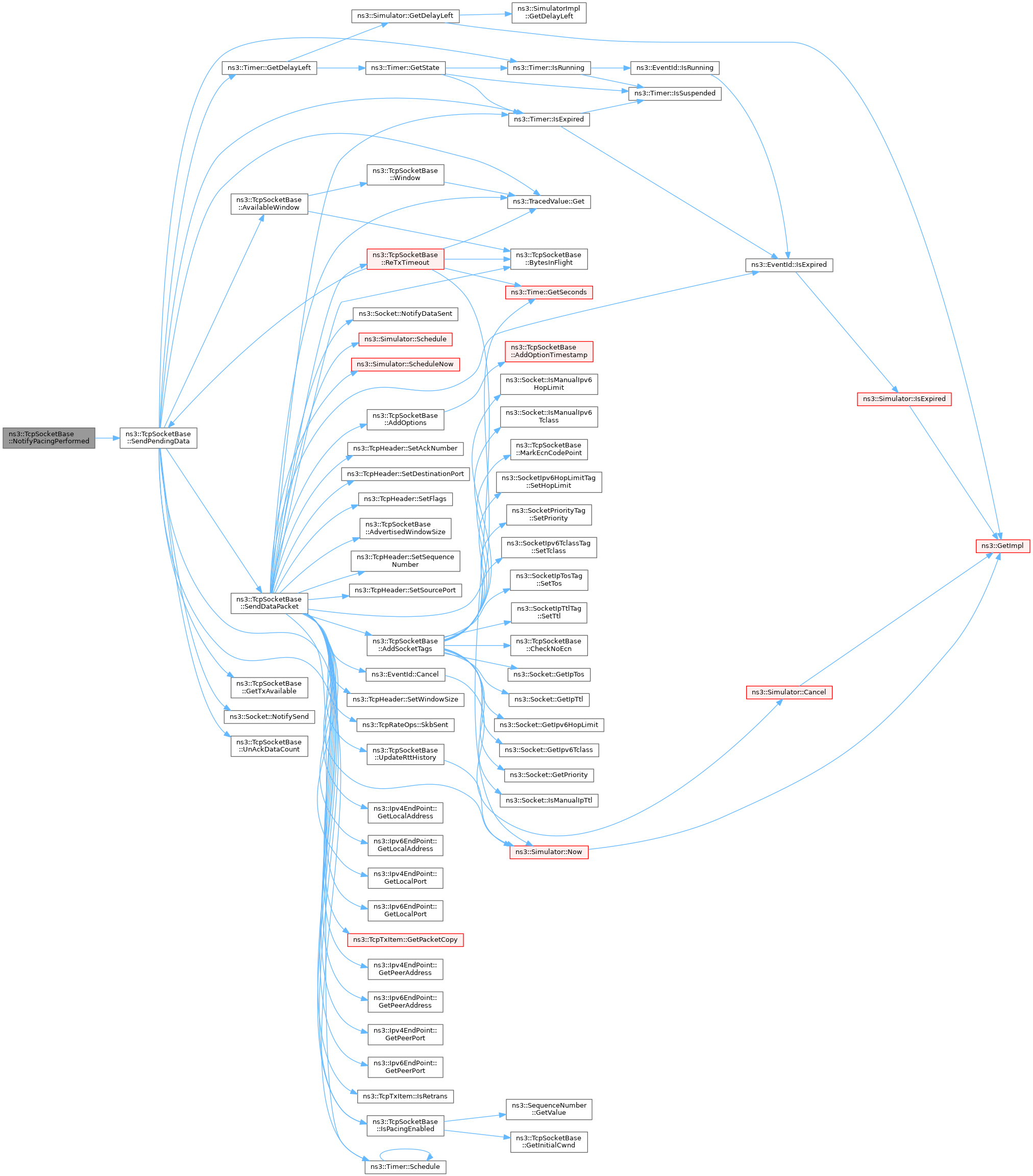

| void | NotifyPacingPerformed () |
| Notify Pacing. | |

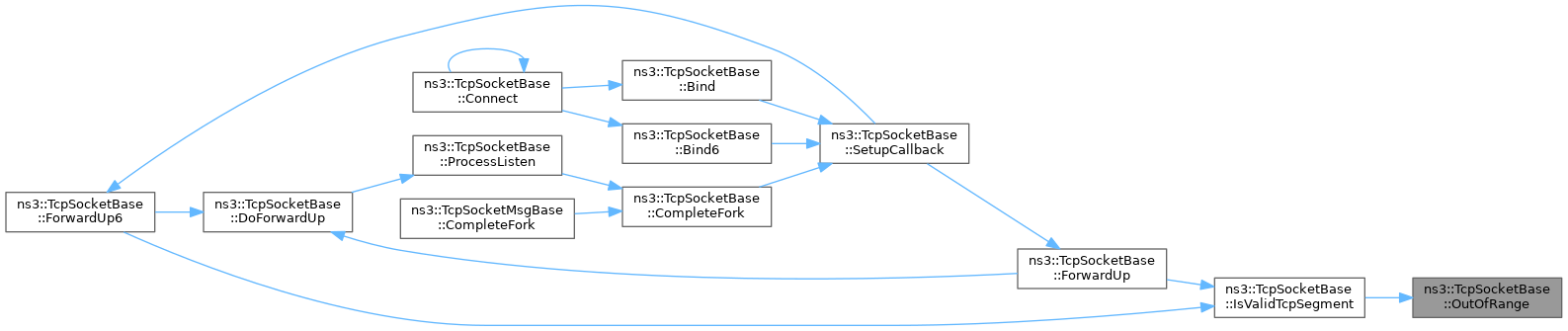

| bool | OutOfRange (SequenceNumber32 head, SequenceNumber32 tail) const |
| Check if a sequence number range is within the rx window. | |

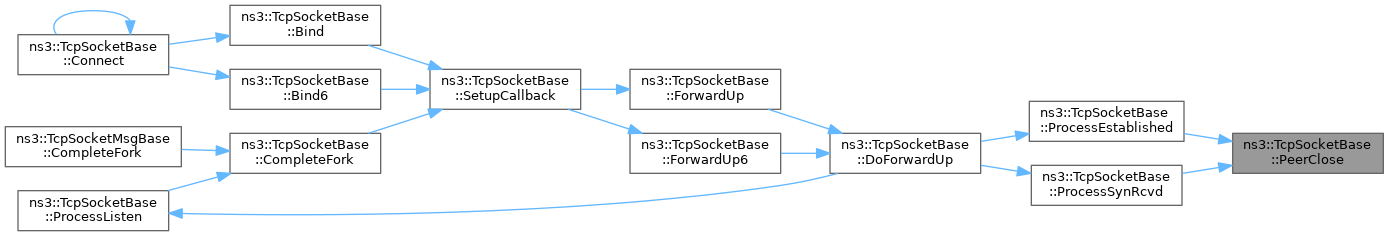

| void | PeerClose (Ptr< Packet > p, const TcpHeader &tcpHeader) |
| Received a FIN from peer, notify rx buffer. | |
| virtual void | PersistTimeout () |
| Send 1 byte probe to get an updated window size. | |

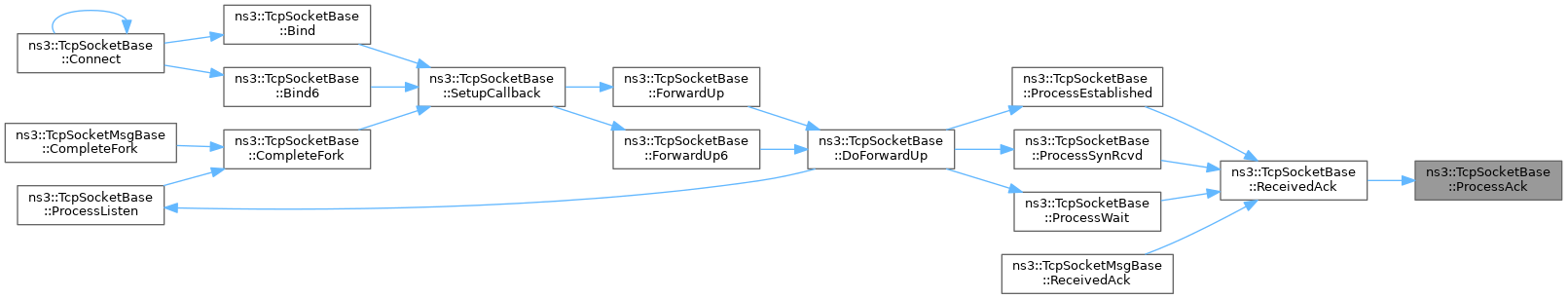

| virtual void | ProcessAck (const SequenceNumber32 &ackNumber, bool scoreboardUpdated, uint32_t currentDelivered, const SequenceNumber32 &oldHeadSequence) |
| Process a received ack. | |
| void | ProcessClosing (Ptr< Packet > packet, const TcpHeader &tcpHeader) |
| Received a packet upon CLOSING. | |
| void | ProcessEstablished (Ptr< Packet > packet, const TcpHeader &tcpHeader) |
| Received a packet upon ESTABLISHED state. | |
| void | ProcessLastAck (Ptr< Packet > packet, const TcpHeader &tcpHeader) |
| Received a packet upon LAST_ACK. | |

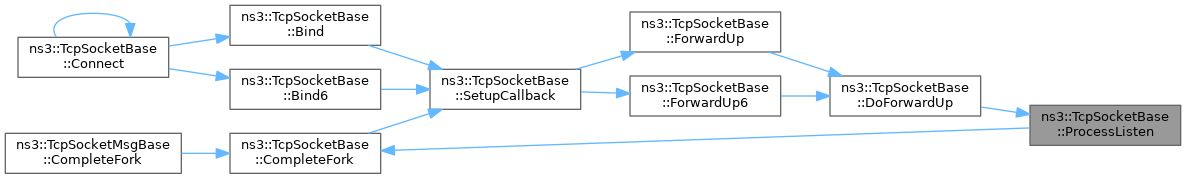

| void | ProcessListen (Ptr< Packet > packet, const TcpHeader &tcpHeader, const Address &fromAddress, const Address &toAddress) |
| Received a packet upon LISTEN state. | |

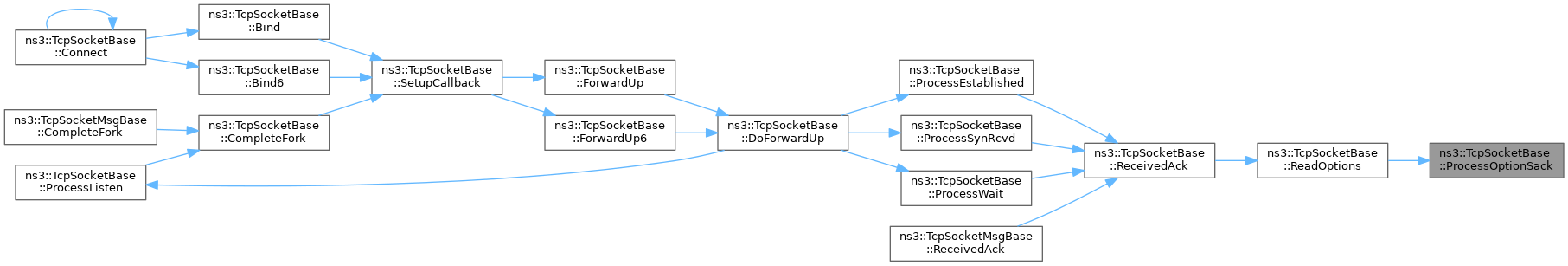

| uint32_t | ProcessOptionSack (const Ptr< const TcpOption > option) |
| Read the SACK option. | |

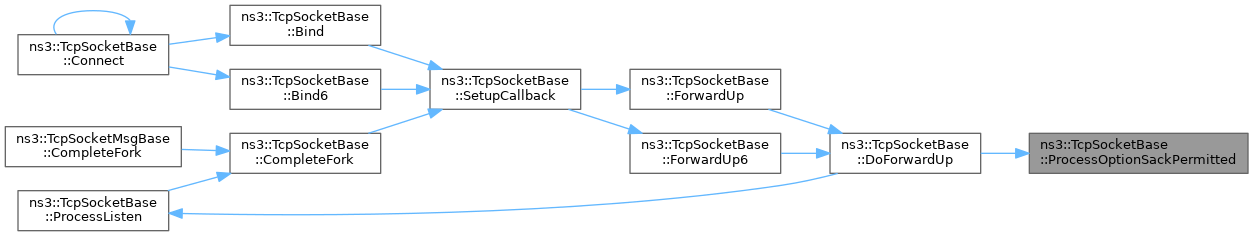

| void | ProcessOptionSackPermitted (const Ptr< const TcpOption > option) |
| Read the SACK PERMITTED option. | |

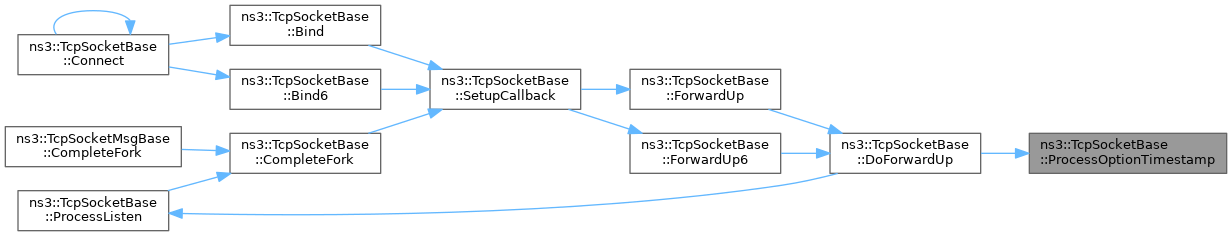

| void | ProcessOptionTimestamp (const Ptr< const TcpOption > option, const SequenceNumber32 &seq) |
| Process the timestamp option from other side. | |

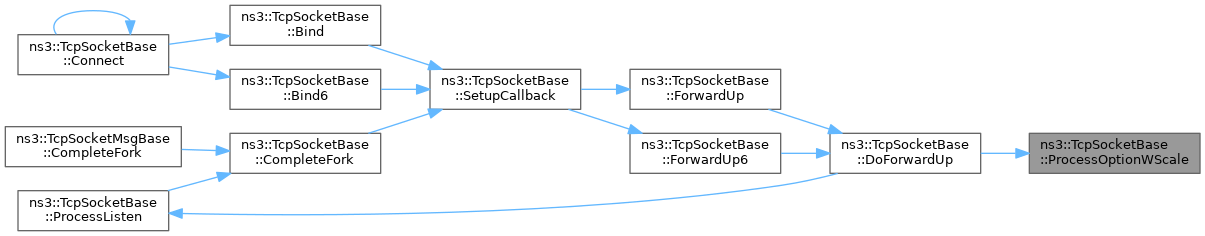

| void | ProcessOptionWScale (const Ptr< const TcpOption > option) |
| Read and parse the Window scale option. | |
| void | ProcessSynRcvd (Ptr< Packet > packet, const TcpHeader &tcpHeader, const Address &fromAddress, const Address &toAddress) |
| Received a packet upon SYN_RCVD. | |
| void | ProcessSynSent (Ptr< Packet > packet, const TcpHeader &tcpHeader) |
| Received a packet upon SYN_SENT. | |
| void | ProcessWait (Ptr< Packet > packet, const TcpHeader &tcpHeader) |
| Received a packet upon CLOSE_WAIT, FIN_WAIT_1, FIN_WAIT_2. | |

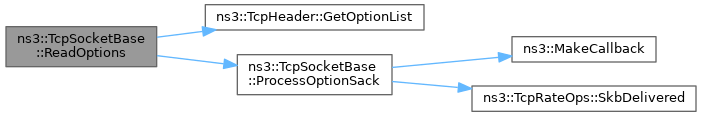

| void | ReadOptions (const TcpHeader &tcpHeader, uint32_t *bytesSacked) |
| Read TCP options before Ack processing. | |

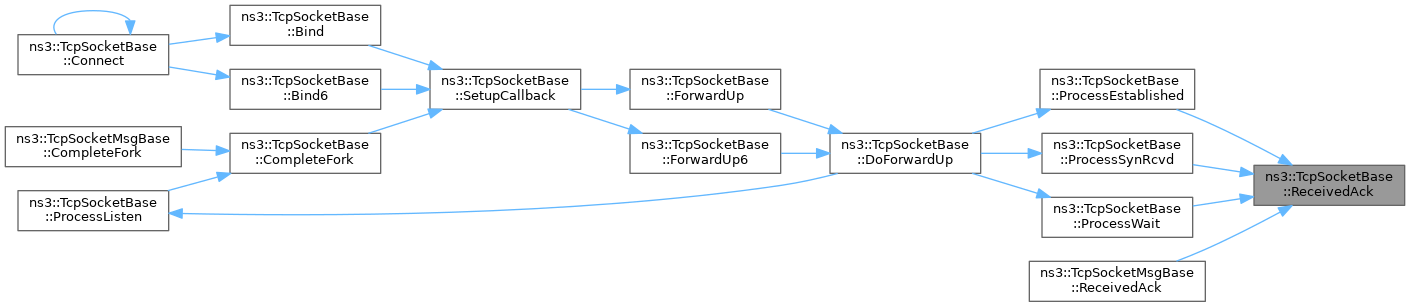

| virtual void | ReceivedAck (Ptr< Packet > packet, const TcpHeader &tcpHeader) |
| Received an ACK packet. | |

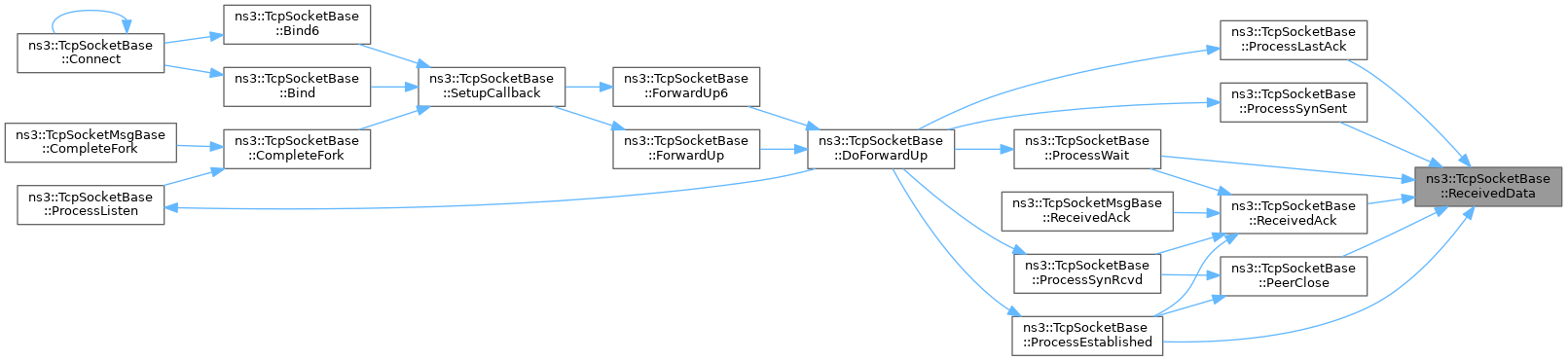

| virtual void | ReceivedData (Ptr< Packet > packet, const TcpHeader &tcpHeader) |
| Recv of a data, put into buffer, call L7 to get it if necessary. | |
| virtual void | ReTxTimeout () |
| An RTO event happened. | |
| virtual uint32_t | SendDataPacket (SequenceNumber32 seq, uint32_t maxSize, bool withAck) |
| Extract at most maxSize bytes from the TxBuffer at sequence seq, add the TCP header, and send to TcpL4Protocol. | |

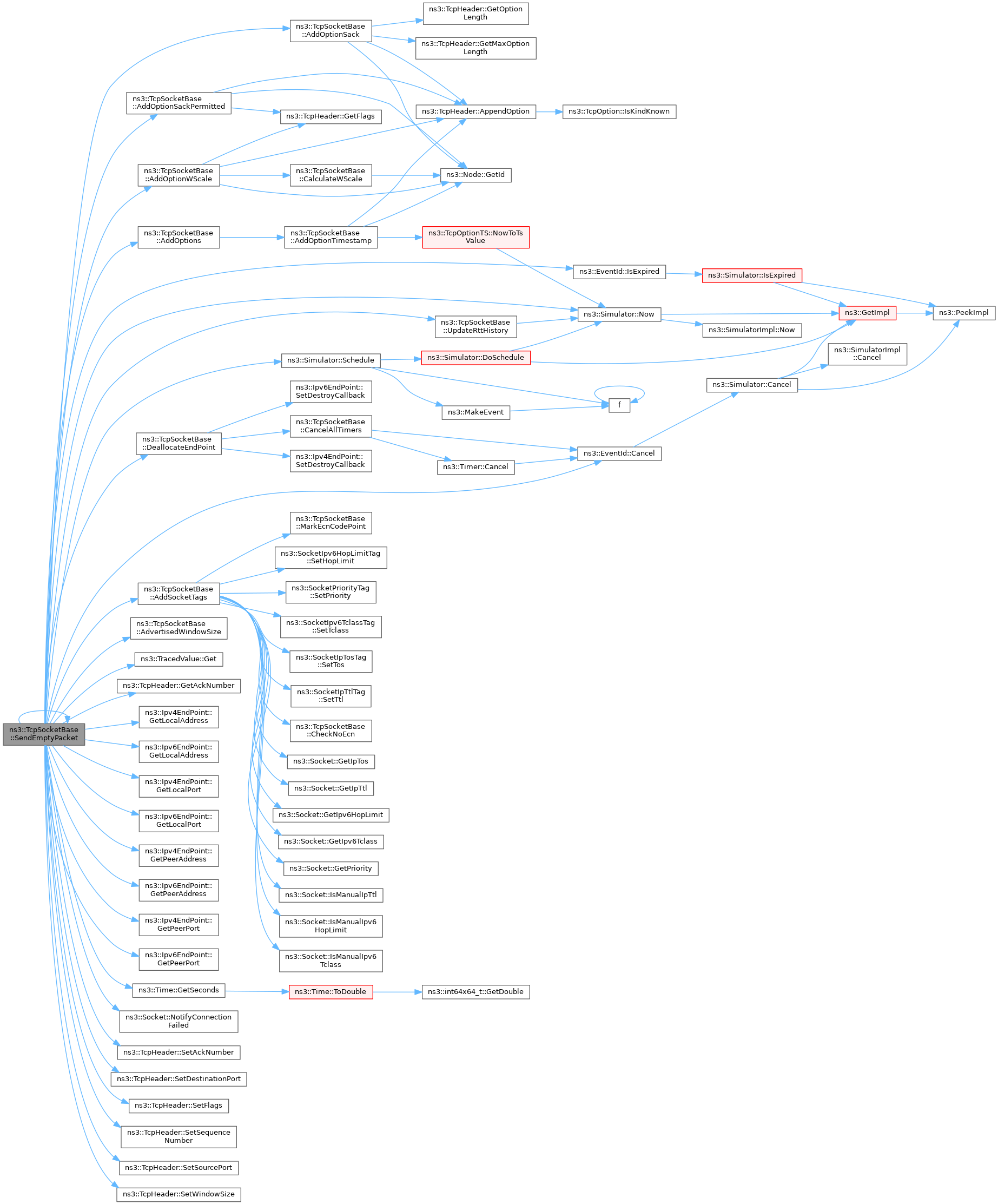

| virtual void | SendEmptyPacket (uint8_t flags) |
| Send a empty packet that carries a flag, e.g., ACK. | |

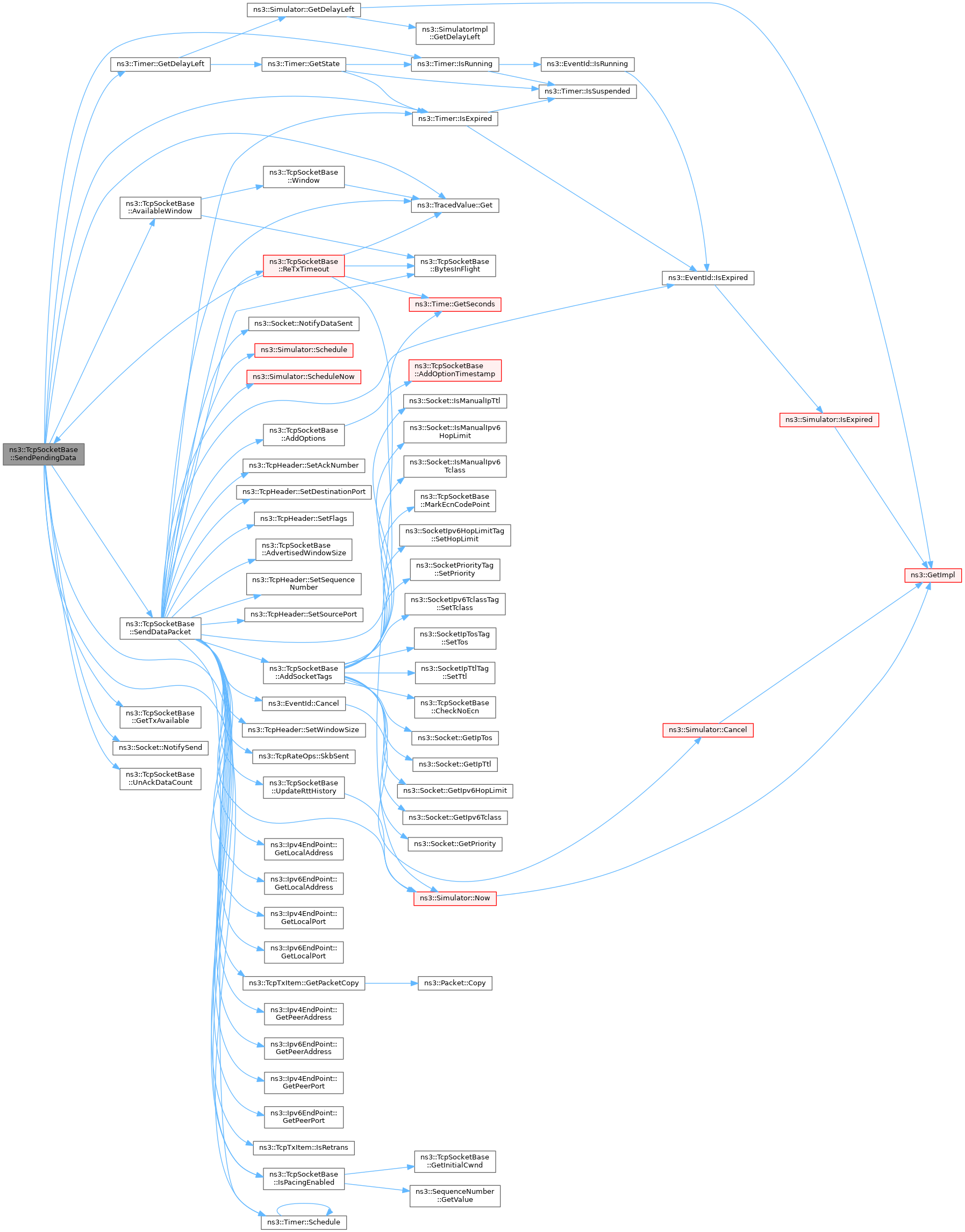

| uint32_t | SendPendingData (bool withAck=false) |
| Send as much pending data as possible according to the Tx window. | |

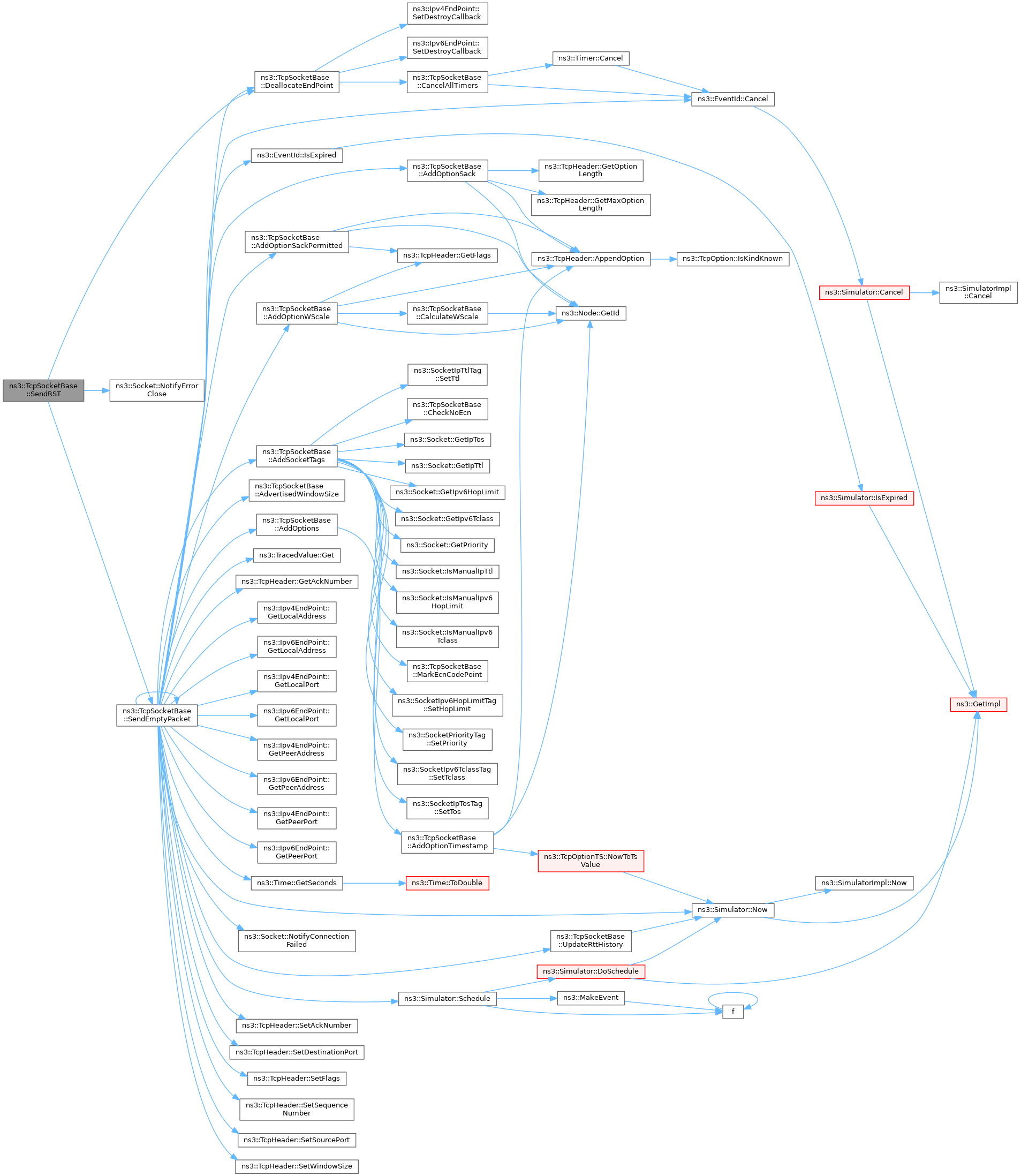

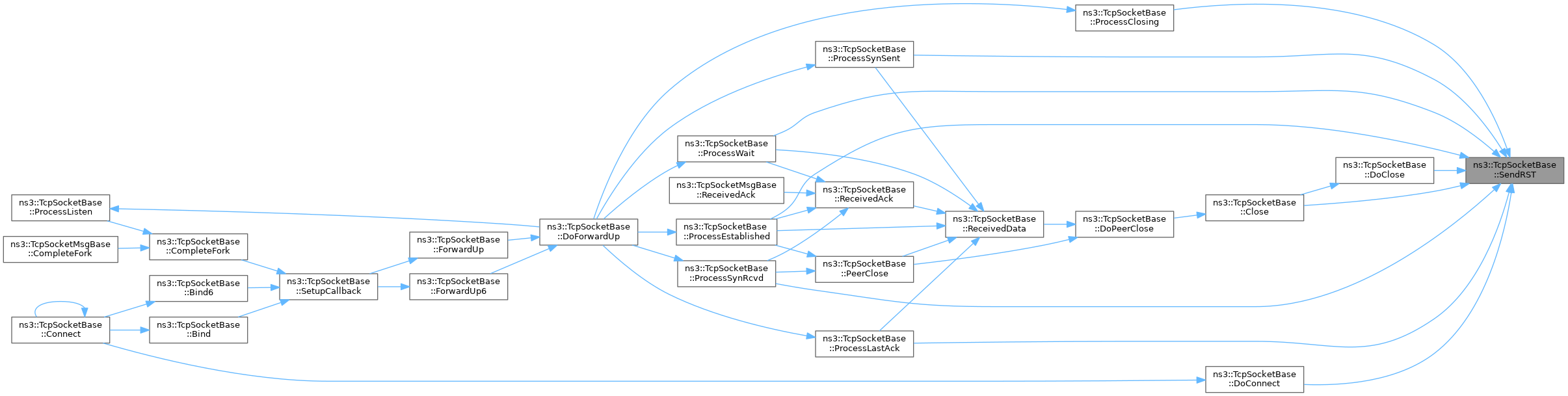

| void | SendRST () |
| Send reset and tear down this socket. | |
| bool | SetAllowBroadcast (bool allowBroadcast) override |
| Configure whether broadcast datagram transmissions are allowed. | |
| void | SetConnTimeout (Time timeout) override |
| Set the connection timeout. | |
| void | SetDataRetries (uint32_t retries) override |
| Set the number of data transmission retries before giving up. | |
| void | SetDelAckMaxCount (uint32_t count) override |
| Set the number of packet to fire an ACK before delay timeout. | |
| void | SetDelAckTimeout (Time timeout) override |
| Set the time to delay an ACK. | |
| void | SetInitialCwnd (uint32_t cwnd) override |
| Set the initial Congestion Window. | |
| void | SetInitialSSThresh (uint32_t threshold) override |
| Set the initial Slow Start Threshold. | |
| void | SetPersistTimeout (Time timeout) override |
| Set the timeout for persistent connection. | |
| void | SetRcvBufSize (uint32_t size) override |
| Set the receive buffer size. | |
| void | SetSegSize (uint32_t size) override |
| Set the segment size. | |
| void | SetSndBufSize (uint32_t size) override |
| Set the send buffer size. | |
| void | SetSynRetries (uint32_t count) override |
| Set the number of connection retries before giving up. | |
| void | SetTcpNoDelay (bool noDelay) override |
| Enable/Disable Nagle's algorithm. | |

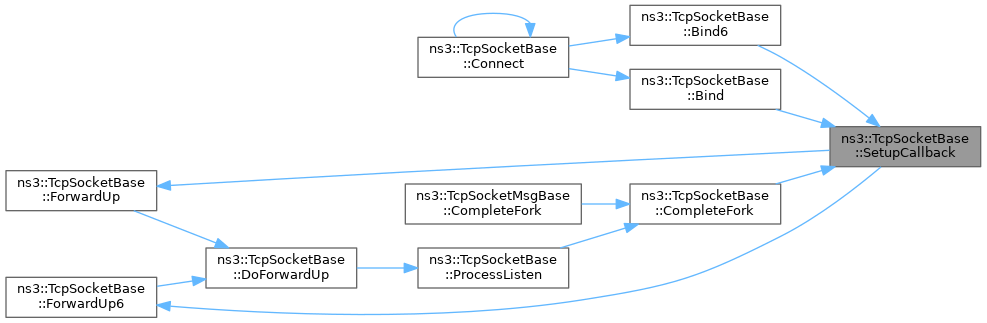

| int | SetupCallback () |
| Common part of the two Bind(), i.e. | |
| int | SetupEndpoint () |
| Configure the endpoint to a local address. | |

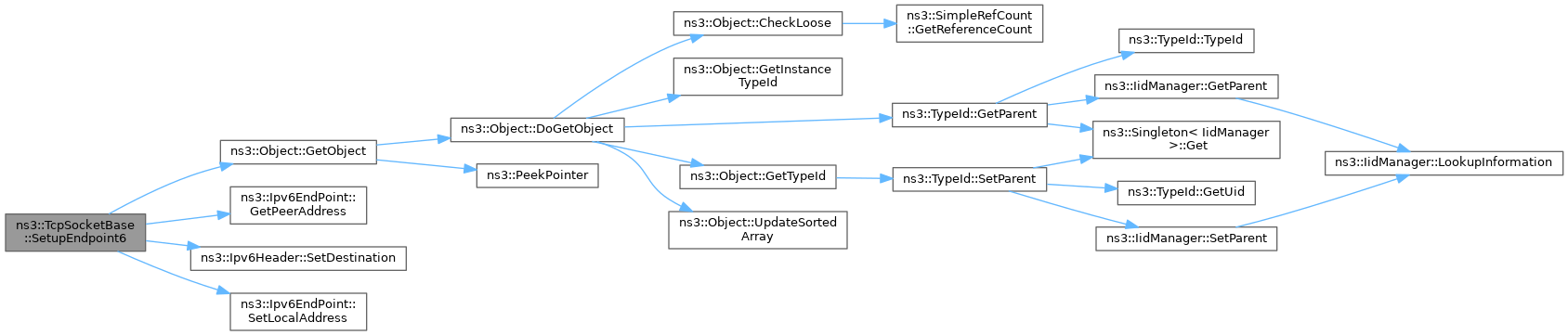

| int | SetupEndpoint6 () |
| Configure the endpoint v6 to a local address. | |
| void | TimeWait () |
| Move from CLOSING or FIN_WAIT_2 to TIME_WAIT state. | |
| virtual uint32_t | UnAckDataCount () const |
| Return count of number of unacked bytes. | |

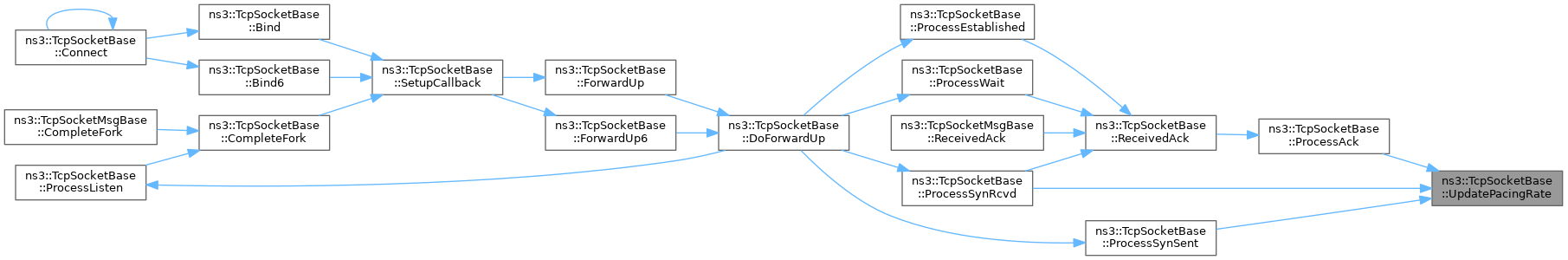

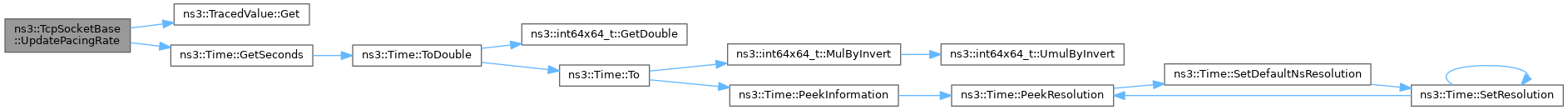

| void | UpdatePacingRate () |
| Dynamically update the pacing rate. | |
| virtual void | UpdateRttHistory (const SequenceNumber32 &seq, uint32_t sz, bool isRetransmission) |
| Update the RTT history, when we send TCP segments. | |

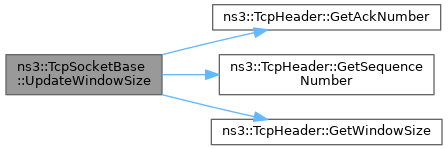

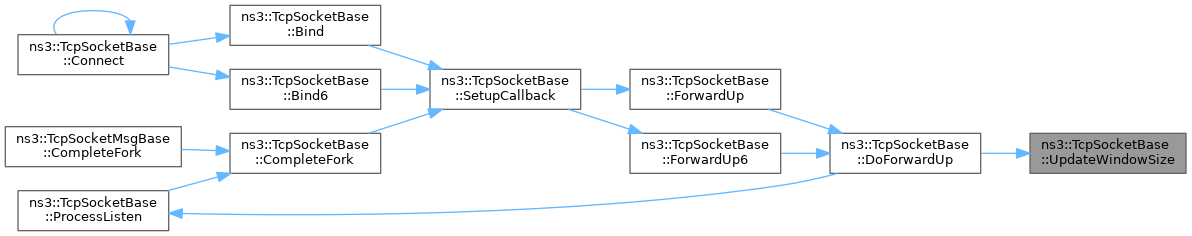

| void | UpdateWindowSize (const TcpHeader &header) |
| Update the receiver window (RWND) based on the value of the window field in the header. | |
| virtual uint32_t | Window () const |
| Return the max possible number of unacked bytes. | |
| Protected Member Functions inherited from ns3::Socket | |
| void | DoDispose () override |
| Destructor implementation. | |
| bool | IsManualIpTtl () const |
| Checks if the socket has a specific IPv4 TTL set. | |
| bool | IsManualIpv6HopLimit () const |
| Checks if the socket has a specific IPv6 Hop Limit set. | |
| bool | IsManualIpv6Tclass () const |
| Checks if the socket has a specific IPv6 Tclass set. | |
| void | NotifyConnectionFailed () |
| Notify through the callback (if set) that the connection has not been established due to an error. | |
| bool | NotifyConnectionRequest (const Address &from) |
| Notify through the callback (if set) that an incoming connection is being requested by a remote host. | |
| void | NotifyConnectionSucceeded () |
| Notify through the callback (if set) that the connection has been established. | |
| void | NotifyDataRecv () |
| Notify through the callback (if set) that some data have been received. | |
| void | NotifyDataSent (uint32_t size) |
| Notify through the callback (if set) that some data have been sent. | |
| void | NotifyErrorClose () |
| Notify through the callback (if set) that the connection has been closed due to an error. | |
| void | NotifyNewConnectionCreated (Ptr< Socket > socket, const Address &from) |
| Notify through the callback (if set) that a new connection has been created. | |
| void | NotifyNormalClose () |
| Notify through the callback (if set) that the connection has been closed. | |
| void | NotifySend (uint32_t spaceAvailable) |
| Notify through the callback (if set) that some data have been sent. | |
| Protected Member Functions inherited from ns3::Object | |
| Object (const Object &o) | |
| Copy an Object. | |
| virtual void | DoDispose () |
| Destructor implementation. | |
| virtual void | DoInitialize () |
| Initialize() implementation. | |
| virtual void | NotifyNewAggregate () |
| Notify all Objects aggregated to this one of a new Object being aggregated. | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| Complete construction of ObjectBase; invoked by derived classes. | |
| virtual void | NotifyConstructionCompleted () |
| Notifier called once the ObjectBase is fully constructed. | |
Static Protected Member Functions | |
| static uint32_t | SafeSubtraction (uint32_t a, uint32_t b) |
| Performs a safe subtraction between a and b (a-b) | |
Protected Attributes | |
| TracedValue< uint32_t > | m_advWnd {0} |
| Advertised Window size. | |
| uint32_t | m_bytesAckedNotProcessed {0} |
| Bytes acked, but not processed. | |
| Time | m_clockGranularity {Seconds(0.001)} |
| Clock Granularity used in RTO calcs. | |
| bool | m_closeNotified {false} |
| Told app to close socket. | |
| bool | m_closeOnEmpty {false} |
| Close socket upon tx buffer emptied. | |
| Time | m_cnTimeout {Seconds(0.0)} |
| Timeout for connection retry. | |
| Ptr< TcpCongestionOps > | m_congestionControl |
| Congestion control. | |
| bool | m_connected {false} |
| Connection established. | |
| uint32_t | m_dataRetrCount {0} |
| Count of remaining data retransmission attempts. | |
| uint32_t | m_dataRetries {0} |
| Number of data retransmission attempts. | |
| uint32_t | m_delAckCount {0} |
| Delayed ACK counter. | |
| EventId | m_delAckEvent {} |
| Delayed ACK timeout event. | |
| uint32_t | m_delAckMaxCount {0} |
| Number of packet to fire an ACK before delay timeout. | |
| Time | m_delAckTimeout {Seconds(0.0)} |
| Time to delay an ACK. | |
| uint32_t | m_dupAckCount {0} |
| Dupack counter. | |
| TracedValue< SequenceNumber32 > | m_ecnCESeq |
| Sequence number of the last received Congestion Experienced. | |
| TracedValue< SequenceNumber32 > | m_ecnCWRSeq {0} |
| Sequence number of the last sent CWR. | |
| TracedValue< SequenceNumber32 > | m_ecnEchoSeq |
| Sequence number of the last received ECN Echo. | |
| Ipv4EndPoint * | m_endPoint {nullptr} |
| the IPv4 endpoint | |
| Ipv6EndPoint * | m_endPoint6 {nullptr} |
| the IPv6 endpoint | |
| SocketErrno | m_errno {ERROR_NOTERROR} |
| Socket error code. | |
| TracedValue< SequenceNumber32 > | m_highRxAckMark {0} |
| Highest ack received. | |
| TracedValue< SequenceNumber32 > | m_highRxMark {0} |
| Highest seqno received. | |
| SequenceNumber32 | m_highTxAck {0} |
| Highest ack sent. | |
| std::deque< RttHistory > | m_history |
| List of sent packet. | |
| Callback< void, Ipv4Address, uint8_t, uint8_t, uint8_t, uint32_t > | m_icmpCallback |
| ICMP callback. | |
| Callback< void, Ipv6Address, uint8_t, uint8_t, uint8_t, uint32_t > | m_icmpCallback6 |
| ICMPv6 callback. | |
| bool | m_isFirstPartialAck {true} |
| First partial ACK during RECOVERY. | |
| EventId | m_lastAckEvent {} |
| Last ACK timeout event. | |
| bool | m_limitedTx {true} |
| perform limited transmit | |
| uint16_t | m_maxWinSize {0} |
| Maximum window size to advertise. | |
| Time | m_minRto {Time::Max()} |
| minimum value of the Retransmit timeout | |
| double | m_msl {0.0} |
| Max segment lifetime. | |
| Ptr< Node > | m_node |
| the associated node | |
| bool | m_noDelay {false} |
| Set to true to disable Nagle's algorithm. | |
| Timer | m_pacingTimer {Timer::CANCEL_ON_DESTROY} |
| Pacing Event. | |
| EventId | m_persistEvent {} |
| Persist event: Send 1 byte to probe for a non-zero Rx window. | |
| Time | m_persistTimeout {Seconds(0.0)} |
| Time between sending 1-byte probes. | |
| Ptr< TcpRateOps > | m_rateOps |
| Rate operations. | |
| uint8_t | m_rcvWindShift {0} |
| Window shift to apply to outgoing segments. | |
| SequenceNumber32 | m_recover |
| Previous highest Tx seqnum for fast recovery (set it to initial seq number) | |
| bool | m_recoverActive {false} |
| Whether "m_recover" has been set/activated It is used to avoid comparing with the old m_recover value which was set for handling previous congestion event. | |
| Ptr< TcpRecoveryOps > | m_recoveryOps |
| Recovery Algorithm. | |
| EventId | m_retxEvent {} |
| Retransmission event. | |
| uint32_t | m_retxThresh {3} |
| Fast Retransmit threshold. | |
| TracedValue< Time > | m_rto {Seconds(0.0)} |
| Retransmit timeout. | |
| Ptr< RttEstimator > | m_rtt |
| Round trip time estimator. | |
| TracedValue< uint32_t > | m_rWnd {0} |
| Receiver window (RCV.WND in RFC793) | |
| TracedCallback< Ptr< const Packet >, const TcpHeader &, Ptr< const TcpSocketBase > > | m_rxTrace |
| Trace of received packets. | |
| bool | m_sackEnabled {true} |
| RFC SACK option enabled. | |
| EventId | m_sendPendingDataEvent {} |
| micro-delay event to send pending data | |
| bool | m_shutdownRecv {false} |
| Receive no longer allowed. | |
| bool | m_shutdownSend {false} |
| Send no longer allowed. | |
| uint8_t | m_sndWindShift {0} |
| Window shift to apply to incoming segments. | |
| TracedValue< TcpStates_t > | m_state {CLOSED} |
| TCP state. | |
| uint32_t | m_synCount {0} |
| Count of remaining connection retries. | |
| uint32_t | m_synRetries {0} |
| Number of connection attempts. | |
| Ptr< TcpSocketState > | m_tcb |
| Congestion control information. | |
| Ptr< TcpL4Protocol > | m_tcp |
| the associated TCP L4 protocol | |
| bool | m_timestampEnabled {true} |
| Timestamp option enabled. | |
| uint32_t | m_timestampToEcho {0} |
| Timestamp to echo. | |
| EventId | m_timewaitEvent {} |
| TIME_WAIT expiration event: Move this socket to CLOSED state. | |
| Ptr< TcpTxBuffer > | m_txBuffer |
| Tx buffer. | |
| TracedCallback< Ptr< const Packet >, const TcpHeader &, Ptr< const TcpSocketBase > > | m_txTrace |
| Trace of transmitted packets. | |
| bool | m_winScalingEnabled {true} |
| Window Scale option enabled (RFC 7323) | |
| Protected Attributes inherited from ns3::Socket | |
| Ptr< NetDevice > | m_boundnetdevice |
| the device this socket is bound to (might be null). | |
| Ipv6Address | m_ipv6MulticastGroupAddress |
| IPv6 multicast group address. | |
| bool | m_recvPktInfo |
| if the socket should add packet info tags to the packet forwarded to L4. | |
Related Functions | |
(Note that these are not member functions.) | |
| class | TcpGeneralTest |
| TcpGeneralTest friend class (for tests). | |
Additional Inherited Members | |
| Static Public Attributes inherited from ns3::TcpSocket | |
| static const char *const | TcpStateName [TcpSocket::LAST_STATE] |
| Literal names of TCP states for use in log messages. | |
| Related Functions inherited from ns3::ObjectBase | |
| static TypeId | GetObjectIid () |
| Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. | |
A base class for implementation of a stream socket using TCP.
This class contains the essential components of TCP, as well as a sockets interface for upper layers to call. This class provides connection orientation and sliding window flow control; congestion control is delegated to subclasses of TcpCongestionOps. Part of TcpSocketBase is modified from the original NS-3 TCP socket implementation (TcpSocketImpl) by Raj Bhattacharjea raj.b.nosp@m.@gat.nosp@m.ech.e.nosp@m.du of Georgia Tech.
For IPv4 packets, the TOS set for the socket is used. The Bind and Connect operations set the TOS for the socket to the value specified in the provided address. A SocketIpTos tag is only added to the packet if the resulting TOS is non-null. Each packet is assigned the priority set for the socket. Setting a TOS for a socket also sets a priority for the socket (according to the Socket::IpTos2Priority function). A SocketPriority tag is only added to the packet if the priority is non-null.
The socket maintains two state machines; the TCP one, and another called "Congestion state machine", which keeps track of the phase we are in. Currently, ns-3 manages the states:
For more information, see the TcpCongState_t documentation.
Congestion control, unlike older releases of ns-3, has been split from TcpSocketBase. In particular, each congestion control is now a subclass of the main TcpCongestionOps class. Switching between congestion algorithm is now a matter of setting a pointer into the TcpSocketBase class. The idea and the interfaces are inspired by the Linux operating system, and in particular from the structure tcp_congestion_ops. The reference paper is https://www.sciencedirect.com/science/article/abs/pii/S1569190X15300939.
The variables needed to congestion control classes to operate correctly have been moved inside the TcpSocketState class. It contains information on the congestion window, slow start threshold, segment size and the state of the Congestion state machine.
To track the trace inside the TcpSocketState class, a "forward" technique is used, which consists in chaining callbacks from TcpSocketState to TcpSocketBase (see for example cWnd trace source).
The fast retransmit enhancement is introduced in RFC 2581 and updated in RFC
The attribute which manages the number of dup ACKs necessary to start the fast retransmit algorithm is named "ReTxThreshold", and by default is 3. The parameter is also used in TcpTxBuffer to determine if a packet is lost (please take a look at TcpTxBuffer documentation to see details) but, right now, it is assumed to be fixed. In future releases this parameter can be made dynamic, to reflect the reordering degree of the network. With SACK, the next sequence to transmit is given by the RFC 6675 algorithm. Without SACK option, the implementation adds "hints" to TcpTxBuffer to make sure it returns, as next transmittable sequence, the first lost (or presumed lost) segment.
The fast recovery algorithm is introduced RFC 2001, and it avoids to reset cWnd to 1 segment after sensing a loss on the channel. Instead, a new slow start threshold value is asked to the congestion control (for instance, with NewReno the returned amount is half of the previous), and the cWnd is set equal to such value. Ns-3 does not implement any inflation/deflation to the congestion window since it uses an evolved method (borrowed from Linux operating system) to calculate the number of bytes in flight. The fundamental idea is to subtract from the total bytes in flight the lost/sacked amount (the segments that have left the network) and to add the retransmitted count. In this way, congestion window represents the exact number of bytes that should be in flight. The implementation then decides what to transmit, it there is space, between new or already transmitted data portion. If a value of the congestion window with inflation and deflation is needed, there is a traced source named "CongestionWindowInflated". However, the variable behind it is not used in the code, but maintained for backward compatibility.
When the Retransmission Time Out expires, the TCP faces a significant performance drop. The expiration event is managed in the ReTxTimeout method, which set the cWnd to 1 segment and starts "from scratch" again. The list of sent packet is set as lost entirely, and the transmission is re-started from the SND.UNA sequence number.
SYN and SYN-ACK options, which are allowed only at the beginning of the connection, are managed in the DoForwardUp and SendEmptyPacket methods. To read all others, we have set up a cycle inside ReadOptions. For adding them, there is no a unique place, since the options (and the information available to build them) are scattered around the code. For instance, the SACK option is built in SendEmptyPacket only under certain conditions.
The SACK generation/management is delegated to the buffer classes, namely TcpTxBuffer and TcpRxBuffer. In TcpRxBuffer it is managed the creation of the SACK option from the receiver point of view. It must provide an accurate (and efficient) representation of the status of the receiver buffer. On the other side, inside TcpTxBuffer the received options (that contain the SACK block) are processed and a particular data structure, called Scoreboard, is filled. Please take a look at TcpTxBuffer and TcpRxBuffer documentation if you need more information. The reference paper is https://dl.acm.org/citation.cfm?id=3067666.
ns3::TcpSocketBase is accessible through the following paths with Config::Set and Config::Connect:
Time +9.22337e+18ns:+9.22337e+18ns Callback Callback Time +9.22337e+18ns:+9.22337e+18ns Off|On|AcceptOnly Time +9.22337e+18ns:+9.22337e+18ns Time +9.22337e+18ns:+9.22337e+18ns Time +9.22337e+18ns:+9.22337e+18ns Size of this type is 1088 bytes (on a 64-bit architecture).
Definition at line 218 of file tcp-socket-base.h.
| typedef void(* ns3::TcpSocketBase::TcpTxRxTracedCallback) (const Ptr< const Packet > packet, const TcpHeader &header, const Ptr< const TcpSocketBase > socket) |
TracedCallback signature for tcp packet transmission or reception events.
| [in] | packet | The packet. |
| [in] | header | The TcpHeader |
| [in] | socket | This socket |
Definition at line 616 of file tcp-socket-base.h.
| ns3::TcpSocketBase::TcpSocketBase | ( | ) |
Create an unbound TCP socket.
Definition at line 267 of file tcp-socket-base.cc.
References GetRWnd(), ns3::TcpSocketState::m_maxPacingRate, ns3::TcpSocketState::m_pacingRate, m_pacingTimer, m_rateOps, ns3::TcpSocketState::m_rxBuffer, ns3::TcpSocketState::m_sendEmptyPacketCallback, m_tcb, m_txBuffer, ns3::MakeCallback(), NotifyPacingPerformed(), NS_ASSERT, NS_LOG_FUNCTION, SendEmptyPacket(), ns3::Timer::SetFunction(), ns3::ObjectBase::TraceConnectWithoutContext(), UpdateBytesInFlight(), UpdateCongState(), UpdateCwnd(), UpdateCwndInfl(), UpdateEcnState(), UpdateHighTxMark(), UpdateNextTxSequence(), UpdatePacingRateTrace(), UpdateRtt(), and UpdateSsThresh().

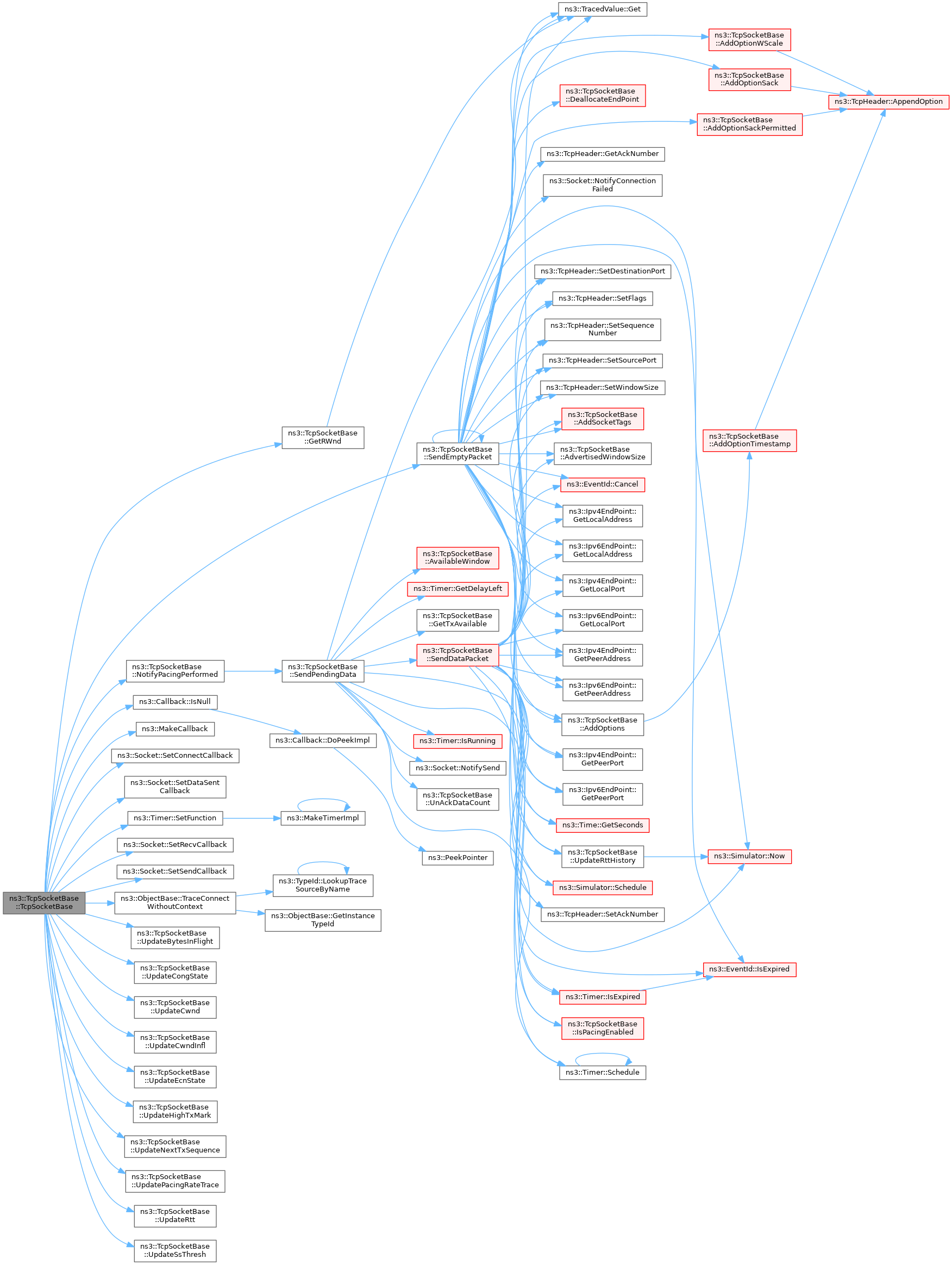

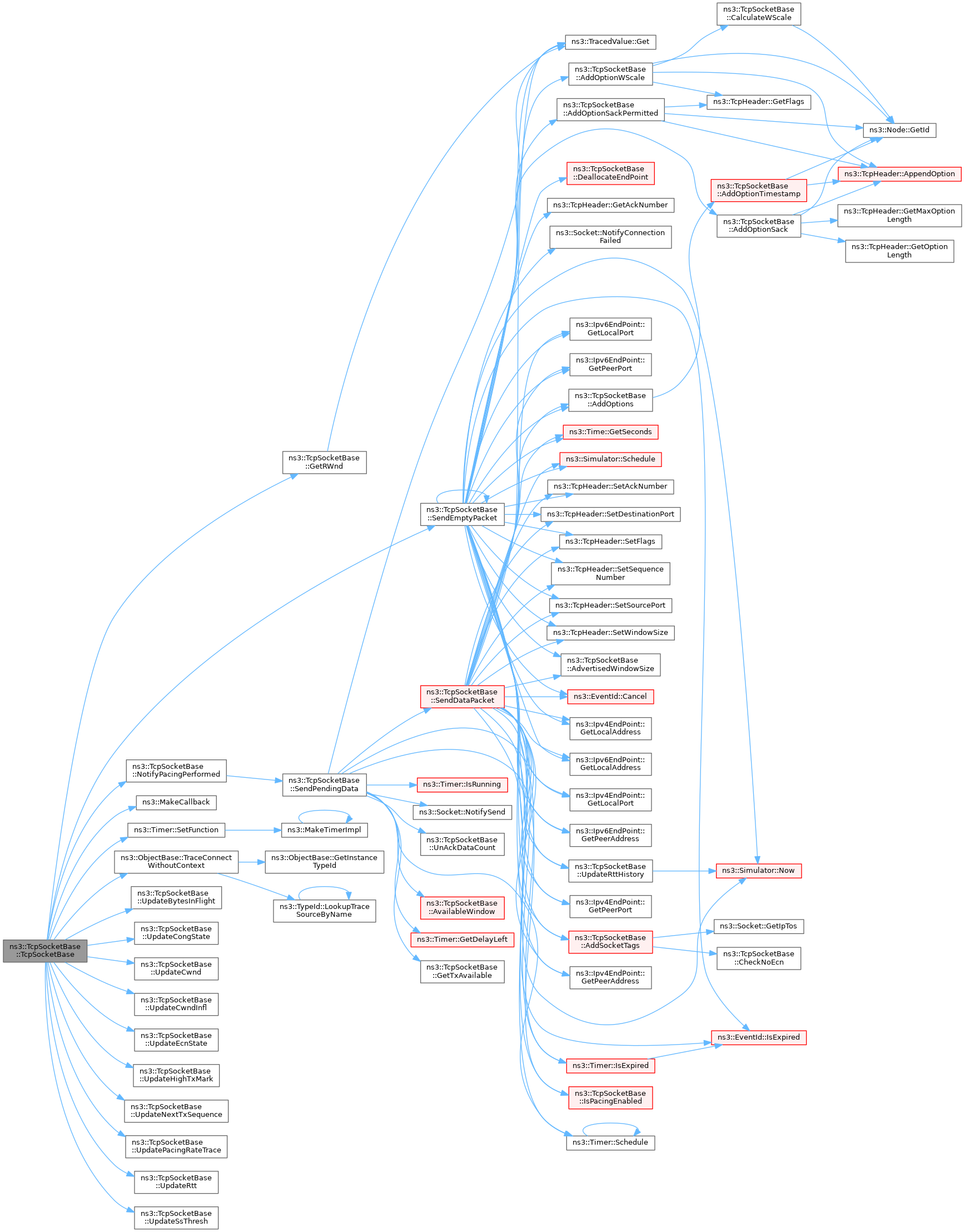

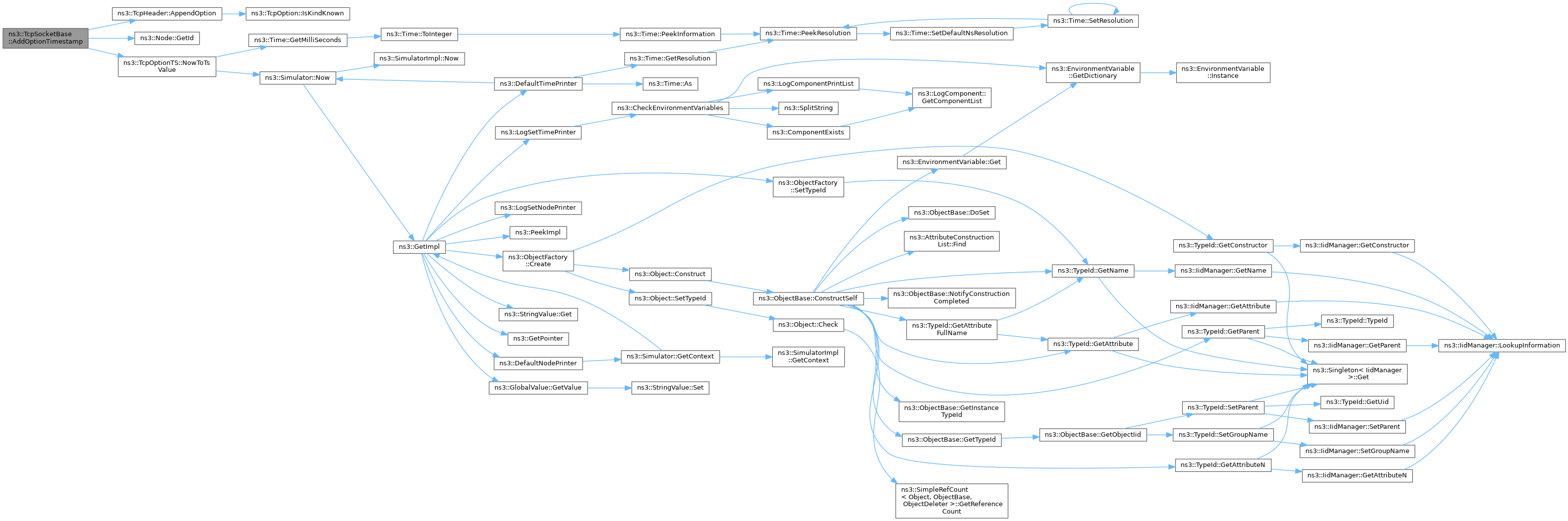

Here is the call graph for this function:| ns3::TcpSocketBase::TcpSocketBase | ( | const TcpSocketBase & | sock | ) |
Clone a TCP socket, for use upon receiving a connection request in LISTEN state.
| sock | the original Tcp Socket |
Definition at line 327 of file tcp-socket-base.cc.
References ns3::Object::CopyObject, GetRWnd(), ns3::Callback< R, UArgs >::IsNull(), m_congestionControl, ns3::TcpSocketState::m_maxPacingRate, ns3::TcpSocketState::m_pacingRate, m_pacingTimer, m_rateOps, m_recoveryOps, m_rtt, ns3::TcpSocketState::m_rxBuffer, ns3::TcpSocketState::m_sendEmptyPacketCallback, m_tcb, m_txBuffer, ns3::MakeCallback(), NotifyPacingPerformed(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, SendEmptyPacket(), ns3::Socket::SetConnectCallback(), ns3::Socket::SetDataSentCallback(), ns3::Timer::SetFunction(), ns3::Socket::SetRecvCallback(), ns3::Socket::SetSendCallback(), ns3::ObjectBase::TraceConnectWithoutContext(), UpdateBytesInFlight(), UpdateCongState(), UpdateCwnd(), UpdateCwndInfl(), UpdateEcnState(), UpdateHighTxMark(), UpdateNextTxSequence(), UpdatePacingRateTrace(), UpdateRtt(), and UpdateSsThresh().

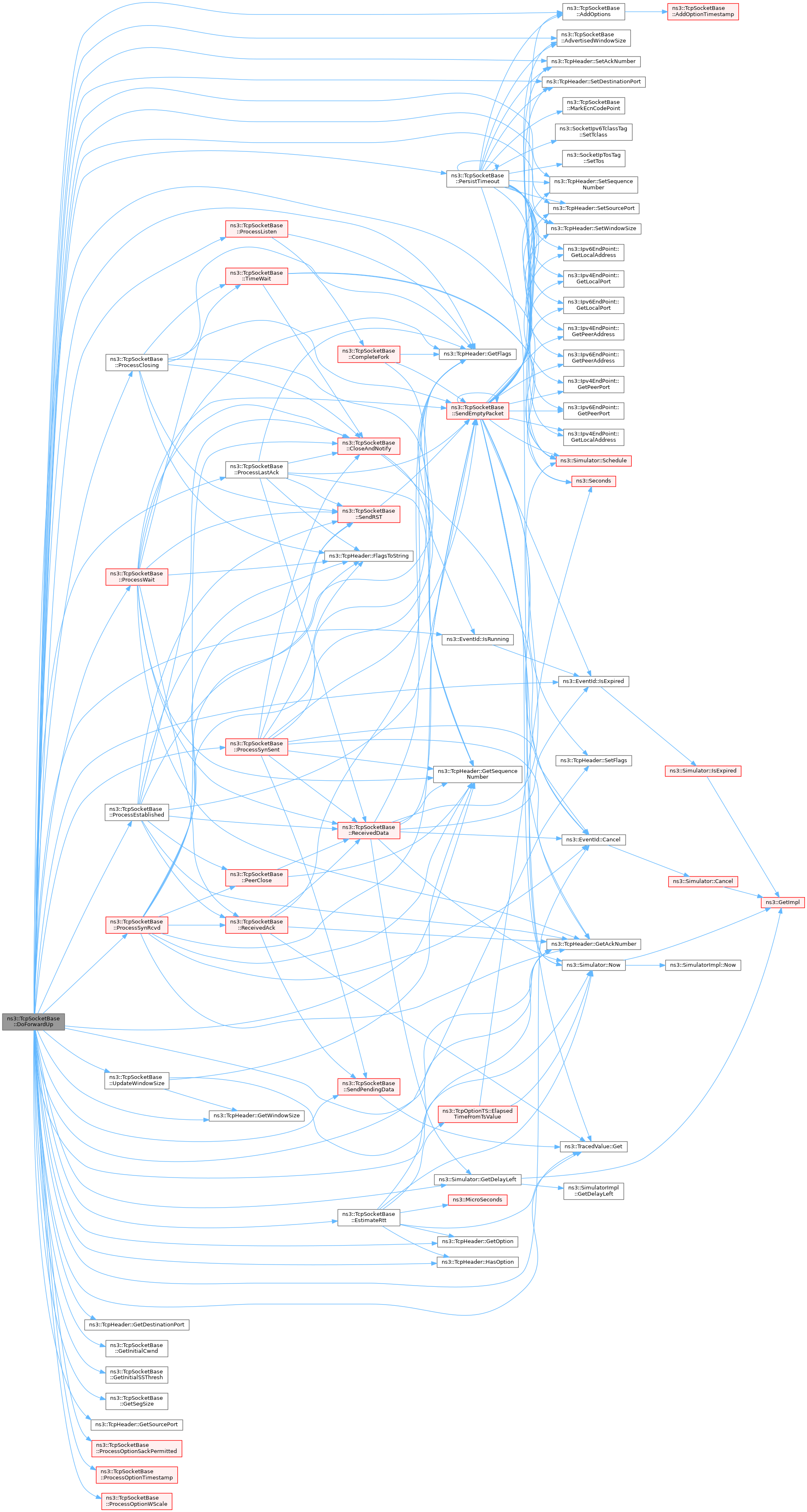

Here is the call graph for this function:
|
override |
Definition at line 463 of file tcp-socket-base.cc.
References CancelAllTimers(), m_endPoint, m_endPoint6, m_node, m_tcp, NS_ASSERT, and NS_LOG_FUNCTION.

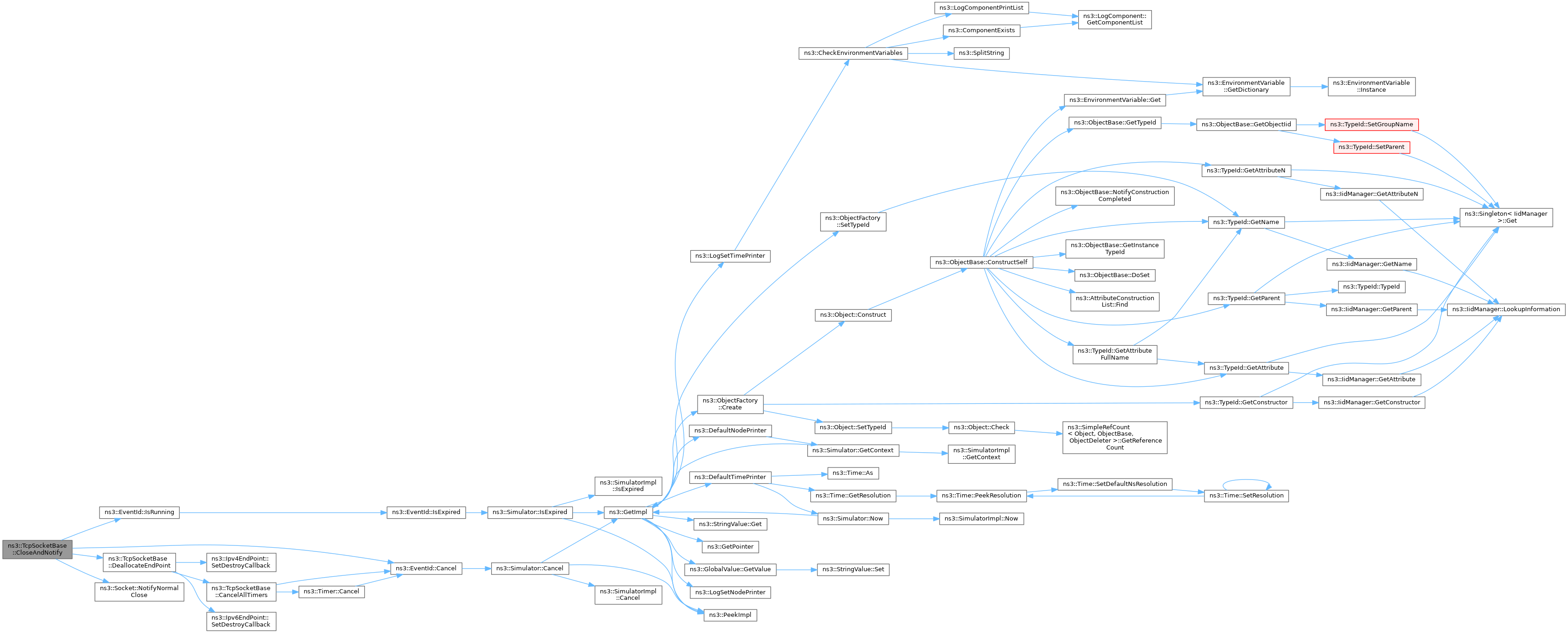

Here is the call graph for this function:
|
protected |
Add options to TcpHeader.
Test each option, and if it is enabled on our side, add it to the header
| tcpHeader | TcpHeader to add options to |
Definition at line 4195 of file tcp-socket-base.cc.
References AddOptionTimestamp(), m_timestampEnabled, and NS_LOG_FUNCTION.
Referenced by DoForwardUp(), PersistTimeout(), SendDataPacket(), TcpDctcpCongestedRouter::SendDataPacket(), ns3::TcpSocketCongestedRouter::SendDataPacket(), SendEmptyPacket(), and ns3::TcpSocketSmallAcks::SendEmptyPacket().

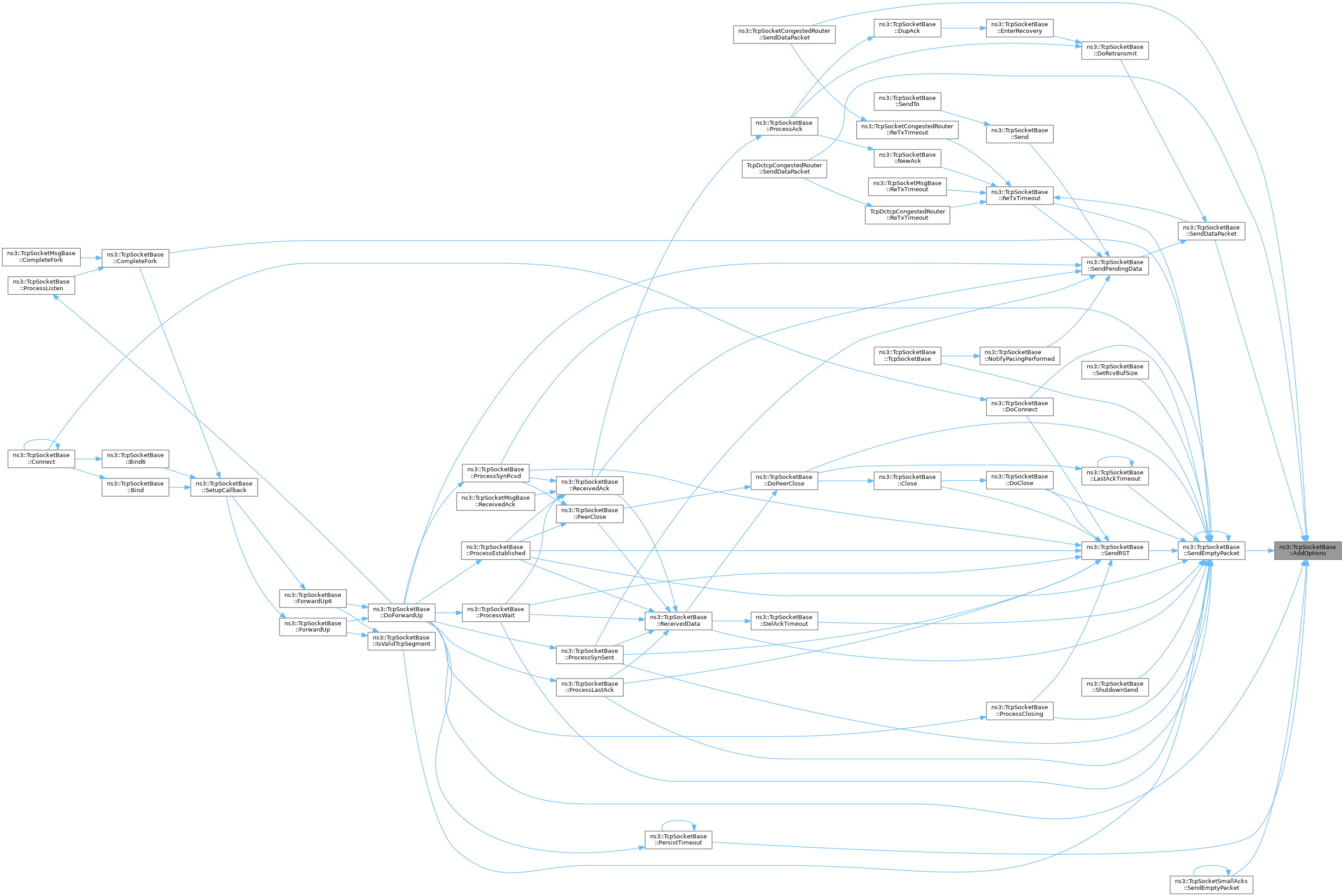

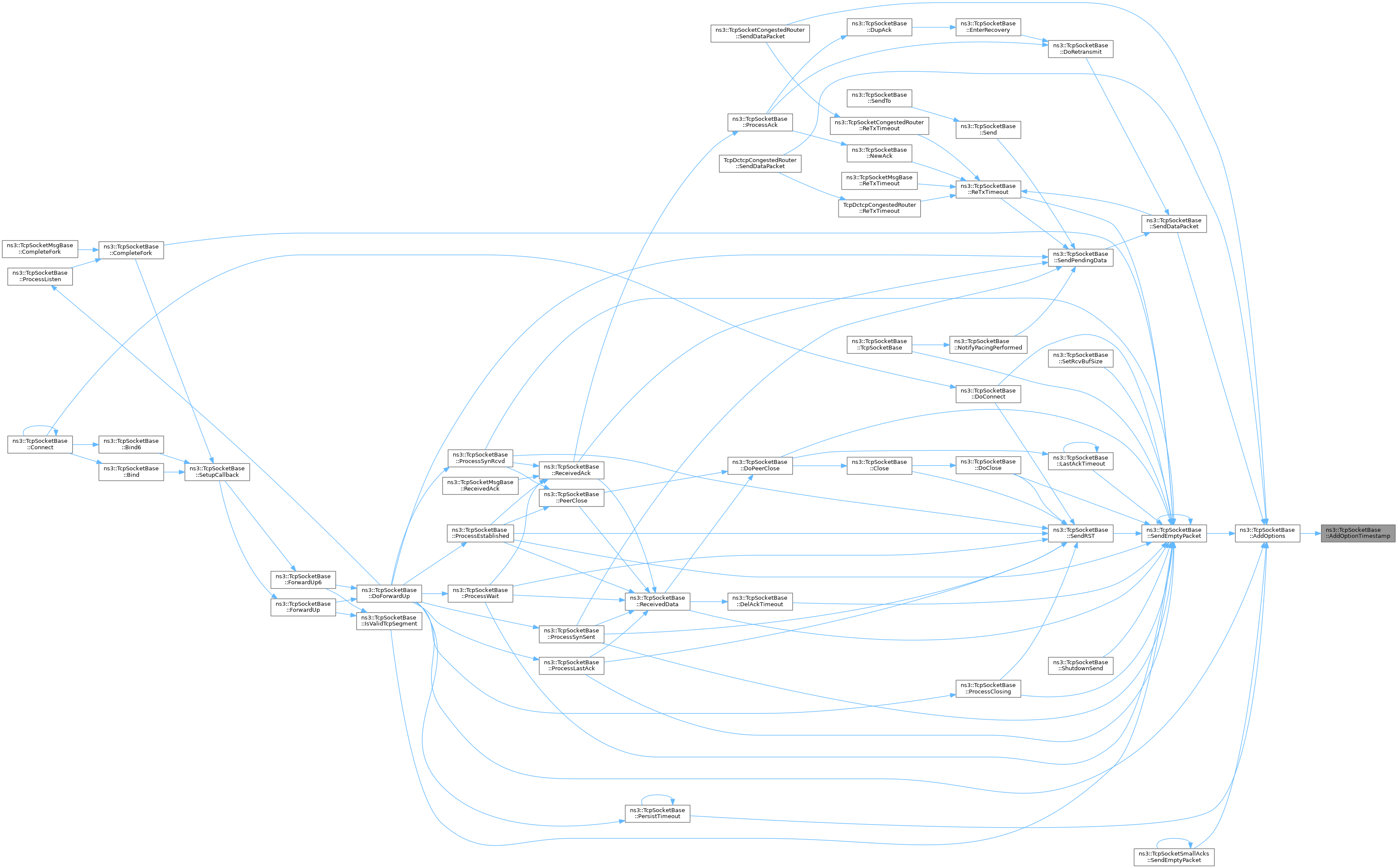

Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
Add the SACK option to the header.
| header | TcpHeader where the method should add the option |
Definition at line 4303 of file tcp-socket-base.cc.
References ns3::TcpHeader::AppendOption(), ns3::Node::GetId(), ns3::TcpHeader::GetMaxOptionLength(), ns3::TcpHeader::GetOptionLength(), m_node, ns3::TcpSocketState::m_rxBuffer, m_tcb, NS_LOG_FUNCTION, NS_LOG_INFO, and NS_LOG_LOGIC.
Referenced by SendEmptyPacket().

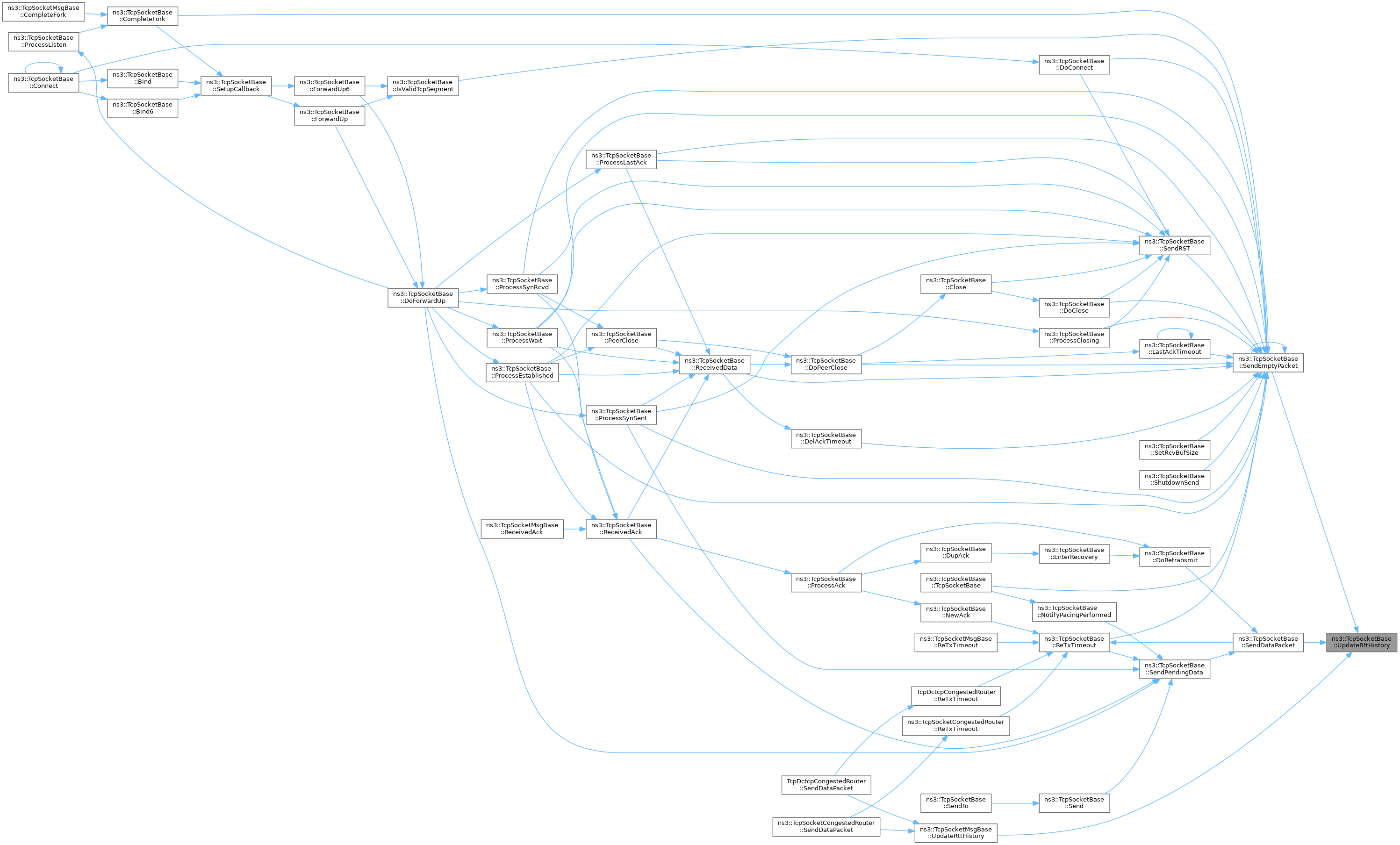

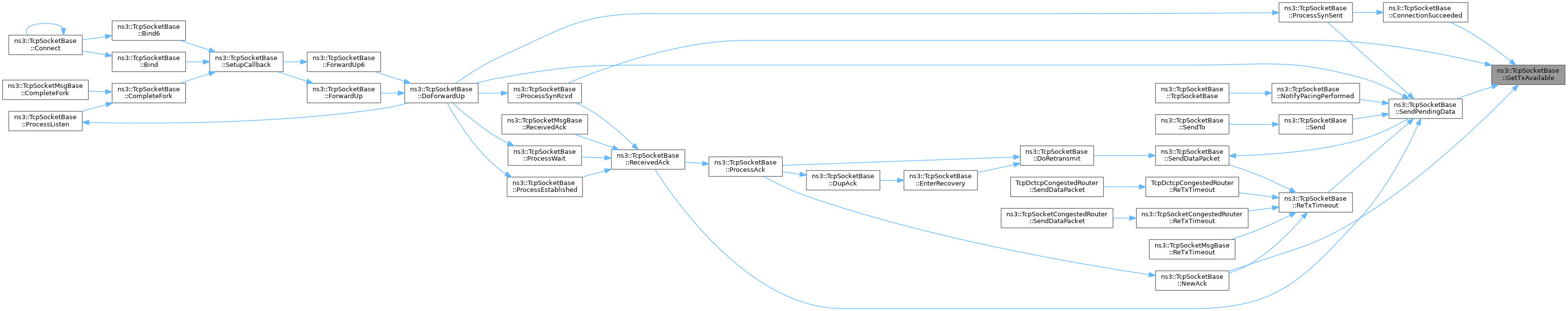

Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
Add the SACK PERMITTED option to the header.
| header | TcpHeader where the method should add the option |
Definition at line 4292 of file tcp-socket-base.cc.
References ns3::TcpHeader::AppendOption(), ns3::TcpHeader::GetFlags(), ns3::Node::GetId(), m_node, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, and ns3::TcpHeader::SYN.
Referenced by SendEmptyPacket().

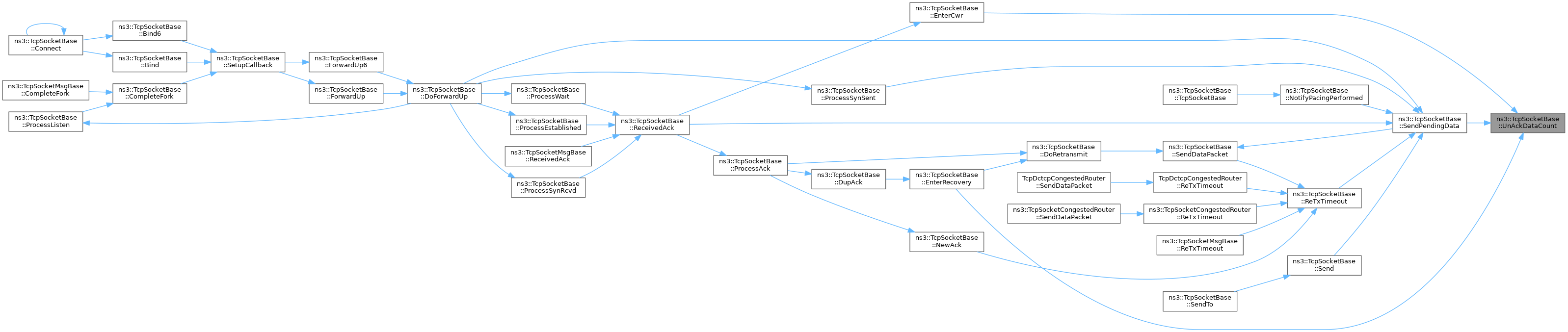

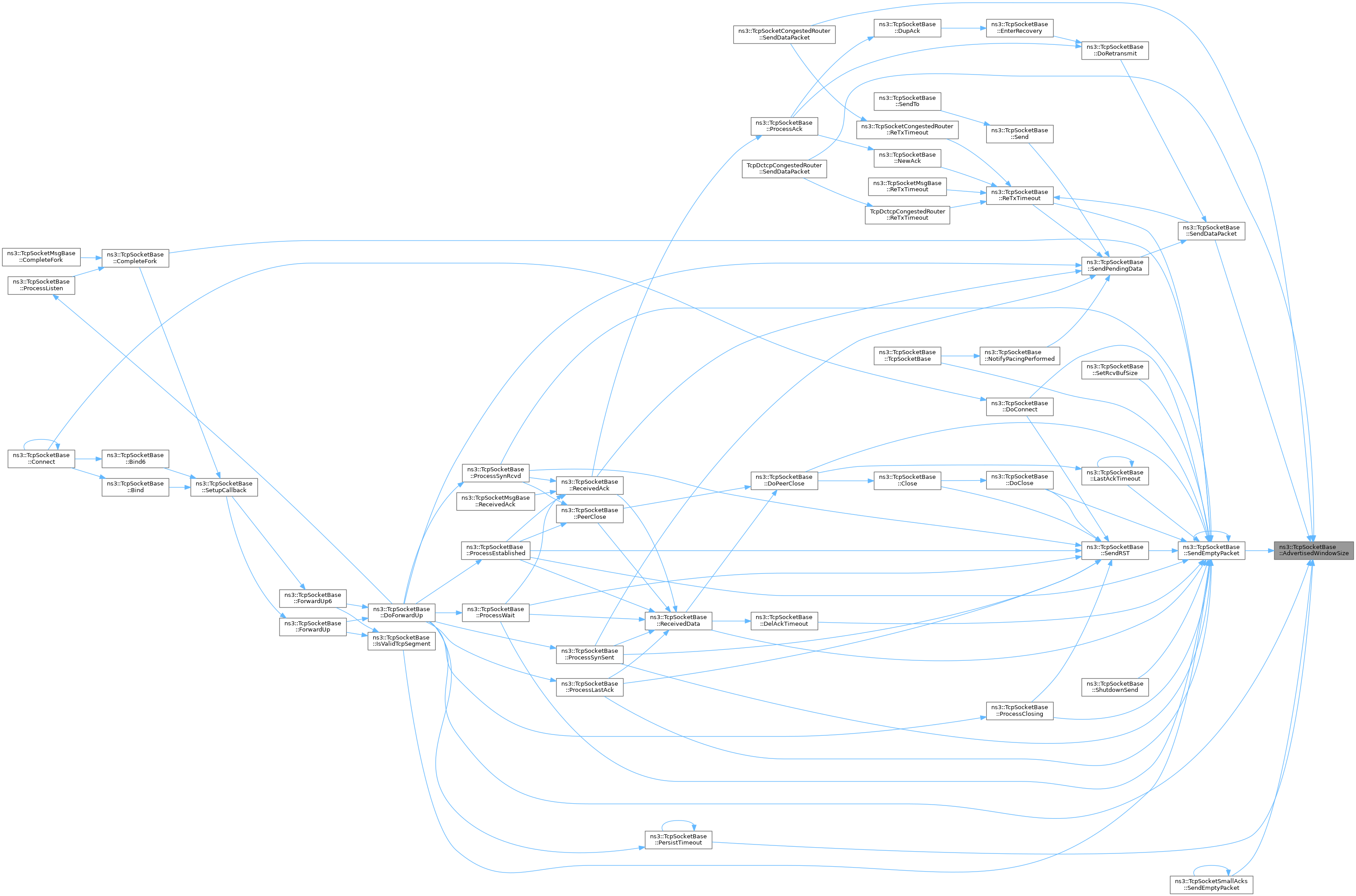

Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
Add the timestamp option to the header.
Set the timestamp as the lower bits of the Simulator::Now time, and the echo value as the last seen timestamp from the other part.
| header | TcpHeader to which add the option to |
Definition at line 4360 of file tcp-socket-base.cc.
References ns3::TcpHeader::AppendOption(), ns3::Node::GetId(), m_node, m_timestampToEcho, ns3::TcpOptionTS::NowToTsValue(), NS_LOG_FUNCTION, and NS_LOG_INFO.
Referenced by AddOptions().
Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
Add the window scale option to the header.
Calculate our factor from the rxBuffer max size, and add it to the header.
| header | TcpHeader where the method should add the window scale option |
Definition at line 4252 of file tcp-socket-base.cc.
References ns3::TcpHeader::AppendOption(), CalculateWScale(), ns3::TcpHeader::GetFlags(), ns3::Node::GetId(), m_node, m_rcvWindShift, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, and ns3::TcpHeader::SYN.
Referenced by SendEmptyPacket().

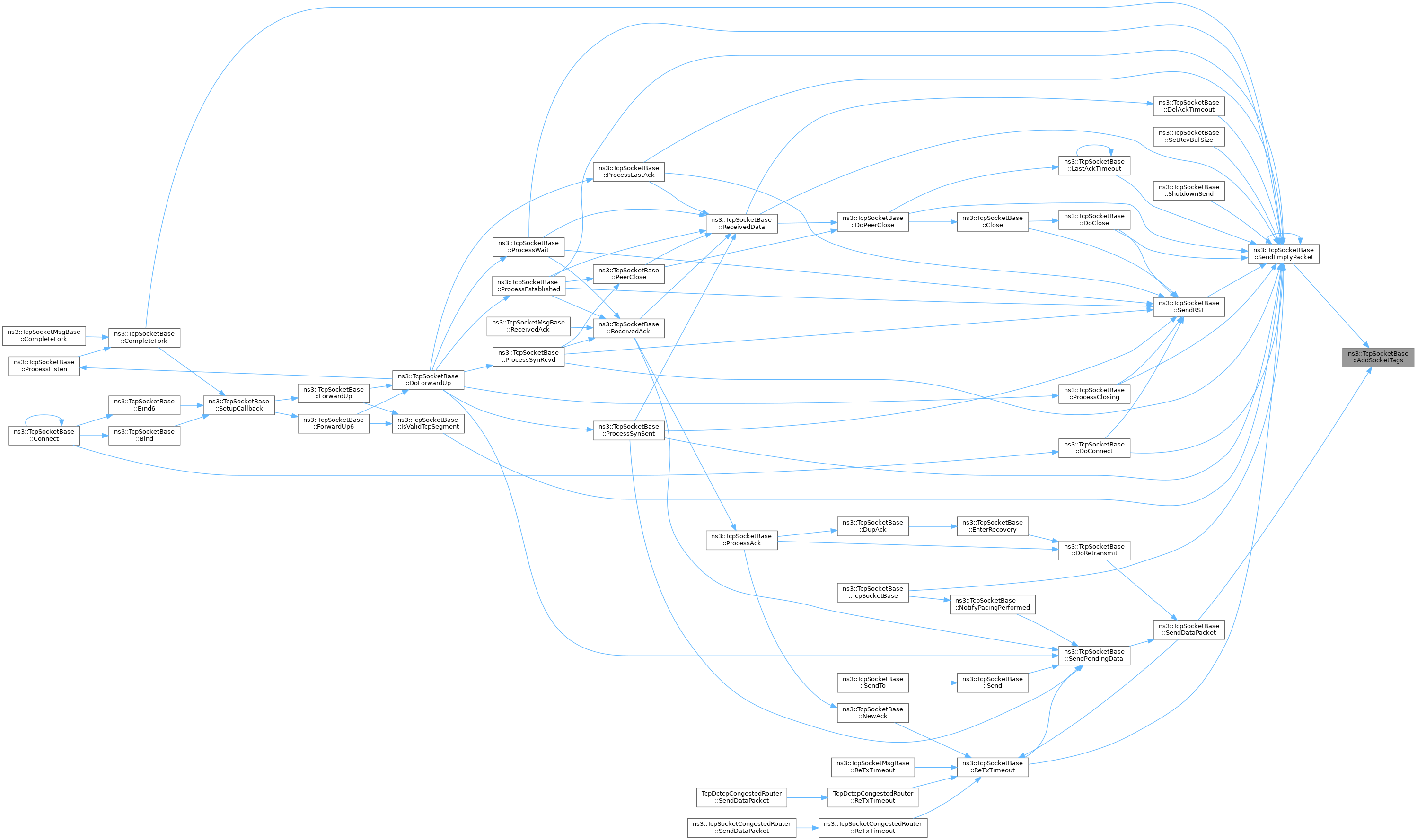

Here is the call graph for this function: Here is the caller graph for this function:Add Tags for the Socket.
| p | Packet |
Definition at line 3034 of file tcp-socket-base.cc.
References CheckNoEcn(), ns3::TcpSocketState::DctcpEcn, ns3::TcpSocketState::ECN_DISABLED, ns3::Socket::GetIpTos(), ns3::Socket::GetIpTtl(), ns3::Socket::GetIpv6HopLimit(), ns3::Socket::GetIpv6Tclass(), ns3::Socket::GetPriority(), ns3::Socket::IsManualIpTtl(), ns3::Socket::IsManualIpv6HopLimit(), ns3::Socket::IsManualIpv6Tclass(), ns3::TcpSocketState::m_ecnMode, ns3::TcpSocketState::m_ecnState, ns3::TcpSocketState::m_ectCodePoint, m_tcb, MarkEcnCodePoint(), ns3::SocketIpv6HopLimitTag::SetHopLimit(), ns3::SocketPriorityTag::SetPriority(), ns3::SocketIpv6TclassTag::SetTclass(), ns3::SocketIpTosTag::SetTos(), and ns3::SocketIpTtlTag::SetTtl().
Referenced by SendDataPacket(), and SendEmptyPacket().

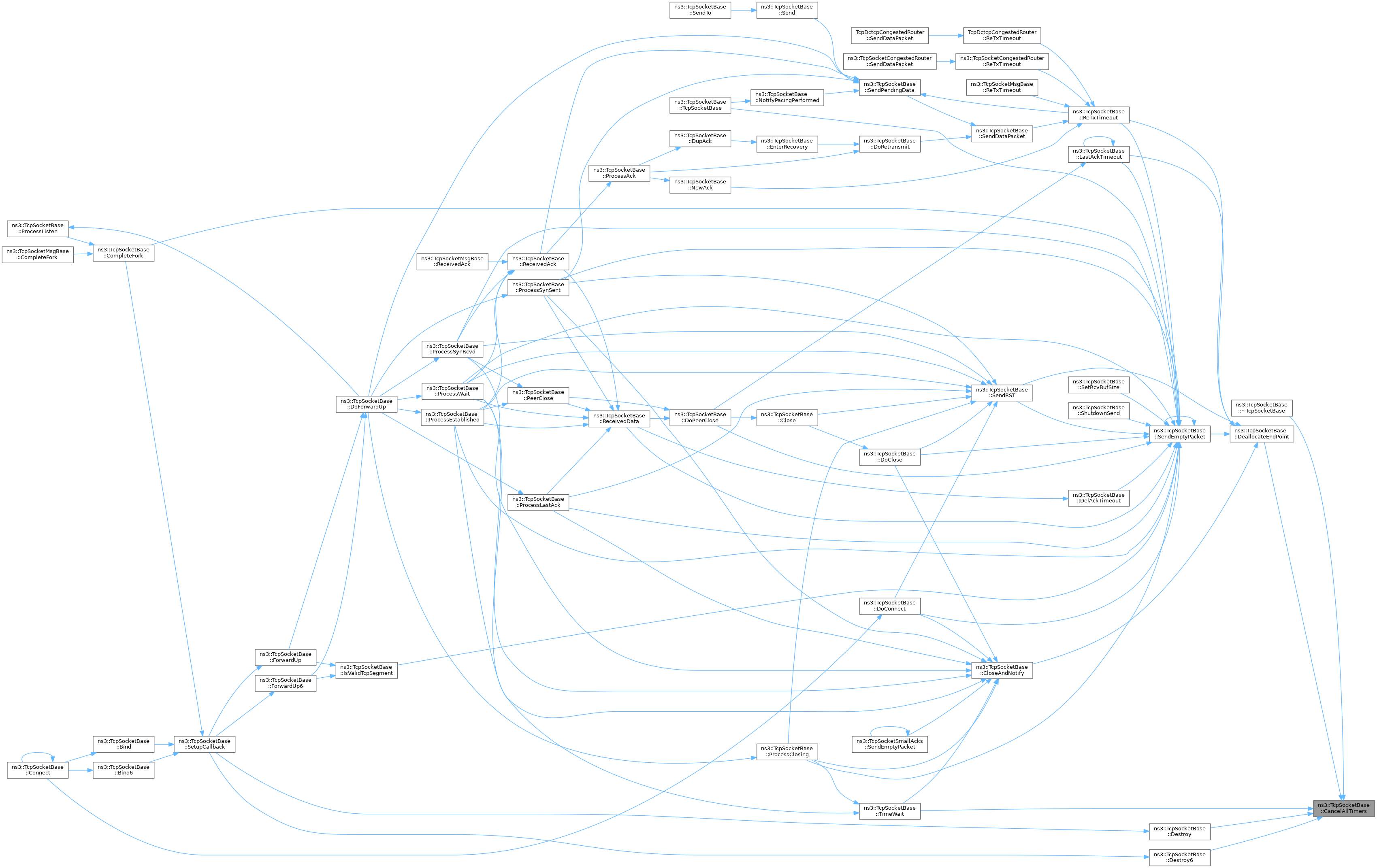

Here is the call graph for this function: Here is the caller graph for this function:
|
protectedvirtual |
The amount of Rx window announced to the peer.
| scale | indicate if the window should be scaled. True for almost all cases, except when we are sending a SYN |
Reimplemented in TcpSocketAdvertisedWindowProxy.
Definition at line 3482 of file tcp-socket-base.cc.
References m_advWnd, m_maxWinSize, m_rcvWindShift, ns3::TcpSocketState::m_rxBuffer, m_tcb, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and NS_LOG_WARN.
Referenced by DoForwardUp(), PersistTimeout(), SendDataPacket(), TcpDctcpCongestedRouter::SendDataPacket(), ns3::TcpSocketCongestedRouter::SendDataPacket(), SendEmptyPacket(), and ns3::TcpSocketSmallAcks::SendEmptyPacket().
Here is the caller graph for this function:
|
protectedvirtual |
Return unfilled portion of window.
Definition at line 3474 of file tcp-socket-base.cc.
References BytesInFlight(), and Window().
Referenced by Send(), and SendPendingData().
Here is the call graph for this function: Here is the caller graph for this function:
|
overridevirtual |
Allocate a local IPv4 endpoint for this socket.
Implements ns3::Socket.
Definition at line 536 of file tcp-socket-base.cc.
References ns3::Socket::ERROR_ADDRNOTAVAIL, m_endPoint, m_errno, m_tcp, NS_LOG_FUNCTION, and SetupCallback().
Referenced by Connect().
Here is the call graph for this function: Here is the caller graph for this function:
|
overridevirtual |
Allocate a local endpoint for this socket.
| address | the address to try to allocate |
Implements ns3::Socket.
Definition at line 570 of file tcp-socket-base.cc.
References ns3::Inet6SocketAddress::ConvertFrom(), ns3::InetSocketAddress::ConvertFrom(), ns3::Socket::ERROR_ADDRINUSE, ns3::Socket::ERROR_ADDRNOTAVAIL, ns3::Socket::ERROR_INVAL, ns3::Ipv4Address::GetAny(), ns3::Ipv6Address::GetAny(), ns3::Socket::GetBoundNetDevice(), ns3::InetSocketAddress::GetIpv4(), ns3::Inet6SocketAddress::GetIpv6(), ns3::InetSocketAddress::GetPort(), ns3::Inet6SocketAddress::GetPort(), ns3::InetSocketAddress::GetTos(), ns3::Inet6SocketAddress::IsMatchingType(), ns3::InetSocketAddress::IsMatchingType(), m_endPoint, m_endPoint6, m_errno, m_tcp, NS_LOG_FUNCTION, NS_LOG_LOGIC, port, ns3::Socket::SetIpTos(), and SetupCallback().
Here is the call graph for this function:
|
overridevirtual |
Allocate a local IPv6 endpoint for this socket.
Implements ns3::Socket.
Definition at line 552 of file tcp-socket-base.cc.
References ns3::Socket::ERROR_ADDRNOTAVAIL, m_endPoint6, m_errno, m_tcp, NS_LOG_FUNCTION, and SetupCallback().
Referenced by Connect().
Here is the call graph for this function: Here is the caller graph for this function:Bind a socket to specific device.
This method corresponds to using setsockopt() SO_BINDTODEVICE of real network or BSD sockets. If set on a socket, this option will force packets to leave the bound device regardless of the device that IP routing would naturally choose. In the receive direction, only packets received from the bound interface will be delivered.
This option has no particular relationship to binding sockets to an address via Socket::Bind (). It is possible to bind sockets to a specific IP address on the bound interface by calling both Socket::Bind (address) and Socket::BindToNetDevice (device), but it is also possible to bind to mismatching device and address, even if the socket can not receive any packets as a result.
| netdevice | Pointer to NetDevice of desired interface |
Reimplemented from ns3::Socket.
Definition at line 1007 of file tcp-socket-base.cc.
References ns3::Ipv4EndPoint::BindToNetDevice(), ns3::Ipv6EndPoint::BindToNetDevice(), ns3::Socket::BindToNetDevice(), m_endPoint, m_endPoint6, and NS_LOG_FUNCTION.
Here is the call graph for this function:
|
protectedvirtual |
Return total bytes in flight.
Does not count segments lost and SACKed (or dupACKed)
Definition at line 3456 of file tcp-socket-base.cc.
References ns3::TcpSocketState::m_bytesInFlight, m_tcb, m_txBuffer, and NS_LOG_DEBUG.
Referenced by AvailableWindow(), EnterCwr(), EnterRecovery(), ProcessAck(), ReceivedAck(), ReTxTimeout(), and SendDataPacket().
Here is the caller graph for this function:
|
protected |
Calculate window scale value based on receive buffer space.
Calculate our factor from the rxBuffer max size
Definition at line 4227 of file tcp-socket-base.cc.
References ns3::Node::GetId(), m_maxWinSize, m_node, ns3::TcpSocketState::m_rxBuffer, m_tcb, NS_LOG_FUNCTION, NS_LOG_INFO, and NS_LOG_WARN.
Referenced by AddOptionWScale().
Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
Cancel all timer when endpoint is deleted.
Definition at line 3994 of file tcp-socket-base.cc.
References ns3::EventId::Cancel(), ns3::Timer::Cancel(), m_delAckEvent, m_lastAckEvent, m_pacingTimer, m_persistEvent, m_retxEvent, m_sendPendingDataEvent, and m_timewaitEvent.
Referenced by ~TcpSocketBase(), DeallocateEndPoint(), Destroy(), Destroy6(), and TimeWait().
Here is the call graph for this function: Here is the caller graph for this function:
|
inline |
Checks for CE codepoint.
| tos | the TOS byte to check |
Definition at line 543 of file tcp-socket-base.h.
|
inline |
Checks for ECT(0) codepoint.
| tos | the TOS byte to check |
Definition at line 521 of file tcp-socket-base.h.
|
inline |
Checks for ECT(1) codepoint.
| tos | the TOS byte to check |
Definition at line 532 of file tcp-socket-base.h.
|
inline |
Checks if TOS has no ECN codepoints.
| tos | the TOS byte to check |
Definition at line 510 of file tcp-socket-base.h.
Referenced by AddSocketTags().
Here is the caller graph for this function:
|
inline |
Clears ECN bits from TOS.
| tos | the TOS byte to modify |
Definition at line 499 of file tcp-socket-base.h.
|
overridevirtual |
Close a socket.
After the Close call, the socket is no longer valid, and cannot safely be used for subsequent operations.
Implements ns3::Socket.
Definition at line 771 of file tcp-socket-base.cc.
References DoClose(), m_closeOnEmpty, ns3::TcpSocketState::m_nextTxSequence, ns3::TcpSocketState::m_rxBuffer, m_state, m_tcb, m_txBuffer, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, SendRST(), and ns3::TcpSocket::TcpStateName.
Referenced by DoPeerClose().
Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
Peacefully close the socket by notifying the upper layer and deallocate end point.
Definition at line 1132 of file tcp-socket-base.cc.
References ns3::EventId::Cancel(), ns3::TcpSocket::CLOSED, DeallocateEndPoint(), ns3::EventId::IsRunning(), m_closeNotified, m_lastAckEvent, m_state, ns3::Socket::NotifyNormalClose(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::TcpSocket::TcpStateName.
Referenced by DoClose(), DoConnect(), ProcessClosing(), ProcessEstablished(), ProcessLastAck(), ProcessSynRcvd(), ProcessSynSent(), ProcessWait(), ns3::TcpSocketSmallAcks::SendEmptyPacket(), and TimeWait().
Here is the call graph for this function: Here is the caller graph for this function:
|
protectedvirtual |
Complete a connection by forking the socket.
This function is called only if a SYN received in LISTEN state. After TcpSocketBase cloned, allocate a new end point to handle the incoming connection and send a SYN+ACK to complete the handshake.
| p | the packet triggering the fork |
| tcpHeader | the TCP header of the triggering packet |
| fromAddress | the address of the remote host |
| toAddress | the address the connection is directed to |
Reimplemented in ns3::TcpSocketMsgBase.
Definition at line 2966 of file tcp-socket-base.cc.
References ns3::TcpHeader::ACK, ns3::Inet6SocketAddress::ConvertFrom(), ns3::InetSocketAddress::ConvertFrom(), ns3::TcpHeader::CWR, ns3::TcpHeader::ECE, ns3::TcpSocketState::ECN_DISABLED, ns3::TcpSocketState::ECN_IDLE, ns3::TcpSocketState::EcnStateName, ns3::Socket::GetBoundNetDevice(), ns3::TcpHeader::GetFlags(), ns3::TcpHeader::GetSequenceNumber(), ns3::Inet6SocketAddress::IsMatchingType(), ns3::InetSocketAddress::IsMatchingType(), m_dataRetrCount, m_dataRetries, ns3::TcpSocketState::m_ecnState, m_endPoint, m_endPoint6, ns3::TcpSocketState::m_rxBuffer, m_state, m_synCount, m_synRetries, m_tcb, m_tcp, ns3::TcpSocketState::m_useEcn, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::TcpSocketState::Off, SendEmptyPacket(), SetupCallback(), ns3::TcpHeader::SYN, and ns3::TcpSocket::SYN_RCVD.
Referenced by ns3::TcpSocketMsgBase::CompleteFork(), and ProcessListen().
Here is the call graph for this function: Here is the caller graph for this function:
|
overridevirtual |
Initiate a connection to a remote host.
| address | Address of remote. |
Implements ns3::Socket.
Definition at line 675 of file tcp-socket-base.cc.
References Bind(), Bind6(), Connect(), ns3::Inet6SocketAddress::ConvertFrom(), ns3::InetSocketAddress::ConvertFrom(), DoConnect(), ns3::Socket::ERROR_INVAL, ns3::InetSocketAddress::GetIpv4(), ns3::Ipv6Address::GetIpv4MappedAddress(), ns3::Inet6SocketAddress::GetIpv6(), ns3::InetSocketAddress::GetPort(), ns3::Inet6SocketAddress::GetPort(), ns3::InetSocketAddress::GetTos(), ns3::Ipv6Address::IsIpv4MappedAddress(), ns3::Inet6SocketAddress::IsMatchingType(), ns3::InetSocketAddress::IsMatchingType(), m_dataRetrCount, m_dataRetries, m_endPoint, m_endPoint6, m_errno, m_rtt, m_synCount, m_synRetries, NS_ASSERT, NS_LOG_ERROR, NS_LOG_FUNCTION, ns3::Socket::SetIpTos(), ns3::Ipv4EndPoint::SetPeer(), ns3::Ipv6EndPoint::SetPeer(), SetupEndpoint(), and SetupEndpoint6().
Referenced by Connect().
Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
Schedule-friendly wrapper for Socket::NotifyConnectionSucceeded()
Definition at line 3020 of file tcp-socket-base.cc.
References GetTxAvailable(), ns3::Socket::NotifyConnectionSucceeded(), and ns3::Socket::NotifySend().
Referenced by ProcessSynSent().
Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
Deallocate m_endPoint and m_endPoint6.
Definition at line 2876 of file tcp-socket-base.cc.
References CancelAllTimers(), m_endPoint, m_endPoint6, m_tcp, ns3::Ipv4EndPoint::SetDestroyCallback(), and ns3::Ipv6EndPoint::SetDestroyCallback().
Referenced by CloseAndNotify(), LastAckTimeout(), ReTxTimeout(), SendEmptyPacket(), and SendRST().
Here is the call graph for this function: Here is the caller graph for this function:
|
protectedvirtual |
Action upon delay ACK timeout, i.e.
send an ACK
Definition at line 3857 of file tcp-socket-base.cc.
References ns3::TcpHeader::ACK, ns3::TcpSocketState::CA_EVENT_DELAYED_ACK, ns3::TcpHeader::ECE, ns3::TcpSocketState::ECN_CE_RCVD, ns3::TcpSocketState::ECN_SENDING_ECE, m_congestionControl, m_delAckCount, ns3::TcpSocketState::m_ecnState, m_tcb, and SendEmptyPacket().
Referenced by ReceivedData().
Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
Kill this socket by zeroing its attributes (IPv4)
This is a callback function configured to m_endpoint in SetupCallback(), invoked when the endpoint is destroyed.
Definition at line 2701 of file tcp-socket-base.cc.
References CancelAllTimers(), ns3::Simulator::GetDelayLeft(), m_endPoint, m_retxEvent, m_tcp, ns3::Simulator::Now(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.
Referenced by SetupCallback().
Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
Kill this socket by zeroing its attributes (IPv6)
This is a callback function configured to m_endpoint in SetupCallback(), invoked when the endpoint is destroyed.
Definition at line 2717 of file tcp-socket-base.cc.
References CancelAllTimers(), ns3::Simulator::GetDelayLeft(), m_endPoint6, m_retxEvent, m_tcp, ns3::Simulator::Now(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.
Referenced by SetupCallback().
Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
Close a socket by sending RST, FIN, or FIN+ACK, depend on the current state.
Definition at line 1090 of file tcp-socket-base.cc.
References ns3::TcpHeader::ACK, ns3::TcpSocket::CLOSE_WAIT, CloseAndNotify(), ns3::TcpSocket::CLOSED, ns3::TcpSocket::CLOSING, ns3::TcpSocket::ESTABLISHED, ns3::TcpHeader::FIN, ns3::TcpSocket::FIN_WAIT_1, ns3::TcpSocket::FIN_WAIT_2, ns3::TcpSocket::LAST_ACK, ns3::TcpSocket::LISTEN, m_state, NS_LOG_DEBUG, NS_LOG_FUNCTION, SendEmptyPacket(), SendRST(), ns3::TcpSocket::SYN_RCVD, ns3::TcpSocket::SYN_SENT, and ns3::TcpSocket::TIME_WAIT.
Referenced by Close().
Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
Perform the real connection tasks: Send SYN if allowed, RST if invalid.
Definition at line 1056 of file tcp-socket-base.cc.
References ns3::TcpSocket::CLOSE_WAIT, CloseAndNotify(), ns3::TcpSocket::CLOSED, ns3::TcpHeader::CWR, ns3::TcpHeader::ECE, ns3::TcpSocketState::ECN_DISABLED, ns3::TcpSocket::LAST_ACK, ns3::TcpSocket::LISTEN, ns3::TcpSocketState::m_ecnState, m_state, m_tcb, ns3::TcpSocketState::m_useEcn, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::TcpSocketState::On, SendEmptyPacket(), SendRST(), ns3::TcpHeader::SYN, ns3::TcpSocket::SYN_SENT, ns3::TcpSocket::TcpStateName, and ns3::TcpSocket::TIME_WAIT.
Referenced by Connect().
Here is the call graph for this function: Here is the caller graph for this function:
|
protectedvirtual |
Called by TcpSocketBase::ForwardUp{,6}().
Get a packet from L3. This is the real function to handle the incoming packet from lower layers. This is wrapped by ForwardUp() so that this function can be overloaded by daughter classes.
| packet | the incoming packet |
| fromAddress | the address of the sender of packet |
| toAddress | the address of the receiver of packet (hopefully, us) |
Definition at line 1309 of file tcp-socket-base.cc.
References ns3::TcpHeader::ACK, AddOptions(), AdvertisedWindowSize(), ns3::EventId::Cancel(), ns3::TcpSocket::CLOSE_WAIT, ns3::TcpSocket::CLOSED, ns3::TcpSocket::CLOSING, ns3::TcpHeader::CWR, ns3::TcpSocketState::ECN_CE_RCVD, ns3::TcpSocketState::ECN_IDLE, ns3::TcpSocketState::EcnStateName, ns3::TcpSocket::ESTABLISHED, EstimateRtt(), ns3::TcpSocket::FIN_WAIT_1, ns3::TcpSocket::FIN_WAIT_2, ns3::TracedValue< T >::Get(), ns3::TcpHeader::GetAckNumber(), ns3::Simulator::GetDelayLeft(), ns3::TcpHeader::GetDestinationPort(), ns3::TcpHeader::GetFlags(), GetInitialCwnd(), GetInitialSSThresh(), ns3::TcpHeader::GetOption(), GetSegSize(), ns3::TcpHeader::GetSequenceNumber(), ns3::TcpHeader::GetSourcePort(), ns3::TcpHeader::GetWindowSize(), ns3::TcpHeader::HasOption(), ns3::EventId::IsExpired(), ns3::EventId::IsRunning(), ns3::TcpSocket::LAST_ACK, ns3::TcpSocket::LISTEN, ns3::Socket::m_boundnetdevice, m_connected, ns3::TcpSocketState::m_cWnd, ns3::TcpSocketState::m_cWndInfl, ns3::TcpSocketState::m_ecnState, m_highRxAckMark, ns3::TcpSocketState::m_nextTxSequence, m_persistEvent, m_persistTimeout, m_retxEvent, m_rWnd, ns3::TcpSocketState::m_rxBuffer, m_rxTrace, m_sackEnabled, ns3::TcpSocketState::m_ssThresh, m_state, m_tcb, m_tcp, m_timestampEnabled, m_txBuffer, m_txTrace, m_winScalingEnabled, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_LOGIC, PersistTimeout(), ProcessClosing(), ProcessEstablished(), ProcessLastAck(), ProcessListen(), ProcessOptionSackPermitted(), ProcessOptionTimestamp(), ProcessOptionWScale(), ProcessSynRcvd(), ProcessSynSent(), ProcessWait(), ns3::TcpHeader::PSH, ns3::TcpHeader::RST, ns3::TcpOption::SACKPERMITTED, ns3::Simulator::Schedule(), SendPendingData(), ns3::TcpHeader::SetAckNumber(), ns3::TcpHeader::SetDestinationPort(), ns3::TcpHeader::SetFlags(), ns3::TcpHeader::SetSequenceNumber(), ns3::TcpHeader::SetSourcePort(), ns3::TcpHeader::SetWindowSize(), ns3::TcpHeader::SYN, ns3::TcpSocket::SYN_RCVD, ns3::TcpSocket::SYN_SENT, ns3::TcpSocket::TcpStateName, ns3::TcpSocket::TIME_WAIT, ns3::TcpOption::TS, UpdateWindowSize(), ns3::TcpHeader::URG, and ns3::TcpOption::WINSCALE.
Referenced by ForwardUp(), and ForwardUp6().
Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
FIN is in sequence, notify app and respond with a FIN.
Definition at line 2660 of file tcp-socket-base.cc.
References ns3::TcpHeader::ACK, Close(), ns3::TcpSocket::CLOSE_WAIT, ns3::TcpSocket::ESTABLISHED, ns3::TcpSocket::FIN_WAIT_1, ns3::TcpSocket::FIN_WAIT_2, ns3::TcpSocket::LAST_ACK, LastAckTimeout(), m_clockGranularity, m_closeNotified, m_dataRetrCount, m_dataRetries, m_lastAckEvent, m_rtt, m_shutdownSend, m_state, Max, ns3::Socket::NotifyNormalClose(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_LOGIC, ns3::Simulator::Schedule(), SendEmptyPacket(), ns3::TcpSocket::SYN_RCVD, and ns3::TcpSocket::TcpStateName.
Referenced by PeerClose(), and ReceivedData().
Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
Retransmit the first segment marked as lost, without considering available window nor pacing.
Definition at line 3959 of file tcp-socket-base.cc.
References ns3::TcpSocketState::m_nextTxSequence, m_sackEnabled, ns3::TcpSocketState::m_segmentSize, m_tcb, m_txBuffer, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, and SendDataPacket().
Referenced by EnterRecovery(), and ProcessAck().
Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
Dupack management.
| currentDelivered | Current (S)ACKed bytes |
Definition at line 1699 of file tcp-socket-base.cc.
References ns3::TcpSocketState::CA_DISORDER, ns3::TcpSocketState::CA_LOSS, ns3::TcpSocketState::CA_OPEN, ns3::TcpSocketState::CA_RECOVERY, EnterRecovery(), m_congestionControl, ns3::TcpSocketState::m_congState, ns3::TcpSocketState::m_cWnd, m_dupAckCount, m_highRxAckMark, m_limitedTx, m_recover, m_recoverActive, m_recoveryOps, m_retxThresh, m_sackEnabled, ns3::TcpSocketState::m_segmentSize, m_tcb, m_txBuffer, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, and NS_LOG_INFO.
Referenced by ProcessAck().
Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
Enter CA_CWR state upon receipt of an ECN Echo.
| currentDelivered | Currently (S)ACKed bytes |
Definition at line 1615 of file tcp-socket-base.cc.
References BytesInFlight(), ns3::TcpSocketState::CA_CWR, m_congestionControl, ns3::TcpSocketState::m_congState, ns3::TcpSocketState::m_cWnd, ns3::TcpSocketState::m_cWndInfl, m_dupAckCount, ns3::TcpSocketState::m_highTxMark, m_recover, m_recoveryOps, ns3::TcpSocketState::m_ssThresh, m_tcb, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::TcpSocketState::TcpCongStateName, and UnAckDataCount().
Referenced by ReceivedAck().
Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
Enter the CA_RECOVERY, and retransmit the head.
| currentDelivered | Currently (S)ACKed bytes |
Definition at line 1642 of file tcp-socket-base.cc.
References BytesInFlight(), ns3::TcpSocketState::CA_RECOVERY, DoRetransmit(), m_congestionControl, ns3::TcpSocketState::m_congState, ns3::TcpSocketState::m_cWnd, m_dupAckCount, ns3::TcpSocketState::m_highTxMark, m_recover, m_recoverActive, m_recoveryOps, m_sackEnabled, ns3::TcpSocketState::m_segmentSize, ns3::TcpSocketState::m_ssThresh, m_tcb, m_txBuffer, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::TcpSocketState::TcpCongStateName, and UnAckDataCount().
Referenced by DupAck().
Here is the call graph for this function: Here is the caller graph for this function:
|
protectedvirtual |
Take into account the packet for RTT estimation.
| tcpHeader | the packet's TCP header |
Definition at line 3621 of file tcp-socket-base.cc.
References ns3::RttHistory::count, ns3::TcpOptionTS::ElapsedTimeFromTsValue(), ns3::TracedValue< T >::Get(), ns3::TcpHeader::GetAckNumber(), ns3::TcpHeader::GetOption(), ns3::TcpHeader::HasOption(), m_clockGranularity, m_history, ns3::TcpSocketState::m_lastRtt, m_minRto, ns3::TcpSocketState::m_minRtt, m_rto, m_rtt, m_tcb, m_timestampEnabled, Max, ns3::MicroSeconds(), ns3::Simulator::Now(), NS_LOG_INFO, NS_LOG_LOGIC, ns3::RttHistory::retx, ns3::RttHistory::seq, ns3::RttHistory::time, and ns3::TcpOption::TS.
Referenced by DoForwardUp().
Here is the call graph for this function: Here is the caller graph for this function:
|
protectedvirtual |
Call CopyObject<> to clone me.
Reimplemented in TcpSocketAdvertisedWindowProxy, TcpSocketHalfAck, TcpDctcpCongestedRouter, ns3::TcpSocketCongestedRouter, ns3::TcpSocketMsgBase, and ns3::TcpSocketSmallAcks.
Definition at line 4543 of file tcp-socket-base.cc.
Referenced by ProcessListen().
Here is the caller graph for this function:
|
protected |
Called by the L3 protocol when it received an ICMP packet to pass on to TCP.
| icmpSource | the ICMP source address |
| icmpTtl | the ICMP Time to Live |
| icmpType | the ICMP Type |
| icmpCode | the ICMP Code |
| icmpInfo | the ICMP Info |
Definition at line 1253 of file tcp-socket-base.cc.
References m_icmpCallback, and NS_LOG_FUNCTION.
Referenced by SetupCallback().
Here is the caller graph for this function:
|
protected |
Called by the L3 protocol when it received an ICMPv6 packet to pass on to TCP.
| icmpSource | the ICMP source address |
| icmpTtl | the ICMP Time to Live |
| icmpType | the ICMP Type |
| icmpCode | the ICMP Code |
| icmpInfo | the ICMP Info |
Definition at line 1269 of file tcp-socket-base.cc.
References m_icmpCallback6, and NS_LOG_FUNCTION.
Referenced by SetupCallback().
Here is the caller graph for this function:
|
protected |
Called by the L3 protocol when it received a packet to pass on to TCP.
| packet | the incoming packet |
| header | the packet's IPv4 header |
| port | the remote port |
| incomingInterface | the incoming interface |
Definition at line 1174 of file tcp-socket-base.cc.
References ns3::TcpSocketState::CA_EVENT_ECN_IS_CE, ns3::TcpSocketState::CA_EVENT_ECN_NO_CE, DoForwardUp(), ns3::Ipv4Header::ECN_CE, ns3::TcpSocketState::ECN_CE_RCVD, ns3::TcpSocketState::ECN_DISABLED, ns3::Ipv4Header::ECN_NotECT, ns3::TcpSocketState::EcnStateName, ns3::Ipv4Header::GetDestination(), ns3::Ipv4Header::GetEcn(), ns3::Ipv4EndPoint::GetLocalAddress(), ns3::Ipv4EndPoint::GetLocalPort(), ns3::Ipv4EndPoint::GetPeerAddress(), ns3::Ipv4EndPoint::GetPeerPort(), ns3::TcpHeader::GetSequenceNumber(), ns3::Ipv4Header::GetSource(), IsValidTcpSegment(), m_congestionControl, m_ecnCESeq, ns3::TcpSocketState::m_ecnState, m_endPoint, m_tcb, NS_LOG_DEBUG, NS_LOG_INFO, NS_LOG_LOGIC, and port.
Referenced by SetupCallback().
Here is the call graph for this function:
