hold a list of per-remote-station state. More...
#include "wifi-remote-station-manager.h"

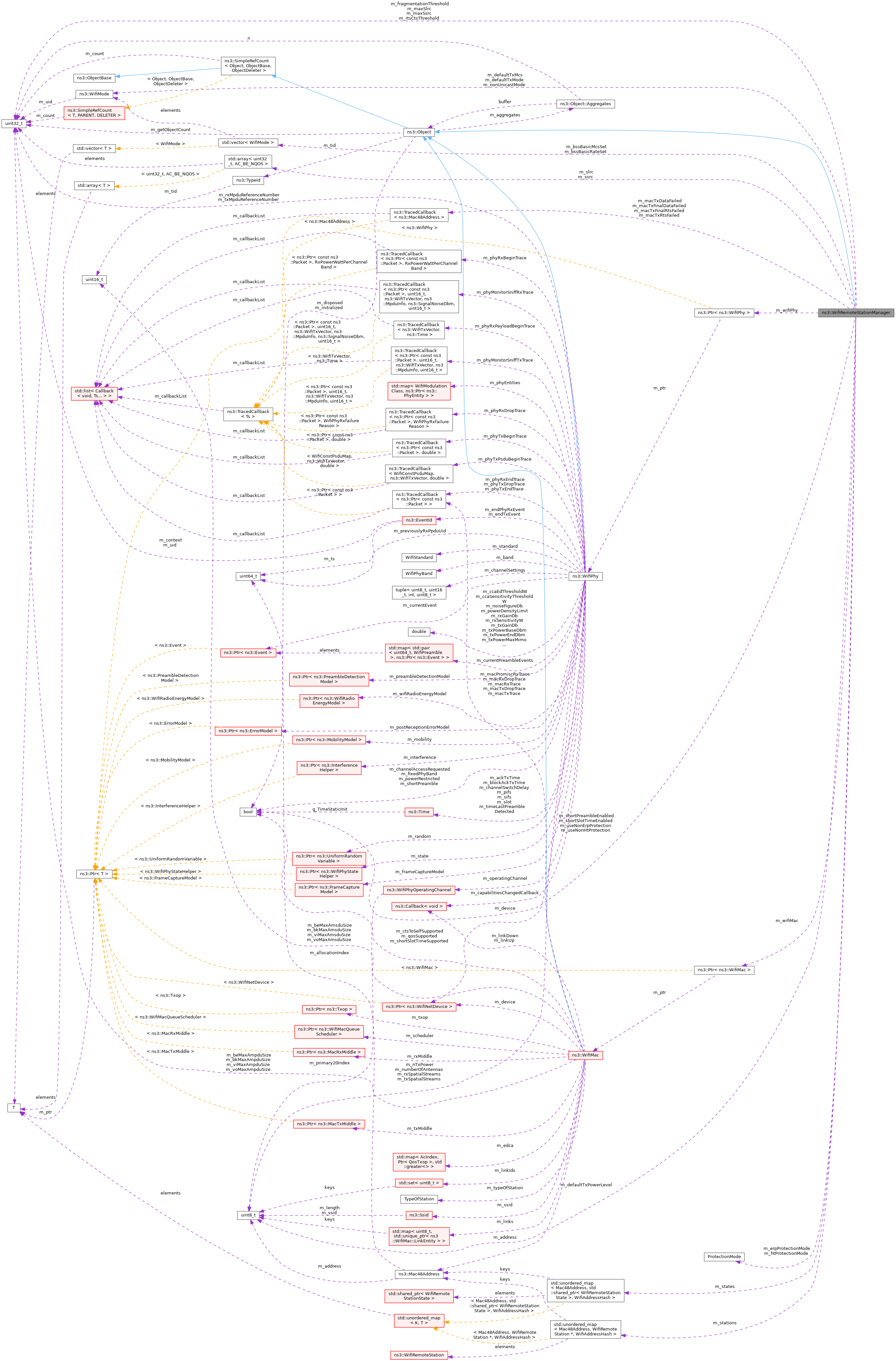

Inheritance diagram for ns3::WifiRemoteStationManager: Collaboration diagram for ns3::WifiRemoteStationManager:Public Types | |
| typedef void(* | PowerChangeTracedCallback) (double oldPower, double newPower, Mac48Address remoteAddress) |
| TracedCallback signature for power change events. | |
| enum | ProtectionMode { RTS_CTS , CTS_TO_SELF } |
| ProtectionMode enumeration. More... | |
| typedef void(* | RateChangeTracedCallback) (DataRate oldRate, DataRate newRate, Mac48Address remoteAddress) |
| TracedCallback signature for rate change events. | |
| using | Stations = std::unordered_map< Mac48Address, WifiRemoteStation *, WifiAddressHash > |
| A map of WifiRemoteStations with Mac48Address as key. | |
| using | StationStates = std::unordered_map< Mac48Address, std::shared_ptr< WifiRemoteStationState >, WifiAddressHash > |
| A map of WifiRemoteStationStates with Mac48Address as key. | |
Public Member Functions | |
| WifiRemoteStationManager () | |
| ~WifiRemoteStationManager () override | |
| void | AddAllSupportedMcs (Mac48Address address) |
| Invoked in a STA or AP to store all of the MCS supported by a destination which is also supported locally. | |

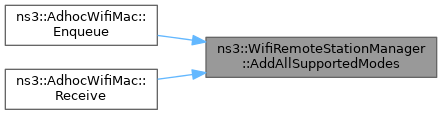

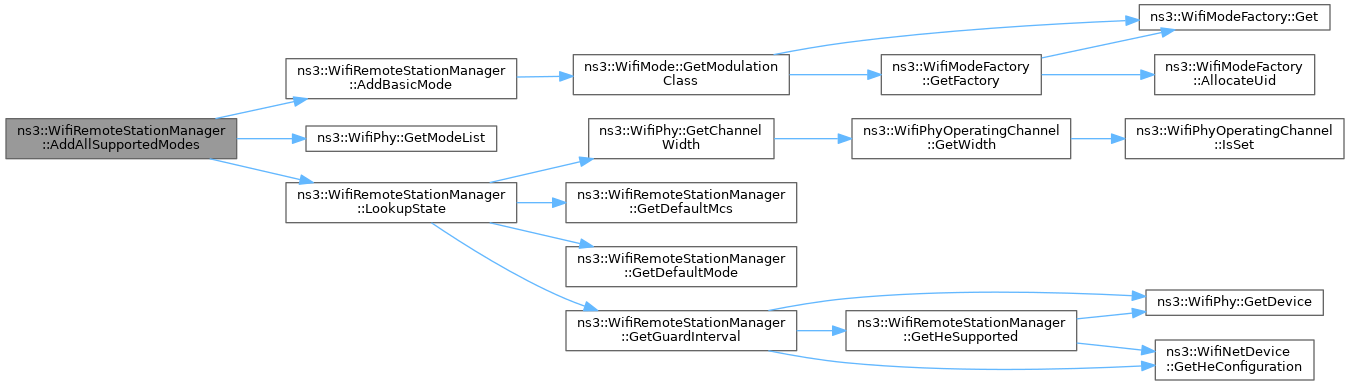

| void | AddAllSupportedModes (Mac48Address address) |
| Invoked in a STA or AP to store all of the modes supported by a destination which is also supported locally. | |

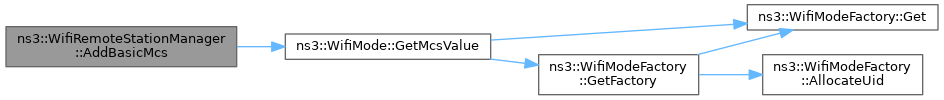

| void | AddBasicMcs (WifiMode mcs) |
| Add a given Modulation and Coding Scheme (MCS) index to the set of basic MCS. | |

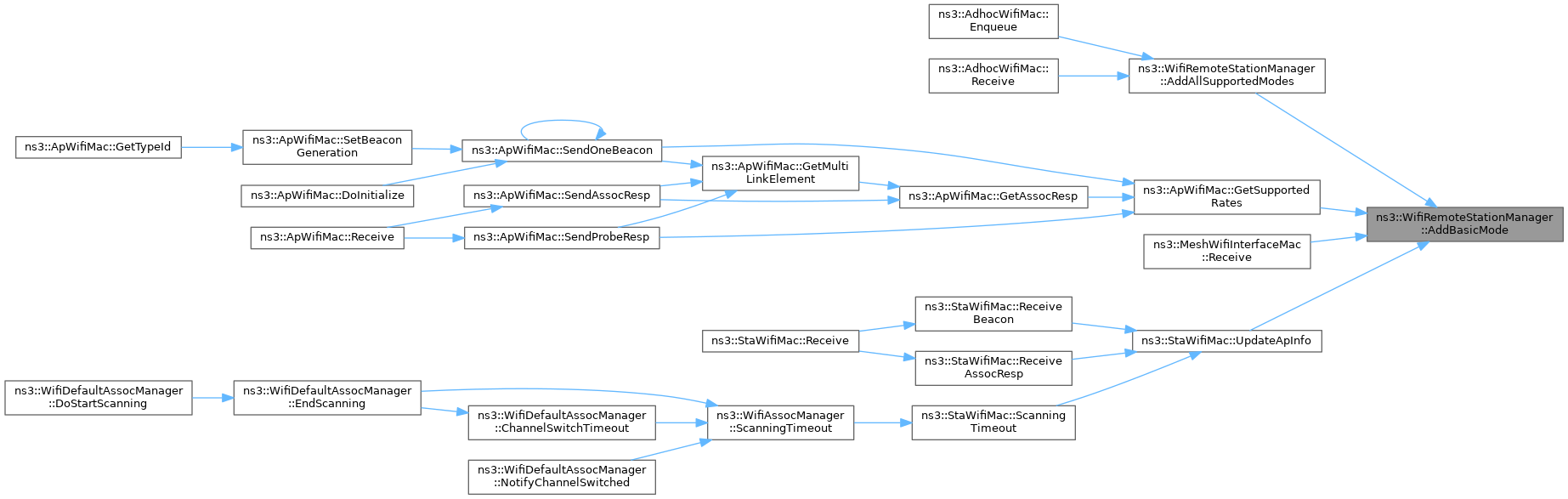

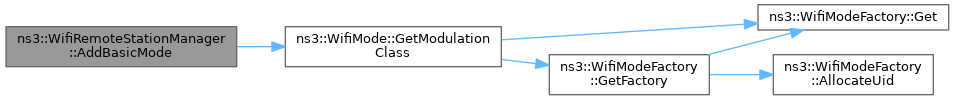

| void | AddBasicMode (WifiMode mode) |
| Invoked in a STA upon association to store the set of rates which belong to the BSSBasicRateSet of the associated AP and which are supported locally. | |
| void | AddStationEhtCapabilities (Mac48Address from, EhtCapabilities ehtCapabilities) |
| Records EHT capabilities of the remote station. | |

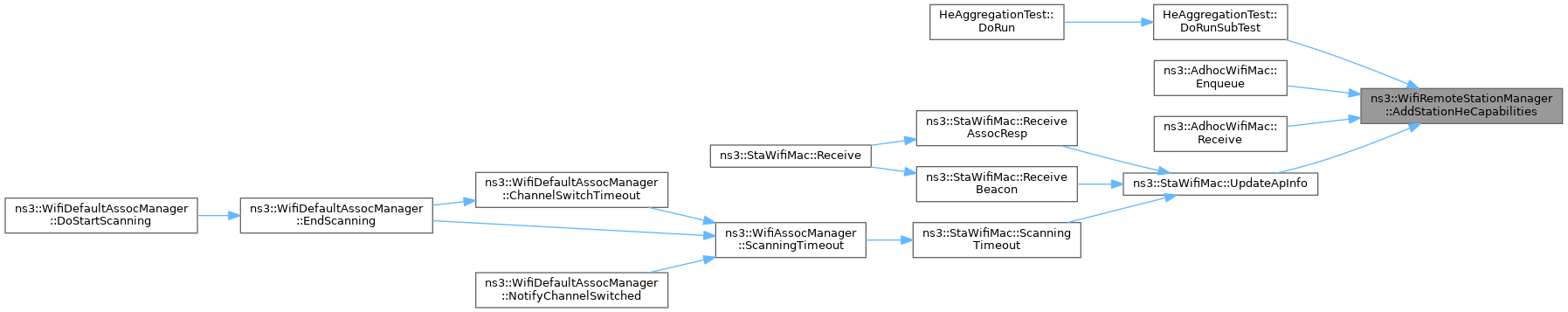

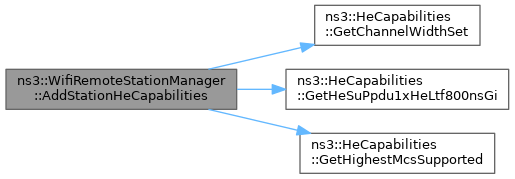

| void | AddStationHeCapabilities (Mac48Address from, HeCapabilities heCapabilities) |
| Records HE capabilities of the remote station. | |

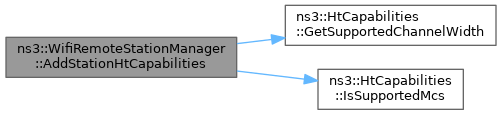

| void | AddStationHtCapabilities (Mac48Address from, HtCapabilities htCapabilities) |
| Records HT capabilities of the remote station. | |

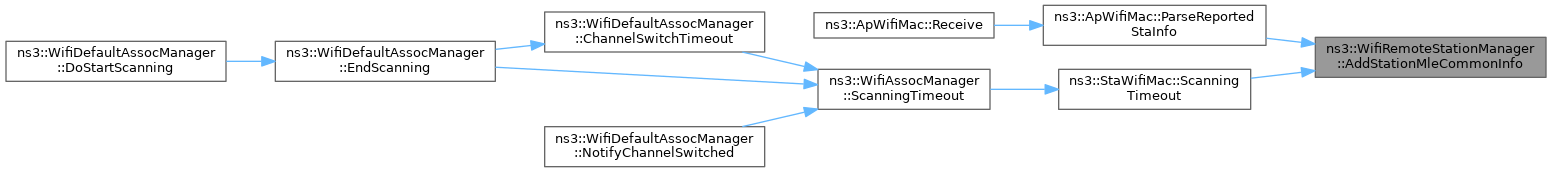

| void | AddStationMleCommonInfo (Mac48Address from, const std::shared_ptr< CommonInfoBasicMle > &mleCommonInfo) |
| Records the Common Info field advertised by the given remote station in a Multi-Link Element. | |

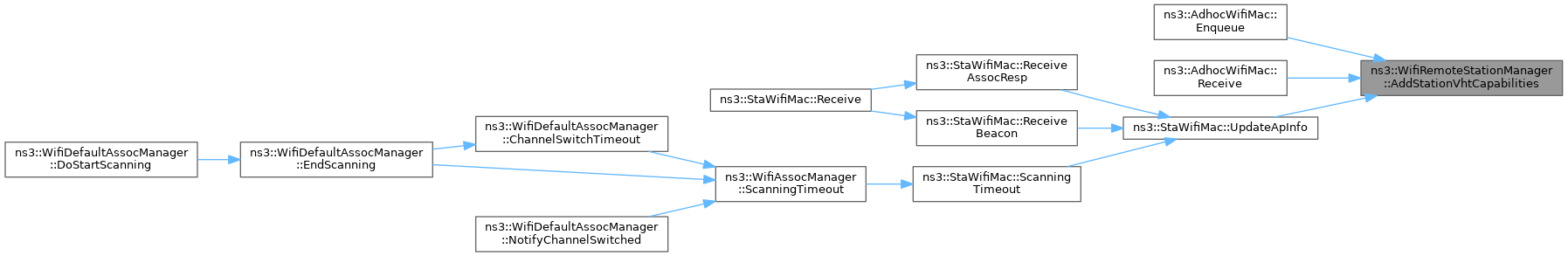

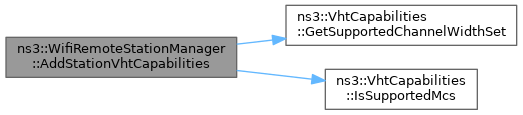

| void | AddStationVhtCapabilities (Mac48Address from, VhtCapabilities vhtCapabilities) |
| Records VHT capabilities of the remote station. | |
| void | AddSupportedErpSlotTime (Mac48Address address, bool isShortSlotTimeSupported) |
| Record whether the short ERP slot time is supported by the station. | |

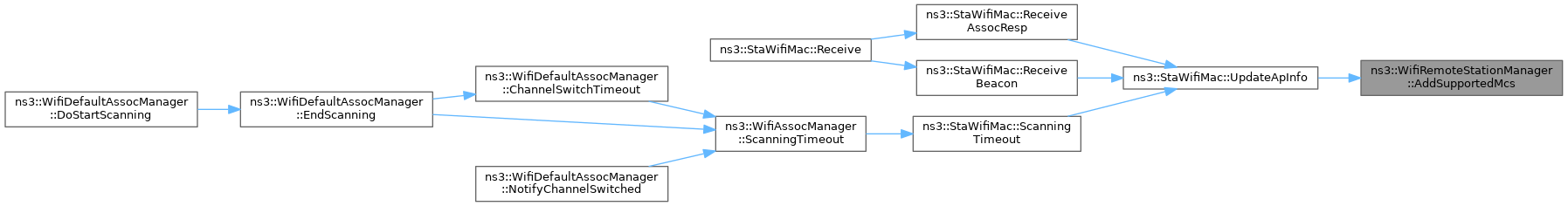

| void | AddSupportedMcs (Mac48Address address, WifiMode mcs) |
| Record the MCS index supported by the station. | |

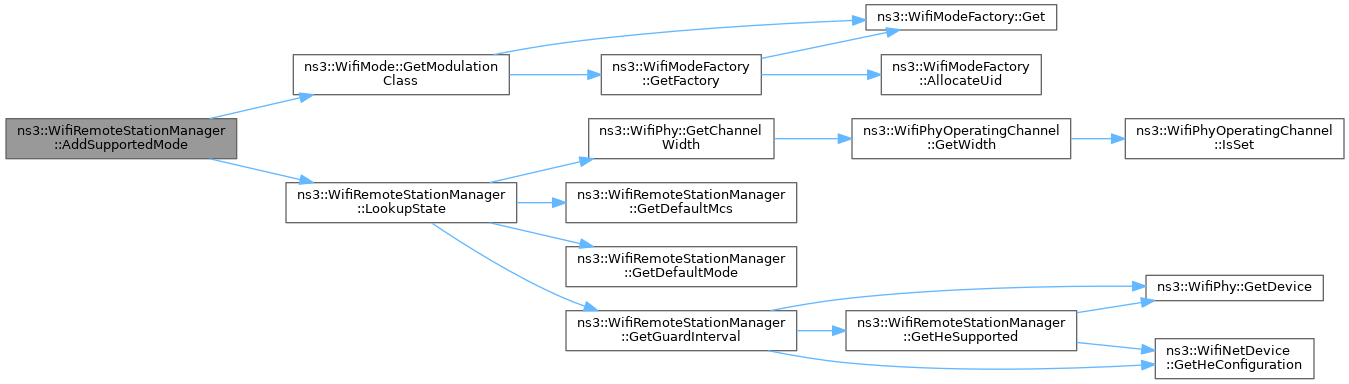

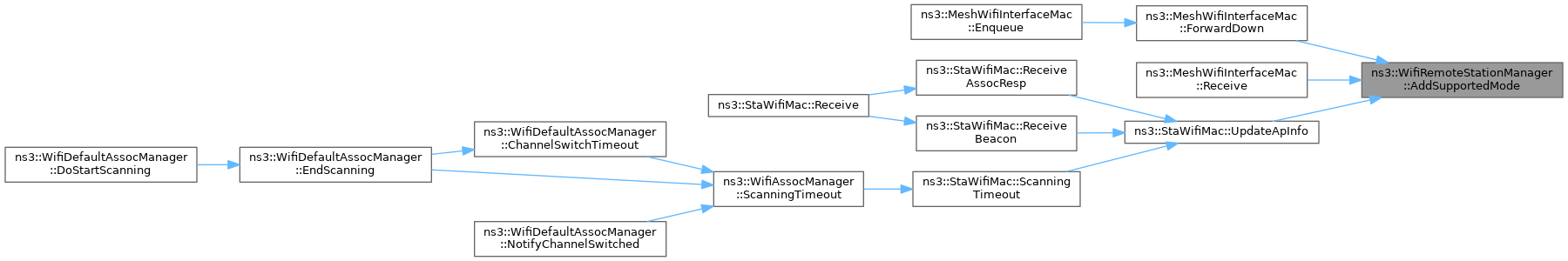

| void | AddSupportedMode (Mac48Address address, WifiMode mode) |
| Invoked in a STA or AP to store the set of modes supported by a destination which is also supported locally. | |
| void | AddSupportedPhyPreamble (Mac48Address address, bool isShortPreambleSupported) |
| Record whether the short PHY preamble is supported by the station. | |

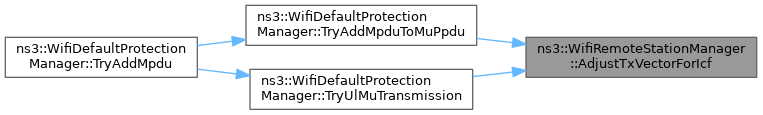

| void | AdjustTxVectorForIcf (WifiTxVector &txVector) const |
| Adjust the TXVECTOR for an initial Control frame to ensure that the modulation class is non-HT and the rate is 6 Mbps, 12 Mbps or 24 Mbps. | |
| virtual int64_t | AssignStreams (int64_t stream) |
| Assign a fixed random variable stream number to the random variables used by this model. | |
| WifiTxVector | GetAckTxVector (Mac48Address to, const WifiTxVector &dataTxVector) const |
| Return a TXVECTOR for the Ack frame given the destination and the mode of the Data used by the sender. | |

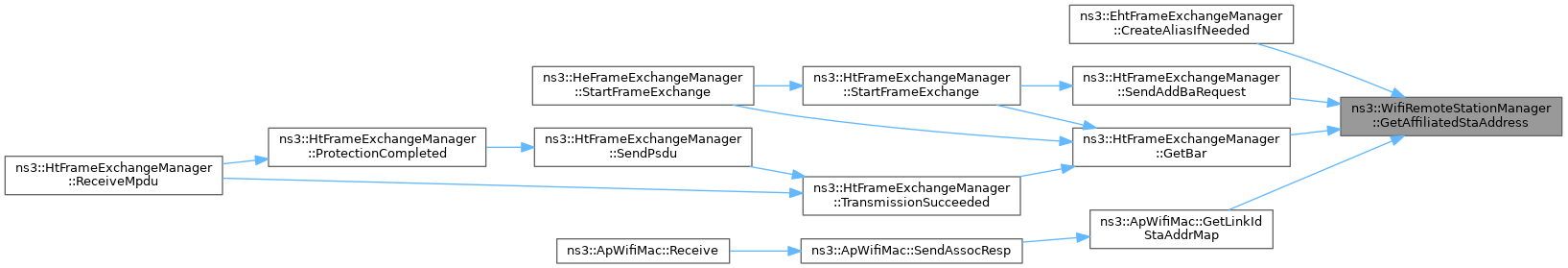

| std::optional< Mac48Address > | GetAffiliatedStaAddress (const Mac48Address &mldAddress) const |
| Get the address of the remote station operating on this link and affiliated with the MLD having the given MAC address, if any. | |
| uint16_t | GetAssociationId (Mac48Address remoteAddress) const |
| Get the AID of a remote station. | |
| WifiMode | GetBasicMcs (uint8_t i) const |
| Return the MCS at the given list index. | |
| WifiMode | GetBasicMode (uint8_t i) const |
| Return a basic mode from the set of basic modes. | |

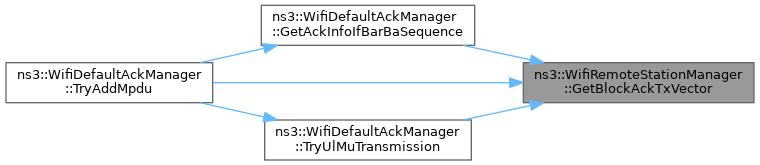

| WifiTxVector | GetBlockAckTxVector (Mac48Address to, const WifiTxVector &dataTxVector) const |
| Return a TXVECTOR for the BlockAck frame given the destination and the mode of the Data used by the sender. | |
| uint16_t | GetChannelWidthSupported (Mac48Address address) const |
| Return the channel width supported by the station. | |

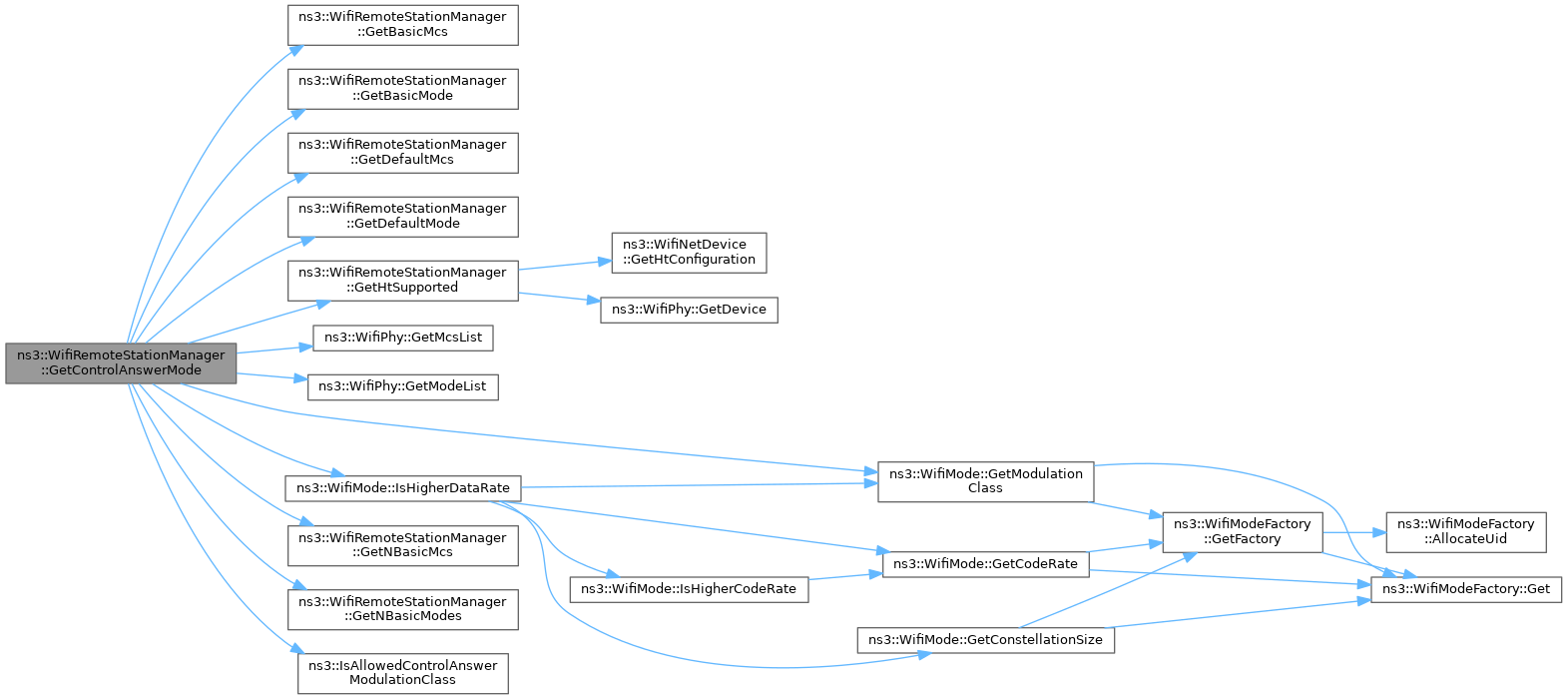

| WifiMode | GetControlAnswerMode (WifiMode reqMode) const |
| Get control answer mode function. | |

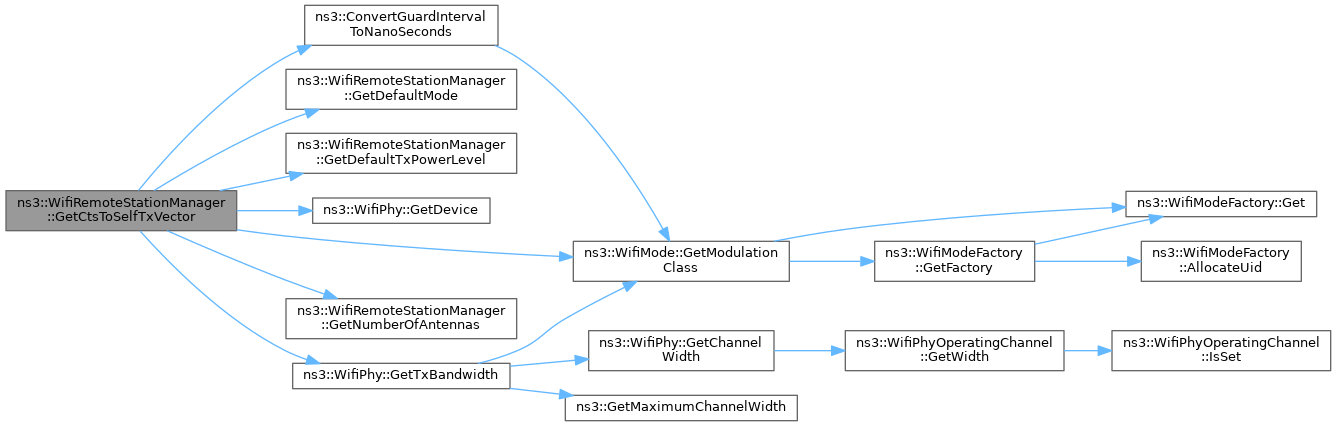

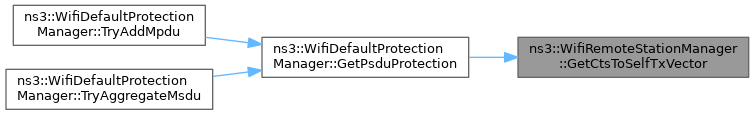

| WifiTxVector | GetCtsToSelfTxVector () |
| Since CTS-to-self parameters are not dependent on the station, it is implemented in wifi remote station manager. | |

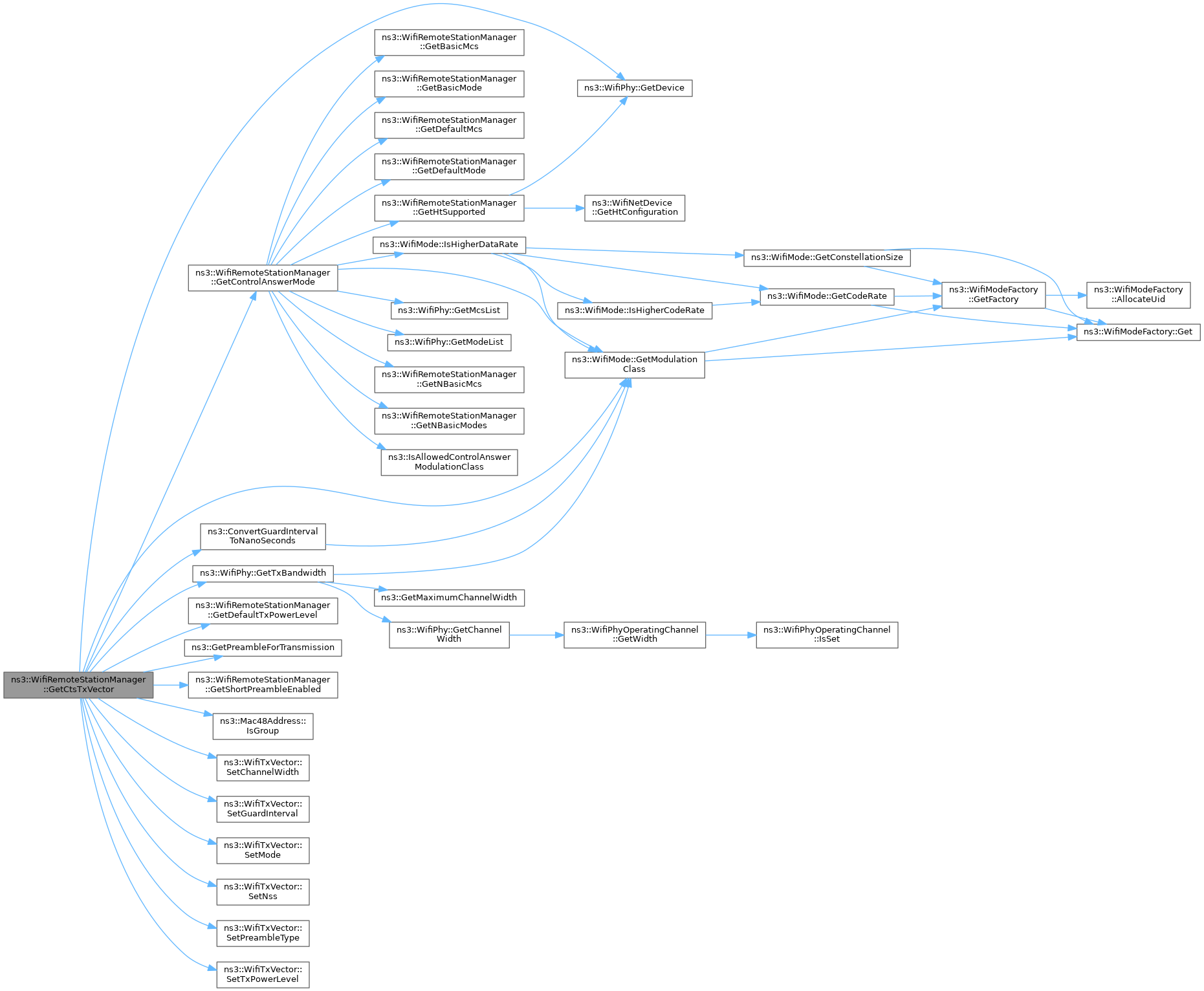

| WifiTxVector | GetCtsTxVector (Mac48Address to, WifiMode rtsTxMode) const |
| Return a TXVECTOR for the CTS frame given the destination and the mode of the RTS used by the sender. | |

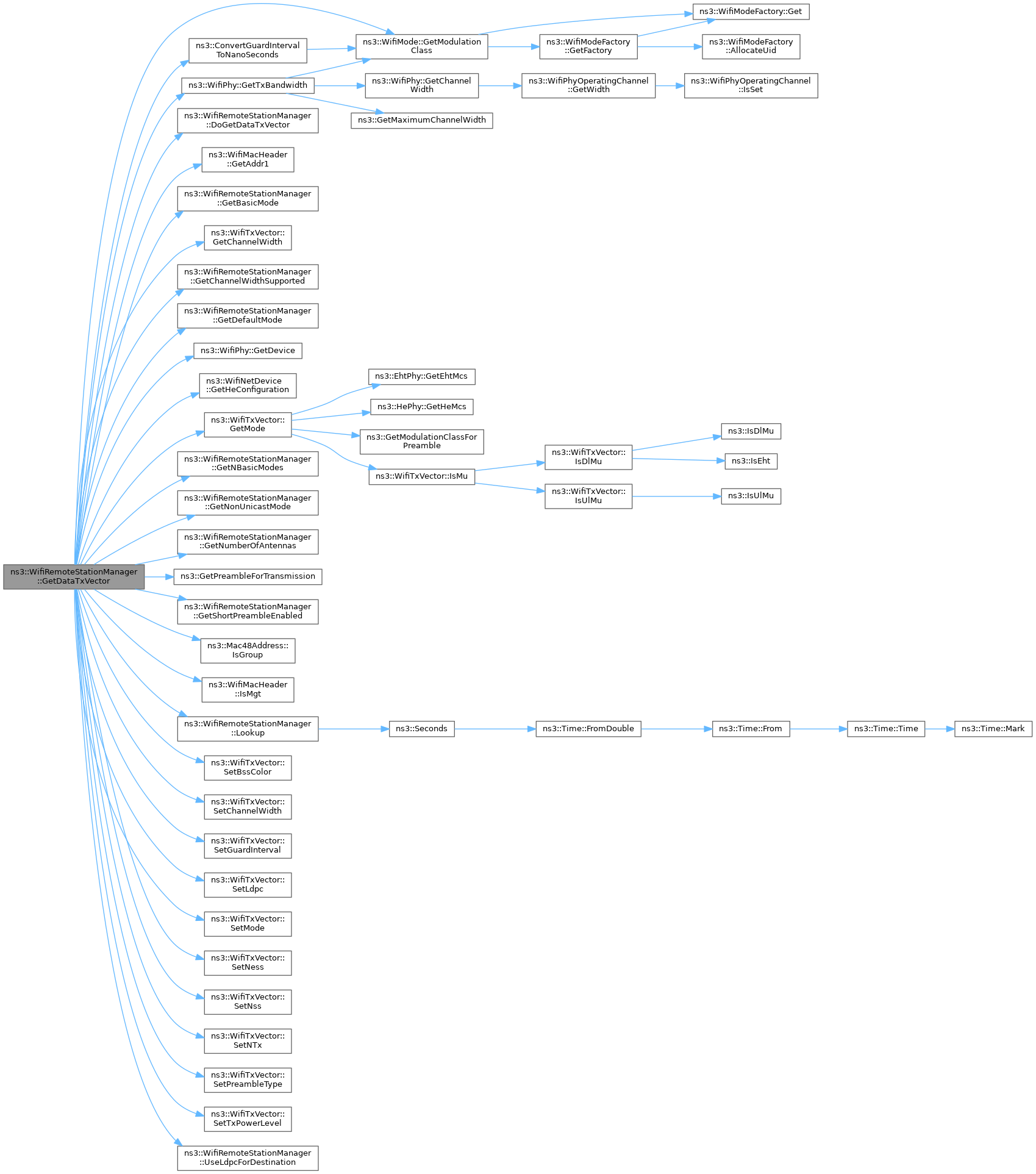

| WifiTxVector | GetDataTxVector (const WifiMacHeader &header, uint16_t allowedWidth) |
| WifiMode | GetDefaultMcs () const |
| Return the default Modulation and Coding Scheme (MCS) index. | |
| WifiMode | GetDefaultMode () const |
| Return the default transmission mode. | |
| WifiMode | GetDefaultModeForSta (const WifiRemoteStation *st) const |
| Return the default MCS to use to transmit frames to the given station. | |
| uint8_t | GetDefaultTxPowerLevel () const |
| bool | GetDsssSupported (const Mac48Address &address) const |
| Return whether the station supports DSSS or not. | |
| bool | GetEhtSupported () const |
| Return whether the device has EHT capability support enabled. | |
| bool | GetEhtSupported (Mac48Address address) const |
| Return whether the station supports EHT or not. | |
| bool | GetEmlsrEnabled (const Mac48Address &address) const |
| bool | GetEmlsrSupported (const Mac48Address &address) const |
| bool | GetErpOfdmSupported (const Mac48Address &address) const |
| Return whether the station supports ERP OFDM or not. | |

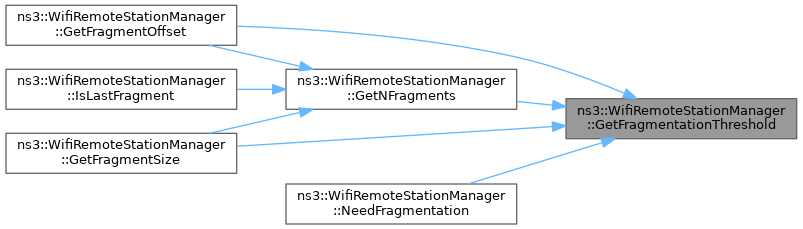

| uint32_t | GetFragmentationThreshold () const |
| Return the fragmentation threshold. | |

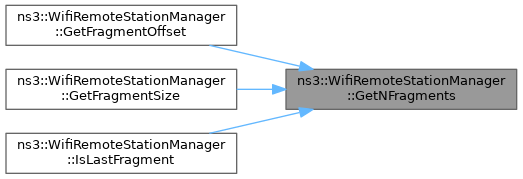

| uint32_t | GetFragmentOffset (Ptr< const WifiMpdu > mpdu, uint32_t fragmentNumber) |
| uint32_t | GetFragmentSize (Ptr< const WifiMpdu > mpdu, uint32_t fragmentNumber) |
| uint16_t | GetGuardInterval () const |
| Return the supported HE guard interval duration (in nanoseconds). | |
| bool | GetHeSupported () const |
| Return whether the device has HE capability support enabled. | |
| bool | GetHeSupported (Mac48Address address) const |
| Return whether the station supports HE or not. | |
| bool | GetHtSupported () const |
| Return whether the device has HT capability support enabled. | |

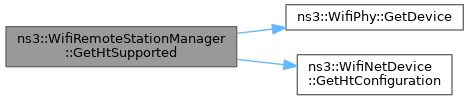

| bool | GetHtSupported (Mac48Address address) const |
| Return whether the station supports HT or not. | |
| WifiRemoteStationInfo | GetInfo (Mac48Address address) |

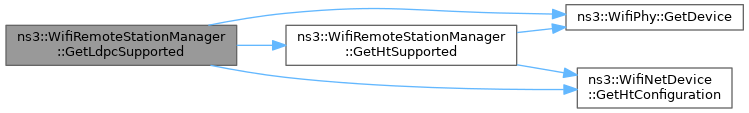

| bool | GetLdpcSupported () const |
| Return whether the device has LDPC support enabled. | |
| bool | GetLdpcSupported (Mac48Address address) const |
| Return whether the station supports LDPC or not. | |
| Ptr< WifiMac > | GetMac () const |
| Return the WifiMac. | |

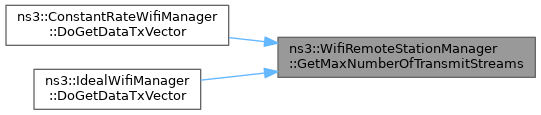

| uint8_t | GetMaxNumberOfTransmitStreams () const |
| std::optional< Mac48Address > | GetMldAddress (const Mac48Address &address) const |
| Get the address of the MLD the given station is affiliated with, if any. | |
| std::optional< double > | GetMostRecentRssi (Mac48Address address) const |
| uint8_t | GetNBasicMcs () const |
| Return the number of basic MCS index. | |
| uint8_t | GetNBasicModes () const |
| Return the number of basic modes we support. | |

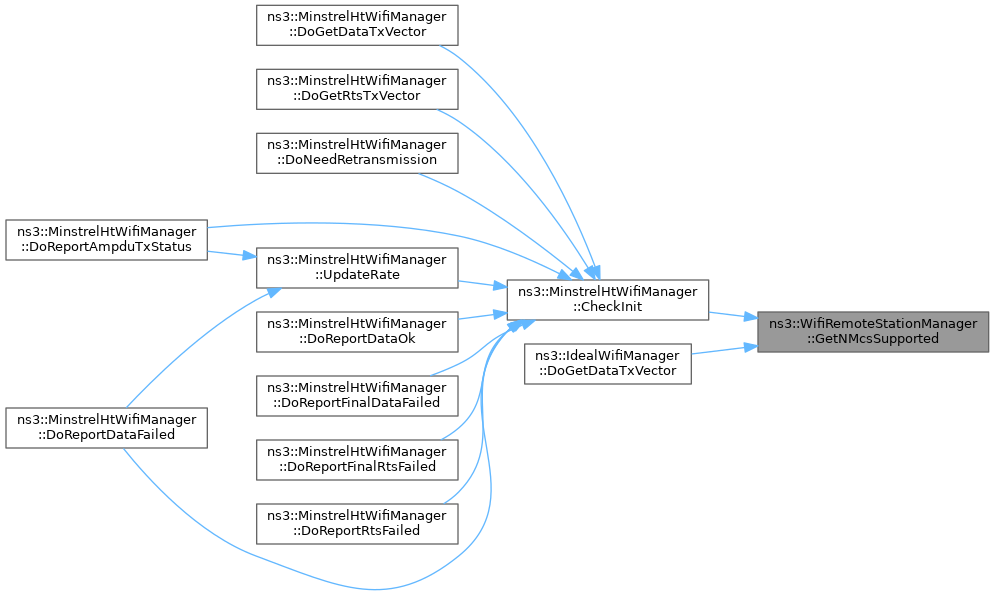

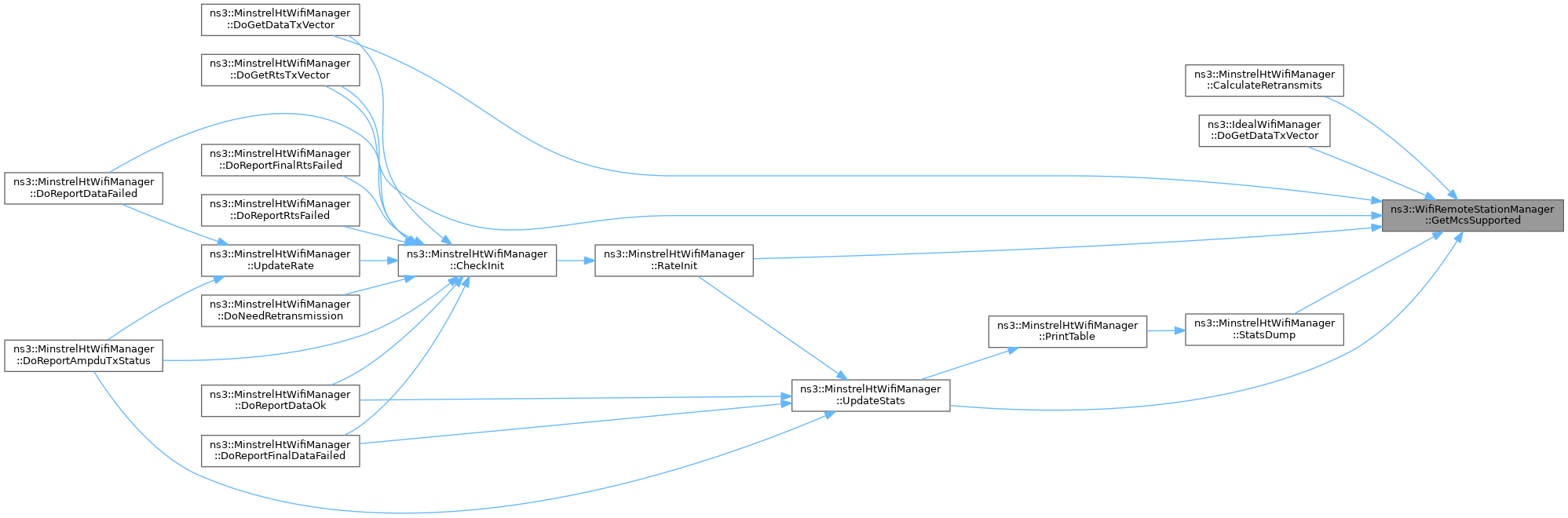

| uint8_t | GetNMcsSupported (Mac48Address address) const |
| Return the number of MCS supported by the station. | |
| uint32_t | GetNNonErpBasicModes () const |
| Return the number of non-ERP basic modes we support. | |
| WifiMode | GetNonErpBasicMode (uint8_t i) const |
| Return a basic mode from the set of basic modes that is not an ERP mode. | |
| WifiMode | GetNonUnicastMode () const |
| Return a mode for non-unicast packets. | |
| uint8_t | GetNumberOfAntennas () const |

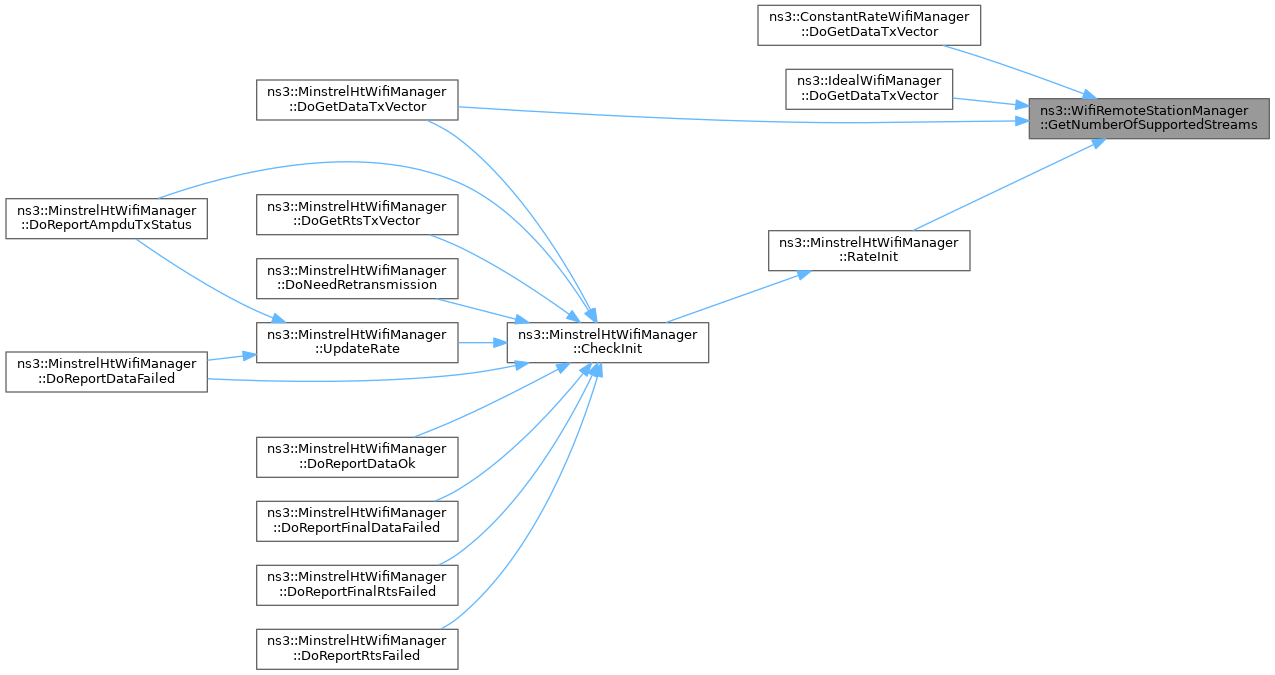

| uint8_t | GetNumberOfSupportedStreams (Mac48Address address) const |
| Return the number of spatial streams supported by the station. | |
| bool | GetOfdmSupported (const Mac48Address &address) const |
| Return whether the station supports OFDM or not. | |

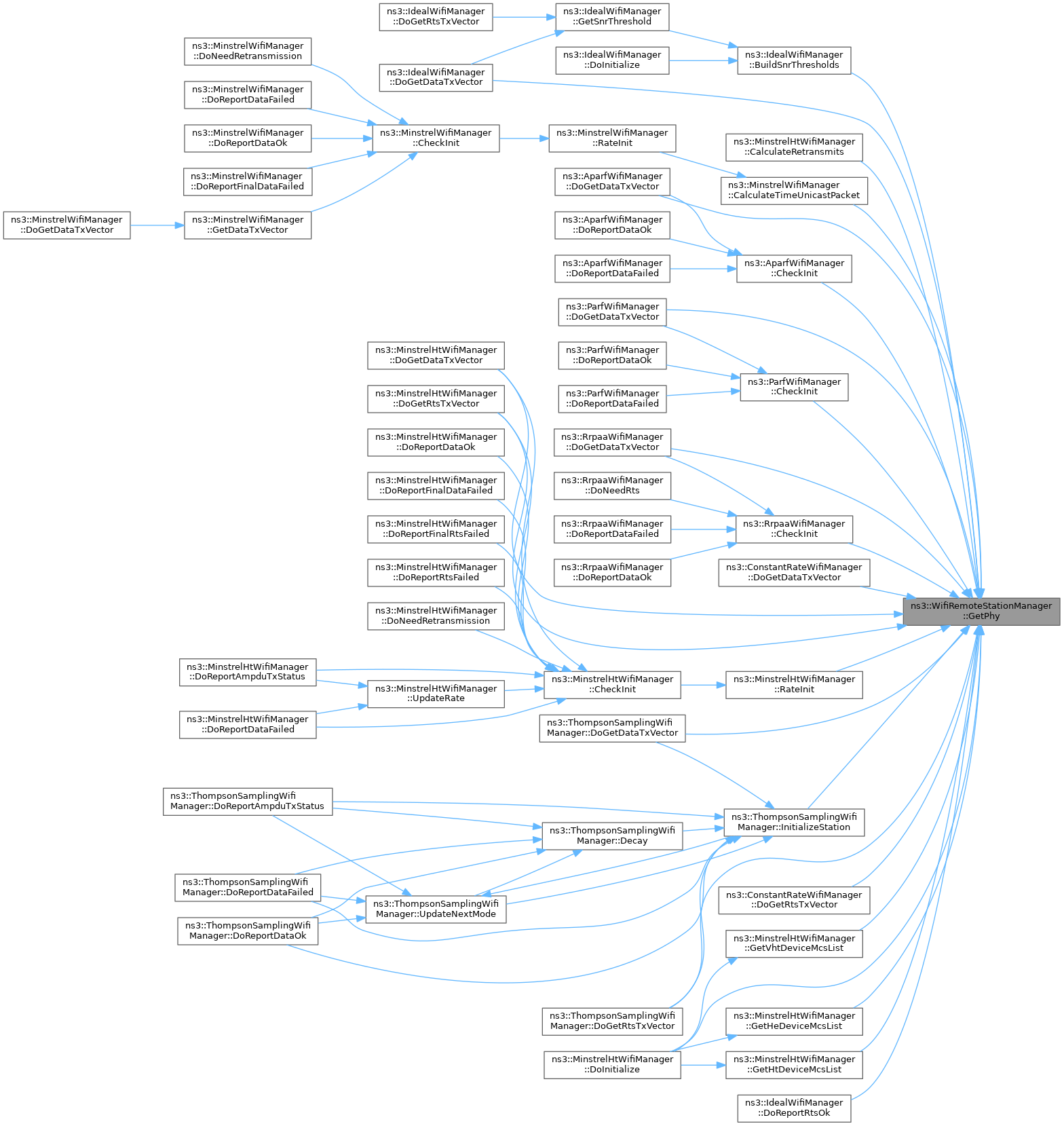

| Ptr< WifiPhy > | GetPhy () const |
| Return the WifiPhy. | |
| bool | GetQosSupported (Mac48Address address) const |
| Return whether the given station is QoS capable. | |

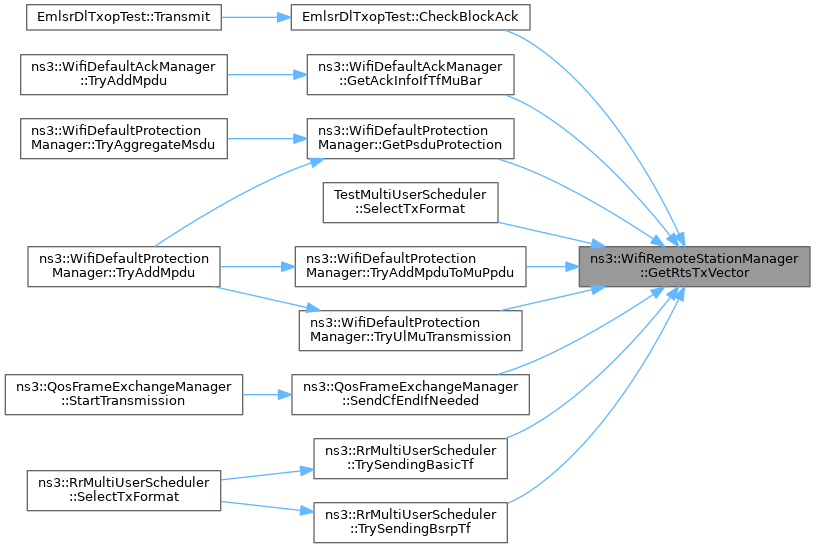

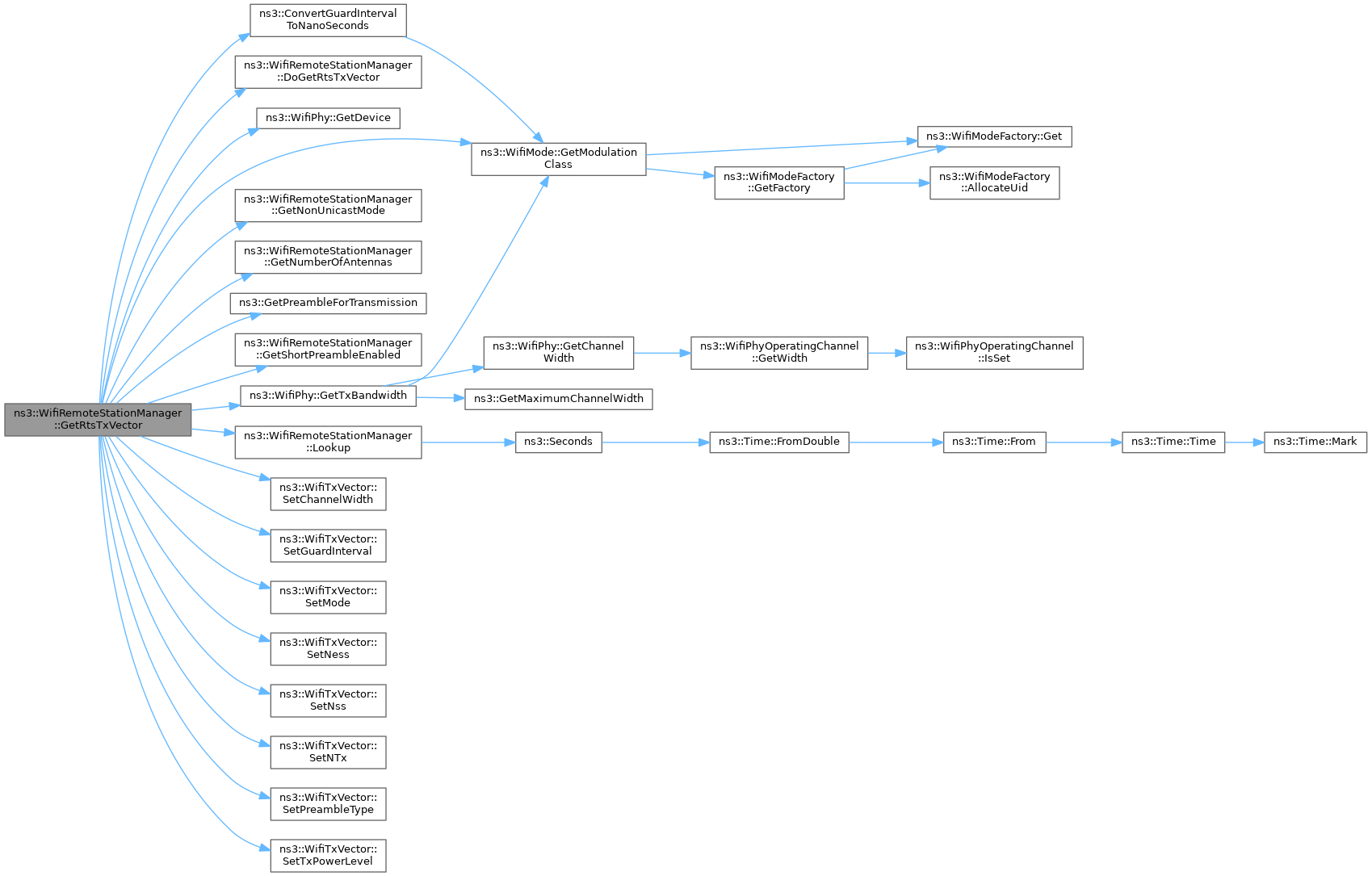

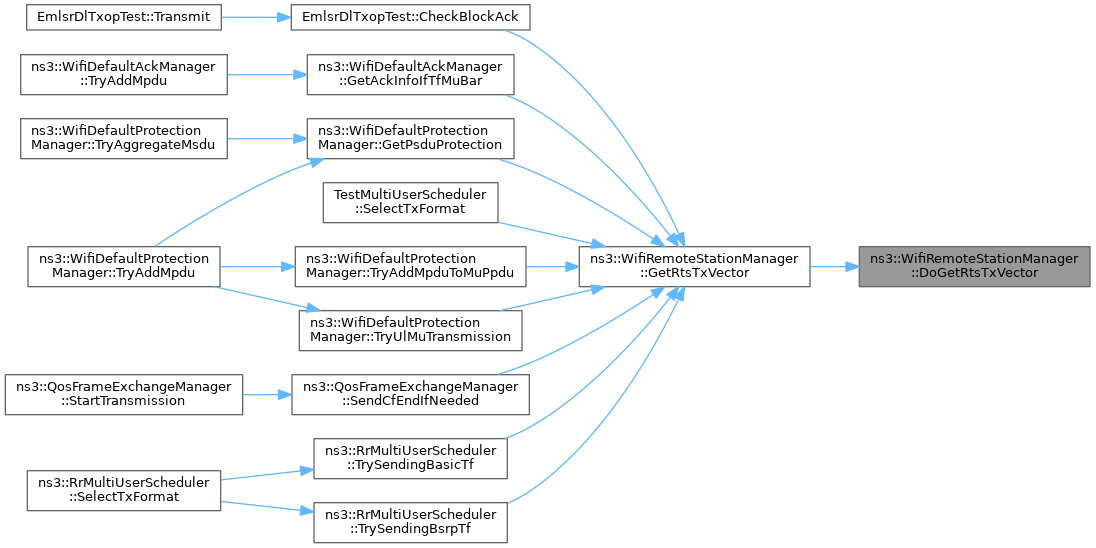

| WifiTxVector | GetRtsTxVector (Mac48Address address) |
| bool | GetShortGuardIntervalSupported () const |
| Return whether the device has SGI support enabled. | |

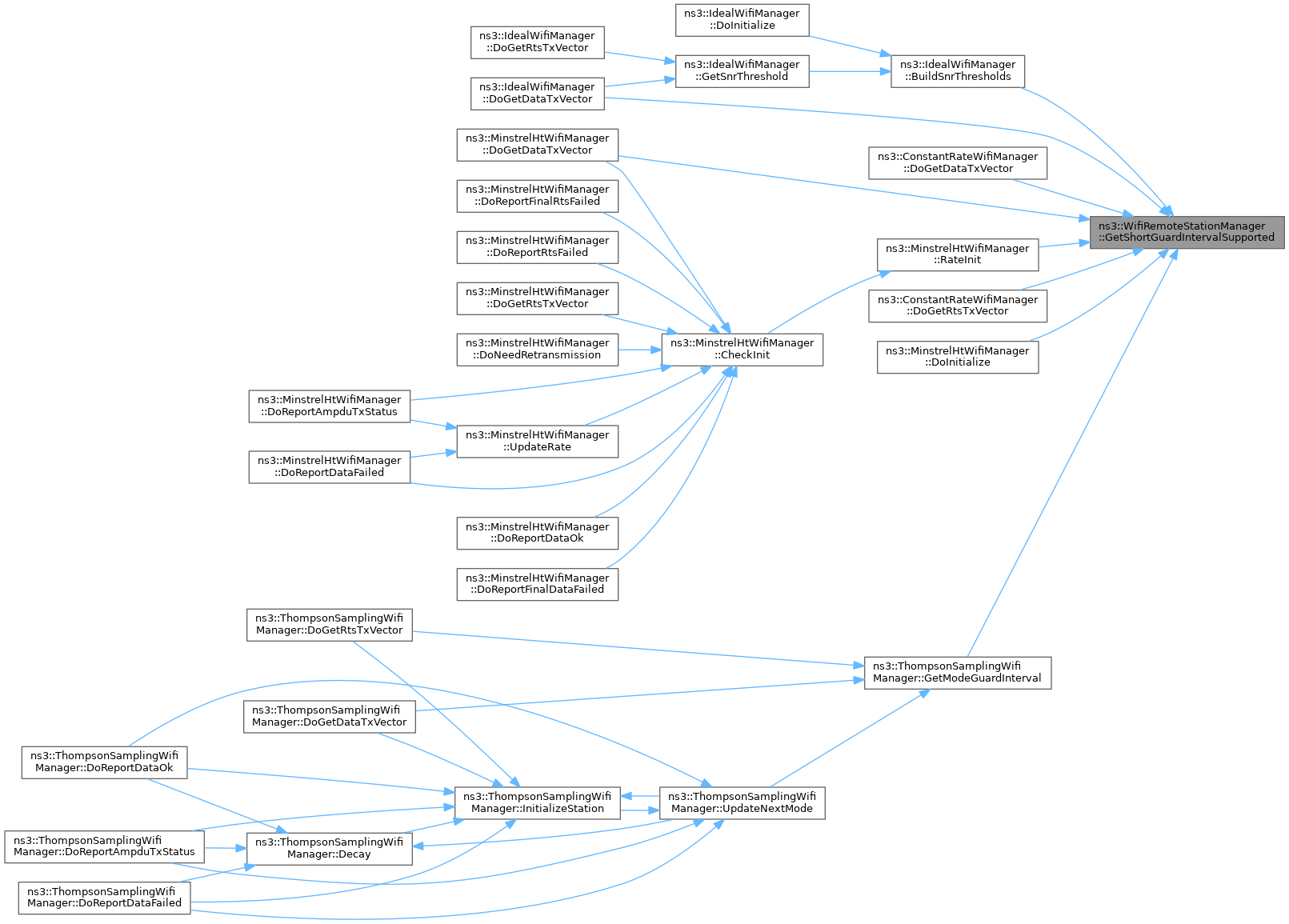

| bool | GetShortGuardIntervalSupported (Mac48Address address) const |
| Return whether the station supports HT/VHT short guard interval. | |

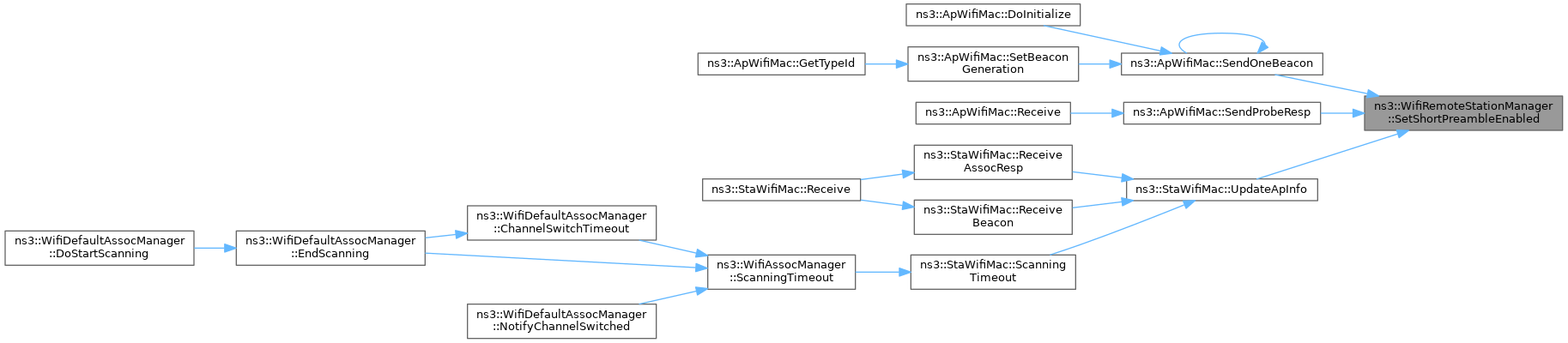

| bool | GetShortPreambleEnabled () const |
| Return whether the device uses short PHY preambles. | |
| bool | GetShortPreambleSupported (Mac48Address address) const |
| Return whether the station supports short PHY preamble or not. | |
| bool | GetShortSlotTimeEnabled () const |
| Return whether the device uses short slot time. | |
| bool | GetShortSlotTimeSupported (Mac48Address address) const |
| Return whether the station supports short ERP slot time or not. | |
| Ptr< const EhtCapabilities > | GetStationEhtCapabilities (Mac48Address from) |
| Return the EHT capabilities sent by the remote station. | |

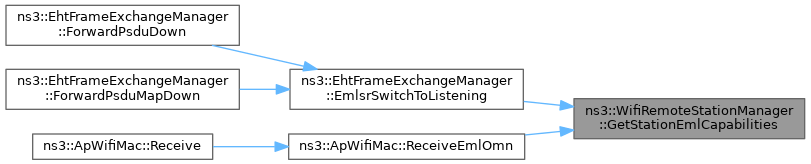

| std::optional< std::reference_wrapper< CommonInfoBasicMle::EmlCapabilities > > | GetStationEmlCapabilities (const Mac48Address &from) |
| Ptr< const HeCapabilities > | GetStationHeCapabilities (Mac48Address from) |
| Return the HE capabilities sent by the remote station. | |
| Ptr< const HtCapabilities > | GetStationHtCapabilities (Mac48Address from) |
| Return the HT capabilities sent by the remote station. | |
| std::optional< std::reference_wrapper< CommonInfoBasicMle::MldCapabilities > > | GetStationMldCapabilities (const Mac48Address &from) |
| Ptr< const VhtCapabilities > | GetStationVhtCapabilities (Mac48Address from) |
| Return the VHT capabilities sent by the remote station. | |

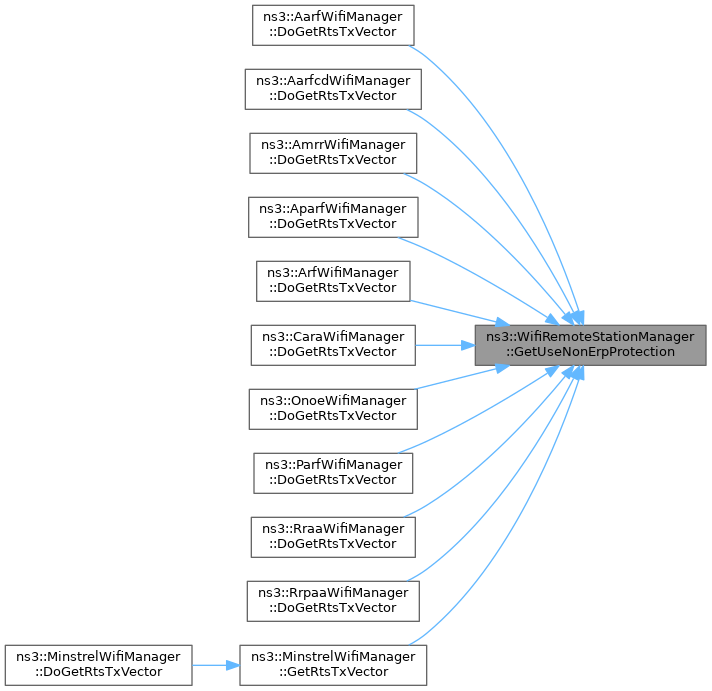

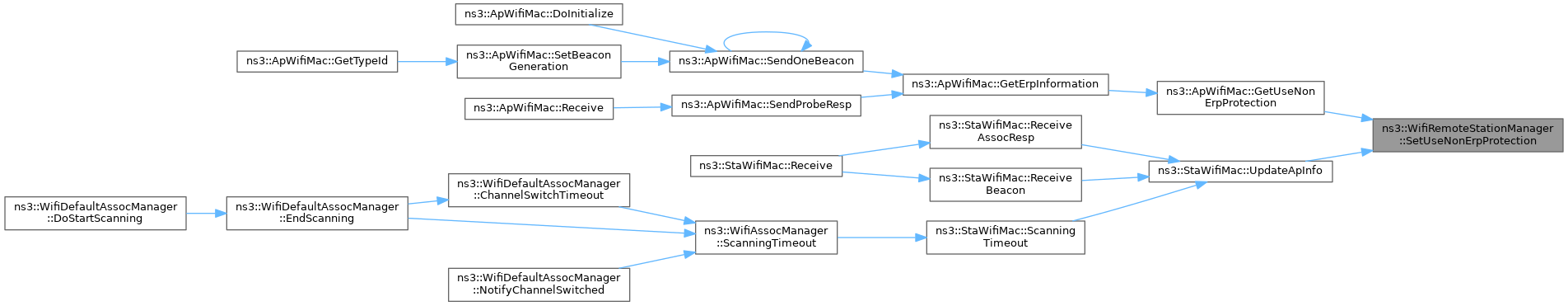

| bool | GetUseNonErpProtection () const |
| Return whether the device supports protection of non-ERP stations. | |
| bool | GetUseNonHtProtection () const |
| Return whether the device supports protection of non-HT stations. | |

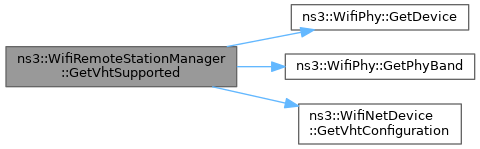

| bool | GetVhtSupported () const |
| Return whether the device has VHT capability support enabled. | |

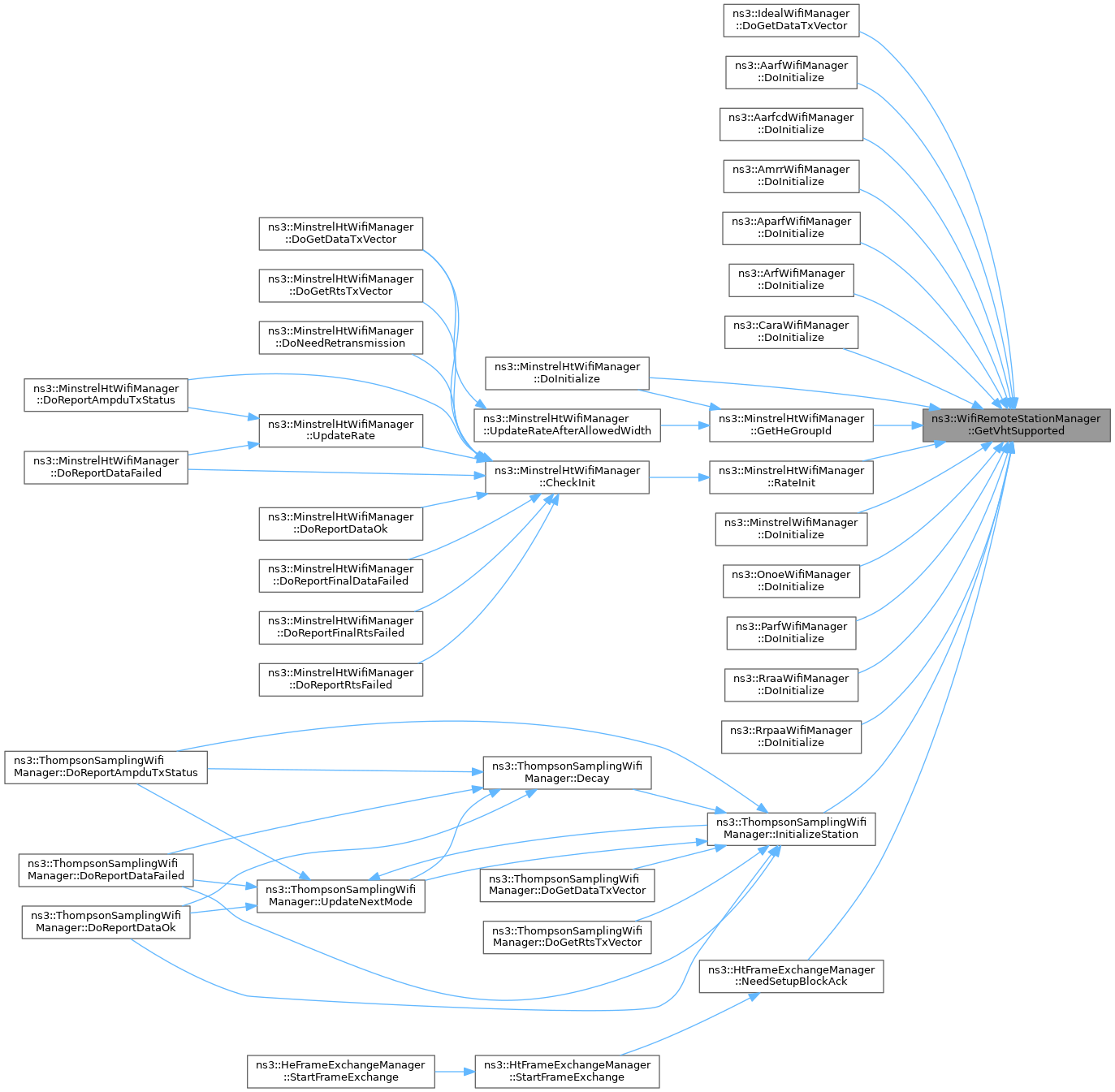

| bool | GetVhtSupported (Mac48Address address) const |
| Return whether the station supports VHT or not. | |

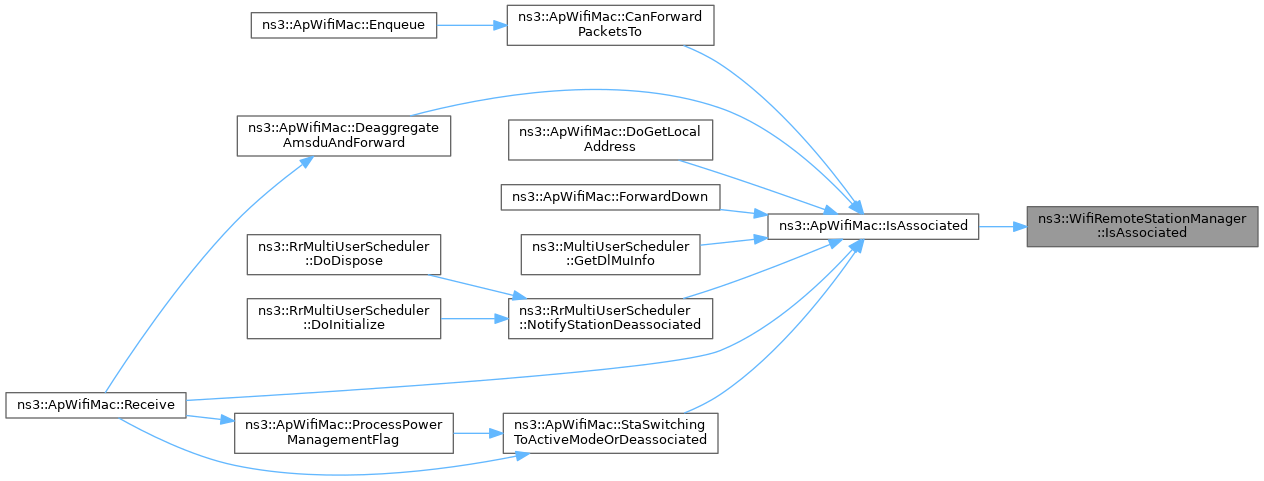

| bool | IsAssociated (Mac48Address address) const |
| Return whether the station associated. | |
| bool | IsAssocRefused (Mac48Address address) const |
| Return whether we refused an association request from the given station. | |
| bool | IsBrandNew (Mac48Address address) const |
| Return whether the station state is brand new. | |

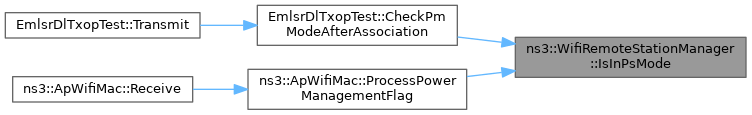

| bool | IsInPsMode (const Mac48Address &address) const |
| Return whether the STA is currently in Power Save mode. | |
| bool | IsLastFragment (Ptr< const WifiMpdu > mpdu, uint32_t fragmentNumber) |
| bool | IsWaitAssocTxOk (Mac48Address address) const |
| Return whether we are waiting for an ACK for the association response we sent. | |

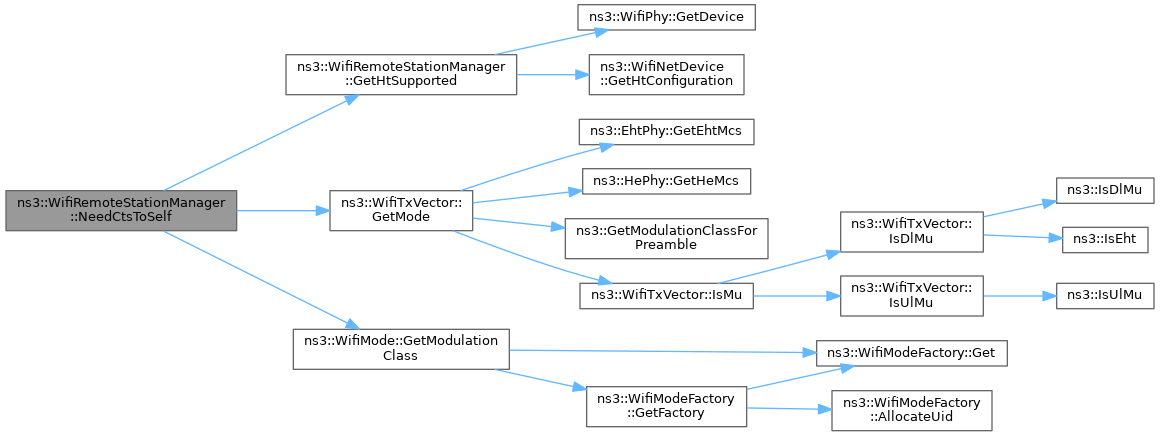

| bool | NeedCtsToSelf (WifiTxVector txVector) |
| Return if we need to do CTS-to-self before sending a DATA. | |

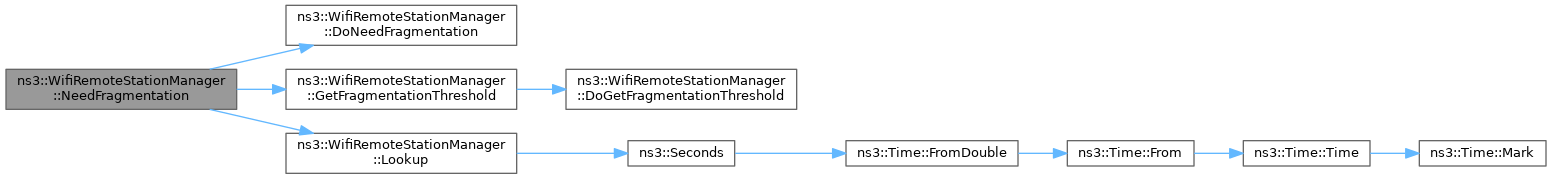

| bool | NeedFragmentation (Ptr< const WifiMpdu > mpdu) |
| bool | NeedRetransmission (Ptr< const WifiMpdu > mpdu) |
| bool | NeedRts (const WifiMacHeader &header, uint32_t size) |
| void | RecordAssocRefused (Mac48Address address) |
| Records that association request was refused. | |

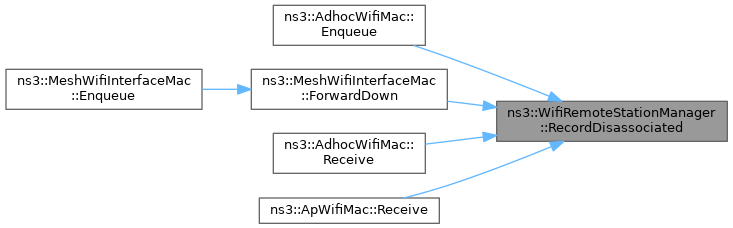

| void | RecordDisassociated (Mac48Address address) |
| Records that the STA was disassociated. | |
| void | RecordGotAssocTxFailed (Mac48Address address) |
| Records that we missed an ACK for the association response we sent. | |
| void | RecordGotAssocTxOk (Mac48Address address) |
| Records that we got an ACK for the association response we sent. | |
| void | RecordWaitAssocTxOk (Mac48Address address) |
| Records that we are waiting for an ACK for the association response we sent. | |
| void | RemoveAllSupportedMcs (Mac48Address address) |
| Invoked in a STA or AP to delete all of the supported MCS by a destination. | |

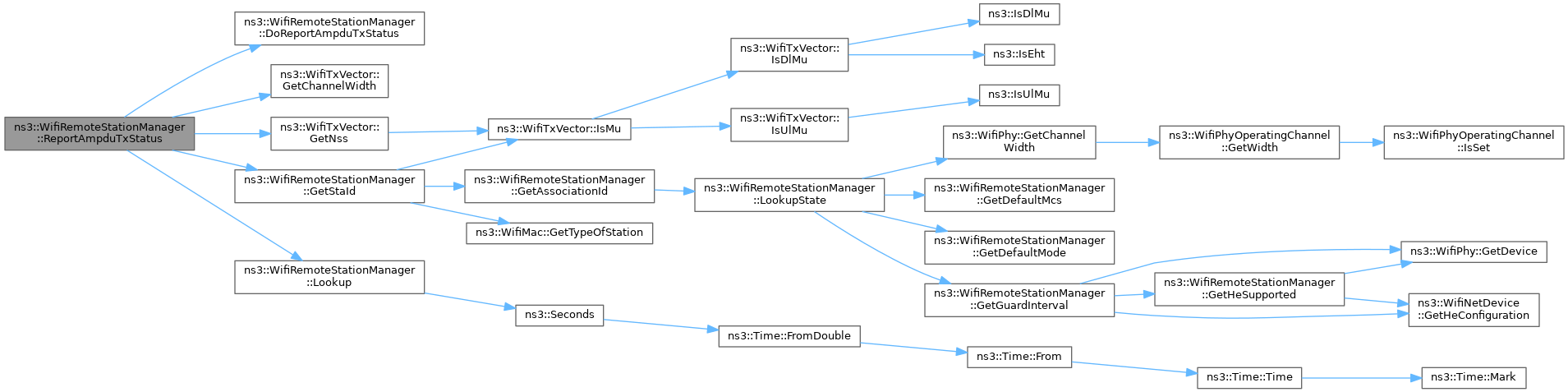

| void | ReportAmpduTxStatus (Mac48Address address, uint16_t nSuccessfulMpdus, uint16_t nFailedMpdus, double rxSnr, double dataSnr, WifiTxVector dataTxVector) |
| Typically called per A-MPDU, either when a Block ACK was successfully received or when a BlockAckTimeout has elapsed. | |

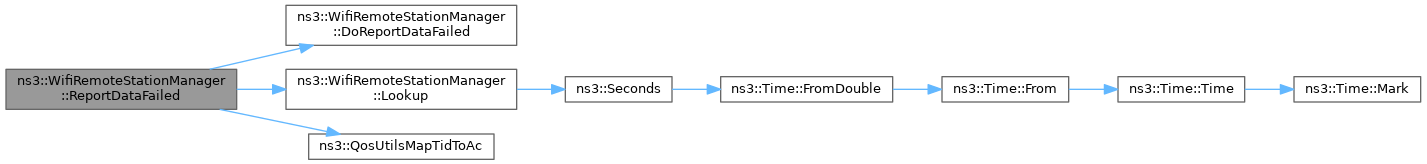

| void | ReportDataFailed (Ptr< const WifiMpdu > mpdu) |
| Should be invoked whenever the AckTimeout associated to a transmission attempt expires. | |

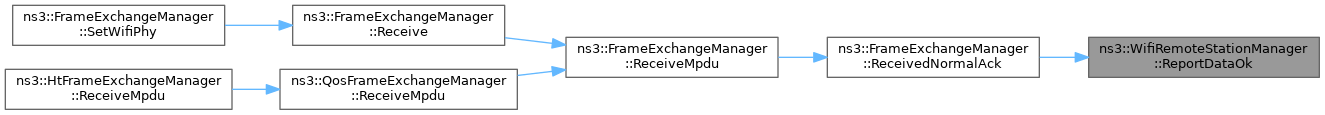

| void | ReportDataOk (Ptr< const WifiMpdu > mpdu, double ackSnr, WifiMode ackMode, double dataSnr, WifiTxVector dataTxVector) |
| Should be invoked whenever we receive the ACK associated to a data packet we just sent. | |
| void | ReportFinalDataFailed (Ptr< const WifiMpdu > mpdu) |
| Should be invoked after calling ReportDataFailed if NeedRetransmission returns false. | |
| void | ReportFinalRtsFailed (const WifiMacHeader &header) |
| Should be invoked after calling ReportRtsFailed if NeedRetransmission returns false. | |

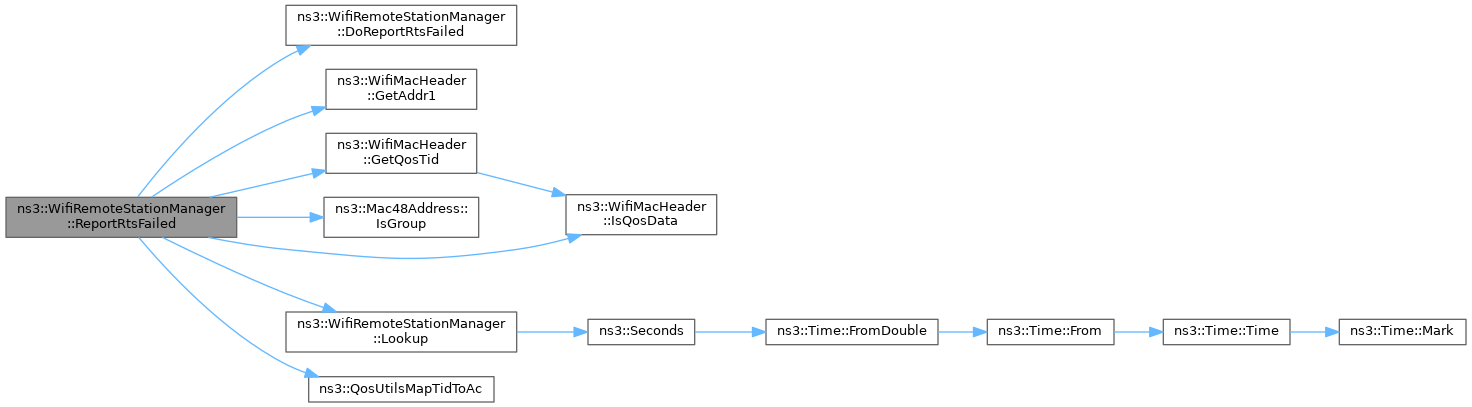

| void | ReportRtsFailed (const WifiMacHeader &header) |
| Should be invoked whenever the RtsTimeout associated to a transmission attempt expires. | |

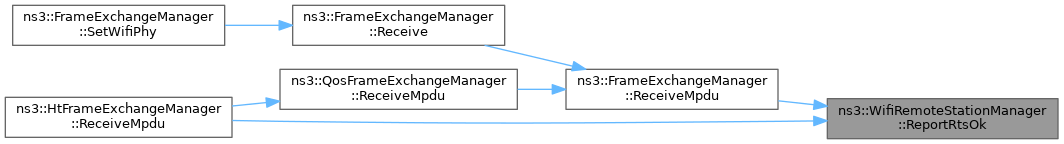

| void | ReportRtsOk (const WifiMacHeader &header, double ctsSnr, WifiMode ctsMode, double rtsSnr) |
| Should be invoked whenever we receive the CTS associated to an RTS we just sent. | |

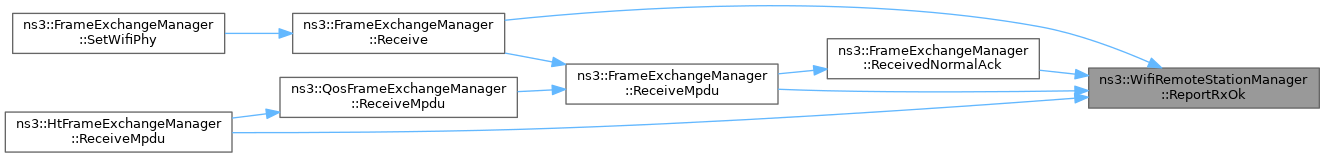

| void | ReportRxOk (Mac48Address address, RxSignalInfo rxSignalInfo, WifiTxVector txVector) |

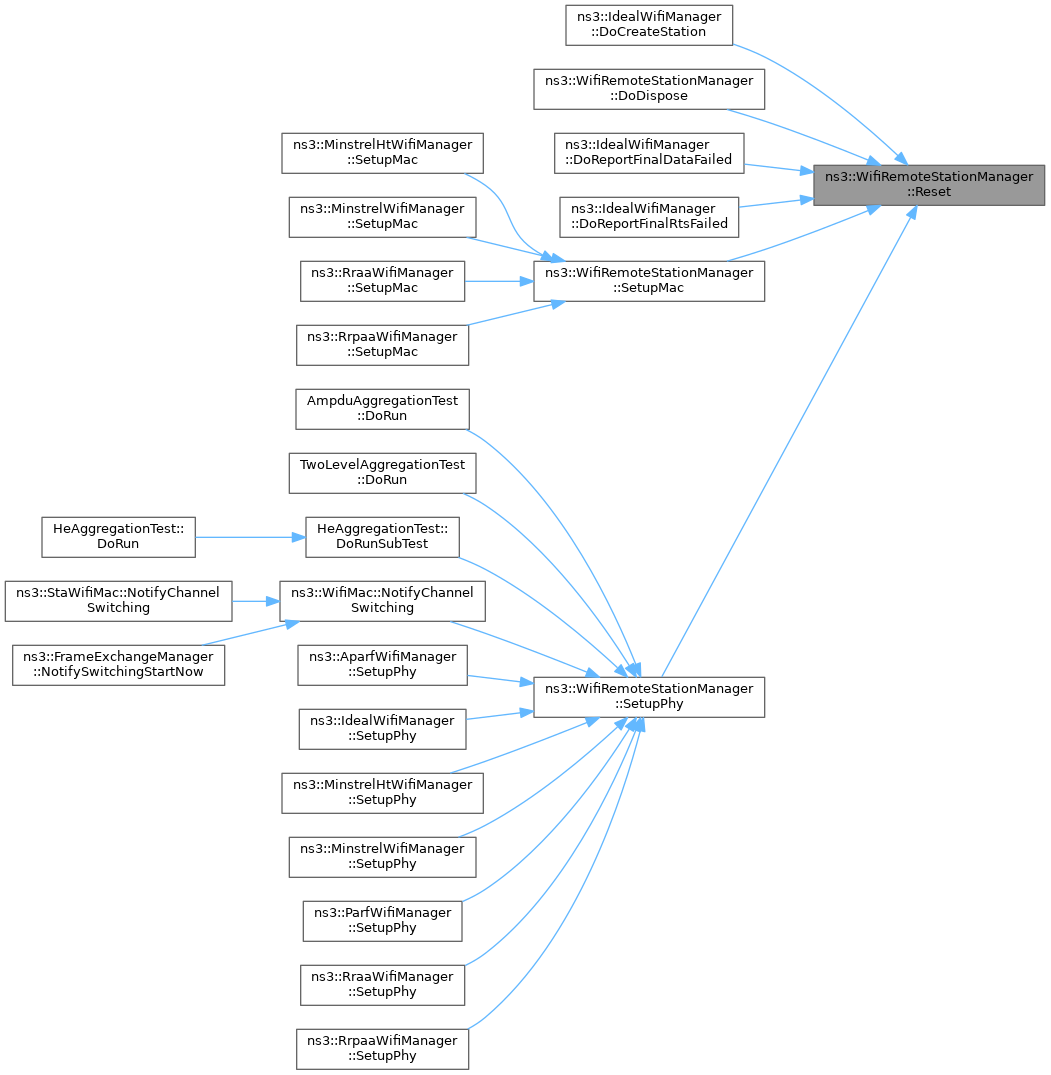

| void | Reset () |
| Reset the station, invoked in a STA upon dis-association or in an AP upon reboot. | |
| void | SetAssociationId (Mac48Address remoteAddress, uint16_t aid) |
| Record the AID of a remote station. | |
| void | SetDefaultTxPowerLevel (uint8_t txPower) |
| Set the default transmission power level. | |
| void | SetEmlsrEnabled (const Mac48Address &from, bool emlsrEnabled) |
| void | SetFragmentationThreshold (uint32_t threshold) |
| Sets a fragmentation threshold. | |
| void | SetMaxSlrc (uint32_t maxSlrc) |
| Sets the maximum STA long retry count (SLRC). | |

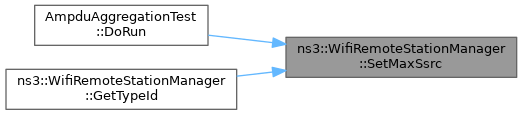

| void | SetMaxSsrc (uint32_t maxSsrc) |
| Sets the maximum STA short retry count (SSRC). | |

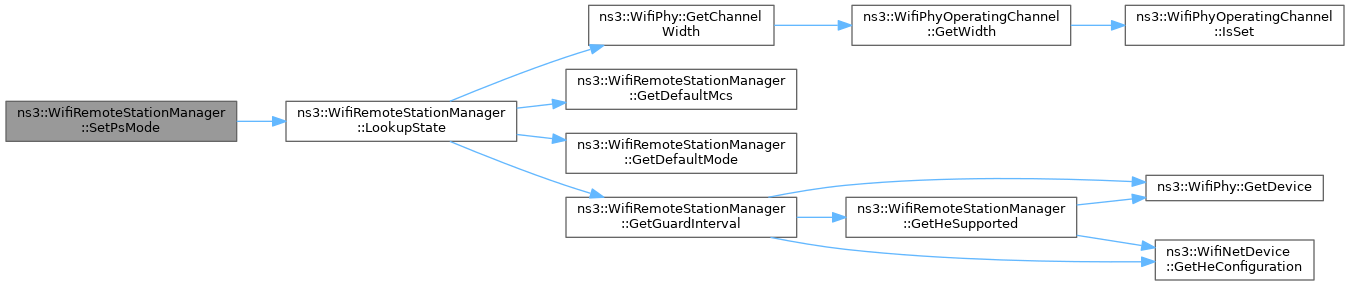

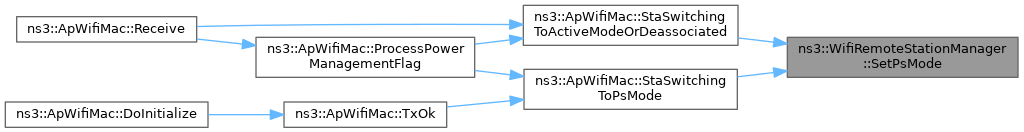

| void | SetPsMode (const Mac48Address &address, bool isInPsMode) |
| Register whether the STA is in Power Save mode or not. | |
| void | SetQosSupport (Mac48Address from, bool qosSupported) |
| Records QoS support of the remote station. | |
| void | SetRtsCtsThreshold (uint32_t threshold) |
| Sets the RTS threshold. | |
| void | SetShortPreambleEnabled (bool enable) |
| Enable or disable short PHY preambles. | |
| void | SetShortSlotTimeEnabled (bool enable) |
| Enable or disable short slot time. | |

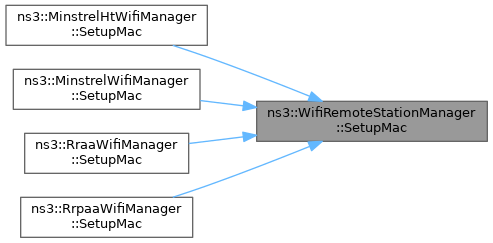

| virtual void | SetupMac (const Ptr< WifiMac > mac) |
| Set up MAC associated with this device since it is the object that knows the full set of timing parameters (e.g. | |

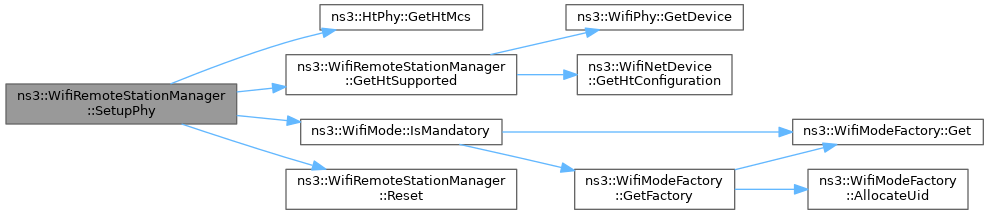

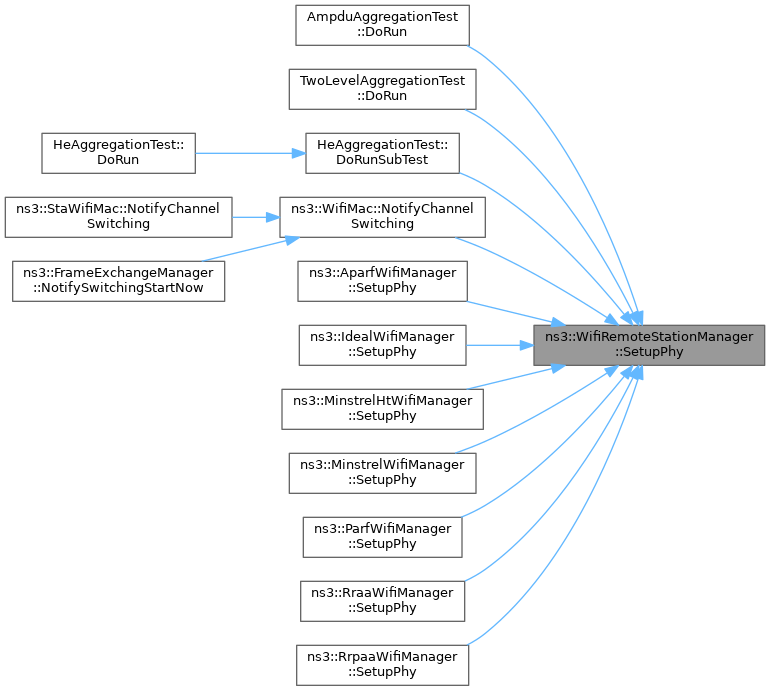

| virtual void | SetupPhy (const Ptr< WifiPhy > phy) |
| Set up PHY associated with this device since it is the object that knows the full set of transmit rates that are supported. | |
| void | SetUseNonErpProtection (bool enable) |
| Enable or disable protection for non-ERP stations. | |
| void | SetUseNonHtProtection (bool enable) |
| Enable or disable protection for non-HT stations. | |
| bool | UseLdpcForDestination (Mac48Address dest) const |
| Public Member Functions inherited from ns3::Object | |
| Object () | |
| Constructor. | |
| ~Object () override | |
| Destructor. | |
| void | AggregateObject (Ptr< Object > other) |
| Aggregate two Objects together. | |
| void | Dispose () |
| Dispose of this Object. | |
| AggregateIterator | GetAggregateIterator () const |
| Get an iterator to the Objects aggregated to this one. | |
| TypeId | GetInstanceTypeId () const override |
| Get the most derived TypeId for this Object. | |
| template<typename T > | |
| Ptr< T > | GetObject () const |
| Get a pointer to the requested aggregated Object. | |
| template<> | |
| Ptr< Object > | GetObject () const |
| Specialization of () for objects of type ns3::Object. | |
| template<typename T > | |
| Ptr< T > | GetObject (TypeId tid) const |
| Get a pointer to the requested aggregated Object by TypeId. | |
| template<> | |
| Ptr< Object > | GetObject (TypeId tid) const |
| Specialization of (TypeId tid) for objects of type ns3::Object. | |
| void | Initialize () |
| Invoke DoInitialize on all Objects aggregated to this one. | |
| bool | IsInitialized () const |
| Check if the object has been initialized. | |
| Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| SimpleRefCount () | |
| Default constructor. | |
| SimpleRefCount (const SimpleRefCount &o) | |
| Copy constructor. | |
| uint32_t | GetReferenceCount () const |
| Get the reference count of the object. | |
| SimpleRefCount & | operator= (const SimpleRefCount &o) |
| Assignment operator. | |
| void | Ref () const |
| Increment the reference count. | |
| void | Unref () const |
| Decrement the reference count. | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| Get the value of an attribute, raising fatal errors if unsuccessful. | |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
| Get the value of an attribute without raising errors. | |
| virtual TypeId | GetInstanceTypeId () const =0 |
| Get the most derived TypeId for this Object. | |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| Set a single attribute, raising fatal errors if unsuccessful. | |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| Set a single attribute without raising errors. | |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| Connect a TraceSource to a Callback with a context. | |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| Connect a TraceSource to a Callback without a context. | |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected with a context. | |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected without a context. | |
Static Public Member Functions | |

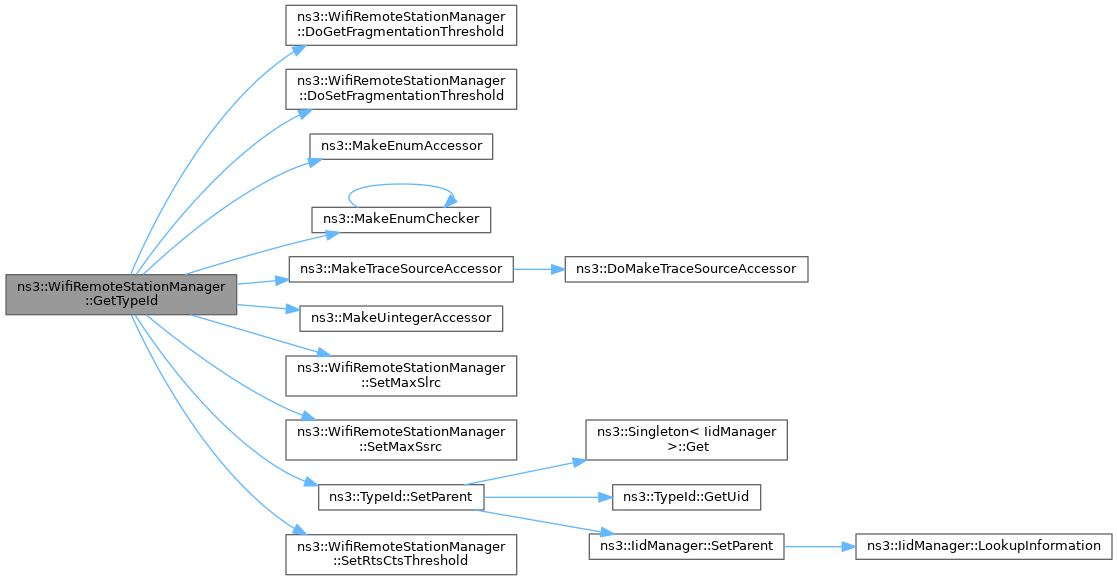

| static TypeId | GetTypeId () |
| Get the type ID. | |
| Static Public Member Functions inherited from ns3::Object | |
| static TypeId | GetTypeId () |
| Register this type. | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId () |
| Get the type ID. | |
Protected Member Functions | |
| void | DoDispose () override |
| Destructor implementation. | |

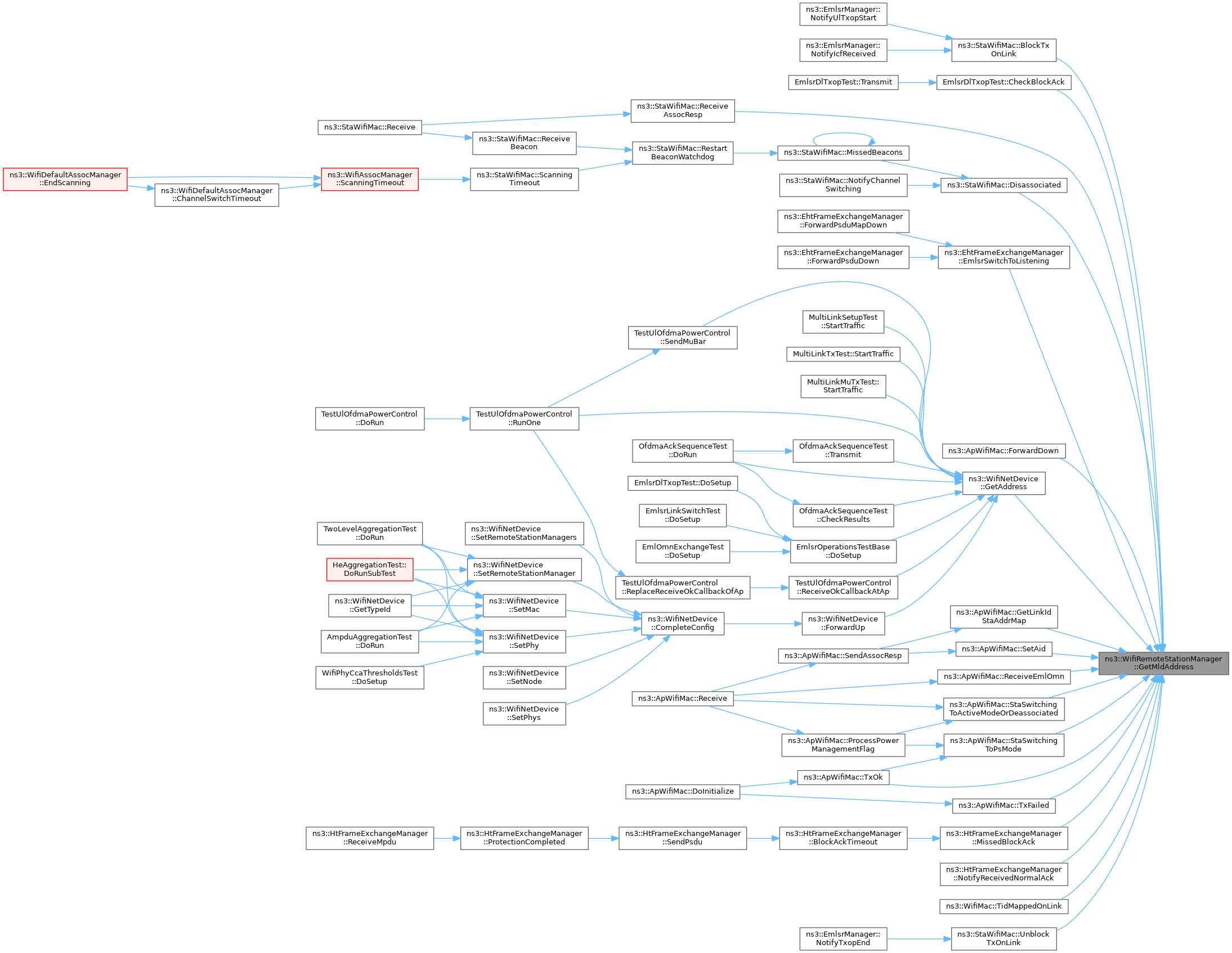

| Mac48Address | GetAddress (const WifiRemoteStation *station) const |
| Return the address of the station. | |

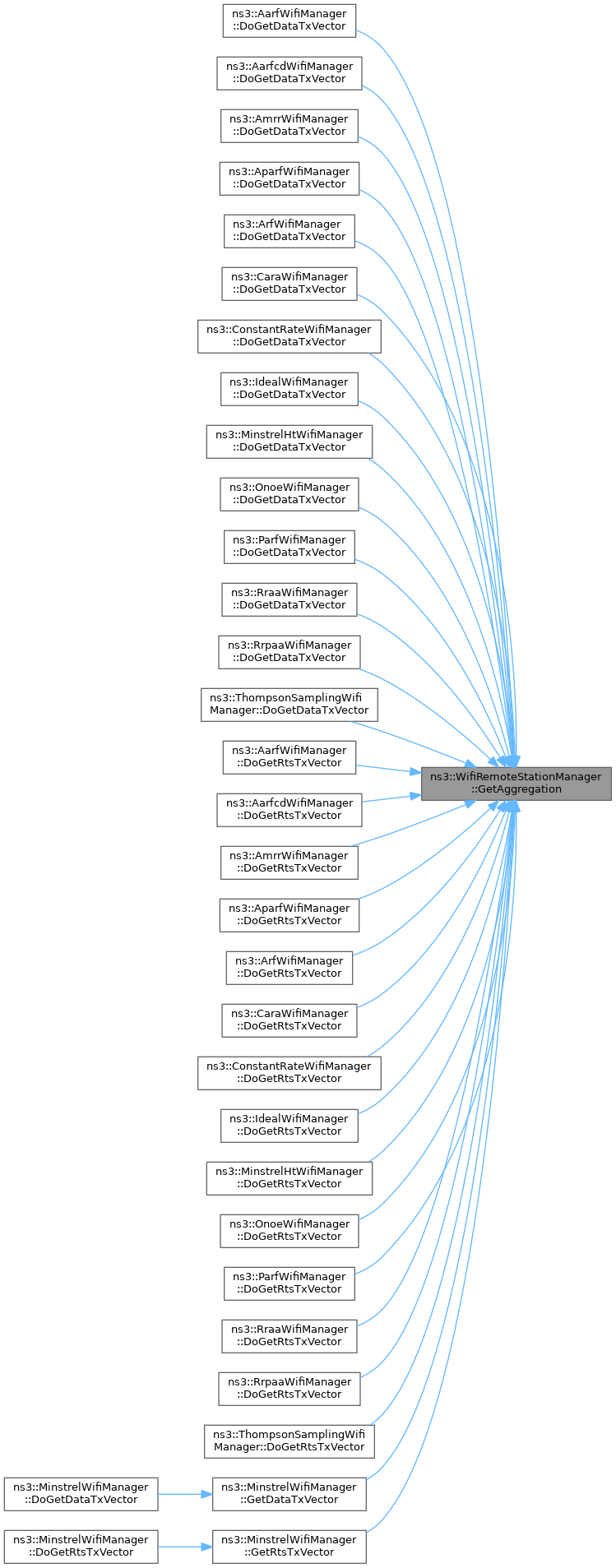

| bool | GetAggregation (const WifiRemoteStation *station) const |
| Return whether the given station supports A-MPDU. | |

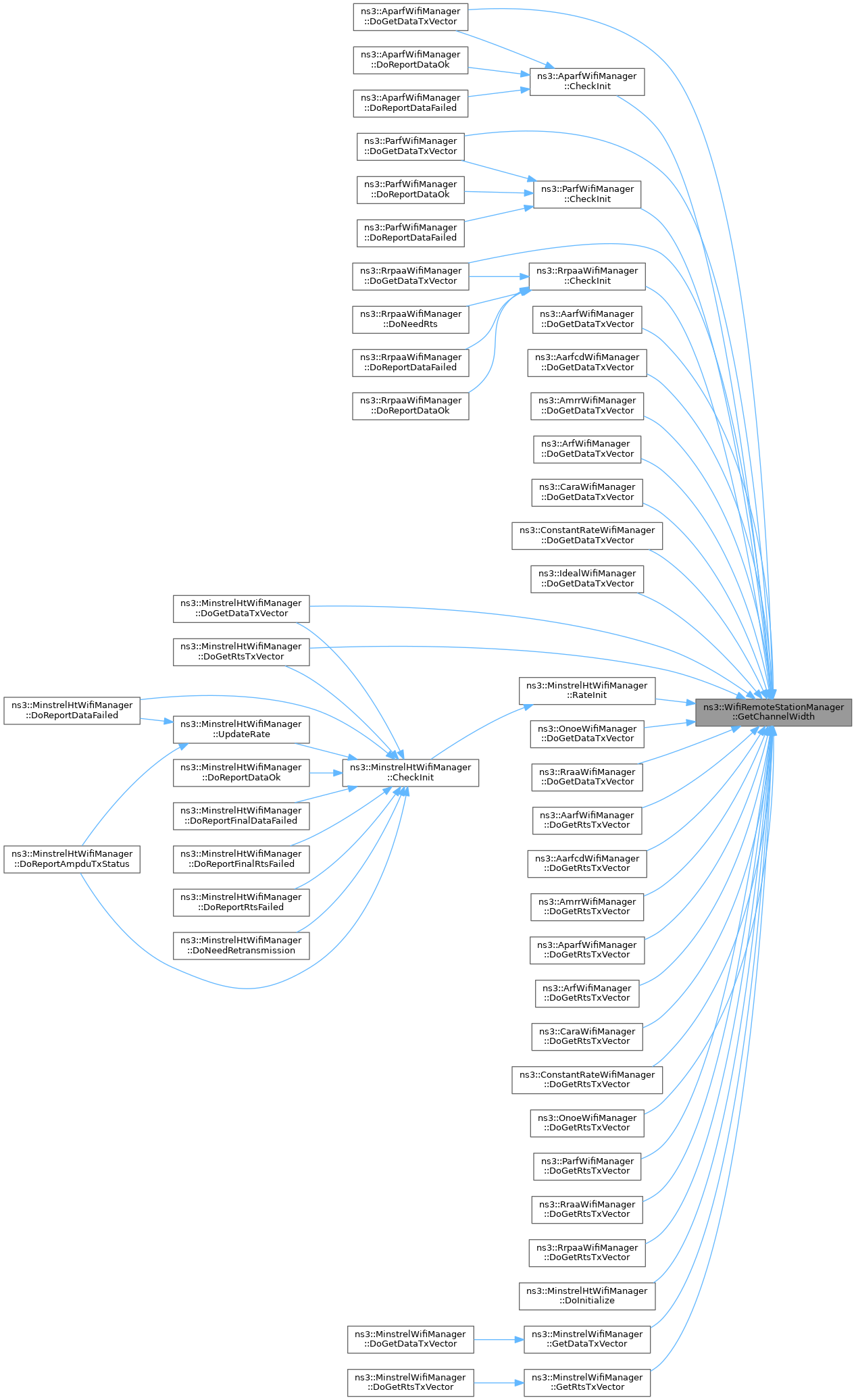

| uint16_t | GetChannelWidth (const WifiRemoteStation *station) const |
| Return the channel width supported by the station. | |
| bool | GetEhtSupported (const WifiRemoteStation *station) const |
| Return whether the given station is EHT capable. | |
| bool | GetEmlsrEnabled (const WifiRemoteStation *station) const |
| bool | GetEmlsrSupported (const WifiRemoteStation *station) const |
| uint16_t | GetGuardInterval (const WifiRemoteStation *station) const |
| Return the HE guard interval duration supported by the station. | |
| bool | GetHeSupported (const WifiRemoteStation *station) const |
| Return whether the given station is HE capable. | |
| bool | GetHtSupported (const WifiRemoteStation *station) const |
| Return whether the given station is HT capable. | |
| WifiMode | GetMcsSupported (const WifiRemoteStation *station, uint8_t i) const |
| Return the WifiMode supported by the specified station at the specified index. | |
| uint8_t | GetNess (const WifiRemoteStation *station) const |
| uint8_t | GetNMcsSupported (const WifiRemoteStation *station) const |
| Return the number of MCS supported by the given station. | |
| uint32_t | GetNNonErpSupported (const WifiRemoteStation *station) const |
| Return the number of non-ERP modes supported by the given station. | |
| WifiMode | GetNonErpSupported (const WifiRemoteStation *station, uint8_t i) const |
| Return whether non-ERP mode associated with the specified station at the specified index. | |
| uint8_t | GetNSupported (const WifiRemoteStation *station) const |
| Return the number of modes supported by the given station. | |
| uint8_t | GetNumberOfSupportedStreams (const WifiRemoteStation *station) const |
| Return the number of supported streams the station has. | |
| bool | GetQosSupported (const WifiRemoteStation *station) const |
| Return whether the given station is QoS capable. | |
| bool | GetShortGuardIntervalSupported (const WifiRemoteStation *station) const |
| Return whether the given station supports HT/VHT short guard interval. | |
| WifiMode | GetSupported (const WifiRemoteStation *station, uint8_t i) const |
| Return whether mode associated with the specified station at the specified index. | |
| bool | GetVhtSupported (const WifiRemoteStation *station) const |
| Return whether the given station is VHT capable. | |
| Protected Member Functions inherited from ns3::Object | |
| Object (const Object &o) | |
| Copy an Object. | |
| virtual void | DoDispose () |
| Destructor implementation. | |
| virtual void | DoInitialize () |
| Initialize() implementation. | |
| virtual void | NotifyNewAggregate () |
| Notify all Objects aggregated to this one of a new Object being aggregated. | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| Complete construction of ObjectBase; invoked by derived classes. | |
| virtual void | NotifyConstructionCompleted () |
| Notifier called once the ObjectBase is fully constructed. | |
Private Member Functions | |
| virtual WifiRemoteStation * | DoCreateStation () const =0 |
| virtual WifiTxVector | DoGetDataTxVector (WifiRemoteStation *station, uint16_t allowedWidth)=0 |
| uint32_t | DoGetFragmentationThreshold () const |
| Return the current fragmentation threshold. | |
| virtual WifiTxVector | DoGetRtsTxVector (WifiRemoteStation *station)=0 |
| virtual bool | DoNeedFragmentation (WifiRemoteStation *station, Ptr< const Packet > packet, bool normally) |
| virtual bool | DoNeedRetransmission (WifiRemoteStation *station, Ptr< const Packet > packet, bool normally) |
| virtual bool | DoNeedRts (WifiRemoteStation *station, uint32_t size, bool normally) |
| virtual void | DoReportAmpduTxStatus (WifiRemoteStation *station, uint16_t nSuccessfulMpdus, uint16_t nFailedMpdus, double rxSnr, double dataSnr, uint16_t dataChannelWidth, uint8_t dataNss) |
| Typically called per A-MPDU, either when a Block ACK was successfully received or when a BlockAckTimeout has elapsed. | |
| virtual void | DoReportDataFailed (WifiRemoteStation *station)=0 |
| This method is a pure virtual method that must be implemented by the sub-class. | |

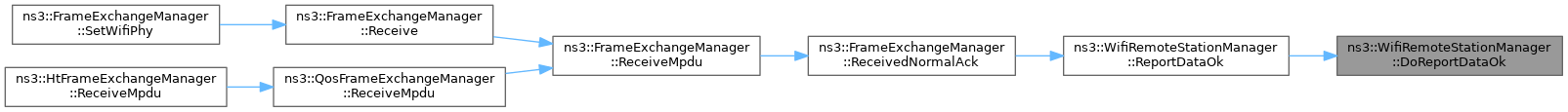

| virtual void | DoReportDataOk (WifiRemoteStation *station, double ackSnr, WifiMode ackMode, double dataSnr, uint16_t dataChannelWidth, uint8_t dataNss)=0 |
| This method is a pure virtual method that must be implemented by the sub-class. | |
| virtual void | DoReportFinalDataFailed (WifiRemoteStation *station)=0 |
| This method is a pure virtual method that must be implemented by the sub-class. | |
| virtual void | DoReportFinalRtsFailed (WifiRemoteStation *station)=0 |
| This method is a pure virtual method that must be implemented by the sub-class. | |
| virtual void | DoReportRtsFailed (WifiRemoteStation *station)=0 |
| This method is a pure virtual method that must be implemented by the sub-class. | |

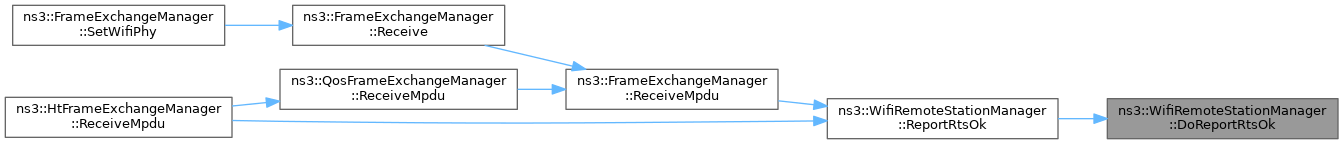

| virtual void | DoReportRtsOk (WifiRemoteStation *station, double ctsSnr, WifiMode ctsMode, double rtsSnr)=0 |
| This method is a pure virtual method that must be implemented by the sub-class. | |

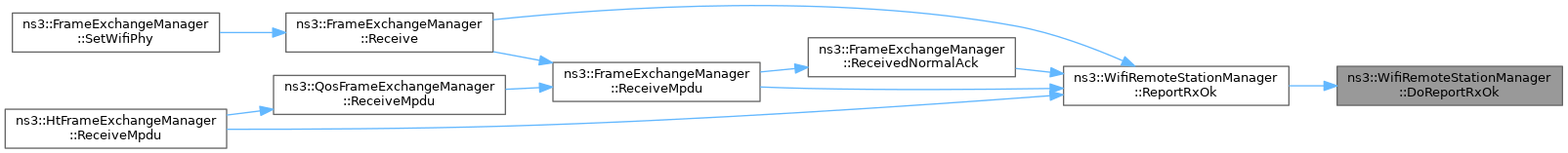

| virtual void | DoReportRxOk (WifiRemoteStation *station, double rxSnr, WifiMode txMode)=0 |
| This method is a pure virtual method that must be implemented by the sub-class. | |

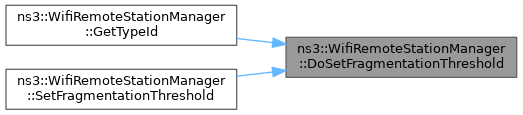

| void | DoSetFragmentationThreshold (uint32_t threshold) |
| Actually sets the fragmentation threshold, it also checks the validity of the given threshold. | |
| uint32_t | GetNFragments (Ptr< const WifiMpdu > mpdu) |
| Return the number of fragments needed for the given packet. | |

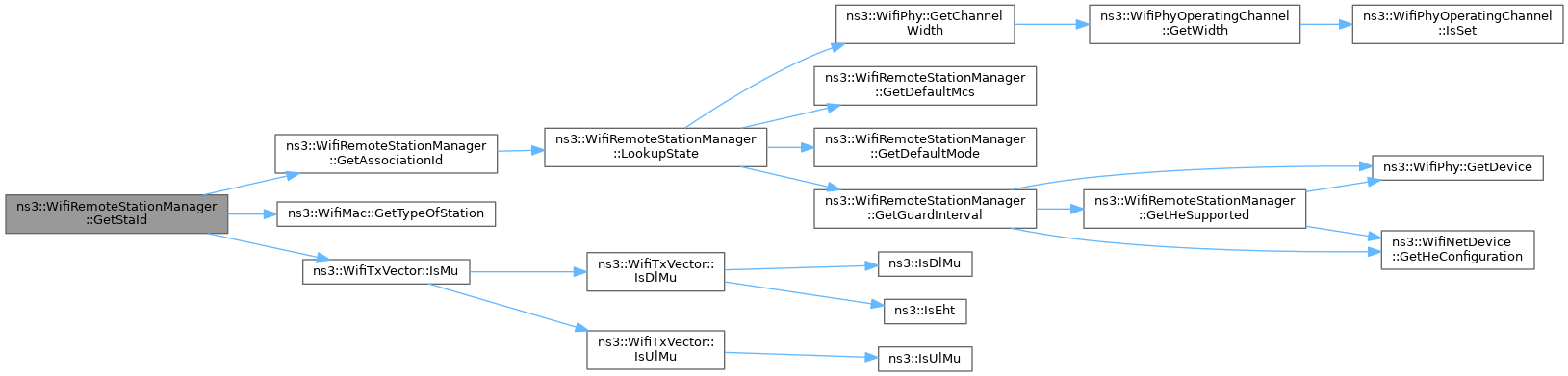

| uint16_t | GetStaId (Mac48Address address, const WifiTxVector &txVector) const |
| If the given TXVECTOR is used for a MU transmission, return the STAID of the station with the given address if we are an AP or our own STAID if we are a STA associated with some AP. | |
| WifiRemoteStation * | Lookup (Mac48Address address) const |
| Return the station associated with the given address. | |

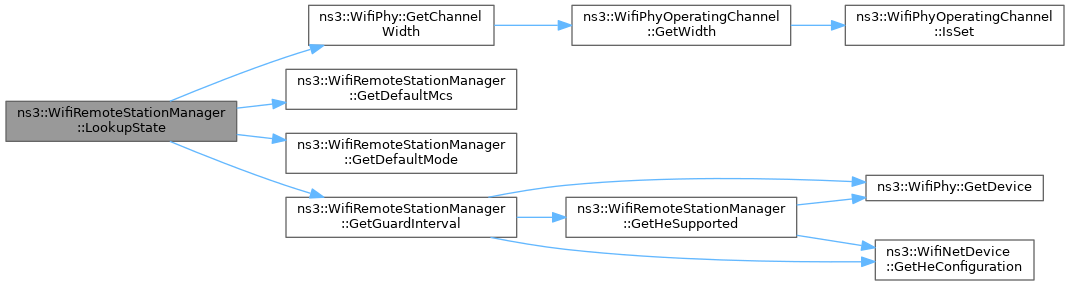

| std::shared_ptr< WifiRemoteStationState > | LookupState (Mac48Address address) const |
| Return the state of the station associated with the given address. | |
Private Attributes | |
| WifiModeList | m_bssBasicMcsSet |
| basic MCS set | |
| WifiModeList | m_bssBasicRateSet |
| This member is the list of WifiMode objects that comprise the BSSBasicRateSet parameter. | |
| WifiMode | m_defaultTxMcs |
| The default transmission modulation-coding scheme (MCS) | |
| WifiMode | m_defaultTxMode |
| The default transmission mode. | |
| uint8_t | m_defaultTxPowerLevel |
| Default transmission power level. | |
| ProtectionMode | m_erpProtectionMode |
| Protection mode for ERP stations when non-ERP stations are detected. | |
| uint32_t | m_fragmentationThreshold |
| Current threshold for fragmentation. | |
| ProtectionMode | m_htProtectionMode |
| Protection mode for HT stations when non-HT stations are detected. | |
| TracedCallback< Mac48Address > | m_macTxDataFailed |
| The trace source fired when the transmission of a single data packet has failed. | |
| TracedCallback< Mac48Address > | m_macTxFinalDataFailed |
| The trace source fired when the transmission of a data packet has exceeded the maximum number of attempts. | |
| TracedCallback< Mac48Address > | m_macTxFinalRtsFailed |
| The trace source fired when the transmission of a RTS has exceeded the maximum number of attempts. | |
| TracedCallback< Mac48Address > | m_macTxRtsFailed |
| The trace source fired when the transmission of a single RTS has failed. | |
| uint32_t | m_maxSlrc |
| Maximum STA long retry count (SLRC) | |
| uint32_t | m_maxSsrc |
| Maximum STA short retry count (SSRC) | |
| WifiMode | m_nonUnicastMode |
| Transmission mode for non-unicast Data frames. | |
| uint32_t | m_rtsCtsThreshold |
| Threshold for RTS/CTS. | |
| bool | m_shortPreambleEnabled |
| flag if short PHY preamble is enabled | |
| bool | m_shortSlotTimeEnabled |
| flag if short slot time is enabled | |
| std::array< uint32_t, AC_BE_NQOS > | m_slrc |
| long retry count per AC | |
| std::array< uint32_t, AC_BE_NQOS > | m_ssrc |
| short retry count per AC | |
| StationStates | m_states |
| States of known stations. | |
| Stations | m_stations |
| Information for each known stations. | |
| bool | m_useNonErpProtection |
| flag if protection for non-ERP stations against ERP transmissions is enabled | |
| bool | m_useNonHtProtection |
| flag if protection for non-HT stations against HT transmissions is enabled | |
| Ptr< WifiMac > | m_wifiMac |
| This is a pointer to the WifiMac associated with this WifiRemoteStationManager that is set on call to WifiRemoteStationManager::SetupMac(). | |
| Ptr< WifiPhy > | m_wifiPhy |
| This is a pointer to the WifiPhy associated with this WifiRemoteStationManager that is set on call to WifiRemoteStationManager::SetupPhy(). | |
Additional Inherited Members | |
| Related Functions inherited from ns3::ObjectBase | |
| static TypeId | GetObjectIid () |
| Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. | |
hold a list of per-remote-station state.
ns3::WifiRemoteStationManager is accessible through the following paths with Config::Set and Config::Connect:
Rts-Cts|Cts-To-Self Rts-Cts|Cts-To-Self WifiMode Size of this type is 352 bytes (on a 64-bit architecture).
Definition at line 136 of file wifi-remote-station-manager.h.
| typedef void(* ns3::WifiRemoteStationManager::PowerChangeTracedCallback) (double oldPower, double newPower, Mac48Address remoteAddress) |
TracedCallback signature for power change events.
| [in] | oldPower | The previous power (in dBm). |
| [in] | newPower | The new power (in dBm). |
| [in] | address | The remote station MAC address. |
Definition at line 1061 of file wifi-remote-station-manager.h.
| typedef void(* ns3::WifiRemoteStationManager::RateChangeTracedCallback) (DataRate oldRate, DataRate newRate, Mac48Address remoteAddress) |
TracedCallback signature for rate change events.
| [in] | oldRate | The previous data rate. |
| [in] | newRate | The new data rate. |
| [in] | address | The remote station MAC address. |
Definition at line 1072 of file wifi-remote-station-manager.h.
| using ns3::WifiRemoteStationManager::Stations = std::unordered_map<Mac48Address, WifiRemoteStation*, WifiAddressHash> |
A map of WifiRemoteStations with Mac48Address as key.
Definition at line 158 of file wifi-remote-station-manager.h.
| using ns3::WifiRemoteStationManager::StationStates = std::unordered_map<Mac48Address, std::shared_ptr<WifiRemoteStationState>, WifiAddressHash> |
A map of WifiRemoteStationStates with Mac48Address as key.
Definition at line 162 of file wifi-remote-station-manager.h.
ProtectionMode enumeration.
| Enumerator | |
|---|---|
| RTS_CTS | |
| CTS_TO_SELF | |
Definition at line 149 of file wifi-remote-station-manager.h.
| ns3::WifiRemoteStationManager::WifiRemoteStationManager | ( | ) |
Definition at line 138 of file wifi-remote-station-manager.cc.
References NS_LOG_FUNCTION.
|
override |
Definition at line 147 of file wifi-remote-station-manager.cc.
References NS_LOG_FUNCTION.
| void ns3::WifiRemoteStationManager::AddAllSupportedMcs | ( | Mac48Address | address | ) |
Invoked in a STA or AP to store all of the MCS supported by a destination which is also supported locally.
| address | the address of the station being recorded |
Definition at line 388 of file wifi-remote-station-manager.cc.
References ns3::WifiPhy::GetMcsList(), LookupState(), m_wifiPhy, NS_ASSERT, and NS_LOG_FUNCTION.
Referenced by ns3::AdhocWifiMac::Enqueue(), and ns3::AdhocWifiMac::Receive().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::AddAllSupportedModes | ( | Mac48Address | address | ) |
Invoked in a STA or AP to store all of the modes supported by a destination which is also supported locally.
The set of supported modes includes the BSSBasicRateSet.
| address | the address of the station being recorded |
Definition at line 371 of file wifi-remote-station-manager.cc.
References AddBasicMode(), ns3::WifiPhy::GetModeList(), LookupState(), m_wifiPhy, NS_ASSERT, and NS_LOG_FUNCTION.
Referenced by ns3::AdhocWifiMac::Enqueue(), and ns3::AdhocWifiMac::Receive().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::AddBasicMcs | ( | WifiMode | mcs | ) |
Add a given Modulation and Coding Scheme (MCS) index to the set of basic MCS.
| mcs | the WifiMode to be added to the basic MCS set |
Definition at line 1800 of file wifi-remote-station-manager.cc.
References ns3::WifiMode::GetMcsValue(), and NS_LOG_FUNCTION.
Here is the call graph for this function:| void ns3::WifiRemoteStationManager::AddBasicMode | ( | WifiMode | mode | ) |
Invoked in a STA upon association to store the set of rates which belong to the BSSBasicRateSet of the associated AP and which are supported locally.
Invoked in an AP to configure the BSSBasicRateSet.
| mode | the WifiMode to be added to the basic mode set |
Definition at line 1729 of file wifi-remote-station-manager.cc.
References ns3::WifiMode::GetModulationClass(), NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::WIFI_MOD_CLASS_HT.
Referenced by AddAllSupportedModes(), ns3::ApWifiMac::GetSupportedRates(), ns3::MeshWifiInterfaceMac::Receive(), and ns3::StaWifiMac::UpdateApInfo().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::AddStationEhtCapabilities | ( | Mac48Address | from, |
| EhtCapabilities | ehtCapabilities | ||
| ) |
Records EHT capabilities of the remote station.
| from | the address of the station being recorded |
| ehtCapabilities | the EHT capabilities of the station |
Definition at line 1573 of file wifi-remote-station-manager.cc.
References ns3::EhtCapabilities::GetHighestSupportedRxMcs(), NS_LOG_FUNCTION, and ns3::WIFI_MOD_CLASS_EHT.
Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::AdhocWifiMac::Receive(), and ns3::StaWifiMac::UpdateApInfo().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::AddStationHeCapabilities | ( | Mac48Address | from, |
| HeCapabilities | heCapabilities | ||
| ) |
Records HE capabilities of the remote station.
| from | the address of the station being recorded |
| heCapabilities | the HE capabilities of the station |
Definition at line 1523 of file wifi-remote-station-manager.cc.
References ns3::HeCapabilities::GetChannelWidthSet(), ns3::HeCapabilities::GetHeSuPpdu1xHeLtf800nsGi(), ns3::HeCapabilities::GetHighestMcsSupported(), NS_LOG_FUNCTION, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_PHY_BAND_2_4GHZ, ns3::WIFI_PHY_BAND_5GHZ, and ns3::WIFI_PHY_BAND_6GHZ.
Referenced by HeAggregationTest::DoRunSubTest(), ns3::AdhocWifiMac::Enqueue(), ns3::AdhocWifiMac::Receive(), and ns3::StaWifiMac::UpdateApInfo().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::AddStationHtCapabilities | ( | Mac48Address | from, |
| HtCapabilities | htCapabilities | ||
| ) |
Records HT capabilities of the remote station.
| from | the address of the station being recorded |
| htCapabilities | the HT capabilities of the station |
Definition at line 1470 of file wifi-remote-station-manager.cc.
References ns3::HtCapabilities::GetSupportedChannelWidth(), ns3::HtCapabilities::IsSupportedMcs(), NS_LOG_FUNCTION, and ns3::WIFI_MOD_CLASS_HT.
Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), ns3::AdhocWifiMac::Enqueue(), ns3::AdhocWifiMac::Receive(), and ns3::StaWifiMac::UpdateApInfo().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::AddStationMleCommonInfo | ( | Mac48Address | from, |
| const std::shared_ptr< CommonInfoBasicMle > & | mleCommonInfo | ||
| ) |
Records the Common Info field advertised by the given remote station in a Multi-Link Element.
It includes the MLD address of the remote station.
| from | the address of the station being recorded |
| mleCommonInfo | the MLE Common Info advertised by the station |
Definition at line 1595 of file wifi-remote-station-manager.cc.
References NS_LOG_FUNCTION.
Referenced by ns3::ApWifiMac::ParseReportedStaInfo(), and ns3::StaWifiMac::ScanningTimeout().
Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::AddStationVhtCapabilities | ( | Mac48Address | from, |
| VhtCapabilities | vhtCapabilities | ||
| ) |
Records VHT capabilities of the remote station.
| from | the address of the station being recorded |
| vhtCapabilities | the VHT capabilities of the station |
Definition at line 1495 of file wifi-remote-station-manager.cc.
References ns3::VhtCapabilities::GetSupportedChannelWidthSet(), ns3::VhtCapabilities::IsSupportedMcs(), NS_LOG_FUNCTION, and ns3::WIFI_MOD_CLASS_VHT.
Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::AdhocWifiMac::Receive(), and ns3::StaWifiMac::UpdateApInfo().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::AddSupportedErpSlotTime | ( | Mac48Address | address, |
| bool | isShortSlotTimeSupported | ||
| ) |
Record whether the short ERP slot time is supported by the station.
| address | the address of the station |
| isShortSlotTimeSupported | whether or not short ERP slot time is supported by the station |
Definition at line 333 of file wifi-remote-station-manager.cc.
References LookupState(), NS_ASSERT, and NS_LOG_FUNCTION.
Here is the call graph for this function:| void ns3::WifiRemoteStationManager::AddSupportedMcs | ( | Mac48Address | address, |
| WifiMode | mcs | ||
| ) |
Record the MCS index supported by the station.
| address | the address of the station |
| mcs | the WifiMode supported by the station |
Definition at line 407 of file wifi-remote-station-manager.cc.
References LookupState(), NS_ASSERT, and NS_LOG_FUNCTION.
Referenced by ns3::StaWifiMac::UpdateApInfo().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::AddSupportedMode | ( | Mac48Address | address, |
| WifiMode | mode | ||
| ) |
Invoked in a STA or AP to store the set of modes supported by a destination which is also supported locally.
The set of supported modes includes the BSSBasicRateSet.
| address | the address of the station being recorded |
| mode | the WifiMode supports by the station |
Definition at line 342 of file wifi-remote-station-manager.cc.
References ns3::WifiMode::GetModulationClass(), LookupState(), NS_ASSERT, NS_LOG_FUNCTION, ns3::WIFI_MOD_CLASS_DSSS, ns3::WIFI_MOD_CLASS_ERP_OFDM, ns3::WIFI_MOD_CLASS_HR_DSSS, and ns3::WIFI_MOD_CLASS_OFDM.
Referenced by ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::MeshWifiInterfaceMac::Receive(), and ns3::StaWifiMac::UpdateApInfo().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::AddSupportedPhyPreamble | ( | Mac48Address | address, |
| bool | isShortPreambleSupported | ||
| ) |
Record whether the short PHY preamble is supported by the station.
| address | the address of the station |
| isShortPreambleSupported | whether or not short PHY preamble is supported by the station |
Definition at line 324 of file wifi-remote-station-manager.cc.
References LookupState(), NS_ASSERT, and NS_LOG_FUNCTION.
Here is the call graph for this function:| void ns3::WifiRemoteStationManager::AdjustTxVectorForIcf | ( | WifiTxVector & | txVector | ) | const |
Adjust the TXVECTOR for an initial Control frame to ensure that the modulation class is non-HT and the rate is 6 Mbps, 12 Mbps or 24 Mbps.
| txVector | the TXVECTOR to adjust |
Definition at line 744 of file wifi-remote-station-manager.cc.
References ns3::WifiMode::GetDataRate(), ns3::ErpOfdmPhy::GetErpOfdmRate(), ns3::WifiTxVector::GetMode(), ns3::OfdmPhy::GetOfdmRate(), ns3::WifiPhy::GetPhyBand(), m_wifiPhy, NS_LOG_FUNCTION, ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetPreambleType(), ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_PHY_BAND_2_4GHZ, and ns3::WIFI_PREAMBLE_LONG.
Referenced by ns3::WifiDefaultProtectionManager::TryAddMpduToMuPpdu(), and ns3::WifiDefaultProtectionManager::TryUlMuTransmission().
Here is the call graph for this function: Here is the caller graph for this function:
|
virtual |
Assign a fixed random variable stream number to the random variables used by this model.
Return the number of streams (possibly zero) that have been assigned.
| stream | first stream index to use |
Reimplemented in ns3::MinstrelHtWifiManager, ns3::MinstrelWifiManager, ns3::RrpaaWifiManager, and ns3::ThompsonSamplingWifiManager.
Definition at line 189 of file wifi-remote-station-manager.cc.
References NS_LOG_FUNCTION.
|
privatepure virtual |
Implemented in ns3::AarfWifiManager, ns3::AarfcdWifiManager, ns3::AmrrWifiManager, ns3::AparfWifiManager, ns3::ArfWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, ns3::IdealWifiManager, ns3::MinstrelHtWifiManager, ns3::MinstrelWifiManager, ns3::OnoeWifiManager, ns3::ParfWifiManager, ns3::RraaWifiManager, ns3::RrpaaWifiManager, and ns3::ThompsonSamplingWifiManager.
|
overrideprotectedvirtual |
Destructor implementation.
This method is called by Dispose() or by the Object's destructor, whichever comes first.
Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.
It is safe to call GetObject() from within this method.
Reimplemented from ns3::Object.
Definition at line 153 of file wifi-remote-station-manager.cc.
References NS_LOG_FUNCTION, and Reset().
Here is the call graph for this function:
|
privatepure virtual |
| station | the station that we need to communicate |
| allowedWidth | the allowed width in MHz to send a packet to the station |
Note: This method is called before sending a unicast packet or a fragment of a unicast packet to decide which transmission mode to use.
Implemented in ns3::AarfWifiManager, ns3::AarfcdWifiManager, ns3::AmrrWifiManager, ns3::AparfWifiManager, ns3::ArfWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, ns3::IdealWifiManager, ns3::MinstrelHtWifiManager, ns3::MinstrelWifiManager, ns3::OnoeWifiManager, ns3::ParfWifiManager, ns3::RraaWifiManager, ns3::RrpaaWifiManager, and ns3::ThompsonSamplingWifiManager.
Referenced by GetDataTxVector().
Here is the caller graph for this function:
|
private |
Return the current fragmentation threshold.
Definition at line 1290 of file wifi-remote-station-manager.cc.
References m_fragmentationThreshold.
Referenced by GetFragmentationThreshold(), and GetTypeId().
Here is the caller graph for this function:
|
privatepure virtual |
| station | the station that we need to communicate |
Note: This method is called before sending an RTS to a station to decide which transmission mode to use for the RTS.
Implemented in ns3::AarfWifiManager, ns3::AarfcdWifiManager, ns3::AmrrWifiManager, ns3::AparfWifiManager, ns3::ArfWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, ns3::IdealWifiManager, ns3::MinstrelHtWifiManager, ns3::MinstrelWifiManager, ns3::OnoeWifiManager, ns3::ParfWifiManager, ns3::RraaWifiManager, ns3::RrpaaWifiManager, and ns3::ThompsonSamplingWifiManager.
Referenced by GetRtsTxVector().
Here is the caller graph for this function:
|
privatevirtual |
| station | the station that we need to communicate |
| packet | the packet to send |
| normally | indicates whether the normal 802.11 data fragmentation mechanism would request that the data packet is fragmented or not. |
Note: This method is called before sending a unicast packet.
Definition at line 1861 of file wifi-remote-station-manager.cc.
Referenced by NeedFragmentation().
Here is the caller graph for this function:
|
privatevirtual |
| station | the station that we need to communicate |
| packet | the packet to send |
| normally | indicates whether the normal 802.11 data retransmission mechanism would request that the data is retransmitted or not. |
Note: This method is called after any unicast packet transmission (control, management, or data) has been attempted and has failed.
Reimplemented in ns3::MinstrelHtWifiManager, and ns3::MinstrelWifiManager.
Definition at line 1853 of file wifi-remote-station-manager.cc.
Referenced by NeedRetransmission().
Here is the caller graph for this function:
|
privatevirtual |
| station | the station that we need to communicate |
| size | the size of the frame to send in bytes |
| normally | indicates whether the normal 802.11 RTS enable mechanism would request that the RTS is sent or not. |
Note: This method is called before a unicast packet is sent on the medium.
Reimplemented in ns3::RraaWifiManager, ns3::RrpaaWifiManager, ns3::AarfcdWifiManager, and ns3::CaraWifiManager.
Definition at line 1847 of file wifi-remote-station-manager.cc.
Referenced by NeedRts().
Here is the caller graph for this function:
|
privatevirtual |
Typically called per A-MPDU, either when a Block ACK was successfully received or when a BlockAckTimeout has elapsed.
This method is a virtual method that must be implemented by the sub-class intended to handle A-MPDUs. This allows different types of WifiRemoteStationManager to respond differently.
| station | the station that sent the DATA to us |
| nSuccessfulMpdus | number of successfully transmitted MPDUs. A value of 0 means that the Block ACK was missed. |
| nFailedMpdus | number of unsuccessfuly transmitted MPDUs. |
| rxSnr | received SNR of the block ack frame itself |
| dataSnr | data SNR reported by remote station |
| dataChannelWidth | the channel width (in MHz) of the A-MPDU we sent |
| dataNss | the number of spatial streams used to send the A-MPDU |
Reimplemented in ns3::IdealWifiManager, ns3::MinstrelHtWifiManager, and ns3::ThompsonSamplingWifiManager.
Definition at line 1869 of file wifi-remote-station-manager.cc.
References NS_LOG_DEBUG.
Referenced by ReportAmpduTxStatus().
Here is the caller graph for this function:
|
privatepure virtual |
This method is a pure virtual method that must be implemented by the sub-class.
This allows different types of WifiRemoteStationManager to respond differently,
| station | the station that we failed to send DATA |
Implemented in ns3::AarfWifiManager, ns3::AarfcdWifiManager, ns3::AmrrWifiManager, ns3::AparfWifiManager, ns3::ArfWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, ns3::IdealWifiManager, ns3::MinstrelHtWifiManager, ns3::MinstrelWifiManager, ns3::OnoeWifiManager, ns3::ParfWifiManager, ns3::RraaWifiManager, ns3::RrpaaWifiManager, and ns3::ThompsonSamplingWifiManager.
Referenced by ReportDataFailed().
Here is the caller graph for this function:
|
privatepure virtual |
This method is a pure virtual method that must be implemented by the sub-class.
This allows different types of WifiRemoteStationManager to respond differently,
| station | the station that we successfully sent RTS |
| ackSnr | the SNR of the ACK we received |
| ackMode | the WifiMode the receiver used to send the ACK |
| dataSnr | the SNR of the DATA we sent |
| dataChannelWidth | the channel width (in MHz) of the DATA we sent |
| dataNss | the number of spatial streams used to send the DATA |
Implemented in ns3::AarfWifiManager, ns3::AarfcdWifiManager, ns3::AmrrWifiManager, ns3::AparfWifiManager, ns3::ArfWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, ns3::IdealWifiManager, ns3::MinstrelHtWifiManager, ns3::MinstrelWifiManager, ns3::OnoeWifiManager, ns3::ParfWifiManager, ns3::RraaWifiManager, ns3::RrpaaWifiManager, and ns3::ThompsonSamplingWifiManager.
Referenced by ReportDataOk().
Here is the caller graph for this function:
|
privatepure virtual |
This method is a pure virtual method that must be implemented by the sub-class.
This allows different types of WifiRemoteStationManager to respond differently,
| station | the station that we failed to send DATA |
Implemented in ns3::AarfWifiManager, ns3::AarfcdWifiManager, ns3::AmrrWifiManager, ns3::AparfWifiManager, ns3::ArfWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, ns3::IdealWifiManager, ns3::MinstrelHtWifiManager, ns3::MinstrelWifiManager, ns3::OnoeWifiManager, ns3::ParfWifiManager, ns3::RraaWifiManager, ns3::RrpaaWifiManager, and ns3::ThompsonSamplingWifiManager.
Referenced by ReportFinalDataFailed().
Here is the caller graph for this function:
|
privatepure virtual |
This method is a pure virtual method that must be implemented by the sub-class.
This allows different types of WifiRemoteStationManager to respond differently,
| station | the station that we failed to send RTS |
Implemented in ns3::AarfWifiManager, ns3::AarfcdWifiManager, ns3::AmrrWifiManager, ns3::AparfWifiManager, ns3::ArfWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, ns3::IdealWifiManager, ns3::MinstrelHtWifiManager, ns3::MinstrelWifiManager, ns3::OnoeWifiManager, ns3::ParfWifiManager, ns3::RraaWifiManager, ns3::RrpaaWifiManager, and ns3::ThompsonSamplingWifiManager.
Referenced by ReportFinalRtsFailed().
Here is the caller graph for this function:
|
privatepure virtual |
This method is a pure virtual method that must be implemented by the sub-class.
This allows different types of WifiRemoteStationManager to respond differently,
| station | the station that we failed to send RTS |
Implemented in ns3::AarfWifiManager, ns3::AarfcdWifiManager, ns3::AmrrWifiManager, ns3::AparfWifiManager, ns3::ArfWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, ns3::IdealWifiManager, ns3::MinstrelHtWifiManager, ns3::MinstrelWifiManager, ns3::OnoeWifiManager, ns3::ParfWifiManager, ns3::RraaWifiManager, ns3::RrpaaWifiManager, and ns3::ThompsonSamplingWifiManager.
Referenced by ReportRtsFailed().
Here is the caller graph for this function:
|
privatepure virtual |
This method is a pure virtual method that must be implemented by the sub-class.
This allows different types of WifiRemoteStationManager to respond differently,
| station | the station that we successfully sent RTS |
| ctsSnr | the SNR of the CTS we received |
| ctsMode | the WifiMode the receiver used to send the CTS |
| rtsSnr | the SNR of the RTS we sent |
Implemented in ns3::AarfWifiManager, ns3::AarfcdWifiManager, ns3::AmrrWifiManager, ns3::AparfWifiManager, ns3::ArfWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, ns3::IdealWifiManager, ns3::MinstrelHtWifiManager, ns3::MinstrelWifiManager, ns3::OnoeWifiManager, ns3::ParfWifiManager, ns3::RraaWifiManager, ns3::RrpaaWifiManager, and ns3::ThompsonSamplingWifiManager.
Referenced by ReportRtsOk().
Here is the caller graph for this function:
|
privatepure virtual |
This method is a pure virtual method that must be implemented by the sub-class.
This allows different types of WifiRemoteStationManager to respond differently,
| station | the station that sent the DATA to us |
| rxSnr | the SNR of the DATA we received |
| txMode | the WifiMode the sender used to send the DATA |
Implemented in ns3::AarfWifiManager, ns3::AarfcdWifiManager, ns3::AmrrWifiManager, ns3::AparfWifiManager, ns3::ArfWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, ns3::IdealWifiManager, ns3::MinstrelHtWifiManager, ns3::MinstrelWifiManager, ns3::OnoeWifiManager, ns3::ParfWifiManager, ns3::RraaWifiManager, ns3::RrpaaWifiManager, and ns3::ThompsonSamplingWifiManager.
Referenced by ReportRxOk().
Here is the caller graph for this function:
|
private |
Actually sets the fragmentation threshold, it also checks the validity of the given threshold.
| threshold | the fragmentation threshold |
Definition at line 1259 of file wifi-remote-station-manager.cc.
References m_fragmentationThreshold, NS_LOG_FUNCTION, and NS_LOG_WARN.
Referenced by GetTypeId(), and SetFragmentationThreshold().
Here is the caller graph for this function:| WifiTxVector ns3::WifiRemoteStationManager::GetAckTxVector | ( | Mac48Address | to, |
| const WifiTxVector & | dataTxVector | ||
| ) | const |
Return a TXVECTOR for the Ack frame given the destination and the mode of the Data used by the sender.
| to | the MAC address of the Ack receiver |
| dataTxVector | the TXVECTOR of the Data used by the sender |
Definition at line 777 of file wifi-remote-station-manager.cc.
References ns3::ConvertGuardIntervalToNanoSeconds(), GetControlAnswerMode(), GetDefaultTxPowerLevel(), ns3::WifiPhy::GetDevice(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), ns3::GetPreambleForTransmission(), GetShortPreambleEnabled(), GetStaId(), ns3::WifiPhy::GetTxBandwidth(), ns3::Mac48Address::IsGroup(), m_wifiPhy, NS_ASSERT, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNss(), ns3::WifiTxVector::SetPreambleType(), and ns3::WifiTxVector::SetTxPowerLevel().
Referenced by ns3::WifiDefaultAckManager::GetAckInfoIfBarBaSequence(), ns3::FrameExchangeManager::GetFrameDurationId(), ns3::FrameExchangeManager::SendNormalAck(), and ns3::WifiDefaultAckManager::TryAddMpdu().
Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
Return the address of the station.
| station | the station being queried |
Definition at line 1925 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::m_address, and ns3::WifiRemoteStation::m_state.
| std::optional< Mac48Address > ns3::WifiRemoteStationManager::GetAffiliatedStaAddress | ( | const Mac48Address & | mldAddress | ) | const |
Get the address of the remote station operating on this link and affiliated with the MLD having the given MAC address, if any.
| mldAddress | the MLD MAC address |
Definition at line 579 of file wifi-remote-station-manager.cc.
References m_states, and NS_ASSERT.
Referenced by ns3::EhtFrameExchangeManager::CreateAliasIfNeeded(), ns3::HtFrameExchangeManager::GetBar(), ns3::ApWifiMac::GetLinkIdStaAddrMap(), and ns3::HtFrameExchangeManager::SendAddBaRequest().
Here is the caller graph for this function:
|
protected |
Return whether the given station supports A-MPDU.
| station | the station being queried |
Definition at line 1955 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::m_aggregation, and ns3::WifiRemoteStation::m_state.
Referenced by ns3::AarfWifiManager::DoGetDataTxVector(), ns3::AarfcdWifiManager::DoGetDataTxVector(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::AparfWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::CaraWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::ParfWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::DoGetDataTxVector(), ns3::RrpaaWifiManager::DoGetDataTxVector(), ns3::ThompsonSamplingWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::AparfWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::MinstrelHtWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ParfWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), ns3::RrpaaWifiManager::DoGetRtsTxVector(), ns3::ThompsonSamplingWifiManager::DoGetRtsTxVector(), ns3::MinstrelWifiManager::GetDataTxVector(), and ns3::MinstrelWifiManager::GetRtsTxVector().
Here is the caller graph for this function:| uint16_t ns3::WifiRemoteStationManager::GetAssociationId | ( | Mac48Address | remoteAddress | ) | const |
Get the AID of a remote station.
Should only be called by APs.
| remoteAddress | the MAC address of the remote station |
Definition at line 516 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::GOT_ASSOC_TX_OK, LookupState(), and ns3::SU_STA_ID.
Referenced by ns3::EhtFrameExchangeManager::ForwardPsduDown(), ns3::EhtFrameExchangeManager::ForwardPsduMapDown(), ns3::ApWifiMac::GetAssociationId(), and GetStaId().
Here is the call graph for this function: Here is the caller graph for this function:| WifiMode ns3::WifiRemoteStationManager::GetBasicMcs | ( | uint8_t | i | ) | const |
Return the MCS at the given list index.
| i | the position in the list |
Definition at line 1820 of file wifi-remote-station-manager.cc.
References NS_ASSERT.
Referenced by GetControlAnswerMode().
Here is the caller graph for this function:| WifiMode ns3::WifiRemoteStationManager::GetBasicMode | ( | uint8_t | i | ) | const |
Return a basic mode from the set of basic modes.
| i | index of the basic mode in the basic mode set |
Definition at line 1753 of file wifi-remote-station-manager.cc.
References NS_ASSERT.
Referenced by ns3::MeshWifiInterfaceMac::CheckSupportedRates(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::MinstrelHtWifiManager::DoGetRtsTxVector(), GetControlAnswerMode(), GetDataTxVector(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), and ns3::ApWifiMac::GetSupportedRates().
Here is the caller graph for this function:| WifiTxVector ns3::WifiRemoteStationManager::GetBlockAckTxVector | ( | Mac48Address | to, |
| const WifiTxVector & | dataTxVector | ||
| ) | const |
Return a TXVECTOR for the BlockAck frame given the destination and the mode of the Data used by the sender.
| to | the MAC address of the BlockAck receiver |
| dataTxVector | the TXVECTOR of the Data used by the sender |
Definition at line 795 of file wifi-remote-station-manager.cc.
References ns3::ConvertGuardIntervalToNanoSeconds(), GetControlAnswerMode(), GetDefaultTxPowerLevel(), ns3::WifiPhy::GetDevice(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), ns3::GetPreambleForTransmission(), GetShortPreambleEnabled(), GetStaId(), ns3::WifiPhy::GetTxBandwidth(), ns3::Mac48Address::IsGroup(), m_wifiPhy, NS_ASSERT, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNss(), ns3::WifiTxVector::SetPreambleType(), and ns3::WifiTxVector::SetTxPowerLevel().
Referenced by ns3::WifiDefaultAckManager::GetAckInfoIfBarBaSequence(), ns3::WifiDefaultAckManager::TryAddMpdu(), and ns3::WifiDefaultAckManager::TryUlMuTransmission().
Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
Return the channel width supported by the station.
| station | the station being queried |
Definition at line 1931 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::m_channelWidth, and ns3::WifiRemoteStation::m_state.
Referenced by ns3::AparfWifiManager::CheckInit(), ns3::ParfWifiManager::CheckInit(), ns3::RrpaaWifiManager::CheckInit(), ns3::AarfWifiManager::DoGetDataTxVector(), ns3::AarfcdWifiManager::DoGetDataTxVector(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::AparfWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::CaraWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::ParfWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::DoGetDataTxVector(), ns3::RrpaaWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::AparfWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::MinstrelHtWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ParfWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), ns3::RrpaaWifiManager::DoGetRtsTxVector(), ns3::MinstrelHtWifiManager::DoInitialize(), ns3::MinstrelWifiManager::GetDataTxVector(), ns3::MinstrelWifiManager::GetRtsTxVector(), and ns3::MinstrelHtWifiManager::RateInit().
Here is the caller graph for this function:| uint16_t ns3::WifiRemoteStationManager::GetChannelWidthSupported | ( | Mac48Address | address | ) | const |
Return the channel width supported by the station.
| address | the address of the station |
Definition at line 2064 of file wifi-remote-station-manager.cc.
Referenced by GetDataTxVector().
Here is the caller graph for this function:Get control answer mode function.
| reqMode | request mode |
The standard has relatively unambiguous rules for selecting a control response rate (the below is quoted from IEEE 802.11-2012, Section 9.7):
To allow the transmitting STA to calculate the contents of the Duration/ID field, a STA responding to a received frame shall transmit its Control Response frame (either CTS or Ack), other than the BlockAck control frame, at the highest rate in the BSSBasicRateSet parameter that is less than or equal to the rate of the immediately previous frame in the frame exchange sequence (as defined in Annex G) and that is of the same modulation class (see Section 9.7.8) as the received frame...
If no suitable basic rate was found, we search the mandatory rates. The standard (IEEE 802.11-2007, Section 9.6) says:
...If no rate contained in the BSSBasicRateSet parameter meets these conditions, then the control frame sent in response to a received frame shall be transmitted at the highest mandatory rate of the PHY that is less than or equal to the rate of the received frame, and that is of the same modulation class as the received frame. In addition, the Control Response frame shall be sent using the same PHY options as the received frame, unless they conflict with the requirement to use the BSSBasicRateSet parameter.
If we still haven't found a suitable rate for the response then someone has messed up the simulation configuration. This probably means that the WifiPhyStandard is not set correctly, or that a rate that is not supported by the PHY has been explicitly requested.
Either way, it is serious - we can either disobey the standard or fail, and I have chosen to do the latter...
Definition at line 814 of file wifi-remote-station-manager.cc.
References GetBasicMcs(), GetBasicMode(), GetDefaultMcs(), GetDefaultMode(), GetHtSupported(), ns3::WifiPhy::GetMcsList(), ns3::WifiPhy::GetModeList(), ns3::WifiMode::GetModulationClass(), GetNBasicMcs(), GetNBasicModes(), ns3::IsAllowedControlAnswerModulationClass(), ns3::WifiMode::IsHigherDataRate(), m_wifiPhy, NS_FATAL_ERROR, NS_LOG_DEBUG, and NS_LOG_FUNCTION.
Referenced by GetAckTxVector(), GetBlockAckTxVector(), and GetCtsTxVector().
Here is the call graph for this function: Here is the caller graph for this function:| WifiTxVector ns3::WifiRemoteStationManager::GetCtsToSelfTxVector | ( | ) |
Since CTS-to-self parameters are not dependent on the station, it is implemented in wifi remote station manager.
Definition at line 667 of file wifi-remote-station-manager.cc.
References ns3::ConvertGuardIntervalToNanoSeconds(), GetDefaultMode(), GetDefaultTxPowerLevel(), ns3::WifiPhy::GetDevice(), ns3::WifiMode::GetModulationClass(), GetNumberOfAntennas(), ns3::WifiPhy::GetTxBandwidth(), m_wifiPhy, ns3::WIFI_MOD_CLASS_EHT, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_VHT, ns3::WIFI_PREAMBLE_EHT_MU, ns3::WIFI_PREAMBLE_HE_SU, ns3::WIFI_PREAMBLE_HT_MF, ns3::WIFI_PREAMBLE_LONG, and ns3::WIFI_PREAMBLE_VHT_SU.
Referenced by ns3::WifiDefaultProtectionManager::GetPsduProtection().
Here is the call graph for this function: Here is the caller graph for this function:| WifiTxVector ns3::WifiRemoteStationManager::GetCtsTxVector | ( | Mac48Address | to, |
| WifiMode | rtsTxMode | ||
| ) | const |
Return a TXVECTOR for the CTS frame given the destination and the mode of the RTS used by the sender.
| to | the MAC address of the CTS receiver |
| rtsTxMode | the mode of the RTS used by the sender |
Definition at line 726 of file wifi-remote-station-manager.cc.
References ns3::ConvertGuardIntervalToNanoSeconds(), GetControlAnswerMode(), GetDefaultTxPowerLevel(), ns3::WifiPhy::GetDevice(), ns3::WifiMode::GetModulationClass(), ns3::GetPreambleForTransmission(), GetShortPreambleEnabled(), ns3::WifiPhy::GetTxBandwidth(), ns3::Mac48Address::IsGroup(), m_wifiPhy, NS_ASSERT, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNss(), ns3::WifiTxVector::SetPreambleType(), and ns3::WifiTxVector::SetTxPowerLevel().
Referenced by ns3::WifiDefaultProtectionManager::GetPsduProtection(), ns3::FrameExchangeManager::GetRtsDurationId(), ns3::FrameExchangeManager::SendCtsAfterRts(), and ns3::FrameExchangeManager::UpdateNav().
Here is the call graph for this function: Here is the caller graph for this function:| WifiTxVector ns3::WifiRemoteStationManager::GetDataTxVector | ( | const WifiMacHeader & | header, |
| uint16_t | allowedWidth | ||
| ) |
| header | MAC header |
| allowedWidth | the allowed width in MHz to send this packet |
Definition at line 594 of file wifi-remote-station-manager.cc.
References ns3::ConvertGuardIntervalToNanoSeconds(), DoGetDataTxVector(), ns3::WifiMacHeader::GetAddr1(), GetBasicMode(), ns3::WifiTxVector::GetChannelWidth(), GetChannelWidthSupported(), GetDefaultMode(), ns3::WifiPhy::GetDevice(), ns3::WifiNetDevice::GetHeConfiguration(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), GetNBasicModes(), GetNonUnicastMode(), GetNumberOfAntennas(), ns3::GetPreambleForTransmission(), GetShortPreambleEnabled(), ns3::WifiPhy::GetTxBandwidth(), ns3::Mac48Address::IsGroup(), ns3::WifiMacHeader::IsMgt(), Lookup(), m_defaultTxPowerLevel, m_wifiPhy, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::WifiTxVector::SetBssColor(), ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetLdpc(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNess(), ns3::WifiTxVector::SetNss(), ns3::WifiTxVector::SetNTx(), ns3::WifiTxVector::SetPreambleType(), ns3::WifiTxVector::SetTxPowerLevel(), UseLdpcForDestination(), and ns3::WIFI_MOD_CLASS_HT.
Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), ns3::RrMultiUserScheduler::GetTxVectorForUlMu(), NeedRts(), ns3::HtFrameExchangeManager::SendAddBaRequest(), ns3::HtFrameExchangeManager::SendDataFrame(), ns3::HtFrameExchangeManager::SendMpduFromBaManager(), ns3::QosFrameExchangeManager::StartFrameExchange(), ns3::FrameExchangeManager::StartTransmission(), and ns3::RrMultiUserScheduler::TrySendingDlMuPpdu().
Here is the call graph for this function: Here is the caller graph for this function:| WifiMode ns3::WifiRemoteStationManager::GetDefaultMcs | ( | ) | const |
Return the default Modulation and Coding Scheme (MCS) index.
Definition at line 1682 of file wifi-remote-station-manager.cc.
Referenced by GetControlAnswerMode(), and LookupState().
Here is the caller graph for this function:| WifiMode ns3::WifiRemoteStationManager::GetDefaultMode | ( | ) | const |
Return the default transmission mode.
Definition at line 1676 of file wifi-remote-station-manager.cc.
Referenced by ns3::IdealWifiManager::DoGetRtsTxVector(), GetControlAnswerMode(), GetCtsToSelfTxVector(), GetDataTxVector(), LookupState(), and ns3::IdealWifiManager::Reset().
Here is the caller graph for this function:| WifiMode ns3::WifiRemoteStationManager::GetDefaultModeForSta | ( | const WifiRemoteStation * | st | ) | const |
Return the default MCS to use to transmit frames to the given station.
| st | the given station |
Definition at line 1688 of file wifi-remote-station-manager.cc.
References NS_LOG_FUNCTION, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HT, and ns3::WIFI_MOD_CLASS_VHT.
Referenced by ns3::IdealWifiManager::DoGetDataTxVector().
Here is the caller graph for this function:| uint8_t ns3::WifiRemoteStationManager::GetDefaultTxPowerLevel | ( | ) | const |
Definition at line 1368 of file wifi-remote-station-manager.cc.
References m_defaultTxPowerLevel.
Referenced by ns3::AarfWifiManager::DoGetDataTxVector(), ns3::AarfcdWifiManager::DoGetDataTxVector(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::CaraWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::DoGetDataTxVector(), ns3::ThompsonSamplingWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::AparfWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::MinstrelHtWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ParfWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), ns3::RrpaaWifiManager::DoGetRtsTxVector(), ns3::ThompsonSamplingWifiManager::DoGetRtsTxVector(), GetAckTxVector(), GetBlockAckTxVector(), GetCtsToSelfTxVector(), GetCtsTxVector(), ns3::MinstrelWifiManager::GetDataTxVector(), and ns3::MinstrelWifiManager::GetRtsTxVector().
Here is the caller graph for this function:| bool ns3::WifiRemoteStationManager::GetDsssSupported | ( | const Mac48Address & | address | ) | const |
Return whether the station supports DSSS or not.
| address | the address of the station |
Definition at line 2100 of file wifi-remote-station-manager.cc.
| bool ns3::WifiRemoteStationManager::GetEhtSupported | ( | ) | const |
Return whether the device has EHT capability support enabled.
Definition at line 269 of file wifi-remote-station-manager.cc.
References ns3::WifiPhy::GetDevice(), ns3::WifiNetDevice::GetEhtConfiguration(), and m_wifiPhy.
Here is the call graph for this function:
|
protected |
Return whether the given station is EHT capable.
| station | the station being queried |
Definition at line 2021 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::m_ehtCapabilities, and ns3::WifiRemoteStation::m_state.
| bool ns3::WifiRemoteStationManager::GetEhtSupported | ( | Mac48Address | address | ) | const |
Return whether the station supports EHT or not.
| address | the address of the station |
Definition at line 2136 of file wifi-remote-station-manager.cc.
| bool ns3::WifiRemoteStationManager::GetEmlsrEnabled | ( | const Mac48Address & | address | ) | const |
| address | the (MLD or link) address of the non-AP MLD |
Definition at line 2150 of file wifi-remote-station-manager.cc.
Referenced by EmlsrDlTxopTest::CheckInitialControlFrame(), ns3::EhtFrameExchangeManager::EmlsrSwitchToListening(), ns3::WifiDefaultProtectionManager::TryAddMpdu(), ns3::WifiDefaultProtectionManager::TryAddMpduToMuPpdu(), and ns3::WifiDefaultProtectionManager::TryUlMuTransmission().
Here is the caller graph for this function:
|
protected |
| station | the station of a non-AP MLD |
Definition at line 2035 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::m_emlsrEnabled, and ns3::WifiRemoteStation::m_state.
| bool ns3::WifiRemoteStationManager::GetEmlsrSupported | ( | const Mac48Address & | address | ) | const |
| address | the (MLD or link) address of the non-AP MLD |
Definition at line 2142 of file wifi-remote-station-manager.cc.
|
protected |
| station | the station of a non-AP MLD |
Definition at line 2027 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::m_mleCommonInfo, and ns3::WifiRemoteStation::m_state.
| bool ns3::WifiRemoteStationManager::GetErpOfdmSupported | ( | const Mac48Address & | address | ) | const |
Return whether the station supports ERP OFDM or not.
| address | the address of the station |
Definition at line 2106 of file wifi-remote-station-manager.cc.
| uint32_t ns3::WifiRemoteStationManager::GetFragmentationThreshold | ( | ) | const |
Return the fragmentation threshold.
Definition at line 318 of file wifi-remote-station-manager.cc.
References DoGetFragmentationThreshold().
Referenced by GetFragmentOffset(), GetFragmentSize(), GetNFragments(), and NeedFragmentation().
Here is the call graph for this function: Here is the caller graph for this function:| uint32_t ns3::WifiRemoteStationManager::GetFragmentOffset | ( | Ptr< const WifiMpdu > | mpdu, |
| uint32_t | fragmentNumber | ||
| ) |
| mpdu | the packet to send |
| fragmentNumber | the fragment index of the next fragment to send (starts at zero). |
Definition at line 1346 of file wifi-remote-station-manager.cc.
References GetFragmentationThreshold(), GetNFragments(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::WIFI_MAC_FCS_LENGTH.
Here is the call graph for this function:| uint32_t ns3::WifiRemoteStationManager::GetFragmentSize | ( | Ptr< const WifiMpdu > | mpdu, |
| uint32_t | fragmentNumber | ||
| ) |
| mpdu | the MPDU to send |
| fragmentNumber | the fragment index of the next fragment to send (starts at zero). |
Definition at line 1315 of file wifi-remote-station-manager.cc.
References GetFragmentationThreshold(), GetNFragments(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::WIFI_MAC_FCS_LENGTH.
Here is the call graph for this function:| uint16_t ns3::WifiRemoteStationManager::GetGuardInterval | ( | ) | const |
Return the supported HE guard interval duration (in nanoseconds).
Definition at line 304 of file wifi-remote-station-manager.cc.
References ns3::WifiPhy::GetDevice(), ns3::WifiNetDevice::GetHeConfiguration(), GetHeSupported(), m_wifiPhy, and NS_ASSERT.
Referenced by ns3::IdealWifiManager::BuildSnrThresholds(), ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::MinstrelHtWifiManager::DoInitialize(), ns3::ThompsonSamplingWifiManager::GetModeGuardInterval(), LookupState(), and ns3::MinstrelHtWifiManager::RateInit().
Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
Return the HE guard interval duration supported by the station.
| station | the station being queried |
Definition at line 1949 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::m_guardInterval, and ns3::WifiRemoteStation::m_state.
| bool ns3::WifiRemoteStationManager::GetHeSupported | ( | ) | const |
Return whether the device has HE capability support enabled.
Definition at line 263 of file wifi-remote-station-manager.cc.
References ns3::WifiPhy::GetDevice(), ns3::WifiNetDevice::GetHeConfiguration(), and m_wifiPhy.
Referenced by ns3::IdealWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoInitialize(), ns3::AarfcdWifiManager::DoInitialize(), ns3::AmrrWifiManager::DoInitialize(), ns3::AparfWifiManager::DoInitialize(), ns3::ArfWifiManager::DoInitialize(), ns3::CaraWifiManager::DoInitialize(), ns3::MinstrelHtWifiManager::DoInitialize(), ns3::MinstrelWifiManager::DoInitialize(), ns3::OnoeWifiManager::DoInitialize(), ns3::ParfWifiManager::DoInitialize(), ns3::RraaWifiManager::DoInitialize(), ns3::RrpaaWifiManager::DoInitialize(), ns3::MultiUserScheduler::GetDlMuInfo(), GetGuardInterval(), ns3::ThompsonSamplingWifiManager::InitializeStation(), and ns3::MinstrelHtWifiManager::RateInit().
Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
Return whether the given station is HE capable.
| station | the station being queried |
Definition at line 2015 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::m_heCapabilities, and ns3::WifiRemoteStation::m_state.
| bool ns3::WifiRemoteStationManager::GetHeSupported | ( | Mac48Address | address | ) | const |
Return whether the station supports HE or not.
| address | the address of the station |
Definition at line 2130 of file wifi-remote-station-manager.cc.
| bool ns3::WifiRemoteStationManager::GetHtSupported | ( | ) | const |
Return whether the device has HT capability support enabled.
Definition at line 250 of file wifi-remote-station-manager.cc.
References ns3::WifiPhy::GetDevice(), ns3::WifiNetDevice::GetHtConfiguration(), and m_wifiPhy.
Referenced by ns3::IdealWifiManager::BuildSnrThresholds(), ns3::MinstrelHtWifiManager::CheckInit(), ns3::MinstrelHtWifiManager::DoCreateStation(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoInitialize(), ns3::AarfcdWifiManager::DoInitialize(), ns3::AmrrWifiManager::DoInitialize(), ns3::AparfWifiManager::DoInitialize(), ns3::ArfWifiManager::DoInitialize(), ns3::CaraWifiManager::DoInitialize(), ns3::MinstrelHtWifiManager::DoInitialize(), ns3::MinstrelWifiManager::DoInitialize(), ns3::OnoeWifiManager::DoInitialize(), ns3::ParfWifiManager::DoInitialize(), ns3::RraaWifiManager::DoInitialize(), ns3::RrpaaWifiManager::DoInitialize(), GetControlAnswerMode(), GetLdpcSupported(), GetShortGuardIntervalSupported(), NeedCtsToSelf(), ns3::HtFrameExchangeManager::SendAddBaResponse(), SetupPhy(), and ns3::MinstrelHtWifiManager::UpdateRateAfterAllowedWidth().
Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
Return whether the given station is HT capable.
| station | the station being queried |
Definition at line 2003 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::m_htCapabilities, and ns3::WifiRemoteStation::m_state.
| bool ns3::WifiRemoteStationManager::GetHtSupported | ( | Mac48Address | address | ) | const |
Return whether the station supports HT or not.
| address | the address of the station |
Definition at line 2118 of file wifi-remote-station-manager.cc.
| WifiRemoteStationInfo ns3::WifiRemoteStationManager::GetInfo | ( | Mac48Address | address | ) |
| address | of the remote station |
Definition at line 1374 of file wifi-remote-station-manager.cc.
References LookupState().
Here is the call graph for this function:| bool ns3::WifiRemoteStationManager::GetLdpcSupported | ( | ) | const |
Return whether the device has LDPC support enabled.
Definition at line 275 of file wifi-remote-station-manager.cc.
References ns3::WifiPhy::GetDevice(), ns3::WifiNetDevice::GetHtConfiguration(), GetHtSupported(), m_wifiPhy, and NS_ASSERT.
Here is the call graph for this function:| bool ns3::WifiRemoteStationManager::GetLdpcSupported | ( | Mac48Address | address | ) | const |
Return whether the station supports LDPC or not.
| address | the address of the station |
Definition at line 1654 of file wifi-remote-station-manager.cc.
Return the WifiMac.
Definition at line 1985 of file wifi-remote-station-manager.cc.
| uint8_t ns3::WifiRemoteStationManager::GetMaxNumberOfTransmitStreams | ( | ) | const |
Definition at line 2172 of file wifi-remote-station-manager.cc.
Referenced by ns3::ConstantRateWifiManager::DoGetDataTxVector(), and ns3::IdealWifiManager::DoGetDataTxVector().
Here is the caller graph for this function:
|
protected |
Return the WifiMode supported by the specified station at the specified index.
| station | the station being queried |
| i | the index |
Definition at line 1888 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::m_operationalMcsSet, ns3::WifiRemoteStation::m_state, and NS_ASSERT.
Referenced by ns3::MinstrelHtWifiManager::CalculateRetransmits(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetRtsTxVector(), ns3::MinstrelHtWifiManager::RateInit(), ns3::MinstrelHtWifiManager::StatsDump(), and ns3::MinstrelHtWifiManager::UpdateStats().
Here is the caller graph for this function:| std::optional< Mac48Address > ns3::WifiRemoteStationManager::GetMldAddress | ( | const Mac48Address & | address | ) | const |
Get the address of the MLD the given station is affiliated with, if any.
Note that an MLD address is only present if an ML discovery/setup was performed with the given station (which requires both this station and the given station to be MLDs).
| address | the MAC address of the remote station |
Definition at line 567 of file wifi-remote-station-manager.cc.
References m_states.
Referenced by ns3::StaWifiMac::BlockTxOnLink(), EmlsrDlTxopTest::CheckBlockAck(), ns3::StaWifiMac::Disassociated(), ns3::EhtFrameExchangeManager::EmlsrSwitchToListening(), ns3::ApWifiMac::ForwardDown(), ns3::WifiNetDevice::GetAddress(), ns3::ApWifiMac::GetLinkIdStaAddrMap(), ns3::HtFrameExchangeManager::MissedBlockAck(), ns3::HtFrameExchangeManager::NotifyReceivedNormalAck(), ns3::StaWifiMac::ReceiveAssocResp(), ns3::ApWifiMac::ReceiveEmlOmn(), ns3::ApWifiMac::SetAid(), ns3::ApWifiMac::StaSwitchingToActiveModeOrDeassociated(), ns3::ApWifiMac::StaSwitchingToPsMode(), ns3::WifiMac::TidMappedOnLink(), ns3::ApWifiMac::TxFailed(), ns3::ApWifiMac::TxOk(), and ns3::StaWifiMac::UnblockTxOnLink().
Here is the caller graph for this function:| std::optional< double > ns3::WifiRemoteStationManager::GetMostRecentRssi | ( | Mac48Address | address | ) | const |
| address | of the remote station |
This method is typically used when the device needs to estimate the target UL RSSI info to put in the Trigger frame to send to the remote station.
Definition at line 1380 of file wifi-remote-station-manager.cc.
References Lookup().
Here is the call graph for this function:| uint8_t ns3::WifiRemoteStationManager::GetNBasicMcs | ( | ) | const |
Return the number of basic MCS index.
Definition at line 1814 of file wifi-remote-station-manager.cc.
Referenced by GetControlAnswerMode().
Here is the caller graph for this function:| uint8_t ns3::WifiRemoteStationManager::GetNBasicModes | ( | ) | const |
Return the number of basic modes we support.
Definition at line 1747 of file wifi-remote-station-manager.cc.
Referenced by ns3::MeshWifiInterfaceMac::CheckSupportedRates(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::MinstrelHtWifiManager::DoGetRtsTxVector(), GetControlAnswerMode(), GetDataTxVector(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), and ns3::ApWifiMac::GetSupportedRates().
Here is the caller graph for this function:
|
protected |
| station | the station being queried |
Definition at line 1973 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::m_ness, and ns3::WifiRemoteStation::m_state.
Referenced by ns3::MinstrelHtWifiManager::DoGetDataTxVector().
Here is the caller graph for this function:Return the number of fragments needed for the given packet.
| mpdu | the packet to be fragmented |
Definition at line 1296 of file wifi-remote-station-manager.cc.
References GetFragmentationThreshold(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::WIFI_MAC_FCS_LENGTH.
Referenced by GetFragmentOffset(), GetFragmentSize(), and IsLastFragment().
Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
Return the number of MCS supported by the given station.
| station | the station being queried |
Definition at line 2041 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::m_operationalMcsSet, and ns3::WifiRemoteStation::m_state.
| uint8_t ns3::WifiRemoteStationManager::GetNMcsSupported | ( | Mac48Address | address | ) | const |
Return the number of MCS supported by the station.
| address | the address of the station |
Definition at line 2094 of file wifi-remote-station-manager.cc.
Referenced by ns3::MinstrelHtWifiManager::CheckInit(), and ns3::IdealWifiManager::DoGetDataTxVector().
Here is the caller graph for this function:| uint32_t ns3::WifiRemoteStationManager::GetNNonErpBasicModes | ( | ) | const |
Return the number of non-ERP basic modes we support.
Definition at line 1760 of file wifi-remote-station-manager.cc.
References ns3::WIFI_MOD_CLASS_ERP_OFDM.
|
protected |
Return the number of non-ERP modes supported by the given station.
| station | the station being queried |
Definition at line 2047 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::m_operationalRateSet, ns3::WifiRemoteStation::m_state, and ns3::WIFI_MOD_CLASS_ERP_OFDM.
| WifiMode ns3::WifiRemoteStationManager::GetNonErpBasicMode | ( | uint8_t | i | ) | const |
Return a basic mode from the set of basic modes that is not an ERP mode.
| i | index of the basic mode in the basic mode set |
Definition at line 1775 of file wifi-remote-station-manager.cc.
References NS_ASSERT, and ns3::WIFI_MOD_CLASS_ERP_OFDM.
|
protected |
Return whether non-ERP mode associated with the specified station at the specified index.
| station | the station being queried |
| i | the index |
Definition at line 1895 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::m_operationalRateSet, ns3::WifiRemoteStation::m_state, NS_ASSERT, and ns3::WIFI_MOD_CLASS_ERP_OFDM.
Referenced by ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::AparfWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ParfWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), ns3::RrpaaWifiManager::DoGetRtsTxVector(), and ns3::MinstrelWifiManager::GetRtsTxVector().
Here is the caller graph for this function:| WifiMode ns3::WifiRemoteStationManager::GetNonUnicastMode | ( | ) | const |
Return a mode for non-unicast packets.
Definition at line 1827 of file wifi-remote-station-manager.cc.
Referenced by GetDataTxVector(), and GetRtsTxVector().
Here is the caller graph for this function:
|
protected |
Return the number of modes supported by the given station.
| station | the station being queried |
Definition at line 1991 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::m_operationalRateSet, and ns3::WifiRemoteStation::m_state.
Referenced by ns3::AparfWifiManager::CheckInit(), ns3::MinstrelWifiManager::CheckInit(), ns3::ParfWifiManager::CheckInit(), ns3::RraaWifiManager::CheckInit(), ns3::RrpaaWifiManager::CheckInit(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoReportDataOk(), ns3::AarfcdWifiManager::DoReportDataOk(), ns3::CaraWifiManager::DoReportDataOk(), ns3::AmrrWifiManager::IncreaseRate(), ns3::ThompsonSamplingWifiManager::InitializeStation(), ns3::AmrrWifiManager::IsMaxRate(), ns3::AmrrWifiManager::UpdateMode(), and ns3::OnoeWifiManager::UpdateMode().
Here is the caller graph for this function:| uint8_t ns3::WifiRemoteStationManager::GetNumberOfAntennas | ( | ) | const |
Definition at line 2166 of file wifi-remote-station-manager.cc.
Referenced by ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::ThompsonSamplingWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::ThompsonSamplingWifiManager::DoGetRtsTxVector(), GetCtsToSelfTxVector(), GetDataTxVector(), and GetRtsTxVector().
Here is the caller graph for this function:
|
protected |
Return the number of supported streams the station has.
| station | the station being queried |
Definition at line 1961 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::m_htCapabilities, and ns3::WifiRemoteStation::m_state.
| uint8_t ns3::WifiRemoteStationManager::GetNumberOfSupportedStreams | ( | Mac48Address | address | ) | const |
Return the number of spatial streams supported by the station.
| address | the address of the station |
Definition at line 2082 of file wifi-remote-station-manager.cc.
Referenced by ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), and ns3::MinstrelHtWifiManager::RateInit().
Here is the caller graph for this function:| bool ns3::WifiRemoteStationManager::GetOfdmSupported | ( | const Mac48Address & | address | ) | const |
Return whether the station supports OFDM or not.
| address | the address of the station |
Definition at line 2112 of file wifi-remote-station-manager.cc.
Return the WifiPhy.
Definition at line 1979 of file wifi-remote-station-manager.cc.
Referenced by ns3::IdealWifiManager::BuildSnrThresholds(), ns3::MinstrelHtWifiManager::CalculateRetransmits(), ns3::MinstrelWifiManager::CalculateTimeUnicastPacket(), ns3::AparfWifiManager::CheckInit(), ns3::ParfWifiManager::CheckInit(), ns3::RrpaaWifiManager::CheckInit(), ns3::AparfWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::ParfWifiManager::DoGetDataTxVector(), ns3::RrpaaWifiManager::DoGetDataTxVector(), ns3::ThompsonSamplingWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::MinstrelHtWifiManager::DoGetRtsTxVector(), ns3::ThompsonSamplingWifiManager::DoGetRtsTxVector(), ns3::MinstrelHtWifiManager::DoInitialize(), ns3::IdealWifiManager::DoReportRtsOk(), ns3::MinstrelHtWifiManager::GetHeDeviceMcsList(), ns3::MinstrelHtWifiManager::GetHtDeviceMcsList(), ns3::MinstrelHtWifiManager::GetVhtDeviceMcsList(), ns3::ThompsonSamplingWifiManager::InitializeStation(), and ns3::MinstrelHtWifiManager::RateInit().
Here is the caller graph for this function:
|
protected |
Return whether the given station is QoS capable.
| station | the station being queried |
Definition at line 1997 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::m_qosSupported, and ns3::WifiRemoteStation::m_state.
| bool ns3::WifiRemoteStationManager::GetQosSupported | ( | Mac48Address | address | ) | const |
Return whether the given station is QoS capable.
| address | the address of the station |
Definition at line 435 of file wifi-remote-station-manager.cc.
References LookupState().
Here is the call graph for this function:| WifiTxVector ns3::WifiRemoteStationManager::GetRtsTxVector | ( | Mac48Address | address | ) |
| address | remote address |
Definition at line 704 of file wifi-remote-station-manager.cc.
References ns3::ConvertGuardIntervalToNanoSeconds(), DoGetRtsTxVector(), ns3::WifiPhy::GetDevice(), ns3::WifiMode::GetModulationClass(), GetNonUnicastMode(), GetNumberOfAntennas(), ns3::GetPreambleForTransmission(), GetShortPreambleEnabled(), ns3::WifiPhy::GetTxBandwidth(), Lookup(), m_defaultTxPowerLevel, m_wifiPhy, NS_LOG_FUNCTION, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNess(), ns3::WifiTxVector::SetNss(), ns3::WifiTxVector::SetNTx(), ns3::WifiTxVector::SetPreambleType(), and ns3::WifiTxVector::SetTxPowerLevel().
Referenced by EmlsrDlTxopTest::CheckBlockAck(), ns3::WifiDefaultAckManager::GetAckInfoIfTfMuBar(), ns3::WifiDefaultProtectionManager::GetPsduProtection(), TestMultiUserScheduler::SelectTxFormat(), ns3::QosFrameExchangeManager::SendCfEndIfNeeded(), ns3::WifiDefaultProtectionManager::TryAddMpduToMuPpdu(), ns3::RrMultiUserScheduler::TrySendingBasicTf(), ns3::RrMultiUserScheduler::TrySendingBsrpTf(), and ns3::WifiDefaultProtectionManager::TryUlMuTransmission().
Here is the call graph for this function: Here is the caller graph for this function:| bool ns3::WifiRemoteStationManager::GetShortGuardIntervalSupported | ( | ) | const |
Return whether the device has SGI support enabled.
Definition at line 288 of file wifi-remote-station-manager.cc.
References ns3::WifiPhy::GetDevice(), ns3::WifiNetDevice::GetHtConfiguration(), GetHtSupported(), m_wifiPhy, and NS_ASSERT.
Referenced by ns3::IdealWifiManager::BuildSnrThresholds(), ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::MinstrelHtWifiManager::DoInitialize(), ns3::ThompsonSamplingWifiManager::GetModeGuardInterval(), and ns3::MinstrelHtWifiManager::RateInit().
Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
Return whether the given station supports HT/VHT short guard interval.
| station | the station being queried |
Definition at line 1937 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::m_htCapabilities, and ns3::WifiRemoteStation::m_state.
| bool ns3::WifiRemoteStationManager::GetShortGuardIntervalSupported | ( | Mac48Address | address | ) | const |
Return whether the station supports HT/VHT short guard interval.
| address | the address of the station |
Definition at line 2070 of file wifi-remote-station-manager.cc.
| bool ns3::WifiRemoteStationManager::GetShortPreambleEnabled | ( | ) | const |
Return whether the device uses short PHY preambles.
Definition at line 244 of file wifi-remote-station-manager.cc.
References m_shortPreambleEnabled.
Referenced by ns3::AarfWifiManager::DoGetDataTxVector(), ns3::AarfcdWifiManager::DoGetDataTxVector(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::AparfWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::CaraWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::ParfWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::DoGetDataTxVector(), ns3::RrpaaWifiManager::DoGetDataTxVector(), ns3::ThompsonSamplingWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::AparfWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::MinstrelHtWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ParfWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), ns3::RrpaaWifiManager::DoGetRtsTxVector(), ns3::ThompsonSamplingWifiManager::DoGetRtsTxVector(), GetAckTxVector(), GetBlockAckTxVector(), GetCtsTxVector(), GetDataTxVector(), ns3::MinstrelWifiManager::GetDataTxVector(), GetRtsTxVector(), and ns3::MinstrelWifiManager::GetRtsTxVector().
Here is the caller graph for this function:| bool ns3::WifiRemoteStationManager::GetShortPreambleSupported | ( | Mac48Address | address | ) | const |
Return whether the station supports short PHY preamble or not.
| address | the address of the station |
Definition at line 423 of file wifi-remote-station-manager.cc.
References LookupState().
Here is the call graph for this function:| bool ns3::WifiRemoteStationManager::GetShortSlotTimeEnabled | ( | ) | const |
Return whether the device uses short slot time.
Definition at line 238 of file wifi-remote-station-manager.cc.
References m_shortSlotTimeEnabled.
| bool ns3::WifiRemoteStationManager::GetShortSlotTimeSupported | ( | Mac48Address | address | ) | const |
Return whether the station supports short ERP slot time or not.
| address | the address of the station |
Definition at line 429 of file wifi-remote-station-manager.cc.
References LookupState().
Here is the call graph for this function:
|
private |
If the given TXVECTOR is used for a MU transmission, return the STAID of the station with the given address if we are an AP or our own STAID if we are a STA associated with some AP.
Otherwise, return SU_STA_ID.
| address | the address of the station |
| txVector | the TXVECTOR used for a MU transmission |
Definition at line 528 of file wifi-remote-station-manager.cc.
References ns3::AP, GetAssociationId(), ns3::WifiMac::GetTypeOfStation(), ns3::WifiTxVector::IsMu(), m_wifiMac, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::STA, and ns3::SU_STA_ID.
Referenced by GetAckTxVector(), GetBlockAckTxVector(), ReportAmpduTxStatus(), ReportDataOk(), and ReportRxOk().
Here is the call graph for this function: Here is the caller graph for this function:| Ptr< const EhtCapabilities > ns3::WifiRemoteStationManager::GetStationEhtCapabilities | ( | Mac48Address | from | ) |
Return the EHT capabilities sent by the remote station.
| from | the address of the remote station |
Definition at line 1626 of file wifi-remote-station-manager.cc.
| std::optional< std::reference_wrapper< CommonInfoBasicMle::EmlCapabilities > > ns3::WifiRemoteStationManager::GetStationEmlCapabilities | ( | const Mac48Address & | from | ) |
| from | the (MLD or link) address of the remote non-AP MLD |
Definition at line 1632 of file wifi-remote-station-manager.cc.
Referenced by ns3::EhtFrameExchangeManager::EmlsrSwitchToListening(), and ns3::ApWifiMac::ReceiveEmlOmn().
Here is the caller graph for this function:| Ptr< const HeCapabilities > ns3::WifiRemoteStationManager::GetStationHeCapabilities | ( | Mac48Address | from | ) |
Return the HE capabilities sent by the remote station.
| from | the address of the remote station |
Definition at line 1620 of file wifi-remote-station-manager.cc.
| Ptr< const HtCapabilities > ns3::WifiRemoteStationManager::GetStationHtCapabilities | ( | Mac48Address | from | ) |
Return the HT capabilities sent by the remote station.
| from | the address of the remote station |
Definition at line 1608 of file wifi-remote-station-manager.cc.
| std::optional< std::reference_wrapper< CommonInfoBasicMle::MldCapabilities > > ns3::WifiRemoteStationManager::GetStationMldCapabilities | ( | const Mac48Address & | from | ) |
| from | the (MLD or link) address of the remote non-AP MLD |
Definition at line 1643 of file wifi-remote-station-manager.cc.
| Ptr< const VhtCapabilities > ns3::WifiRemoteStationManager::GetStationVhtCapabilities | ( | Mac48Address | from | ) |
Return the VHT capabilities sent by the remote station.
| from | the address of the remote station |
Definition at line 1614 of file wifi-remote-station-manager.cc.
|
protected |
Return whether mode associated with the specified station at the specified index.
| station | the station being queried |
| i | the index |
Definition at line 1881 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::m_operationalRateSet, ns3::WifiRemoteStation::m_state, and NS_ASSERT.
Referenced by ns3::AparfWifiManager::CheckInit(), ns3::ParfWifiManager::CheckInit(), ns3::RrpaaWifiManager::CheckInit(), ns3::AarfWifiManager::DoGetDataTxVector(), ns3::AarfcdWifiManager::DoGetDataTxVector(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::AparfWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::CaraWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::ParfWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::DoGetDataTxVector(), ns3::RrpaaWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::AparfWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ParfWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), ns3::RrpaaWifiManager::DoGetRtsTxVector(), ns3::MinstrelWifiManager::FindRate(), ns3::MinstrelWifiManager::GetDataTxVector(), ns3::MinstrelWifiManager::GetRtsTxVector(), ns3::RraaWifiManager::GetThresholds(), ns3::RrpaaWifiManager::GetThresholds(), ns3::ThompsonSamplingWifiManager::InitializeStation(), ns3::RraaWifiManager::InitThresholds(), ns3::RrpaaWifiManager::InitThresholds(), ns3::MinstrelWifiManager::PrintTable(), ns3::MinstrelWifiManager::RateInit(), and ns3::MinstrelWifiManager::UpdateStats().
Here is the caller graph for this function:
|
static |
Get the type ID.
Definition at line 50 of file wifi-remote-station-manager.cc.
References CTS_TO_SELF, DoGetFragmentationThreshold(), DoSetFragmentationThreshold(), m_defaultTxPowerLevel, m_erpProtectionMode, m_htProtectionMode, m_macTxDataFailed, m_macTxFinalDataFailed, m_macTxFinalRtsFailed, m_macTxRtsFailed, m_nonUnicastMode, ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), RTS_CTS, SetMaxSlrc(), SetMaxSsrc(), ns3::TypeId::SetParent(), and SetRtsCtsThreshold().
Here is the call graph for this function:| bool ns3::WifiRemoteStationManager::GetUseNonErpProtection | ( | ) | const |
Return whether the device supports protection of non-ERP stations.
Definition at line 1200 of file wifi-remote-station-manager.cc.
References m_useNonErpProtection.
Referenced by ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::AparfWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ParfWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), ns3::RrpaaWifiManager::DoGetRtsTxVector(), and ns3::MinstrelWifiManager::GetRtsTxVector().
Here is the caller graph for this function:| bool ns3::WifiRemoteStationManager::GetUseNonHtProtection | ( | ) | const |
Return whether the device supports protection of non-HT stations.
Definition at line 1213 of file wifi-remote-station-manager.cc.
References m_useNonHtProtection.
| bool ns3::WifiRemoteStationManager::GetVhtSupported | ( | ) | const |
Return whether the device has VHT capability support enabled.
Definition at line 256 of file wifi-remote-station-manager.cc.
References ns3::WifiPhy::GetDevice(), ns3::WifiPhy::GetPhyBand(), ns3::WifiNetDevice::GetVhtConfiguration(), m_wifiPhy, and ns3::WIFI_PHY_BAND_2_4GHZ.
Referenced by ns3::IdealWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoInitialize(), ns3::AarfcdWifiManager::DoInitialize(), ns3::AmrrWifiManager::DoInitialize(), ns3::AparfWifiManager::DoInitialize(), ns3::ArfWifiManager::DoInitialize(), ns3::CaraWifiManager::DoInitialize(), ns3::MinstrelHtWifiManager::DoInitialize(), ns3::MinstrelWifiManager::DoInitialize(), ns3::OnoeWifiManager::DoInitialize(), ns3::ParfWifiManager::DoInitialize(), ns3::RraaWifiManager::DoInitialize(), ns3::RrpaaWifiManager::DoInitialize(), ns3::MinstrelHtWifiManager::GetHeGroupId(), ns3::ThompsonSamplingWifiManager::InitializeStation(), ns3::HtFrameExchangeManager::NeedSetupBlockAck(), and ns3::MinstrelHtWifiManager::RateInit().
Here is the call graph for this function: Here is the caller graph for this function:
|
protected |
Return whether the given station is VHT capable.
| station | the station being queried |
Definition at line 2009 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStation::m_state, and ns3::WifiRemoteStationState::m_vhtCapabilities.
| bool ns3::WifiRemoteStationManager::GetVhtSupported | ( | Mac48Address | address | ) | const |
Return whether the station supports VHT or not.
| address | the address of the station |
Definition at line 2124 of file wifi-remote-station-manager.cc.
| bool ns3::WifiRemoteStationManager::IsAssociated | ( | Mac48Address | address | ) | const |
Return whether the station associated.
| address | the address of the station |
Definition at line 451 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::GOT_ASSOC_TX_OK, and LookupState().
Referenced by ns3::ApWifiMac::IsAssociated().
Here is the call graph for this function: Here is the caller graph for this function:| bool ns3::WifiRemoteStationManager::IsAssocRefused | ( | Mac48Address | address | ) | const |
Return whether we refused an association request from the given station.
| address | the address of the station |
Definition at line 499 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::ASSOC_REFUSED, and LookupState().
Here is the call graph for this function:| bool ns3::WifiRemoteStationManager::IsBrandNew | ( | Mac48Address | address | ) | const |
Return whether the station state is brand new.
| address | the address of the station |
Definition at line 441 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::BRAND_NEW, and LookupState().
Here is the call graph for this function:| bool ns3::WifiRemoteStationManager::IsInPsMode | ( | const Mac48Address & | address | ) | const |
Return whether the STA is currently in Power Save mode.
| address | the address of the station |
Definition at line 555 of file wifi-remote-station-manager.cc.
References LookupState().
Referenced by EmlsrDlTxopTest::CheckPmModeAfterAssociation(), and ns3::ApWifiMac::ProcessPowerManagementFlag().
Here is the call graph for this function: Here is the caller graph for this function:| bool ns3::WifiRemoteStationManager::IsLastFragment | ( | Ptr< const WifiMpdu > | mpdu, |
| uint32_t | fragmentNumber | ||
| ) |
| mpdu | the packet to send |
| fragmentNumber | the fragment index of the next fragment to send (starts at zero). |
Definition at line 1358 of file wifi-remote-station-manager.cc.
References GetNFragments(), NS_ASSERT, NS_LOG_DEBUG, and NS_LOG_FUNCTION.
Here is the call graph for this function:| bool ns3::WifiRemoteStationManager::IsWaitAssocTxOk | ( | Mac48Address | address | ) | const |
Return whether we are waiting for an ACK for the association response we sent.
| address | the address of the station |
Definition at line 461 of file wifi-remote-station-manager.cc.
References LookupState(), and ns3::WifiRemoteStationState::WAIT_ASSOC_TX_OK.
Referenced by ns3::ApWifiMac::TxFailed(), and ns3::ApWifiMac::TxOk().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Return the station associated with the given address.
| address | the address of the station |
Definition at line 1431 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStation::m_rssiAndUpdateTimePair, ns3::WifiRemoteStation::m_state, NS_LOG_FUNCTION, and ns3::Seconds().
Referenced by GetDataTxVector(), GetMostRecentRssi(), GetRtsTxVector(), NeedFragmentation(), NeedRetransmission(), NeedRts(), ReportAmpduTxStatus(), ReportDataFailed(), ReportDataOk(), ReportFinalDataFailed(), ReportFinalRtsFailed(), ReportRtsFailed(), ReportRtsOk(), and ReportRxOk().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Return the state of the station associated with the given address.
| address | the address of the station |
Definition at line 1393 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::BRAND_NEW, ns3::WifiPhy::GetChannelWidth(), GetDefaultMcs(), GetDefaultMode(), GetGuardInterval(), m_states, m_wifiPhy, NS_LOG_DEBUG, and NS_LOG_FUNCTION.
Referenced by AddAllSupportedMcs(), AddAllSupportedModes(), AddSupportedErpSlotTime(), AddSupportedMcs(), AddSupportedMode(), AddSupportedPhyPreamble(), GetAssociationId(), GetInfo(), GetQosSupported(), GetShortPreambleSupported(), GetShortSlotTimeSupported(), IsAssociated(), IsAssocRefused(), IsBrandNew(), IsInPsMode(), IsWaitAssocTxOk(), RecordAssocRefused(), RecordDisassociated(), RecordGotAssocTxFailed(), RecordGotAssocTxOk(), RecordWaitAssocTxOk(), RemoveAllSupportedMcs(), and SetPsMode().
Here is the call graph for this function: Here is the caller graph for this function:| bool ns3::WifiRemoteStationManager::NeedCtsToSelf | ( | WifiTxVector | txVector | ) |
Return if we need to do CTS-to-self before sending a DATA.
| txVector | the TXVECTOR of the packet to be sent |
Definition at line 1136 of file wifi-remote-station-manager.cc.
References CTS_TO_SELF, GetHtSupported(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), m_bssBasicMcsSet, m_bssBasicRateSet, m_erpProtectionMode, m_htProtectionMode, m_useNonErpProtection, m_useNonHtProtection, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WIFI_MOD_CLASS_EHT, ns3::WIFI_MOD_CLASS_ERP_OFDM, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HT, and ns3::WIFI_MOD_CLASS_VHT.
Here is the call graph for this function:| mpdu | the MPDU to send |
Definition at line 1245 of file wifi-remote-station-manager.cc.
References DoNeedFragmentation(), GetFragmentationThreshold(), Lookup(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.
Here is the call graph for this function:| mpdu | the MPDU to send |
Definition at line 1219 of file wifi-remote-station-manager.cc.
References DoNeedRetransmission(), Lookup(), m_maxSlrc, m_maxSsrc, m_rtsCtsThreshold, m_slrc, m_ssrc, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::QosUtilsMapTidToAc().
Here is the call graph for this function:| bool ns3::WifiRemoteStationManager::NeedRts | ( | const WifiMacHeader & | header, |
| uint32_t | size | ||
| ) |
| header | MAC header |
| size | the size of the frame to send in bytes |
Definition at line 1104 of file wifi-remote-station-manager.cc.
References DoNeedRts(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiPhy::GetChannelWidth(), GetDataTxVector(), ns3::WifiTxVector::GetModulationClass(), Lookup(), m_erpProtectionMode, m_htProtectionMode, m_rtsCtsThreshold, m_useNonErpProtection, m_useNonHtProtection, m_wifiPhy, NS_LOG_DEBUG, NS_LOG_FUNCTION, RTS_CTS, ns3::WIFI_MOD_CLASS_EHT, ns3::WIFI_MOD_CLASS_ERP_OFDM, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HT, and ns3::WIFI_MOD_CLASS_VHT.
Here is the call graph for this function:| void ns3::WifiRemoteStationManager::RecordAssocRefused | ( | Mac48Address | address | ) |
Records that association request was refused.
| address | the address of the station |
Definition at line 509 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::ASSOC_REFUSED, LookupState(), and NS_ASSERT.
Here is the call graph for this function:| void ns3::WifiRemoteStationManager::RecordDisassociated | ( | Mac48Address | address | ) |
Records that the STA was disassociated.
| address | the address of the station |
Definition at line 492 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::DISASSOC, LookupState(), and NS_ASSERT.
Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::AdhocWifiMac::Receive(), and ns3::ApWifiMac::Receive().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::RecordGotAssocTxFailed | ( | Mac48Address | address | ) |
Records that we missed an ACK for the association response we sent.
| address | the address of the station |
Definition at line 485 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::DISASSOC, LookupState(), and NS_ASSERT.
Referenced by ns3::ApWifiMac::TxFailed().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::RecordGotAssocTxOk | ( | Mac48Address | address | ) |
Records that we got an ACK for the association response we sent.
| address | the address of the station |
Definition at line 478 of file wifi-remote-station-manager.cc.
References ns3::WifiRemoteStationState::GOT_ASSOC_TX_OK, LookupState(), and NS_ASSERT.
Referenced by ns3::ApWifiMac::TxOk().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::RecordWaitAssocTxOk | ( | Mac48Address | address | ) |
Records that we are waiting for an ACK for the association response we sent.
| address | the address of the station |
Definition at line 471 of file wifi-remote-station-manager.cc.
References LookupState(), NS_ASSERT, and ns3::WifiRemoteStationState::WAIT_ASSOC_TX_OK.
Here is the call graph for this function:| void ns3::WifiRemoteStationManager::RemoveAllSupportedMcs | ( | Mac48Address | address | ) |
Invoked in a STA or AP to delete all of the supported MCS by a destination.
| address | the address of the station being recorded |
Definition at line 399 of file wifi-remote-station-manager.cc.
References LookupState(), NS_ASSERT, and NS_LOG_FUNCTION.
Referenced by ns3::StaWifiMac::UpdateApInfo().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::ReportAmpduTxStatus | ( | Mac48Address | address, |
| uint16_t | nSuccessfulMpdus, | ||
| uint16_t | nFailedMpdus, | ||
| double | rxSnr, | ||
| double | dataSnr, | ||
| WifiTxVector | dataTxVector | ||
| ) |
Typically called per A-MPDU, either when a Block ACK was successfully received or when a BlockAckTimeout has elapsed.
| address | the address of the receiver |
| nSuccessfulMpdus | number of successfully transmitted MPDUs A value of 0 means that the Block ACK was missed. |
| nFailedMpdus | number of unsuccessfuly transmitted MPDUs |
| rxSnr | received SNR of the block ack frame itself |
| dataSnr | data SNR reported by remote station |
| dataTxVector | the TXVECTOR of the MPDUs we sent |
Definition at line 1080 of file wifi-remote-station-manager.cc.
References DoReportAmpduTxStatus(), ns3::WifiTxVector::GetChannelWidth(), ns3::WifiTxVector::GetNss(), GetStaId(), Lookup(), m_macTxDataFailed, NS_ASSERT, and NS_LOG_FUNCTION.
Referenced by ns3::HtFrameExchangeManager::MissedBlockAck(), and ns3::HtFrameExchangeManager::ReceiveMpdu().
Here is the call graph for this function: Here is the caller graph for this function:Should be invoked whenever the AckTimeout associated to a transmission attempt expires.
| mpdu | the MPDU whose transmission failed |
Definition at line 964 of file wifi-remote-station-manager.cc.
References DoReportDataFailed(), Lookup(), m_macTxDataFailed, m_rtsCtsThreshold, m_slrc, m_ssrc, NS_ASSERT, NS_LOG_FUNCTION, and ns3::QosUtilsMapTidToAc().
Referenced by ns3::HtFrameExchangeManager::BlockAckTimeout(), ns3::FrameExchangeManager::NormalAckTimeout(), and ns3::FrameExchangeManager::NotifyInternalCollision().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::ReportDataOk | ( | Ptr< const WifiMpdu > | mpdu, |
| double | ackSnr, | ||
| WifiMode | ackMode, | ||
| double | dataSnr, | ||
| WifiTxVector | dataTxVector | ||
| ) |
Should be invoked whenever we receive the ACK associated to a data packet we just sent.
| mpdu | the MPDU |
| ackSnr | the SNR of the ACK we received |
| ackMode | the WifiMode the receiver used to send the ACK |
| dataSnr | the SNR of the DATA we sent |
| dataTxVector | the TXVECTOR of the DATA we sent |
Definition at line 999 of file wifi-remote-station-manager.cc.
References DoReportDataOk(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiTxVector::GetChannelWidth(), ns3::WifiTxVector::GetNss(), ns3::WifiMacHeader::GetQosTid(), GetStaId(), ns3::Mac48Address::IsGroup(), ns3::WifiMacHeader::IsQosData(), Lookup(), ns3::WifiRemoteStationState::m_info, m_rtsCtsThreshold, m_slrc, m_ssrc, ns3::WifiRemoteStation::m_state, ns3::WifiRemoteStationInfo::NotifyTxSuccess(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::QosUtilsMapTidToAc().
Referenced by ns3::FrameExchangeManager::ReceivedNormalAck().
Here is the call graph for this function: Here is the caller graph for this function:Should be invoked after calling ReportDataFailed if NeedRetransmission returns false.
| mpdu | the MPDU which was discarded |
Definition at line 1043 of file wifi-remote-station-manager.cc.
References DoReportFinalDataFailed(), Lookup(), ns3::WifiRemoteStationState::m_info, m_macTxFinalDataFailed, m_rtsCtsThreshold, m_slrc, m_ssrc, ns3::WifiRemoteStation::m_state, ns3::WifiRemoteStationInfo::NotifyTxFailed(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::QosUtilsMapTidToAc().
Referenced by ns3::HtFrameExchangeManager::MissedBlockAck(), ns3::FrameExchangeManager::NormalAckTimeout(), and ns3::FrameExchangeManager::NotifyInternalCollision().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::ReportFinalRtsFailed | ( | const WifiMacHeader & | header | ) |
Should be invoked after calling ReportRtsFailed if NeedRetransmission returns false.
| header | MAC header of the DATA packet |
Definition at line 1030 of file wifi-remote-station-manager.cc.
References DoReportFinalRtsFailed(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetQosTid(), ns3::Mac48Address::IsGroup(), ns3::WifiMacHeader::IsQosData(), Lookup(), ns3::WifiRemoteStationState::m_info, m_macTxFinalRtsFailed, m_ssrc, ns3::WifiRemoteStation::m_state, ns3::WifiRemoteStationInfo::NotifyTxFailed(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::QosUtilsMapTidToAc().
Referenced by ns3::HeFrameExchangeManager::CtsAfterMuRtsTimeout(), and ns3::FrameExchangeManager::DoCtsTimeout().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::ReportRtsFailed | ( | const WifiMacHeader & | header | ) |
Should be invoked whenever the RtsTimeout associated to a transmission attempt expires.
| header | MAC header of the DATA packet |
Definition at line 953 of file wifi-remote-station-manager.cc.
References DoReportRtsFailed(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetQosTid(), ns3::Mac48Address::IsGroup(), ns3::WifiMacHeader::IsQosData(), Lookup(), m_macTxRtsFailed, m_ssrc, NS_ASSERT, NS_LOG_FUNCTION, and ns3::QosUtilsMapTidToAc().
Referenced by ns3::HeFrameExchangeManager::CtsAfterMuRtsTimeout(), and ns3::FrameExchangeManager::DoCtsTimeout().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::ReportRtsOk | ( | const WifiMacHeader & | header, |
| double | ctsSnr, | ||
| WifiMode | ctsMode, | ||
| double | rtsSnr | ||
| ) |
Should be invoked whenever we receive the CTS associated to an RTS we just sent.
Note that we also get the SNR of the RTS we sent since the receiver put a SnrTag in the CTS.
| header | MAC header of the DATA packet |
| ctsSnr | the SNR of the CTS we received |
| ctsMode | the WifiMode the receiver used to send the CTS |
| rtsSnr | the SNR of the RTS we sent |
Definition at line 984 of file wifi-remote-station-manager.cc.
References DoReportRtsOk(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetQosTid(), ns3::Mac48Address::IsGroup(), ns3::WifiMacHeader::IsQosData(), Lookup(), ns3::WifiRemoteStationState::m_info, m_ssrc, ns3::WifiRemoteStation::m_state, ns3::WifiRemoteStationInfo::NotifyTxSuccess(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::QosUtilsMapTidToAc().
Referenced by ns3::FrameExchangeManager::ReceiveMpdu(), and ns3::HtFrameExchangeManager::ReceiveMpdu().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::ReportRxOk | ( | Mac48Address | address, |
| RxSignalInfo | rxSignalInfo, | ||
| WifiTxVector | txVector | ||
| ) |
| address | remote address |
| rxSignalInfo | the info on the received signal ( |
| txVector | the TXVECTOR used for the packet received |
Should be invoked whenever a packet is successfully received.
Definition at line 1065 of file wifi-remote-station-manager.cc.
References DoReportRxOk(), ns3::WifiTxVector::GetMode(), GetStaId(), Lookup(), ns3::WifiRemoteStation::m_rssiAndUpdateTimePair, ns3::Simulator::Now(), NS_LOG_FUNCTION, ns3::RxSignalInfo::rssi, and ns3::RxSignalInfo::snr.
Referenced by ns3::FrameExchangeManager::Receive(), ns3::FrameExchangeManager::ReceivedNormalAck(), ns3::FrameExchangeManager::ReceiveMpdu(), and ns3::HtFrameExchangeManager::ReceiveMpdu().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::Reset | ( | ) |
Reset the station, invoked in a STA upon dis-association or in an AP upon reboot.
Definition at line 1713 of file wifi-remote-station-manager.cc.
References NS_LOG_FUNCTION.
Referenced by ns3::IdealWifiManager::DoCreateStation(), DoDispose(), ns3::IdealWifiManager::DoReportFinalDataFailed(), ns3::IdealWifiManager::DoReportFinalRtsFailed(), SetupMac(), and SetupPhy().
Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::SetAssociationId | ( | Mac48Address | remoteAddress, |
| uint16_t | aid | ||
| ) |
Record the AID of a remote station.
Should only be called by APs.
| remoteAddress | the MAC address of the remote station |
| aid | the Association ID |
Definition at line 1449 of file wifi-remote-station-manager.cc.
References NS_LOG_FUNCTION.
| void ns3::WifiRemoteStationManager::SetDefaultTxPowerLevel | ( | uint8_t | txPower | ) |
Set the default transmission power level.
| txPower | the default transmission power level |
Definition at line 2160 of file wifi-remote-station-manager.cc.
| void ns3::WifiRemoteStationManager::SetEmlsrEnabled | ( | const Mac48Address & | from, |
| bool | emlsrEnabled | ||
| ) |
| from | the address of the station being recorded |
| emlsrEnabled | whether EMLSR mode is enabled for the station on this link |
Definition at line 1463 of file wifi-remote-station-manager.cc.
References NS_LOG_FUNCTION.
| void ns3::WifiRemoteStationManager::SetFragmentationThreshold | ( | uint32_t | threshold | ) |
Sets a fragmentation threshold.
The method calls a private method DoSetFragmentationThreshold that checks the validity of the value given.
| threshold | the fragmentation threshold |
Definition at line 217 of file wifi-remote-station-manager.cc.
References DoSetFragmentationThreshold(), and NS_LOG_FUNCTION.
Here is the call graph for this function:| void ns3::WifiRemoteStationManager::SetMaxSlrc | ( | uint32_t | maxSlrc | ) |
Sets the maximum STA long retry count (SLRC).
| maxSlrc | the maximum SLRC |
Definition at line 203 of file wifi-remote-station-manager.cc.
References m_maxSlrc, and NS_LOG_FUNCTION.
Referenced by GetTypeId().
Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::SetMaxSsrc | ( | uint32_t | maxSsrc | ) |
Sets the maximum STA short retry count (SSRC).
| maxSsrc | the maximum SSRC |
Definition at line 196 of file wifi-remote-station-manager.cc.
References m_maxSsrc, and NS_LOG_FUNCTION.
Referenced by AmpduAggregationTest::DoRun(), and GetTypeId().
Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::SetPsMode | ( | const Mac48Address & | address, |
| bool | isInPsMode | ||
| ) |
Register whether the STA is in Power Save mode or not.
| address | the address of the station |
| isInPsMode | whether the STA is in PS mode or not |
Definition at line 561 of file wifi-remote-station-manager.cc.
References LookupState().
Referenced by ns3::ApWifiMac::StaSwitchingToActiveModeOrDeassociated(), and ns3::ApWifiMac::StaSwitchingToPsMode().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::SetQosSupport | ( | Mac48Address | from, |
| bool | qosSupported | ||
| ) |
Records QoS support of the remote station.
| from | the address of the station being recorded |
| qosSupported | whether the station supports QoS |
Definition at line 1456 of file wifi-remote-station-manager.cc.
References NS_LOG_FUNCTION.
Referenced by ns3::StaWifiMac::UpdateApInfo().
Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::SetRtsCtsThreshold | ( | uint32_t | threshold | ) |
Sets the RTS threshold.
| threshold | the RTS threshold |
Definition at line 210 of file wifi-remote-station-manager.cc.
References m_rtsCtsThreshold, and NS_LOG_FUNCTION.
Referenced by GetTypeId().
Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::SetShortPreambleEnabled | ( | bool | enable | ) |
Enable or disable short PHY preambles.
| enable | enable or disable short PHY preambles |
Definition at line 224 of file wifi-remote-station-manager.cc.
References m_shortPreambleEnabled, and NS_LOG_FUNCTION.
Referenced by ns3::ApWifiMac::SendOneBeacon(), ns3::ApWifiMac::SendProbeResp(), and ns3::StaWifiMac::UpdateApInfo().
Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::SetShortSlotTimeEnabled | ( | bool | enable | ) |
Enable or disable short slot time.
| enable | enable or disable short slot time |
Definition at line 231 of file wifi-remote-station-manager.cc.
References m_shortSlotTimeEnabled, and NS_LOG_FUNCTION.
Referenced by ns3::ApWifiMac::SendOneBeacon(), ns3::ApWifiMac::SendProbeResp(), and ns3::StaWifiMac::UpdateApInfo().
Here is the caller graph for this function:Set up MAC associated with this device since it is the object that knows the full set of timing parameters (e.g.
IFS).
| mac | the MAC of this device |
Reimplemented in ns3::MinstrelHtWifiManager, ns3::MinstrelWifiManager, ns3::RraaWifiManager, and ns3::RrpaaWifiManager.
Definition at line 179 of file wifi-remote-station-manager.cc.
References m_wifiMac, NS_LOG_FUNCTION, and Reset().
Referenced by ns3::MinstrelHtWifiManager::SetupMac(), ns3::MinstrelWifiManager::SetupMac(), ns3::RraaWifiManager::SetupMac(), and ns3::RrpaaWifiManager::SetupMac().
Here is the call graph for this function: Here is the caller graph for this function:Set up PHY associated with this device since it is the object that knows the full set of transmit rates that are supported.
| phy | the PHY of this device |
Reimplemented in ns3::AparfWifiManager, ns3::IdealWifiManager, ns3::MinstrelHtWifiManager, ns3::MinstrelWifiManager, ns3::ParfWifiManager, ns3::RraaWifiManager, and ns3::RrpaaWifiManager.
Definition at line 160 of file wifi-remote-station-manager.cc.
References ns3::HtPhy::GetHtMcs(), GetHtSupported(), ns3::WifiMode::IsMandatory(), m_defaultTxMcs, m_defaultTxMode, m_wifiPhy, NS_ASSERT, NS_LOG_FUNCTION, and Reset().
Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), ns3::WifiMac::NotifyChannelSwitching(), ns3::AparfWifiManager::SetupPhy(), ns3::IdealWifiManager::SetupPhy(), ns3::MinstrelHtWifiManager::SetupPhy(), ns3::MinstrelWifiManager::SetupPhy(), ns3::ParfWifiManager::SetupPhy(), ns3::RraaWifiManager::SetupPhy(), and ns3::RrpaaWifiManager::SetupPhy().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::SetUseNonErpProtection | ( | bool | enable | ) |
Enable or disable protection for non-ERP stations.
| enable | enable or disable protection for non-ERP stations |
Definition at line 1193 of file wifi-remote-station-manager.cc.
References m_useNonErpProtection, and NS_LOG_FUNCTION.
Referenced by ns3::ApWifiMac::GetUseNonErpProtection(), and ns3::StaWifiMac::UpdateApInfo().
Here is the caller graph for this function:| void ns3::WifiRemoteStationManager::SetUseNonHtProtection | ( | bool | enable | ) |
Enable or disable protection for non-HT stations.
| enable | enable or disable protection for non-HT stations |
Definition at line 1206 of file wifi-remote-station-manager.cc.
References m_useNonHtProtection, and NS_LOG_FUNCTION.
| bool ns3::WifiRemoteStationManager::UseLdpcForDestination | ( | Mac48Address | dest | ) | const |
| dest | the destination address |
Definition at line 2178 of file wifi-remote-station-manager.cc.
Referenced by GetDataTxVector().
Here is the caller graph for this function:
|
private |
basic MCS set
Definition at line 1488 of file wifi-remote-station-manager.h.
Referenced by NeedCtsToSelf().
|
private |
This member is the list of WifiMode objects that comprise the BSSBasicRateSet parameter.
This list is constructed through calls to WifiRemoteStationManager::AddBasicMode(), and an API that allows external access to it is available through WifiRemoteStationManager::GetNBasicModes() and WifiRemoteStationManager::GetBasicMode(). basic rate set
Definition at line 1487 of file wifi-remote-station-manager.h.
Referenced by NeedCtsToSelf().
|
private |
The default transmission modulation-coding scheme (MCS)
Definition at line 1494 of file wifi-remote-station-manager.h.
Referenced by SetupPhy().
|
private |
The default transmission mode.
Definition at line 1493 of file wifi-remote-station-manager.h.
Referenced by SetupPhy().
|
private |
Default transmission power level.
Definition at line 1500 of file wifi-remote-station-manager.h.
Referenced by GetDataTxVector(), GetDefaultTxPowerLevel(), GetRtsTxVector(), and GetTypeId().
|
private |
Protection mode for ERP stations when non-ERP stations are detected.
Definition at line 1508 of file wifi-remote-station-manager.h.
Referenced by GetTypeId(), NeedCtsToSelf(), and NeedRts().
|
private |
Current threshold for fragmentation.
Definition at line 1499 of file wifi-remote-station-manager.h.
Referenced by DoGetFragmentationThreshold(), and DoSetFragmentationThreshold().
|
private |
Protection mode for HT stations when non-HT stations are detected.
Definition at line 1511 of file wifi-remote-station-manager.h.
Referenced by GetTypeId(), NeedCtsToSelf(), and NeedRts().
|
private |
The trace source fired when the transmission of a single data packet has failed.
Definition at line 1523 of file wifi-remote-station-manager.h.
Referenced by GetTypeId(), ReportAmpduTxStatus(), and ReportDataFailed().
|
private |
The trace source fired when the transmission of a data packet has exceeded the maximum number of attempts.
Definition at line 1533 of file wifi-remote-station-manager.h.
Referenced by GetTypeId(), and ReportFinalDataFailed().
|
private |
The trace source fired when the transmission of a RTS has exceeded the maximum number of attempts.
Definition at line 1528 of file wifi-remote-station-manager.h.
Referenced by GetTypeId(), and ReportFinalRtsFailed().
|
private |
The trace source fired when the transmission of a single RTS has failed.
Definition at line 1519 of file wifi-remote-station-manager.h.
Referenced by GetTypeId(), and ReportRtsFailed().
|
private |
Maximum STA long retry count (SLRC)
Definition at line 1497 of file wifi-remote-station-manager.h.
Referenced by NeedRetransmission(), and SetMaxSlrc().
|
private |
Maximum STA short retry count (SSRC)
Definition at line 1496 of file wifi-remote-station-manager.h.
Referenced by NeedRetransmission(), and SetMaxSsrc().
|
private |
Transmission mode for non-unicast Data frames.
Definition at line 1501 of file wifi-remote-station-manager.h.
Referenced by GetTypeId().
|
private |
Threshold for RTS/CTS.
Definition at line 1498 of file wifi-remote-station-manager.h.
Referenced by NeedRetransmission(), NeedRts(), ReportDataFailed(), ReportDataOk(), ReportFinalDataFailed(), and SetRtsCtsThreshold().
|
private |
flag if short PHY preamble is enabled
Definition at line 1506 of file wifi-remote-station-manager.h.
Referenced by GetShortPreambleEnabled(), and SetShortPreambleEnabled().
|
private |
flag if short slot time is enabled
Definition at line 1507 of file wifi-remote-station-manager.h.
Referenced by GetShortSlotTimeEnabled(), and SetShortSlotTimeEnabled().
|
private |
long retry count per AC
Definition at line 1514 of file wifi-remote-station-manager.h.
Referenced by NeedRetransmission(), ReportDataFailed(), ReportDataOk(), and ReportFinalDataFailed().
|
private |
short retry count per AC
Definition at line 1513 of file wifi-remote-station-manager.h.
Referenced by NeedRetransmission(), ReportDataFailed(), ReportDataOk(), ReportFinalDataFailed(), ReportFinalRtsFailed(), ReportRtsFailed(), and ReportRtsOk().
|
private |
States of known stations.
Definition at line 1490 of file wifi-remote-station-manager.h.
Referenced by GetAffiliatedStaAddress(), GetMldAddress(), and LookupState().
|
private |
Information for each known stations.
Definition at line 1491 of file wifi-remote-station-manager.h.
|
private |
flag if protection for non-ERP stations against ERP transmissions is enabled
Definition at line 1502 of file wifi-remote-station-manager.h.
Referenced by GetUseNonErpProtection(), NeedCtsToSelf(), NeedRts(), and SetUseNonErpProtection().
|
private |
flag if protection for non-HT stations against HT transmissions is enabled
Definition at line 1504 of file wifi-remote-station-manager.h.
Referenced by GetUseNonHtProtection(), NeedCtsToSelf(), NeedRts(), and SetUseNonHtProtection().
This is a pointer to the WifiMac associated with this WifiRemoteStationManager that is set on call to WifiRemoteStationManager::SetupMac().
Through this pointer the station manager can determine MAC characteristics, such as the interframe spaces.
Definition at line 1477 of file wifi-remote-station-manager.h.
Referenced by GetStaId(), and SetupMac().
This is a pointer to the WifiPhy associated with this WifiRemoteStationManager that is set on call to WifiRemoteStationManager::SetupPhy().
Through this pointer the station manager can determine PHY characteristics, such as the set of all transmission rates that may be supported (the "DeviceRateSet").
Definition at line 1469 of file wifi-remote-station-manager.h.
Referenced by AddAllSupportedMcs(), AddAllSupportedModes(), AdjustTxVectorForIcf(), GetAckTxVector(), GetBlockAckTxVector(), GetControlAnswerMode(), GetCtsToSelfTxVector(), GetCtsTxVector(), GetDataTxVector(), GetEhtSupported(), GetGuardInterval(), GetHeSupported(), GetHtSupported(), GetLdpcSupported(), GetRtsTxVector(), GetShortGuardIntervalSupported(), GetVhtSupported(), LookupState(), NeedRts(), and SetupPhy().
1.9.6
