Extended SpectrumWifiPhy class for the purpose of the tests. More...

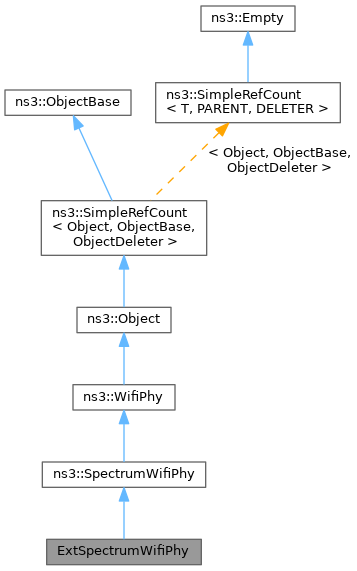

Inheritance diagram for ExtSpectrumWifiPhy: Collaboration diagram for ExtSpectrumWifiPhy:Additional Inherited Members | |
| Public Types inherited from ns3::SpectrumWifiPhy | |
| typedef void(* | SignalArrivalCallback) (bool signalType, uint32_t senderNodeId, double rxPower, Time duration) |
| Callback invoked when the PHY model starts to process a signal. | |
| Public Types inherited from ns3::WifiPhy | |
| using | ChannelTuple = std::tuple< uint8_t, uint16_t, int, uint8_t > |
| Tuple identifying an operating channel. | |
| typedef void(* | MonitorSnifferRxCallback) (Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, SignalNoiseDbm signalNoise, uint16_t staId) |
| TracedCallback signature for monitor mode receive events. | |
| typedef void(* | MonitorSnifferTxCallback) (const Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, uint16_t staId) |
| TracedCallback signature for monitor mode transmit events. | |
| typedef void(* | PhyRxBeginTracedCallback) (Ptr< const Packet > packet, RxPowerWattPerChannelBand rxPowersW) |
| TracedCallback signature for PhyRxBegin trace source. | |
| typedef void(* | PhyRxPayloadBeginTracedCallback) (WifiTxVector txVector, Time psduDuration) |
| TracedCallback signature for start of PSDU reception events. | |
| typedef void(* | PhyTxBeginTracedCallback) (Ptr< const Packet > packet, double txPowerW) |
| TracedCallback signature for Phy transmit events. | |
| typedef void(* | PsduTxBeginCallback) (WifiConstPsduMap psduMap, WifiTxVector txVector, double txPowerW) |
| TracedCallback signature for PSDU transmit events. | |
| Public Member Functions inherited from ns3::SpectrumWifiPhy | |
| SpectrumWifiPhy () | |
| ~SpectrumWifiPhy () override | |
| void | AddChannel (const Ptr< SpectrumChannel > channel, const FrequencyRange &freqRange=WHOLE_WIFI_SPECTRUM) |
| Attach a SpectrumChannel to use for a given frequency range. | |
| void | ConfigureInterface (uint16_t frequency, uint16_t width) |
| Configure a non-active spectrum PHY interface to operate on a given frequency with a given width. | |
| WifiSpectrumBandFrequencies | ConvertIndicesToFrequencies (const WifiSpectrumBandIndices &indices) const override |
| This is a helper function to convert start and stop indices to start and stop frequencies. | |
| Ptr< AntennaModel > | GetAntenna () const |
| Get the antenna model used for reception. | |
| WifiSpectrumBandInfo | GetBand (uint16_t bandWidth, uint8_t bandIndex=0) override |
| Get the info of a given band. | |
| Ptr< Channel > | GetChannel () const override |
| Return the Channel this WifiPhy is connected to. | |
| FrequencyRange | GetCurrentFrequencyRange () const override |
| Get the frequency range of the current RF interface. | |
| Ptr< WifiSpectrumPhyInterface > | GetCurrentInterface () const |
| Get the currently active spectrum PHY interface. | |
| uint16_t | GetGuardBandwidth (uint16_t currentChannelWidth) const override |
| Ptr< const WifiPpdu > | GetRxPpduFromTxPpdu (Ptr< const WifiPpdu > ppdu) |
| Determine the WifiPpdu to be used by the RX PHY based on the WifiPpdu sent by the TX PHY. | |
| const std::map< FrequencyRange, Ptr< WifiSpectrumPhyInterface > > & | GetSpectrumPhyInterfaces () const |
| Get the map of interfaces attached to this spectrum PHY. | |
| std::tuple< double, double, double > | GetTxMaskRejectionParams () const override |
| void | SetAntenna (const Ptr< AntennaModel > antenna) |
| void | SetChannelSwitchedCallback (Callback< void > callback) |
| void | SetDevice (const Ptr< WifiNetDevice > device) override |
| Sets the device this PHY is associated with. | |
| void | StartRx (Ptr< SpectrumSignalParameters > rxParams, Ptr< const WifiSpectrumPhyInterface > interface) |
| Input method for delivering a signal from the spectrum channel and low-level PHY interface to this SpectrumWifiPhy instance. | |
| void | StartTx (Ptr< const WifiPpdu > ppdu) override |
| void | Transmit (Ptr< WifiSpectrumSignalParameters > txParams) |
| This function is sending the signal to the Spectrum channel after finishing the configuration of the transmit parameters. | |
| Public Member Functions inherited from ns3::WifiPhy | |
| WifiPhy () | |
| ~WifiPhy () override | |
| virtual int64_t | AssignStreams (int64_t stream) |
| Assign a fixed random variable stream number to the random variables used by this model. | |
| double | CalculateSnr (const WifiTxVector &txVector, double ber) const |
| virtual void | ConfigureStandard (WifiStandard standard) |
| Configure the PHY-level parameters for different Wi-Fi standard. | |
| virtual WifiSpectrumBandFrequencies | ConvertIndicesToFrequencies (const WifiSpectrumBandIndices &indices) const =0 |
| This is a helper function to convert start and stop indices to start and stop frequencies. | |
| void | EndReceiveInterBss () |
| For HE receptions only, check and possibly modify the transmit power restriction state at the end of PPDU reception. | |
| Time | GetAckTxTime () const |
| Return the estimated Ack TX time for this PHY. | |
| virtual WifiSpectrumBandInfo | GetBand (uint16_t bandWidth, uint8_t bandIndex=0)=0 |
| Get the info of a given band. | |
| Time | GetBlockAckTxTime () const |
| Return the estimated BlockAck TX time for this PHY. | |
| std::list< uint8_t > | GetBssMembershipSelectorList () const |
| The WifiPhy::BssMembershipSelector() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored inside HT PHY (and above) instances. | |
| double | GetCcaEdThreshold () const |
| Return the CCA energy detection threshold (dBm). | |
| double | GetCcaSensitivityThreshold () const |
| Return the CCA sensitivity threshold (dBm). | |
| virtual Ptr< Channel > | GetChannel () const =0 |
| Return the Channel this WifiPhy is connected to. | |
| uint8_t | GetChannelNumber () const |
| Return current channel number. | |
| Time | GetChannelSwitchDelay () const |
| uint16_t | GetChannelWidth () const |
| virtual FrequencyRange | GetCurrentFrequencyRange () const =0 |
| Get the frequency range of the current RF interface. | |
| WifiMode | GetDefaultMode () const |
| Get the default WifiMode supported by the PHY. | |
| Time | GetDelayUntilIdle () |
| Ptr< WifiNetDevice > | GetDevice () const |
| Return the device this PHY is associated with. | |
| uint16_t | GetFrequency () const |
| virtual uint16_t | GetGuardBandwidth (uint16_t currentChannelWidth) const =0 |
| Time | GetLastRxEndTime () const |
| Return the end time of the last received packet. | |
| Time | GetLastRxStartTime () const |
| Return the start time of the last received packet. | |
| Ptr< PhyEntity > | GetLatestPhyEntity () const |
| Get the latest PHY entity supported by this PHY instance. | |
| uint8_t | GetMaxSupportedRxSpatialStreams () const |
| uint8_t | GetMaxSupportedTxSpatialStreams () const |
| WifiMode | GetMcs (WifiModulationClass modulation, uint8_t mcs) const |
| Get the WifiMode object corresponding to the given MCS of the given modulation class. | |
| std::list< WifiMode > | GetMcsList () const |
| The WifiPhy::GetMcsList() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indices that this WifiPhy(-derived class) can support - a set of MCS indices which is stored by each HT PHY (and above). | |
| std::list< WifiMode > | GetMcsList (WifiModulationClass modulation) const |
| Get the list of supported MCSs for the given modulation class (i.e. | |
| Ptr< MobilityModel > | GetMobility () const |
| Return the mobility model this PHY is associated with. | |
| std::list< WifiMode > | GetModeList () const |
| The WifiPhy::GetModeList() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception (non-MCS) modes that this WifiPhy(-derived class) can support - a set of modes which is stored by each non-HT PHY. | |
| std::list< WifiMode > | GetModeList (WifiModulationClass modulation) const |
| Get the list of supported (non-MCS) modes for the given modulation class (i.e. | |
| uint16_t | GetNMcs () const |
| uint8_t | GetNTxPower () const |
| Return the number of available transmission power levels. | |
| uint8_t | GetNumberOfAntennas () const |
| const WifiPhyOperatingChannel & | GetOperatingChannel () const |
| Get a const reference to the operating channel. | |
| WifiPhyBand | GetPhyBand () const |
| Get the configured Wi-Fi band. | |
| Ptr< PhyEntity > | GetPhyEntity (WifiModulationClass modulation) const |
| Get the supported PHY entity corresponding to the modulation class. | |
| Ptr< PhyEntity > | GetPhyEntity (WifiStandard standard) const |
| Get the supported PHY entity corresponding to the wifi standard. | |
| Ptr< PhyEntity > | GetPhyEntityForPpdu (const Ptr< const WifiPpdu > ppdu) const |
| Get the supported PHY entity to use for a received PPDU. | |
| Time | GetPifs () const |
| Return the PCF Interframe Space (PIFS) for this PHY. | |
| double | GetPowerDbm (uint8_t power) const |
| Get the power of the given power level in dBm. | |
| uint64_t | GetPreviouslyRxPpduUid () const |
| uint8_t | GetPrimary20Index () const |
| uint8_t | GetPrimaryChannelNumber (uint16_t primaryChannelWidth) const |
| Get channel number of the primary channel. | |
| double | GetRxGain () const |
| Return the reception gain (dB). | |
| double | GetRxSensitivity () const |
| Return the receive sensitivity threshold (dBm). | |
| bool | GetShortPhyPreambleSupported () const |
| Return whether short PHY preamble is supported. | |
| Time | GetSifs () const |
| Return the Short Interframe Space (SIFS) for this PHY. | |
| Time | GetSlot () const |
| Return the slot duration for this PHY. | |
| WifiStandard | GetStandard () const |
| Get the configured Wi-Fi standard. | |
| Ptr< WifiPhyStateHelper > | GetState () const |
| Return the WifiPhyStateHelper of this PHY. | |
| uint32_t | GetSubcarrierSpacing () const |
| uint16_t | GetTxBandwidth (WifiMode mode, uint16_t maxAllowedBandWidth=std::numeric_limits< uint16_t >::max()) const |
| Get the bandwidth for a transmission occurring on the current operating channel and using the given WifiMode, subject to the constraint that the TX bandwidth cannot exceed the given maximum allowed value. | |
| double | GetTxGain () const |
| Return the transmission gain (dB). | |
| virtual std::tuple< double, double, double > | GetTxMaskRejectionParams () const =0 |
| double | GetTxPowerEnd () const |
| Return the maximum available transmission power level (dBm). | |
| double | GetTxPowerForTransmission (Ptr< const WifiPpdu > ppdu) const |
| Compute the transmit power for the next transmission. | |
| double | GetTxPowerStart () const |
| Return the minimum available transmission power level (dBm). | |
| bool | HasFixedPhyBand () const |
| bool | IsMcsSupported (WifiModulationClass modulation, uint8_t mcs) const |
| Check if the given MCS of the given modulation class is supported by the PHY. | |
| bool | IsModeSupported (WifiMode mode) const |
| Check if the given WifiMode is supported by the PHY. | |
| bool | IsStateCcaBusy () const |
| bool | IsStateIdle () const |
| bool | IsStateOff () const |
| bool | IsStateRx () const |
| bool | IsStateSleep () const |
| bool | IsStateSwitching () const |
| bool | IsStateTx () const |
| void | NotifyChannelAccessRequested () |
| Notify the PHY that an access to the channel was requested. | |
| void | NotifyMonitorSniffRx (Ptr< const WifiPsdu > psdu, uint16_t channelFreqMhz, WifiTxVector txVector, SignalNoiseDbm signalNoise, std::vector< bool > statusPerMpdu, uint16_t staId=SU_STA_ID) |
| Public method used to fire a MonitorSniffer trace for a wifi PSDU being received. | |
| void | NotifyMonitorSniffTx (Ptr< const WifiPsdu > psdu, uint16_t channelFreqMhz, WifiTxVector txVector, uint16_t staId=SU_STA_ID) |
| Public method used to fire a MonitorSniffer trace for a wifi PSDU being transmitted. | |
| void | NotifyRxBegin (Ptr< const WifiPsdu > psdu, const RxPowerWattPerChannelBand &rxPowersW) |
| Public method used to fire a PhyRxBegin trace. | |
| void | NotifyRxDrop (Ptr< const WifiPsdu > psdu, WifiPhyRxfailureReason reason) |
| Public method used to fire a PhyRxDrop trace. | |
| void | NotifyRxEnd (Ptr< const WifiPsdu > psdu) |
| Public method used to fire a PhyRxEnd trace. | |
| void | NotifyTxBegin (WifiConstPsduMap psdus, double txPowerW) |
| Public method used to fire a PhyTxBegin trace. | |
| void | NotifyTxDrop (Ptr< const WifiPsdu > psdu) |
| Public method used to fire a PhyTxDrop trace. | |
| void | NotifyTxEnd (WifiConstPsduMap psdus) |
| Public method used to fire a PhyTxEnd trace. | |
| void | RegisterListener (WifiPhyListener *listener) |
| void | ResetCca (bool powerRestricted, double txPowerMaxSiso=0, double txPowerMaxMimo=0) |
| Reset PHY to IDLE, with some potential TX power restrictions for the next transmission. | |
| void | ResumeFromOff () |
| Resume from off mode. | |
| void | ResumeFromSleep () |
| Resume from sleep mode. | |
| void | Send (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector) |
| This function is a wrapper for the Send variant that accepts a WifiConstPsduMap as first argument. | |
| void | Send (WifiConstPsduMap psdus, const WifiTxVector &txVector) |
| void | SetCapabilitiesChangedCallback (Callback< void > callback) |
| void | SetCcaEdThreshold (double threshold) |
| Sets the CCA energy detection threshold (dBm). | |
| void | SetCcaSensitivityThreshold (double threshold) |
| Sets the CCA sensitivity threshold (dBm). | |
| virtual void | SetDevice (const Ptr< WifiNetDevice > device) |
| Sets the device this PHY is associated with. | |
| void | SetErrorRateModel (const Ptr< ErrorRateModel > model) |
| Sets the error rate model. | |
| void | SetFixedPhyBand (bool enable) |
| Configure whether it is prohibited to change PHY band after initialization. | |
| void | SetFrameCaptureModel (const Ptr< FrameCaptureModel > frameCaptureModel) |
| Sets the frame capture model. | |
| virtual void | SetInterferenceHelper (const Ptr< InterferenceHelper > helper) |
| Sets the interference helper. | |
| void | SetMaxSupportedRxSpatialStreams (uint8_t streams) |
| void | SetMaxSupportedTxSpatialStreams (uint8_t streams) |
| void | SetMobility (const Ptr< MobilityModel > mobility) |
| assign a mobility model to this device | |
| void | SetNTxPower (uint8_t n) |
| Sets the number of transmission power levels available between the minimum level and the maximum level. | |
| void | SetNumberOfAntennas (uint8_t antennas) |
| void | SetOffMode () |
| Put in off mode. | |
| void | SetOperatingChannel (const ChannelTuple &channelTuple) |
| If the standard for this object has not been set yet, store the given channel settings. | |
| void | SetOperatingChannel (const WifiPhyOperatingChannel &channel) |
| If the standard for this object has not been set yet, store the channel settings corresponding to the given operating channel. | |
| void | SetPifs (Time pifs) |
| Set the PCF Interframe Space (PIFS) for this PHY. | |
| void | SetPostReceptionErrorModel (const Ptr< ErrorModel > em) |
| Attach a receive ErrorModel to the WifiPhy. | |
| void | SetPreambleDetectionModel (const Ptr< PreambleDetectionModel > preambleDetectionModel) |
| Sets the preamble detection model. | |
| void | SetPreviouslyRxPpduUid (uint64_t uid) |
| Set the UID of the previously received PPDU. | |
| void | SetReceiveErrorCallback (RxErrorCallback callback) |
| void | SetReceiveOkCallback (RxOkCallback callback) |
| void | SetRxGain (double gain) |
| Sets the reception gain (dB). | |
| void | SetRxNoiseFigure (double noiseFigureDb) |
| Sets the RX loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. | |
| void | SetRxSensitivity (double threshold) |
| Sets the receive sensitivity threshold (dBm). | |
| void | SetShortPhyPreambleSupported (bool preamble) |
| Enable or disable short PHY preamble. | |
| void | SetSifs (Time sifs) |
| Set the Short Interframe Space (SIFS) for this PHY. | |
| void | SetSleepMode () |
| Put in sleep mode. | |
| void | SetSlot (Time slot) |
| Set the slot duration for this PHY. | |
| void | SetTxGain (double gain) |
| Sets the transmission gain (dB). | |
| void | SetTxPowerEnd (double end) |
| Sets the maximum available transmission power level (dBm). | |
| void | SetTxPowerStart (double start) |
| Sets the minimum available transmission power level (dBm). | |
| void | SetWifiRadioEnergyModel (const Ptr< WifiRadioEnergyModel > wifiRadioEnergyModel) |
| Sets the wifi radio energy model. | |
| void | StartReceivePreamble (Ptr< const WifiPpdu > ppdu, RxPowerWattPerChannelBand &rxPowersW, Time rxDuration) |
| Start receiving the PHY preamble of a PPDU (i.e. | |
| virtual void | StartTx (Ptr< const WifiPpdu > ppdu)=0 |
| void | UnregisterListener (WifiPhyListener *listener) |
| Public Member Functions inherited from ns3::Object | |
| Object () | |
| Constructor. | |
| ~Object () override | |
| Destructor. | |
| void | AggregateObject (Ptr< Object > other) |
| Aggregate two Objects together. | |
| void | Dispose () |
| Dispose of this Object. | |
| AggregateIterator | GetAggregateIterator () const |
| Get an iterator to the Objects aggregated to this one. | |
| TypeId | GetInstanceTypeId () const override |
| Get the most derived TypeId for this Object. | |
| template<typename T > | |
| Ptr< T > | GetObject () const |
| Get a pointer to the requested aggregated Object. | |
| template<> | |
| Ptr< Object > | GetObject () const |
| Specialization of () for objects of type ns3::Object. | |
| template<typename T > | |
| Ptr< T > | GetObject (TypeId tid) const |
| Get a pointer to the requested aggregated Object by TypeId. | |
| template<> | |
| Ptr< Object > | GetObject (TypeId tid) const |
| Specialization of (TypeId tid) for objects of type ns3::Object. | |
| void | Initialize () |
| Invoke DoInitialize on all Objects aggregated to this one. | |
| bool | IsInitialized () const |
| Check if the object has been initialized. | |
| Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| SimpleRefCount () | |
| Default constructor. | |
| SimpleRefCount (const SimpleRefCount &o) | |
| Copy constructor. | |
| uint32_t | GetReferenceCount () const |
| Get the reference count of the object. | |
| SimpleRefCount & | operator= (const SimpleRefCount &o) |
| Assignment operator. | |
| void | Ref () const |
| Increment the reference count. | |
| void | Unref () const |
| Decrement the reference count. | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| Get the value of an attribute, raising fatal errors if unsuccessful. | |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
| Get the value of an attribute without raising errors. | |
| virtual TypeId | GetInstanceTypeId () const =0 |
| Get the most derived TypeId for this Object. | |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| Set a single attribute, raising fatal errors if unsuccessful. | |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| Set a single attribute without raising errors. | |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| Connect a TraceSource to a Callback with a context. | |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| Connect a TraceSource to a Callback without a context. | |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected with a context. | |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected without a context. | |
| Static Public Member Functions inherited from ns3::SpectrumWifiPhy | |
| static TypeId | GetTypeId () |
| Get the type ID. | |
| Static Public Member Functions inherited from ns3::WifiPhy | |
| static void | AddStaticPhyEntity (WifiModulationClass modulation, Ptr< PhyEntity > phyEntity) |
| Add the PHY entity to the map of implemented PHY entities for the given modulation class. | |
| static Time | CalculatePhyPreambleAndHeaderDuration (const WifiTxVector &txVector) |
| static Time | CalculateTxDuration (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, WifiPhyBand band) |
| This function is a wrapper for the CalculateTxDuration variant that accepts a WifiConstPsduMap as first argument. | |
| static Time | CalculateTxDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, uint16_t staId=SU_STA_ID) |
| static Time | CalculateTxDuration (WifiConstPsduMap psduMap, const WifiTxVector &txVector, WifiPhyBand band) |
| static uint32_t | GetMaxPsduSize (WifiModulationClass modulation) |
| Get the maximum PSDU size in bytes for the given modulation class. | |
| static Time | GetPayloadDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, MpduType mpdutype, bool incFlag, uint32_t &totalAmpduSize, double &totalAmpduNumSymbols, uint16_t staId) |
| static Time | GetPayloadDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, MpduType mpdutype=NORMAL_MPDU, uint16_t staId=SU_STA_ID) |
| static Time | GetPreambleDetectionDuration () |
| static Time | GetStartOfPacketDuration (const WifiTxVector &txVector) |
| static const Ptr< const PhyEntity > | GetStaticPhyEntity (WifiModulationClass modulation) |
| Get the implemented PHY entity corresponding to the modulation class. | |
| static TypeId | GetTypeId () |
| Get the type ID. | |
| static WifiConstPsduMap | GetWifiConstPsduMap (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector) |
| Get a WifiConstPsduMap from a PSDU and the TXVECTOR to use to send the PSDU. | |
| Static Public Member Functions inherited from ns3::Object | |
| static TypeId | GetTypeId () |
| Register this type. | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId () |
| Get the type ID. | |
| Protected Member Functions inherited from ns3::SpectrumWifiPhy | |
| void | DoChannelSwitch () override |
| Actually switch channel based on the stored channel settings. | |
| void | DoDispose () override |
| Destructor implementation. | |
| void | DoInitialize () override |
| Initialize() implementation. | |
| Protected Member Functions inherited from ns3::WifiPhy | |
| void | AddPhyEntity (WifiModulationClass modulation, Ptr< PhyEntity > phyEntity) |
| Add the PHY entity to the map of supported PHY entities for the given modulation class for the WifiPhy instance. | |
| virtual void | DoChannelSwitch () |
| Actually switch channel based on the stored channel settings. | |
| void | DoDispose () override |
| Destructor implementation. | |
| void | DoInitialize () override |
| Initialize() implementation. | |
| Time | GetDelayUntilChannelSwitch () |
| Perform any actions necessary when user changes operating channel after initialization. | |
| void | NotifyCcaBusy (const Ptr< const WifiPpdu > ppdu, Time duration) |
| Notify PHY state helper to switch to CCA busy state,. | |
| void | Reset () |
| Reset data upon end of TX or RX. | |
| void | SwitchMaybeToCcaBusy (const Ptr< const WifiPpdu > ppdu) |
| Check if PHY state should move to CCA busy state based on current state of interference tracker. | |
| Protected Member Functions inherited from ns3::Object | |
| Object (const Object &o) | |
| Copy an Object. | |
| virtual void | DoDispose () |
| Destructor implementation. | |
| virtual void | DoInitialize () |
| Initialize() implementation. | |
| virtual void | NotifyNewAggregate () |
| Notify all Objects aggregated to this one of a new Object being aggregated. | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| Complete construction of ObjectBase; invoked by derived classes. | |
| virtual void | NotifyConstructionCompleted () |
| Notifier called once the ObjectBase is fully constructed. | |
| Protected Attributes inherited from ns3::SpectrumWifiPhy | |
| Ptr< WifiSpectrumPhyInterface > | m_currentSpectrumPhyInterface |
| The current Spectrum PHY interface (held for performance reasons) | |
| std::map< FrequencyRange, Ptr< WifiSpectrumPhyInterface > > | m_spectrumPhyInterfaces |
| Spectrum PHY interfaces. | |
| Protected Attributes inherited from ns3::WifiPhy | |
| Ptr< Event > | m_currentEvent |
| Hold the current event. | |
| std::map< std::pair< uint64_t, WifiPreamble >, Ptr< Event > > | m_currentPreambleEvents |
| store event associated to a PPDU (that has a unique ID and preamble combination) whose preamble is being received | |
| EventId | m_endPhyRxEvent |
| the end of PHY receive event | |
| EventId | m_endTxEvent |
| the end of transmit event | |
| Ptr< InterferenceHelper > | m_interference |
| Pointer to a helper responsible for interference computations. | |
| std::map< WifiModulationClass, Ptr< PhyEntity > > | m_phyEntities |
| This map holds the supported PHY entities. | |
| uint64_t | m_previouslyRxPpduUid |
| UID of the previously received PPDU, reset to UINT64_MAX upon transmission. | |
| Ptr< UniformRandomVariable > | m_random |
| Provides uniform random variables. | |
| uint32_t | m_rxMpduReferenceNumber |
| A-MPDU reference number to identify all received subframes belonging to the same received A-MPDU. | |
| Ptr< WifiPhyStateHelper > | m_state |
| Pointer to WifiPhyStateHelper. | |
| uint32_t | m_txMpduReferenceNumber |
| A-MPDU reference number to identify all transmitted subframes belonging to the same received A-MPDU. | |
| Related Functions inherited from ns3::ObjectBase | |
| static TypeId | GetObjectIid () |
| Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. | |
Extended SpectrumWifiPhy class for the purpose of the tests.
Definition at line 56 of file spectrum-wifi-phy-test.cc.
1.9.6
