Frame Exchange Manager Stub. More...

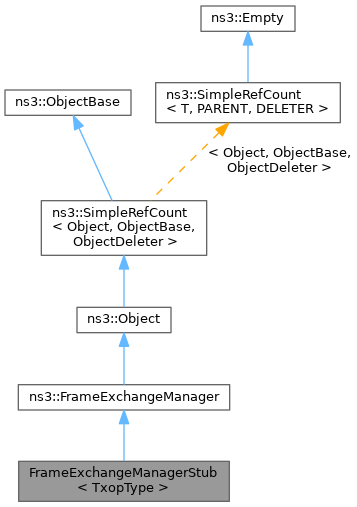

Inheritance diagram for FrameExchangeManagerStub< TxopType >:

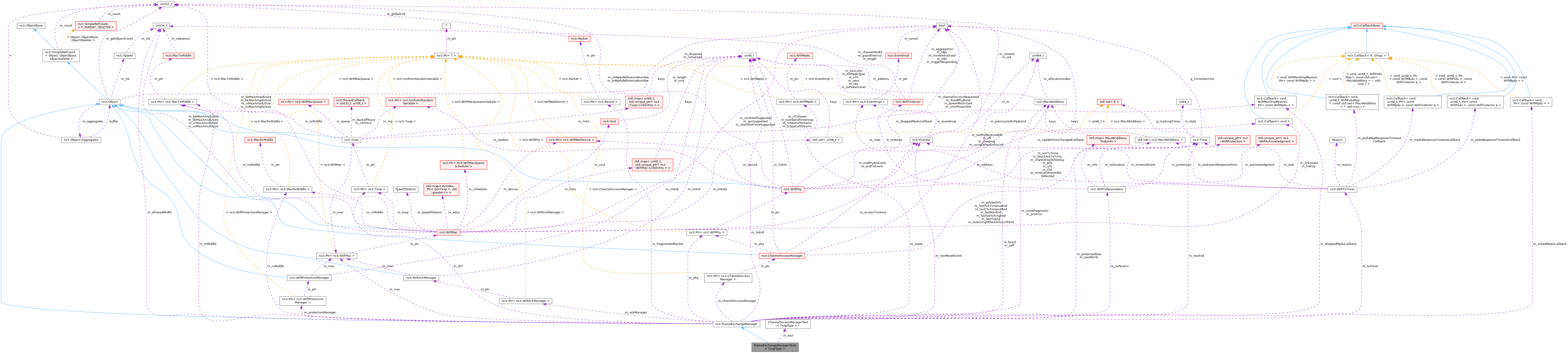

Collaboration diagram for FrameExchangeManagerStub< TxopType >:

Public Member Functions
	FrameExchangeManagerStub (ChannelAccessManagerTest< TxopType > *test)
	Constructor.

void	NotifyInternalCollision (Ptr< Txop > txop) override
	Notify that an internal collision has occurred for the given Txop.

void	NotifySwitchingStartNow (Time duration) override

bool	StartTransmission (Ptr< Txop > dcf, uint16_t allowedWidth) override
	Request the FrameExchangeManager to start a frame exchange sequence.

Public Member Functions inherited from ns3::FrameExchangeManager
	FrameExchangeManager ()

	~FrameExchangeManager () override

virtual void	CalculateAcknowledgmentTime (WifiAcknowledgment *acknowledgment) const
	Calculate the time required to acknowledge a frame according to the given acknowledgment method.

virtual void	CalculateProtectionTime (WifiProtection *protection) const
	Calculate the time required to protect a frame according to the given protection method.

Ptr< WifiAckManager >	GetAckManager () const
	Get the Acknowledgment Manager used by this node.

Mac48Address	GetAddress () const
	Get the MAC address.

Mac48Address	GetBssid () const
	Get the Basic Service Set Identification.

const std::set< Mac48Address > &	GetProtectedStas () const

Ptr< WifiProtectionManager >	GetProtectionManager () const
	Get the Protection Manager used by this node.

const WifiTxTimer &	GetWifiTxTimer () const
	Get a const reference to the WifiTxTimer object.

bool	IsPromisc () const
	Check if the device is operating in promiscuous mode.

virtual void	NotifyInternalCollision (Ptr< Txop > txop)
	Notify that an internal collision has occurred for the given Txop.

void	NotifyOffNow ()
	This method is typically invoked by the PhyListener to notify the MAC layer that the device has been put into off mode.

void	NotifySleepNow ()
	This method is typically invoked by the PhyListener to notify the MAC layer that the device has been put into sleep mode.

virtual void	NotifySwitchingStartNow (Time duration)

void	Receive (Ptr< const WifiPsdu > psdu, RxSignalInfo rxSignalInfo, WifiTxVector txVector, std::vector< bool > perMpduStatus)
	This method is intended to be called by the PHY layer every time an MPDU is received and also when the reception of an A-MPDU is completed.

virtual void	ResetPhy ()
	Remove WifiPhy associated with this FrameExchangeManager.

void	SetAckedMpduCallback (AckedMpdu callback)
	Set the callback to invoke when an MPDU is successfully acked.

virtual void	SetAckManager (Ptr< WifiAckManager > ackManager)
	Set the Acknowledgment Manager to use.

virtual void	SetAddress (Mac48Address address)
	Set the MAC address.

virtual void	SetBssid (Mac48Address bssid)
	Set the Basic Service Set Identification.

virtual void	SetChannelAccessManager (const Ptr< ChannelAccessManager > channelAccessManager)
	Set the channel access manager to use.

virtual void	SetDroppedMpduCallback (DroppedMpdu callback)
	Set the callback to invoke when an MPDU is dropped.

virtual void	SetLinkId (uint8_t linkId)
	Set the ID of the link this Frame Exchange Manager is associated with.

virtual void	SetMacRxMiddle (const Ptr< MacRxMiddle > rxMiddle)
	Set the MAC RX Middle to use.

virtual void	SetMacTxMiddle (const Ptr< MacTxMiddle > txMiddle)
	Set the MAC TX Middle to use.

void	SetPromisc ()
	Enable promiscuous mode.

virtual void	SetProtectionManager (Ptr< WifiProtectionManager > protectionManager)
	Set the Protection Manager to use.

virtual void	SetWifiMac (const Ptr< WifiMac > mac)
	Set the MAC layer to use.

virtual void	SetWifiPhy (const Ptr< WifiPhy > phy)
	Set the PHY layer to use.

virtual bool	StartTransmission (Ptr< Txop > dcf, uint16_t allowedWidth)
	Request the FrameExchangeManager to start a frame exchange sequence.

virtual bool	VirtualCsMediumIdle () const

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor.

	~Object () override
	Destructor.

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together.

void	Dispose ()
	Dispose of this Object.

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one.

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object.

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object.

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object.

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one.

bool	IsInitialized () const
	Check if the object has been initialized.

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor.

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor.

uint32_t	GetReferenceCount () const
	Get the reference count of the object.

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator.

void	Ref () const
	Increment the reference count.

void	Unref () const
	Decrement the reference count.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Private Attributes
ChannelAccessManagerTest< TxopType > *	m_test
	the test DCF/EDCA manager

Additional Inherited Members
Public Types inherited from ns3::FrameExchangeManager
typedef Callback< void, Ptr< const WifiMpdu > >	AckedMpdu
	typedef for a callback to invoke when an MPDU is successfully acknowledged.

typedef Callback< void, WifiMacDropReason, Ptr< const WifiMpdu > >	DroppedMpdu
	typedef for a callback to invoke when an MPDU is dropped.

Static Public Member Functions inherited from ns3::FrameExchangeManager
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Protected Member Functions inherited from ns3::FrameExchangeManager
virtual void	CtsTimeout (Ptr< WifiMpdu > rts, const WifiTxVector &txVector)
	Called when the CTS timeout expires.

virtual void	DequeueMpdu (Ptr< const WifiMpdu > mpdu)
	Dequeue the given MPDU from the queue in which it is stored.

void	DoCtsTimeout (Ptr< WifiPsdu > psdu)
	Take required actions when the CTS timer fired after sending an RTS to protect the given PSDU expires.

void	DoDispose () override
	Destructor implementation.

void	DoSendCtsAfterRts (const WifiMacHeader &rtsHdr, WifiTxVector &ctsTxVector, double rtsSnr)
	Send CTS after receiving RTS.

virtual void	EndReceiveAmpdu (Ptr< const WifiPsdu > psdu, const RxSignalInfo &rxSignalInfo, const WifiTxVector &txVector, const std::vector< bool > &perMpduStatus)
	This method is called when the reception of an A-MPDU including multiple MPDUs is completed.

virtual void	FinalizeMacHeader (Ptr< const WifiPsdu > psdu)
	Finalize the MAC header of the MPDUs in the given PSDU before transmission.

virtual void	ForwardMpduDown (Ptr< WifiMpdu > mpdu, WifiTxVector &txVector)
	Forward an MPDU down to the PHY layer.

virtual Time	GetCtsToSelfDurationId (const WifiTxVector &ctsTxVector, Time txDuration, Time response) const
	Compute how to set the Duration/ID field of a CTS-to-self frame to send to protect a frame transmitted with the given TX vector.

Ptr< WifiMpdu >	GetFirstFragmentIfNeeded (Ptr< WifiMpdu > mpdu)
	Fragment the given MPDU if needed.

virtual Time	GetFrameDurationId (const WifiMacHeader &header, uint32_t size, const WifiTxParameters &txParams, Ptr< Packet > fragmentedPacket) const
	Compute how to set the Duration/ID field of a frame being transmitted with the given TX parameters.

Ptr< WifiMpdu >	GetNextFragment ()
	Get the next fragment of the current MSDU.

virtual uint32_t	GetPsduSize (Ptr< const WifiMpdu > mpdu, const WifiTxVector &txVector) const
	Get the size in bytes of the given MPDU, which is to be transmitted with the given TXVECTOR.

virtual Time	GetRtsDurationId (const WifiTxVector &rtsTxVector, Time txDuration, Time response) const
	Compute how to set the Duration/ID field of an RTS frame to send to protect a frame transmitted with the given TX vector.

virtual Time	GetTxDuration (uint32_t ppduPayloadSize, Mac48Address receiver, const WifiTxParameters &txParams) const
	Get the updated TX duration of the frame associated with the given TX parameters if the size of the PSDU addressed to the given receiver becomes ppduPayloadSize.

Ptr< WifiRemoteStationManager >	GetWifiRemoteStationManager () const

virtual void	NavResetTimeout ()
	Reset the NAV upon expiration of the NAV reset timer.

virtual void	NormalAckTimeout (Ptr< WifiMpdu > mpdu, const WifiTxVector &txVector)
	Called when the Ack timeout expires.

virtual void	NotifyChannelReleased (Ptr< Txop > txop)
	Notify the given Txop that channel has been released.

virtual void	NotifyPacketDiscarded (Ptr< const WifiMpdu > mpdu)
	Pass the given MPDU, discarded because of the max retry limit was reached, to the MPDU dropped callback.

virtual void	NotifyReceivedNormalAck (Ptr< WifiMpdu > mpdu)
	Notify other components that an MPDU was acknowledged.

virtual void	PostProcessFrame (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector)
	Perform actions that are possibly needed after receiving any frame, independently of whether the frame is addressed to this station (e.g., setting the NAV or the TXOP holder).

virtual void	PreProcessFrame (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector)
	Perform actions that are possibly needed when receiving any frame, independently of whether the frame is addressed to this station (e.g., storing buffer status reports).

virtual void	ProtectionCompleted ()
	Transmit prepared frame upon successful protection mechanism.

virtual void	ReceivedNormalAck (Ptr< WifiMpdu > mpdu, const WifiTxVector &txVector, const WifiTxVector &ackTxVector, const RxSignalInfo &rxInfo, double snr)
	Perform the actions needed when a Normal Ack is received.

virtual void	ReceiveMpdu (Ptr< const WifiMpdu > mpdu, RxSignalInfo rxSignalInfo, const WifiTxVector &txVector, bool inAmpdu)
	This method handles the reception of an MPDU (possibly included in an A-MPDU)

virtual void	ReleaseSequenceNumbers (Ptr< const WifiPsdu > psdu) const
	Make the sequence numbers of MPDUs included in the given PSDU available again if the MPDUs have never been transmitted.

virtual void	Reset ()
	Reset this frame exchange manager.

virtual void	RetransmitMpduAfterMissedAck (Ptr< WifiMpdu > mpdu) const
	Retransmit an MPDU that was not acknowledged.

virtual void	RxStartIndication (WifiTxVector txVector, Time psduDuration)

void	SendCtsAfterRts (const WifiMacHeader &rtsHdr, WifiMode rtsTxMode, double rtsSnr)
	Send CTS after receiving RTS.

void	SendCtsToSelf (const WifiTxParameters &txParams)
	Send CTS for a CTS-to-self mechanism.

void	SendMpduWithProtection (Ptr< WifiMpdu > mpdu, WifiTxParameters &txParams)
	Send an MPDU with the given TX parameters (with the specified protection).

void	SendNormalAck (const WifiMacHeader &hdr, const WifiTxVector &dataTxVector, double dataSnr)
	Send Normal Ack.

void	SendRts (const WifiTxParameters &txParams)
	Send RTS to begin RTS-CTS-Data-Ack transaction.

virtual void	StartProtection (const WifiTxParameters &txParams)
	Start the protection mechanism indicated by the given TX parameters.

virtual void	TransmissionFailed ()
	Take necessary actions upon a transmission failure.

virtual void	TransmissionSucceeded ()
	Take necessary actions upon a transmission success.

virtual void	UpdateNav (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector)
	Update the NAV, if needed, based on the Duration/ID of the given psdu.

void	UpdateTxDuration (Mac48Address receiver, WifiTxParameters &txParams) const
	Update the TX duration field of the given TX parameters after that the PSDU addressed to the given receiver has changed.

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object.

virtual void	DoDispose ()
	Destructor implementation.

virtual void	DoInitialize ()
	Initialize() implementation.

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated.

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Protected Attributes inherited from ns3::FrameExchangeManager
AckedMpdu	m_ackedMpduCallback
	the acknowledged MPDU callback

uint16_t	m_allowedWidth
	the allowed width in MHz for the current transmission

Mac48Address	m_bssid
	BSSID address (Mac48Address)

Ptr< ChannelAccessManager >	m_channelAccessManager
	the channel access manager

Ptr< Txop >	m_dcf
	the DCF/EDCAF that gained channel access

DroppedMpdu	m_droppedMpduCallback
	the dropped MPDU callback

uint8_t	m_linkId
	the ID of the link this object is associated with

Ptr< WifiMac >	m_mac
	the MAC layer on this station

Time	m_navEnd
	NAV expiration time.

EventId	m_navResetEvent
	the event to reset the NAV after an RTS

Ptr< WifiPhy >	m_phy
	the PHY layer on this station

bool	m_promisc
	Flag if the device is operating in promiscuous mode.

std::set< Mac48Address >	m_protectedStas
	STAs that have replied to an RTS in this TXOP.

Ptr< MacRxMiddle >	m_rxMiddle
	the MAC RX Middle on this station

Mac48Address	m_self
	the MAC address of this device

std::set< Mac48Address >	m_sentRtsTo
	the STA(s) which we sent an RTS to (waiting for CTS)

Ptr< MacTxMiddle >	m_txMiddle
	the MAC TX Middle on this station

WifiTxTimer	m_txTimer
	the timer set upon frame transmission

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

template<typename TxopType>
class FrameExchangeManagerStub< TxopType >

Frame Exchange Manager Stub.

Definition at line 176 of file channel-access-manager-test.cc.

Constructor & Destructor Documentation

◆ FrameExchangeManagerStub()

template<typename TxopType >

FrameExchangeManagerStub< TxopType >::FrameExchangeManagerStub ( ChannelAccessManagerTest< TxopType > * test )

inline

Constructor.

Parameters

test	the test channel access manager

Definition at line 184 of file channel-access-manager-test.cc.

Member Function Documentation

◆ NotifyInternalCollision()

template<typename TxopType >

void FrameExchangeManagerStub< TxopType >::NotifyInternalCollision ( Ptr< Txop > txop )

inlineoverridevirtual

Notify that an internal collision has occurred for the given Txop.

Parameters

txop	the Txop for which an internal collision has occurred

Reimplemented from ns3::FrameExchangeManager.

Definition at line 204 of file channel-access-manager-test.cc.

References ns3::DynamicCast(), and FrameExchangeManagerStub< TxopType >::m_test.

Here is the call graph for this function:

◆ NotifySwitchingStartNow()

template<typename TxopType >

void FrameExchangeManagerStub< TxopType >::NotifySwitchingStartNow ( Time duration )

inlineoverridevirtual

Parameters

duration switching delay duration.

This method is typically invoked by the PhyListener to notify the MAC layer that a channel switching occurred. When a channel switching occurs, pending MAC transmissions (RTS, CTS, Data and Ack) are cancelled.

Reimplemented from ns3::FrameExchangeManager.

Definition at line 210 of file channel-access-manager-test.cc.

References FrameExchangeManagerStub< TxopType >::m_test.

◆ StartTransmission()

template<typename TxopType >

bool FrameExchangeManagerStub< TxopType >::StartTransmission	(	Ptr< Txop >	dcf,
		uint16_t	allowedWidth
	)

inlineoverridevirtual

Request the FrameExchangeManager to start a frame exchange sequence.

Parameters

dcf	the channel access function that gained channel access. It is the DCF on non-QoS stations and an EDCA on QoS stations.
allowedWidth	the maximum allowed TX width in MHz
