Allocate positions on a rectangular 2d grid. More...

#include <position-allocator.h>

Inheritance diagram for ns3::GridPositionAllocator:

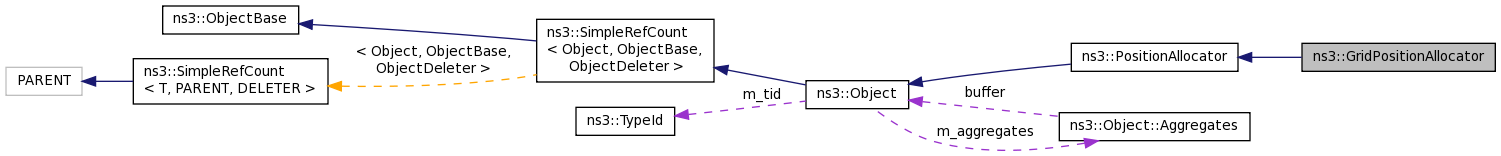

Collaboration diagram for ns3::GridPositionAllocator:

Public Types
enum	LayoutType { ROW_FIRST, COLUMN_FIRST }
	Determine whether positions are allocated row first or column first. More...

Public Member Functions
	GridPositionAllocator ()

virtual int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

double	GetDeltaX (void) const

double	GetDeltaY (void) const

enum LayoutType	GetLayoutType (void) const

double	GetMinX (void) const

double	GetMinY (void) const

uint32_t	GetN (void) const

virtual Vector	GetNext (void) const

void	SetDeltaX (double deltaX)

void	SetDeltaY (double deltaY)

void	SetLayoutType (enum LayoutType layoutType)

void	SetMinX (double xMin)

void	SetMinY (double yMin)

void	SetN (uint32_t n)

Public Member Functions inherited from ns3::PositionAllocator
	PositionAllocator ()

virtual	~PositionAllocator ()

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::PositionAllocator
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint32_t	m_current

double	m_deltaX

double	m_deltaY

enum LayoutType	m_layoutType

uint32_t	m_n

double	m_xMin

double	m_yMin

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Allocate positions on a rectangular 2d grid.

Config Paths

ns3::GridPositionAllocator is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::GridPositionAllocator

Attributes

GridWidth: The number of objects layed out on a line.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 10
- Flags: construct write read
MinX: The x coordinate where the grid starts.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
MinY: The y coordinate where the grid starts.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
DeltaX: The x space between objects.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
DeltaY: The y space between objects.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
LayoutType: The type of layout.
- Set with class: ns3::EnumValue
- Underlying type: RowFirst|ColumnFirst
- Initial value: RowFirst
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 88 of file position-allocator.h.

Member Enumeration Documentation

enum ns3::GridPositionAllocator::LayoutType

Determine whether positions are allocated row first or column first.

Enumerator

ROW_FIRST

In row-first mode, positions are allocated on the first row until N positions have been allocated.

Then, the second row located a yMin + yDelta is used to allocate positions.

COLUMN_FIRST

In column-first mode, positions are allocated on the first column until N positions have been allocated.

Then, the second column located a xMin + xDelta is used to allocate positions.

Definition at line 96 of file position-allocator.h.

Constructor & Destructor Documentation

ns3::GridPositionAllocator::GridPositionAllocator ( )

Definition at line 128 of file position-allocator.cc.

Member Function Documentation

int64_t ns3::GridPositionAllocator::AssignStreams ( int64_t stream )

virtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

This method must be implement in subclasses.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implements ns3::PositionAllocator.

Definition at line 214 of file position-allocator.cc.

double ns3::GridPositionAllocator::GetDeltaX ( void ) const

Returns: the x interval between two x-consecutive positions.

Definition at line 175 of file position-allocator.cc.

References m_deltaX.

double ns3::GridPositionAllocator::GetDeltaY ( void ) const

Returns: the y interval between two y-consecutive positions.

Definition at line 180 of file position-allocator.cc.

References m_deltaY.

enum GridPositionAllocator::LayoutType ns3::GridPositionAllocator::GetLayoutType ( void ) const

Returns: the currently-selected layout type.

Definition at line 190 of file position-allocator.cc.

References m_layoutType.

double ns3::GridPositionAllocator::GetMinX ( void ) const

Returns: the x coordinate of the first allocated position.

Definition at line 165 of file position-allocator.cc.

References m_xMin.

double ns3::GridPositionAllocator::GetMinY ( void ) const

Returns: the y coordinate of the first allocated position.

Definition at line 170 of file position-allocator.cc.

References m_yMin.

uint32_t ns3::GridPositionAllocator::GetN ( void ) const

Returns: the number of positions to allocate on each row or each column.

Definition at line 185 of file position-allocator.cc.

References m_n.

Vector ns3::GridPositionAllocator::GetNext ( void ) const

virtual

Returns: the next chosen position.

This method must be implement in subclasses.

Implements ns3::PositionAllocator.

Definition at line 196 of file position-allocator.cc.

References COLUMN_FIRST, m_current, m_deltaX, m_deltaY, m_layoutType, m_n, m_xMin, m_yMin, ROW_FIRST, and sample-rng-plot::x.

TypeId ns3::GridPositionAllocator::GetTypeId ( void )

static

Definition at line 94 of file position-allocator.cc.

References COLUMN_FIRST, m_deltaX, m_deltaY, m_layoutType, m_n, m_xMin, m_yMin, ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), ROW_FIRST, and ns3::TypeId::SetParent().

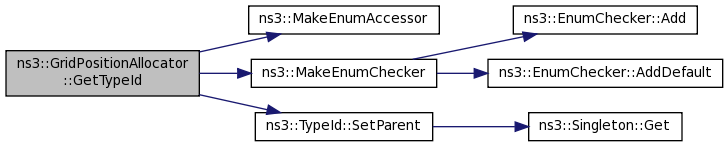

Here is the call graph for this function:

void ns3::GridPositionAllocator::SetDeltaX ( double deltaX )

Parameters

deltaX the x interval between two x-consecutive positions.

Definition at line 144 of file position-allocator.cc.

References m_deltaX.

void ns3::GridPositionAllocator::SetDeltaY ( double deltaY )

Parameters

deltaY the y interval between two y-consecutive positions.

Definition at line 149 of file position-allocator.cc.

References m_deltaY.

void ns3::GridPositionAllocator::SetLayoutType ( enum LayoutType layoutType )

Parameters

layoutType the type of layout to use (row first or column first).

Definition at line 159 of file position-allocator.cc.

References m_layoutType.

void ns3::GridPositionAllocator::SetMinX ( double xMin )

Parameters

xMin	the x coordinate where layout will start.

Definition at line 134 of file position-allocator.cc.

References m_xMin.

void ns3::GridPositionAllocator::SetMinY ( double yMin )

Parameters

yMin	the y coordinate where layout will start

Definition at line 139 of file position-allocator.cc.

References m_yMin.

void ns3::GridPositionAllocator::SetN ( uint32_t n )

Parameters

n	the number of positions allocated on each row (or each column) before switching to the next column (or row).

Definition at line 154 of file position-allocator.cc.

References m_n.

Member Data Documentation

uint32_t ns3::GridPositionAllocator::m_current

mutableprivate

Definition at line 168 of file position-allocator.h.

Referenced by GetNext().

double ns3::GridPositionAllocator::m_deltaX

private

Definition at line 173 of file position-allocator.h.

Referenced by GetDeltaX(), GetNext(), GetTypeId(), and SetDeltaX().

double ns3::GridPositionAllocator::m_deltaY

private

Definition at line 174 of file position-allocator.h.

Referenced by GetDeltaY(), GetNext(), GetTypeId(), and SetDeltaY().

enum LayoutType ns3::GridPositionAllocator::m_layoutType

private

Definition at line 169 of file position-allocator.h.

Referenced by GetLayoutType(), GetNext(), GetTypeId(), and SetLayoutType().

uint32_t ns3::GridPositionAllocator::m_n

private

Definition at line 172 of file position-allocator.h.

Referenced by GetN(), GetNext(), GetTypeId(), and SetN().

double ns3::GridPositionAllocator::m_xMin

private

Definition at line 170 of file position-allocator.h.

Referenced by GetMinX(), GetNext(), GetTypeId(), and SetMinX().

double ns3::GridPositionAllocator::m_yMin

private

Definition at line 171 of file position-allocator.h.

Referenced by GetMinY(), GetNext(), GetTypeId(), and SetMinY().

The documentation for this class was generated from the following files:

src/mobility/model/position-allocator.h
src/mobility/model/position-allocator.cc
