#include <red-queue.h>

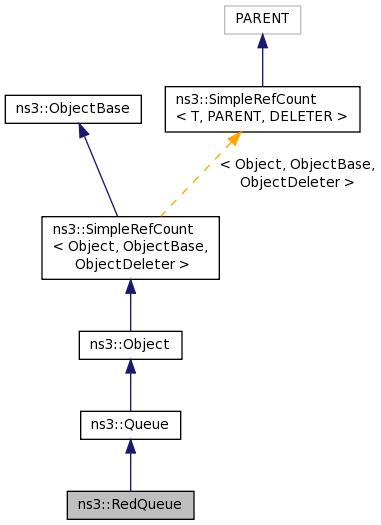

Inheritance diagram for ns3::RedQueue:

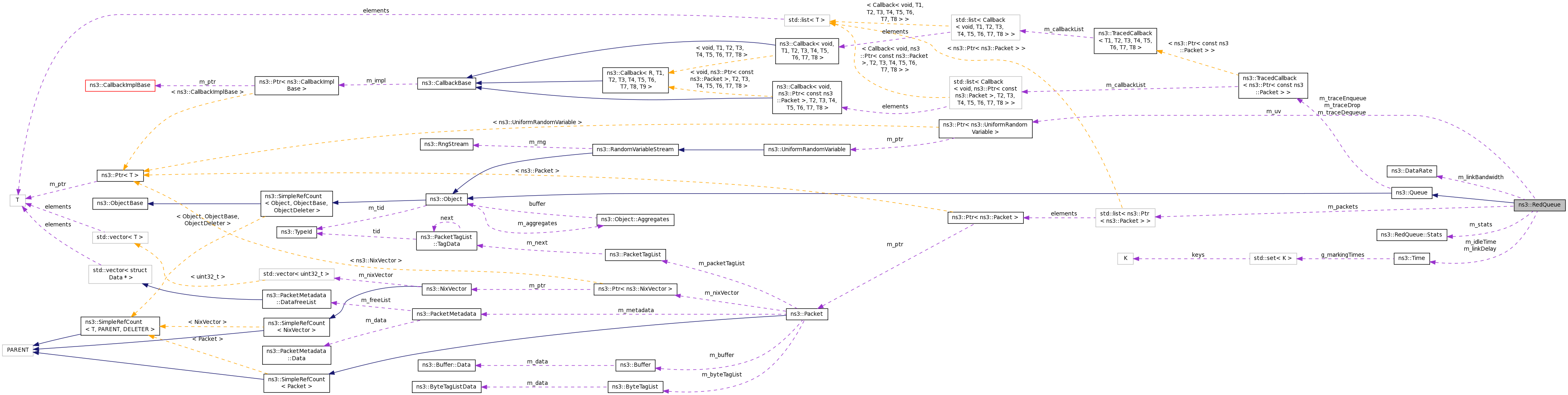

Collaboration diagram for ns3::RedQueue:

Classes
struct	Stats
	Stats. More...

Public Types
enum	{ DTYPE_NONE, DTYPE_FORCED, DTYPE_UNFORCED }
	Drop types. More...

Public Types inherited from ns3::Queue
enum	QueueMode { QUEUE_MODE_PACKETS, QUEUE_MODE_BYTES }
	Enumeration of the modes supported in the class. More...

Public Member Functions
	RedQueue ()
	RedQueue Constructor. More...

virtual	~RedQueue ()
	Destructor. More...

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

RedQueue::QueueMode	GetMode (void)
	Get the encapsulation mode of this queue. More...

uint32_t	GetQueueSize (void)
	Get the current value of the queue in bytes or packets. More...

Stats	GetStats ()
	Get the RED statistics after running. More...

void	SetMode (RedQueue::QueueMode mode)
	Set the operating mode of this queue. More...

void	SetQueueLimit (uint32_t lim)
	Set the limit of the queue. More...

void	SetTh (double minTh, double maxTh)
	Set the thresh limits of RED. More...

Public Member Functions inherited from ns3::Queue
	Queue ()

virtual	~Queue ()

Ptr< Packet >	Dequeue (void)
	Remove a packet from the front of the Queue. More...

void	DequeueAll (void)
	Flush the queue. More...

bool	Enqueue (Ptr< Packet > p)
	Place a packet into the rear of the Queue. More...

uint32_t	GetNBytes (void) const

uint32_t	GetNPackets (void) const

uint32_t	GetTotalDroppedBytes (void) const

uint32_t	GetTotalDroppedPackets (void) const

uint32_t	GetTotalReceivedBytes (void) const

uint32_t	GetTotalReceivedPackets (void) const

bool	IsEmpty (void) const

Ptr< const Packet >	Peek (void) const
	Get a copy of the item at the front of the queue without removing it. More...

void	ResetStatistics (void)
	Resets the counts for dropped packets, dropped bytes, received packets, and received bytes. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Queue
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
double	CalculatePNew (double qAvg, double maxTh, bool gentle, double vA, double vB, double vC, double vD, double maxP)

virtual Ptr< Packet >	DoDequeue (void)

virtual bool	DoEnqueue (Ptr< Packet > p)

virtual Ptr< const Packet >	DoPeek (void) const

uint32_t	DropEarly (Ptr< Packet > p, uint32_t qSize)

double	Estimator (uint32_t nQueued, uint32_t m, double qAvg, double qW)

void	InitializeParams (void)

double	ModifyP (double p, uint32_t count, uint32_t countBytes, uint32_t meanPktSize, bool wait, uint32_t size)

Private Attributes
uint32_t	m_bytesInQueue

uint32_t	m_cautious

uint32_t	m_count

uint32_t	m_countBytes

double	m_curMaxP

bool	m_hasRedStarted

uint32_t	m_idle

uint32_t	m_idlePktSize

Time	m_idleTime

bool	m_isGentle

bool	m_isNs1Compat

bool	m_isWait

DataRate	m_linkBandwidth

Time	m_linkDelay

double	m_lInterm

double	m_maxTh

uint32_t	m_meanPktSize

double	m_minTh

QueueMode	m_mode

uint32_t	m_old

std::list< Ptr< Packet > >	m_packets

double	m_ptc

double	m_qAvg

uint32_t	m_queueLimit

double	m_qW

Stats	m_stats

Ptr< UniformRandomVariable >	m_uv

double	m_vA

double	m_vB

double	m_vC

double	m_vD

double	m_vProb

double	m_vProb1

Additional Inherited Members
Protected Member Functions inherited from ns3::Queue
void	Drop (Ptr< Packet > packet)
	Drop a packet. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Config Paths

ns3::RedQueue is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Queue/$ns3::RedQueue
/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/TxQueue/$ns3::RedQueue
/NodeList/[i]/DeviceList/[i]/$ns3::EmuNetDevice/TxQueue/$ns3::RedQueue
/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/TxQueue/$ns3::RedQueue

Attributes

Mode: Determines unit for QueueLimit
- Set with class: ns3::EnumValue
- Underlying type: QUEUE_MODE_BYTES|QUEUE_MODE_PACKETS
- Initial value: QUEUE_MODE_PACKETS
- Flags: construct write
MeanPktSize: Average of packet size
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 500
- Flags: construct write read
IdlePktSize: Average packet size used during idle times. Used when m_cautions = 3
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 0
- Flags: construct write read
Wait: True for waiting between dropped packets
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
Gentle: True to increases dropping probability slowly when average queue exceeds maxthresh
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
MinTh: Minimum average length threshold in packets/bytes
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 5
- Flags: construct write read
MaxTh: Maximum average length threshold in packets/bytes
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 15
- Flags: construct write read
QueueLimit: Queue limit in bytes/packets
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 25
- Flags: construct write read
QW: Queue weight related to the exponential weighted moving average (EWMA)
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.002
- Flags: construct write read
LInterm: The maximum probability of dropping a packet
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 50
- Flags: construct write read
Ns1Compat: NS-1 compatibility
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
LinkBandwidth: The RED link bandwidth
- Set with class: DataRateValue
- Underlying type: DataRate
- Initial value: 1500000bps
- Flags: construct write read
LinkDelay: The RED link delay
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +20000000.0ns
- Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::Queue

Enqueue: Enqueue a packet in the queue.
Dequeue: Dequeue a packet from the queue.
Drop: Drop a packet stored in the queue.

Definition at line 82 of file red-queue.h.

Member Enumeration Documentation

anonymous enum

Drop types.

Enumerator
DTYPE_NONE
DTYPE_FORCED	Ok, no drop.
DTYPE_UNFORCED	A "forced" drop.

Definition at line 115 of file red-queue.h.

Constructor & Destructor Documentation

ns3::RedQueue::RedQueue ( )

RedQueue Constructor.

Create a RED queue

Definition at line 151 of file red-queue.cc.

References m_uv, and NS_LOG_FUNCTION.

ns3::RedQueue::~RedQueue ( )

virtual

Destructor.

Destructor

Definition at line 161 of file red-queue.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

int64_t ns3::RedQueue::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 204 of file red-queue.cc.

References m_uv, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

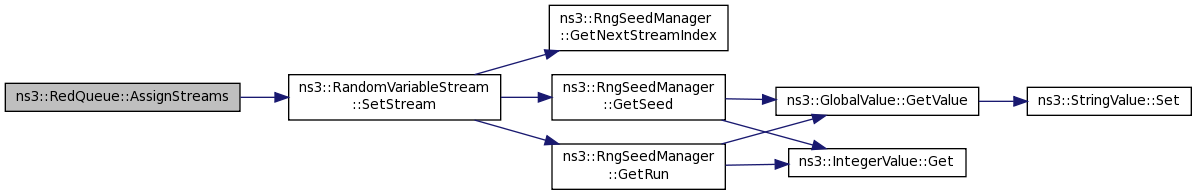

Here is the call graph for this function:

double ns3::RedQueue::CalculatePNew	(	double	qAvg,
		double	maxTh,
		bool	gentle,
		double	vA,
		double	vB,
		double	vC,
		double	vD,
		double	maxP
	)

private

Definition at line 502 of file red-queue.cc.

References NS_LOG_FUNCTION.

Referenced by DropEarly().

Here is the caller graph for this function:

Ptr< Packet > ns3::RedQueue::DoDequeue ( void )

privatevirtual

Implements ns3::Queue.

Definition at line 613 of file red-queue.cc.

References ns3::Packet::GetSize(), m_bytesInQueue, m_idle, m_idleTime, m_packets, ns3::Simulator::Now(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

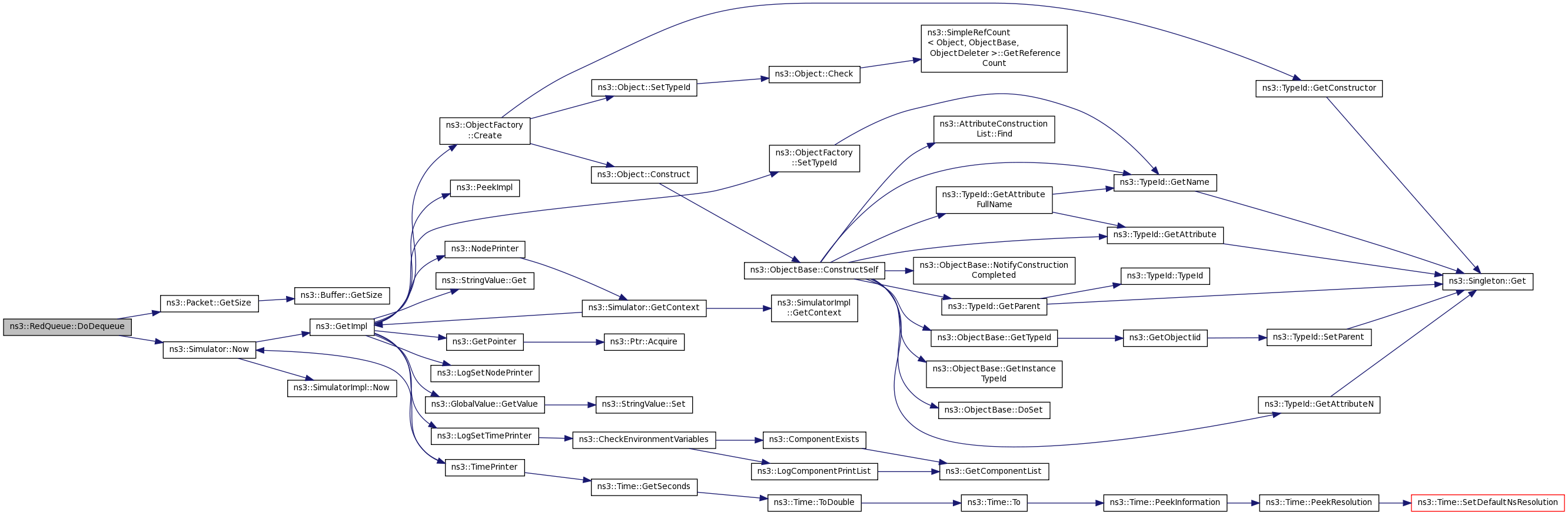

Here is the call graph for this function:

bool ns3::RedQueue::DoEnqueue ( Ptr< Packet > p )

privatevirtual

Implements ns3::Queue.

Definition at line 212 of file red-queue.cc.

References ns3::Queue::Drop(), DropEarly(), DTYPE_FORCED, DTYPE_NONE, DTYPE_UNFORCED, Estimator(), ns3::RedQueue::Stats::forcedDrop, GetMode(), ns3::Packet::GetSize(), InitializeParams(), m_bytesInQueue, m_cautious, m_count, m_countBytes, m_hasRedStarted, m_idle, m_idlePktSize, m_idleTime, m_isGentle, m_isNs1Compat, m_maxTh, m_meanPktSize, m_minTh, m_old, m_packets, m_ptc, m_qAvg, m_queueLimit, m_qW, m_stats, m_vProb, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::RedQueue::Stats::qLimDrop, ns3::Queue::QUEUE_MODE_BYTES, ns3::Queue::QUEUE_MODE_PACKETS, and ns3::RedQueue::Stats::unforcedDrop.

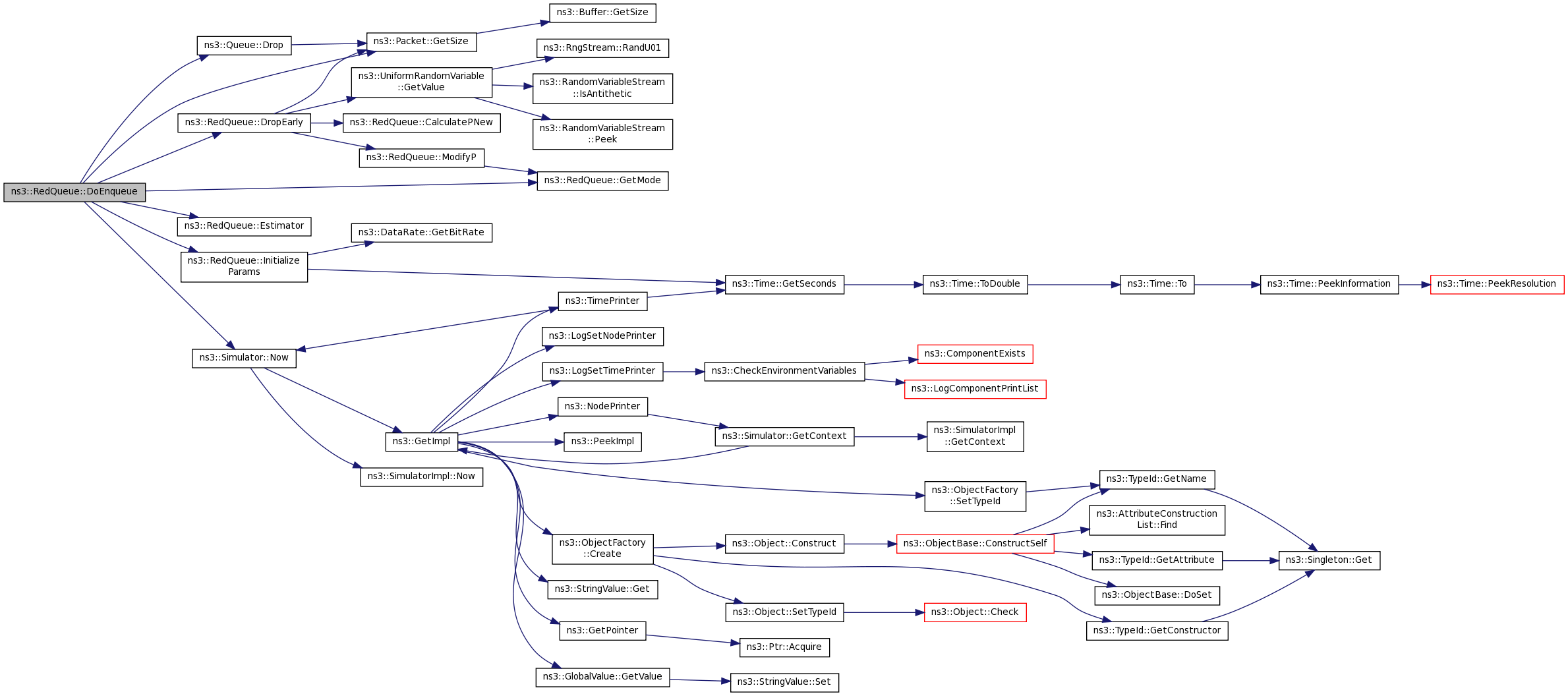

Here is the call graph for this function:

Ptr< const Packet > ns3::RedQueue::DoPeek ( void ) const

privatevirtual

Implements ns3::Queue.

Definition at line 642 of file red-queue.cc.

References m_bytesInQueue, m_packets, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

uint32_t ns3::RedQueue::DropEarly	(	Ptr< Packet >	p,
		uint32_t	qSize
	)

private

Todo:: Implement set bit to mark

Definition at line 441 of file red-queue.cc.

References CalculatePNew(), ns3::Packet::GetSize(), ns3::UniformRandomVariable::GetValue(), m_cautious, m_count, m_countBytes, m_curMaxP, m_isGentle, m_isWait, m_maxTh, m_meanPktSize, m_ptc, m_qAvg, m_qW, m_uv, m_vA, m_vB, m_vC, m_vD, m_vProb, m_vProb1, ModifyP(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by DoEnqueue().

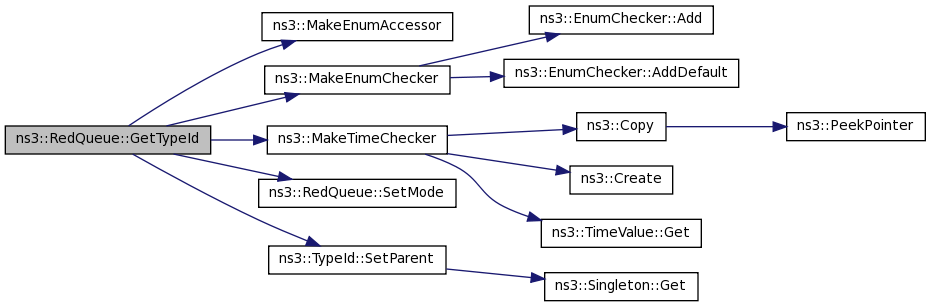

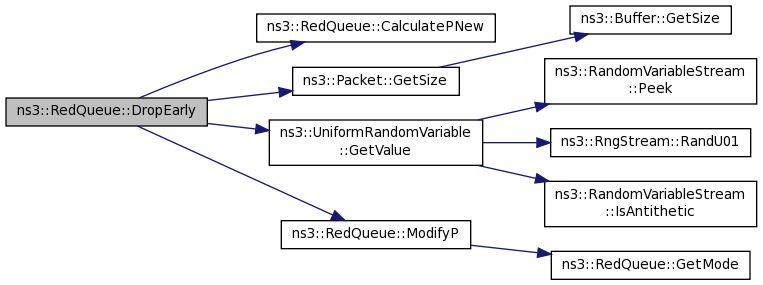

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::RedQueue::Estimator	(	uint32_t	nQueued,
		uint32_t	m,
		double	qAvg,
		double	qW
	)

private

Definition at line 421 of file red-queue.cc.

References NS_LOG_FUNCTION.

Referenced by DoEnqueue().

Here is the caller graph for this function:

RedQueue::QueueMode ns3::RedQueue::GetMode ( void )

Get the encapsulation mode of this queue.

Get the encapsulation mode of this queue

Returns: The encapsulation mode of this queue.

Definition at line 174 of file red-queue.cc.

References m_mode, and NS_LOG_FUNCTION.

Referenced by DoEnqueue(), GetQueueSize(), ModifyP(), and RedQueueTestCase::RunRedTest().

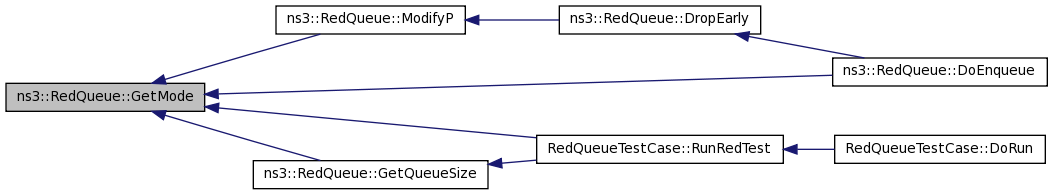

Here is the caller graph for this function:

uint32_t ns3::RedQueue::GetQueueSize ( void )

Get the current value of the queue in bytes or packets.

Returns: The queue size in bytes or packets.

Definition at line 595 of file red-queue.cc.

References GetMode(), m_bytesInQueue, m_packets, NS_ABORT_MSG, NS_LOG_FUNCTION, ns3::Queue::QUEUE_MODE_BYTES, and ns3::Queue::QUEUE_MODE_PACKETS.

Referenced by RedQueueTestCase::RunRedTest().

Here is the call graph for this function:

Here is the caller graph for this function:

RedQueue::Stats ns3::RedQueue::GetStats ( )

Get the RED statistics after running.

Returns: The drop statistics.

Definition at line 197 of file red-queue.cc.

References m_stats, and NS_LOG_FUNCTION.

TypeId ns3::RedQueue::GetTypeId ( void )

static

Definition at line 75 of file red-queue.cc.

References m_idlePktSize, m_isGentle, m_isNs1Compat, m_isWait, m_linkBandwidth, m_linkDelay, m_lInterm, m_maxTh, m_meanPktSize, m_minTh, m_queueLimit, m_qW, ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), ns3::MakeTimeChecker(), ns3::Queue::QUEUE_MODE_BYTES, ns3::Queue::QUEUE_MODE_PACKETS, SetMode(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::RedQueue::InitializeParams ( void )

private

Todo:: implement adaptive RED

Definition at line 342 of file red-queue.cc.

References ns3::RedQueue::Stats::forcedDrop, ns3::DataRate::GetBitRate(), ns3::Time::GetSeconds(), m_cautious, m_count, m_countBytes, m_curMaxP, m_idle, m_idleTime, m_isGentle, m_isWait, m_linkBandwidth, m_linkDelay, m_lInterm, m_maxTh, m_meanPktSize, m_minTh, m_old, m_ptc, m_qAvg, m_qW, m_stats, m_vA, m_vB, m_vC, m_vD, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::RedQueue::Stats::qLimDrop, and ns3::RedQueue::Stats::unforcedDrop.

Referenced by DoEnqueue().

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::RedQueue::ModifyP	(	double	p,
		uint32_t	count,
		uint32_t	countBytes,
		uint32_t	meanPktSize,
		bool	wait,
		uint32_t	size
	)

private

Definition at line 543 of file red-queue.cc.

References GetMode(), NS_LOG_FUNCTION, and ns3::Queue::QUEUE_MODE_BYTES.

Referenced by DropEarly().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RedQueue::SetMode ( RedQueue::QueueMode mode )

Set the operating mode of this queue.

Set operating mode

Parameters

mode	The operating mode of this queue.

Definition at line 167 of file red-queue.cc.

References m_mode, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::RedQueue::SetQueueLimit ( uint32_t lim )

Set the limit of the queue.

Parameters

lim	The limit in bytes or packets.

Definition at line 181 of file red-queue.cc.

References m_queueLimit, and NS_LOG_FUNCTION.

Referenced by RedQueueTestCase::RunRedTest().

Here is the caller graph for this function:

void ns3::RedQueue::SetTh	(	double	minTh,
		double	maxTh
	)

Set the thresh limits of RED.

Parameters

minTh	Minimum thresh in bytes or packets.
maxTh	Maximum thresh in bytes or packets.

Definition at line 188 of file red-queue.cc.

References m_maxTh, m_minTh, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by RedQueueTestCase::RunRedTest().

Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::RedQueue::m_bytesInQueue

private

Definition at line 197 of file red-queue.h.

Referenced by DoDequeue(), DoEnqueue(), DoPeek(), and GetQueueSize().

uint32_t ns3::RedQueue::m_cautious

private

Definition at line 261 of file red-queue.h.

Referenced by DoEnqueue(), DropEarly(), and InitializeParams().

uint32_t ns3::RedQueue::m_count

private

Definition at line 254 of file red-queue.h.

Referenced by DoEnqueue(), DropEarly(), and InitializeParams().

uint32_t ns3::RedQueue::m_countBytes

private

Definition at line 244 of file red-queue.h.

Referenced by DoEnqueue(), DropEarly(), and InitializeParams().

double ns3::RedQueue::m_curMaxP

private

Definition at line 240 of file red-queue.h.

Referenced by DropEarly(), and InitializeParams().

bool ns3::RedQueue::m_hasRedStarted

private

Definition at line 198 of file red-queue.h.

Referenced by DoEnqueue().

uint32_t ns3::RedQueue::m_idle

private

Definition at line 248 of file red-queue.h.

Referenced by DoDequeue(), DoEnqueue(), and InitializeParams().

uint32_t ns3::RedQueue::m_idlePktSize

private

Definition at line 207 of file red-queue.h.

Referenced by DoEnqueue(), and GetTypeId().

Time ns3::RedQueue::m_idleTime

private

Definition at line 263 of file red-queue.h.

Referenced by DoDequeue(), DoEnqueue(), and InitializeParams().

bool ns3::RedQueue::m_isGentle

private

Definition at line 211 of file red-queue.h.

Referenced by DoEnqueue(), DropEarly(), GetTypeId(), and InitializeParams().

bool ns3::RedQueue::m_isNs1Compat

private

Definition at line 223 of file red-queue.h.

Referenced by DoEnqueue(), and GetTypeId().

bool ns3::RedQueue::m_isWait

private

Definition at line 209 of file red-queue.h.

Referenced by DropEarly(), GetTypeId(), and InitializeParams().

DataRate ns3::RedQueue::m_linkBandwidth

private

Definition at line 225 of file red-queue.h.

Referenced by GetTypeId(), and InitializeParams().

Time ns3::RedQueue::m_linkDelay

private

Definition at line 227 of file red-queue.h.

Referenced by GetTypeId(), and InitializeParams().

double ns3::RedQueue::m_lInterm

private

Definition at line 221 of file red-queue.h.

Referenced by GetTypeId(), and InitializeParams().

double ns3::RedQueue::m_maxTh

private

Definition at line 215 of file red-queue.h.

Referenced by DoEnqueue(), DropEarly(), GetTypeId(), InitializeParams(), and SetTh().

uint32_t ns3::RedQueue::m_meanPktSize

private

Definition at line 205 of file red-queue.h.

Referenced by DoEnqueue(), DropEarly(), GetTypeId(), and InitializeParams().

double ns3::RedQueue::m_minTh

private

Definition at line 213 of file red-queue.h.

Referenced by DoEnqueue(), GetTypeId(), InitializeParams(), and SetTh().

QueueMode ns3::RedQueue::m_mode

private

Definition at line 203 of file red-queue.h.

Referenced by GetMode(), and SetMode().

uint32_t ns3::RedQueue::m_old

private

Definition at line 246 of file red-queue.h.

Referenced by DoEnqueue(), and InitializeParams().

std::list<Ptr<Packet> > ns3::RedQueue::m_packets

private

Definition at line 195 of file red-queue.h.

Referenced by DoDequeue(), DoEnqueue(), DoPeek(), and GetQueueSize().

double ns3::RedQueue::m_ptc

private

Definition at line 250 of file red-queue.h.

Referenced by DoEnqueue(), DropEarly(), and InitializeParams().

double ns3::RedQueue::m_qAvg

private

Definition at line 252 of file red-queue.h.

Referenced by DoEnqueue(), DropEarly(), and InitializeParams().

uint32_t ns3::RedQueue::m_queueLimit

private

Definition at line 217 of file red-queue.h.

Referenced by DoEnqueue(), GetTypeId(), and SetQueueLimit().

double ns3::RedQueue::m_qW

private

Definition at line 219 of file red-queue.h.

Referenced by DoEnqueue(), DropEarly(), GetTypeId(), and InitializeParams().

Stats ns3::RedQueue::m_stats

private

Definition at line 199 of file red-queue.h.

Referenced by DoEnqueue(), GetStats(), and InitializeParams().

Ptr<UniformRandomVariable> ns3::RedQueue::m_uv

private

Definition at line 265 of file red-queue.h.

Referenced by AssignStreams(), DropEarly(), and RedQueue().

double ns3::RedQueue::m_vA

private

Definition at line 233 of file red-queue.h.

Referenced by DropEarly(), and InitializeParams().

double ns3::RedQueue::m_vB

private

Definition at line 234 of file red-queue.h.

Referenced by DropEarly(), and InitializeParams().

double ns3::RedQueue::m_vC

private

Definition at line 236 of file red-queue.h.

Referenced by DropEarly(), and InitializeParams().

double ns3::RedQueue::m_vD

private

Definition at line 238 of file red-queue.h.

Referenced by DropEarly(), and InitializeParams().

double ns3::RedQueue::m_vProb

private

Definition at line 242 of file red-queue.h.

Referenced by DoEnqueue(), and DropEarly().

double ns3::RedQueue::m_vProb1

private

Definition at line 231 of file red-queue.h.

Referenced by DropEarly().

The documentation for this class was generated from the following files:

src/network/utils/red-queue.h
src/network/utils/red-queue.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

TraceSources defined in parent class ns3::Queue

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
