Basic MAC of mesh point Wi-Fi interface. More...

#include <mesh-wifi-interface-mac.h>

Inheritance diagram for ns3::MeshWifiInterfaceMac:

Collaboration diagram for ns3::MeshWifiInterfaceMac:

Classes
struct	Statistics

Public Member Functions
	MeshWifiInterfaceMac ()
	C-tor. More...

virtual	~MeshWifiInterfaceMac ()
	D-tor. More...

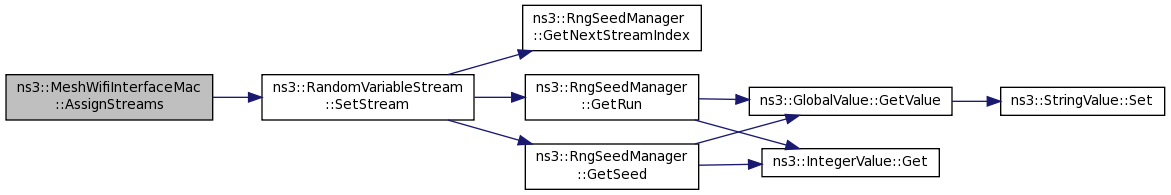

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

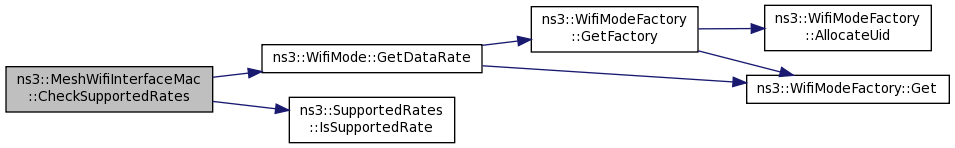

bool	CheckSupportedRates (SupportedRates rates) const

virtual void	FinishConfigureStandard (enum WifiPhyStandard standard)

WifiPhyStandard	GetPhyStandard () const

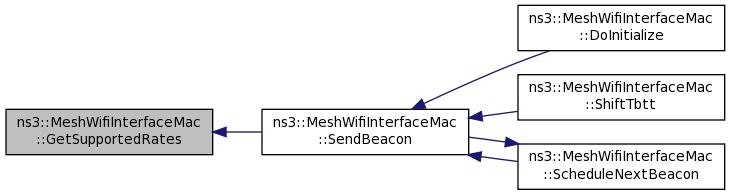

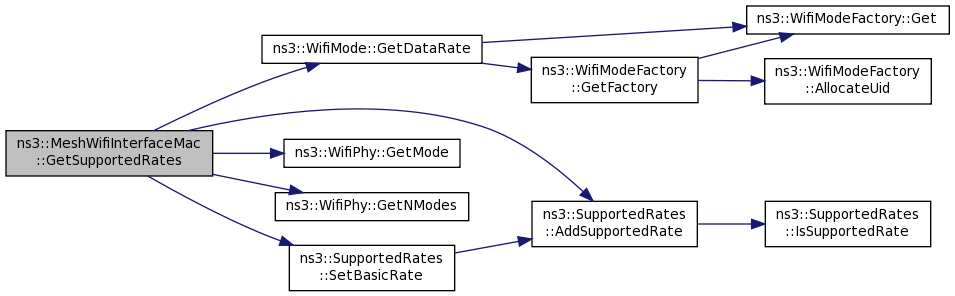

SupportedRates	GetSupportedRates () const

void	Report (std::ostream &) const
	Statistics: More...

void	ResetStats ()

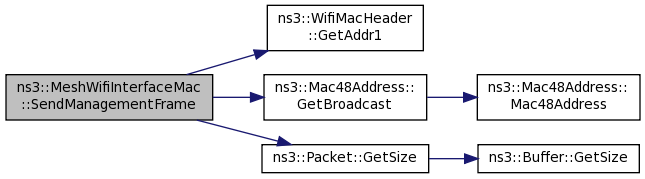

void	SendManagementFrame (Ptr< Packet > frame, const WifiMacHeader &hdr)
	To be used by plugins sending management frames. More...

void	SetBeaconGeneration (bool enable)
	Enable/disable beacons. More...

Inherited from WifiMac

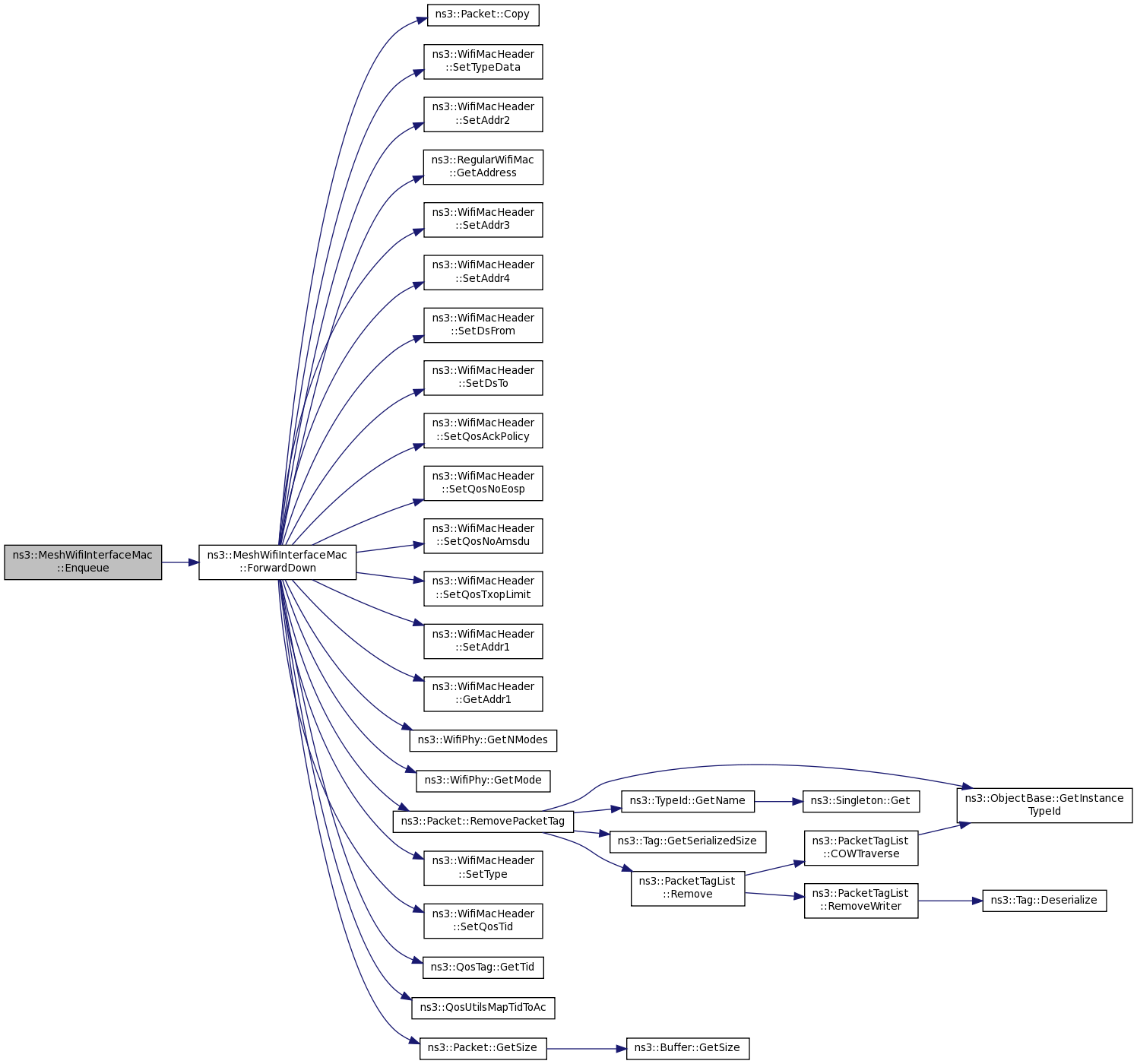

virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to, Mac48Address from)

virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to)

virtual bool	SupportsSendFrom () const

virtual void	SetLinkUpCallback (Callback< void > linkUp)

Each mesh point interfaces must know the mesh point address
void	SetMeshPointAddress (Mac48Address)

Mac48Address	GetMeshPointAddress () const

Beacons
void	SetRandomStartDelay (Time interval)
	Set maximum initial random delay before first beacon. More...

void	SetBeaconInterval (Time interval)
	Set interval between two successive beacons. More...

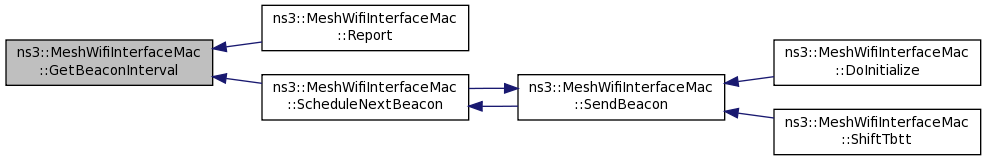

Time	GetBeaconInterval () const

Time	GetTbtt () const
	Next beacon frame time. More...

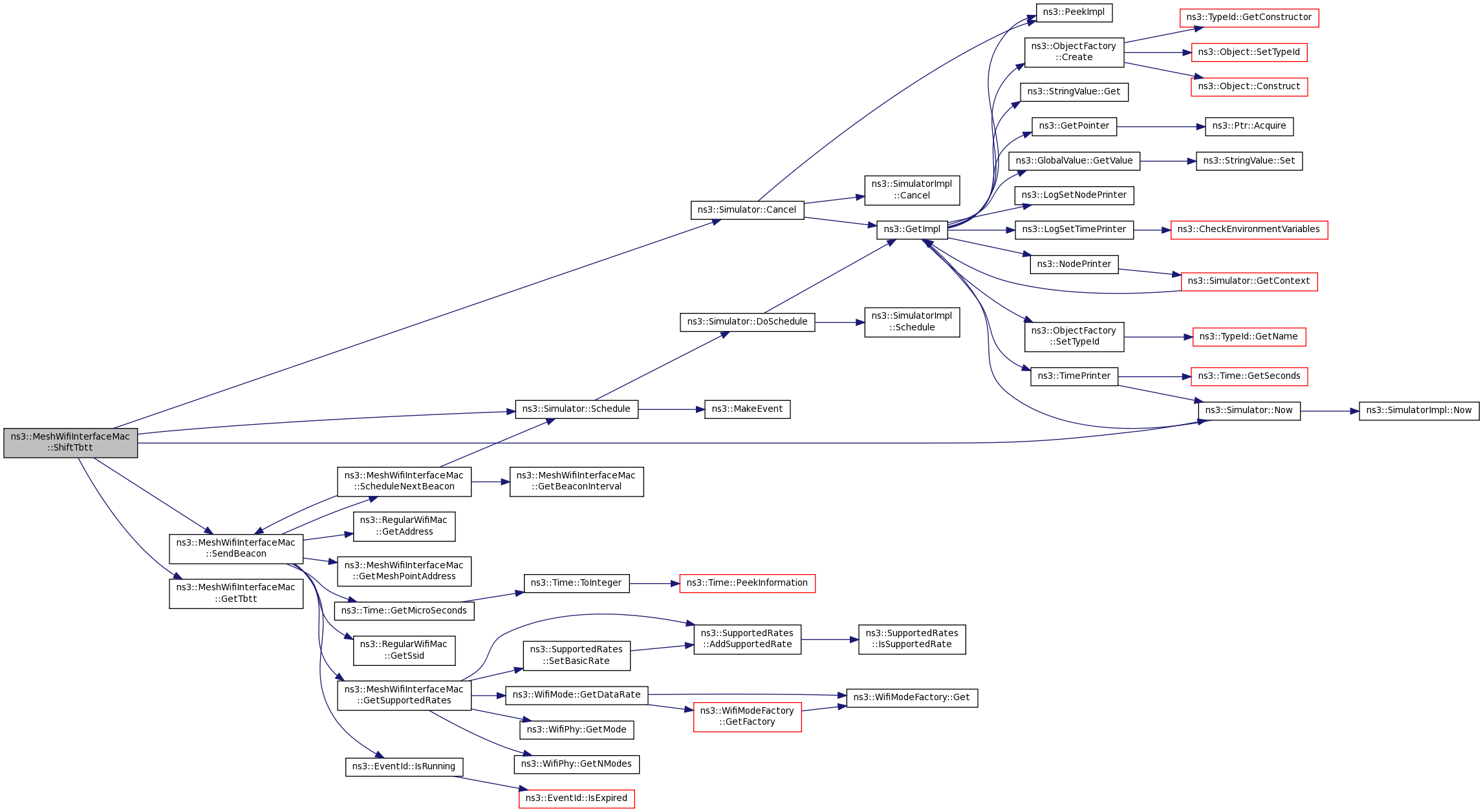

void	ShiftTbtt (Time shift)
	Shift TBTT. More...

Plugins
void	InstallPlugin (Ptr< MeshWifiInterfaceMacPlugin > plugin)
	Install plugin. More...

Channel switching
Channel center frequency = Channel starting frequency + 5 * channel_id (MHz), where Starting channel frequency is standard-dependent as defined in IEEE 802.11-2007 17.3.8.3.2. Number of channels to use must be limited elsewhere.

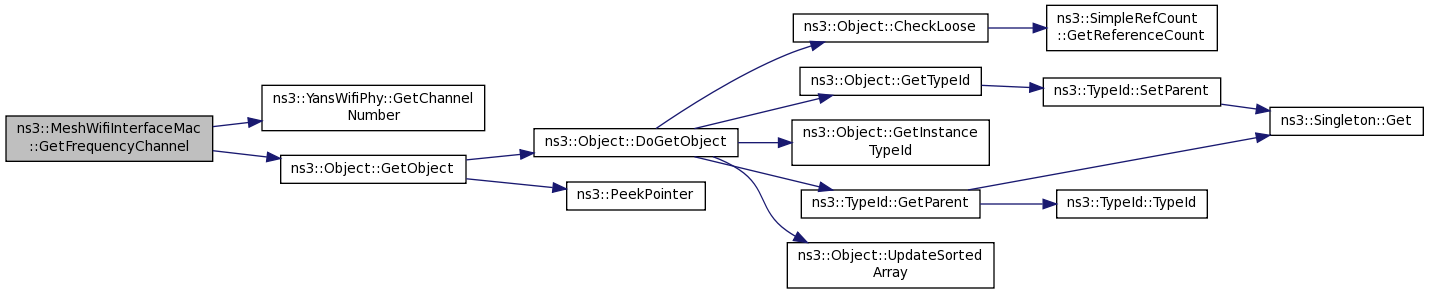

uint16_t	GetFrequencyChannel () const
	Current channel Id. More...

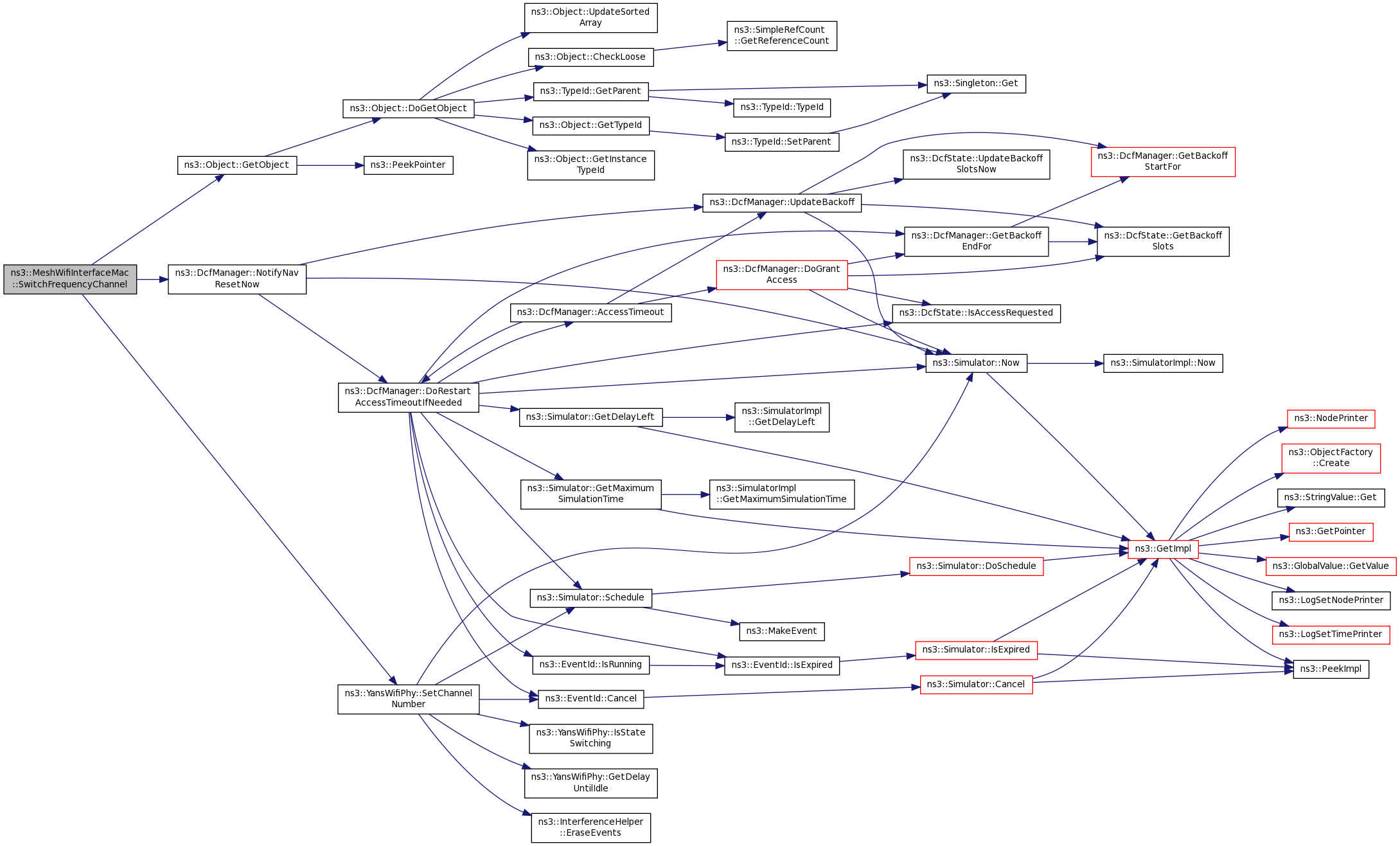

void	SwitchFrequencyChannel (uint16_t new_id)
	Switch channel. More...

Metric Calculation routines:
void	SetLinkMetricCallback (Callback< uint32_t, Mac48Address, Ptr< MeshWifiInterfaceMac > > cb)

uint32_t	GetLinkMetric (Mac48Address peerAddress)

Public Member Functions inherited from ns3::RegularWifiMac
	RegularWifiMac ()

virtual	~RegularWifiMac ()

Time	GetAckTimeout (void) const

virtual Mac48Address	GetAddress (void) const

virtual Time	GetBasicBlockAckTimeout (void) const

virtual Mac48Address	GetBssid (void) const

virtual Time	GetCompressedBlockAckTimeout (void) const

Time	GetCtsTimeout (void) const

bool	GetCtsToSelfSupported () const
	Return whether the device supports CTS-to-self capability. More...

Time	GetEifsNoDifs (void) const

Time	GetPifs (void) const

Time	GetRifs (void) const

Time	GetSifs (void) const

Time	GetSlot (void) const

virtual Ssid	GetSsid (void) const

virtual Ptr< WifiPhy >	GetWifiPhy () const

virtual Ptr < WifiRemoteStationManager >	GetWifiRemoteStationManager () const

void	SetAckTimeout (Time ackTimeout)

virtual void	SetAddress (Mac48Address address)

virtual void	SetBasicBlockAckTimeout (Time blockAckTimeout)

virtual void	SetBssid (Mac48Address bssid)

virtual void	SetCompressedBlockAckTimeout (Time blockAckTimeout)

void	SetCtsTimeout (Time ctsTimeout)

void	SetCtsToSelfSupported (bool enable)
	Enable or disable CTS-to-self feature. More...

void	SetEifsNoDifs (Time eifsNoDifs)

virtual void	SetForwardUpCallback (ForwardUpCallback upCallback)

virtual void	SetLinkDownCallback (Callback< void > linkDown)

void	SetPifs (Time pifs)

virtual void	SetPromisc (void)
	Sets the interface in promiscuous mode. More...

void	SetRifs (Time rifs)

void	SetSifs (Time sifs)

void	SetSlot (Time slotTime)

virtual void	SetSsid (Ssid ssid)

virtual void	SetWifiPhy (Ptr< WifiPhy > phy)

virtual void	SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > stationManager)

Public Member Functions inherited from ns3::WifiMac
void	ConfigureStandard (enum WifiPhyStandard standard)

Time	GetMaxPropagationDelay (void) const

Time	GetMsduLifetime (void) const

void	NotifyPromiscRx (Ptr< const Packet > packet)

void	NotifyRx (Ptr< const Packet > packet)

void	NotifyRxDrop (Ptr< const Packet > packet)

void	NotifyTx (Ptr< const Packet > packet)

void	NotifyTxDrop (Ptr< const Packet > packet)

virtual void	SetForwardUpCallback (Callback< void, Ptr< Packet >, Mac48Address, Mac48Address > upCallback)=0

void	SetMaxPropagationDelay (Time delay)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	Never forget to support typeid. More...

Static Public Member Functions inherited from ns3::RegularWifiMac
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::WifiMac
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
typedef std::vector< Ptr < MeshWifiInterfaceMacPlugin > >	PluginList

Private Member Functions

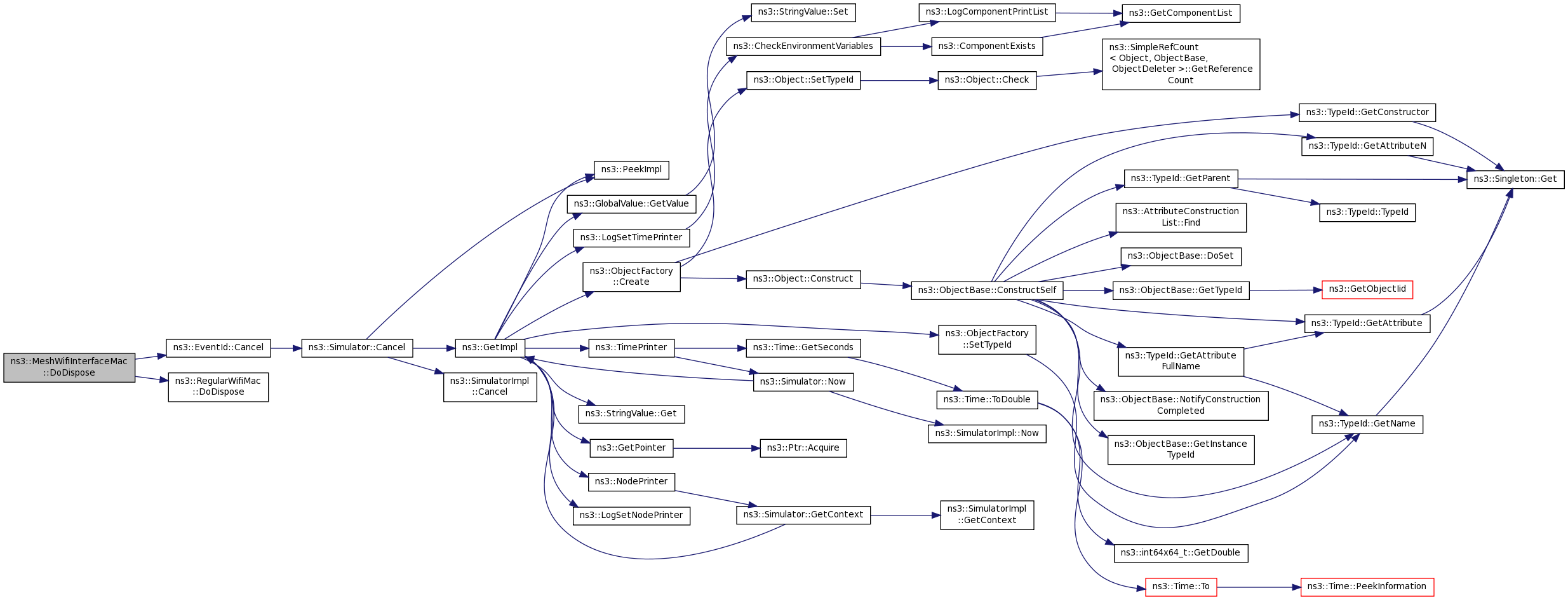

virtual void	DoDispose ()
	Real d-tor. More...

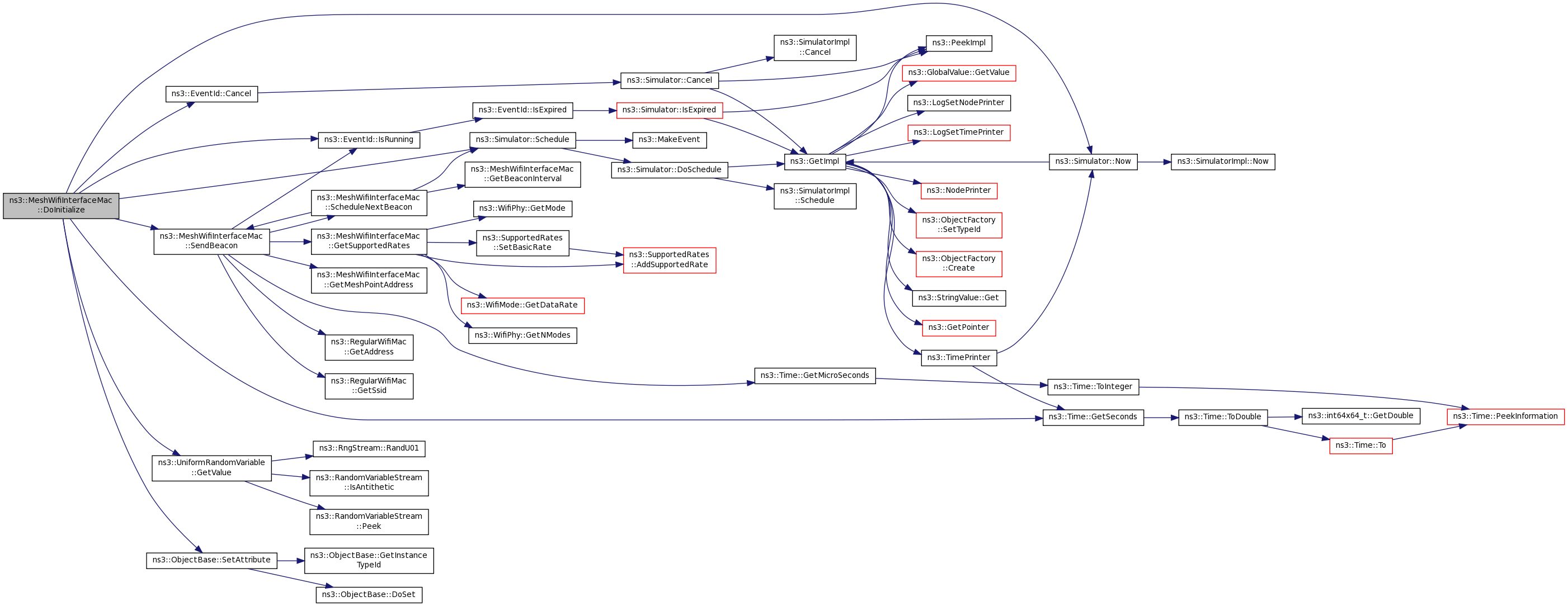

virtual void	DoInitialize ()
	This method is called only once by Object::Initialize. More...

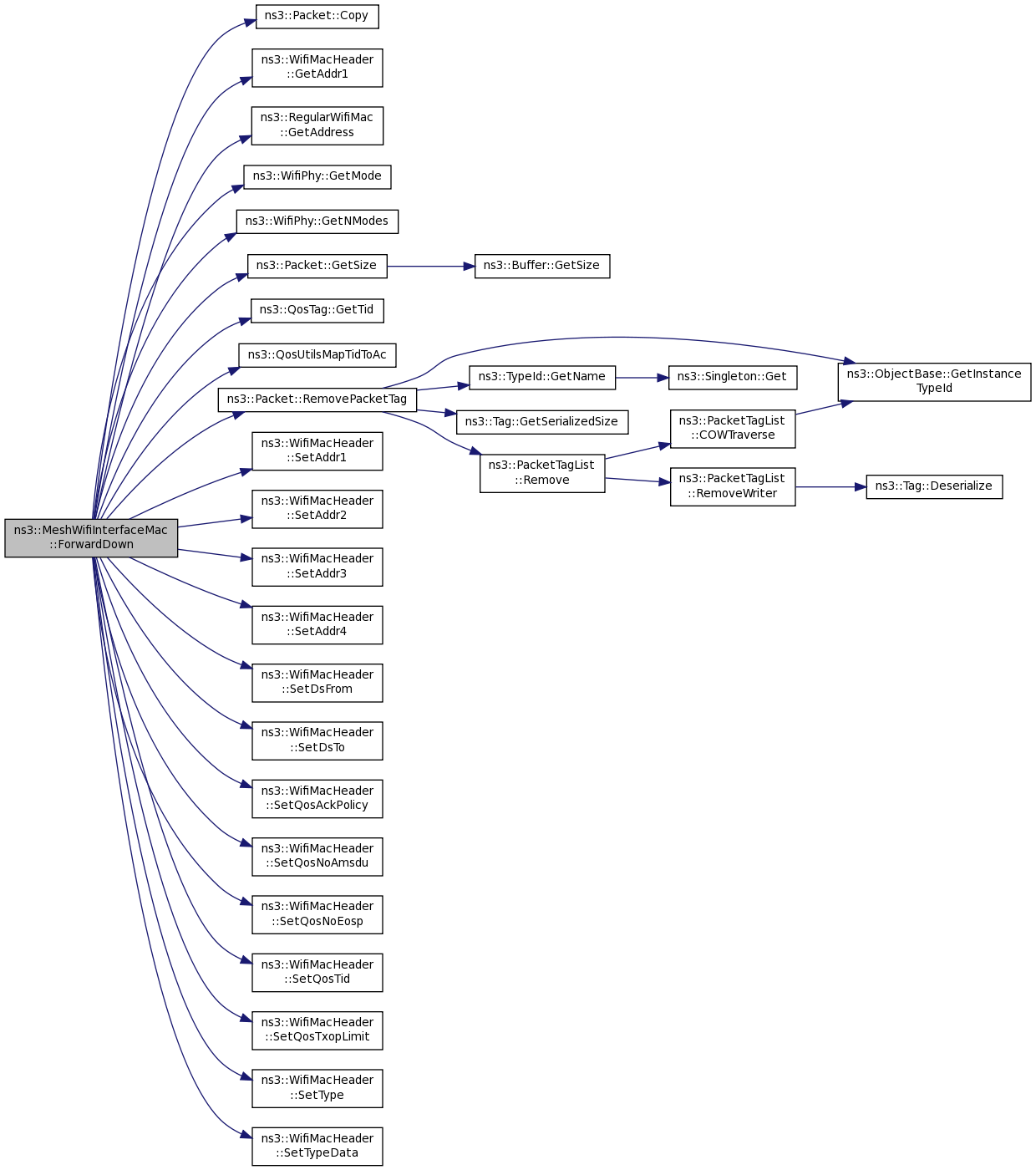

void	ForwardDown (Ptr< const Packet > packet, Mac48Address from, Mac48Address to)
	Send frame. More...

bool	GetBeaconGeneration () const
	Get current beaconing status. More...

void	Receive (Ptr< Packet > packet, WifiMacHeader const *hdr)
	Frame receive handler. More...

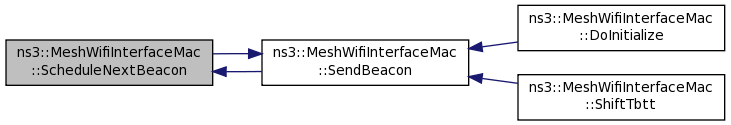

void	ScheduleNextBeacon ()
	Schedule next beacon. More...

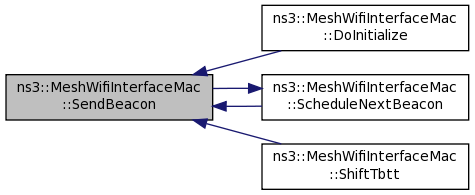

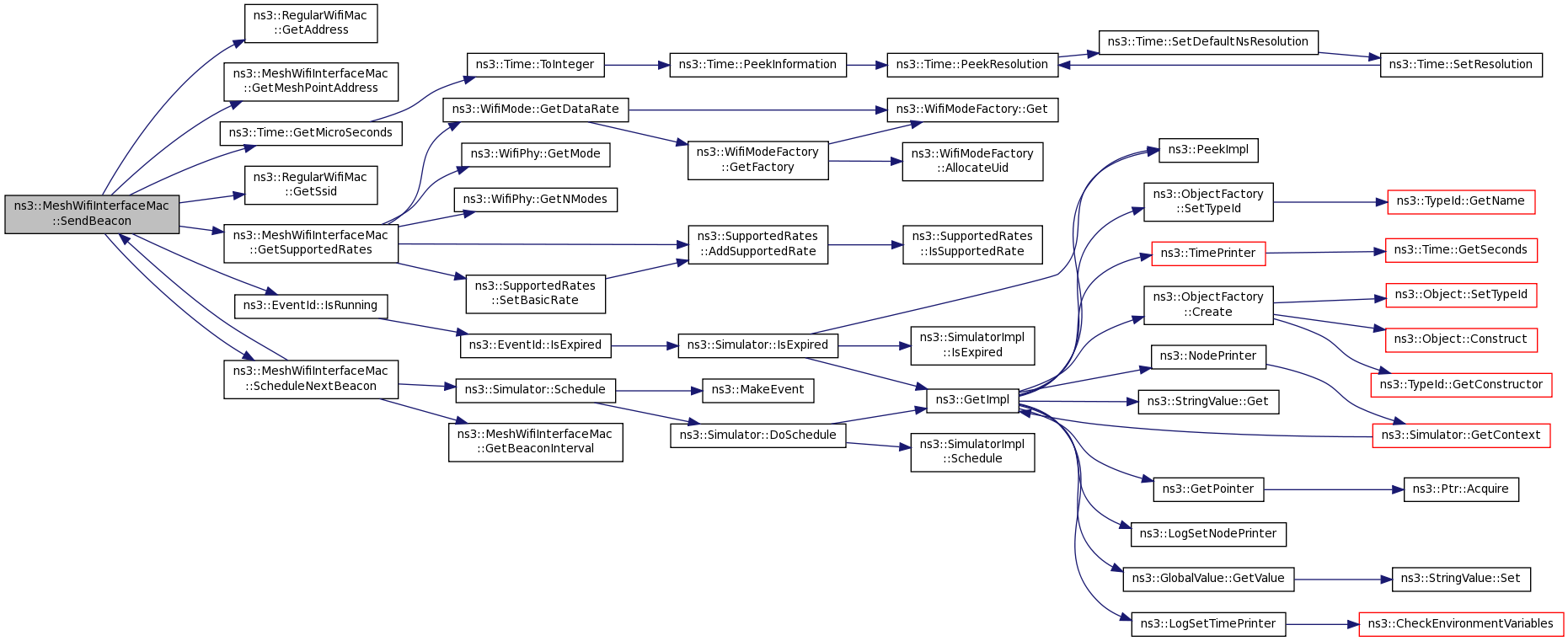

void	SendBeacon ()
	Send beacon. More...

Private Attributes
EventId	m_beaconSendEvent
	"Timer" for the next beacon More...

Ptr< UniformRandomVariable >	m_coefficient
	Add randomness to beacon generation. More...

Callback< uint32_t, Mac48Address, Ptr < MeshWifiInterfaceMac > >	m_linkMetricCallback

Mac48Address	m_mpAddress
	Mesh point address. More...

PluginList	m_plugins
	List of all installed plugins. More...

WifiPhyStandard	m_standard
	Current PHY standard: needed to configure metric. More...

Mesh timing intervals
bool	m_beaconEnable
	whether beaconing is enabled More...

Time	m_beaconInterval
	Beaconing interval. More...

Time	m_randomStart
	Maximum delay before first beacon. More...

Time	m_tbtt
	Time for the next frame. More...

Statistics:
Statistics	m_stats

Additional Inherited Members
Public Types inherited from ns3::RegularWifiMac
typedef Callback< void, Ptr < Packet >, Mac48Address, Mac48Address >	ForwardUpCallback
	This type defines the callback of a higher layer that a WifiMac(-derived) object invokes to pass a packet up the stack. More...

Protected Types inherited from ns3::RegularWifiMac
typedef std::map< AcIndex, Ptr < EdcaTxopN > >	EdcaQueues
	This type defines a mapping between an Access Category index, and a pointer to the corresponding channel access function. More...

Protected Member Functions inherited from ns3::RegularWifiMac
virtual void	DeaggregateAmsduAndForward (Ptr< Packet > aggregatedPacket, const WifiMacHeader *hdr)
	This method can be called to de-aggregate an A-MSDU and forward the constituent packets up the stack. More...

void	ForwardUp (Ptr< Packet > packet, Mac48Address from, Mac48Address to)
	Forward the packet up to the device. More...

Ptr< EdcaTxopN >	GetBEQueue (void) const
	Accessor for the AC_BE channel access function. More...

Ptr< EdcaTxopN >	GetBKQueue (void) const
	Accessor for the AC_BK channel access function. More...

Ptr< DcaTxop >	GetDcaTxop (void) const
	Accessor for the DCF object. More...

bool	GetHtSupported () const
	Return whether the device supports QoS. More...

bool	GetQosSupported () const
	Return whether the device supports QoS. More...

Ptr< EdcaTxopN >	GetVIQueue (void) const
	Accessor for the AC_VI channel access function. More...

Ptr< EdcaTxopN >	GetVOQueue (void) const
	Accessor for the AC_VO channel access function. More...

virtual void	SendAddBaResponse (const MgtAddBaRequestHeader *reqHdr, Mac48Address originator)
	This method can be called to accept a received ADDBA Request. More...

void	SetHtSupported (bool enable)
	Enable or disable HT support for the device. More...

void	SetQosSupported (bool enable)
	Enable or disable QoS support for the device. More...

void	SetTypeOfStation (TypeOfStation type)
	This method is invoked by a subclass to specify what type of station it is implementing. More...

virtual void	TxFailed (const WifiMacHeader &hdr)
	The packet we sent was successfully received by the receiver (i.e. More...

virtual void	TxOk (const WifiMacHeader &hdr)
	The packet we sent was successfully received by the receiver (i.e. More...

Protected Member Functions inherited from ns3::WifiMac
void	ConfigureDcf (Ptr< Dcf > dcf, uint32_t cwmin, uint32_t cwmax, enum AcIndex ac)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Protected Attributes inherited from ns3::RegularWifiMac
Ptr< DcaTxop >	m_dca
	This holds a pointer to the DCF instance for this WifiMac - used for transmission of frames to non-QoS peers. More...

DcfManager *	m_dcfManager
	DCF manager (access to channel) More...

EdcaQueues	m_edca
	This is a map from Access Category index to the corresponding channel access function. More...

ForwardUpCallback	m_forwardUp
	Callback to forward packet up the stack. More...

bool	m_htSupported
	This Boolean is set `true` iff this WifiMac is to model 802.11n. More...

Callback< void >	m_linkDown
	Callback when a link is down. More...

Callback< void >	m_linkUp
	Callback when a link is up. More...

Ptr< MacLow >	m_low
	MacLow (RTS, CTS, DATA, ACK etc.) More...

Ptr< WifiPhy >	m_phy
	Wifi PHY. More...

bool	m_qosSupported
	This Boolean is set `true` iff this WifiMac is to model 802.11e/WMM style Quality of Service. More...

MacRxMiddle *	m_rxMiddle
	RX middle (de-fragmentation etc.) More...

Ssid	m_ssid
	Service Set ID (SSID) More...

Ptr< WifiRemoteStationManager >	m_stationManager
	Remote station manager (rate control, RTS/CTS/fragmentation thresholds etc.) More...

MacTxMiddle *	m_txMiddle
	TX middle (aggregation etc.) More...

Detailed Description

Basic MAC of mesh point Wi-Fi interface.

Its function is extendable through plugins mechanism.

Now only three output queues are used:

beacons (PIFS and no backoff),
background traffic,
management and priority traffic.

Config Paths

ns3::MeshWifiInterfaceMac is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::MeshWifiInterfaceMac
/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/$ns3::MeshWifiInterfaceMac

Attributes

BeaconInterval: Beacon Interval
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +500000000.0ns
- Flags: construct write read
RandomStart: Window when beacon generating starts (uniform random) in seconds
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +500000000.0ns
- Flags: construct write read
BeaconGeneration: Enable/Disable Beaconing.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read

Attributes defined in parent class ns3::RegularWifiMac

QosSupported: This Boolean attribute is set to enable 802.11e/WMM-style QoS support at this STA
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
HtSupported: This Boolean attribute is set to enable 802.11n support at this STA
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
CtsToSelfSupported: Use CTS to Self when using a rate that is not in the basic set rate
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
DcaTxop: The DcaTxop object
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::DcaTxop>
- Flags: read
VO_EdcaTxopN: Queue that manages packets belonging to AC_VO access class
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::EdcaTxopN>
- Flags: read
VI_EdcaTxopN: Queue that manages packets belonging to AC_VI access class
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::EdcaTxopN>
- Flags: read
BE_EdcaTxopN: Queue that manages packets belonging to AC_BE access class
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::EdcaTxopN>
- Flags: read
BK_EdcaTxopN: Queue that manages packets belonging to AC_BK access class
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::EdcaTxopN>
- Flags: read

Attributes defined in parent class ns3::WifiMac

CtsTimeout: When this timeout expires, the RTS/CTS handshake has failed.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +75000.0ns
- Flags: construct write read
AckTimeout: When this timeout expires, the DATA/ACK handshake has failed.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +75000.0ns
- Flags: construct write read
BasicBlockAckTimeout: When this timeout expires, the BASIC_BLOCK_ACK_REQ/BASIC_BLOCK_ACK handshake has failed.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +281000.0ns
- Flags: construct write read
CompressedBlockAckTimeout: When this timeout expires, the COMPRESSED_BLOCK_ACK_REQ/COMPRESSED_BLOCK_ACK handshake has failed.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +107000.0ns
- Flags: construct write read
Sifs: The value of the SIFS constant.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +16000.0ns
- Flags: construct write read
EifsNoDifs: The value of EIFS-DIFS
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +60000.0ns
- Flags: construct write read
Slot: The duration of a Slot.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +9000.0ns
- Flags: construct write read
Pifs: The value of the PIFS constant.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +25000.0ns
- Flags: construct write read
Rifs: The value of the RIFS constant.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +2000.0ns
- Flags: construct write read
MaxPropagationDelay: The maximum propagation delay. Unused for now.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +3333.0ns
- Flags: construct write read
Ssid: The ssid we want to belong to.
- Set with class: SsidValue
- Underlying type: Ssid
- Initial value: default
- Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::RegularWifiMac

TxOkHeader: The header of successfully transmitted packet
TxErrHeader: The header of unsuccessfully transmitted packet

TraceSources defined in parent class ns3::WifiMac

MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
MacTxDrop: A packet has been dropped in the MAC layer before being queued for transmission.
MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace,
MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace,
MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.

Definition at line 54 of file mesh-wifi-interface-mac.h.

Member Typedef Documentation

typedef std::vector<Ptr<MeshWifiInterfaceMacPlugin> > ns3::MeshWifiInterfaceMac::PluginList

private

Definition at line 164 of file mesh-wifi-interface-mac.h.

Constructor & Destructor Documentation

ns3::MeshWifiInterfaceMac::MeshWifiInterfaceMac ( )

C-tor.

Definition at line 76 of file mesh-wifi-interface-mac.cc.

References m_coefficient, ns3::MESH, NS_LOG_FUNCTION, and ns3::RegularWifiMac::SetTypeOfStation().

Here is the call graph for this function:

ns3::MeshWifiInterfaceMac::~MeshWifiInterfaceMac ( )

virtual

D-tor.

Definition at line 85 of file mesh-wifi-interface-mac.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

int64_t ns3::MeshWifiInterfaceMac::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 149 of file mesh-wifi-interface-mac.cc.

References m_coefficient, m_plugins, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

bool ns3::MeshWifiInterfaceMac::CheckSupportedRates ( SupportedRates rates ) const

Returns: true if rates are supported

Definition at line 330 of file mesh-wifi-interface-mac.cc.

References ns3::WifiMode::GetDataRate(), ns3::SupportedRates::IsSupportedRate(), and ns3::RegularWifiMac::m_stationManager.

Here is the call graph for this function:

void ns3::MeshWifiInterfaceMac::DoDispose ( void )

privatevirtual

Real d-tor.

Reimplemented from ns3::RegularWifiMac.

Definition at line 121 of file mesh-wifi-interface-mac.cc.

References ns3::EventId::Cancel(), ns3::RegularWifiMac::DoDispose(), m_beaconSendEvent, m_plugins, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::MeshWifiInterfaceMac::DoInitialize ( void )

privatevirtual

This method is called only once by Object::Initialize.

If the user calls Object::Initialize multiple times, DoInitialize is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::RegularWifiMac.

Definition at line 130 of file mesh-wifi-interface-mac.cc.

References ns3::EventId::Cancel(), ns3::Time::GetSeconds(), ns3::UniformRandomVariable::GetValue(), ns3::EventId::IsRunning(), m_beaconEnable, m_beaconSendEvent, m_coefficient, m_randomStart, m_tbtt, ns3::Simulator::Now(), NS_ASSERT, ns3::Simulator::Schedule(), SendBeacon(), and ns3::ObjectBase::SetAttribute().

Here is the call graph for this function:

void ns3::MeshWifiInterfaceMac::Enqueue	(	Ptr< const Packet >	packet,
		Mac48Address	to,
		Mac48Address	from
	)

virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.
from	the address from which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC. The extra parameter "from" allows this device to operate in a bridged mode, forwarding received frames without altering the source address.

Reimplemented from ns3::RegularWifiMac.

Definition at line 93 of file mesh-wifi-interface-mac.cc.

References ForwardDown(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::MeshWifiInterfaceMac::Enqueue	(	Ptr< const Packet >	packet,
		Mac48Address	to
	)

virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC.

Implements ns3::RegularWifiMac.

Definition at line 99 of file mesh-wifi-interface-mac.cc.

References ForwardDown(), ns3::RegularWifiMac::m_low, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::MeshWifiInterfaceMac::FinishConfigureStandard ( enum WifiPhyStandard standard )

virtual

Parameters

standard the phy standard to be used

This method is called by ns3::WifiMac::ConfigureStandard to complete the configuration process for a requested phy standard.

This method may be overriden by a derived class (e.g., in order to apply DCF or EDCA parameters specific to the usage model it is dealing with), in which case the reimplementation may choose to deal with certain values in the WifiPhyStandard enumeration, and chain up to this implementation to deal with the remainder.

Reimplemented from ns3::RegularWifiMac.

Definition at line 540 of file mesh-wifi-interface-mac.cc.

References ns3::RegularWifiMac::FinishConfigureStandard(), ns3::RegularWifiMac::m_dca, and m_standard.

Here is the call graph for this function:

void ns3::MeshWifiInterfaceMac::ForwardDown	(	Ptr< const Packet >	packet,
		Mac48Address	from,
		Mac48Address	to
	)

private

Send frame.

Frame is supposed to be tagged by routing information.

Todo:: clarify this point

Definition at line 216 of file mesh-wifi-interface-mac.cc.

Referenced by Enqueue().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::MeshWifiInterfaceMac::GetBeaconGeneration ( ) const

private

Get current beaconing status.

Definition at line 369 of file mesh-wifi-interface-mac.cc.

References ns3::EventId::IsRunning(), and m_beaconSendEvent.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::MeshWifiInterfaceMac::GetBeaconInterval ( ) const

Returns: interval between two beacons

Definition at line 358 of file mesh-wifi-interface-mac.cc.

References m_beaconInterval.

Referenced by Report(), and ScheduleNextBeacon().

Here is the caller graph for this function:

uint16_t ns3::MeshWifiInterfaceMac::GetFrequencyChannel ( ) const

Current channel Id.

Definition at line 176 of file mesh-wifi-interface-mac.cc.

References ns3::YansWifiPhy::GetChannelNumber(), ns3::Object::GetObject(), ns3::RegularWifiMac::m_phy, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by Report().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::MeshWifiInterfaceMac::GetLinkMetric ( Mac48Address peerAddress )

Definition at line 483 of file mesh-wifi-interface-mac.cc.

References m_linkMetricCallback.

Mac48Address ns3::MeshWifiInterfaceMac::GetMeshPointAddress ( ) const

Definition at line 503 of file mesh-wifi-interface-mac.cc.

References m_mpAddress.

Referenced by SendBeacon().

Here is the caller graph for this function:

WifiPhyStandard ns3::MeshWifiInterfaceMac::GetPhyStandard ( ) const

Definition at line 553 of file mesh-wifi-interface-mac.cc.

References m_standard.

SupportedRates ns3::MeshWifiInterfaceMac::GetSupportedRates ( ) const

Returns: list of supported bitrates

Definition at line 311 of file mesh-wifi-interface-mac.cc.

References ns3::SupportedRates::AddSupportedRate(), ns3::WifiMode::GetDataRate(), ns3::WifiPhy::GetMode(), ns3::WifiPhy::GetNModes(), ns3::RegularWifiMac::m_phy, ns3::RegularWifiMac::m_stationManager, and ns3::SupportedRates::SetBasicRate().

Referenced by SendBeacon().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::MeshWifiInterfaceMac::GetTbtt ( ) const

Next beacon frame time.

This is supposed to be used by any entity managing beacon collision avoidance (e.g. Peer management protocol in 802.11s)

Definition at line 374 of file mesh-wifi-interface-mac.cc.

References m_tbtt.

Referenced by ShiftTbtt().

Here is the caller graph for this function:

TypeId ns3::MeshWifiInterfaceMac::GetTypeId ( void )

static

Never forget to support typeid.

Definition at line 46 of file mesh-wifi-interface-mac.cc.

References GetBeaconGeneration(), m_beaconInterval, m_randomStart, ns3::MakeTimeChecker(), SetBeaconGeneration(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::MeshWifiInterfaceMac::InstallPlugin ( Ptr< MeshWifiInterfaceMacPlugin > plugin )

Install plugin.

Todo:: return unique ID to allow unregister plugins

Definition at line 165 of file mesh-wifi-interface-mac.cc.

References m_plugins, NS_LOG_FUNCTION, and ns3::MeshWifiInterfaceMacPlugin::SetParent().

Here is the call graph for this function:

void ns3::MeshWifiInterfaceMac::Receive	(	Ptr< Packet >	packet,
		WifiMacHeader const *	hdr
	)

privatevirtual

Frame receive handler.

Reimplemented from ns3::RegularWifiMac.

Definition at line 417 of file mesh-wifi-interface-mac.cc.

Here is the call graph for this function:

void ns3::MeshWifiInterfaceMac::Report ( std::ostream & os ) const

Statistics:

Definition at line 524 of file mesh-wifi-interface-mac.cc.

References ns3::RegularWifiMac::GetAddress(), GetBeaconInterval(), GetFrequencyChannel(), ns3::Time::GetSeconds(), m_stats, and ns3::MeshWifiInterfaceMac::Statistics::Print().

Here is the call graph for this function:

void ns3::MeshWifiInterfaceMac::ResetStats ( )

Definition at line 534 of file mesh-wifi-interface-mac.cc.

References m_stats.

void ns3::MeshWifiInterfaceMac::ScheduleNextBeacon ( )

private

Schedule next beacon.

Definition at line 391 of file mesh-wifi-interface-mac.cc.

References GetBeaconInterval(), m_beaconSendEvent, m_tbtt, ns3::Simulator::Schedule(), and SendBeacon().

Referenced by SendBeacon().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::MeshWifiInterfaceMac::SendBeacon ( )

private

Send beacon.

Definition at line 397 of file mesh-wifi-interface-mac.cc.

References ns3::RegularWifiMac::GetAddress(), GetMeshPointAddress(), ns3::Time::GetMicroSeconds(), ns3::RegularWifiMac::GetSsid(), GetSupportedRates(), ns3::EventId::IsRunning(), m_beaconInterval, m_beaconSendEvent, ns3::RegularWifiMac::m_dca, m_plugins, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ScheduleNextBeacon().

Referenced by DoInitialize(), ScheduleNextBeacon(), and ShiftTbtt().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::MeshWifiInterfaceMac::SendManagementFrame	(	Ptr< Packet >	frame,
		const WifiMacHeader &	hdr
	)

To be used by plugins sending management frames.

Definition at line 275 of file mesh-wifi-interface-mac.cc.

References ns3::AC_BK, ns3::AC_VO, ns3::WifiMacHeader::GetAddr1(), ns3::Mac48Address::GetBroadcast(), ns3::Packet::GetSize(), ns3::RegularWifiMac::m_edca, m_plugins, m_stats, NS_FATAL_ERROR, ns3::MeshWifiInterfaceMac::Statistics::sentBytes, and ns3::MeshWifiInterfaceMac::Statistics::sentFrames.

Here is the call graph for this function:

void ns3::MeshWifiInterfaceMac::SetBeaconGeneration ( bool enable )

Enable/disable beacons.

Definition at line 363 of file mesh-wifi-interface-mac.cc.

References m_beaconEnable, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::MeshWifiInterfaceMac::SetBeaconInterval ( Time interval )

Set interval between two successive beacons.

Definition at line 352 of file mesh-wifi-interface-mac.cc.

References m_beaconInterval, and NS_LOG_FUNCTION.

void ns3::MeshWifiInterfaceMac::SetLinkMetricCallback ( Callback< uint32_t, Mac48Address, Ptr< MeshWifiInterfaceMac > > cb )

Definition at line 493 of file mesh-wifi-interface-mac.cc.

References m_linkMetricCallback.

void ns3::MeshWifiInterfaceMac::SetLinkUpCallback ( Callback< void > linkUp )

virtual

Parameters

linkUp the callback to invoke when the link becomes up.

Reimplemented from ns3::RegularWifiMac.

Definition at line 110 of file mesh-wifi-interface-mac.cc.

References NS_LOG_FUNCTION, and ns3::RegularWifiMac::SetLinkUpCallback().

Here is the call graph for this function:

void ns3::MeshWifiInterfaceMac::SetMeshPointAddress ( Mac48Address a )

Definition at line 498 of file mesh-wifi-interface-mac.cc.

References m_mpAddress.

void ns3::MeshWifiInterfaceMac::SetRandomStartDelay ( Time interval )

Set maximum initial random delay before first beacon.

Definition at line 346 of file mesh-wifi-interface-mac.cc.

References m_randomStart, and NS_LOG_FUNCTION.

void ns3::MeshWifiInterfaceMac::ShiftTbtt ( Time shift )

Shift TBTT.

This is supposed to be used by any entity managing beacon collision avoidance (e.g. Peer management protocol in 802.11s)

Attention: User of ShiftTbtt () must take care to not shift it to the past.

Definition at line 379 of file mesh-wifi-interface-mac.cc.

References ns3::Simulator::Cancel(), GetTbtt(), m_beaconSendEvent, m_tbtt, ns3::Simulator::Now(), NS_ASSERT, ns3::Simulator::Schedule(), and SendBeacon().

Here is the call graph for this function:

bool ns3::MeshWifiInterfaceMac::SupportsSendFrom ( ) const

virtual

Returns: if this MAC supports sending from arbitrary address.

The interface may or may not support sending from arbitrary address. This function returns true if sending from arbitrary address is supported, false otherwise.

Reimplemented from ns3::RegularWifiMac.

Definition at line 105 of file mesh-wifi-interface-mac.cc.

void ns3::MeshWifiInterfaceMac::SwitchFrequencyChannel ( uint16_t new_id )

Switch channel.
