SpectrumWifiPhy used for testing OFDMA. More...

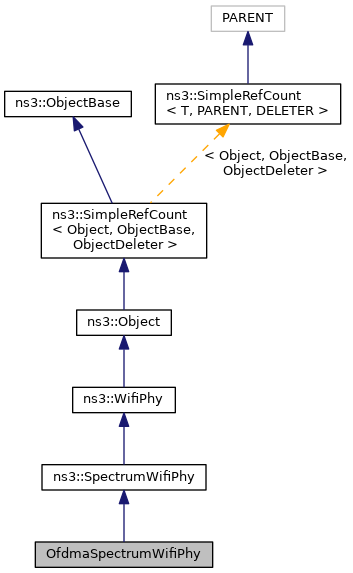

Inheritance diagram for OfdmaSpectrumWifiPhy:

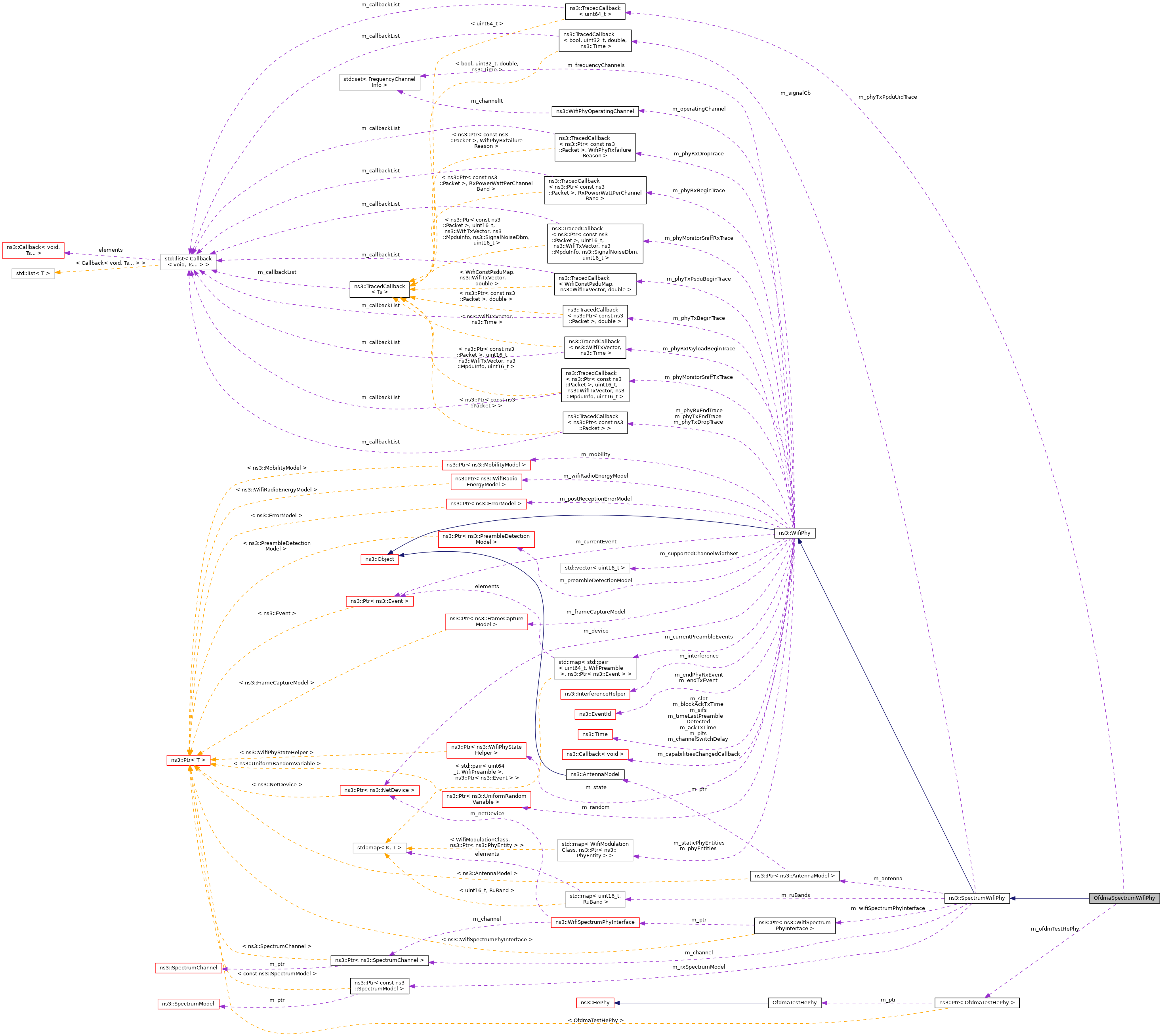

Collaboration diagram for OfdmaSpectrumWifiPhy:

Public Types
typedef void(*	TxPpduUidCallback) (uint64_t uid)
	TracedCallback signature for UID of transmitted PPDU. More...

Public Types inherited from ns3::SpectrumWifiPhy
typedef void(*	SignalArrivalCallback) (bool signalType, uint32_t senderNodeId, double rxPower, Time duration)
	Callback invoked when the PHY model starts to process a signal. More...

Public Types inherited from ns3::WifiPhy
typedef void(*	MonitorSnifferRxCallback) (Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, SignalNoiseDbm signalNoise, uint16_t staId)
	TracedCallback signature for monitor mode receive events. More...

typedef void(*	MonitorSnifferTxCallback) (const Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, uint16_t staId)
	TracedCallback signature for monitor mode transmit events. More...

typedef void(*	PhyRxPayloadBeginTracedCallback) (WifiTxVector txVector, Time psduDuration)
	TracedCallback signature for start of PSDU reception events. More...

typedef void(*	PsduTxBeginCallback) (WifiConstPsduMap psduMap, WifiTxVector txVector, double txPowerW)
	TracedCallback signature for PSDU transmit events. More...

Public Member Functions
	OfdmaSpectrumWifiPhy (uint16_t staId)
	Constructor. More...

virtual	~OfdmaSpectrumWifiPhy ()

void	DoDispose (void) override
	Destructor implementation. More...

void	DoInitialize (void) override
	Initialize() implementation. More...

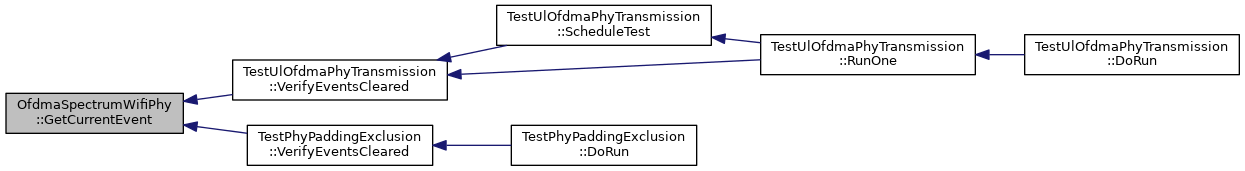

Ptr< Event >	GetCurrentEvent (void)

std::map< std::pair< uint64_t, WifiPreamble >, Ptr< Event > > &	GetCurrentPreambleEvents (void)

Time	GetEnergyDuration (double energyW, WifiSpectrumBand band)
	Wrapper to InterferenceHelper method. More...

uint16_t	GetGuardBandwidth (uint16_t currentChannelWidth) const override

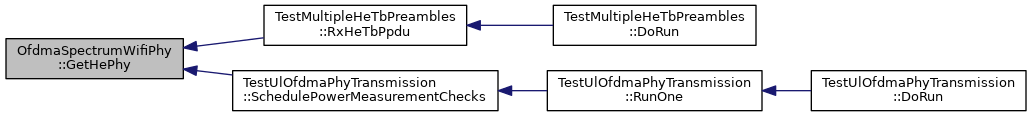

Ptr< const HePhy >	GetHePhy (void) const

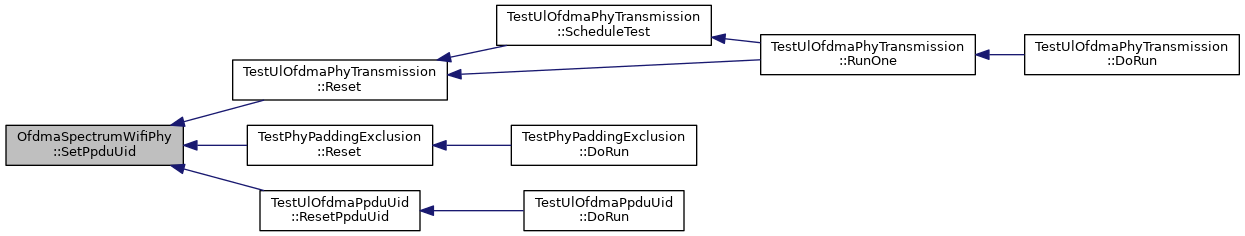

void	SetPpduUid (uint64_t uid)
	Set the global PPDU UID counter. More...

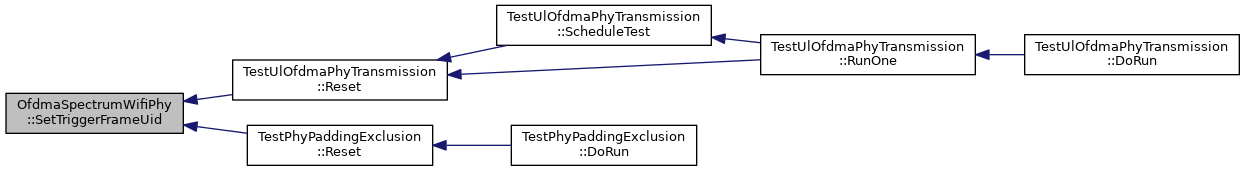

void	SetTriggerFrameUid (uint64_t uid)
	Since we assume trigger frame was previously received from AP, this is used to set its UID. More...

void	StartTx (Ptr< WifiPpdu > ppdu) override

Public Member Functions inherited from ns3::SpectrumWifiPhy
	SpectrumWifiPhy ()

virtual	~SpectrumWifiPhy ()

void	ConfigureStandardAndBand (WifiPhyStandard standard, WifiPhyBand band) override
	Configure the PHY-level parameters for different Wi-Fi standard. More...

void	CreateWifiSpectrumPhyInterface (Ptr< NetDevice > device)
	Method to encapsulate the creation of the WifiSpectrumPhyInterface object (used to bind the WifiSpectrumPhy to a SpectrumChannel) and to link it to this SpectrumWifiPhy instance. More...

uint32_t	GetBandBandwidth (void) const

Ptr< Channel >	GetChannel (void) const override
	Return the Channel this WifiPhy is connected to. More...

Ptr< AntennaModel >	GetRxAntenna (void) const
	Get the antenna model used for reception. More...

Ptr< const SpectrumModel >	GetRxSpectrumModel ()

std::tuple< double, double, double >	GetTxMaskRejectionParams (void) const override

void	SetAntenna (const Ptr< AntennaModel > antenna)

void	SetChannel (const Ptr< SpectrumChannel > channel)
	Set the SpectrumChannel this SpectrumWifiPhy is to be connected to. More...

void	SetChannelNumber (uint8_t id) override
	Set channel number. More...

void	SetChannelWidth (uint16_t channelwidth) override
	If the operating channel for this object has not been set yet, the given channel width is saved and will be used, along with the center frequency and channel number that have been saved similarly, to set the operating channel when the standard and band are configured. More...

void	SetFrequency (uint16_t freq) override
	If the operating channel for this object has not been set yet, the given center frequency is saved and will be used, along with the channel number and width that have been saved similarly, to set the operating channel when the standard and band are configured. More...

void	StartRx (Ptr< SpectrumSignalParameters > rxParams)
	Input method for delivering a signal from the spectrum channel and low-level PHY interface to this SpectrumWifiPhy instance. More...

void	Transmit (Ptr< WifiSpectrumSignalParameters > txParams)
	This function is sending the signal to the Spectrum channel after finishing the configuration of the transmit parameters. More...

Public Member Functions inherited from ns3::WifiPhy
	WifiPhy ()

virtual	~WifiPhy ()

void	AddSupportedChannelWidth (uint16_t width)

virtual int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

double	CalculateSnr (const WifiTxVector &txVector, double ber) const

void	EndReceiveInterBss (void)
	For HE receptions only, check and possibly modify the transmit power restriction state at the end of PPDU reception. More...

Time	GetAckTxTime (void) const
	Return the estimated Ack TX time for this PHY. More...

Time	GetBlockAckTxTime (void) const
	Return the estimated BlockAck TX time for this PHY. More...

std::list< uint8_t >	GetBssMembershipSelectorList (void) const
	The WifiPhy::BssMembershipSelector() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored inside HT PHY (and above) instances. More...

double	GetCcaEdThreshold (void) const
	Return the CCA threshold (dBm). More...

uint8_t	GetChannelNumber (void) const
	Return current channel number. More...

Time	GetChannelSwitchDelay (void) const

uint16_t	GetChannelWidth (void) const

WifiMode	GetDefaultMode (void) const
	Get the default WifiMode supported by the PHY. More...

Time	GetDelayUntilIdle (void)

Ptr< NetDevice >	GetDevice (void) const
	Return the device this PHY is associated with. More...

uint16_t	GetFrequency (void) const

Time	GetLastRxEndTime (void) const
	Return the end time of the last received packet. More...

Time	GetLastRxStartTime (void) const
	Return the start time of the last received packet. More...

uint8_t	GetMaxSupportedRxSpatialStreams (void) const

uint8_t	GetMaxSupportedTxSpatialStreams (void) const

WifiMode	GetMcs (WifiModulationClass modulation, uint8_t mcs) const
	Get the WifiMode object corresponding to the given MCS of the given modulation class. More...

std::list< WifiMode >	GetMcsList (void) const
	The WifiPhy::GetMcsList() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indices that this WifiPhy(-derived class) can support - a set of MCS indices which is stored by each HT PHY (and above). More...

std::list< WifiMode >	GetMcsList (WifiModulationClass modulation) const
	Get the list of supported MCSs for the given modulation class (i.e. More...

Ptr< MobilityModel >	GetMobility (void) const
	Return the mobility model this PHY is associated with. More...

std::list< WifiMode >	GetModeList (void) const
	The WifiPhy::GetModeList() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception (non-MCS) modes that this WifiPhy(-derived class) can support - a set of modes which is stored by each non-HT PHY. More...

std::list< WifiMode >	GetModeList (WifiModulationClass modulation) const
	Get the list of supported (non-MCS) modes for the given modulation class (i.e. More...

uint16_t	GetNMcs (void) const

uint8_t	GetNTxPower (void) const
	Return the number of available transmission power levels. More...

uint8_t	GetNumberOfAntennas (void) const

const WifiPhyOperatingChannel &	GetOperatingChannel (void) const
	Get a const reference to the operating channel. More...

WifiPhyBand	GetPhyBand (void) const
	Get the configured Wi-Fi band. More...

Ptr< PhyEntity >	GetPhyEntity (WifiModulationClass modulation) const
	Get the supported PHY entity corresponding to the modulation class, for the WifiPhy instance. More...

WifiPhyStandard	GetPhyStandard (void) const
	Get the configured Wi-Fi standard. More...

Time	GetPifs (void) const
	Return the PCF Interframe Space (PIFS) for this PHY. More...

double	GetPowerDbm (uint8_t power) const
	Get the power of the given power level in dBm. More...

uint64_t	GetPreviouslyRxPpduUid (void) const

double	GetRxGain (void) const
	Return the reception gain (dB). More...

double	GetRxSensitivity (void) const
	Return the receive sensitivity threshold (dBm). More...

bool	GetShortPhyPreambleSupported (void) const
	Return whether short PHY preamble is supported. More...

Time	GetSifs (void) const
	Return the Short Interframe Space (SIFS) for this PHY. More...

Time	GetSlot (void) const
	Return the slot duration for this PHY. More...

Ptr< WifiPhyStateHelper >	GetState (void) const
	Return the WifiPhyStateHelper of this PHY. More...

std::vector< uint16_t >	GetSupportedChannelWidthSet (void) const

double	GetTxGain (void) const
	Return the transmission gain (dB). More...

double	GetTxPowerEnd (void) const
	Return the maximum available transmission power level (dBm). More...

double	GetTxPowerForTransmission (Ptr< const WifiPpdu > ppdu) const
	Compute the transmit power for the next transmission. More...

double	GetTxPowerStart (void) const
	Return the minimum available transmission power level (dBm). More...

bool	IsMcsSupported (WifiModulationClass modulation, uint8_t mcs) const
	Check if the given MCS of the given modulation class is supported by the PHY. More...

bool	IsModeSupported (WifiMode mode) const
	Check if the given WifiMode is supported by the PHY. More...

bool	IsStateCcaBusy (void) const

bool	IsStateIdle (void) const

bool	IsStateOff (void) const

bool	IsStateRx (void) const

bool	IsStateSleep (void) const

bool	IsStateSwitching (void) const

bool	IsStateTx (void) const

void	NotifyChannelAccessRequested (void)
	Notify the PHY that an access to the channel was requested. More...

void	NotifyMonitorSniffRx (Ptr< const WifiPsdu > psdu, uint16_t channelFreqMhz, WifiTxVector txVector, SignalNoiseDbm signalNoise, std::vector< bool > statusPerMpdu, uint16_t staId=SU_STA_ID)
	Public method used to fire a MonitorSniffer trace for a wifi PSDU being received. More...

void	NotifyMonitorSniffTx (Ptr< const WifiPsdu > psdu, uint16_t channelFreqMhz, WifiTxVector txVector, uint16_t staId=SU_STA_ID)
	Public method used to fire a MonitorSniffer trace for a wifi PSDU being transmitted. More...

void	NotifyRxBegin (Ptr< const WifiPsdu > psdu, RxPowerWattPerChannelBand rxPowersW)
	Public method used to fire a PhyRxBegin trace. More...

void	NotifyRxDrop (Ptr< const WifiPsdu > psdu, WifiPhyRxfailureReason reason)
	Public method used to fire a PhyRxDrop trace. More...

void	NotifyRxEnd (Ptr< const WifiPsdu > psdu)
	Public method used to fire a PhyRxEnd trace. More...

void	NotifyTxBegin (WifiConstPsduMap psdus, double txPowerW)
	Public method used to fire a PhyTxBegin trace. More...

void	NotifyTxDrop (Ptr< const WifiPsdu > psdu)
	Public method used to fire a PhyTxDrop trace. More...

void	NotifyTxEnd (WifiConstPsduMap psdus)
	Public method used to fire a PhyTxEnd trace. More...

void	RegisterListener (WifiPhyListener *listener)

void	ResetCca (bool powerRestricted, double txPowerMaxSiso=0, double txPowerMaxMimo=0)
	Reset PHY to IDLE, with some potential TX power restrictions for the next transmission. More...

void	ResetReceive (Ptr< Event > event)
	Reset PHY at the end of the packet under reception after it has failed the PHY header. More...

void	ResumeFromOff (void)
	Resume from off mode. More...

void	ResumeFromSleep (void)
	Resume from sleep mode. More...

void	Send (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector)
	This function is a wrapper for the Send variant that accepts a WifiConstPsduMap as first argument. More...

void	Send (WifiConstPsduMap psdus, WifiTxVector txVector)

void	SetCapabilitiesChangedCallback (Callback< void > callback)

void	SetCcaEdThreshold (double threshold)
	Sets the CCA threshold (dBm). More...

void	SetDevice (const Ptr< NetDevice > device)
	Sets the device this PHY is associated with. More...

void	SetErrorRateModel (const Ptr< ErrorRateModel > rate)
	Sets the error rate model. More...

void	SetFrameCaptureModel (const Ptr< FrameCaptureModel > frameCaptureModel)
	Sets the frame capture model. More...

void	SetMaxSupportedRxSpatialStreams (uint8_t streams)

void	SetMaxSupportedTxSpatialStreams (uint8_t streams)

void	SetMobility (const Ptr< MobilityModel > mobility)
	assign a mobility model to this device More...

void	SetNTxPower (uint8_t n)
	Sets the number of transmission power levels available between the minimum level and the maximum level. More...

void	SetNumberOfAntennas (uint8_t antennas)

void	SetOffMode (void)
	Put in off mode. More...

void	SetOperatingChannel (uint8_t number, uint16_t frequency, uint16_t width)
	Set the operating channel according to the specified parameters. More...

void	SetPifs (Time pifs)
	Set the PCF Interframe Space (PIFS) for this PHY. More...

void	SetPostReceptionErrorModel (const Ptr< ErrorModel > em)
	Attach a receive ErrorModel to the WifiPhy. More...

void	SetPreambleDetectionModel (const Ptr< PreambleDetectionModel > preambleDetectionModel)
	Sets the preamble detection model. More...

void	SetPrimary20Index (uint8_t index)
	Set the index of the primary 20 MHz channel (0 indicates the 20 MHz subchannel with the lowest center frequency). More...

void	SetReceiveErrorCallback (RxErrorCallback callback)

void	SetReceiveOkCallback (RxOkCallback callback)

void	SetRxGain (double gain)
	Sets the reception gain (dB). More...

void	SetRxNoiseFigure (double noiseFigureDb)
	Sets the RX loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. More...

void	SetRxSensitivity (double threshold)
	Sets the receive sensitivity threshold (dBm). More...

void	SetShortPhyPreambleSupported (bool preamble)
	Enable or disable short PHY preamble. More...

void	SetSifs (Time sifs)
	Set the Short Interframe Space (SIFS) for this PHY. More...

void	SetSleepMode (void)
	Put in sleep mode. More...

void	SetSlot (Time slot)
	Set the slot duration for this PHY. More...

void	SetTxGain (double gain)
	Sets the transmission gain (dB). More...

void	SetTxPowerEnd (double end)
	Sets the maximum available transmission power level (dBm). More...

void	SetTxPowerStart (double start)
	Sets the minimum available transmission power level (dBm). More...

void	SetWifiRadioEnergyModel (const Ptr< WifiRadioEnergyModel > wifiRadioEnergyModel)
	Sets the wifi radio energy model. More...

void	StartReceivePreamble (Ptr< WifiPpdu > ppdu, RxPowerWattPerChannelBand rxPowersW, Time rxDuration)
	Start receiving the PHY preamble of a PPDU (i.e. More...

void	UnregisterListener (WifiPhyListener *listener)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::SpectrumWifiPhy
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::WifiPhy
static void	AddStaticPhyEntity (WifiModulationClass modulation, Ptr< PhyEntity > phyEntity)
	Add the PHY entity to the map of implemented PHY entities for the given modulation class. More...

static Time	CalculatePhyPreambleAndHeaderDuration (const WifiTxVector &txVector)

static Time	CalculateTxDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, uint16_t staId=SU_STA_ID)

static Time	CalculateTxDuration (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, WifiPhyBand band)
	This function is a wrapper for the CalculateTxDuration variant that accepts a WifiConstPsduMap as first argument. More...

static Time	CalculateTxDuration (WifiConstPsduMap psduMap, const WifiTxVector &txVector, WifiPhyBand band)

static uint32_t	GetMaxPsduSize (WifiModulationClass modulation)
	Get the maximum PSDU size in bytes for the given modulation class. More...

static Time	GetPayloadDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, MpduType mpdutype=NORMAL_MPDU, uint16_t staId=SU_STA_ID)

static Time	GetPayloadDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, MpduType mpdutype, bool incFlag, uint32_t &totalAmpduSize, double &totalAmpduNumSymbols, uint16_t staId)

static Time	GetPreambleDetectionDuration (void)

static Time	GetStartOfPacketDuration (const WifiTxVector &txVector)

static const Ptr< const PhyEntity >	GetStaticPhyEntity (WifiModulationClass modulation)
	Get the implemented PHY entity corresponding to the modulation class. More...

static TypeId	GetTypeId (void)
	Get the type ID. More...

static WifiConstPsduMap	GetWifiConstPsduMap (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector)
	Get a WifiConstPsduMap from a PSDU and the TXVECTOR to use to send the PSDU. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Ptr< OfdmaTestHePhy >	m_ofdmTestHePhy
	Pointer to HE PHY instance used for OFDMA test. More...

TracedCallback< uint64_t >	m_phyTxPpduUidTrace
	Callback providing UID of the PPDU that is about to be transmitted. More...

Additional Inherited Members
Static Public Attributes inherited from ns3::WifiPhy
static const std::set< FrequencyChannelInfo >	m_frequencyChannels
	Available frequency channels. More...

Protected Member Functions inherited from ns3::SpectrumWifiPhy
WifiSpectrumBand	GetBand (uint16_t bandWidth, uint8_t bandIndex=0) override
	Get the start band index and the stop band index for a given band. More...

Protected Member Functions inherited from ns3::WifiPhy
void	AddPhyEntity (WifiModulationClass modulation, Ptr< PhyEntity > phyEntity)
	Add the PHY entity to the map of supported PHY entities for the given modulation class for the WifiPhy instance. More...

Time	DoChannelSwitch (void)
	Perform any actions necessary when user changes operating channel after initialization. More...

uint16_t	GetMeasurementChannelWidth (const Ptr< const WifiPpdu > ppdu) const
	Return the channel width used to measure the RSSI. More...

WifiSpectrumBand	GetPrimaryBand (uint16_t bandWidth)
	If the operating channel width is a multiple of 20 MHz, return the start band index and the stop band index for the primary channel of the given bandwidth (which must be a multiple of 20 MHz and not exceed the operating channel width). More...

void	Reset (void)
	Reset data upon end of TX or RX. More...

void	SwitchMaybeToCcaBusy (uint16_t channelWidth)
	Check if PHY state should move to CCA busy state based on current state of interference tracker. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::WifiPhy
Ptr< Event >	m_currentEvent
	Hold the current event. More...

std::map< std::pair< uint64_t, WifiPreamble >, Ptr< Event > >	m_currentPreambleEvents
	store event associated to a PPDU (that has a unique ID and preamble combination) whose preamble is being received More...

EventId	m_endPhyRxEvent
	the end of PHY receive event More...

EventId	m_endTxEvent
	the end of transmit event More...

InterferenceHelper	m_interference
	the class handling interference computations More...

std::map< WifiModulationClass, Ptr< PhyEntity > >	m_phyEntities
	This map holds the supported PHY entities. More...

uint64_t	m_previouslyRxPpduUid
	UID of the previously received PPDU, reset to UINT64_MAX upon transmission. More...

Ptr< UniformRandomVariable >	m_random
	Provides uniform random variables. More...

uint32_t	m_rxMpduReferenceNumber
	A-MPDU reference number to identify all received subframes belonging to the same received A-MPDU. More...

Ptr< WifiPhyStateHelper >	m_state
	Pointer to WifiPhyStateHelper. More...

uint32_t	m_txMpduReferenceNumber
	A-MPDU reference number to identify all transmitted subframes belonging to the same received A-MPDU. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

SpectrumWifiPhy used for testing OFDMA.

Definition at line 124 of file wifi-phy-ofdma-test.cc.

Member Typedef Documentation

◆ TxPpduUidCallback

typedef void(* OfdmaSpectrumWifiPhy::TxPpduUidCallback) (uint64_t uid)

TracedCallback signature for UID of transmitted PPDU.

Parameters

uid	the UID of the transmitted PPDU

Definition at line 150 of file wifi-phy-ofdma-test.cc.

Constructor & Destructor Documentation

◆ OfdmaSpectrumWifiPhy()

OfdmaSpectrumWifiPhy::OfdmaSpectrumWifiPhy ( uint16_t staId )

Constructor.

Parameters

staId the ID of the STA to which this PHY belongs to

Definition at line 221 of file wifi-phy-ofdma-test.cc.

References m_ofdmTestHePhy, and ns3::PhyEntity::SetOwner().

Here is the call graph for this function:

◆ ~OfdmaSpectrumWifiPhy()

OfdmaSpectrumWifiPhy::~OfdmaSpectrumWifiPhy ( )

virtual

Definition at line 228 of file wifi-phy-ofdma-test.cc.

Member Function Documentation

◆ DoDispose()

void OfdmaSpectrumWifiPhy::DoDispose ( void )

overridevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::SpectrumWifiPhy.

Definition at line 241 of file wifi-phy-ofdma-test.cc.

References m_ofdmTestHePhy.

◆ DoInitialize()

void OfdmaSpectrumWifiPhy::DoInitialize ( void )

overridevirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::SpectrumWifiPhy.

Definition at line 233 of file wifi-phy-ofdma-test.cc.

References m_ofdmTestHePhy, ns3::WifiPhy::m_phyEntities, and ns3::WIFI_MOD_CLASS_HE.
