Doxygen introspection did not find any typical Config paths. More...
#include <bs-scheduler-simple.h>
Public Member Functions | |
BSSchedulerSimple () | |
BSSchedulerSimple (Ptr< BaseStationNetDevice > bs) | |
~BSSchedulerSimple (void) | |
void | AddDownlinkBurst (Ptr< const WimaxConnection > connection, uint8_t diuc, WimaxPhy::ModulationType modulationType, Ptr< PacketBurst > burst) |
Ptr< PacketBurst > | CreateUgsBurst (ServiceFlow *serviceFlow, WimaxPhy::ModulationType modulationType, uint32_t availableSymbols) |
std::list< std::pair < OfdmDlMapIe *, Ptr < PacketBurst > > > * | GetDownlinkBursts (void) const |
void | Schedule (void) |
bool | SelectConnection (Ptr< WimaxConnection > &connection) |
![]() | |
BSScheduler () | |
BSScheduler (Ptr< BaseStationNetDevice > bs) | |
~BSScheduler (void) | |
bool | CheckForFragmentation (Ptr< WimaxConnection > connection, int availableSymbols, WimaxPhy::ModulationType modulationType) |
virtual Ptr< BaseStationNetDevice > | GetBs (void) |
virtual void | SetBs (Ptr< BaseStationNetDevice > bs) |
![]() | |
Object () | |
virtual | ~Object () |
void | AggregateObject (Ptr< Object > other) |
void | Dispose (void) |
Run the DoDispose methods of this object and all the objects aggregated to it. More... | |
AggregateIterator | GetAggregateIterator (void) const |
virtual TypeId | GetInstanceTypeId (void) const |
template<typename T > | |
Ptr< T > | GetObject (void) const |
template<typename T > | |
Ptr< T > | GetObject (TypeId tid) const |
void | Initialize (void) |
This method calls the virtual DoInitialize method on all the objects aggregated to this object. More... | |
![]() | |
SimpleRefCount () | |
Constructor. More... | |
SimpleRefCount (const SimpleRefCount &o) | |
Copy constructor. More... | |
uint32_t | GetReferenceCount (void) const |
Get the reference count of the object. More... | |
SimpleRefCount & | operator= (const SimpleRefCount &o) |
Assignment. More... | |
void | Ref (void) const |
Increment the reference count. More... | |
void | Unref (void) const |
Decrement the reference count. More... | |
![]() | |
virtual | ~ObjectBase () |
Virtual destructor. More... | |
void | GetAttribute (std::string name, AttributeValue &value) const |
bool | GetAttributeFailSafe (std::string name, AttributeValue &attribute) const |
void | SetAttribute (std::string name, const AttributeValue &value) |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Static Public Member Functions | |
static TypeId | GetTypeId (void) |
![]() | |
static TypeId | GetTypeId (void) |
![]() | |
static TypeId | GetTypeId (void) |
Register this type. More... | |
![]() | |
static void | Cleanup (void) |
Noop. More... | |
![]() | |
static TypeId | GetTypeId (void) |
Get the type ID. More... | |
Private Attributes | |
std::list< std::pair < OfdmDlMapIe *, Ptr < PacketBurst > > > * | m_downlinkBursts |
Additional Inherited Members | |
![]() | |
Object (const Object &o) | |
virtual void | DoDispose (void) |
This method is called by Object::Dispose or by the object's destructor, whichever comes first. More... | |
virtual void | DoInitialize (void) |
This method is called only once by Object::Initialize. More... | |
virtual void | NotifyNewAggregate (void) |
This method is invoked whenever two sets of objects are aggregated together. More... | |
![]() | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
virtual void | NotifyConstructionCompleted (void) |
This method is invoked once all member attributes have been initialized. More... | |
Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Definition at line 43 of file bs-scheduler-simple.h.
ns3::BSSchedulerSimple::BSSchedulerSimple | ( | ) |
Definition at line 51 of file bs-scheduler-simple.cc.
References ns3::BSScheduler::SetBs().
ns3::BSSchedulerSimple::BSSchedulerSimple | ( | Ptr< BaseStationNetDevice > | bs | ) |
Definition at line 57 of file bs-scheduler-simple.cc.
References ns3::BSScheduler::SetBs().
ns3::BSSchedulerSimple::~BSSchedulerSimple | ( | void | ) |
Definition at line 65 of file bs-scheduler-simple.cc.
References m_downlinkBursts, and ns3::BSScheduler::SetBs().
|
virtual |
Implements ns3::BSScheduler.
Definition at line 86 of file bs-scheduler-simple.cc.
References m_downlinkBursts, NS_LOG_INFO, ns3::OfdmDlMapIe::SetCid(), ns3::OfdmDlMapIe::SetDiuc(), and ns3::Cid::TRANSPORT.
Referenced by Schedule().
|

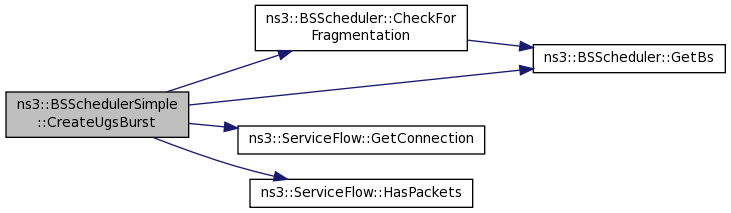

virtual |
Implements ns3::BSScheduler.
Definition at line 326 of file bs-scheduler-simple.cc.
References ns3::BSScheduler::CheckForFragmentation(), ns3::BSScheduler::GetBs(), ns3::ServiceFlow::GetConnection(), ns3::ServiceFlow::HasPackets(), and ns3::MacHeaderType::HEADER_TYPE_GENERIC.
Referenced by Schedule().
|
virtual |
Implements ns3::BSScheduler.
Definition at line 81 of file bs-scheduler-simple.cc.
References m_downlinkBursts.
|
static |
Definition at line 45 of file bs-scheduler-simple.cc.
References ns3::TypeId::SetParent().
|

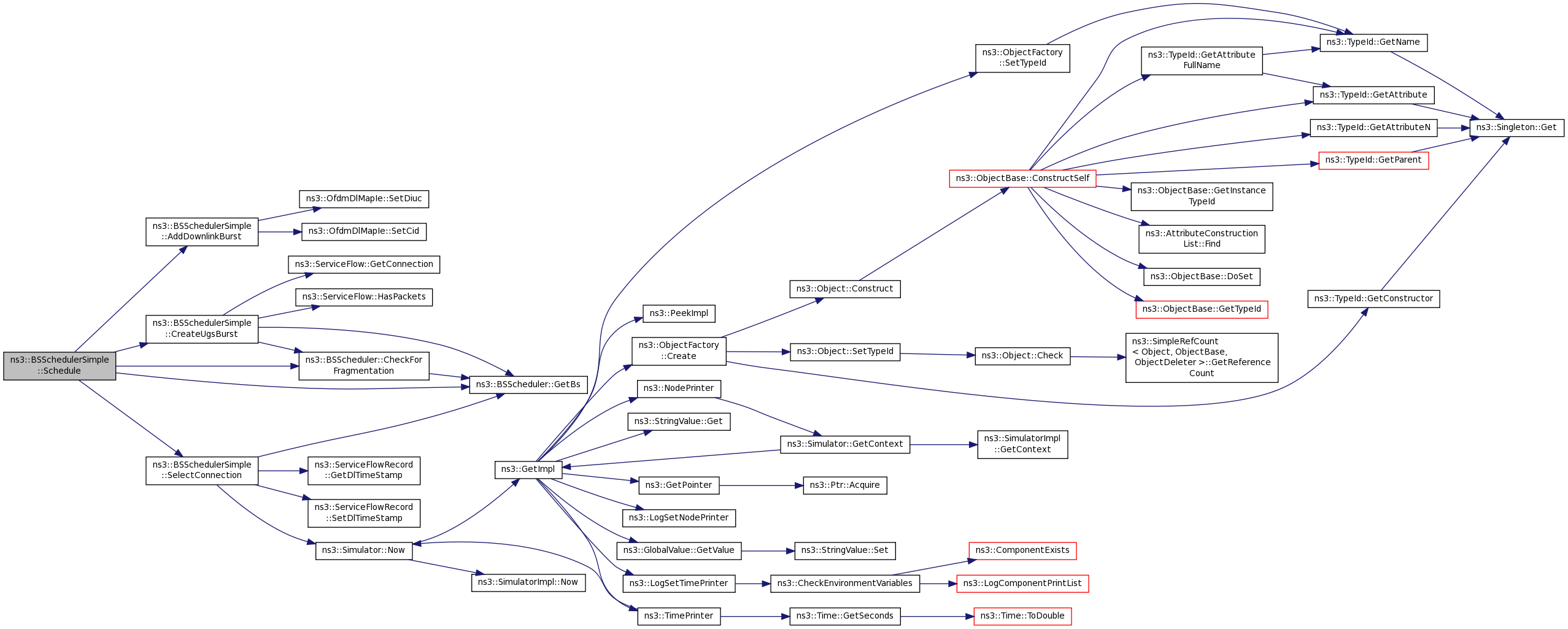

virtual |
Implements ns3::BSScheduler.
Definition at line 107 of file bs-scheduler-simple.cc.
References AddDownlinkBurst(), ns3::Cid::BASIC, ns3::BSScheduler::CheckForFragmentation(), CreateUgsBurst(), ns3::WimaxNetDevice::DIRECTION_DOWNLINK, ns3::OfdmDlBurstProfile::DIUC_BURST_PROFILE_1, ns3::BSScheduler::GetBs(), ns3::MacHeaderType::HEADER_TYPE_GENERIC, m_downlinkBursts, ns3::WimaxPhy::MODULATION_TYPE_BPSK_12, ns3::Cid::MULTICAST, NS_LOG_DEBUG, ns3::Cid::PRIMARY, SelectConnection(), ns3::ServiceFlow::SF_TYPE_ALL, ns3::ServiceFlow::SF_TYPE_NONE, ns3::ServiceFlow::SF_TYPE_UGS, and ns3::Cid::TRANSPORT.
|

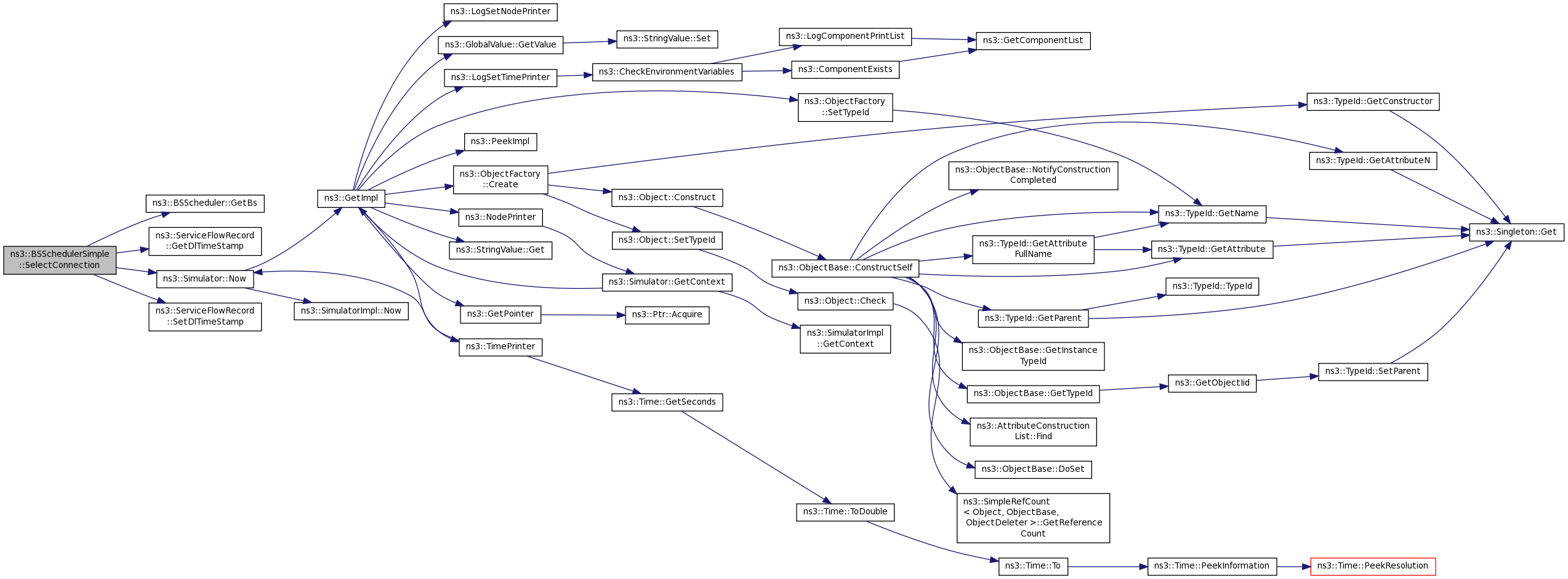

virtual |
Implements ns3::BSScheduler.
Definition at line 218 of file bs-scheduler-simple.cc.
References ns3::Cid::BASIC, ns3::BSScheduler::GetBs(), ns3::ServiceFlowRecord::GetDlTimeStamp(), ns3::Simulator::Now(), NS_LOG_INFO, ns3::Cid::PRIMARY, ns3::ServiceFlowRecord::SetDlTimeStamp(), ns3::ServiceFlow::SF_TYPE_BE, ns3::ServiceFlow::SF_TYPE_NRTPS, ns3::ServiceFlow::SF_TYPE_RTPS, and ns3::ServiceFlow::SF_TYPE_UGS.
Referenced by Schedule().
|
private |
Definition at line 91 of file bs-scheduler-simple.h.
Referenced by AddDownlinkBurst(), GetDownlinkBursts(), Schedule(), and ~BSSchedulerSimple().
