ns3::OcbWifiMac Class Reference

STAs communicate with each directly outside the context of a BSSIn OCB mac mode,synchronization, association, dis-association and authentication of normal wifi are not used for wireless access in vehicular environments. More...

#include "ocb-wifi-mac.h"

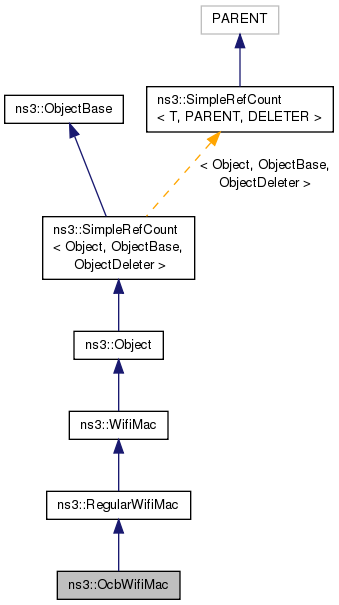

+ Inheritance diagram for ns3::OcbWifiMac:

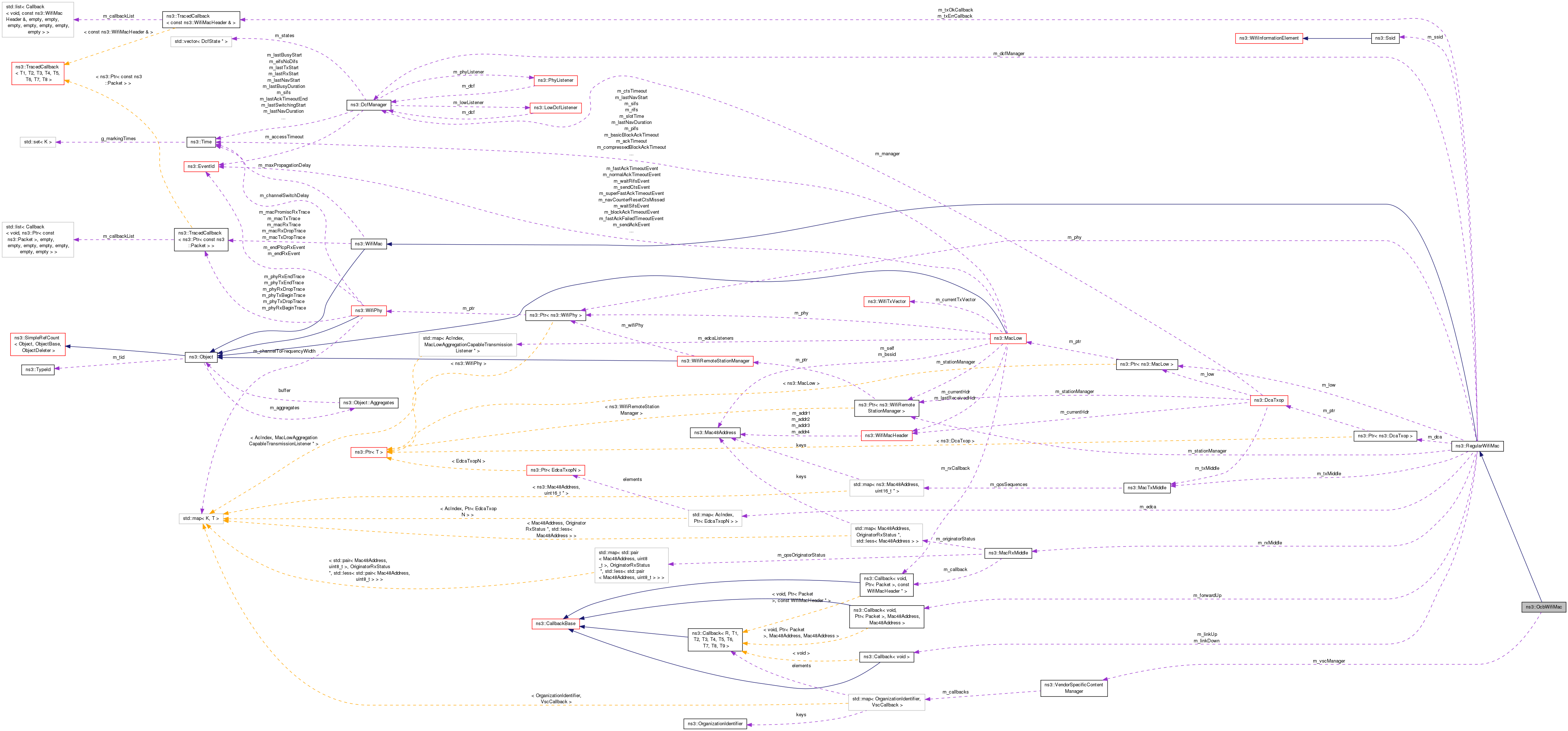

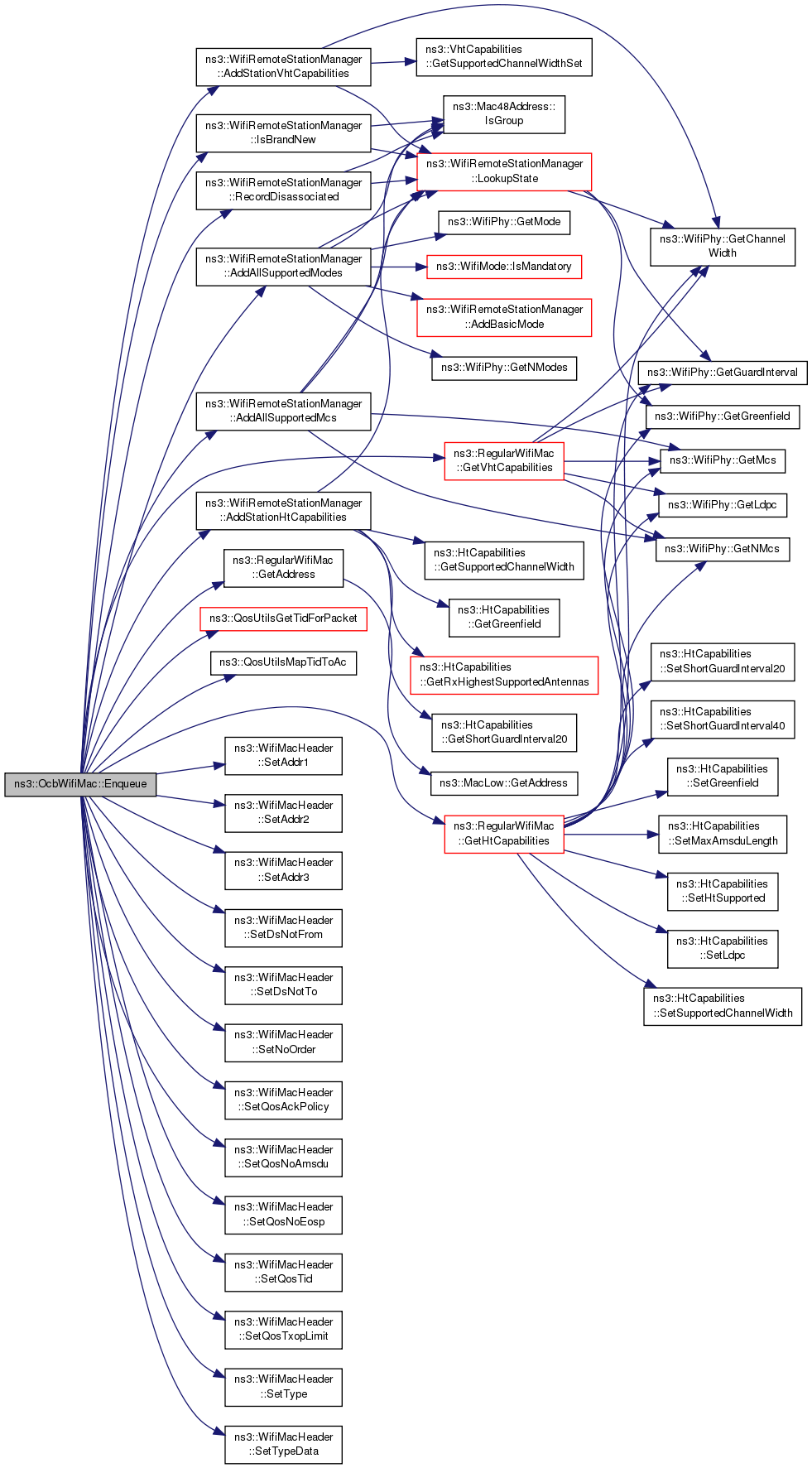

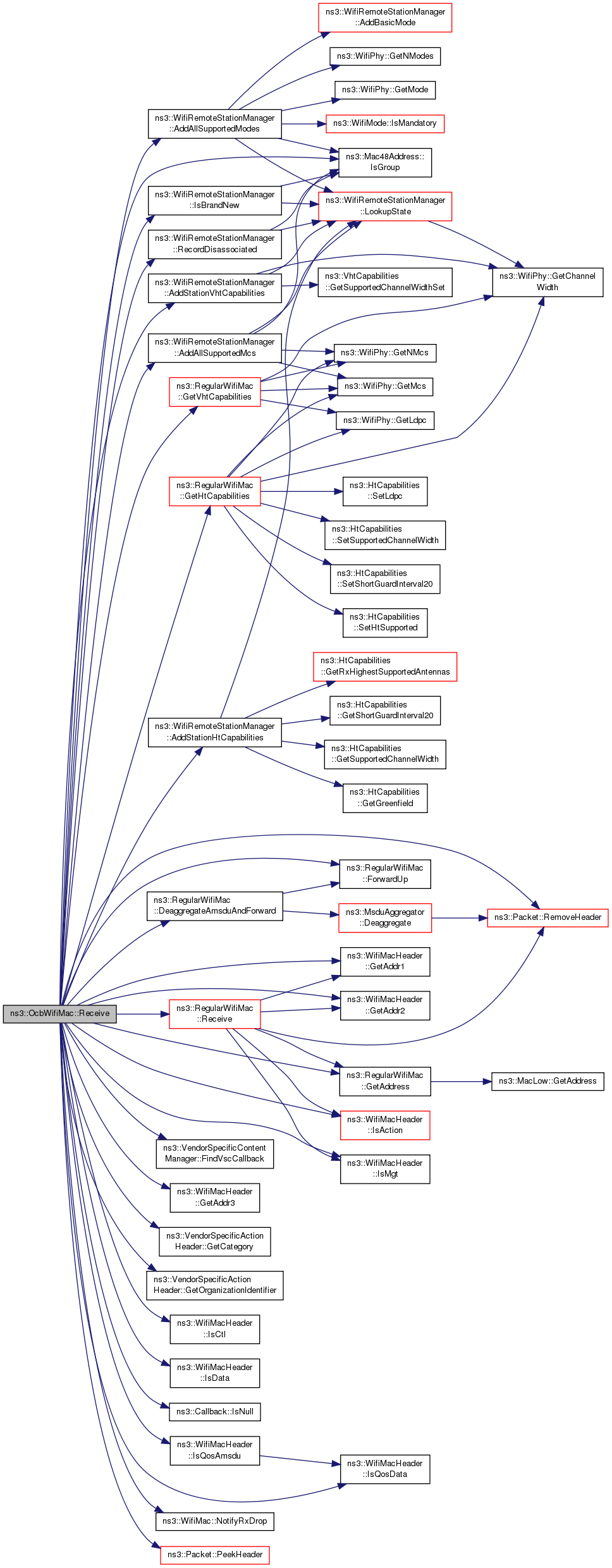

+ Collaboration diagram for ns3::OcbWifiMac:

Public Member Functions

 OcbWifiMac (void)

virtual ~OcbWifiMac (void)

void AddReceiveVscCallback (OrganizationIdentifier oi, VscCallback cb)

void CancleTx (enum AcIndex ac)

void ConfigureEdca (uint32_t cwmin, uint32_t cwmax, uint32_t aifsn, enum AcIndex ac)

void EnableForWave (Ptr< WaveNetDevice > device)

virtual void Enqueue (Ptr< const Packet > packet, Mac48Address to)

virtual Mac48Address GetBssid (void) const

virtual Ssid GetSsid (void) const

void MakeVirtualBusy (Time duration)

void RemoveReceiveVscCallback (OrganizationIdentifier oi)

void Reset (void)
 To support MAC extension for multiple channel operation, Reset current MAC entity and flush its internal queues. More...

void Resume (void)
 To support MAC extension for multiple channel operation, Resume the activity of suspended MAC entity. More...

void SendVsc (Ptr< Packet > vsc, Mac48Address peer, OrganizationIdentifier oi)

virtual void SetBssid (Mac48Address bssid)

virtual void SetLinkDownCallback (Callback< void > linkDown)

virtual void SetLinkUpCallback (Callback< void > linkUp)
 SetLinkUpCallback and SetLinkDownCallback will be overloaded In OCB mode, stations can send packets directly whenever they want so the link is always up and never down even during channel switch. More...

virtual void SetSsid (Ssid ssid)

void Suspend (void)
 To support MAC extension for multiple channel operation, Suspend the activity in current MAC entity. More...

- Public Member Functions inherited from ns3::RegularWifiMac
 RegularWifiMac ()

virtual ~RegularWifiMac ()

virtual void Enqueue (Ptr< const Packet > packet, Mac48Address to, Mac48Address from)

Time GetAckTimeout (void) const

virtual Mac48Address GetAddress (void) const

virtual Time GetBasicBlockAckTimeout (void) const

virtual Time GetCompressedBlockAckTimeout (void) const

Time GetCtsTimeout (void) const

bool GetCtsToSelfSupported () const
 Return whether the device supports CTS-to-self capability. More...

Time GetEifsNoDifs (void) const

HtCapabilities GetHtCapabilities (void) const
 Return the HT capability of the device. More...

Time GetPifs (void) const

Time GetRifs (void) const

virtual bool GetShortSlotTimeSupported (void) const

Time GetSifs (void) const

Time GetSlot (void) const

VhtCapabilities GetVhtCapabilities (void) const
 Return the VHT capability of the device. More...

virtual Ptr< WifiPhyGetWifiPhy (void) const

virtual Ptr< WifiRemoteStationManagerGetWifiRemoteStationManager (void) const

virtual void ResetWifiPhy (void)
 removes attached WifiPhy device from this MAC. More...

void SetAckTimeout (Time ackTimeout)

virtual void SetAddress (Mac48Address address)

virtual void SetBasicBlockAckTimeout (Time blockAckTimeout)

virtual void SetCompressedBlockAckTimeout (Time blockAckTimeout)

void SetCtsTimeout (Time ctsTimeout)

void SetCtsToSelfSupported (bool enable)
 Enable or disable CTS-to-self feature. More...

void SetEifsNoDifs (Time eifsNoDifs)

virtual void SetForwardUpCallback (ForwardUpCallback upCallback)

void SetPifs (Time pifs)

virtual void SetPromisc (void)
 Sets the interface in promiscuous mode. More...

void SetRifs (Time rifs)

virtual void SetShortSlotTimeSupported (bool enable)
 Enable or disable short slot time feature. More...

void SetSifs (Time sifs)

void SetSlot (Time slotTime)

virtual void SetWifiPhy (Ptr< WifiPhy > phy)

virtual void SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > stationManager)

virtual bool SupportsSendFrom (void) const

- Public Member Functions inherited from ns3::WifiMac
void ConfigureStandard (enum WifiPhyStandard standard)

Time GetMaxPropagationDelay (void) const

Time GetMsduLifetime (void) const

void NotifyPromiscRx (Ptr< const Packet > packet)

void NotifyRx (Ptr< const Packet > packet)

void NotifyRxDrop (Ptr< const Packet > packet)

void NotifyTx (Ptr< const Packet > packet)

void NotifyTxDrop (Ptr< const Packet > packet)

virtual void SetForwardUpCallback (Callback< void, Ptr< Packet >, Mac48Address, Mac48Address > upCallback)=0

void SetMaxPropagationDelay (Time delay)

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::RegularWifiMac
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::WifiMac
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Member Functions

virtual void FinishConfigureStandard (enum WifiPhyStandard standard)

- Protected Member Functions inherited from ns3::RegularWifiMac
void ConfigureContentionWindow (uint32_t cwMin, uint32_t cwMax)

virtual void DeaggregateAmsduAndForward (Ptr< Packet > aggregatedPacket, const WifiMacHeader *hdr)
 This method can be called to de-aggregate an A-MSDU and forward the constituent packets up the stack. More...

virtual void DoDispose ()
 Destructor implementation. More...

virtual void DoInitialize ()
 Initialize() implementation. More...

void ForwardUp (Ptr< Packet > packet, Mac48Address from, Mac48Address to)
 Forward the packet up to the device. More...

Ptr< EdcaTxopNGetBEQueue (void) const
 Accessor for the AC_BE channel access function. More...

Ptr< EdcaTxopNGetBKQueue (void) const
 Accessor for the AC_BK channel access function. More...

Ptr< DcaTxopGetDcaTxop (void) const
 Accessor for the DCF object. More...

bool GetDsssSupported () const
 Return whether the device supports DSSS. More...

bool GetErpSupported () const
 Return whether the device supports ERP. More...

bool GetHtSupported () const
 Return whether the device supports HT. More...

bool GetQosSupported () const
 Return whether the device supports QoS. More...

bool GetVhtSupported () const
 Return whether the device supports VHT. More...

Ptr< EdcaTxopNGetVIQueue (void) const
 Accessor for the AC_VI channel access function. More...

Ptr< EdcaTxopNGetVOQueue (void) const
 Accessor for the AC_VO channel access function. More...

virtual void SendAddBaResponse (const MgtAddBaRequestHeader *reqHdr, Mac48Address originator)
 This method can be called to accept a received ADDBA Request. More...

void SetDsssSupported (bool enable)
 Enable or disable DSSS support for the device. More...

void SetErpSupported (bool enable)
 Enable or disable ERP support for the device. More...

void SetHtSupported (bool enable)
 Enable or disable HT support for the device. More...

void SetQosSupported (bool enable)
 Enable or disable QoS support for the device. More...

void SetTypeOfStation (TypeOfStation type)
 This method is invoked by a subclass to specify what type of station it is implementing. More...

void SetVhtSupported (bool enable)
 Enable or disable VHT support for the device. More...

virtual void TxFailed (const WifiMacHeader &hdr)
 The packet we sent was successfully received by the receiver (i.e. More...

virtual void TxOk (const WifiMacHeader &hdr)
 The packet we sent was successfully received by the receiver (i.e. More...

- Protected Member Functions inherited from ns3::WifiMac
void ConfigureDcf (Ptr< Dcf > dcf, uint32_t cwmin, uint32_t cwmax, bool isDsss, enum AcIndex ac)

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Private Member Functions

virtual void Receive (Ptr< Packet > packet, const WifiMacHeader *hdr)
 This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received. More...


Private Attributes

VendorSpecificContentManager m_vscManager


Additional Inherited Members

- Public Types inherited from ns3::RegularWifiMac
typedef Callback< void, Ptr< Packet >, Mac48Address, Mac48AddressForwardUpCallback
 This type defines the callback of a higher layer that a WifiMac(-derived) object invokes to pass a packet up the stack. More...

- Protected Types inherited from ns3::RegularWifiMac
typedef std::map< AcIndex, Ptr< EdcaTxopN > > EdcaQueues
 This type defines a mapping between an Access Category index, and a pointer to the corresponding channel access function. More...

- Protected Attributes inherited from ns3::RegularWifiMac
Ptr< DcaTxopm_dca
 This holds a pointer to the DCF instance for this WifiMac - used for transmission of frames to non-QoS peers. More...

DcfManagerm_dcfManager
 DCF manager (access to channel) More...

bool m_dsssSupported
 This Boolean is set true iff this WifiMac is to model 802.11b. More...

EdcaQueues m_edca
 This is a map from Access Category index to the corresponding channel access function. More...

bool m_erpSupported
 This Boolean is set true iff this WifiMac is to model 802.11g. More...

ForwardUpCallback m_forwardUp
 Callback to forward packet up the stack. More...

bool m_htSupported
 This Boolean is set true iff this WifiMac is to model 802.11n. More...

Callback< void > m_linkDown
 Callback when a link is down. More...

Callback< void > m_linkUp
 Callback when a link is up. More...

Ptr< MacLowm_low
 MacLow (RTS, CTS, DATA, ACK etc.) More...

Ptr< WifiPhym_phy
 Wifi PHY. More...

bool m_qosSupported
 This Boolean is set true iff this WifiMac is to model 802.11e/WMM style Quality of Service. More...

MacRxMiddlem_rxMiddle
 RX middle (de-fragmentation etc.) More...

Ssid m_ssid
 Service Set ID (SSID) More...

Ptr< WifiRemoteStationManagerm_stationManager
 Remote station manager (rate control, RTS/CTS/fragmentation thresholds etc.) More...

MacTxMiddlem_txMiddle
 TX middle (aggregation etc.) More...

bool m_vhtSupported
 This Boolean is set true iff this WifiMac is to model 802.11ac. More...


Detailed Description

STAs communicate with each directly outside the context of a BSS

In OCB mac mode,synchronization, association, dis-association and authentication of normal wifi are not used for wireless access in vehicular environments.

Although Timing Advertisement frame is a specific management frame defined in 802.11p. It is mainly used by IEEE Std 1609.4 for channel switch synchronization. However in simulation nodes are supposed to have GPS synchronization ability, so we will not implement this feature.

Config Paths

ns3::OcbWifiMac is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/$ns3::OcbWifiMac"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::OcbWifiMac"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/MacEntities/[i]"

No Attributes are defined for this type.

Attributes defined in parent class ns3::RegularWifiMac

  • QosSupported: This Boolean attribute is set to enable 802.11e/WMM-style QoS support at this STA.
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read
  • HtSupported: This Boolean attribute is set to enable 802.11n support at this STA.
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read
  • VhtSupported: This Boolean attribute is set to enable 802.11ac support at this STA.
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read
  • CtsToSelfSupported: Use CTS to Self when using a rate that is not in the basic rate set.
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read
  • VO_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VO access class.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 0
    • Flags: construct write
  • VI_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VI access class.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 0
    • Flags: construct write
  • BE_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BE access class.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 0
    • Flags: construct write
  • BK_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BK access class.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 0
    • Flags: construct write
  • VO_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VO access class.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 0
    • Flags: construct write
  • VI_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VI access class.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 65535
    • Flags: construct write
  • BE_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BE access class.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 65535
    • Flags: construct write
  • BK_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BK access class.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 0
    • Flags: construct write
  • VO_BlockAckThreshold: If number of packets in VO queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint8_t 0:64
    • Initial value: 0
    • Flags: construct write
  • VI_BlockAckThreshold: If number of packets in VI queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint8_t 0:64
    • Initial value: 0
    • Flags: construct write
  • BE_BlockAckThreshold: If number of packets in BE queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint8_t 0:64
    • Initial value: 0
    • Flags: construct write
  • BK_BlockAckThreshold: If number of packets in BK queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint8_t 0:64
    • Initial value: 0
    • Flags: construct write
  • VO_BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ackinactivity for AC_VO. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:65535
    • Initial value: 0
    • Flags: construct write
  • VI_BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ackinactivity for AC_VI. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:65535
    • Initial value: 0
    • Flags: construct write
  • BE_BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ackinactivity for AC_BE. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:65535
    • Initial value: 0
    • Flags: construct write
  • BK_BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ackinactivity for AC_BK. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:65535
    • Initial value: 0
    • Flags: construct write
  • ShortSlotTimeSupported: Whether or not short slot time is supported (only used by ERP APs or STAs).
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write read
  • DcaTxop: The DcaTxop object.
  • VO_EdcaTxopN: Queue that manages packets belonging to AC_VO access class.
  • VI_EdcaTxopN: Queue that manages packets belonging to AC_VI access class.
  • BE_EdcaTxopN: Queue that manages packets belonging to AC_BE access class.
  • BK_EdcaTxopN: Queue that manages packets belonging to AC_BK access class.

Attributes defined in parent class ns3::WifiMac

  • CtsTimeout: When this timeout expires, the RTS/CTS handshake has failed.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +75000.0ns
    • Flags: construct write read
  • AckTimeout: When this timeout expires, the DATA/ACK handshake has failed.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +75000.0ns
    • Flags: construct write read
  • BasicBlockAckTimeout: When this timeout expires, the BASIC_BLOCK_ACK_REQ/BASIC_BLOCK_ACK handshake has failed.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +281000.0ns
    • Flags: construct write read
  • CompressedBlockAckTimeout: When this timeout expires, the COMPRESSED_BLOCK_ACK_REQ/COMPRESSED_BLOCK_ACK handshake has failed.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +107000.0ns
    • Flags: construct write read
  • Sifs: The value of the SIFS constant.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +16000.0ns
    • Flags: construct write read
  • EifsNoDifs: The value of EIFS-DIFS.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +60000.0ns
    • Flags: construct write read
  • Slot: The duration of a Slot.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +9000.0ns
    • Flags: construct write read
  • Pifs: The value of the PIFS constant.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +25000.0ns
    • Flags: construct write read
  • Rifs: The value of the RIFS constant.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +2000.0ns
    • Flags: construct write read
  • MaxPropagationDelay: The maximum propagation delay. Unused for now.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +3333.0ns
    • Flags: construct write read
  • Ssid: The ssid we want to belong to.
    • Set with class: SsidValue
    • Underlying type: Ssid
    • Initial value: default
    • Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::RegularWifiMac

TraceSources defined in parent class ns3::WifiMac

  • MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
    Callback signature: ns3::Packet::TracedCallback
  • MacTxDrop: A packet has been dropped in the MAC layer before being queued for transmission.
    Callback signature: ns3::Packet::TracedCallback
  • MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace.
    Callback signature: ns3::Packet::TracedCallback
  • MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace.
    Callback signature: ns3::Packet::TracedCallback
  • MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.
    Callback signature: ns3::Packet::TracedCallback

Size of this type is 432 bytes (on a 64-bit architecture).

Definition at line 48 of file ocb-wifi-mac.h.

Constructor & Destructor Documentation

ns3::OcbWifiMac::OcbWifiMac ( void  )

Definition at line 53 of file ocb-wifi-mac.cc.

References NS_LOG_FUNCTION, ns3::OCB, ns3::RegularWifiMac::SetBssid(), and ns3::RegularWifiMac::SetTypeOfStation().

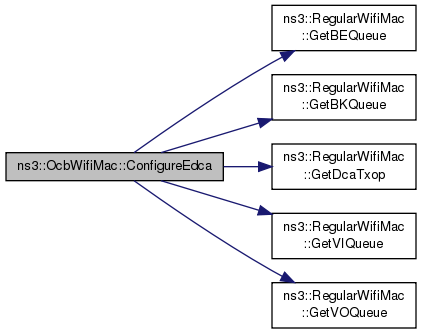

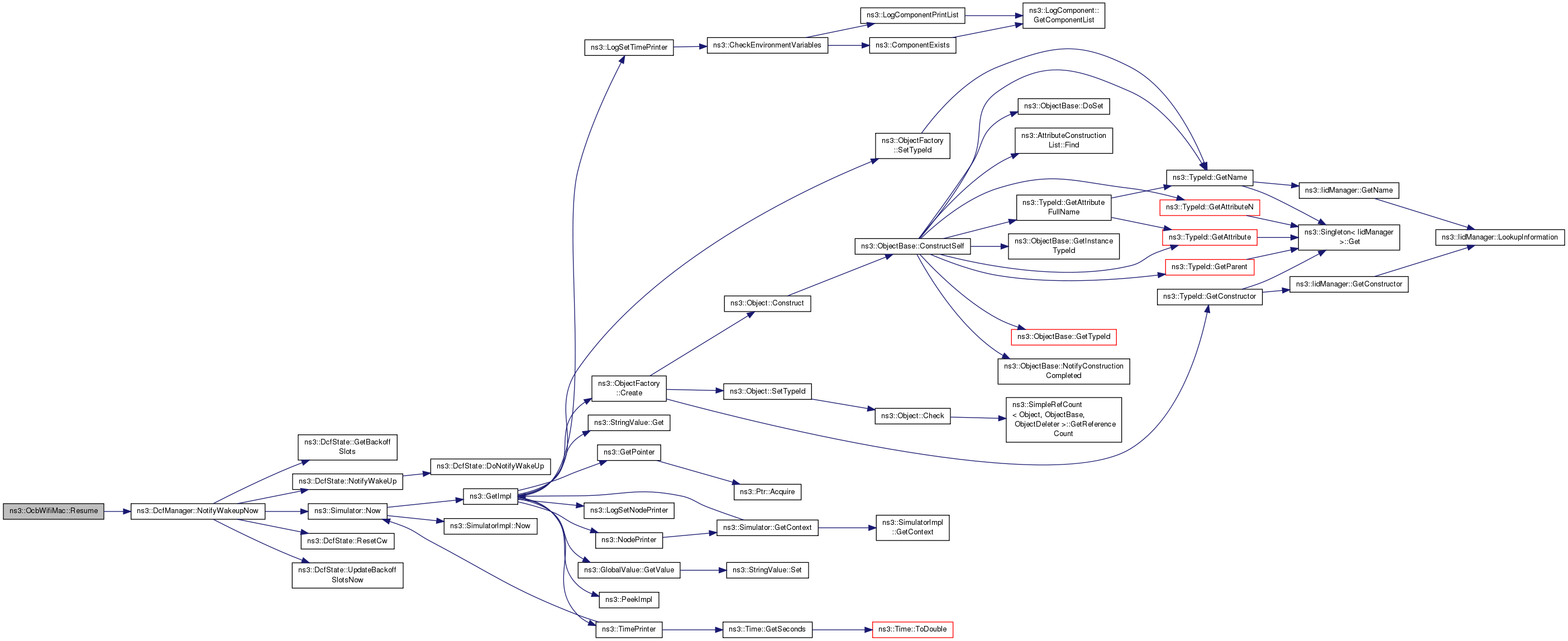

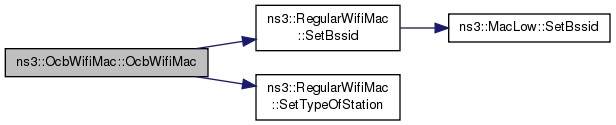

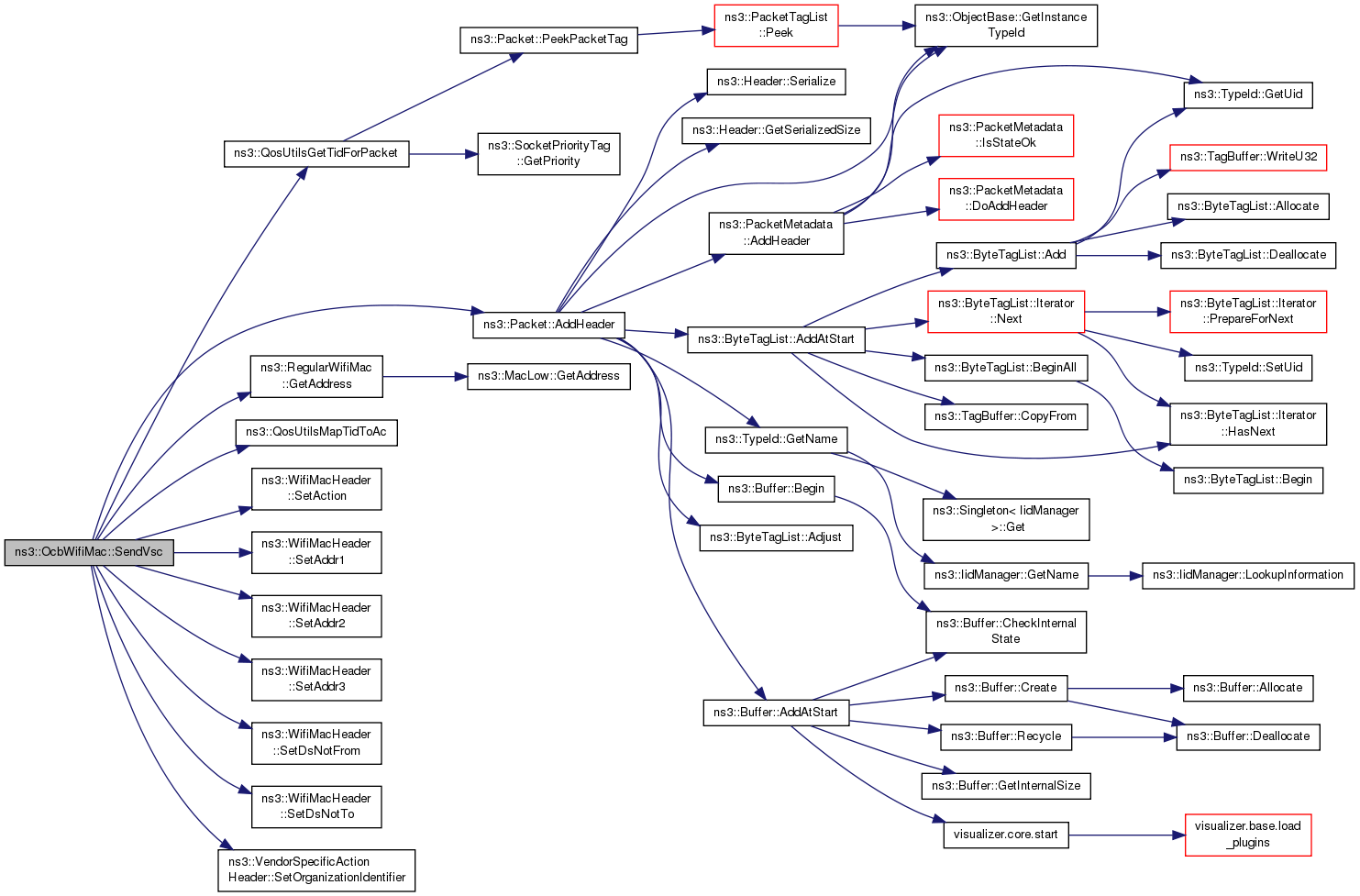

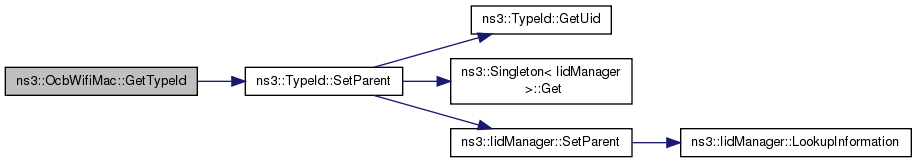

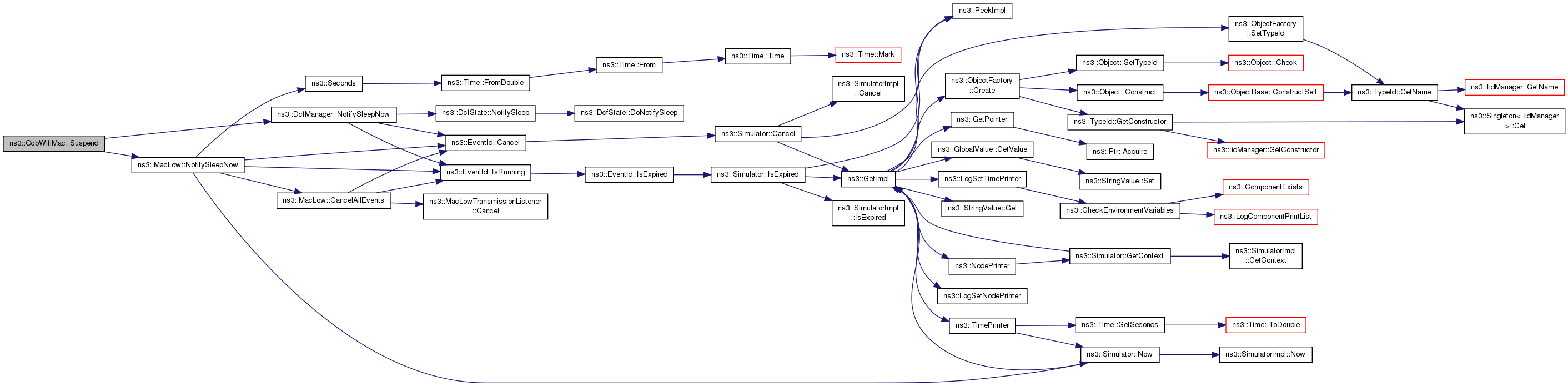

+ Here is the call graph for this function:

ns3::OcbWifiMac::~OcbWifiMac ( void  )
virtual

Definition at line 62 of file ocb-wifi-mac.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::OcbWifiMac::AddReceiveVscCallback ( OrganizationIdentifier  oi,
VscCallback  cb
)
Parameters
oiOrganization Identifier
cbcallback to invoke whenever a vender specific action frame has been received and must be forwarded to the higher layers. every node shall register first if it wants to receive specific vendor specific content.

Definition at line 95 of file ocb-wifi-mac.cc.

References m_vscManager, NS_LOG_FUNCTION, and ns3::VendorSpecificContentManager::RegisterVscCallback().

+ Here is the call graph for this function:

void ns3::OcbWifiMac::CancleTx ( enum AcIndex  ac)
Parameters
acthe specified access category

To support MAC extension for multiple channel operation, Cancel transmit operation for internal queue associated with a specified Access Category.

Definition at line 415 of file ocb-wifi-mac.cc.

References ns3::RegularWifiMac::m_edca, ns3::EdcaTxopN::NotifyChannelSwitching(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::WaveNetDevice::CancelTx().

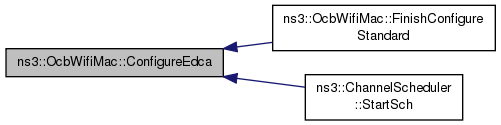

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::OcbWifiMac::ConfigureEdca ( uint32_t  cwmin,
uint32_t  cwmax,
uint32_t  aifsn,
enum AcIndex  ac
)
Parameters
cwminthe min contention window
cwmaxthe max contention window
aifsnthe arbitration inter-frame space
acthe access category index

configure EDCA queue parameters

Definition at line 325 of file ocb-wifi-mac.cc.

References ns3::AC_BE, ns3::AC_BE_NQOS, ns3::AC_BK, ns3::AC_UNDEF, ns3::AC_VI, ns3::AC_VO, ns3::RegularWifiMac::GetBEQueue(), ns3::RegularWifiMac::GetBKQueue(), ns3::RegularWifiMac::GetDcaTxop(), ns3::RegularWifiMac::GetVIQueue(), ns3::RegularWifiMac::GetVOQueue(), NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by FinishConfigureStandard(), and ns3::ChannelScheduler::StartSch().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::OcbWifiMac::EnableForWave ( Ptr< WaveNetDevice device)
Parameters
devicemake current MAC entity associated with WaveNetDevice

To support MAC extension for multiple channel operation, WaveMacLow object will be used to replace original MacLow object.

Definition at line 434 of file ocb-wifi-mac.cc.

References ns3::RegularWifiMac::m_dca, ns3::RegularWifiMac::m_dcfManager, ns3::RegularWifiMac::m_edca, ns3::RegularWifiMac::m_low, ns3::RegularWifiMac::m_rxMiddle, ns3::MakeCallback(), NS_LOG_FUNCTION, ns3::MacRxMiddle::Receive(), ns3::MacLow::SetRxCallback(), and ns3::DcfManager::SetupLowListener().

Referenced by ns3::WaveHelper::Install().

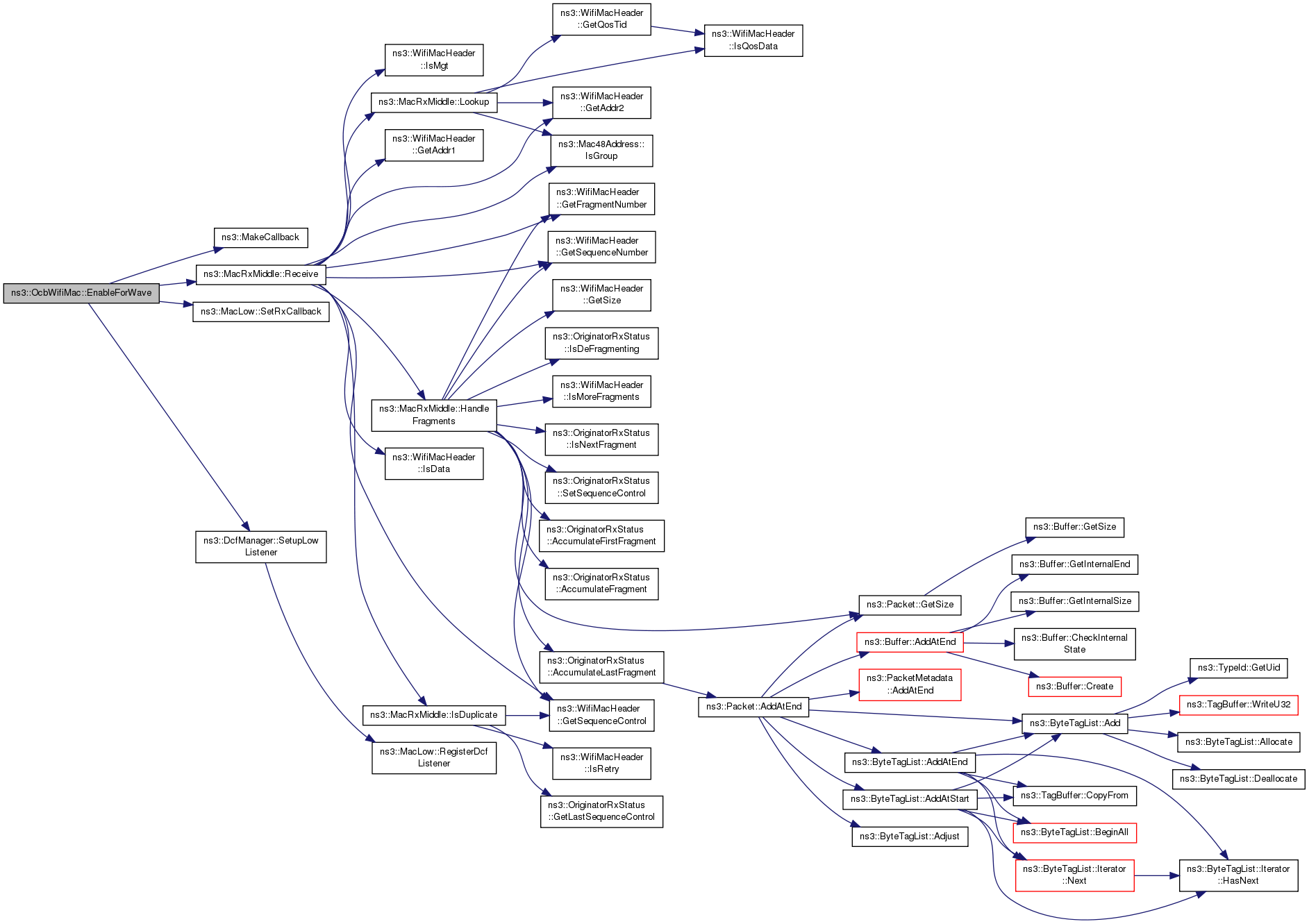

+ Here is the call graph for this function:

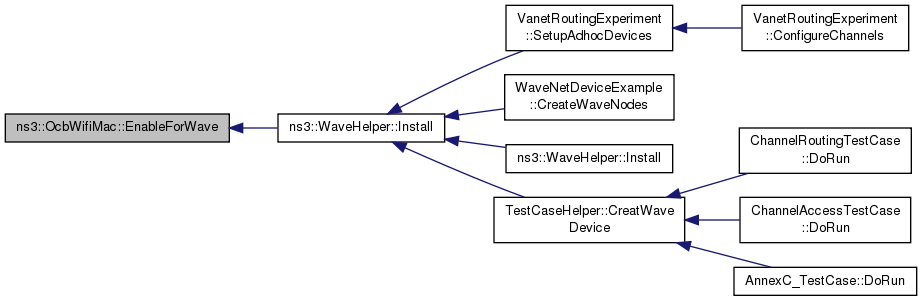

+ Here is the caller graph for this function:

void ns3::OcbWifiMac::Enqueue ( Ptr< const Packet packet,
Mac48Address  to
)
virtual
Parameters
packetthe packet to send.
tothe address to which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC.

Implements ns3::RegularWifiMac.

Definition at line 157 of file ocb-wifi-mac.cc.

References ns3::WifiRemoteStationManager::AddAllSupportedMcs(), ns3::WifiRemoteStationManager::AddAllSupportedModes(), ns3::WifiRemoteStationManager::AddStationHtCapabilities(), ns3::WifiRemoteStationManager::AddStationVhtCapabilities(), ns3::RegularWifiMac::GetAddress(), ns3::RegularWifiMac::GetHtCapabilities(), ns3::RegularWifiMac::GetVhtCapabilities(), ns3::WifiRemoteStationManager::IsBrandNew(), ns3::RegularWifiMac::m_dca, ns3::RegularWifiMac::m_edca, ns3::RegularWifiMac::m_htSupported, ns3::RegularWifiMac::m_qosSupported, ns3::RegularWifiMac::m_stationManager, ns3::RegularWifiMac::m_vhtSupported, ns3::WifiMacHeader::NORMAL_ACK, NS_ASSERT, NS_LOG_FUNCTION, ns3::QosUtilsGetTidForPacket(), ns3::QosUtilsMapTidToAc(), ns3::WifiRemoteStationManager::RecordDisassociated(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiMacHeader::SetNoOrder(), ns3::WifiMacHeader::SetQosAckPolicy(), ns3::WifiMacHeader::SetQosNoAmsdu(), ns3::WifiMacHeader::SetQosNoEosp(), ns3::WifiMacHeader::SetQosTid(), ns3::WifiMacHeader::SetQosTxopLimit(), ns3::WifiMacHeader::SetType(), ns3::WifiMacHeader::SetTypeData(), and ns3::WIFI_MAC_QOSDATA.

+ Here is the call graph for this function:

void ns3::OcbWifiMac::FinishConfigureStandard ( enum WifiPhyStandard  standard)
protectedvirtual
Parameters
standardthe phy standard to be used

This method is called by ns3::WifiMac::ConfigureStandard to complete the configuration process for a requested phy standard.

This method may be overriden by a derived class (e.g., in order to apply DCF or EDCA parameters specific to the usage model it is dealing with), in which case the reimplementation may choose to deal with certain values in the WifiPhyStandard enumeration, and chain up to this implementation to deal with the remainder.

Reimplemented from ns3::RegularWifiMac.

Definition at line 368 of file ocb-wifi-mac.cc.

References ns3::AC_BE, ns3::AC_BE_NQOS, ns3::AC_BK, ns3::AC_VI, ns3::AC_VO, ConfigureEdca(), NS_ASSERT, NS_LOG_FUNCTION, ns3::WIFI_PHY_STANDARD_80211_10MHZ, and ns3::WIFI_PHY_STANDARD_80211a.

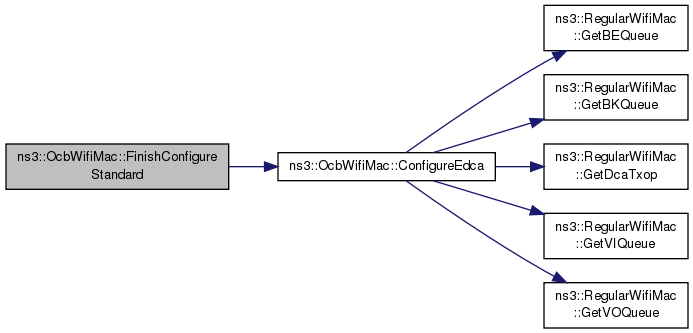

+ Here is the call graph for this function:

Mac48Address ns3::OcbWifiMac::GetBssid ( void  ) const
virtual
Parameters
bssidthe BSSID of the network that this device belongs to.

This method shall not be used in WAVE environment and here it will overloaded to log warn message

Reimplemented from ns3::RegularWifiMac.

Definition at line 130 of file ocb-wifi-mac.cc.

References NS_LOG_WARN, and ns3::WILDCARD_BSSID.

Ssid ns3::OcbWifiMac::GetSsid ( void  ) const
virtual
Returns
the ssid which this MAC layer is going to try to stay in.

This method shall not be used in WAVE environment and here it will overloaded to log warn message

Reimplemented from ns3::RegularWifiMac.

Definition at line 115 of file ocb-wifi-mac.cc.

References ns3::RegularWifiMac::GetSsid(), and NS_LOG_WARN.

+ Here is the call graph for this function:

TypeId ns3::OcbWifiMac::GetTypeId ( void  )
static

Definition at line 43 of file ocb-wifi-mac.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

void ns3::OcbWifiMac::MakeVirtualBusy ( Time  duration)
Parameters
durationthe virtual busy time for MAC entity

To support MAC extension for multiple channel operation, Notify MAC entity busy for some time to prevent transmission

Definition at line 408 of file ocb-wifi-mac.cc.

References ns3::RegularWifiMac::m_dcfManager, ns3::DcfManager::NotifyMaybeCcaBusyStartNow(), and NS_LOG_FUNCTION.

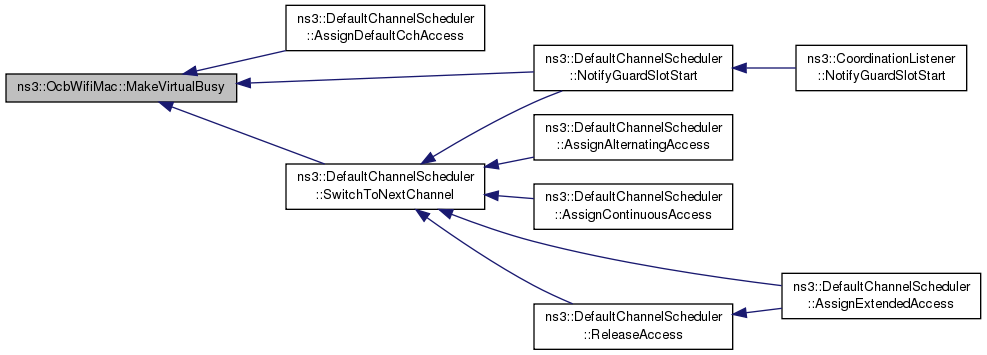

Referenced by ns3::DefaultChannelScheduler::AssignDefaultCchAccess(), ns3::DefaultChannelScheduler::NotifyGuardSlotStart(), and ns3::DefaultChannelScheduler::SwitchToNextChannel().

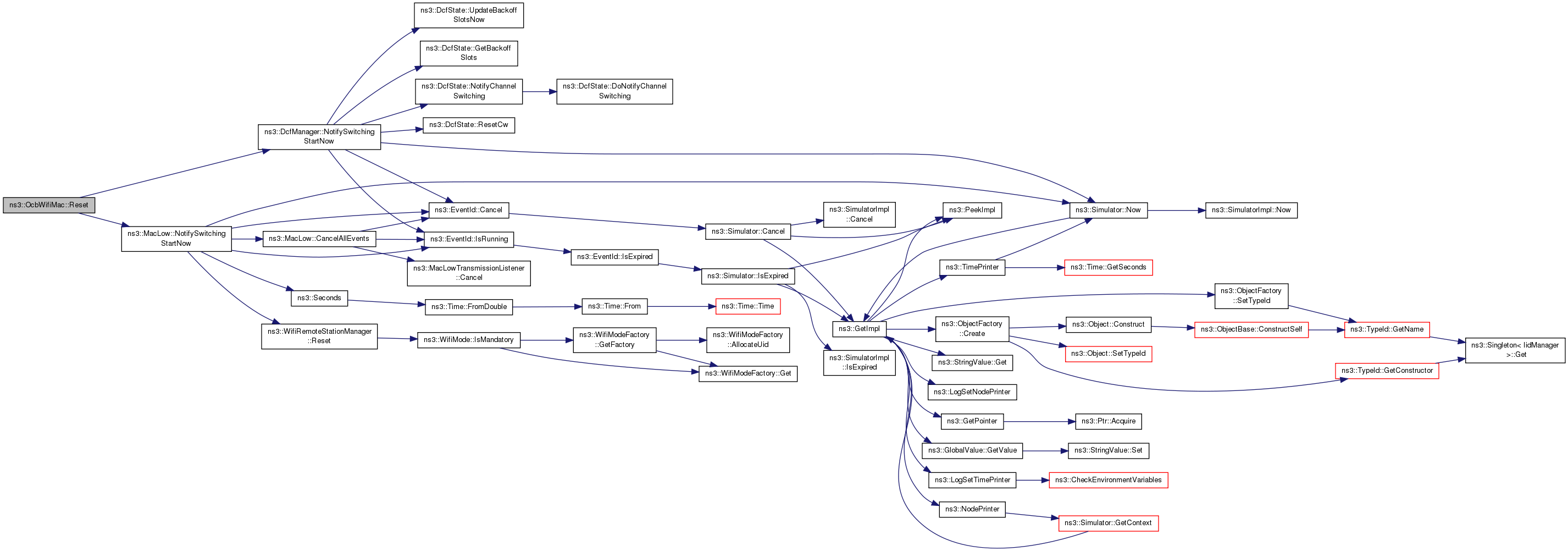

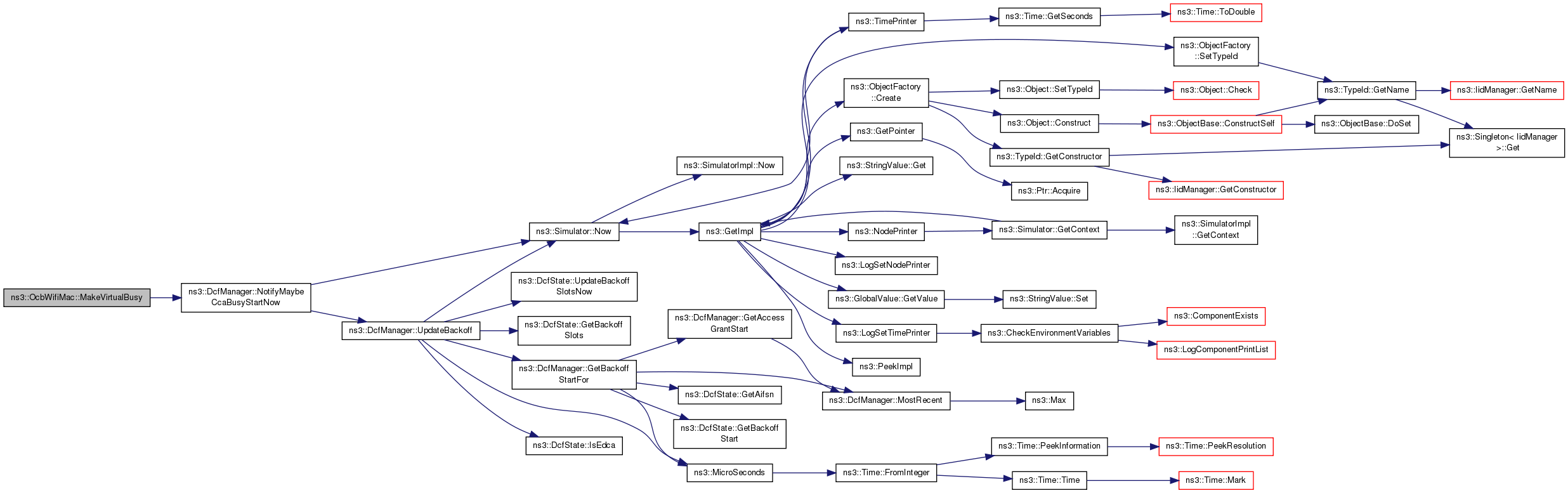

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::OcbWifiMac::Receive ( Ptr< Packet packet,
const WifiMacHeader hdr
)
privatevirtual

This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received.

The implementation is intended to capture logic that is going to be common to all (or most) derived classes. Specifically, handling of Block Ack managment frames is dealt with here.

This method will need, however, to be overriden by derived classes so that they can perform their data handling before invoking the base version.

Parameters
packetthe packet that has been received.
hdra pointer to the MAC header of the received frame.

Reimplemented from ns3::RegularWifiMac.

Definition at line 239 of file ocb-wifi-mac.cc.

References ns3::WifiRemoteStationManager::AddAllSupportedMcs(), ns3::WifiRemoteStationManager::AddAllSupportedModes(), ns3::WifiRemoteStationManager::AddStationHtCapabilities(), ns3::WifiRemoteStationManager::AddStationVhtCapabilities(), ns3::CATEGORY_OF_VSA, ns3::RegularWifiMac::DeaggregateAmsduAndForward(), ns3::VendorSpecificContentManager::FindVscCallback(), ns3::RegularWifiMac::ForwardUp(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr2(), ns3::WifiMacHeader::GetAddr3(), ns3::RegularWifiMac::GetAddress(), ns3::VendorSpecificActionHeader::GetCategory(), ns3::RegularWifiMac::GetHtCapabilities(), ns3::VendorSpecificActionHeader::GetOrganizationIdentifier(), ns3::RegularWifiMac::GetVhtCapabilities(), ns3::WifiMacHeader::IsAction(), ns3::WifiRemoteStationManager::IsBrandNew(), ns3::WifiMacHeader::IsCtl(), ns3::WifiMacHeader::IsData(), ns3::Mac48Address::IsGroup(), ns3::WifiMacHeader::IsMgt(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), ns3::WifiMacHeader::IsQosAmsdu(), ns3::WifiMacHeader::IsQosData(), ns3::RegularWifiMac::m_htSupported, ns3::RegularWifiMac::m_stationManager, ns3::RegularWifiMac::m_vhtSupported, m_vscManager, ns3::WifiMac::NotifyRxDrop(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Packet::PeekHeader(), ns3::RegularWifiMac::Receive(), ns3::WifiRemoteStationManager::RecordDisassociated(), ns3::Packet::RemoveHeader(), and ns3::WILDCARD_BSSID.

+ Here is the call graph for this function:

void ns3::OcbWifiMac::RemoveReceiveVscCallback ( OrganizationIdentifier  oi)
Parameters
oiOrganization Identifier

Definition at line 102 of file ocb-wifi-mac.cc.

References ns3::VendorSpecificContentManager::DeregisterVscCallback(), m_vscManager, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::OcbWifiMac::Reset ( void  )

To support MAC extension for multiple channel operation, Reset current MAC entity and flush its internal queues.

Definition at line 425 of file ocb-wifi-mac.cc.

References ns3::RegularWifiMac::m_dcfManager, ns3::RegularWifiMac::m_low, ns3::DcfManager::NotifySwitchingStartNow(), ns3::MacLow::NotifySwitchingStartNow(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::OcbWifiMac::Resume ( void  )

To support MAC extension for multiple channel operation, Resume the activity of suspended MAC entity.

Definition at line 400 of file ocb-wifi-mac.cc.

References ns3::RegularWifiMac::m_dcfManager, ns3::DcfManager::NotifyWakeupNow(), and NS_LOG_FUNCTION.

Referenced by ns3::DefaultChannelScheduler::AssignDefaultCchAccess(), and ns3::DefaultChannelScheduler::SwitchToNextChannel().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::OcbWifiMac::SendVsc ( Ptr< Packet vsc,
Mac48Address  peer,
OrganizationIdentifier  oi
)
Parameters
vscmanagement packet to send.
peerthe address to which the packet should be sent.
oiOrganization Identifier field see 7.3.1.31 Organization Identifier field and 10.3.29 Vendor-specific action

management information can be transmitted over vender specific action frame. This will be mainly called by IEEE Std 1609.4 to send WSA from IEEE Std 1609.3

Definition at line 68 of file ocb-wifi-mac.cc.

References ns3::Packet::AddHeader(), ns3::RegularWifiMac::GetAddress(), ns3::RegularWifiMac::m_dca, ns3::RegularWifiMac::m_edca, ns3::RegularWifiMac::m_qosSupported, NS_LOG_FUNCTION, ns3::QosUtilsGetTidForPacket(), ns3::QosUtilsMapTidToAc(), ns3::WifiMacHeader::SetAction(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), and ns3::VendorSpecificActionHeader::SetOrganizationIdentifier().

Referenced by ns3::VsaManager::DoSendVsa().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::OcbWifiMac::SetBssid ( Mac48Address  bssid)
virtual
Parameters
bssidthe BSSID of the network that this device belongs to. This method shall not be used in WAVE environment and here it will overloaded to log warn message

Reimplemented from ns3::RegularWifiMac.

Definition at line 124 of file ocb-wifi-mac.cc.

References NS_LOG_WARN.

void ns3::OcbWifiMac::SetLinkDownCallback ( Callback< void >  linkDown)
virtual
Parameters
linkDownthe callback to invoke when the link becomes down.

Reimplemented from ns3::RegularWifiMac.

Definition at line 149 of file ocb-wifi-mac.cc.

References NS_LOG_FUNCTION, NS_LOG_WARN, and ns3::RegularWifiMac::SetLinkDownCallback().

+ Here is the call graph for this function:

void ns3::OcbWifiMac::SetLinkUpCallback ( Callback< void >  linkUp)
virtual

SetLinkUpCallback and SetLinkDownCallback will be overloaded In OCB mode, stations can send packets directly whenever they want so the link is always up and never down even during channel switch.

Parameters
linkUpthe callback to invoke when the link becomes up.

Reimplemented from ns3::RegularWifiMac.

Definition at line 137 of file ocb-wifi-mac.cc.

References NS_LOG_FUNCTION, and ns3::RegularWifiMac::SetLinkUpCallback().

+ Here is the call graph for this function:

void ns3::OcbWifiMac::SetSsid ( Ssid  ssid)
virtual
Parameters
ssidthe current ssid of this MAC layer.

This method shall not be used in WAVE environment and here it will overloaded to log warn message

Reimplemented from ns3::RegularWifiMac.

Definition at line 109 of file ocb-wifi-mac.cc.

References NS_LOG_WARN.

void ns3::OcbWifiMac::Suspend ( void  )

To support MAC extension for multiple channel operation, Suspend the activity in current MAC entity.

Definition at line 392 of file ocb-wifi-mac.cc.

References ns3::RegularWifiMac::m_dcfManager, ns3::RegularWifiMac::m_low, ns3::DcfManager::NotifySleepNow(), ns3::MacLow::NotifySleepNow(), and NS_LOG_FUNCTION.

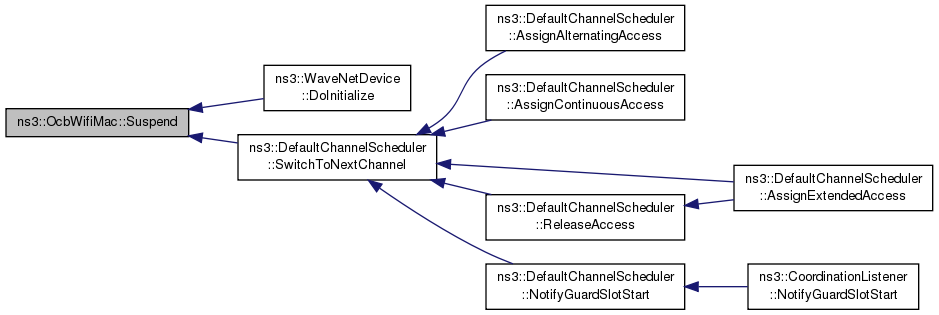

Referenced by ns3::WaveNetDevice::DoInitialize(), and ns3::DefaultChannelScheduler::SwitchToNextChannel().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Member Data Documentation

VendorSpecificContentManager ns3::OcbWifiMac::m_vscManager
private

Definition at line 178 of file ocb-wifi-mac.h.

Referenced by AddReceiveVscCallback(), Receive(), and RemoveReceiveVscCallback().


The documentation for this class was generated from the following files:
