ns3::RegularWifiMac Class Referenceabstract

base class for all MAC-level wifi objects. More...

#include "regular-wifi-mac.h"

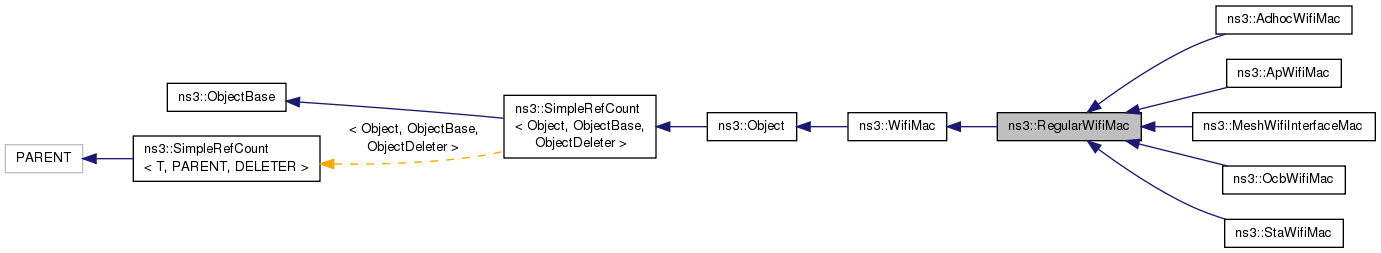

+ Inheritance diagram for ns3::RegularWifiMac:
+ Collaboration diagram for ns3::RegularWifiMac:

Public Types

typedef Callback< void, Ptr< Packet >, Mac48Address, Mac48AddressForwardUpCallback
 This type defines the callback of a higher layer that a WifiMac(-derived) object invokes to pass a packet up the stack. More...


Public Member Functions

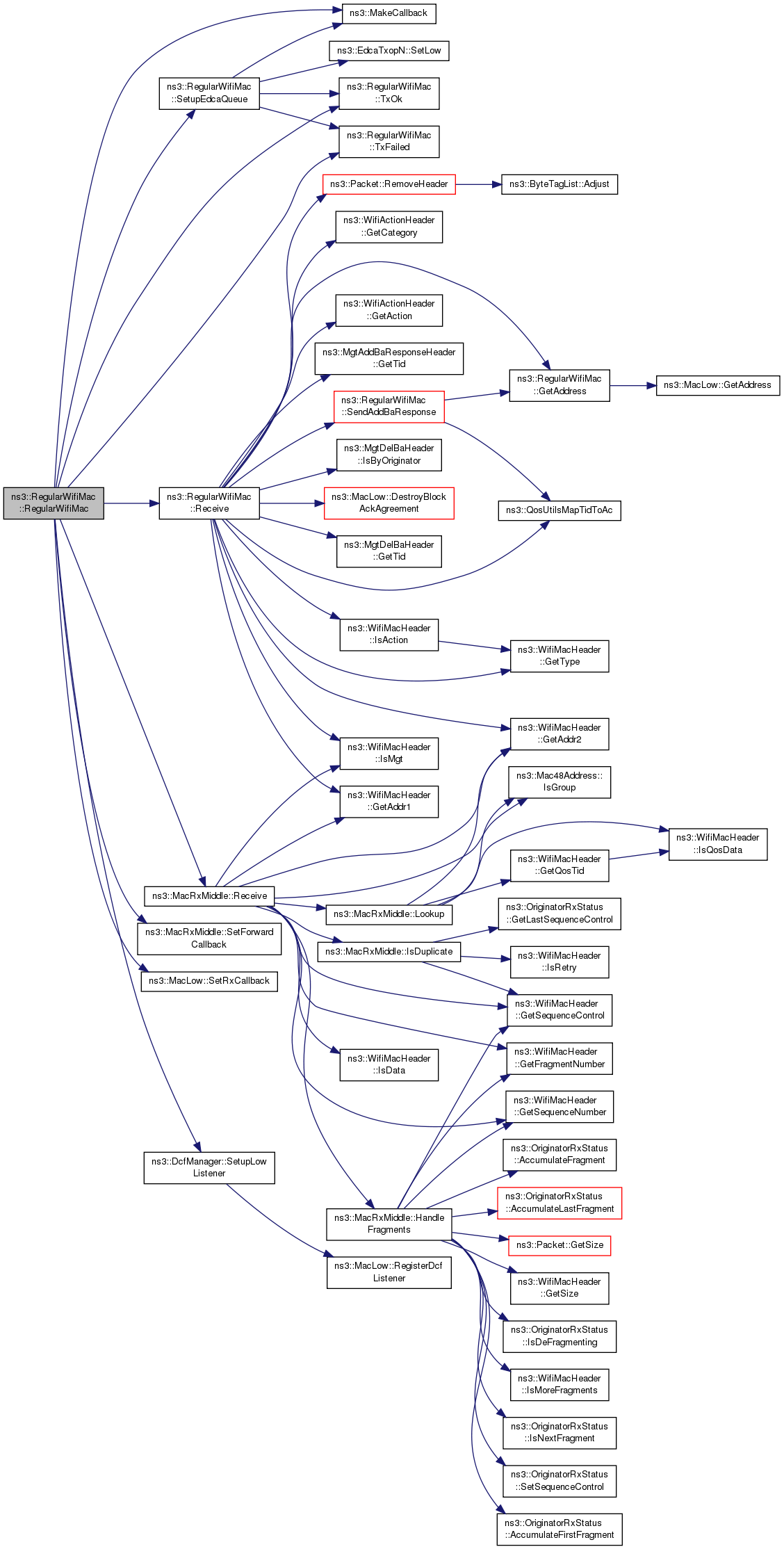

 RegularWifiMac ()

virtual ~RegularWifiMac ()

virtual void Enqueue (Ptr< const Packet > packet, Mac48Address to, Mac48Address from)

virtual void Enqueue (Ptr< const Packet > packet, Mac48Address to)=0

Time GetAckTimeout (void) const

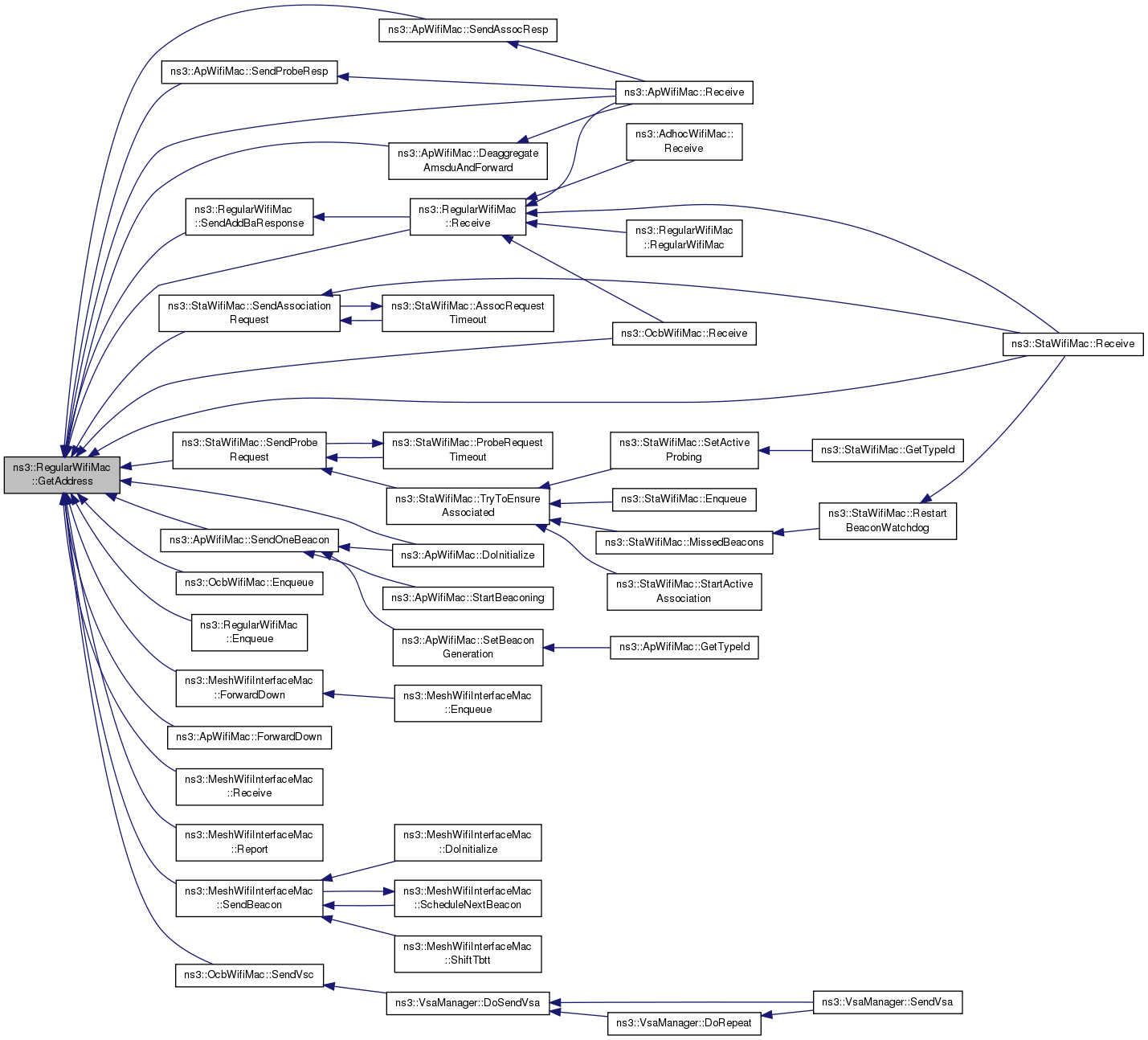

virtual Mac48Address GetAddress (void) const

virtual Time GetBasicBlockAckTimeout (void) const

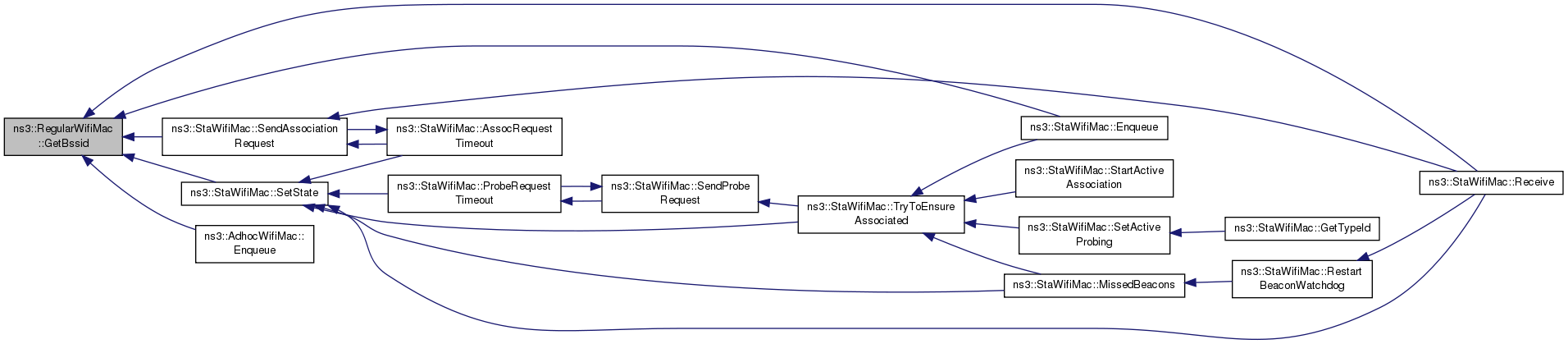

virtual Mac48Address GetBssid (void) const

virtual Time GetCompressedBlockAckTimeout (void) const

Time GetCtsTimeout (void) const

bool GetCtsToSelfSupported () const
 Return whether the device supports CTS-to-self capability. More...

Time GetEifsNoDifs (void) const

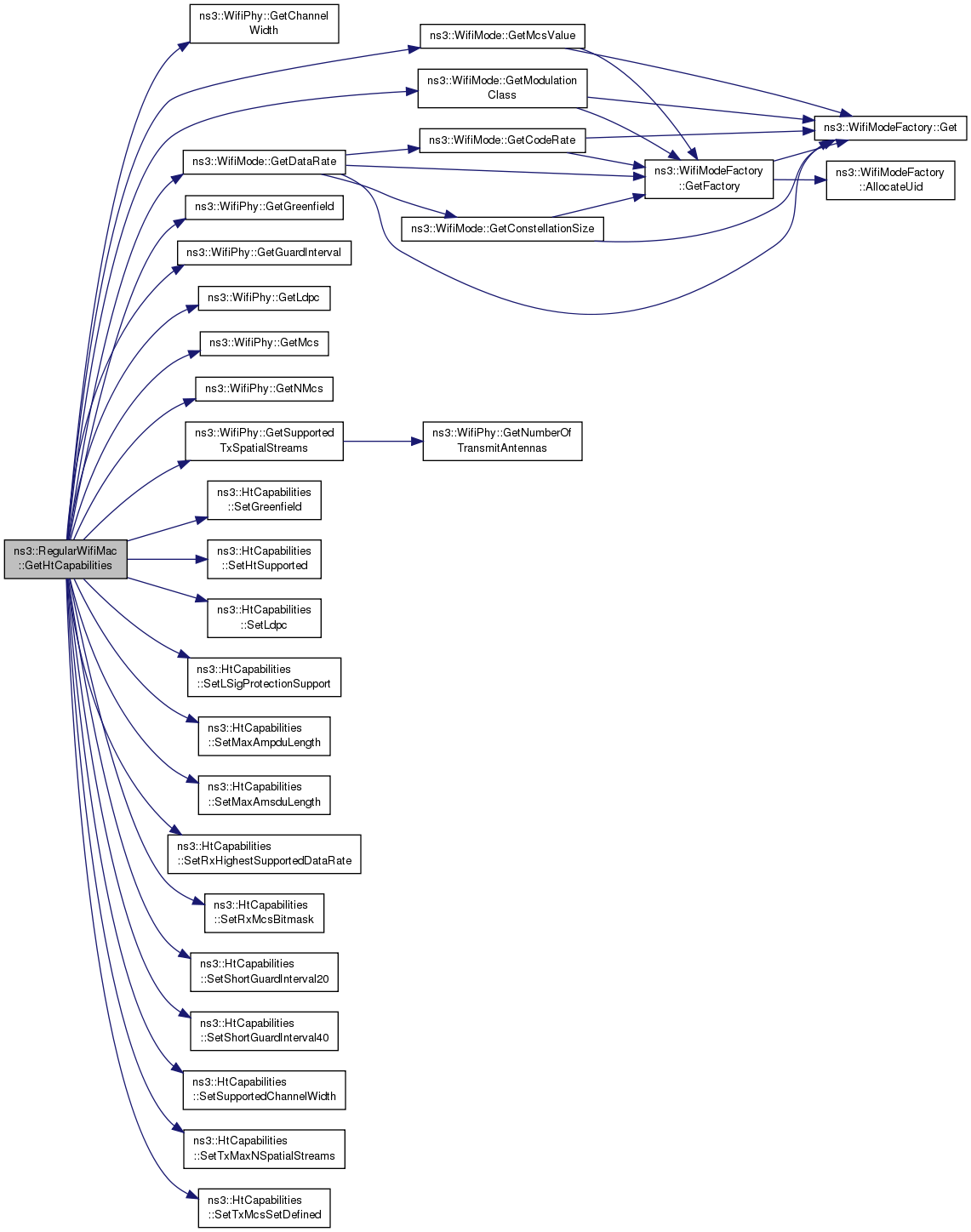

HtCapabilities GetHtCapabilities (void) const
 Return the HT capability of the device. More...

Time GetPifs (void) const

Time GetRifs (void) const

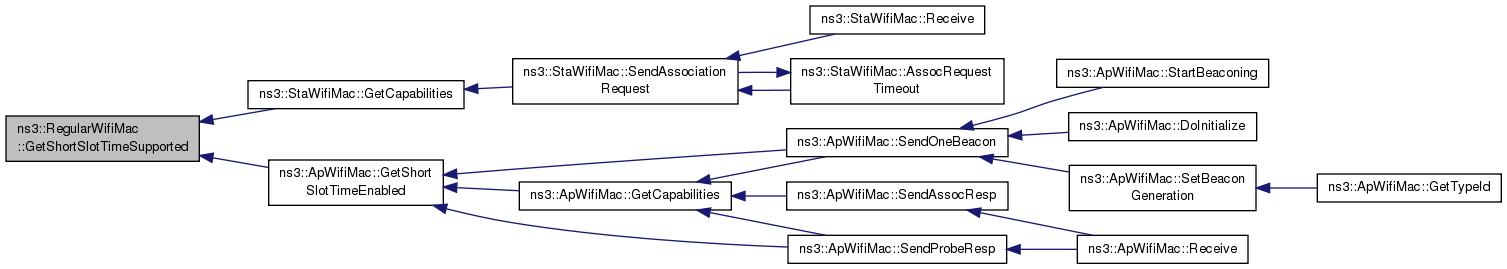

virtual bool GetShortSlotTimeSupported (void) const

Time GetSifs (void) const

Time GetSlot (void) const

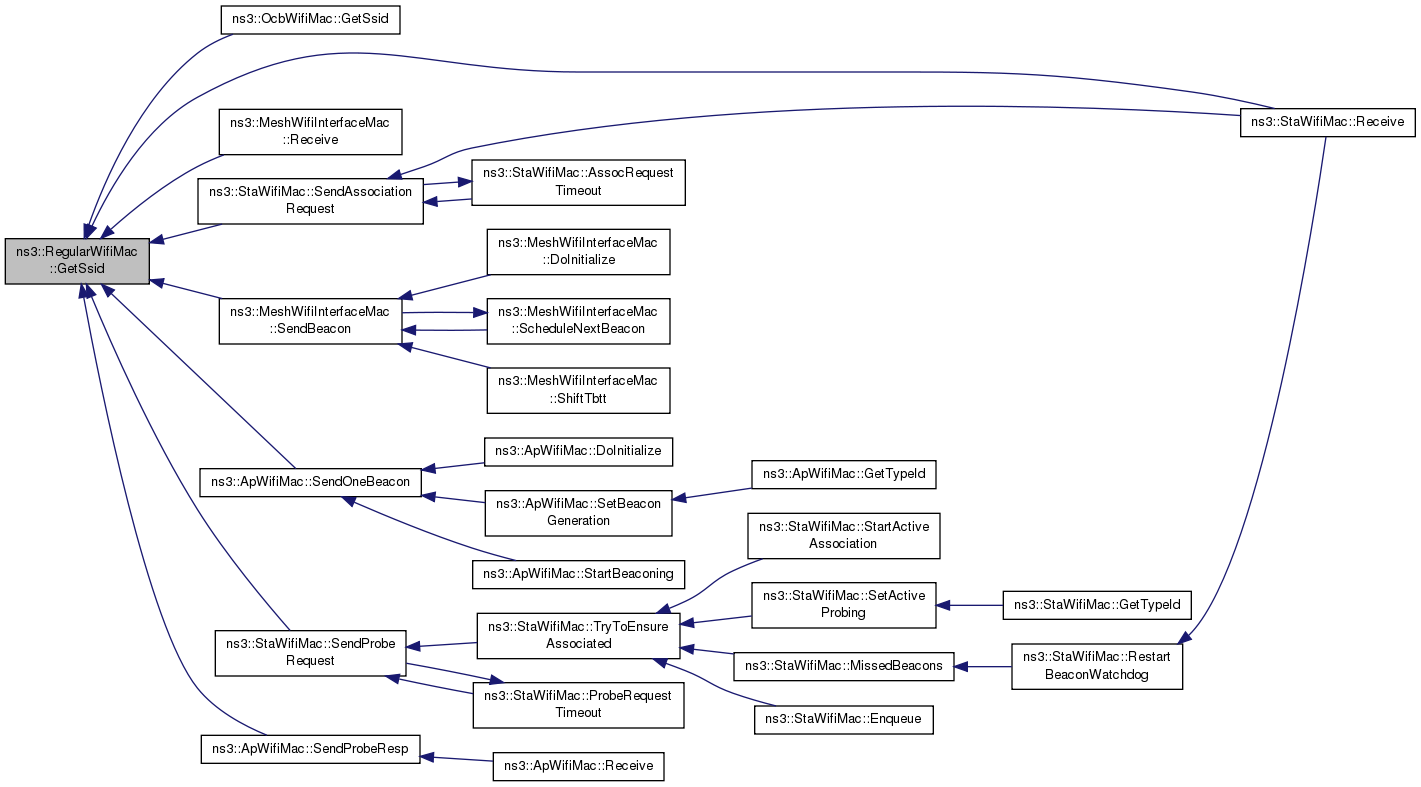

virtual Ssid GetSsid (void) const

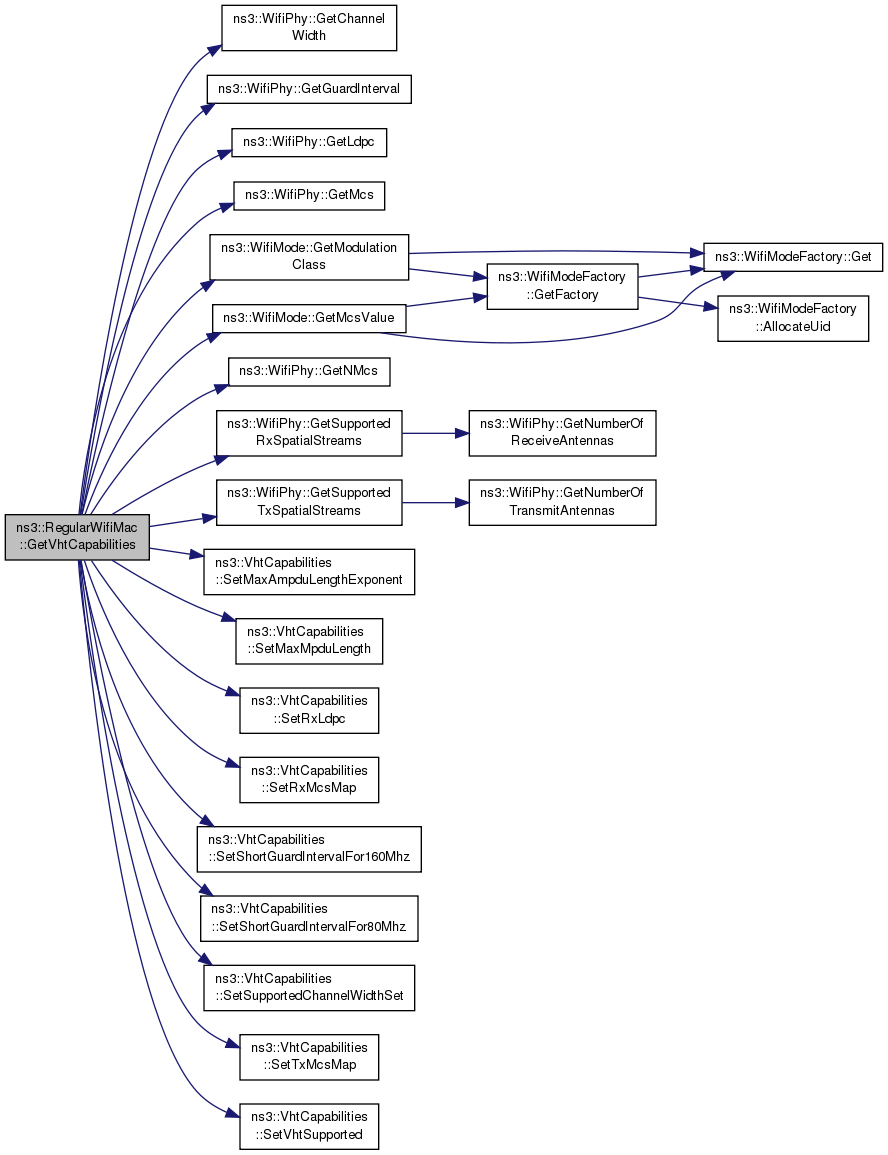

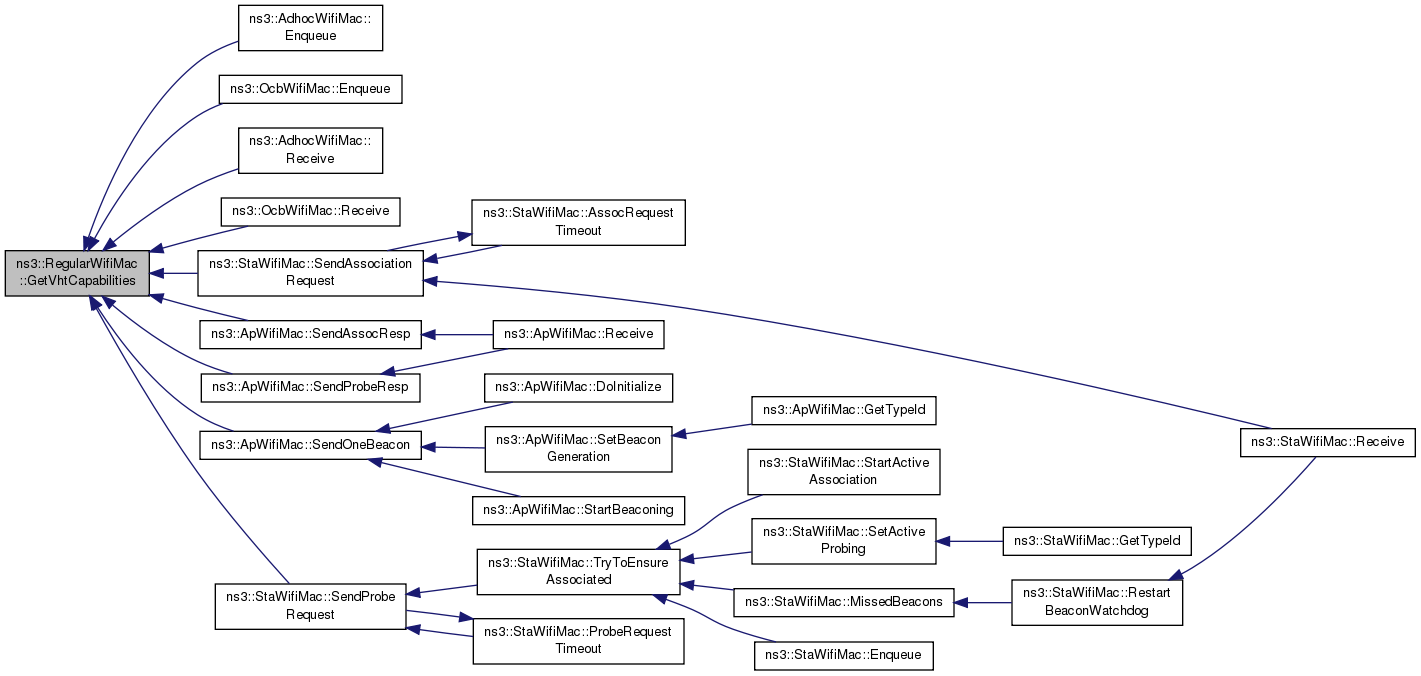

VhtCapabilities GetVhtCapabilities (void) const
 Return the VHT capability of the device. More...

virtual Ptr< WifiPhyGetWifiPhy (void) const

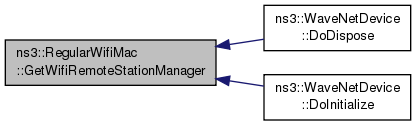

virtual Ptr< WifiRemoteStationManagerGetWifiRemoteStationManager (void) const

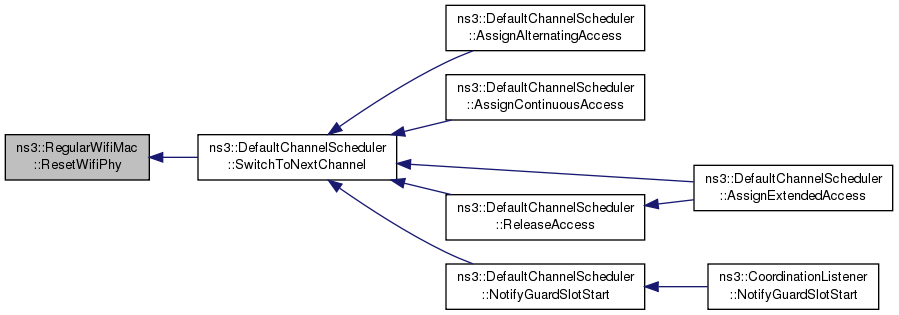

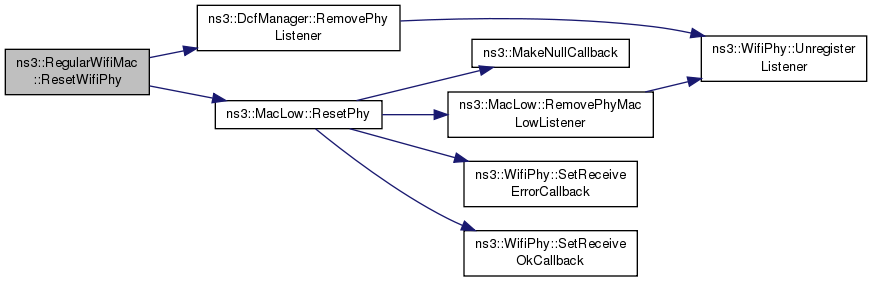

virtual void ResetWifiPhy (void)
 removes attached WifiPhy device from this MAC. More...

void SetAckTimeout (Time ackTimeout)

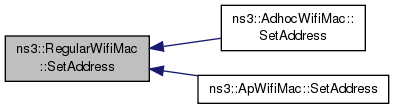

virtual void SetAddress (Mac48Address address)

virtual void SetBasicBlockAckTimeout (Time blockAckTimeout)

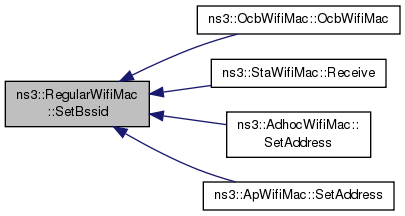

virtual void SetBssid (Mac48Address bssid)

virtual void SetCompressedBlockAckTimeout (Time blockAckTimeout)

void SetCtsTimeout (Time ctsTimeout)

void SetCtsToSelfSupported (bool enable)
 Enable or disable CTS-to-self feature. More...

void SetEifsNoDifs (Time eifsNoDifs)

virtual void SetForwardUpCallback (ForwardUpCallback upCallback)

virtual void SetLinkDownCallback (Callback< void > linkDown)

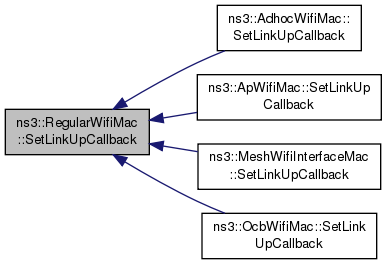

virtual void SetLinkUpCallback (Callback< void > linkUp)

void SetPifs (Time pifs)

virtual void SetPromisc (void)
 Sets the interface in promiscuous mode. More...

void SetRifs (Time rifs)

virtual void SetShortSlotTimeSupported (bool enable)
 Enable or disable short slot time feature. More...

void SetSifs (Time sifs)

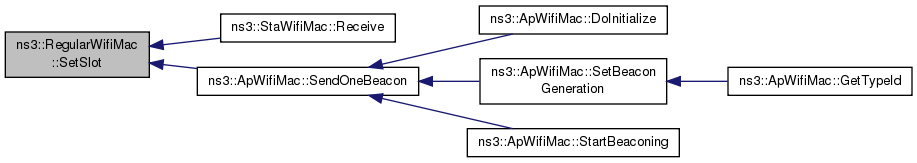

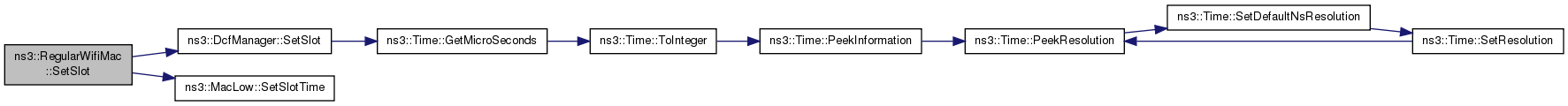

void SetSlot (Time slotTime)

virtual void SetSsid (Ssid ssid)

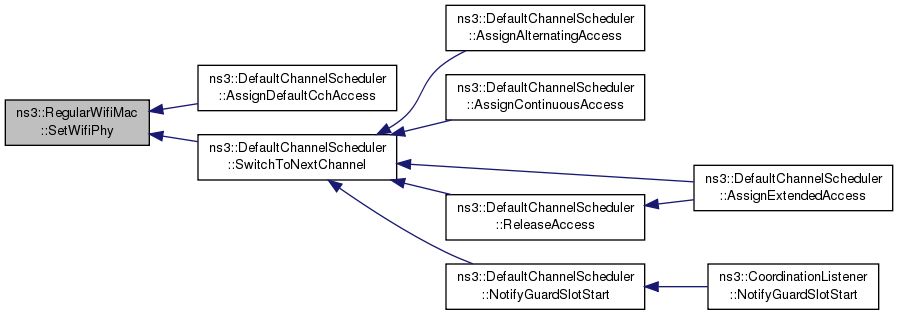

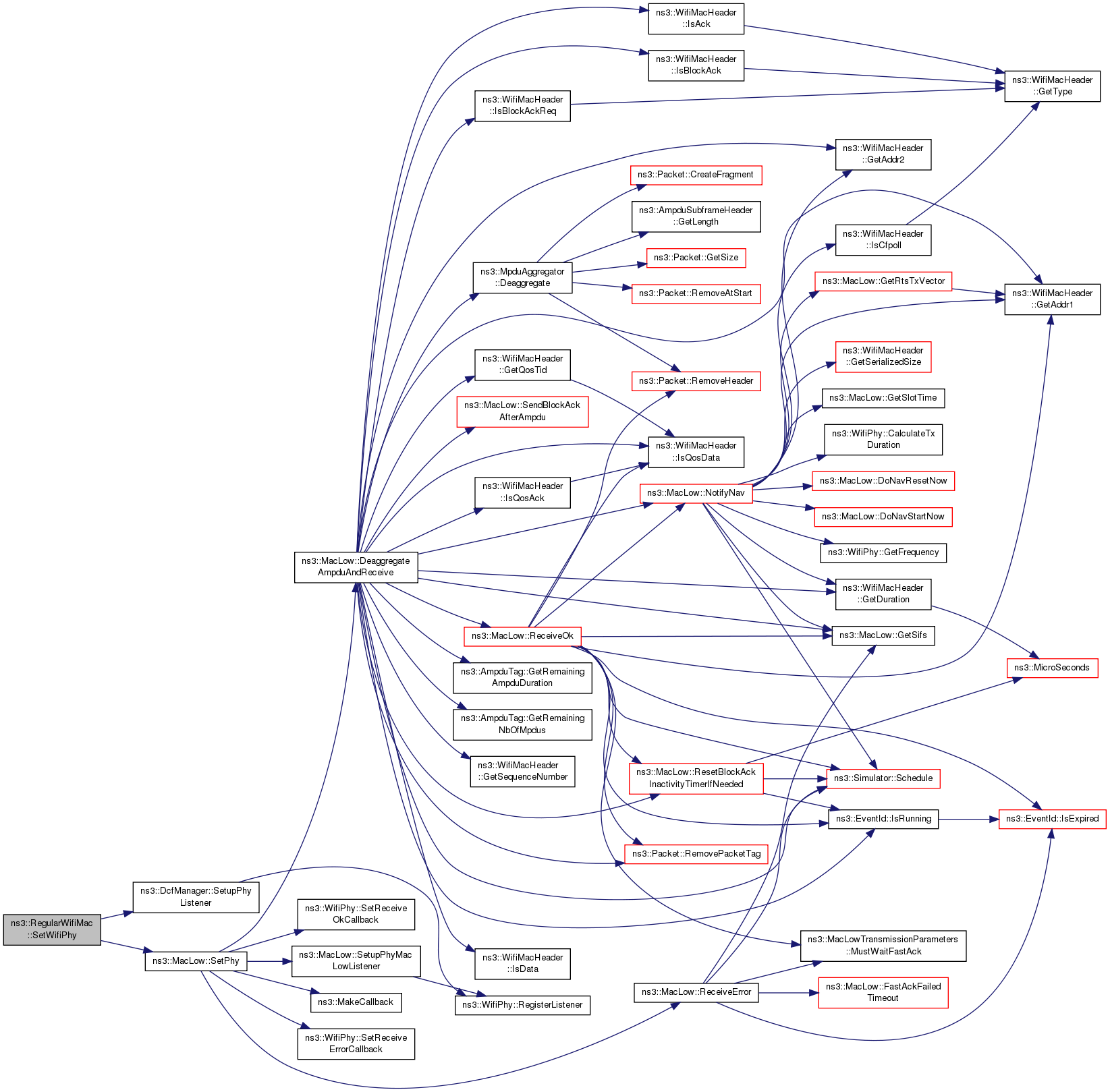

virtual void SetWifiPhy (Ptr< WifiPhy > phy)

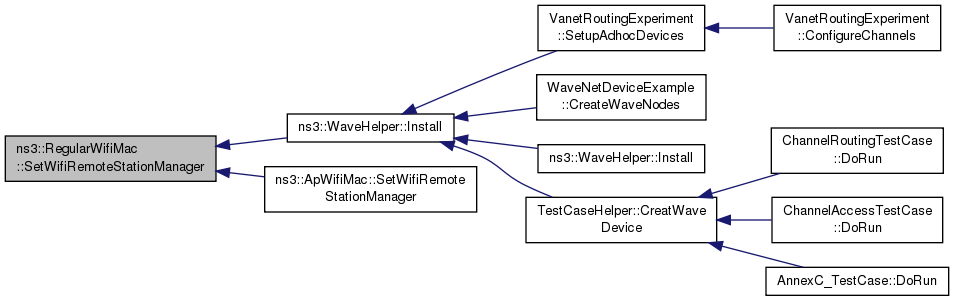

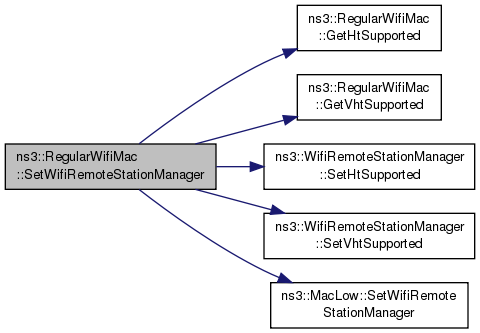

virtual void SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > stationManager)

virtual bool SupportsSendFrom (void) const

- Public Member Functions inherited from ns3::WifiMac
void ConfigureStandard (enum WifiPhyStandard standard)

Time GetMaxPropagationDelay (void) const

Time GetMsduLifetime (void) const

void NotifyPromiscRx (Ptr< const Packet > packet)

void NotifyRx (Ptr< const Packet > packet)

void NotifyRxDrop (Ptr< const Packet > packet)

void NotifyTx (Ptr< const Packet > packet)

void NotifyTxDrop (Ptr< const Packet > packet)

virtual void SetForwardUpCallback (Callback< void, Ptr< Packet >, Mac48Address, Mac48Address > upCallback)=0

void SetMaxPropagationDelay (Time delay)

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

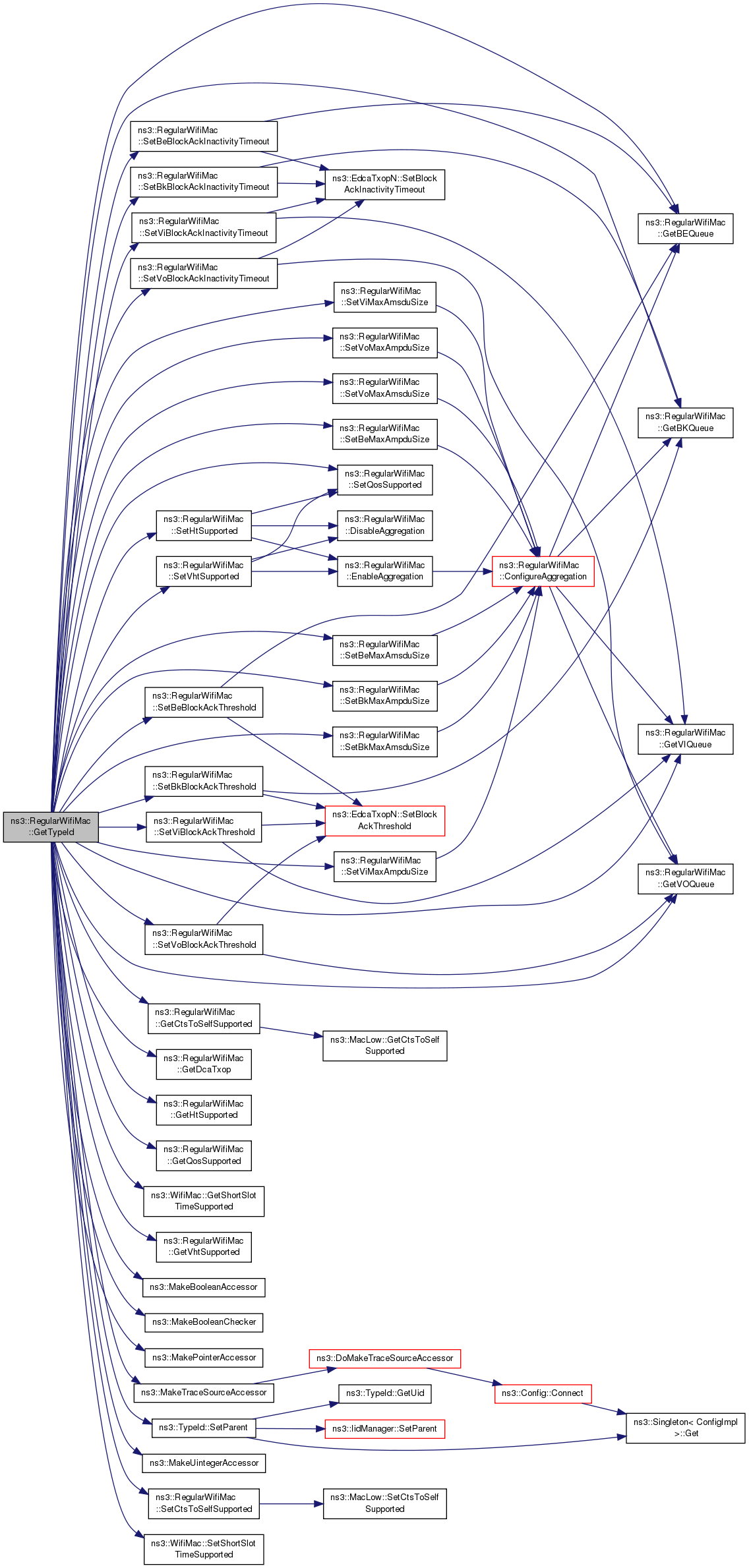

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::WifiMac
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Types

typedef std::map< AcIndex, Ptr< EdcaTxopN > > EdcaQueues
 This type defines a mapping between an Access Category index, and a pointer to the corresponding channel access function. More...


Protected Member Functions

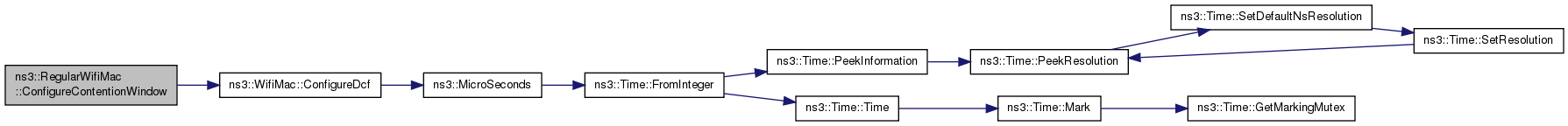

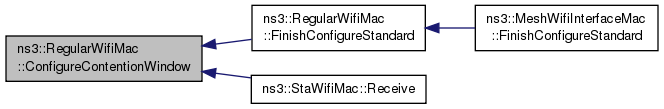

void ConfigureContentionWindow (uint32_t cwMin, uint32_t cwMax)

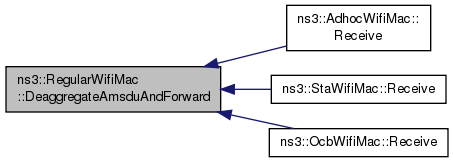

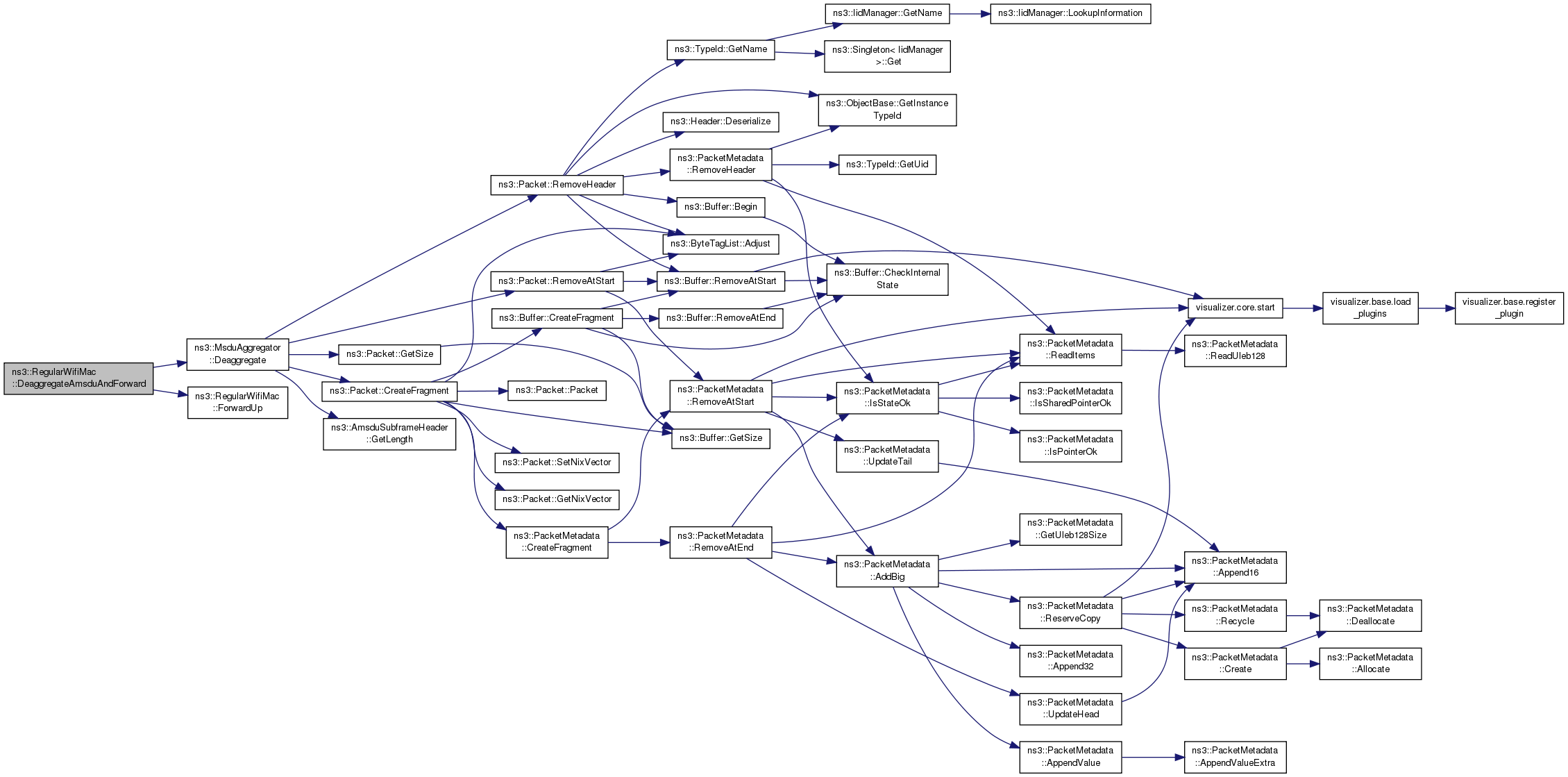

virtual void DeaggregateAmsduAndForward (Ptr< Packet > aggregatedPacket, const WifiMacHeader *hdr)
 This method can be called to de-aggregate an A-MSDU and forward the constituent packets up the stack. More...

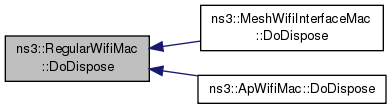

virtual void DoDispose ()
 Destructor implementation. More...

virtual void DoInitialize ()
 Initialize() implementation. More...

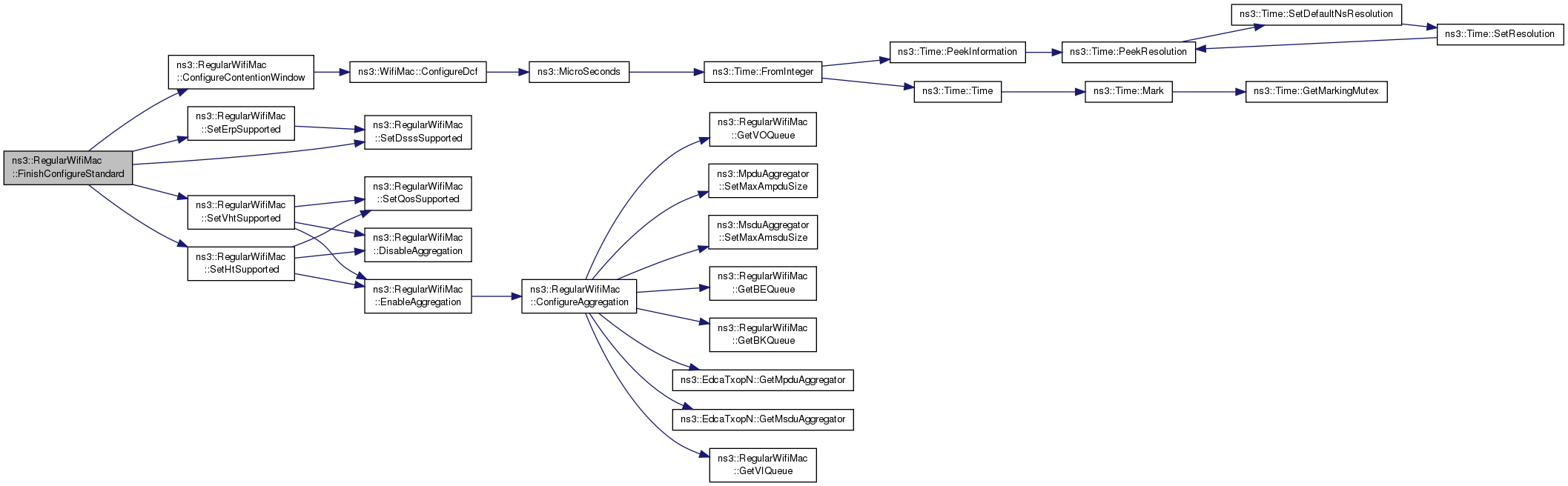

virtual void FinishConfigureStandard (enum WifiPhyStandard standard)

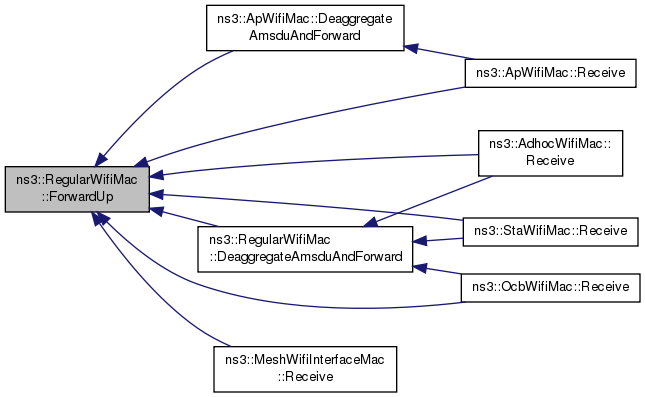

void ForwardUp (Ptr< Packet > packet, Mac48Address from, Mac48Address to)
 Forward the packet up to the device. More...

Ptr< EdcaTxopNGetBEQueue (void) const
 Accessor for the AC_BE channel access function. More...

Ptr< EdcaTxopNGetBKQueue (void) const
 Accessor for the AC_BK channel access function. More...

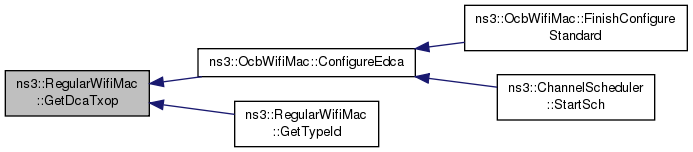

Ptr< DcaTxopGetDcaTxop (void) const
 Accessor for the DCF object. More...

bool GetDsssSupported () const
 Return whether the device supports DSSS. More...

bool GetErpSupported () const
 Return whether the device supports ERP. More...

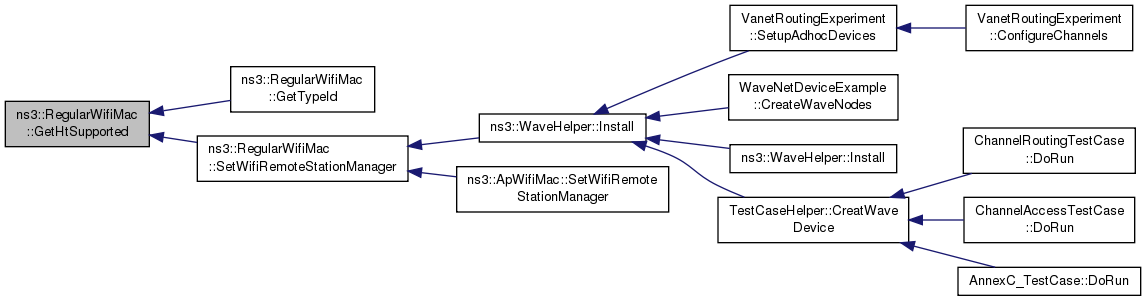

bool GetHtSupported () const
 Return whether the device supports HT. More...

bool GetQosSupported () const
 Return whether the device supports QoS. More...

bool GetVhtSupported () const
 Return whether the device supports VHT. More...

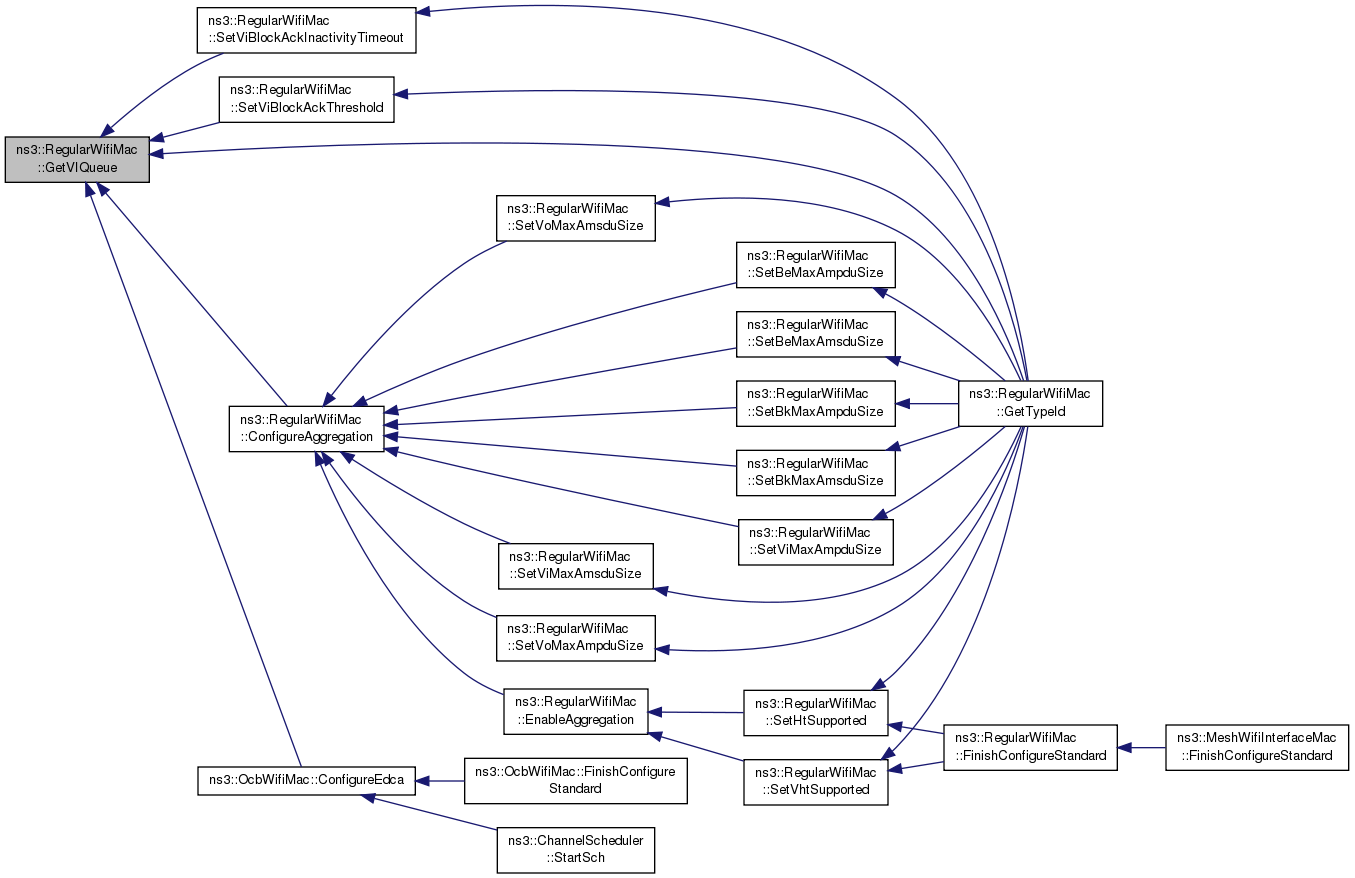

Ptr< EdcaTxopNGetVIQueue (void) const
 Accessor for the AC_VI channel access function. More...

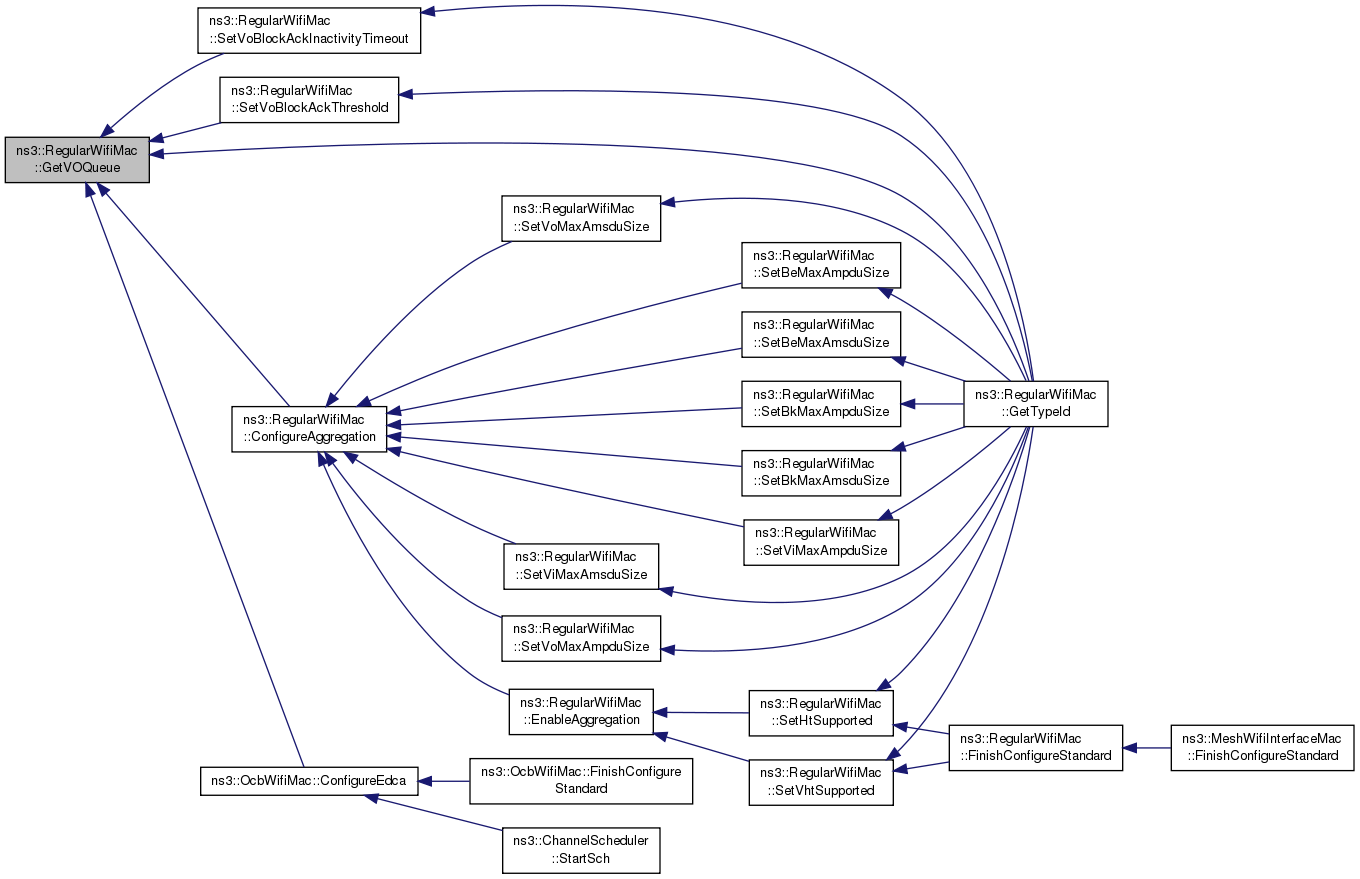

Ptr< EdcaTxopNGetVOQueue (void) const
 Accessor for the AC_VO channel access function. More...

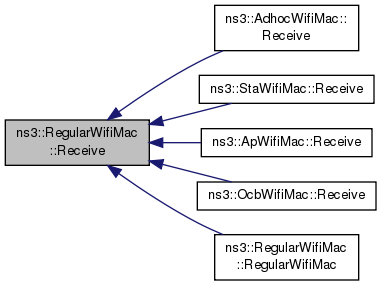

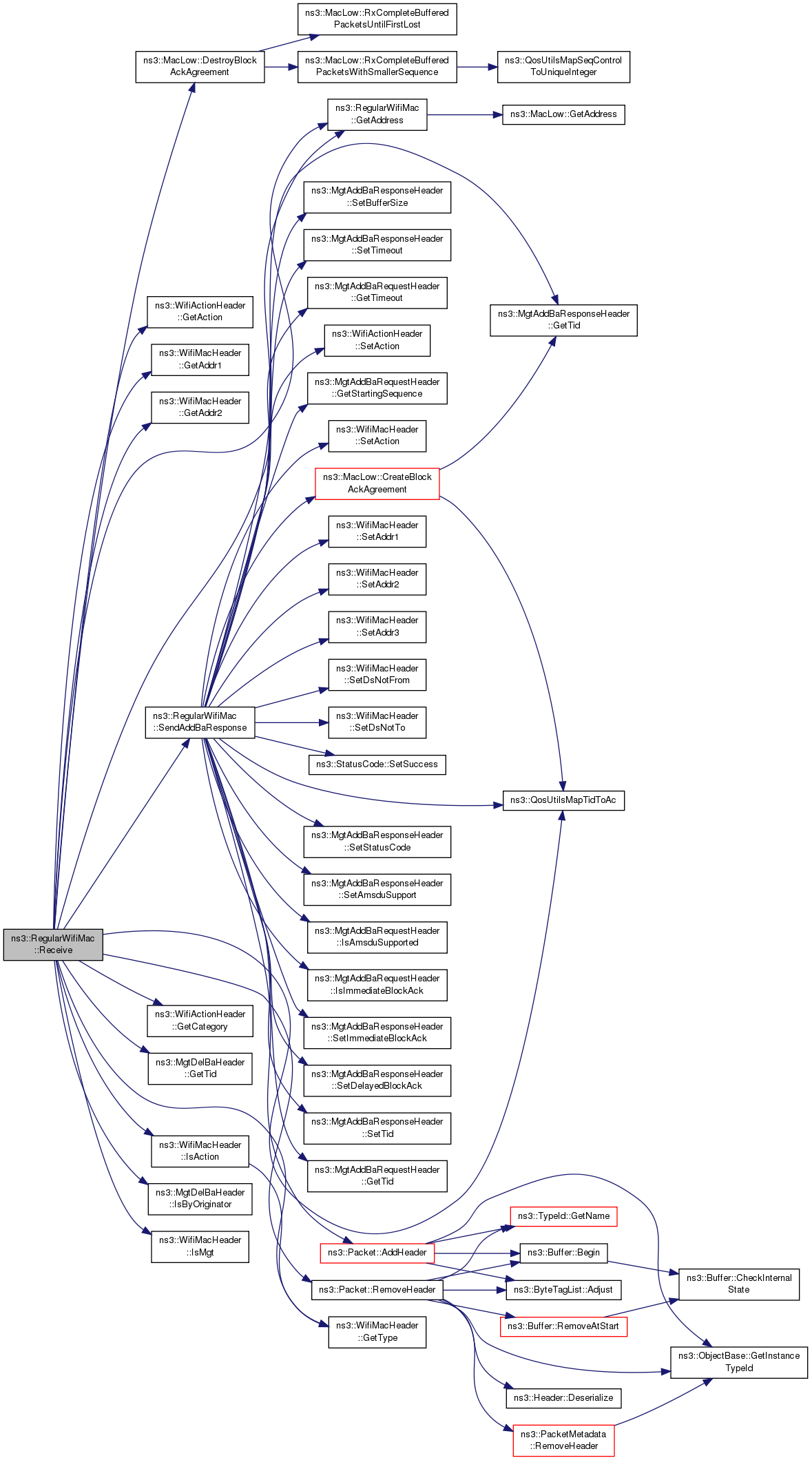

virtual void Receive (Ptr< Packet > packet, const WifiMacHeader *hdr)
 This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received. More...

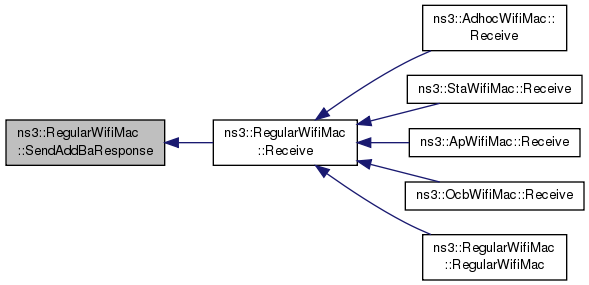

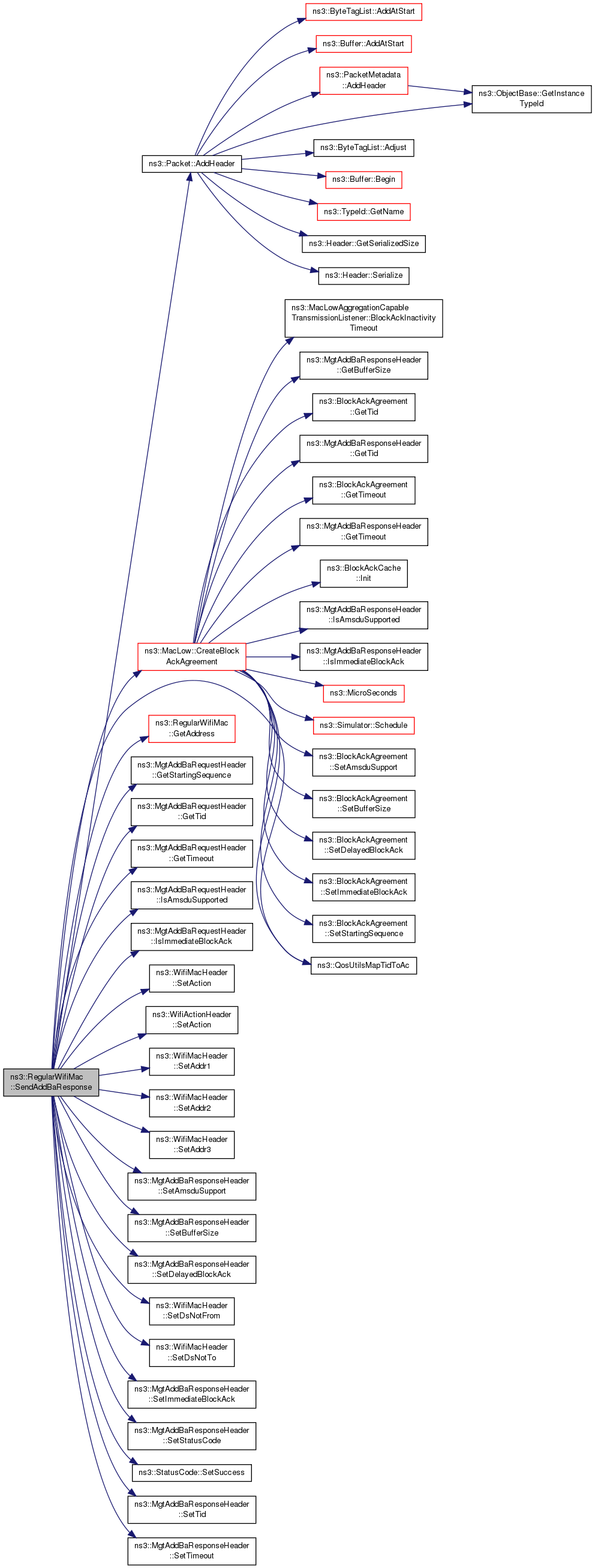

virtual void SendAddBaResponse (const MgtAddBaRequestHeader *reqHdr, Mac48Address originator)
 This method can be called to accept a received ADDBA Request. More...

void SetDsssSupported (bool enable)
 Enable or disable DSSS support for the device. More...

void SetErpSupported (bool enable)
 Enable or disable ERP support for the device. More...

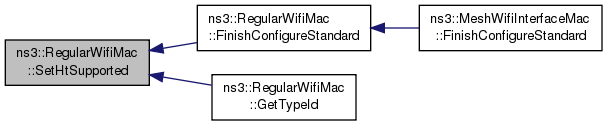

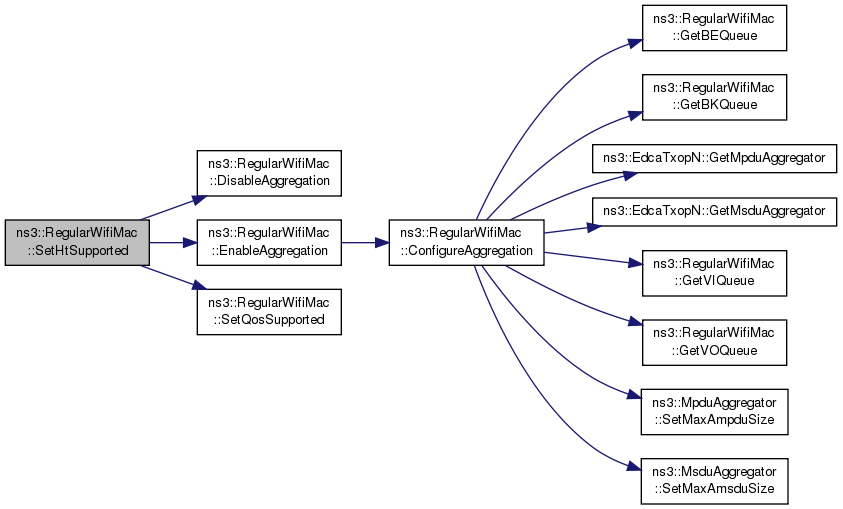

void SetHtSupported (bool enable)
 Enable or disable HT support for the device. More...

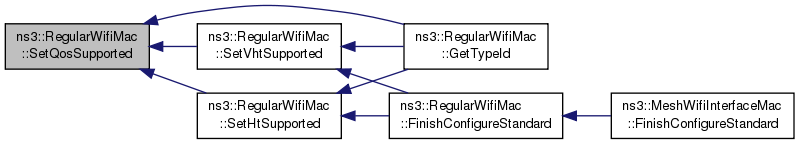

void SetQosSupported (bool enable)
 Enable or disable QoS support for the device. More...

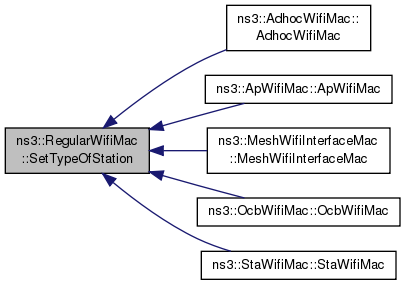

void SetTypeOfStation (TypeOfStation type)
 This method is invoked by a subclass to specify what type of station it is implementing. More...

void SetVhtSupported (bool enable)
 Enable or disable VHT support for the device. More...

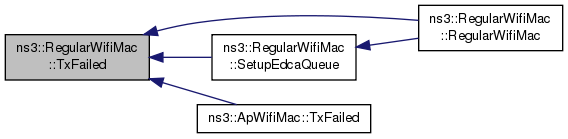

virtual void TxFailed (const WifiMacHeader &hdr)
 The packet we sent was successfully received by the receiver (i.e. More...

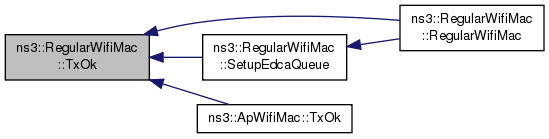

virtual void TxOk (const WifiMacHeader &hdr)
 The packet we sent was successfully received by the receiver (i.e. More...

- Protected Member Functions inherited from ns3::WifiMac
void ConfigureDcf (Ptr< Dcf > dcf, uint32_t cwmin, uint32_t cwmax, bool isDsss, enum AcIndex ac)

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Protected Attributes

Ptr< DcaTxopm_dca
 This holds a pointer to the DCF instance for this WifiMac - used for transmission of frames to non-QoS peers. More...

DcfManagerm_dcfManager
 DCF manager (access to channel) More...

bool m_dsssSupported
 This Boolean is set true iff this WifiMac is to model 802.11b. More...

EdcaQueues m_edca
 This is a map from Access Category index to the corresponding channel access function. More...

bool m_erpSupported
 This Boolean is set true iff this WifiMac is to model 802.11g. More...

ForwardUpCallback m_forwardUp
 Callback to forward packet up the stack. More...

bool m_htSupported
 This Boolean is set true iff this WifiMac is to model 802.11n. More...

Callback< void > m_linkDown
 Callback when a link is down. More...

Callback< void > m_linkUp
 Callback when a link is up. More...

Ptr< MacLowm_low
 MacLow (RTS, CTS, DATA, ACK etc.) More...

Ptr< WifiPhym_phy
 Wifi PHY. More...

bool m_qosSupported
 This Boolean is set true iff this WifiMac is to model 802.11e/WMM style Quality of Service. More...

MacRxMiddlem_rxMiddle
 RX middle (de-fragmentation etc.) More...

Ssid m_ssid
 Service Set ID (SSID) More...

Ptr< WifiRemoteStationManagerm_stationManager
 Remote station manager (rate control, RTS/CTS/fragmentation thresholds etc.) More...

MacTxMiddlem_txMiddle
 TX middle (aggregation etc.) More...

bool m_vhtSupported
 This Boolean is set true iff this WifiMac is to model 802.11ac. More...


Private Member Functions

 RegularWifiMac (const RegularWifiMac &)

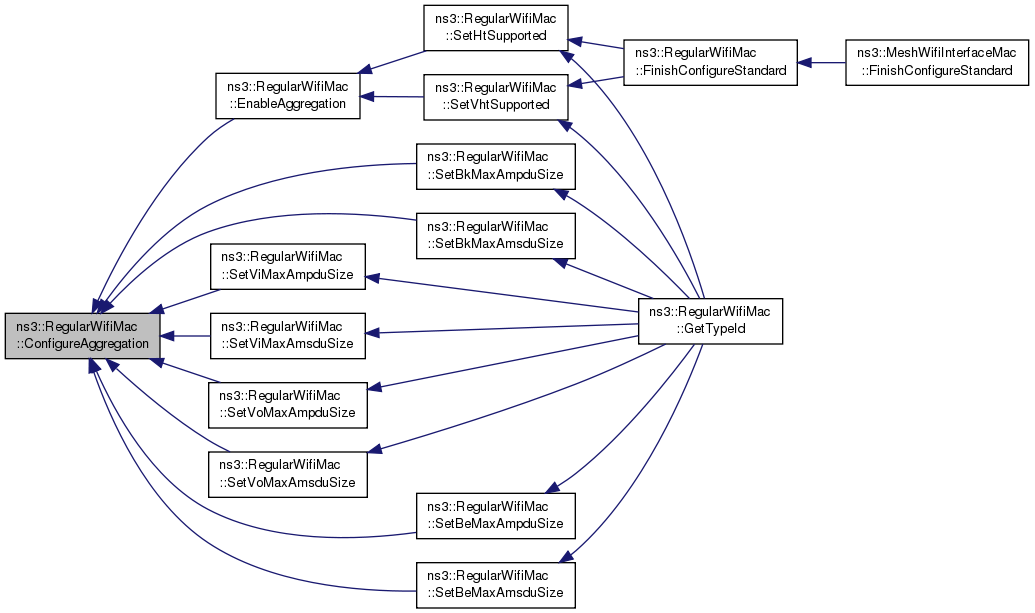

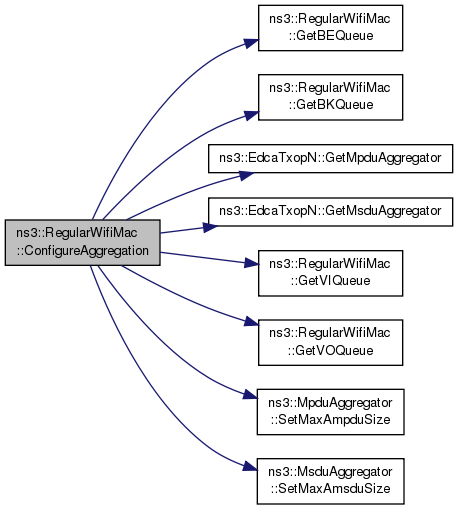

void ConfigureAggregation (void)

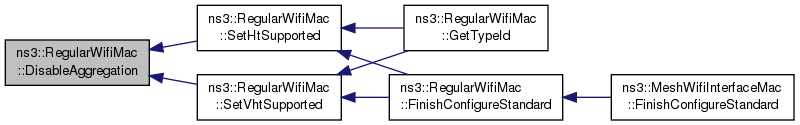

void DisableAggregation (void)

void EnableAggregation (void)

RegularWifiMacoperator= (const RegularWifiMac &)

void SetBeBlockAckInactivityTimeout (uint16_t timeout)

void SetBeBlockAckThreshold (uint8_t threshold)

void SetBeMaxAmpduSize (uint32_t size)

void SetBeMaxAmsduSize (uint32_t size)

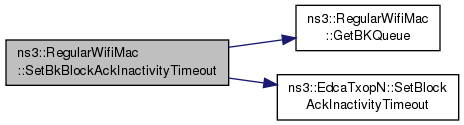

void SetBkBlockAckInactivityTimeout (uint16_t timeout)

void SetBkBlockAckThreshold (uint8_t threshold)

void SetBkMaxAmpduSize (uint32_t size)

void SetBkMaxAmsduSize (uint32_t size)

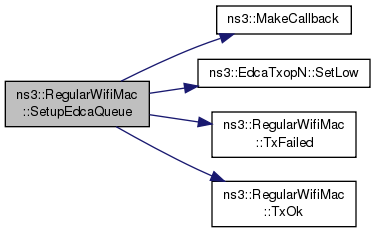

void SetupEdcaQueue (enum AcIndex ac)
 This method is a private utility invoked to configure the channel access function for the specified Access Category. More...

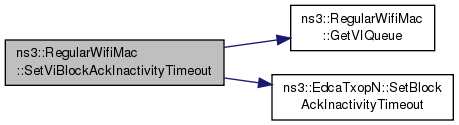

void SetViBlockAckInactivityTimeout (uint16_t timeout)

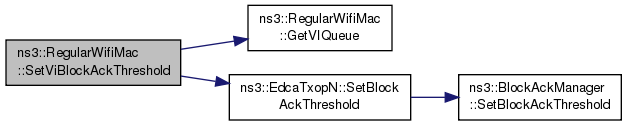

void SetViBlockAckThreshold (uint8_t threshold)

void SetViMaxAmpduSize (uint32_t size)

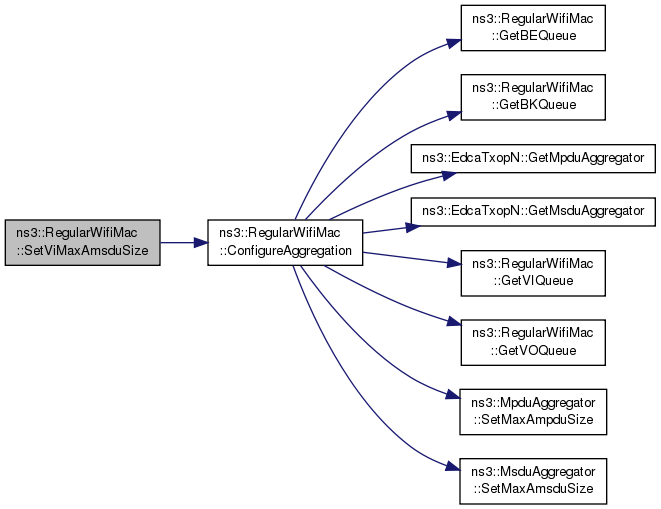

void SetViMaxAmsduSize (uint32_t size)

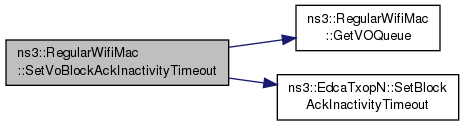

void SetVoBlockAckInactivityTimeout (uint16_t timeout)

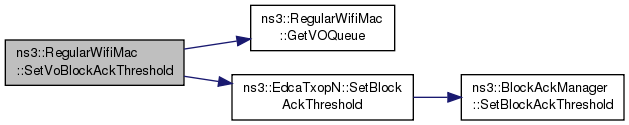

void SetVoBlockAckThreshold (uint8_t threshold)

void SetVoMaxAmpduSize (uint32_t size)

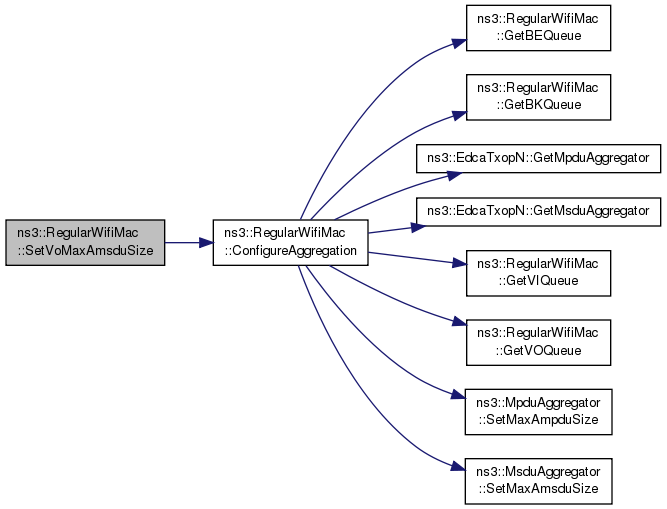

void SetVoMaxAmsduSize (uint32_t size)


Private Attributes

uint32_t m_beMaxAmpduSize

uint32_t m_beMaxAmsduSize

uint32_t m_bkMaxAmpduSize

uint32_t m_bkMaxAmsduSize

bool m_shortSlotTimeSupported

TracedCallback< const WifiMacHeader & > m_txErrCallback

TracedCallback< const WifiMacHeader & > m_txOkCallback

uint32_t m_viMaxAmpduSize

uint32_t m_viMaxAmsduSize

uint32_t m_voMaxAmpduSize

uint32_t m_voMaxAmsduSize


Additional Inherited Members

Detailed Description

base class for all MAC-level wifi objects.

This class encapsulates all the low-level MAC functionality DCA, EDCA, etc) and all the high-level MAC functionality (association/disassociation state machines).

Config Paths

ns3::RegularWifiMac is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac"

Attributes

  • QosSupported: This Boolean attribute is set to enable 802.11e/WMM-style QoS support at this STA.
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read
  • HtSupported: This Boolean attribute is set to enable 802.11n support at this STA.
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read
  • VhtSupported: This Boolean attribute is set to enable 802.11ac support at this STA.
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read
  • CtsToSelfSupported: Use CTS to Self when using a rate that is not in the basic rate set.
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read
  • VO_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VO access class.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 0
    • Flags: construct write
  • VI_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VI access class.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 0
    • Flags: construct write
  • BE_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BE access class.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 0
    • Flags: construct write
  • BK_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BK access class.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 0
    • Flags: construct write
  • VO_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VO access class.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 0
    • Flags: construct write
  • VI_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VI access class.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 65535
    • Flags: construct write
  • BE_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BE access class.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 65535
    • Flags: construct write
  • BK_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BK access class.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 0
    • Flags: construct write
  • VO_BlockAckThreshold: If number of packets in VO queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint8_t 0:64
    • Initial value: 0
    • Flags: construct write
  • VI_BlockAckThreshold: If number of packets in VI queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint8_t 0:64
    • Initial value: 0
    • Flags: construct write
  • BE_BlockAckThreshold: If number of packets in BE queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint8_t 0:64
    • Initial value: 0
    • Flags: construct write
  • BK_BlockAckThreshold: If number of packets in BK queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint8_t 0:64
    • Initial value: 0
    • Flags: construct write
  • VO_BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ackinactivity for AC_VO. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:65535
    • Initial value: 0
    • Flags: construct write
  • VI_BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ackinactivity for AC_VI. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:65535
    • Initial value: 0
    • Flags: construct write
  • BE_BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ackinactivity for AC_BE. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:65535
    • Initial value: 0
    • Flags: construct write
  • BK_BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ackinactivity for AC_BK. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:65535
    • Initial value: 0
    • Flags: construct write
  • ShortSlotTimeSupported: Whether or not short slot time is supported (only used by ERP APs or STAs).
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write read
  • DcaTxop: The DcaTxop object.
  • VO_EdcaTxopN: Queue that manages packets belonging to AC_VO access class.
  • VI_EdcaTxopN: Queue that manages packets belonging to AC_VI access class.
  • BE_EdcaTxopN: Queue that manages packets belonging to AC_BE access class.
  • BK_EdcaTxopN: Queue that manages packets belonging to AC_BK access class.

Attributes defined in parent class ns3::WifiMac

  • CtsTimeout: When this timeout expires, the RTS/CTS handshake has failed.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +75000.0ns
    • Flags: construct write read
  • AckTimeout: When this timeout expires, the DATA/ACK handshake has failed.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +75000.0ns
    • Flags: construct write read
  • BasicBlockAckTimeout: When this timeout expires, the BASIC_BLOCK_ACK_REQ/BASIC_BLOCK_ACK handshake has failed.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +281000.0ns
    • Flags: construct write read
  • CompressedBlockAckTimeout: When this timeout expires, the COMPRESSED_BLOCK_ACK_REQ/COMPRESSED_BLOCK_ACK handshake has failed.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +107000.0ns
    • Flags: construct write read
  • Sifs: The value of the SIFS constant.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +16000.0ns
    • Flags: construct write read
  • EifsNoDifs: The value of EIFS-DIFS.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +60000.0ns
    • Flags: construct write read
  • Slot: The duration of a Slot.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +9000.0ns
    • Flags: construct write read
  • Pifs: The value of the PIFS constant.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +25000.0ns
    • Flags: construct write read
  • Rifs: The value of the RIFS constant.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +2000.0ns
    • Flags: construct write read
  • MaxPropagationDelay: The maximum propagation delay. Unused for now.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +3333.0ns
    • Flags: construct write read
  • Ssid: The ssid we want to belong to.
    • Set with class: SsidValue
    • Underlying type: Ssid
    • Initial value: default
    • Flags: construct write read

TraceSources

TraceSources defined in parent class ns3::WifiMac

  • MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
    Callback signature: ns3::Packet::TracedCallback
  • MacTxDrop: A packet has been dropped in the MAC layer before being queued for transmission.
    Callback signature: ns3::Packet::TracedCallback
  • MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace.
    Callback signature: ns3::Packet::TracedCallback
  • MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace.
    Callback signature: ns3::Packet::TracedCallback
  • MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.
    Callback signature: ns3::Packet::TracedCallback

Size of this type is 376 bytes (on a 64-bit architecture).

Definition at line 49 of file regular-wifi-mac.h.

Member Typedef Documentation

typedef std::map<AcIndex, Ptr<EdcaTxopN> > ns3::RegularWifiMac::EdcaQueues
protected

This type defines a mapping between an Access Category index, and a pointer to the corresponding channel access function.

Definition at line 292 of file regular-wifi-mac.h.

This type defines the callback of a higher layer that a WifiMac(-derived) object invokes to pass a packet up the stack.

Parameters
packetthe packet that has been received.
fromthe MAC address of the device that sent the packet.
tothe MAC address ot the device that the packet is destined for.

Definition at line 244 of file regular-wifi-mac.h.

Constructor & Destructor Documentation

ns3::RegularWifiMac::~RegularWifiMac ( )
virtual

Definition at line 76 of file regular-wifi-mac.cc.

References NS_LOG_FUNCTION.

ns3::RegularWifiMac::RegularWifiMac ( const RegularWifiMac )
private

Member Function Documentation

void ns3::RegularWifiMac::ConfigureContentionWindow ( uint32_t  cwMin,
uint32_t  cwMax
)
protected
Parameters
cwMinthe minimum congestion window size
cwMaxthe maximum congestion window size

This method is called to set the minimum and the maximum contention window size.

Definition at line 1140 of file regular-wifi-mac.cc.

References ns3::AC_BE_NQOS, ns3::WifiMac::ConfigureDcf(), m_dca, m_dsssSupported, m_edca, and m_erpSupported.

Referenced by FinishConfigureStandard(), and ns3::StaWifiMac::Receive().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::DeaggregateAmsduAndForward ( Ptr< Packet aggregatedPacket,
const WifiMacHeader hdr
)
protectedvirtual

This method can be called to de-aggregate an A-MSDU and forward the constituent packets up the stack.

Parameters
aggregatedPacketthe Packet containing the A-MSDU.
hdra pointer to the MAC header for aggregatedPacket.

Reimplemented in ns3::ApWifiMac.

Definition at line 860 of file regular-wifi-mac.cc.

References ns3::MsduAggregator::Deaggregate(), and ForwardUp().

Referenced by ns3::AdhocWifiMac::Receive(), ns3::StaWifiMac::Receive(), and ns3::OcbWifiMac::Receive().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::DisableAggregation ( void  )
private

Definition at line 1227 of file regular-wifi-mac.cc.

References m_edca, and NS_LOG_FUNCTION.

Referenced by SetHtSupported(), and SetVhtSupported().

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::DoDispose ( void  )
protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::ApWifiMac, and ns3::MeshWifiInterfaceMac.

Definition at line 94 of file regular-wifi-mac.cc.

References ns3::Object::Dispose(), m_dca, m_dcfManager, m_edca, m_low, m_phy, m_rxMiddle, m_stationManager, m_txMiddle, and NS_LOG_FUNCTION.

Referenced by ns3::MeshWifiInterfaceMac::DoDispose(), and ns3::ApWifiMac::DoDispose().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::DoInitialize ( void  )
protectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::ApWifiMac, and ns3::MeshWifiInterfaceMac.

Definition at line 82 of file regular-wifi-mac.cc.

References m_dca, m_edca, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::DoInitialize().

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::EnableAggregation ( void  )
private

Definition at line 1207 of file regular-wifi-mac.cc.

References ConfigureAggregation(), m_edca, and NS_LOG_FUNCTION.

Referenced by SetHtSupported(), and SetVhtSupported().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::Enqueue ( Ptr< const Packet packet,
Mac48Address  to,
Mac48Address  from
)
virtual
Parameters
packetthe packet to send.
tothe address to which the packet should be sent.
fromthe address from which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC. The extra parameter "from" allows this device to operate in a bridged mode, forwarding received frames without altering the source address.

Implements ns3::WifiMac.

Reimplemented in ns3::ApWifiMac, and ns3::MeshWifiInterfaceMac.

Definition at line 737 of file regular-wifi-mac.cc.

References GetAddress(), and NS_FATAL_ERROR.

+ Here is the call graph for this function:

virtual void ns3::RegularWifiMac::Enqueue ( Ptr< const Packet packet,
Mac48Address  to
)
pure virtual
Parameters
packetthe packet to send.
tothe address to which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC.

Implements ns3::WifiMac.

Implemented in ns3::OcbWifiMac, ns3::ApWifiMac, ns3::MeshWifiInterfaceMac, ns3::AdhocWifiMac, and ns3::StaWifiMac.

void ns3::RegularWifiMac::FinishConfigureStandard ( enum WifiPhyStandard  standard)
protectedvirtual
Parameters
standardthe phy standard to be used

This method is called by ns3::WifiMac::ConfigureStandard to complete the configuration process for a requested phy standard.

This method may be overriden by a derived class (e.g., in order to apply DCF or EDCA parameters specific to the usage model it is dealing with), in which case the reimplementation may choose to deal with certain values in the WifiPhyStandard enumeration, and chain up to this implementation to deal with the remainder.

Implements ns3::WifiMac.

Reimplemented in ns3::OcbWifiMac, and ns3::MeshWifiInterfaceMac.

Definition at line 1102 of file regular-wifi-mac.cc.

References ConfigureContentionWindow(), NS_FATAL_ERROR, NS_LOG_FUNCTION, SetDsssSupported(), SetErpSupported(), SetHtSupported(), SetVhtSupported(), ns3::WIFI_PHY_STANDARD_80211_10MHZ, ns3::WIFI_PHY_STANDARD_80211_5MHZ, ns3::WIFI_PHY_STANDARD_80211a, ns3::WIFI_PHY_STANDARD_80211ac, ns3::WIFI_PHY_STANDARD_80211b, ns3::WIFI_PHY_STANDARD_80211g, ns3::WIFI_PHY_STANDARD_80211n_2_4GHZ, ns3::WIFI_PHY_STANDARD_80211n_5GHZ, and ns3::WIFI_PHY_STANDARD_holland.

Referenced by ns3::MeshWifiInterfaceMac::FinishConfigureStandard().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::ForwardUp ( Ptr< Packet packet,
Mac48Address  from,
Mac48Address  to
)
protected

Forward the packet up to the device.

Parameters
packetthe packet that we are forwarding up to the device
fromthe address of the source
tothe address of the destination

Definition at line 755 of file regular-wifi-mac.cc.

References m_forwardUp, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::DeaggregateAmsduAndForward(), DeaggregateAmsduAndForward(), ns3::AdhocWifiMac::Receive(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), and ns3::OcbWifiMac::Receive().

+ Here is the caller graph for this function:

Time ns3::RegularWifiMac::GetAckTimeout ( void  ) const
virtual
Returns
the current ACK timeout duration.

Implements ns3::WifiMac.

Definition at line 634 of file regular-wifi-mac.cc.

References ns3::MacLow::GetAckTimeout(), and m_low.

+ Here is the call graph for this function:

Time ns3::RegularWifiMac::GetBasicBlockAckTimeout ( void  ) const
virtual
Returns
the current basic block ACK timeout duration.

Reimplemented from ns3::WifiMac.

Definition at line 660 of file regular-wifi-mac.cc.

References ns3::MacLow::GetBasicBlockAckTimeout(), and m_low.

+ Here is the call graph for this function:

Ptr< EdcaTxopN > ns3::RegularWifiMac::GetBEQueue ( void  ) const
protected

Accessor for the AC_BE channel access function.

Returns
a smart pointer to EdcaTxopN

Definition at line 396 of file regular-wifi-mac.cc.

References ns3::AC_BE, and m_edca.

Referenced by ConfigureAggregation(), ns3::OcbWifiMac::ConfigureEdca(), GetTypeId(), SetBeBlockAckInactivityTimeout(), and SetBeBlockAckThreshold().

+ Here is the caller graph for this function:

Ptr< EdcaTxopN > ns3::RegularWifiMac::GetBKQueue ( void  ) const
protected

Accessor for the AC_BK channel access function.

Returns
a smart pointer to EdcaTxopN

Definition at line 402 of file regular-wifi-mac.cc.

References ns3::AC_BK, and m_edca.

Referenced by ConfigureAggregation(), ns3::OcbWifiMac::ConfigureEdca(), GetTypeId(), SetBkBlockAckInactivityTimeout(), and SetBkBlockAckThreshold().

+ Here is the caller graph for this function:

Mac48Address ns3::RegularWifiMac::GetBssid ( void  ) const
virtual
Returns
the bssid of the network this device belongs to.

Implements ns3::WifiMac.

Reimplemented in ns3::OcbWifiMac.

Definition at line 712 of file regular-wifi-mac.cc.

References ns3::MacLow::GetBssid(), and m_low.

Referenced by ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::StaWifiMac::Receive(), ns3::StaWifiMac::SendAssociationRequest(), and ns3::StaWifiMac::SetState().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Time ns3::RegularWifiMac::GetCompressedBlockAckTimeout ( void  ) const
virtual
Returns
the current compressed block ACK timeout duration.

Reimplemented from ns3::WifiMac.

Definition at line 673 of file regular-wifi-mac.cc.

References ns3::MacLow::GetCompressedBlockAckTimeout(), and m_low.

+ Here is the call graph for this function:

Time ns3::RegularWifiMac::GetCtsTimeout ( void  ) const
virtual
Returns
the current CTS timeout duration.

Implements ns3::WifiMac.

Definition at line 647 of file regular-wifi-mac.cc.

References ns3::MacLow::GetCtsTimeout(), and m_low.

+ Here is the call graph for this function:

bool ns3::RegularWifiMac::GetCtsToSelfSupported ( ) const

Return whether the device supports CTS-to-self capability.

Returns
true if CTS-to-self is supported, false otherwise.

Definition at line 554 of file regular-wifi-mac.cc.

References ns3::MacLow::GetCtsToSelfSupported(), and m_low.

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Ptr< DcaTxop > ns3::RegularWifiMac::GetDcaTxop ( void  ) const
protected

Accessor for the DCF object.

Returns
a smart pointer to DcaTxop

Definition at line 378 of file regular-wifi-mac.cc.

References m_dca.

Referenced by ns3::OcbWifiMac::ConfigureEdca(), and GetTypeId().

+ Here is the caller graph for this function:

bool ns3::RegularWifiMac::GetDsssSupported ( ) const
protected

Return whether the device supports DSSS.

Returns
true if DSSS is supported, false otherwise

Definition at line 541 of file regular-wifi-mac.cc.

References m_dsssSupported.

Time ns3::RegularWifiMac::GetEifsNoDifs ( void  ) const
virtual
Returns
the current EIFS minus DIFS duration

Implements ns3::WifiMac.

Definition at line 595 of file regular-wifi-mac.cc.

References ns3::DcfManager::GetEifsNoDifs(), and m_dcfManager.

+ Here is the call graph for this function:

bool ns3::RegularWifiMac::GetErpSupported ( ) const
protected

Return whether the device supports ERP.

Returns
true if ERP is supported, false otherwise

Definition at line 517 of file regular-wifi-mac.cc.

References m_erpSupported.

HtCapabilities ns3::RegularWifiMac::GetHtCapabilities ( void  ) const

Return the HT capability of the device.

Returns
the HT capability that we support

Definition at line 145 of file regular-wifi-mac.cc.

References ns3::WifiPhy::GetChannelWidth(), ns3::WifiMode::GetDataRate(), ns3::WifiPhy::GetGreenfield(), ns3::WifiPhy::GetGuardInterval(), ns3::WifiPhy::GetLdpc(), ns3::WifiPhy::GetMcs(), ns3::WifiMode::GetMcsValue(), ns3::WifiMode::GetModulationClass(), ns3::WifiPhy::GetNMcs(), ns3::WifiPhy::GetSupportedTxSpatialStreams(), m_htSupported, m_phy, NS_ASSERT, NS_LOG_DEBUG, ns3::HtCapabilities::SetGreenfield(), ns3::HtCapabilities::SetHtSupported(), ns3::HtCapabilities::SetLdpc(), ns3::HtCapabilities::SetLSigProtectionSupport(), ns3::HtCapabilities::SetMaxAmpduLength(), ns3::HtCapabilities::SetMaxAmsduLength(), ns3::HtCapabilities::SetRxHighestSupportedDataRate(), ns3::HtCapabilities::SetRxMcsBitmask(), ns3::HtCapabilities::SetShortGuardInterval20(), ns3::HtCapabilities::SetShortGuardInterval40(), ns3::HtCapabilities::SetSupportedChannelWidth(), ns3::HtCapabilities::SetTxMaxNSpatialStreams(), ns3::HtCapabilities::SetTxMcsSetDefined(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::AdhocWifiMac::Receive(), ns3::OcbWifiMac::Receive(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), and ns3::ApWifiMac::SendProbeResp().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::RegularWifiMac::GetHtSupported ( ) const
protected

Return whether the device supports HT.

Returns
true if HT is supported, false otherwise

Definition at line 511 of file regular-wifi-mac.cc.

References m_htSupported.

Referenced by GetTypeId(), and SetWifiRemoteStationManager().

+ Here is the caller graph for this function:

Time ns3::RegularWifiMac::GetPifs ( void  ) const
virtual
Returns
the current PIFS duration.

Implements ns3::WifiMac.

Definition at line 621 of file regular-wifi-mac.cc.

References ns3::MacLow::GetPifs(), and m_low.

+ Here is the call graph for this function:

bool ns3::RegularWifiMac::GetQosSupported ( ) const
protected

Return whether the device supports QoS.

Returns
true if QoS is supported, false otherwise

Definition at line 461 of file regular-wifi-mac.cc.

References m_qosSupported.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

Time ns3::RegularWifiMac::GetRifs ( void  ) const
virtual
Returns
the current RIFS duration.

Implements ns3::WifiMac.

Definition at line 608 of file regular-wifi-mac.cc.

References ns3::MacLow::GetRifs(), and m_low.

+ Here is the call graph for this function:

bool ns3::RegularWifiMac::GetShortSlotTimeSupported ( void  ) const
virtual
Returns
whether the device supports short slot time capability.
true if short slot time is supported, false otherwise.

Implements ns3::WifiMac.

Definition at line 731 of file regular-wifi-mac.cc.

References m_shortSlotTimeSupported.

Referenced by ns3::StaWifiMac::GetCapabilities(), and ns3::ApWifiMac::GetShortSlotTimeEnabled().

+ Here is the caller graph for this function:

Time ns3::RegularWifiMac::GetSifs ( void  ) const
virtual
Returns
the current SIFS duration.

Implements ns3::WifiMac.

Definition at line 582 of file regular-wifi-mac.cc.

References ns3::MacLow::GetSifs(), and m_low.

+ Here is the call graph for this function:

Time ns3::RegularWifiMac::GetSlot ( void  ) const
virtual
Returns
the current slot duration.

Implements ns3::WifiMac.

Definition at line 568 of file regular-wifi-mac.cc.

References ns3::MacLow::GetSlotTime(), and m_low.

+ Here is the call graph for this function:

Ssid ns3::RegularWifiMac::GetSsid ( void  ) const
virtual
Returns
the ssid which this MAC layer is going to try to stay in.

Implements ns3::WifiMac.

Reimplemented in ns3::OcbWifiMac.

Definition at line 699 of file regular-wifi-mac.cc.

References m_ssid.

Referenced by ns3::OcbWifiMac::GetSsid(), ns3::StaWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::StaWifiMac::SendAssociationRequest(), ns3::MeshWifiInterfaceMac::SendBeacon(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), and ns3::ApWifiMac::SendProbeResp().

+ Here is the caller graph for this function:

bool ns3::RegularWifiMac::GetVhtSupported ( ) const
protected

Return whether the device supports VHT.

Returns
true if VHT is supported, false otherwise

Definition at line 486 of file regular-wifi-mac.cc.

References m_vhtSupported.

Referenced by GetTypeId(), and SetWifiRemoteStationManager().

+ Here is the caller graph for this function:

Ptr< EdcaTxopN > ns3::RegularWifiMac::GetVIQueue ( void  ) const
protected

Accessor for the AC_VI channel access function.

Returns
a smart pointer to EdcaTxopN

Definition at line 390 of file regular-wifi-mac.cc.

References ns3::AC_VI, and m_edca.

Referenced by ConfigureAggregation(), ns3::OcbWifiMac::ConfigureEdca(), GetTypeId(), SetViBlockAckInactivityTimeout(), and SetViBlockAckThreshold().

+ Here is the caller graph for this function:

Ptr< EdcaTxopN > ns3::RegularWifiMac::GetVOQueue ( void  ) const
protected

Accessor for the AC_VO channel access function.

Returns
a smart pointer to EdcaTxopN

Definition at line 384 of file regular-wifi-mac.cc.

References ns3::AC_VO, and m_edca.

Referenced by ConfigureAggregation(), ns3::OcbWifiMac::ConfigureEdca(), GetTypeId(), SetVoBlockAckInactivityTimeout(), and SetVoBlockAckThreshold().

+ Here is the caller graph for this function:

Ptr< WifiPhy > ns3::RegularWifiMac::GetWifiPhy ( void  ) const
virtual
Returns
the physical layer attached to this MAC.

Implements ns3::WifiMac.

Definition at line 417 of file regular-wifi-mac.cc.

References m_phy, and NS_LOG_FUNCTION.

Ptr< WifiRemoteStationManager > ns3::RegularWifiMac::GetWifiRemoteStationManager ( void  ) const
virtual
Returns
the station manager attached to this MAC.

Implements ns3::WifiMac.

Definition at line 139 of file regular-wifi-mac.cc.

References m_stationManager.

Referenced by ns3::WaveNetDevice::DoDispose(), and ns3::WaveNetDevice::DoInitialize().

+ Here is the caller graph for this function:

RegularWifiMac& ns3::RegularWifiMac::operator= ( const RegularWifiMac )
private
void ns3::RegularWifiMac::Receive ( Ptr< Packet packet,
const WifiMacHeader hdr
)
protectedvirtual

This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received.

The implementation is intended to capture logic that is going to be common to all (or most) derived classes. Specifically, handling of Block Ack managment frames is dealt with here.

This method will need, however, to be overriden by derived classes so that they can perform their data handling before invoking the base version.

Parameters
packetthe packet that has been received.
hdra pointer to the MAC header of the received frame.

Reimplemented in ns3::OcbWifiMac, ns3::MeshWifiInterfaceMac, ns3::ApWifiMac, ns3::StaWifiMac, and ns3::AdhocWifiMac.

Definition at line 762 of file regular-wifi-mac.cc.

References ns3::WifiActionHeader::BLOCK_ACK, ns3::WifiActionHeader::BLOCK_ACK_ADDBA_REQUEST, ns3::WifiActionHeader::BLOCK_ACK_ADDBA_RESPONSE, ns3::WifiActionHeader::BLOCK_ACK_DELBA, ns3::WifiActionHeader::ActionValue::blockAck, ns3::MacLow::DestroyBlockAckAgreement(), ns3::WifiActionHeader::GetAction(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr2(), GetAddress(), ns3::WifiActionHeader::GetCategory(), ns3::MgtAddBaResponseHeader::GetTid(), ns3::MgtDelBaHeader::GetTid(), ns3::WifiMacHeader::GetType(), ns3::WifiMacHeader::IsAction(), ns3::MgtDelBaHeader::IsByOriginator(), ns3::WifiMacHeader::IsMgt(), m_edca, m_low, m_qosSupported, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::QosUtilsMapTidToAc(), ns3::Packet::RemoveHeader(), and SendAddBaResponse().

Referenced by ns3::AdhocWifiMac::Receive(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::OcbWifiMac::Receive(), and RegularWifiMac().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::ResetWifiPhy ( void  )
virtual

removes attached WifiPhy device from this MAC.

Implements ns3::WifiMac.

Definition at line 424 of file regular-wifi-mac.cc.

References m_dcfManager, m_low, m_phy, NS_LOG_FUNCTION, ns3::DcfManager::RemovePhyListener(), and ns3::MacLow::ResetPhy().

Referenced by ns3::DefaultChannelScheduler::SwitchToNextChannel().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SendAddBaResponse ( const MgtAddBaRequestHeader reqHdr,
Mac48Address  originator
)
protectedvirtual

This method can be called to accept a received ADDBA Request.

An ADDBA Response will be constructed and queued for transmission.

Parameters
reqHdra pointer to the received ADDBA Request header.
originatorthe MAC address of the originator.

Definition at line 875 of file regular-wifi-mac.cc.

References ns3::Packet::AddHeader(), ns3::WifiActionHeader::BLOCK_ACK, ns3::WifiActionHeader::BLOCK_ACK_ADDBA_RESPONSE, ns3::WifiActionHeader::ActionValue::blockAck, ns3::MacLow::CreateBlockAckAgreement(), GetAddress(), ns3::MgtAddBaRequestHeader::GetStartingSequence(), ns3::MgtAddBaRequestHeader::GetTid(), ns3::MgtAddBaRequestHeader::GetTimeout(), ns3::MgtAddBaRequestHeader::IsAmsduSupported(), ns3::MgtAddBaRequestHeader::IsImmediateBlockAck(), m_edca, m_low, NS_LOG_FUNCTION, ns3::QosUtilsMapTidToAc(), ns3::WifiMacHeader::SetAction(), ns3::WifiActionHeader::SetAction(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::MgtAddBaResponseHeader::SetAmsduSupport(), ns3::MgtAddBaResponseHeader::SetBufferSize(), ns3::MgtAddBaResponseHeader::SetDelayedBlockAck(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::MgtAddBaResponseHeader::SetImmediateBlockAck(), ns3::MgtAddBaResponseHeader::SetStatusCode(), ns3::StatusCode::SetSuccess(), ns3::MgtAddBaResponseHeader::SetTid(), and ns3::MgtAddBaResponseHeader::SetTimeout().

Referenced by Receive().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetAckTimeout ( Time  ackTimeout)
virtual
Parameters
ackTimeoutthe duration of an ACK timeout.

Implements ns3::WifiMac.

Definition at line 627 of file regular-wifi-mac.cc.

References m_low, NS_LOG_FUNCTION, and ns3::MacLow::SetAckTimeout().

+ Here is the call graph for this function:

void ns3::RegularWifiMac::SetAddress ( Mac48Address  address)
virtual
Parameters
addressthe current address of this MAC layer.

Implements ns3::WifiMac.

Reimplemented in ns3::ApWifiMac, and ns3::AdhocWifiMac.

Definition at line 679 of file regular-wifi-mac.cc.

References m_low, NS_LOG_FUNCTION, and ns3::MacLow::SetAddress().

Referenced by ns3::AdhocWifiMac::SetAddress(), and ns3::ApWifiMac::SetAddress().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetBasicBlockAckTimeout ( Time  blockAckTimeout)
virtual
Parameters
blockAckTimeoutthe duration for basic block ACK timeout.

Sets the timeout for basic block ACK.

Reimplemented from ns3::WifiMac.

Definition at line 653 of file regular-wifi-mac.cc.

References m_low, NS_LOG_FUNCTION, and ns3::MacLow::SetBasicBlockAckTimeout().

+ Here is the call graph for this function:

void ns3::RegularWifiMac::SetBeBlockAckInactivityTimeout ( uint16_t  timeout)
private

Definition at line 333 of file regular-wifi-mac.cc.

References GetBEQueue(), NS_LOG_FUNCTION, and ns3::EdcaTxopN::SetBlockAckInactivityTimeout().

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetBeBlockAckThreshold ( uint8_t  threshold)
private

Definition at line 305 of file regular-wifi-mac.cc.

References GetBEQueue(), NS_LOG_FUNCTION, and ns3::EdcaTxopN::SetBlockAckThreshold().

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetBeMaxAmpduSize ( uint32_t  size)
private

Definition at line 275 of file regular-wifi-mac.cc.

References ConfigureAggregation(), m_beMaxAmpduSize, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetBeMaxAmsduSize ( uint32_t  size)
private

Definition at line 243 of file regular-wifi-mac.cc.

References ConfigureAggregation(), m_beMaxAmsduSize, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetBkBlockAckInactivityTimeout ( uint16_t  timeout)
private

Definition at line 340 of file regular-wifi-mac.cc.

References GetBKQueue(), NS_LOG_FUNCTION, and ns3::EdcaTxopN::SetBlockAckInactivityTimeout().

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetBkBlockAckThreshold ( uint8_t  threshold)
private

Definition at line 312 of file regular-wifi-mac.cc.

References GetBKQueue(), NS_LOG_FUNCTION, and ns3::EdcaTxopN::SetBlockAckThreshold().

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetBkMaxAmpduSize ( uint32_t  size)
private

Definition at line 283 of file regular-wifi-mac.cc.

References ConfigureAggregation(), m_bkMaxAmpduSize, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetBkMaxAmsduSize ( uint32_t  size)
private

Definition at line 251 of file regular-wifi-mac.cc.

References ConfigureAggregation(), m_bkMaxAmsduSize, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetBssid ( Mac48Address  bssid)
virtual
Parameters
bssidthe BSSID of the network that this device belongs to.

Reimplemented in ns3::OcbWifiMac.

Definition at line 705 of file regular-wifi-mac.cc.

References m_low, NS_LOG_FUNCTION, and ns3::MacLow::SetBssid().

Referenced by ns3::OcbWifiMac::OcbWifiMac(), ns3::StaWifiMac::Receive(), ns3::AdhocWifiMac::SetAddress(), and ns3::ApWifiMac::SetAddress().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetCompressedBlockAckTimeout ( Time  blockAckTimeout)
virtual
Parameters
blockAckTimeoutSets the timeout for compressed block ACK.

Reimplemented from ns3::WifiMac.

Definition at line 666 of file regular-wifi-mac.cc.

References m_low, NS_LOG_FUNCTION, and ns3::MacLow::SetCompressedBlockAckTimeout().

+ Here is the call graph for this function:

void ns3::RegularWifiMac::SetCtsTimeout ( Time  ctsTimeout)
virtual
Parameters
ctsTimeoutthe duration of a CTS timeout.

Implements ns3::WifiMac.

Definition at line 640 of file regular-wifi-mac.cc.

References m_low, NS_LOG_FUNCTION, and ns3::MacLow::SetCtsTimeout().

+ Here is the call graph for this function:

void ns3::RegularWifiMac::SetCtsToSelfSupported ( bool  enable)

Enable or disable CTS-to-self feature.

Parameters
enabletrue if CTS-to-self is to be supported, false otherwise

Definition at line 547 of file regular-wifi-mac.cc.

References m_low, NS_LOG_FUNCTION, and ns3::MacLow::SetCtsToSelfSupported().

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetDsssSupported ( bool  enable)
protected

Enable or disable DSSS support for the device.

Parameters
enablewhether DSSS is supported

Definition at line 534 of file regular-wifi-mac.cc.

References m_dsssSupported, and NS_LOG_FUNCTION.

Referenced by FinishConfigureStandard(), and SetErpSupported().

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetEifsNoDifs ( Time  eifsNoDifs)
virtual
Parameters
eifsNoDifsthe duration of an EIFS minus DIFS.

This value is used to calculate the EIFS depending on AIFSN.

Implements ns3::WifiMac.

Definition at line 588 of file regular-wifi-mac.cc.

References m_dcfManager, NS_LOG_FUNCTION, and ns3::DcfManager::SetEifsNoDifs().

+ Here is the call graph for this function:

void ns3::RegularWifiMac::SetErpSupported ( bool  enable)
protected

Enable or disable ERP support for the device.

Parameters
enablewhether ERP is supported

Definition at line 523 of file regular-wifi-mac.cc.

References m_erpSupported, NS_LOG_FUNCTION, and SetDsssSupported().

Referenced by FinishConfigureStandard().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetForwardUpCallback ( ForwardUpCallback  upCallback)
virtual
Parameters
upCallbackthe callback to invoke when a packet must be forwarded up the stack.

Definition at line 433 of file regular-wifi-mac.cc.

References m_forwardUp, and NS_LOG_FUNCTION.

Referenced by ns3::WaveNetDevice::DoInitialize().

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetHtSupported ( bool  enable)
protected

Enable or disable HT support for the device.

Parameters
enablewhether HT is supported

Definition at line 467 of file regular-wifi-mac.cc.

References DisableAggregation(), EnableAggregation(), m_htSupported, m_vhtSupported, NS_LOG_FUNCTION, and SetQosSupported().

Referenced by FinishConfigureStandard(), and GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetLinkDownCallback ( Callback< void >  linkDown)
virtual
Parameters
linkDownthe callback to invoke when the link becomes down.

Implements ns3::WifiMac.

Reimplemented in ns3::OcbWifiMac.

Definition at line 447 of file regular-wifi-mac.cc.

References m_linkDown, and NS_LOG_FUNCTION.

Referenced by ns3::OcbWifiMac::SetLinkDownCallback().

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetLinkUpCallback ( Callback< void >  linkUp)
virtual
Parameters
linkUpthe callback to invoke when the link becomes up.

Implements ns3::WifiMac.

Reimplemented in ns3::OcbWifiMac, ns3::MeshWifiInterfaceMac, ns3::ApWifiMac, and ns3::AdhocWifiMac.

Definition at line 440 of file regular-wifi-mac.cc.

References m_linkUp, and NS_LOG_FUNCTION.

Referenced by ns3::AdhocWifiMac::SetLinkUpCallback(), ns3::ApWifiMac::SetLinkUpCallback(), ns3::MeshWifiInterfaceMac::SetLinkUpCallback(), and ns3::OcbWifiMac::SetLinkUpCallback().

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetPifs ( Time  pifs)
virtual
Parameters
pifsthe pifs duration.

Implements ns3::WifiMac.

Definition at line 614 of file regular-wifi-mac.cc.

References m_low, NS_LOG_FUNCTION, and ns3::MacLow::SetPifs().

+ Here is the call graph for this function:

void ns3::RegularWifiMac::SetPromisc ( void  )
virtual

Sets the interface in promiscuous mode.

Enables promiscuous mode on the interface. Note that any further filtering on the incoming frame path may affect the overall behavior.

Implements ns3::WifiMac.

Definition at line 718 of file regular-wifi-mac.cc.

References m_low, and ns3::MacLow::SetPromisc().

+ Here is the call graph for this function:

void ns3::RegularWifiMac::SetQosSupported ( bool  enable)
protected

Enable or disable QoS support for the device.

Parameters
enablewhether QoS is supported

Definition at line 454 of file regular-wifi-mac.cc.

References m_qosSupported, and NS_LOG_FUNCTION.

Referenced by GetTypeId(), SetHtSupported(), and SetVhtSupported().

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetRifs ( Time  rifs)
virtual
Parameters
rifsthe rifs duration.

Implements ns3::WifiMac.

Definition at line 601 of file regular-wifi-mac.cc.

References m_low, NS_LOG_FUNCTION, and ns3::MacLow::SetRifs().

+ Here is the call graph for this function:

void ns3::RegularWifiMac::SetShortSlotTimeSupported ( bool  enable)
virtual

Enable or disable short slot time feature.

Parameters
enabletrue if short slot time is to be supported, false otherwise

Implements ns3::WifiMac.

Definition at line 724 of file regular-wifi-mac.cc.

References m_shortSlotTimeSupported, and NS_LOG_FUNCTION.

void ns3::RegularWifiMac::SetSifs ( Time  sifs)
virtual
Parameters
sifsthe sifs duration

Implements ns3::WifiMac.

Definition at line 574 of file regular-wifi-mac.cc.

References m_dcfManager, m_low, NS_LOG_FUNCTION, ns3::DcfManager::SetSifs(), and ns3::MacLow::SetSifs().

+ Here is the call graph for this function:

void ns3::RegularWifiMac::SetSlot ( Time  slotTime)
virtual
Parameters
slotTimethe slot duration

Implements ns3::WifiMac.

Definition at line 560 of file regular-wifi-mac.cc.

References m_dcfManager, m_low, NS_LOG_FUNCTION, ns3::DcfManager::SetSlot(), and ns3::MacLow::SetSlotTime().

Referenced by ns3::StaWifiMac::Receive(), and ns3::ApWifiMac::SendOneBeacon().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetSsid ( Ssid  ssid)
virtual
Parameters
ssidthe current ssid of this MAC layer.

Implements ns3::WifiMac.

Reimplemented in ns3::OcbWifiMac.

Definition at line 692 of file regular-wifi-mac.cc.

References m_ssid, NS_LOG_FUNCTION, and third::ssid.

void ns3::RegularWifiMac::SetTypeOfStation ( TypeOfStation  type)
protected

This method is invoked by a subclass to specify what type of station it is implementing.

This is something that the channel access functions (instantiated within this class as EdcaTxopN's) need to know.

Parameters
typethe type of station.

Definition at line 368 of file regular-wifi-mac.cc.

References m_edca, and NS_LOG_FUNCTION.

Referenced by ns3::AdhocWifiMac::AdhocWifiMac(), ns3::ApWifiMac::ApWifiMac(), ns3::MeshWifiInterfaceMac::MeshWifiInterfaceMac(), ns3::OcbWifiMac::OcbWifiMac(), and ns3::StaWifiMac::StaWifiMac().

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetupEdcaQueue ( enum AcIndex  ac)
private

This method is a private utility invoked to configure the channel access function for the specified Access Category.

Parameters
acthe Access Category index of the queue to initialise.

Definition at line 347 of file regular-wifi-mac.cc.

References m_dcfManager, m_edca, m_low, m_txMiddle, ns3::MakeCallback(), NS_ASSERT, NS_LOG_FUNCTION, ns3::EdcaTxopN::SetLow(), TxFailed(), and TxOk().

Referenced by RegularWifiMac().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetVhtSupported ( bool  enable)
protected

Enable or disable VHT support for the device.

Parameters
enablewhether VHT is supported

Definition at line 492 of file regular-wifi-mac.cc.

References DisableAggregation(), EnableAggregation(), m_htSupported, m_vhtSupported, NS_LOG_FUNCTION, and SetQosSupported().

Referenced by FinishConfigureStandard(), and GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetViBlockAckInactivityTimeout ( uint16_t  timeout)
private

Definition at line 326 of file regular-wifi-mac.cc.

References GetVIQueue(), NS_LOG_FUNCTION, and ns3::EdcaTxopN::SetBlockAckInactivityTimeout().

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetViBlockAckThreshold ( uint8_t  threshold)
private

Definition at line 298 of file regular-wifi-mac.cc.

References GetVIQueue(), NS_LOG_FUNCTION, and ns3::EdcaTxopN::SetBlockAckThreshold().

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetViMaxAmpduSize ( uint32_t  size)
private

Definition at line 267 of file regular-wifi-mac.cc.

References ConfigureAggregation(), m_viMaxAmpduSize, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetViMaxAmsduSize ( uint32_t  size)
private

Definition at line 235 of file regular-wifi-mac.cc.

References ConfigureAggregation(), m_viMaxAmsduSize, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetVoBlockAckInactivityTimeout ( uint16_t  timeout)
private

Definition at line 319 of file regular-wifi-mac.cc.

References GetVOQueue(), NS_LOG_FUNCTION, and ns3::EdcaTxopN::SetBlockAckInactivityTimeout().

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetVoBlockAckThreshold ( uint8_t  threshold)
private

Definition at line 291 of file regular-wifi-mac.cc.

References GetVOQueue(), NS_LOG_FUNCTION, and ns3::EdcaTxopN::SetBlockAckThreshold().

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetVoMaxAmpduSize ( uint32_t  size)
private

Definition at line 259 of file regular-wifi-mac.cc.

References ConfigureAggregation(), m_voMaxAmpduSize, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetVoMaxAmsduSize ( uint32_t  size)
private

Definition at line 227 of file regular-wifi-mac.cc.

References ConfigureAggregation(), m_voMaxAmsduSize, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetWifiPhy ( Ptr< WifiPhy phy)
virtual
Parameters
phythe physical layer attached to this MAC.

Implements ns3::WifiMac.

Definition at line 408 of file regular-wifi-mac.cc.

References m_dcfManager, m_low, m_phy, NS_LOG_FUNCTION, third::phy, ns3::MacLow::SetPhy(), and ns3::DcfManager::SetupPhyListener().

Referenced by ns3::DefaultChannelScheduler::AssignDefaultCchAccess(), and ns3::DefaultChannelScheduler::SwitchToNextChannel().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::SetWifiRemoteStationManager ( Ptr< WifiRemoteStationManager stationManager)
virtual
Parameters
stationManagerthe station manager attached to this MAC.

Implements ns3::WifiMac.

Reimplemented in ns3::ApWifiMac.

Definition at line 122 of file regular-wifi-mac.cc.

References GetHtSupported(), GetVhtSupported(), m_dca, m_edca, m_low, m_stationManager, NS_LOG_FUNCTION, ns3::WifiRemoteStationManager::SetHtSupported(), ns3::WifiRemoteStationManager::SetVhtSupported(), and ns3::MacLow::SetWifiRemoteStationManager().

Referenced by ns3::WaveHelper::Install(), and ns3::ApWifiMac::SetWifiRemoteStationManager().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::RegularWifiMac::SupportsSendFrom ( void  ) const
virtual
Returns
if this MAC supports sending from arbitrary address.

The interface may or may not support sending from arbitrary address. This function returns true if sending from arbitrary address is supported, false otherwise.

Implements ns3::WifiMac.

Reimplemented in ns3::ApWifiMac, and ns3::MeshWifiInterfaceMac.

Definition at line 749 of file regular-wifi-mac.cc.

void ns3::RegularWifiMac::TxFailed ( const WifiMacHeader hdr)
protectedvirtual

The packet we sent was successfully received by the receiver (i.e.

we did not receive an ACK from the receiver).

Parameters
hdrthe header of the packet that we failed to sent

Reimplemented in ns3::ApWifiMac.

Definition at line 1162 of file regular-wifi-mac.cc.

References m_txErrCallback, and NS_LOG_FUNCTION.

Referenced by RegularWifiMac(), SetupEdcaQueue(), and ns3::ApWifiMac::TxFailed().

+ Here is the caller graph for this function:

void ns3::RegularWifiMac::TxOk ( const WifiMacHeader hdr)
protectedvirtual

The packet we sent was successfully received by the receiver (i.e.

we received an ACK from the receiver).

Parameters
hdrthe header of the packet that we successfully sent

Reimplemented in ns3::ApWifiMac.

Definition at line 1155 of file regular-wifi-mac.cc.

References m_txOkCallback, and NS_LOG_FUNCTION.

Referenced by RegularWifiMac(), SetupEdcaQueue(), and ns3::ApWifiMac::TxOk().

+ Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::RegularWifiMac::m_beMaxAmpduSize
private

Definition at line 575 of file regular-wifi-mac.h.

Referenced by ConfigureAggregation(), and SetBeMaxAmpduSize().

uint32_t ns3::RegularWifiMac::m_beMaxAmsduSize
private

Definition at line 570 of file regular-wifi-mac.h.

Referenced by ConfigureAggregation(), and SetBeMaxAmsduSize().

uint32_t ns3::RegularWifiMac::m_bkMaxAmpduSize
private

Definition at line 576 of file regular-wifi-mac.h.

Referenced by ConfigureAggregation(), and SetBkMaxAmpduSize().

uint32_t ns3::RegularWifiMac::m_bkMaxAmsduSize
private

Definition at line 571 of file regular-wifi-mac.h.

Referenced by ConfigureAggregation(), and SetBkMaxAmsduSize().

bool ns3::RegularWifiMac::m_dsssSupported
protected

This Boolean is set true iff this WifiMac is to model 802.11b.

It is exposed through the attribute system.

Definition at line 517 of file regular-wifi-mac.h.

Referenced by ConfigureContentionWindow(), ns3::ApWifiMac::GetDsssParameterSet(), GetDsssSupported(), ns3::ApWifiMac::SendOneBeacon(), ns3::ApWifiMac::SendProbeResp(), and SetDsssSupported().

ForwardUpCallback ns3::RegularWifiMac::m_forwardUp
protected

Callback to forward packet up the stack.

Definition at line 280 of file regular-wifi-mac.h.

Referenced by ForwardUp(), and SetForwardUpCallback().

bool ns3::RegularWifiMac::m_htSupported
protected

This Boolean is set true iff this WifiMac is to model 802.11n.

It is exposed through the attribute system.

At the moment, this flag is the sole selection between HT and non-HT operation for the STA (whether IBSS, AP, or non-AP). Ultimately, we will want a HT-enabled STA to be able to fall back to non-HT operation with a non-HT peer. This'll require further intelligence - i.e., per-association HT state. Having a big switch seems like a good intermediate stage, however.

Definition at line 462 of file regular-wifi-mac.h.

Referenced by ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), GetHtCapabilities(), ns3::ApWifiMac::GetHtOperations(), GetHtSupported(), ns3::StaWifiMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), ns3::AdhocWifiMac::Receive(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::OcbWifiMac::Receive(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), SetHtSupported(), and SetVhtSupported().

Callback<void> ns3::RegularWifiMac::m_linkDown
protected

Callback when a link is down.

Definition at line 282 of file regular-wifi-mac.h.

Referenced by SetLinkDownCallback(), and ns3::StaWifiMac::TryToEnsureAssociated().

Callback<void> ns3::RegularWifiMac::m_linkUp
protected

Callback when a link is up.

Definition at line 281 of file regular-wifi-mac.h.

Referenced by ns3::StaWifiMac::Receive(), and SetLinkUpCallback().

bool ns3::RegularWifiMac::m_qosSupported
protected

This Boolean is set true iff this WifiMac is to model 802.11e/WMM style Quality of Service.

It is exposed through the attribute system.

At the moment, this flag is the sole selection between QoS and non-QoS operation for the STA (whether IBSS, AP, or non-AP). Ultimately, we will want a QoS-enabled STA to be able to fall back to non-QoS operation with a non-QoS peer. This'll require further intelligence - i.e., per-association QoS state. Having a big switch seems like a good intermediate stage, however.

Definition at line 435 of file regular-wifi-mac.h.

Referenced by ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), ns3::ApWifiMac::GetEdcaParameterSet(), GetQosSupported(), ns3::StaWifiMac::Receive(), Receive(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::ApWifiMac::SendProbeResp(), ns3::OcbWifiMac::SendVsc(), and SetQosSupported().

MacRxMiddle* ns3::RegularWifiMac::m_rxMiddle
protected

RX middle (de-fragmentation etc.)

Definition at line 272 of file regular-wifi-mac.h.

Referenced by DoDispose(), ns3::OcbWifiMac::EnableForWave(), and RegularWifiMac().

bool ns3::RegularWifiMac::m_shortSlotTimeSupported
private

Definition at line 581 of file regular-wifi-mac.h.

Referenced by GetShortSlotTimeSupported(), and SetShortSlotTimeSupported().

Ssid ns3::RegularWifiMac::m_ssid
protected

Service Set ID (SSID)

Definition at line 284 of file regular-wifi-mac.h.

Referenced by GetSsid(), and SetSsid().

TracedCallback<const WifiMacHeader &> ns3::RegularWifiMac::m_txErrCallback
private

Definition at line 579 of file regular-wifi-mac.h.

Referenced by GetTypeId(), and TxFailed().

MacTxMiddle* ns3::RegularWifiMac::m_txMiddle
protected

TX middle (aggregation etc.)

Definition at line 273 of file regular-wifi-mac.h.

Referenced by ns3::ApWifiMac::ApWifiMac(), DoDispose(), RegularWifiMac(), and SetupEdcaQueue().

TracedCallback<const WifiMacHeader &> ns3::RegularWifiMac::m_txOkCallback
private

Definition at line 578 of file regular-wifi-mac.h.

Referenced by GetTypeId(), and TxOk().

uint32_t ns3::RegularWifiMac::m_viMaxAmpduSize
private

Definition at line 574 of file regular-wifi-mac.h.

Referenced by ConfigureAggregation(), and SetViMaxAmpduSize().

uint32_t ns3::RegularWifiMac::m_viMaxAmsduSize
private

Definition at line 569 of file regular-wifi-mac.h.

Referenced by ConfigureAggregation(), and SetViMaxAmsduSize().

uint32_t ns3::RegularWifiMac::m_voMaxAmpduSize
private

Definition at line 573 of file regular-wifi-mac.h.

Referenced by ConfigureAggregation(), and SetVoMaxAmpduSize().

uint32_t ns3::RegularWifiMac::m_voMaxAmsduSize
private

Definition at line 568 of file regular-wifi-mac.h.

Referenced by ConfigureAggregation(), and SetVoMaxAmsduSize().


The documentation for this class was generated from the following files:
