ns3::AdhocWifiMac Class Reference

Wifi MAC high model for an ad-hoc Wifi MAC. More...

#include "adhoc-wifi-mac.h"

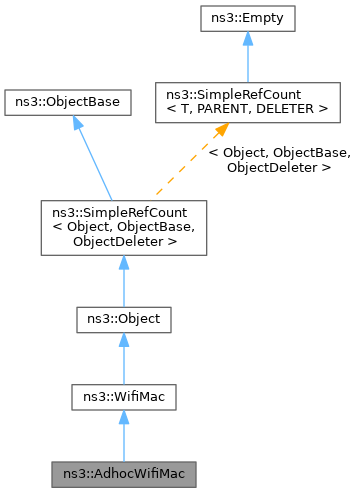

+ Inheritance diagram for ns3::AdhocWifiMac:
+ Collaboration diagram for ns3::AdhocWifiMac:

Public Member Functions

 AdhocWifiMac ()

 ~AdhocWifiMac () override

bool CanForwardPacketsTo (Mac48Address to) const override
 Return true if packets can be forwarded to the given destination, false otherwise.

void Enqueue (Ptr< Packet > packet, Mac48Address to) override

void SetLinkUpCallback (Callback< void > linkUp) override

- Public Member Functions inherited from ns3::WifiMac
 WifiMac ()

 WifiMac (const WifiMac &)=delete

 ~WifiMac () override

void BlockUnicastTxOnLinks (WifiQueueBlockedReason reason, const Mac48Address &address, const std::set< uint8_t > &linkIds)
 Block the transmission on the given links of all unicast frames addressed to the station with the given address for the given reason.

virtual bool CanForwardPacketsTo (Mac48Address to) const =0
 Return true if packets can be forwarded to the given destination, false otherwise.

virtual void ConfigureStandard (WifiStandard standard)

virtual void Enqueue (Ptr< Packet > packet, Mac48Address to)=0

virtual void Enqueue (Ptr< Packet > packet, Mac48Address to, Mac48Address from)

Mac48Address GetAddress () const

OriginatorAgreementOptConstRef GetBaAgreementEstablishedAsOriginator (Mac48Address recipient, uint8_t tid) const

RecipientAgreementOptConstRef GetBaAgreementEstablishedAsRecipient (Mac48Address originator, uint8_t tid) const

BlockAckReqType GetBarTypeAsOriginator (const Mac48Address &recipient, uint8_t tid) const

BlockAckReqType GetBarTypeAsRecipient (Mac48Address originator, uint8_t tid) const

BlockAckType GetBaTypeAsOriginator (const Mac48Address &recipient, uint8_t tid) const

BlockAckType GetBaTypeAsRecipient (Mac48Address originator, uint8_t tid) const

Mac48Address GetBssid (uint8_t linkId) const

Ptr< ChannelAccessManagerGetChannelAccessManager (uint8_t linkId=SINGLE_LINK_OP_ID) const
 Get the Channel Access Manager associated with the given link.

Ptr< WifiNetDeviceGetDevice () const
 Return the device this PHY is associated with.

bool GetDsssSupported (uint8_t linkId) const
 Return whether the device supports DSSS on the given link.

EhtCapabilities GetEhtCapabilities (uint8_t linkId) const
 Return the EHT capabilities of the device for the given link.

Ptr< EhtConfigurationGetEhtConfiguration () const

bool GetEhtSupported () const
 Return whether the device supports EHT.

bool GetEhtSupported (const Mac48Address &address) const

bool GetErpSupported (uint8_t linkId) const
 Return whether the device supports ERP on the given link.

ExtendedCapabilities GetExtendedCapabilities () const
 Return the extended capabilities of the device.

Ptr< FrameExchangeManagerGetFrameExchangeManager (uint8_t linkId=SINGLE_LINK_OP_ID) const
 Get the Frame Exchange Manager associated with the given link.

HeCapabilities GetHeCapabilities (uint8_t linkId) const
 Return the HE capabilities of the device for the given link.

Ptr< HeConfigurationGetHeConfiguration () const

bool GetHeSupported () const
 Return whether the device supports HE.

bool GetHeSupported (const Mac48Address &address) const

HtCapabilities GetHtCapabilities (uint8_t linkId) const
 Return the HT capabilities of the device for the given link.

Ptr< HtConfigurationGetHtConfiguration () const

bool GetHtSupported () const
 Return whether the device supports HT.

bool GetHtSupported (const Mac48Address &address) const

virtual std::optional< uint8_t > GetLinkIdByAddress (const Mac48Address &address) const
 Get the ID of the link having the given MAC address, if any.

Mac48Address GetLocalAddress (const Mac48Address &remoteAddr) const
 Get the local MAC address used to communicate with a remote STA.

Ptr< WifiMacQueueSchedulerGetMacQueueScheduler () const
 Get the wifi MAC queue scheduler.

uint32_t GetMaxAmpduSize (AcIndex ac) const
 Return the maximum A-MPDU size of the given Access Category.

uint16_t GetMaxAmsduSize (AcIndex ac) const
 Return the maximum A-MSDU size of the given Access Category.

std::optional< Mac48AddressGetMldAddress (const Mac48Address &remoteAddr) const

uint8_t GetNLinks () const
 Get the number of links (can be greater than 1 for 11be devices only).

bool GetQosSupported () const
 Return whether the device supports QoS.

Ptr< QosTxopGetQosTxop (AcIndex ac) const
 Accessor for a specified EDCA object.

Ptr< QosTxopGetQosTxop (uint8_t tid) const
 Accessor for a specified EDCA object.

Ssid GetSsid () const

Ptr< TxopGetTxop () const
 Accessor for the Txop object.

virtual Ptr< WifiMacQueueGetTxopQueue (AcIndex ac) const
 Get the wifi MAC queue of the (Qos)Txop associated with the given AC, if such (Qos)Txop is installed, or a null pointer, otherwise.

TypeOfStation GetTypeOfStation () const
 Return the type of station.

VhtCapabilities GetVhtCapabilities (uint8_t linkId) const
 Return the VHT capabilities of the device for the given link.

Ptr< VhtConfigurationGetVhtConfiguration () const

bool GetVhtSupported (const Mac48Address &address) const

bool GetVhtSupported (uint8_t linkId) const
 Return whether the device supports VHT on the given link.

Ptr< WifiPhyGetWifiPhy (uint8_t linkId=SINGLE_LINK_OP_ID) const

Ptr< WifiRemoteStationManagerGetWifiRemoteStationManager (uint8_t linkId=0) const

virtual bool HasFramesToTransmit (uint8_t linkId)
 Check if the MAC has frames to transmit over the given link.

virtual void NotifyChannelSwitching (uint8_t linkId)
 Notify that channel on the given link has been switched.

void NotifyPromiscRx (Ptr< const Packet > packet)

void NotifyRx (Ptr< const Packet > packet)

void NotifyRxDrop (Ptr< const Packet > packet)

void NotifyTx (Ptr< const Packet > packet)

void NotifyTxDrop (Ptr< const Packet > packet)

WifiMacoperator= (const WifiMac &)=delete

void ResetWifiPhys ()
 Remove currently attached WifiPhy objects from this MAC.

virtual void SetAddress (Mac48Address address)

void SetBssid (Mac48Address bssid, uint8_t linkId)

void SetCtsToSelfSupported (bool enable)
 Enable or disable CTS-to-self feature.

void SetDevice (const Ptr< WifiNetDevice > device)
 Sets the device this PHY is associated with.

void SetForwardUpCallback (ForwardUpCallback upCallback)

void SetLinkDownCallback (Callback< void > linkDown)

virtual void SetLinkUpCallback (Callback< void > linkUp)

virtual void SetMacQueueScheduler (Ptr< WifiMacQueueScheduler > scheduler)
 Set the wifi MAC queue scheduler.

void SetPromisc ()
 Sets the interface in promiscuous mode.

void SetSsid (Ssid ssid)

void SetTypeOfStation (TypeOfStation type)
 This method is invoked by a subclass to specify what type of station it is implementing.

virtual void SetWifiPhys (const std::vector< Ptr< WifiPhy > > &phys)

void SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > stationManager)

void SetWifiRemoteStationManagers (const std::vector< Ptr< WifiRemoteStationManager > > &stationManagers)

virtual bool SupportsSendFrom () const

void UnblockUnicastTxOnLinks (WifiQueueBlockedReason reason, const Mac48Address &address, const std::set< uint8_t > &linkIds)
 Unblock the transmission on the given links of all unicast frames addressed to the station with the given address for the given reason.

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor.

 ~Object () override
 Destructor.

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together.

void Dispose ()
 Dispose of this Object.

AggregateIterator GetAggregateIterator () const
 Get an iterator to the Objects aggregated to this one.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

template<typename T >
Ptr< T > GetObject () const
 Get a pointer to the requested aggregated Object.

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object.

void Initialize ()
 Invoke DoInitialize on all Objects aggregated to this one.

bool IsInitialized () const
 Check if the object has been initialized.

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor.

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor.

uint32_t GetReferenceCount () const
 Get the reference count of the object.

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator.

void Ref () const
 Increment the reference count.

void Unref () const
 Decrement the reference count.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::WifiMac
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId ()
 Register this type.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Private Member Functions

void Receive (Ptr< const WifiMpdu > mpdu, uint8_t linkId) override
 This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received on the given link.


Additional Inherited Members

- Public Types inherited from ns3::WifiMac
typedef Callback< void, Ptr< const Packet >, Mac48Address, Mac48AddressForwardUpCallback
 This type defines the callback of a higher layer that a WifiMac(-derived) object invokes to pass a packet up the stack.

using OriginatorAgreementOptConstRef = std::optional< std::reference_wrapper< const OriginatorBlockAckAgreement > >
 optional const reference to OriginatorBlockAckAgreement

using RecipientAgreementOptConstRef = std::optional< std::reference_wrapper< const RecipientBlockAckAgreement > >
 optional const reference to RecipientBlockAckAgreement

- Protected Member Functions inherited from ns3::WifiMac
virtual void ConfigureContentionWindow (uint32_t cwMin, uint32_t cwMax)

virtual void DeaggregateAmsduAndForward (Ptr< const WifiMpdu > mpdu)
 This method can be called to de-aggregate an A-MSDU and forward the constituent packets up the stack.

void DoDispose () override
 Destructor implementation.

void DoInitialize () override
 Initialize() implementation.

void ForwardUp (Ptr< const Packet > packet, Mac48Address from, Mac48Address to)
 Forward the packet up to the device.

Ptr< QosTxopGetBEQueue () const
 Accessor for the AC_BE channel access function.

Ptr< QosTxopGetBKQueue () const
 Accessor for the AC_BK channel access function.

LinkEntityGetLink (uint8_t linkId) const
 Get a reference to the link associated with the given ID.

bool GetShortSlotTimeSupported () const

Ptr< QosTxopGetVIQueue () const
 Accessor for the AC_VI channel access function.

Ptr< QosTxopGetVOQueue () const
 Accessor for the AC_VO channel access function.

virtual void Receive (Ptr< const WifiMpdu > mpdu, uint8_t linkId)
 This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received on the given link.

void SetQosSupported (bool enable)
 Enable or disable QoS support for the device.

void SetShortSlotTimeSupported (bool enable)
 Enable or disable short slot time feature.

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object.

virtual void DoDispose ()
 Destructor implementation.

virtual void DoInitialize ()
 Initialize() implementation.

virtual void NotifyNewAggregate ()
 Notify all Objects aggregated to this one of a new Object being aggregated.

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.

- Protected Attributes inherited from ns3::WifiMac
Callback< void > m_linkDown
 Callback when a link is down.

Callback< void > m_linkUp
 Callback when a link is up.

Ptr< MacRxMiddlem_rxMiddle
 RX middle (defragmentation etc.)

Ptr< WifiMacQueueSchedulerm_scheduler
 wifi MAC queue scheduler

Ptr< MacTxMiddlem_txMiddle
 TX middle (aggregation etc.)

Ptr< Txopm_txop
 TXOP used for transmission of frames to non-QoS peers.


Detailed Description

Wifi MAC high model for an ad-hoc Wifi MAC.

Config Paths

ns3::AdhocWifiMac is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::AdhocWifiMac"

No Attributes are defined for this type.

Attributes defined in parent class ns3::WifiMac

  • BE_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_BE. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:65535
    • Initial value: 0
    • Flags: constructwrite
  • BE_BlockAckThreshold: If number of packets in BE queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint8_t 0:64
    • Initial value: 0
    • Flags: constructwrite
  • BE_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BE access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, 6500631 for HE PPDUs and 15523200 for EHT PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:15523200
    • Initial value: 65535
    • Flags: constructwriteread
  • BE_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BE access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE/EHT PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:11398
    • Initial value: 0
    • Flags: constructwriteread
  • BE_Txop: Queue that manages packets belonging to AC_BE access class.
  • BK_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_BK. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:65535
    • Initial value: 0
    • Flags: constructwrite
  • BK_BlockAckThreshold: If number of packets in BK queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint8_t 0:64
    • Initial value: 0
    • Flags: constructwrite
  • BK_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BK access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, 6500631 for HE PPDUs and 15523200 for EHT PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:15523200
    • Initial value: 0
    • Flags: constructwriteread
  • BK_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BK access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE/EHT PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:11398
    • Initial value: 0
    • Flags: constructwriteread
  • BK_Txop: Queue that manages packets belonging to AC_BK access class.
  • CtsToSelfSupported: Use CTS to Self when using a rate that is not in the basic rate set.
    • Set with class: ns3::BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: constructwrite
  • QosSupported: This Boolean attribute is set to enable 802.11e/WMM-style QoS support at this STA.
    • Set with class: ns3::BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: constructread
  • ShortSlotTimeSupported: Whether or not short slot time is supported (only used by ERP APs or STAs).
    • Set with class: ns3::BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: constructwriteread
  • Ssid: The ssid we want to belong to.
    • Set with class: ns3::SsidValue
    • Underlying type: Ssid
    • Initial value: ssid=default
    • Flags: constructwriteread
  • Txop: The Txop object.
  • VI_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_VI. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:65535
    • Initial value: 0
    • Flags: constructwrite
  • VI_BlockAckThreshold: If number of packets in VI queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint8_t 0:64
    • Initial value: 0
    • Flags: constructwrite
  • VI_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VI access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, 6500631 for HE PPDUs and 15523200 for EHT PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:15523200
    • Initial value: 65535
    • Flags: constructwriteread
  • VI_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VI access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE/EHT PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:11398
    • Initial value: 0
    • Flags: constructwriteread
  • VI_Txop: Queue that manages packets belonging to AC_VI access class.
  • VO_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_VO. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:65535
    • Initial value: 0
    • Flags: constructwrite
  • VO_BlockAckThreshold: If number of packets in VO queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint8_t 0:64
    • Initial value: 0
    • Flags: constructwrite
  • VO_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VO access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, 6500631 for HE PPDUs and 15523200 for EHT PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:15523200
    • Initial value: 0
    • Flags: constructwriteread
  • VO_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VO access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE/EHT PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:11398
    • Initial value: 0
    • Flags: constructwriteread
  • VO_Txop: Queue that manages packets belonging to AC_VO access class.

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::WifiMac

  • AckedMpdu: An MPDU that was successfully acknowledged, via either a Normal Ack or a Block Ack.
    Callback signature: ns3::WifiMpdu::TracedCallback
  • DroppedMpdu: An MPDU that was dropped for the given reason (see WifiMacDropReason).
    Callback signature: ns3::WifiMac::DroppedMpduCallback
  • MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace.
    Callback signature: ns3::Packet::TracedCallback
  • MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace.
    Callback signature: ns3::Packet::TracedCallback
  • MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.
    Callback signature: ns3::Packet::TracedCallback
  • MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
    Callback signature: ns3::Packet::TracedCallback
  • MacTxDrop: A packet has been dropped in the MAC layer before being queued for transmission. This trace source is fired, e.g., when an AP's MAC receives from the upper layer a packet destined to a station that is not associated with the AP or a STA's MAC receives a packet from the upper layer while it is not associated with any AP.
    Callback signature: ns3::Packet::TracedCallback
  • MpduResponseTimeout: An MPDU whose response was not received before the timeout, along with an identifier of the type of timeout (see WifiTxTimer::Reason) and the TXVECTOR used to transmit the MPDU. This trace source is fired when a CTS is missing after an RTS, when all CTS frames are missing after an MU-RTS, or when a Normal Ack is missing after an MPDU or after a DL MU PPDU acknowledged in SU format.
    Callback signature: ns3::WifiMac::MpduResponseTimeoutCallback
  • NAckedMpdu: An MPDU that was negatively acknowledged via a Block Ack.
    Callback signature: ns3::WifiMpdu::TracedCallback
  • PsduMapResponseTimeout: A PSDU map for which not all the responses were received before the timeout, along with an identifier of the type of timeout (see WifiTxTimer::Reason), the set of MAC addresses of the stations that did not respond and the total number of stations that had to respond. This trace source is fired when not all the addressed stations responded to an MU-BAR Trigger frame (either sent as a SU frame or aggregated to PSDUs in the DL MU PPDU), a Basic Trigger Frame or a BSRP Trigger Frame.
    Callback signature: ns3::WifiMac::PsduMapResponseTimeoutCallback
  • PsduResponseTimeout: A PSDU whose response was not received before the timeout, along with an identifier of the type of timeout (see WifiTxTimer::Reason) and the TXVECTOR used to transmit the PSDU. This trace source is fired when a BlockAck is missing after an A-MPDU, a BlockAckReq (possibly in the context of the acknowledgment of a DL MU PPDU in SU format) or a TB PPDU (in the latter case the missing BlockAck is a Multi-STA BlockAck).
    Callback signature: ns3::WifiMac::PsduResponseTimeoutCallback
  • TxErrHeader: The header of unsuccessfuly transmitted packet.
    Callback signature: ns3::WifiMacHeader::TracedCallback
  • TxOkHeader: The header of successfully transmitted packet.
    Callback signature: ns3::WifiMacHeader::TracedCallback

Size of this type is 464 bytes (on a 64-bit architecture).

Definition at line 35 of file adhoc-wifi-mac.h.

Constructor & Destructor Documentation

◆ AdhocWifiMac()

ns3::AdhocWifiMac::AdhocWifiMac ( )

Definition at line 50 of file adhoc-wifi-mac.cc.

References ns3::ADHOC_STA, NS_LOG_FUNCTION, and ns3::WifiMac::SetTypeOfStation().

+ Here is the call graph for this function:

◆ ~AdhocWifiMac()

ns3::AdhocWifiMac::~AdhocWifiMac ( )
override

Definition at line 57 of file adhoc-wifi-mac.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ CanForwardPacketsTo()

bool ns3::AdhocWifiMac::CanForwardPacketsTo ( Mac48Address  to) const
overridevirtual

Return true if packets can be forwarded to the given destination, false otherwise.

Parameters
tothe address to which the packet should be sent
Returns
whether packets can be forwarded to the given destination

Implements ns3::WifiMac.

Definition at line 63 of file adhoc-wifi-mac.cc.

◆ Enqueue()

void ns3::AdhocWifiMac::Enqueue ( Ptr< Packet packet,
Mac48Address  to
)
overridevirtual
Parameters
packetthe packet to send.
tothe address to which the packet should be sent.

The packet should be enqueued in a TX queue, and should be dequeued as soon as the DCF function determines that access it granted to this MAC.

Implements ns3::WifiMac.

Definition at line 69 of file adhoc-wifi-mac.cc.

References ns3::WifiRemoteStationManager::AddAllSupportedMcs(), ns3::WifiRemoteStationManager::AddAllSupportedModes(), ns3::WifiRemoteStationManager::AddStationEhtCapabilities(), ns3::WifiRemoteStationManager::AddStationHeCapabilities(), ns3::WifiRemoteStationManager::AddStationHtCapabilities(), ns3::WifiRemoteStationManager::AddStationVhtCapabilities(), ns3::WifiMac::GetAddress(), ns3::WifiMac::GetBssid(), ns3::WifiMac::GetEhtCapabilities(), ns3::WifiMac::GetEhtSupported(), ns3::WifiMac::GetHeCapabilities(), ns3::WifiMac::GetHeSupported(), ns3::WifiMac::GetHtCapabilities(), ns3::WifiMac::GetHtSupported(), ns3::WifiMac::GetQosSupported(), ns3::WifiMac::GetQosTxop(), ns3::WifiMac::GetTxop(), ns3::WifiMac::GetVhtCapabilities(), ns3::WifiMac::GetVhtSupported(), ns3::WifiMac::GetWifiRemoteStationManager(), ns3::WifiMacHeader::NORMAL_ACK, NS_ASSERT, NS_LOG_FUNCTION, ns3::QosUtilsGetTidForPacket(), ns3::Txop::Queue(), ns3::WifiRemoteStationManager::RecordDisassociated(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiMacHeader::SetNoOrder(), ns3::WifiMacHeader::SetQosAckPolicy(), ns3::WifiMacHeader::SetQosNoAmsdu(), ns3::WifiMacHeader::SetQosNoEosp(), ns3::WifiMacHeader::SetQosTid(), ns3::WifiMacHeader::SetQosTxopLimit(), ns3::WifiMacHeader::SetType(), ns3::SINGLE_LINK_OP_ID, ns3::WIFI_MAC_DATA, and ns3::WIFI_MAC_QOSDATA.

+ Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::AdhocWifiMac::GetTypeId ( )
static

Get the type ID.

Returns
the object TypeId

Definition at line 41 of file adhoc-wifi-mac.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

◆ Receive()

void ns3::AdhocWifiMac::Receive ( Ptr< const WifiMpdu mpdu,
uint8_t  linkId
)
overrideprivatevirtual

This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received on the given link.

The implementation is intended to capture logic that is going to be common to all (or most) derived classes. Specifically, handling of Block Ack management frames is dealt with here.

This method will need, however, to be overridden by derived classes so that they can perform their data handling before invoking the base version.

The given link may be undefined in some cases (e.g., in case of QoS Data frames received in the context of a Block Ack agreement – because the BlockAckManager does not have to record the link each buffered MPDU has been received on); in such a cases, the value of linkId should be WIFI_LINKID_UNDEFINED.

Parameters
mpduthe MPDU that has been received.
linkIdthe ID of the given link

Reimplemented from ns3::WifiMac.

Definition at line 178 of file adhoc-wifi-mac.cc.

References ns3::WifiRemoteStationManager::AddAllSupportedMcs(), ns3::WifiRemoteStationManager::AddAllSupportedModes(), ns3::WifiRemoteStationManager::AddStationEhtCapabilities(), ns3::WifiRemoteStationManager::AddStationHeCapabilities(), ns3::WifiRemoteStationManager::AddStationHtCapabilities(), ns3::WifiRemoteStationManager::AddStationVhtCapabilities(), ns3::WifiMac::DeaggregateAmsduAndForward(), ns3::WifiMac::ForwardUp(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr2(), ns3::WifiMac::GetEhtCapabilities(), ns3::WifiMac::GetEhtSupported(), ns3::WifiMac::GetHeCapabilities(), ns3::WifiMac::GetHeSupported(), ns3::WifiMac::GetHtCapabilities(), ns3::WifiMac::GetHtSupported(), ns3::WifiMac::GetVhtCapabilities(), ns3::WifiMac::GetVhtSupported(), ns3::WifiMac::GetWifiRemoteStationManager(), ns3::WifiMacHeader::IsCtl(), ns3::WifiMacHeader::IsData(), ns3::WifiMacHeader::IsQosAmsdu(), ns3::WifiMacHeader::IsQosData(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiMac::Receive(), ns3::WifiRemoteStationManager::RecordDisassociated(), and ns3::SINGLE_LINK_OP_ID.

+ Here is the call graph for this function:

◆ SetLinkUpCallback()

void ns3::AdhocWifiMac::SetLinkUpCallback ( Callback< void >  linkUp)
overridevirtual
Parameters
linkUpthe callback to invoke when the link becomes up.

Reimplemented from ns3::WifiMac.

Definition at line 166 of file adhoc-wifi-mac.cc.

References NS_LOG_FUNCTION, and ns3::WifiMac::SetLinkUpCallback().

+ Here is the call graph for this function:

The documentation for this class was generated from the following files:
