This class allows higher layer control data rate and tx power level. More...

#include <wave-mac-low.h>

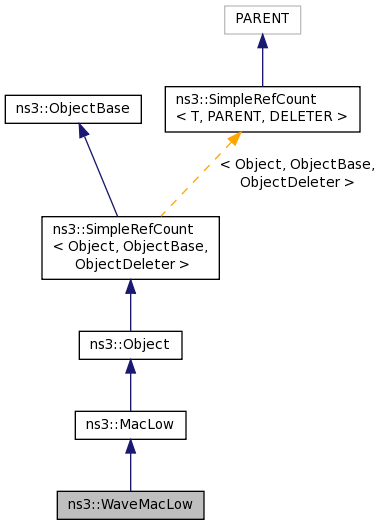

Inheritance diagram for ns3::WaveMacLow:

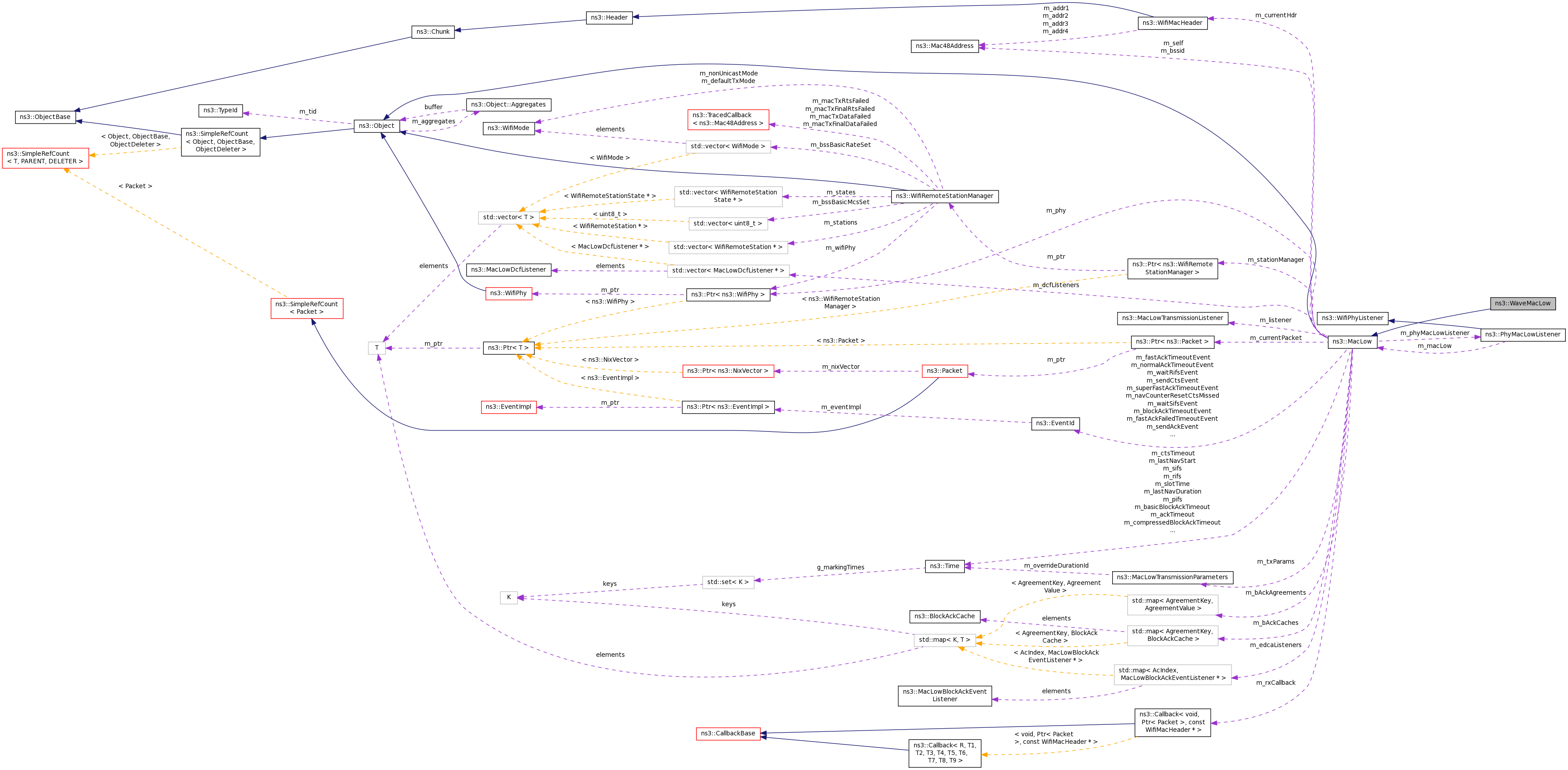

Collaboration diagram for ns3::WaveMacLow:

Public Member Functions
	WaveMacLow (void)

virtual	~WaveMacLow (void)

Public Member Functions inherited from ns3::MacLow
	MacLow ()

virtual	~MacLow ()

Time	CalculateTransmissionTime (Ptr< const Packet > packet, const WifiMacHeader *hdr, const MacLowTransmissionParameters &parameters) const

void	CreateBlockAckAgreement (const MgtAddBaResponseHeader *respHdr, Mac48Address originator, uint16_t startingSeq)

void	DestroyBlockAckAgreement (Mac48Address originator, uint8_t tid)

Time	GetAckTimeout (void) const
	Return ACK timeout of this MacLow. More...

Mac48Address	GetAddress (void) const
	Return the MAC address of this MacLow. More...

Time	GetBasicBlockAckTimeout () const
	Return Basic Block ACK timeout of this MacLow. More...

Mac48Address	GetBssid (void) const
	Return the Basic Service Set Identification. More...

Time	GetCompressedBlockAckTimeout () const
	Return Compressed Block ACK timeout of this MacLow. More...

Time	GetCtsTimeout (void) const
	Return CTS timeout of this MacLow. More...

bool	GetCtsToSelfSupported () const
	Return whether CTS-to-self capability is supported. More...

Time	GetPifs (void) const
	Return PCF Interframe Space (PIFS) of this MacLow. More...

Time	GetRifs (void) const
	Return Reduced Interframe Space (RIFS) of this MacLow. More...

Time	GetSifs (void) const
	Return Short Interframe Space (SIFS) of this MacLow. More...

Time	GetSlotTime (void) const
	Return slot duration of this MacLow. More...

bool	IsPromisc (void) const
	Check if MacLow is operating in promiscuous mode. More...

void	NotifySwitchingStartNow (Time duration)

void	ReceiveError (Ptr< const Packet > packet, double rxSnr)

void	ReceiveOk (Ptr< Packet > packet, double rxSnr, WifiMode txMode, WifiPreamble preamble)

void	RegisterBlockAckListenerForAc (enum AcIndex ac, MacLowBlockAckEventListener *listener)

void	RegisterDcfListener (MacLowDcfListener *listener)

void	SetAckTimeout (Time ackTimeout)
	Set ACK timeout of this MacLow. More...

void	SetAddress (Mac48Address ad)
	Set MAC address of this MacLow. More...

void	SetBasicBlockAckTimeout (Time blockAckTimeout)
	Set Basic Block ACK timeout of this MacLow. More...

void	SetBssid (Mac48Address ad)
	Set the Basic Service Set Identification. More...

void	SetCompressedBlockAckTimeout (Time blockAckTimeout)
	Set Compressed Block ACK timeout of this MacLow. More...

void	SetCtsTimeout (Time ctsTimeout)
	Set CTS timeout of this MacLow. More...

void	SetCtsToSelfSupported (bool enable)
	Enable or disable CTS-to-self capability. More...

void	SetPhy (Ptr< WifiPhy > phy)
	Set up WifiPhy associated with this MacLow. More...

void	SetPifs (Time pifs)
	Set PCF Interframe Space (PIFS) of this MacLow. More...

void	SetPromisc (void)
	Enable promiscuous mode. More...

void	SetRifs (Time rifs)
	Set Reduced Interframe Space (RIFS) of this MacLow. More...

void	SetRxCallback (Callback< void, Ptr< Packet >, const WifiMacHeader * > callback)

void	SetSifs (Time sifs)
	Set Short Interframe Space (SIFS) of this MacLow. More...

void	SetSlotTime (Time slotTime)
	Set slot duration of this MacLow. More...

void	SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > manager)
	Set up WifiRemoteStationManager associated with this MacLow. More...

void	StartTransmission (Ptr< const Packet > packet, const WifiMacHeader hdr, MacLowTransmissionParameters parameters, MacLowTransmissionListener listener)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions

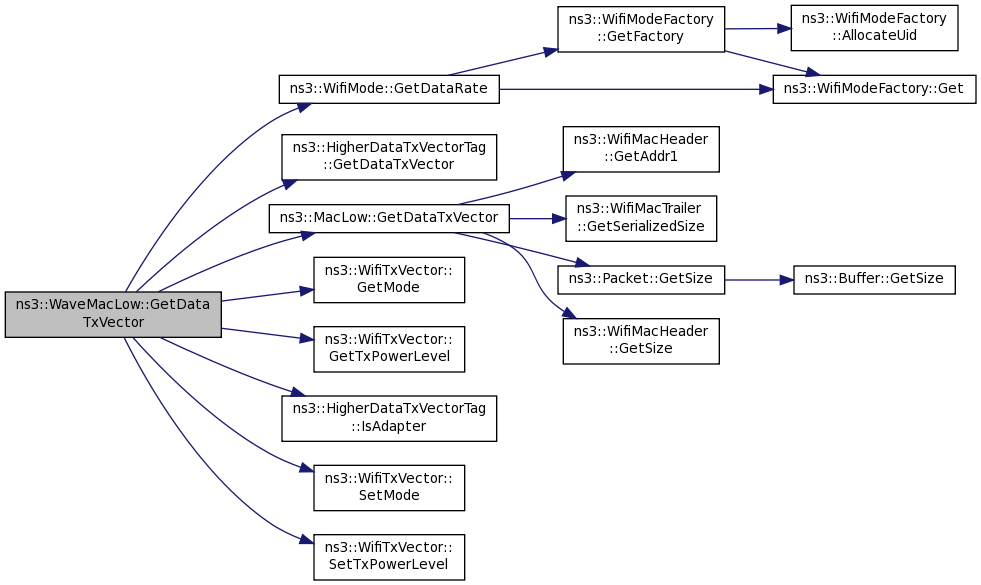

virtual WifiTxVector	GetDataTxVector (Ptr< const Packet > packet, const WifiMacHeader *hdr) const
	Return a TXVECTOR for the DATA frame given the destination. More...

Additional Inherited Members
Public Types inherited from ns3::MacLow
typedef Callback< void, Ptr < Packet >, const WifiMacHeader * >	MacLowRxCallback
	typedef for a callback for MacLowRx More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

This class allows higher layer control data rate and tx power level.

Doxygen introspection did not find any typical Config paths.

If higher layer do not select, it will select by WifiRemoteStationManager of MAC layer; If higher layer selects tx arguments without adapter set, the data rate and tx power level will be used to send the packet. If higher layer selects tx arguments with adapter set, the data rate will be lower bound for the actual data rate, and the power level will be upper bound for the actual transmit power.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 39 of file wave-mac-low.h.
