ns3::TcpNewReno Class Reference

An implementation of a stream socket using TCP. More...

#include <tcp-newreno.h>

+ Inheritance diagram for ns3::TcpNewReno:
+ Collaboration diagram for ns3::TcpNewReno:

Public Member Functions

 TcpNewReno (void)
 Create an unbound tcp socket. More...

 TcpNewReno (const TcpNewReno &sock)
 Copy constructor. More...

virtual ~TcpNewReno (void)

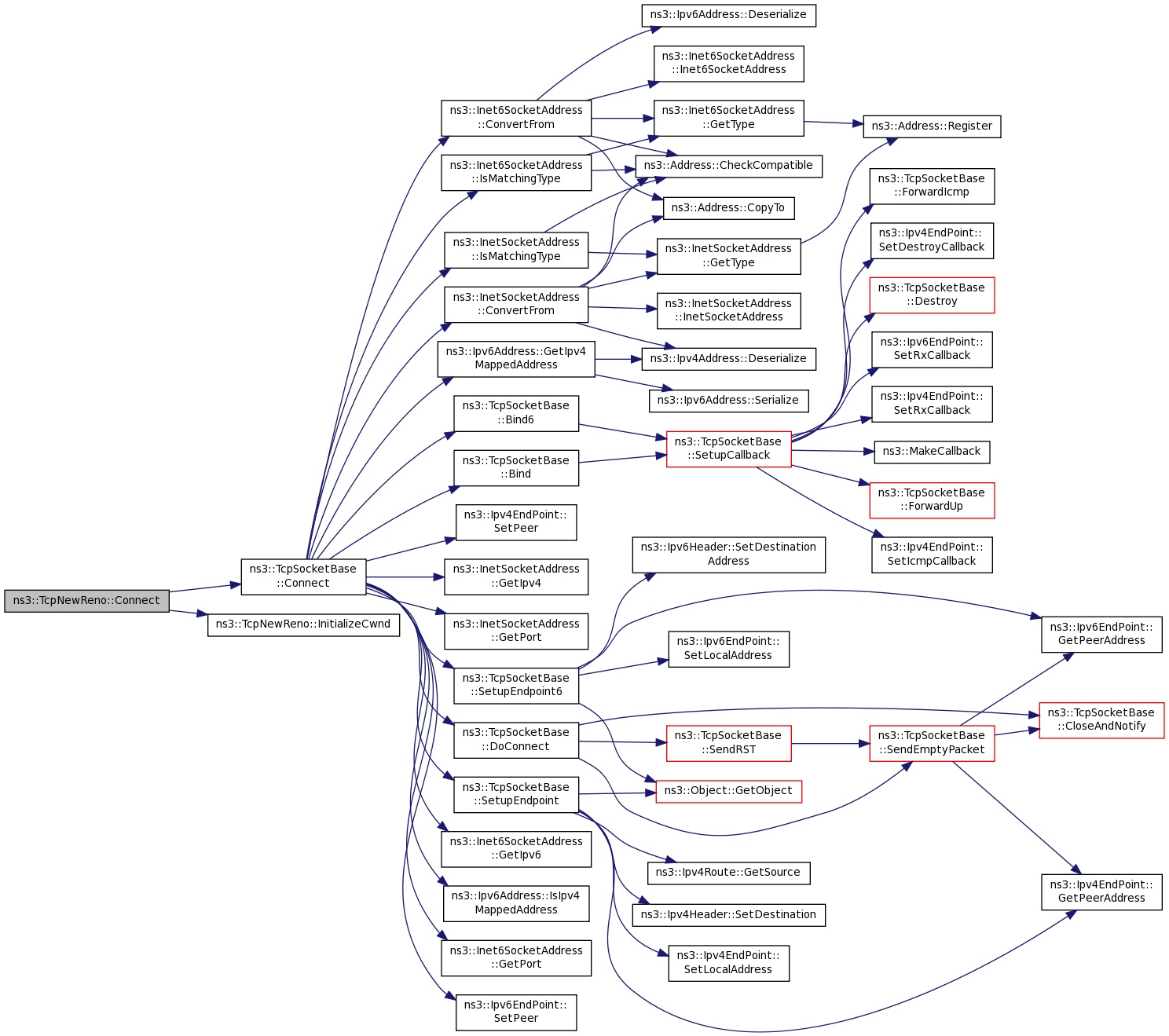

virtual int Connect (const Address &address)
 Initiate a connection to a remote host. More...

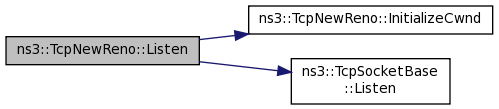

virtual int Listen (void)
 Listen for incoming connections. More...

- Public Member Functions inherited from ns3::TcpSocketBase
 TcpSocketBase (void)
 Create an unbound TCP socket. More...

 TcpSocketBase (const TcpSocketBase &sock)
 Clone a TCP socket, for use upon receiving a connection request in LISTEN state. More...

virtual ~TcpSocketBase (void)

virtual int Bind (void)
 Allocate a local IPv4 endpoint for this socket. More...

virtual int Bind (const Address &address)
 Allocate a local endpoint for this socket. More...

virtual int Bind6 (void)
 Allocate a local IPv6 endpoint for this socket. More...

virtual void BindToNetDevice (Ptr< NetDevice > netdevice)
 Bind a socket to specific device. More...

virtual int Close (void)
 Close a socket. More...

virtual enum SocketErrno GetErrno (void) const
 Get last error number. More...

virtual Ptr< NodeGetNode (void) const
 Return the node this socket is associated with. More...

virtual uint32_t GetRxAvailable (void) const
 Return number of bytes which can be returned from one or multiple calls to Recv. More...

virtual enum SocketType GetSocketType (void) const

virtual int GetSockName (Address &address) const
 Get socket address. More...

virtual uint32_t GetTxAvailable (void) const
 Returns the number of bytes which can be sent in a single call to Send. More...

virtual Ptr< PacketRecv (uint32_t maxSize, uint32_t flags)
 Read data from the socket. More...

virtual Ptr< PacketRecvFrom (uint32_t maxSize, uint32_t flags, Address &fromAddress)
 Read a single packet from the socket and retrieve the sender address. More...

virtual int Send (Ptr< Packet > p, uint32_t flags)
 Send data (or dummy data) to the remote host. More...

virtual int SendTo (Ptr< Packet > p, uint32_t flags, const Address &toAddress)
 Send data to a specified peer. More...

virtual void SetNode (Ptr< Node > node)
 Set the associated node. More...

virtual void SetRtt (Ptr< RttEstimator > rtt)
 Set the associated RTT estimator. More...

virtual void SetTcp (Ptr< TcpL4Protocol > tcp)
 Set the associated TCP L4 protocol. More...

virtual int ShutdownRecv (void)

virtual int ShutdownSend (void)

- Public Member Functions inherited from ns3::TcpSocket
 TcpSocket (void)

virtual ~TcpSocket (void)

- Public Member Functions inherited from ns3::Socket
 Socket (void)

virtual ~Socket (void)

Ptr< NetDeviceGetBoundNetDevice ()
 Returns socket's bound netdevice, if any. More...

uint8_t GetIpTos (void) const
 Query the value of IP Type of Service of this socket. More...

virtual uint8_t GetIpTtl (void) const
 Query the value of IP Time to Live field of this socket. More...

virtual uint8_t GetIpv6HopLimit (void) const
 Query the value of IP Hop Limit field of this socket. More...

uint8_t GetIpv6Tclass (void) const
 Query the value of IPv6 Traffic Class field of this socket. More...

bool IsIpRecvTos (void) const
 Ask if the socket is currently passing information about IP Type of Service up the stack. More...

bool IsIpRecvTtl (void) const
 Ask if the socket is currently passing information about IP_TTL up the stack. More...

bool IsIpv6RecvHopLimit (void) const
 Ask if the socket is currently passing information about IPv6 Hop Limit up the stack. More...

bool IsIpv6RecvTclass (void) const
 Ask if the socket is currently passing information about IPv6 Traffic Class up the stack. More...

bool IsRecvPktInfo () const
 Get status indicating whether enable/disable packet information to socket. More...

Ptr< PacketRecv (void)
 Read a single packet from the socket. More...

int Recv (uint8_t *buf, uint32_t size, uint32_t flags)
 Recv data (or dummy data) from the remote host. More...

Ptr< PacketRecvFrom (Address &fromAddress)
 Read a single packet from the socket and retrieve the sender address. More...

int RecvFrom (uint8_t *buf, uint32_t size, uint32_t flags, Address &fromAddress)
 Read a single packet from the socket and retrieve the sender address. More...

int Send (Ptr< Packet > p)
 Send data (or dummy data) to the remote host. More...

int Send (const uint8_t *buf, uint32_t size, uint32_t flags)
 Send data (or dummy data) to the remote host. More...

int SendTo (const uint8_t *buf, uint32_t size, uint32_t flags, const Address &address)
 Send data to a specified peer. More...

void SetAcceptCallback (Callback< bool, Ptr< Socket >, const Address & > connectionRequest, Callback< void, Ptr< Socket >, const Address & > newConnectionCreated)
 Accept connection requests from remote hosts. More...

void SetCloseCallbacks (Callback< void, Ptr< Socket > > normalClose, Callback< void, Ptr< Socket > > errorClose)
 Detect socket recv() events such as graceful shutdown or error. More...

void SetConnectCallback (Callback< void, Ptr< Socket > > connectionSucceeded, Callback< void, Ptr< Socket > > connectionFailed)
 Specify callbacks to allow the caller to determine if the connection succeeds of fails. More...

void SetDataSentCallback (Callback< void, Ptr< Socket >, uint32_t > dataSent)
 Notify application when a packet has been sent from transport protocol (non-standard socket call) More...

void SetIpRecvTos (bool ipv4RecvTos)
 Tells a socket to pass information about IP Type of Service up the stack. More...

void SetIpRecvTtl (bool ipv4RecvTtl)
 Tells a socket to pass information about IP_TTL up the stack. More...

void SetIpTos (uint8_t ipTos)
 Manually set IP Type of Service field. More...

virtual void SetIpTtl (uint8_t ipTtl)
 Manually set IP Time to Live field. More...

virtual void SetIpv6HopLimit (uint8_t ipHopLimit)
 Manually set IPv6 Hop Limit. More...

void SetIpv6RecvHopLimit (bool ipv6RecvHopLimit)
 Tells a socket to pass information about IPv6 Hop Limit up the stack. More...

void SetIpv6RecvTclass (bool ipv6RecvTclass)
 Tells a socket to pass information about IPv6 Traffic Class up the stack. More...

void SetIpv6Tclass (int ipTclass)
 Manually set IPv6 Traffic Class field. More...

void SetRecvCallback (Callback< void, Ptr< Socket > >)
 Notify application when new data is available to be read. More...

void SetRecvPktInfo (bool flag)
 Enable/Disable receive packet information to socket. More...

void SetSendCallback (Callback< void, Ptr< Socket >, uint32_t > sendCb)
 Notify application when space in transmit buffer is added. More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

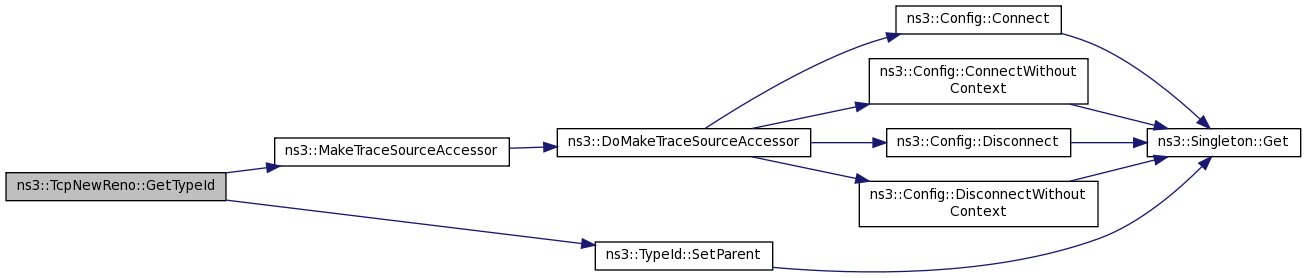

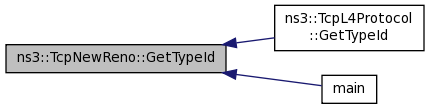

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::TcpSocketBase
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::TcpSocket
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Socket
static Ptr< SocketCreateSocket (Ptr< Node > node, TypeId tid)
 This method wraps the creation of sockets that is performed on a given node by a SocketFactory specified by TypeId. More...

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Member Functions

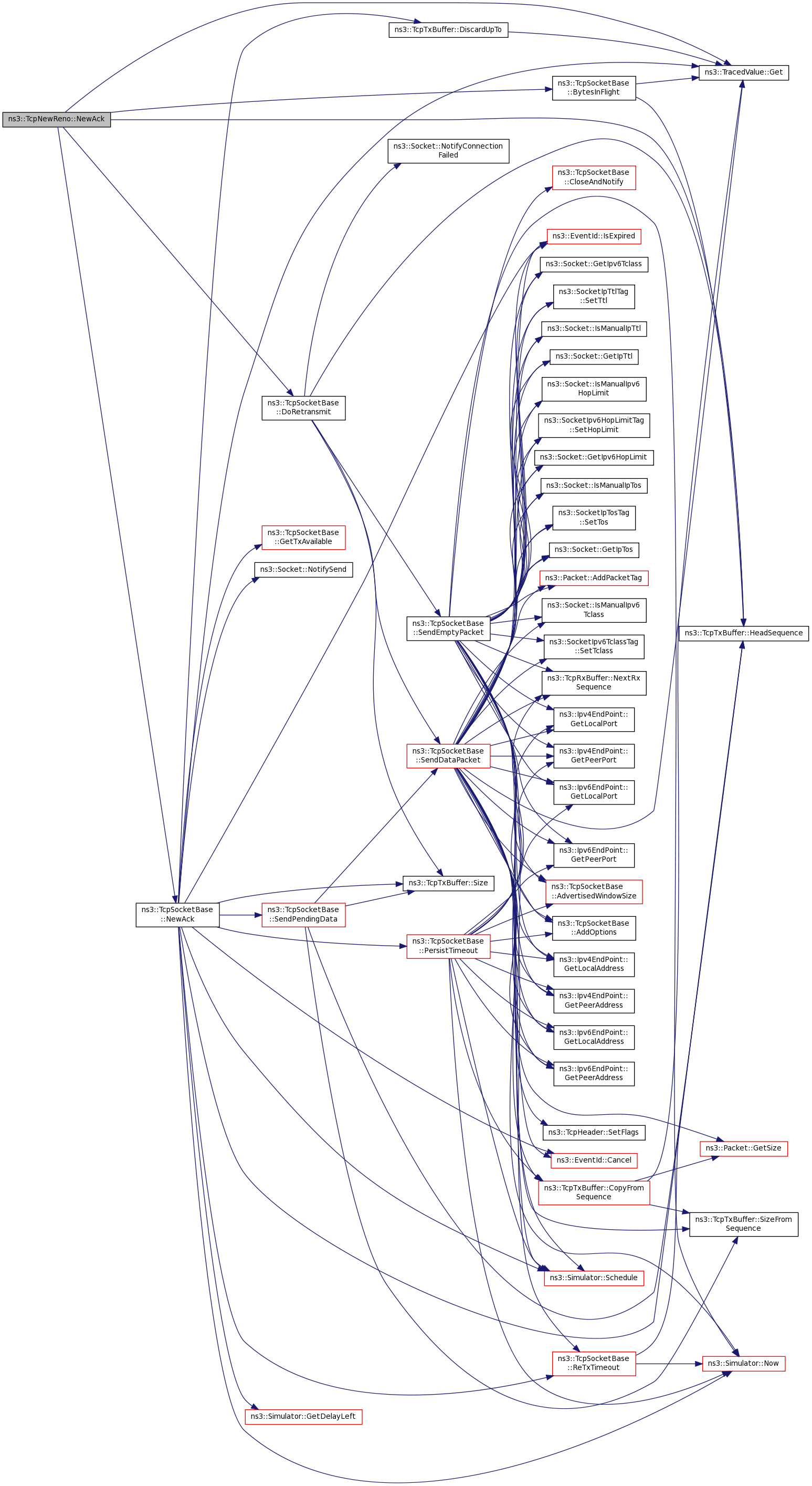

virtual void DupAck (const TcpHeader &t, uint32_t count)
 Received dupack (duplicate ACK) More...

virtual Ptr< TcpSocketBaseFork (void)
 Call CopyObject<> to clone me. More...

virtual uint32_t GetInitialCwnd (void) const
 Get the initial Congestion Window. More...

virtual uint32_t GetSSThresh (void) const
 Get the Slow Start Threshold. More...

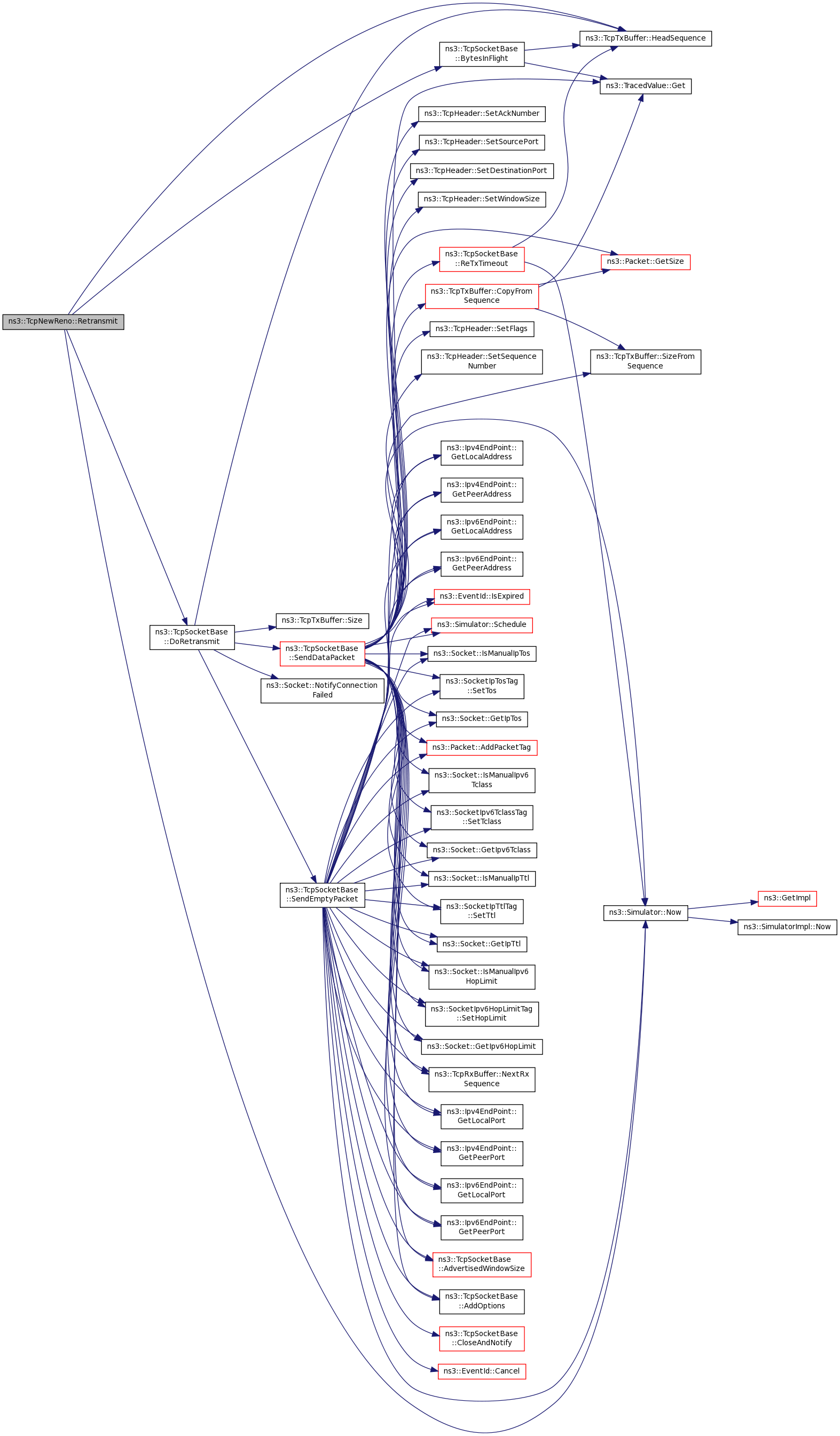

virtual void NewAck (SequenceNumber32 const &seq)
 Update buffers w.r.t. More...

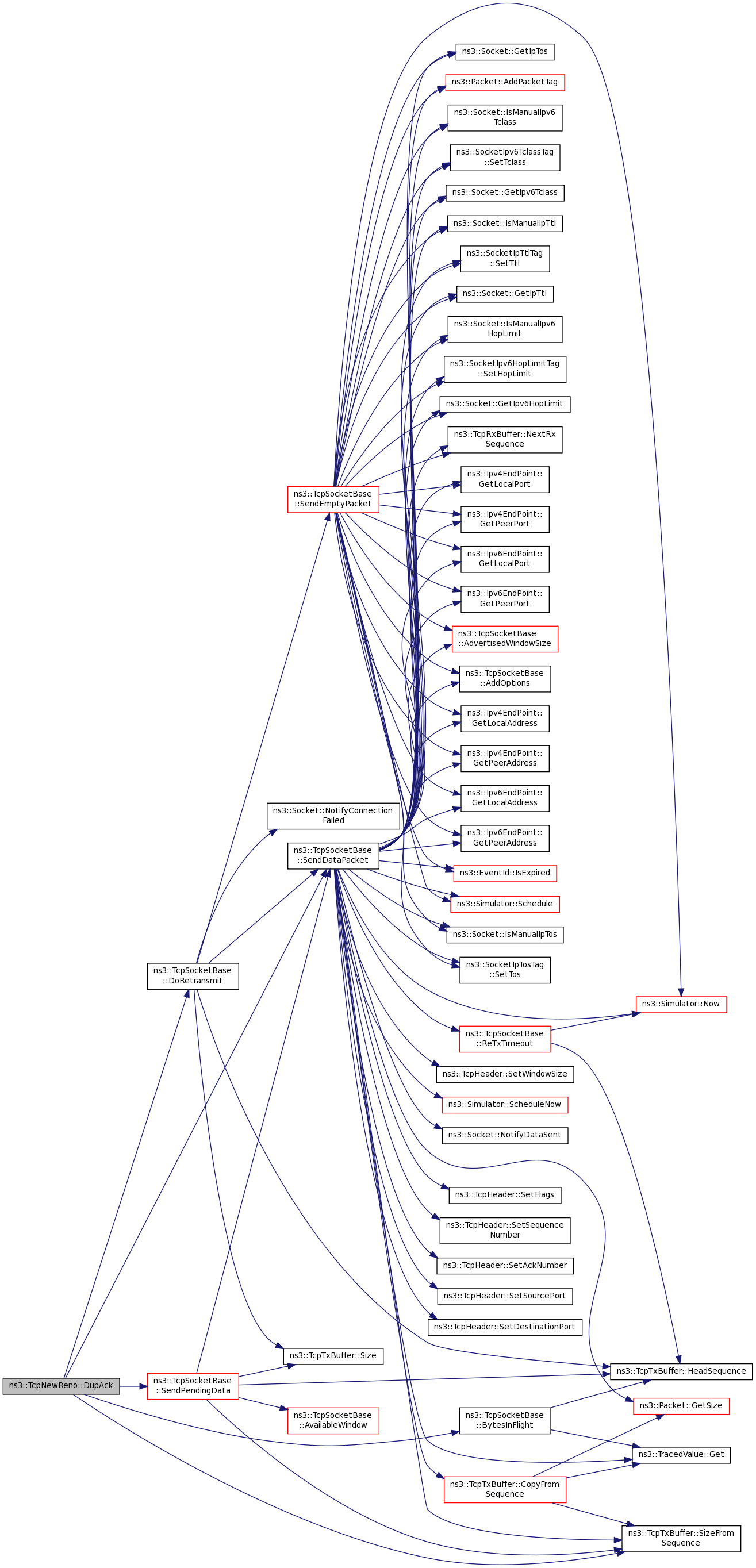

virtual void Retransmit (void)
 Halving cwnd and call DoRetransmit() More...

virtual void SetInitialCwnd (uint32_t cwnd)
 Set the initial Congestion Window. More...

virtual void SetSegSize (uint32_t size)
 Set the segment size. More...

virtual void SetSSThresh (uint32_t threshold)
 Set the Slow Start Threshold. More...

virtual uint32_t Window (void)
 Return the max possible number of unacked bytes. More...

- Protected Member Functions inherited from ns3::TcpSocketBase
virtual void AddOptions (TcpHeader &tcpHeader)
 Add option to outgoing packets. More...

virtual uint16_t AdvertisedWindowSize (void)
 The amount of Rx window announced to the peer. More...

virtual uint32_t AvailableWindow (void)
 Return unfilled portion of window. More...

virtual uint32_t BytesInFlight (void)
 Return total bytes in flight. More...

void CancelAllTimers (void)
 Cancel all timer when endpoint is deleted. More...

void CloseAndNotify (void)
 Peacefully close the socket by notifying the upper layer and deallocate end point. More...

void CompleteFork (Ptr< Packet > p, const TcpHeader &tcpHeader, const Address &fromAddress, const Address &toAddress)
 Complete a connection by forking the socket. More...

void ConnectionSucceeded (void)
 Schedule-friendly wrapper for Socket::NotifyConnectionSucceeded() More...

void DeallocateEndPoint (void)
 Deallocate m_endPoint. More...

virtual void DelAckTimeout (void)
 Action upon delay ACK timeout, i.e. More...

void Destroy (void)
 Kill this socket by zeroing its attributes (IPv4) More...

void Destroy6 (void)
 Kill this socket by zeroing its attributes (IPv6) More...

int DoClose (void)
 Close a socket by sending RST, FIN, or FIN+ACK, depend on the current state. More...

int DoConnect (void)
 Perform the real connection tasks: Send SYN if allowed, RST if invalid. More...

virtual void DoForwardUp (Ptr< Packet > packet, Ipv4Header header, uint16_t port, Ptr< Ipv4Interface > incomingInterface)
 Called by TcpSocketBase::ForwardUp(). More...

virtual void DoForwardUp (Ptr< Packet > packet, Ipv6Header header, uint16_t port)
 Called by TcpSocketBase::ForwardUp6(). More...

void DoPeerClose (void)
 FIN is in sequence, notify app and respond with a FIN. More...

virtual void DoRetransmit (void)
 Retransmit the oldest packet. More...

virtual void EstimateRtt (const TcpHeader &tcpHeader)
 Take into account the packet for RTT estimation. More...

void ForwardIcmp (Ipv4Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo)
 Called by the L3 protocol when it received an ICMP packet to pass on to TCP. More...

void ForwardIcmp6 (Ipv6Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo)
 Called by the L3 protocol when it received an ICMPv6 packet to pass on to TCP. More...

void ForwardUp (Ptr< Packet > packet, Ipv4Header header, uint16_t port, Ptr< Ipv4Interface > incomingInterface)
 Called by the L3 protocol when it received a packet to pass on to TCP. More...

void ForwardUp6 (Ptr< Packet > packet, Ipv6Header header, uint16_t port, Ptr< Ipv6Interface > incomingInterface)
 Called by the L3 protocol when it received a packet to pass on to TCP. More...

virtual bool GetAllowBroadcast (void) const
 Query whether broadcast datagram transmissions are allowed. More...

virtual uint32_t GetConnCount (void) const
 Get the number of connection retries before giving up. More...

virtual Time GetConnTimeout (void) const
 Get the connection timeout. More...

virtual uint32_t GetDelAckMaxCount (void) const
 Get the number of packet to fire an ACK before delay timeout. More...

virtual Time GetDelAckTimeout (void) const
 Get the time to delay an ACK. More...

virtual Time GetPersistTimeout (void) const
 Get the timout for persistent connection. More...

virtual uint32_t GetRcvBufSize (void) const
 Get the receive buffer size. More...

virtual uint32_t GetSegSize (void) const
 Get the segment size. More...

virtual uint32_t GetSndBufSize (void) const
 Get the send buffer size. More...

virtual bool GetTcpNoDelay (void) const
 Check if Nagle's algorithm is enabled or not. More...

virtual void LastAckTimeout (void)
 Timeout at LAST_ACK, close the connection. More...

bool OutOfRange (SequenceNumber32 head, SequenceNumber32 tail) const
 Check if a sequence number range is within the rx window. More...

void PeerClose (Ptr< Packet > p, const TcpHeader &tcpHeader)
 Received a FIN from peer, notify rx buffer. More...

virtual void PersistTimeout (void)
 Send 1 byte probe to get an updated window size. More...

void ProcessClosing (Ptr< Packet > packet, const TcpHeader &tcpHeader)
 Received a packet upon CLOSING. More...

void ProcessEstablished (Ptr< Packet > packet, const TcpHeader &tcpHeader)
 Received a packet upon ESTABLISHED state. More...

void ProcessLastAck (Ptr< Packet > packet, const TcpHeader &tcpHeader)
 Received a packet upon LAST_ACK. More...

void ProcessListen (Ptr< Packet > packet, const TcpHeader &tcpHeader, const Address &fromAddress, const Address &toAddress)
 Received a packet upon LISTEN state. More...

void ProcessSynRcvd (Ptr< Packet > packet, const TcpHeader &tcpHeader, const Address &fromAddress, const Address &toAddress)
 Received a packet upon SYN_RCVD. More...

void ProcessSynSent (Ptr< Packet > packet, const TcpHeader &tcpHeader)
 Received a packet upon SYN_SENT. More...

void ProcessWait (Ptr< Packet > packet, const TcpHeader &tcpHeader)
 Received a packet upon CLOSE_WAIT, FIN_WAIT_1, FIN_WAIT_2. More...

virtual void ReadOptions (const TcpHeader &tcpHeader)
 Read option from incoming packets. More...

virtual void ReceivedAck (Ptr< Packet > packet, const TcpHeader &tcpHeader)
 Received an ACK packet. More...

virtual void ReceivedData (Ptr< Packet > packet, const TcpHeader &tcpHeader)
 Recv of a data, put into buffer, call L7 to get it if necessary. More...

virtual void ReTxTimeout (void)
 Call Retransmit() upon RTO event. More...

uint32_t SendDataPacket (SequenceNumber32 seq, uint32_t maxSize, bool withAck)
 Extract at most maxSize bytes from the TxBuffer at sequence seq, add the TCP header, and send to TcpL4Protocol. More...

void SendEmptyPacket (uint8_t flags)
 Send a empty packet that carries a flag, e.g. More...

bool SendPendingData (bool withAck=false)
 Send as much pending data as possible according to the Tx window. More...

void SendRST (void)
 Send reset and tear down this socket. More...

virtual bool SetAllowBroadcast (bool allowBroadcast)
 Configure whether broadcast datagram transmissions are allowed. More...

virtual void SetConnCount (uint32_t count)
 Set the number of connection retries before giving up. More...

virtual void SetConnTimeout (Time timeout)
 Set the connection timeout. More...

virtual void SetDelAckMaxCount (uint32_t count)
 Set the number of packet to fire an ACK before delay timeout. More...

virtual void SetDelAckTimeout (Time timeout)
 Set the time to delay an ACK. More...

virtual void SetPersistTimeout (Time timeout)
 Set the timout for persistent connection. More...

virtual void SetRcvBufSize (uint32_t size)
 Set the receive buffer size. More...

virtual void SetSndBufSize (uint32_t size)
 Set the send buffer size. More...

virtual void SetTcpNoDelay (bool noDelay)
 Enable/Disable Nagle's algorithm. More...

int SetupCallback (void)
 Common part of the two Bind(), i.e. More...

int SetupEndpoint (void)
 Configure the endpoint to a local address. More...

int SetupEndpoint6 (void)
 Configure the endpoint v6 to a local address. More...

void TimeWait (void)
 Move from CLOSING or FIN_WAIT_2 to TIME_WAIT state. More...

virtual uint32_t UnAckDataCount (void)
 Return count of number of unacked bytes. More...

- Protected Member Functions inherited from ns3::Socket
virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

bool IsManualIpTos (void) const
 Checks if the socket has a specific IPv4 ToS set. More...

bool IsManualIpTtl (void) const
 Checks if the socket has a specific IPv4 TTL set. More...

bool IsManualIpv6HopLimit (void) const
 Checks if the socket has a specific IPv6 Hop Limit set. More...

bool IsManualIpv6Tclass (void) const
 Checks if the socket has a specific IPv6 Tclass set. More...

void NotifyConnectionFailed (void)
 Notify through the callback (if set) that the connection has not been established due to an error. More...

bool NotifyConnectionRequest (const Address &from)
 Notify through the callback (if set) that an incoming connection is being requested by a remote host. More...

void NotifyConnectionSucceeded (void)
 Notify through the callback (if set) that the connection has been established. More...

void NotifyDataRecv (void)
 Notify through the callback (if set) that some data have been received. More...

void NotifyDataSent (uint32_t size)
 Notify through the callback (if set) that some data have been sent. More...

void NotifyErrorClose (void)
 Notify through the callback (if set) that the connection has been closed due to an error. More...

void NotifyNewConnectionCreated (Ptr< Socket > socket, const Address &from)
 Notify through the callback (if set) that a new connection has been created. More...

void NotifyNormalClose (void)
 Notify through the callback (if set) that the connection has been closed. More...

void NotifySend (uint32_t spaceAvailable)
 Notify through the callback (if set) that some data have been sent. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Protected Attributes

TracedValue< uint32_t > m_cWnd
 Congestion window. More...

bool m_inFastRec
 currently in fast recovery More...

uint32_t m_initialCWnd
 Initial cWnd value. More...

bool m_limitedTx
 perform limited transmit More...

SequenceNumber32 m_recover
 Previous highest Tx seqnum for fast recovery. More...

uint32_t m_retxThresh
 Fast Retransmit threshold. More...

uint32_t m_ssThresh
 Slow Start Threshold. More...

- Protected Attributes inherited from ns3::TcpSocketBase
bool m_closeNotified
 Told app to close socket. More...

bool m_closeOnEmpty
 Close socket upon tx buffer emptied. More...

uint32_t m_cnCount
 Count of remaining connection retries. More...

uint32_t m_cnRetries
 Number of connection retries before giving up. More...

Time m_cnTimeout
 Timeout for connection retry. More...

bool m_connected
 Connection established. More...

uint32_t m_delAckCount
 Delayed ACK counter. More...

EventId m_delAckEvent
 Delayed ACK timeout event. More...

uint32_t m_delAckMaxCount
 Number of packet to fire an ACK before delay timeout. More...

Time m_delAckTimeout
 Time to delay an ACK. More...

uint32_t m_dupAckCount
 Dupack counter. More...

Ipv4EndPointm_endPoint
 the IPv4 endpoint More...

Ipv6EndPointm_endPoint6
 the IPv6 endpoint More...

enum SocketErrno m_errno
 Socket error code. More...

TracedValue< SequenceNumber32m_highTxMark
 Highest seqno ever sent, regardless of ReTx. More...

Callback< void, Ipv4Address,
uint8_t, uint8_t, uint8_t,
uint32_t >
m_icmpCallback
 ICMP callback. More...

Callback< void, Ipv6Address,
uint8_t, uint8_t, uint8_t,
uint32_t >
m_icmpCallback6
 ICMPv6 callback. More...

EventId m_lastAckEvent
 Last ACK timeout event. More...

TracedValue< Timem_lastRtt
 Last RTT sample collected. More...

uint16_t m_maxWinSize
 Maximum window size to advertise. More...

double m_msl
 Max segment lifetime. More...

TracedValue< SequenceNumber32m_nextTxSequence
 Next seqnum to be sent (SND.NXT), ReTx pushes it back. More...

Ptr< Nodem_node
 the associated node More...

bool m_noDelay
 Set to true to disable Nagle's algorithm. More...

EventId m_persistEvent
 Persist event: Send 1 byte to probe for a non-zero Rx window. More...

Time m_persistTimeout
 Time between sending 1-byte probes. More...

EventId m_retxEvent
 Retransmission event. More...

TracedValue< Timem_rto
 Retransmit timeout. More...

Ptr< RttEstimatorm_rtt
 Round trip time estimator. More...

TracedValue< uint32_t > m_rWnd
 Flow control window at remote side. More...

TcpRxBuffer m_rxBuffer
 Rx buffer (reordering buffer) More...

uint32_t m_segmentSize
 Segment size. More...

bool m_shutdownRecv
 Receive no longer allowed. More...

bool m_shutdownSend
 Send no longer allowed. More...

TracedValue< TcpStates_tm_state
 TCP state. More...

Ptr< TcpL4Protocolm_tcp
 the associated TCP L4 protocol More...

EventId m_timewaitEvent
 TIME_WAIT expiration event: Move this socket to CLOSED state. More...

TcpTxBuffer m_txBuffer
 Tx buffer. More...

- Protected Attributes inherited from ns3::Socket
Ptr< NetDevicem_boundnetdevice
 the device this socket is bound to (might be null). More...

bool m_recvPktInfo
 if the socket should add packet info tags to the packet forwarded to L4. More...


Private Member Functions

void InitializeCwnd (void)
 Set the congestion window when connection starts. More...


Additional Inherited Members

- Public Types inherited from ns3::Socket
enum  SocketErrno {
  ERROR_NOTERROR, ERROR_ISCONN, ERROR_NOTCONN, ERROR_MSGSIZE,
  ERROR_AGAIN, ERROR_SHUTDOWN, ERROR_OPNOTSUPP, ERROR_AFNOSUPPORT,
  ERROR_INVAL, ERROR_BADF, ERROR_NOROUTETOHOST, ERROR_NODEV,
  ERROR_ADDRNOTAVAIL, ERROR_ADDRINUSE, SOCKET_ERRNO_LAST
}
 Enumeration of the possible errors returned by a socket. More...

enum  SocketType { NS3_SOCK_STREAM, NS3_SOCK_SEQPACKET, NS3_SOCK_DGRAM, NS3_SOCK_RAW }
 Enumeration of the possible socket types. More...

- Static Public Attributes inherited from ns3::TcpSocket
static const char *const TcpStateName [LAST_STATE] = { "CLOSED", "LISTEN", "SYN_SENT", "SYN_RCVD", "ESTABLISHED", "CLOSE_WAIT", "LAST_ACK", "FIN_WAIT_1", "FIN_WAIT_2", "CLOSING", "TIME_WAIT" }
 Literal names of TCP states for use in log messages. More...


Detailed Description

An implementation of a stream socket using TCP.

This class contains the NewReno implementation of TCP, as of RFC 2582.

Config Paths

ns3::TcpNewReno is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/$ns3::TcpL4Protocol/SocketList/[i]/$ns3::TcpNewReno

Attributes

  • ReTxThreshold: Threshold for fast retransmit
  • LimitedTransmit: Enable limited transmit
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read

Attributes defined in parent class ns3::TcpSocketBase

  • MaxSegLifetime: Maximum segment lifetime in seconds, use for TIME_WAIT state transition to CLOSED state
    • Set with class: ns3::DoubleValue
    • Underlying type: double 0:1.79769e+308
    • Initial value: 120
    • Flags: construct write read
  • MaxWindowSize: Max size of advertised window
  • IcmpCallback: Callback invoked whenever an icmp error is received on this socket.
  • IcmpCallback6: Callback invoked whenever an icmpv6 error is received on this socket.

Attributes defined in parent class ns3::TcpSocket

  • SndBufSize: TcpSocket maximum transmit buffer size (bytes)
  • RcvBufSize: TcpSocket maximum receive buffer size (bytes)
  • SegmentSize: TCP maximum segment size in bytes (may be adjusted based on MTU discovery)
  • SlowStartThreshold: TCP slow start threshold (bytes)
  • InitialCwnd: TCP initial congestion window size (segments)
  • ConnTimeout: TCP retransmission timeout when opening connection (seconds)
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +3000000000.0ns
    • Flags: construct write read
  • ConnCount: Number of connection attempts (SYN retransmissions) before returning failure
  • DelAckTimeout: Timeout value for TCP delayed acks, in seconds
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +200000000.0ns
    • Flags: construct write read
  • DelAckCount: Number of packets to wait before sending a TCP ack
  • TcpNoDelay: Set to true to disable Nagle's algorithm
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write read
  • PersistTimeout: Persist timeout to probe for rx window
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +6000000000.0ns
    • Flags: construct write read

TraceSources

  • CongestionWindow: The TCP connection's congestion window

TraceSources defined in parent class ns3::TcpSocketBase

  • RTO: Retransmission timeout
  • RTT: Last RTT sample
  • NextTxSequence: Next sequence number to send (SND.NXT)
  • HighestSequence: Highest sequence number ever sent in socket's life time
  • State: TCP state
  • RWND: Remote side's flow control window

Definition at line 36 of file tcp-newreno.h.

Constructor & Destructor Documentation

ns3::TcpNewReno::TcpNewReno ( void  )

Create an unbound tcp socket.

Definition at line 59 of file tcp-newreno.cc.

References NS_LOG_FUNCTION.

ns3::TcpNewReno::TcpNewReno ( const TcpNewReno sock)

Copy constructor.

Parameters
sockthe object to copy

Definition at line 67 of file tcp-newreno.cc.

References NS_LOG_FUNCTION, and NS_LOG_LOGIC.

ns3::TcpNewReno::~TcpNewReno ( void  )
virtual

Definition at line 80 of file tcp-newreno.cc.

Member Function Documentation

int ns3::TcpNewReno::Connect ( const Address address)
virtual

Initiate a connection to a remote host.

Parameters
addressAddress of remote.
Returns
0 on success, -1 on error (in which case errno is set).

Reimplemented from ns3::TcpSocketBase.

Definition at line 95 of file tcp-newreno.cc.

References ns3::TcpSocketBase::Connect(), InitializeCwnd(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::TcpNewReno::DupAck ( const TcpHeader tcpHeader,
uint32_t  count
)
protectedvirtual
Ptr< TcpSocketBase > ns3::TcpNewReno::Fork ( void  )
protectedvirtual

Call CopyObject<> to clone me.

Returns
a copy of the socket

Implements ns3::TcpSocketBase.

Definition at line 111 of file tcp-newreno.cc.

uint32_t ns3::TcpNewReno::GetInitialCwnd ( void  ) const
protectedvirtual

Get the initial Congestion Window.

Returns
the initial congestion window (in bytes)

Implements ns3::TcpSocketBase.

Definition at line 242 of file tcp-newreno.cc.

References m_initialCWnd.

uint32_t ns3::TcpNewReno::GetSSThresh ( void  ) const
protectedvirtual

Get the Slow Start Threshold.

Returns
the Slow Start Threshold (in bytes)

Implements ns3::TcpSocketBase.

Definition at line 229 of file tcp-newreno.cc.

References m_ssThresh.

TypeId ns3::TcpNewReno::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 39 of file tcp-newreno.cc.

References m_cWnd, m_limitedTx, m_retxThresh, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

Referenced by ns3::TcpL4Protocol::GetTypeId(), and main().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::TcpNewReno::InitializeCwnd ( void  )
private

Set the congestion window when connection starts.

Definition at line 248 of file tcp-newreno.cc.

References m_cWnd, m_initialCWnd, and ns3::TcpSocketBase::m_segmentSize.

Referenced by Connect(), and Listen().

+ Here is the caller graph for this function:

int ns3::TcpNewReno::Listen ( void  )
virtual

Listen for incoming connections.

Returns
0 on success, -1 on error (in which case errno is set).

Reimplemented from ns3::TcpSocketBase.

Definition at line 86 of file tcp-newreno.cc.

References InitializeCwnd(), ns3::TcpSocketBase::Listen(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::TcpNewReno::NewAck ( SequenceNumber32 const &  seq)
protectedvirtual
void ns3::TcpNewReno::SetInitialCwnd ( uint32_t  cwnd)
protectedvirtual

Set the initial Congestion Window.

Parameters
cwndthe initial congestion window (in bytes)

Implements ns3::TcpSocketBase.

Definition at line 235 of file tcp-newreno.cc.

References ns3::CLOSED, m_initialCWnd, ns3::TcpSocketBase::m_state, and NS_ABORT_MSG_UNLESS.

void ns3::TcpNewReno::SetSegSize ( uint32_t  size)
protectedvirtual

Set the segment size.

Parameters
sizethe segment size (in bytes)

Reimplemented from ns3::TcpSocketBase.

Definition at line 216 of file tcp-newreno.cc.

References ns3::CLOSED, ns3::TcpSocketBase::m_segmentSize, ns3::TcpSocketBase::m_state, and NS_ABORT_MSG_UNLESS.

void ns3::TcpNewReno::SetSSThresh ( uint32_t  threshold)
protectedvirtual

Set the Slow Start Threshold.

Parameters
thresholdthe Slow Start Threshold (in bytes)

Implements ns3::TcpSocketBase.

Definition at line 223 of file tcp-newreno.cc.

References m_ssThresh.

uint32_t ns3::TcpNewReno::Window ( void  )
protectedvirtual

Return the max possible number of unacked bytes.

Returns
the max possible number of unacked bytes

Reimplemented from ns3::TcpSocketBase.

Definition at line 104 of file tcp-newreno.cc.

References ns3::TracedValue< T >::Get(), m_cWnd, ns3::TcpSocketBase::m_rWnd, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

Member Data Documentation

TracedValue<uint32_t> ns3::TcpNewReno::m_cWnd
protected

Congestion window.

Definition at line 79 of file tcp-newreno.h.

Referenced by DupAck(), GetTypeId(), InitializeCwnd(), NewAck(), Retransmit(), and Window().

bool ns3::TcpNewReno::m_inFastRec
protected

currently in fast recovery

Definition at line 84 of file tcp-newreno.h.

Referenced by DupAck(), NewAck(), and Retransmit().

uint32_t ns3::TcpNewReno::m_initialCWnd
protected

Initial cWnd value.

Definition at line 81 of file tcp-newreno.h.

Referenced by GetInitialCwnd(), InitializeCwnd(), and SetInitialCwnd().

bool ns3::TcpNewReno::m_limitedTx
protected

perform limited transmit

Definition at line 85 of file tcp-newreno.h.

Referenced by DupAck(), and GetTypeId().

SequenceNumber32 ns3::TcpNewReno::m_recover
protected

Previous highest Tx seqnum for fast recovery.

Definition at line 82 of file tcp-newreno.h.

Referenced by DupAck(), and NewAck().

uint32_t ns3::TcpNewReno::m_retxThresh
protected

Fast Retransmit threshold.

Definition at line 83 of file tcp-newreno.h.

Referenced by DupAck(), and GetTypeId().

uint32_t ns3::TcpNewReno::m_ssThresh
protected

Slow Start Threshold.

Definition at line 80 of file tcp-newreno.h.

Referenced by DupAck(), GetSSThresh(), NewAck(), Retransmit(), and SetSSThresh().


The documentation for this class was generated from the following files:
